Command Line Interface

2. 2
Lecture Objectives
 Explain the operation of the command line
interface
 Execute fundamental commands from the
command line interface
 Manipulate files and folders from the
command line

3. 3

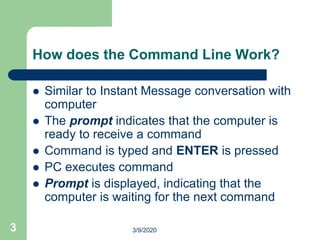

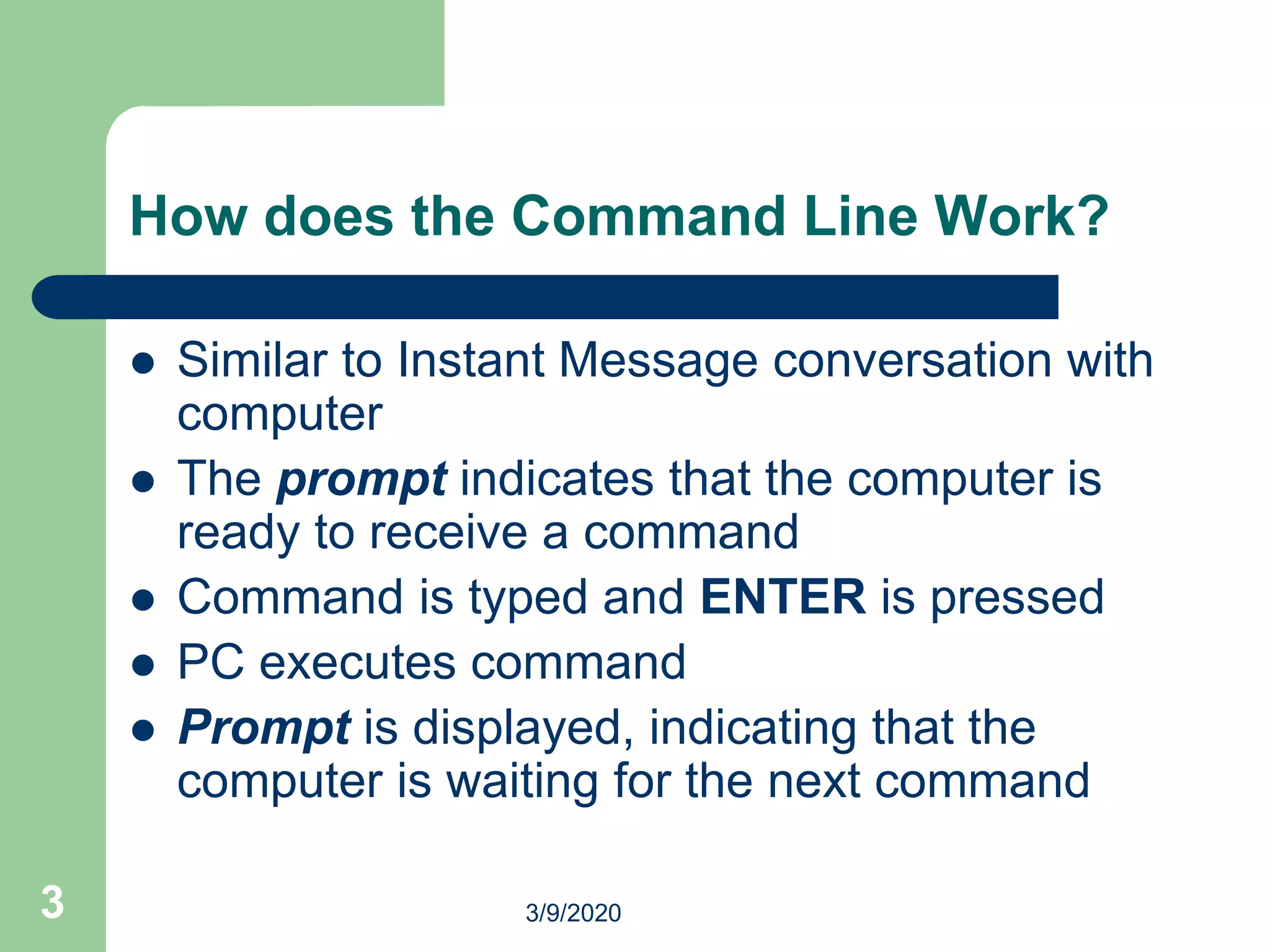

How does the Command Line Work?
 Similar to Instant Message conversation with
computer
 The prompt indicates that the computer is
ready to receive a command
 Command is typed and ENTER is pressed
 PC executes command
 Prompt is displayed, indicating that the
computer is waiting for the next command
3/9/2020

4. 4

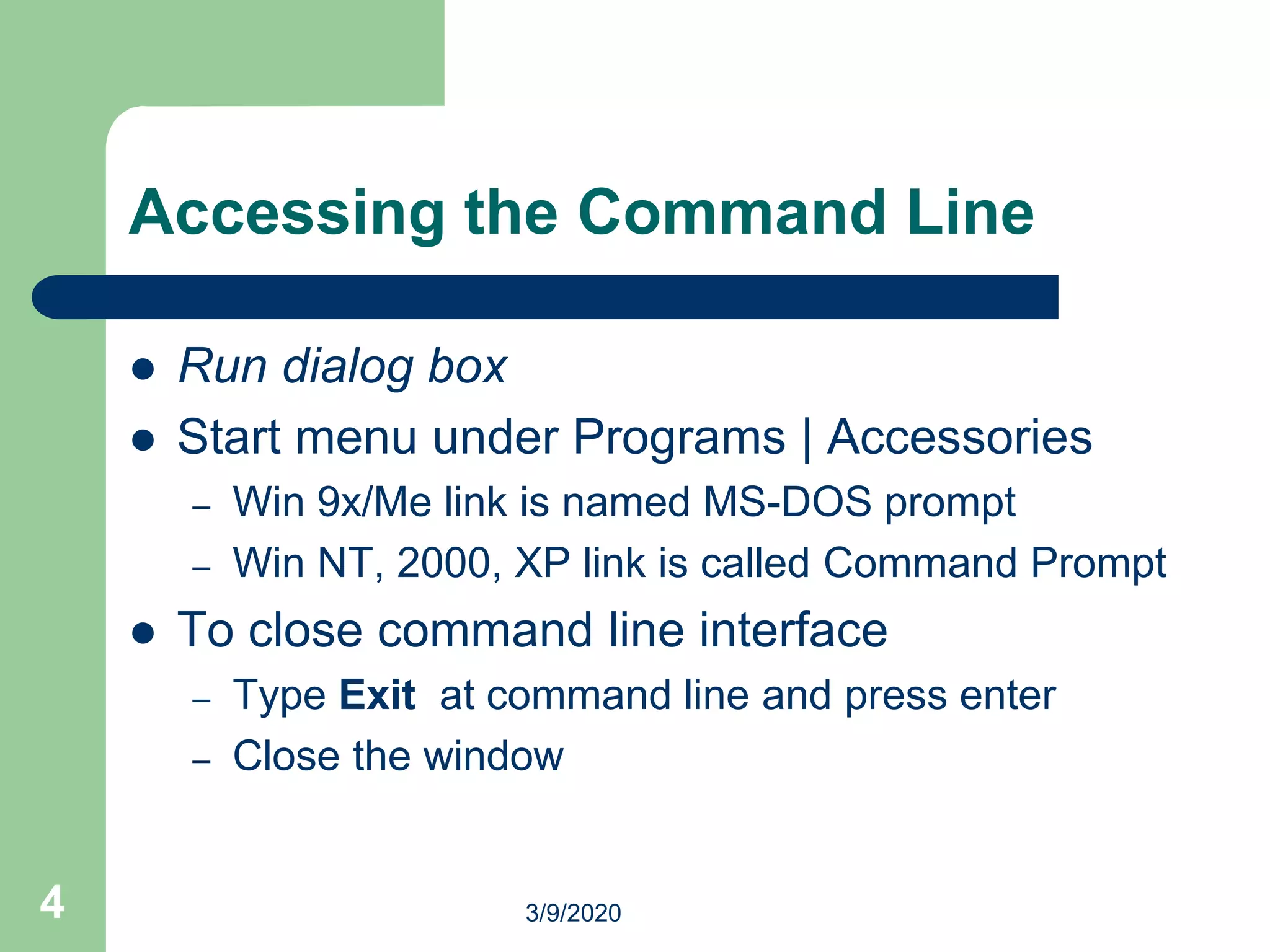

Accessing the Command Line
 Run dialog box
 Start menu under Programs | Accessories
– Win 9x/Me link is named MS-DOS prompt
– Win NT, 2000, XP link is called Command Prompt
 To close command line interface
– Type Exit at command line and press enter
– Close the window
3/9/2020

5. 5
Command Prompt
 VERY IMPORTANT:
The command prompt is always focused on a specific
folder.
Any commands executed are performed on the files in the
folder on which the prompt is focused.
Examples: C:> root directory of C: drive
C:DiplomaAPLUS>
You must focus the prompt on the drive and folder where
you want to work
3/9/2020

6. 6

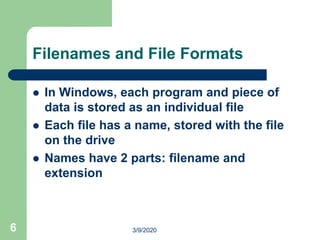

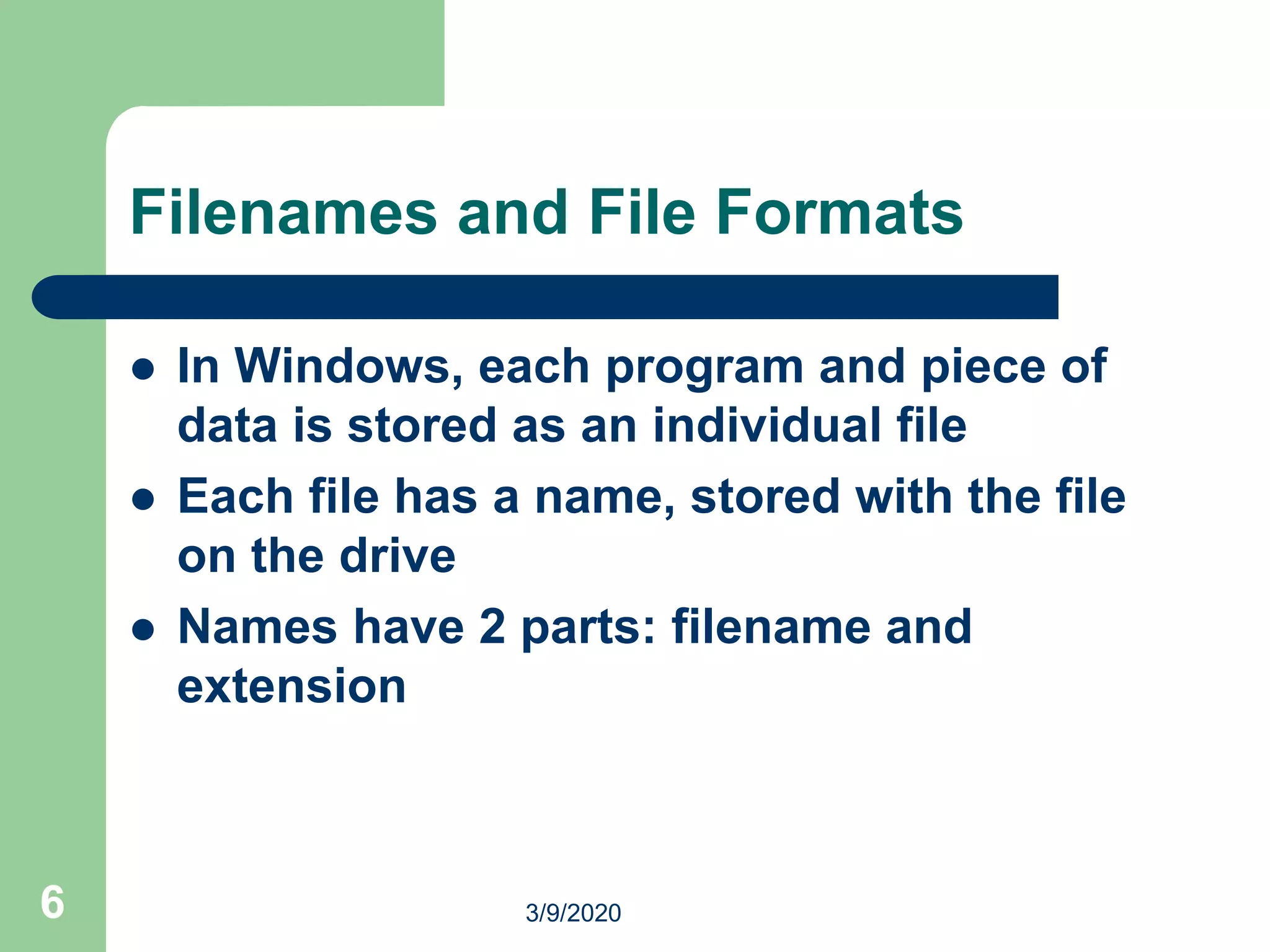

Filenames and File Formats
 In Windows, each program and piece of
data is stored as an individual file
 Each file has a name, stored with the file
on the drive
 Names have 2 parts: filename and
extension
3/9/2020

7. 7

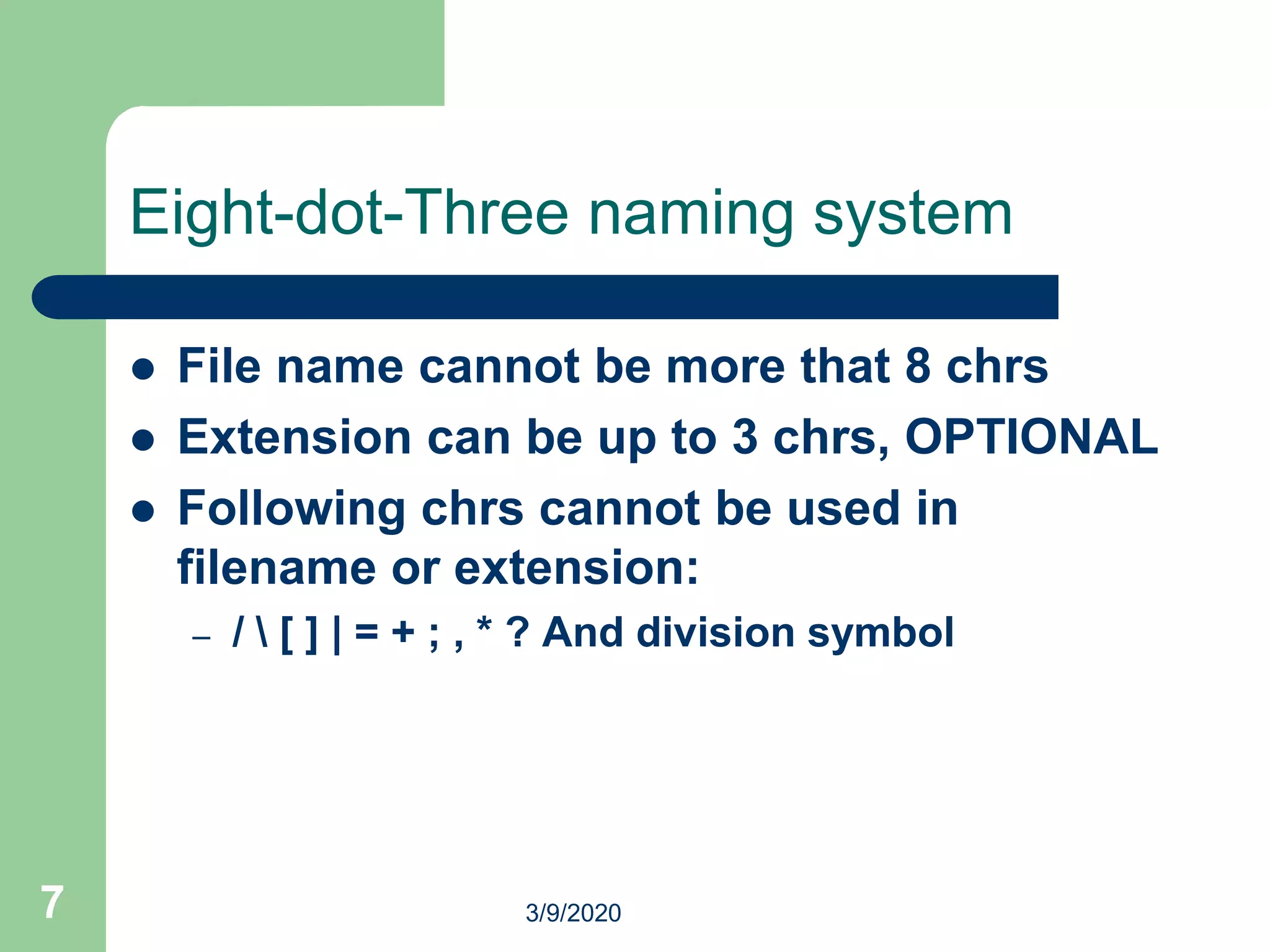

Eight-dot-Three naming system
 File name cannot be more that 8 chrs
 Extension can be up to 3 chrs, OPTIONAL
 Following chrs cannot be used in
filename or extension:
– / [ ] | = + ; , * ? And division symbol
3/9/2020

8. 8

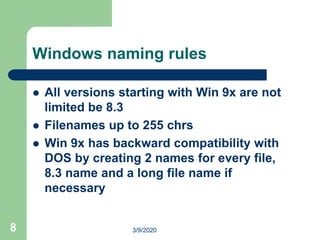

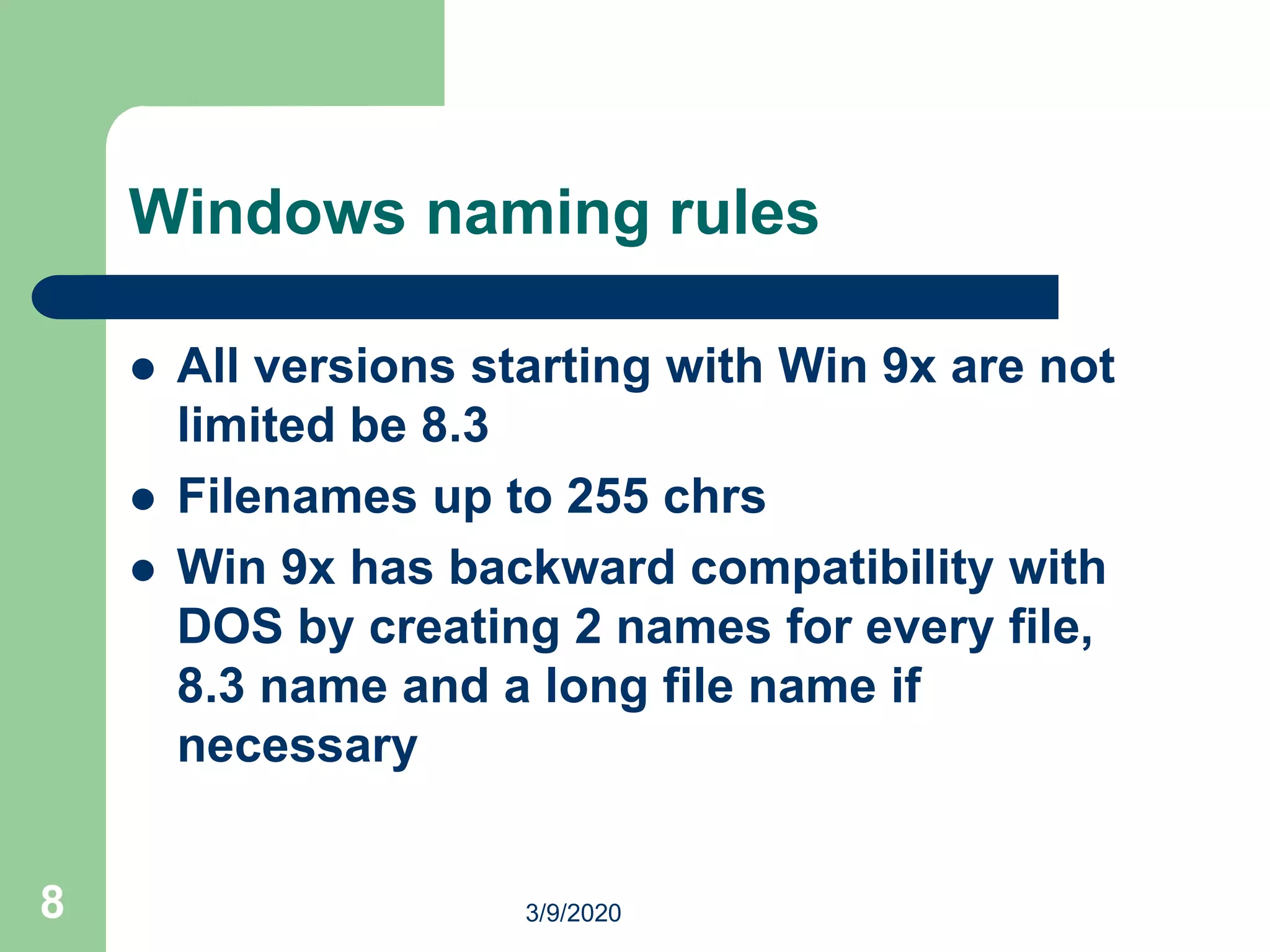

Windows naming rules
 All versions starting with Win 9x are not
limited be 8.3
 Filenames up to 255 chrs
 Win 9x has backward compatibility with
DOS by creating 2 names for every file,
8.3 name and a long file name if
necessary
3/9/2020

9. 9
File extensions
 Describes the type or function of the file
 COM = command, EXE = executable
 Anything that is not a program is a data file used
by a program
 Extension of a data file indicates which program
uses that data file
 .DOC = MSWord, .PPT = PowerPoint
 Graphic file extensions represent the graphic
standard used to create the image
 .JPEG =Joint Photographic Experts Group
3/9/2020

10. 10

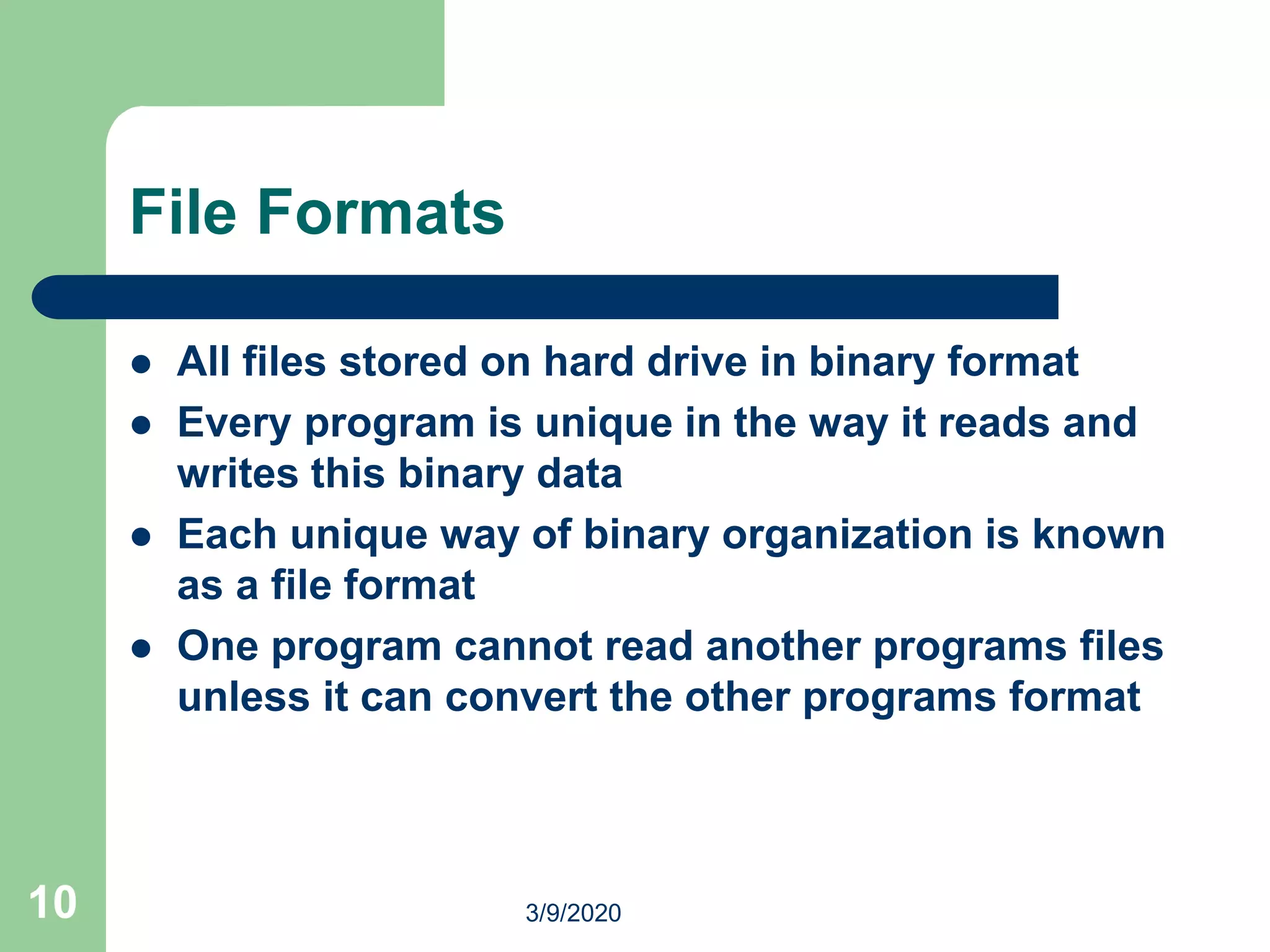

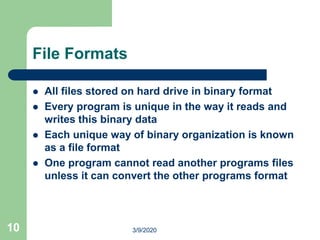

File Formats
 All files stored on hard drive in binary format
 Every program is unique in the way it reads and
writes this binary data
 Each unique way of binary organization is known
as a file format
 One program cannot read another programs files
unless it can convert the other programs format
3/9/2020

11. 11

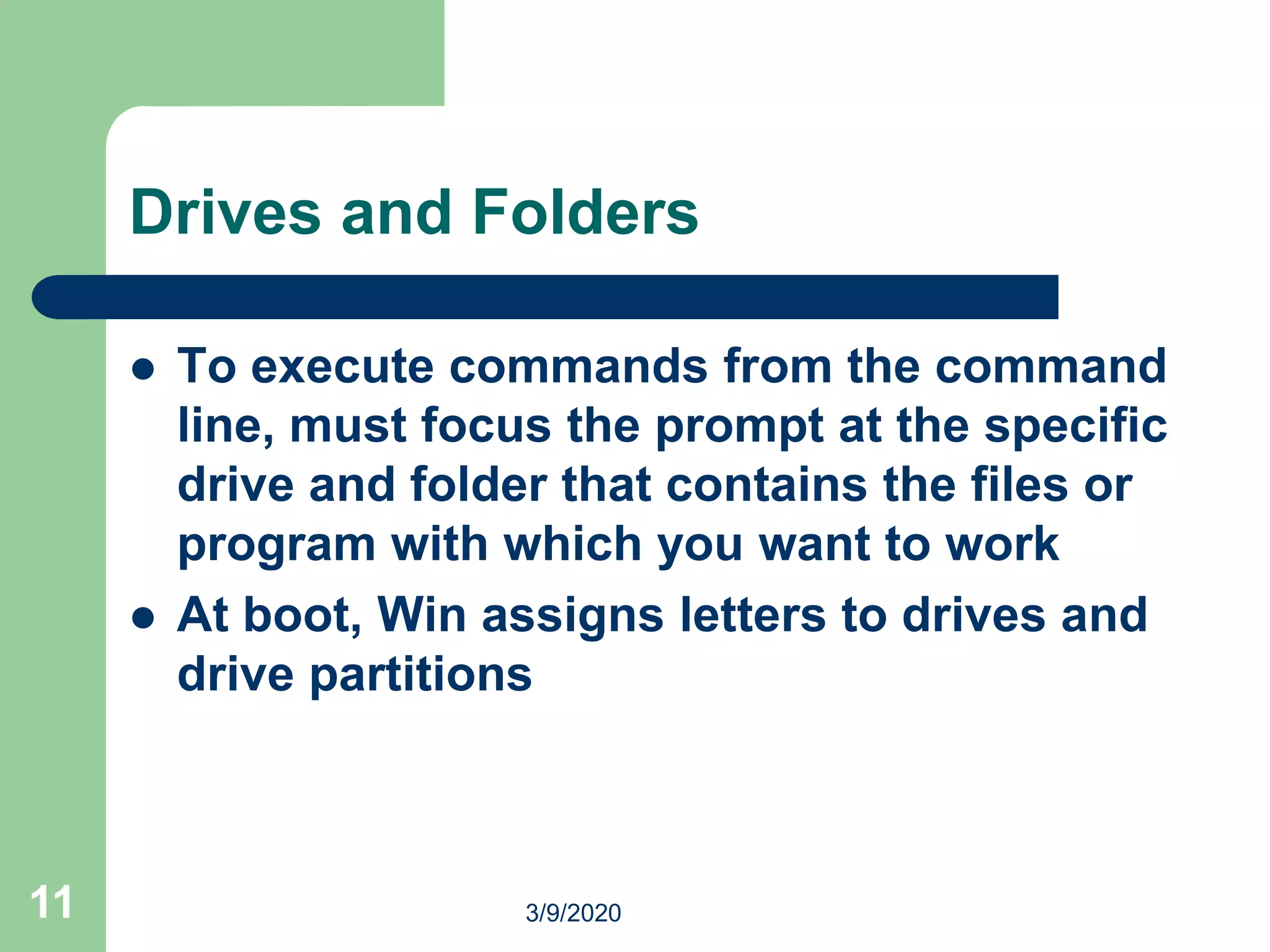

Drives and Folders
 To execute commands from the command
line, must focus the prompt at the specific
drive and folder that contains the files or
program with which you want to work
 At boot, Win assigns letters to drives and
drive partitions
3/9/2020

12. 12

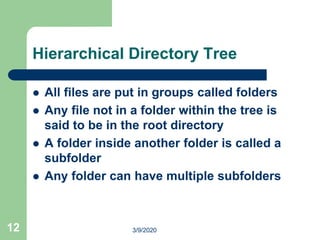

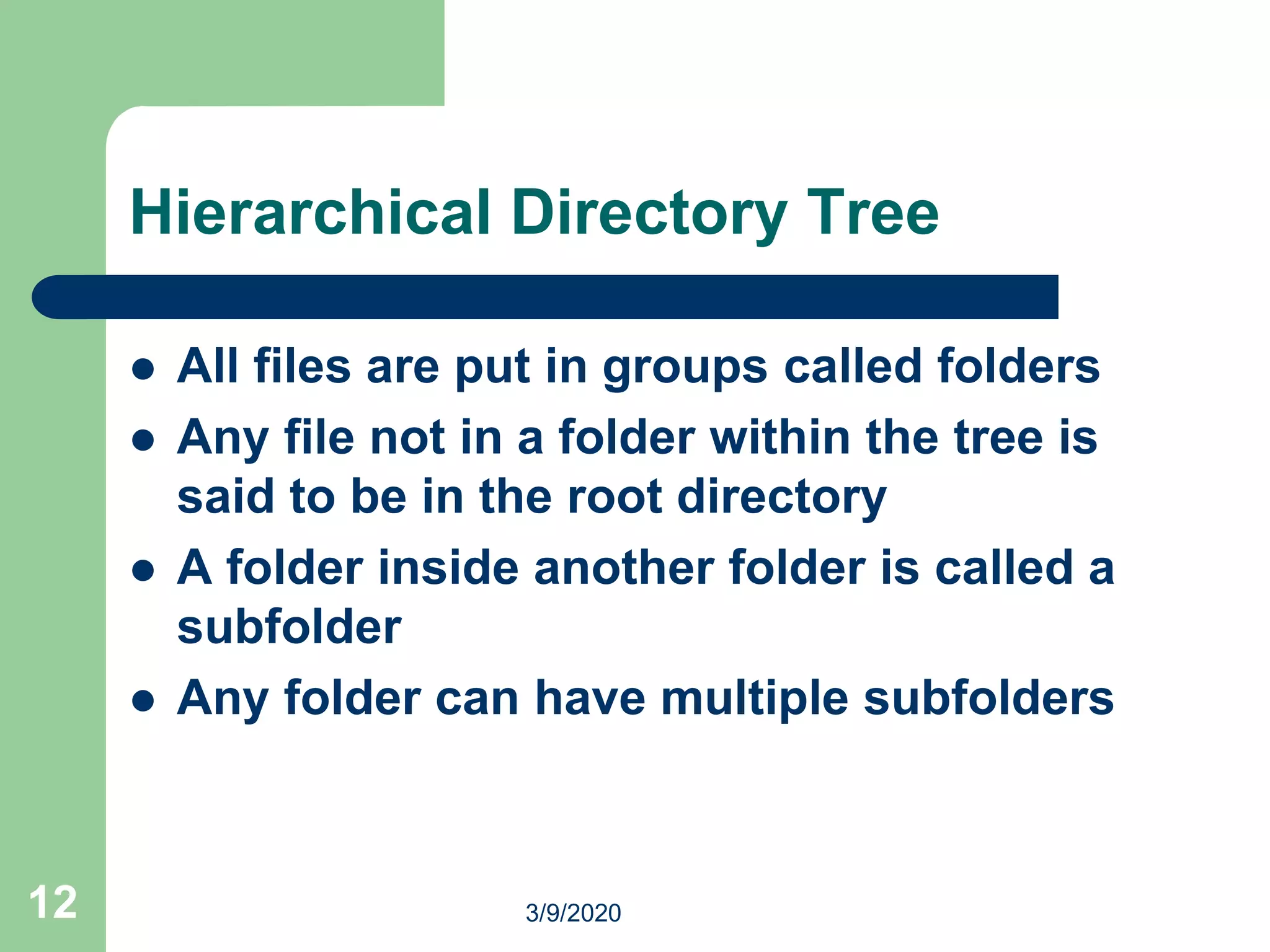

Hierarchical Directory Tree
 All files are put in groups called folders
 Any file not in a folder within the tree is
said to be in the root directory
 A folder inside another folder is called a
subfolder
 Any folder can have multiple subfolders
3/9/2020

13. 13

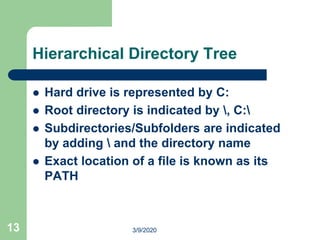

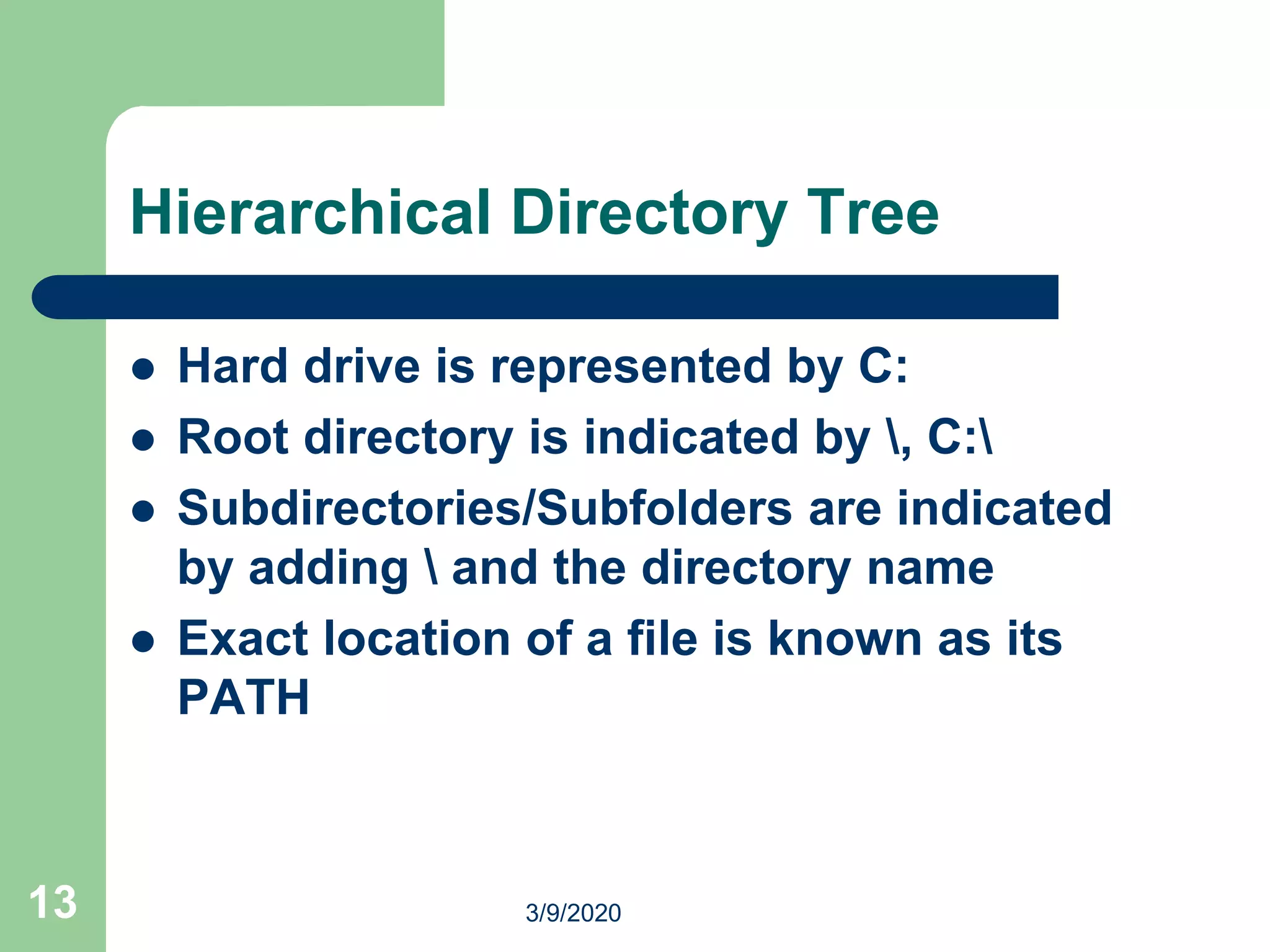

Hierarchical Directory Tree
 Hard drive is represented by C:
 Root directory is indicated by , C:
 Subdirectories/Subfolders are indicated
by adding and the directory name
 Exact location of a file is known as its
PATH
3/9/2020

14. 14

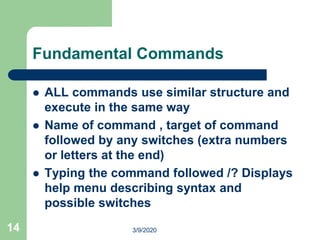

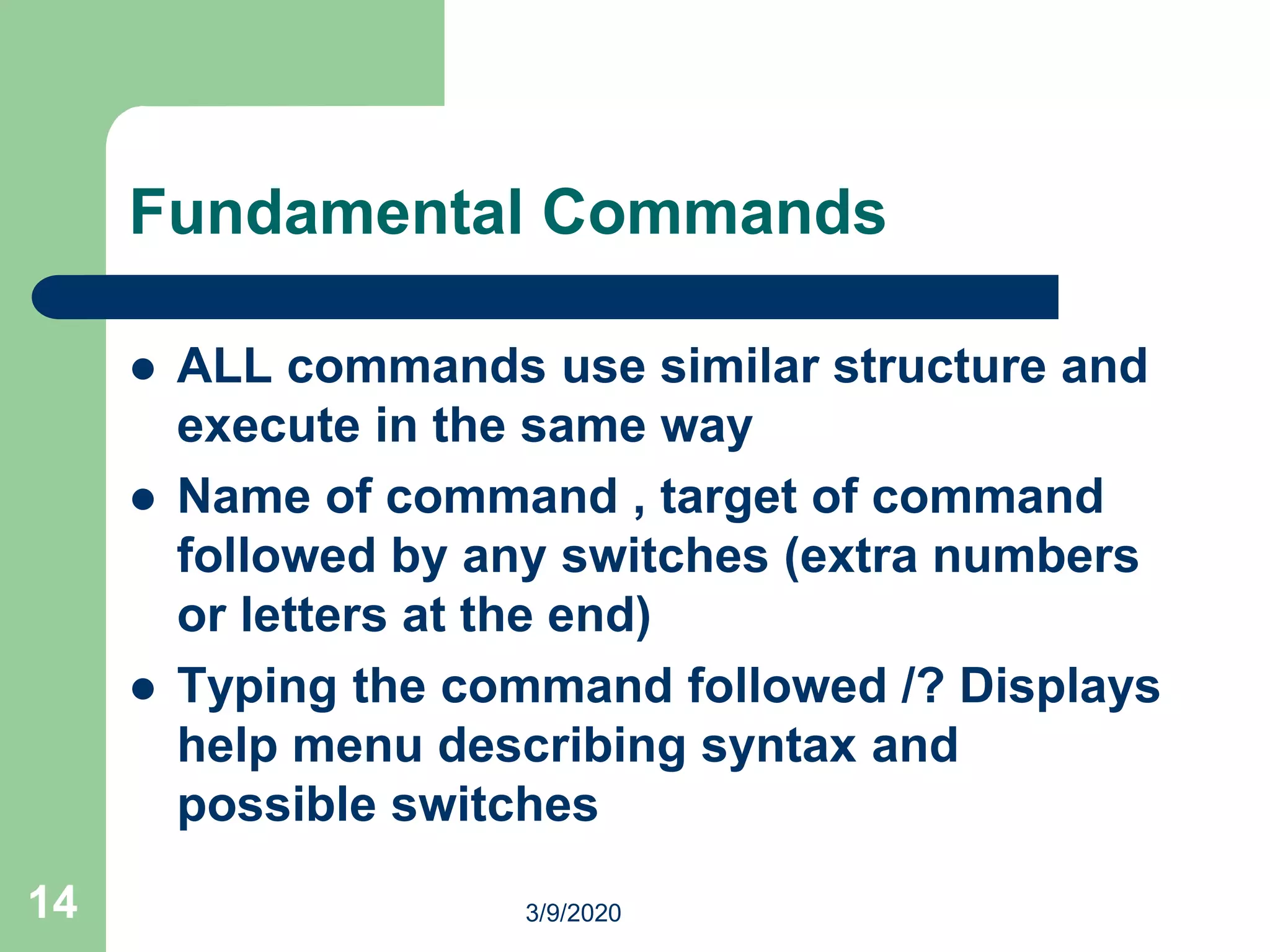

Fundamental Commands
 ALL commands use similar structure and
execute in the same way
 Name of command , target of command
followed by any switches (extra numbers
or letters at the end)
 Typing the command followed /? Displays
help menu describing syntax and
possible switches
3/9/2020

15. 15

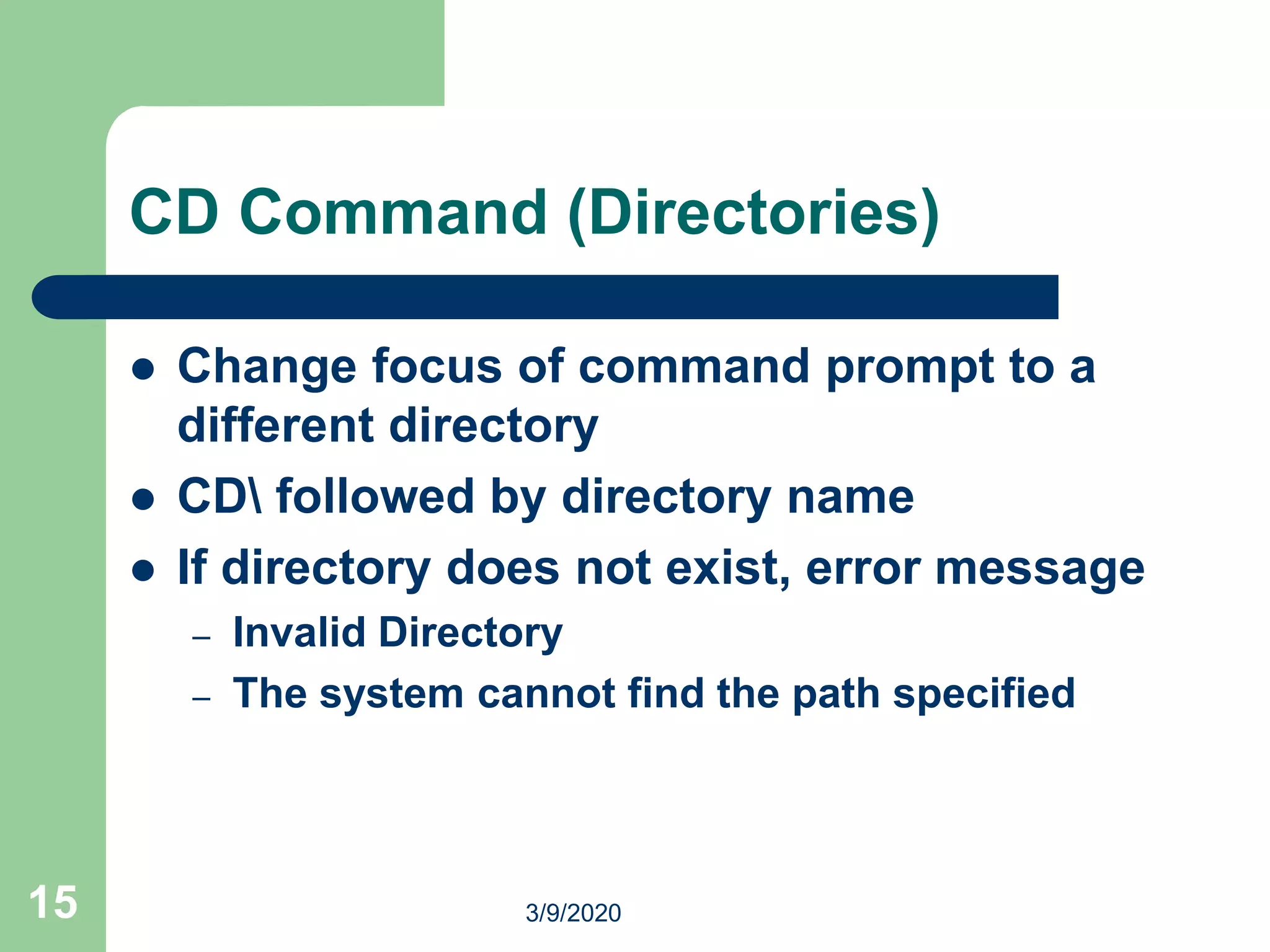

CD Command (Directories)
 Change focus of command prompt to a
different directory
 CD followed by directory name
 If directory does not exist, error message
– Invalid Directory
– The system cannot find the path specified
3/9/2020

16. 16

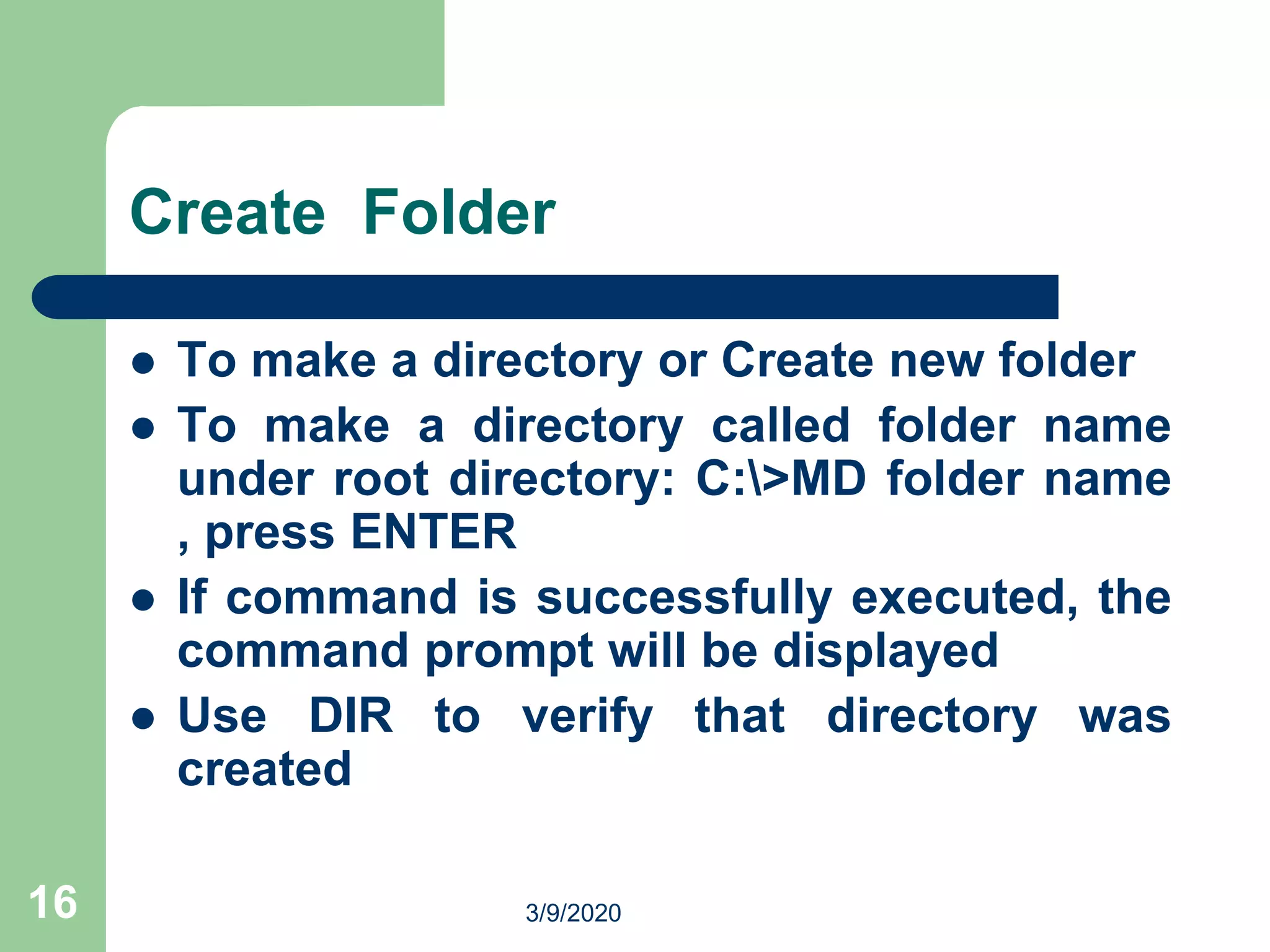

Create Folder
 To make a directory or Create new folder
 To make a directory called folder name
under root directory: C:>MD folder name
, press ENTER
 If command is successfully executed, the
command prompt will be displayed
 Use DIR to verify that directory was
created
3/9/2020

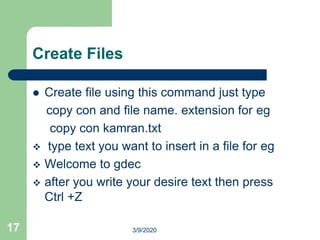

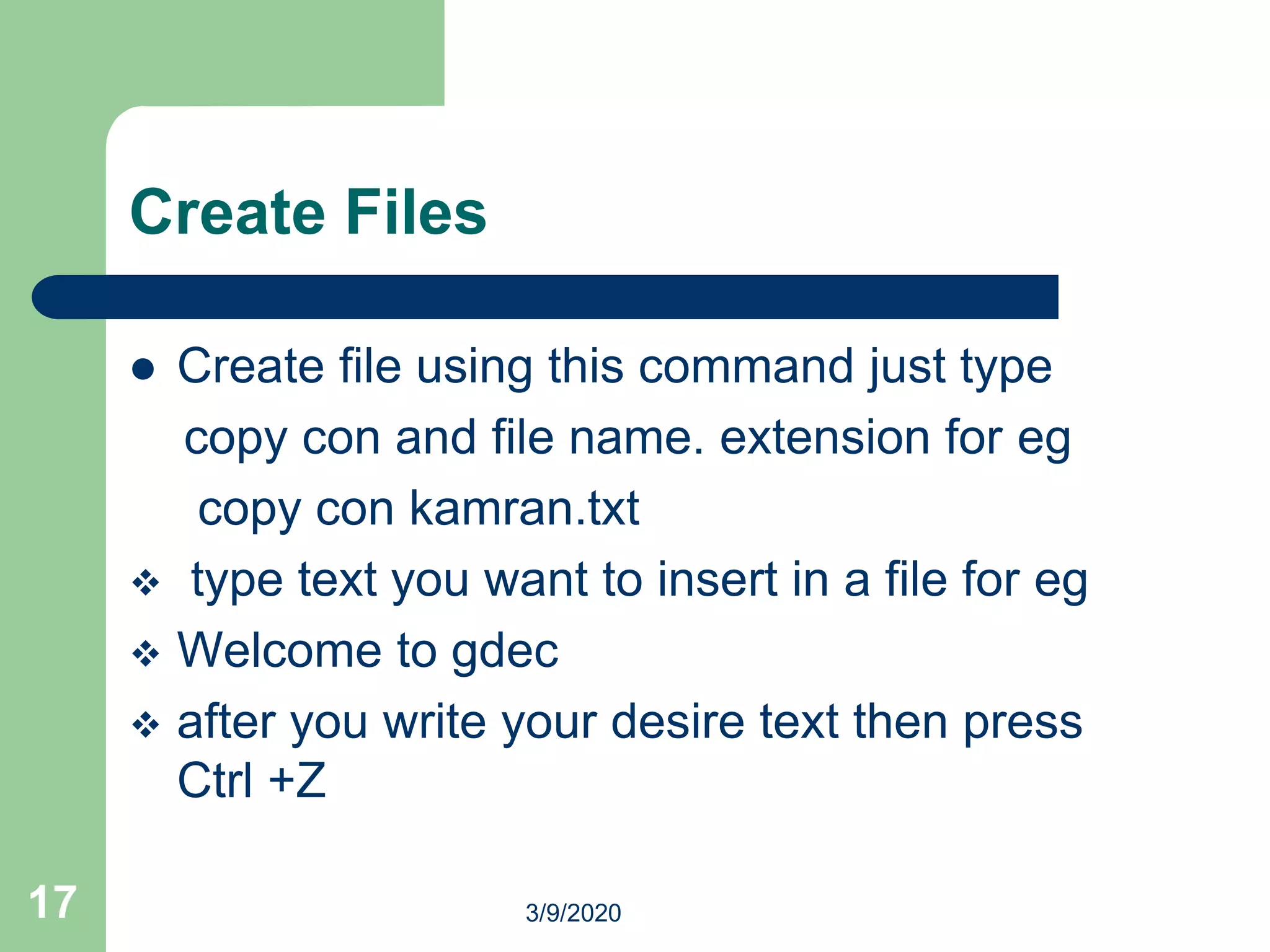

17. Create Files
 Create file using this command just type
copy con and file name. extension for eg
copy con kamran.txt
 type text you want to insert in a file for eg
 Welcome to gdec
 after you write your desire text then press
Ctrl +Z
17 3/9/2020

18. 18

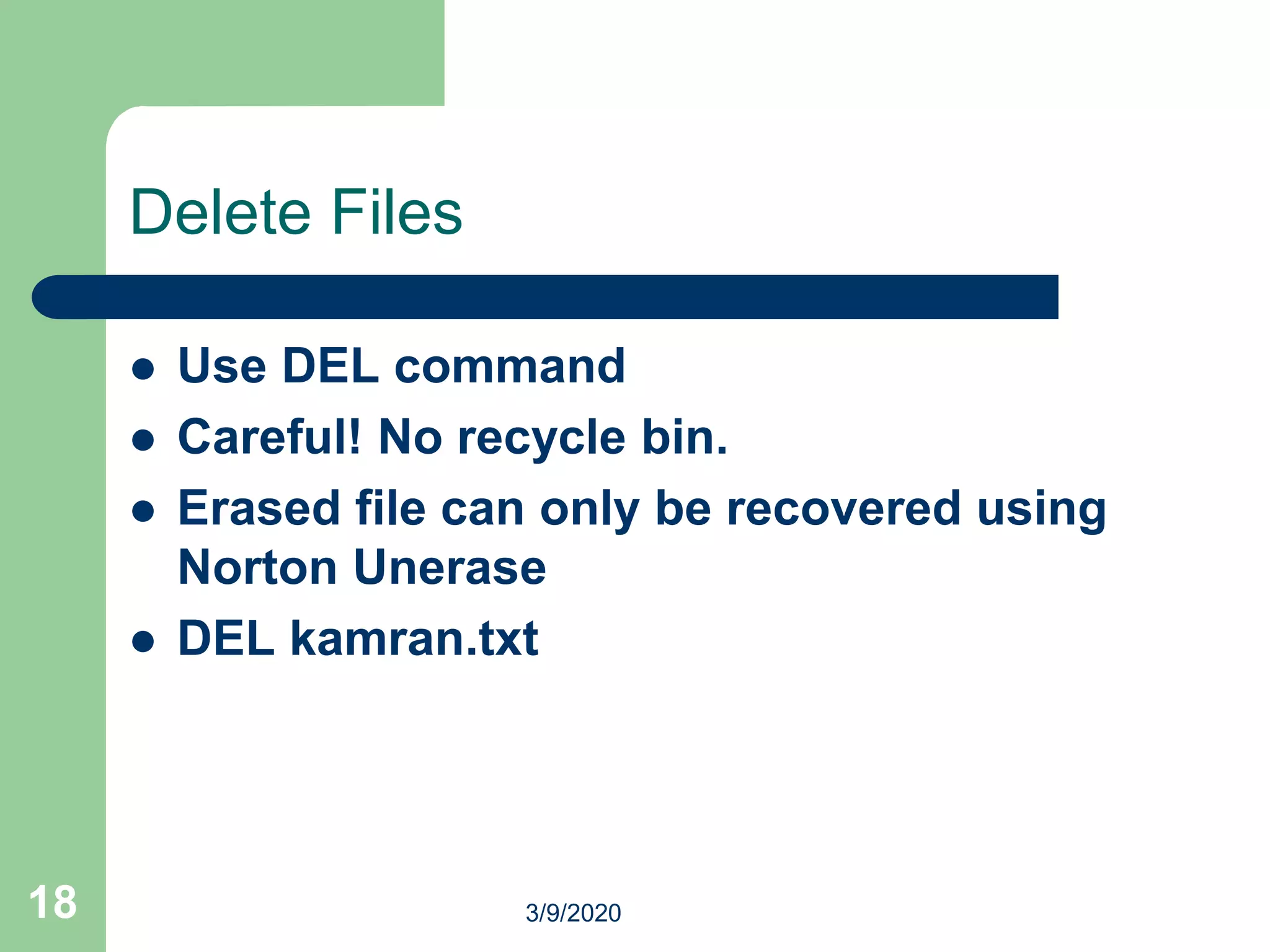

Delete Files
 Use DEL command
 Careful! No recycle bin.
 Erased file can only be recovered using
Norton Unerase
 DEL kamran.txt
3/9/2020

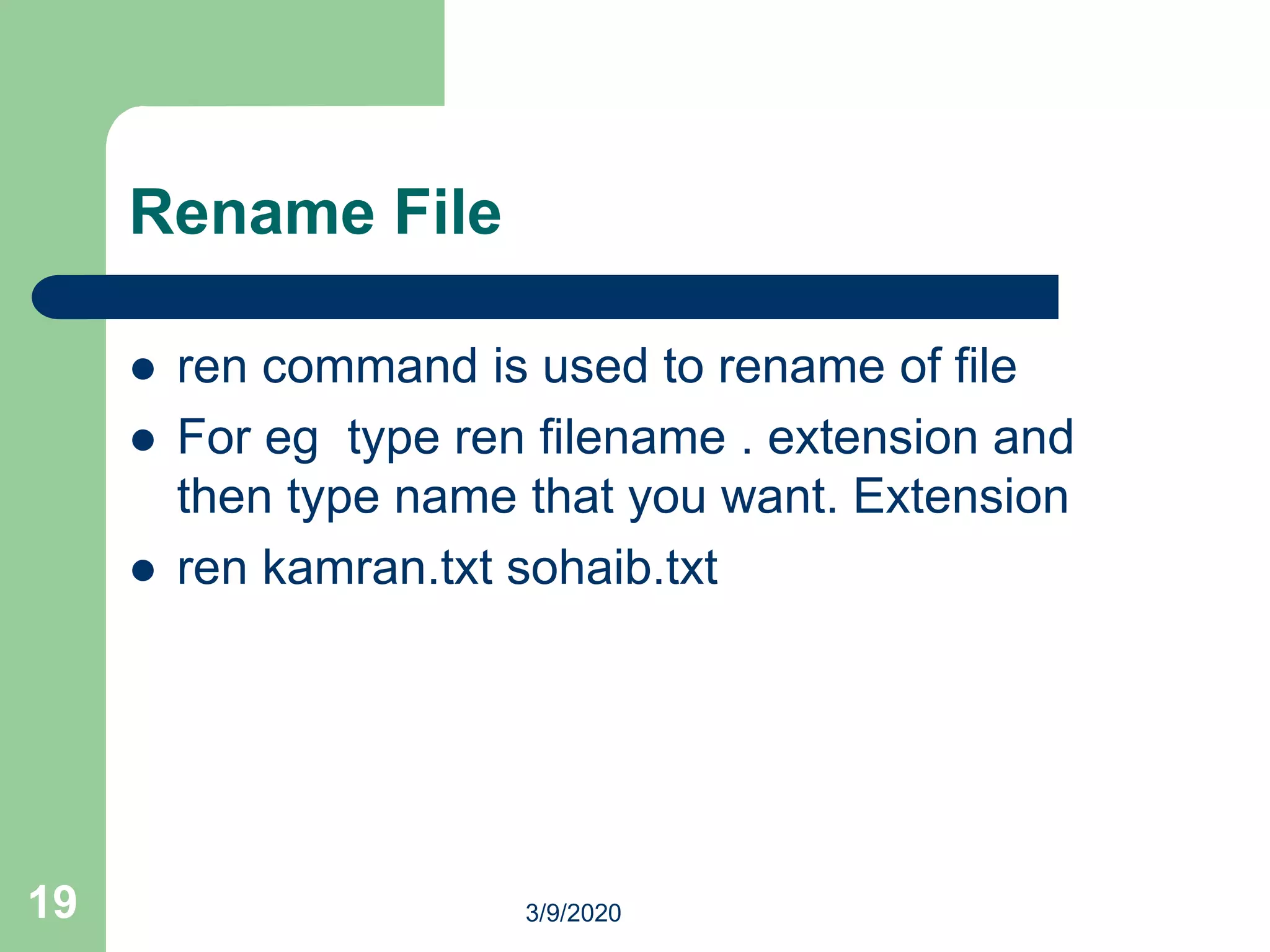

19. Rename File
 ren command is used to rename of file
 For eg type ren filename . extension and
then type name that you want. Extension
 ren kamran.txt sohaib.txt
19 3/9/2020

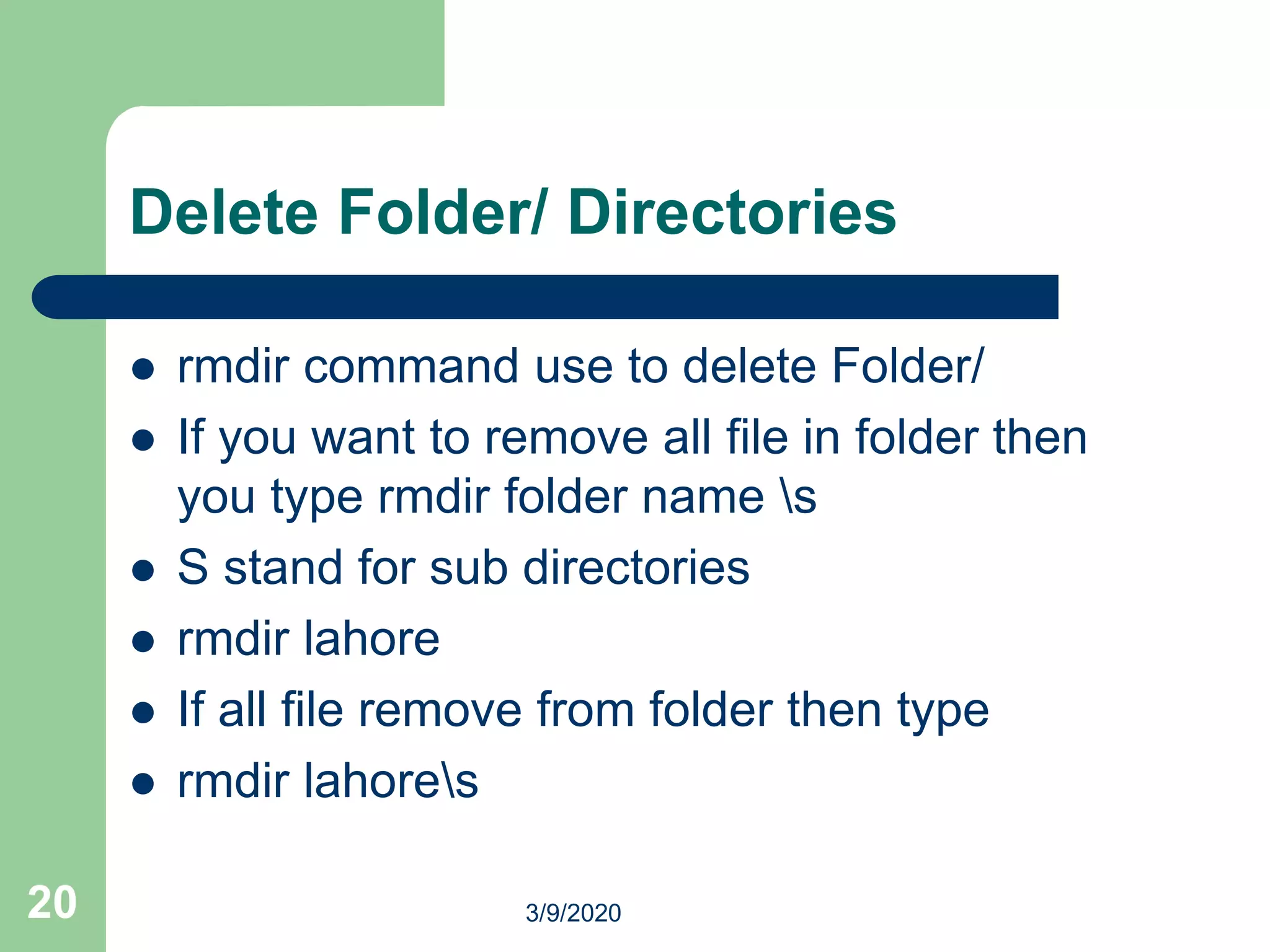

20. Delete Folder/ Directories
 rmdir command use to delete Folder/
 If you want to remove all file in folder then
you type rmdir folder name s
 S stand for sub directories
 rmdir lahore
 If all file remove from folder then type
 rmdir lahores
20 3/9/2020

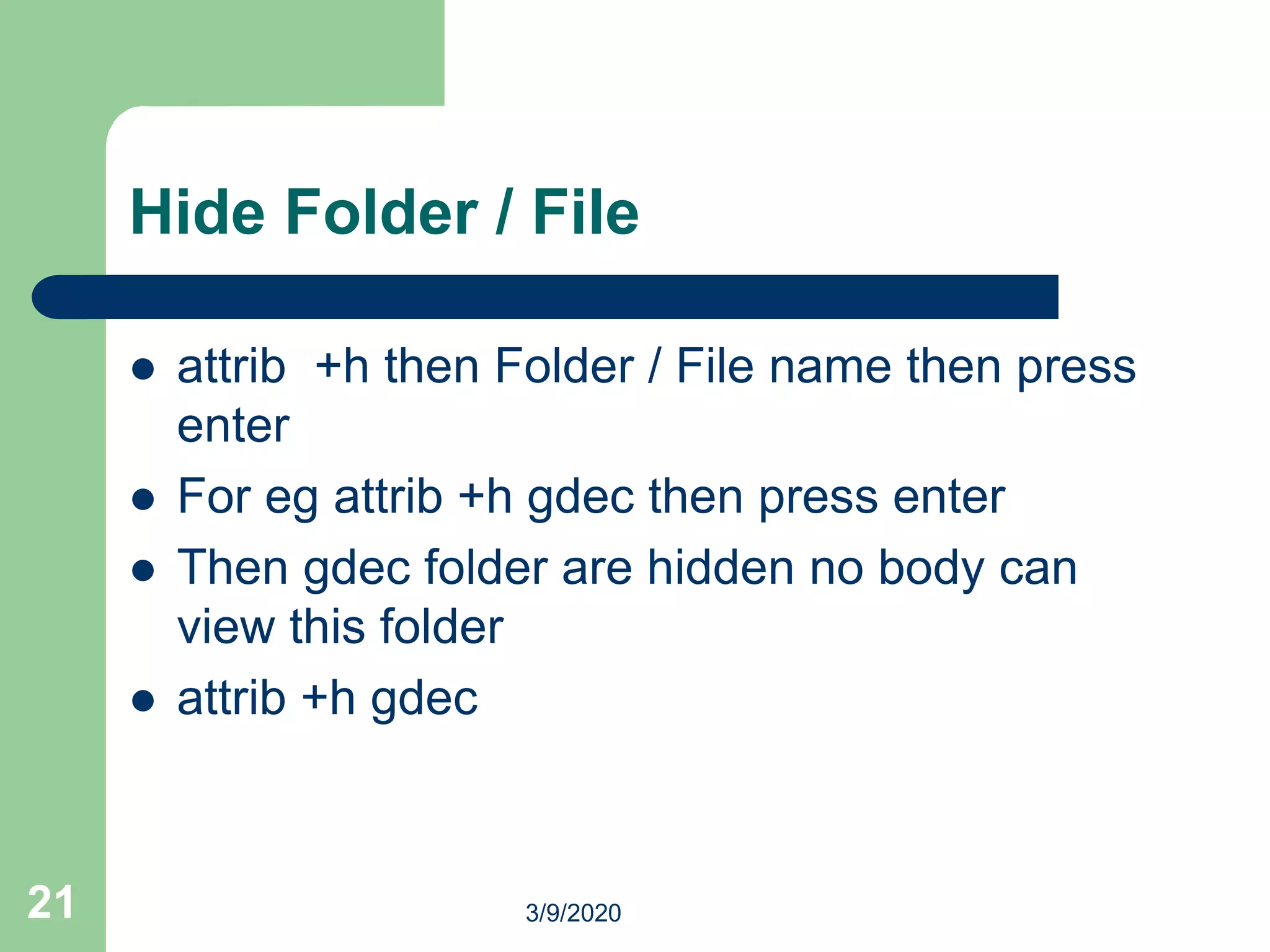

21. Hide Folder / File
 attrib +h then Folder / File name then press
enter
 For eg attrib +h gdec then press enter
 Then gdec folder are hidden no body can
view this folder
 attrib +h gdec
21 3/9/2020

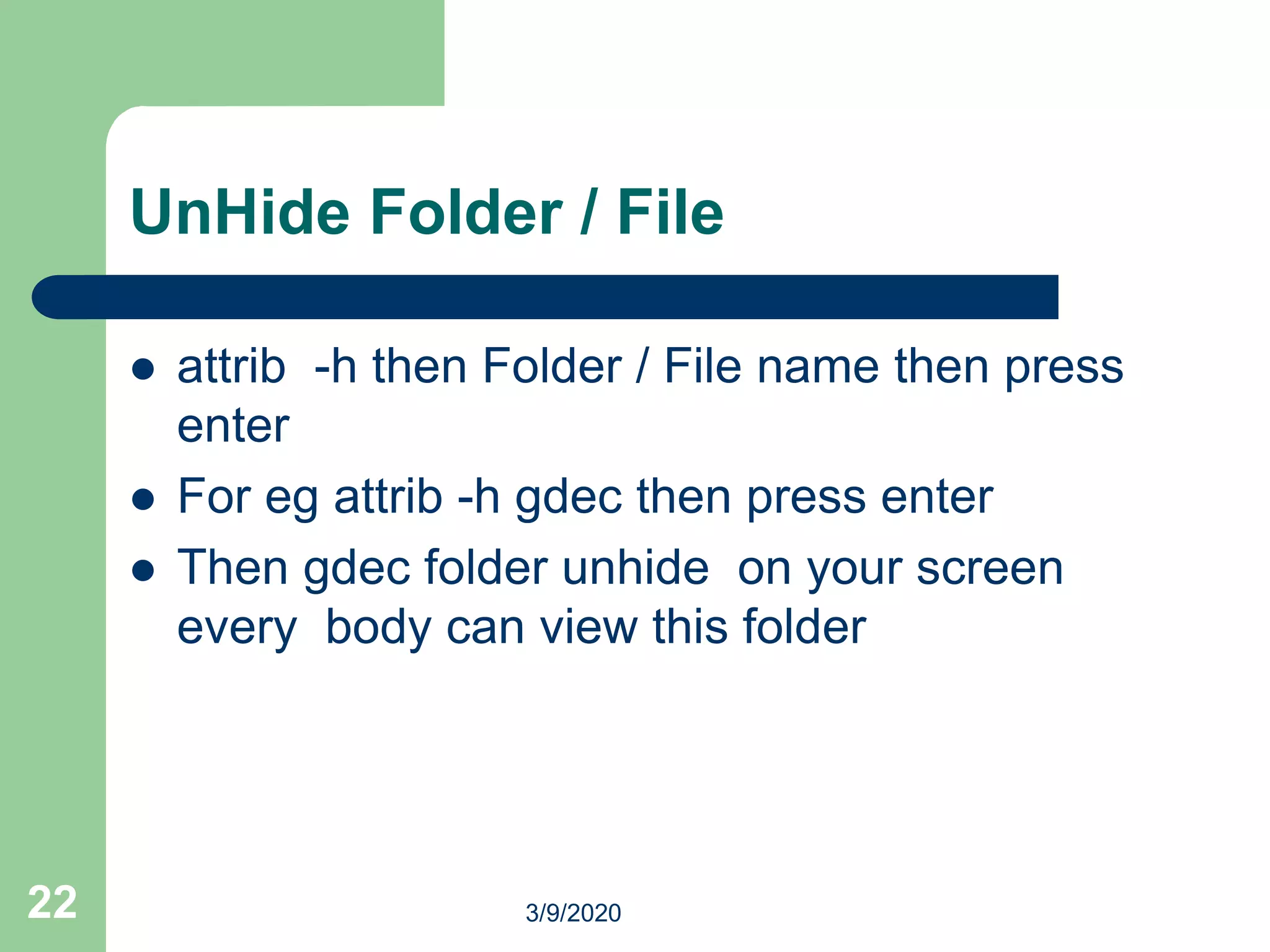

22. UnHide Folder / File
 attrib -h then Folder / File name then press
enter
 For eg attrib -h gdec then press enter
 Then gdec folder unhide on your screen
every body can view this folder
22 3/9/2020

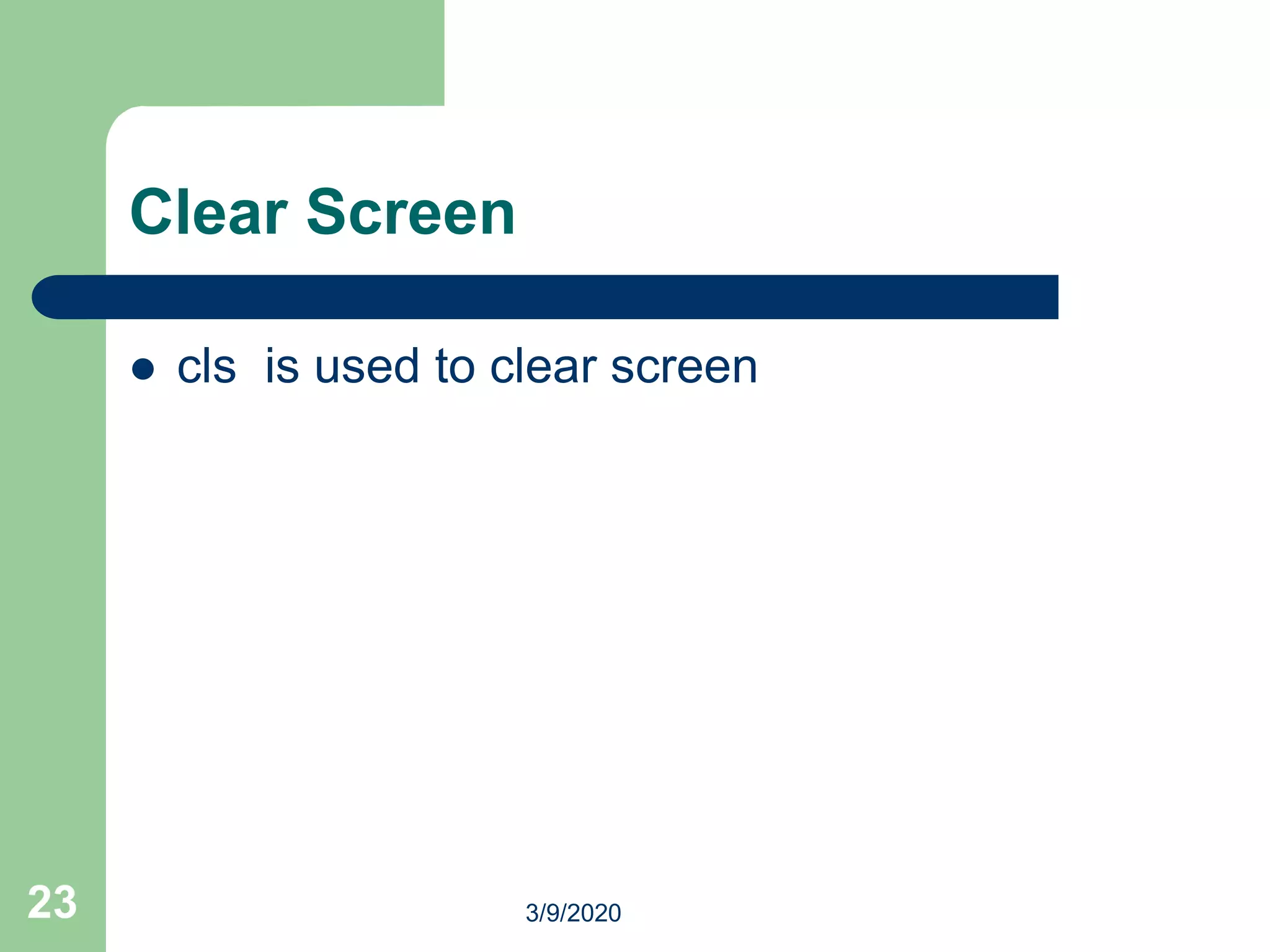

23. Clear Screen
 cls is used to clear screen
23 3/9/2020

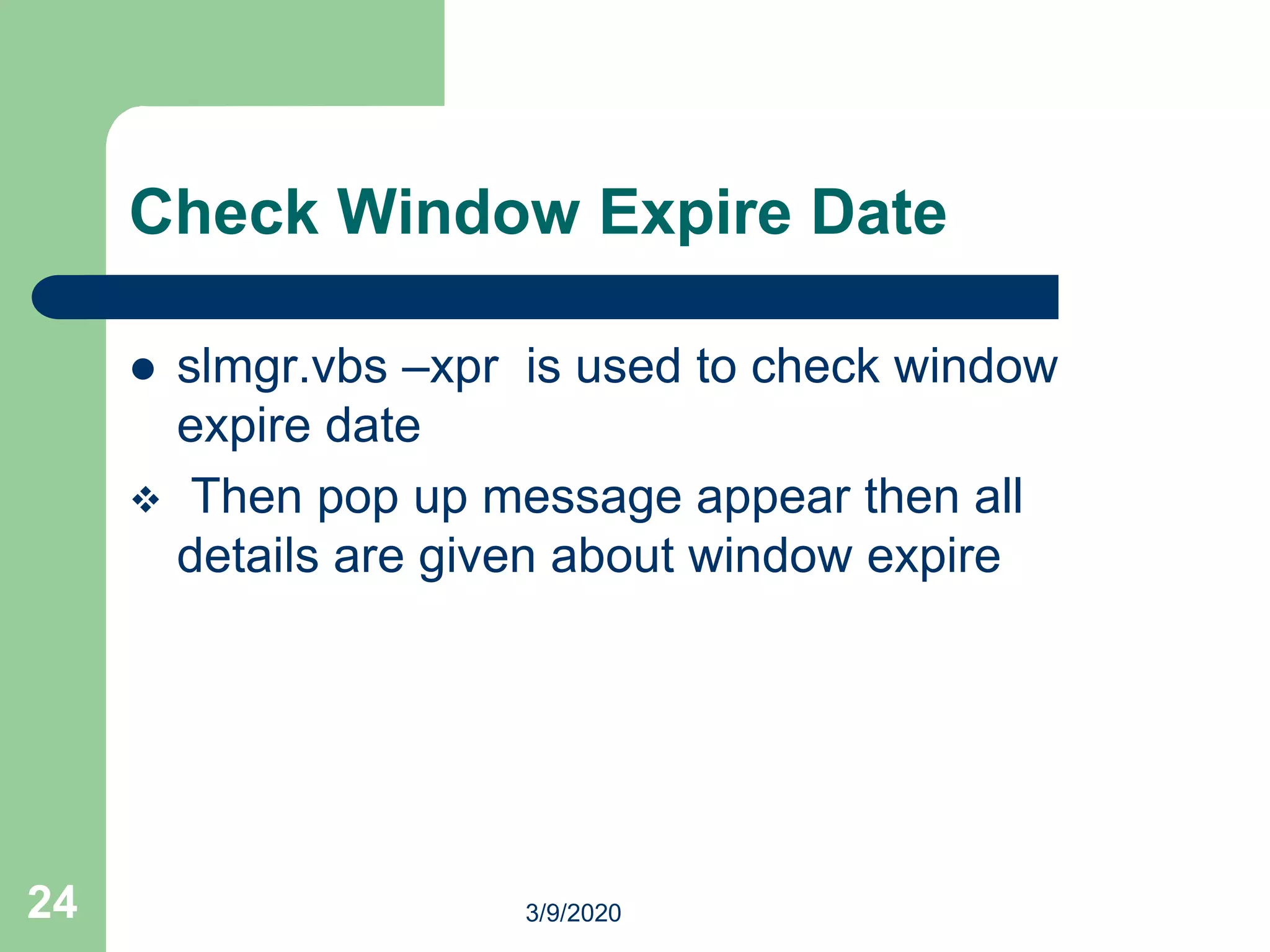

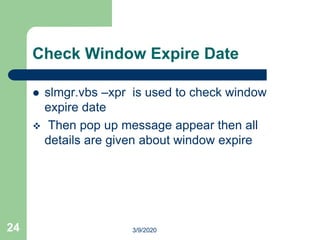

24. Check Window Expire Date
 slmgr.vbs –xpr is used to check window
expire date
 Then pop up message appear then all
details are given about window expire
24 3/9/2020

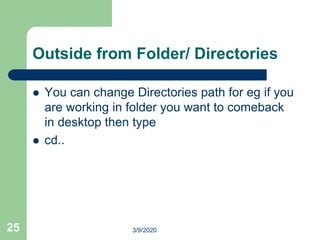

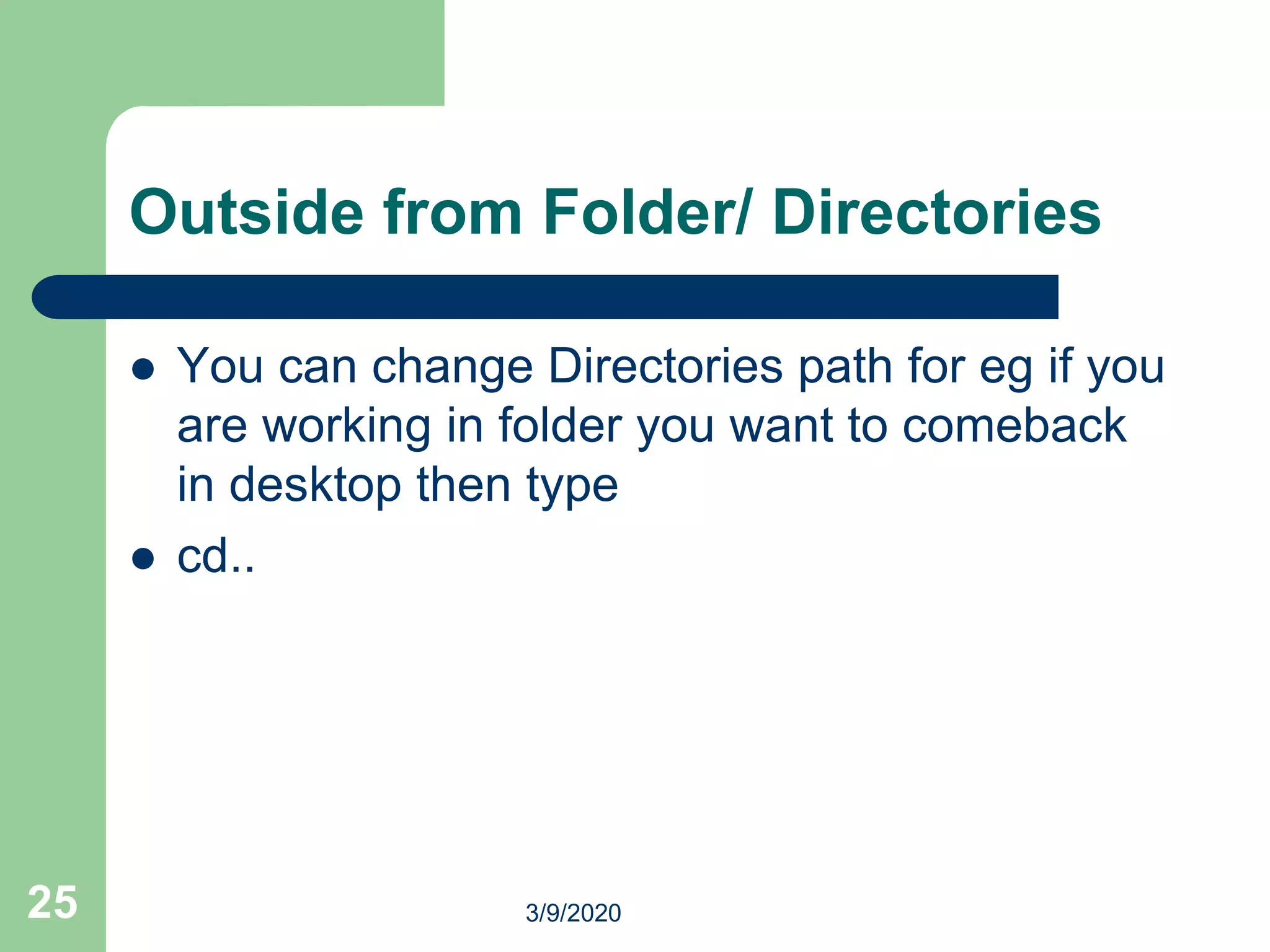

25. Outside from Folder/ Directories
 You can change Directories path for eg if you
are working in folder you want to comeback
in desktop then type
 cd..
25 3/9/2020

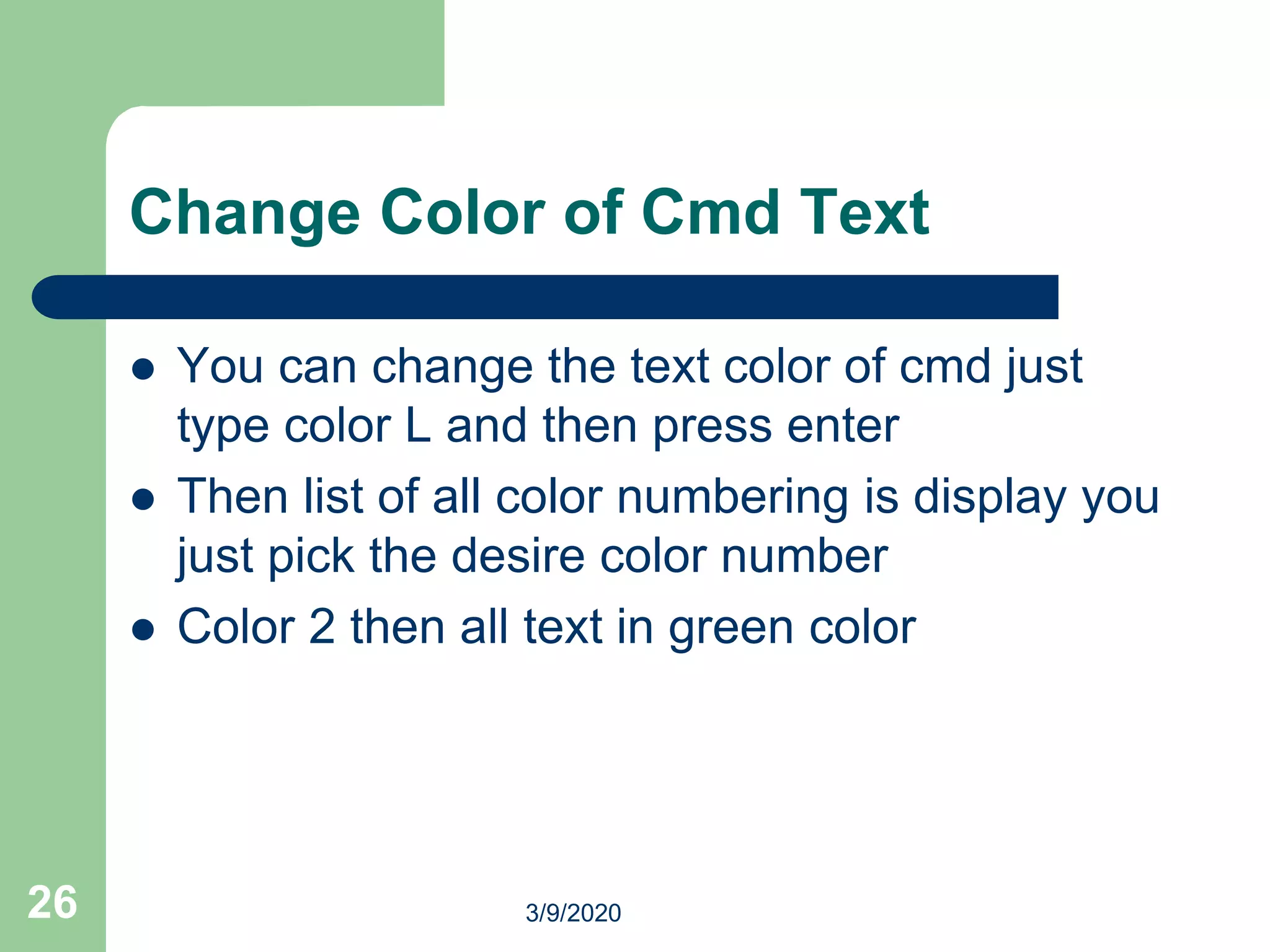

26. Change Color of Cmd Text
 You can change the text color of cmd just
type color L and then press enter
 Then list of all color numbering is display you
just pick the desire color number
 Color 2 then all text in green color
26 3/9/2020
