This document discusses various classification algorithms including k-nearest neighbors, decision trees, naive Bayes classifier, and logistic regression. It provides examples of how each algorithm works. For k-nearest neighbors, it shows how an unknown data point would be classified based on its nearest neighbors. For decision trees, it illustrates how a tree is built by splitting the data into subsets at each node until pure subsets are reached. It also provides an example decision tree to predict whether Amit will play cricket. For naive Bayes, it gives an example of calculating the probability of cancer given a patient is a smoker.

1. OMega TechEd
9
Part-I

2. BUSINESS INTELLIGENCE
CLASSIFICATION ALGORITHMS
Mrs. Megha Sharma
M.Sc. Computer Science. B.Ed.

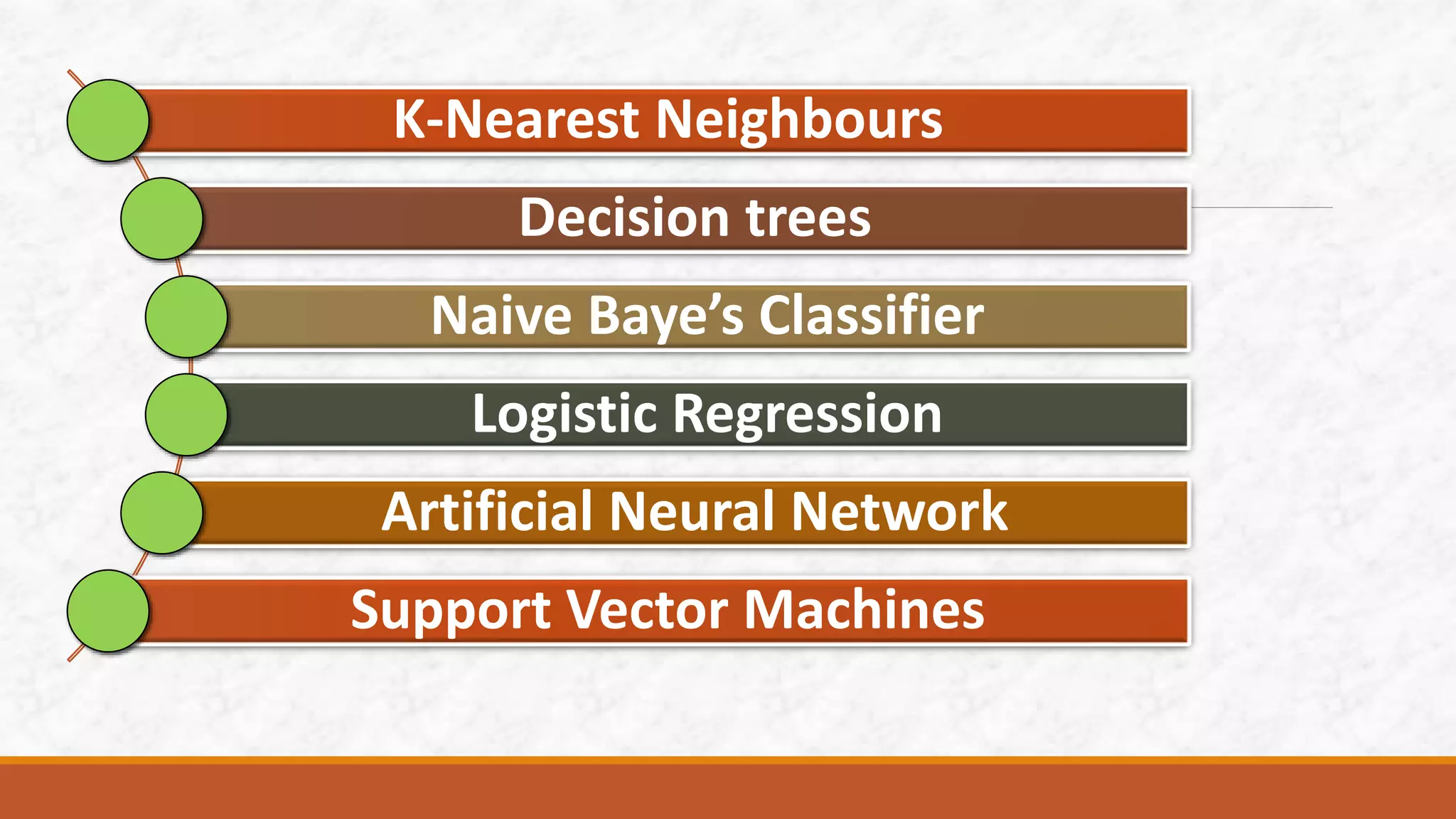

3. K-Nearest Neighbours
Decision trees
Naive Baye’s Classifier
Logistic Regression
Artificial Neural Network
Support Vector Machines

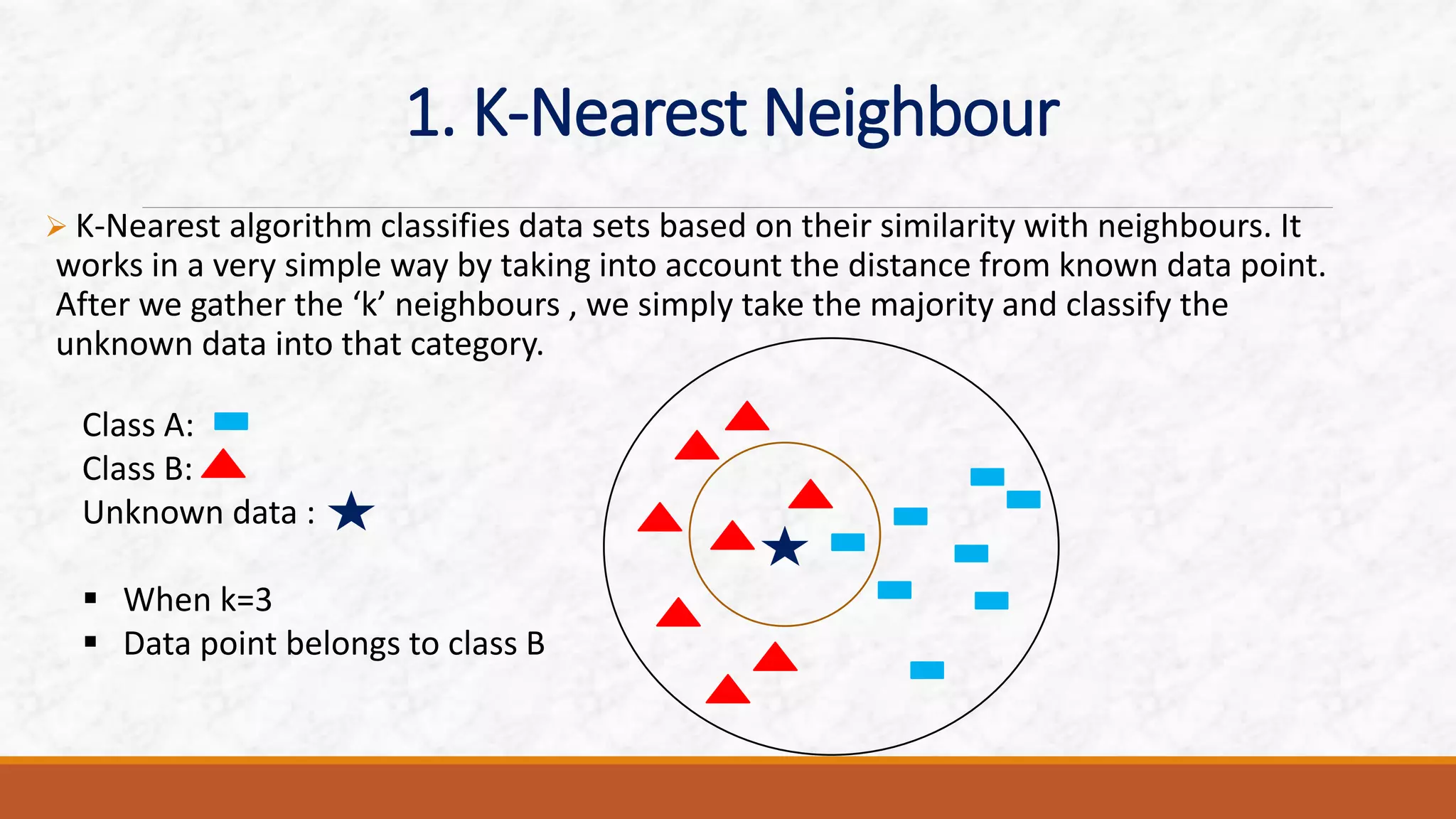

4. 1. K-Nearest Neighbour
 K-Nearest algorithm classifies data sets based on their similarity with neighbours. It
works in a very simple way by taking into account the distance from known data point.
After we gather the ‘k’ neighbours , we simply take the majority and classify the
unknown data into that category.
Class A:
Class B:
Unknown data :
 When k=3
 Data point belongs to class B

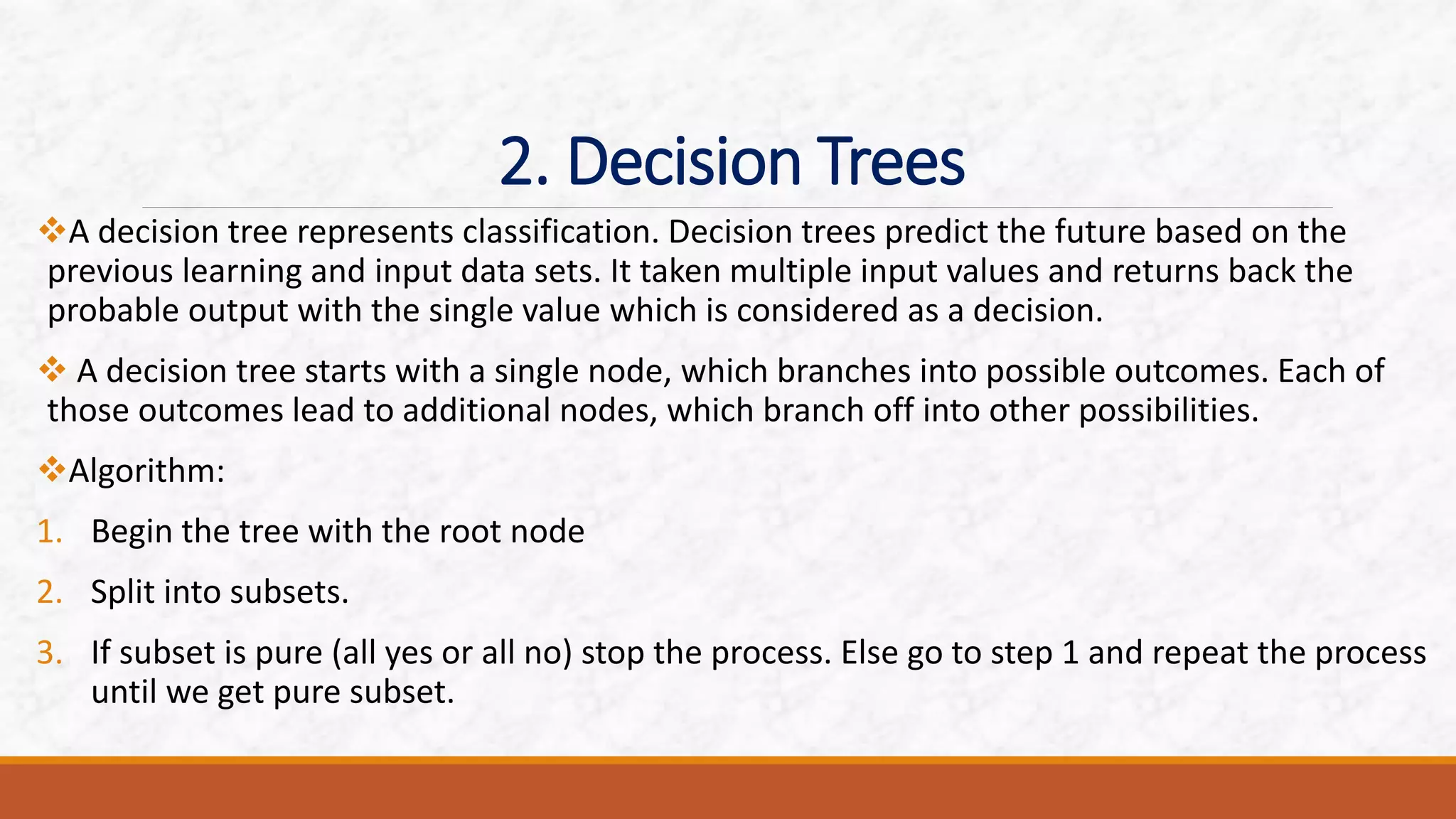

5. 2. Decision Trees
A decision tree represents classification. Decision trees predict the future based on the
previous learning and input data sets. It taken multiple input values and returns back the
probable output with the single value which is considered as a decision.
 A decision tree starts with a single node, which branches into possible outcomes. Each of
those outcomes lead to additional nodes, which branch off into other possibilities.
Algorithm:
1. Begin the tree with the root node
2. Split into subsets.
3. If subset is pure (all yes or all no) stop the process. Else go to step 1 and repeat the process
until we get pure subset.

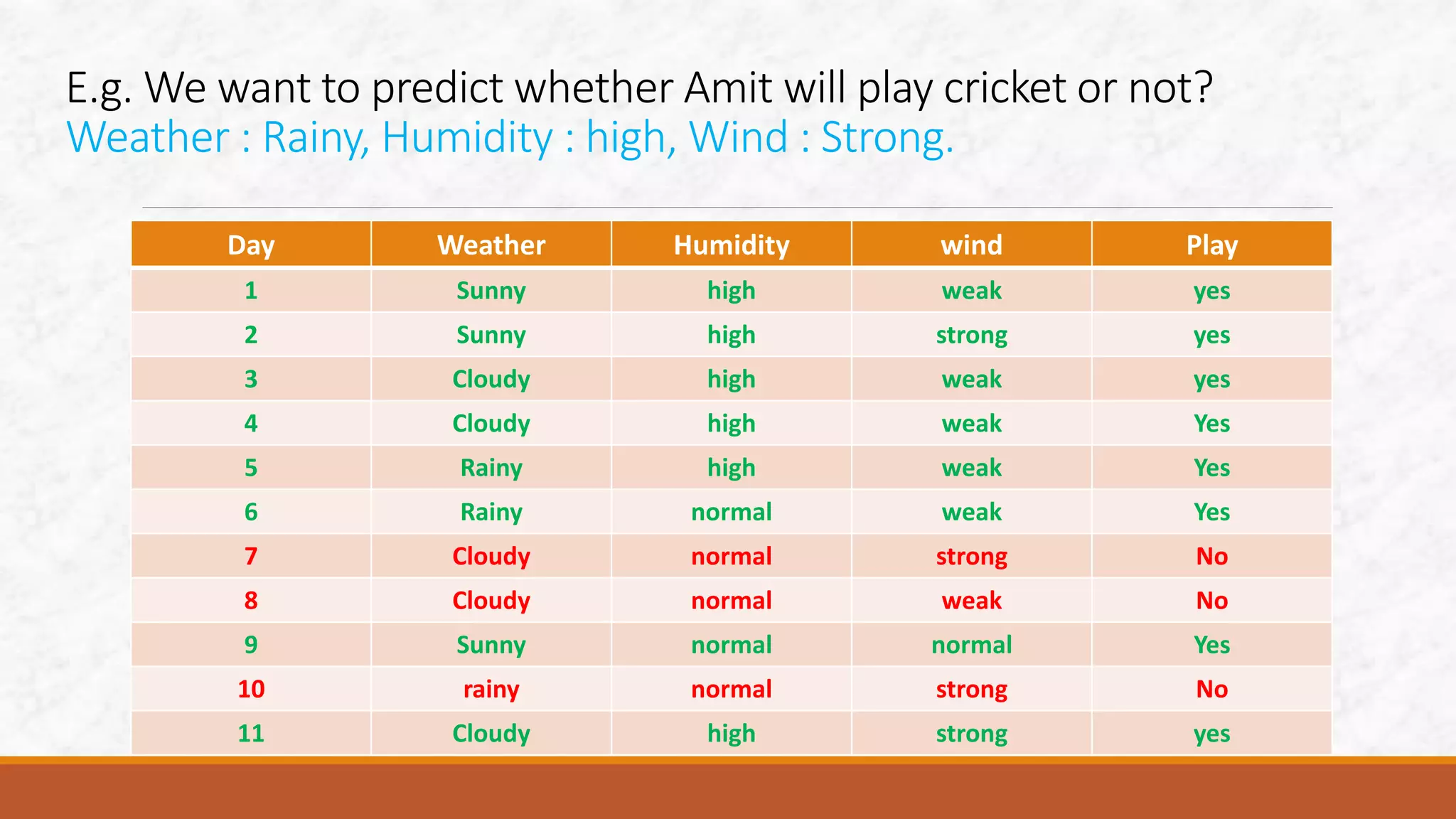

6. E.g. We want to predict whether Amit will play cricket or not?
Weather : Rainy, Humidity : high, Wind : Strong.
Day Weather Humidity wind Play
1 Sunny high weak yes
2 Sunny high strong yes
3 Cloudy high weak yes
4 Cloudy high weak Yes
5 Rainy high weak Yes
6 Rainy normal weak Yes
7 Cloudy normal strong No
8 Cloudy normal weak No
9 Sunny normal normal Yes
10 rainy normal strong No
11 Cloudy high strong yes

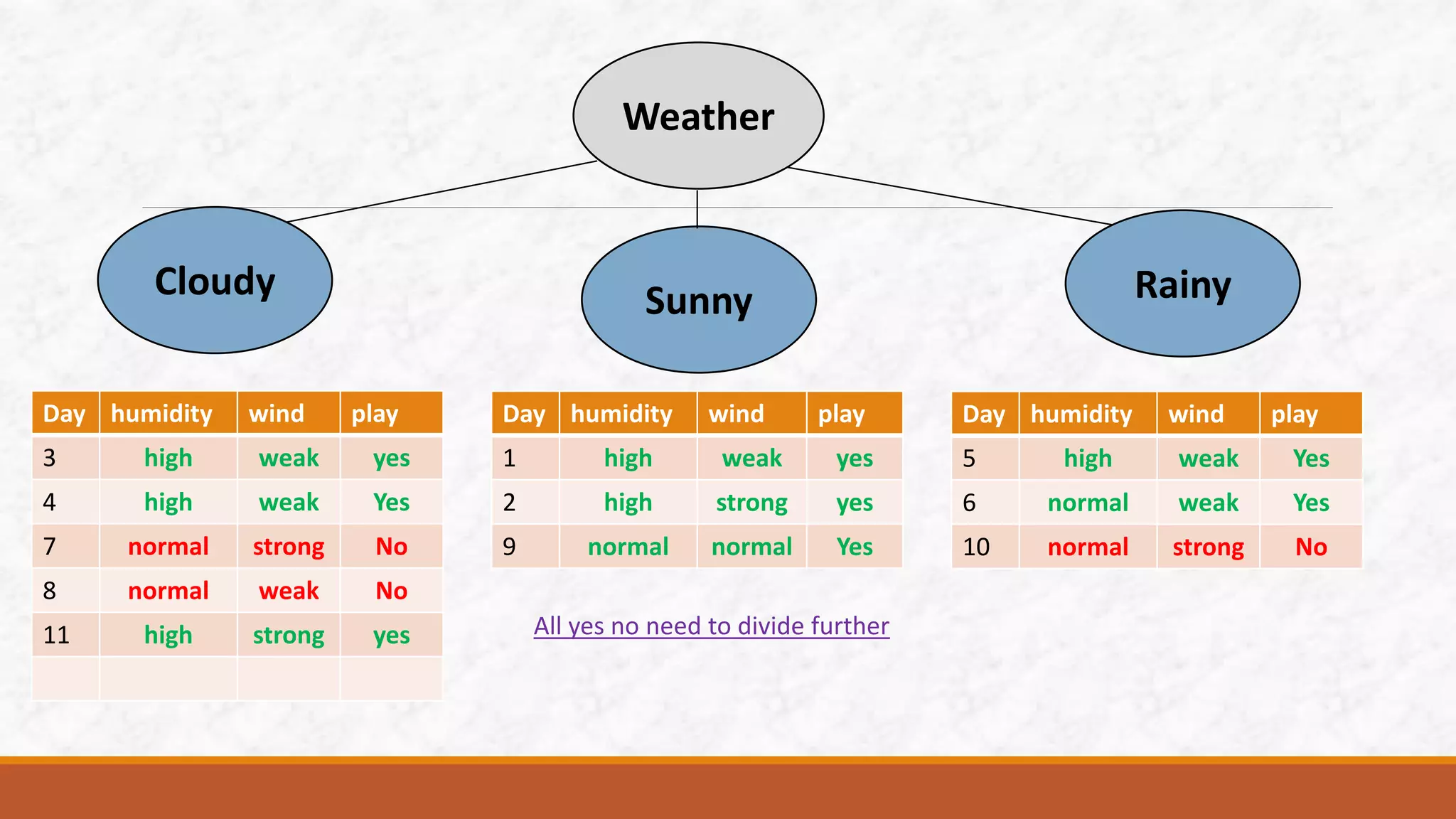

7. Weather
Rainy
Cloudy Sunny
Day humidity wind play
3 high weak yes
4 high weak Yes
7 normal strong No
8 normal weak No
11 high strong yes
Day humidity wind play
1 high weak yes
2 high strong yes
9 normal normal Yes
Day humidity wind play
5 high weak Yes
6 normal weak Yes
10 normal strong No
All yes no need to divide further

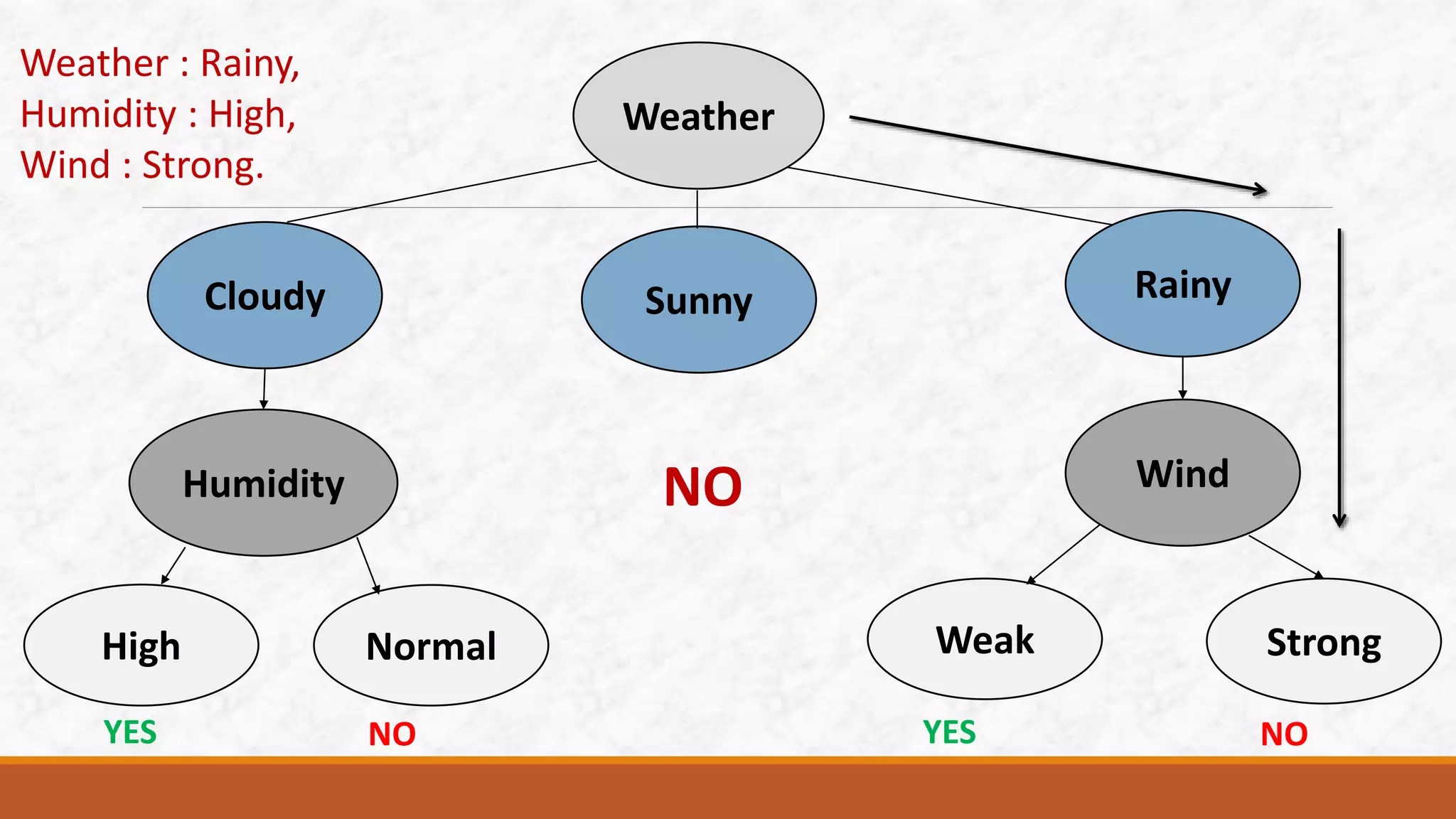

8. Weather
Rainy
Cloudy Sunny
High
Humidity
Normal Strong
Weak
Wind
YES NO YES NO
Weather : Rainy,
Humidity : High,
Wind : Strong.
NO

9. Concept of Probability
Probability is a measure of the likelihood of an event to occur.
P(A) = Number of favorable outcomes to A
Total number of outcomes
Number of red balls= 6
Number of Blue balls= 4
Total no of balls= 10
P(R): The probability of selecting a red ball is = 6/10
P(B): The probability of selecting a blue ball is = 4/10

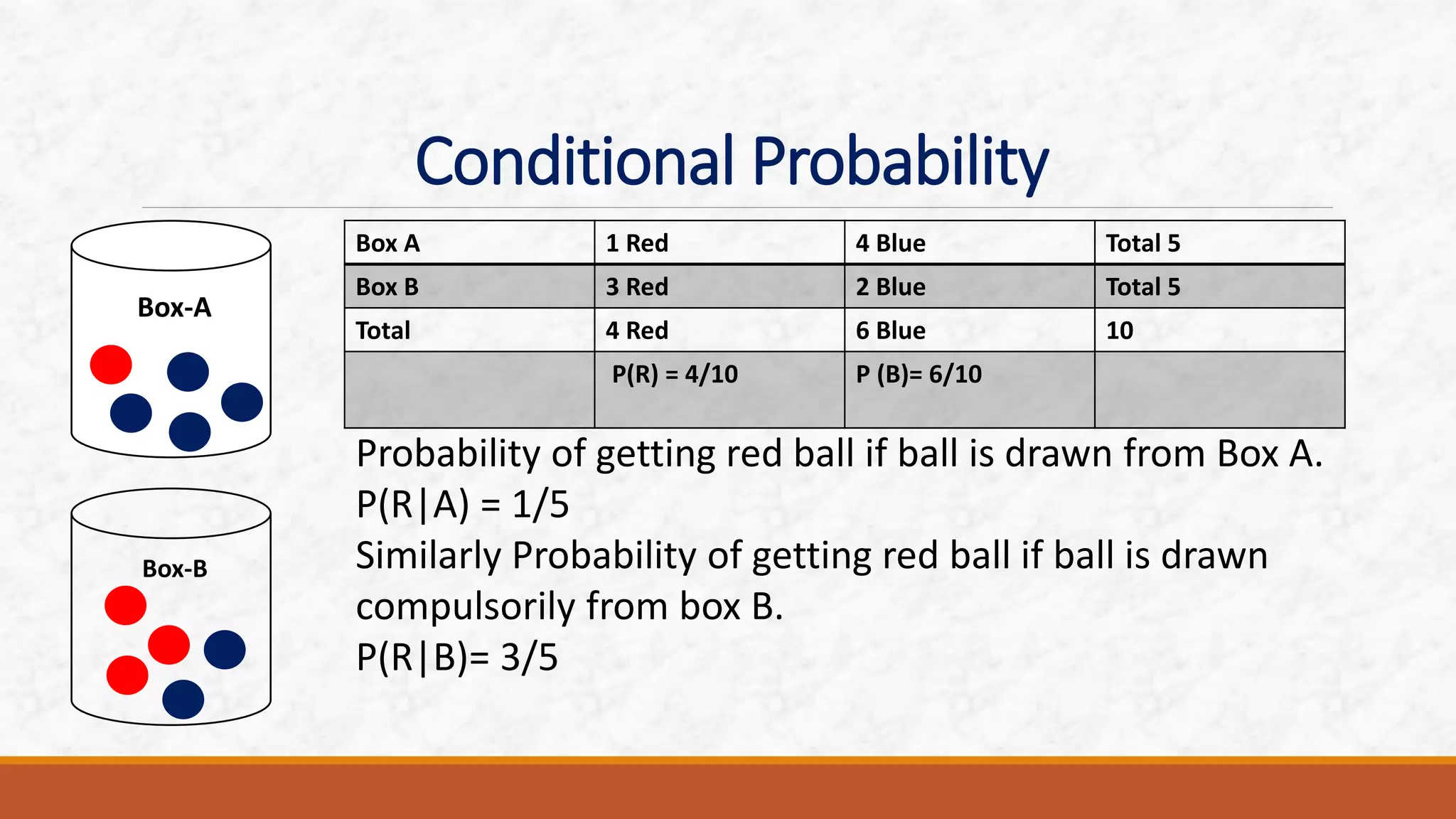

10. Box-A
Box-B
Conditional Probability
Box A 1 Red 4 Blue Total 5
Box B 3 Red 2 Blue Total 5
Total 4 Red 6 Blue 10
P(R) = 4/10 P (B)= 6/10
Probability of getting red ball if ball is drawn from Box A.
P(R|A) = 1/5
Similarly Probability of getting red ball if ball is drawn
compulsorily from box B.
P(R|B)= 3/5

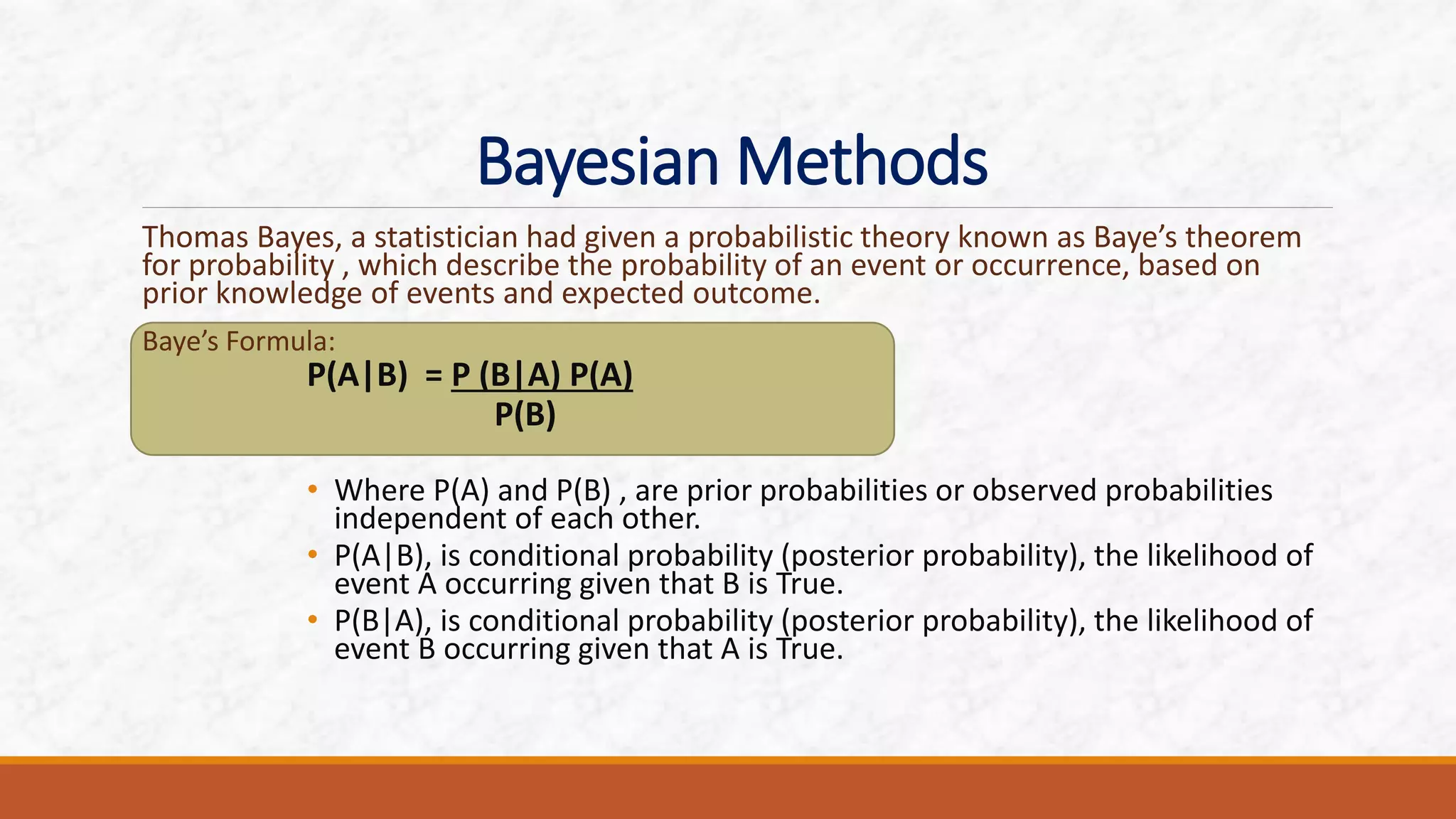

11. Bayesian Methods
Thomas Bayes, a statistician had given a probabilistic theory known as Baye’s theorem
for probability , which describe the probability of an event or occurrence, based on
prior knowledge of events and expected outcome.
Baye’s Formula:
P(A|B) = P (B|A) P(A)
P(B)
• Where P(A) and P(B) , are prior probabilities or observed probabilities
independent of each other.
• P(A|B), is conditional probability (posterior probability), the likelihood of
event A occurring given that B is True.
• P(B|A), is conditional probability (posterior probability), the likelihood of
event B occurring given that A is True.

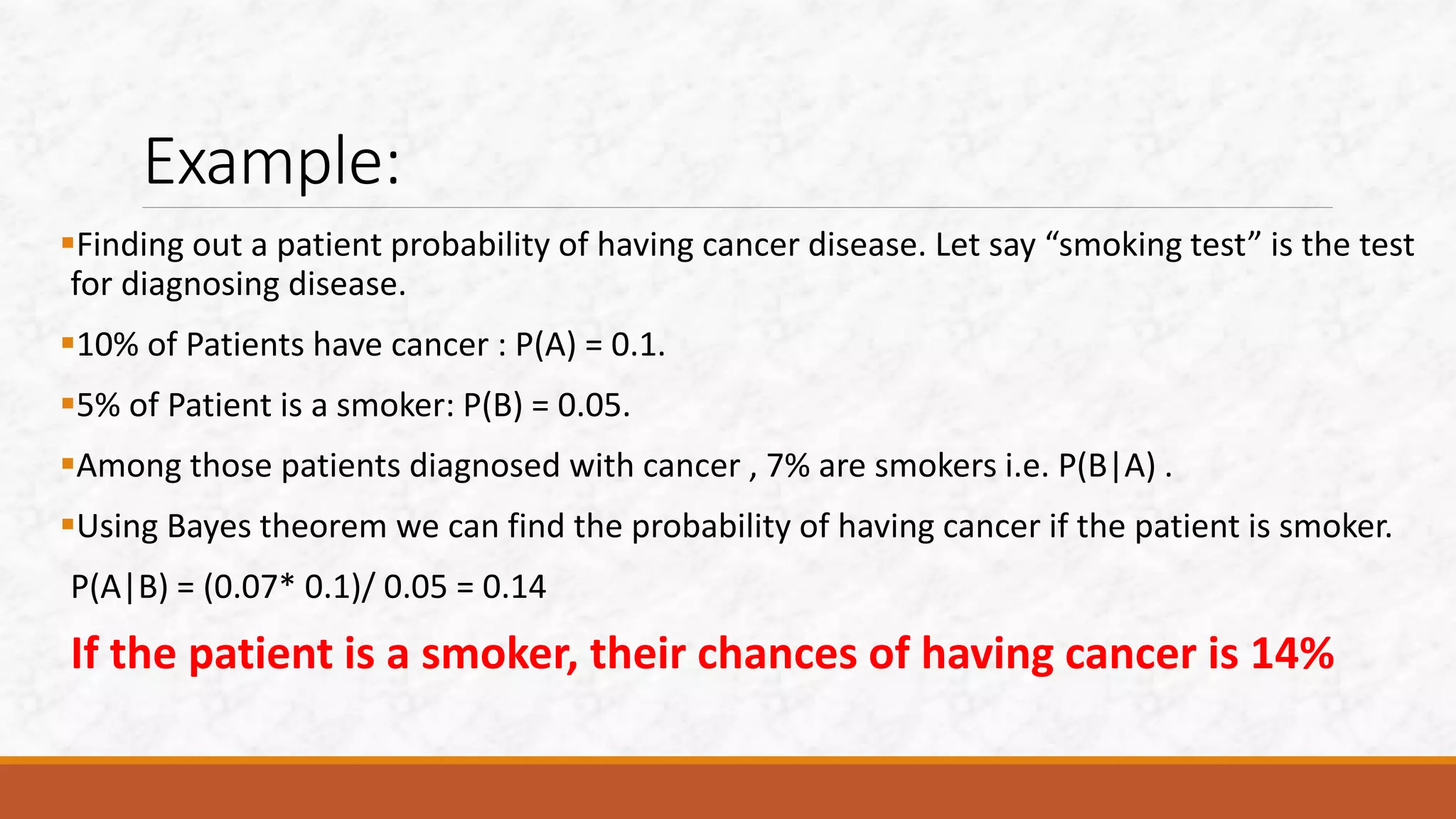

12. Example:
Finding out a patient probability of having cancer disease. Let say “smoking test” is the test
for diagnosing disease.
10% of Patients have cancer : P(A) = 0.1.
5% of Patient is a smoker: P(B) = 0.05.
Among those patients diagnosed with cancer , 7% are smokers i.e. P(B|A) .
Using Bayes theorem we can find the probability of having cancer if the patient is smoker.
P(A|B) = (0.07* 0.1)/ 0.05 = 0.14
If the patient is a smoker, their chances of having cancer is 14%

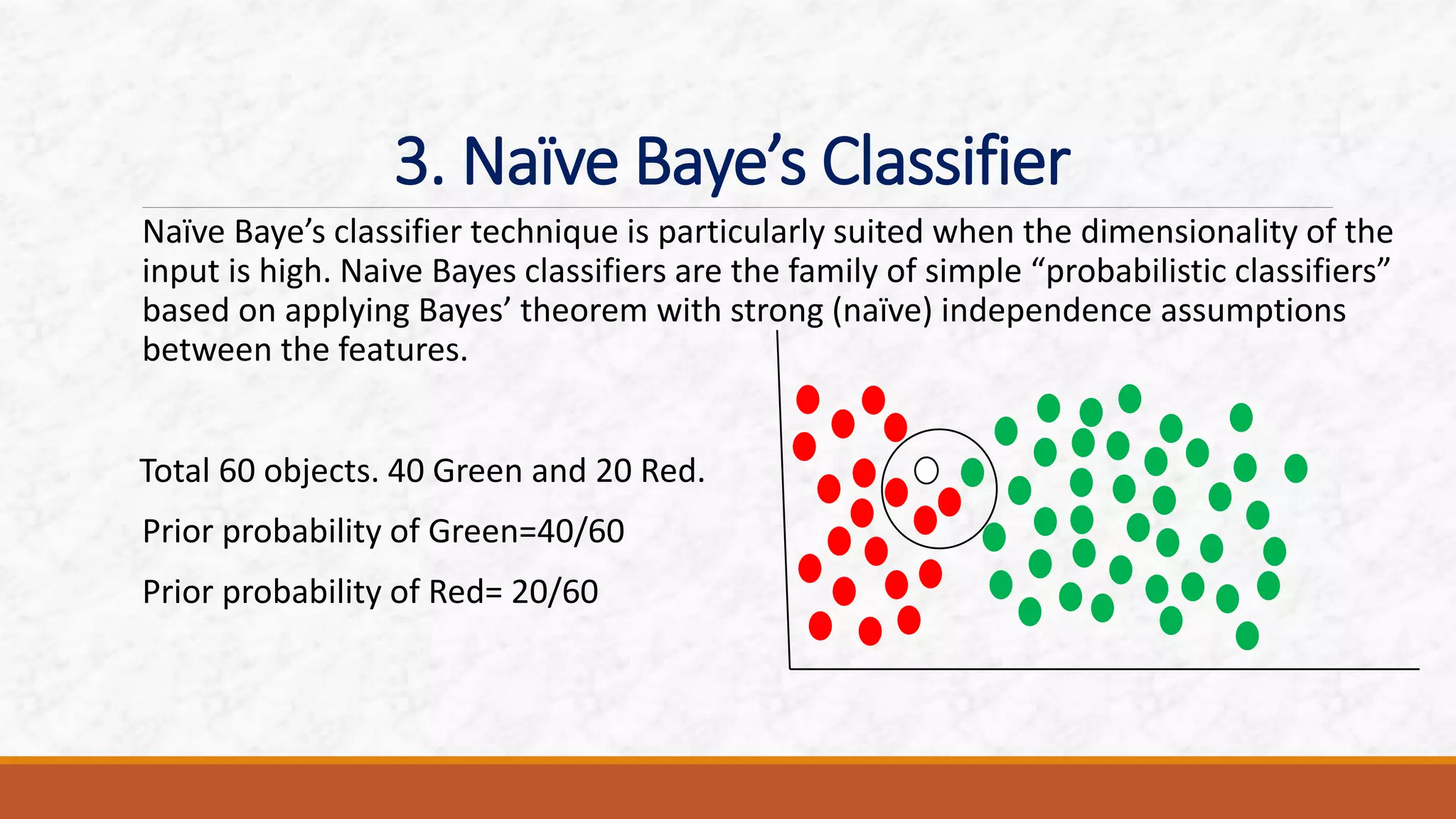

13. 3. Naïve Baye’s Classifier
Naïve Baye’s classifier technique is particularly suited when the dimensionality of the
input is high. Naive Bayes classifiers are the family of simple “probabilistic classifiers”
based on applying Bayes’ theorem with strong (naïve) independence assumptions
between the features.
Total 60 objects. 40 Green and 20 Red.
Prior probability of Green=40/60
Prior probability of Red= 20/60

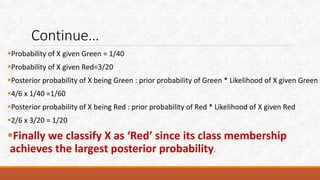

14. Continue…
Probability of X given Green = 1/40
Probability of X given Red=3/20
Posterior probability of X being Green : prior probability of Green * Likelihood of X given Green
4/6 x 1/40 =1/60
Posterior probability of X being Red : prior probability of Red * Likelihood of X given Red
2/6 x 3/20 = 1/20
Finally we classify X as ‘Red’ since its class membership
achieves the largest posterior probability.

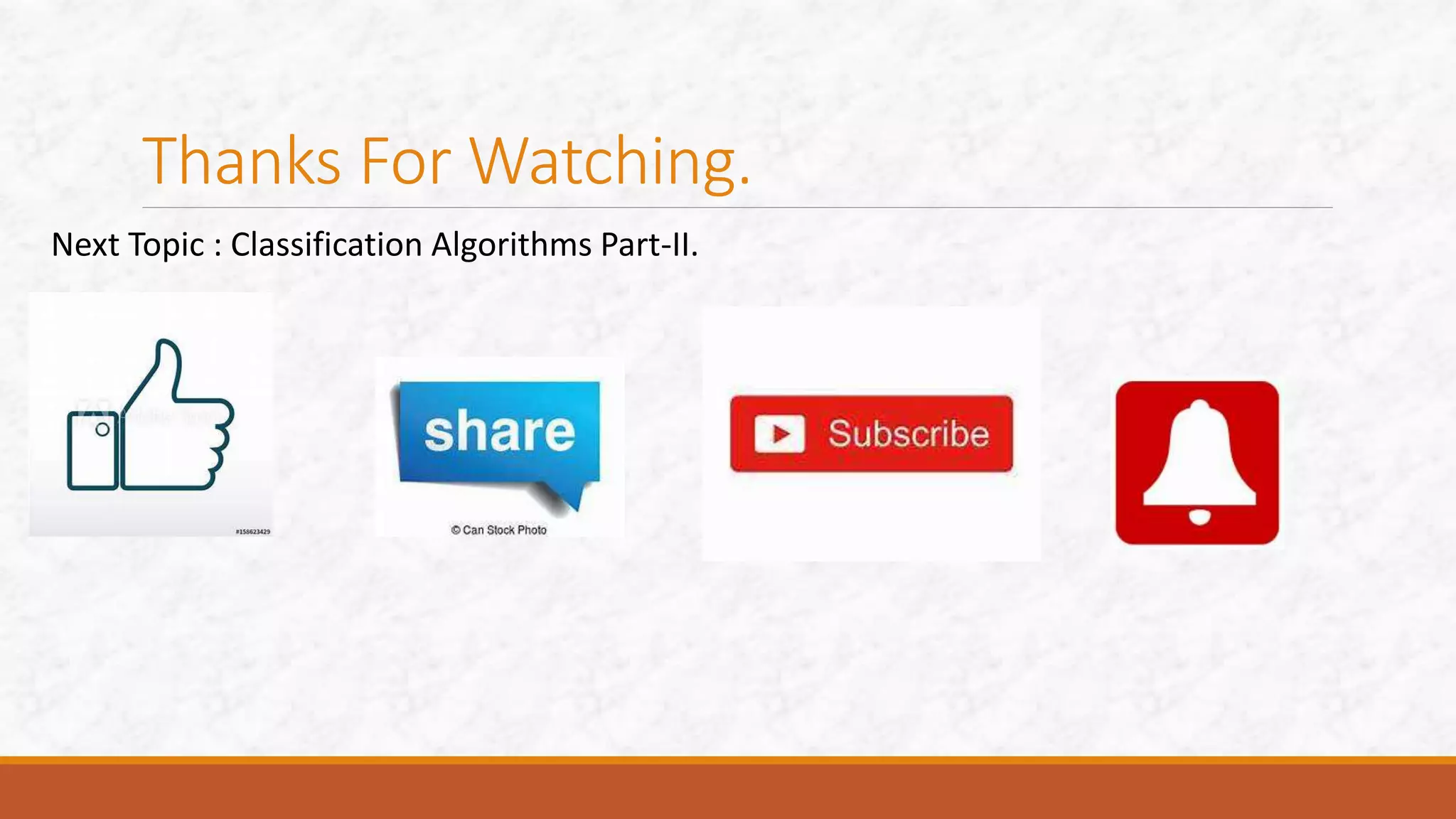

15. Thanks For Watching.
Next Topic : Classification Algorithms Part-II.
