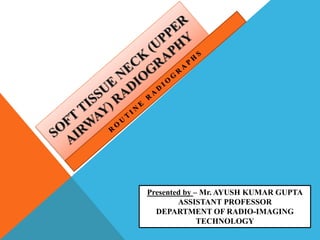

1. Presented by – Mr. AYUSH KUMAR GUPTA
ASSISTANT PROFESSOR
DEPARTMENT OF RADIO-IMAGING
TECHNOLOGY

2. SOFT TISSUE NECK
 Soft tissue neck radiographs are commonly demonstrate
to look of foreign bodies (e.g. fish bone) or, particularly
in kids, to assess upper airways infections.
 There are two types of x-ray view for diagnosing the
upper airway –
 AP
 LATERAL
 Both are done in erect position (commonly).

3. SOFT TISSUE
NECK (AP)

4. SOFT TISSUE NECK (AP)
 Patient positioning –
 Ask the patient to stand in erect AP position facing an upright cassette
holder.
 Midline of the body should be in the midline of the cassette.
 Cervical spine should be center of the cassette.
 Both shoulder should be in the same horizontal plane and pronated
with equal amount of weight for equal level of shoulders.
 Extend the neck as possible as enough.
 Upper end of cassette should be 1 inch above the upper part of ear
pinna.

5. SOFT TISSUE NECK (AP)
 Central ray
 The central ray is directed
horizontally with the tube angle
15 to 20 degree at the level of C4
vertebra.
 During the exposure mouth will
be remain closed.

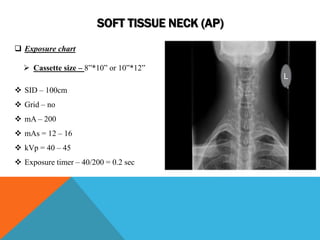

6. SOFT TISSUE NECK (AP)
 Exposure chart
 Cassette size – 8”*10” or 10”*12”
 SID – 100cm
 Grid – no
 mA – 200
 mAs = 12 – 16
 kVp = 40 – 45
 Exposure timer – 40/200 = 0.2 sec
L

7. SOFT
TISSUE
NECK
(LATERAL)

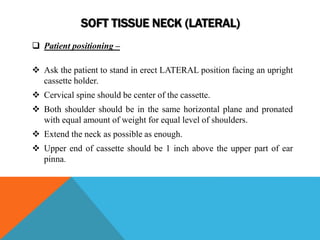

8. SOFT TISSUE NECK (LATERAL)
 Patient positioning –
 Ask the patient to stand in erect LATERAL position facing an upright
cassette holder.
 Cervical spine should be center of the cassette.
 Both shoulder should be in the same horizontal plane and pronated
with equal amount of weight for equal level of shoulders.
 Extend the neck as possible as enough.
 Upper end of cassette should be 1 inch above the upper part of ear
pinna.

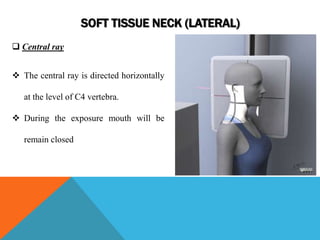

9. SOFT TISSUE NECK (LATERAL)
 Central ray
 The central ray is directed horizontally
at the level of C4 vertebra.
 During the exposure mouth will be
remain closed

10. SOFT TISSUE NECK (LATERAL)
 Exposure chart
 Cassette size – 8”*10” or 10”*12”
 SID – 100cm
 Grid – no
 mA – 200
 mAs = 12 – 16
 kVp = 40 – 45
 Exposure timer – 40/200 = 0.2 sec

11. SOFT TISSUE NECK OUTLINE REPRESENTATION
