Chapter 5 Simple machines
WORK  The transfer of energy that occurs when a force makes an object move  In order for work to be done a force must make an object move
2 Conditions of work  1. The object must move  2. Movement must be in the same direction as the force applied
Work and Energy  When work is done there is always a transfer of energy  Energy is the ability to do work  When you do work on an object, you increase its energy
Calculating work  Work (J) = Force (N) x distance (m)  W = Fd
Power  The rate at which work is done  SI unit for power is the Watt (W)  P (watts) = Work (J)/Time (s)  Usually expressed in kilowatts
Power and Energy  Power is the rate at which energy is transferred  Power (w) = energy (J)/Time (s)

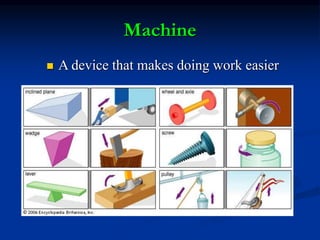

Machine  A device that makes doing work easier
Simple Machines  A Machine that does work with only one movement of the machine  6 types of simple machines: lever, pulley, wheel and axle, inclined plane, screw, and wedge
Lever  A bar that is free to pivot or turn around a fixed point  The fixed point is called a fulcrum  There are 3 classes of levers

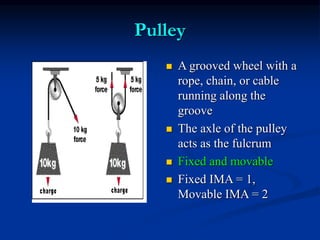

Pulley  A grooved wheel with a rope, chain, or cable running along the groove  The axle of the pulley acts as the fulcrum  Fixed and movable  Fixed IMA = 1, Movable IMA = 2

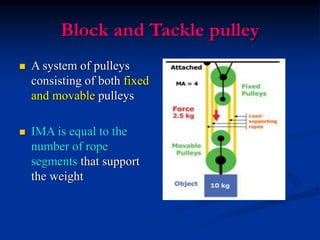

Block and Tackle pulley  A system of pulleys consisting of both fixed and movable pulleys  IMA is equal to the number of rope segments that support the weight

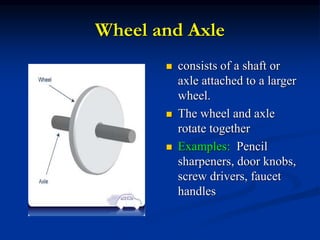

Wheel and Axle  consists of a shaft or axle attached to a larger wheel.  The wheel and axle rotate together  Examples: Pencil sharpeners, door knobs, screw drivers, faucet handles

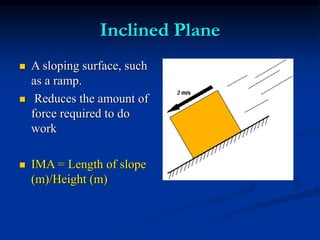

Inclined Plane  A sloping surface, such as a ramp.  Reduces the amount of force required to do work  IMA = Length of slope (m)/Height (m)

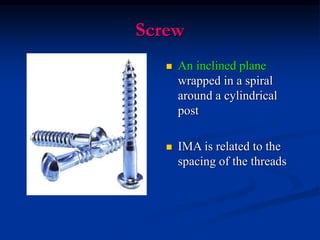

Screw  An inclined plane wrapped in a spiral around a cylindrical post  IMA is related to the spacing of the threads

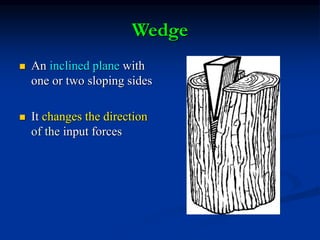

Wedge  An inclined plane with one or two sloping sides  It changes the direction of the input forces
Compound Machine  Two or more simple machines that operate together  A car is a compound machine
Compound Machines
2-Forces Involved in Work 1. Input Force: The force that is applied to the machine. (effort force) Given the symbol Fin 2. Output Force: The force applied by the machine. Given the symbol Fout
2-Types of Work done on a Machine 1. Input Work: The work done by you on the machine. Given the symbol Win 2. Output Work: The work done by the machine. Given the symbol Wout
Conserving Energy  A machine cannot create energy, so… Wout can never be greater than Win
Which means that…  Wout will always be less that Win …  because friction changes some of the energy to heat.
Ideal Machine  A machine without friction.  Win = Wout

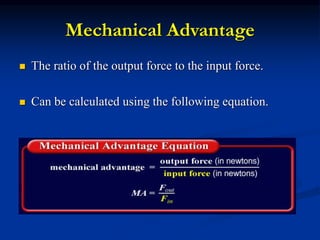

Mechanical Advantage  The ratio of the output force to the input force.  Can be calculated using the following equation.

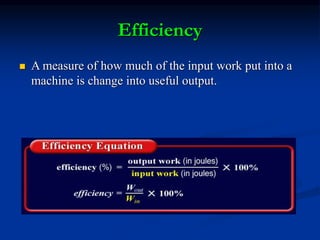

Efficiency  A measure of how much of the input work put into a machine is change into useful output.
Efficiency Cont… • The efficiency of an ideal machine is 100 percent. • The efficiency of a real machine is always less than 100 percent.

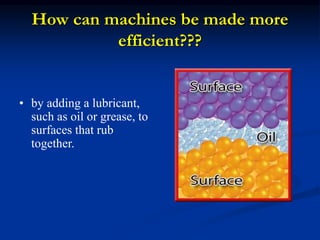

How can machines be made more efficient??? • by adding a lubricant, such as oil or grease, to surfaces that rub together.
