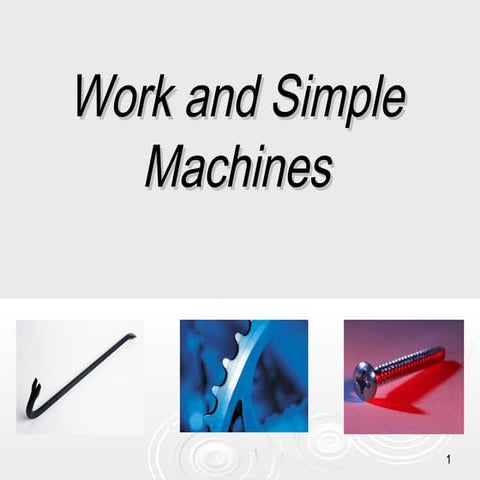

Work and Simple
Machines

1

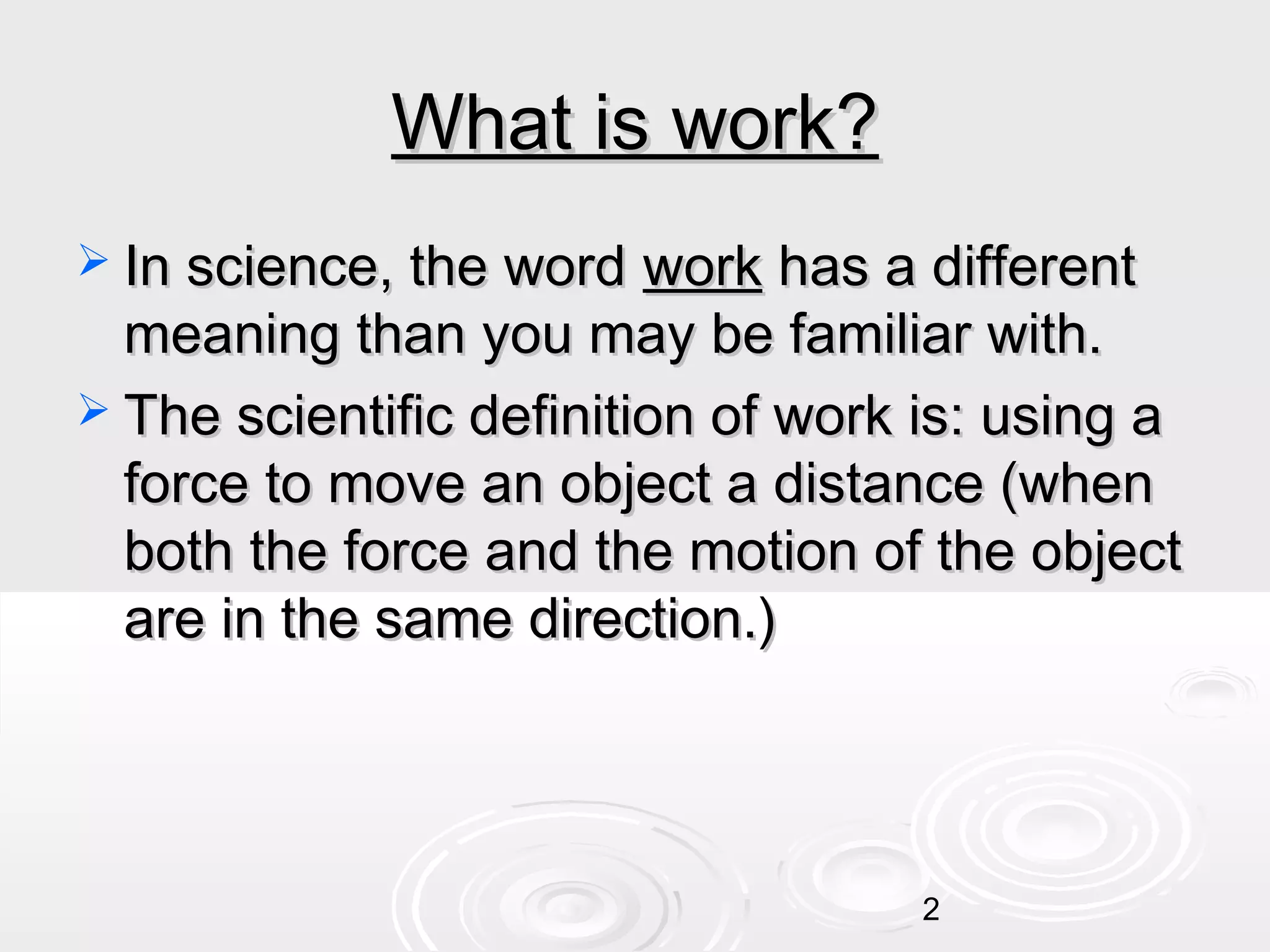

What is work?
 In science, the word

work has a different
meaning than you may be familiar with.
 The scientific definition of work is: using a
force to move an object a distance (when
both the force and the motion of the object
are in the same direction.)

2
Work or Not?


According to the
scientific definition,
what is work and what
is not?




a teacher lecturing to
her class
a mouse pushing a
piece of cheese with
its nose across the
floor
3
Work or Not?


According to the
scientific definition,
what is work and what
is not?




a teacher lecturing to
her class
a mouse pushing a
piece of cheese with
its nose across the
floor
4
5

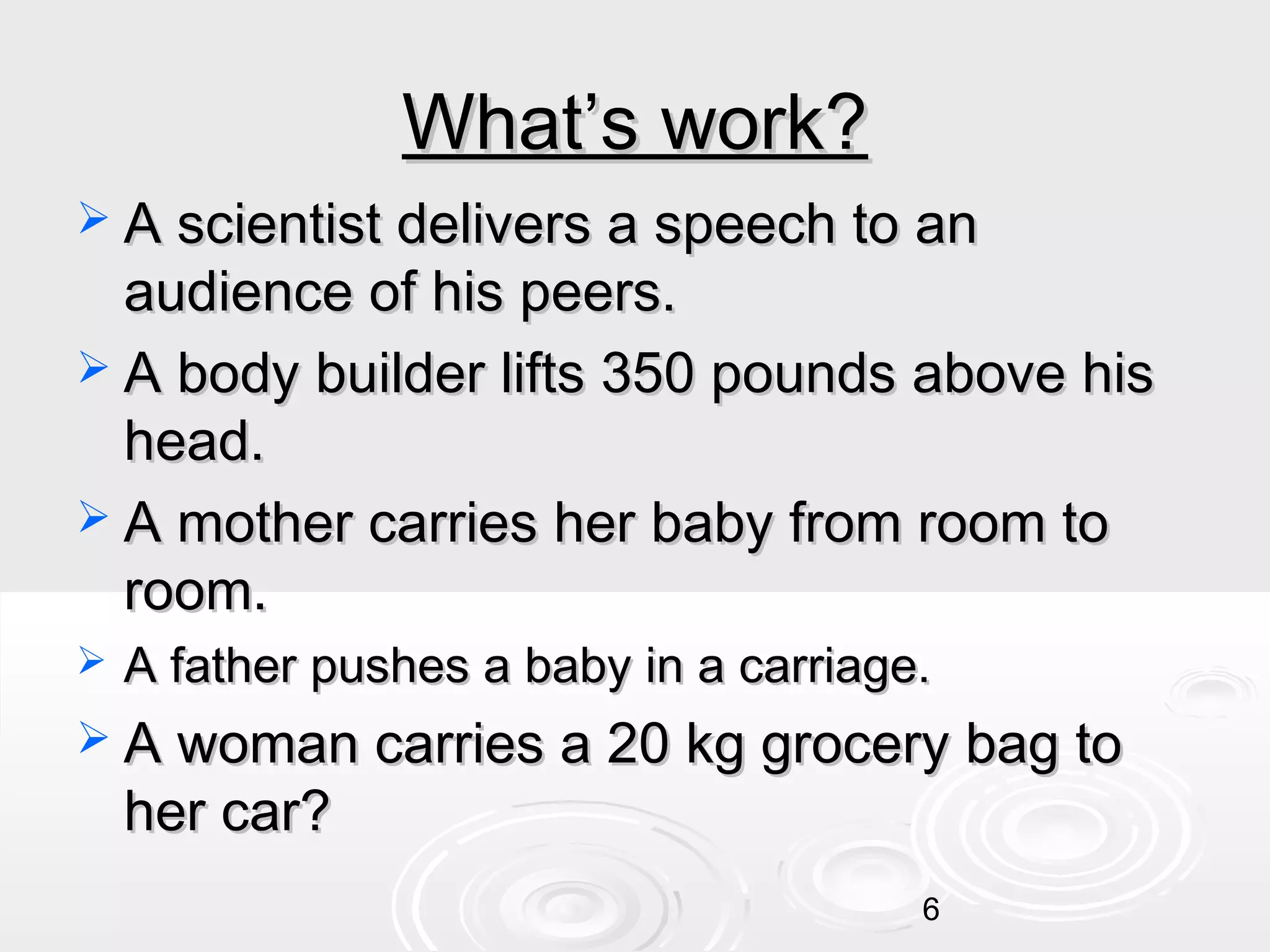

What’s work?
 A scientist delivers a speech to an

audience of his peers.
 A body builder lifts 350 pounds above his
head.
 A mother carries her baby from room to
room.


A father pushes a baby in a carriage.

 A woman carries a 20 kg grocery bag to

her car?

6

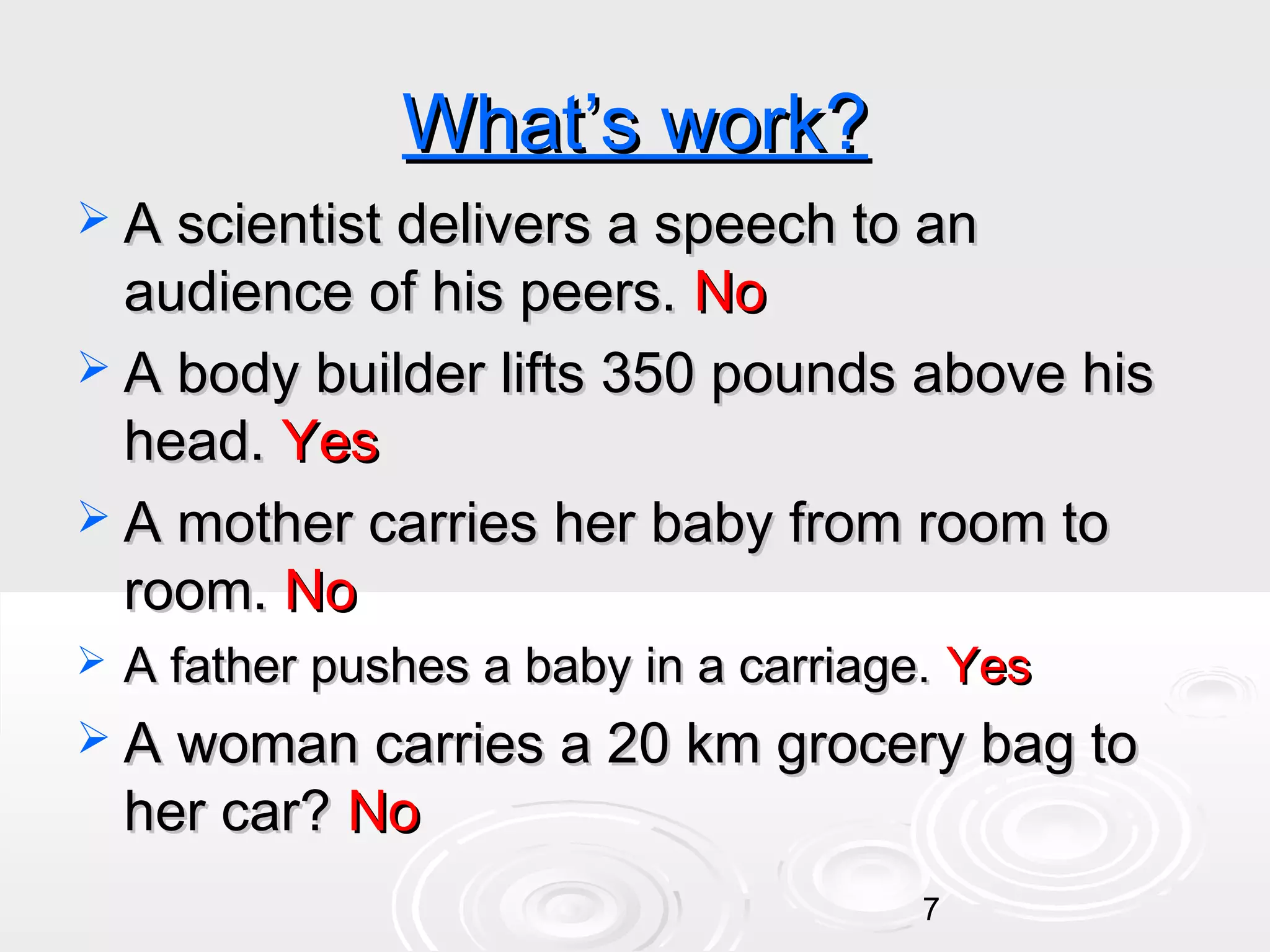

What’s work?
 A scientist delivers a speech to an

audience of his peers. No
 A body builder lifts 350 pounds above his
head. Yes
 A mother carries her baby from room to
room. No


A father pushes a baby in a carriage. Yes

 A woman carries a 20 km grocery bag to

her car? No

7

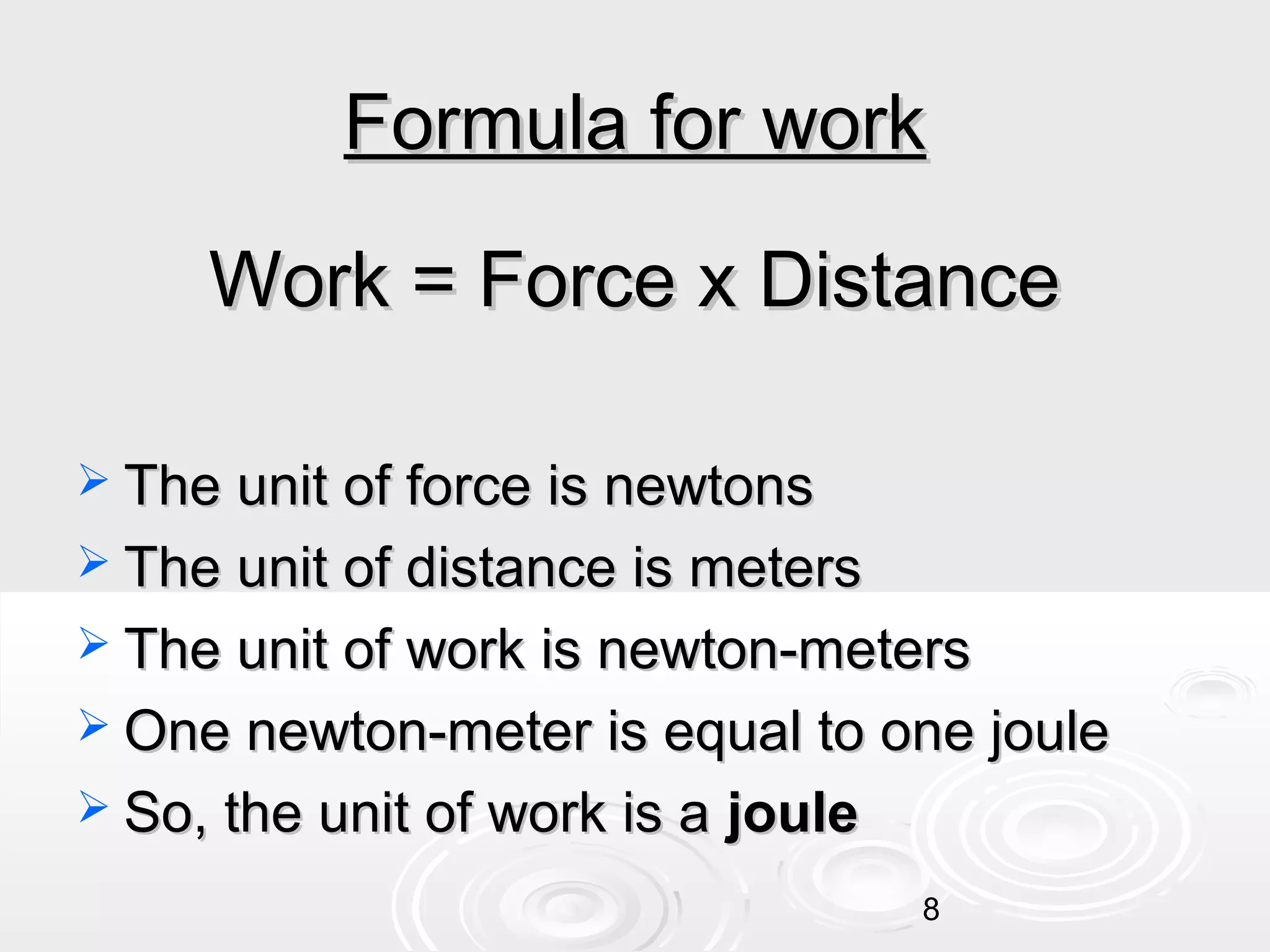

Formula for work
Work = Force x Distance
 The unit of force is newtons
 The unit of distance is meters
 The unit of work is newton-meters
 One newton-meter is equal to one joule
 So, the unit of work is a

joule
8

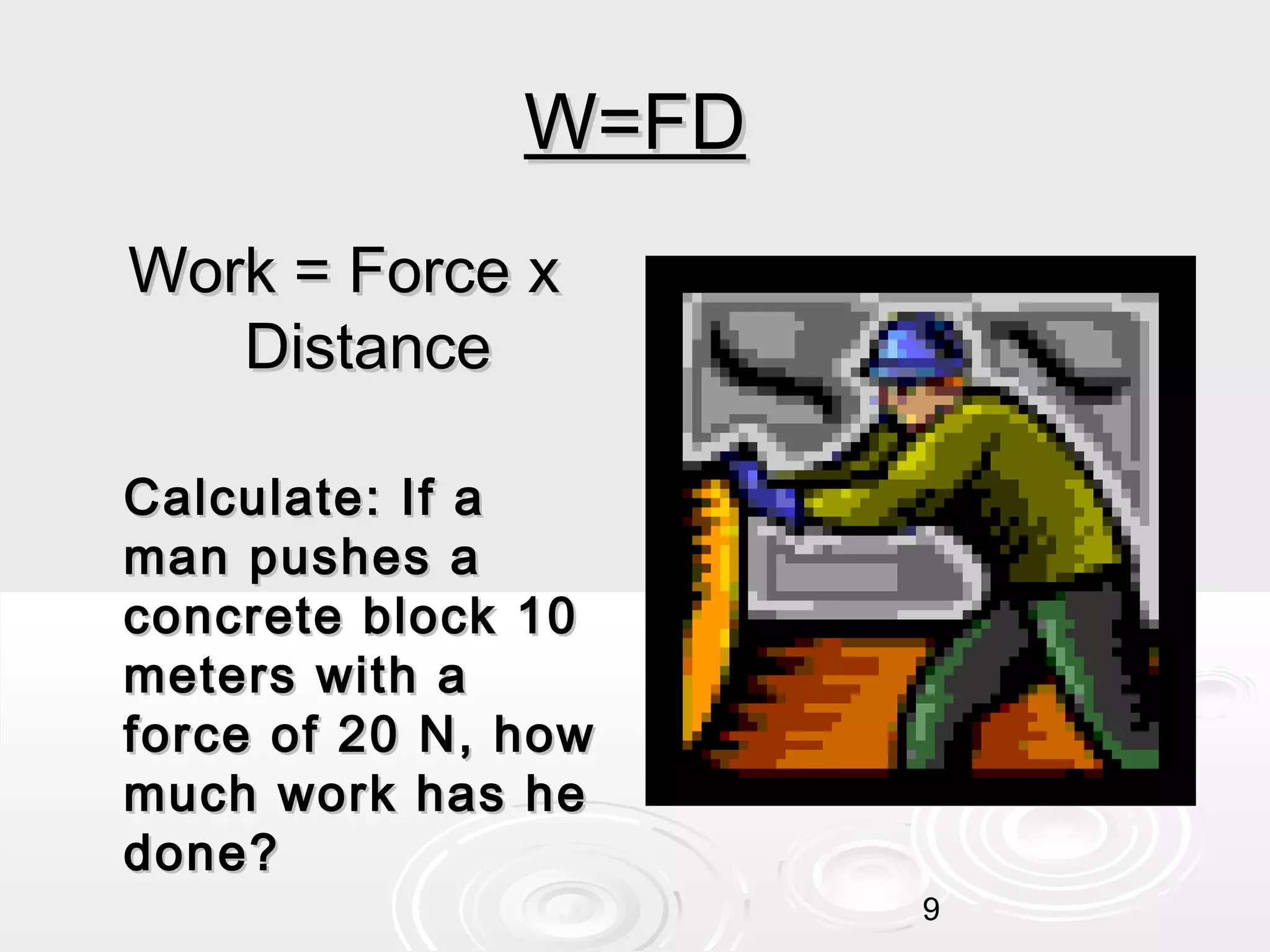

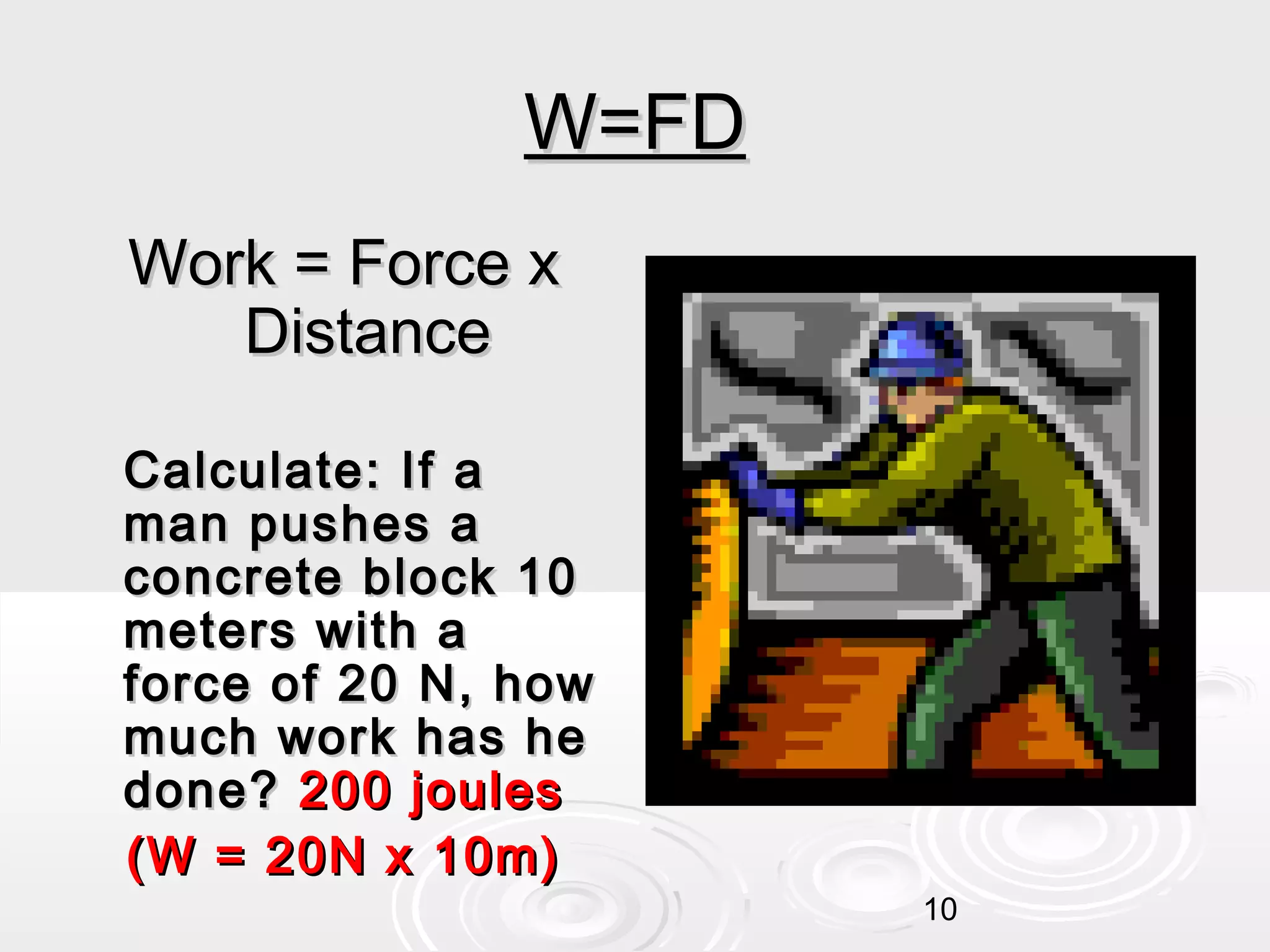

W=FD
Work = Force x
Distance
Calculate: If a
man pushes a
concrete block 10
meters with a
force of 20 N, how
much work has he
done?
9
W=FD
Work = Force x
Distance
Calculate: If a
man pushes a
concrete block 10
meters with a
force of 20 N, how
much work has he
done? 200 joules
(W = 20N x 10m)
10

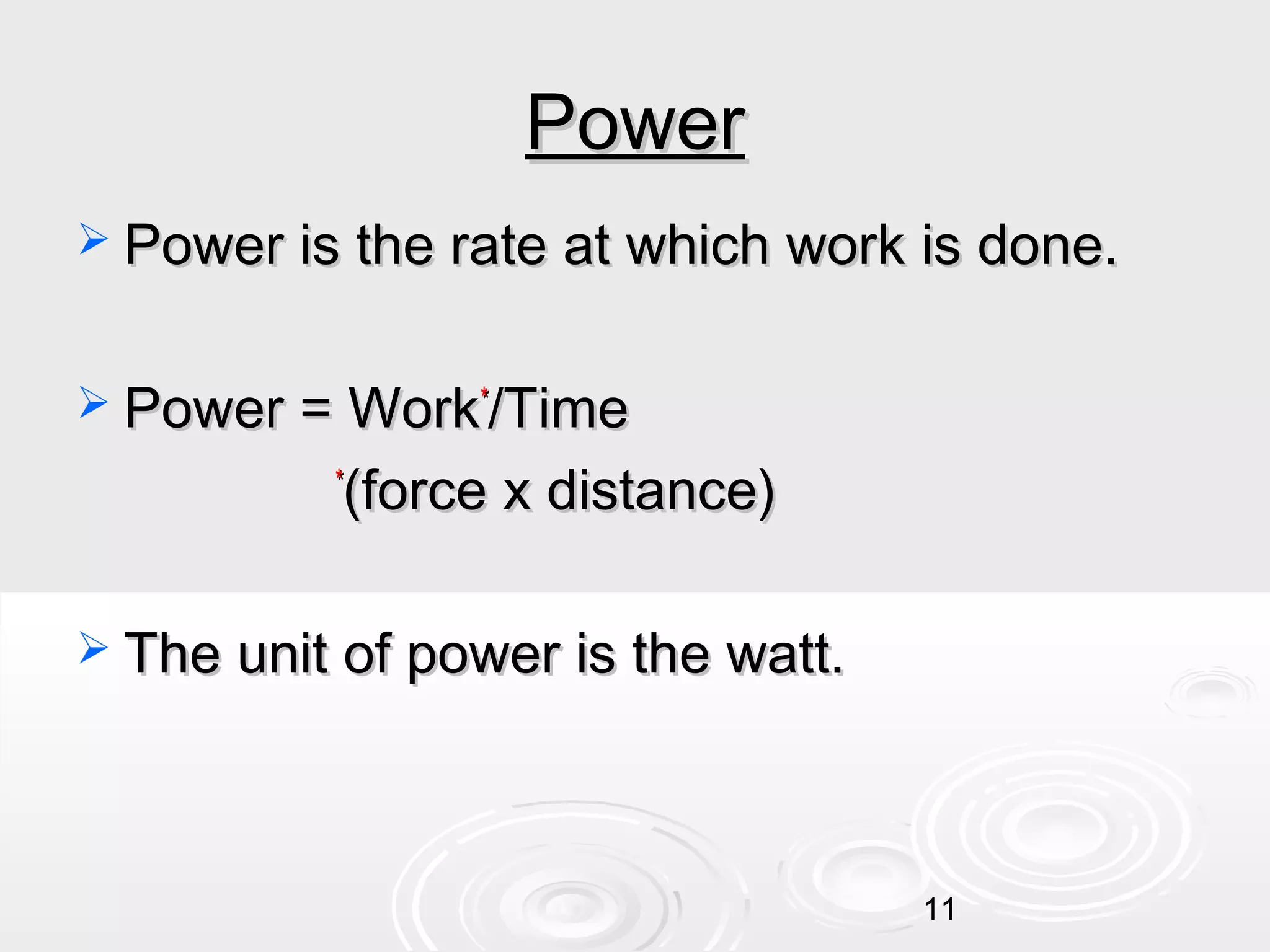

Power
 Power is the rate at which work is done.
 Power = Work*/Time

(force x distance)

*

 The unit of power is the watt.

11

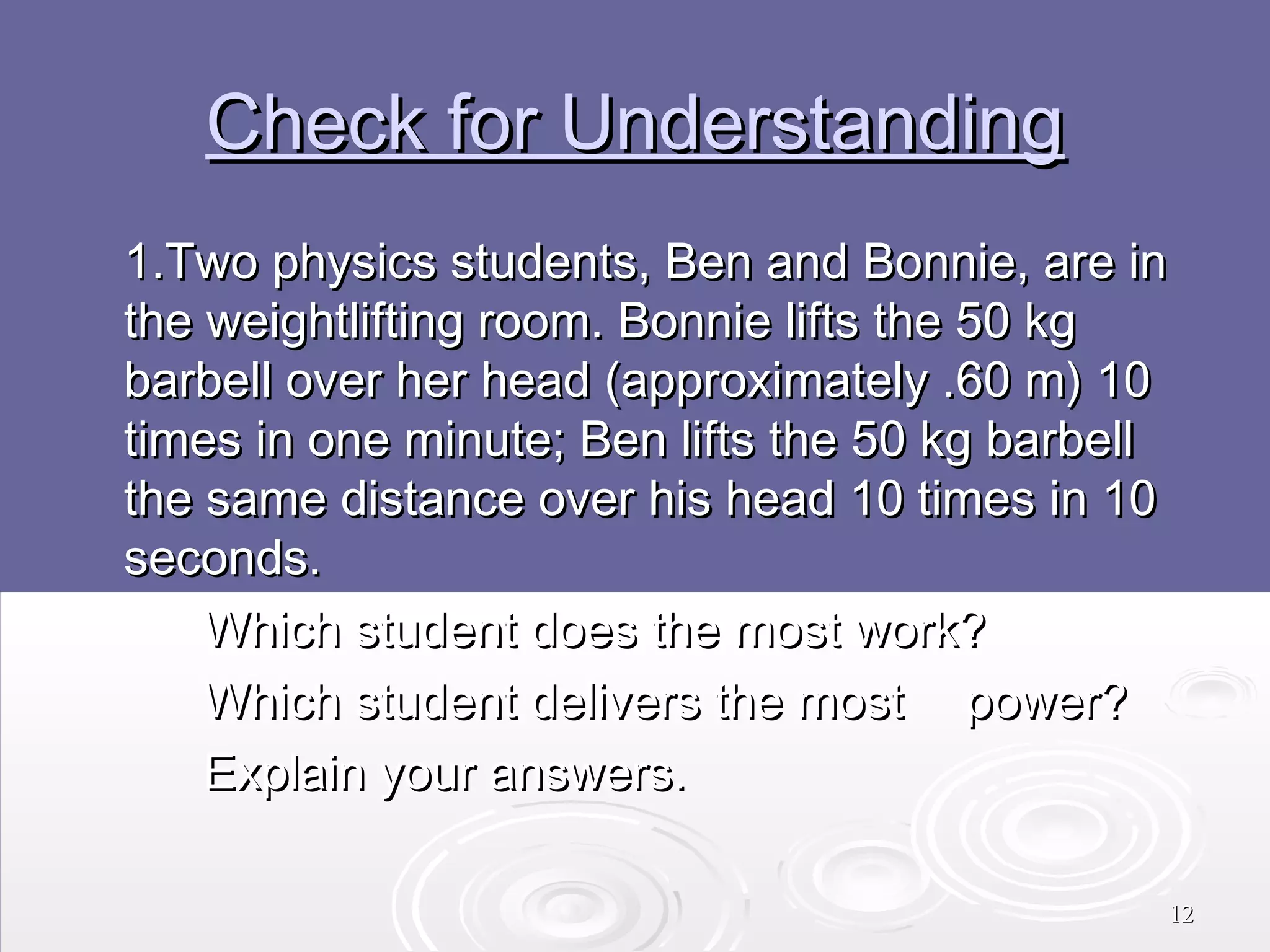

Check for Understanding
1.Two physics students, Ben and Bonnie, are in
the weightlifting room. Bonnie lifts the 50 kg
barbell over her head (approximately .60 m) 10
times in one minute; Ben lifts the 50 kg barbell
the same distance over his head 10 times in 10
seconds.
Which student does the most work?
Which student delivers the most power?
Explain your answers.
12


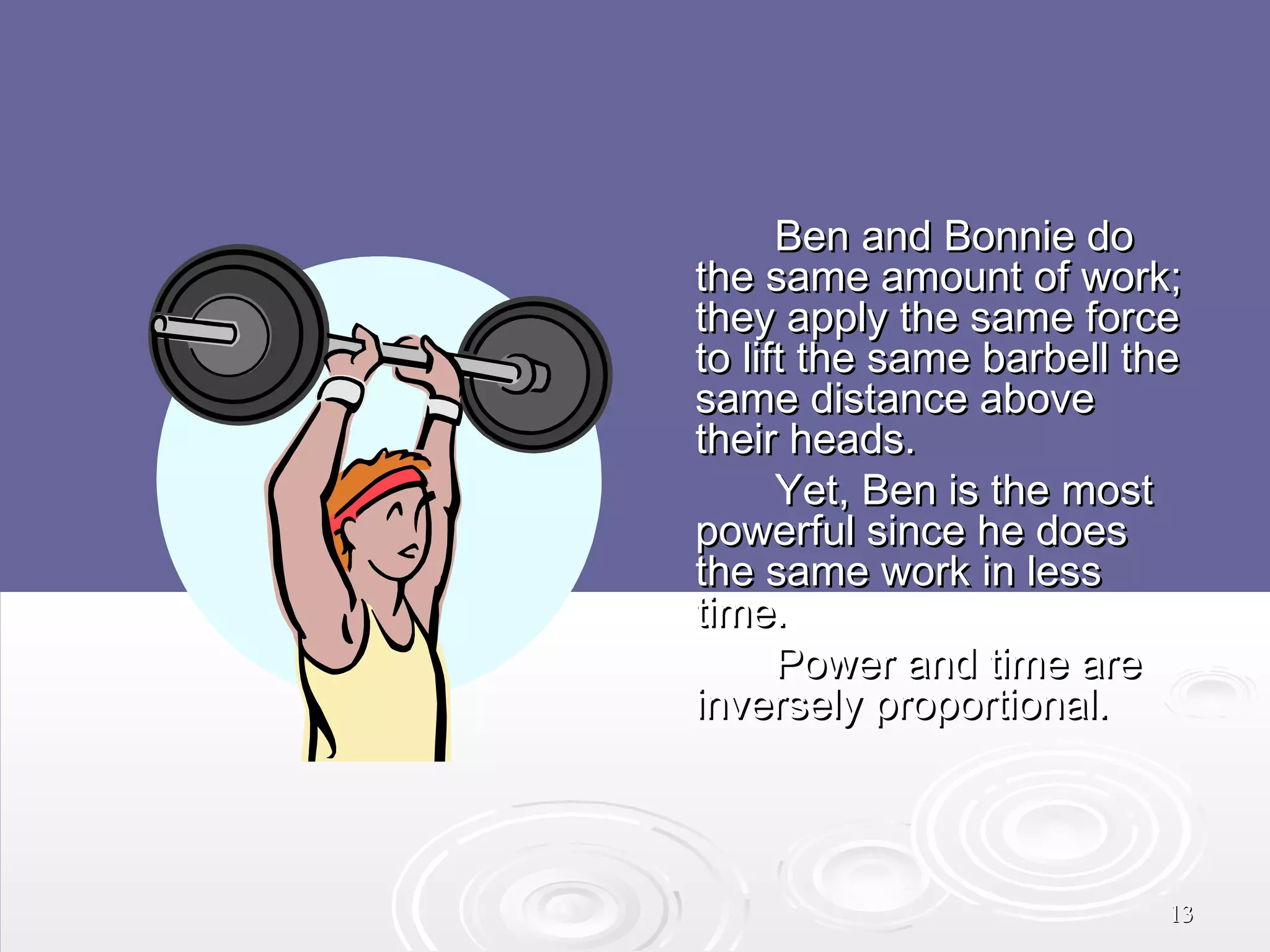

Ben and Bonnie do
the same amount of work;
they apply the same force
to lift the same barbell the
same distance above
their heads.
Yet, Ben is the most
powerful since he does
the same work in less
time.
Power and time are
inversely proportional.

13

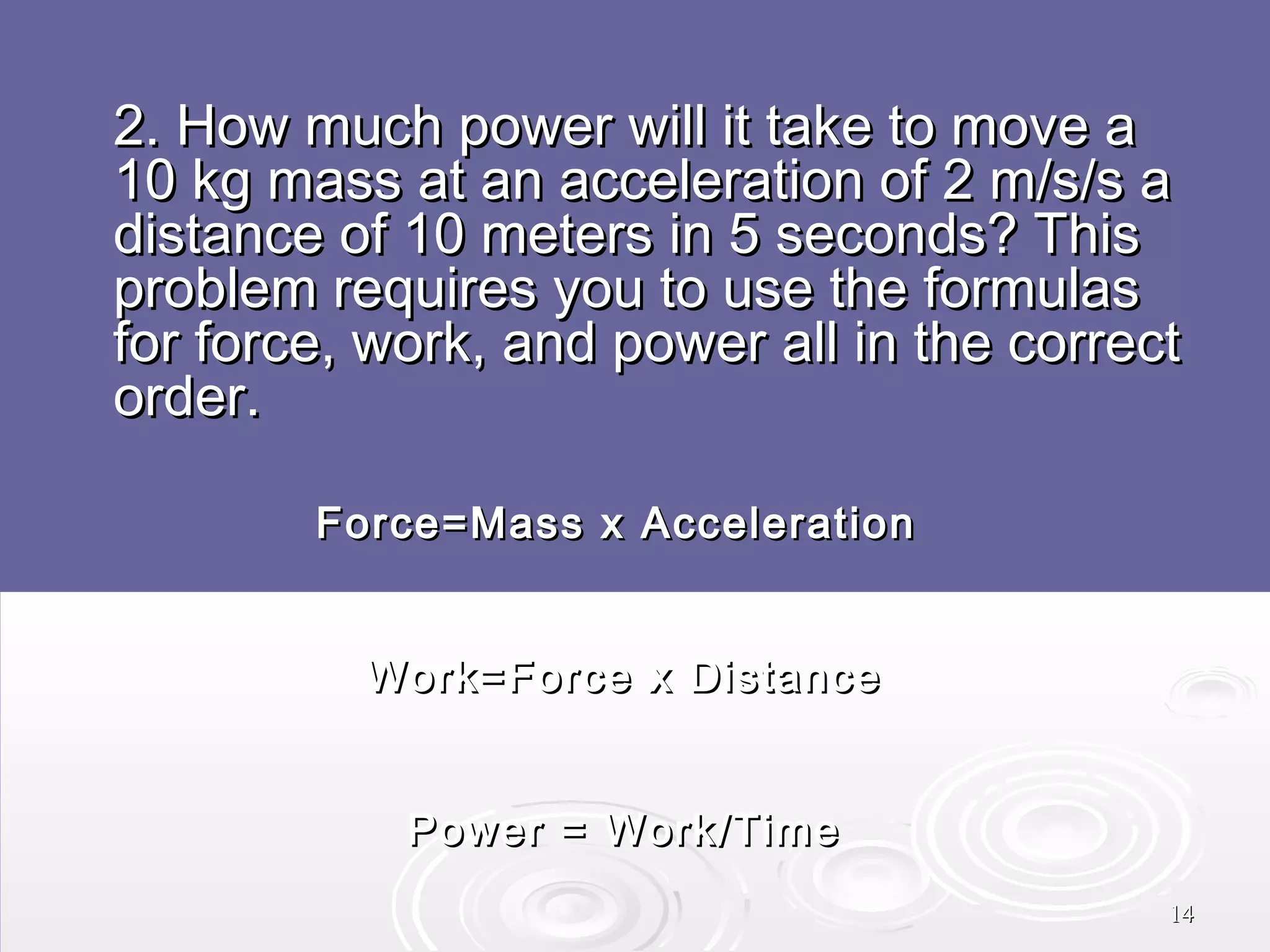

2. How much power will it take to move a
10 kg mass at an acceleration of 2 m/s/s a
distance of 10 meters in 5 seconds? This
problem requires you to use the formulas
for force, work, and power all in the correct
order.
Force=Mass x Acceleration
Work=Force x Distance
Power = Work/Time
14

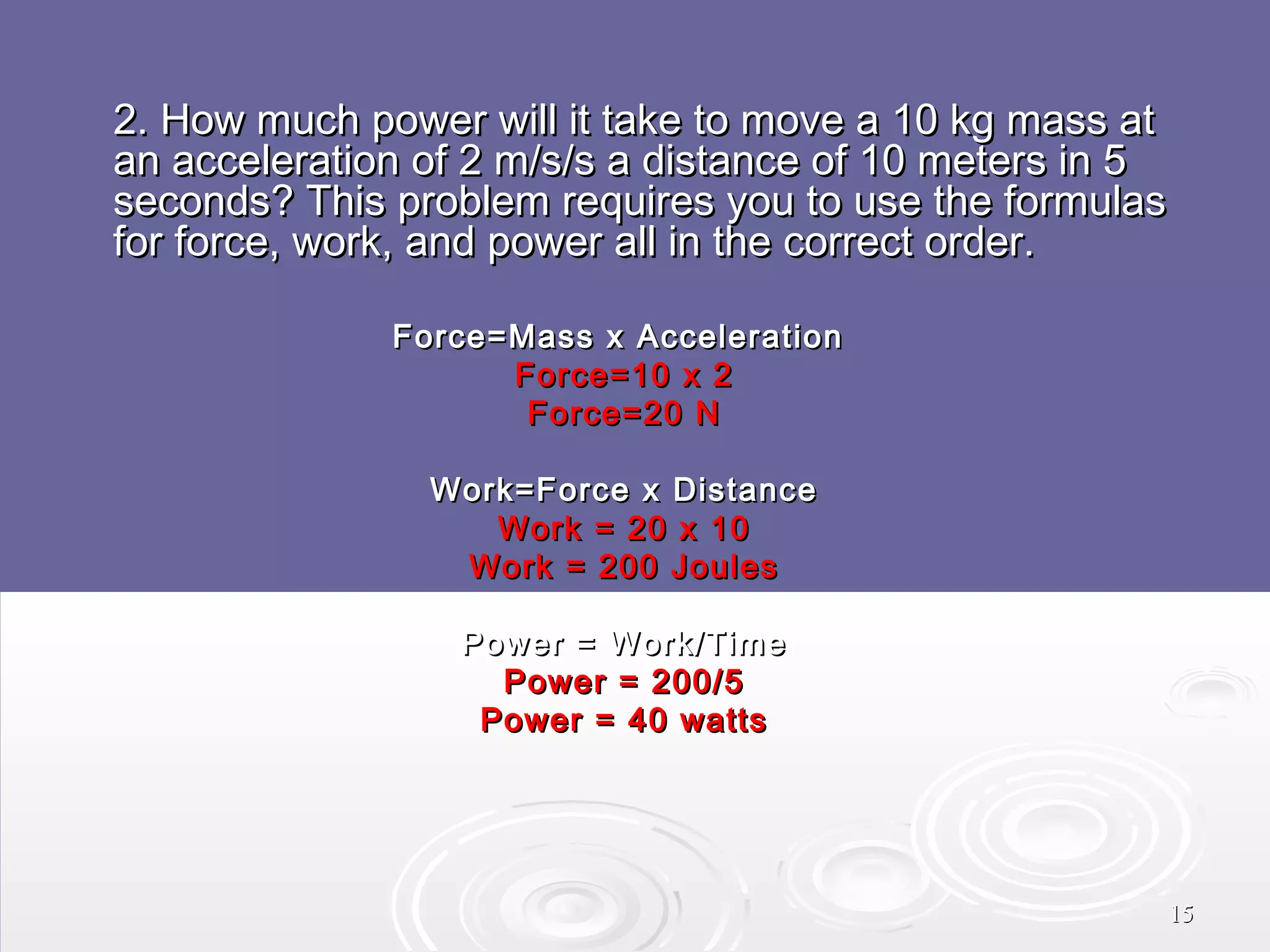

2. How much power will it take to move a 10 kg mass at
an acceleration of 2 m/s/s a distance of 10 meters in 5
seconds? This problem requires you to use the formulas
for force, work, and power all in the correct order.
Force=Mass x Acceleration
Force=10 x 2
Force=20 N
Work=Force x Distance
Work = 20 x 10
Work = 200 Joules
Power = Work/Time
Power = 200/5
Power = 40 watts

15
History of Work

Before engines and motors were invented, people had
to do things like lifting or pushing heavy loads by hand.
Using an animal could help, but what they really needed
were some clever ways to either make work easier or
faster.
16

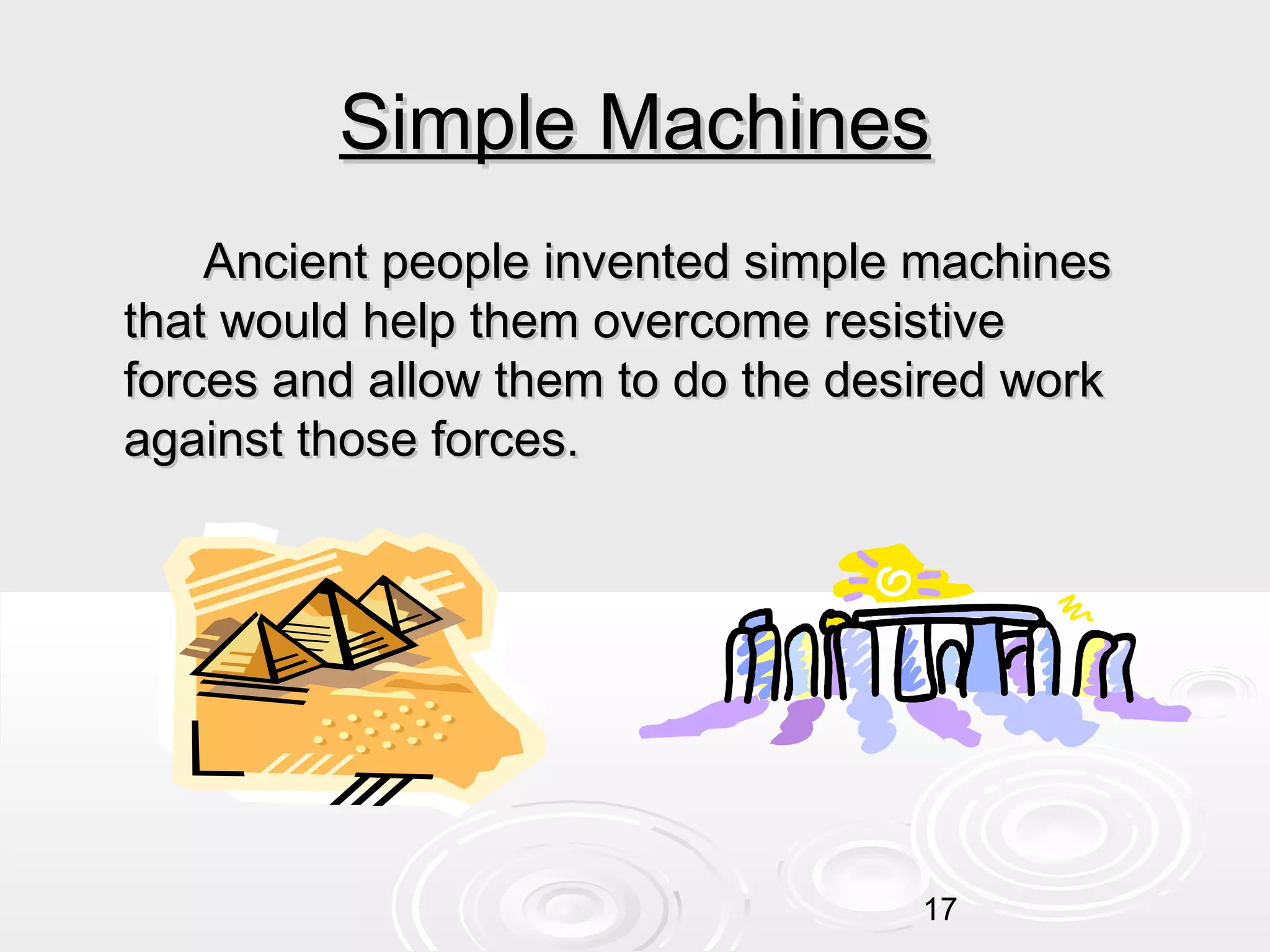

Simple Machines
Ancient people invented simple machines
that would help them overcome resistive
forces and allow them to do the desired work
against those forces.

17
Simple Machines


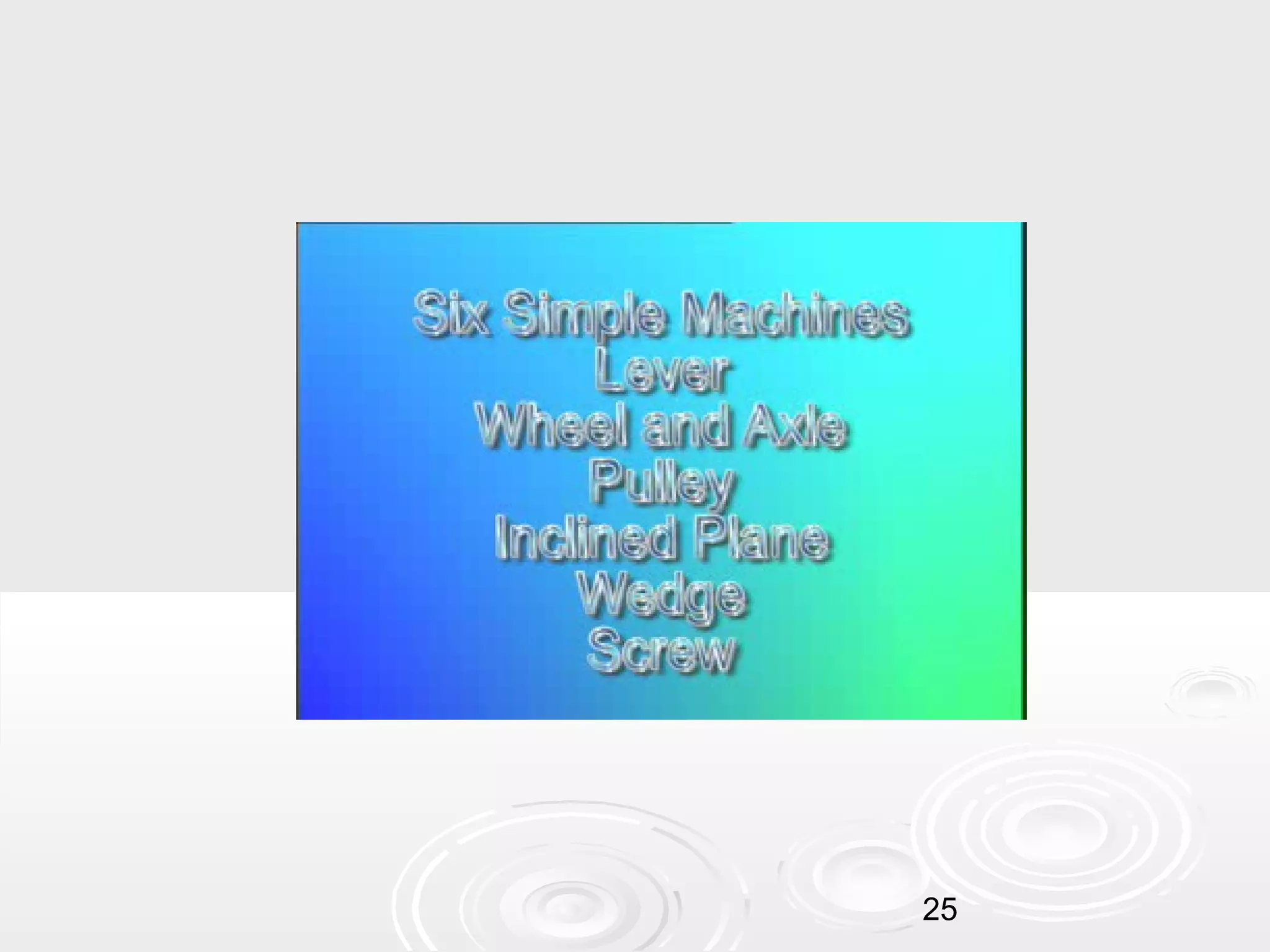

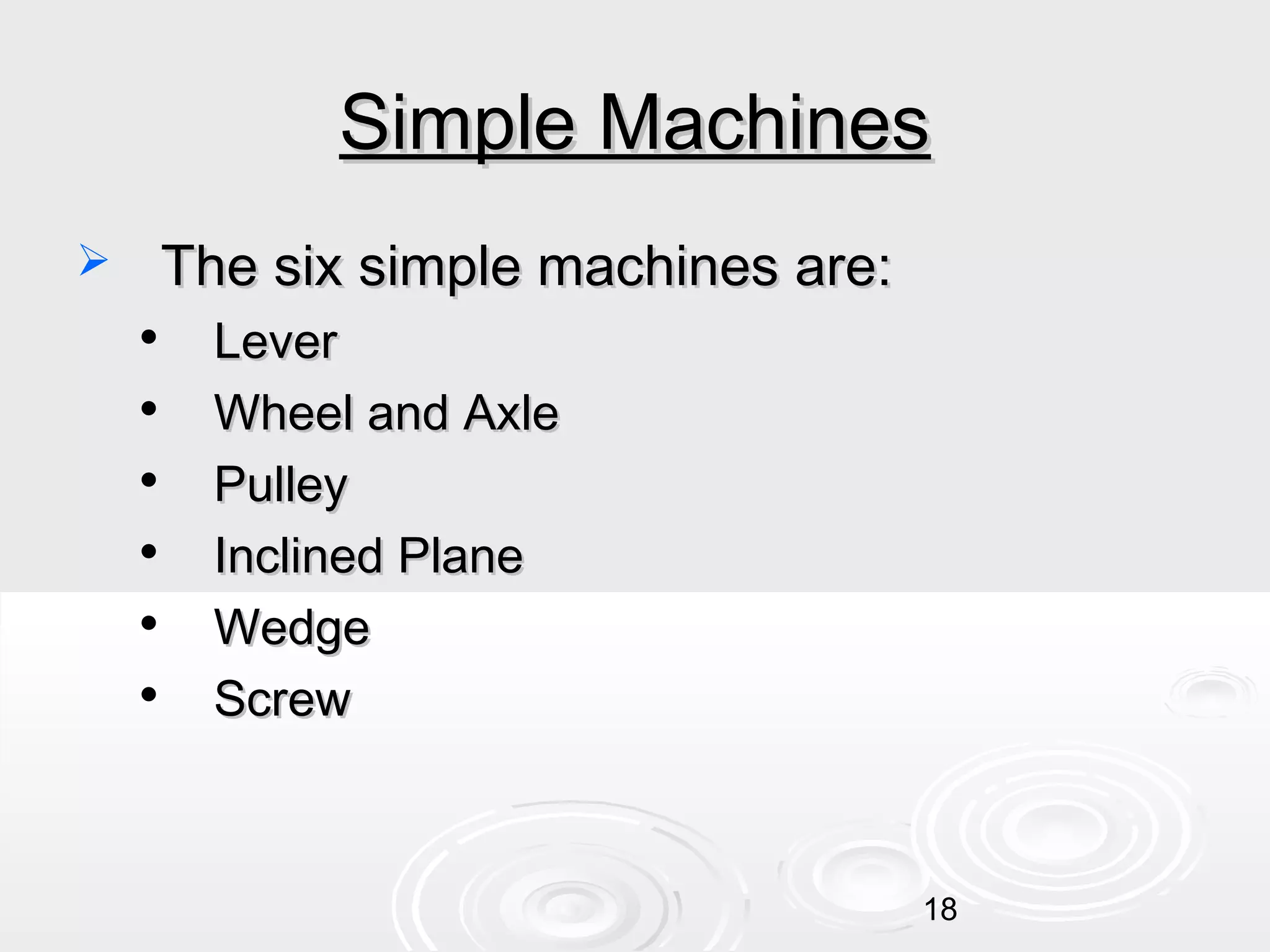

The six simple machines are:







Lever
Wheel and Axle
Pulley
Inclined Plane
Wedge
Screw

18

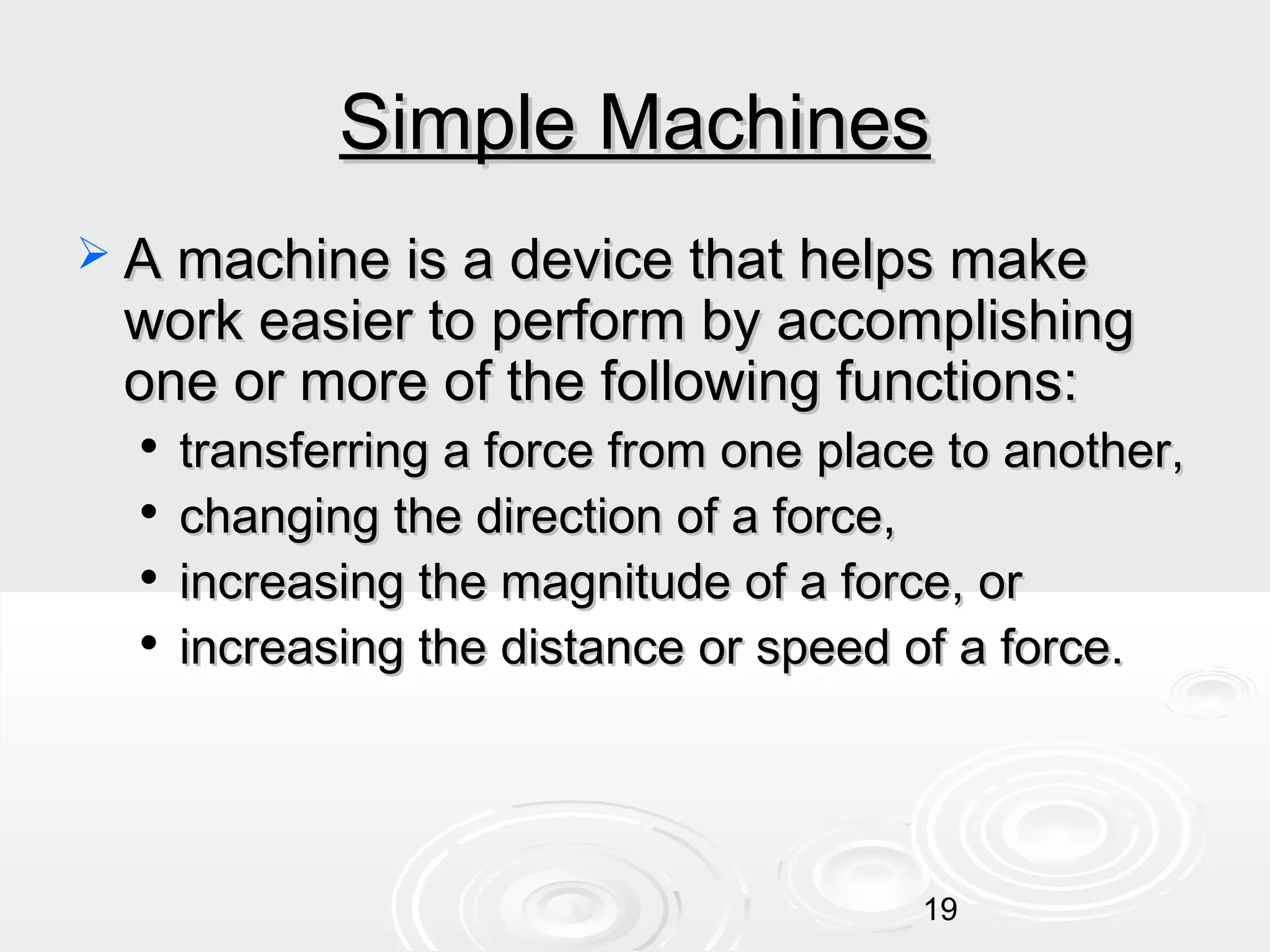

Simple Machines
 A machine is a device that helps make

work easier to perform by accomplishing
one or more of the following functions:





transferring a force from one place to another,
changing the direction of a force,
increasing the magnitude of a force, or
increasing the distance or speed of a force.

19

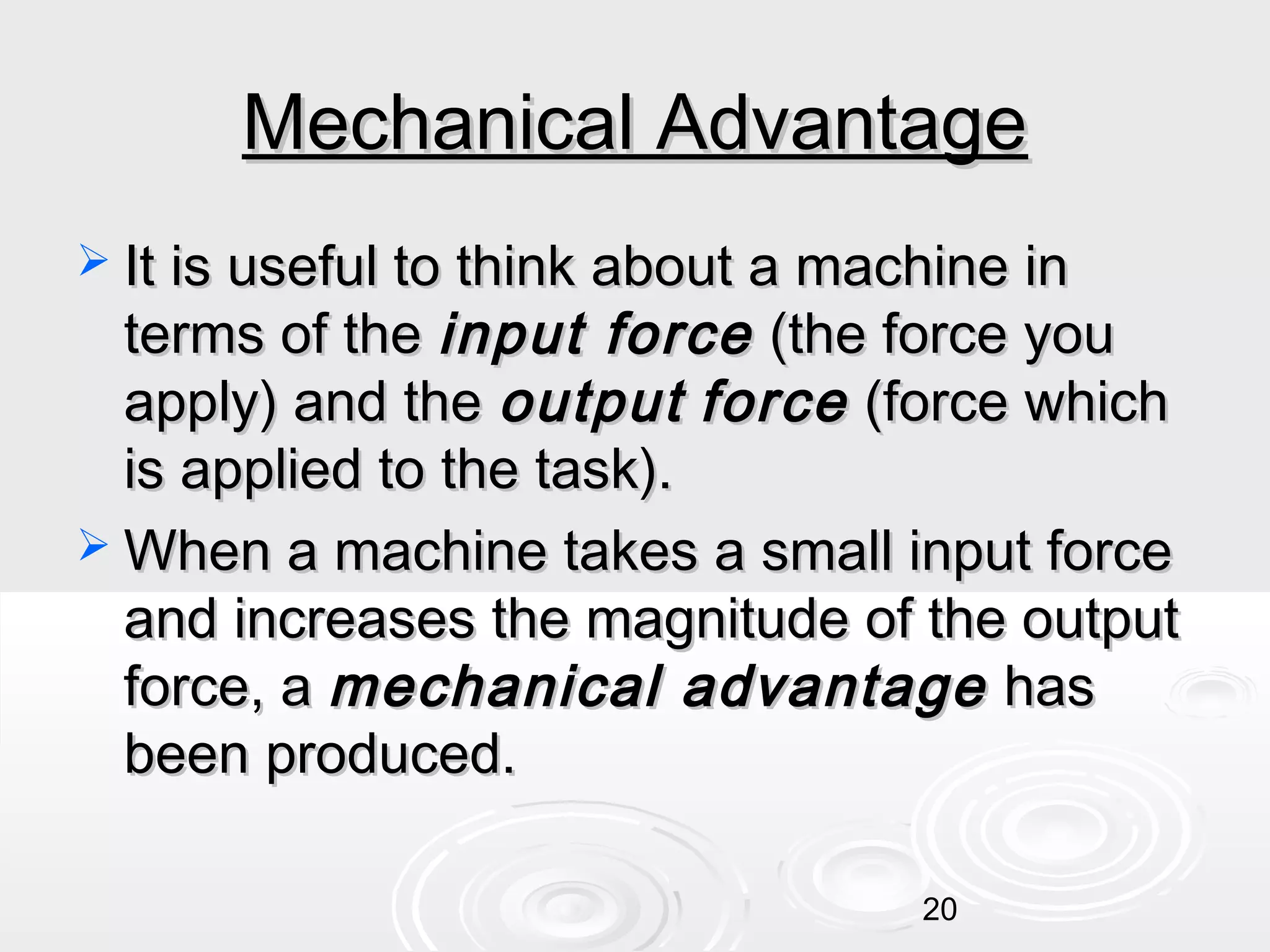

Mechanical Advantage
 It is useful to think about a machine in

terms of the input force (the force you
apply) and the output force (force which
is applied to the task).
 When a machine takes a small input force
and increases the magnitude of the output
force, a mechanical advantage has
been produced.
20

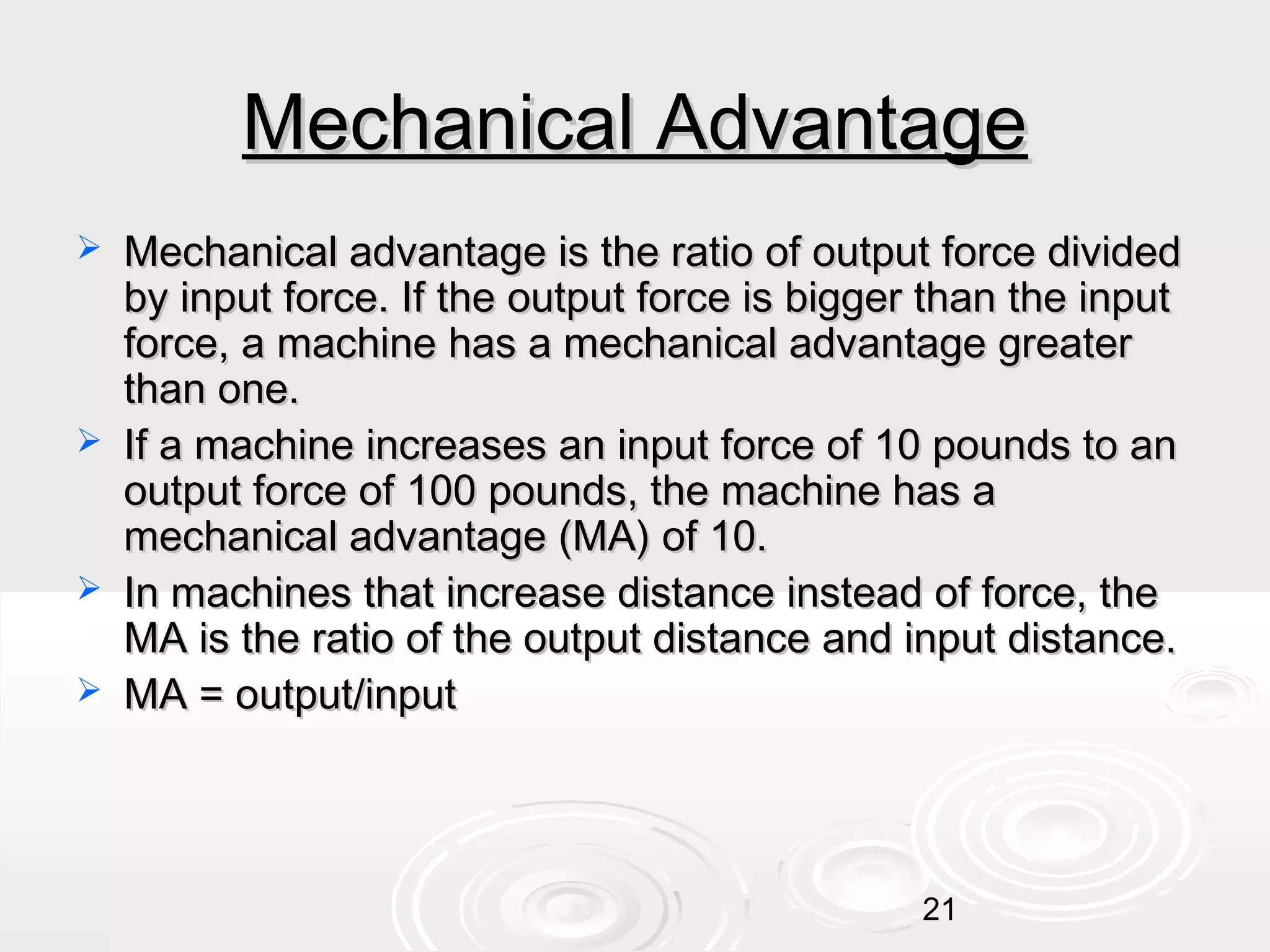

Mechanical Advantage







Mechanical advantage is the ratio of output force divided
by input force. If the output force is bigger than the input
force, a machine has a mechanical advantage greater
than one.
If a machine increases an input force of 10 pounds to an
output force of 100 pounds, the machine has a
mechanical advantage (MA) of 10.
In machines that increase distance instead of force, the
MA is the ratio of the output distance and input distance.
MA = output/input

21

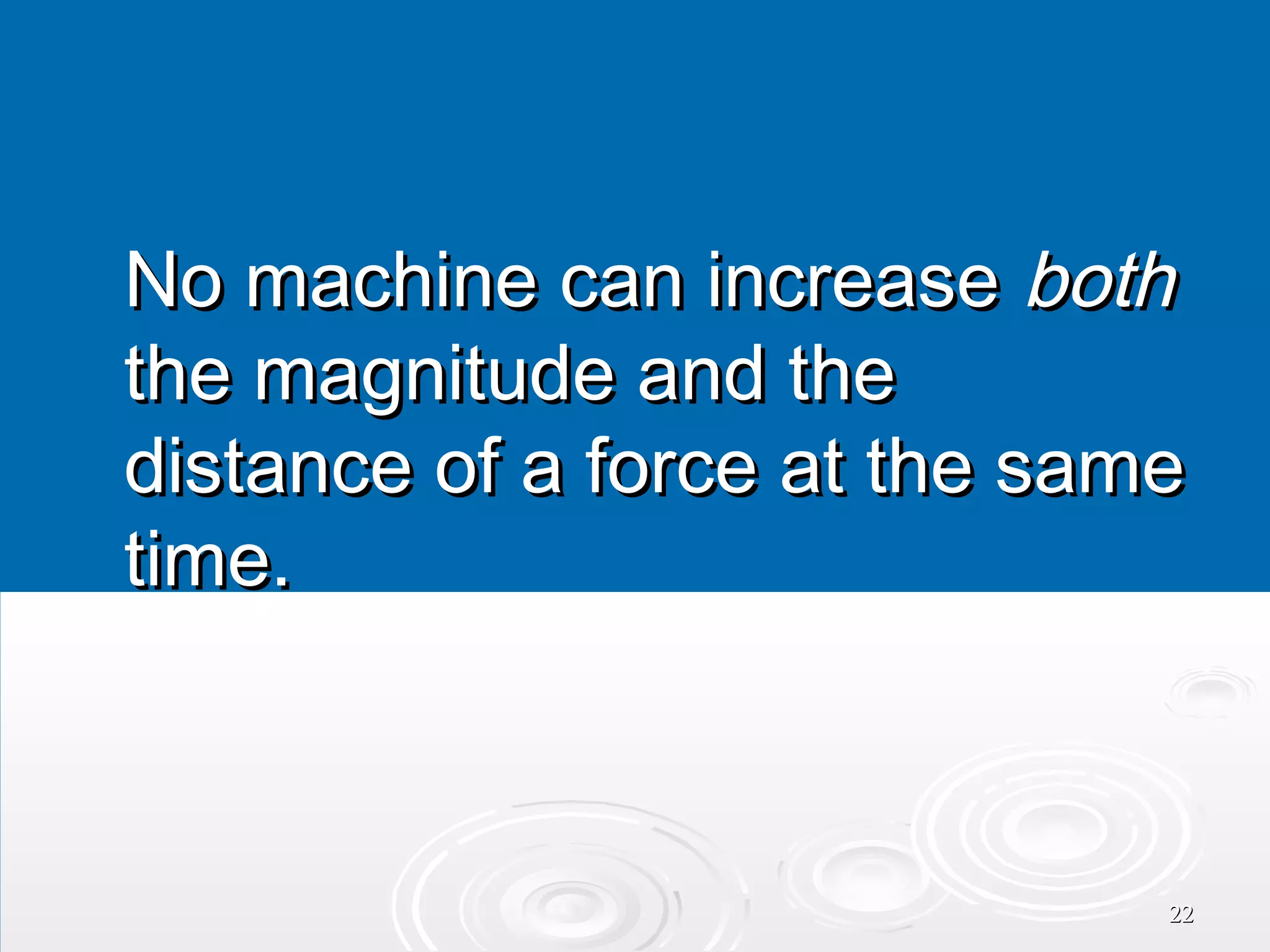

No machine can increase both
the magnitude and the
distance of a force at the same
time.

22

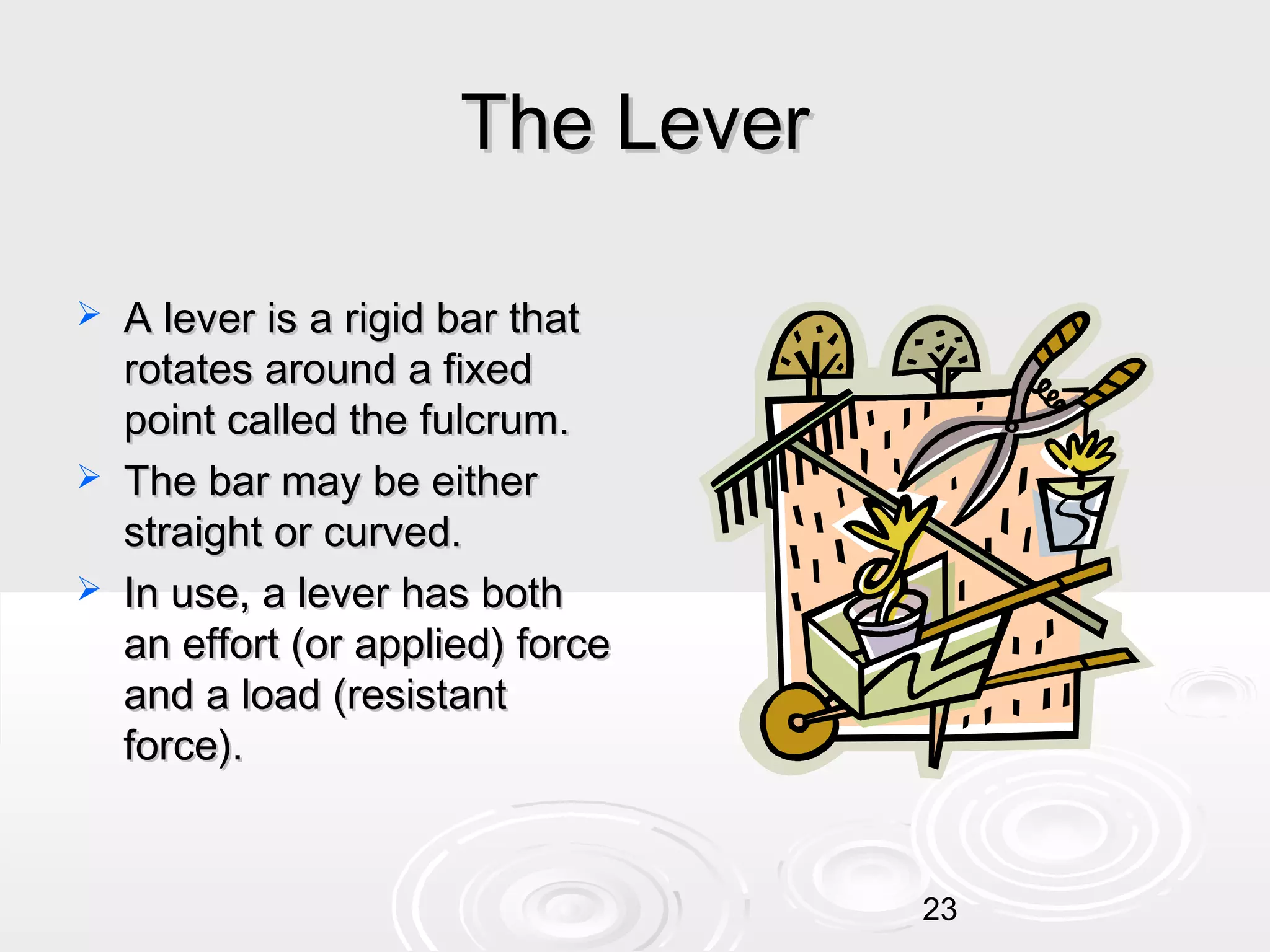

The Lever





A lever is a rigid bar that
rotates around a fixed
point called the fulcrum.
The bar may be either
straight or curved.
In use, a lever has both
an effort (or applied) force
and a load (resistant
force).

23

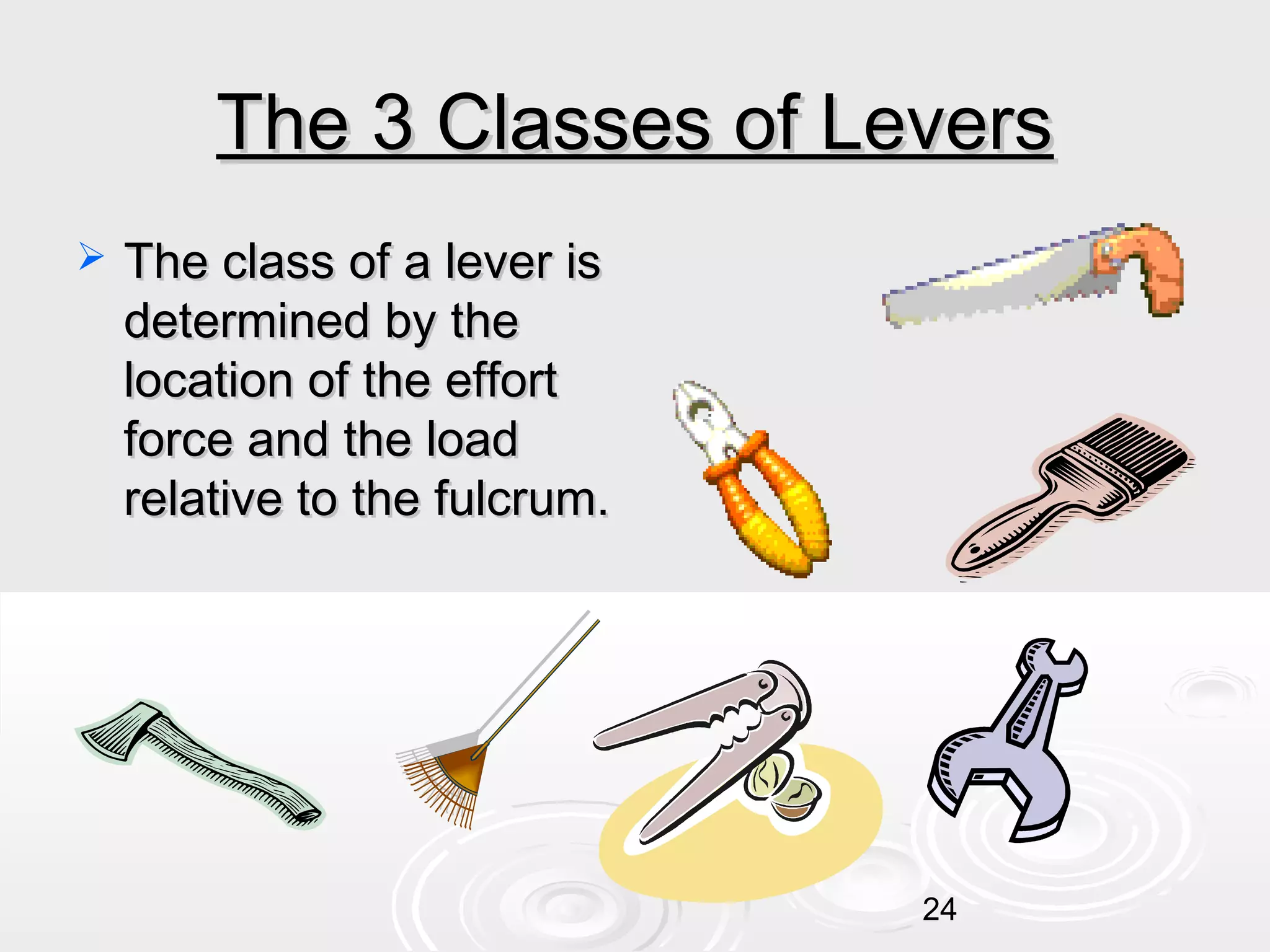

The 3 Classes of Levers


The class of a lever is
determined by the
location of the effort
force and the load
relative to the fulcrum.

24
25

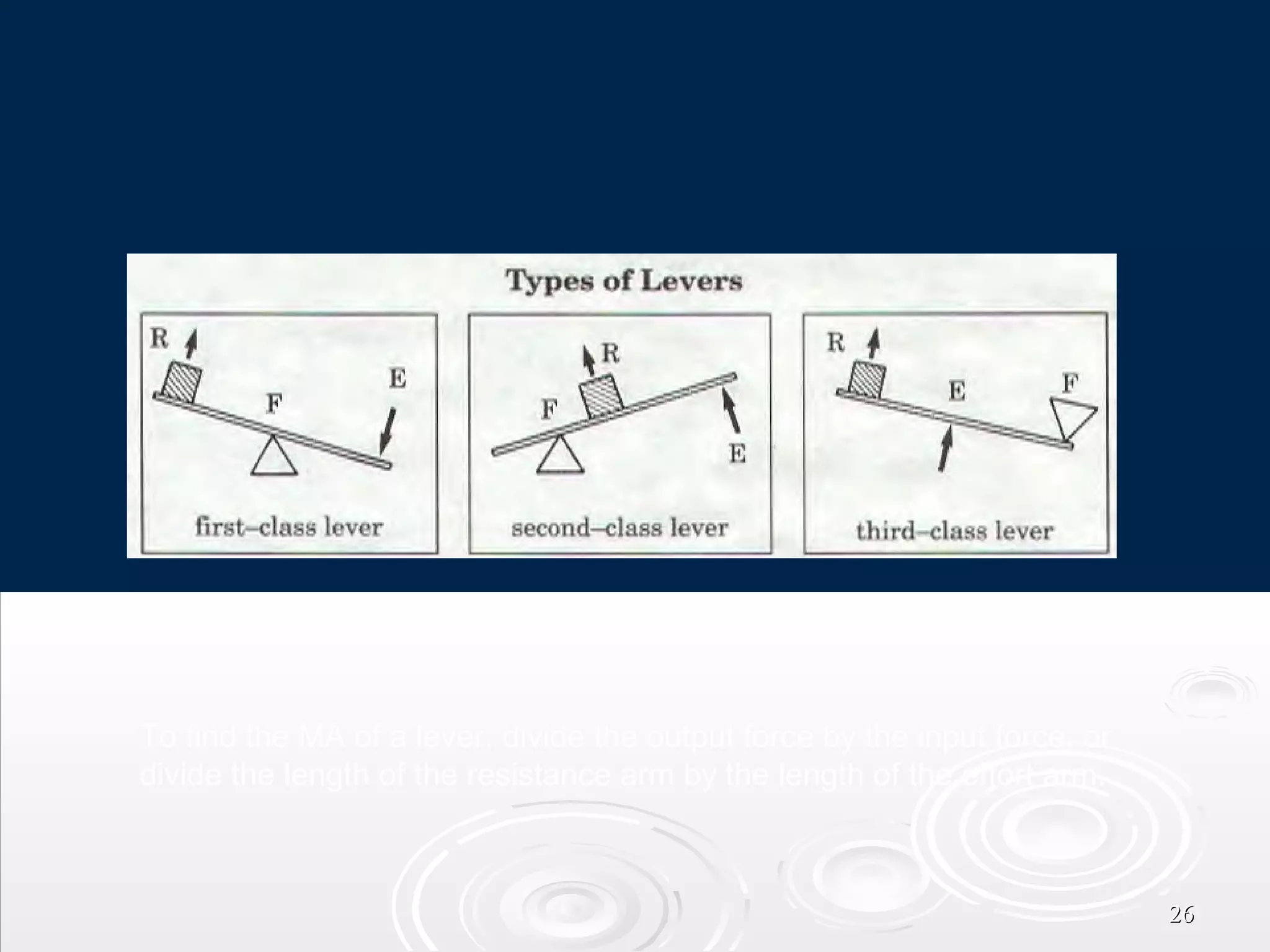

To find the MA of a lever, divide the output force by the input force, or
divide the length of the resistance arm by the length of the effort arm.

26

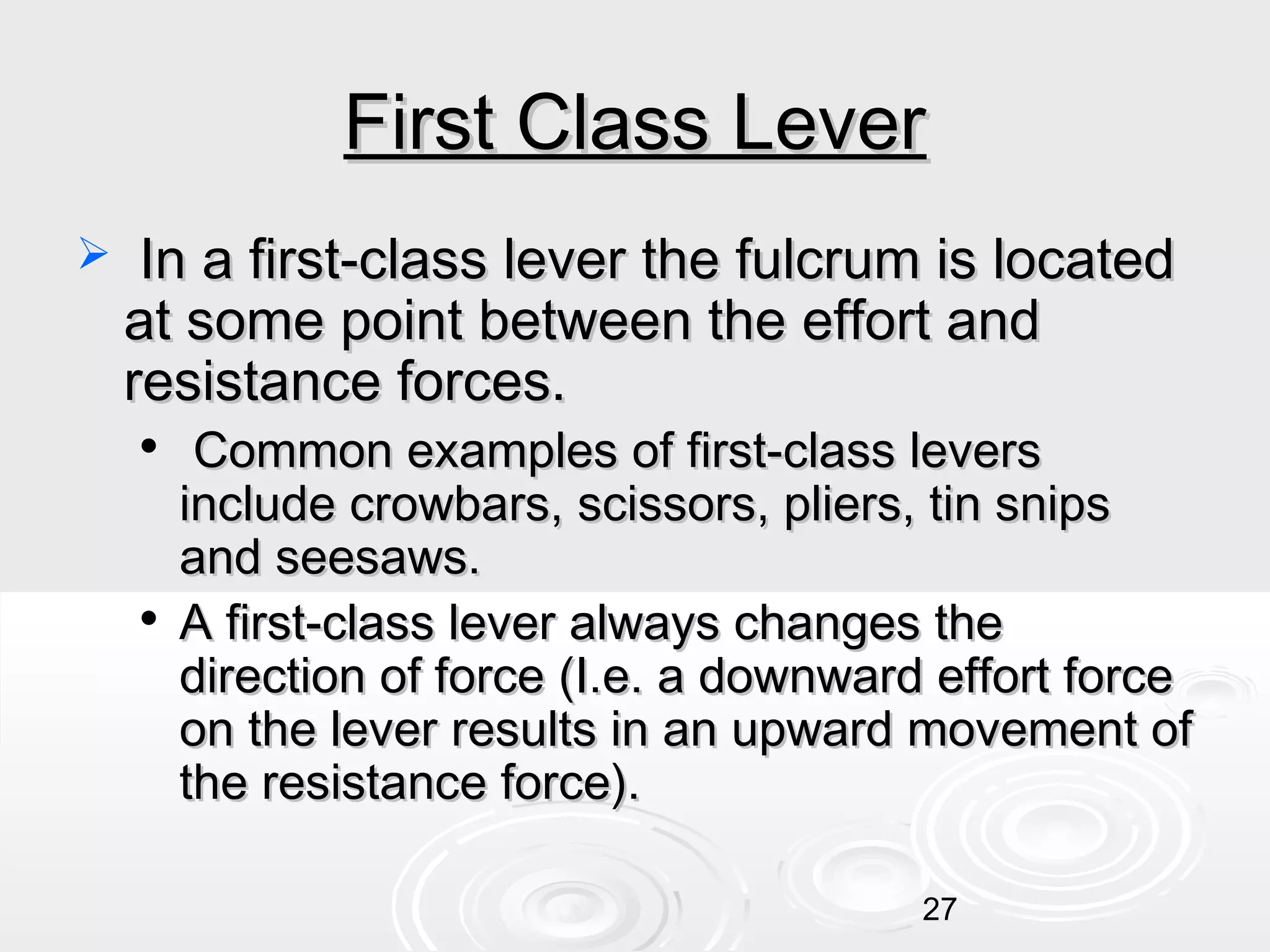

First Class Lever


In a first-class lever the fulcrum is located
at some point between the effort and
resistance forces.




Common examples of first-class levers
include crowbars, scissors, pliers, tin snips
and seesaws.
A first-class lever always changes the
direction of force (I.e. a downward effort force
on the lever results in an upward movement of
the resistance force).
27

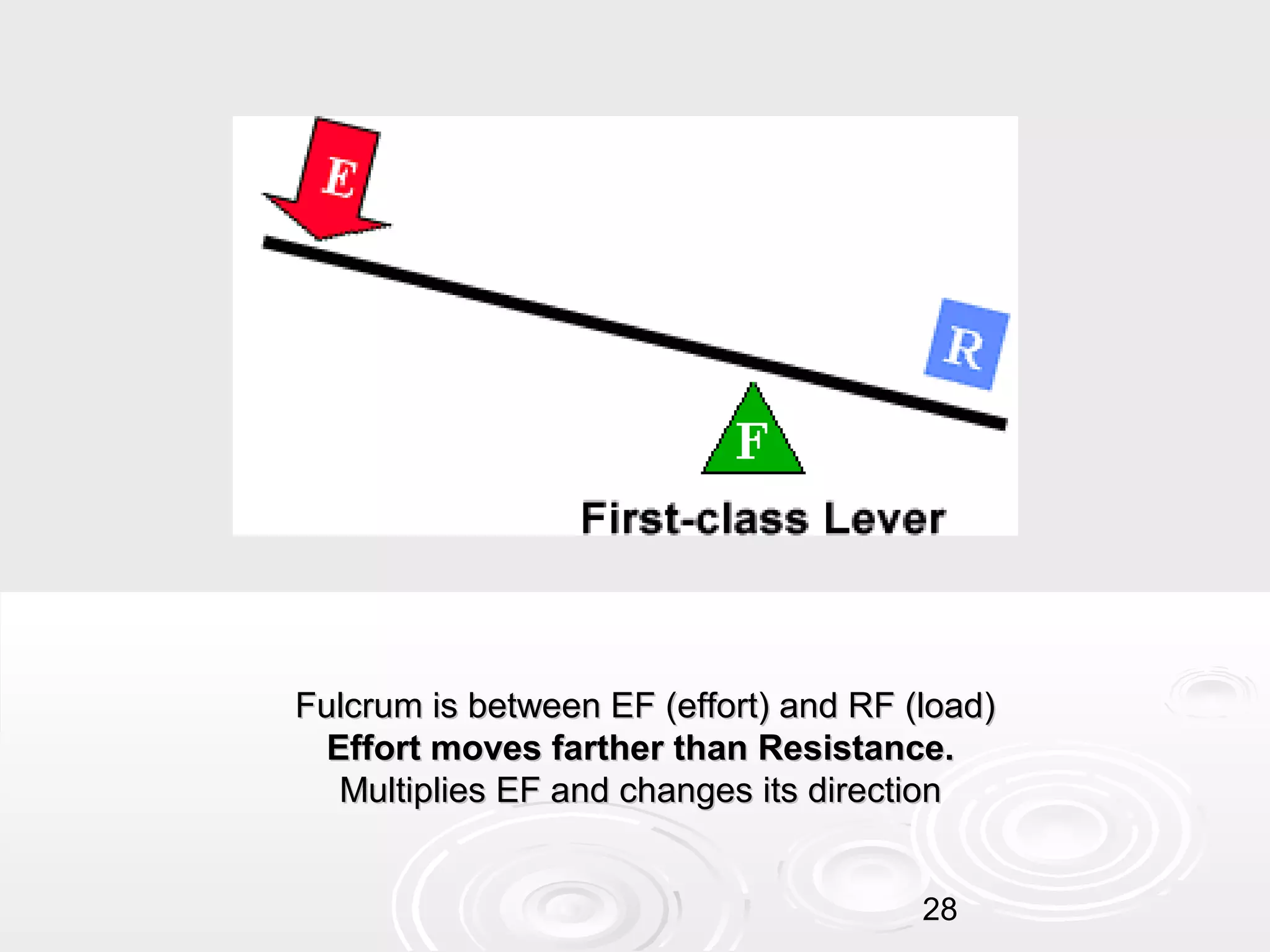

Fulcrum is between EF (effort) and RF (load)
Effort moves farther than Resistance.
Multiplies EF and changes its direction
28

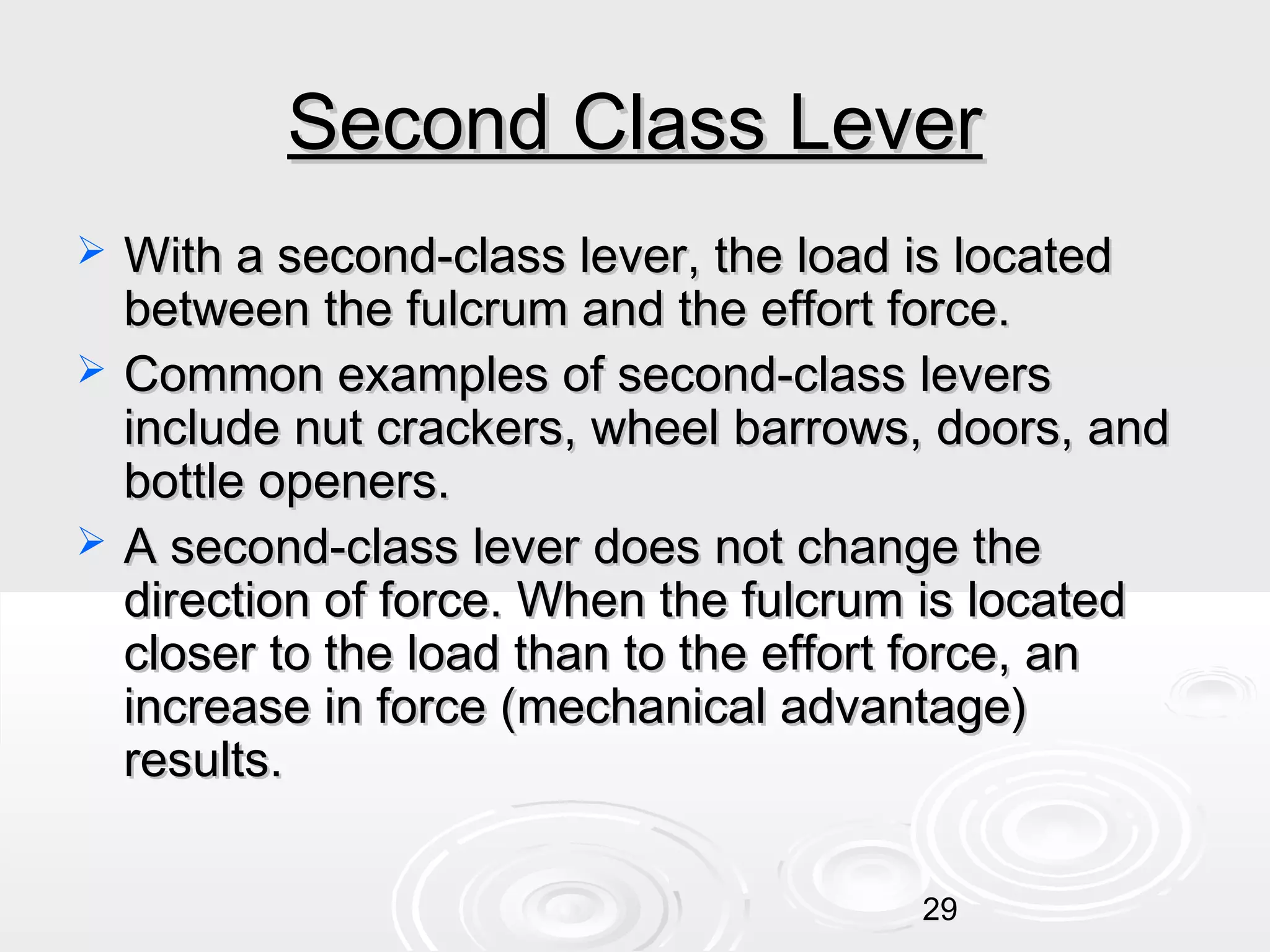

Second Class Lever





With a second-class lever, the load is located
between the fulcrum and the effort force.
Common examples of second-class levers
include nut crackers, wheel barrows, doors, and
bottle openers.
A second-class lever does not change the
direction of force. When the fulcrum is located
closer to the load than to the effort force, an
increase in force (mechanical advantage)
results.
29

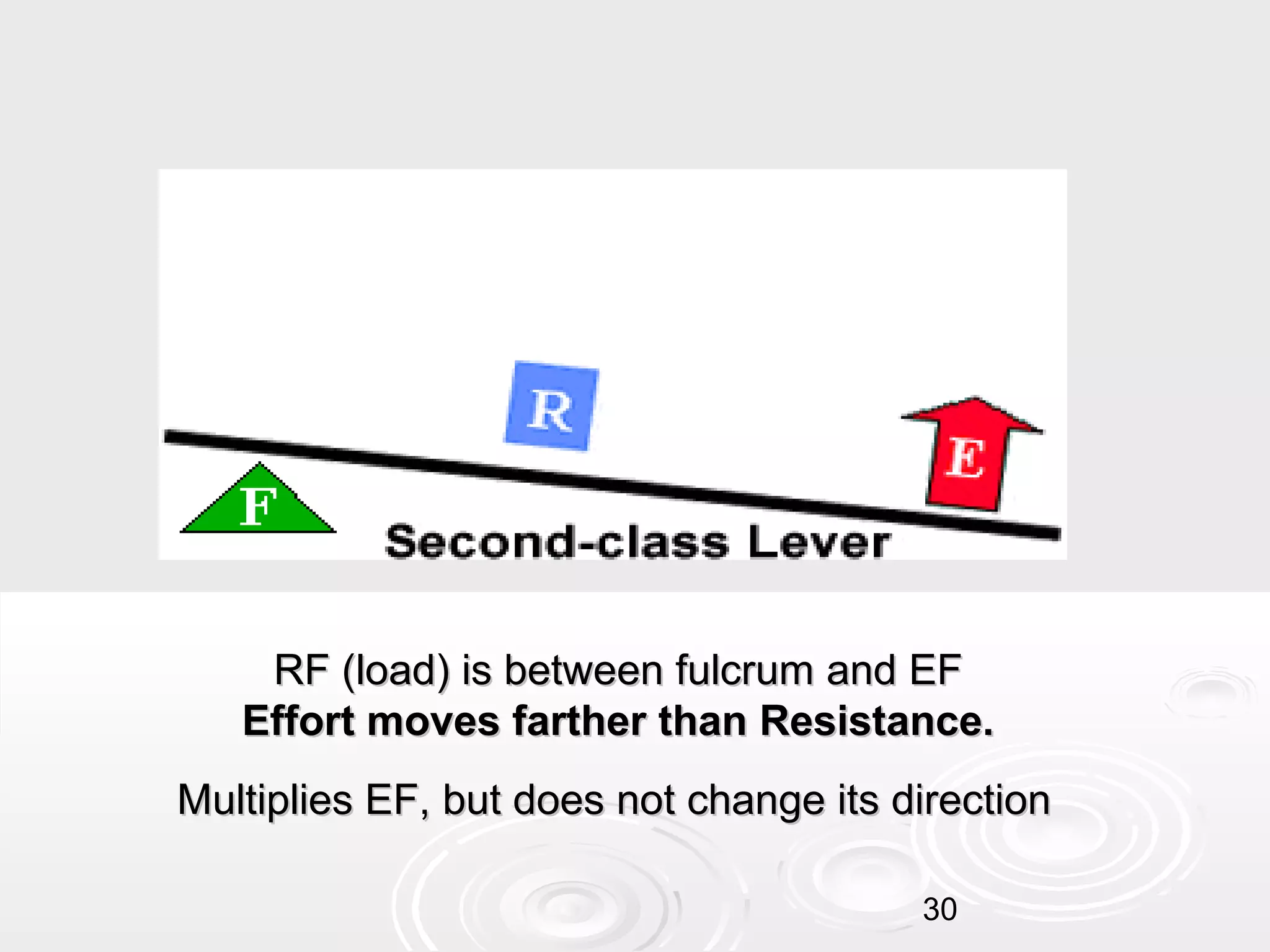

RF (load) is between fulcrum and EF
Effort moves farther than Resistance.
Multiplies EF, but does not change its direction
30

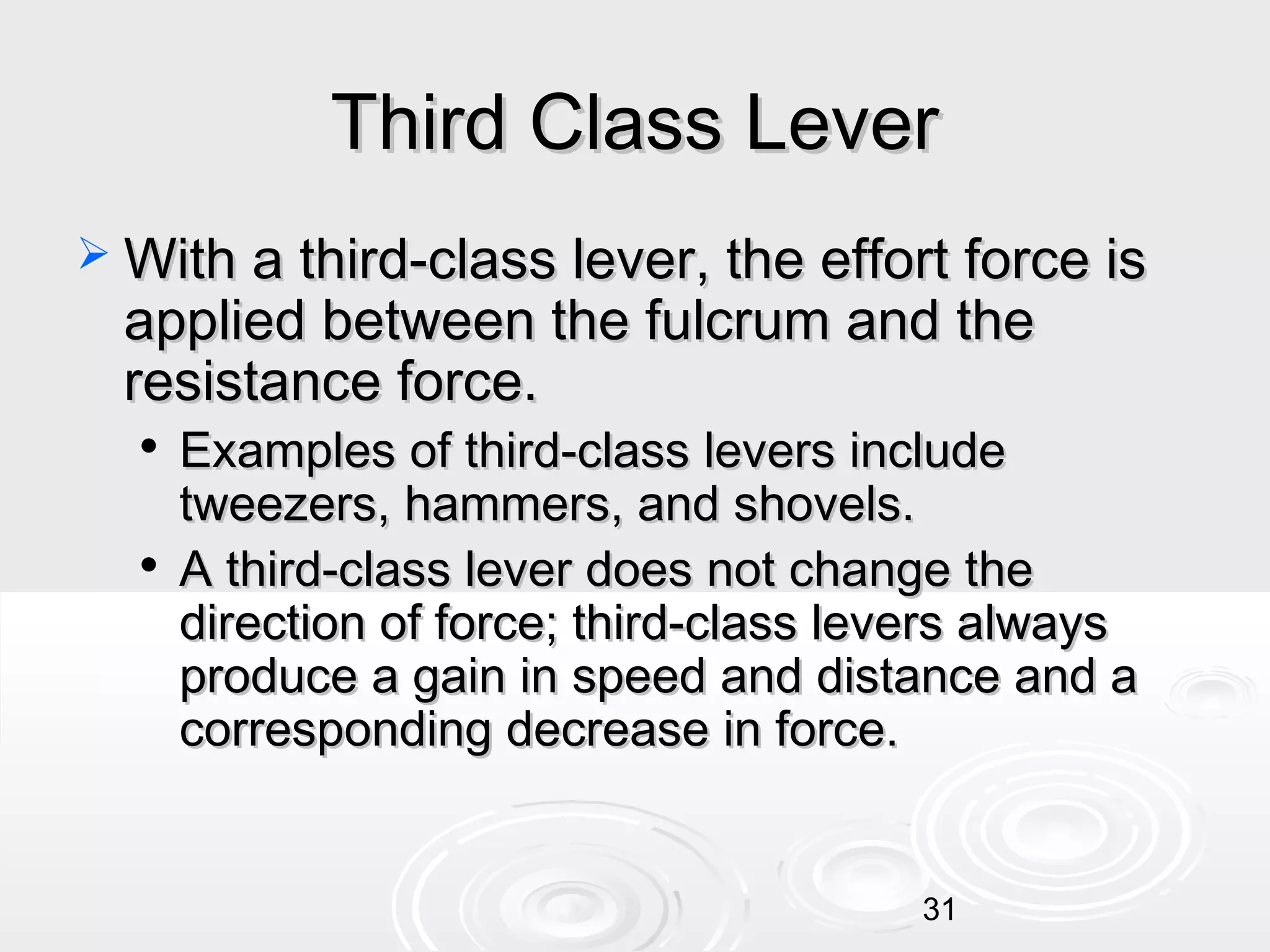

Third Class Lever
 With a third-class lever, the effort force is

applied between the fulcrum and the
resistance force.




Examples of third-class levers include
tweezers, hammers, and shovels.
A third-class lever does not change the
direction of force; third-class levers always
produce a gain in speed and distance and a
corresponding decrease in force.

31

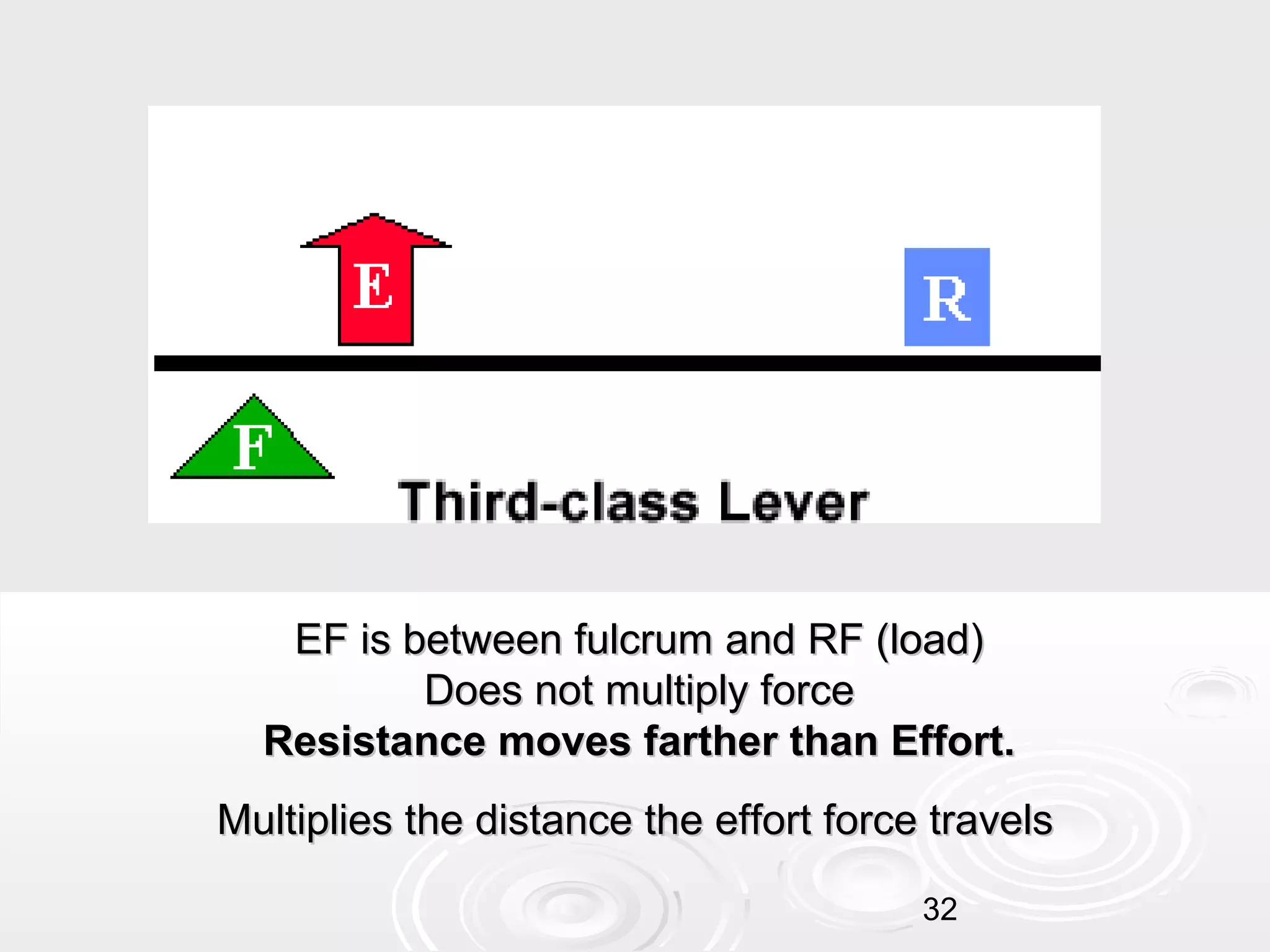

EF is between fulcrum and RF (load)
Does not multiply force
Resistance moves farther than Effort.
Multiplies the distance the effort force travels
32

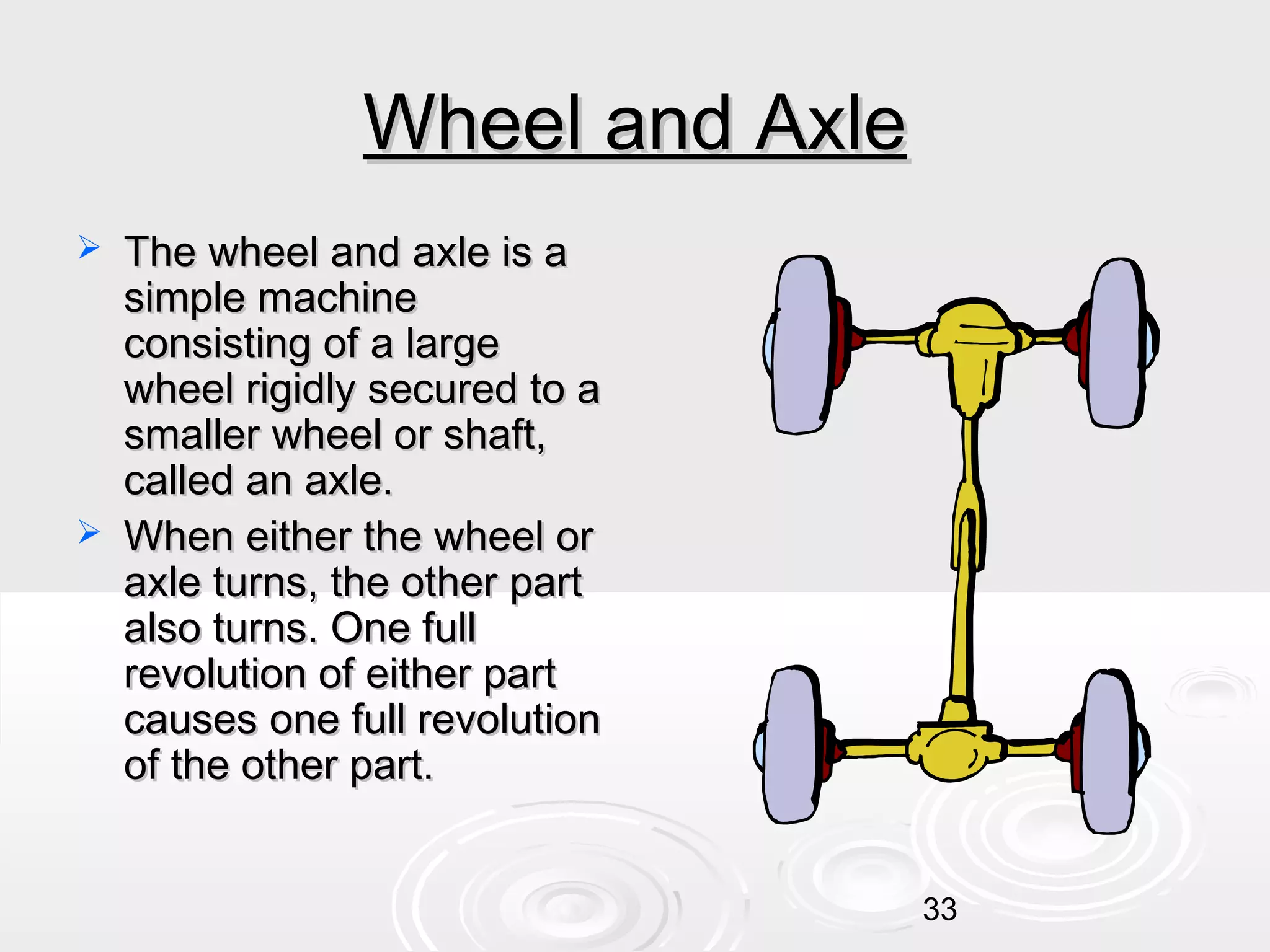

Wheel and Axle




The wheel and axle is a
simple machine
consisting of a large
wheel rigidly secured to a
smaller wheel or shaft,
called an axle.
When either the wheel or
axle turns, the other part
also turns. One full
revolution of either part
causes one full revolution
of the other part.
33

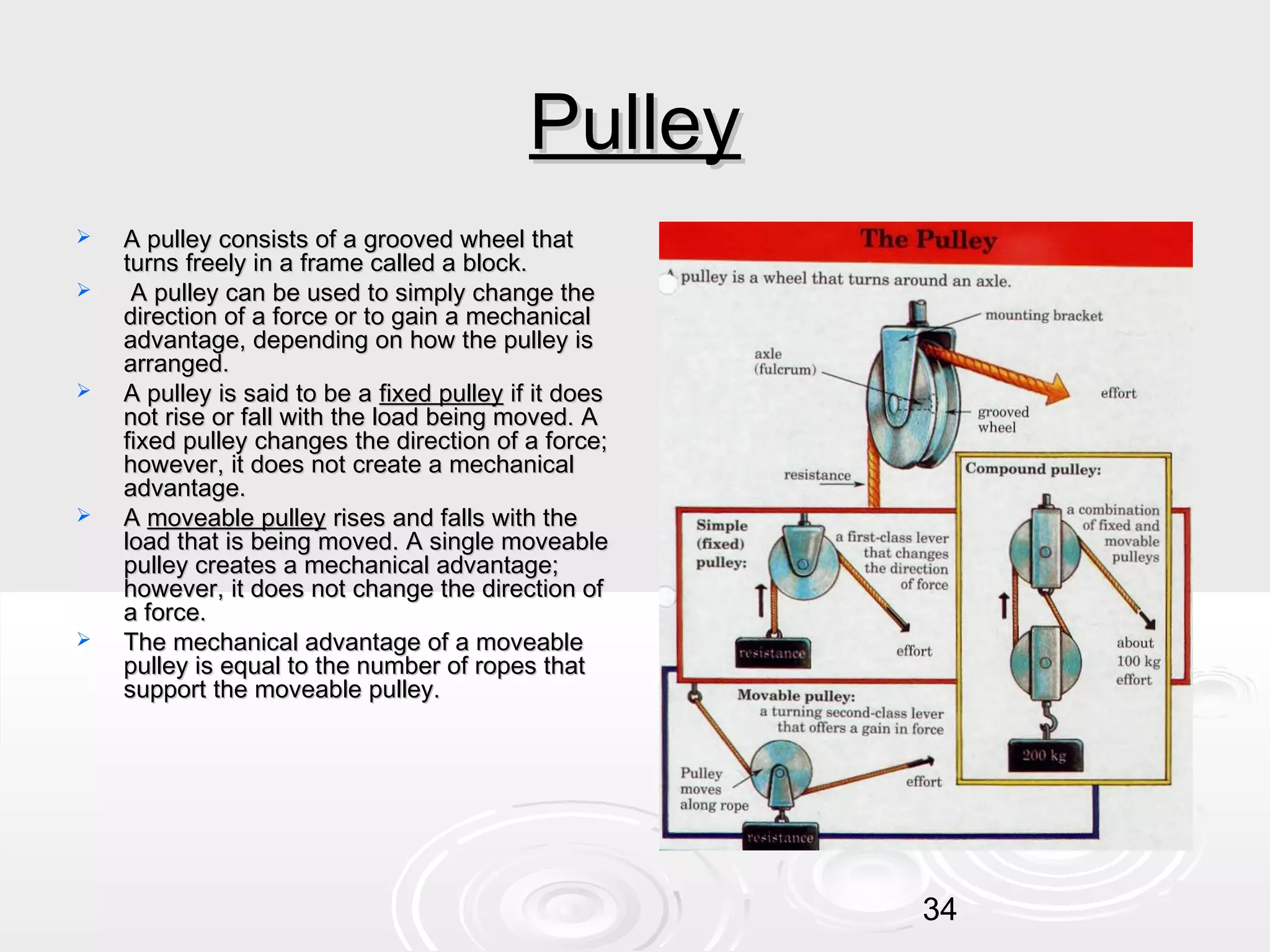

Pulley









A pulley consists of a grooved wheel that
turns freely in a frame called a block.
A pulley can be used to simply change the
direction of a force or to gain a mechanical
advantage, depending on how the pulley is
arranged.
A pulley is said to be a fixed pulley if it does
not rise or fall with the load being moved. A
fixed pulley changes the direction of a force;
however, it does not create a mechanical
advantage.
A moveable pulley rises and falls with the
load that is being moved. A single moveable
pulley creates a mechanical advantage;
however, it does not change the direction of
a force.
The mechanical advantage of a moveable
pulley is equal to the number of ropes that
support the moveable pulley.

34
Inclined Plane


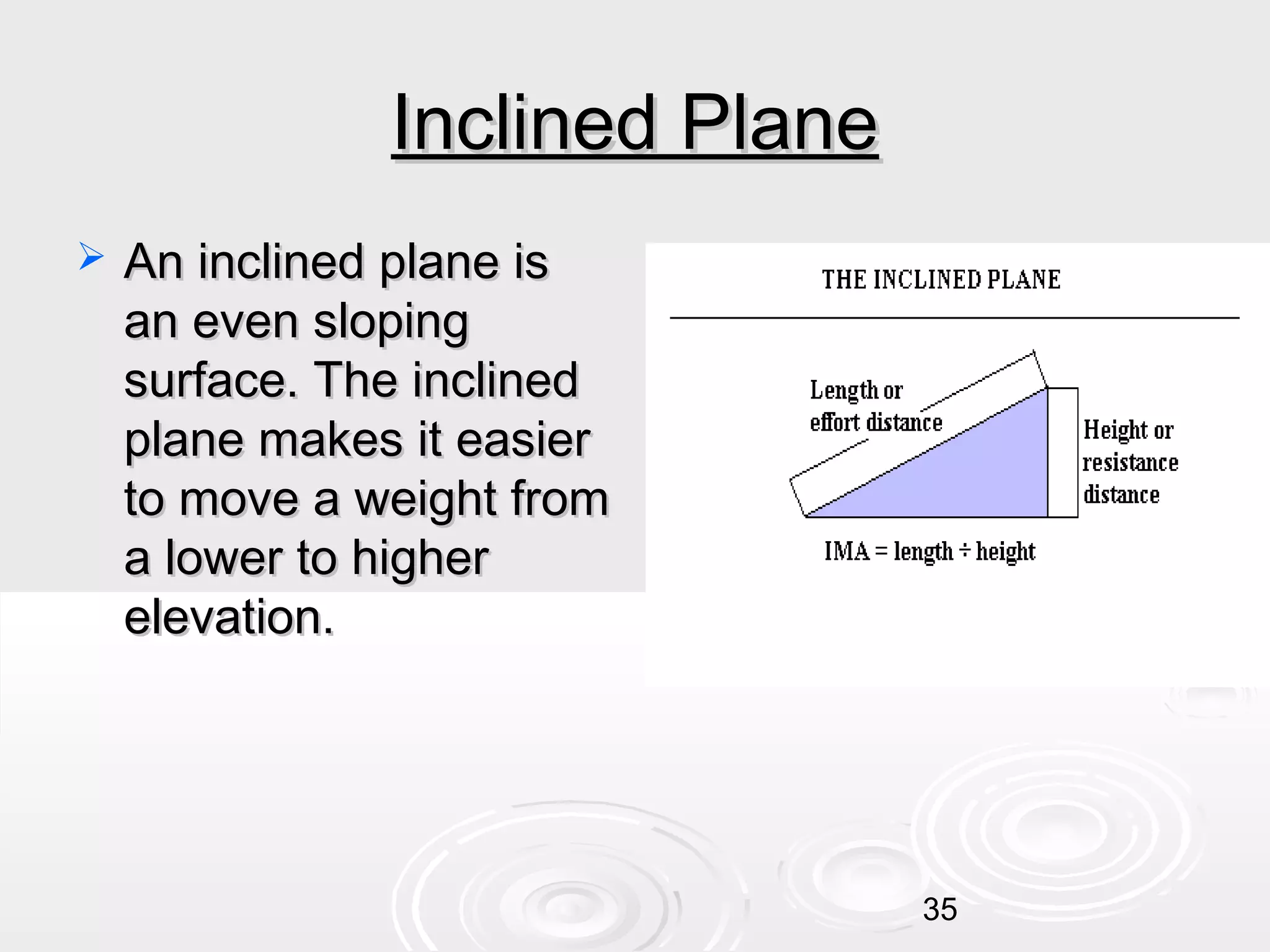

An inclined plane is
an even sloping
surface. The inclined
plane makes it easier
to move a weight from
a lower to higher
elevation.

35

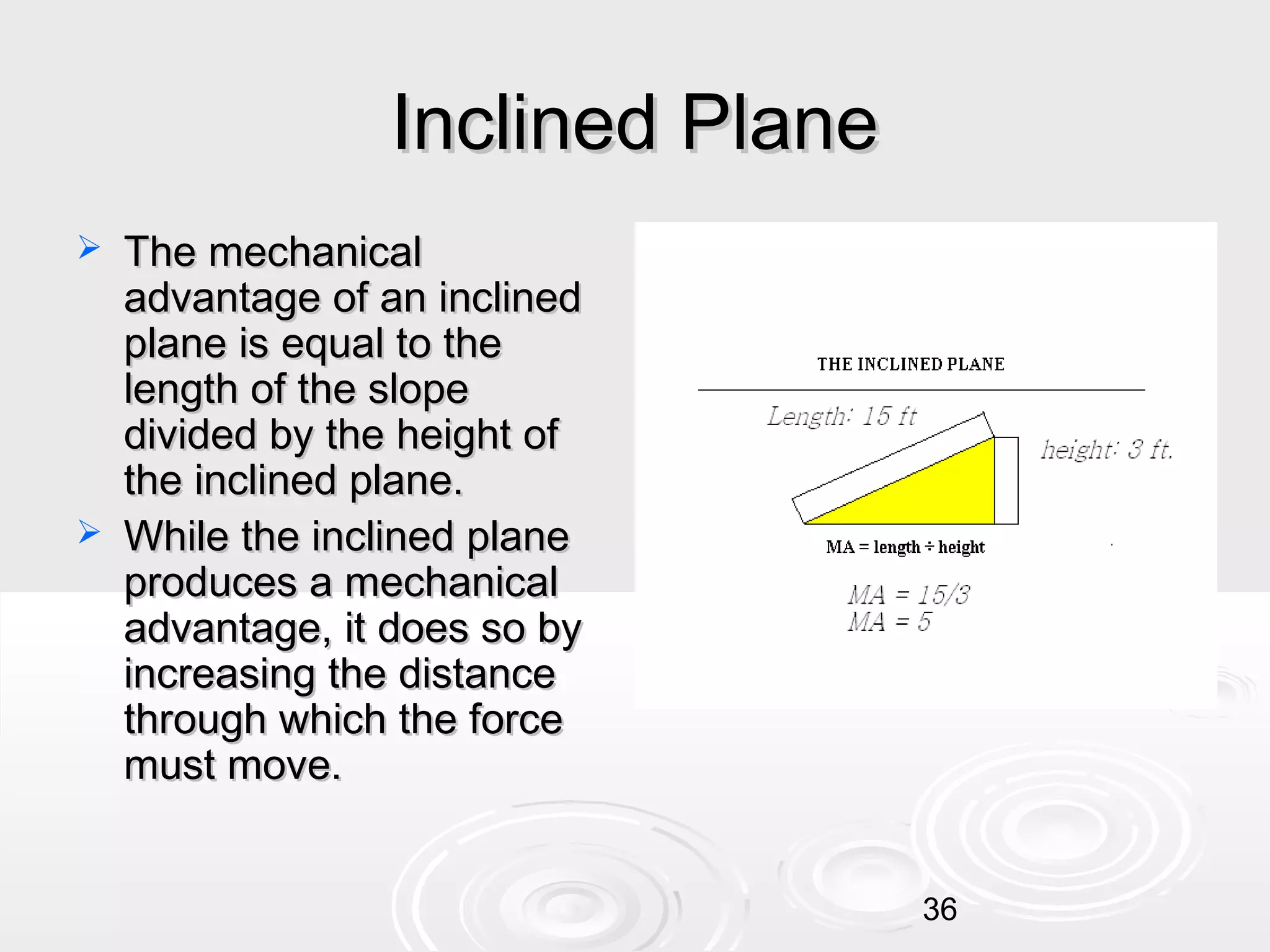

Inclined Plane




The mechanical
advantage of an inclined
plane is equal to the
length of the slope
divided by the height of
the inclined plane.
While the inclined plane
produces a mechanical
advantage, it does so by
increasing the distance
through which the force
must move.
36

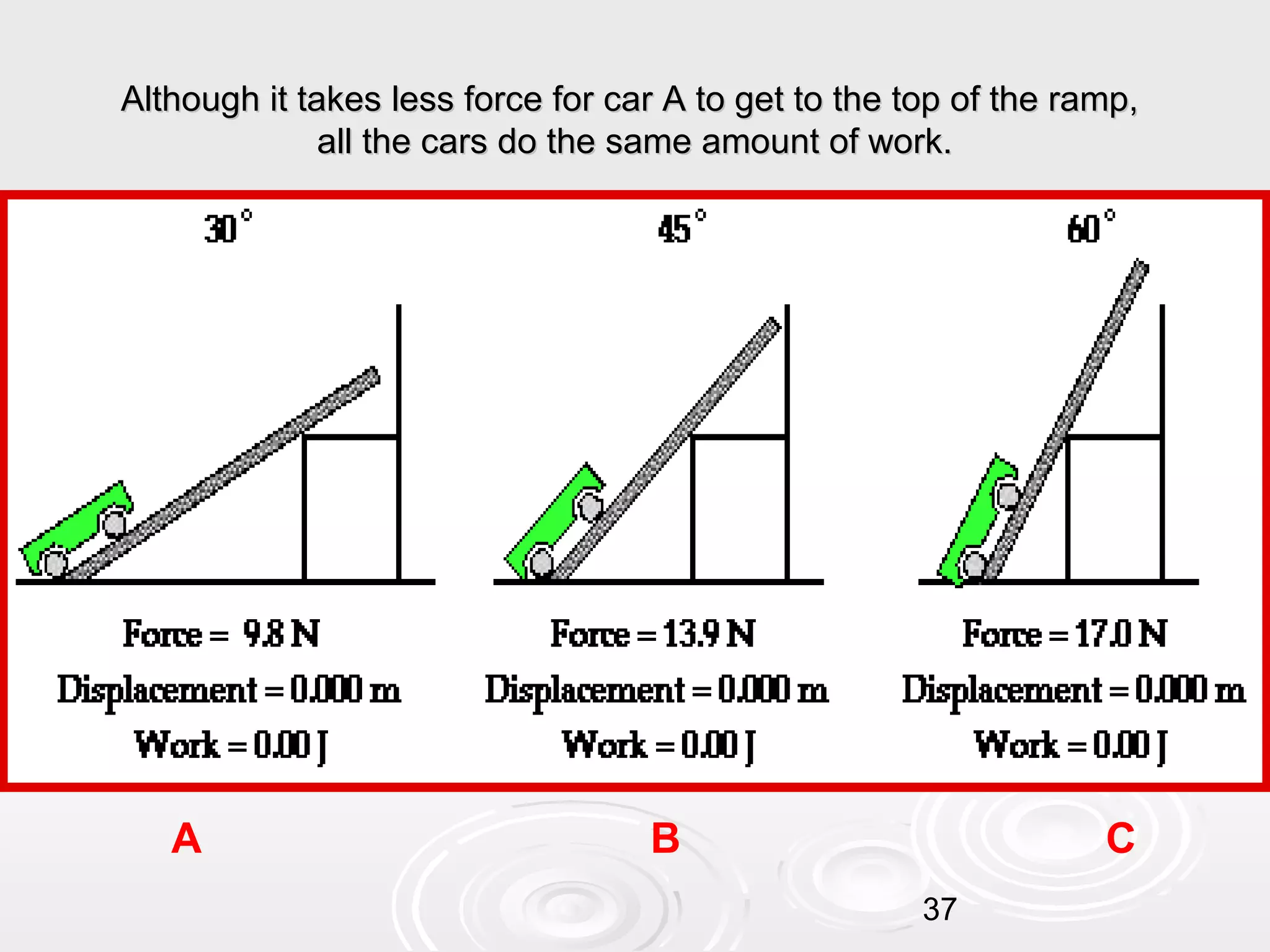

Although it takes less force for car A to get to the top of the ramp,
all the cars do the same amount of work.

A

B

C
37
Inclined Plane


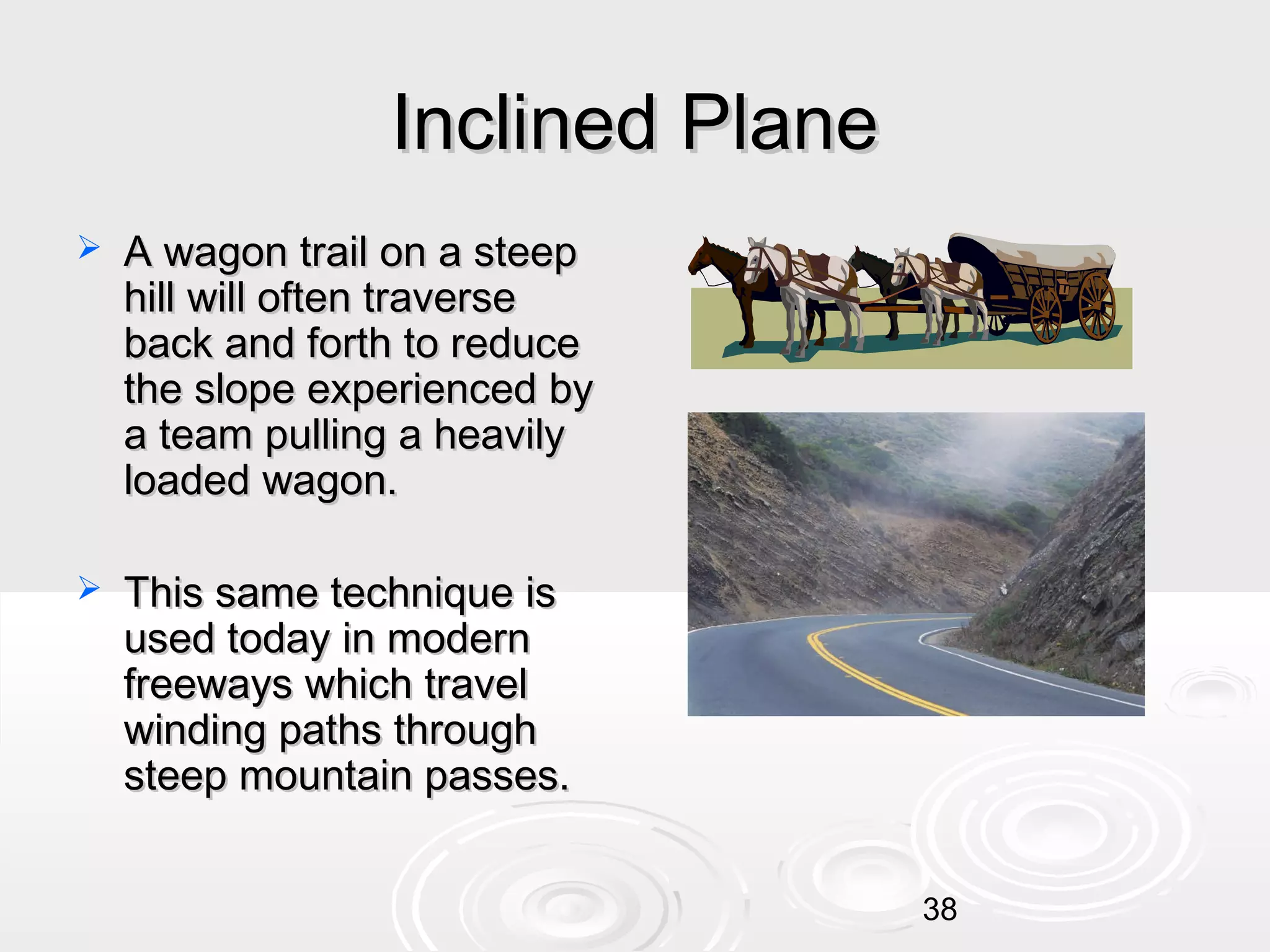

A wagon trail on a steep
hill will often traverse
back and forth to reduce
the slope experienced by
a team pulling a heavily
loaded wagon.



This same technique is
used today in modern
freeways which travel
winding paths through
steep mountain passes.
38

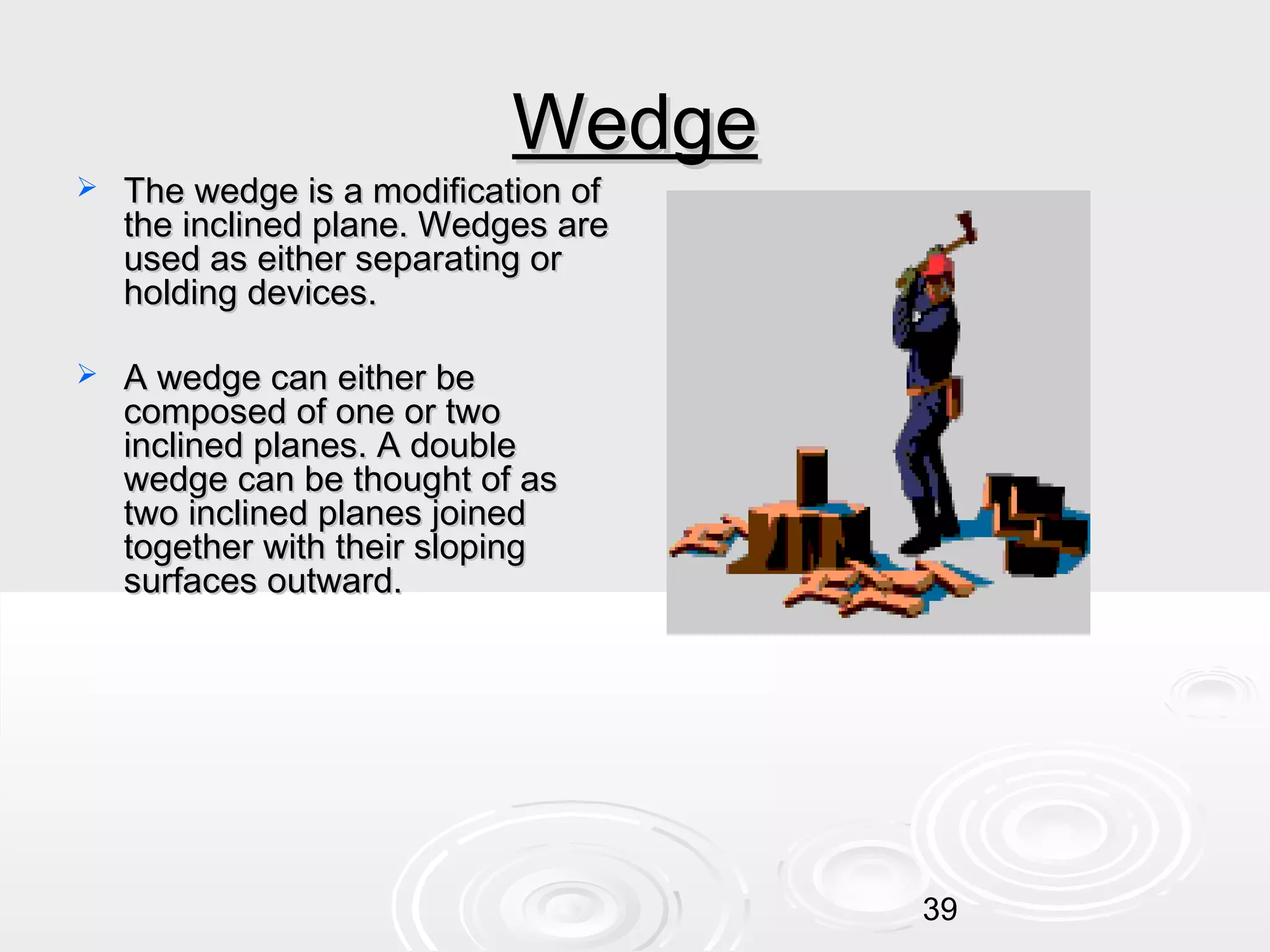

Wedge



The wedge is a modification of
the inclined plane. Wedges are
used as either separating or
holding devices.



A wedge can either be
composed of one or two
inclined planes. A double
wedge can be thought of as
two inclined planes joined
together with their sloping
surfaces outward.

39

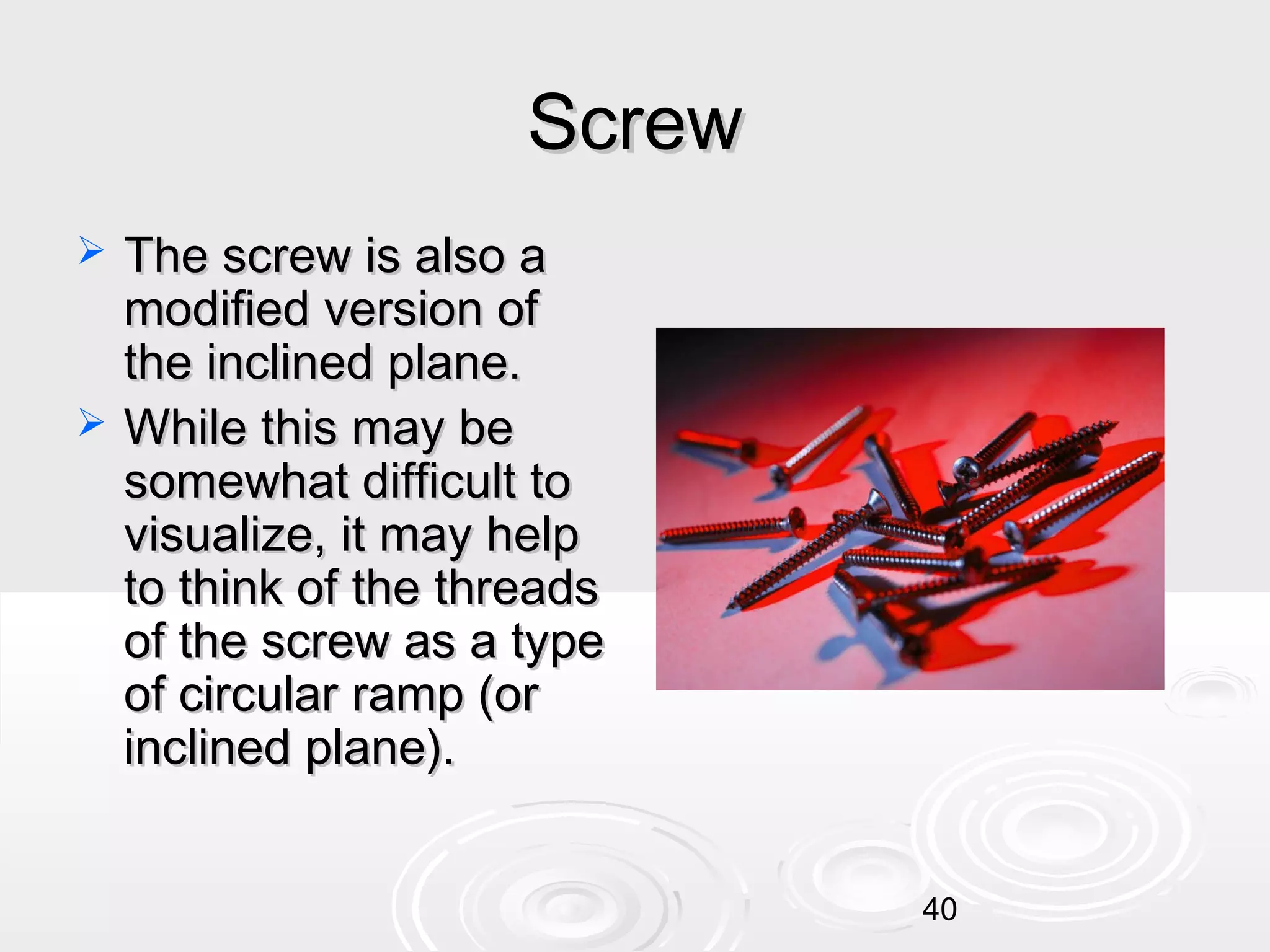

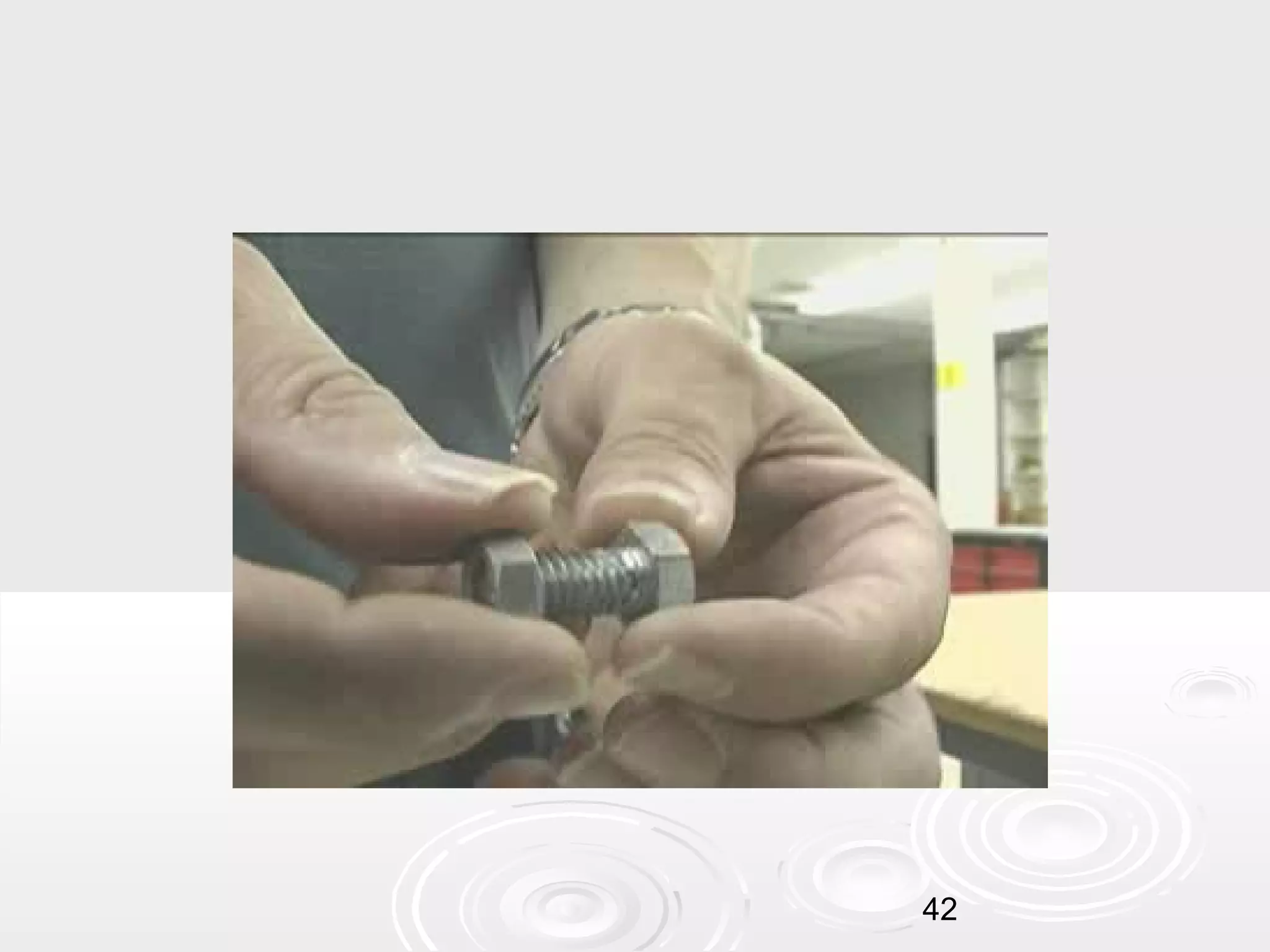

Screw




The screw is also a
modified version of
the inclined plane.
While this may be
somewhat difficult to
visualize, it may help
to think of the threads
of the screw as a type
of circular ramp (or
inclined plane).
40

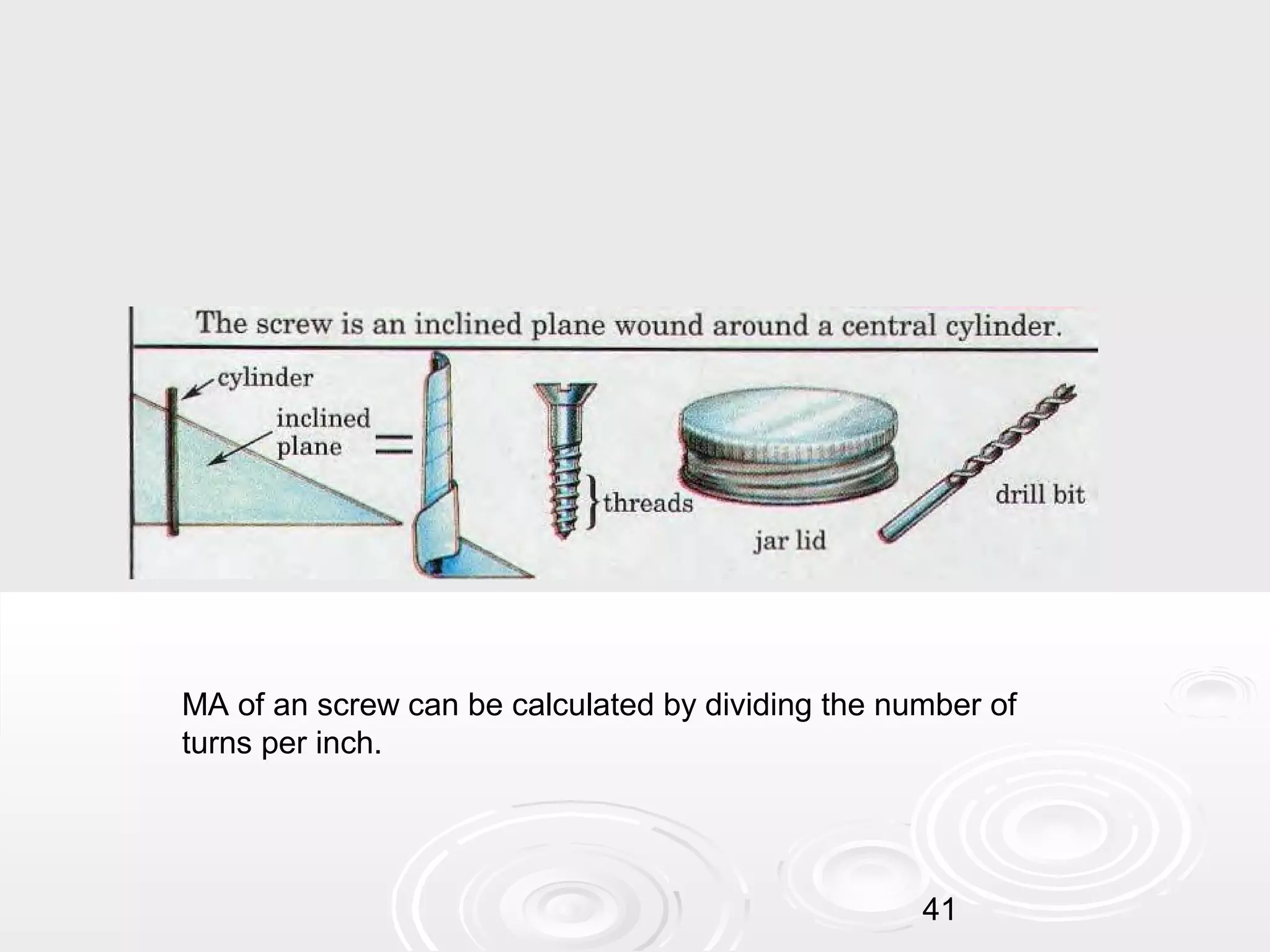

MA of an screw can be calculated by dividing the number of
turns per inch.

41
42

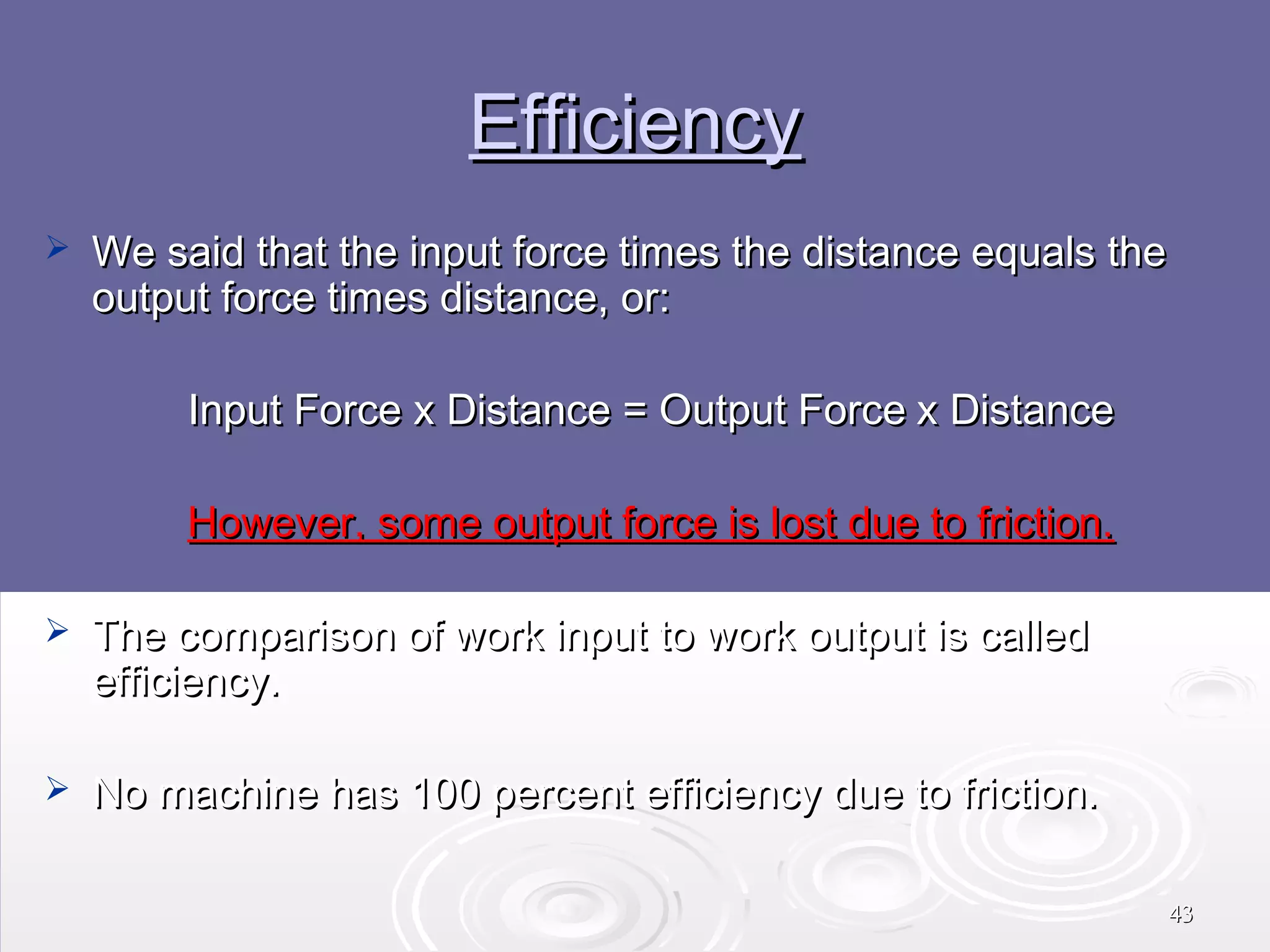

Efficiency


We said that the input force times the distance equals the
output force times distance, or:
Input Force x Distance = Output Force x Distance
However, some output force is lost due to friction.



The comparison of work input to work output is called
efficiency.



No machine has 100 percent efficiency due to friction.
43

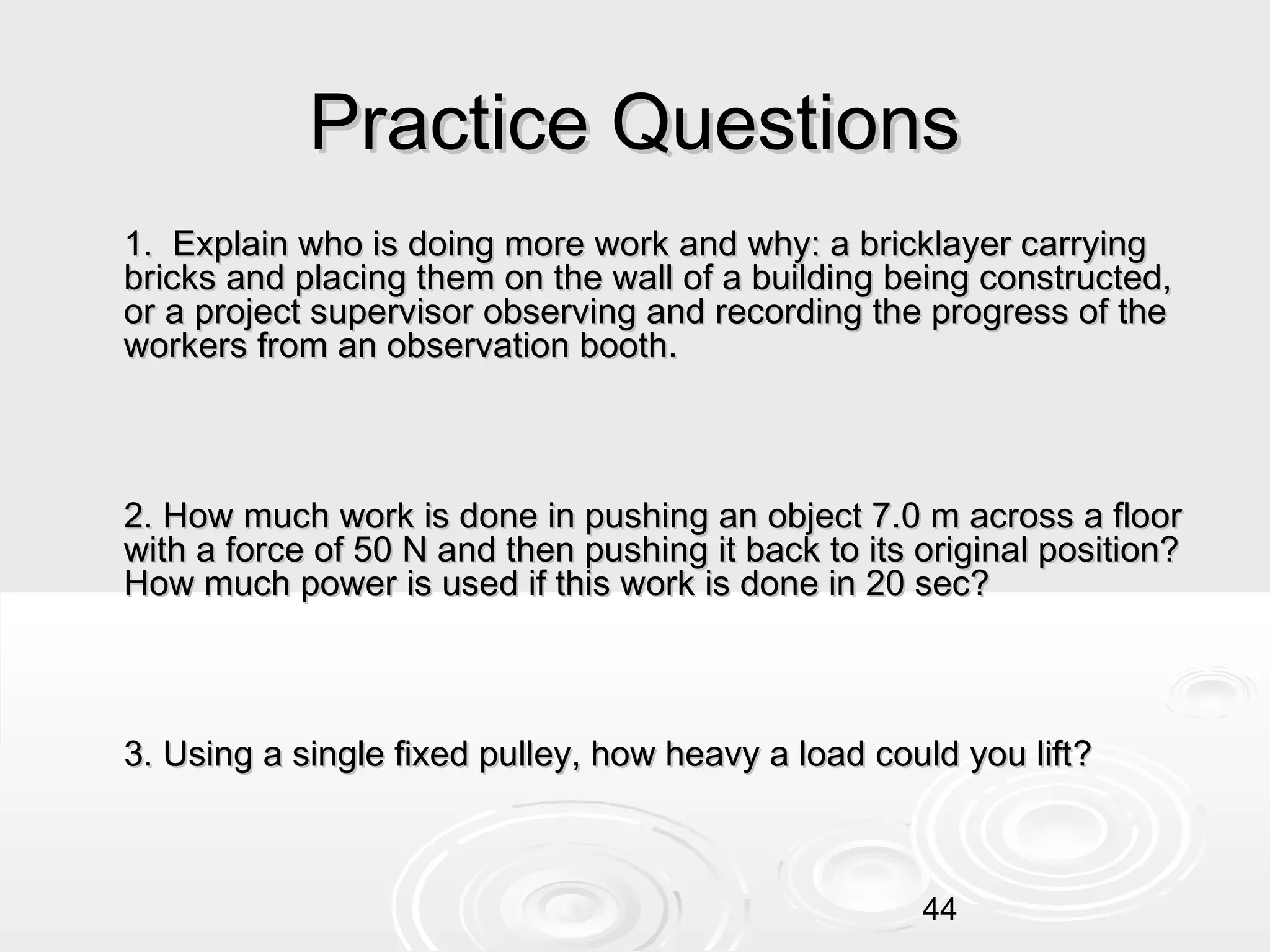

Practice Questions
1. Explain who is doing more work and why: a bricklayer carrying
bricks and placing them on the wall of a building being constructed,
or a project supervisor observing and recording the progress of the
workers from an observation booth.

2. How much work is done in pushing an object 7.0 m across a floor
with a force of 50 N and then pushing it back to its original position?
How much power is used if this work is done in 20 sec?

3. Using a single fixed pulley, how heavy a load could you lift?

44

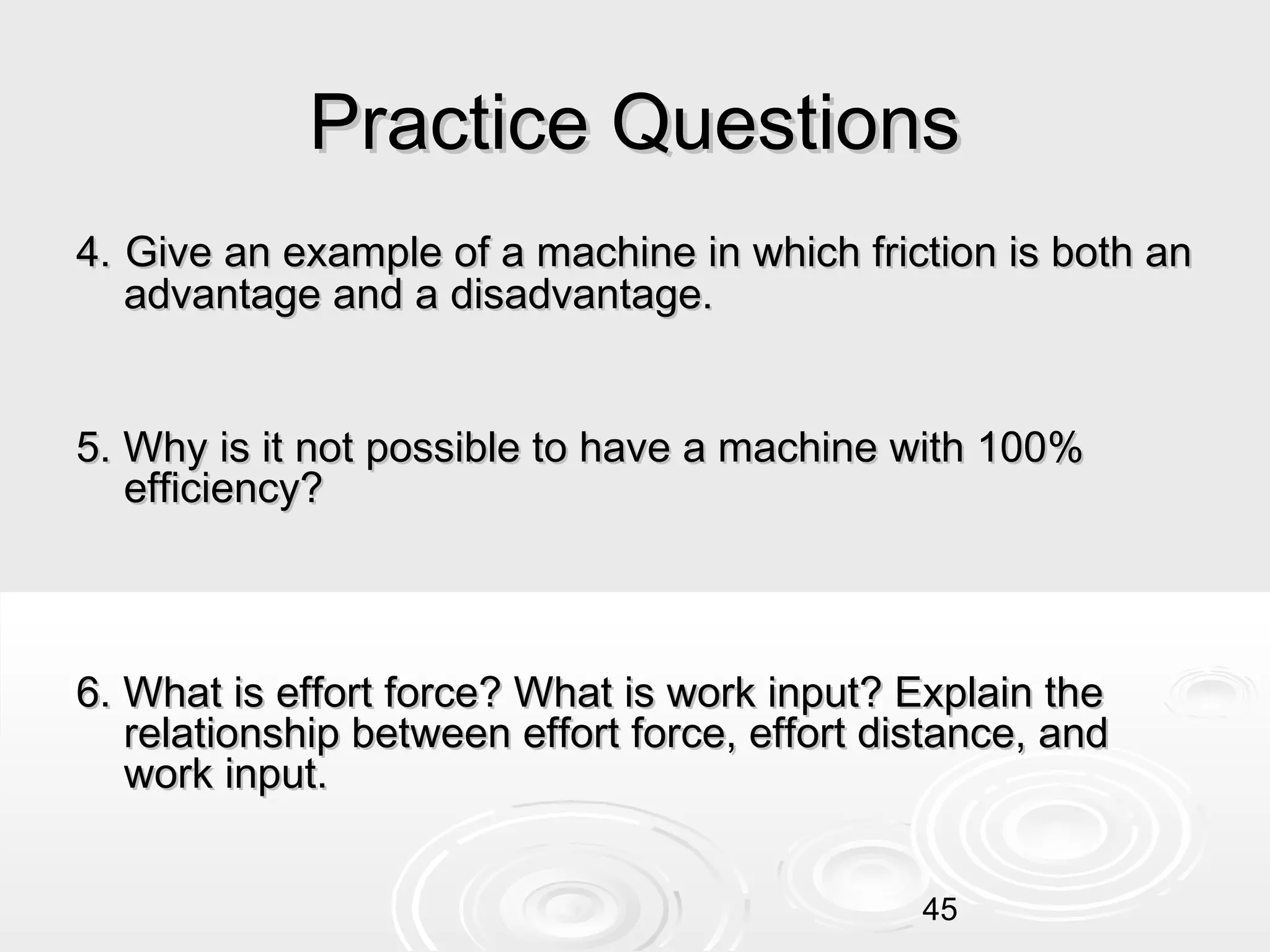

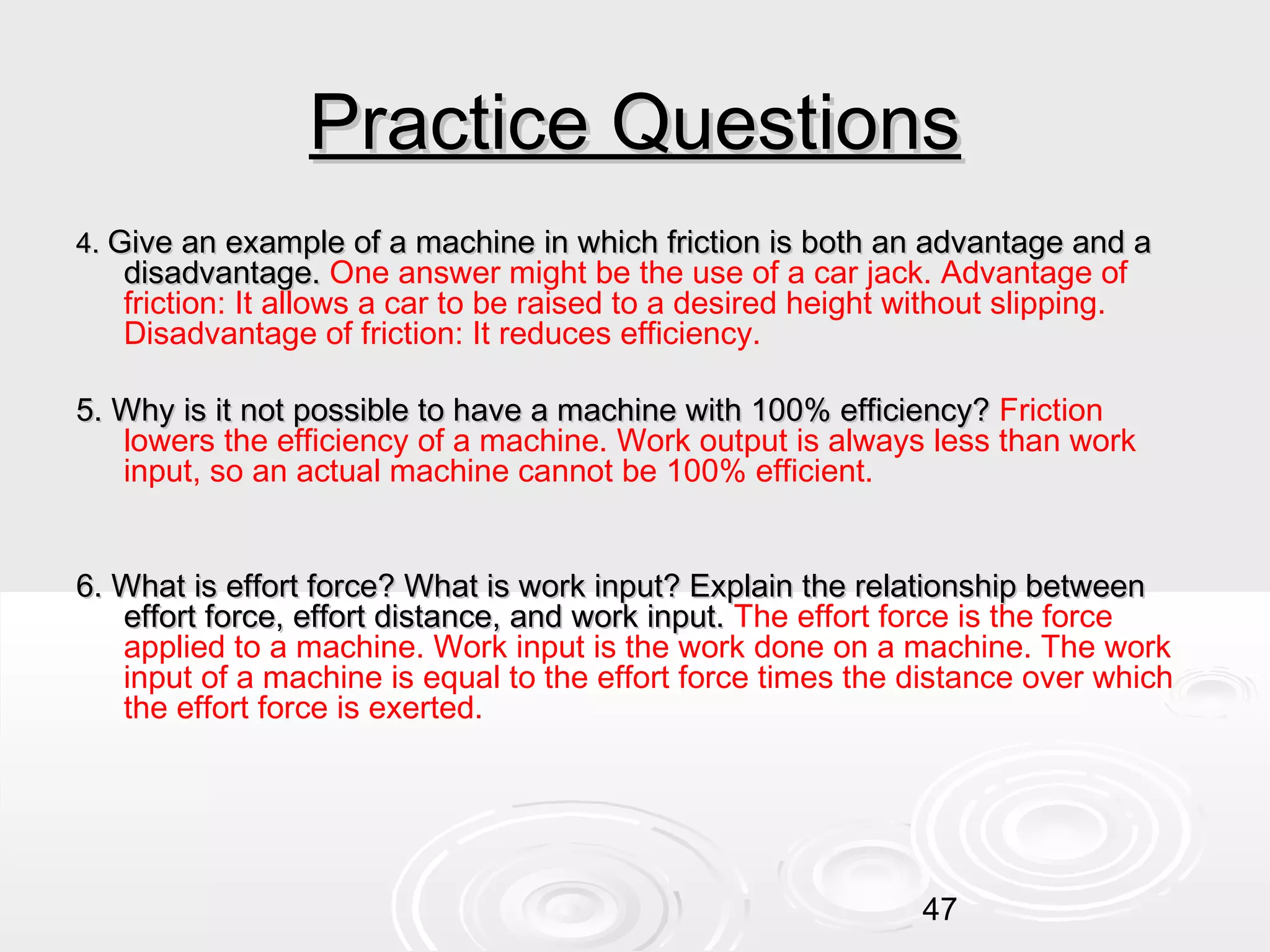

Practice Questions
4. Give an example of a machine in which friction is both an
advantage and a disadvantage.
5. Why is it not possible to have a machine with 100%
efficiency?

6. What is effort force? What is work input? Explain the
relationship between effort force, effort distance, and
work input.
45

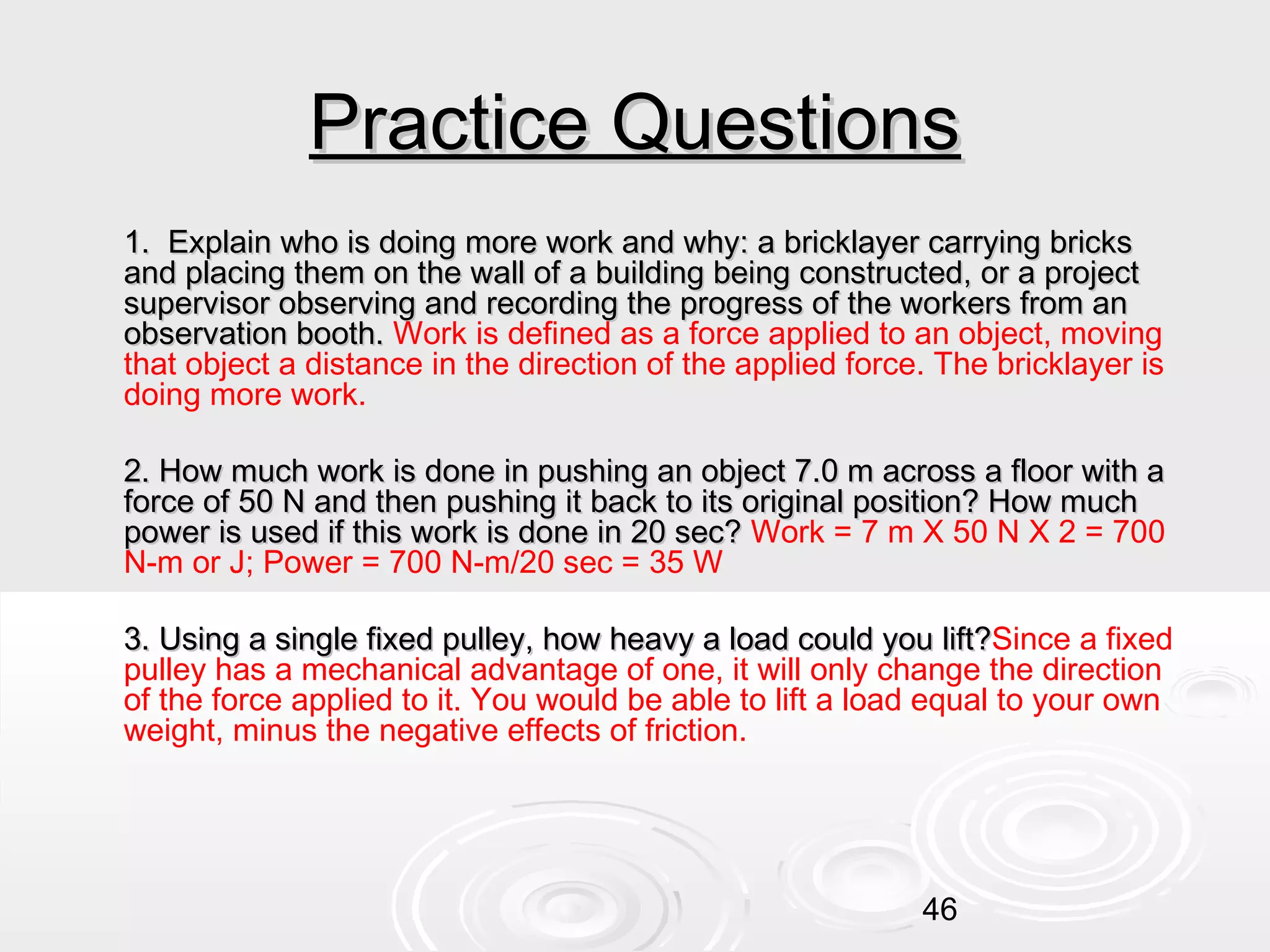

Practice Questions
1. Explain who is doing more work and why: a bricklayer carrying bricks
and placing them on the wall of a building being constructed, or a project
supervisor observing and recording the progress of the workers from an
observation booth. Work is defined as a force applied to an object, moving
that object a distance in the direction of the applied force. The bricklayer is
doing more work.
2. How much work is done in pushing an object 7.0 m across a floor with a
force of 50 N and then pushing it back to its original position? How much
power is used if this work is done in 20 sec? Work = 7 m X 50 N X 2 = 700
N-m or J; Power = 700 N-m/20 sec = 35 W
3. Using a single fixed pulley, how heavy a load could you lift?Since a fixed
lift?
pulley has a mechanical advantage of one, it will only change the direction
of the force applied to it. You would be able to lift a load equal to your own
weight, minus the negative effects of friction.

46
Practice Questions
4. Give an example of a machine in which friction is both an advantage and a

disadvantage. One answer might be the use of a car jack. Advantage of
friction: It allows a car to be raised to a desired height without slipping.
Disadvantage of friction: It reduces efficiency.

5. Why is it not possible to have a machine with 100% efficiency? Friction
lowers the efficiency of a machine. Work output is always less than work
input, so an actual machine cannot be 100% efficient.
6. What is effort force? What is work input? Explain the relationship between
effort force, effort distance, and work input. The effort force is the force
applied to a machine. Work input is the work done on a machine. The work
input of a machine is equal to the effort force times the distance over which
the effort force is exerted.

47

More Related Content

What's hot

Diploma i em u v simple machines
Diploma i em u   v simple machinesDiploma i em u   v simple machines
Diploma i em u v simple machines
Rai University

Simple Machines
Simple MachinesSimple Machines
Simple Machines
Joni Merquita Cruz

Levers
LeversLevers
Work and simple_machines
Work and simple_machinesWork and simple_machines
Work and simple_machines
Brad Kremer

Pawan 2nd ass. unit 04
Pawan 2nd ass. unit 04Pawan 2nd ass. unit 04
Pawan 2nd ass. unit 04
p1 pawan

Gcse forces and motion
Gcse forces and motionGcse forces and motion
Gcse forces and motion
craigthirlwell

Levers
LeversLevers
Levers
Jolene Berg

A Novel Robotic Joint Actuation Concept VMF
A Novel Robotic Joint Actuation Concept VMFA Novel Robotic Joint Actuation Concept VMF
A Novel Robotic Joint Actuation Concept VMF
Yoichiro Dan

P6 Fsci Simple Machine1
P6 Fsci Simple Machine1P6 Fsci Simple Machine1
P6 Fsci Simple Machine1
xnpsp6

Gcse Forces And Motion
Gcse Forces And MotionGcse Forces And Motion
Gcse Forces And Motion
Tauseef Khan

Lever
LeverLever
Structural analysis lab
Structural analysis labStructural analysis lab
Structural analysis lab
Rakesh Verma

Structural analysis 2 lab manual
Structural analysis 2 lab manualStructural analysis 2 lab manual
Structural analysis 2 lab manual
Suddhananda College of Engineering and Technology

Lever physics
Lever physicsLever physics
Lever physics
guestc590b14

Work energy and potential energy
Work energy and potential energyWork energy and potential energy
Work energy and potential energy
Anurag Tomer

Lesson 9 2
Lesson 9 2Lesson 9 2
Lesson 9 2
ralph50

Influence lines gdlc
Influence lines   gdlcInfluence lines   gdlc
Influence lines gdlc
Ansar Abbas

Work and Machines
Work and MachinesWork and Machines
Work and Machines
Andrew_Cox

Module 1 mechanisms and machines
Module 1  mechanisms and machinesModule 1  mechanisms and machines
Module 1 mechanisms and machines
BipradasBairagi

Mechanical advantage in exercise
Mechanical advantage in exerciseMechanical advantage in exercise
Mechanical advantage in exercise
Stephan Van Breenen


What's hot (20)

Diploma i em u v simple machines
Diploma i em u   v simple machinesDiploma i em u   v simple machines
Diploma i em u v simple machines

Simple Machines
Simple MachinesSimple Machines
Simple Machines

Levers
LeversLevers
Levers

Work and simple_machines
Work and simple_machinesWork and simple_machines
Work and simple_machines

Pawan 2nd ass. unit 04
Pawan 2nd ass. unit 04Pawan 2nd ass. unit 04
Pawan 2nd ass. unit 04

Gcse forces and motion
Gcse forces and motionGcse forces and motion
Gcse forces and motion

Levers
LeversLevers
Levers

A Novel Robotic Joint Actuation Concept VMF
A Novel Robotic Joint Actuation Concept VMFA Novel Robotic Joint Actuation Concept VMF
A Novel Robotic Joint Actuation Concept VMF

P6 Fsci Simple Machine1
P6 Fsci Simple Machine1P6 Fsci Simple Machine1
P6 Fsci Simple Machine1

Gcse Forces And Motion
Gcse Forces And MotionGcse Forces And Motion
Gcse Forces And Motion

Lever
LeverLever
Lever

Structural analysis lab
Structural analysis labStructural analysis lab
Structural analysis lab

Structural analysis 2 lab manual
Structural analysis 2 lab manualStructural analysis 2 lab manual
Structural analysis 2 lab manual

Lever physics
Lever physicsLever physics
Lever physics

Work energy and potential energy
Work energy and potential energyWork energy and potential energy
Work energy and potential energy

Lesson 9 2
Lesson 9 2Lesson 9 2
Lesson 9 2

Influence lines gdlc
Influence lines   gdlcInfluence lines   gdlc
Influence lines gdlc

Work and Machines
Work and MachinesWork and Machines
Work and Machines

Module 1 mechanisms and machines
Module 1  mechanisms and machinesModule 1  mechanisms and machines
Module 1 mechanisms and machines

Mechanical advantage in exercise
Mechanical advantage in exerciseMechanical advantage in exercise
Mechanical advantage in exercise


Viewers also liked

Local innovation givas
Local innovation  givasLocal innovation  givas
Local innovation givas
InSTEDD

English3
English3English3
English3
DiegoCarvallo

Akshaya patra provides the mid day meal programme in odisha
Akshaya patra provides the mid day meal programme in odishaAkshaya patra provides the mid day meal programme in odisha
Akshaya patra provides the mid day meal programme in odisha
Akshaya Patra Foundation

Starting A Natural Step Business
Starting A Natural Step BusinessStarting A Natural Step Business
Starting A Natural Step Business
Justin Yuen

kuvvet vehareket slayt
kuvvet vehareket slaytkuvvet vehareket slayt
kuvvet vehareket slayt
gulfiyeortakci

Kuvvet ve Hareket
Kuvvet ve HareketKuvvet ve Hareket
Kuvvet ve Hareket
Beyza07

Ferras Jaffar Ahmed
Ferras Jaffar AhmedFerras Jaffar Ahmed
Ferras Jaffar Ahmed
eletseditorial

Grammar handbook 2
Grammar handbook 2Grammar handbook 2
Grammar handbook 2
joshcolley


Viewers also liked (9)

Local innovation givas
Local innovation  givasLocal innovation  givas
Local innovation givas

English3
English3English3
English3

Akshaya patra provides the mid day meal programme in odisha
Akshaya patra provides the mid day meal programme in odishaAkshaya patra provides the mid day meal programme in odisha
Akshaya patra provides the mid day meal programme in odisha

Starting A Natural Step Business
Starting A Natural Step BusinessStarting A Natural Step Business
Starting A Natural Step Business

kuvvet vehareket slayt
kuvvet vehareket slaytkuvvet vehareket slayt
kuvvet vehareket slayt

Kuvvet ve Hareket
Kuvvet ve HareketKuvvet ve Hareket
Kuvvet ve Hareket

Ferras Jaffar Ahmed
Ferras Jaffar AhmedFerras Jaffar Ahmed
Ferras Jaffar Ahmed

Kuvvet ve hareket
Kuvvet ve hareketKuvvet ve hareket
Kuvvet ve hareket

Grammar handbook 2
Grammar handbook 2Grammar handbook 2
Grammar handbook 2


Similar to Work and simple_machines

work_and_simple_machines.ppt
work_and_simple_machines.pptwork_and_simple_machines.ppt
work_and_simple_machines.ppt
SilasSailasEndjala

Work And Simple Machines
Work And Simple MachinesWork And Simple Machines
Work And Simple Machines
Ryan Cataga

Work
WorkWork
Work And Simple Machines[1]
Work And Simple Machines[1]Work And Simple Machines[1]
Work And Simple Machines[1]
robtownsend

Work And Simple Machines[1]
Work And Simple Machines[1]Work And Simple Machines[1]
Work And Simple Machines[1]
guestabbdaf

work and simple machines.pdf
work and simple machines.pdfwork and simple machines.pdf
work and simple machines.pdf
SilasSailasEndjala

Work and machines
Work and machinesWork and machines
Work and machines
cmtorp

cpte09.pdf
cpte09.pdfcpte09.pdf
cpte09.pdf
SaqiMentor

Simple Machines
Simple MachinesSimple Machines
Simple Machines
I Wonder Why Science

The6simplemachines
The6simplemachinesThe6simplemachines
The6simplemachines
Brenda Obando

Work and simple_machines
Work and simple_machinesWork and simple_machines
Work and simple_machines
Paula Ortega

Pulley design
Pulley designPulley design
Pulley design
Ahsan_T95

Unit 25 Work And Power
Unit 25 Work And PowerUnit 25 Work And Power
Unit 25 Work And Power
guest2cc9614

Simple pulley & pulley block
Simple pulley & pulley blockSimple pulley & pulley block
Simple pulley & pulley block
Md Shariful Islam

6.3 lever class 8.pptx
6.3 lever class 8.pptx6.3 lever class 8.pptx
6.3 lever class 8.pptx
Roji Maharjan

14 4 Simple Machines (A)
14 4 Simple Machines (A)14 4 Simple Machines (A)
14 4 Simple Machines (A)
robtownsend

Simple Machines1
Simple Machines1Simple Machines1
Simple Machines1
guestf7131c9

Work and machines
Work and machinesWork and machines
Work and machines
cmtorp

Ch 6 Work & Energy
Ch 6 Work & EnergyCh 6 Work & Energy
Ch 6 Work & Energy
Scott Thomas

0708 simple machines_8
0708 simple machines_80708 simple machines_8
0708 simple machines_8
Rashmiranjan Padhi


Similar to Work and simple_machines (20)

work_and_simple_machines.ppt
work_and_simple_machines.pptwork_and_simple_machines.ppt
work_and_simple_machines.ppt

Work And Simple Machines
Work And Simple MachinesWork And Simple Machines
Work And Simple Machines

Work
WorkWork
Work

Work And Simple Machines[1]
Work And Simple Machines[1]Work And Simple Machines[1]
Work And Simple Machines[1]

Work And Simple Machines[1]
Work And Simple Machines[1]Work And Simple Machines[1]
Work And Simple Machines[1]

work and simple machines.pdf
work and simple machines.pdfwork and simple machines.pdf
work and simple machines.pdf

Work and machines
Work and machinesWork and machines
Work and machines

cpte09.pdf
cpte09.pdfcpte09.pdf
cpte09.pdf

Simple Machines
Simple MachinesSimple Machines
Simple Machines

The6simplemachines
The6simplemachinesThe6simplemachines
The6simplemachines

Work and simple_machines
Work and simple_machinesWork and simple_machines
Work and simple_machines

Pulley design
Pulley designPulley design
Pulley design

Unit 25 Work And Power
Unit 25 Work And PowerUnit 25 Work And Power
Unit 25 Work And Power

Simple pulley & pulley block
Simple pulley & pulley blockSimple pulley & pulley block
Simple pulley & pulley block

6.3 lever class 8.pptx
6.3 lever class 8.pptx6.3 lever class 8.pptx
6.3 lever class 8.pptx

14 4 Simple Machines (A)
14 4 Simple Machines (A)14 4 Simple Machines (A)
14 4 Simple Machines (A)

Simple Machines1
Simple Machines1Simple Machines1
Simple Machines1

Work and machines
Work and machinesWork and machines
Work and machines

Ch 6 Work & Energy
Ch 6 Work & EnergyCh 6 Work & Energy
Ch 6 Work & Energy

0708 simple machines_8
0708 simple machines_80708 simple machines_8
0708 simple machines_8


More from Mrinal Pal

Learn bengali
Learn bengaliLearn bengali
Learn bengali
Mrinal Pal

Importance of river in civilization
Importance of river in civilizationImportance of river in civilization
Importance of river in civilization
Mrinal Pal

Pranichealing2 slides
Pranichealing2 slidesPranichealing2 slides
Pranichealing2 slides
Mrinal Pal

Panchatantra
PanchatantraPanchatantra
Panchatantra
Mrinal Pal

Terahertz trigate transistor
Terahertz trigate transistorTerahertz trigate transistor
Terahertz trigate transistor
Mrinal Pal

Brainwaves chart 1
Brainwaves chart 1Brainwaves chart 1
Brainwaves chart 1
Mrinal Pal

Fiber optical
Fiber opticalFiber optical
Fiber optical
Mrinal Pal

Simple machines
Simple machinesSimple machines
Simple machines
Mrinal Pal

6 simple machines
6  simple machines6  simple machines
6 simple machines
Mrinal Pal

Simple machines slide show 2012
Simple machines slide show 2012Simple machines slide show 2012
Simple machines slide show 2012
Mrinal Pal

Simple machines
Simple machinesSimple machines
Simple machines
Mrinal Pal

Angkor Wat Hindu Temple combodia taken from Galen R Frysinger World Traveller
Angkor Wat Hindu Temple combodia taken from Galen R Frysinger World TravellerAngkor Wat Hindu Temple combodia taken from Galen R Frysinger World Traveller
Angkor Wat Hindu Temple combodia taken from Galen R Frysinger World Traveller
Mrinal Pal

Free energy devices page 4
Free energy devices    page 4Free energy devices    page 4
Free energy devices page 4
Mrinal Pal

Vacuum tube devices
Vacuum tube devicesVacuum tube devices
Vacuum tube devices
Mrinal Pal

Active discrete components
Active discrete componentsActive discrete components
Active discrete components
Mrinal Pal

Radio shack getting started in electronics
Radio shack   getting started in electronicsRadio shack   getting started in electronics
Radio shack getting started in electronics
Mrinal Pal

Basic electronics
Basic electronicsBasic electronics
Basic electronics
Mrinal Pal

What is electronics
What is electronicsWhat is electronics
What is electronics
Mrinal Pal

Free energy devices 103-332
Free energy devices  103-332Free energy devices  103-332
Free energy devices 103-332
Mrinal Pal

A practical guide to free energy devices pages 23 32 - patrick j. kelly
A practical guide to free energy devices pages 23 32 - patrick j. kellyA practical guide to free energy devices pages 23 32 - patrick j. kelly
A practical guide to free energy devices pages 23 32 - patrick j. kelly
Mrinal Pal


More from Mrinal Pal (20)

Learn bengali
Learn bengaliLearn bengali
Learn bengali

Importance of river in civilization
Importance of river in civilizationImportance of river in civilization
Importance of river in civilization

Pranichealing2 slides
Pranichealing2 slidesPranichealing2 slides
Pranichealing2 slides

Panchatantra
PanchatantraPanchatantra
Panchatantra

Terahertz trigate transistor
Terahertz trigate transistorTerahertz trigate transistor
Terahertz trigate transistor

Brainwaves chart 1
Brainwaves chart 1Brainwaves chart 1
Brainwaves chart 1

Fiber optical
Fiber opticalFiber optical
Fiber optical

Simple machines
Simple machinesSimple machines
Simple machines

6 simple machines
6  simple machines6  simple machines
6 simple machines

Simple machines slide show 2012
Simple machines slide show 2012Simple machines slide show 2012
Simple machines slide show 2012

Simple machines
Simple machinesSimple machines
Simple machines

Angkor Wat Hindu Temple combodia taken from Galen R Frysinger World Traveller
Angkor Wat Hindu Temple combodia taken from Galen R Frysinger World TravellerAngkor Wat Hindu Temple combodia taken from Galen R Frysinger World Traveller
Angkor Wat Hindu Temple combodia taken from Galen R Frysinger World Traveller

Free energy devices page 4
Free energy devices    page 4Free energy devices    page 4
Free energy devices page 4

Vacuum tube devices
Vacuum tube devicesVacuum tube devices
Vacuum tube devices

Active discrete components
Active discrete componentsActive discrete components
Active discrete components

Radio shack getting started in electronics
Radio shack   getting started in electronicsRadio shack   getting started in electronics
Radio shack getting started in electronics

Basic electronics
Basic electronicsBasic electronics
Basic electronics

What is electronics
What is electronicsWhat is electronics
What is electronics

Free energy devices 103-332
Free energy devices  103-332Free energy devices  103-332
Free energy devices 103-332

A practical guide to free energy devices pages 23 32 - patrick j. kelly
A practical guide to free energy devices pages 23 32 - patrick j. kellyA practical guide to free energy devices pages 23 32 - patrick j. kelly
A practical guide to free energy devices pages 23 32 - patrick j. kelly


Recently uploaded

Data Integration Basics: Merging & Joining Data
Data Integration Basics: Merging & Joining DataData Integration Basics: Merging & Joining Data
Data Integration Basics: Merging & Joining Data
Safe Software

[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
Kief Morris

find out more about the role of autonomous vehicles in facing global challenges
find out more about the role of autonomous vehicles in facing global challengesfind out more about the role of autonomous vehicles in facing global challenges
find out more about the role of autonomous vehicles in facing global challenges
huseindihon

Introduction-to-the-IAM-Platform-Implementation-Plan.pptx
Introduction-to-the-IAM-Platform-Implementation-Plan.pptxIntroduction-to-the-IAM-Platform-Implementation-Plan.pptx
Introduction-to-the-IAM-Platform-Implementation-Plan.pptx
313mohammedarshad

EuroPython 2024 - Streamlining Testing in a Large Python Codebase
EuroPython 2024 - Streamlining Testing in a Large Python CodebaseEuroPython 2024 - Streamlining Testing in a Large Python Codebase
EuroPython 2024 - Streamlining Testing in a Large Python Codebase
Jimmy Lai

"Mastering Graphic Design: Essential Tips and Tricks for Beginners and Profes...
"Mastering Graphic Design: Essential Tips and Tricks for Beginners and Profes..."Mastering Graphic Design: Essential Tips and Tricks for Beginners and Profes...
"Mastering Graphic Design: Essential Tips and Tricks for Beginners and Profes...
Anant Gupta

Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
sunilverma7884

Integrating Kafka with MuleSoft 4 and usecase
Integrating Kafka with MuleSoft 4 and usecaseIntegrating Kafka with MuleSoft 4 and usecase
Integrating Kafka with MuleSoft 4 and usecase
shyamraj55

CiscoIconsLibrary cours de réseau VLAN.ppt
CiscoIconsLibrary cours de réseau VLAN.pptCiscoIconsLibrary cours de réseau VLAN.ppt
CiscoIconsLibrary cours de réseau VLAN.ppt
moinahousna

BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf
BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdfBT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf
BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf
Neo4j

Opencast Summit 2024 — Opencast @ University of Münster
Opencast Summit 2024 — Opencast @ University of MünsterOpencast Summit 2024 — Opencast @ University of Münster
Opencast Summit 2024 — Opencast @ University of Münster
Matthias Neugebauer

(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf
(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf
(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf
Priyanka Aash

(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
Priyanka Aash

Evolution of iPaaS - simplify IT workloads to provide a unified view of data...
Evolution of iPaaS - simplify IT workloads to provide a unified view of  data...Evolution of iPaaS - simplify IT workloads to provide a unified view of  data...
Evolution of iPaaS - simplify IT workloads to provide a unified view of data...
Torry Harris

July Patch Tuesday
July Patch TuesdayJuly Patch Tuesday
July Patch Tuesday
Ivanti

Figma AI Design Generator_ In-Depth Review.pdf
Figma AI Design Generator_ In-Depth Review.pdfFigma AI Design Generator_ In-Depth Review.pdf
Figma AI Design Generator_ In-Depth Review.pdf
Management Institute of Skills Development

How to Build a Profitable IoT Product.pptx
How to Build a Profitable IoT Product.pptxHow to Build a Profitable IoT Product.pptx
How to Build a Profitable IoT Product.pptx
Adam Dunkels

Tirana Tech Meetup - Agentic RAG with Milvus, Llama3 and Ollama
Tirana Tech Meetup - Agentic RAG with Milvus, Llama3 and OllamaTirana Tech Meetup - Agentic RAG with Milvus, Llama3 and Ollama
Tirana Tech Meetup - Agentic RAG with Milvus, Llama3 and Ollama
Zilliz

IPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite SolutionIPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite Solution
IPLOOK Networks

Types of Weaving loom machine & it's technology
Types of Weaving loom machine & it's technologyTypes of Weaving loom machine & it's technology
Types of Weaving loom machine & it's technology
ldtexsolbl


Recently uploaded (20)

Data Integration Basics: Merging & Joining Data
Data Integration Basics: Merging & Joining DataData Integration Basics: Merging & Joining Data
Data Integration Basics: Merging & Joining Data

[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf
[Talk] Moving Beyond Spaghetti Infrastructure [AOTB] 2024-07-04.pdf

find out more about the role of autonomous vehicles in facing global challenges
find out more about the role of autonomous vehicles in facing global challengesfind out more about the role of autonomous vehicles in facing global challenges
find out more about the role of autonomous vehicles in facing global challenges

Introduction-to-the-IAM-Platform-Implementation-Plan.pptx
Introduction-to-the-IAM-Platform-Implementation-Plan.pptxIntroduction-to-the-IAM-Platform-Implementation-Plan.pptx
Introduction-to-the-IAM-Platform-Implementation-Plan.pptx

EuroPython 2024 - Streamlining Testing in a Large Python Codebase
EuroPython 2024 - Streamlining Testing in a Large Python CodebaseEuroPython 2024 - Streamlining Testing in a Large Python Codebase
EuroPython 2024 - Streamlining Testing in a Large Python Codebase

"Mastering Graphic Design: Essential Tips and Tricks for Beginners and Profes...
"Mastering Graphic Design: Essential Tips and Tricks for Beginners and Profes..."Mastering Graphic Design: Essential Tips and Tricks for Beginners and Profes...
"Mastering Graphic Design: Essential Tips and Tricks for Beginners and Profes...

Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery
Girls call Kolkata 👀 XXXXXXXXXXX 👀 Rs.9.5 K Cash Payment With Room Delivery

Integrating Kafka with MuleSoft 4 and usecase
Integrating Kafka with MuleSoft 4 and usecaseIntegrating Kafka with MuleSoft 4 and usecase
Integrating Kafka with MuleSoft 4 and usecase

CiscoIconsLibrary cours de réseau VLAN.ppt
CiscoIconsLibrary cours de réseau VLAN.pptCiscoIconsLibrary cours de réseau VLAN.ppt
CiscoIconsLibrary cours de réseau VLAN.ppt

BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf
BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdfBT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf
BT & Neo4j: Knowledge Graphs for Critical Enterprise Systems.pptx.pdf

Opencast Summit 2024 — Opencast @ University of Münster
Opencast Summit 2024 — Opencast @ University of MünsterOpencast Summit 2024 — Opencast @ University of Münster
Opencast Summit 2024 — Opencast @ University of Münster

(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf
(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf
(CISOPlatform Summit & SACON 2024) Digital Personal Data Protection Act.pdf

(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...
(CISOPlatform Summit & SACON 2024) Keynote _ Power Digital Identities With AI...

Evolution of iPaaS - simplify IT workloads to provide a unified view of data...
Evolution of iPaaS - simplify IT workloads to provide a unified view of  data...Evolution of iPaaS - simplify IT workloads to provide a unified view of  data...
Evolution of iPaaS - simplify IT workloads to provide a unified view of data...

July Patch Tuesday
July Patch TuesdayJuly Patch Tuesday
July Patch Tuesday

Figma AI Design Generator_ In-Depth Review.pdf
Figma AI Design Generator_ In-Depth Review.pdfFigma AI Design Generator_ In-Depth Review.pdf
Figma AI Design Generator_ In-Depth Review.pdf

How to Build a Profitable IoT Product.pptx
How to Build a Profitable IoT Product.pptxHow to Build a Profitable IoT Product.pptx
How to Build a Profitable IoT Product.pptx

Tirana Tech Meetup - Agentic RAG with Milvus, Llama3 and Ollama
Tirana Tech Meetup - Agentic RAG with Milvus, Llama3 and OllamaTirana Tech Meetup - Agentic RAG with Milvus, Llama3 and Ollama
Tirana Tech Meetup - Agentic RAG with Milvus, Llama3 and Ollama

IPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite SolutionIPLOOK Remote-Sensing Satellite Solution
IPLOOK Remote-Sensing Satellite Solution

Types of Weaving loom machine & it's technology
Types of Weaving loom machine & it's technologyTypes of Weaving loom machine & it's technology
Types of Weaving loom machine & it's technology


Work and simple_machines

  • 2. What is work?  In science, the word work has a different meaning than you may be familiar with.  The scientific definition of work is: using a force to move an object a distance (when both the force and the motion of the object are in the same direction.) 2
  • 3. Work or Not?  According to the scientific definition, what is work and what is not?   a teacher lecturing to her class a mouse pushing a piece of cheese with its nose across the floor 3
  • 4. Work or Not?  According to the scientific definition, what is work and what is not?   a teacher lecturing to her class a mouse pushing a piece of cheese with its nose across the floor 4
  • 5. 5
  • 6. What’s work?  A scientist delivers a speech to an audience of his peers.  A body builder lifts 350 pounds above his head.  A mother carries her baby from room to room.  A father pushes a baby in a carriage.  A woman carries a 20 kg grocery bag to her car? 6
  • 7. What’s work?  A scientist delivers a speech to an audience of his peers. No  A body builder lifts 350 pounds above his head. Yes  A mother carries her baby from room to room. No  A father pushes a baby in a carriage. Yes  A woman carries a 20 km grocery bag to her car? No 7
  • 8. Formula for work Work = Force x Distance  The unit of force is newtons  The unit of distance is meters  The unit of work is newton-meters  One newton-meter is equal to one joule  So, the unit of work is a joule 8
  • 9. W=FD Work = Force x Distance Calculate: If a man pushes a concrete block 10 meters with a force of 20 N, how much work has he done? 9
  • 10. W=FD Work = Force x Distance Calculate: If a man pushes a concrete block 10 meters with a force of 20 N, how much work has he done? 200 joules (W = 20N x 10m) 10
  • 11. Power  Power is the rate at which work is done.  Power = Work*/Time (force x distance) *  The unit of power is the watt. 11
  • 12. Check for Understanding 1.Two physics students, Ben and Bonnie, are in the weightlifting room. Bonnie lifts the 50 kg barbell over her head (approximately .60 m) 10 times in one minute; Ben lifts the 50 kg barbell the same distance over his head 10 times in 10 seconds. Which student does the most work? Which student delivers the most power? Explain your answers. 12
  • 13.   Ben and Bonnie do the same amount of work; they apply the same force to lift the same barbell the same distance above their heads. Yet, Ben is the most powerful since he does the same work in less time. Power and time are inversely proportional. 13
  • 14. 2. How much power will it take to move a 10 kg mass at an acceleration of 2 m/s/s a distance of 10 meters in 5 seconds? This problem requires you to use the formulas for force, work, and power all in the correct order. Force=Mass x Acceleration Work=Force x Distance Power = Work/Time 14
  • 15. 2. How much power will it take to move a 10 kg mass at an acceleration of 2 m/s/s a distance of 10 meters in 5 seconds? This problem requires you to use the formulas for force, work, and power all in the correct order. Force=Mass x Acceleration Force=10 x 2 Force=20 N Work=Force x Distance Work = 20 x 10 Work = 200 Joules Power = Work/Time Power = 200/5 Power = 40 watts 15
  • 16. History of Work Before engines and motors were invented, people had to do things like lifting or pushing heavy loads by hand. Using an animal could help, but what they really needed were some clever ways to either make work easier or faster. 16
  • 17. Simple Machines Ancient people invented simple machines that would help them overcome resistive forces and allow them to do the desired work against those forces. 17
  • 18. Simple Machines  The six simple machines are:       Lever Wheel and Axle Pulley Inclined Plane Wedge Screw 18
  • 19. Simple Machines  A machine is a device that helps make work easier to perform by accomplishing one or more of the following functions:     transferring a force from one place to another, changing the direction of a force, increasing the magnitude of a force, or increasing the distance or speed of a force. 19
  • 20. Mechanical Advantage  It is useful to think about a machine in terms of the input force (the force you apply) and the output force (force which is applied to the task).  When a machine takes a small input force and increases the magnitude of the output force, a mechanical advantage has been produced. 20
  • 21. Mechanical Advantage     Mechanical advantage is the ratio of output force divided by input force. If the output force is bigger than the input force, a machine has a mechanical advantage greater than one. If a machine increases an input force of 10 pounds to an output force of 100 pounds, the machine has a mechanical advantage (MA) of 10. In machines that increase distance instead of force, the MA is the ratio of the output distance and input distance. MA = output/input 21
  • 22. No machine can increase both the magnitude and the distance of a force at the same time. 22
  • 23. The Lever    A lever is a rigid bar that rotates around a fixed point called the fulcrum. The bar may be either straight or curved. In use, a lever has both an effort (or applied) force and a load (resistant force). 23
  • 24. The 3 Classes of Levers  The class of a lever is determined by the location of the effort force and the load relative to the fulcrum. 24
  • 25. 25
  • 26. To find the MA of a lever, divide the output force by the input force, or divide the length of the resistance arm by the length of the effort arm. 26
  • 27. First Class Lever  In a first-class lever the fulcrum is located at some point between the effort and resistance forces.   Common examples of first-class levers include crowbars, scissors, pliers, tin snips and seesaws. A first-class lever always changes the direction of force (I.e. a downward effort force on the lever results in an upward movement of the resistance force). 27
  • 28. Fulcrum is between EF (effort) and RF (load) Effort moves farther than Resistance. Multiplies EF and changes its direction 28
  • 29. Second Class Lever    With a second-class lever, the load is located between the fulcrum and the effort force. Common examples of second-class levers include nut crackers, wheel barrows, doors, and bottle openers. A second-class lever does not change the direction of force. When the fulcrum is located closer to the load than to the effort force, an increase in force (mechanical advantage) results. 29
  • 30. RF (load) is between fulcrum and EF Effort moves farther than Resistance. Multiplies EF, but does not change its direction 30
  • 31. Third Class Lever  With a third-class lever, the effort force is applied between the fulcrum and the resistance force.   Examples of third-class levers include tweezers, hammers, and shovels. A third-class lever does not change the direction of force; third-class levers always produce a gain in speed and distance and a corresponding decrease in force. 31
  • 32. EF is between fulcrum and RF (load) Does not multiply force Resistance moves farther than Effort. Multiplies the distance the effort force travels 32
  • 33. Wheel and Axle   The wheel and axle is a simple machine consisting of a large wheel rigidly secured to a smaller wheel or shaft, called an axle. When either the wheel or axle turns, the other part also turns. One full revolution of either part causes one full revolution of the other part. 33
  • 34. Pulley      A pulley consists of a grooved wheel that turns freely in a frame called a block. A pulley can be used to simply change the direction of a force or to gain a mechanical advantage, depending on how the pulley is arranged. A pulley is said to be a fixed pulley if it does not rise or fall with the load being moved. A fixed pulley changes the direction of a force; however, it does not create a mechanical advantage. A moveable pulley rises and falls with the load that is being moved. A single moveable pulley creates a mechanical advantage; however, it does not change the direction of a force. The mechanical advantage of a moveable pulley is equal to the number of ropes that support the moveable pulley. 34
  • 35. Inclined Plane  An inclined plane is an even sloping surface. The inclined plane makes it easier to move a weight from a lower to higher elevation. 35
  • 36. Inclined Plane   The mechanical advantage of an inclined plane is equal to the length of the slope divided by the height of the inclined plane. While the inclined plane produces a mechanical advantage, it does so by increasing the distance through which the force must move. 36
  • 37. Although it takes less force for car A to get to the top of the ramp, all the cars do the same amount of work. A B C 37
  • 38. Inclined Plane  A wagon trail on a steep hill will often traverse back and forth to reduce the slope experienced by a team pulling a heavily loaded wagon.  This same technique is used today in modern freeways which travel winding paths through steep mountain passes. 38
  • 39. Wedge  The wedge is a modification of the inclined plane. Wedges are used as either separating or holding devices.  A wedge can either be composed of one or two inclined planes. A double wedge can be thought of as two inclined planes joined together with their sloping surfaces outward. 39
  • 40. Screw   The screw is also a modified version of the inclined plane. While this may be somewhat difficult to visualize, it may help to think of the threads of the screw as a type of circular ramp (or inclined plane). 40
  • 41. MA of an screw can be calculated by dividing the number of turns per inch. 41
  • 42. 42
  • 43. Efficiency  We said that the input force times the distance equals the output force times distance, or: Input Force x Distance = Output Force x Distance However, some output force is lost due to friction.  The comparison of work input to work output is called efficiency.  No machine has 100 percent efficiency due to friction. 43
  • 44. Practice Questions 1. Explain who is doing more work and why: a bricklayer carrying bricks and placing them on the wall of a building being constructed, or a project supervisor observing and recording the progress of the workers from an observation booth. 2. How much work is done in pushing an object 7.0 m across a floor with a force of 50 N and then pushing it back to its original position? How much power is used if this work is done in 20 sec? 3. Using a single fixed pulley, how heavy a load could you lift? 44
  • 45. Practice Questions 4. Give an example of a machine in which friction is both an advantage and a disadvantage. 5. Why is it not possible to have a machine with 100% efficiency? 6. What is effort force? What is work input? Explain the relationship between effort force, effort distance, and work input. 45
  • 46. Practice Questions 1. Explain who is doing more work and why: a bricklayer carrying bricks and placing them on the wall of a building being constructed, or a project supervisor observing and recording the progress of the workers from an observation booth. Work is defined as a force applied to an object, moving that object a distance in the direction of the applied force. The bricklayer is doing more work. 2. How much work is done in pushing an object 7.0 m across a floor with a force of 50 N and then pushing it back to its original position? How much power is used if this work is done in 20 sec? Work = 7 m X 50 N X 2 = 700 N-m or J; Power = 700 N-m/20 sec = 35 W 3. Using a single fixed pulley, how heavy a load could you lift?Since a fixed lift? pulley has a mechanical advantage of one, it will only change the direction of the force applied to it. You would be able to lift a load equal to your own weight, minus the negative effects of friction. 46
  • 47. Practice Questions 4. Give an example of a machine in which friction is both an advantage and a disadvantage. One answer might be the use of a car jack. Advantage of friction: It allows a car to be raised to a desired height without slipping. Disadvantage of friction: It reduces efficiency. 5. Why is it not possible to have a machine with 100% efficiency? Friction lowers the efficiency of a machine. Work output is always less than work input, so an actual machine cannot be 100% efficient. 6. What is effort force? What is work input? Explain the relationship between effort force, effort distance, and work input. The effort force is the force applied to a machine. Work input is the work done on a machine. The work input of a machine is equal to the effort force times the distance over which the effort force is exerted. 47
