Simple machines are tools that make work easier or faster and consist of only one moving part. There are six types of simple machines: levers, pulleys, wheels and axles, inclined planes, gears, and wedges. Each type of simple machine multiplies either force, speed, or distance in a mechanical advantage. Proper precautions must be taken when using simple machines like using the right tool, securing pulleys, and handling sharp objects carefully.

1. Submitted by: Keanne Lyxie A. Lim
Submitted to: T. Nerissa Gonzales

2. SIMPLE
MACHINES
-
Object that make our work easier or
faster and consists of only one moving
part.

3. TYPES OF SIMPLE MACHINES
o Levers
o Pulley
o Wheel and Axle
o Inclined Plane
o Gears
o Wedge

4. LEVERS
-consisting of a bar and fulcrum used to multiply force
or speed to move another object.
Three types of a lever:
•First-class lever
•Second-class lever
•Third-class lever

5. FIRST-CLASS LEVERS
- Type of lever having the fulcrum between the load and effort
applied.
- Multiplies force and changes direction.

6. EXAMPLES OF FIRST-CLASS LEVERS

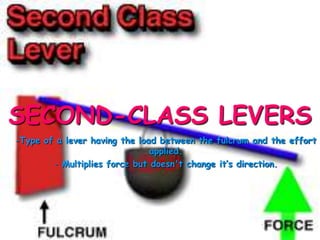

7. SECOND-CLASS LEVERS
-Type of a lever having the load between the fulcrum and the effort
applied.
- Multiplies force but doesn't change it’s direction.

8. EXAMPLES OF SECOND-CLASS LEVERS

9. THIRD-CLASS LEVERS
-Type of a lever in which the effort is placed between the fulcrum and
the load.
- Multiplies speed of force.

10. EXAMPLES OF THIRD-CLASS LEVERS

11. Pulleys
- A simple machine consisting essentially of a
wheel with a grooved rim in which a pulled rope
or chain can run to change the direction of the
pull and there by lift a load.
Three types of Pulleys:
•Fixed Pulley
•Movable Pulley
•Pulley System

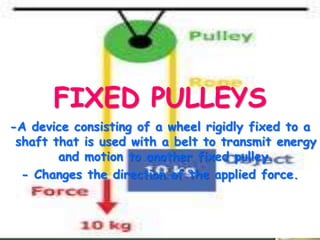

12. FIXED PULLEYS
-A device consisting of a wheel rigidly fixed to a
shaft that is used with a belt to transmit energy
and motion to another fixed pulley.
- Changes the direction of the applied force.

13. EXAMPLES OF FIXED PULLEYS

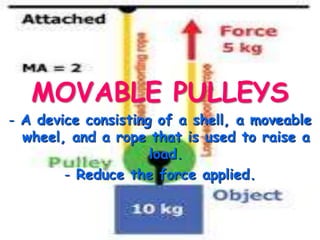

14. MOVABLE PULLEYS
- A device consisting of a shell, a moveable
wheel, and a rope that is used to raise a
load.
- Reduce the force applied.

15. EXAMPLES OF MOVABLE PULLEYS

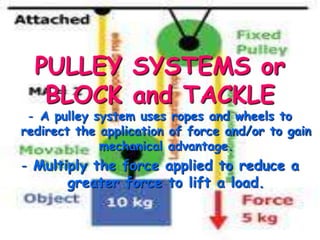

16. PULLEY SYSTEMS or
BLOCK and TACKLE
- A pulley system uses ropes and wheels to
redirect the application of force and/or to gain
mechanical advantage.
- Multiply the force applied to reduce a
greater force to lift a load.

17. EXAMPLES OF PULLEY SYSTEMS

18. WHEEL AND AXLE
- The wheel and axle is generally considered to be
a wheel attached to an axle so that these two
parts rotate together in which a force is
transferred from one to the other
- Multiply the force applied to produce a greater
force.

19. EXAMPLES OF WHEEL AND AXLE

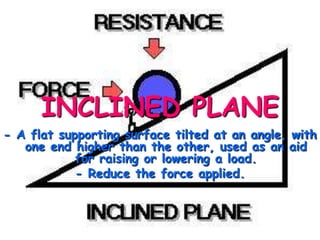

20. INCLINED PLANE
- A flat supporting surface tilted at an angle, with
one end higher than the other, used as an aid
for raising or lowering a load.
- Reduce the force applied.

21. EXAMPLES OF INCLINED PLANE

22. GEARS
- A gear is a rotating machine part having
cut teeth, or cogs, which mesh with another
toothed part in order to transmit torque.
- Change the direction of the force applied.

23. EXAMPLES OF GEARS

24. WEDGES
- a simple machine used to separate two objects, or
portions of objects, through the application of force.
- Multiplying the force applied.

25. EXAMPLES OF WEDGES

26. PRECAUTIONARY MEASURES IN USING
SIMPLE MACHINES
1.
Use the right
type of simple
machine for the
right job.
2. Secure pulleys
properly before using
them. And make sure
that the it is tightly
tied on the support.
3. Simple machines that
are sharp should be
handled with care also
cover the sharp edges. Do
not leave sharp objects
exposed.
