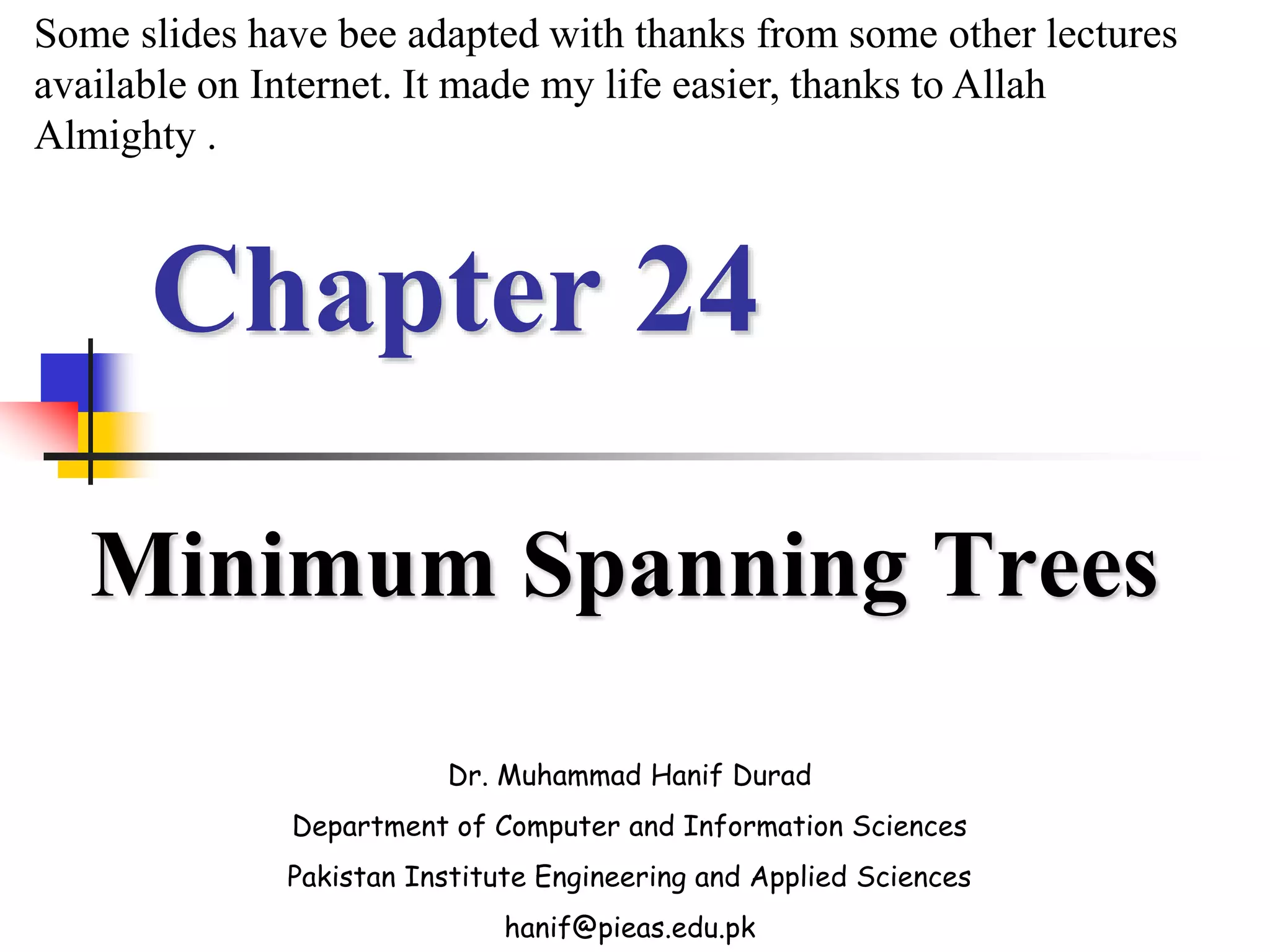

1. Chapter 24
Minimum Spanning Trees
Dr. Muhammad Hanif Durad
Department of Computer and Information Sciences
Pakistan Institute Engineering and Applied Sciences
hanif@pieas.edu.pk
Some slides have bee adapted with thanks from some other lectures
available on Internet. It made my life easier, thanks to Allah
Almighty .

2. Lecture Outline
 Motivation
 Properties of minimum spanning trees
 Kruskal’s algorithm
 Prim’s algorithm
lect13.ppt

3. Facts about (Free) Trees
 A tree with n vertices has exactly n-1 edges
(|E| = |V| - 1)
 There exists a unique path between any two
vertices of a tree
 Adding any edge to a tree creates a unique cycle;
breaking any edge on this cycle restores a tree
For details see CLRS Appendix B.5.1
Dr. Hanif Durad 3
24.ppt, p-7

4. Motivation
 Given a set of nodes and possible connections with weights
between them, find the subset of connections that connects
all the nodes and whose sum of weights is the smallest.
 Examples:
 Communication networks
 Circuit design
 Layout of highway systems
 The nodes and subset of connections form a tree!
 This tree is called the Minimum Spanning Tree (MST)
4
lect13.ppt + 24.ppt, p-1

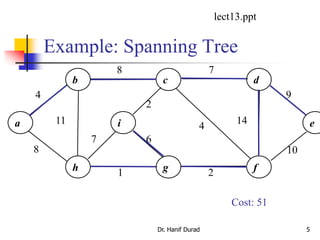

5. Example: Spanning Tree
Dr. Hanif Durad 5
b c d
h g f
ia e
8 7
1 2
11 14
4
8
7 6
2
4
9
10
Cost: 51
lect13.ppt

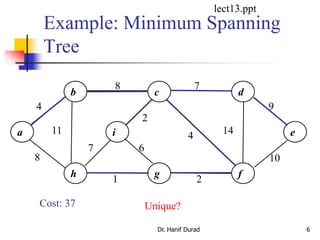

6. Example: Minimum Spanning
Tree
Dr. Hanif Durad 6
b c d
h g f
ia e
8 7
1 2
11 14
4
8
7 6
2
4
9
10
Cost: 37
lect13.ppt
Unique?

7. Example: Another Minimum
Spanning Tree
Dr. Hanif Durad 7
b c d
h g f
ia e
8 7
1 2
11 14
4
8
7 6
2
4
9
10
Cost: 37
24.ppt, p-7
DP or GA problem?

8. Optimal Substructure
• Removing one edge (e.g., (c,f)) partitions T into two trees T1 and T2.
 Consider a generic tree T. Let T be the MST of G (other edges of G not shown).
T1 is MST of G1(V1, E1), the subgraph of G induced by the vertices in V1
T2 is MST of G2(V2, E2), the subgraph of G induced by the vertices in V2
Claim
SL13.pdf, p-6
Proof:
 w(T) = w(c,f) + w(T1) + w(T2)
 There can not be better trees than T1 or T2, or T would be suboptimal
Dr. Hanif Durad 8

9. Formal Definition of MST
 Given a connected, undirected, graph G = (V, E), a
spanning tree is an acyclic subset of edges T E that
connects all the vertices together.
 Assuming G is weighted, we define the cost of a
spanning tree T to be the sum of edge weights in the
spanning tree
w(T) = (u,v)T w(u,v)
 A minimum spanning tree (MST) is a spanning tree of
minimum weight.
24.ppt, p-3
Dr. Hanif Durad 9

10. Intuition Behind Greedy MST
 We maintain in a subset of edges A, which will initially
be empty, and we will add edges one at a time, until
equals the MST. We say that a subset A E is viable if
A is a subset of edges in some MST. We say that an
edge (u,v)  E-A is safe if A{(u,v)} is viable.
 Basically, the choice (u,v) is a safe choice to add so that
A can still be extended to form an MST. Note that if A is
viable it cannot contain a cycle. A generic greedy
algorithm operates by repeatedly adding any safe edge to
the current spanning tree.
Dr. Hanif Durad 10
24.ppt, p-8

11. Generic-MST (G, w)
1. A   // A trivially satisfies invariant
// lines 2-4 maintain the invariant
2. while A does not form a spanning tree
3. do find an edge (u,v) that is safe for A
4. A  A  {(u,v)}
5. return A // A is now a MST
Dr. Hanif Durad 11
24.ppt, p-8

12. How to Find A Safe Edge?
 Cut of undirected graph is a partition of its node
set into two parts
 An edge crosses the cut if its endpoints are in
different parts
 A cut respects set of edges A if no edge in A
crosses the cut
 A crossing edge with minimal cost is a light
edge
12
lecture12_minimum_spanning_tree.pdf, p-6
Dr. Hanif Durad

13. Dr. Hanif Durad 13
unit15.ppt, p-8
Light edge=?
min(7,8,11,14)=7 (c-d)
A={(a,b), (c,i), (c,f), (g,f), (g,h)}
A  E

14. Greedy Choice Property
Theorem 23.1:
SL13.pdf, p-7+ 08 Greedy Algorithms.ppt,p-81
 Let
 A be a subset of some MST
 (S,V-S) be a cut that respects A
 (u,v) be a light edge crossing (S,V-S)
 Then
 (u,v) is safe for A.
A
Basis for a greedy algorithm 14Dr. Hanif Durad

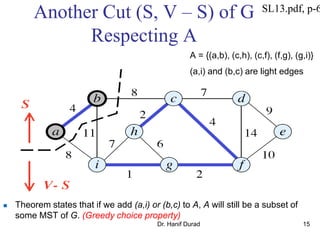

15. Another Cut (S, V – S) of G
Respecting A
A = {(a,b), (c,h), (c,f), (f,g), (g,i)}
SL13.pdf, p-6
 Theorem states that if we add (a,i) or (b,c) to A, A will still be a subset of
some MST of G. (Greedy choice property)
(a,i) and (b,c) are light edges
15Dr. Hanif Durad

16. Proof
• Let G be a connected, undirected, weighted graph.
• Let T be an MST that includes A.
• Let (S,V-S) be a cut that respects A.
• Let (u,v) be a light edge between S and V-S.
• If T contains (u,v) then we’re done.
u
v
S
V - S
Edge T
Edge T
16Dr. Hanif Durad08 Greedy Algorithms.ppt,p-82

17. u
x
v
y
S
V - S
• Suppose T does not contain (u,v)
– Can construct different MST T' that
includes A(u,v)
– The edge (u,v) forms a cycle with the
edges on the path p from u to v in T.
– There is at least one edge in p that crosses
the cut: let that edge be (x,y)
– (x,y) is not in A, since the cut (S,V-S)
respects A.
– Form new spanning tree T' by deleting
(x,y) from T and adding (u,v).
– w(T')  w(T), since w(u,v)  w(x,y) T' is
an MST.
– A  T', since A  T and (x,y)A 
A(u,v)  T'
– Thus (u,v) is safe for A.
p
08 Greedy Algorithms.ppt,p-83

18. Assignment 1
 Problems 23.1-1 23.1-7, 23.1-10 Page 566
567
 Last Date
 Tuesday -22 June 2010
Dr. Hanif Durad 18

19. Greedy Algorithms
 Different greedy rules can be used to select the
next vertex to add to the MST being built
1. Krushkal’s Algorithm
2. Prim’s Algorithm
Dr. Hanif Durad 19
SL13.pdf, p-7

20. Two algorithms to find an MST
There are two ways of adding a safe edge:
1. Kruskal’s algorithm: the set A is a forest and
the safe edge added is always the least-weight
edge in the graph connecting two distinct
components.
2. Prim’s algorithm: the set A is a tree and the
safe edge added is always the least-weight edge
connecting A to a vertex not in A
Dr. Hanif Durad 20
lect13.ppt

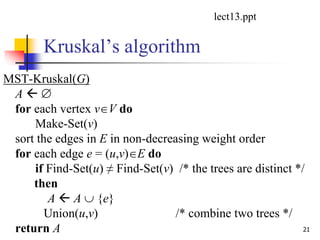

21. Kruskal’s algorithm
MST-Kruskal(G)
A  
for each vertex vV do
Make-Set(v)
sort the edges in E in non-decreasing weight order
for each edge e = (u,v)E do
if Find-Set(u) ≠ Find-Set(v) /* the trees are distinct */
then
A  A  {e}
Union(u,v) /* combine two trees */
return A 21
lect13.ppt

22. Example: Kruskal’s algorithm
Dr. Hanif Durad 22
b c d
h g f
ia e
8 7
1 2
11 14
4
8
7 6
2
4
9
10
XX
Cost: 37
X

23. Analysis of Kruskal’s algorithm
Dr. Hanif Durad 23
Correctness: follows directly from Theorem 23.1.
Complexity: Depends on the implementation of the set
operations! A naïve implementation takes O(|V| |E|).
 Sorting the edges takes O(|E| lg |E|).
 the for loop goes over every edge and performs two
Find-Set and one Union operation. These can be
implemented to take O(1) amortized time.
The total running time is O(|E| lg |E|) = O(|E| lg |V|)

24. Prim’s algorithm
MST-Prim(G, root)
for each vertex vV do
key(v)  ∞; π[v]  null
key(root)  0; Q  V
while Q is not empty do
u  Extract-Min(Q)
for each v that is a neighbor of u do
if vQ and w(u,v) < key(v)
then π[v]  u
key(v)  w(u,v) /*decrease value of key */
Note: A = {(v, [v]) : v  v - {r} - Q}.
21-greedy.ppt

25. Example: Prim’s algorithm
Dr. Hanif Durad 25
b c d
h g f
ia e
8 7
1 2
11 14
4
8
7 6
2
4
9
10
Cost: 37
∞0
∞ ∞ ∞
∞
∞∞∞

26. Analysis of Prim’s algorithm
Correctness: follows directly from the Theorem 1.
Complexity: Depends on the implementation of the
minimum priority queue. With a binary mean-heap, we
have:
 Building the initial heap takes O(|V|).
 Extract-Min takes O(lg |V|) per vertex  total O(|V| lg |V|)
 The for loop is executed O(|E|).
 Membership test is O(1). Decreasing a key is O(lg |V|).
Overall, the running time is O(|V| lg |V| + |E| lg |V|) = O(|E|
lg |V|).
Dr. Hanif Durad 26

27. Assignment 2
 Section Problems 23.2-1 23.2-5, 23.2-8 Page
574 574
 Chapter Problems 23-1, 23-323-4
 C++ coding for Kruskal’s and Prim’s
Algorithms
 Last Date
 Tuesday -22 June 2010
Dr. Hanif Durad 27
