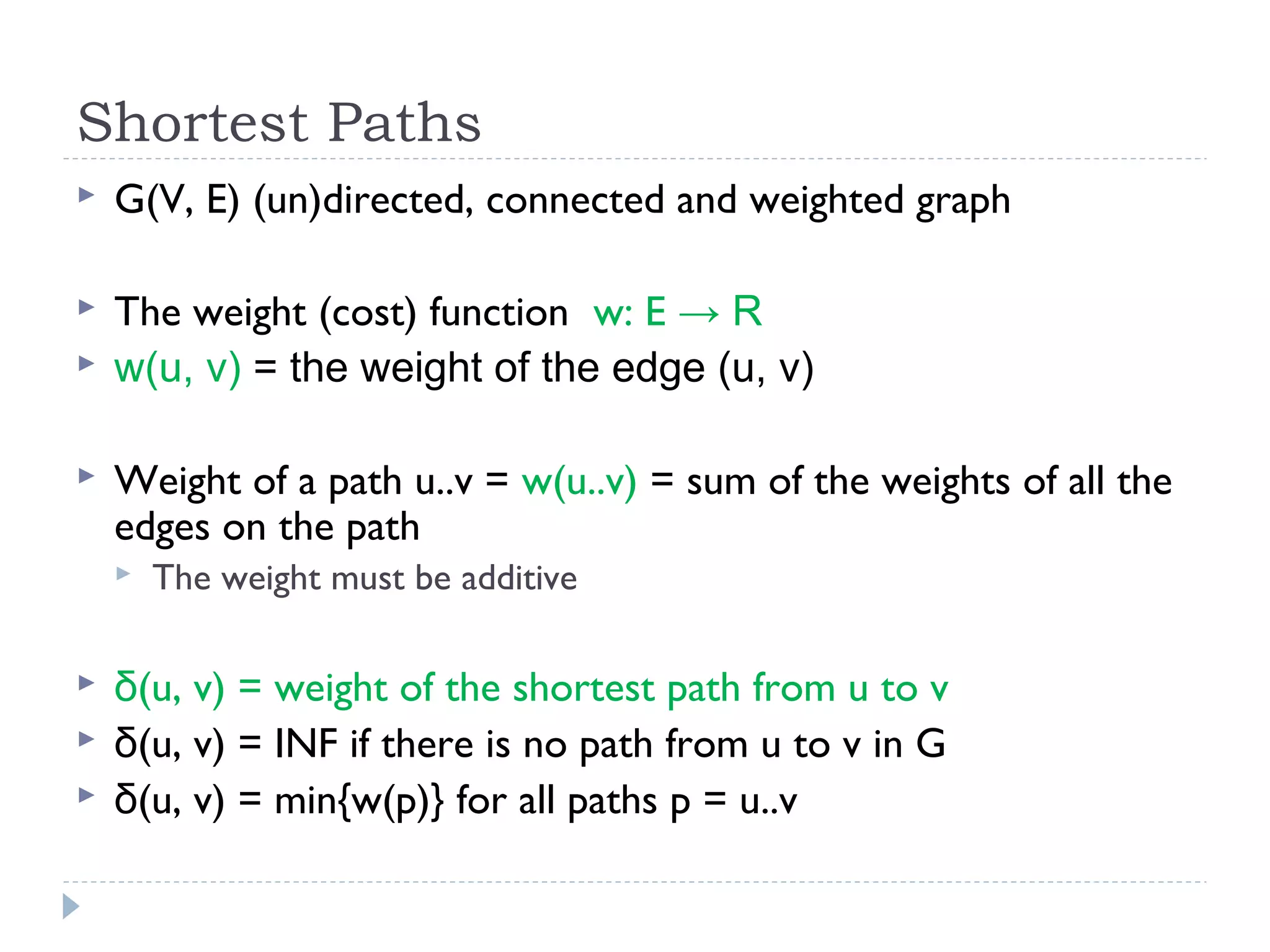

3. Shortest Paths
G(V, E) (un)directed, connected and weighted graph
The weight (cost) function w: E → R
w(u, v) = the weight of the edge (u, v)
Weight of a path u..v = w(u..v) = sum of the weights of all the
edges on the path
The weight must be additive
δ(u, v) = weight of the shortest path from u to v
δ(u, v) = INF if there is no path from u to v in G
δ(u, v) = min{w(p)} for all paths p = u..v

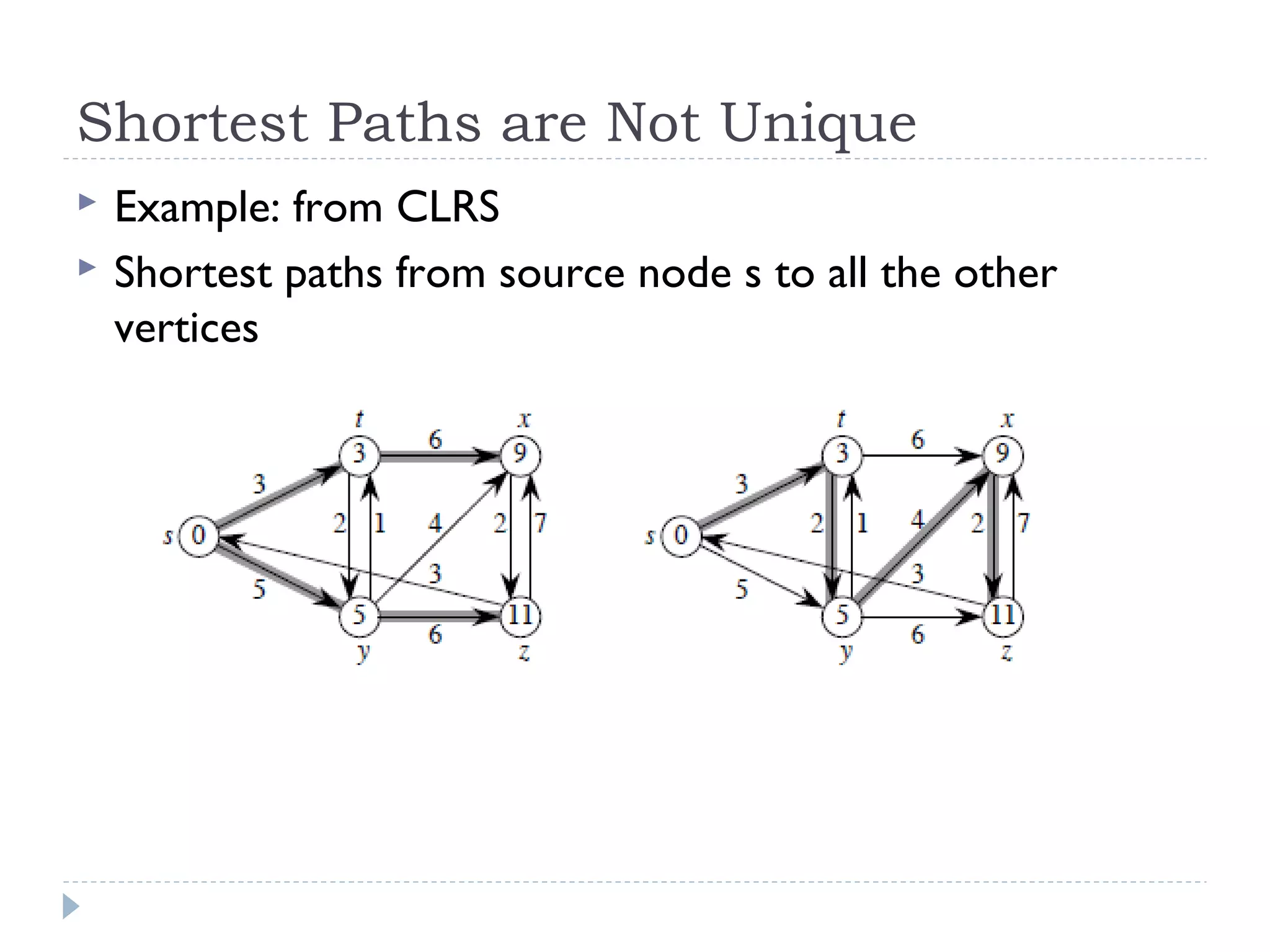

4. Shortest Paths are Not Unique
Example: from CLRS
Shortest paths from source node s to all the other
vertices
5. Shortest Paths Problems
The shortest paths from a source vertex s are organized
as a tree
Shortest paths tree
p[u] used to store the predecessor of any vertex in the tree
The weight can be any measure that is additive and we
would like to minimize: distance, cost, time, penalties,
etc.
Generalization of BFS for a weighted graph

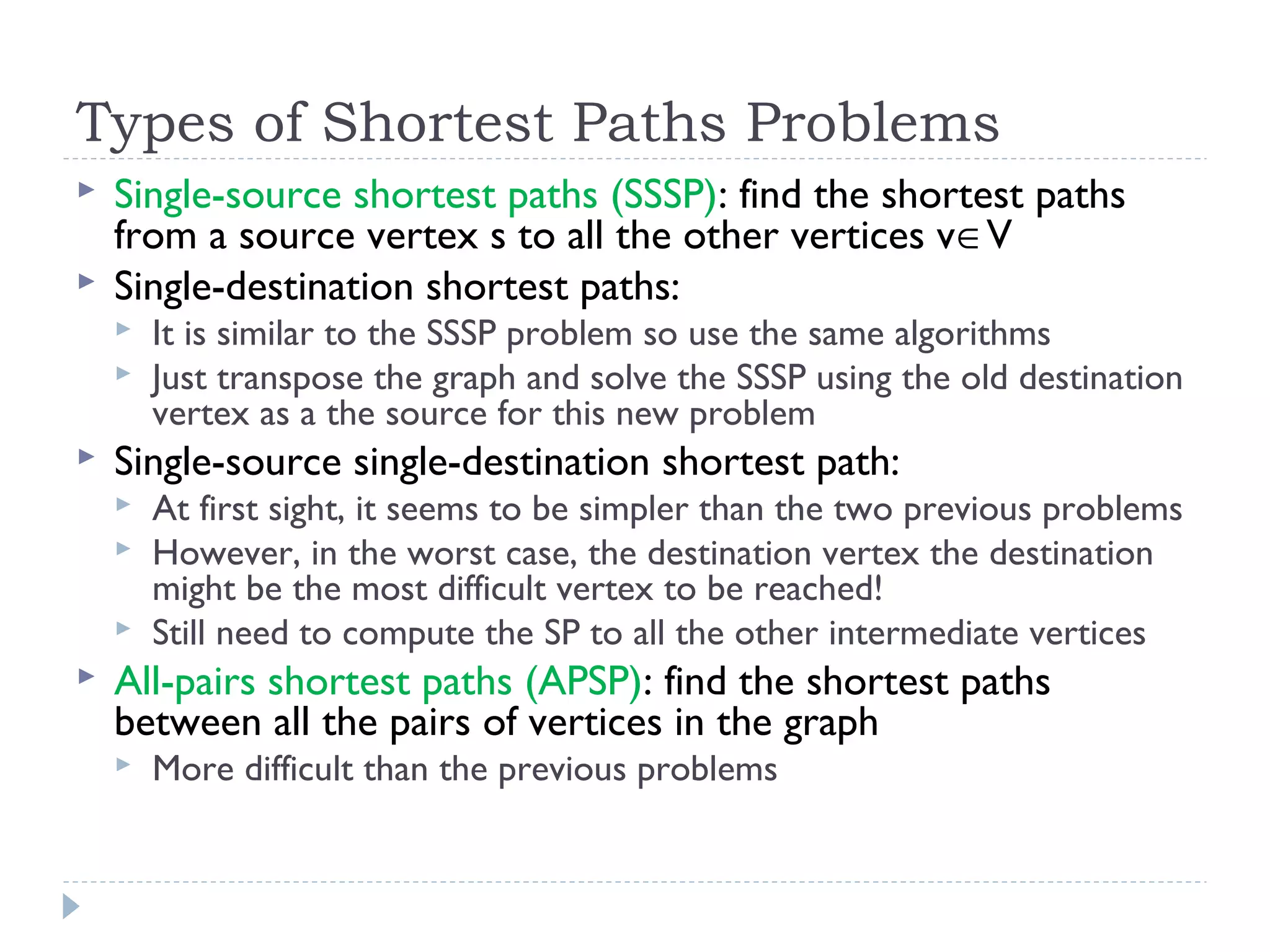

6. Types of Shortest Paths Problems
Single-source shortest paths (SSSP): find the shortest paths
from a source vertex s to all the other vertices v∈V
Single-destination shortest paths:
Single-source single-destination shortest path:
It is similar to the SSSP problem so use the same algorithms
Just transpose the graph and solve the SSSP using the old destination
vertex as a the source for this new problem
At first sight, it seems to be simpler than the two previous problems
However, in the worst case, the destination vertex the destination
might be the most difficult vertex to be reached!
Still need to compute the SP to all the other intermediate vertices
All-pairs shortest paths (APSP): find the shortest paths
between all the pairs of vertices in the graph
More difficult than the previous problems

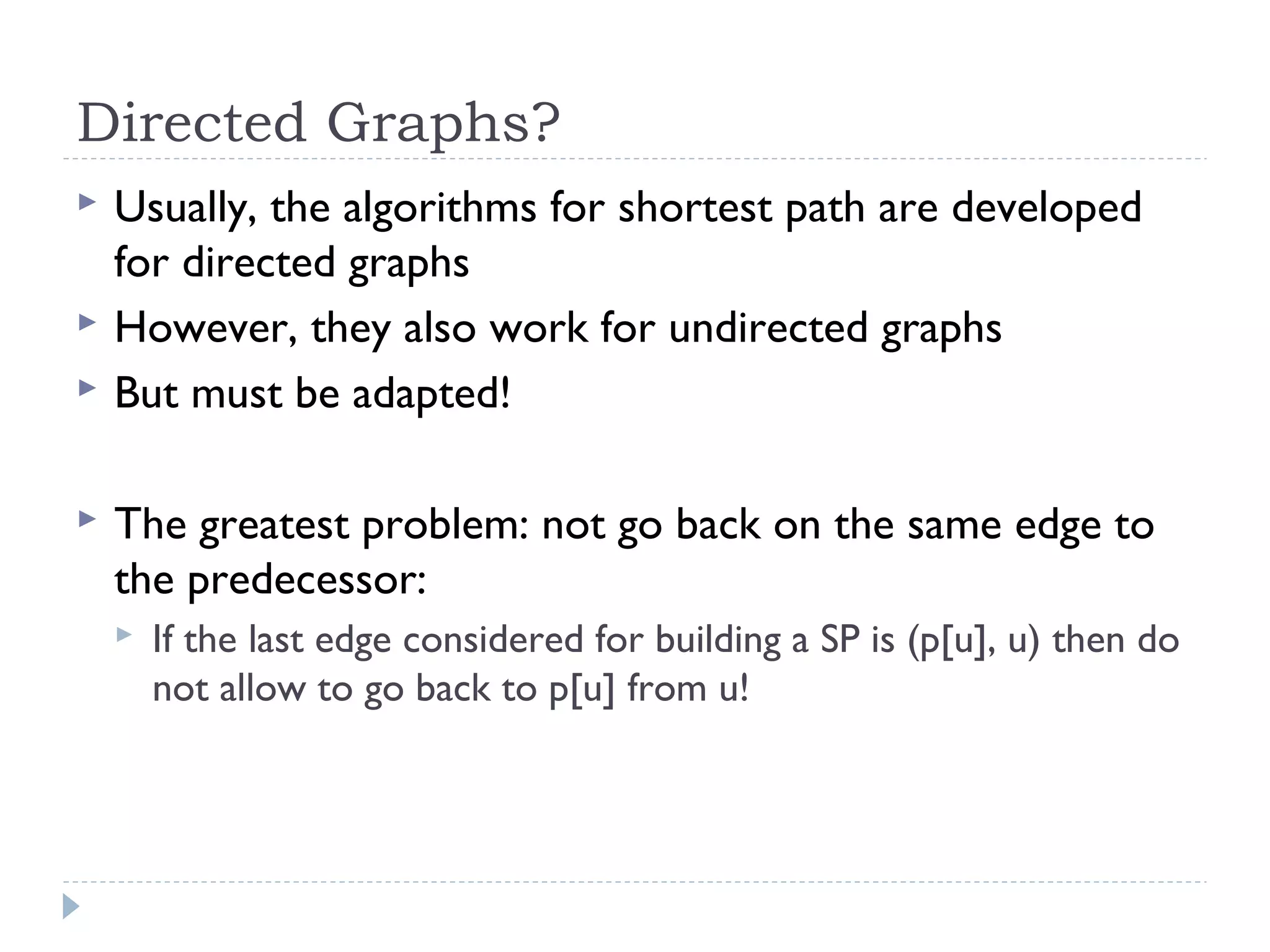

7. Directed Graphs?
Usually, the algorithms for shortest path are developed
for directed graphs
However, they also work for undirected graphs
But must be adapted!
The greatest problem: not go back on the same edge to
the predecessor:
If the last edge considered for building a SP is (p[u], u) then do
not allow to go back to p[u] from u!

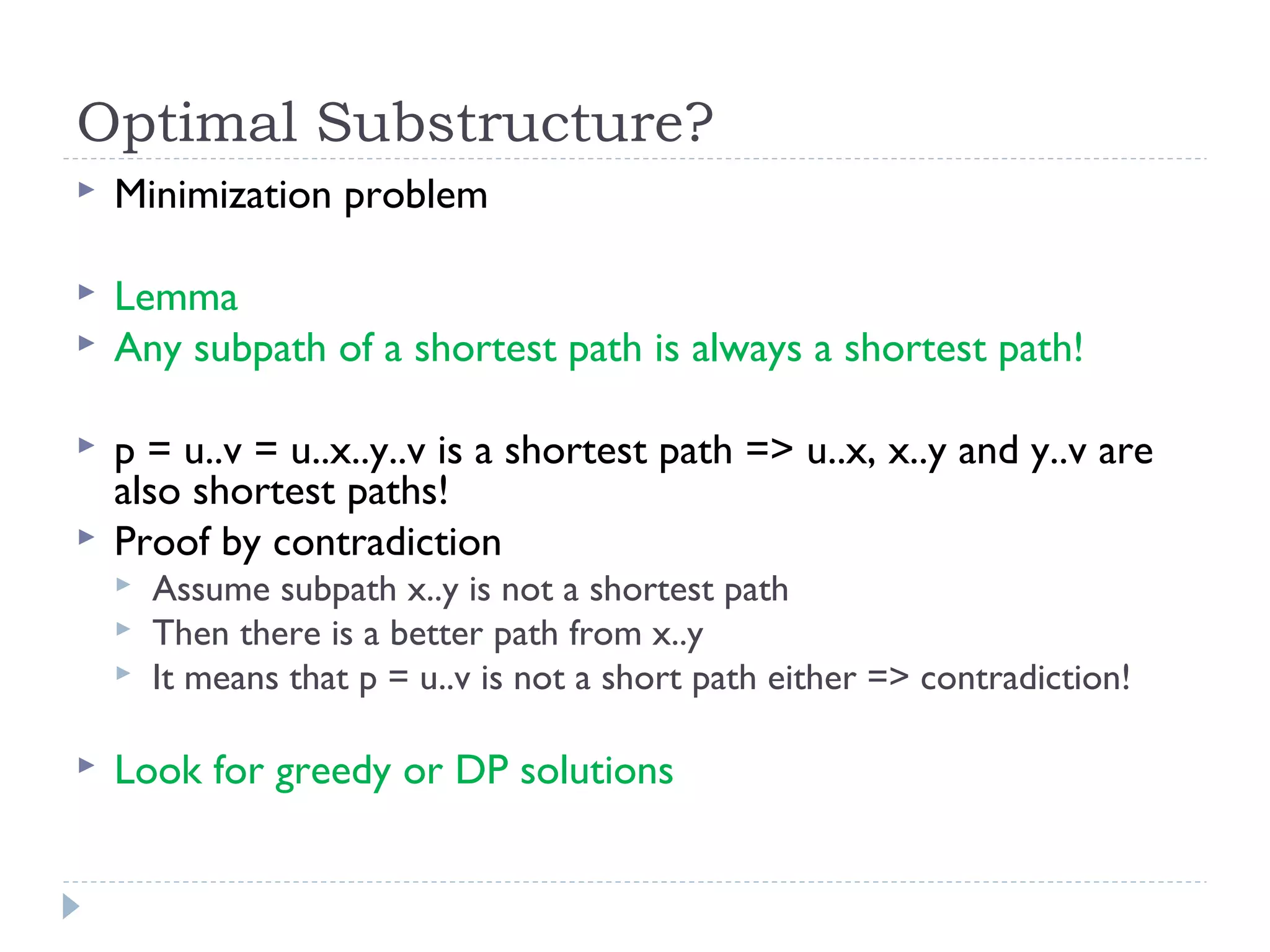

8. Optimal Substructure?
Minimization problem
Lemma
Any subpath of a shortest path is always a shortest path!
p = u..v = u..x..y..v is a shortest path => u..x, x..y and y..v are
also shortest paths!
Proof by contradiction
Assume subpath x..y is not a shortest path
Then there is a better path from x..y
It means that p = u..v is not a short path either => contradiction!
Look for greedy or DP solutions

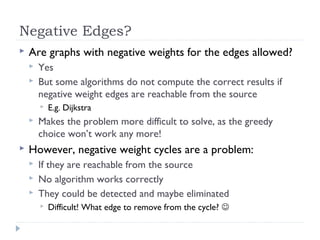

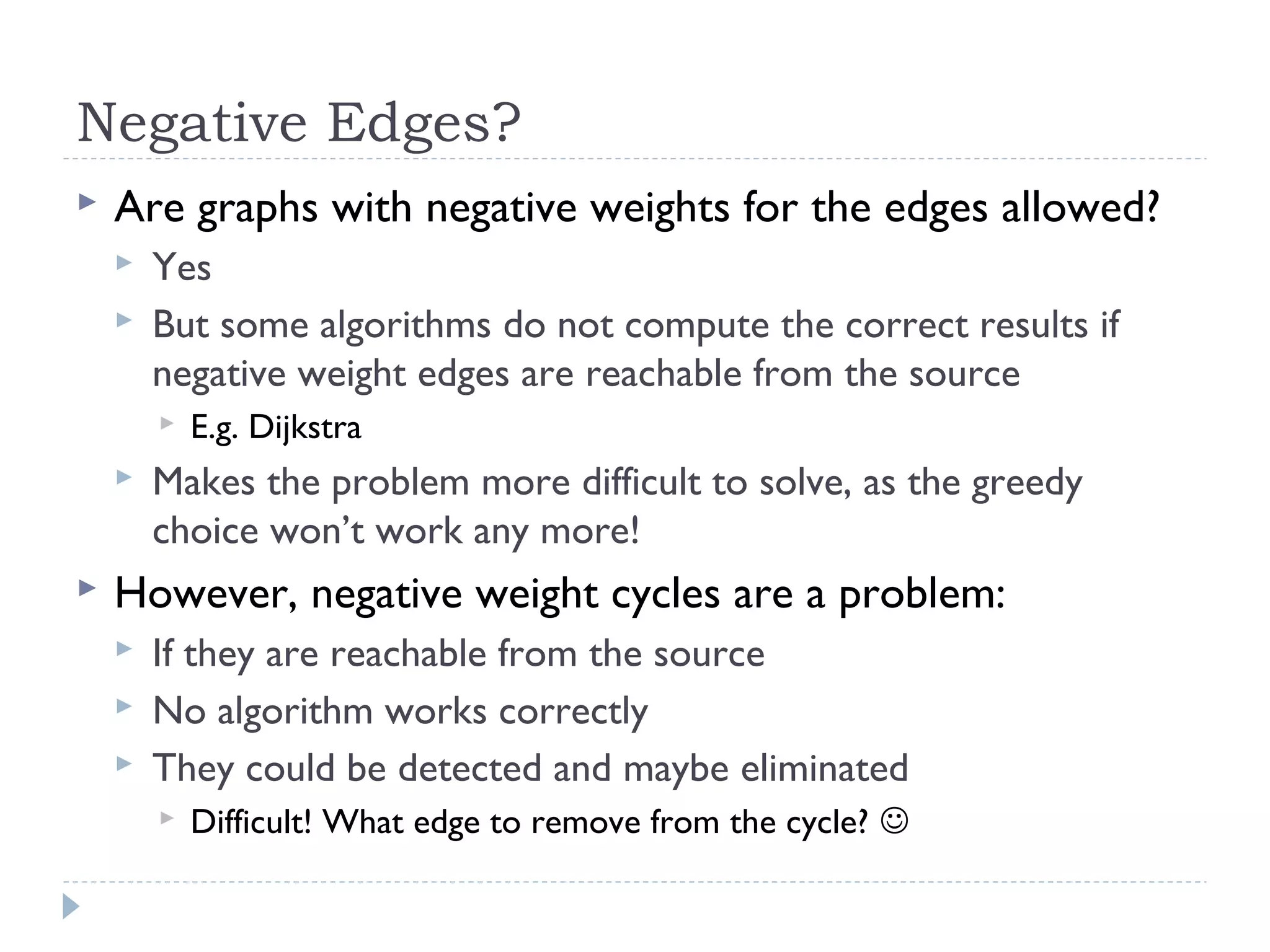

9. Negative Edges?
Are graphs with negative weights for the edges allowed?
Yes
But some algorithms do not compute the correct results if
negative weight edges are reachable from the source
E.g. Dijkstra
Makes the problem more difficult to solve, as the greedy
choice won’t work any more!
However, negative weight cycles are a problem:
If they are reachable from the source
No algorithm works correctly
They could be detected and maybe eliminated
Difficult! What edge to remove from the cycle?

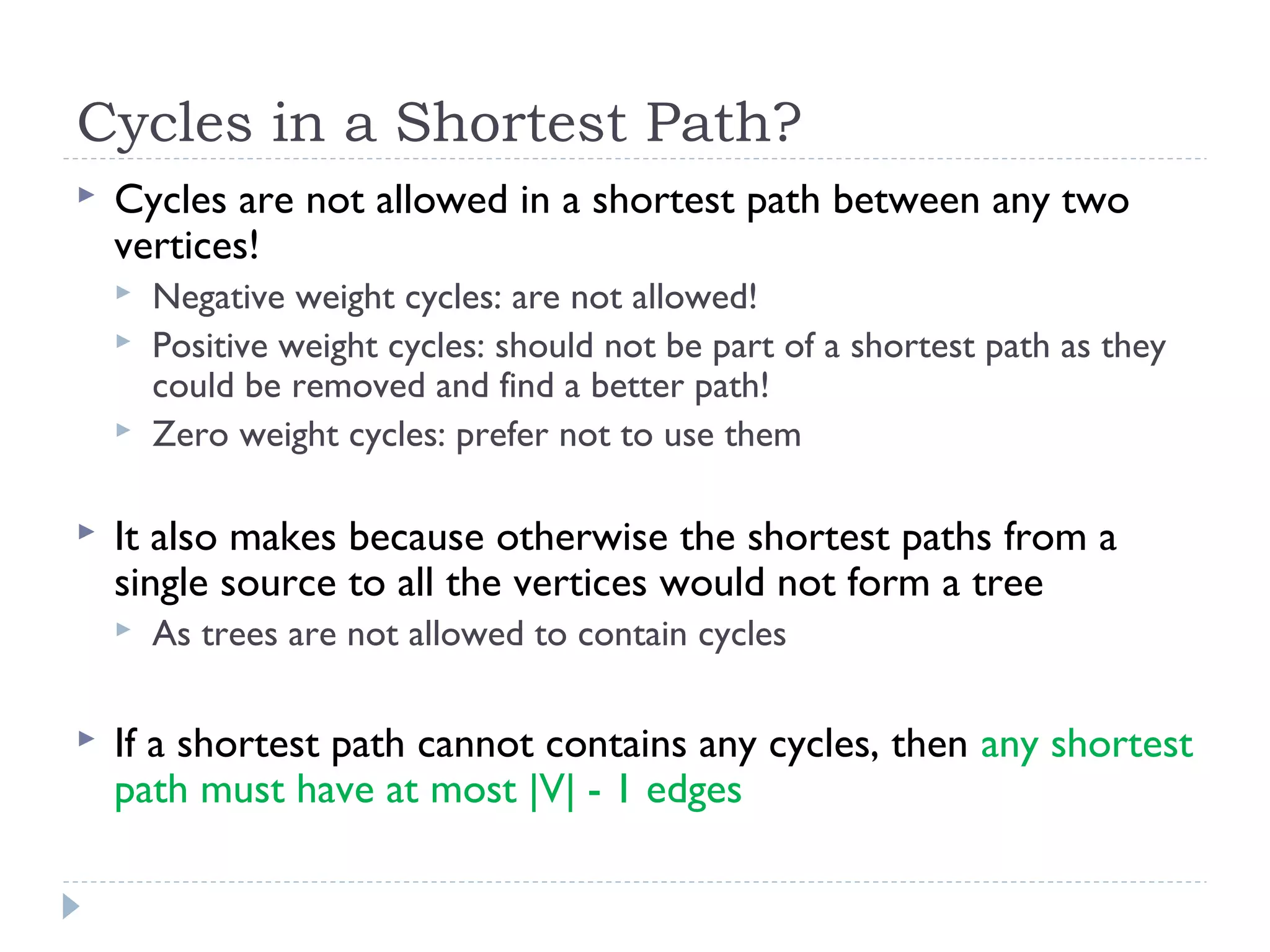

10. Cycles in a Shortest Path?
Cycles are not allowed in a shortest path between any two
vertices!
It also makes because otherwise the shortest paths from a
single source to all the vertices would not form a tree
Negative weight cycles: are not allowed!
Positive weight cycles: should not be part of a shortest path as they
could be removed and find a better path!
Zero weight cycles: prefer not to use them
As trees are not allowed to contain cycles
If a shortest path cannot contains any cycles, then any shortest
path must have at most |V| - 1 edges

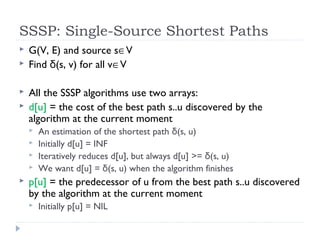

11. SSSP: Single-Source Shortest Paths
G(V, E) and source s∈V
Find δ(s, v) for all v∈V
All the SSSP algorithms use two arrays:
d[u] = the cost of the best path s..u discovered by the
algorithm at the current moment
An estimation of the shortest path δ(s, u)
Initially d[u] = INF
Iteratively reduces d[u], but always d[u] >= δ(s, u)
We want d[u] = δ(s, u) when the algorithm finishes
p[u] = the predecessor of u from the best path s..u discovered
by the algorithm at the current moment
Initially p[u] = NIL

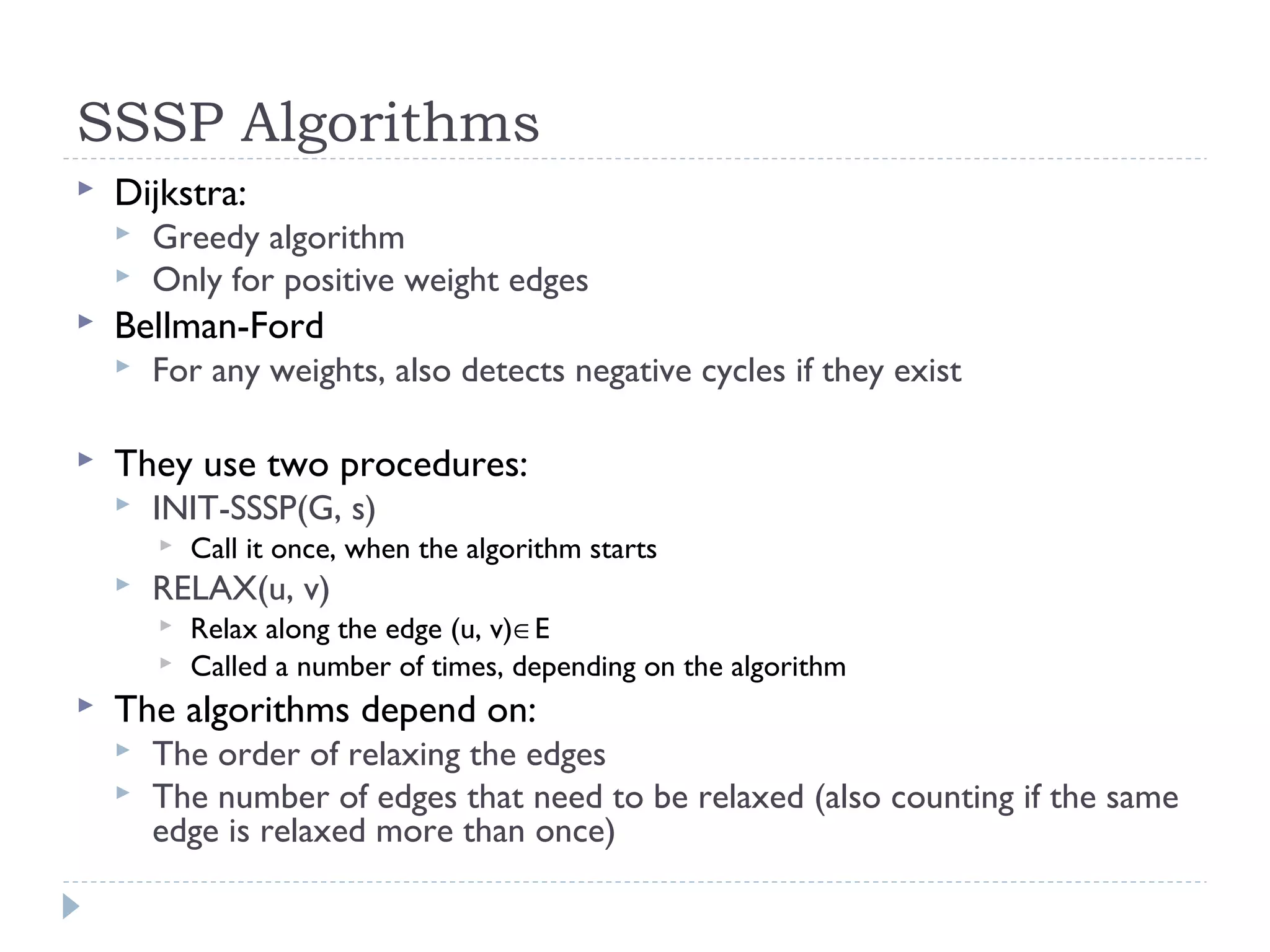

12. SSSP Algorithms
Dijkstra:
Bellman-Ford
Greedy algorithm
Only for positive weight edges
For any weights, also detects negative cycles if they exist
They use two procedures:

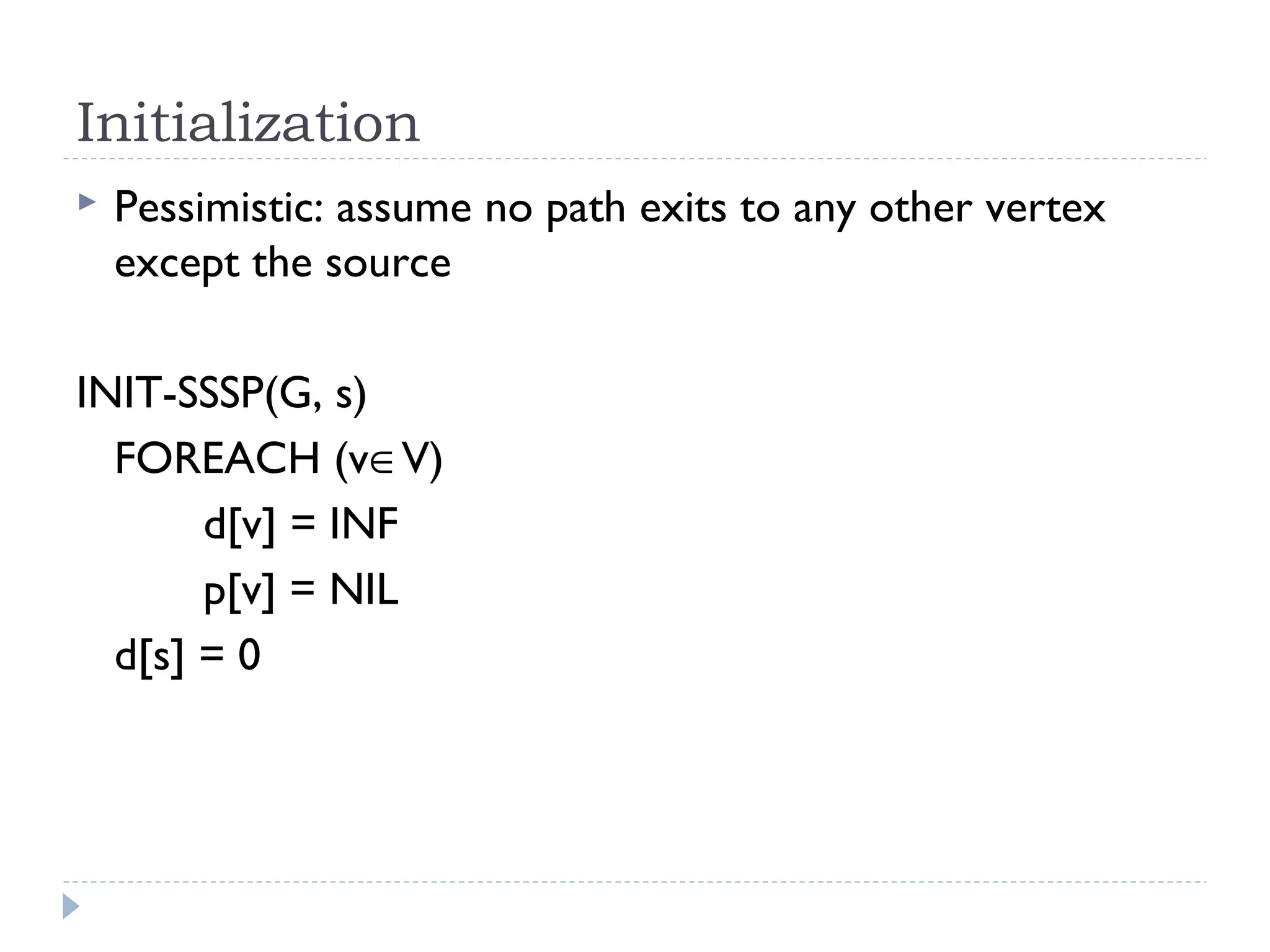

INIT-SSSP(G, s)
RELAX(u, v)
Call it once, when the algorithm starts
Relax along the edge (u, v)∈E
Called a number of times, depending on the algorithm
The algorithms depend on:
The order of relaxing the edges
The number of edges that need to be relaxed (also counting if the same
edge is relaxed more than once)

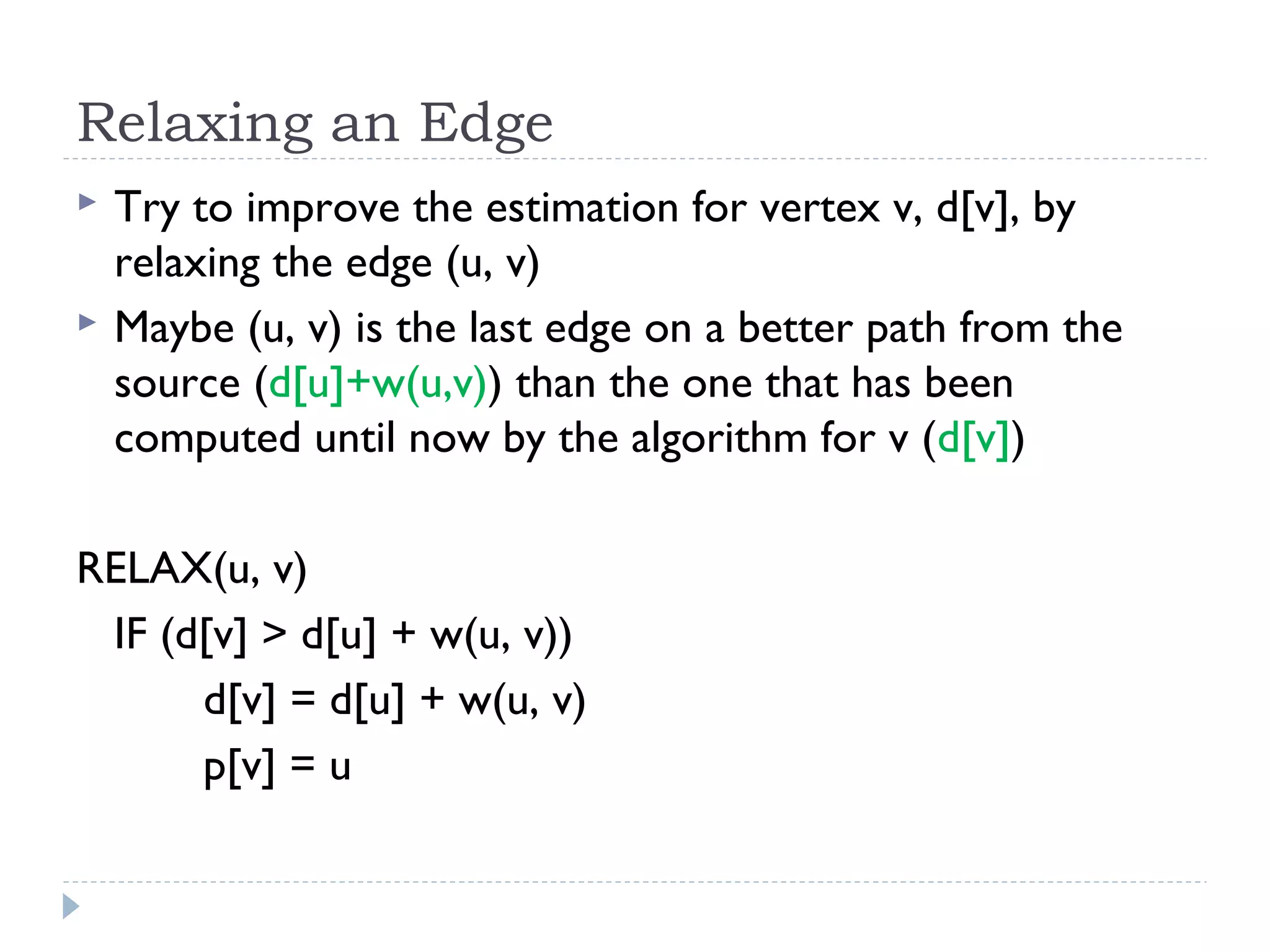

14. Relaxing an Edge
Try to improve the estimation for vertex v, d[v], by
relaxing the edge (u, v)
Maybe (u, v) is the last edge on a better path from the
source (d[u]+w(u,v)) than the one that has been
computed until now by the algorithm for v (d[v])
RELAX(u, v)
IF (d[v] > d[u] + w(u, v))
d[v] = d[u] + w(u, v)
p[v] = u

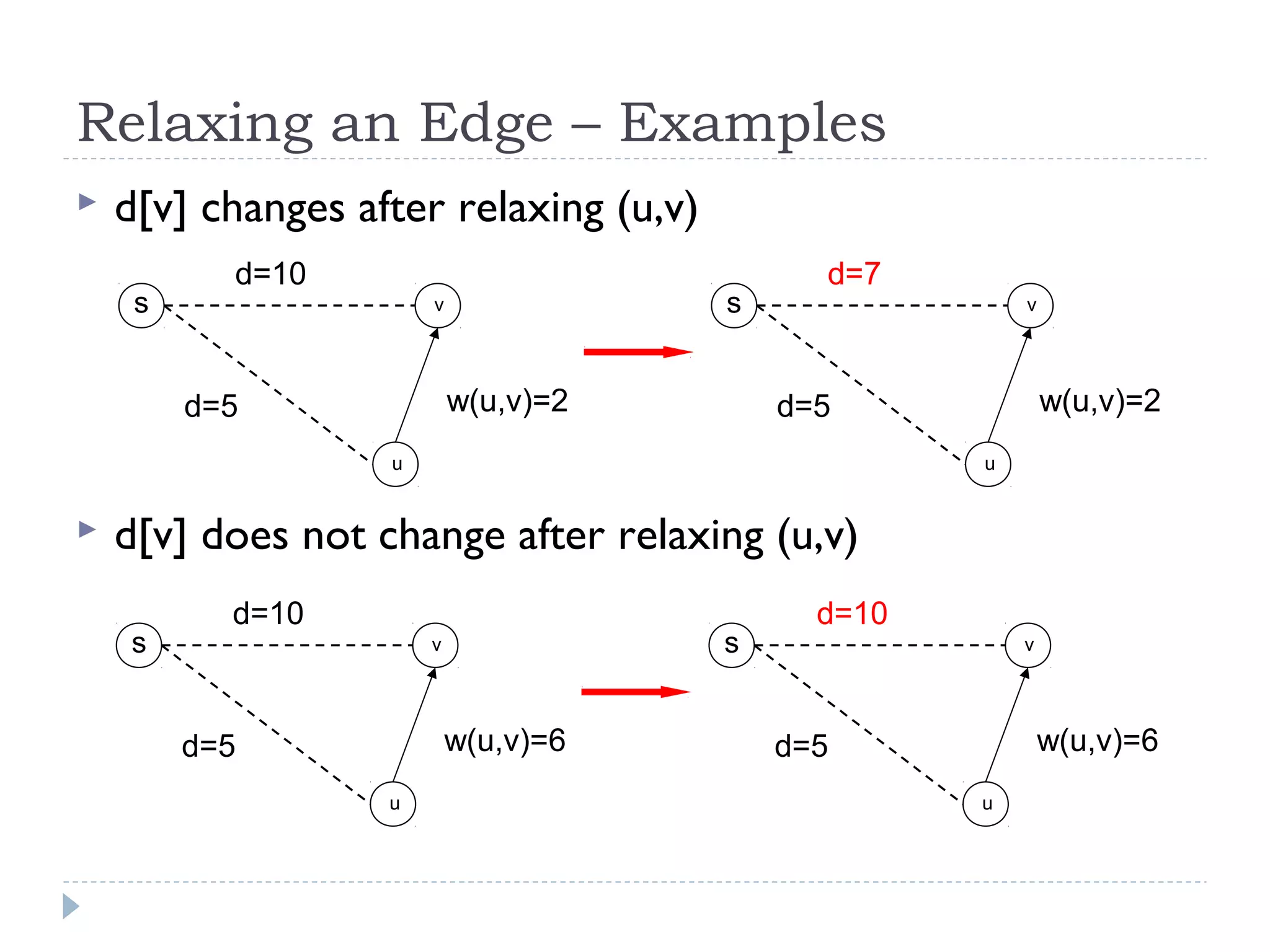

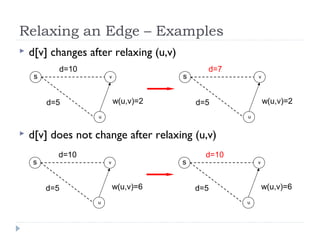

15. Relaxing an Edge – Examples
d[v] changes after relaxing (u,v)
s
d=10
s
v
w(u,v)=2
d=5
d=7
v
u
w(u,v)=2
d=5
u
d[v] does not change after relaxing (u,v)
s
d=10
s
v
w(u,v)=6
d=5
u
d=10
v
w(u,v)=6
d=5
u

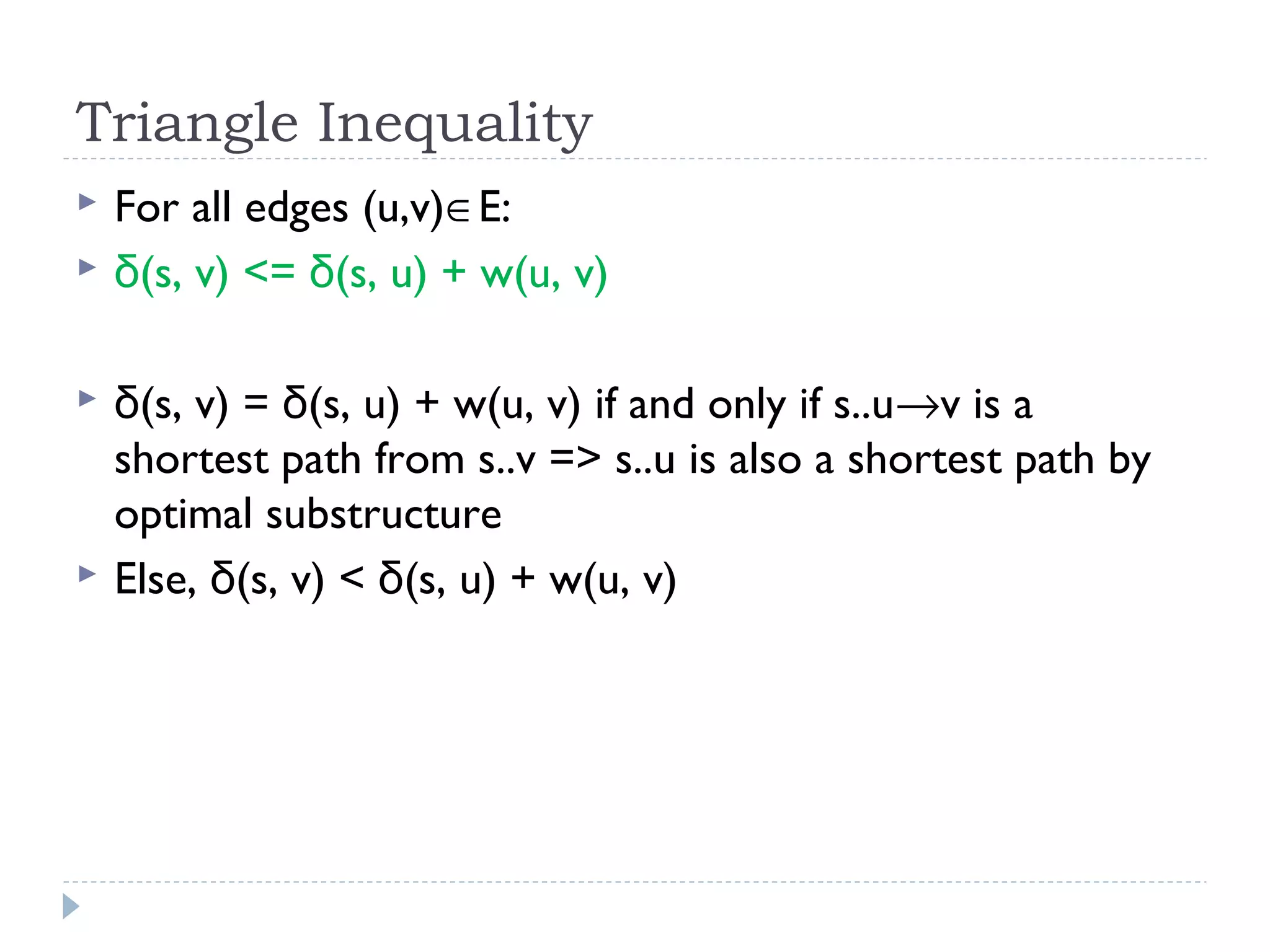

16. Triangle Inequality
For all edges (u,v)∈E:
δ(s, v) <= δ(s, u) + w(u, v)
δ(s, v) = δ(s, u) + w(u, v) if and only if s..u→v is a
shortest path from s..v => s..u is also a shortest path by
optimal substructure
Else, δ(s, v) < δ(s, u) + w(u, v)

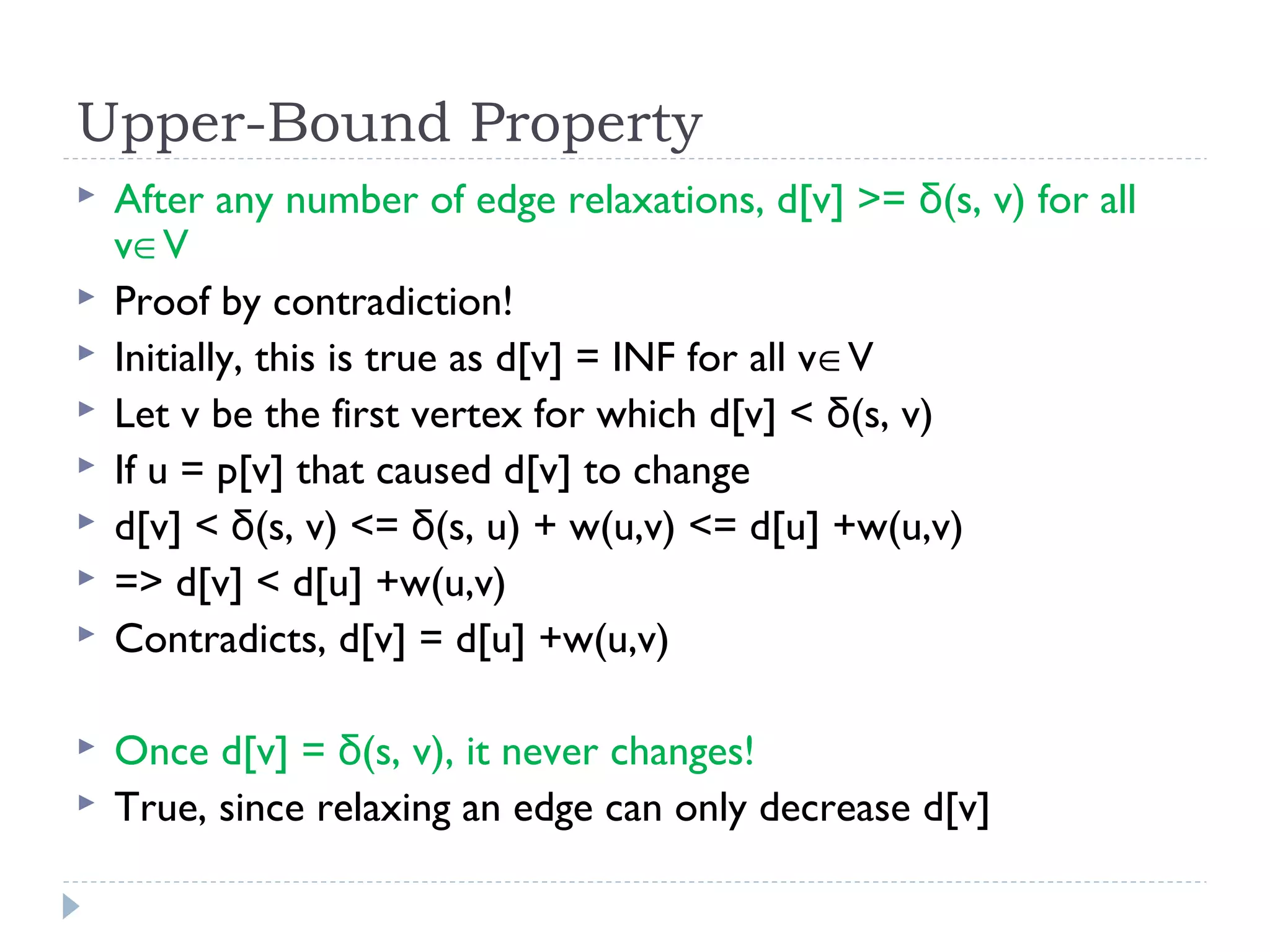

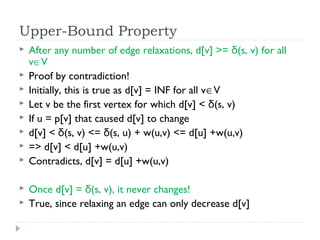

17. Upper-Bound Property
After any number of edge relaxations, d[v] >= δ(s, v) for all
v∈V
Proof by contradiction!
Initially, this is true as d[v] = INF for all v∈V
Let v be the first vertex for which d[v] < δ(s, v)
If u = p[v] that caused d[v] to change
d[v] < δ(s, v) <= δ(s, u) + w(u,v) <= d[u] +w(u,v)
=> d[v] < d[u] +w(u,v)
Contradicts, d[v] = d[u] +w(u,v)
Once d[v] = δ(s, v), it never changes!
True, since relaxing an edge can only decrease d[v]

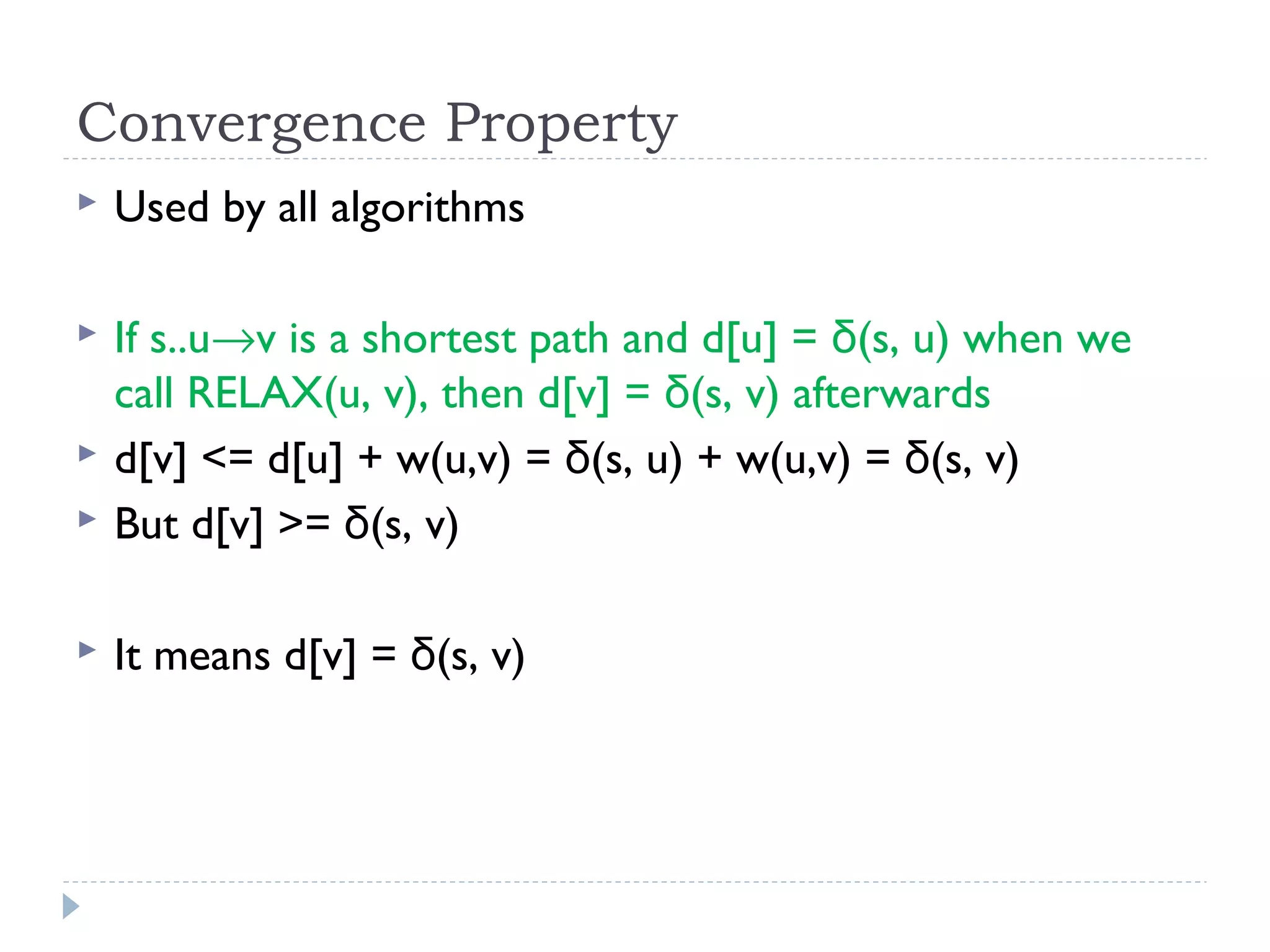

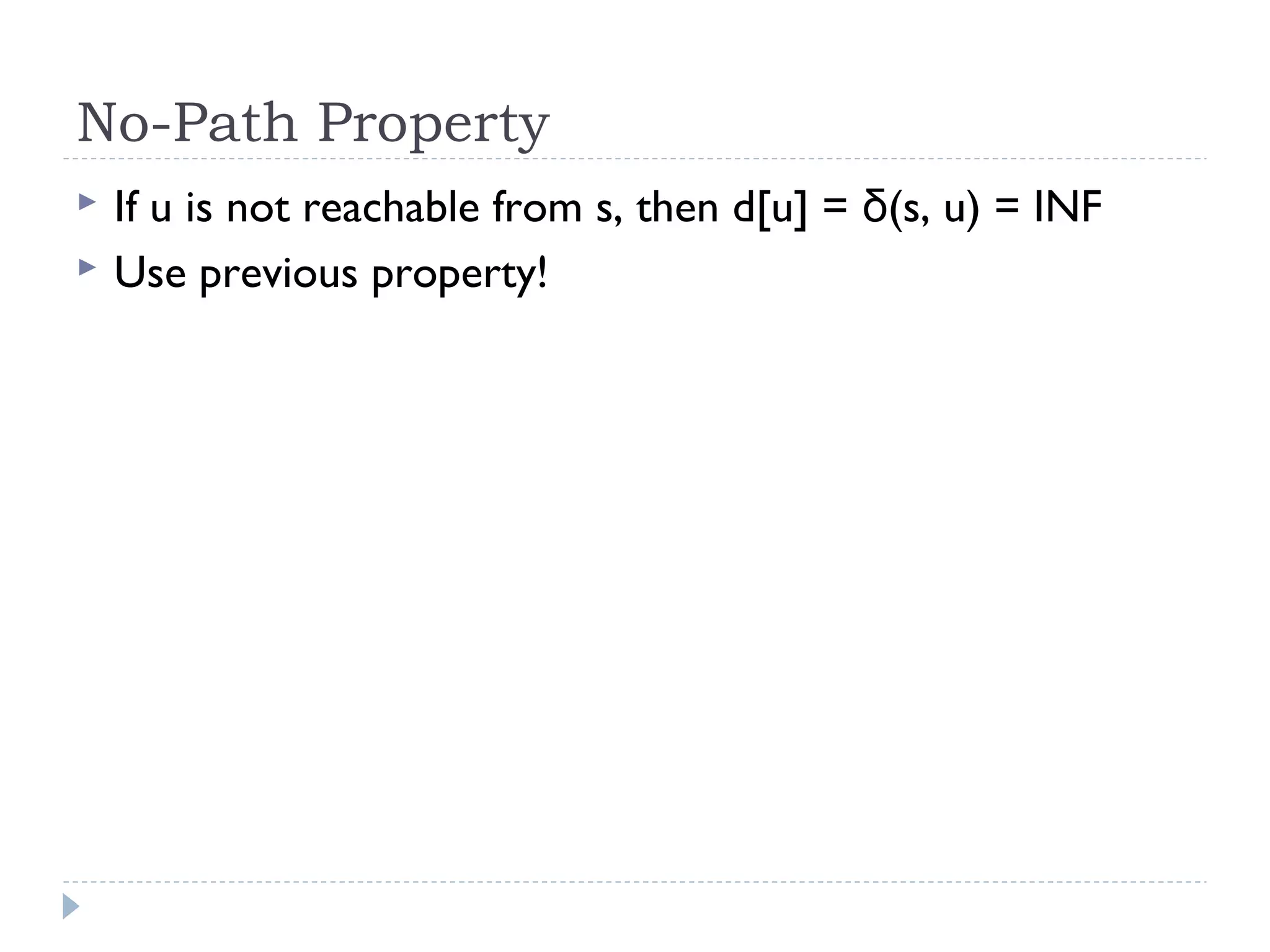

19. Convergence Property
Used by all algorithms
If s..u→v is a shortest path and d[u] = δ(s, u) when we
call RELAX(u, v), then d[v] = δ(s, v) afterwards
d[v] <= d[u] + w(u,v) = δ(s, u) + w(u,v) = δ(s, v)
But d[v] >= δ(s, v)
It means d[v] = δ(s, v)

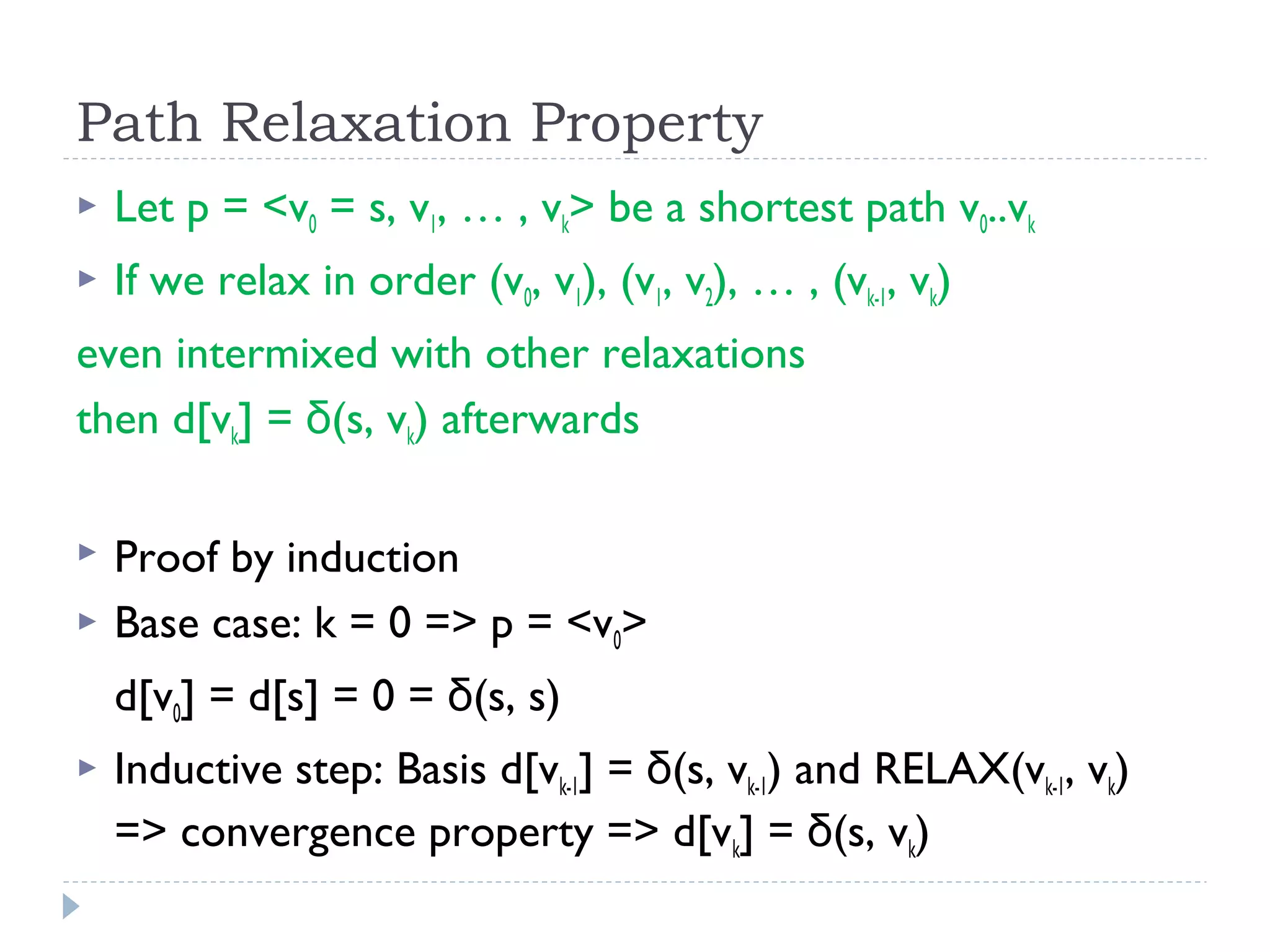

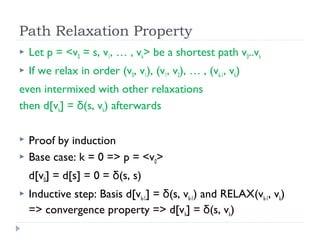

20. Path Relaxation Property
Let p = <v0 = s, v1, … , vk> be a shortest path v0..vk
If we relax in order (v0, v1), (v1, v2), … , (vk-1, vk)
even intermixed with other relaxations
then d[vk] = δ(s, vk) afterwards
Proof by induction
Base case: k = 0 => p = <v0>
d[v0] = d[s] = 0 = δ(s, s)
Inductive step: Basis d[vk-1] = δ(s, vk-1) and RELAX(vk-1, vk)
=> convergence property => d[vk] = δ(s, vk)

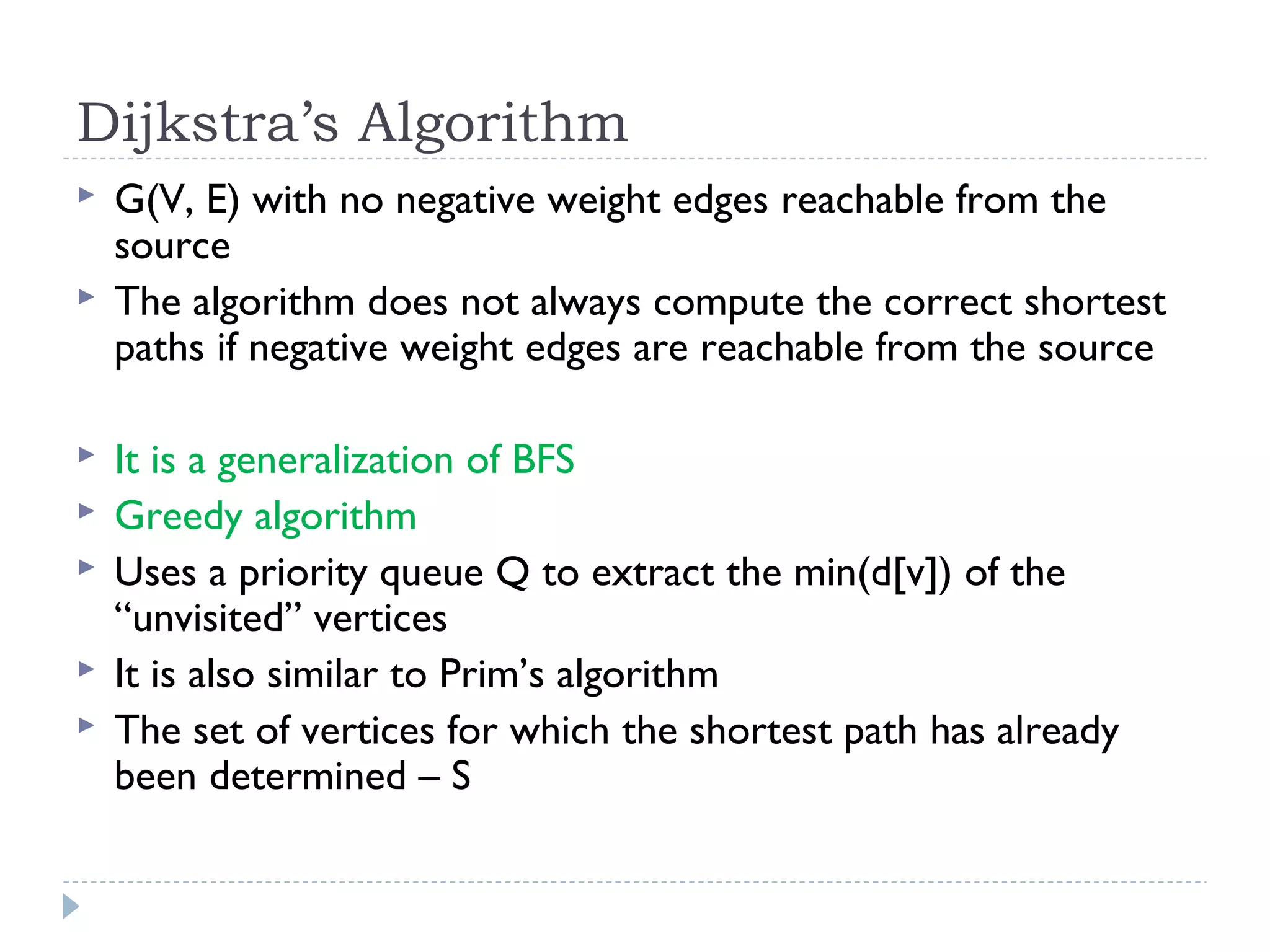

21. Dijkstra’s Algorithm
G(V, E) with no negative weight edges reachable from the
source
The algorithm does not always compute the correct shortest
paths if negative weight edges are reachable from the source
It is a generalization of BFS
Greedy algorithm
Uses a priority queue Q to extract the min(d[v]) of the
“unvisited” vertices
It is also similar to Prim’s algorithm
The set of vertices for which the shortest path has already
been determined – S

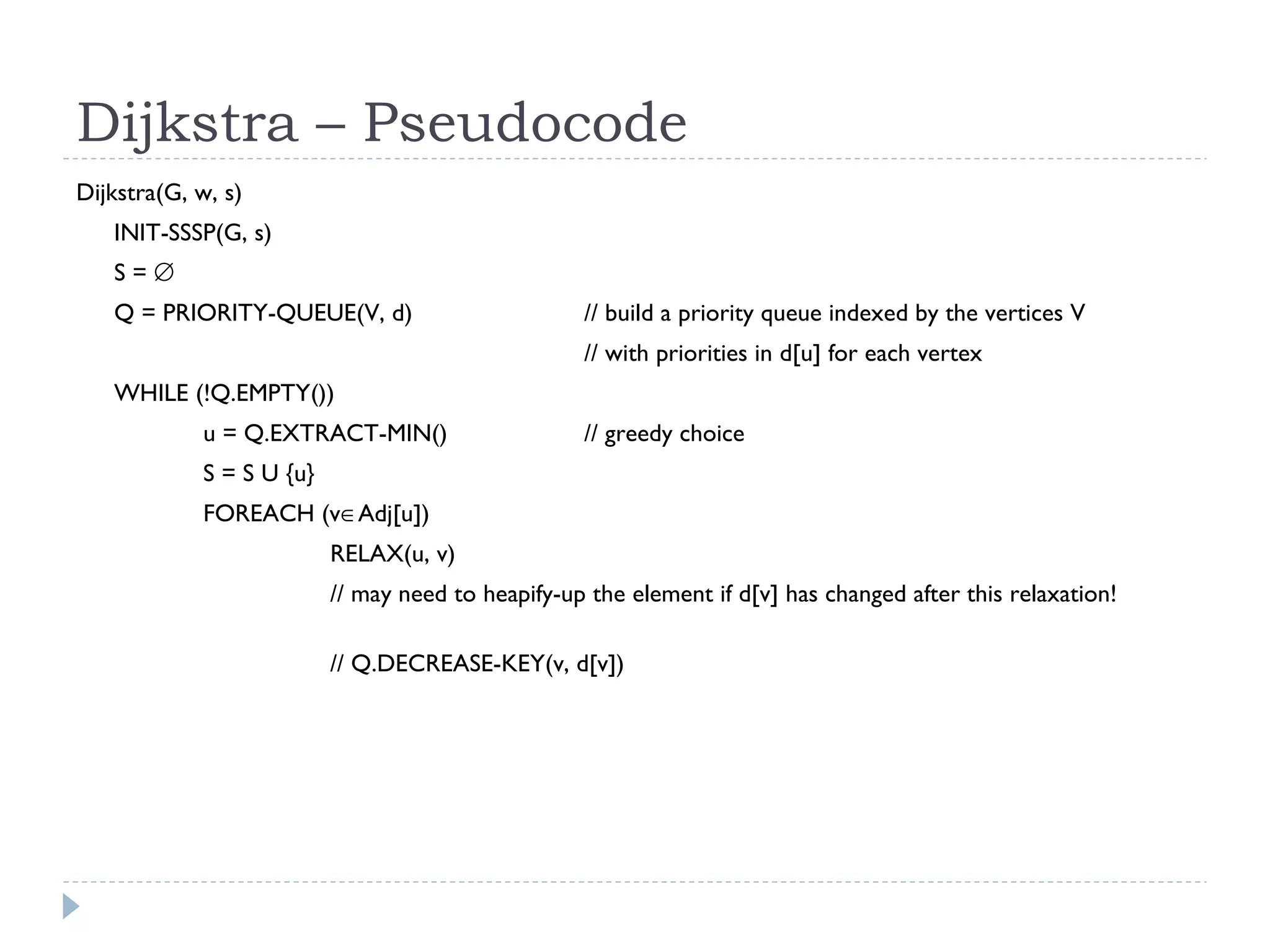

22. Dijkstra – Pseudocode
Dijkstra(G, w, s)
INIT-SSSP(G, s)
S=∅
Q = PRIORITY-QUEUE(V, d)
// build a priority queue indexed by the vertices V
// with priorities in d[u] for each vertex
WHILE (!Q.EMPTY())
u = Q.EXTRACT-MIN()
// greedy choice
S = S U {u}
FOREACH (v∈Adj[u])
RELAX(u, v)
// may need to heapify-up the element if d[v] has changed after this relaxation!
// Q.DECREASE-KEY(v, d[v])

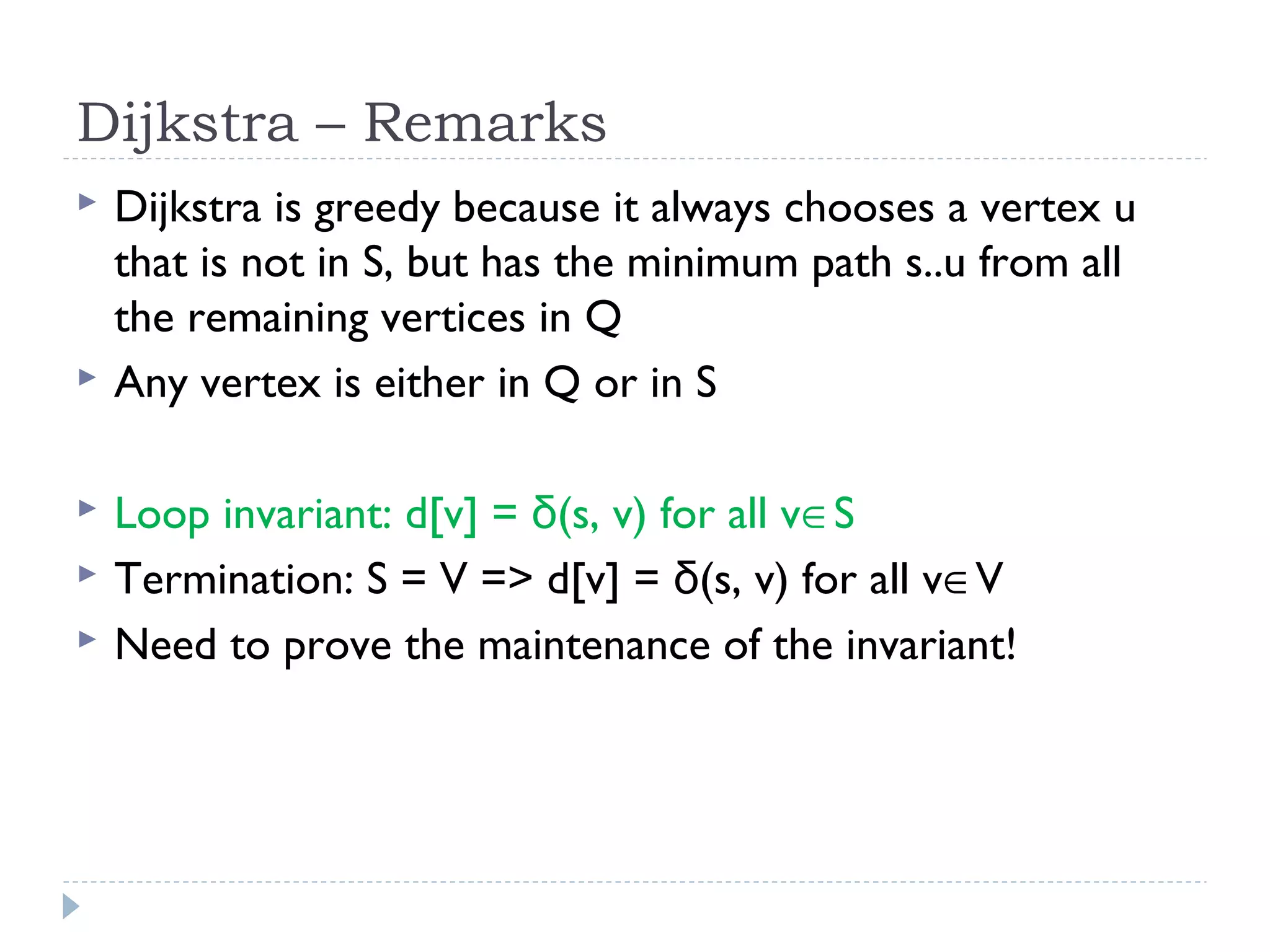

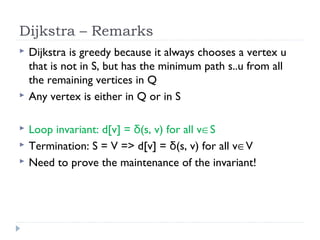

23. Dijkstra – Remarks
Dijkstra is greedy because it always chooses a vertex u
that is not in S, but has the minimum path s..u from all
the remaining vertices in Q
Any vertex is either in Q or in S
Loop invariant: d[v] = δ(s, v) for all v∈S
Termination: S = V => d[v] = δ(s, v) for all v∈V
Need to prove the maintenance of the invariant!

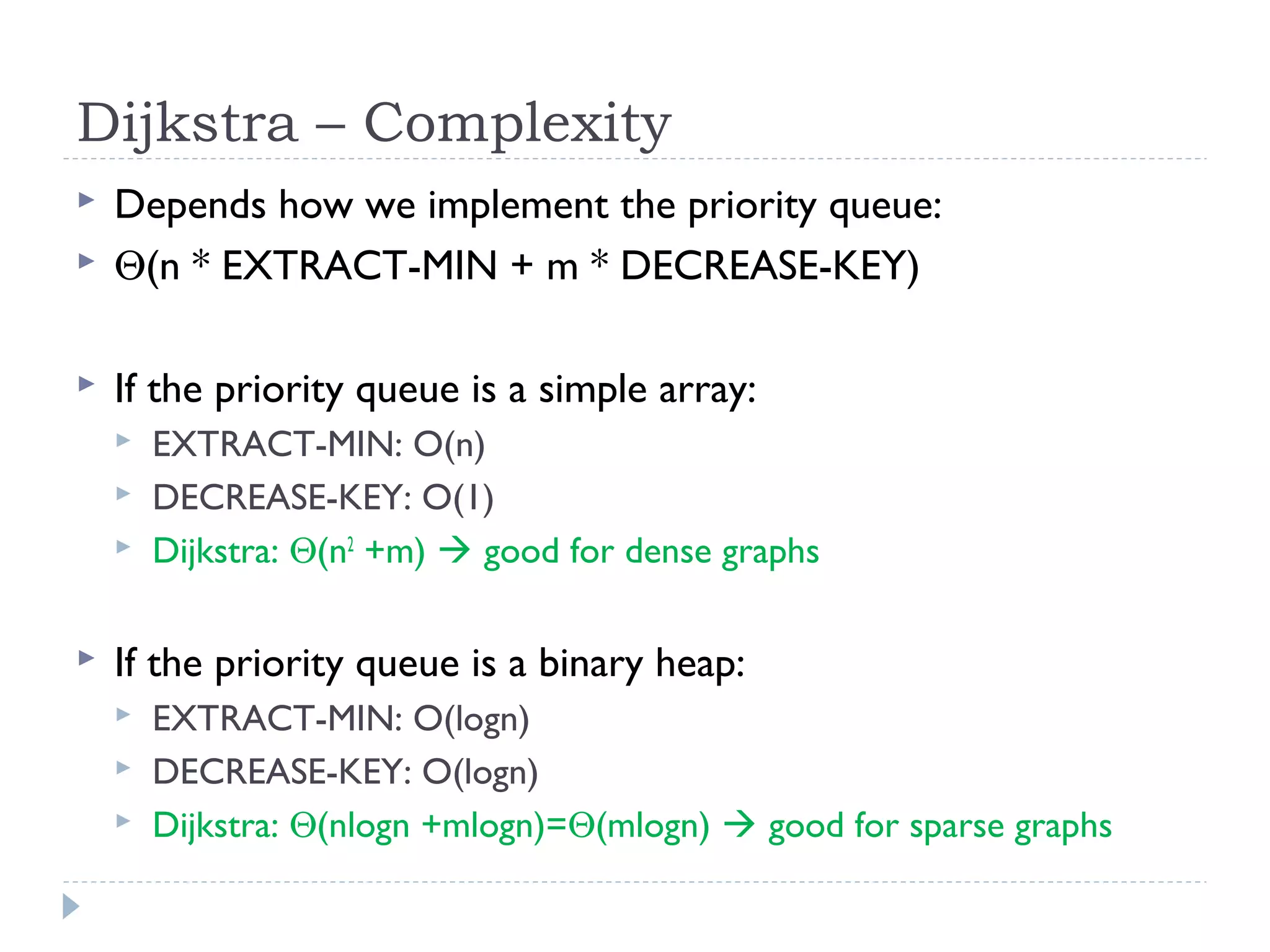

24. Dijkstra – Complexity
Depends how we implement the priority queue:
Θ(n * EXTRACT-MIN + m * DECREASE-KEY)
If the priority queue is a simple array:
EXTRACT-MIN: O(n)
DECREASE-KEY: O(1)
Dijkstra: Θ(n2 +m) good for dense graphs
If the priority queue is a binary heap:
EXTRACT-MIN: O(logn)
DECREASE-KEY: O(logn)
Dijkstra: Θ(nlogn +mlogn)=Θ(mlogn) good for sparse graphs

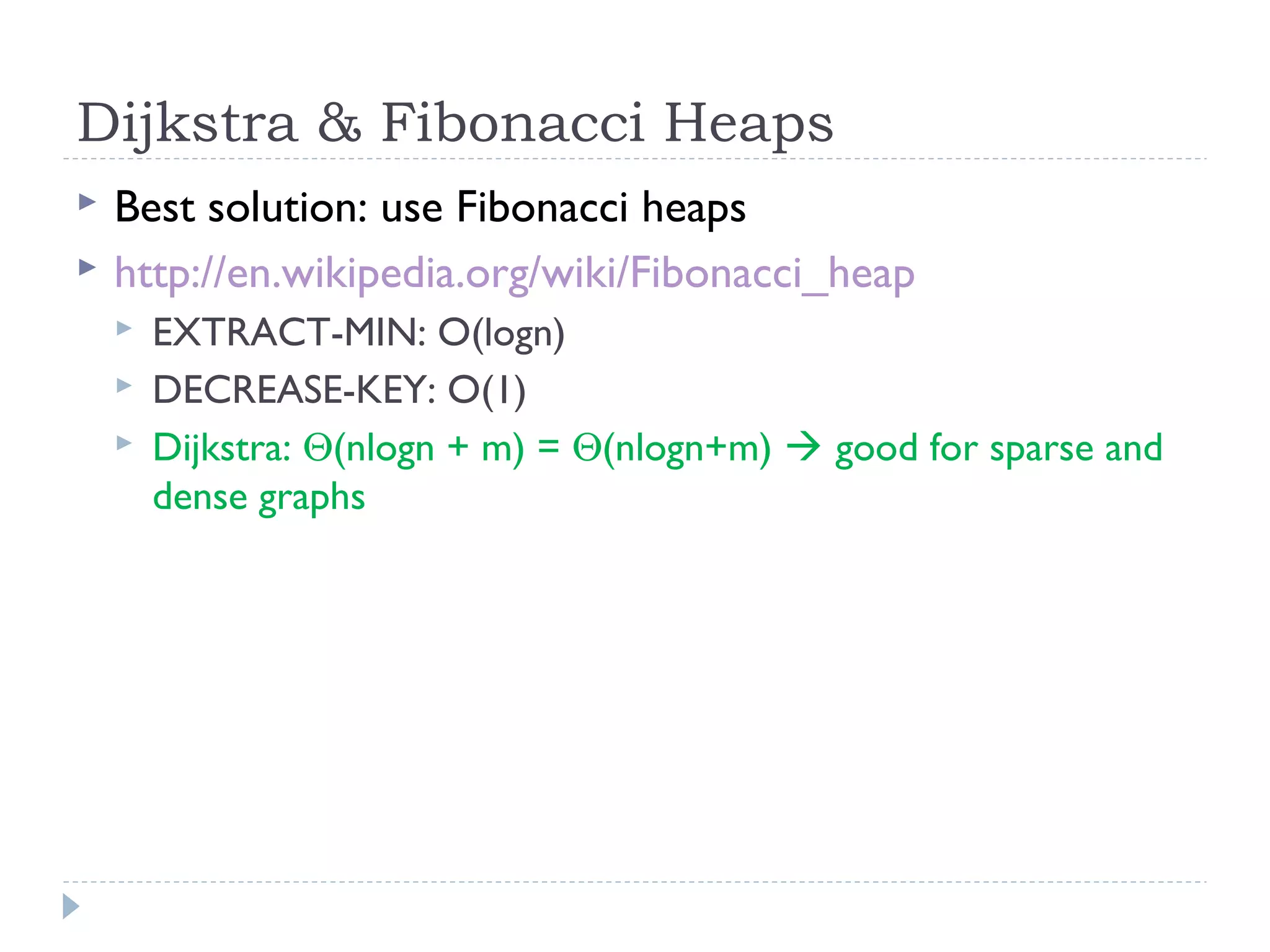

25. Dijkstra & Fibonacci Heaps
Best solution: use Fibonacci heaps
http://en.wikipedia.org/wiki/Fibonacci_heap
EXTRACT-MIN: O(logn)
DECREASE-KEY: O(1)
Dijkstra: Θ(nlogn + m) = Θ(nlogn+m) good for sparse and
dense graphs

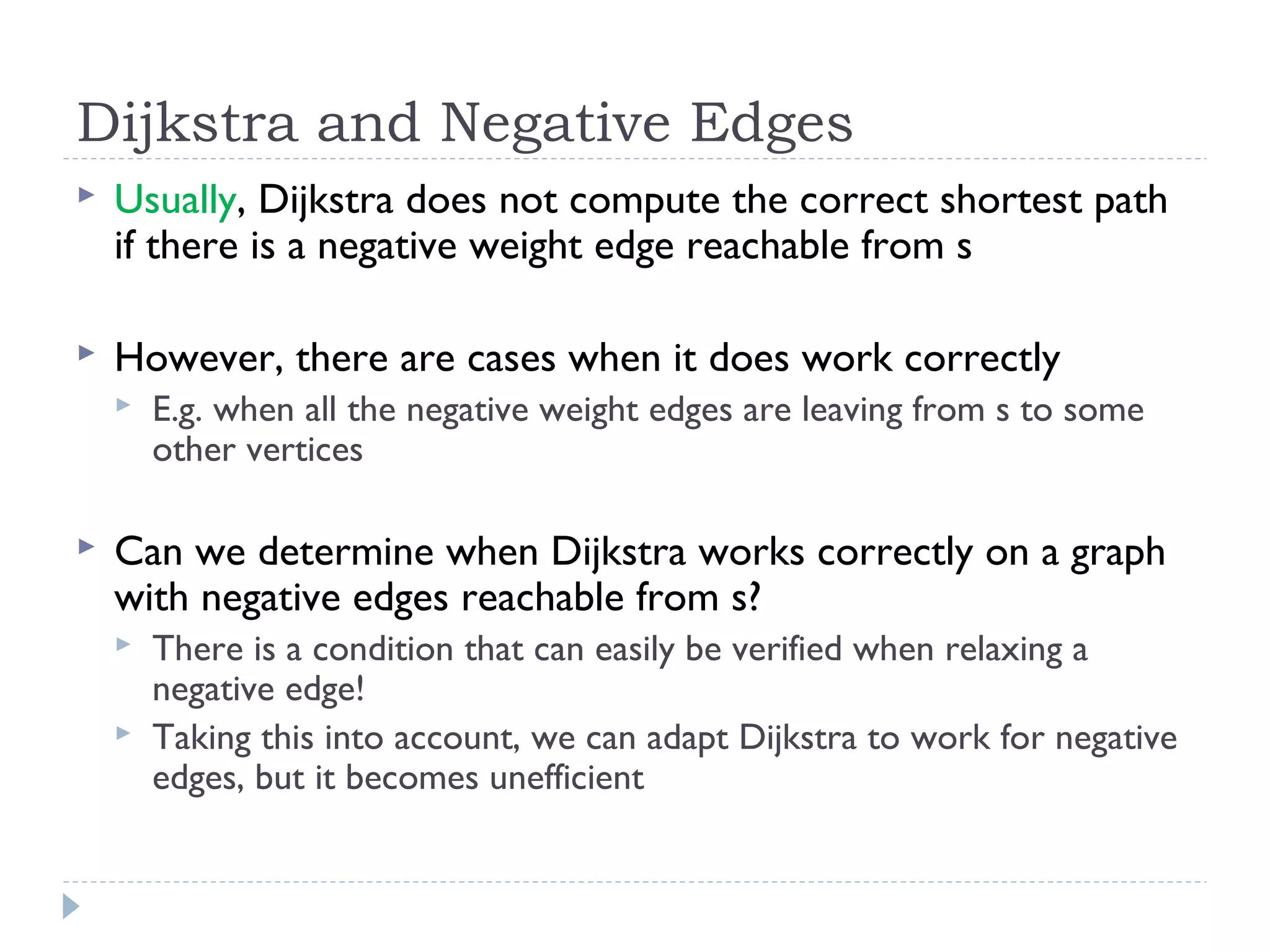

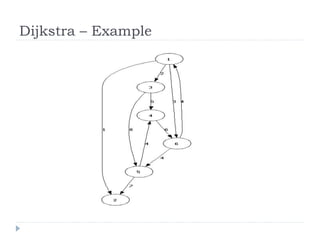

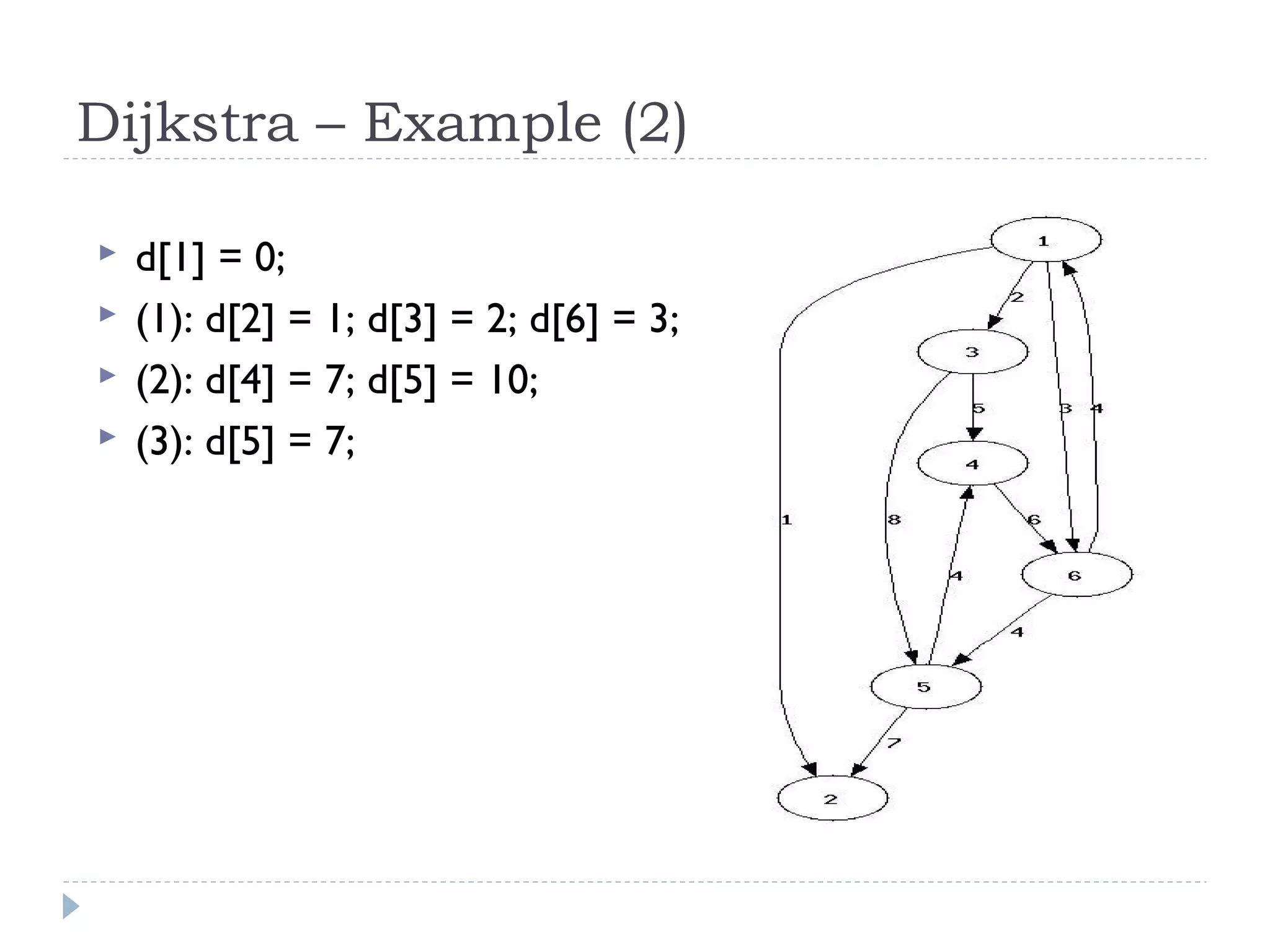

28. Dijkstra and Negative Edges
Usually, Dijkstra does not compute the correct shortest path
if there is a negative weight edge reachable from s
However, there are cases when it does work correctly
E.g. when all the negative weight edges are leaving from s to some
other vertices
Can we determine when Dijkstra works correctly on a graph
with negative edges reachable from s?
There is a condition that can easily be verified when relaxing a
negative edge!
Taking this into account, we can adapt Dijkstra to work for negative
edges, but it becomes unefficient

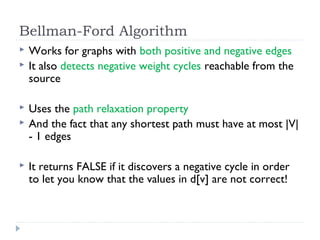

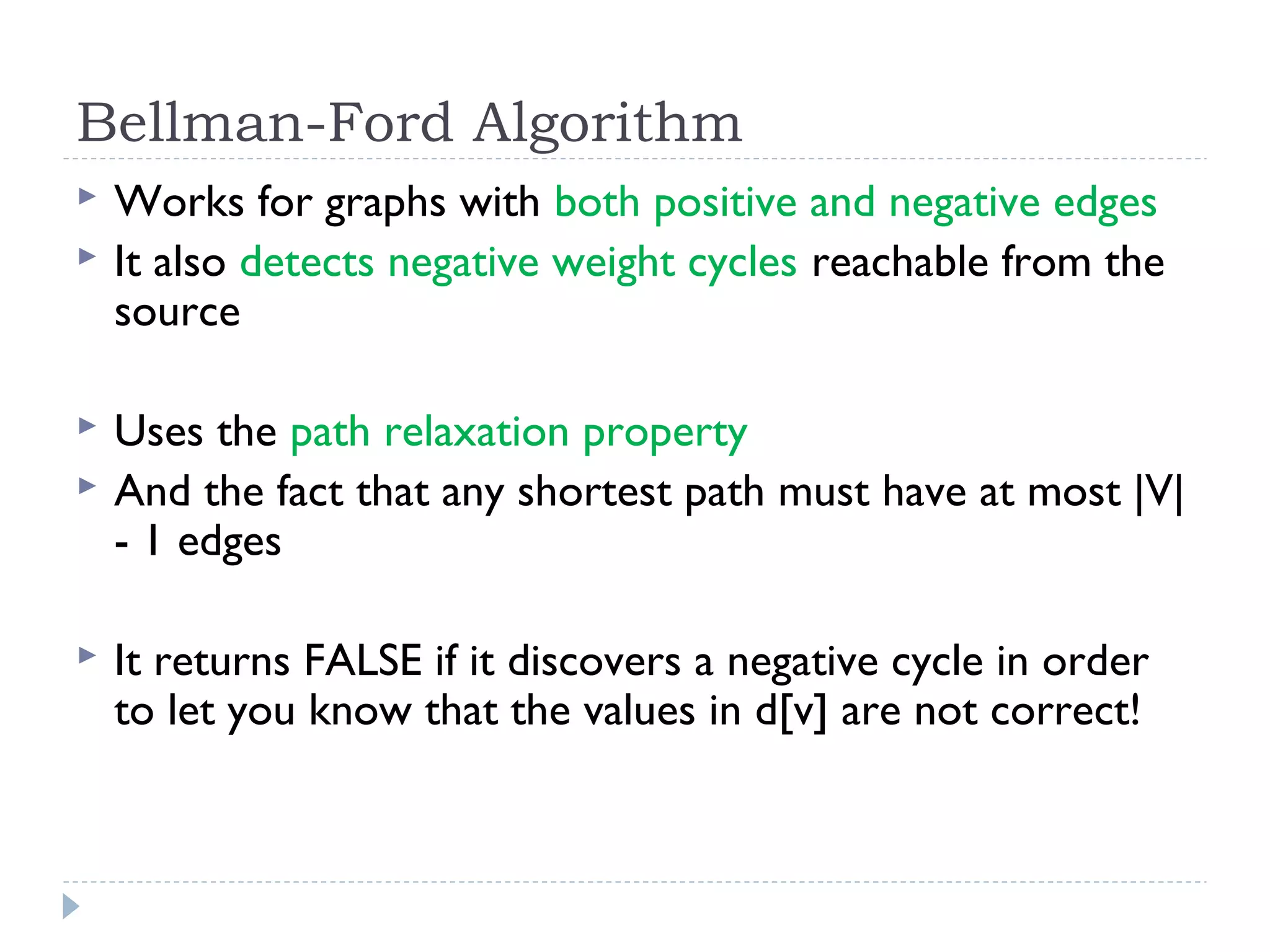

29. Bellman-Ford Algorithm
Works for graphs with both positive and negative edges
It also detects negative weight cycles reachable from the
source
Uses the path relaxation property
And the fact that any shortest path must have at most |V|
- 1 edges
It returns FALSE if it discovers a negative cycle in order
to let you know that the values in d[v] are not correct!

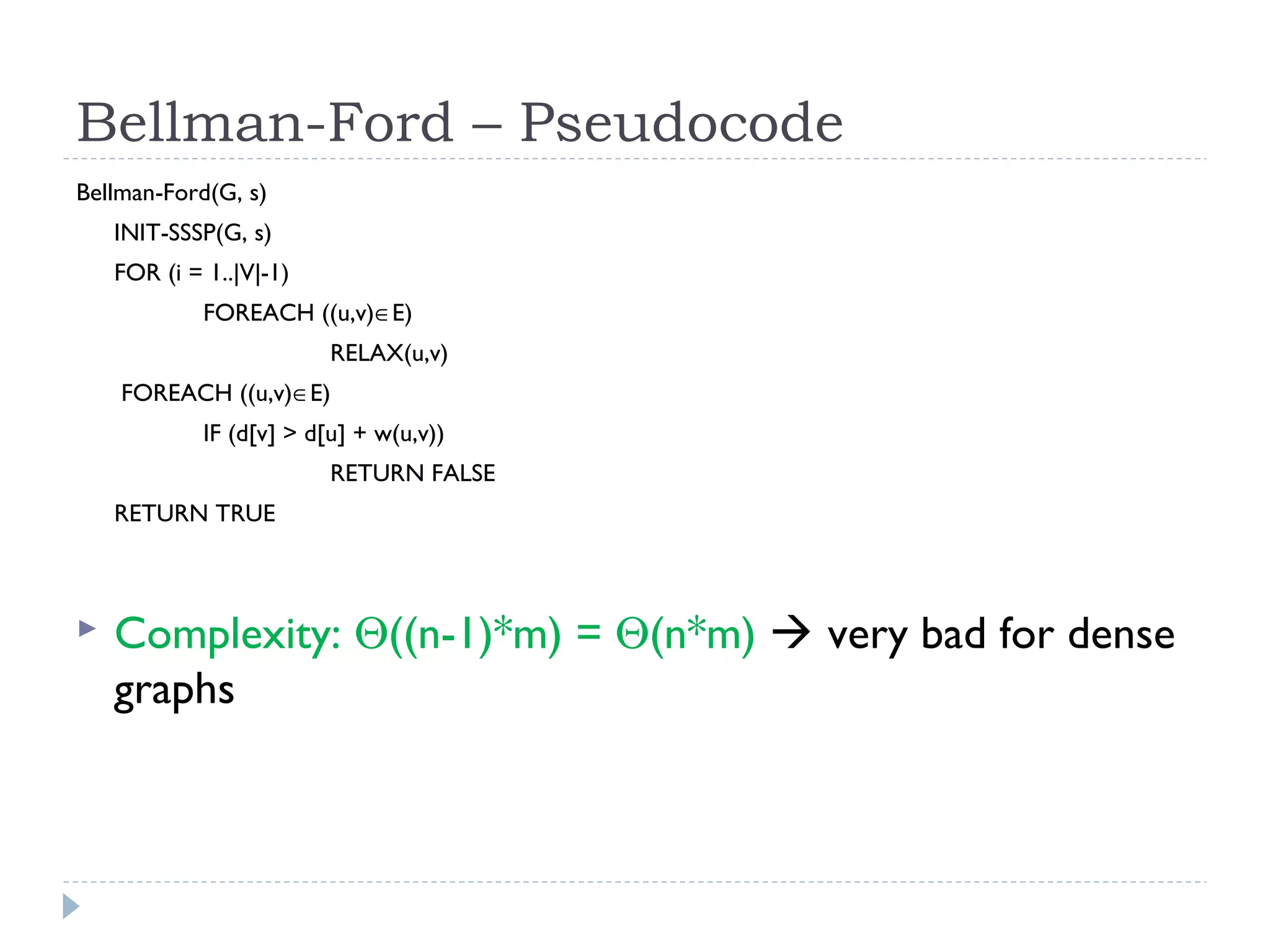

30. Bellman-Ford – Pseudocode
Bellman-Ford(G, s)
INIT-SSSP(G, s)
FOR (i = 1..|V|-1)
FOREACH ((u,v)∈E)
RELAX(u,v)
FOREACH ((u,v)∈E)
IF (d[v] > d[u] + w(u,v))
RETURN FALSE
RETURN TRUE
Complexity: Θ((n-1)*m) = Θ(n*m) very bad for dense
graphs

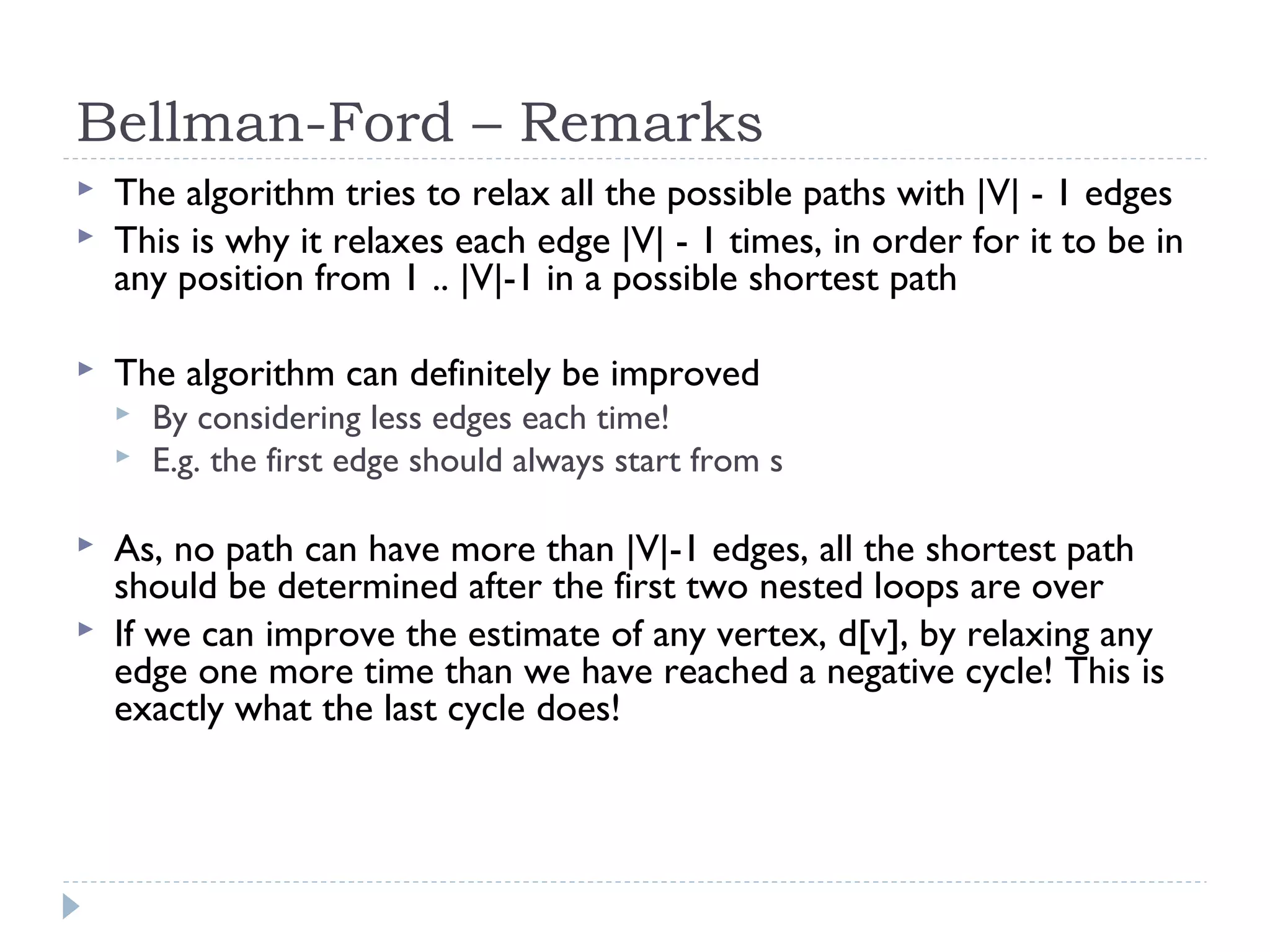

31. Bellman-Ford – Remarks
The algorithm tries to relax all the possible paths with |V| - 1 edges
This is why it relaxes each edge |V| - 1 times, in order for it to be in
any position from 1 .. |V|-1 in a possible shortest path
The algorithm can definitely be improved
By considering less edges each time!
E.g. the first edge should always start from s
As, no path can have more than |V|-1 edges, all the shortest path
should be determined after the first two nested loops are over
If we can improve the estimate of any vertex, d[v], by relaxing any
edge one more time than we have reached a negative cycle! This is
exactly what the last cycle does!

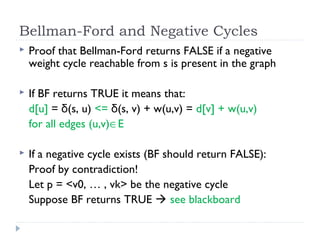

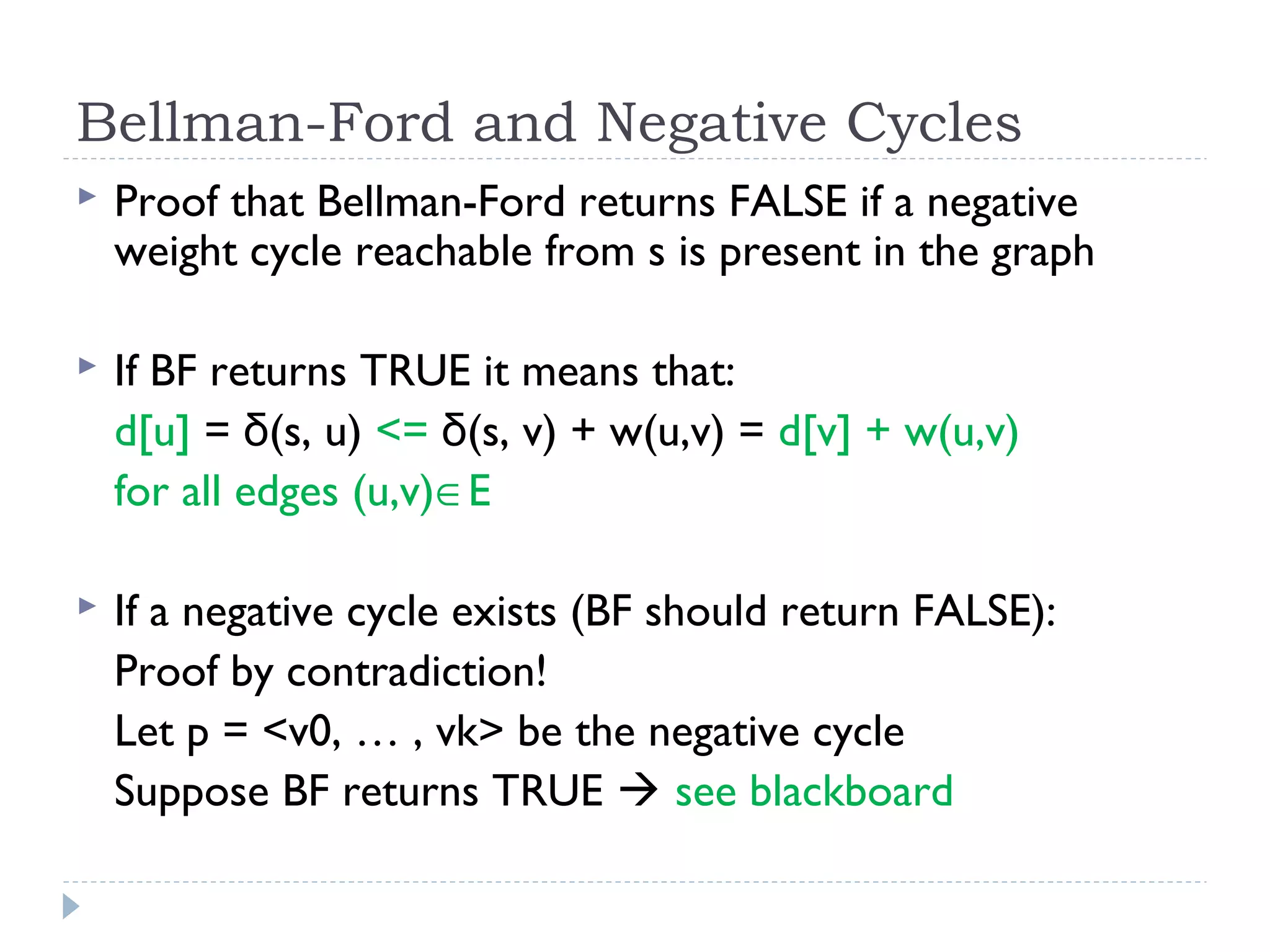

32. Bellman-Ford and Negative Cycles
Proof that Bellman-Ford returns FALSE if a negative
weight cycle reachable from s is present in the graph
If BF returns TRUE it means that:
d[u] = δ(s, u) <= δ(s, v) + w(u,v) = d[v] + w(u,v)
for all edges (u,v)∈E
If a negative cycle exists (BF should return FALSE):
Proof by contradiction!
Let p = <v0, … , vk> be the negative cycle
Suppose BF returns TRUE see blackboard

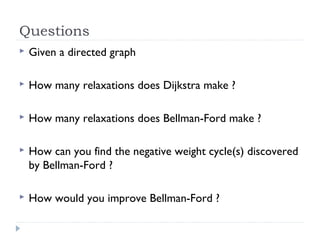

33. Questions
Given a directed graph
How many relaxations does Dijkstra make ?
How many relaxations does Bellman-Ford make ?
How can you find the negative weight cycle(s) discovered
by Bellman-Ford ?
How would you improve Bellman-Ford ?

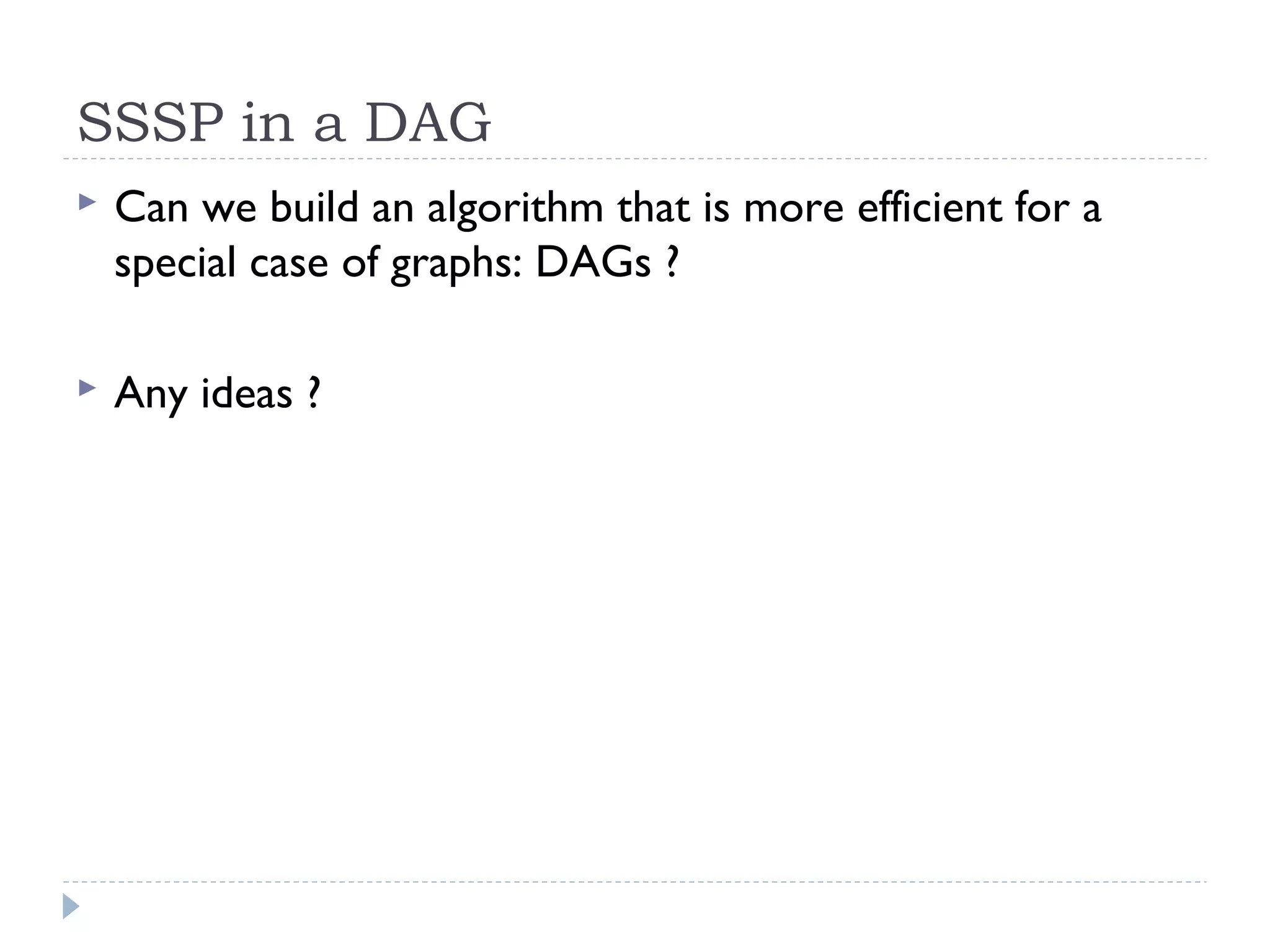

34. SSSP in a DAG
Can we build an algorithm that is more efficient for a
special case of graphs: DAGs ?
Any ideas ?

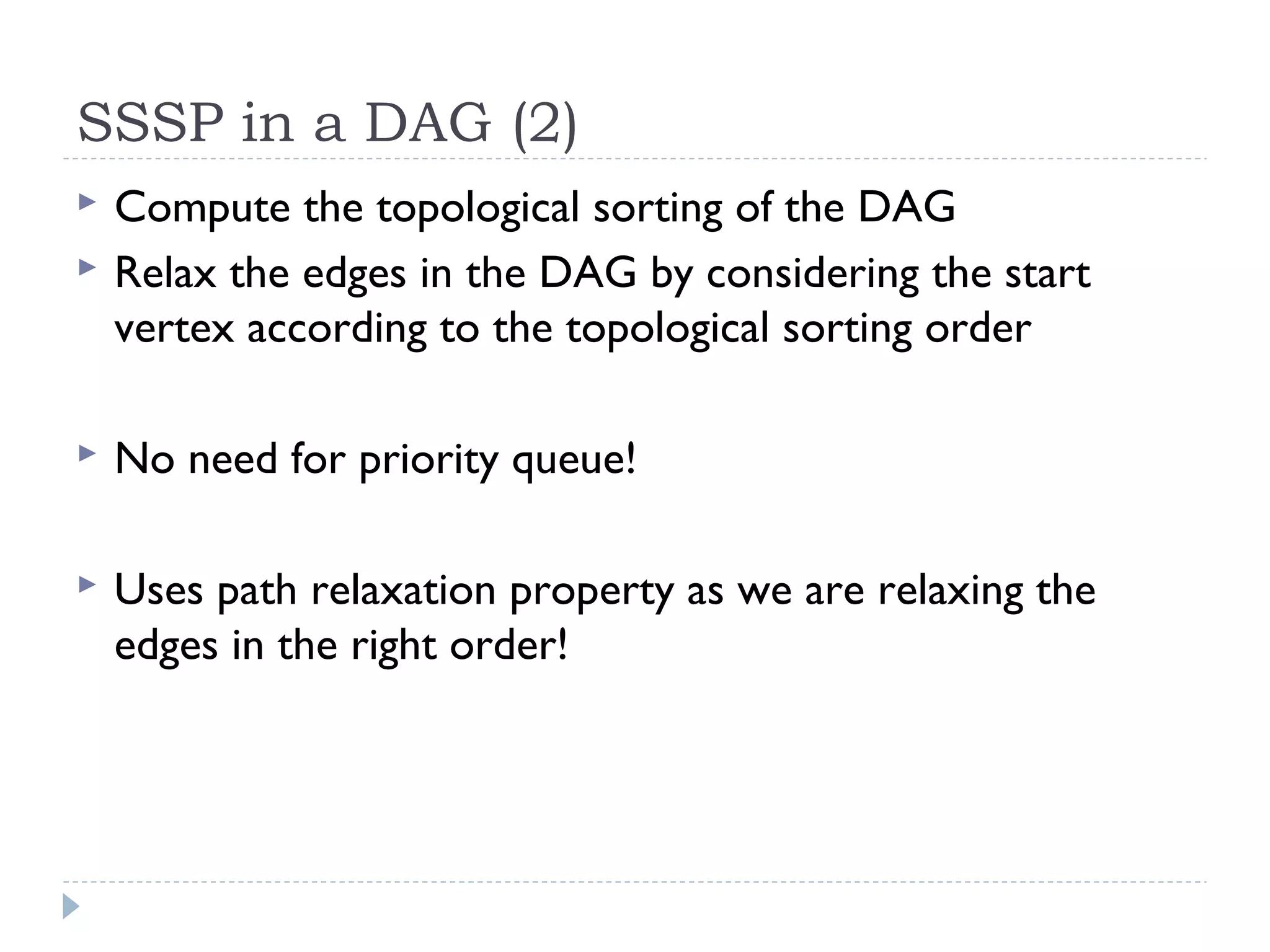

35. SSSP in a DAG (2)
Compute the topological sorting of the DAG
Relax the edges in the DAG by considering the start
vertex according to the topological sorting order
No need for priority queue!
Uses path relaxation property as we are relaxing the
edges in the right order!

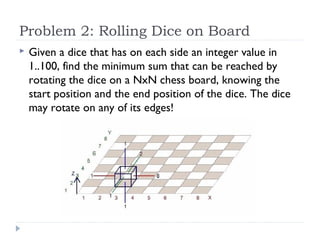

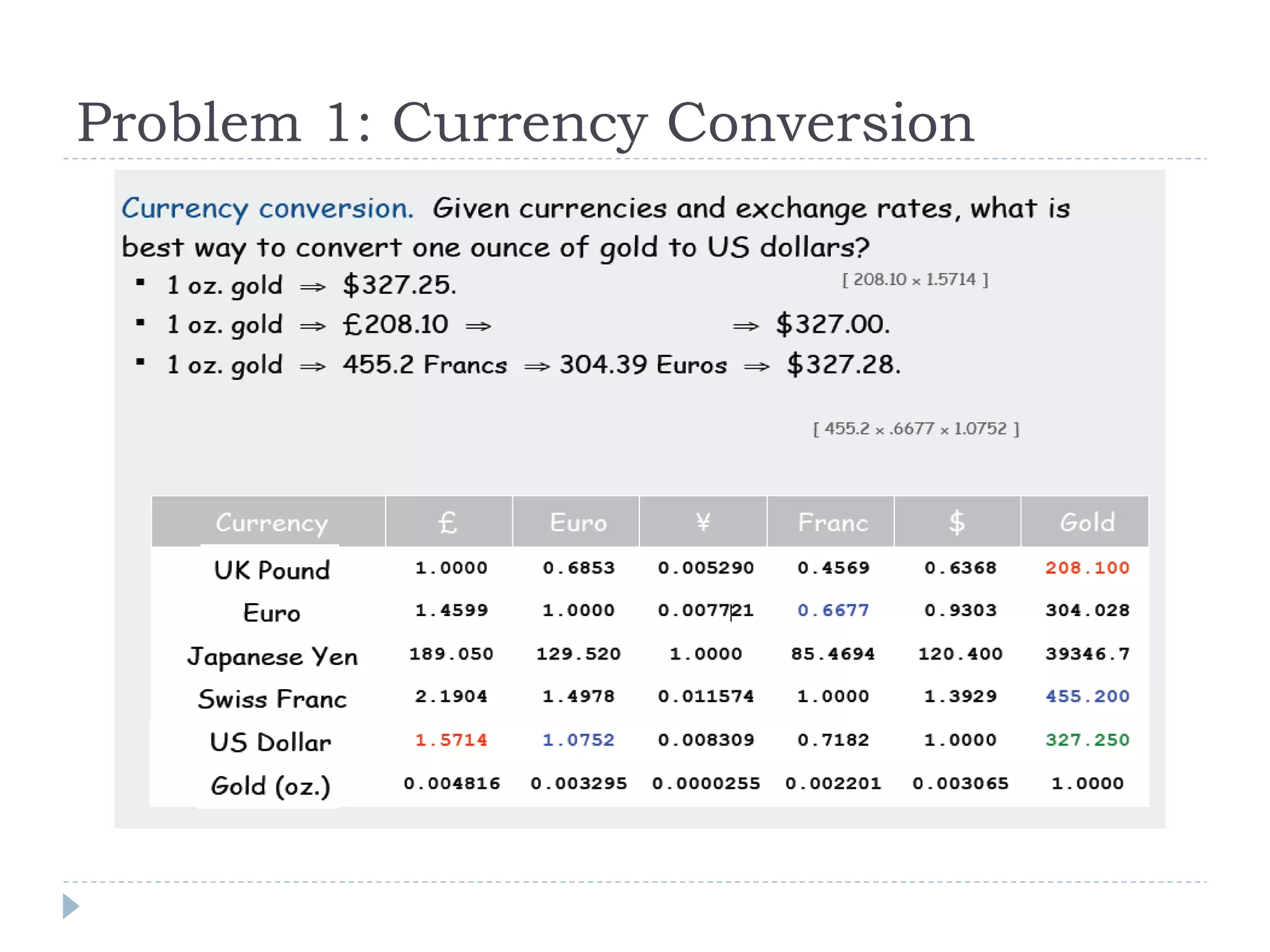

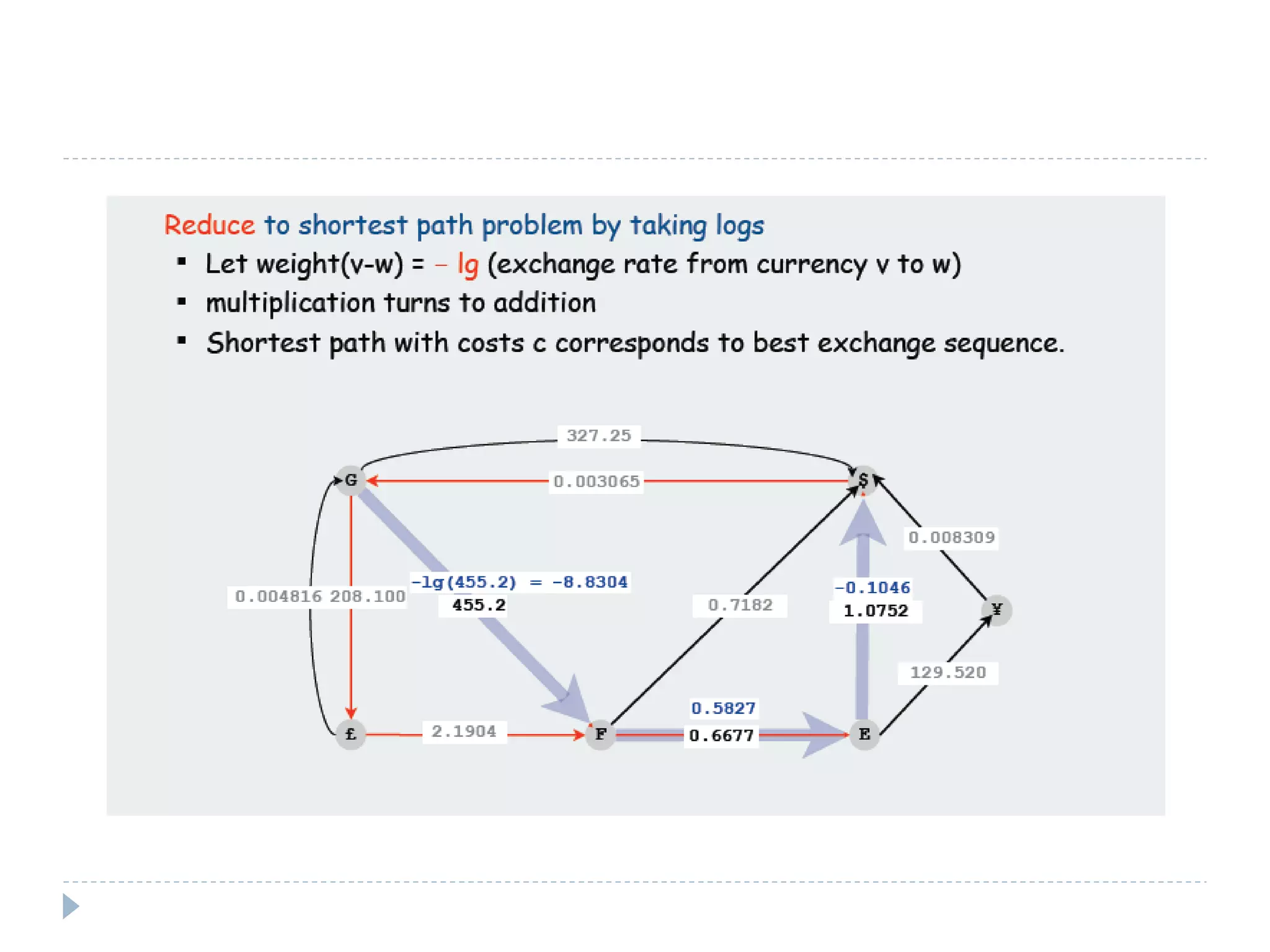

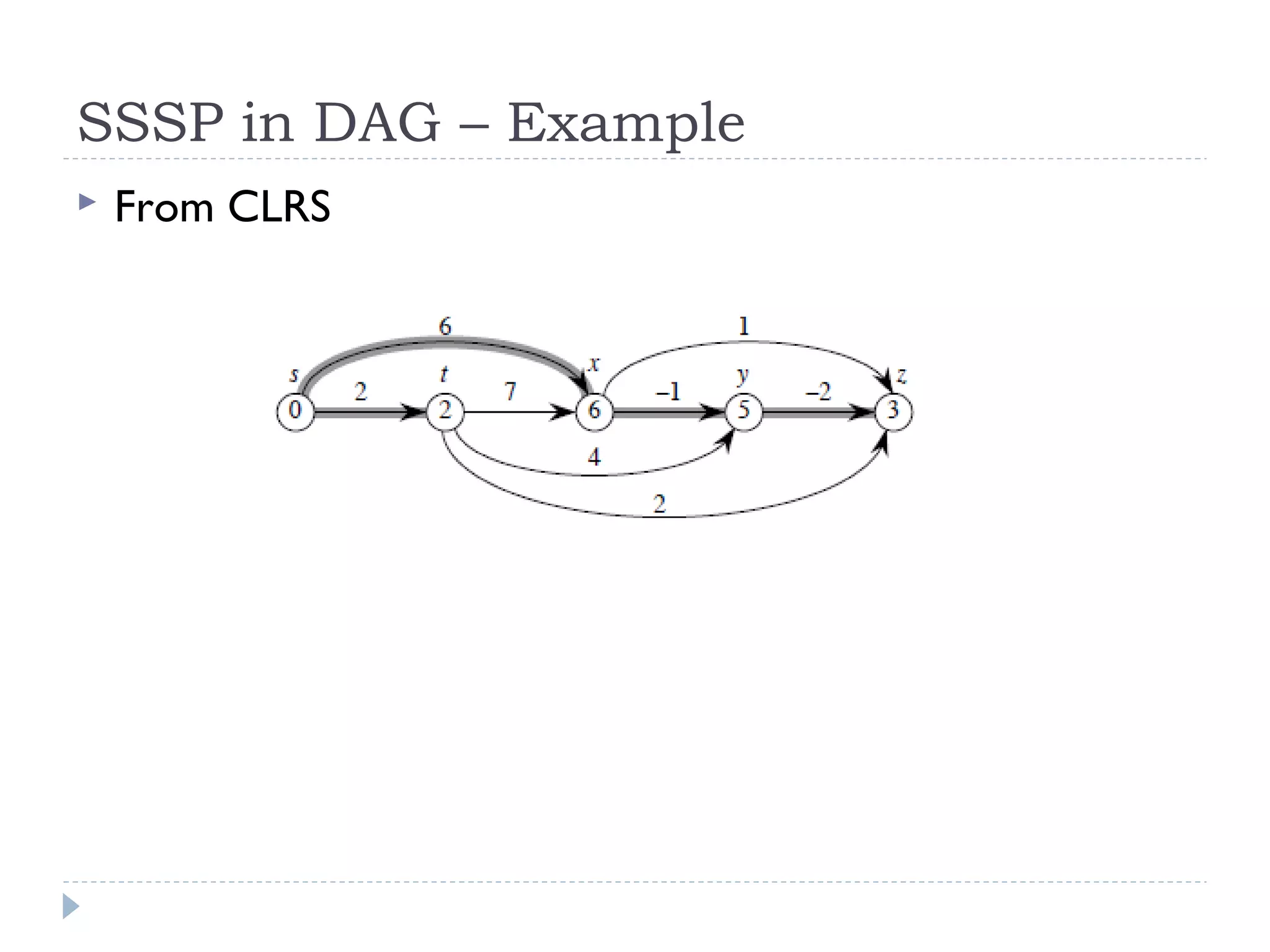

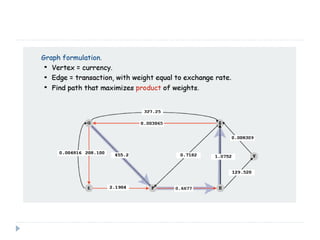

40. Problem 2: Rolling Dice on Board
Given a dice that has on each side an integer value in
1..100, find the minimum sum that can be reached by
rotating the dice on a NxN chess board, knowing the
start position and the end position of the dice. The dice
may rotate on any of its edges!

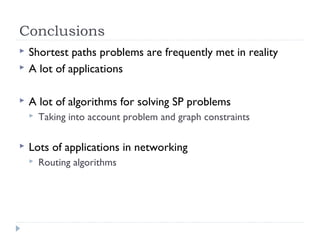

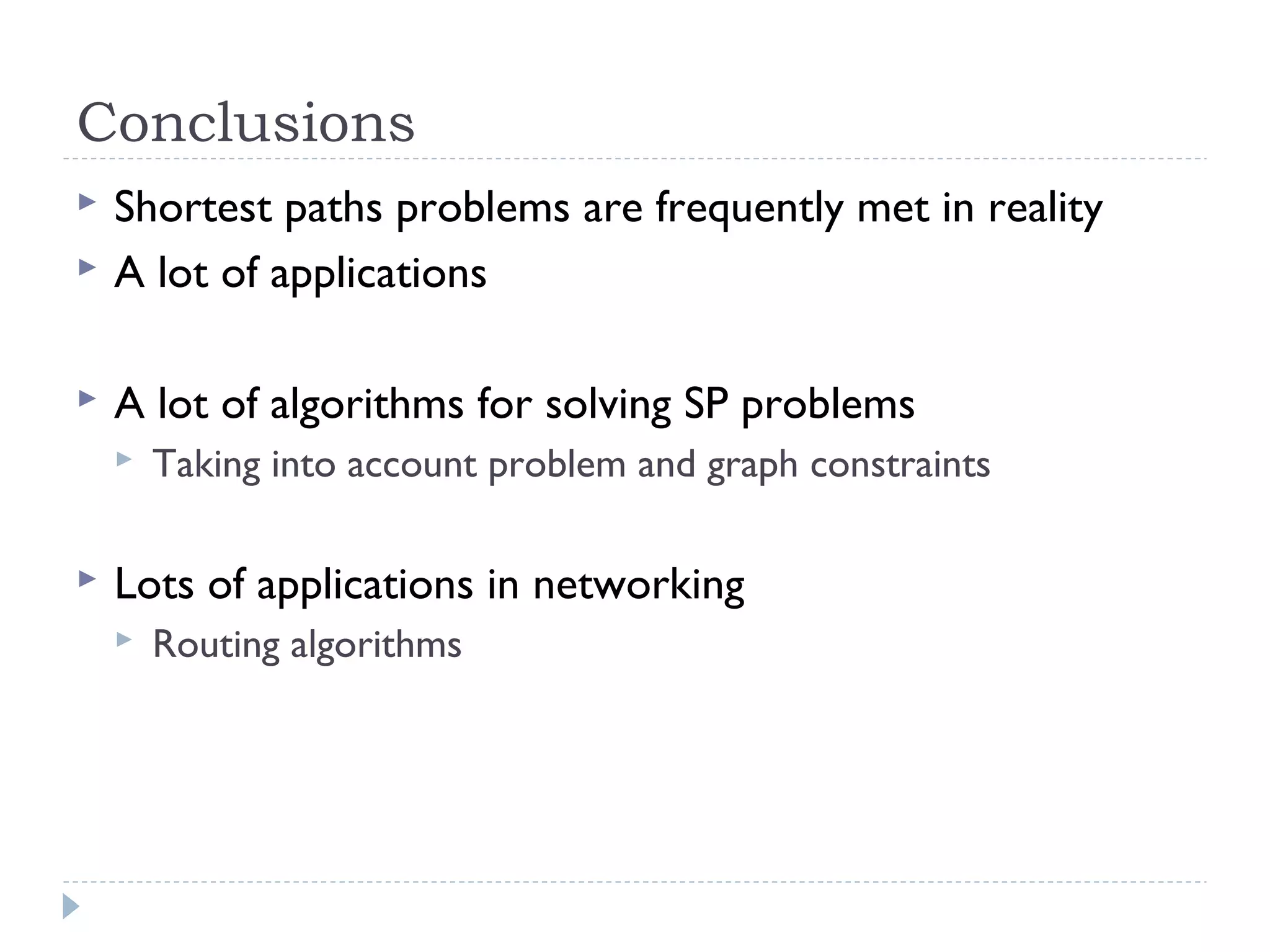

41. Conclusions
Shortest paths problems are frequently met in reality
A lot of applications
A lot of algorithms for solving SP problems
Taking into account problem and graph constraints
Lots of applications in networking
Routing algorithms

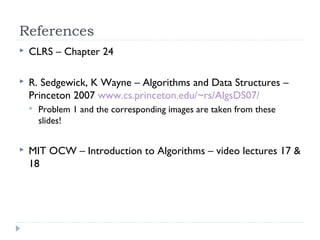

42. References
CLRS – Chapter 24
R. Sedgewick, K Wayne – Algorithms and Data Structures –
Princeton 2007 www.cs.princeton.edu/~rs/AlgsDS07/
Problem 1 and the corresponding images are taken from these
slides!
MIT OCW – Introduction to Algorithms – video lectures 17 &
18
