FIFO Queues and Priority Queues
1. Chapter 7
QUEUES
Dr. Muhammad Hanif Durad
Department of Computer and Information Sciences
Pakistan Institute Engineering and Applied Sciences
hanif@pieas.edu.pk
Some slides have bee adapted with thanks from some other lectures
available on Internet. It made my life easier, as life is always
miserable at PIEAS (Sir Muhammad Yusaf Kakakhil )
3. Visualization of a Queue
Dr. Hanif Durad 3
D:Data StructuresPRG DS CS11001L9-3.pdf
4. 4

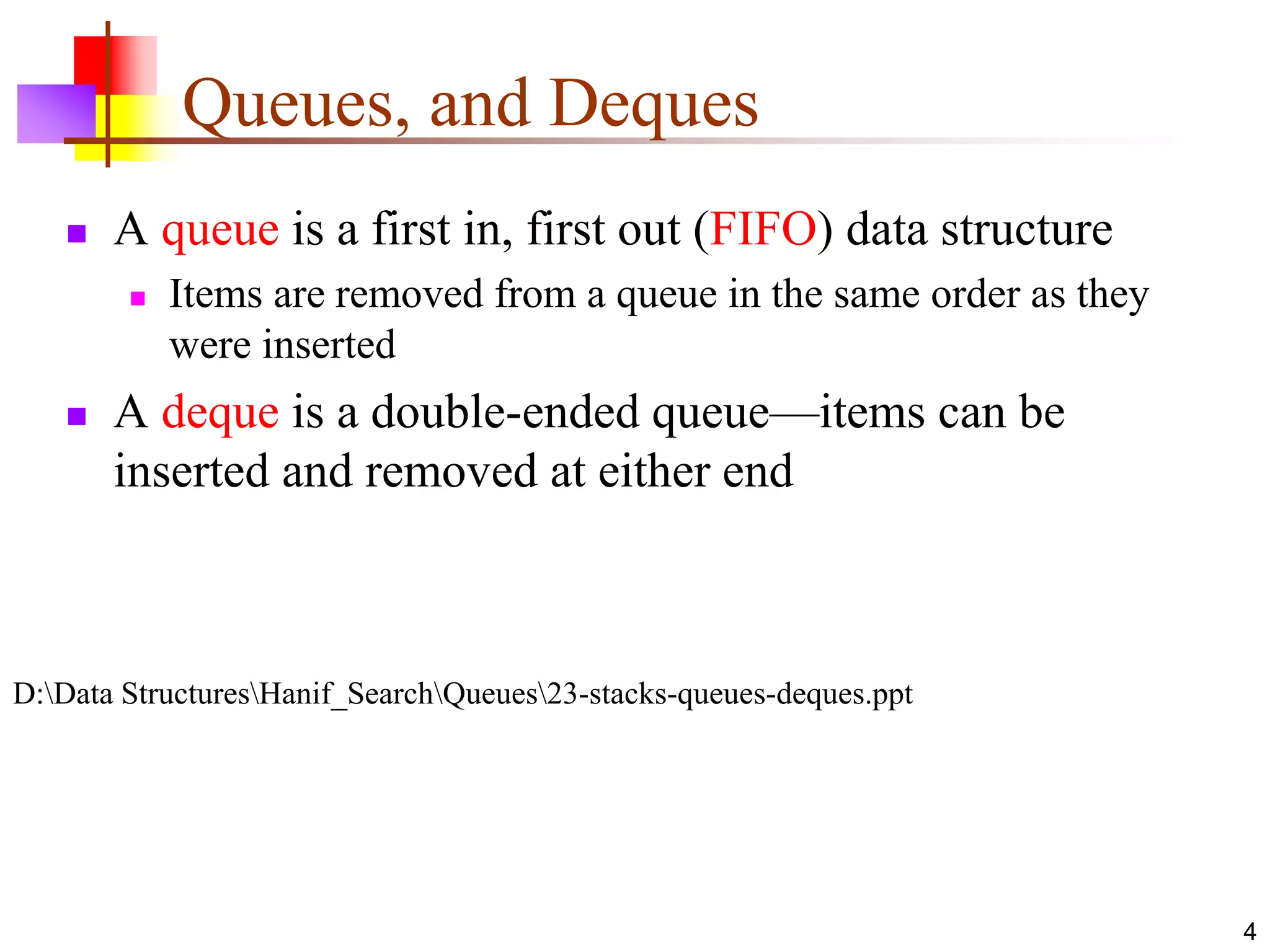

Queues, and Deques
A queue is a first in, first out (FIFO) data structure
Items are removed from a queue in the same order as they
were inserted
A deque is a double-ended queue—items can be
inserted and removed at either end
D:Data StructuresHanif_SearchQueues23-stacks-queues-deques.ppt
5. Queue Applications
Real life examples
Waiting in line
Waiting on hold for tech support
Applications related to Computer Science
Threads
Job scheduling (e.g. Round-Robin algorithm for
CPU allocation)
Dr. Hanif Durad 5
D:Data StructuresCSCE3110Queues.ppt

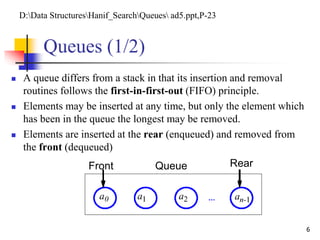

6. 6
Queues (1/2)
A queue differs from a stack in that its insertion and removal
routines follows the first-in-first-out (FIFO) principle.
Elements may be inserted at any time, but only the element which
has been in the queue the longest may be removed.
Elements are inserted at the rear (enqueued) and removed from
the front (dequeued)
Front RearQueue
D:Data StructuresHanif_SearchQueues ad5.ppt,P-23

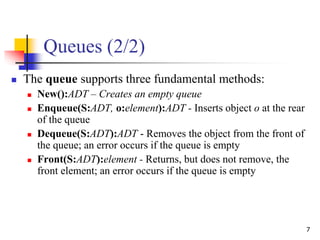

7. 7
Queues (2/2)
The queue supports three fundamental methods:
New():ADT – Creates an empty queue
Enqueue(S:ADT, o:element):ADT - Inserts object o at the rear
of the queue
Dequeue(S:ADT):ADT - Removes the object from the front of
the queue; an error occurs if the queue is empty
Front(S:ADT):element - Returns, but does not remove, the
front element; an error occurs if the queue is empty
8. 8
Array implementation of queues
A queue is a first in, first out (FIFO) data structure
This is accomplished by inserting at one end (the rear) and
deleting from the other (the front)
To insert: put new element in location 4, and set rear to 4
To delete: take element from location 0, and set front to 1
17 23 97 44
0 1 2 3 4 5 6 7
myQueue:
rear = 3front = 0
D:Data StructuresHanif_SearchQueues23-stacks-queues-deques.ppt

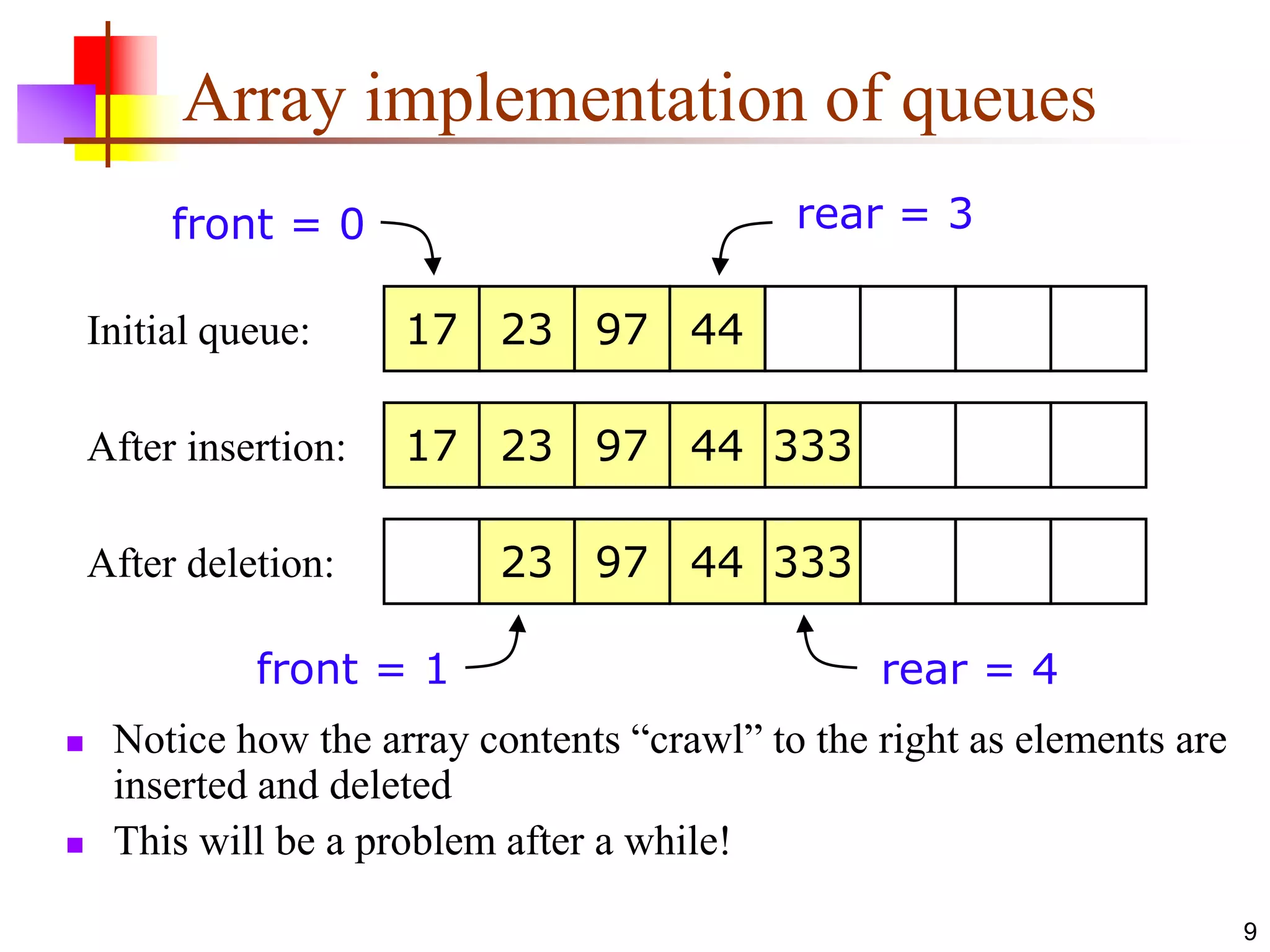

9. 9
Array implementation of queues
Notice how the array contents “crawl” to the right as elements are
inserted and deleted
This will be a problem after a while!
17 23 97 44 333After insertion:
23 97 44 333After deletion:
rear = 4front = 1
17 23 97 44Initial queue:
rear = 3front = 0

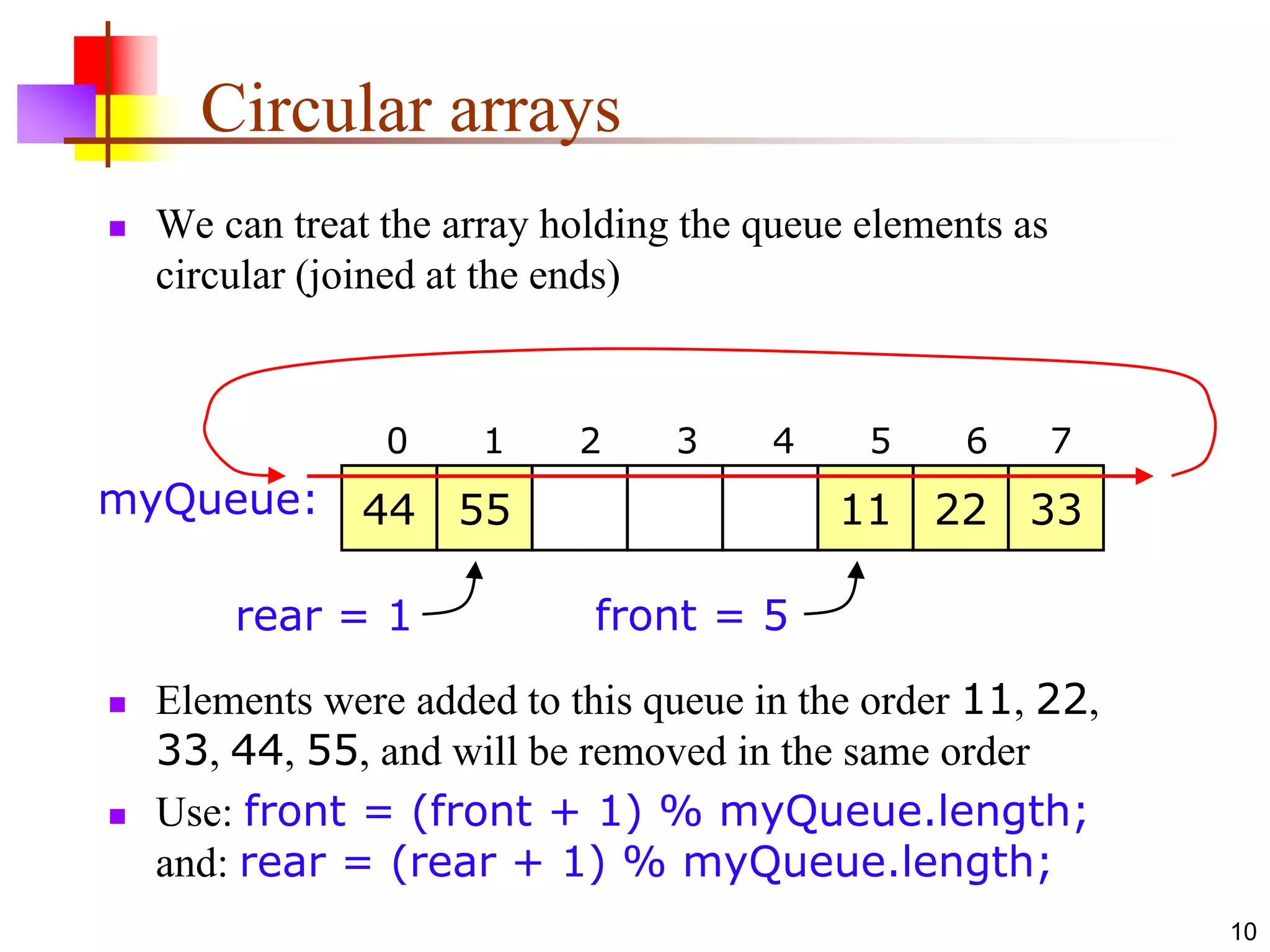

10. 10

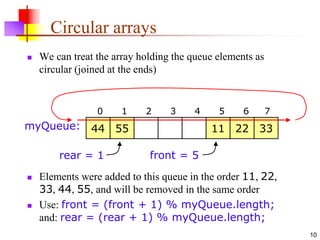

Circular arrays
We can treat the array holding the queue elements as
circular (joined at the ends)
44 55 11 22 33
0 1 2 3 4 5 6 7
myQueue:
rear = 1 front = 5
Elements were added to this queue in the order 11, 22,
33, 44, 55, and will be removed in the same order
Use: front = (front + 1) % myQueue.length;
and: rear = (rear + 1) % myQueue.length;
11. 11

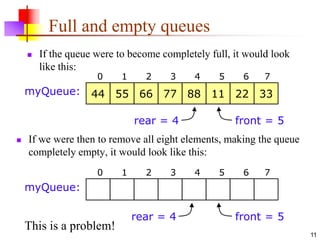

Full and empty queues
If the queue were to become completely full, it would look
like this:
If we were then to remove all eight elements, making the queue
completely empty, it would look like this:
44 55 66 77 88 11 22 33
0 1 2 3 4 5 6 7
myQueue:
rear = 4 front = 5
0 1 2 3 4 5 6 7
myQueue:
rear = 4 front = 5
This is a problem!
12. 12
Full and empty queues: solutions
Solution #1: Keep an additional variable
Solution #2: (Slightly more efficient) Keep a gap between
elements: consider the queue full when it has n-1 elements
44 55 66 77 88 11 22 33
0 1 2 3 4 5 6 7
myQueue:
rear = 4 front = 5count = 8
44 55 66 77 11 22 33
0 1 2 3 4 5 6 7
myQueue:
rear = 3 front = 5

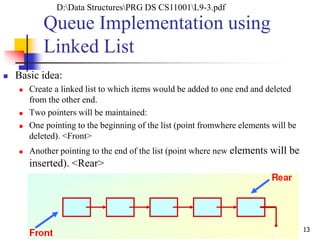

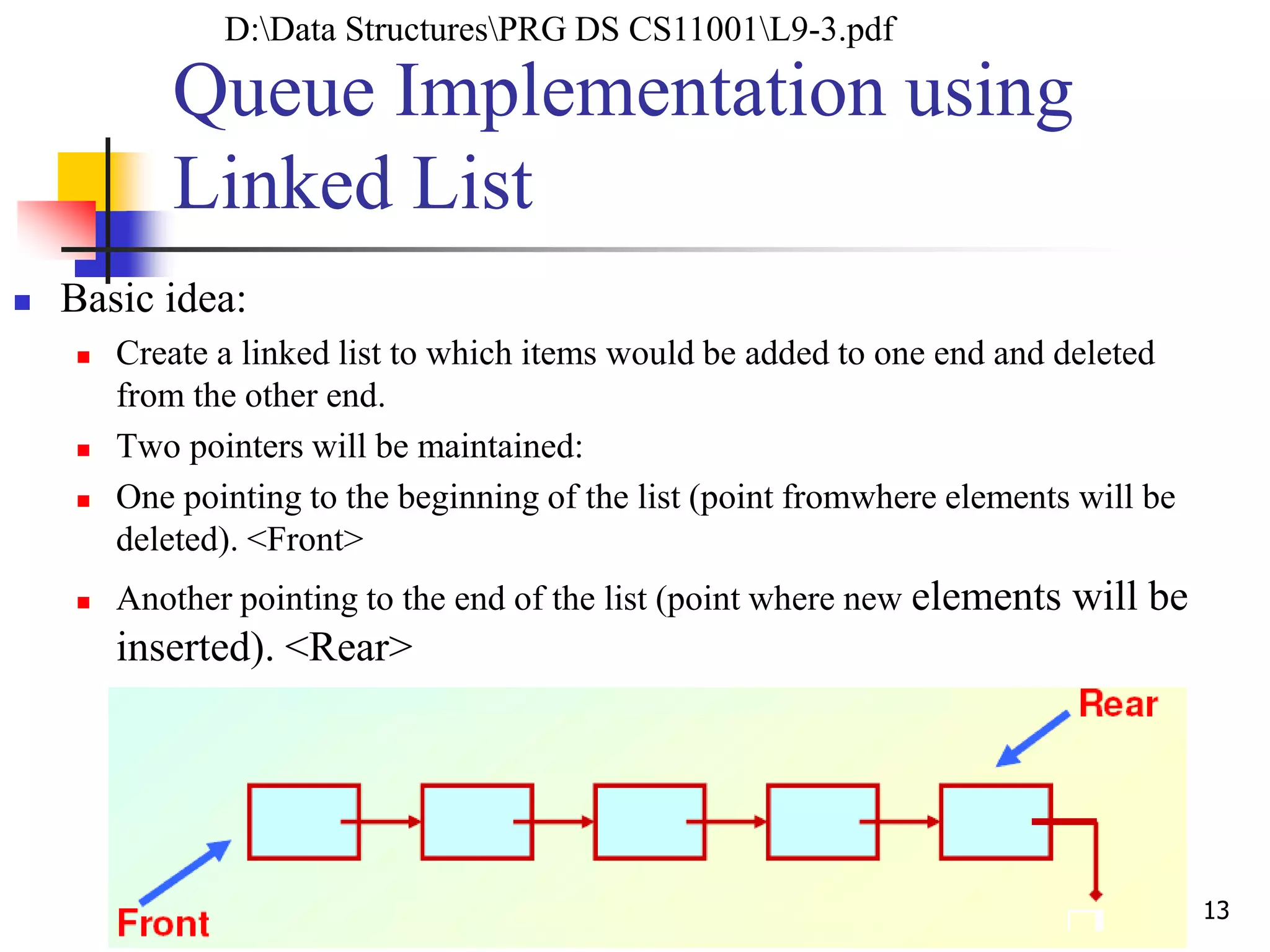

13. Queue Implementation using
Linked List
Basic idea:
Create a linked list to which items would be added to one end and deleted
from the other end.
Two pointers will be maintained:
One pointing to the beginning of the list (point fromwhere elements will be
deleted). <Front>
Another pointing to the end of the list (point where new elements will be
inserted). <Rear>
13
D:Data StructuresPRG DS CS11001L9-3.pdf
14. 14
Linked-list implementation of queues
In a queue, insertions occur at one end, deletions at
the other end
Operations at the front of a singly-linked list (SLL)
are O(1), but at the other end they are O(n)
Because you have to find the last element each time
BUT: there is a simple way to use a singly-linked
list to implement both insertions and deletions in
O(1) time
You always need a pointer to the first thing in the list
You can keep an additional pointer to the last thing in the
list
15. 15

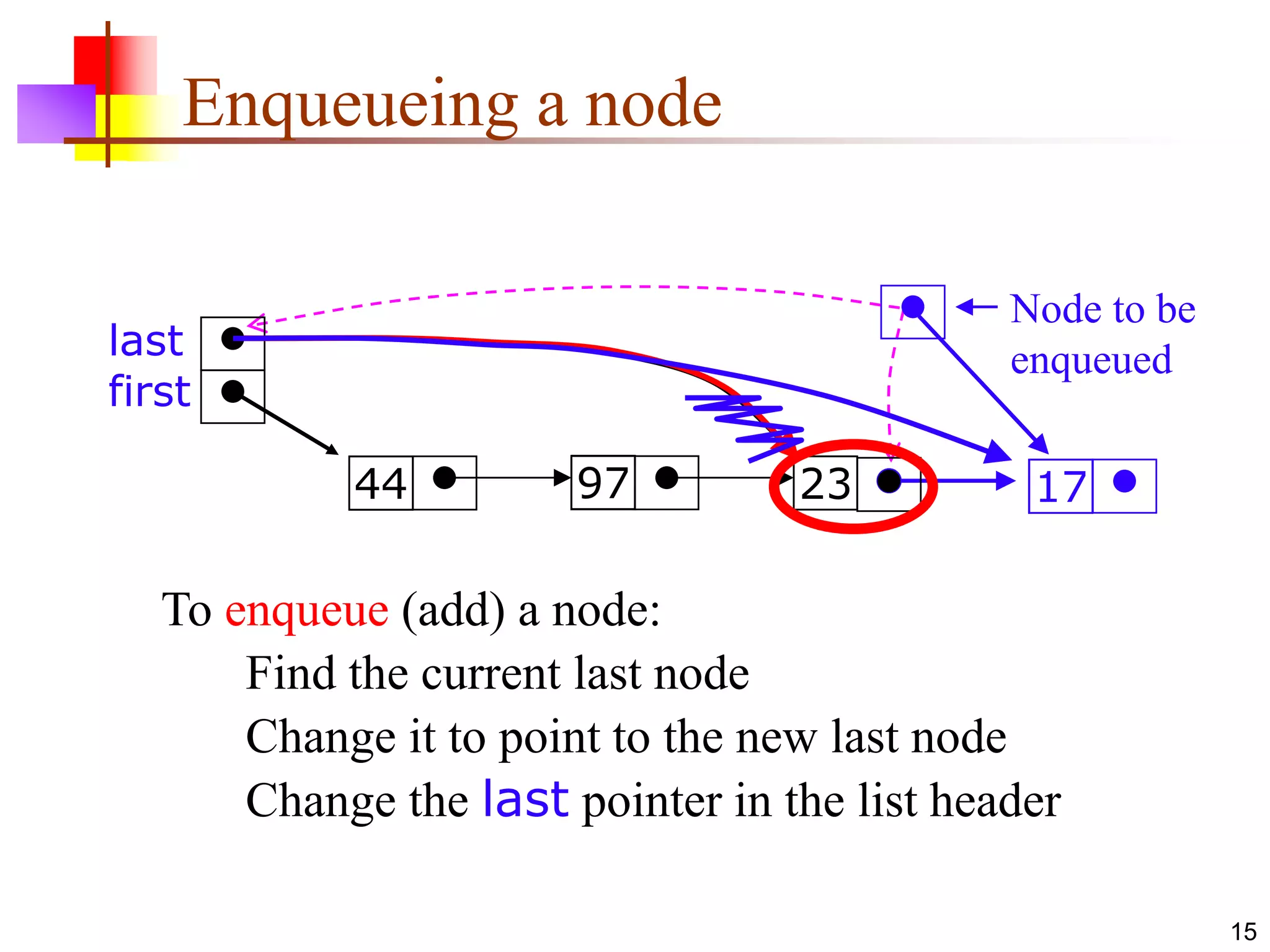

Enqueueing a node
17
Node to be
enqueued
To enqueue (add) a node:
Find the current last node
Change it to point to the new last node
Change the last pointer in the list header
2344
last
first
97
16. 16

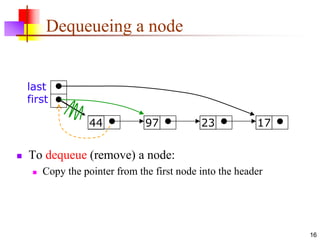

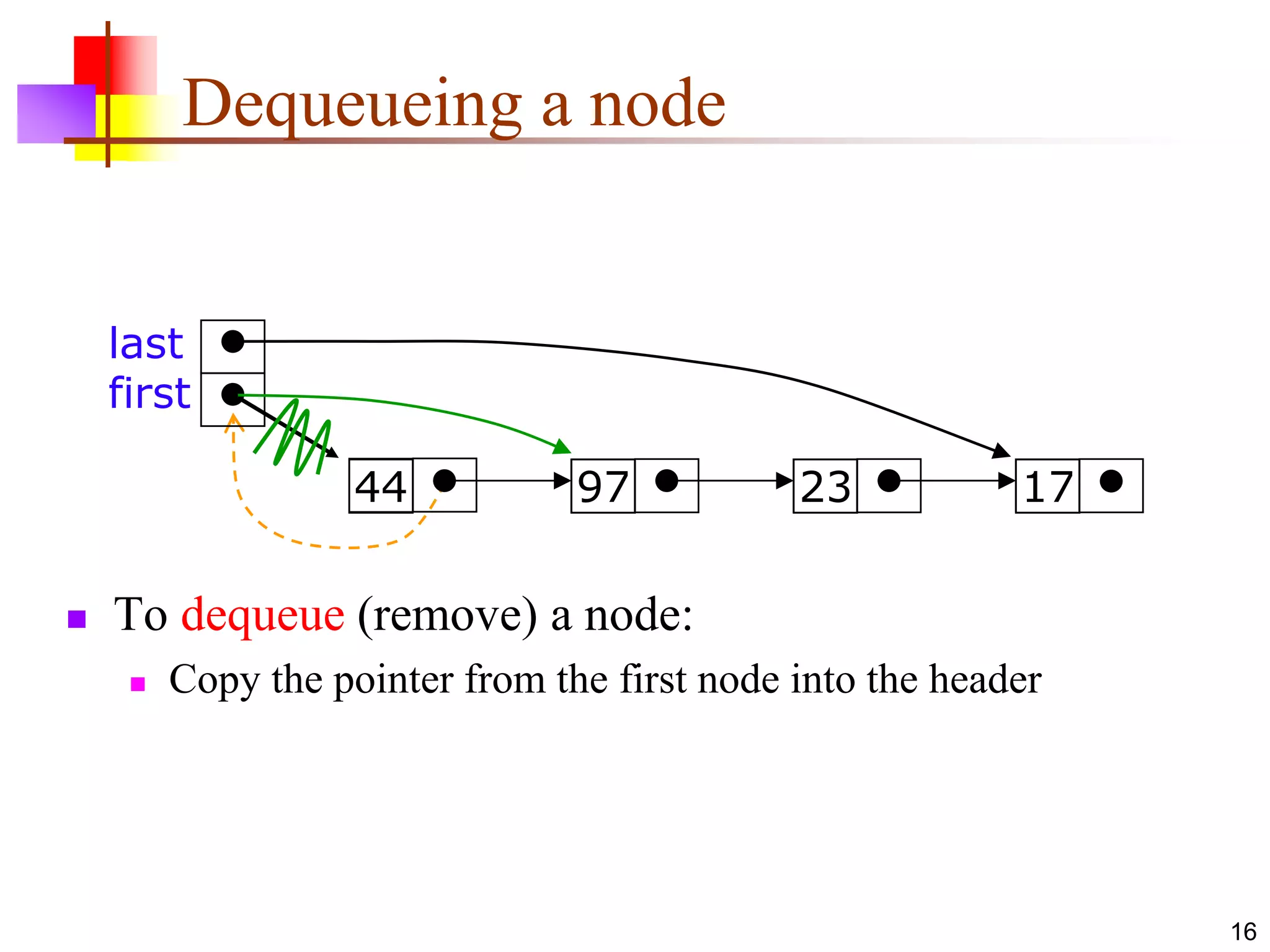

Dequeueing a node
To dequeue (remove) a node:
Copy the pointer from the first node into the header
44 97 23 17
last
first

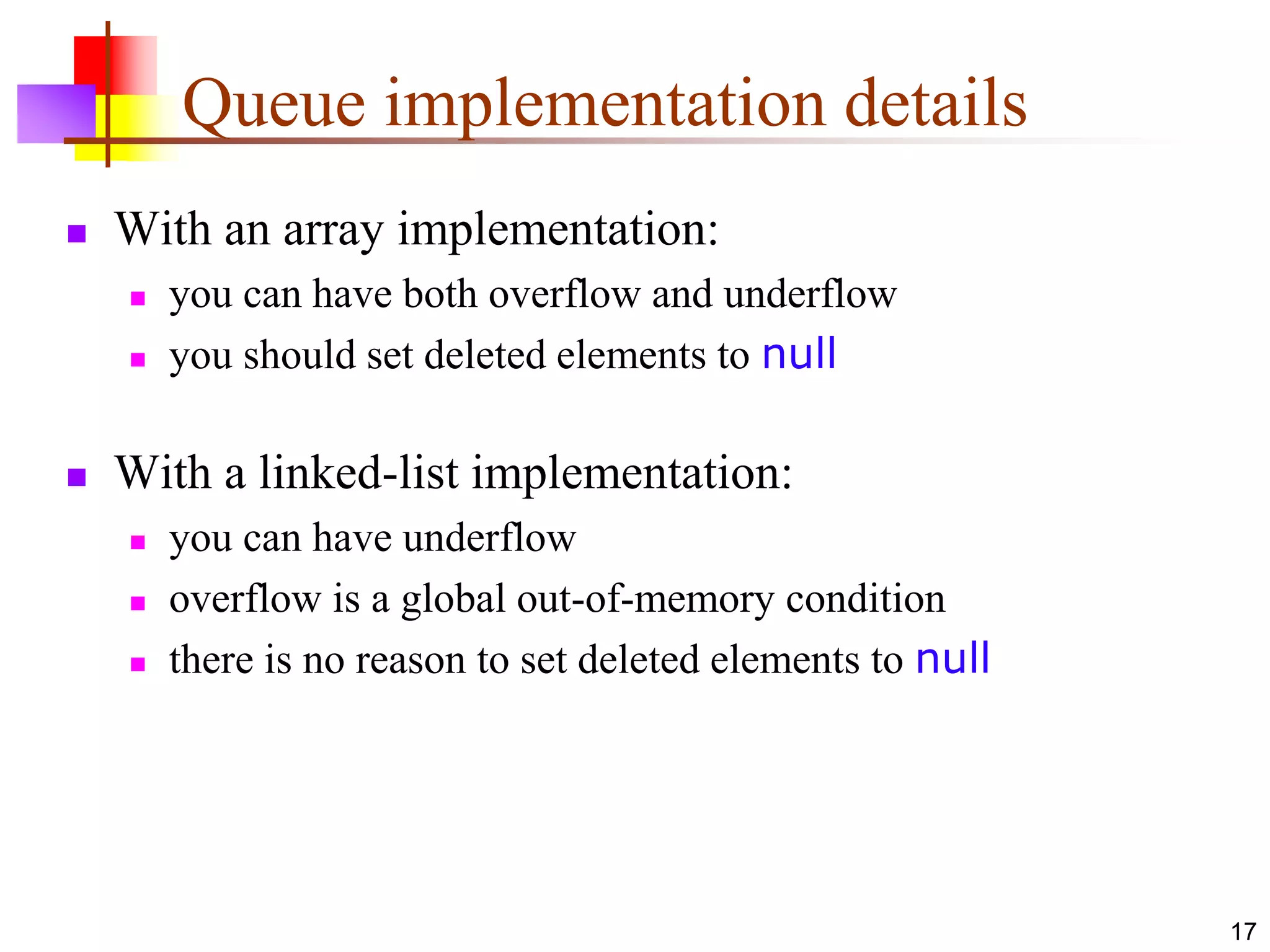

17. 17
Queue implementation details
With an array implementation:
you can have both overflow and underflow
you should set deleted elements to null
With a linked-list implementation:
you can have underflow
overflow is a global out-of-memory condition
there is no reason to set deleted elements to null

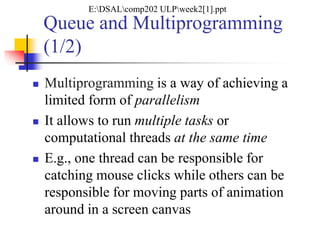

18. Queue and Multiprogramming
(1/2)
Multiprogramming is a way of achieving a
limited form of parallelism
It allows to run multiple tasks or
computational threads at the same time
E.g., one thread can be responsible for
catching mouse clicks while others can be
responsible for moving parts of animation
around in a screen canvas
E:DSALcomp202 ULPweek2[1].ppt

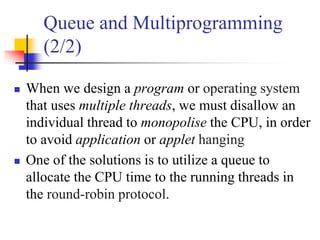

19. Queue and Multiprogramming
(2/2)
When we design a program or operating system
that uses multiple threads, we must disallow an
individual thread to monopolise the CPU, in order
to avoid application or applet hanging
One of the solutions is to utilize a queue to
allocate the CPU time to the running threads in
the round-robin protocol.

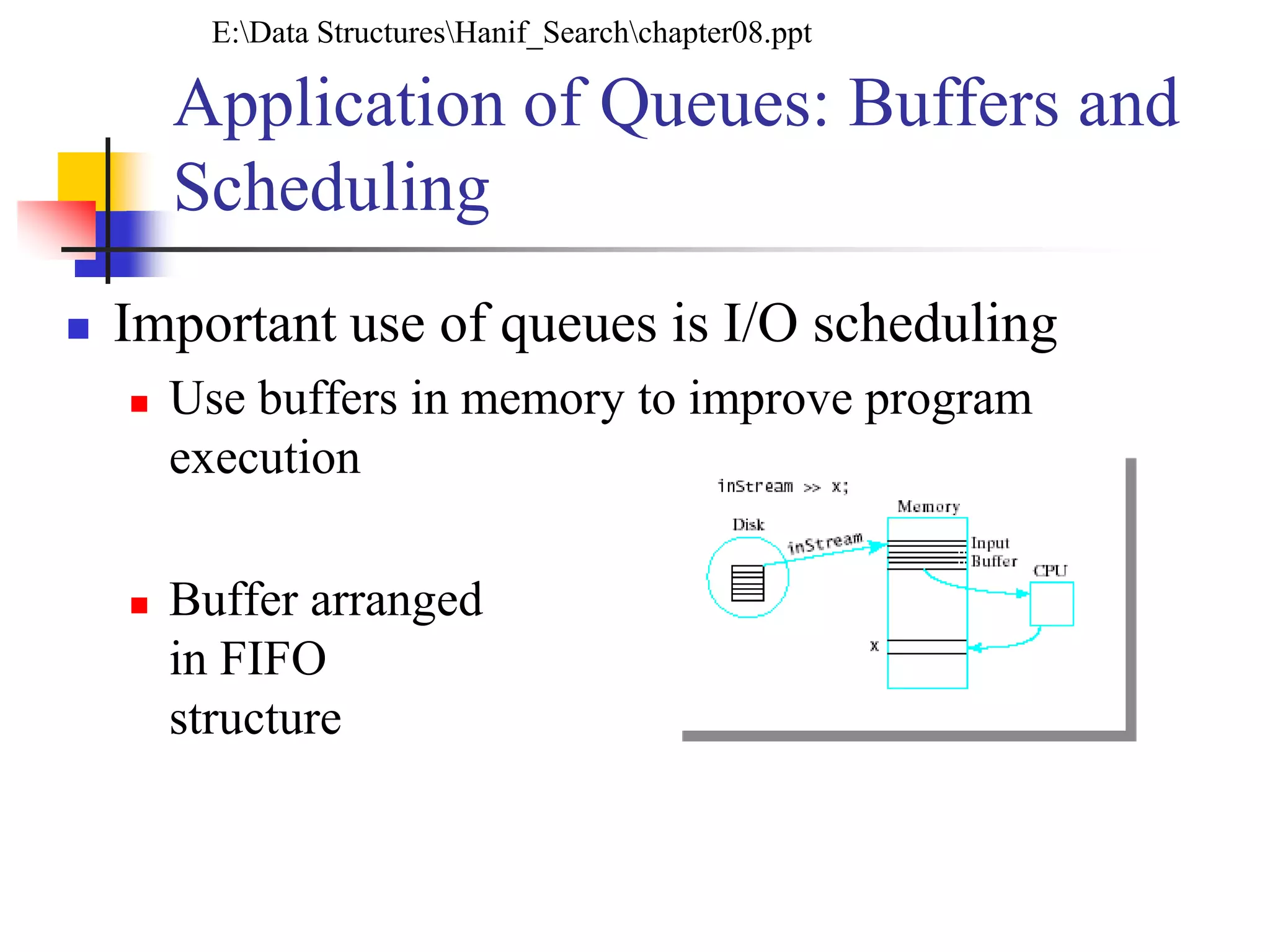

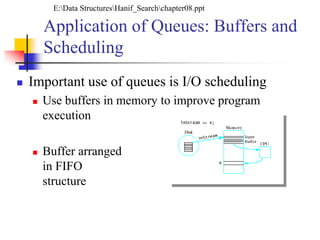

20. Application of Queues: Buffers and
Scheduling
Important use of queues is I/O scheduling
Use buffers in memory to improve program
execution
Buffer arranged
in FIFO
structure
E:Data StructuresHanif_Searchchapter08.ppt
21. Application of Queues: Buffers and
Scheduling
Consider a keyboard buffer
Acts as a queue
But elements may be
removed from the back of
the queue with
backspace key
A printer spool is a queue of print jobs
22. Application of Queues: Buffers and
Scheduling
Queues used to
schedule tasks
within an operating
system
Job moves from disk to ready queue
23. 23

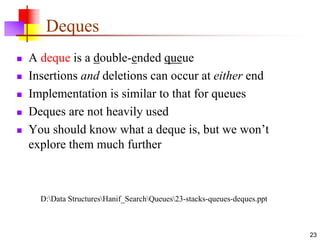

Deques
A deque is a double-ended queue
Insertions and deletions can occur at either end
Implementation is similar to that for queues
Deques are not heavily used
You should know what a deque is, but we won’t
explore them much further
D:Data StructuresHanif_SearchQueues23-stacks-queues-deques.ppt

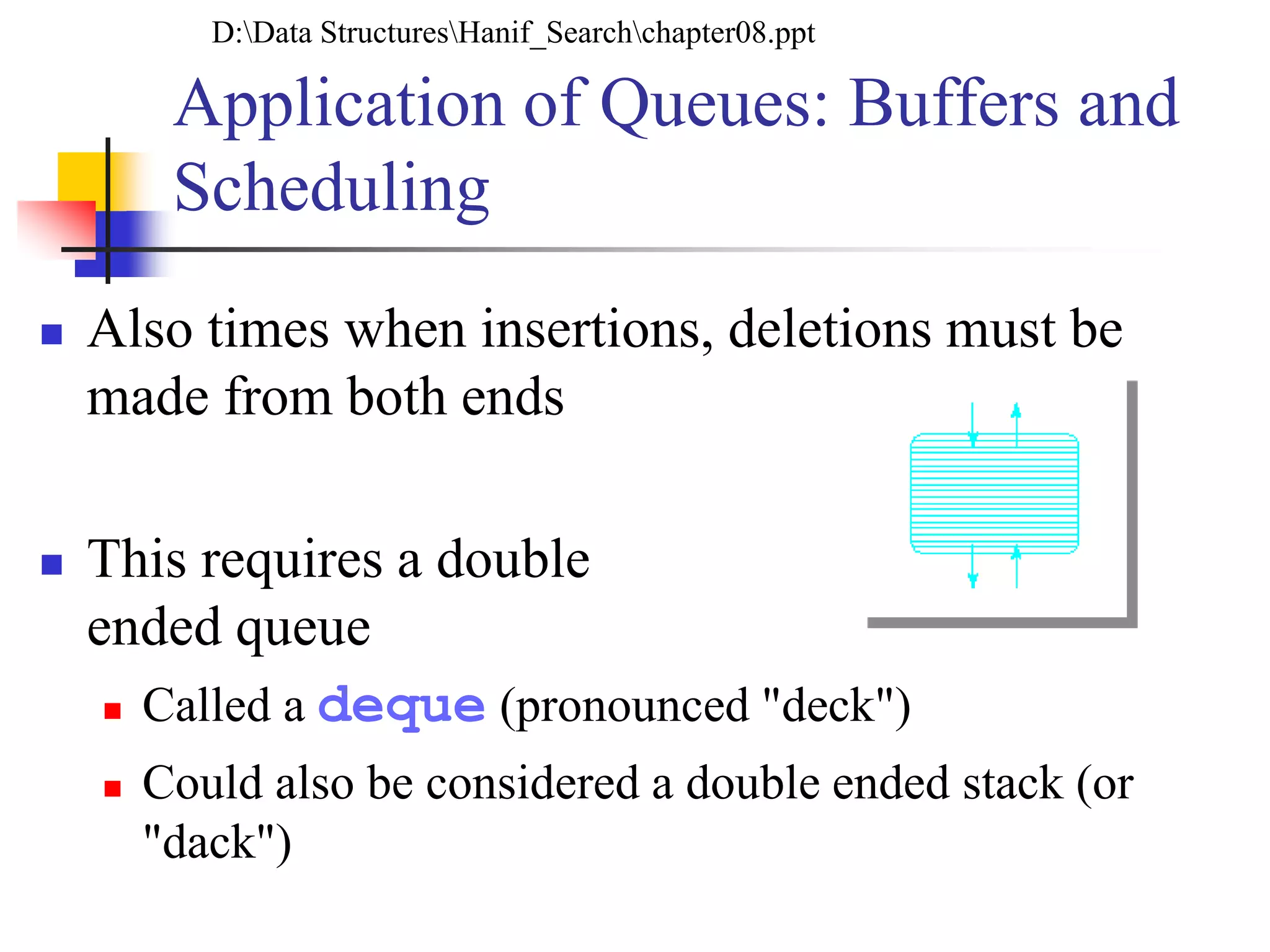

24. Application of Queues: Buffers and
Scheduling
Also times when insertions, deletions must be
made from both ends
This requires a double
ended queue
Called a deque (pronounced "deck")
Could also be considered a double ended stack (or
"dack")
D:Data StructuresHanif_Searchchapter08.ppt

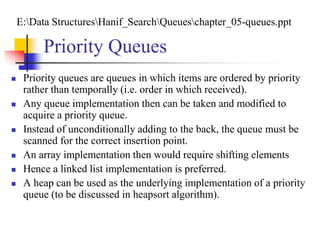

25. Priority Queues
Priority queues are queues in which items are ordered by priority
rather than temporally (i.e. order in which received).
Any queue implementation then can be taken and modified to
acquire a priority queue.
Instead of unconditionally adding to the back, the queue must be
scanned for the correct insertion point.
An array implementation then would require shifting elements
Hence a linked list implementation is preferred.
A heap can be used as the underlying implementation of a priority
queue (to be discussed in heapsort algorithm).
E:Data StructuresHanif_SearchQueueschapter_05-queues.ppt

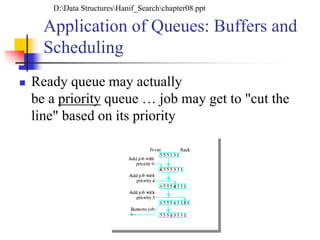

26. Application of Queues: Buffers and
Scheduling
Ready queue may actually
be a priority queue … job may get to "cut the
line" based on its priority
D:Data StructuresHanif_Searchchapter08.ppt

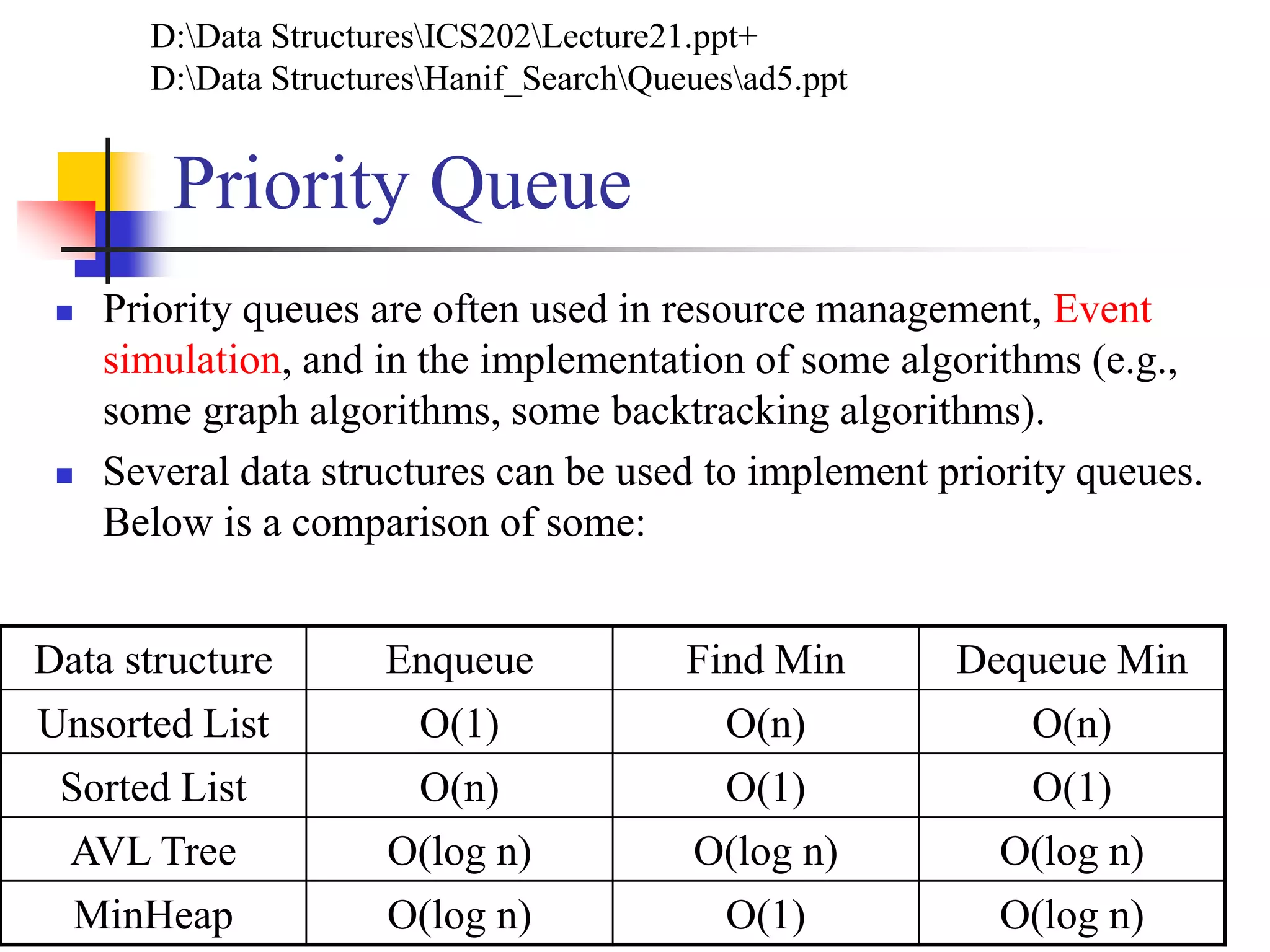

27. Priority Queue
Priority queues are often used in resource management, Event
simulation, and in the implementation of some algorithms (e.g.,
some graph algorithms, some backtracking algorithms).
Several data structures can be used to implement priority queues.
Below is a comparison of some:
Dequeue MinFind MinEnqueueData structure
O(n)O(n)O(1)Unsorted List
O(1)O(1)O(n)Sorted List
O(log n)O(log n)O(log n)AVL Tree
O(log n)O(1)O(log n)MinHeap
D:Data StructuresICS202Lecture21.ppt+
D:Data StructuresHanif_SearchQueuesad5.ppt
