This document discusses measures of central tendency including the mean, median, and mode. It provides examples and definitions for each measure. The mean is the average and is calculated by summing all values and dividing by the total number. The median is the middle value when values are ranked in order. The mode is the most frequent value. The best measure depends on the scale of measurement and shape of the distribution, such as whether it is symmetrical or skewed.

1. Measures of Central
Tendency
DR MUHAMMAD TAUSEEF JAVED
MBBS.DPH.FCPS(CM)M.Phil(CM).Dip-Card
DR TAUSEEF JAVED

2. Statistics
Measures of Central
Tendency
DR TAUSEEF JAVED

3. • Measures of central tendency are scores
that represent the center of the
distribution.
• Three of the most common measures of
central tendency are:
– Mean
– Median
– Mode
DR TAUSEEF JAVED

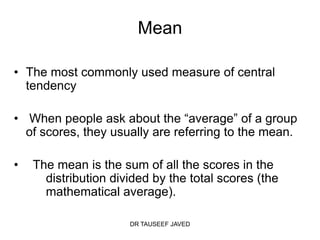

4. Mean
• The most commonly used measure of central
tendency
• When people ask about the “average” of a group
of scores, they usually are referring to the mean.
• The mean is the sum of all the scores in the
distribution divided by the total scores (the
mathematical average).
DR TAUSEEF JAVED

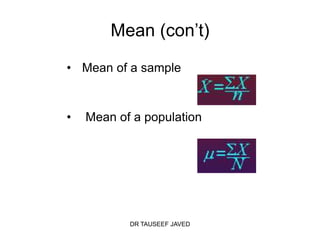

5. Mean (con’t)
• Mean of a sample
• Mean of a population
DR TAUSEEF JAVED

6. Mean (con’t)
Exam Scores
75 82 72 68 89
X sum all scores
91 78 94 88 75 n = total number of
scores for the sample
DR TAUSEEF JAVED

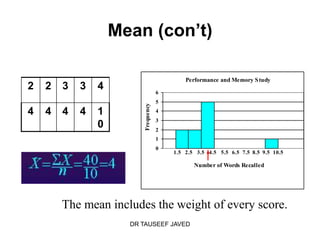

7. Mean (con’t)
Performance and Memory S tudy
2 2 3 3 4 6
5
Frequency
4 4 4 4 1 4
3
0 2
1
0
1.5 2.5 3.5 4.5 5.5 6.5 7.5 8.5 9.5 10.5
Number of Words Recalled
The mean includes the weight of every score.
DR TAUSEEF JAVED

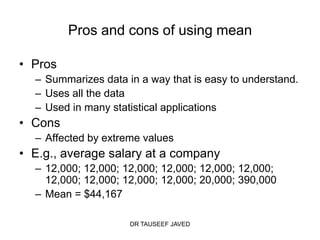

8. Pros and cons of using mean
• Pros
– Summarizes data in a way that is easy to understand.
– Uses all the data
– Used in many statistical applications
• Cons
– Affected by extreme values
• E.g., average salary at a company
– 12,000; 12,000; 12,000; 12,000; 12,000; 12,000;
12,000; 12,000; 12,000; 12,000; 20,000; 390,000
– Mean = $44,167
DR TAUSEEF JAVED

9. Median
• The middle score of the distribution when all the
scores have been ranked.
• If there are an even number of scores, the median
is the average of the two middle scores.
DR TAUSEEF JAVED

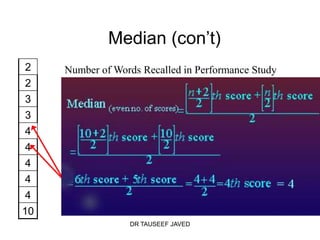

10. Median (con’t)
2 Number of Words Recalled in Performance Study
2
3
3
4
4
4
4
4
10
DR TAUSEEF JAVED

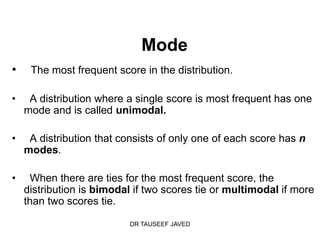

11. Mode
• The most frequent score in the distribution.
• A distribution where a single score is most frequent has one
mode and is called unimodal.
• A distribution that consists of only one of each score has n
modes.
• When there are ties for the most frequent score, the
distribution is bimodal if two scores tie or multimodal if more
than two scores tie.
DR TAUSEEF JAVED

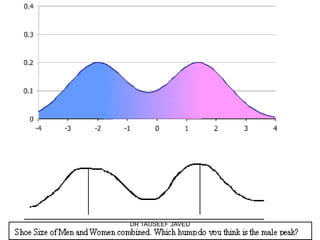

12. DR TAUSEEF JAVED

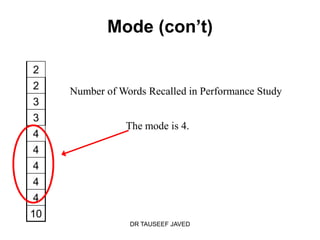

13. Mode (con’t)
2
2 Number of Words Recalled in Performance Study
3
3
The mode is 4.
4
4
4
4
4
10
DR TAUSEEF JAVED

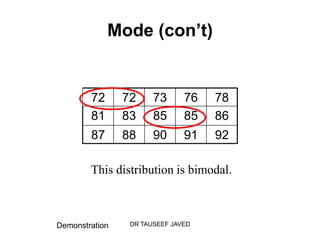

14. Mode (con’t)
72 72 73 76 78
81 83 85 85 86
87 88 90 91 92
This distribution is bimodal.
Demonstration DR TAUSEEF JAVED

15. Red Blue Green Yellow
Yellow Green Blue Red
Green Red Yellow Blue
DR TAUSEEF JAVED

16. Red Blue Green Yellow
Yellow Green Blue Red
Green Red Yellow Blue
DR TAUSEEF JAVED

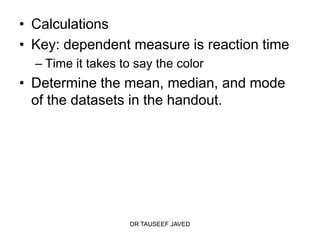

17. • Calculations
• Key: dependent measure is reaction time
– Time it takes to say the color
• Determine the mean, median, and mode
of the datasets in the handout.
DR TAUSEEF JAVED

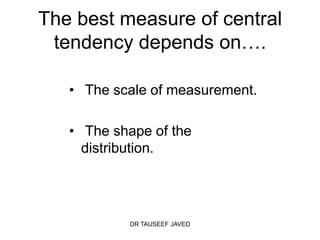

18. The best measure of central
tendency depends on….
• The scale of measurement.
• The shape of the
distribution.
DR TAUSEEF JAVED

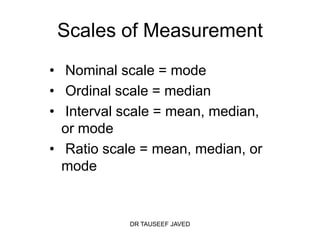

19. Scales of Measurement
• Nominal scale = mode
• Ordinal scale = median
• Interval scale = mean, median,
or mode
• Ratio scale = mean, median, or
mode
DR TAUSEEF JAVED

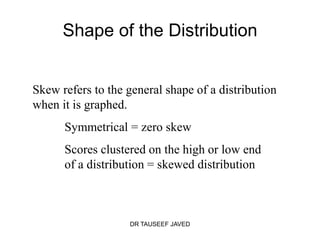

20. Shape of the Distribution
Skew refers to the general shape of a distribution
when it is graphed.
Symmetrical = zero skew
Scores clustered on the high or low end
of a distribution = skewed distribution
DR TAUSEEF JAVED

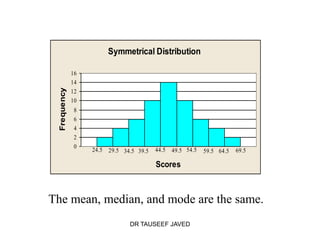

21. Symmetrical Distribution
16
14
Frequency
12
10
8
6
4
2
0
24.5 29.5 34.5 39.5 44.5 49.5 54.5 59.5 64.5 69.5
Scores
The mean, median, and mode are the same.
DR TAUSEEF JAVED

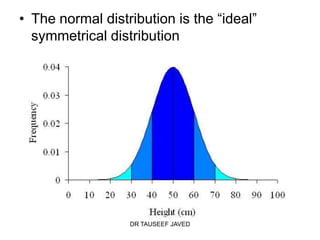

22. • The normal distribution is the “ideal”
symmetrical distribution
DR TAUSEEF JAVED

23. Distributions that are skewed have one
side of the distribution where the data
frequency tapers off
DR TAUSEEF JAVED

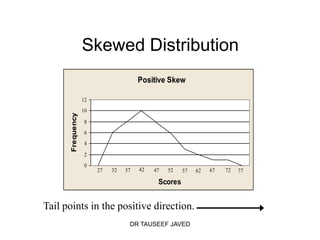

24. Skewed Distribution
Positive Skew
12
10
Frequency
8
6
4
2
0
27 32 37 42 47 52 57 62 67 72 77
Scores
Tail points in the positive direction.
DR TAUSEEF JAVED

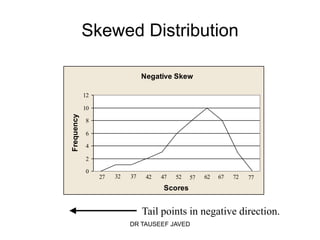

25. Skewed Distribution
Negative Skew
12
10
Frequency
8
6
4
2
0
27 32 37 42 47 52 57 62 67 72 77
Scores
Tail points in negative direction.
DR TAUSEEF JAVED

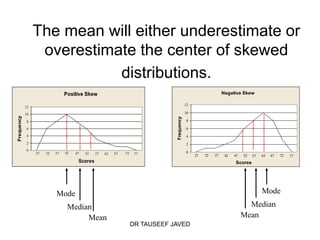

26. The mean will either underestimate or
overestimate the center of skewed
distributions.
Positive Skew Negative Skew
12
12
10 10
Frequency
Frequency
8 8
6 6
4 4
2 2
0
27 32 37 42 47 52 57 62 67 72 77 0
27 32 37 42 47 52 57 62 67 72 77
Scores Scores
Mode Mode
Median Median
Mean Mean
DR TAUSEEF JAVED

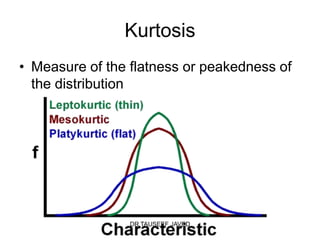

27. Kurtosis
• Measure of the flatness or peakedness of
the distribution
DR TAUSEEF JAVED
