Apache Spark 2.2 shipped with a state-of-art cost-based optimization framework that collects and leverages a variety of per-column data statistics (e.g., cardinality, number of distinct values, NULL values, max/min, avg/max length, etc.) to improve the quality of query execution plans. Skewed data distributions are often inherent in many real world applications. In order to deal with skewed distributions effectively, we added equal-height histograms to Apache Spark 2.3. Leveraging reliable statistics and histogram helps Spark make better decisions in picking the most optimal query plan for real world scenarios. In this talk, we’ll take a deep dive into how Spark’s Cost-Based Optimizer estimates the cardinality and size of each database operator. Specifically, for skewed distribution workload such as TPC-DS, we will show histogram’s impact on query plan change, hence leading to performance gain.

1. Ron Hu, Zhenhua Wang
Huawei Technologies, Inc.
Cardinality Estimation through
Histogram in Apache Spark 2.3
#DevSAIS13

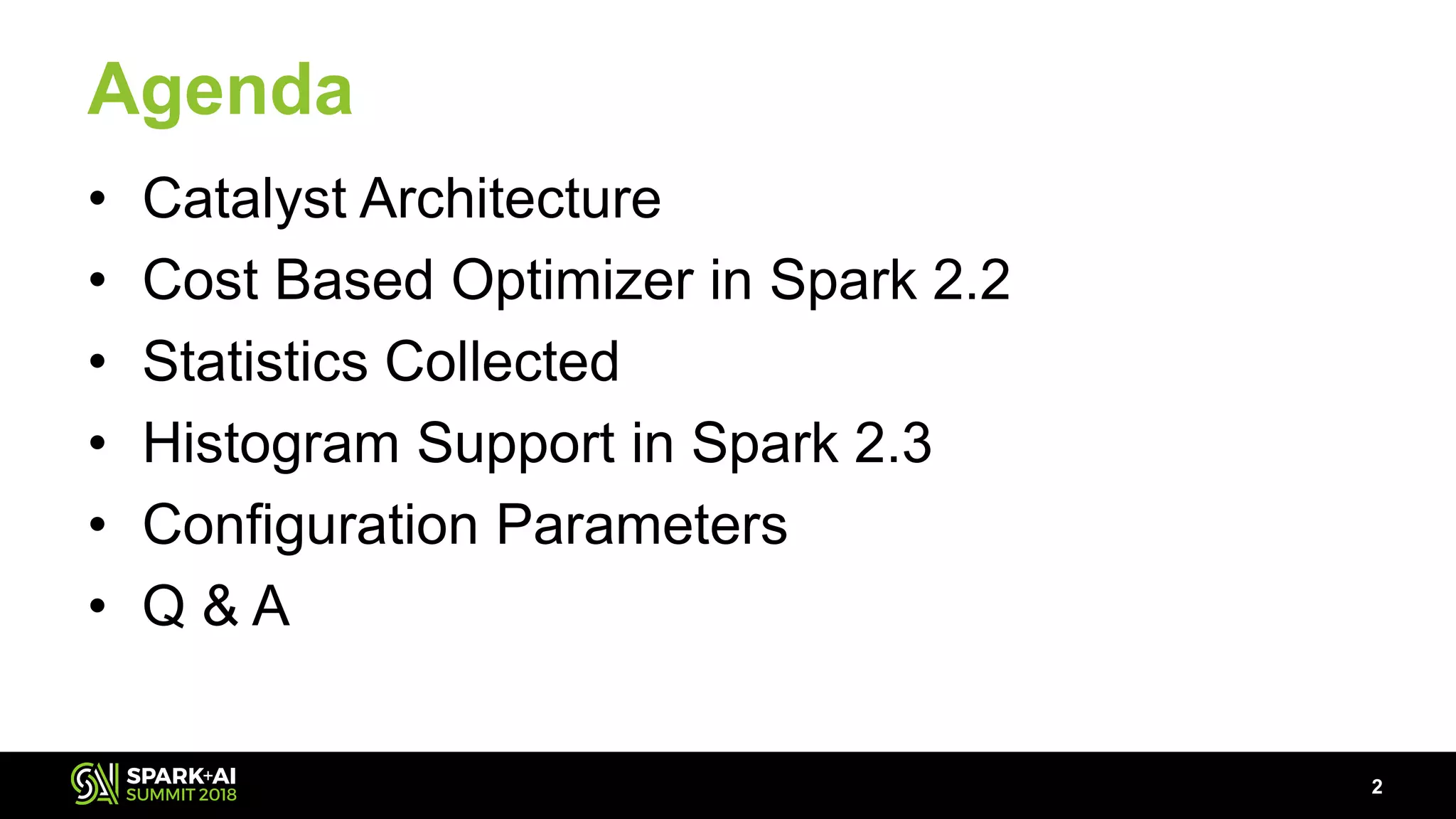

2. Agenda
• Catalyst Architecture
• Cost Based Optimizer in Spark 2.2
• Statistics Collected
• Histogram Support in Spark 2.3
• Configuration Parameters
• Q & A
2

3. Catalyst Architecture
3
Spark optimizes query plan here
Reference:Deep Dive into Spark SQL’s Catalyst Optimizer, a databricks engineering blog

4. Query Optimizer in Spark SQL
• Spark SQL’s query optimizer is based on both
rules and cost.
• Most of Spark SQL optimizer’s rules are
heuristics rules.
– PushDownPredicate, ColumnPruning,
ConstantFolding,….
• Cost based optimization (CBO) was added in
Spark 2.2.
4

5. Cost Based Optimizer in Spark 2.2
• It was a good and working CBO framework to start
with.
• Focused on
– Statistics collection,
– Cardinality estimation,
– Build side selection, broadcast vs. shuffled join, join
reordering, etc.
• Used heuristics formula for cost function in terms
of cardinality and data size of each operator.
5

6. Statistics Collected
• Collect Table Statistics information
• Collect Column Statistics information
• Goal:
– Calculate the cost for each operator in terms of
number of output rows, size of output, etc.
– Based on the cost calculation, adjust the query
execution plan
6

7. Table Statistics Collected
• Command to collect statistics of a table.
– Ex: ANALYZE TABLE table-name COMPUTE
STATISTICS
• It collects table level statistics and saves into
metastore.
– Number of rows
– Table size in bytes
7

8. Column Statistics Collected
• Command to collect column level statistics of individual columns.
– Ex: ANALYZE TABLE table-name COMPUTE STATISTICS
FOR COLUMNS column-name1, column-name2, ….
• It collects column level statistics and saves into meta-store.
String/Binary type
✓ Distinct count
✓ Null count
✓ Average length
✓ Max length
Numeric/Date/Timestamp type
✓ Distinct count
✓ Max
✓ Min
✓ Null count
✓ Average length (fixed length)
✓ Max length (fixed length)
8

9. Real World Data Are Often Skewed
9#DevSAIS13 – Cardinality Estimation by Hu and Wang

10. Histogram Support in Spark 2.3
• Histogram is effective in handling
skewed distribution.
• We developed equi-height histogram
in Spark 2.3.
• Equi-Height histogram is better than
equi-width histogram
• Equi-height histogram can use multiple
buckets to show a very skewed value.
• Equi-width histogram cannot give right
frequency when a skewed value falls in
same bucket with other values.
Column interval
Frequency
Equi-Width
Equi-Height
Column interval
Frequency Density
10

11. Histogram Algorithm
– Each histogram has a default of 254 buckets.
• The height of a histogram is number of non-null values divided
by number of buckets.
– Each histogram bucket contains
• Range values of a bucket
• Number of distinct values in a bucket
– We use two table scans to generate the equi-height
histograms for all columns specified in analyze
command.
• Use ApproximatePercentile class to get end points of all
histogram buckets
• Use HyperLogLog++ algorithm to compute the number of
distinct values in each bucket.
11

12. Filter Cardinality Estimation
• Between Logical expressions: AND, OR, NOT
• In each logical expression: =, <, <=, >, >=, in, etc
• Current support type in Expression
– For <, <=, >, >=, <=>: Integer, Double, Date, Timestamp, etc
– For = , <=>: String, Integer, Double, Date, Timestamp, etc.
• Example: A <= B
– Based on A, B’s min/max/distinct count/null count values, decide
the relationships between A and B. After completing this
expression, we set the new min/max/distinct count/null count
– Assume all the data is evenly distributed if no histogram
information.
12

13. Filter Operator without Histogram
• Column A (op) literal B
– (op) can be “=“, “<”, “<=”, “>”, “>=”, “like”
– Column’s max/min/distinct count/null count should be updated
– Example: Column A < value B
Column AB B
A.min A.max
Filtering Factor = 0%
need to change A’s statistics
Filtering Factor = 100%
no need to change A’s statistics
Filtering Factor = (B.value – A.min) / (A.max – A.min)
A.min = no change
A.max = B.value
A.ndv = A.ndv * Filtering Factor
13
• Without histogram, we prorate over
the entire column range.
• It works only if it is evenly distributed.

14. Filter Operator with Histogram
• With histogram, we check the range values of a
bucket to see if it should be included in
estimation.
• We prorate only the boundary bucket.
• This way can enhance the accuracy of
estimation since we prorate (or guess) only a
much smaller set of records in a bucket only.
14

15. Histogram for Filter Example 1
Age distribution of a restaurant:
• Estimate row count for
predicate “age > 40”. Correct
answer is 5.
• Without histogram, estimate:
25 * (80 – 40)/(80 – 20) = 16.7
• With histogram, estimate:
1.0 * // only 5th bucket
5 // 5 records per bucket
= 5
15#DevSAIS13 – Cardinality Estimation by Hu and Wang
20
21
23
24
25
ndv=5
25
27
27
27
28
ndv=3
28
28
28
28
28
ndv=1
29
36
36
39
40
ndv=4
45
47
55
63
80
ndv=5
20 25 28 40 8028
Total row count: 25
age min = 20
age max = 80
age ndv = 17

16. Histogram for Filter Example 2
Age distribution of a restaurant:
• Estimate row count for predicate
“age = 28”. Correct answer is 6.
• Without histogram, estimate:
25 * 1 / 17 = 1.47
• With histogram, estimate:
( 1/3 // prorate the 2nd bucket
+ 1.0 // for 3rd bucket
) * 5 // 5 records per bucket
= 6.67
16#DevSAIS13 – Cardinality Estimation by Hu and Wang
20
21
23
24
25
ndv=5
25
27
27
27
28
ndv=3
28
28
28
28
28
ndv=1
29
36
36
39
40
ndv=4
45
47
55
63
80
ndv=5
20 25 28 40 8028
Total row count: 25
age min = 20
age max = 80
age ndv = 17

17. Join Cardinality without Histogram
• Inner-Join: The number of rows of “A join B on A.k1 = B.k1” is
estimated as:
num(A ⟗ B) = num(A) * num(B) / max(distinct(A.k1),
distinct(B.k1)),
– where num(A) is the number of records in table A, distinct is the number of
distinct values of that column.
– The underlying assumption for this formula is that each value of the smaller
domain is included in the larger domain.
– Assuming uniform distribution for entire range of both join columns.
• We similarly estimate cardinalities for Left-Outer Join, Right-Outer
Join and Full-Outer Join
17

18. Join Cardinality without Histogram
18
Total row count: 25
k1 min = 20
k1 max = 80
k1 ndv = 17
Table A, join column k1 Table B, join column k1
Total row count: 20
k1 min = 20
k1 max = 90
k1 ndv = 17
Without histogram, join cardinality estimate is 25 * 20 / 17 = 29.4
The correct answer is 20.
20
21
23
24
25
25
27
27
27
28
28
28
28
28
28
29
36
36
39
40
45
47
55
63
80
20 80
20
21
21
25
26
28
28
30
36
39
45
50
55
60
65
70
75
80
90
90
20 90

19. Join Cardinality with Histogram
• The number of rows of “A join B on A.k1 = B.k1” is estimated as:
num(𝐴⟗𝐵) = 𝑖,𝑗 num(𝐴𝑖) * num(𝐵𝑗) / max (ndv(Ai.k1), ndv(Bj.k1))
– where num(Ai) is the number of records in bucket i of table A, ndv is the number
of distinct values of that column in the corresponding bucket.
– We compute the join cardinality bucket by bucket, and then add up the total
count.
• If the buckets of two join tables do not align,
– We split the bucket on the boundary values into more than 1 bucket.
– In the split buckets, we prorate ndv and bucket height based on the boundary
values of the newly split buckets by assuming uniform distribution within a given
bucket.
19

20. Aligning Histogram Buckets for Join
• Form new buckets to align buckets properly
20#DevSAIS13 – Cardinality Estimation by Hu and Wang
Table A, join column k1,
Histogram buckets
Table B, join column k1,
Histogram buckets
20 25 30 50 70 9080
28
28 40
Original bucket
boundary
Extra new bucket boundary
To form additional buckets
This bucket is excluded
In computation
20 25 28
28
40 80705030

21. 21#DevSAIS13 – Cardinality Estimation by Hu and Wang
Table A, join column k1,
Histogram buckets:
Total row count: 25
min = 20, max = 80
ndv = 17
20
21
23
24
25
ndv=5
25
27
27
27
28
ndv=3
28
28
28
28
28
ndv=1
29
ndv=1
36
36
39
40
ndv=3
45
47
ndv=2
55
63
ndv=2
80
ndv=1
2520 28 3028 5040 70 80
90
90
ndv=1
20
21
21
25
ndv=3
26
ndv=1
28
28
ndv=1
30
ndv=1
36
39
ndv=2
45
50
ndv=2
55
60
65
70
ndv=4
75
80
ndv=2
7030282520 28 5040 80 90
Table B, join column k1,
Histogram buckets:
Total row count: 20
min = 20, max = 90
ndv = 17
- With histogram, join cardinality estimate is 21.8 by
computing the aligned bucket’s cardinality one-by-one.
- Without histogram, join cardinality estimate is 29.4
- The correct answer is 20.

22. Other Operator Estimation
• Project: does not change row count
• Aggregate: consider uniqueness of group-by
columns
• Limit, Sample, etc.
22

23. Statistics Propagation
Join
(t1.a = t2.b)
Scan t2Scan t1a: min, max, ndv …
…
b: min, max, ndv …
…
a: newMin, newMax, newNdv …
b: newMin, newMax, newNdv …
…
Top-down statistics
requests
Bottom-up statistics
propagation
23

24. Statistics inference
• Statistics collected:
– Number of records for a table
– Number of distinct values for a column
• Can make these inferences:
– If the above two numbers are close, we can determine if a
column is a unique key.
– Can infer if it is a primary-key to foreign-key join.
– Can detect if a star schema exists.
– Can help determine the output size of group-by operator if
multiple columns of same tables appear in group-by
expression.
24

25. Configuration Parameters
Configuration Parameters Default
Value
Suggested
Value
spark.sql.cbo.enabled False True
spark.sql.cbo.joinReorder.enabled False True
spark.sql.cbo.joinReorder.dp.threshold 12 12
spark.sql.cbo.joinReorder.card.weight 0.7 0.7
spark.sql.statistics.size.autoUpdate.enabled False True
spark.sql.statistics.histogram.enabled False True
spark.sql.statistics.histogram.numBins 254 254
spark.sql.statistics.ndv.maxError 0.05 0.05
spark.sql.statistics.percentile.accuracy 10000 10000
25#DevSAIS13

26. Reference
• SPARK-16026: Cost-Based Optimizer
Framework
– https://issues.apache.org/jira/browse/SPARK-16026
– It has 45 sub-tasks.
• SPARK-21975: Histogram support in cost-based
optimizer
– https://issues.apache.org/jira/browse/SPARK-21975
– It has 10 sub-tasks.
26#DevSAIS13 – Cardinality Estimation by Hu and Wang

27. Summary
• Cost Based Optimizer in Spark 2.2
• Statistics Collected
• Histogram Support in Spark 2.3
– Skewed data distributions are intrinsic in real world
data.
– Turn on histogram configuration parameter
“spark.sql.statistics.histogram.enabled” to deal with
skew.
27

28. Q & A
ron.hu@huawei.com
wangzhenhua@huawei.com
