Top 5 Mistakes when writing
Spark applications
Mark Grover | @mark_grover | Software Engineer
Ted Malaska | @TedMalaska | Principal Solutions Architect
tiny.cloudera.com/spark-mistakes
About the book
• @hadooparchbook
• hadooparchitecturebook.com
• github.com/hadooparchitecturebook
• slideshare.com/hadooparchbook
Mistakes people make
when using Spark
Mistakes people we made
when using Spark
Mistake # 1

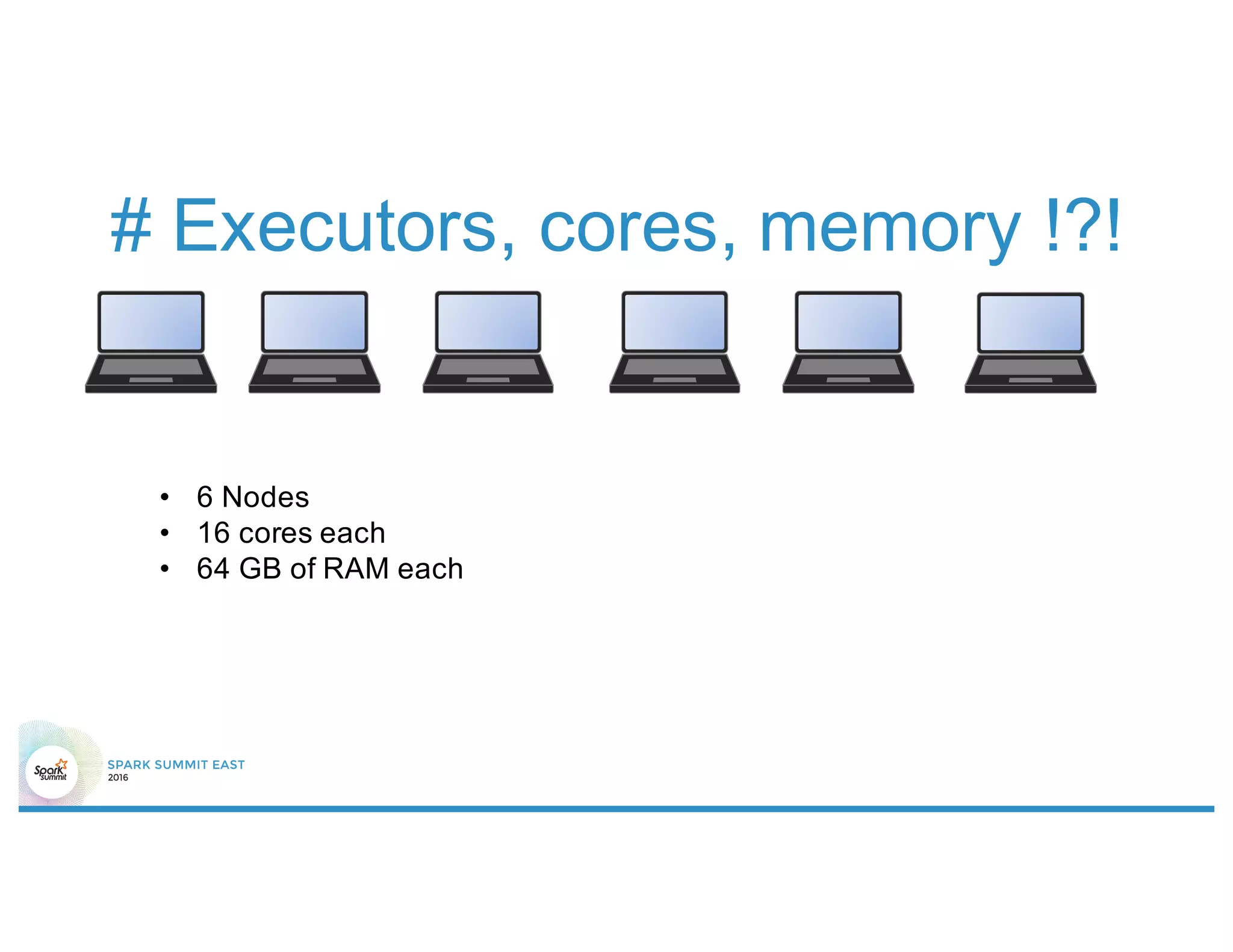

# Executors, cores, memory !?!
• 6 Nodes
• 16 cores each
• 64 GB of RAM each

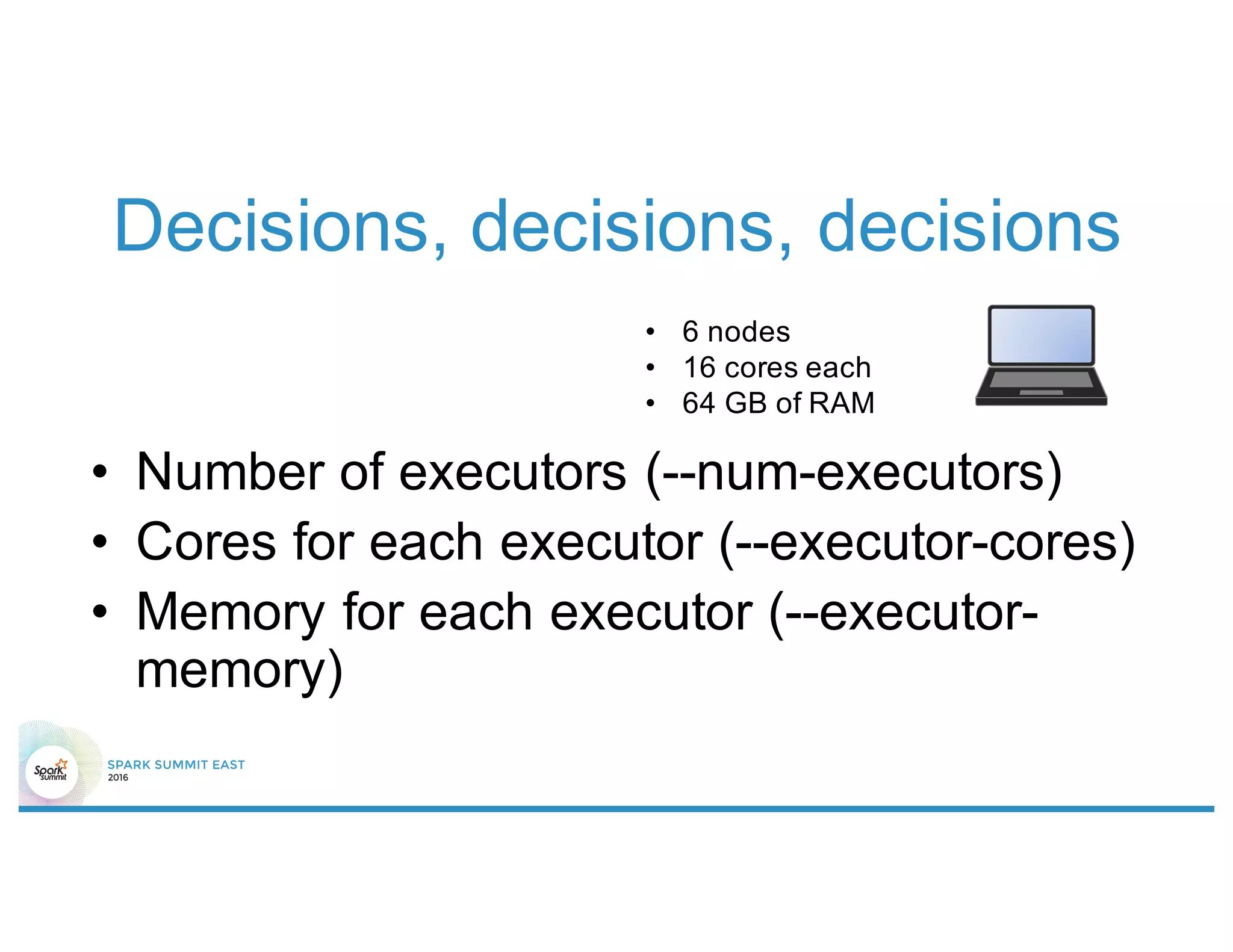

Decisions, decisions, decisions
• Number of executors (--num-executors)
• Cores for each executor (--executor-cores)
• Memory for each executor (--executor-
memory)
• 6 nodes
• 16 cores each
• 64 GB of RAM

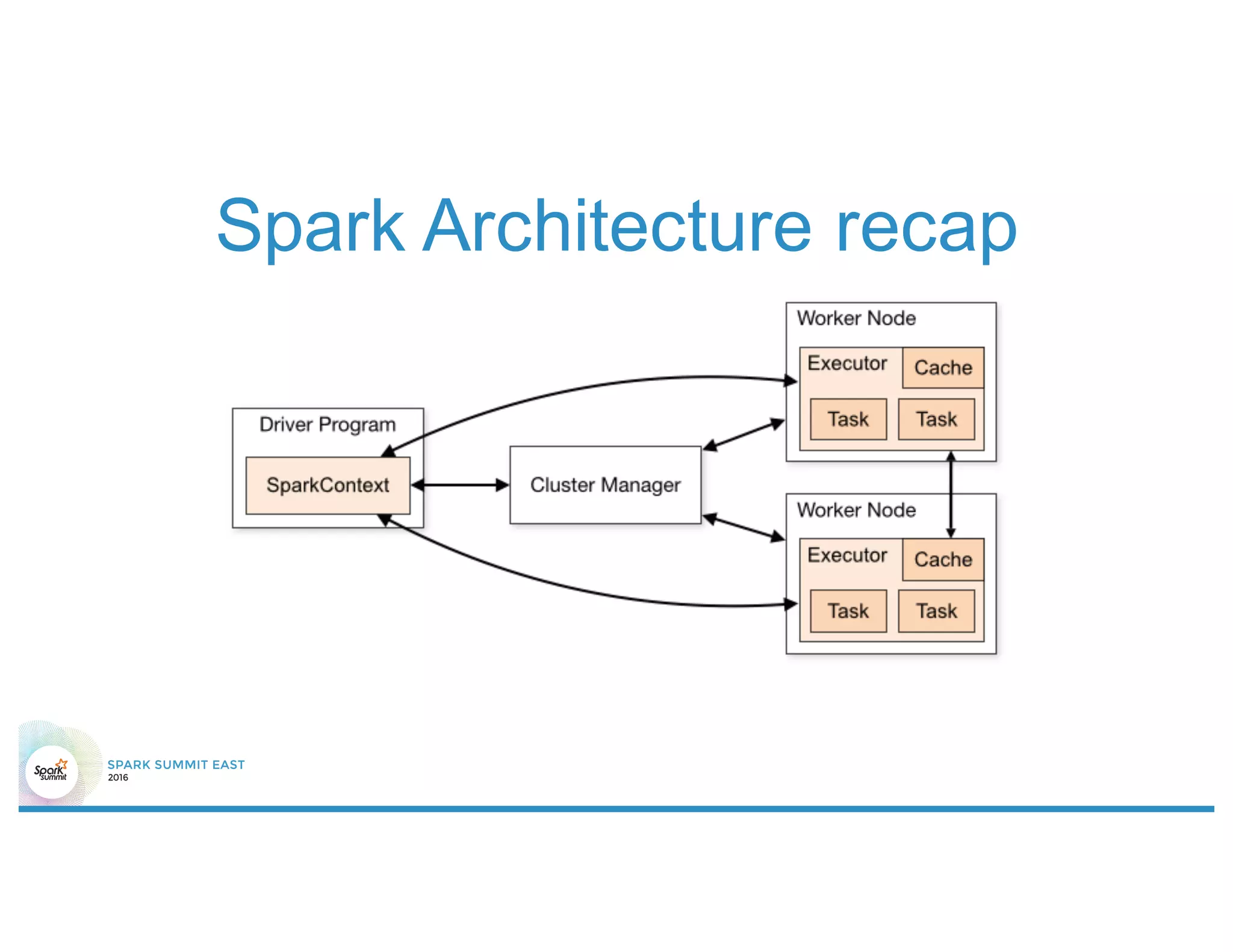

Spark Architecture recap

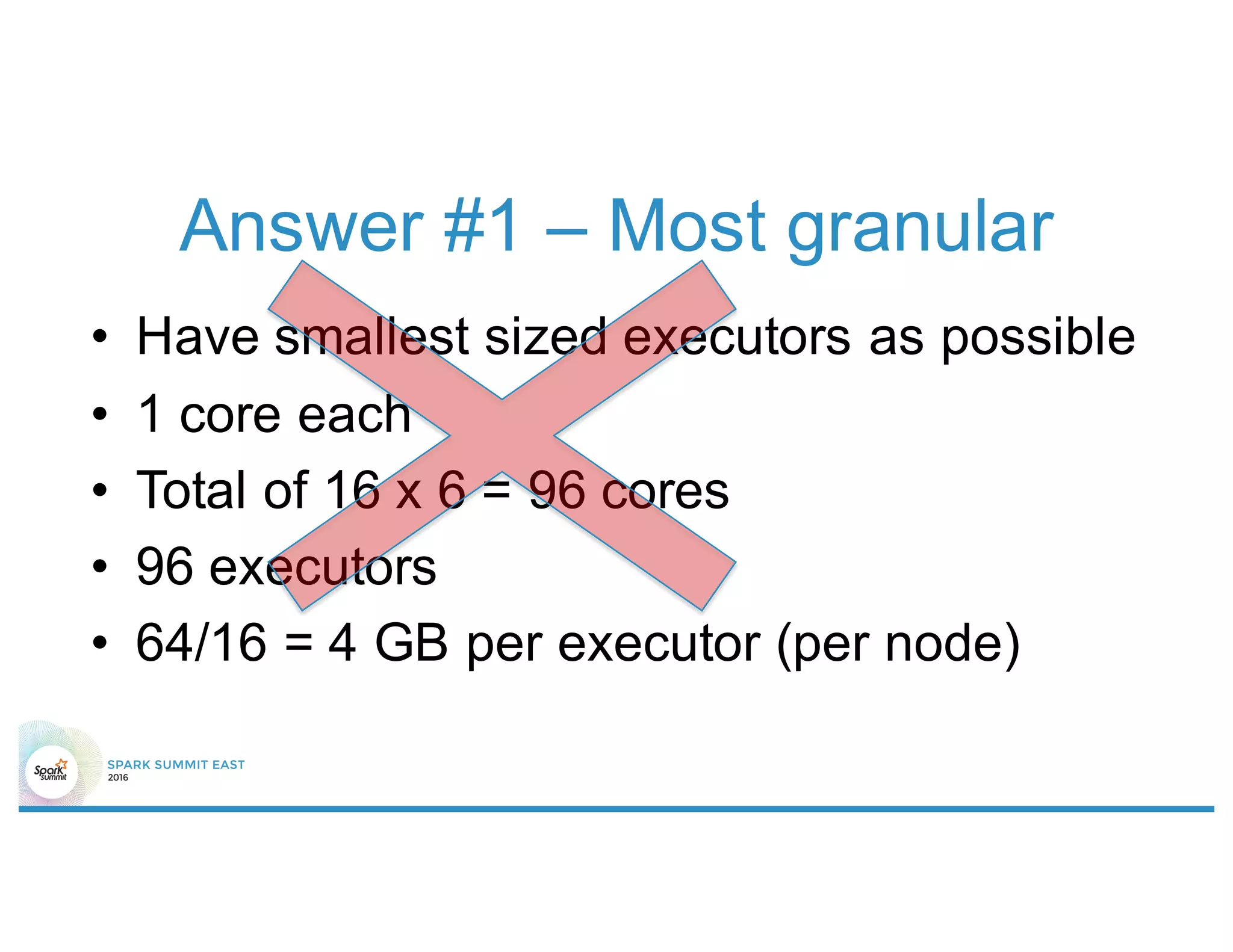

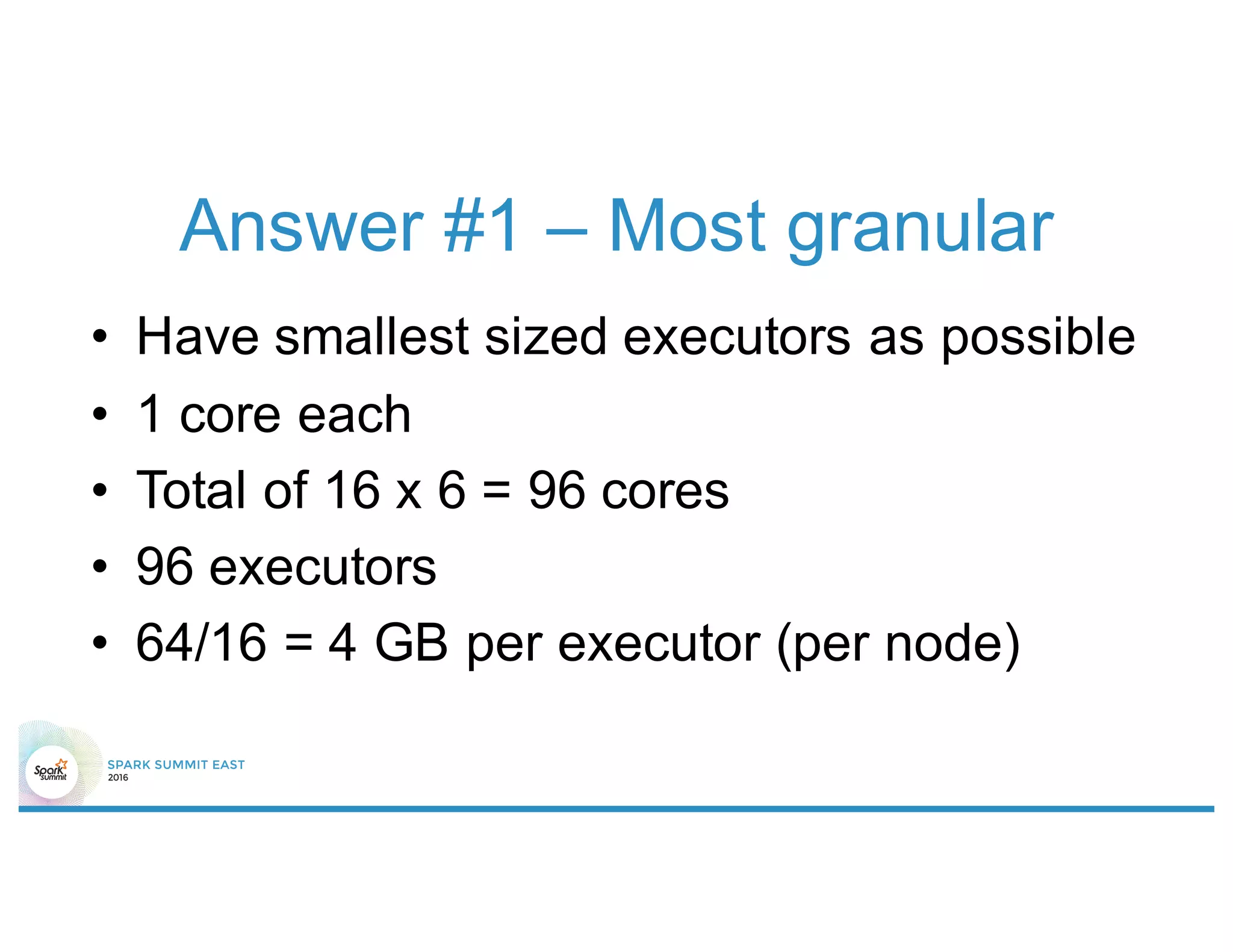

Answer #1 – Most granular
• Have smallest sized executors as possible
• 1 core each
• Total of 16 x 6 = 96 cores
• 96 executors
• 64/16 = 4 GB per executor (per node)
Answer #1 – Most granular
• Have smallest sized executors as possible
• 1 core each
• Total of 16 x 6 = 96 cores
• 96 executors
• 64/16 = 4 GB per executor (per node)

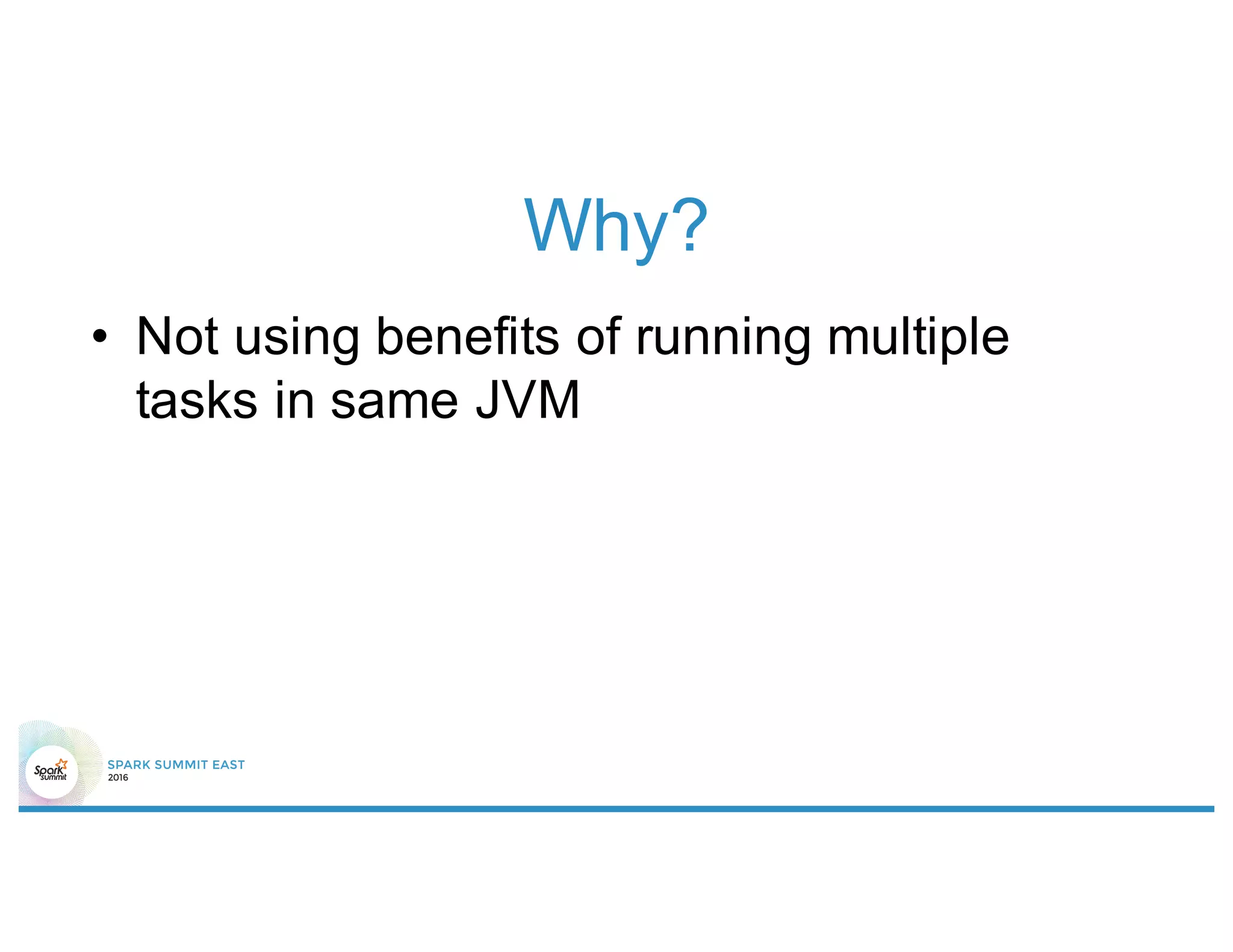

Why?
• Not using benefits of running multiple
tasks in same JVM

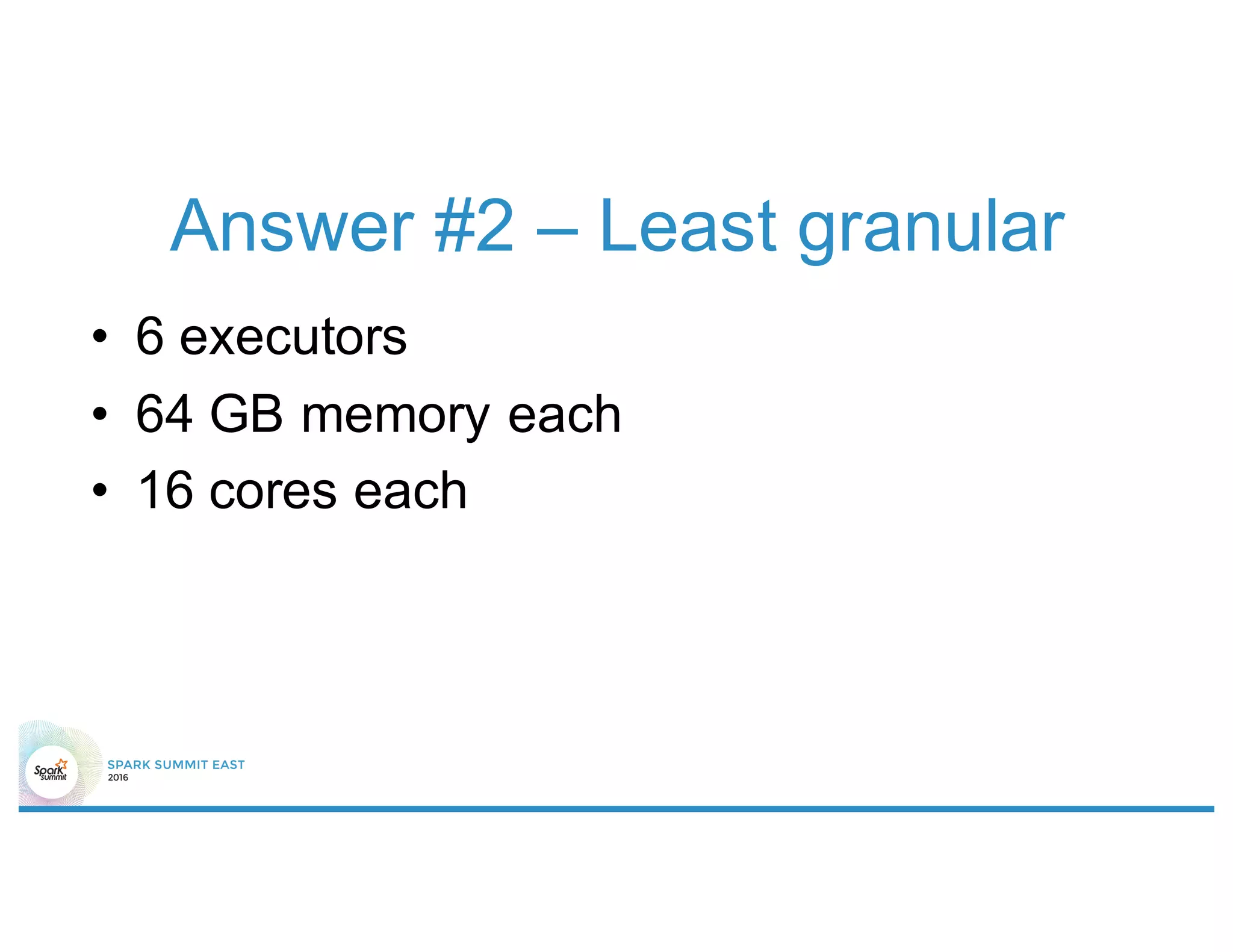

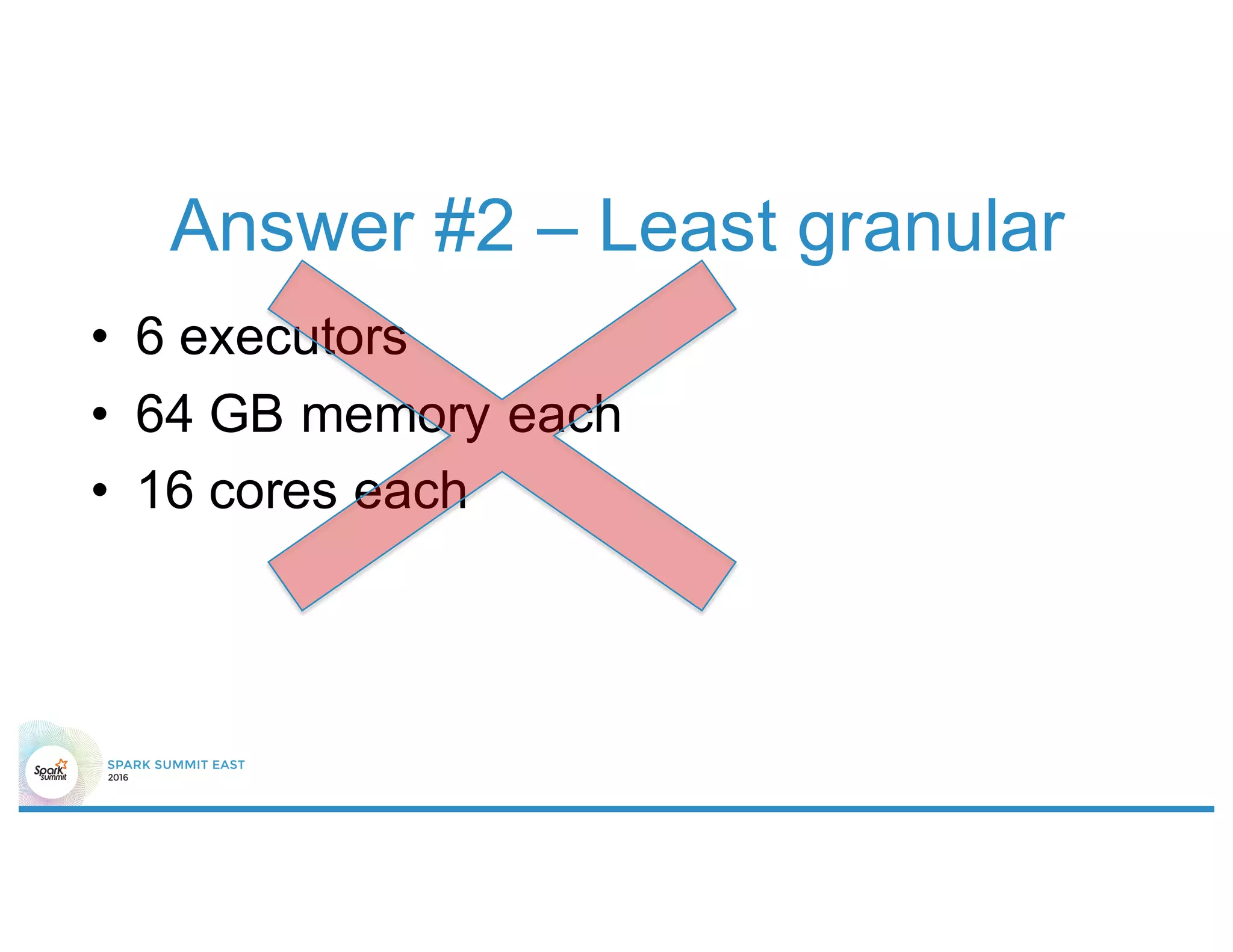

Answer #2 – Least granular
• 6 executors
• 64 GB memory each
• 16 cores each
Answer #2 – Least granular
• 6 executors
• 64 GB memory each
• 16 cores each

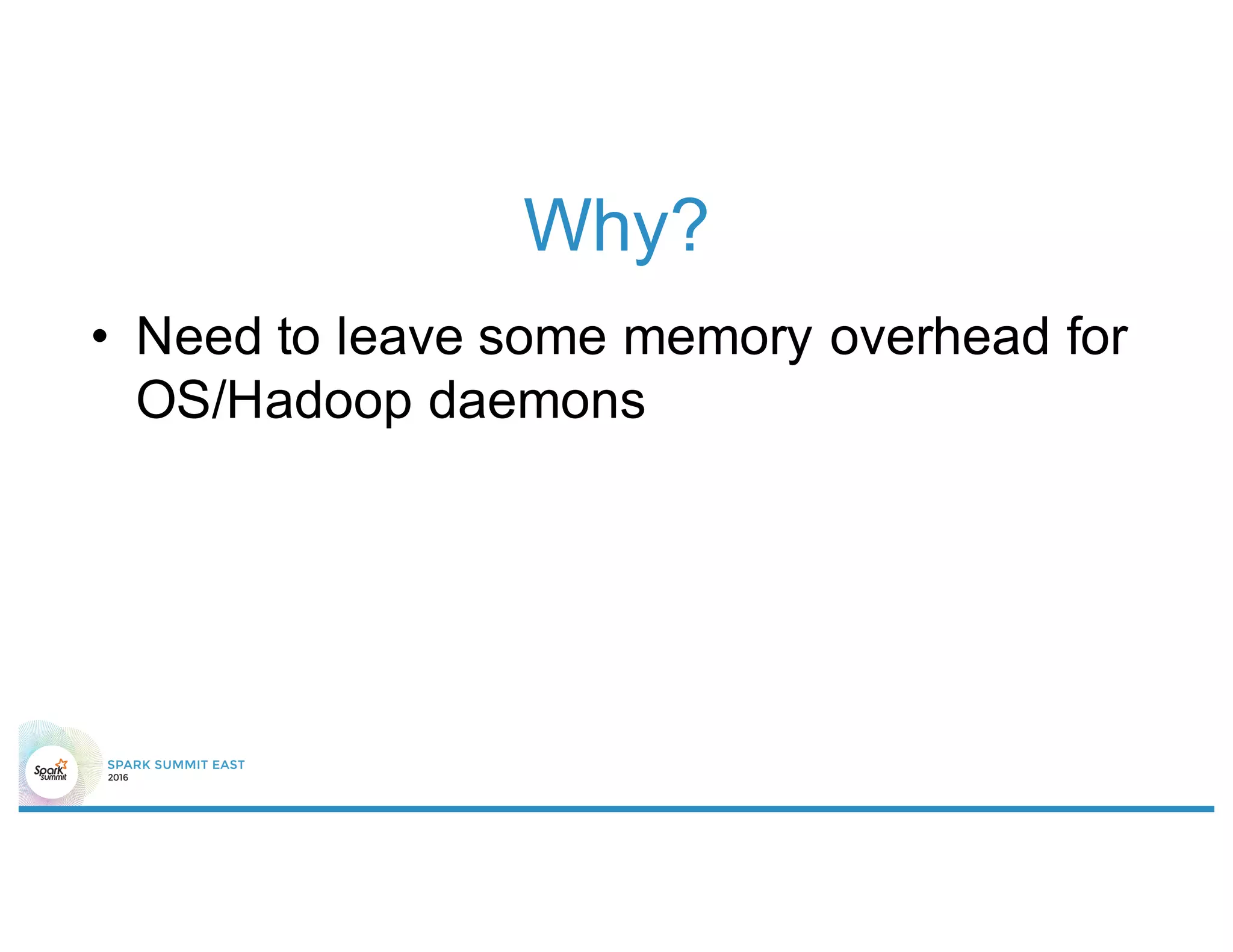

Why?
• Need to leave some memory overhead for
OS/Hadoop daemons
Answer #3 – with overhead
• 6 executors
• 63 GB memory each
• 15 cores each
Answer #3 – with overhead
• 6 executors
• 63 GB memory each
• 15 cores each

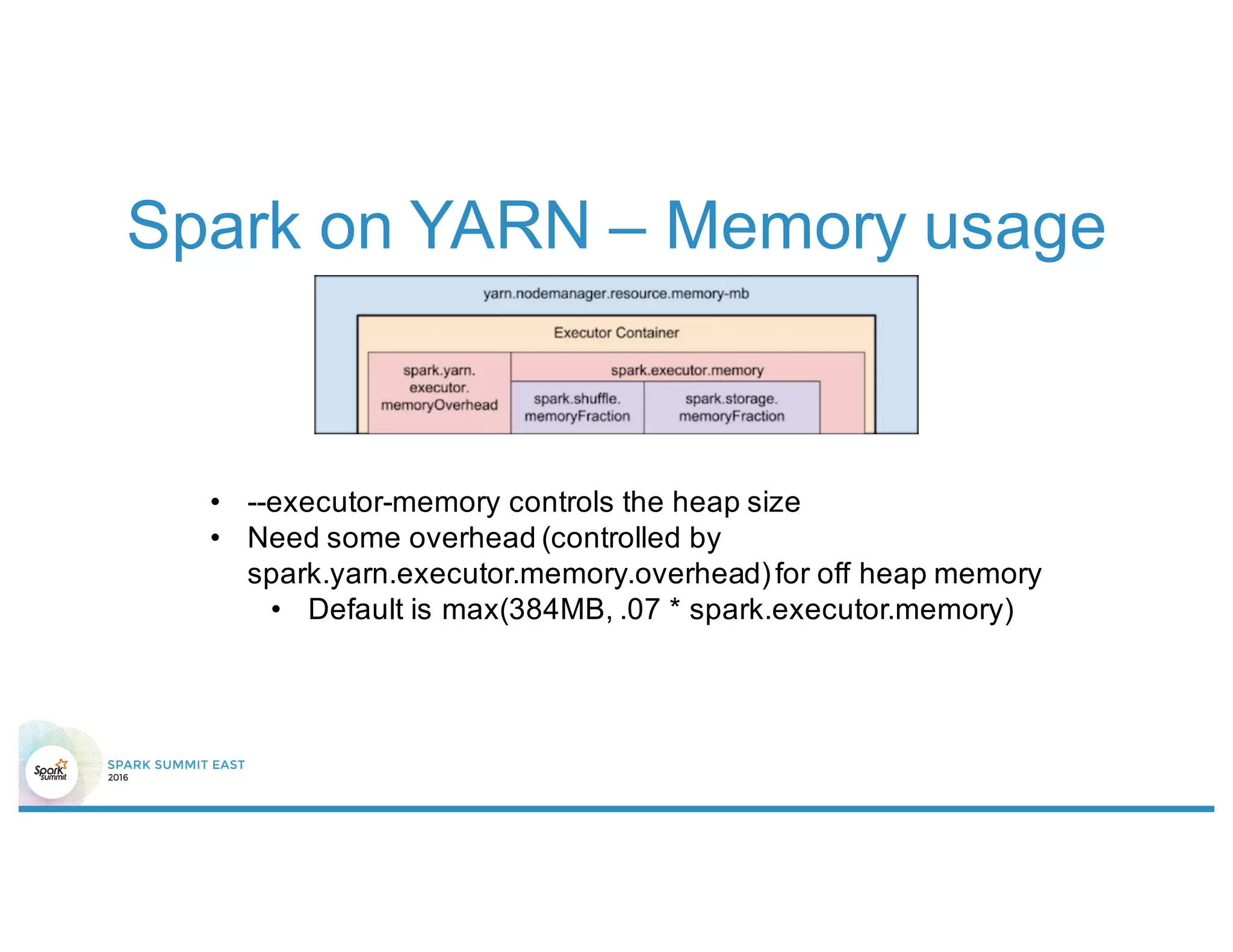

Spark on YARN – Memory usage
• --executor-memory controls the heap size
• Need some overhead (controlled by
spark.yarn.executor.memory.overhead)for off heap memory
• Default is max(384MB, .07 * spark.executor.memory)

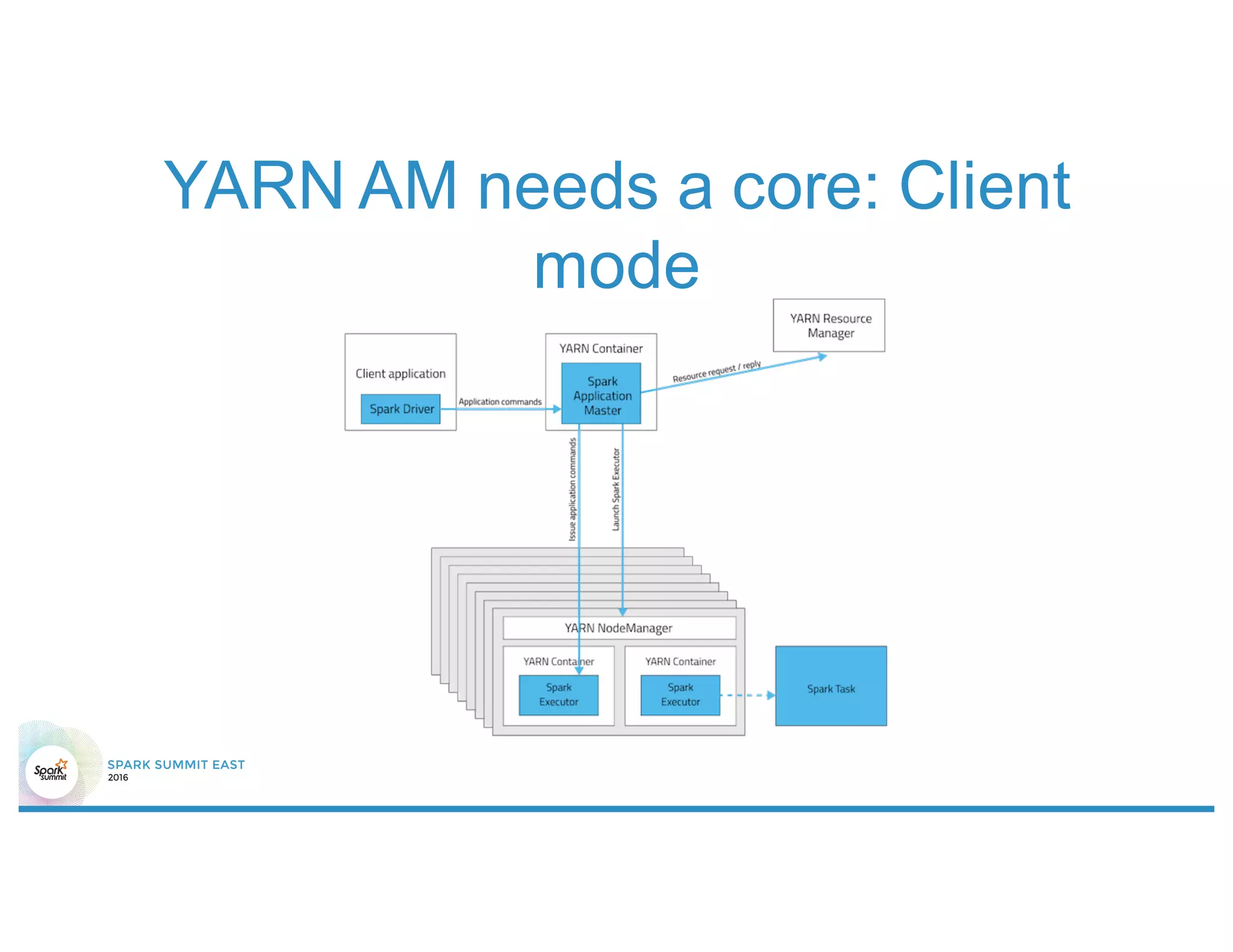

YARN AM needs a core: Client
mode

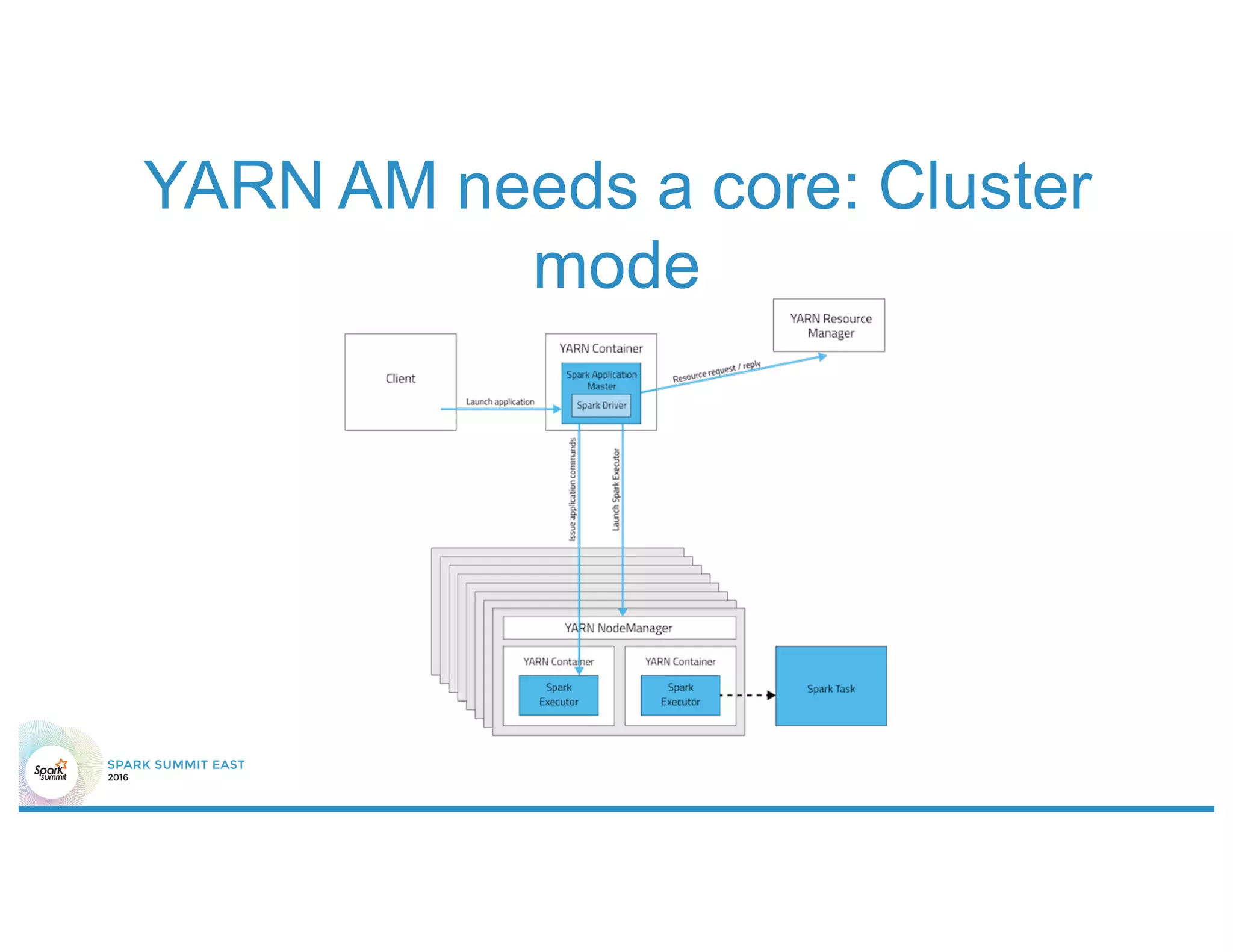

YARN AM needs a core: Cluster
mode

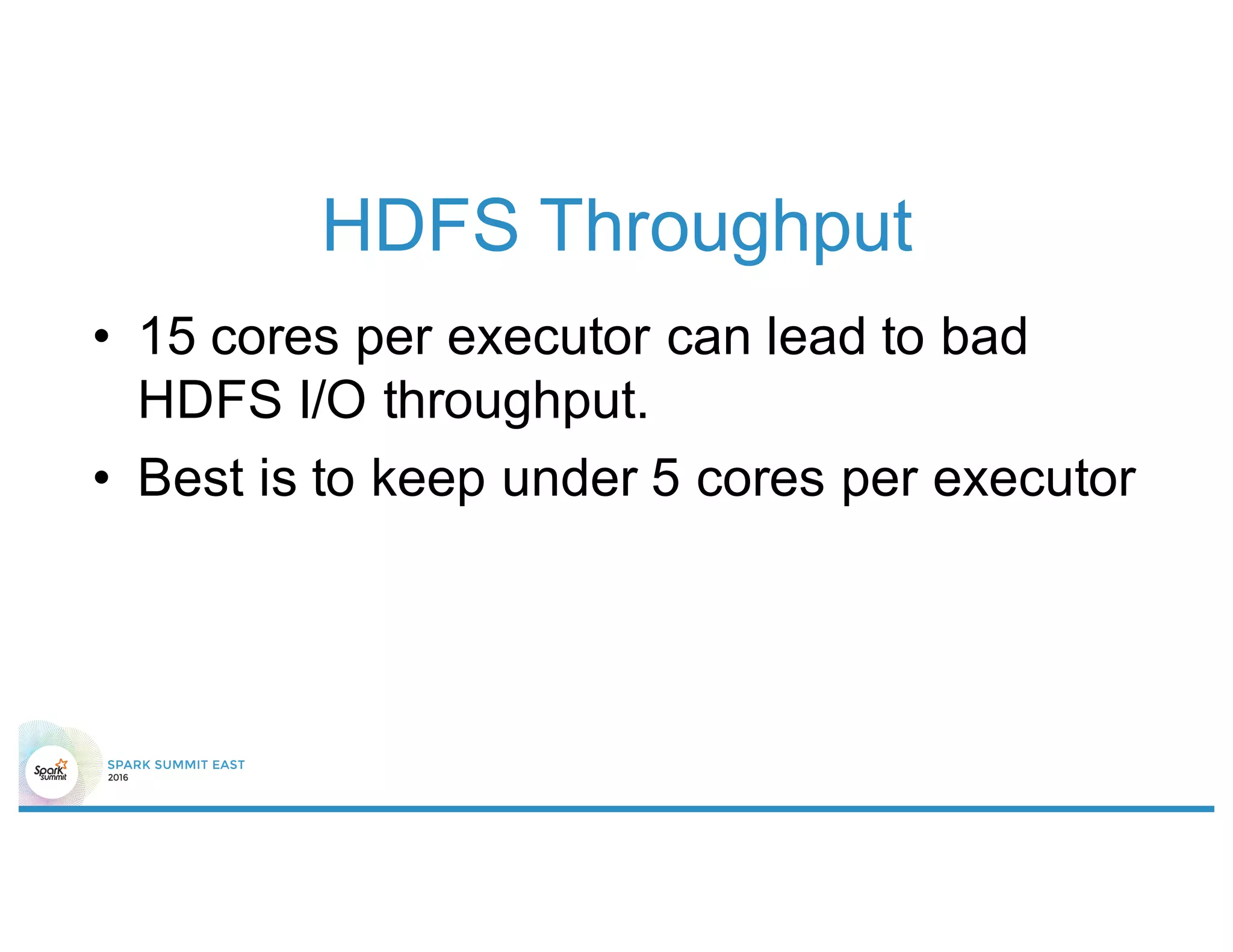

HDFS Throughput
• 15 cores per executor can lead to bad
HDFS I/O throughput.
• Best is to keep under 5 cores per executor

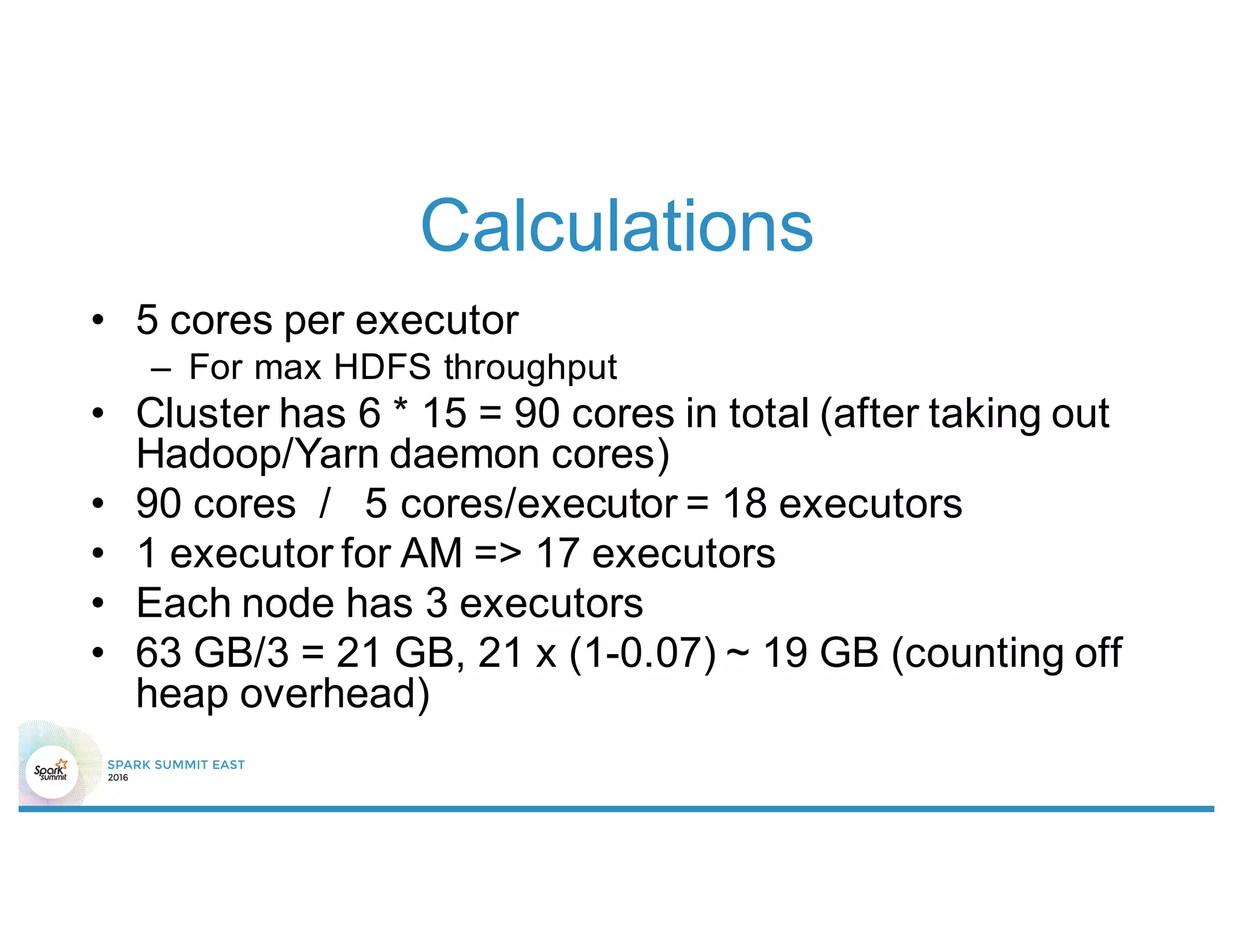

Calculations
• 5 cores per executor
– For max HDFS throughput
• Cluster has 6 * 15 = 90 cores in total (after taking out
Hadoop/Yarn daemon cores)
• 90 cores / 5 cores/executor = 18 executors
• 1 executor for AM => 17 executors
• Each node has 3 executors
• 63 GB/3 = 21 GB, 21 x (1-0.07) ~ 19 GB (counting off
heap overhead)

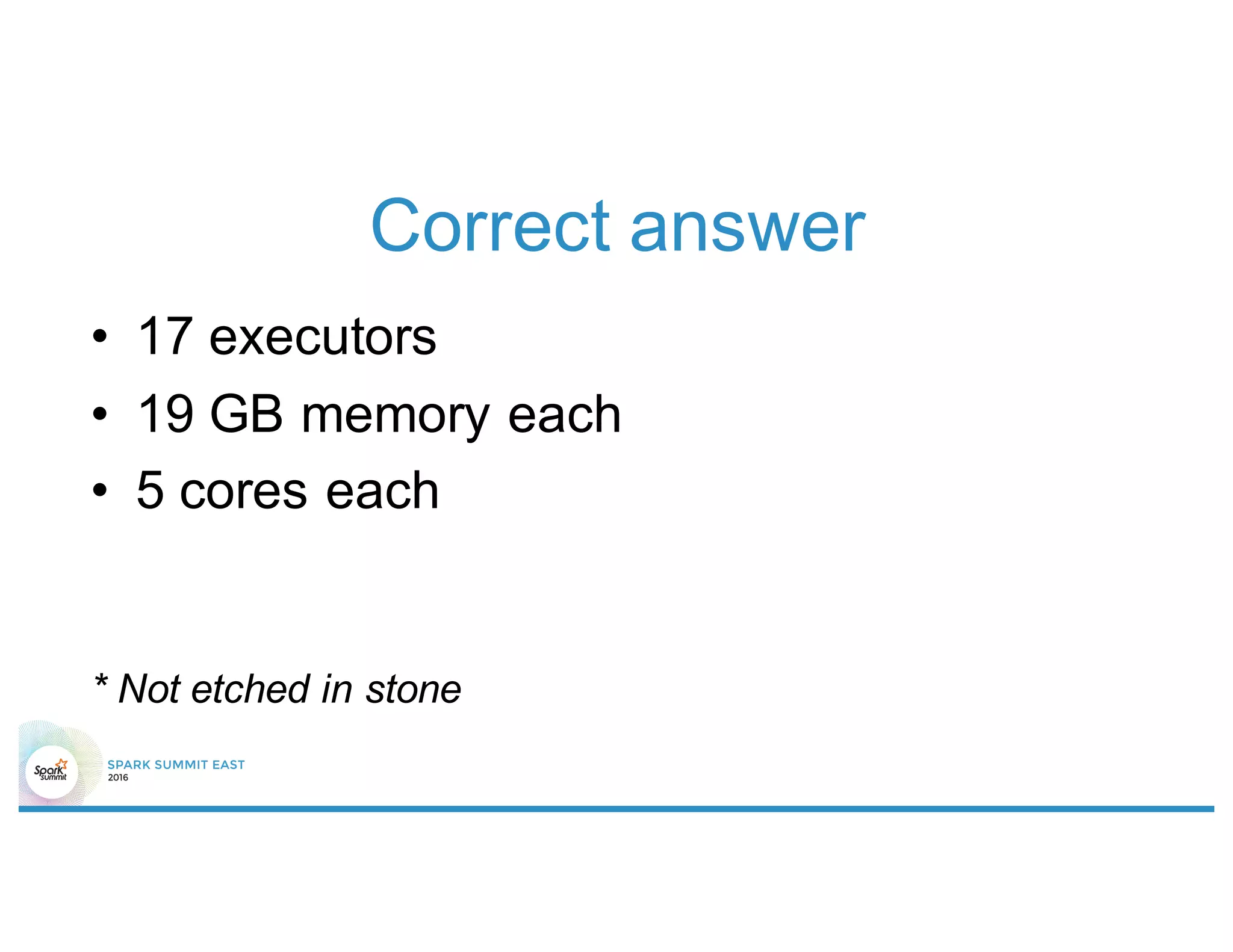

Correct answer
• 17 executors
• 19 GB memory each
• 5 cores each
* Not etched in stone

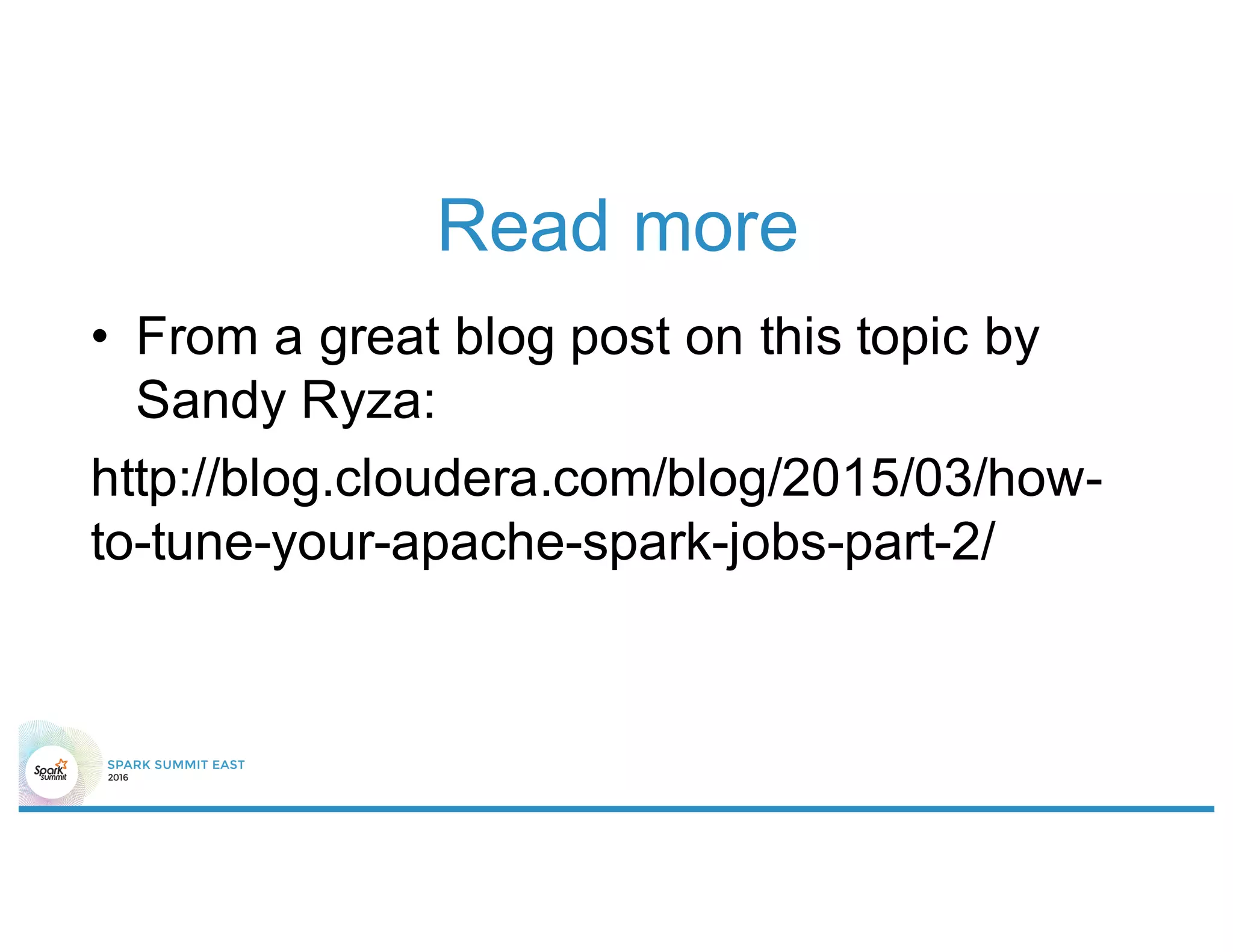

Read more
• From a great blog post on this topic by
Sandy Ryza:
http://blog.cloudera.com/blog/2015/03/how-
to-tune-your-apache-spark-jobs-part-2/
Mistake # 2

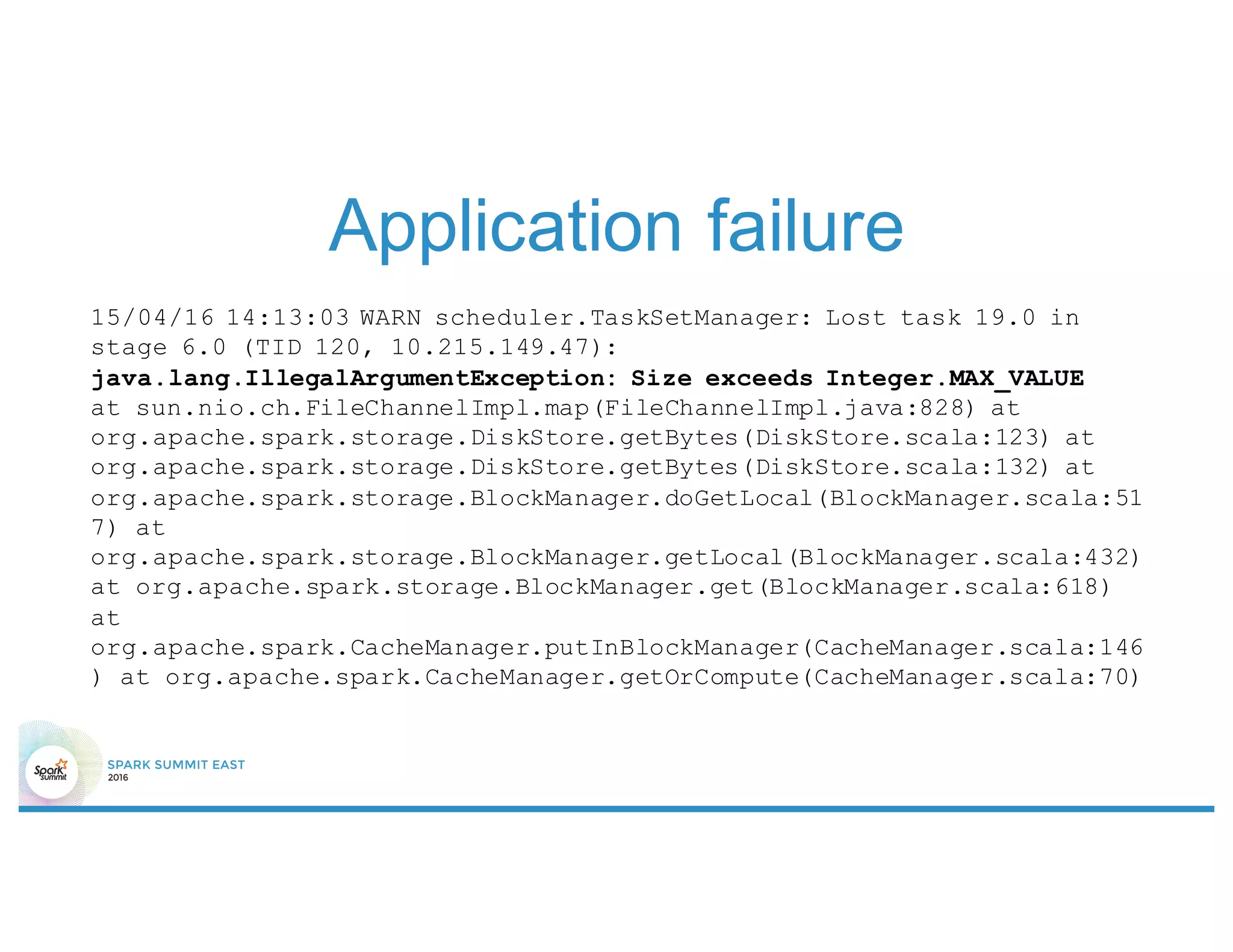

Application failure
15/04/16 14:13:03 WARN scheduler.TaskSetManager: Lost task 19.0 in
stage 6.0 (TID 120, 10.215.149.47):
java.lang.IllegalArgumentException: Size exceeds Integer.MAX_VALUE
at sun.nio.ch.FileChannelImpl.map(FileChannelImpl.java:828) at
org.apache.spark.storage.DiskStore.getBytes(DiskStore.scala:123) at
org.apache.spark.storage.DiskStore.getBytes(DiskStore.scala:132) at
org.apache.spark.storage.BlockManager.doGetLocal(BlockManager.scala:51
7) at
org.apache.spark.storage.BlockManager.getLocal(BlockManager.scala:432)
at org.apache.spark.storage.BlockManager.get(BlockManager.scala:618)
at
org.apache.spark.CacheManager.putInBlockManager(CacheManager.scala:146
) at org.apache.spark.CacheManager.getOrCompute(CacheManager.scala:70)

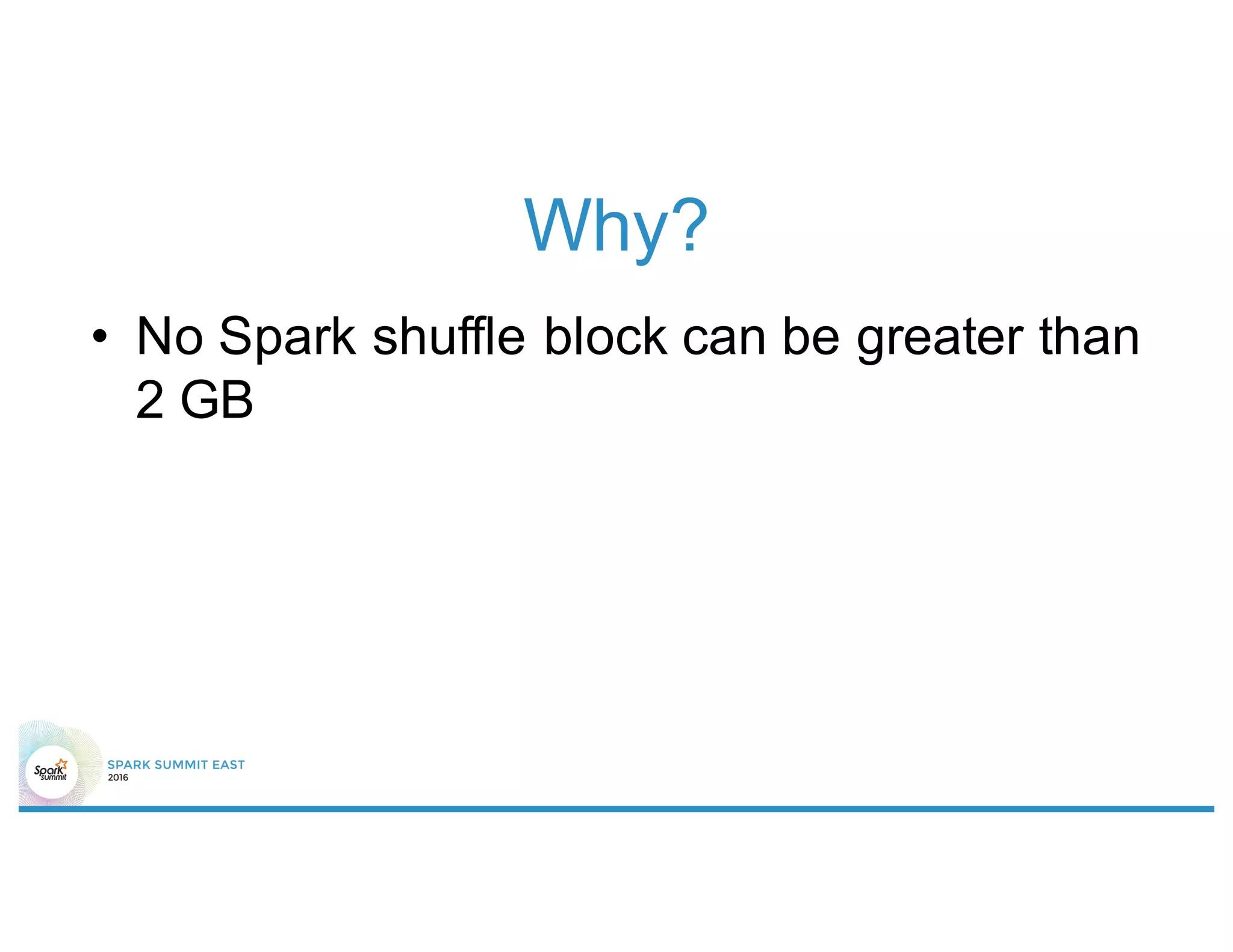

Why?
• No Spark shuffle block can be greater than
2 GB

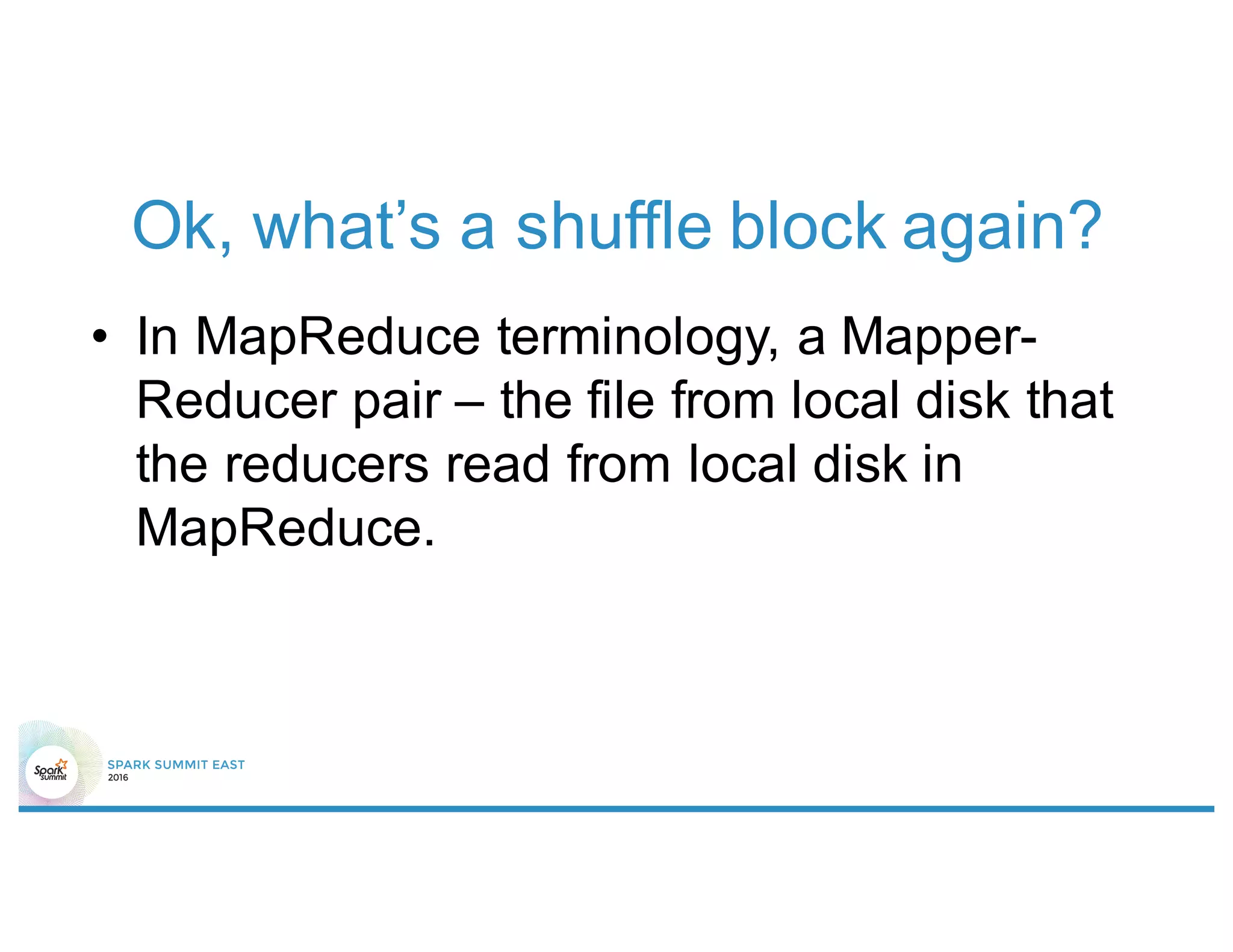

Ok, what’s a shuffle block again?
• In MapReduce terminology, a Mapper-
Reducer pair – the file from local disk that
the reducers read from local disk in
MapReduce.

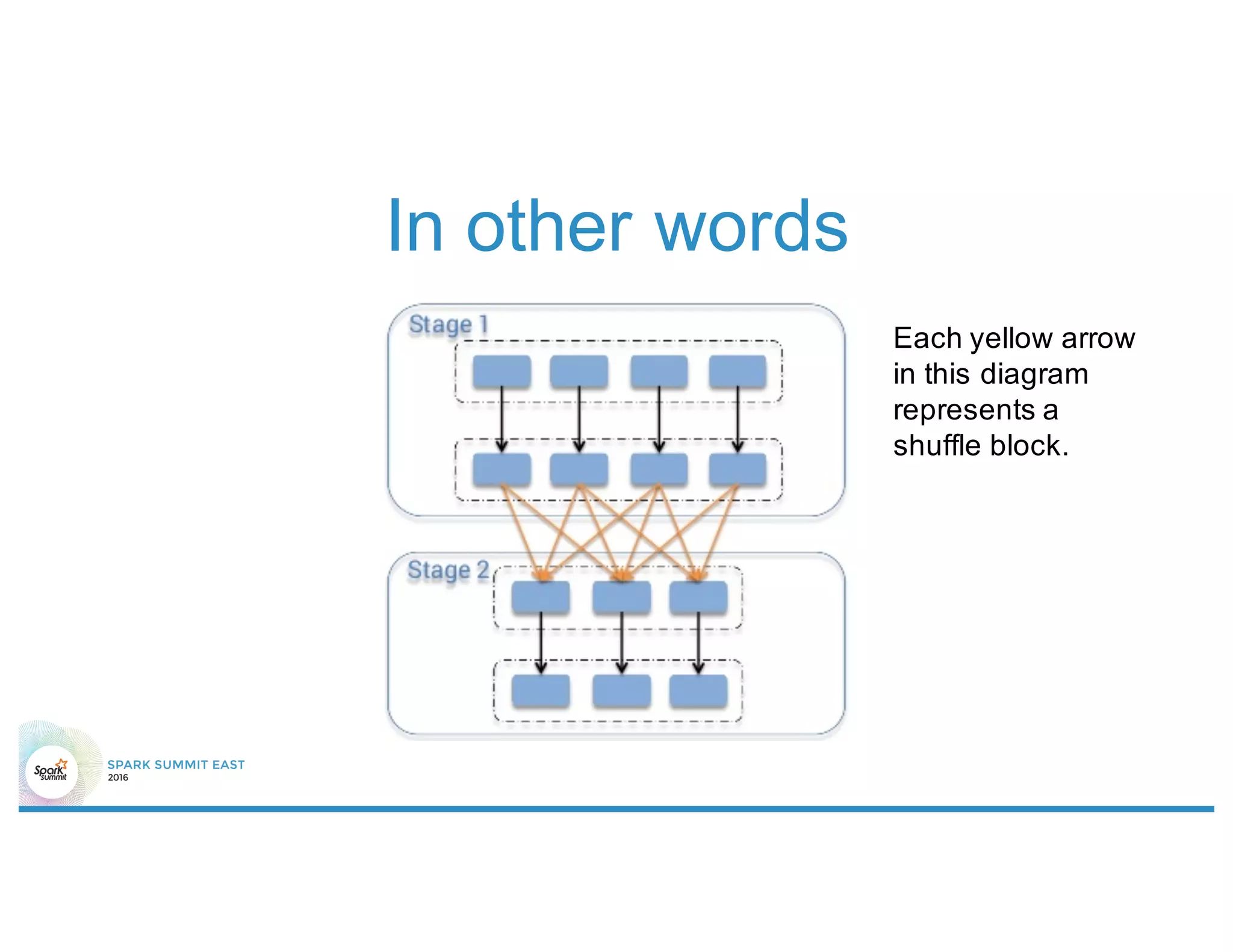

In other words
Each yellow arrow
in this diagram
represents a
shuffle block.

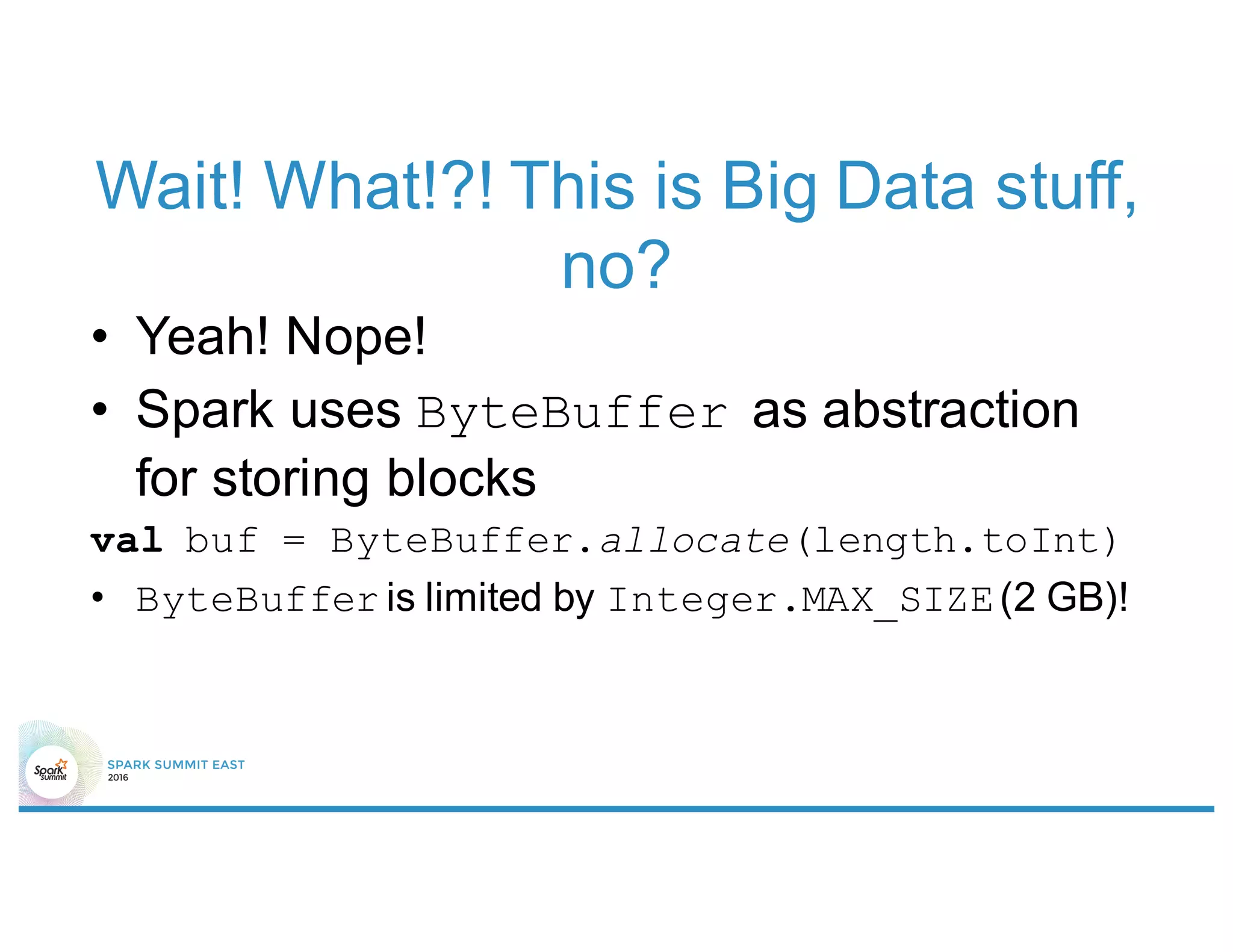

Wait! What!?! This is Big Data stuff,
no?
• Yeah! Nope!
• Spark uses ByteBuffer as abstraction
for storing blocks
val buf = ByteBuffer.allocate(length.toInt)
• ByteBuffer is limited by Integer.MAX_SIZE(2 GB)!

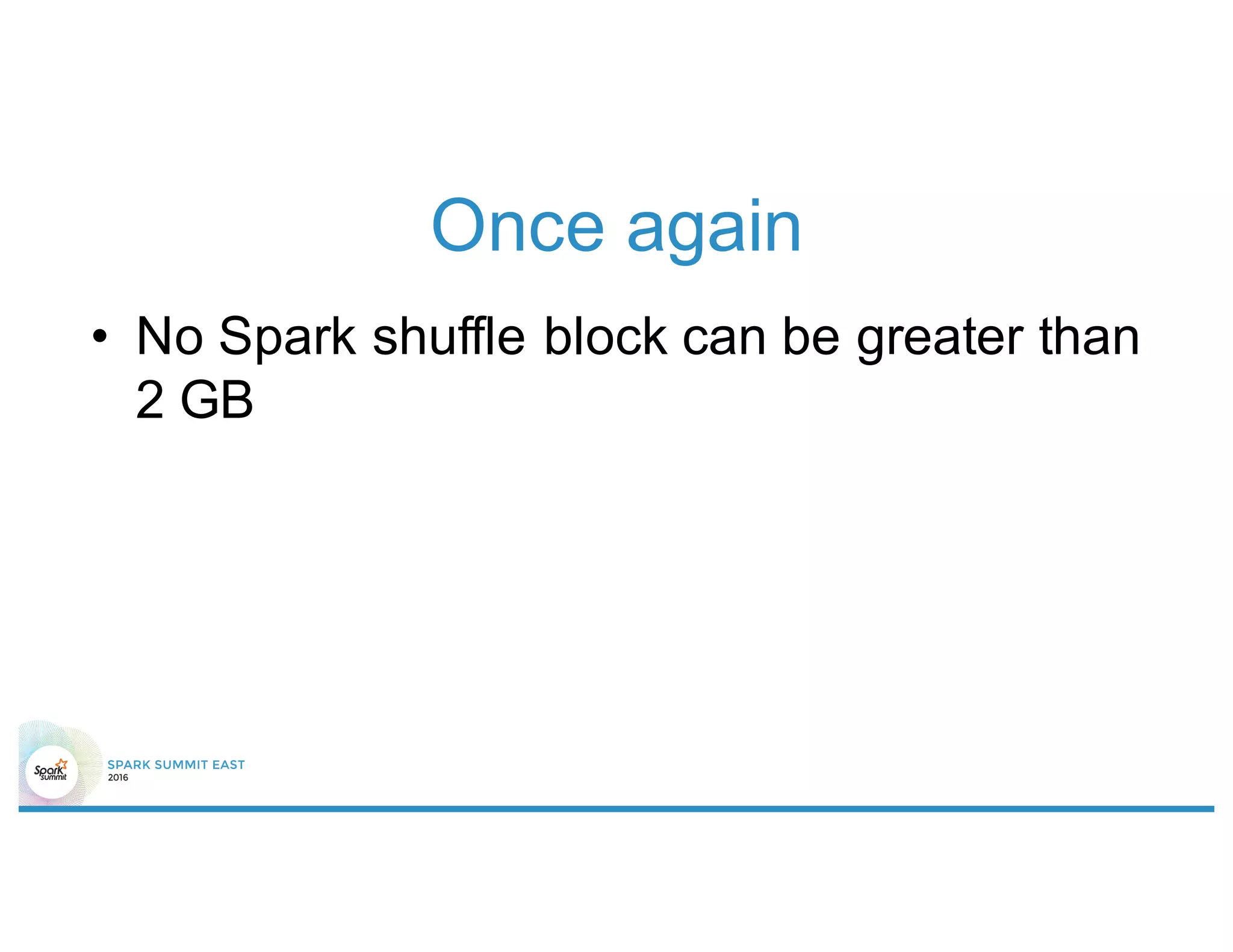

Once again
• No Spark shuffle block can be greater than
2 GB
Spark SQL
• Especially problematic for Spark SQL
• Default number of partitions to use when
doing shuffles is 200
– This low number of partitions leads to high
shuffle block size

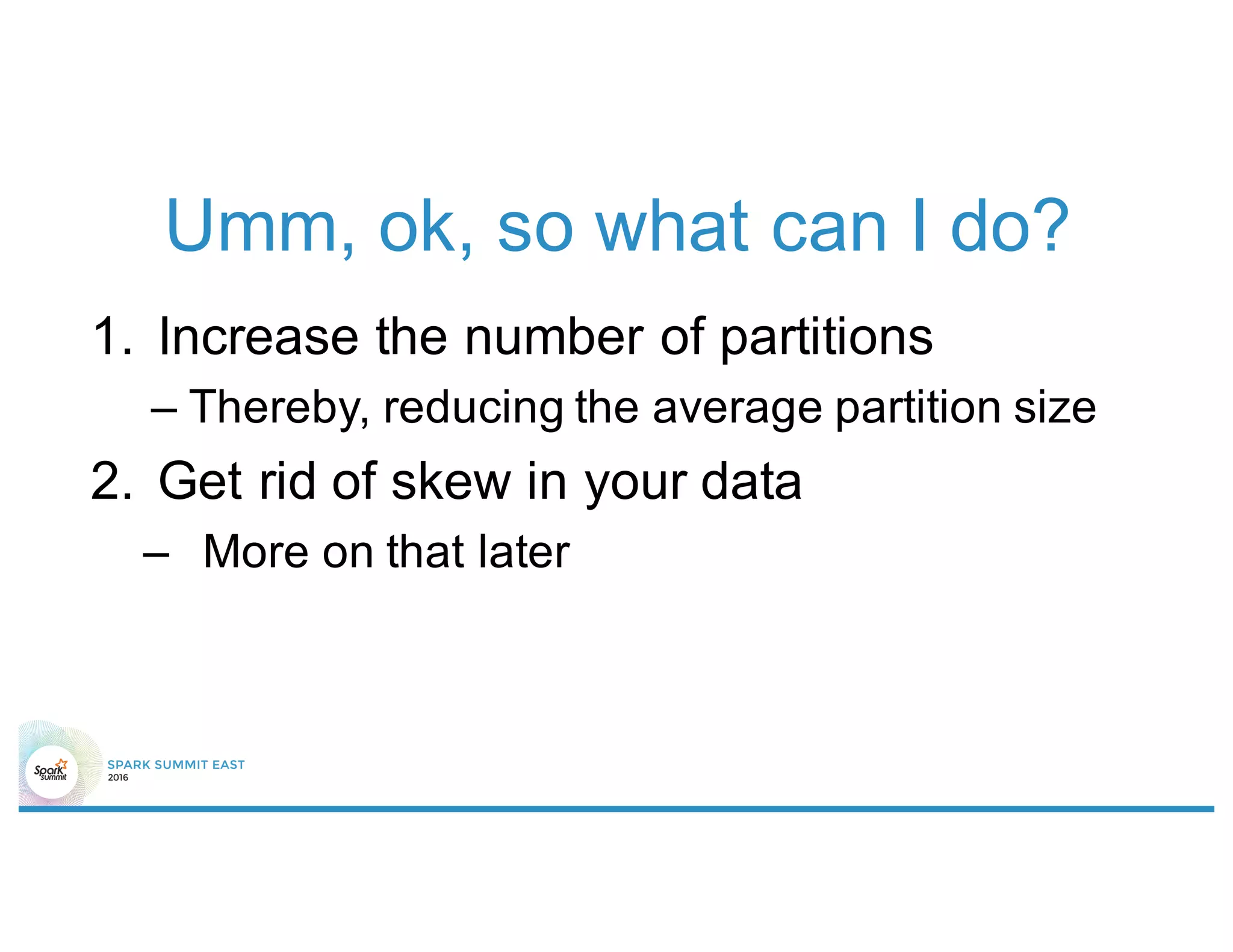

Umm, ok, so what can I do?
1. Increase the number of partitions
– Thereby, reducing the average partition size
2. Get rid of skew in your data
– More on that later

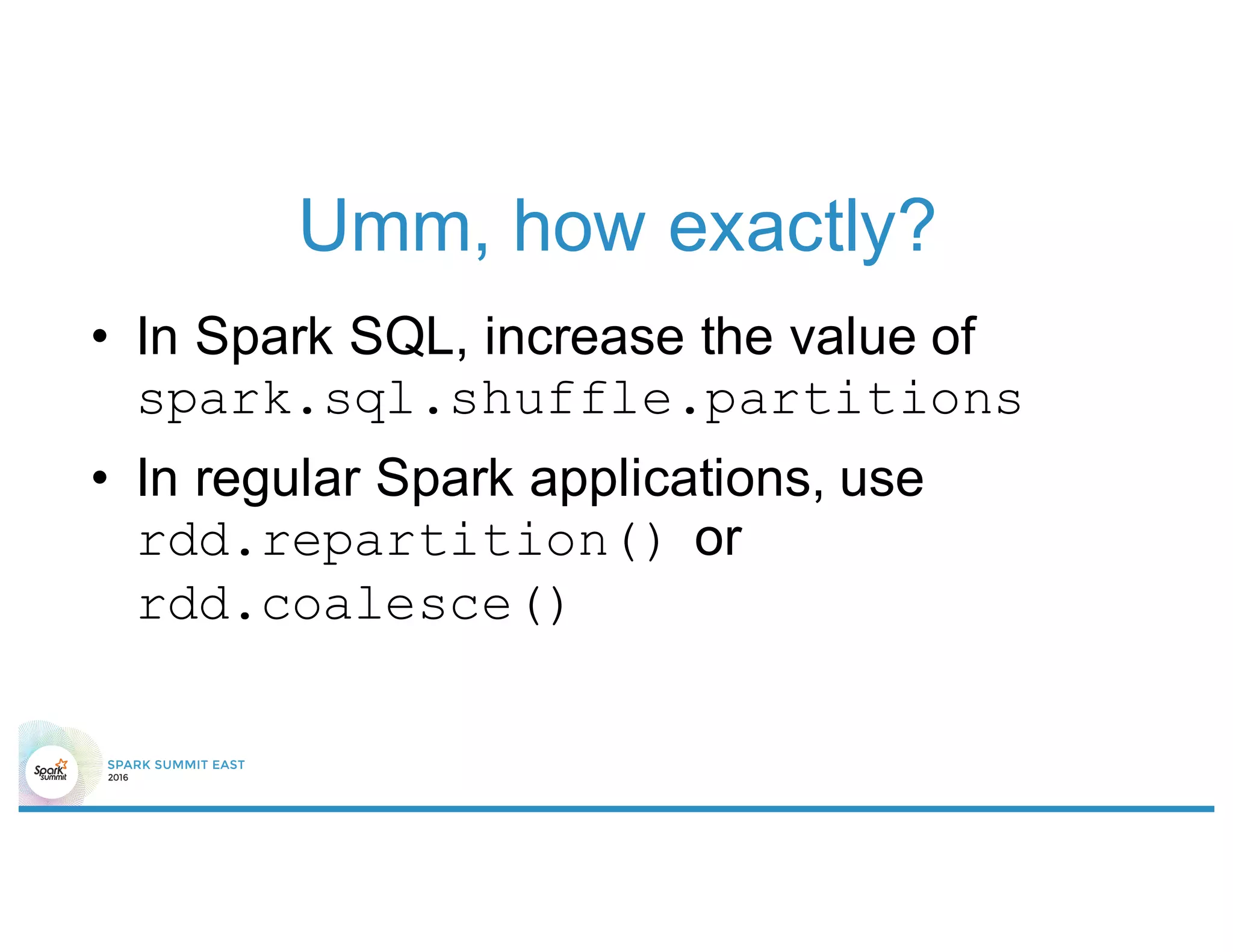

Umm, how exactly?
• In Spark SQL, increase the value of
spark.sql.shuffle.partitions
• In regular Spark applications, use
rdd.repartition() or
rdd.coalesce()

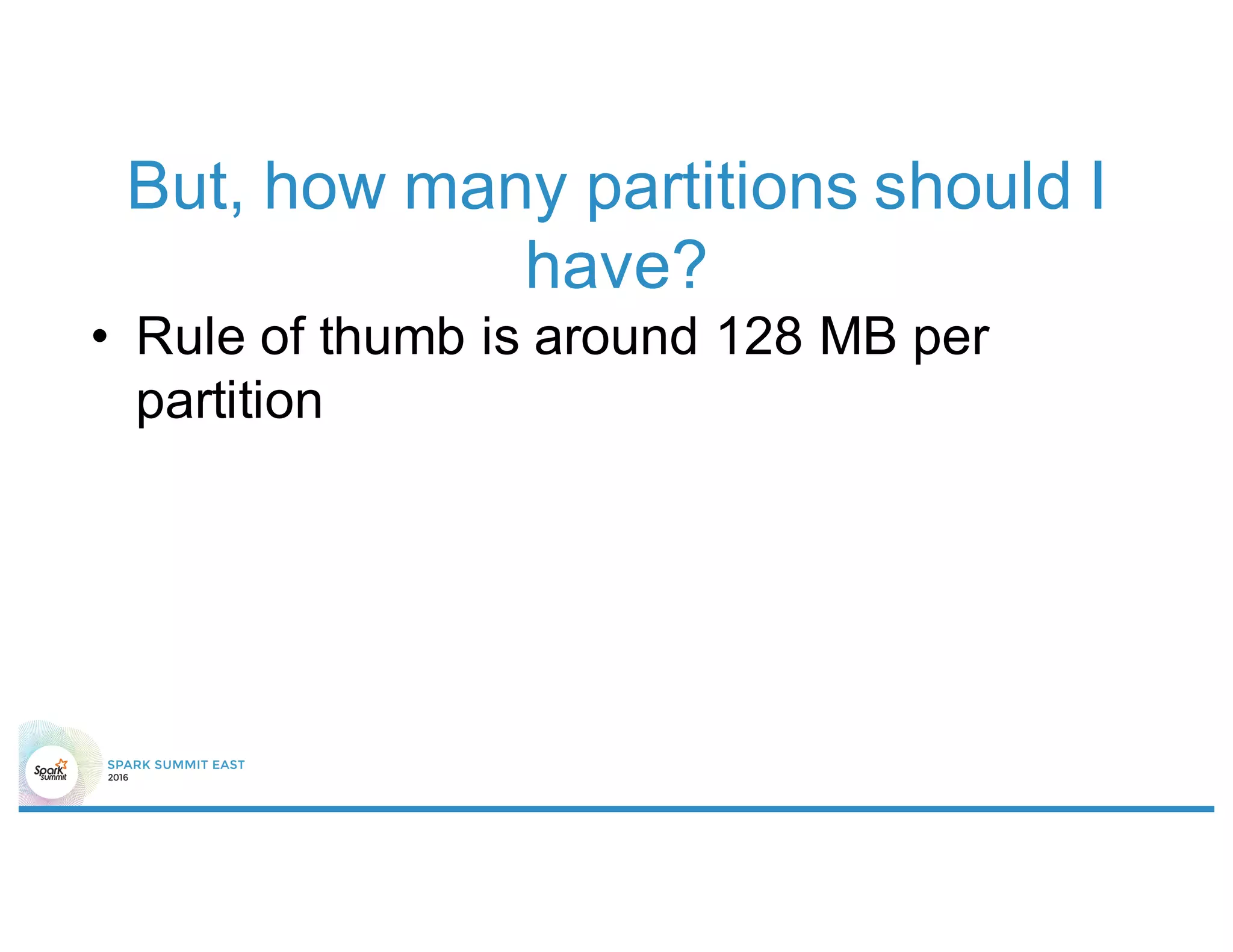

But, how many partitions should I
have?
• Rule of thumb is around 128 MB per
partition

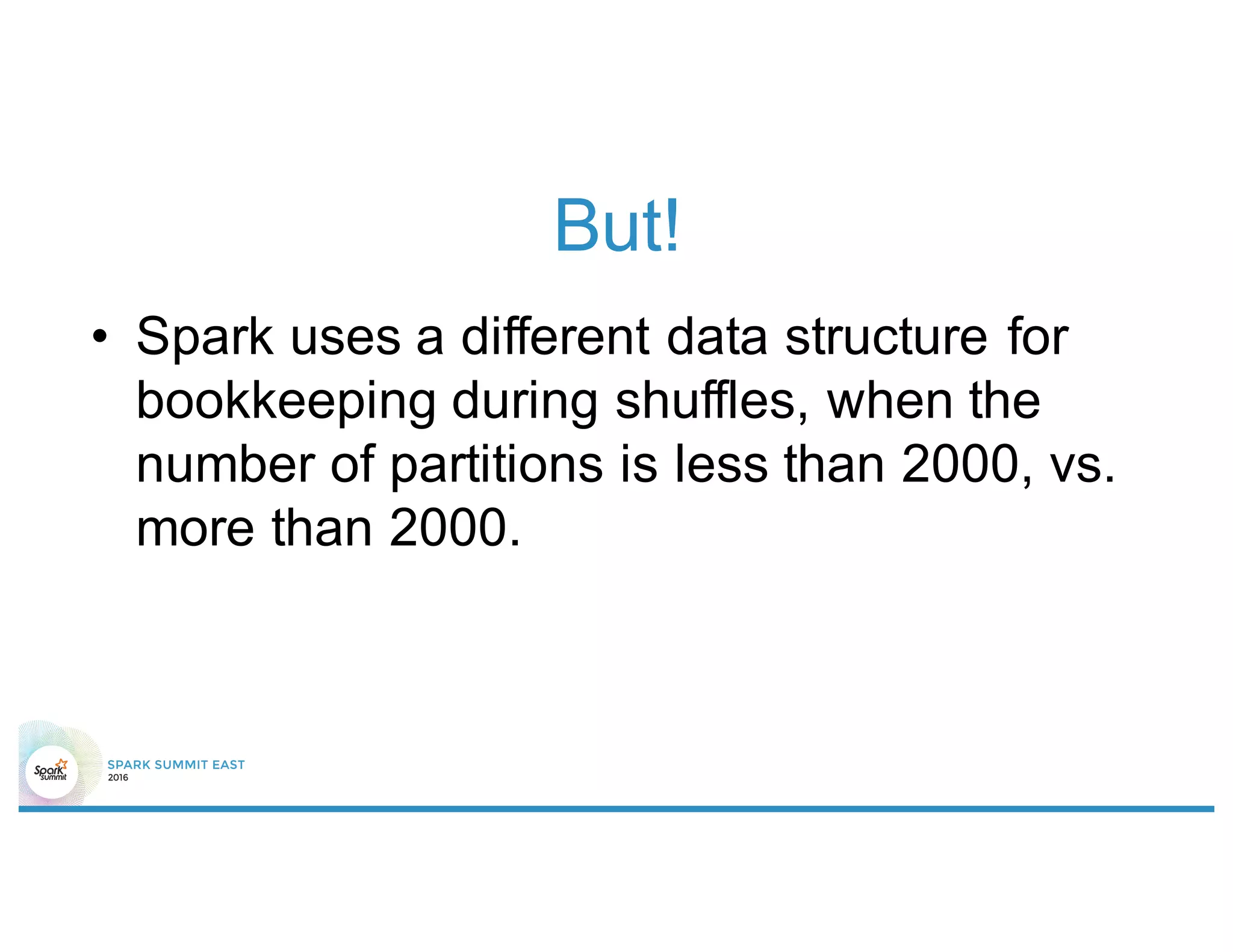

But!
• Spark uses a different data structure for
bookkeeping during shuffles, when the
number of partitions is less than 2000, vs.
more than 2000.

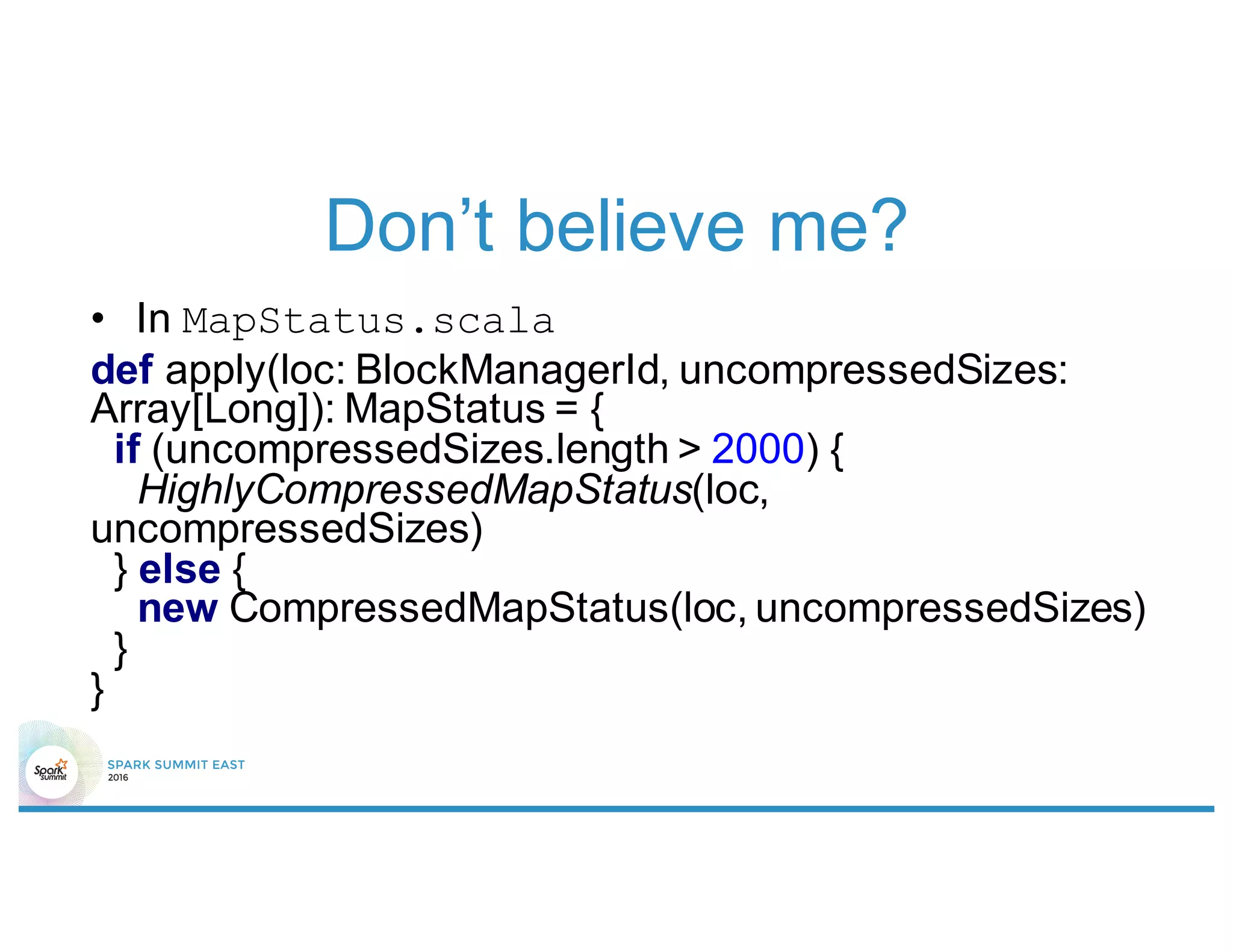

Don’t believe me?
• In MapStatus.scala
def apply(loc: BlockManagerId, uncompressedSizes:
Array[Long]): MapStatus = {
if (uncompressedSizes.length > 2000) {
HighlyCompressedMapStatus(loc,
uncompressedSizes)
} else {
new CompressedMapStatus(loc, uncompressedSizes)
}
}

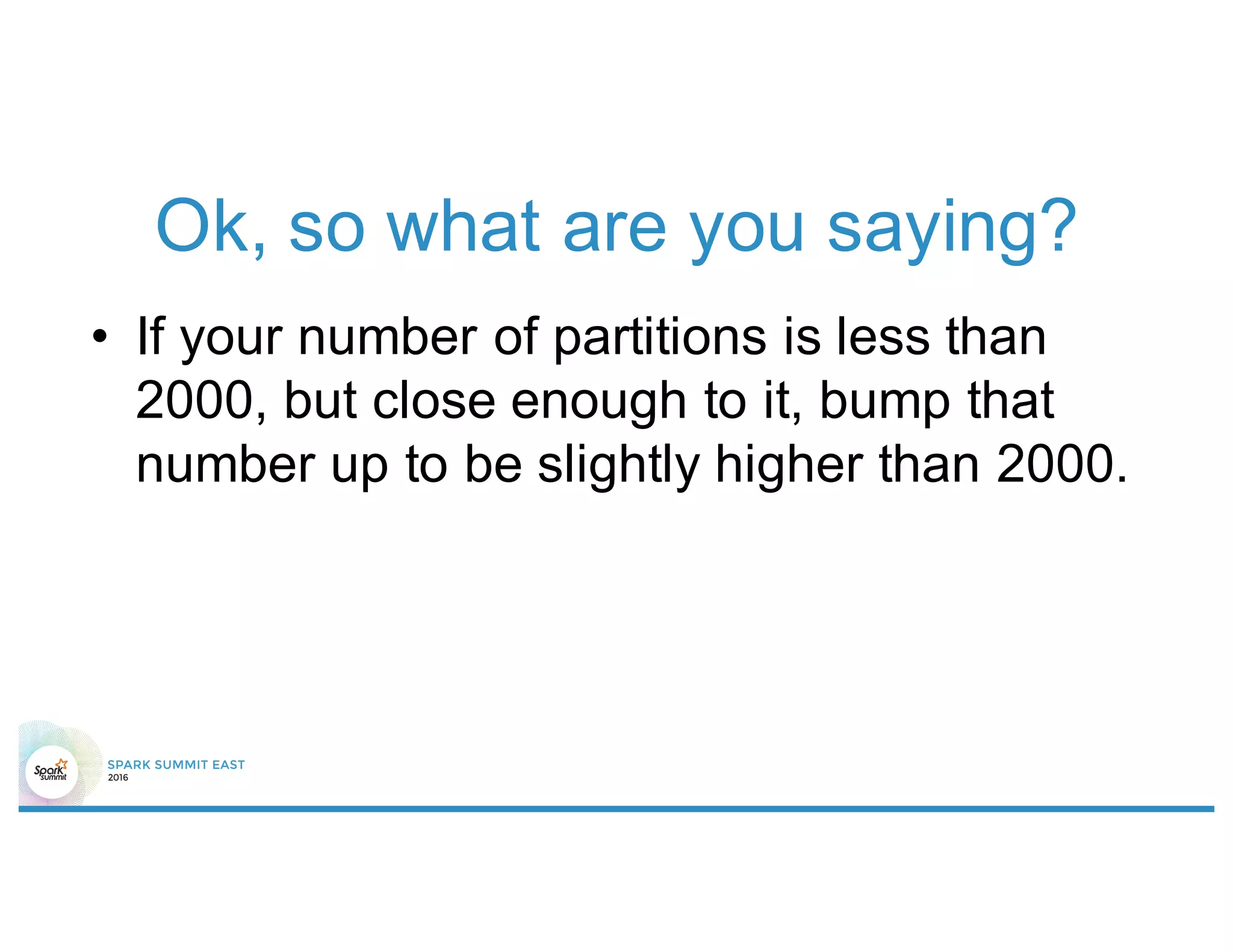

Ok, so what are you saying?
• If your number of partitions is less than
2000, but close enough to it, bump that
number up to be slightly higher than 2000.

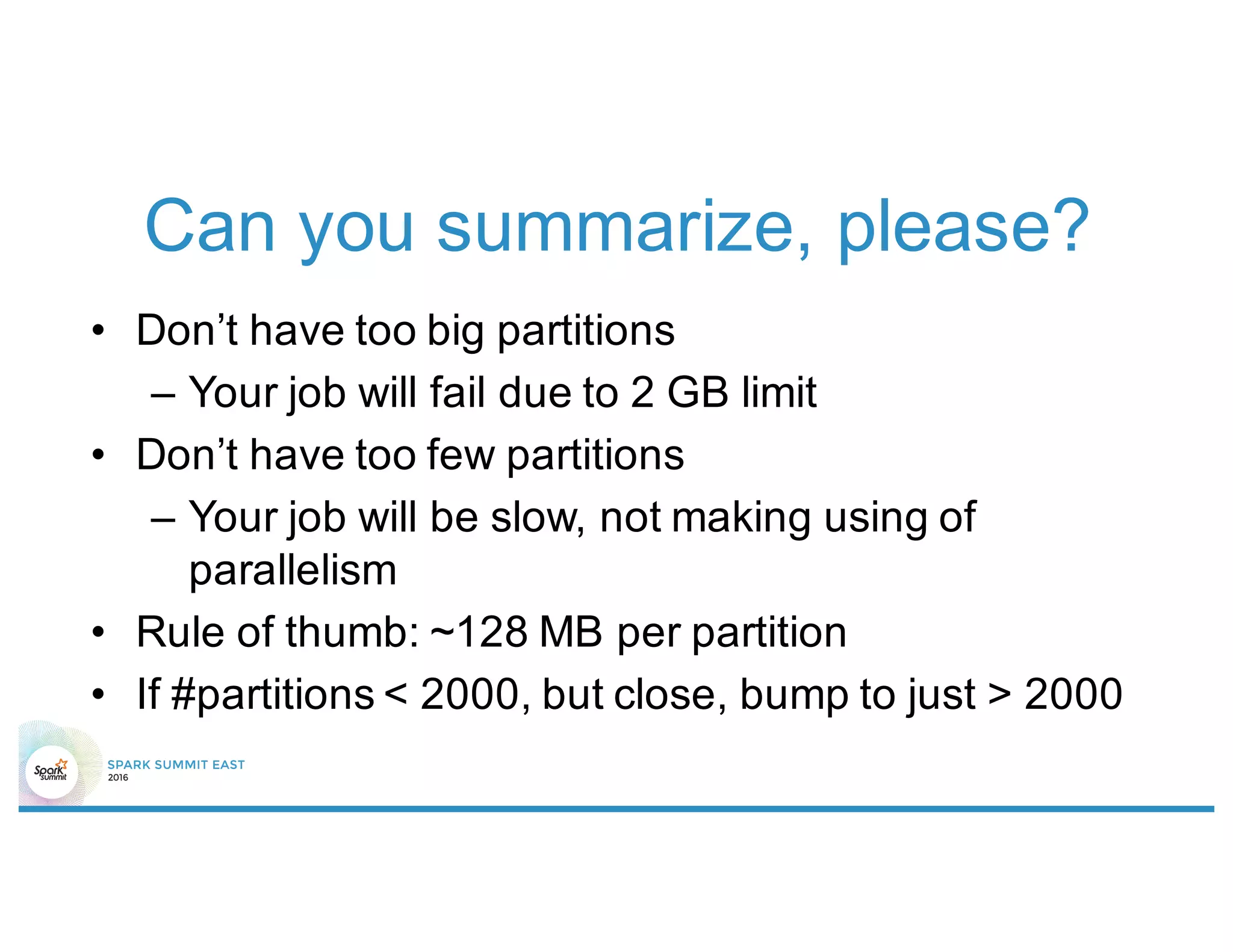

Can you summarize, please?
• Don’t have too big partitions
– Your job will fail due to 2 GB limit
• Don’t have too few partitions
– Your job will be slow, not making using of
parallelism
• Rule of thumb: ~128 MB per partition
• If #partitions < 2000, but close, bump to just > 2000
Mistake # 3

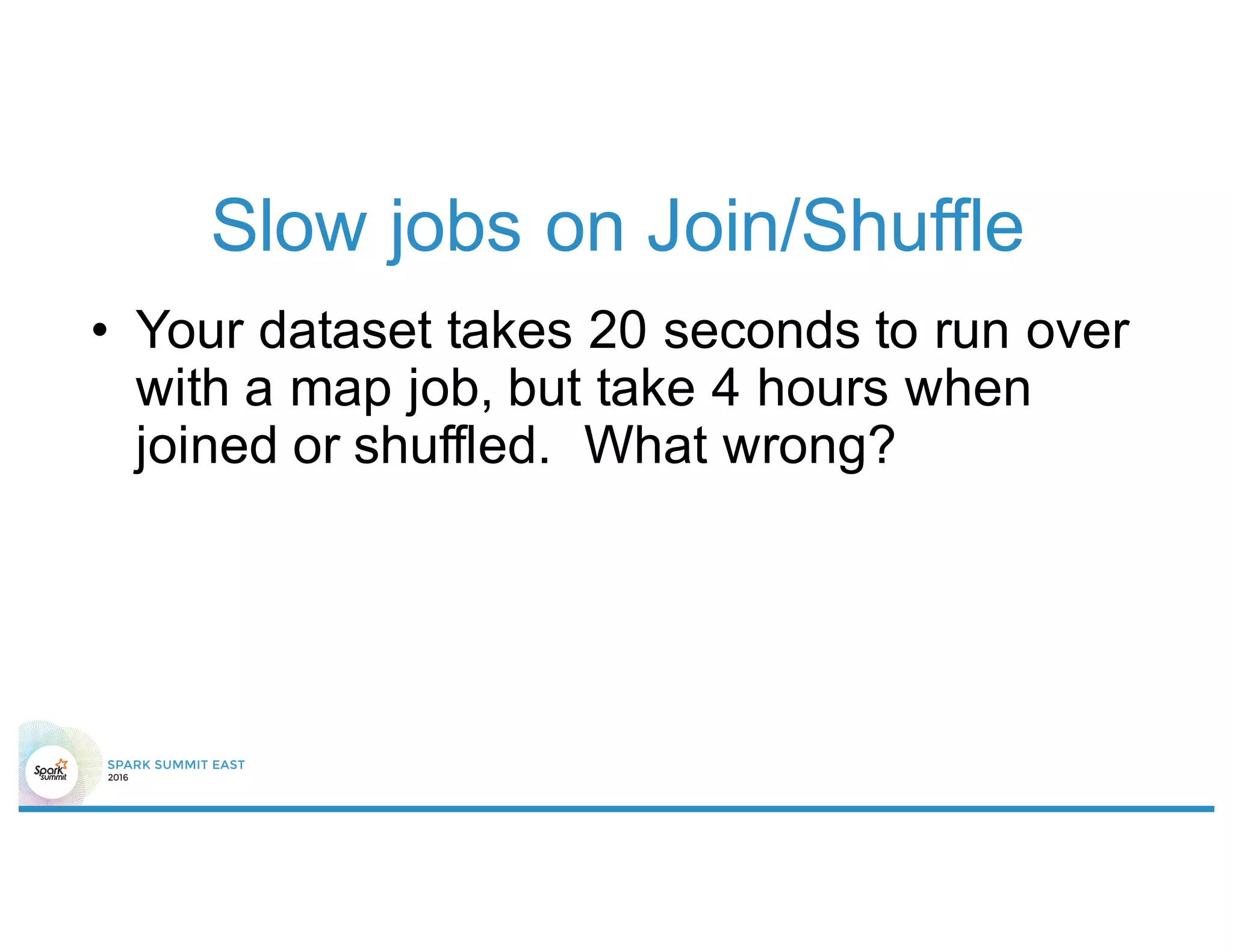

Slow jobs on Join/Shuffle
• Your dataset takes 20 seconds to run over
with a map job, but take 4 hours when
joined or shuffled. What wrong?

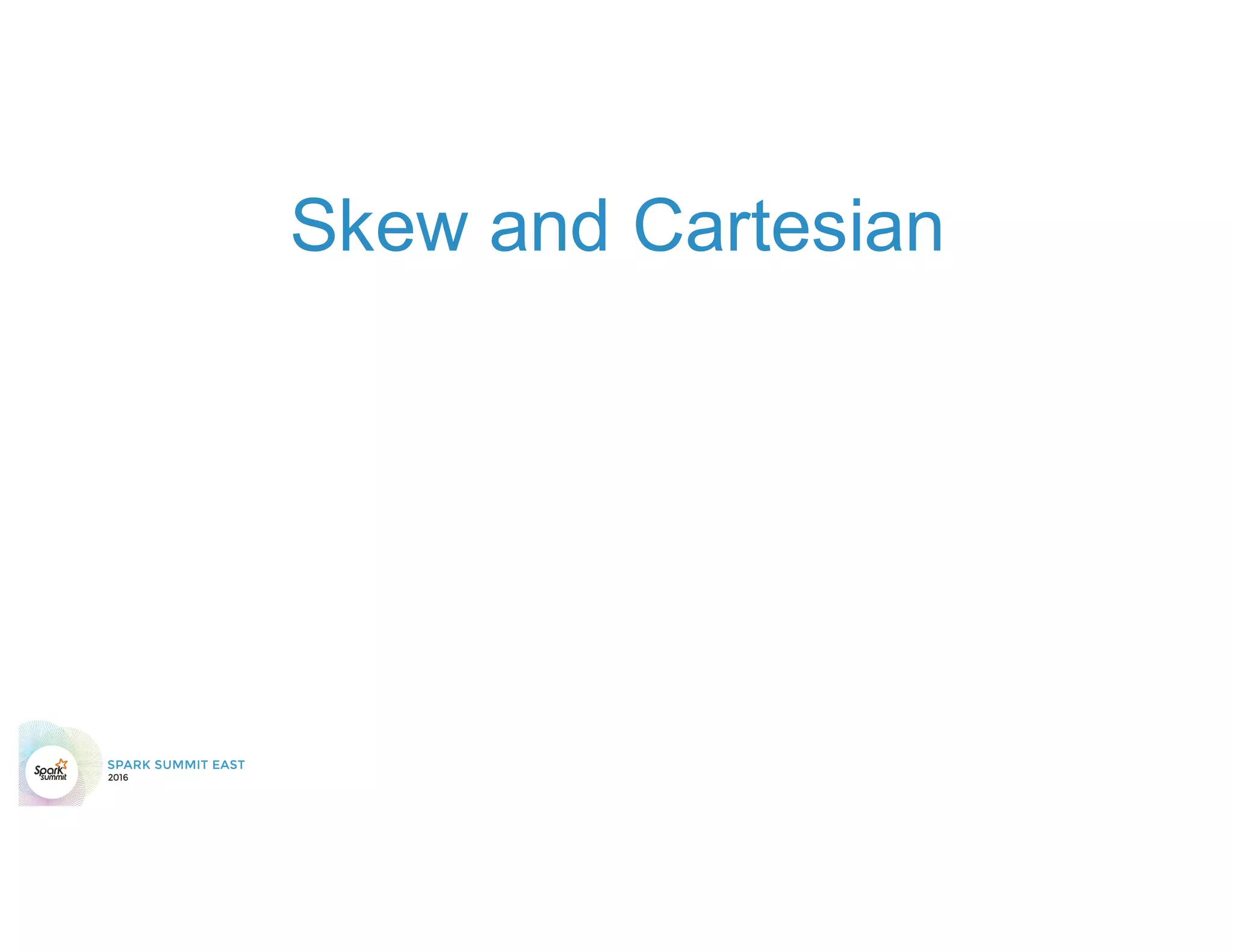

Skew and Cartesian

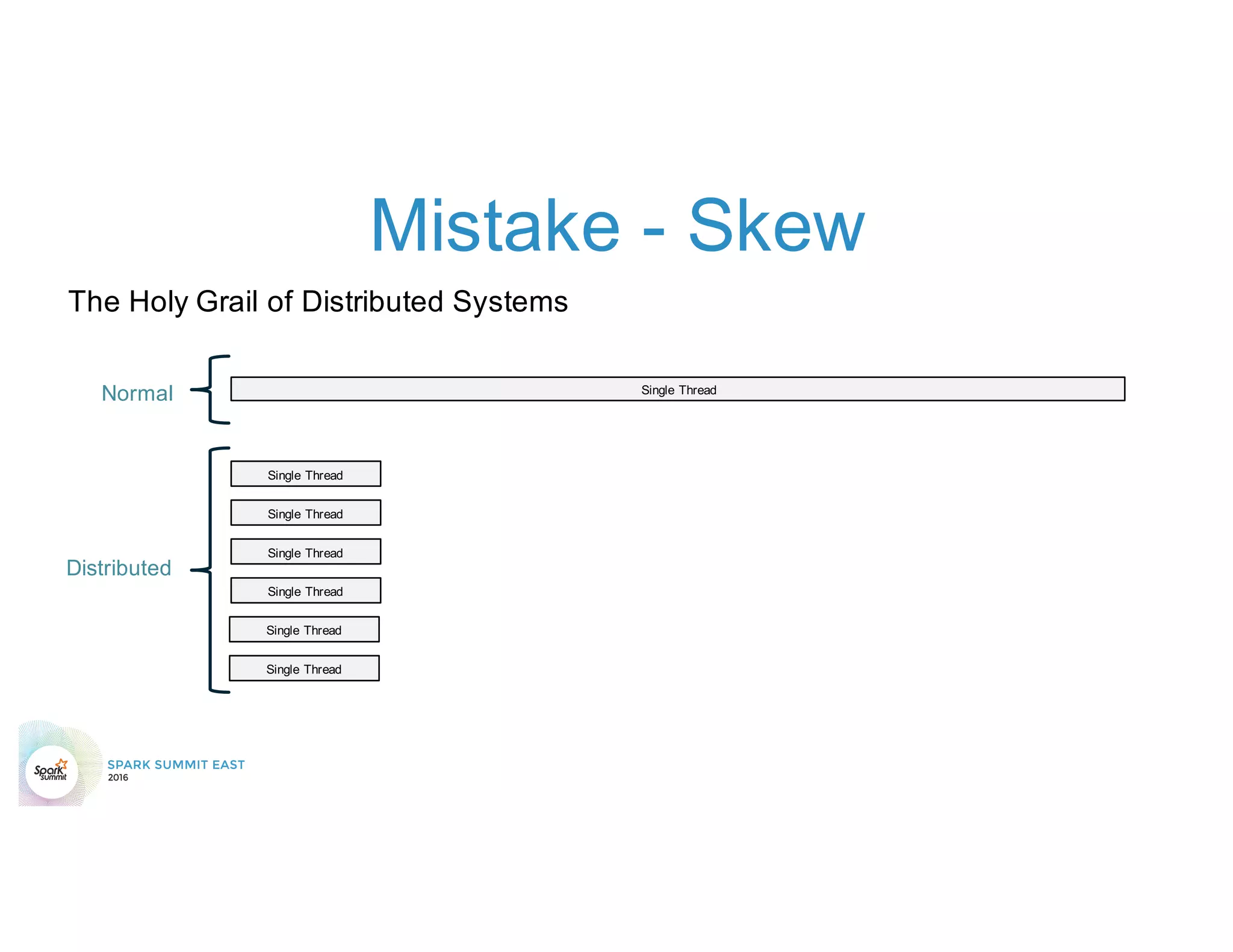

Mistake - Skew
Single Thread
Single Thread
Single Thread
Single Thread
Single Thread
Single Thread
Single Thread
Normal
Distributed
The Holy Grail of Distributed Systems

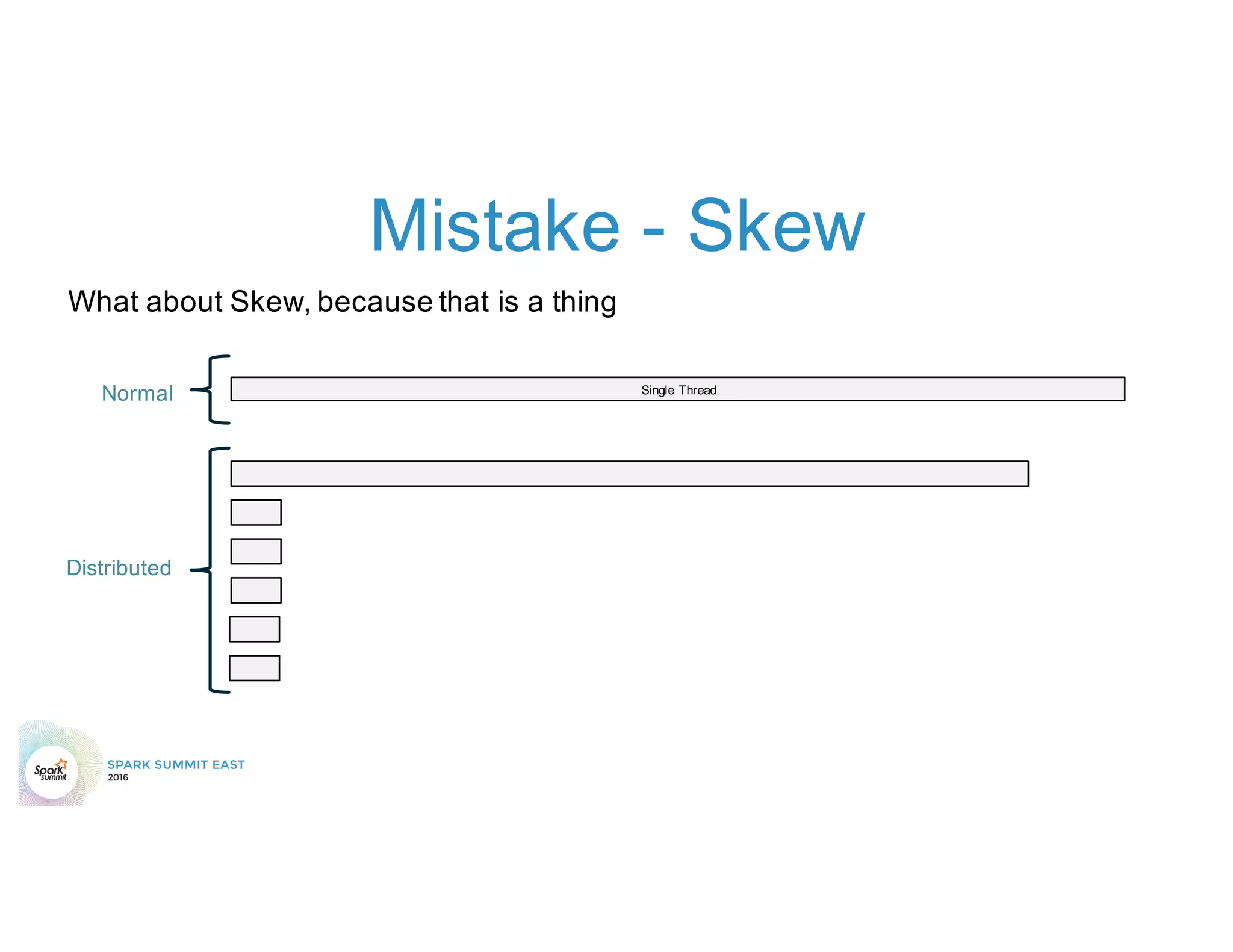

Mistake - Skew
Single Thread
Normal
Distributed
What about Skew, because that is a thing

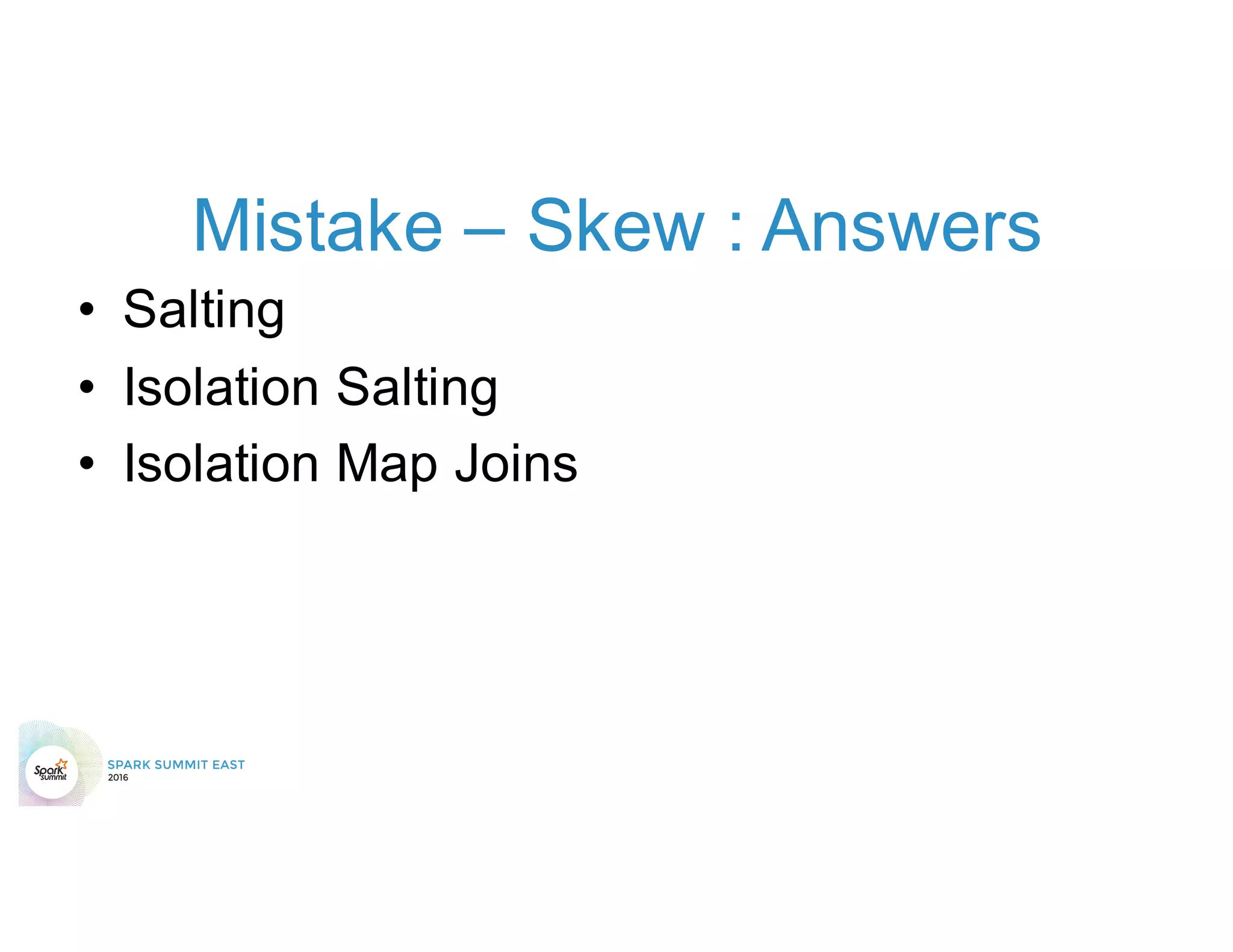

Mistake – Skew : Answers
• Salting
• Isolation Salting
• Isolation Map Joins

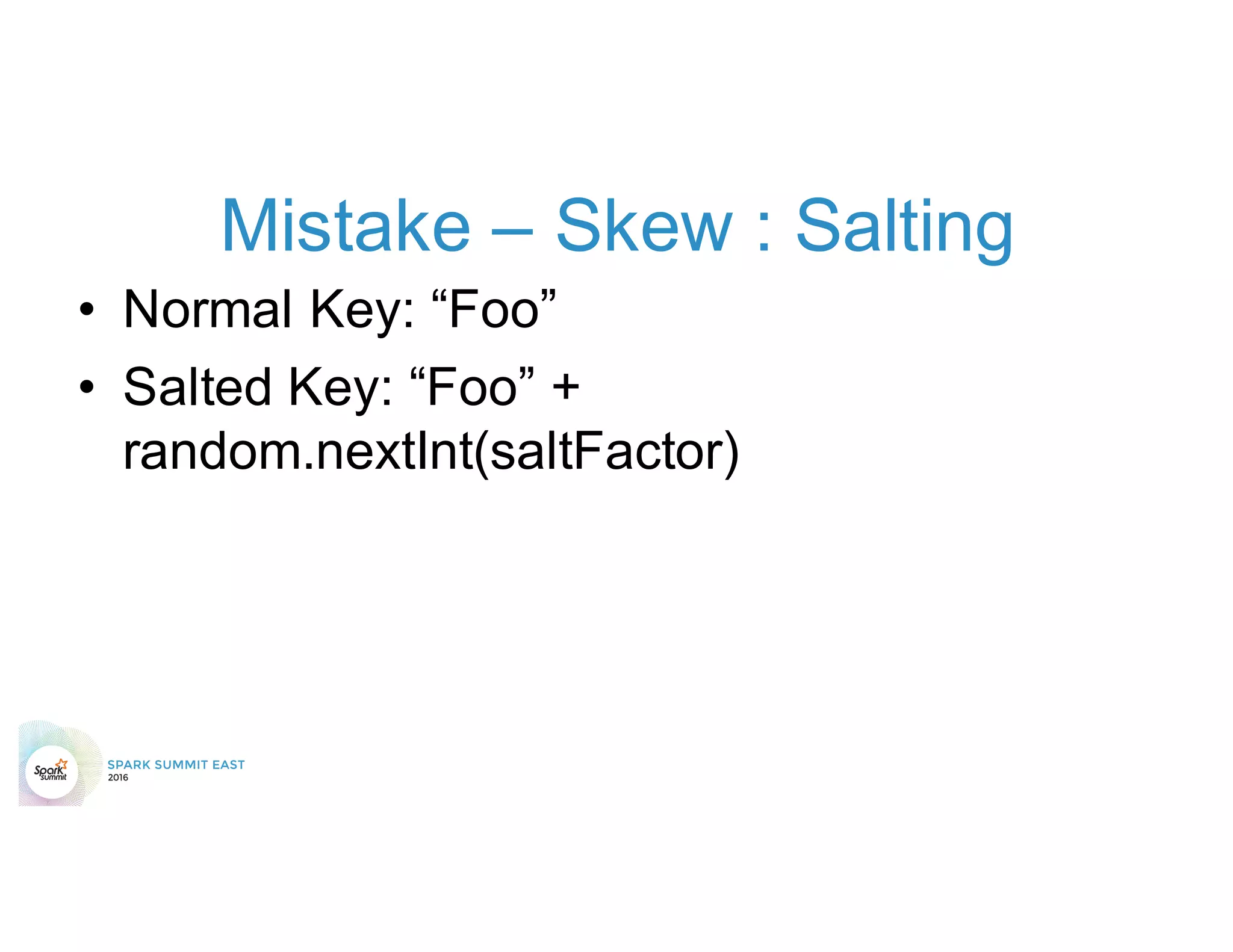

Mistake – Skew : Salting
• Normal Key: “Foo”
• Salted Key: “Foo” +
random.nextInt(saltFactor)

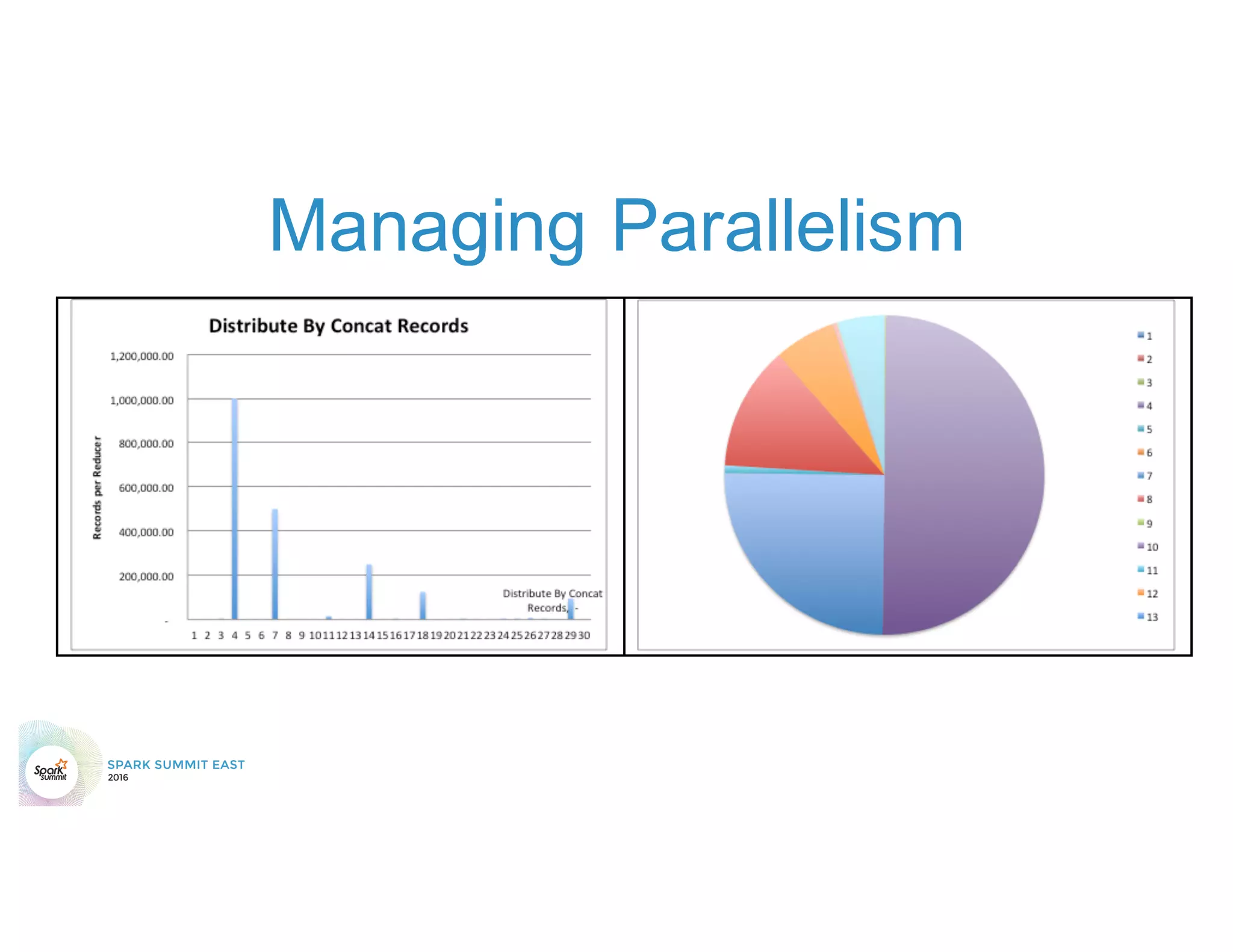

Managing Parallelism

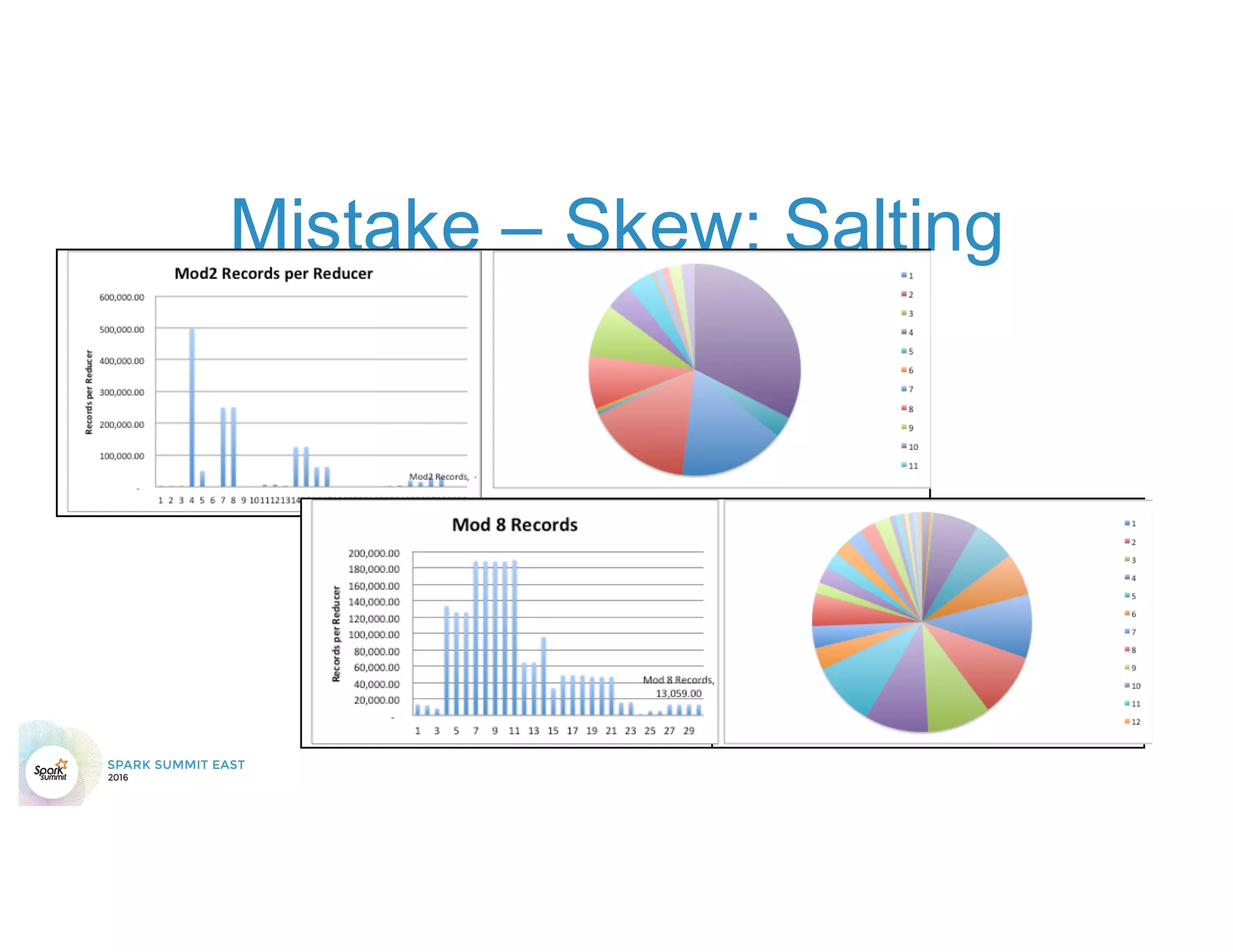

Mistake – Skew: Salting
Add Example Slide

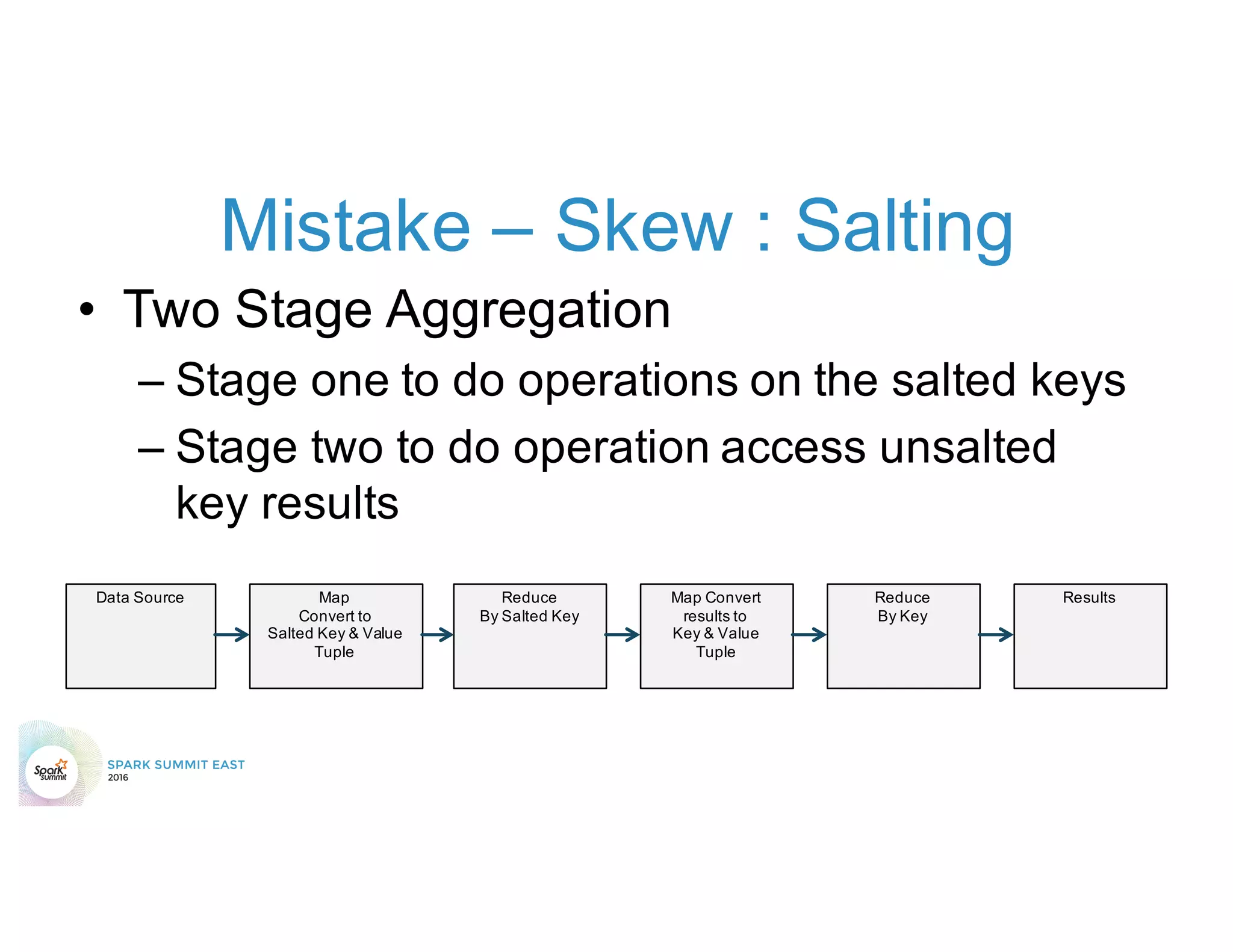

Mistake – Skew : Salting
• Two Stage Aggregation
– Stage one to do operations on the salted keys
– Stage two to do operation access unsalted
key results
Data Source Map
Convert to
Salted Key & Value
Tuple
Reduce
By Salted Key
Map Convert
results to
Key & Value
Tuple
Reduce
By Key
Results

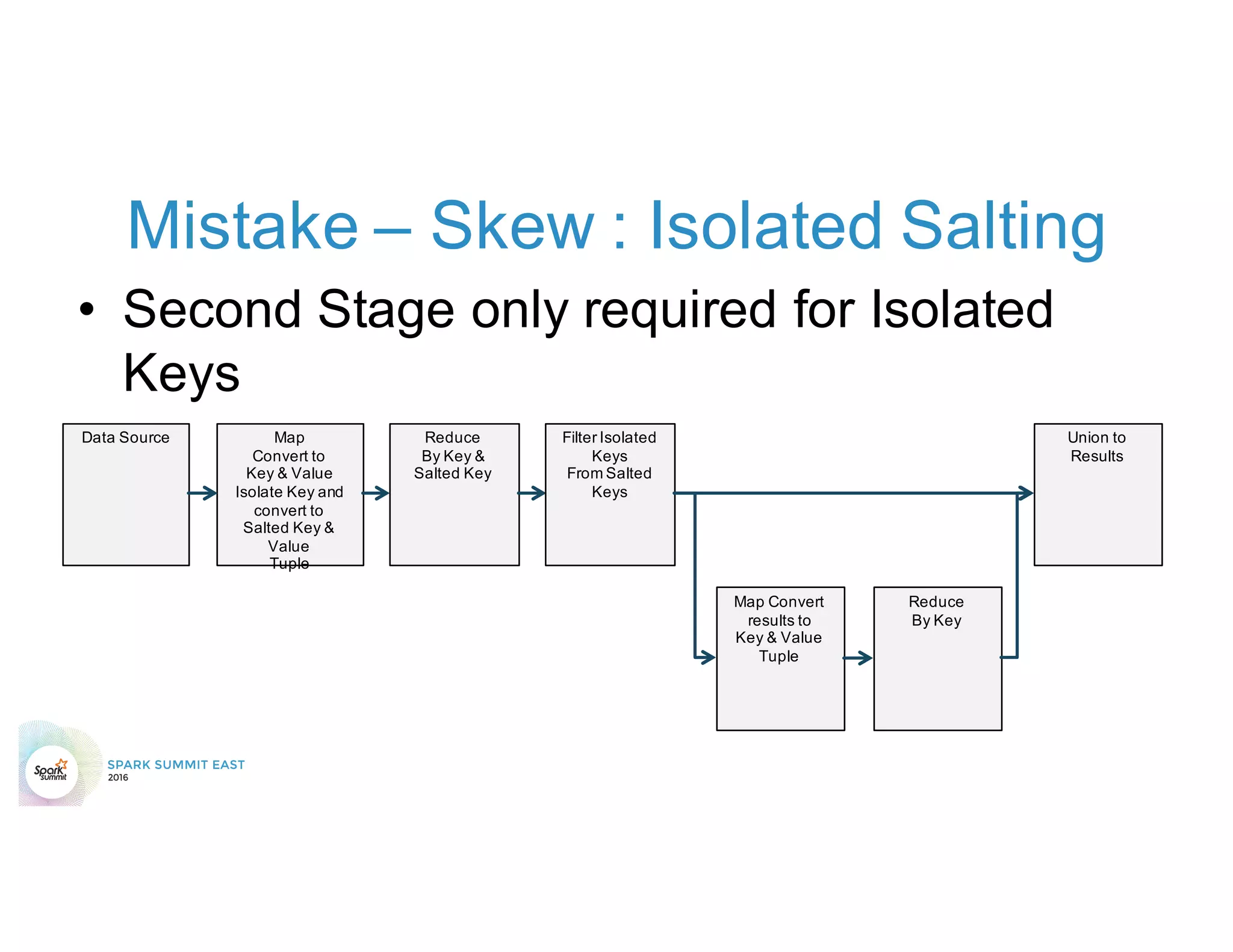

Mistake – Skew : Isolated Salting
• Second Stage only required for Isolated
Keys
Data Source Map
Convert to
Key & Value
Isolate Key and
convert to
Salted Key &
Value
Tuple
Reduce
By Key &
Salted Key
Filter Isolated
Keys
From Salted
Keys
Map Convert
results to
Key & Value
Tuple
Reduce
By Key
Union to
Results

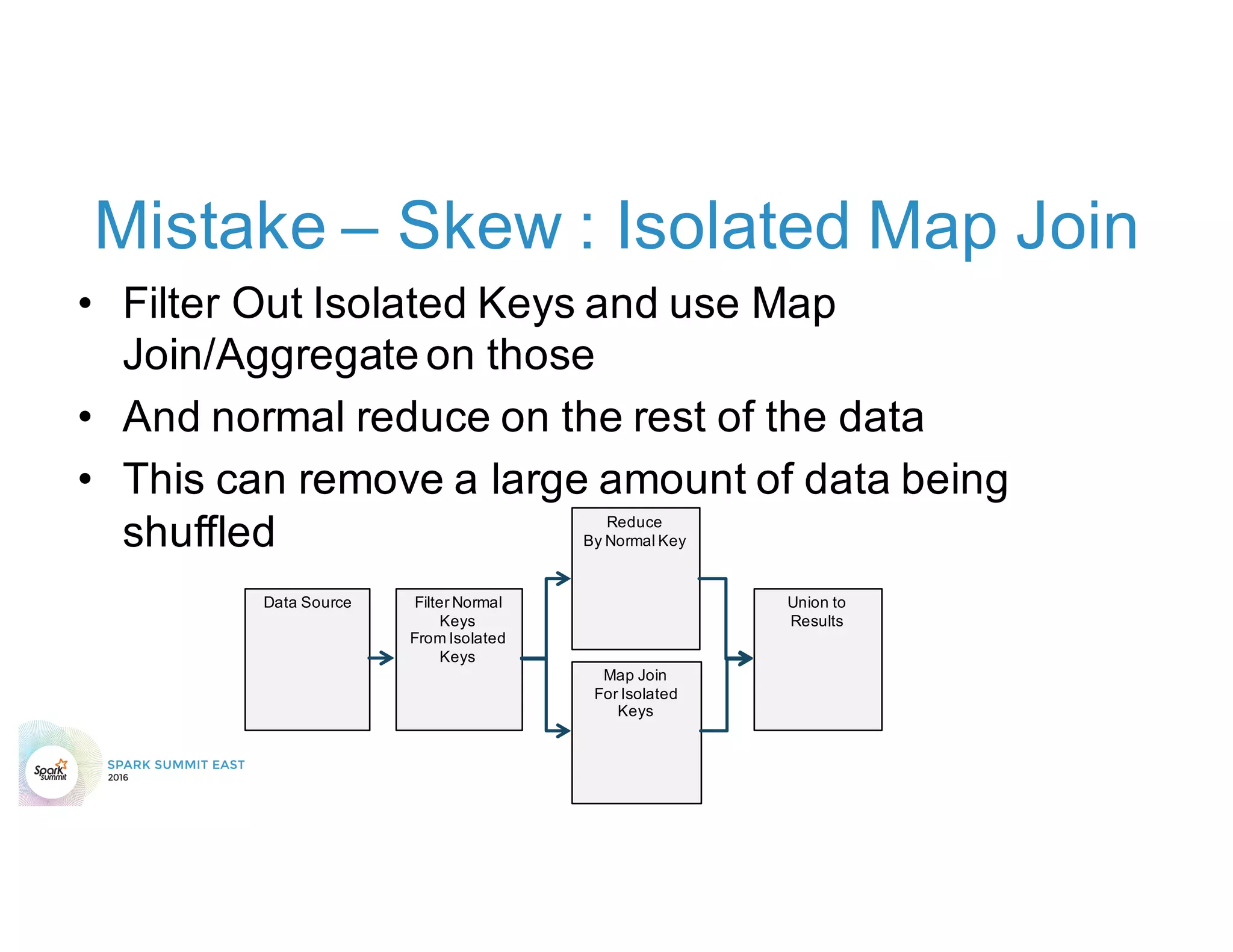

Mistake – Skew : Isolated Map Join
• Filter Out Isolated Keys and use Map
Join/Aggregate on those
• And normal reduce on the rest of the data
• This can remove a large amount of data being
shuffled
Data Source Filter Normal
Keys
From Isolated
Keys
Reduce
By Normal Key
Union to
Results
Map Join
For Isolated
Keys

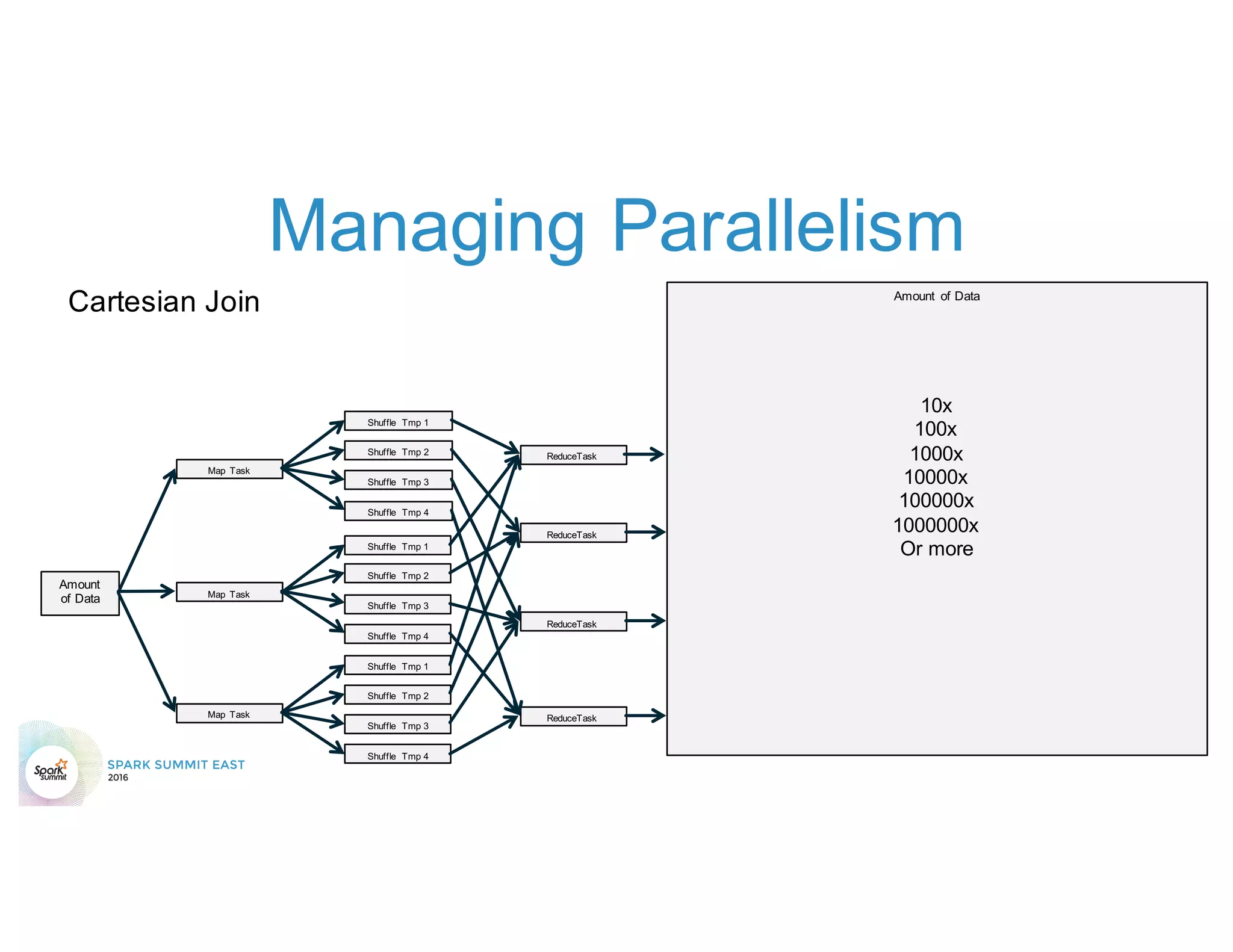

Managing Parallelism
Cartesian Join
Map Task
Shuffle Tmp 1
Shuffle Tmp 2
Shuffle Tmp 3
Shuffle Tmp 4
Map Task
Shuffle Tmp 1
Shuffle Tmp 2
Shuffle Tmp 3
Shuffle Tmp 4
Map Task
Shuffle Tmp 1
Shuffle Tmp 2
Shuffle Tmp 3
Shuffle Tmp 4
ReduceTask
ReduceTask
ReduceTask
ReduceTask
Amount
of Data
Amount of Data
10x
100x
1000x
10000x
100000x
1000000x
Or more

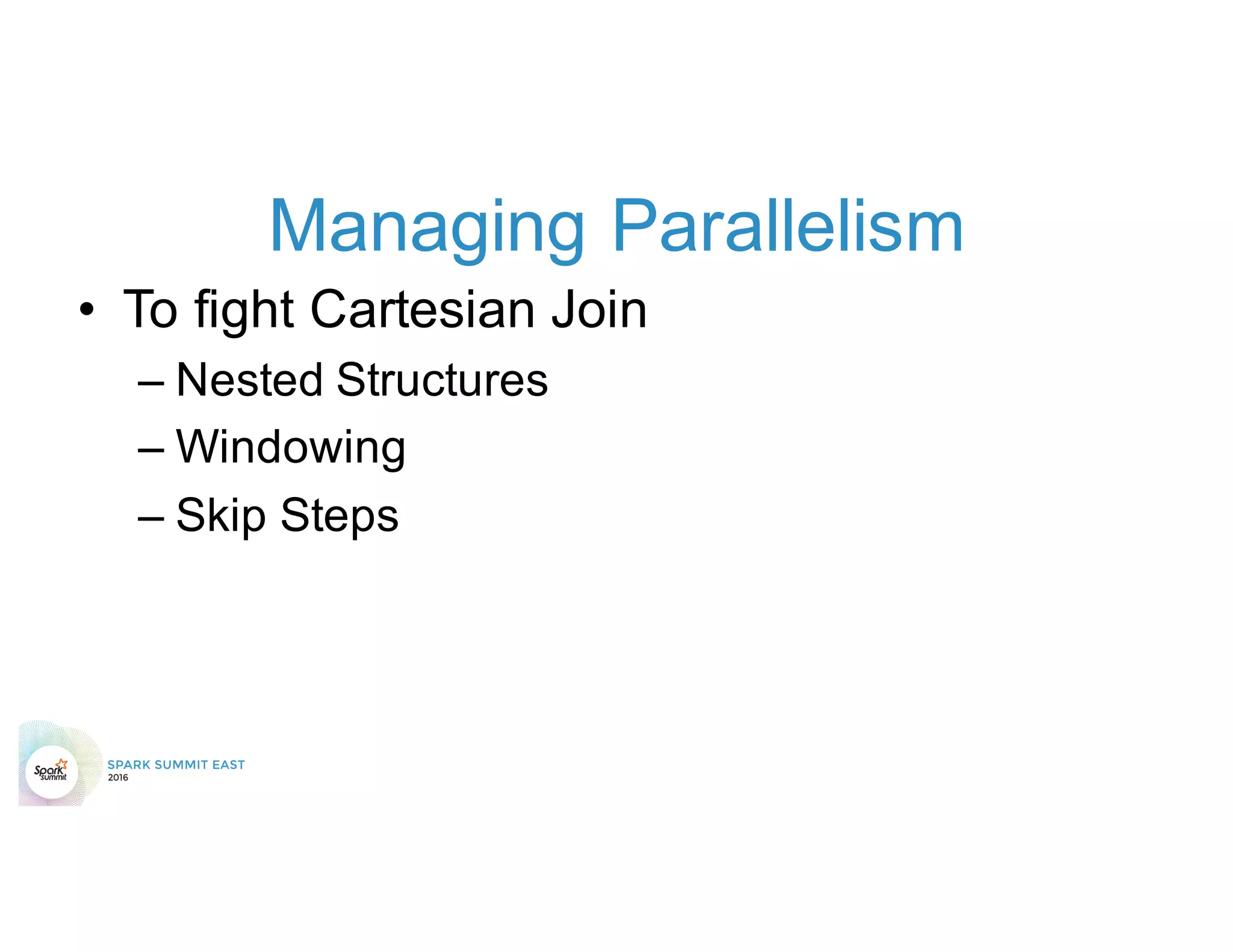

Managing Parallelism
• To fight Cartesian Join
– Nested Structures
– Windowing
– Skip Steps
Mistake # 4

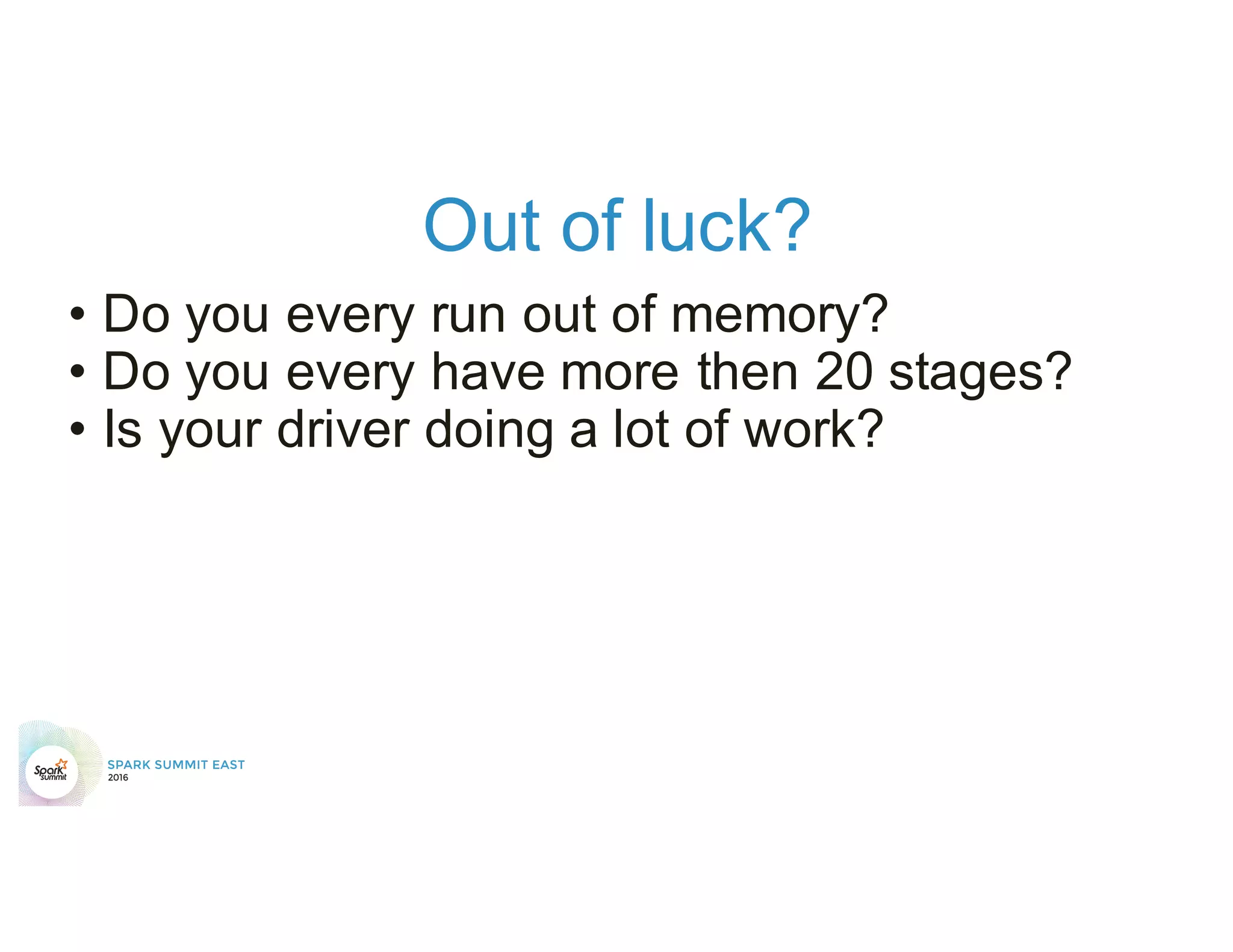

Out of luck?
• Do you every run out of memory?
• Do you every have more then 20 stages?
• Is your driver doing a lot of work?

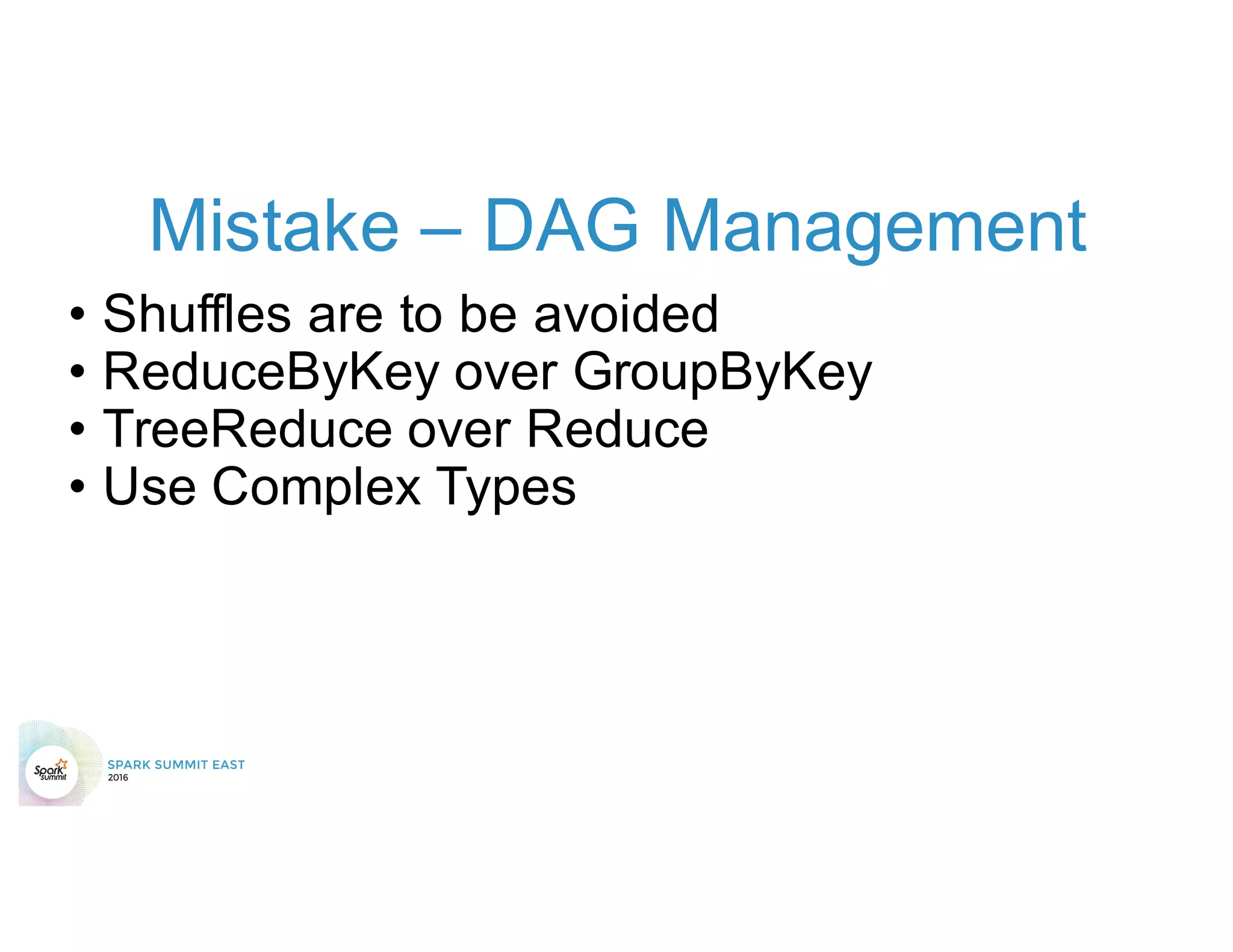

Mistake – DAG Management
• Shuffles are to be avoided
• ReduceByKey over GroupByKey
• TreeReduce over Reduce
• Use Complex Types

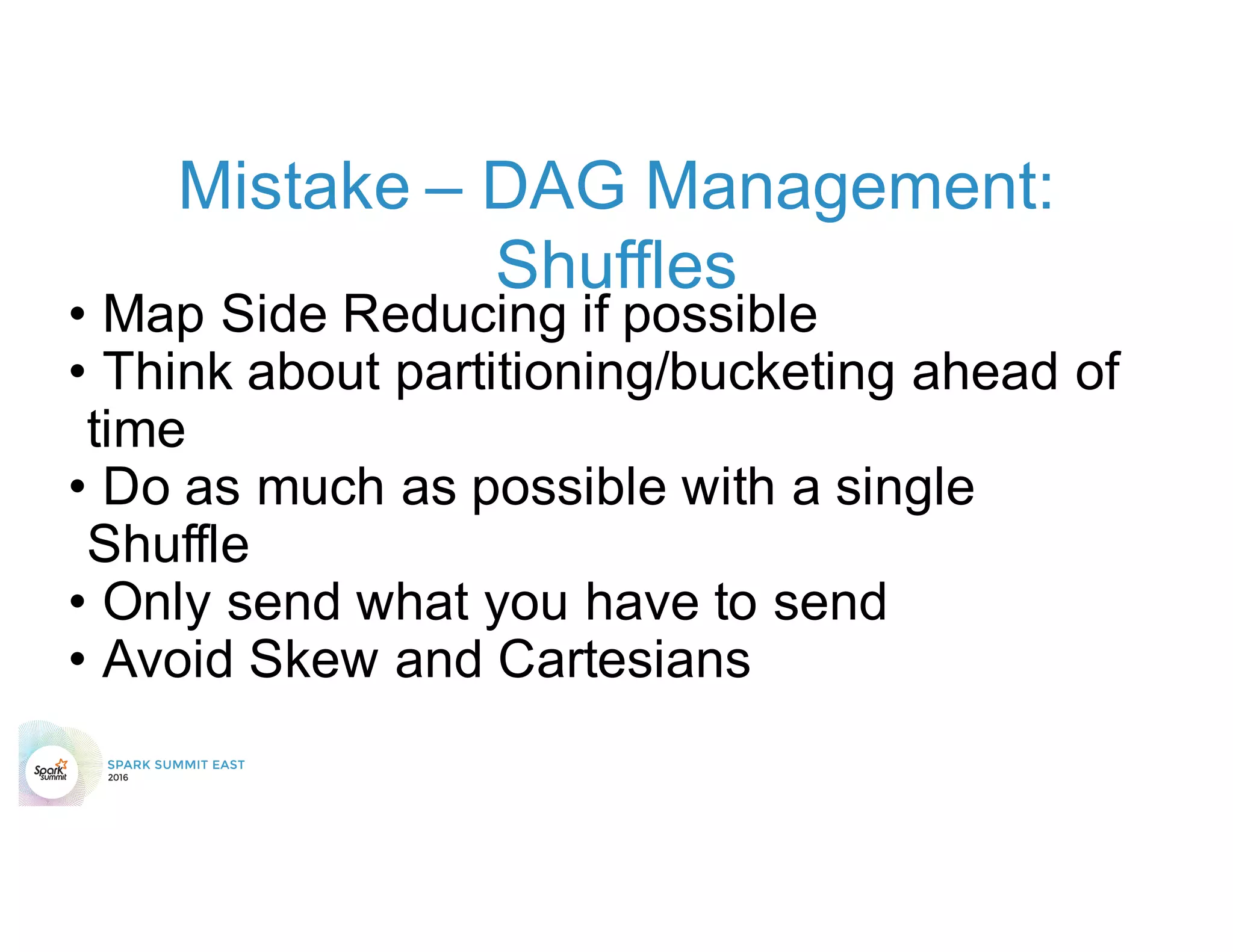

Mistake – DAG Management:
Shuffles
• Map Side Reducing if possible
• Think about partitioning/bucketing ahead of
time
• Do as much as possible with a single
Shuffle
• Only send what you have to send
• Avoid Skew and Cartesians

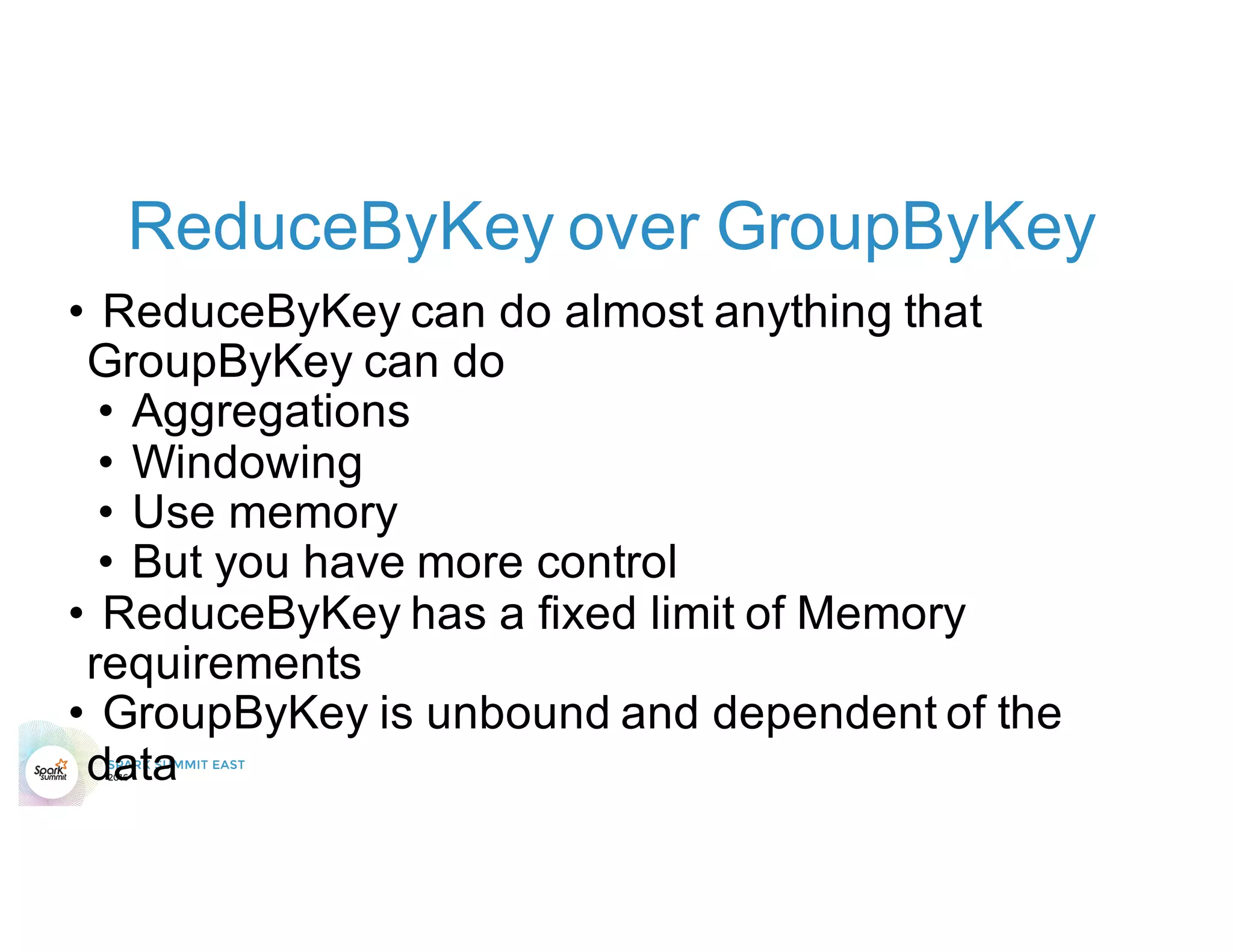

ReduceByKey over GroupByKey
• ReduceByKey can do almost anything that
GroupByKey can do
• Aggregations
• Windowing
• Use memory
• But you have more control
• ReduceByKey has a fixed limit of Memory
requirements
• GroupByKey is unbound and dependent of the
data

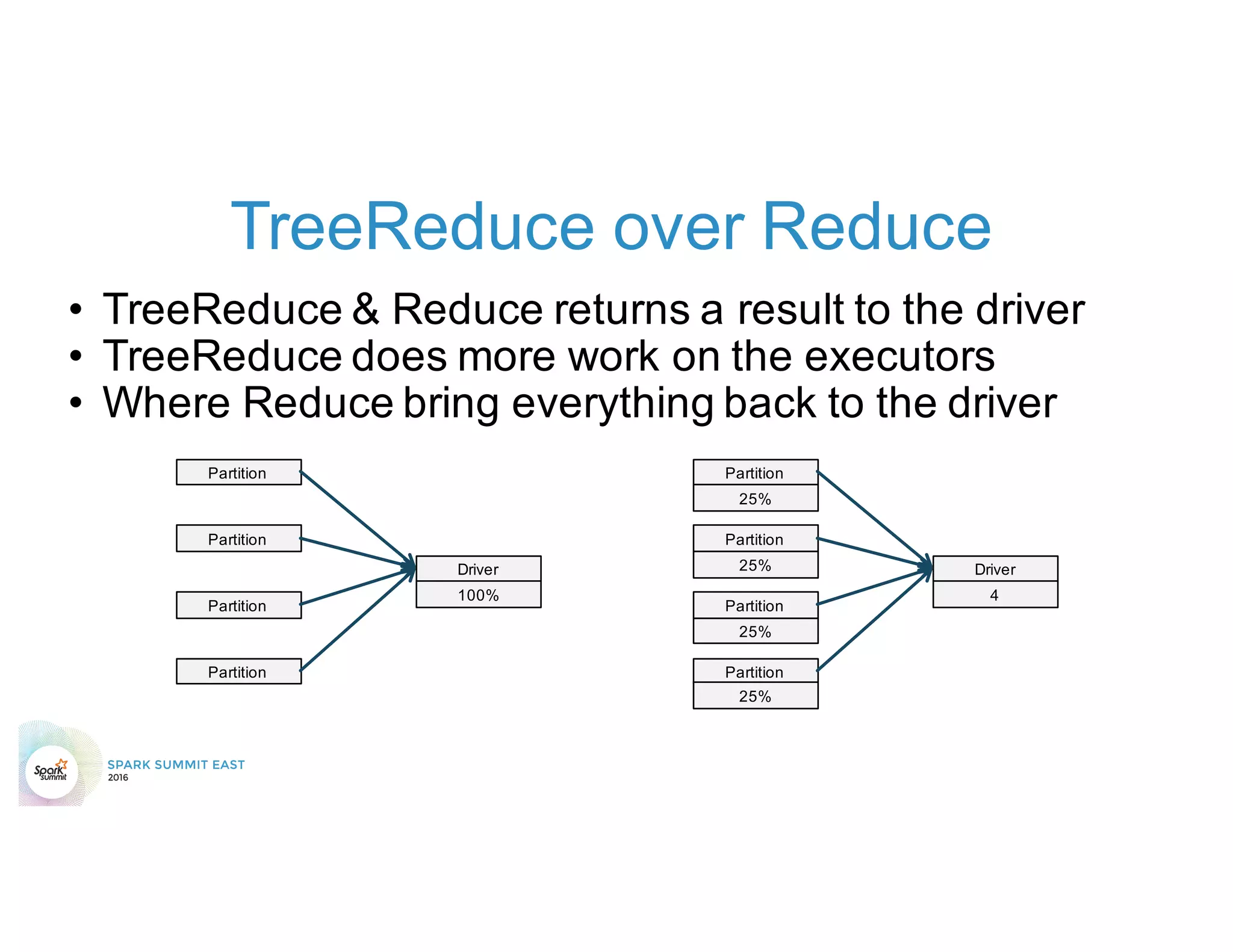

TreeReduce over Reduce
• TreeReduce & Reduce returns a result to the driver
• TreeReduce does more work on the executors
• Where Reduce bring everything back to the driver
Partition
Partition
Partition
Partition
Driver
100%
Partition
Partition
Partition
Partition
Driver
4
25%
25%
25%
25%

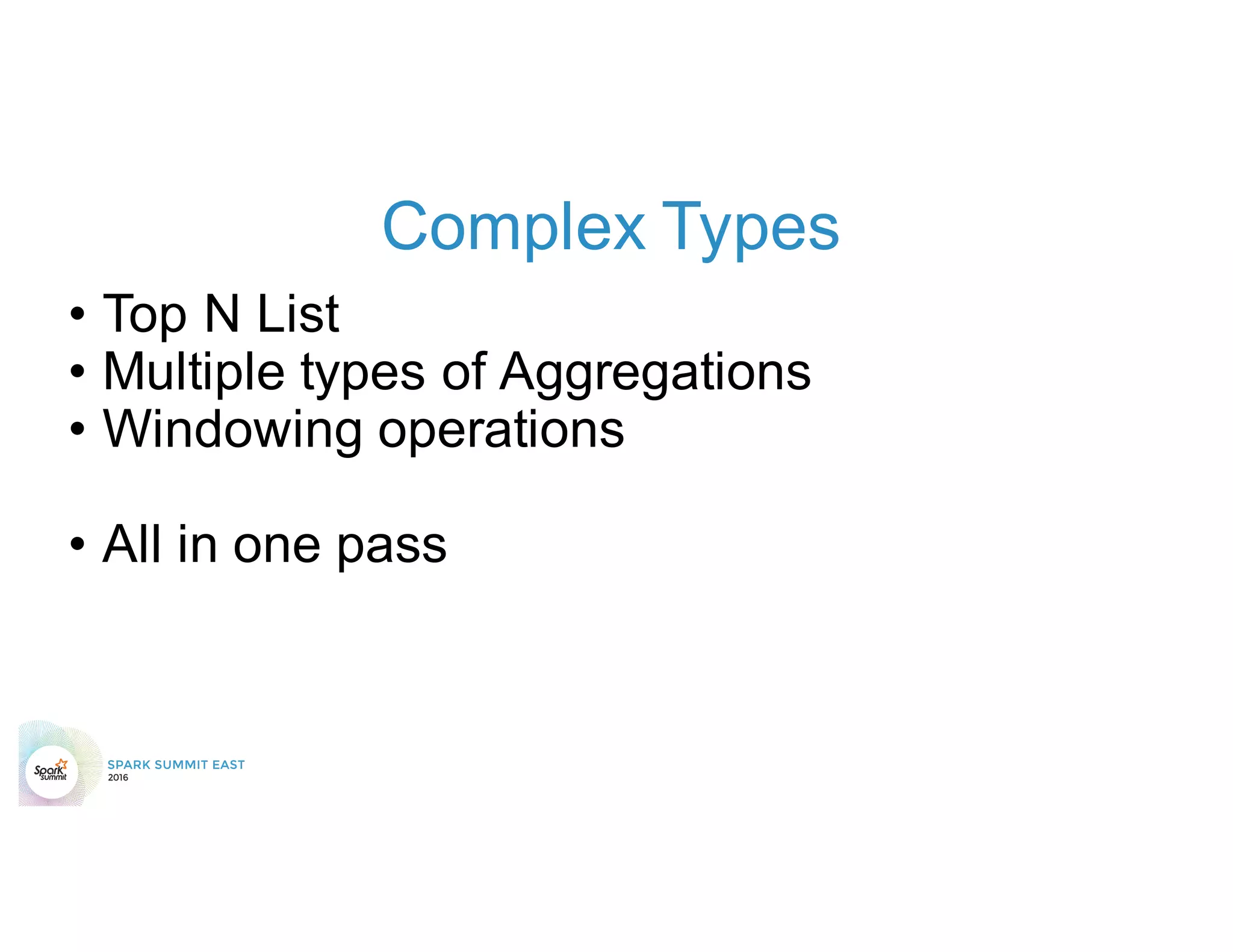

Complex Types
• Top N List
• Multiple types of Aggregations
• Windowing operations
• All in one pass

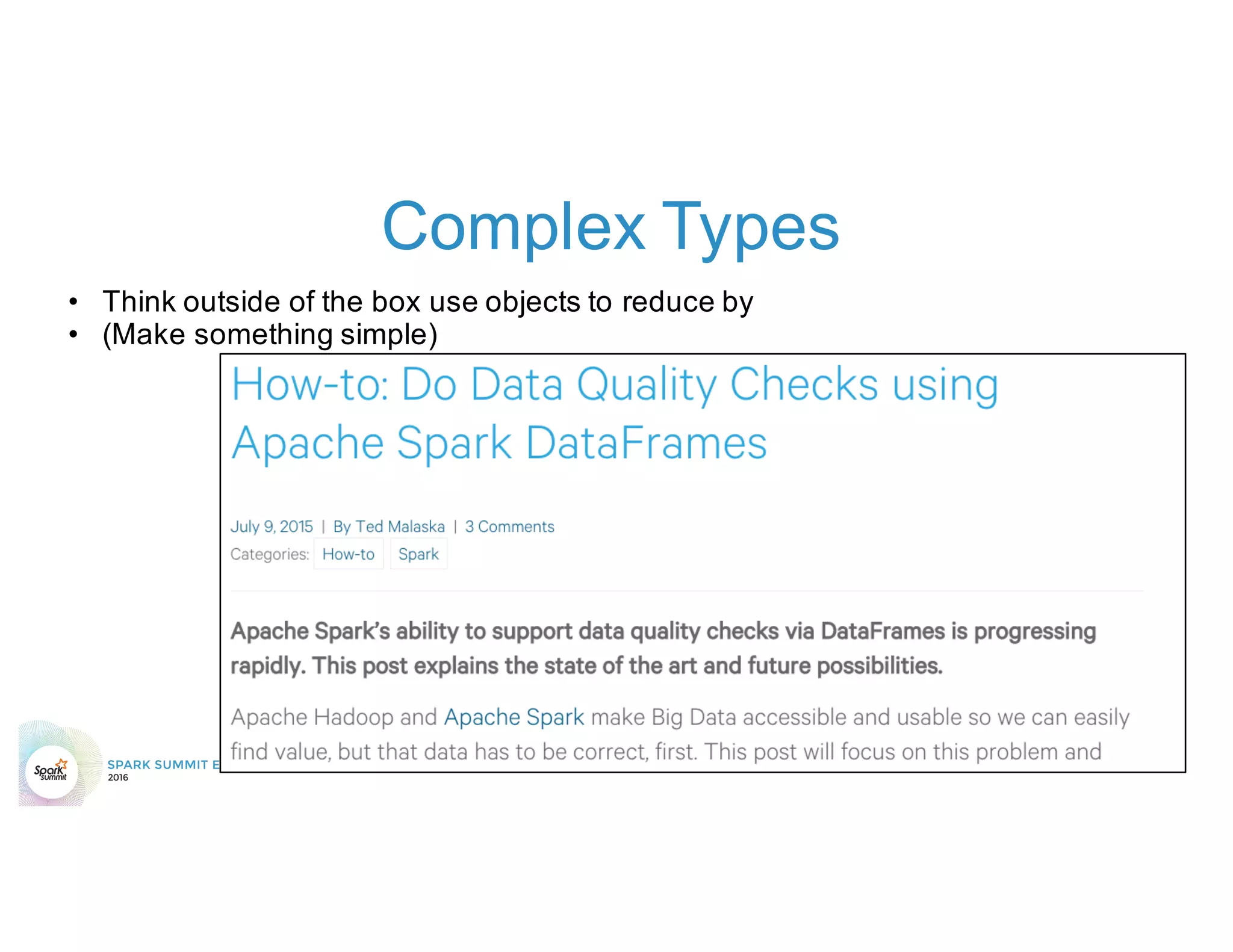

Complex Types
• Think outside of the box use objects to reduce by
• (Make something simple)
Mistake # 5

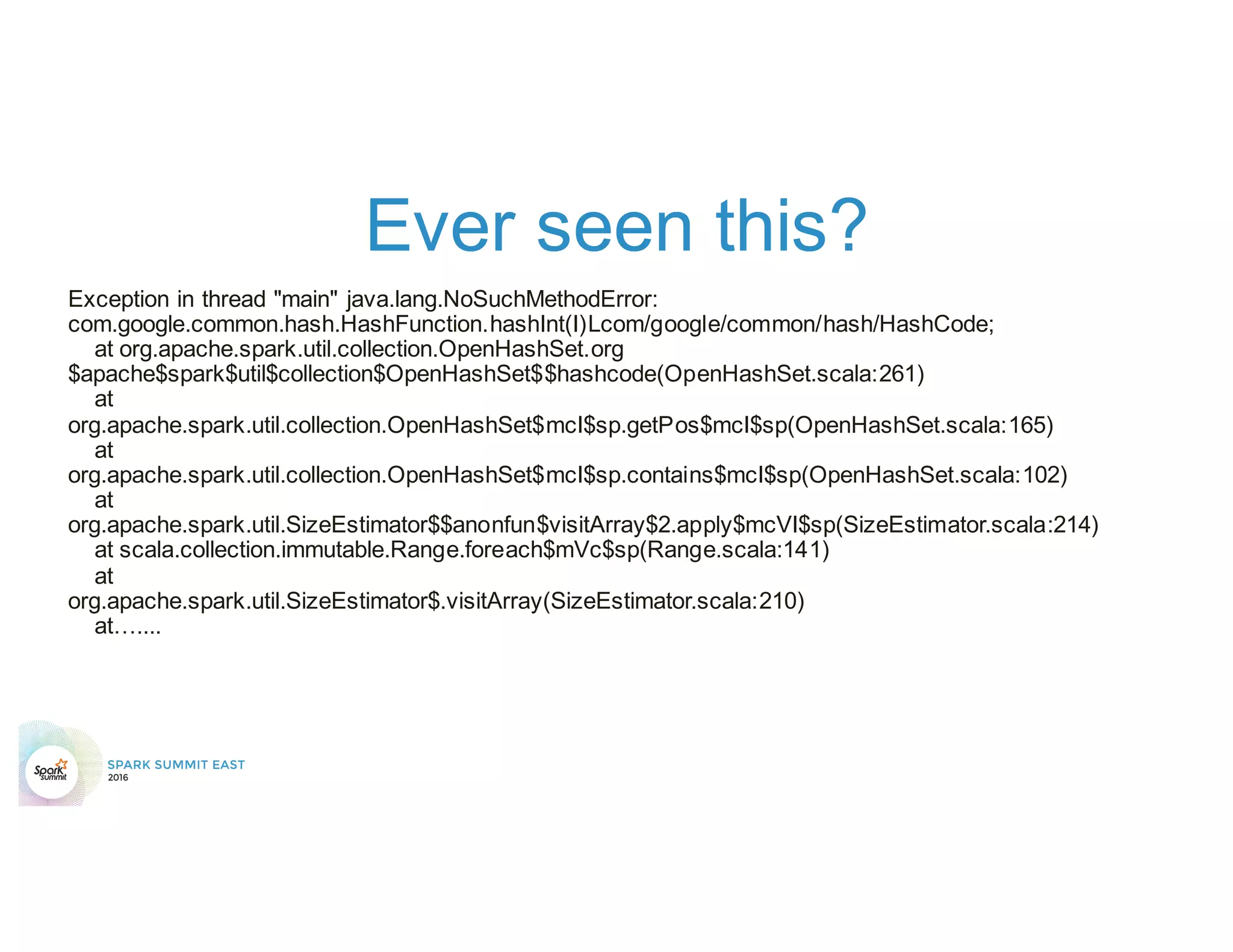

Ever seen this?
Exception in thread "main" java.lang.NoSuchMethodError:
com.google.common.hash.HashFunction.hashInt(I)Lcom/google/common/hash/HashCode;
at org.apache.spark.util.collection.OpenHashSet.org
$apache$spark$util$collection$OpenHashSet$$hashcode(OpenHashSet.scala:261)
at
org.apache.spark.util.collection.OpenHashSet$mcI$sp.getPos$mcI$sp(OpenHashSet.scala:165)
at
org.apache.spark.util.collection.OpenHashSet$mcI$sp.contains$mcI$sp(OpenHashSet.scala:102)
at
org.apache.spark.util.SizeEstimator$$anonfun$visitArray$2.apply$mcVI$sp(SizeEstimator.scala:214)
at scala.collection.immutable.Range.foreach$mVc$sp(Range.scala:141)
at
org.apache.spark.util.SizeEstimator$.visitArray(SizeEstimator.scala:210)
at…....
But!
• I already included guava in my app’s
maven dependencies?

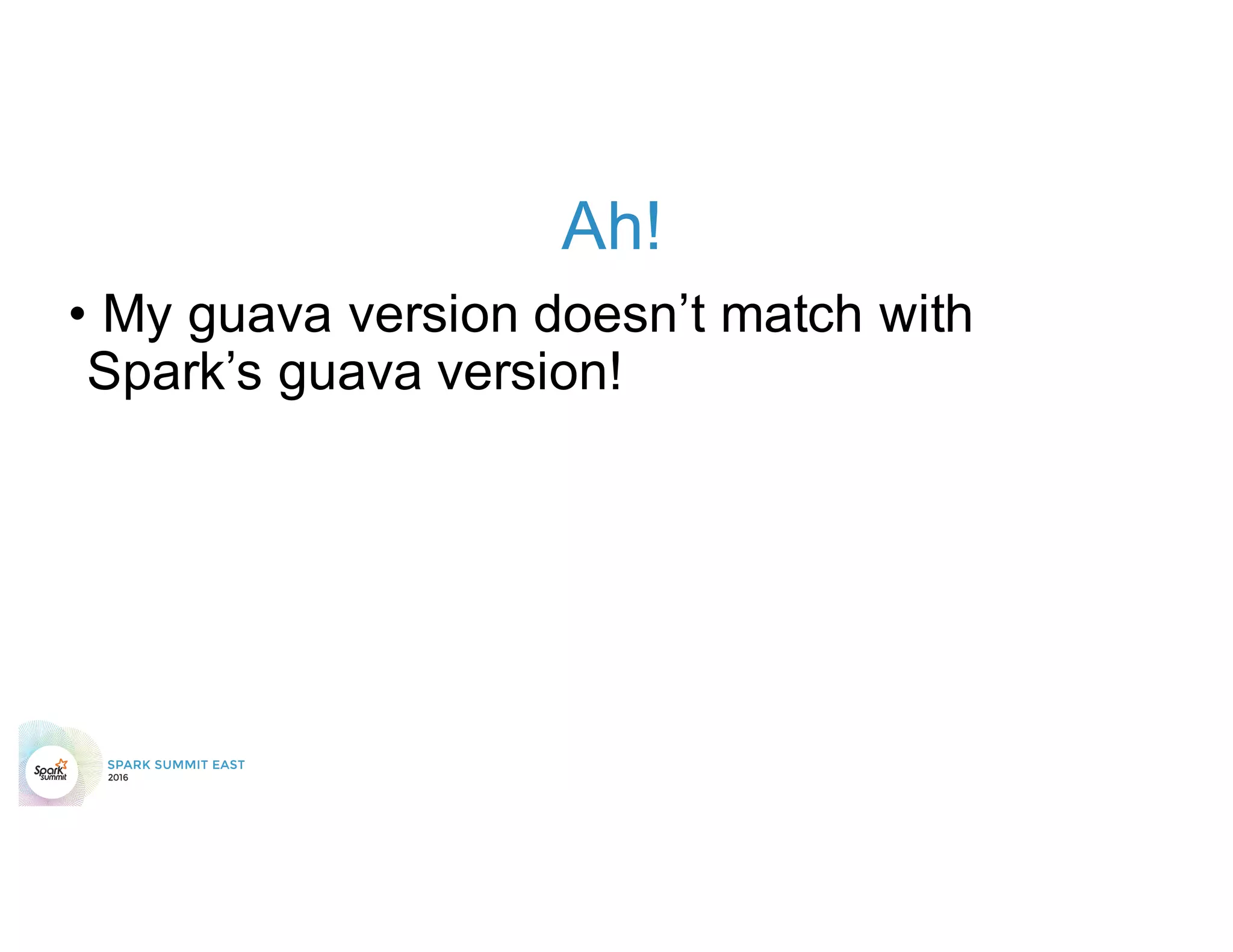

Ah!
• My guava version doesn’t match with
Spark’s guava version!

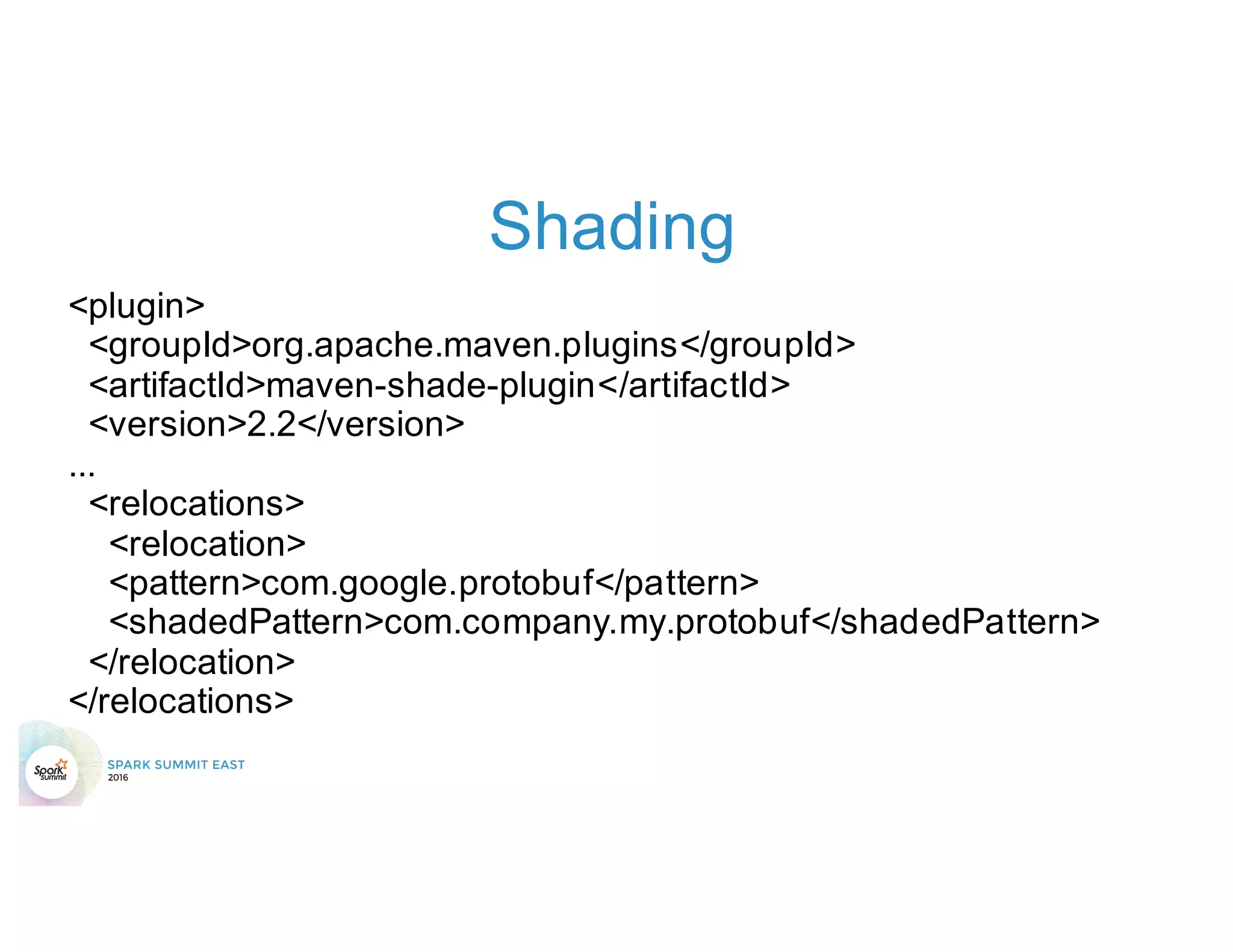

Shading
<plugin>
<groupId>org.apache.maven.plugins</groupId>
<artifactId>maven-shade-plugin</artifactId>
<version>2.2</version>
...
<relocations>
<relocation>
<pattern>com.google.protobuf</pattern>
<shadedPattern>com.company.my.protobuf</shadedPattern>
</relocation>
</relocations>

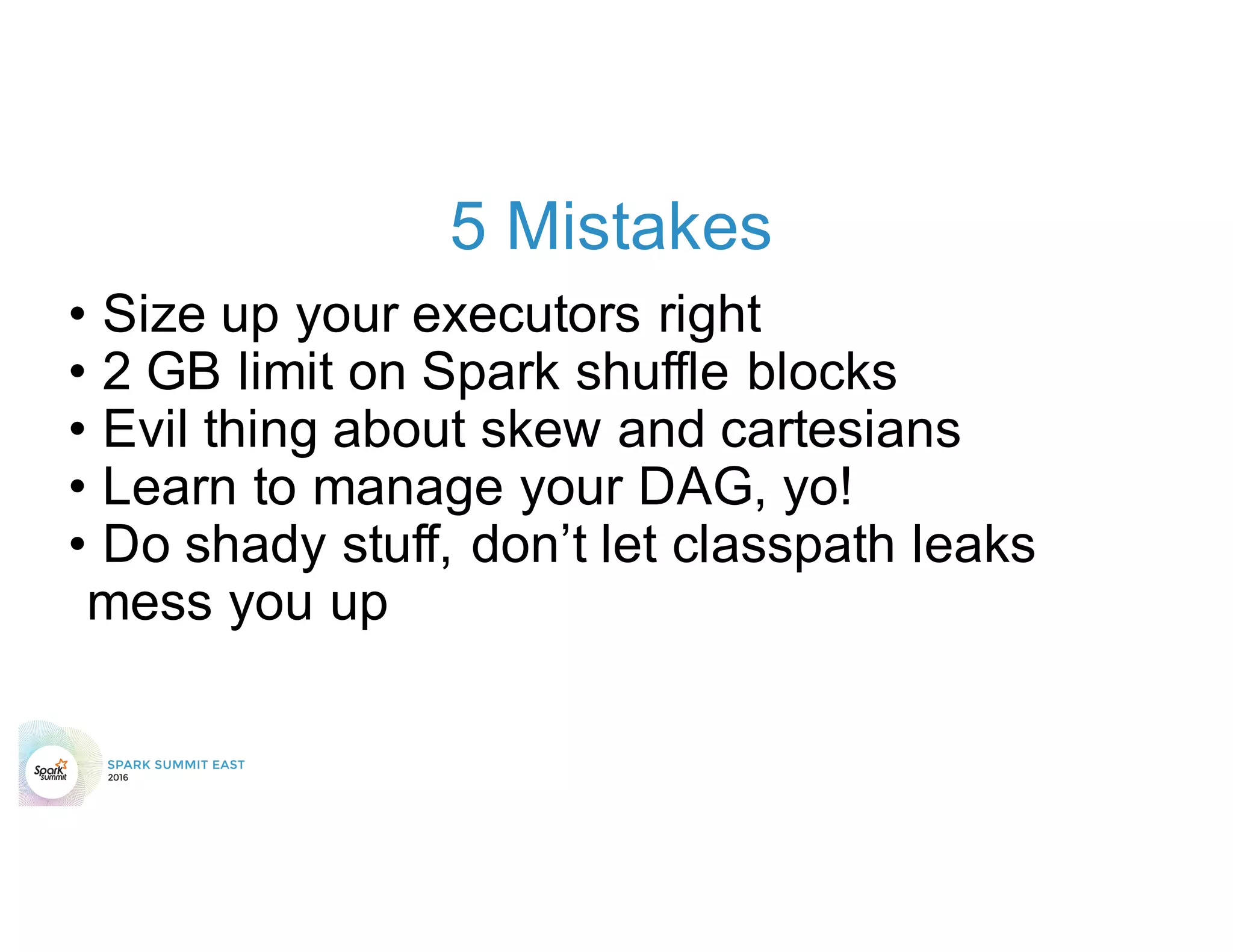

Summary
5 Mistakes
• Size up your executors right
• 2 GB limit on Spark shuffle blocks
• Evil thing about skew and cartesians
• Learn to manage your DAG, yo!
• Do shady stuff, don’t let classpath leaks
mess you up
THANK YOU.
tiny.cloudera.com/spark-mistakes
Mark Grover | @mark_grover
Ted Malaska | @TedMalaska

More Related Content

What's hot

Understanding Query Plans and Spark UIs
Understanding Query Plans and Spark UIsUnderstanding Query Plans and Spark UIs
Understanding Query Plans and Spark UIs
Databricks

Everyday I'm Shuffling - Tips for Writing Better Spark Programs, Strata San J...
Everyday I'm Shuffling - Tips for Writing Better Spark Programs, Strata San J...Everyday I'm Shuffling - Tips for Writing Better Spark Programs, Strata San J...
Everyday I'm Shuffling - Tips for Writing Better Spark Programs, Strata San J...
Databricks

Memory Management in Apache Spark
Memory Management in Apache SparkMemory Management in Apache Spark
Memory Management in Apache Spark
Databricks

Fine Tuning and Enhancing Performance of Apache Spark Jobs
Fine Tuning and Enhancing Performance of Apache Spark JobsFine Tuning and Enhancing Performance of Apache Spark Jobs
Fine Tuning and Enhancing Performance of Apache Spark Jobs
Databricks

Amazon S3 Best Practice and Tuning for Hadoop/Spark in the Cloud
Amazon S3 Best Practice and Tuning for Hadoop/Spark in the CloudAmazon S3 Best Practice and Tuning for Hadoop/Spark in the Cloud
Amazon S3 Best Practice and Tuning for Hadoop/Spark in the Cloud
Noritaka Sekiyama

Understanding Memory Management In Spark For Fun And Profit
Understanding Memory Management In Spark For Fun And ProfitUnderstanding Memory Management In Spark For Fun And Profit
Understanding Memory Management In Spark For Fun And Profit
Spark Summit

Physical Plans in Spark SQL
Physical Plans in Spark SQLPhysical Plans in Spark SQL
Physical Plans in Spark SQL
Databricks

Cosco: An Efficient Facebook-Scale Shuffle Service
Cosco: An Efficient Facebook-Scale Shuffle ServiceCosco: An Efficient Facebook-Scale Shuffle Service
Cosco: An Efficient Facebook-Scale Shuffle Service
Databricks

Node Labels in YARN
Node Labels in YARNNode Labels in YARN
Node Labels in YARN
DataWorks Summit

Spark Shuffle Deep Dive (Explained In Depth) - How Shuffle Works in Spark
Spark Shuffle Deep Dive (Explained In Depth) - How Shuffle Works in SparkSpark Shuffle Deep Dive (Explained In Depth) - How Shuffle Works in Spark
Spark Shuffle Deep Dive (Explained In Depth) - How Shuffle Works in Spark
Bo Yang

Apache Spark overview
Apache Spark overviewApache Spark overview
Apache Spark overview
DataArt

Hive: Loading Data
Hive: Loading DataHive: Loading Data
Hive: Loading Data
Benjamin Leonhardi

Parquet performance tuning: the missing guide
Parquet performance tuning: the missing guideParquet performance tuning: the missing guide
Parquet performance tuning: the missing guide
Ryan Blue

Apache Spark Core—Deep Dive—Proper Optimization
Apache Spark Core—Deep Dive—Proper OptimizationApache Spark Core—Deep Dive—Proper Optimization
Apache Spark Core—Deep Dive—Proper Optimization
Databricks

Building a SIMD Supported Vectorized Native Engine for Spark SQL
Building a SIMD Supported Vectorized Native Engine for Spark SQLBuilding a SIMD Supported Vectorized Native Engine for Spark SQL
Building a SIMD Supported Vectorized Native Engine for Spark SQL
Databricks

Apache Sparkにおけるメモリ - アプリケーションを落とさないメモリ設計手法 -
Apache Sparkにおけるメモリ - アプリケーションを落とさないメモリ設計手法 -Apache Sparkにおけるメモリ - アプリケーションを落とさないメモリ設計手法 -
Apache Sparkにおけるメモリ - アプリケーションを落とさないメモリ設計手法 -
Yoshiyasu SAEKI

Hive + Tez: A Performance Deep Dive
Hive + Tez: A Performance Deep DiveHive + Tez: A Performance Deep Dive
Hive + Tez: A Performance Deep Dive
DataWorks Summit

Hudi: Large-Scale, Near Real-Time Pipelines at Uber with Nishith Agarwal and ...
Hudi: Large-Scale, Near Real-Time Pipelines at Uber with Nishith Agarwal and ...Hudi: Large-Scale, Near Real-Time Pipelines at Uber with Nishith Agarwal and ...
Hudi: Large-Scale, Near Real-Time Pipelines at Uber with Nishith Agarwal and ...
Databricks

Deep Dive into Project Tungsten: Bringing Spark Closer to Bare Metal-(Josh Ro...
Deep Dive into Project Tungsten: Bringing Spark Closer to Bare Metal-(Josh Ro...Deep Dive into Project Tungsten: Bringing Spark Closer to Bare Metal-(Josh Ro...
Deep Dive into Project Tungsten: Bringing Spark Closer to Bare Metal-(Josh Ro...
Spark Summit

Performant Streaming in Production: Preventing Common Pitfalls when Productio...
Performant Streaming in Production: Preventing Common Pitfalls when Productio...Performant Streaming in Production: Preventing Common Pitfalls when Productio...
Performant Streaming in Production: Preventing Common Pitfalls when Productio...
Databricks


What's hot (20)

Understanding Query Plans and Spark UIs
Understanding Query Plans and Spark UIsUnderstanding Query Plans and Spark UIs
Understanding Query Plans and Spark UIs

Everyday I'm Shuffling - Tips for Writing Better Spark Programs, Strata San J...
Everyday I'm Shuffling - Tips for Writing Better Spark Programs, Strata San J...Everyday I'm Shuffling - Tips for Writing Better Spark Programs, Strata San J...
Everyday I'm Shuffling - Tips for Writing Better Spark Programs, Strata San J...

Memory Management in Apache Spark
Memory Management in Apache SparkMemory Management in Apache Spark
Memory Management in Apache Spark

Fine Tuning and Enhancing Performance of Apache Spark Jobs
Fine Tuning and Enhancing Performance of Apache Spark JobsFine Tuning and Enhancing Performance of Apache Spark Jobs
Fine Tuning and Enhancing Performance of Apache Spark Jobs

Amazon S3 Best Practice and Tuning for Hadoop/Spark in the Cloud
Amazon S3 Best Practice and Tuning for Hadoop/Spark in the CloudAmazon S3 Best Practice and Tuning for Hadoop/Spark in the Cloud
Amazon S3 Best Practice and Tuning for Hadoop/Spark in the Cloud

Understanding Memory Management In Spark For Fun And Profit
Understanding Memory Management In Spark For Fun And ProfitUnderstanding Memory Management In Spark For Fun And Profit
Understanding Memory Management In Spark For Fun And Profit

Physical Plans in Spark SQL
Physical Plans in Spark SQLPhysical Plans in Spark SQL
Physical Plans in Spark SQL

Cosco: An Efficient Facebook-Scale Shuffle Service
Cosco: An Efficient Facebook-Scale Shuffle ServiceCosco: An Efficient Facebook-Scale Shuffle Service
Cosco: An Efficient Facebook-Scale Shuffle Service

Node Labels in YARN
Node Labels in YARNNode Labels in YARN
Node Labels in YARN

Spark Shuffle Deep Dive (Explained In Depth) - How Shuffle Works in Spark
Spark Shuffle Deep Dive (Explained In Depth) - How Shuffle Works in SparkSpark Shuffle Deep Dive (Explained In Depth) - How Shuffle Works in Spark
Spark Shuffle Deep Dive (Explained In Depth) - How Shuffle Works in Spark

Apache Spark overview
Apache Spark overviewApache Spark overview
Apache Spark overview

Hive: Loading Data
Hive: Loading DataHive: Loading Data
Hive: Loading Data

Parquet performance tuning: the missing guide
Parquet performance tuning: the missing guideParquet performance tuning: the missing guide
Parquet performance tuning: the missing guide

Apache Spark Core—Deep Dive—Proper Optimization
Apache Spark Core—Deep Dive—Proper OptimizationApache Spark Core—Deep Dive—Proper Optimization
Apache Spark Core—Deep Dive—Proper Optimization

Building a SIMD Supported Vectorized Native Engine for Spark SQL
Building a SIMD Supported Vectorized Native Engine for Spark SQLBuilding a SIMD Supported Vectorized Native Engine for Spark SQL
Building a SIMD Supported Vectorized Native Engine for Spark SQL

Apache Sparkにおけるメモリ - アプリケーションを落とさないメモリ設計手法 -
Apache Sparkにおけるメモリ - アプリケーションを落とさないメモリ設計手法 -Apache Sparkにおけるメモリ - アプリケーションを落とさないメモリ設計手法 -
Apache Sparkにおけるメモリ - アプリケーションを落とさないメモリ設計手法 -

Hive + Tez: A Performance Deep Dive
Hive + Tez: A Performance Deep DiveHive + Tez: A Performance Deep Dive
Hive + Tez: A Performance Deep Dive

Hudi: Large-Scale, Near Real-Time Pipelines at Uber with Nishith Agarwal and ...
Hudi: Large-Scale, Near Real-Time Pipelines at Uber with Nishith Agarwal and ...Hudi: Large-Scale, Near Real-Time Pipelines at Uber with Nishith Agarwal and ...
Hudi: Large-Scale, Near Real-Time Pipelines at Uber with Nishith Agarwal and ...

Deep Dive into Project Tungsten: Bringing Spark Closer to Bare Metal-(Josh Ro...
Deep Dive into Project Tungsten: Bringing Spark Closer to Bare Metal-(Josh Ro...Deep Dive into Project Tungsten: Bringing Spark Closer to Bare Metal-(Josh Ro...
Deep Dive into Project Tungsten: Bringing Spark Closer to Bare Metal-(Josh Ro...

Performant Streaming in Production: Preventing Common Pitfalls when Productio...
Performant Streaming in Production: Preventing Common Pitfalls when Productio...Performant Streaming in Production: Preventing Common Pitfalls when Productio...
Performant Streaming in Production: Preventing Common Pitfalls when Productio...


Similar to Top 5 Mistakes to Avoid When Writing Apache Spark Applications

Top 5 mistakes when writing Spark applications
Top 5 mistakes when writing Spark applicationsTop 5 mistakes when writing Spark applications
Top 5 mistakes when writing Spark applications
markgrover

Top 5 mistakes when writing Spark applications
Top 5 mistakes when writing Spark applicationsTop 5 mistakes when writing Spark applications
Top 5 mistakes when writing Spark applications
markgrover

Top 5 mistakes when writing Spark applications
Top 5 mistakes when writing Spark applicationsTop 5 mistakes when writing Spark applications
Top 5 mistakes when writing Spark applications
hadooparchbook

Spark Tips & Tricks
Spark Tips & TricksSpark Tips & Tricks
Spark Tips & Tricks
Jason Hubbard

Colvin exadata mistakes_ioug_2014
Colvin exadata mistakes_ioug_2014Colvin exadata mistakes_ioug_2014
Colvin exadata mistakes_ioug_2014
marvin herrera

Apache Spark At Scale in the Cloud
Apache Spark At Scale in the CloudApache Spark At Scale in the Cloud
Apache Spark At Scale in the Cloud
Rose Toomey

Apache Spark At Scale in the Cloud
Apache Spark At Scale in the CloudApache Spark At Scale in the Cloud
Apache Spark At Scale in the Cloud
Databricks

Hadoop - Disk Fail In Place (DFIP)
Hadoop - Disk Fail In Place (DFIP)Hadoop - Disk Fail In Place (DFIP)
Hadoop - Disk Fail In Place (DFIP)
mundlapudi

Redis trouble shooting_eng
Redis trouble shooting_engRedis trouble shooting_eng
Redis trouble shooting_eng
DaeMyung Kang

Migrating ETL Workflow to Apache Spark at Scale in Pinterest
Migrating ETL Workflow to Apache Spark at Scale in PinterestMigrating ETL Workflow to Apache Spark at Scale in Pinterest
Migrating ETL Workflow to Apache Spark at Scale in Pinterest
Databricks

Chicago spark meetup-april2017-public
Chicago spark meetup-april2017-publicChicago spark meetup-april2017-public
Chicago spark meetup-april2017-public
Guru Dharmateja Medasani

What every developer should know about database scalability, PyCon 2010
What every developer should know about database scalability, PyCon 2010What every developer should know about database scalability, PyCon 2010
What every developer should know about database scalability, PyCon 2010
jbellis

Writing Scalable Software in Java
Writing Scalable Software in JavaWriting Scalable Software in Java
Writing Scalable Software in Java
Ruben Badaró

Spark architechure.pptx
Spark architechure.pptxSpark architechure.pptx
Spark architechure.pptx
SaiSriMadhuriYatam

Tuning Linux for your database FLOSSUK 2016
Tuning Linux for your database FLOSSUK 2016Tuning Linux for your database FLOSSUK 2016
Tuning Linux for your database FLOSSUK 2016
Colin Charles

Scaling with sync_replication using Galera and EC2
Scaling with sync_replication using Galera and EC2Scaling with sync_replication using Galera and EC2
Scaling with sync_replication using Galera and EC2
Marco Tusa

Cassandra Core Concepts - Cassandra Day Toronto
Cassandra Core Concepts - Cassandra Day TorontoCassandra Core Concepts - Cassandra Day Toronto
Cassandra Core Concepts - Cassandra Day Toronto
Jon Haddad

A Comparative Performance Evaluation of Apache Flink
A Comparative Performance Evaluation of Apache FlinkA Comparative Performance Evaluation of Apache Flink
A Comparative Performance Evaluation of Apache Flink
Dongwon Kim

Dongwon Kim – A Comparative Performance Evaluation of Flink
Dongwon Kim – A Comparative Performance Evaluation of FlinkDongwon Kim – A Comparative Performance Evaluation of Flink
Dongwon Kim – A Comparative Performance Evaluation of Flink
Flink Forward

Spark Overview and Performance Issues
Spark Overview and Performance IssuesSpark Overview and Performance Issues
Spark Overview and Performance Issues
Antonios Katsarakis


Similar to Top 5 Mistakes to Avoid When Writing Apache Spark Applications (20)

Top 5 mistakes when writing Spark applications
Top 5 mistakes when writing Spark applicationsTop 5 mistakes when writing Spark applications
Top 5 mistakes when writing Spark applications

Top 5 mistakes when writing Spark applications
Top 5 mistakes when writing Spark applicationsTop 5 mistakes when writing Spark applications
Top 5 mistakes when writing Spark applications

Top 5 mistakes when writing Spark applications
Top 5 mistakes when writing Spark applicationsTop 5 mistakes when writing Spark applications
Top 5 mistakes when writing Spark applications

Spark Tips & Tricks
Spark Tips & TricksSpark Tips & Tricks
Spark Tips & Tricks

Colvin exadata mistakes_ioug_2014
Colvin exadata mistakes_ioug_2014Colvin exadata mistakes_ioug_2014
Colvin exadata mistakes_ioug_2014

Apache Spark At Scale in the Cloud
Apache Spark At Scale in the CloudApache Spark At Scale in the Cloud
Apache Spark At Scale in the Cloud

Apache Spark At Scale in the Cloud
Apache Spark At Scale in the CloudApache Spark At Scale in the Cloud
Apache Spark At Scale in the Cloud

Hadoop - Disk Fail In Place (DFIP)
Hadoop - Disk Fail In Place (DFIP)Hadoop - Disk Fail In Place (DFIP)
Hadoop - Disk Fail In Place (DFIP)

Redis trouble shooting_eng
Redis trouble shooting_engRedis trouble shooting_eng
Redis trouble shooting_eng

Migrating ETL Workflow to Apache Spark at Scale in Pinterest
Migrating ETL Workflow to Apache Spark at Scale in PinterestMigrating ETL Workflow to Apache Spark at Scale in Pinterest
Migrating ETL Workflow to Apache Spark at Scale in Pinterest

Chicago spark meetup-april2017-public
Chicago spark meetup-april2017-publicChicago spark meetup-april2017-public
Chicago spark meetup-april2017-public

What every developer should know about database scalability, PyCon 2010
What every developer should know about database scalability, PyCon 2010What every developer should know about database scalability, PyCon 2010
What every developer should know about database scalability, PyCon 2010

Writing Scalable Software in Java
Writing Scalable Software in JavaWriting Scalable Software in Java
Writing Scalable Software in Java

Spark architechure.pptx
Spark architechure.pptxSpark architechure.pptx
Spark architechure.pptx

Tuning Linux for your database FLOSSUK 2016
Tuning Linux for your database FLOSSUK 2016Tuning Linux for your database FLOSSUK 2016
Tuning Linux for your database FLOSSUK 2016

Scaling with sync_replication using Galera and EC2
Scaling with sync_replication using Galera and EC2Scaling with sync_replication using Galera and EC2
Scaling with sync_replication using Galera and EC2

Cassandra Core Concepts - Cassandra Day Toronto
Cassandra Core Concepts - Cassandra Day TorontoCassandra Core Concepts - Cassandra Day Toronto
Cassandra Core Concepts - Cassandra Day Toronto

A Comparative Performance Evaluation of Apache Flink
A Comparative Performance Evaluation of Apache FlinkA Comparative Performance Evaluation of Apache Flink
A Comparative Performance Evaluation of Apache Flink

Dongwon Kim – A Comparative Performance Evaluation of Flink
Dongwon Kim – A Comparative Performance Evaluation of FlinkDongwon Kim – A Comparative Performance Evaluation of Flink
Dongwon Kim – A Comparative Performance Evaluation of Flink

Spark Overview and Performance Issues
Spark Overview and Performance IssuesSpark Overview and Performance Issues
Spark Overview and Performance Issues


More from Cloudera, Inc.

Partner Briefing_January 25 (FINAL).pptx
Partner Briefing_January 25 (FINAL).pptxPartner Briefing_January 25 (FINAL).pptx
Partner Briefing_January 25 (FINAL).pptx
Cloudera, Inc.

Cloudera Data Impact Awards 2021 - Finalists
Cloudera Data Impact Awards 2021 - Finalists Cloudera Data Impact Awards 2021 - Finalists
Cloudera Data Impact Awards 2021 - Finalists
Cloudera, Inc.

2020 Cloudera Data Impact Awards Finalists
2020 Cloudera Data Impact Awards Finalists2020 Cloudera Data Impact Awards Finalists
2020 Cloudera Data Impact Awards Finalists
Cloudera, Inc.

Edc event vienna presentation 1 oct 2019
Edc event vienna presentation 1 oct 2019Edc event vienna presentation 1 oct 2019
Edc event vienna presentation 1 oct 2019
Cloudera, Inc.

Machine Learning with Limited Labeled Data 4/3/19
Machine Learning with Limited Labeled Data 4/3/19Machine Learning with Limited Labeled Data 4/3/19
Machine Learning with Limited Labeled Data 4/3/19
Cloudera, Inc.

Data Driven With the Cloudera Modern Data Warehouse 3.19.19
Data Driven With the Cloudera Modern Data Warehouse 3.19.19Data Driven With the Cloudera Modern Data Warehouse 3.19.19
Data Driven With the Cloudera Modern Data Warehouse 3.19.19
Cloudera, Inc.

Introducing Cloudera DataFlow (CDF) 2.13.19
Introducing Cloudera DataFlow (CDF) 2.13.19Introducing Cloudera DataFlow (CDF) 2.13.19
Introducing Cloudera DataFlow (CDF) 2.13.19
Cloudera, Inc.

Introducing Cloudera Data Science Workbench for HDP 2.12.19
Introducing Cloudera Data Science Workbench for HDP 2.12.19Introducing Cloudera Data Science Workbench for HDP 2.12.19
Introducing Cloudera Data Science Workbench for HDP 2.12.19
Cloudera, Inc.

Shortening the Sales Cycle with a Modern Data Warehouse 1.30.19
Shortening the Sales Cycle with a Modern Data Warehouse 1.30.19Shortening the Sales Cycle with a Modern Data Warehouse 1.30.19
Shortening the Sales Cycle with a Modern Data Warehouse 1.30.19
Cloudera, Inc.

Leveraging the cloud for analytics and machine learning 1.29.19
Leveraging the cloud for analytics and machine learning 1.29.19Leveraging the cloud for analytics and machine learning 1.29.19
Leveraging the cloud for analytics and machine learning 1.29.19
Cloudera, Inc.

Modernizing the Legacy Data Warehouse – What, Why, and How 1.23.19
Modernizing the Legacy Data Warehouse – What, Why, and How 1.23.19Modernizing the Legacy Data Warehouse – What, Why, and How 1.23.19
Modernizing the Legacy Data Warehouse – What, Why, and How 1.23.19
Cloudera, Inc.

Leveraging the Cloud for Big Data Analytics 12.11.18
Leveraging the Cloud for Big Data Analytics 12.11.18Leveraging the Cloud for Big Data Analytics 12.11.18
Leveraging the Cloud for Big Data Analytics 12.11.18
Cloudera, Inc.

Modern Data Warehouse Fundamentals Part 3
Modern Data Warehouse Fundamentals Part 3Modern Data Warehouse Fundamentals Part 3
Modern Data Warehouse Fundamentals Part 3
Cloudera, Inc.

Modern Data Warehouse Fundamentals Part 2
Modern Data Warehouse Fundamentals Part 2Modern Data Warehouse Fundamentals Part 2
Modern Data Warehouse Fundamentals Part 2
Cloudera, Inc.

Modern Data Warehouse Fundamentals Part 1
Modern Data Warehouse Fundamentals Part 1Modern Data Warehouse Fundamentals Part 1
Modern Data Warehouse Fundamentals Part 1
Cloudera, Inc.

Extending Cloudera SDX beyond the Platform
Extending Cloudera SDX beyond the PlatformExtending Cloudera SDX beyond the Platform
Extending Cloudera SDX beyond the Platform
Cloudera, Inc.

Federated Learning: ML with Privacy on the Edge 11.15.18
Federated Learning: ML with Privacy on the Edge 11.15.18Federated Learning: ML with Privacy on the Edge 11.15.18
Federated Learning: ML with Privacy on the Edge 11.15.18
Cloudera, Inc.

Analyst Webinar: Doing a 180 on Customer 360
Analyst Webinar: Doing a 180 on Customer 360Analyst Webinar: Doing a 180 on Customer 360
Analyst Webinar: Doing a 180 on Customer 360
Cloudera, Inc.

Build a modern platform for anti-money laundering 9.19.18
Build a modern platform for anti-money laundering 9.19.18Build a modern platform for anti-money laundering 9.19.18
Build a modern platform for anti-money laundering 9.19.18
Cloudera, Inc.

Introducing the data science sandbox as a service 8.30.18
Introducing the data science sandbox as a service 8.30.18Introducing the data science sandbox as a service 8.30.18
Introducing the data science sandbox as a service 8.30.18
Cloudera, Inc.


More from Cloudera, Inc. (20)

Partner Briefing_January 25 (FINAL).pptx
Partner Briefing_January 25 (FINAL).pptxPartner Briefing_January 25 (FINAL).pptx
Partner Briefing_January 25 (FINAL).pptx

Cloudera Data Impact Awards 2021 - Finalists
Cloudera Data Impact Awards 2021 - Finalists Cloudera Data Impact Awards 2021 - Finalists
Cloudera Data Impact Awards 2021 - Finalists

2020 Cloudera Data Impact Awards Finalists
2020 Cloudera Data Impact Awards Finalists2020 Cloudera Data Impact Awards Finalists
2020 Cloudera Data Impact Awards Finalists

Edc event vienna presentation 1 oct 2019
Edc event vienna presentation 1 oct 2019Edc event vienna presentation 1 oct 2019
Edc event vienna presentation 1 oct 2019

Machine Learning with Limited Labeled Data 4/3/19
Machine Learning with Limited Labeled Data 4/3/19Machine Learning with Limited Labeled Data 4/3/19
Machine Learning with Limited Labeled Data 4/3/19

Data Driven With the Cloudera Modern Data Warehouse 3.19.19
Data Driven With the Cloudera Modern Data Warehouse 3.19.19Data Driven With the Cloudera Modern Data Warehouse 3.19.19
Data Driven With the Cloudera Modern Data Warehouse 3.19.19

Introducing Cloudera DataFlow (CDF) 2.13.19
Introducing Cloudera DataFlow (CDF) 2.13.19Introducing Cloudera DataFlow (CDF) 2.13.19
Introducing Cloudera DataFlow (CDF) 2.13.19

Introducing Cloudera Data Science Workbench for HDP 2.12.19
Introducing Cloudera Data Science Workbench for HDP 2.12.19Introducing Cloudera Data Science Workbench for HDP 2.12.19
Introducing Cloudera Data Science Workbench for HDP 2.12.19

Shortening the Sales Cycle with a Modern Data Warehouse 1.30.19
Shortening the Sales Cycle with a Modern Data Warehouse 1.30.19Shortening the Sales Cycle with a Modern Data Warehouse 1.30.19
Shortening the Sales Cycle with a Modern Data Warehouse 1.30.19

Leveraging the cloud for analytics and machine learning 1.29.19
Leveraging the cloud for analytics and machine learning 1.29.19Leveraging the cloud for analytics and machine learning 1.29.19
Leveraging the cloud for analytics and machine learning 1.29.19

Modernizing the Legacy Data Warehouse – What, Why, and How 1.23.19
Modernizing the Legacy Data Warehouse – What, Why, and How 1.23.19Modernizing the Legacy Data Warehouse – What, Why, and How 1.23.19
Modernizing the Legacy Data Warehouse – What, Why, and How 1.23.19

Leveraging the Cloud for Big Data Analytics 12.11.18
Leveraging the Cloud for Big Data Analytics 12.11.18Leveraging the Cloud for Big Data Analytics 12.11.18
Leveraging the Cloud for Big Data Analytics 12.11.18

Modern Data Warehouse Fundamentals Part 3
Modern Data Warehouse Fundamentals Part 3Modern Data Warehouse Fundamentals Part 3
Modern Data Warehouse Fundamentals Part 3

Modern Data Warehouse Fundamentals Part 2
Modern Data Warehouse Fundamentals Part 2Modern Data Warehouse Fundamentals Part 2
Modern Data Warehouse Fundamentals Part 2

Modern Data Warehouse Fundamentals Part 1
Modern Data Warehouse Fundamentals Part 1Modern Data Warehouse Fundamentals Part 1
Modern Data Warehouse Fundamentals Part 1

Extending Cloudera SDX beyond the Platform
Extending Cloudera SDX beyond the PlatformExtending Cloudera SDX beyond the Platform
Extending Cloudera SDX beyond the Platform

Federated Learning: ML with Privacy on the Edge 11.15.18
Federated Learning: ML with Privacy on the Edge 11.15.18Federated Learning: ML with Privacy on the Edge 11.15.18
Federated Learning: ML with Privacy on the Edge 11.15.18

Analyst Webinar: Doing a 180 on Customer 360
Analyst Webinar: Doing a 180 on Customer 360Analyst Webinar: Doing a 180 on Customer 360
Analyst Webinar: Doing a 180 on Customer 360

Build a modern platform for anti-money laundering 9.19.18
Build a modern platform for anti-money laundering 9.19.18Build a modern platform for anti-money laundering 9.19.18
Build a modern platform for anti-money laundering 9.19.18

Introducing the data science sandbox as a service 8.30.18
Introducing the data science sandbox as a service 8.30.18Introducing the data science sandbox as a service 8.30.18
Introducing the data science sandbox as a service 8.30.18


Recently uploaded

14 th Edition of International conference on computer vision
14 th Edition of International conference on computer vision14 th Edition of International conference on computer vision
14 th Edition of International conference on computer vision
ShulagnaSarkar2

Computer Science & Engineering VI Sem- New Syllabus.pdf
Computer Science & Engineering VI Sem- New Syllabus.pdfComputer Science & Engineering VI Sem- New Syllabus.pdf
Computer Science & Engineering VI Sem- New Syllabus.pdf
chandangoswami40933

Stork Product Overview: An AI-Powered Autonomous Delivery Fleet
Stork Product Overview: An AI-Powered Autonomous Delivery FleetStork Product Overview: An AI-Powered Autonomous Delivery Fleet
Stork Product Overview: An AI-Powered Autonomous Delivery Fleet
Vince Scalabrino

WMF 2024 - Unlocking the Future of Data Powering Next-Gen AI with Vector Data...
WMF 2024 - Unlocking the Future of Data Powering Next-Gen AI with Vector Data...WMF 2024 - Unlocking the Future of Data Powering Next-Gen AI with Vector Data...
WMF 2024 - Unlocking the Future of Data Powering Next-Gen AI with Vector Data...
Luigi Fugaro

Software Test Automation - A Comprehensive Guide on Automated Testing.pdf
Software Test Automation - A Comprehensive Guide on Automated Testing.pdfSoftware Test Automation - A Comprehensive Guide on Automated Testing.pdf
Software Test Automation - A Comprehensive Guide on Automated Testing.pdf
kalichargn70th171

Operational ease MuleSoft and Salesforce Service Cloud Solution v1.0.pptx
Operational ease MuleSoft and Salesforce Service Cloud Solution v1.0.pptxOperational ease MuleSoft and Salesforce Service Cloud Solution v1.0.pptx
Operational ease MuleSoft and Salesforce Service Cloud Solution v1.0.pptx
sandeepmenon62

Alluxio Webinar | 10x Faster Trino Queries on Your Data Platform
Alluxio Webinar | 10x Faster Trino Queries on Your Data PlatformAlluxio Webinar | 10x Faster Trino Queries on Your Data Platform
Alluxio Webinar | 10x Faster Trino Queries on Your Data Platform
Alluxio, Inc.

The Comprehensive Guide to Validating Audio-Visual Performances.pdf
The Comprehensive Guide to Validating Audio-Visual Performances.pdfThe Comprehensive Guide to Validating Audio-Visual Performances.pdf
The Comprehensive Guide to Validating Audio-Visual Performances.pdf
kalichargn70th171

The Rising Future of CPaaS in the Middle East 2024
The Rising Future of CPaaS in the Middle East 2024The Rising Future of CPaaS in the Middle East 2024
The Rising Future of CPaaS in the Middle East 2024
Yara Milbes

Mobile App Development Company In Noida | Drona Infotech
Mobile App Development Company In Noida | Drona InfotechMobile App Development Company In Noida | Drona Infotech
Mobile App Development Company In Noida | Drona Infotech
Drona Infotech

美洲杯赔率投注网【​网址​🎉3977·EE​🎉】
美洲杯赔率投注网【​网址​🎉3977·EE​🎉】美洲杯赔率投注网【​网址​🎉3977·EE​🎉】
美洲杯赔率投注网【​网址​🎉3977·EE​🎉】
widenerjobeyrl638

一比一原版(sdsu毕业证书)圣地亚哥州立大学毕业证如何办理
一比一原版(sdsu毕业证书)圣地亚哥州立大学毕业证如何办理一比一原版(sdsu毕业证书)圣地亚哥州立大学毕业证如何办理
一比一原版(sdsu毕业证书)圣地亚哥州立大学毕业证如何办理
kgyxske

DECODING JAVA THREAD DUMPS: MASTER THE ART OF ANALYSIS
DECODING JAVA THREAD DUMPS: MASTER THE ART OF ANALYSISDECODING JAVA THREAD DUMPS: MASTER THE ART OF ANALYSIS
DECODING JAVA THREAD DUMPS: MASTER THE ART OF ANALYSIS
Tier1 app

Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...
Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...
Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...
The Third Creative Media

Orca: Nocode Graphical Editor for Container Orchestration
Orca: Nocode Graphical Editor for Container OrchestrationOrca: Nocode Graphical Editor for Container Orchestration
Orca: Nocode Graphical Editor for Container Orchestration
Pedro J. Molina

Secure-by-Design Using Hardware and Software Protection for FDA Compliance
Secure-by-Design Using Hardware and Software Protection for FDA ComplianceSecure-by-Design Using Hardware and Software Protection for FDA Compliance
Secure-by-Design Using Hardware and Software Protection for FDA Compliance
ICS

如何办理(hull学位证书)英国赫尔大学毕业证硕士文凭原版一模一样
如何办理(hull学位证书)英国赫尔大学毕业证硕士文凭原版一模一样如何办理(hull学位证书)英国赫尔大学毕业证硕士文凭原版一模一样
如何办理(hull学位证书)英国赫尔大学毕业证硕士文凭原版一模一样
gapen1

🏎️Tech Transformation: DevOps Insights from the Experts 👩‍💻
🏎️Tech Transformation: DevOps Insights from the Experts 👩‍💻🏎️Tech Transformation: DevOps Insights from the Experts 👩‍💻
🏎️Tech Transformation: DevOps Insights from the Experts 👩‍💻
campbellclarkson

Baha Majid WCA4Z IBM Z Customer Council Boston June 2024.pdf
Baha Majid WCA4Z IBM Z Customer Council Boston June 2024.pdfBaha Majid WCA4Z IBM Z Customer Council Boston June 2024.pdf
Baha Majid WCA4Z IBM Z Customer Council Boston June 2024.pdf
Baha Majid

Safelyio Toolbox Talk Softwate & App (How To Digitize Safety Meetings)
Safelyio Toolbox Talk Softwate & App (How To Digitize Safety Meetings)Safelyio Toolbox Talk Softwate & App (How To Digitize Safety Meetings)
Safelyio Toolbox Talk Softwate & App (How To Digitize Safety Meetings)
safelyiotech


Recently uploaded (20)

14 th Edition of International conference on computer vision
14 th Edition of International conference on computer vision14 th Edition of International conference on computer vision
14 th Edition of International conference on computer vision

Computer Science & Engineering VI Sem- New Syllabus.pdf
Computer Science & Engineering VI Sem- New Syllabus.pdfComputer Science & Engineering VI Sem- New Syllabus.pdf
Computer Science & Engineering VI Sem- New Syllabus.pdf

Stork Product Overview: An AI-Powered Autonomous Delivery Fleet
Stork Product Overview: An AI-Powered Autonomous Delivery FleetStork Product Overview: An AI-Powered Autonomous Delivery Fleet
Stork Product Overview: An AI-Powered Autonomous Delivery Fleet

WMF 2024 - Unlocking the Future of Data Powering Next-Gen AI with Vector Data...
WMF 2024 - Unlocking the Future of Data Powering Next-Gen AI with Vector Data...WMF 2024 - Unlocking the Future of Data Powering Next-Gen AI with Vector Data...
WMF 2024 - Unlocking the Future of Data Powering Next-Gen AI with Vector Data...

Software Test Automation - A Comprehensive Guide on Automated Testing.pdf
Software Test Automation - A Comprehensive Guide on Automated Testing.pdfSoftware Test Automation - A Comprehensive Guide on Automated Testing.pdf
Software Test Automation - A Comprehensive Guide on Automated Testing.pdf

Operational ease MuleSoft and Salesforce Service Cloud Solution v1.0.pptx
Operational ease MuleSoft and Salesforce Service Cloud Solution v1.0.pptxOperational ease MuleSoft and Salesforce Service Cloud Solution v1.0.pptx
Operational ease MuleSoft and Salesforce Service Cloud Solution v1.0.pptx

Alluxio Webinar | 10x Faster Trino Queries on Your Data Platform
Alluxio Webinar | 10x Faster Trino Queries on Your Data PlatformAlluxio Webinar | 10x Faster Trino Queries on Your Data Platform
Alluxio Webinar | 10x Faster Trino Queries on Your Data Platform

The Comprehensive Guide to Validating Audio-Visual Performances.pdf
The Comprehensive Guide to Validating Audio-Visual Performances.pdfThe Comprehensive Guide to Validating Audio-Visual Performances.pdf
The Comprehensive Guide to Validating Audio-Visual Performances.pdf

The Rising Future of CPaaS in the Middle East 2024
The Rising Future of CPaaS in the Middle East 2024The Rising Future of CPaaS in the Middle East 2024
The Rising Future of CPaaS in the Middle East 2024

Mobile App Development Company In Noida | Drona Infotech
Mobile App Development Company In Noida | Drona InfotechMobile App Development Company In Noida | Drona Infotech
Mobile App Development Company In Noida | Drona Infotech

美洲杯赔率投注网【​网址​🎉3977·EE​🎉】
美洲杯赔率投注网【​网址​🎉3977·EE​🎉】美洲杯赔率投注网【​网址​🎉3977·EE​🎉】
美洲杯赔率投注网【​网址​🎉3977·EE​🎉】

一比一原版(sdsu毕业证书)圣地亚哥州立大学毕业证如何办理
一比一原版(sdsu毕业证书)圣地亚哥州立大学毕业证如何办理一比一原版(sdsu毕业证书)圣地亚哥州立大学毕业证如何办理
一比一原版(sdsu毕业证书)圣地亚哥州立大学毕业证如何办理

DECODING JAVA THREAD DUMPS: MASTER THE ART OF ANALYSIS
DECODING JAVA THREAD DUMPS: MASTER THE ART OF ANALYSISDECODING JAVA THREAD DUMPS: MASTER THE ART OF ANALYSIS
DECODING JAVA THREAD DUMPS: MASTER THE ART OF ANALYSIS

Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...
Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...
Unlock the Secrets to Effortless Video Creation with Invideo: Your Ultimate G...

Orca: Nocode Graphical Editor for Container Orchestration
Orca: Nocode Graphical Editor for Container OrchestrationOrca: Nocode Graphical Editor for Container Orchestration
Orca: Nocode Graphical Editor for Container Orchestration

Secure-by-Design Using Hardware and Software Protection for FDA Compliance
Secure-by-Design Using Hardware and Software Protection for FDA ComplianceSecure-by-Design Using Hardware and Software Protection for FDA Compliance
Secure-by-Design Using Hardware and Software Protection for FDA Compliance

如何办理(hull学位证书)英国赫尔大学毕业证硕士文凭原版一模一样
如何办理(hull学位证书)英国赫尔大学毕业证硕士文凭原版一模一样如何办理(hull学位证书)英国赫尔大学毕业证硕士文凭原版一模一样
如何办理(hull学位证书)英国赫尔大学毕业证硕士文凭原版一模一样

🏎️Tech Transformation: DevOps Insights from the Experts 👩‍💻
🏎️Tech Transformation: DevOps Insights from the Experts 👩‍💻🏎️Tech Transformation: DevOps Insights from the Experts 👩‍💻
🏎️Tech Transformation: DevOps Insights from the Experts 👩‍💻

Baha Majid WCA4Z IBM Z Customer Council Boston June 2024.pdf
Baha Majid WCA4Z IBM Z Customer Council Boston June 2024.pdfBaha Majid WCA4Z IBM Z Customer Council Boston June 2024.pdf
Baha Majid WCA4Z IBM Z Customer Council Boston June 2024.pdf

Safelyio Toolbox Talk Softwate & App (How To Digitize Safety Meetings)
Safelyio Toolbox Talk Softwate & App (How To Digitize Safety Meetings)Safelyio Toolbox Talk Softwate & App (How To Digitize Safety Meetings)
Safelyio Toolbox Talk Softwate & App (How To Digitize Safety Meetings)


Top 5 Mistakes to Avoid When Writing Apache Spark Applications

  • 1. Top 5 Mistakes when writing Spark applications Mark Grover | @mark_grover | Software Engineer Ted Malaska | @TedMalaska | Principal Solutions Architect tiny.cloudera.com/spark-mistakes
  • 2. About the book • @hadooparchbook • hadooparchitecturebook.com • github.com/hadooparchitecturebook • slideshare.com/hadooparchbook
  • 4. Mistakes people we made when using Spark
  • 6. # Executors, cores, memory !?! • 6 Nodes • 16 cores each • 64 GB of RAM each
  • 7. Decisions, decisions, decisions • Number of executors (--num-executors) • Cores for each executor (--executor-cores) • Memory for each executor (--executor- memory) • 6 nodes • 16 cores each • 64 GB of RAM
  • 9. Answer #1 – Most granular • Have smallest sized executors as possible • 1 core each • Total of 16 x 6 = 96 cores • 96 executors • 64/16 = 4 GB per executor (per node)
  • 10. Answer #1 – Most granular • Have smallest sized executors as possible • 1 core each • Total of 16 x 6 = 96 cores • 96 executors • 64/16 = 4 GB per executor (per node)
  • 11. Why? • Not using benefits of running multiple tasks in same JVM
  • 12. Answer #2 – Least granular • 6 executors • 64 GB memory each • 16 cores each
  • 13. Answer #2 – Least granular • 6 executors • 64 GB memory each • 16 cores each
  • 14. Why? • Need to leave some memory overhead for OS/Hadoop daemons
  • 15. Answer #3 – with overhead • 6 executors • 63 GB memory each • 15 cores each
  • 16. Answer #3 – with overhead • 6 executors • 63 GB memory each • 15 cores each
  • 17. Spark on YARN – Memory usage • --executor-memory controls the heap size • Need some overhead (controlled by spark.yarn.executor.memory.overhead)for off heap memory • Default is max(384MB, .07 * spark.executor.memory)
  • 18. YARN AM needs a core: Client mode
  • 19. YARN AM needs a core: Cluster mode
  • 20. HDFS Throughput • 15 cores per executor can lead to bad HDFS I/O throughput. • Best is to keep under 5 cores per executor
  • 21. Calculations • 5 cores per executor – For max HDFS throughput • Cluster has 6 * 15 = 90 cores in total (after taking out Hadoop/Yarn daemon cores) • 90 cores / 5 cores/executor = 18 executors • 1 executor for AM => 17 executors • Each node has 3 executors • 63 GB/3 = 21 GB, 21 x (1-0.07) ~ 19 GB (counting off heap overhead)
  • 22. Correct answer • 17 executors • 19 GB memory each • 5 cores each * Not etched in stone
  • 23. Read more • From a great blog post on this topic by Sandy Ryza: http://blog.cloudera.com/blog/2015/03/how- to-tune-your-apache-spark-jobs-part-2/
  • 25. Application failure 15/04/16 14:13:03 WARN scheduler.TaskSetManager: Lost task 19.0 in stage 6.0 (TID 120, 10.215.149.47): java.lang.IllegalArgumentException: Size exceeds Integer.MAX_VALUE at sun.nio.ch.FileChannelImpl.map(FileChannelImpl.java:828) at org.apache.spark.storage.DiskStore.getBytes(DiskStore.scala:123) at org.apache.spark.storage.DiskStore.getBytes(DiskStore.scala:132) at org.apache.spark.storage.BlockManager.doGetLocal(BlockManager.scala:51 7) at org.apache.spark.storage.BlockManager.getLocal(BlockManager.scala:432) at org.apache.spark.storage.BlockManager.get(BlockManager.scala:618) at org.apache.spark.CacheManager.putInBlockManager(CacheManager.scala:146 ) at org.apache.spark.CacheManager.getOrCompute(CacheManager.scala:70)
  • 26. Why? • No Spark shuffle block can be greater than 2 GB
  • 27. Ok, what’s a shuffle block again? • In MapReduce terminology, a Mapper- Reducer pair – the file from local disk that the reducers read from local disk in MapReduce.
  • 28. In other words Each yellow arrow in this diagram represents a shuffle block.
  • 29. Wait! What!?! This is Big Data stuff, no? • Yeah! Nope! • Spark uses ByteBuffer as abstraction for storing blocks val buf = ByteBuffer.allocate(length.toInt) • ByteBuffer is limited by Integer.MAX_SIZE(2 GB)!
  • 30. Once again • No Spark shuffle block can be greater than 2 GB
  • 31. Spark SQL • Especially problematic for Spark SQL • Default number of partitions to use when doing shuffles is 200 – This low number of partitions leads to high shuffle block size
  • 32. Umm, ok, so what can I do? 1. Increase the number of partitions – Thereby, reducing the average partition size 2. Get rid of skew in your data – More on that later
  • 33. Umm, how exactly? • In Spark SQL, increase the value of spark.sql.shuffle.partitions • In regular Spark applications, use rdd.repartition() or rdd.coalesce()
  • 34. But, how many partitions should I have? • Rule of thumb is around 128 MB per partition
  • 35. But! • Spark uses a different data structure for bookkeeping during shuffles, when the number of partitions is less than 2000, vs. more than 2000.
  • 36. Don’t believe me? • In MapStatus.scala def apply(loc: BlockManagerId, uncompressedSizes: Array[Long]): MapStatus = { if (uncompressedSizes.length > 2000) { HighlyCompressedMapStatus(loc, uncompressedSizes) } else { new CompressedMapStatus(loc, uncompressedSizes) } }
  • 37. Ok, so what are you saying? • If your number of partitions is less than 2000, but close enough to it, bump that number up to be slightly higher than 2000.
  • 38. Can you summarize, please? • Don’t have too big partitions – Your job will fail due to 2 GB limit • Don’t have too few partitions – Your job will be slow, not making using of parallelism • Rule of thumb: ~128 MB per partition • If #partitions < 2000, but close, bump to just > 2000
  • 40. Slow jobs on Join/Shuffle • Your dataset takes 20 seconds to run over with a map job, but take 4 hours when joined or shuffled. What wrong?
  • 42. Mistake - Skew Single Thread Single Thread Single Thread Single Thread Single Thread Single Thread Single Thread Normal Distributed The Holy Grail of Distributed Systems
  • 43. Mistake - Skew Single Thread Normal Distributed What about Skew, because that is a thing
  • 44. Mistake – Skew : Answers • Salting • Isolation Salting • Isolation Map Joins
  • 45. Mistake – Skew : Salting • Normal Key: “Foo” • Salted Key: “Foo” + random.nextInt(saltFactor)
  • 47. Mistake – Skew: Salting
  • 49. Mistake – Skew : Salting • Two Stage Aggregation – Stage one to do operations on the salted keys – Stage two to do operation access unsalted key results Data Source Map Convert to Salted Key & Value Tuple Reduce By Salted Key Map Convert results to Key & Value Tuple Reduce By Key Results
  • 50. Mistake – Skew : Isolated Salting • Second Stage only required for Isolated Keys Data Source Map Convert to Key & Value Isolate Key and convert to Salted Key & Value Tuple Reduce By Key & Salted Key Filter Isolated Keys From Salted Keys Map Convert results to Key & Value Tuple Reduce By Key Union to Results
  • 51. Mistake – Skew : Isolated Map Join • Filter Out Isolated Keys and use Map Join/Aggregate on those • And normal reduce on the rest of the data • This can remove a large amount of data being shuffled Data Source Filter Normal Keys From Isolated Keys Reduce By Normal Key Union to Results Map Join For Isolated Keys
  • 52. Managing Parallelism Cartesian Join Map Task Shuffle Tmp 1 Shuffle Tmp 2 Shuffle Tmp 3 Shuffle Tmp 4 Map Task Shuffle Tmp 1 Shuffle Tmp 2 Shuffle Tmp 3 Shuffle Tmp 4 Map Task Shuffle Tmp 1 Shuffle Tmp 2 Shuffle Tmp 3 Shuffle Tmp 4 ReduceTask ReduceTask ReduceTask ReduceTask Amount of Data Amount of Data 10x 100x 1000x 10000x 100000x 1000000x Or more
  • 53. Managing Parallelism • To fight Cartesian Join – Nested Structures – Windowing – Skip Steps
  • 55. Out of luck? • Do you every run out of memory? • Do you every have more then 20 stages? • Is your driver doing a lot of work?
  • 56. Mistake – DAG Management • Shuffles are to be avoided • ReduceByKey over GroupByKey • TreeReduce over Reduce • Use Complex Types
  • 57. Mistake – DAG Management: Shuffles • Map Side Reducing if possible • Think about partitioning/bucketing ahead of time • Do as much as possible with a single Shuffle • Only send what you have to send • Avoid Skew and Cartesians
  • 58. ReduceByKey over GroupByKey • ReduceByKey can do almost anything that GroupByKey can do • Aggregations • Windowing • Use memory • But you have more control • ReduceByKey has a fixed limit of Memory requirements • GroupByKey is unbound and dependent of the data
  • 59. TreeReduce over Reduce • TreeReduce & Reduce returns a result to the driver • TreeReduce does more work on the executors • Where Reduce bring everything back to the driver Partition Partition Partition Partition Driver 100% Partition Partition Partition Partition Driver 4 25% 25% 25% 25%
  • 60. Complex Types • Top N List • Multiple types of Aggregations • Windowing operations • All in one pass
  • 61. Complex Types • Think outside of the box use objects to reduce by • (Make something simple)
  • 63. Ever seen this? Exception in thread "main" java.lang.NoSuchMethodError: com.google.common.hash.HashFunction.hashInt(I)Lcom/google/common/hash/HashCode; at org.apache.spark.util.collection.OpenHashSet.org $apache$spark$util$collection$OpenHashSet$$hashcode(OpenHashSet.scala:261) at org.apache.spark.util.collection.OpenHashSet$mcI$sp.getPos$mcI$sp(OpenHashSet.scala:165) at org.apache.spark.util.collection.OpenHashSet$mcI$sp.contains$mcI$sp(OpenHashSet.scala:102) at org.apache.spark.util.SizeEstimator$$anonfun$visitArray$2.apply$mcVI$sp(SizeEstimator.scala:214) at scala.collection.immutable.Range.foreach$mVc$sp(Range.scala:141) at org.apache.spark.util.SizeEstimator$.visitArray(SizeEstimator.scala:210) at…....
  • 64. But! • I already included guava in my app’s maven dependencies?
  • 65. Ah! • My guava version doesn’t match with Spark’s guava version!
  • 68. 5 Mistakes • Size up your executors right • 2 GB limit on Spark shuffle blocks • Evil thing about skew and cartesians • Learn to manage your DAG, yo! • Do shady stuff, don’t let classpath leaks mess you up
  • 69. THANK YOU. tiny.cloudera.com/spark-mistakes Mark Grover | @mark_grover Ted Malaska | @TedMalaska
