In data warehouse area, it is common to use one or more columns in complex type, such as map, and put many subfields into it. It may impact the query performance dramatically because: 1) It is a waste of IO. The whole column (in map), which may contain tens of subfields, need to be read. And Spark will traverse the whole map and get the value of the target key. 2) Vectorized read can not be exploit when nested type column is read. 3) Filter pushdown can not be utilized when nested columns is read. Over the last year, we have added a series of optimizations in Apache Spark to solve the above problems for Parquet.

1. Materialized Column——An Efficient Way
to Optimize Queries on Nested Columns
Guo, Jun (jason.guo.vip@gmail.com)
Lead of Data Engine Team, @ByteDance

2. Who we are
o Data Engine team of ByteDance
o Build a platform of one-stop
experience for OLAP , on which users
can analyze PB level data by writing
SQL without caring about the
underlying execution engine

3. What we do
o Manage Spark SQL / Presto / Hive
workload
o Offer Open API and self-serve platform
o Optimize Spark SQL / Presto / Hive
engine
o Design data architecture for most
business lines in ByteDance

4. Agenda
▪ Spark SQL at ByteDance
▪ Why nested type are widely used
▪ What are the main issues of nested type
▪ Optional solutions
▪ How does Materialized Column solve these problems

5. Spark SQL at ByteDance

6. Spark SQL at ByteDance

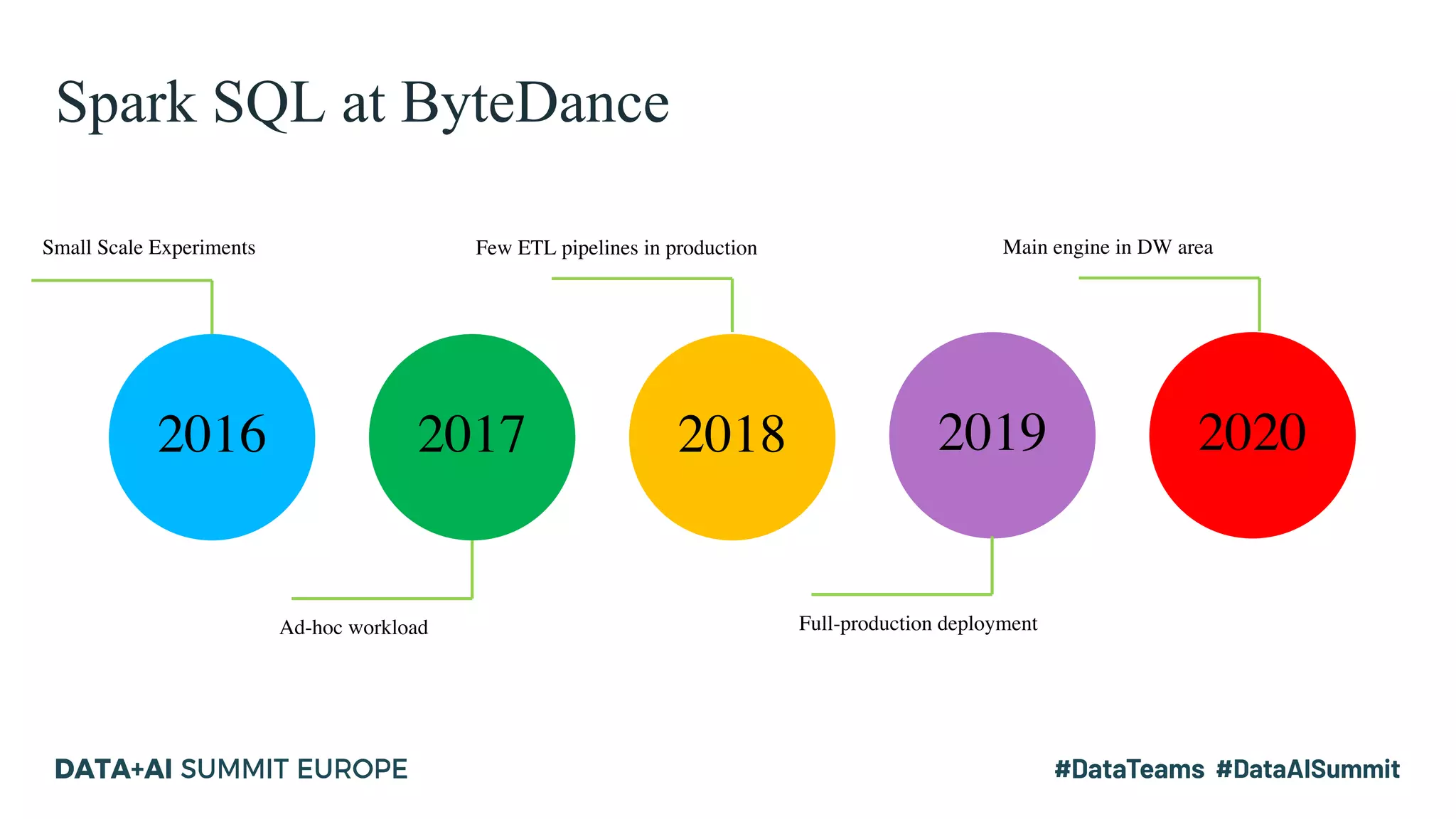

2016 2017 2018 2019 2020
Small Scale Experiments
Ad-hoc workload
Few ETL pipelines in production
Full-production deployment
Main engine in DW area

7. Why nested type are widely used

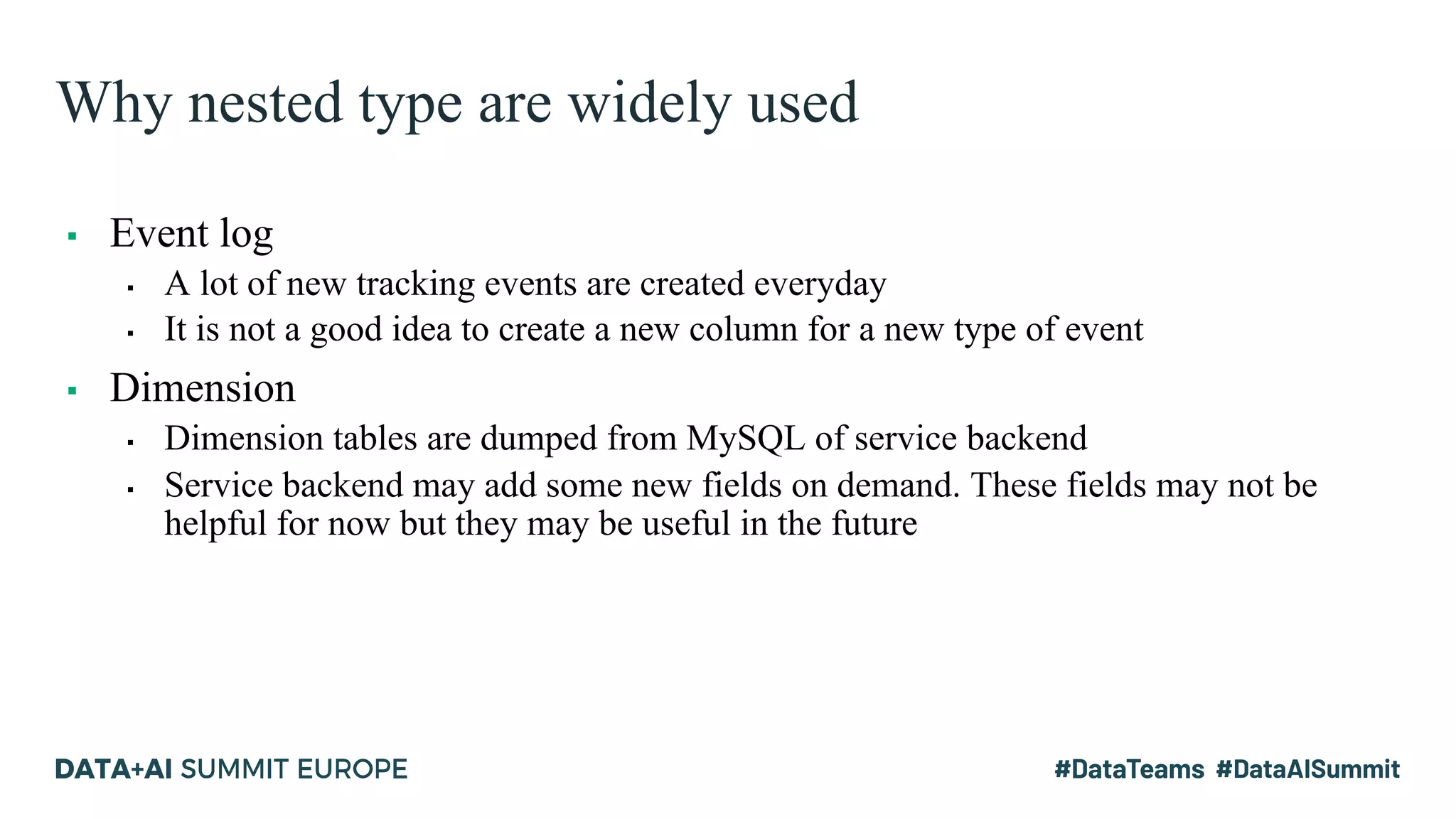

8. Why nested type are widely used
▪ Event log
▪ A lot of new tracking events are created everyday
▪ It is not a good idea to create a new column for a new type of event
▪ Dimension
▪ Dimension tables are dumped from MySQL of service backend
▪ Service backend may add some new fields on demand. These fields may not be
helpful for now but they may be useful in the future

9. Main issues for nested type

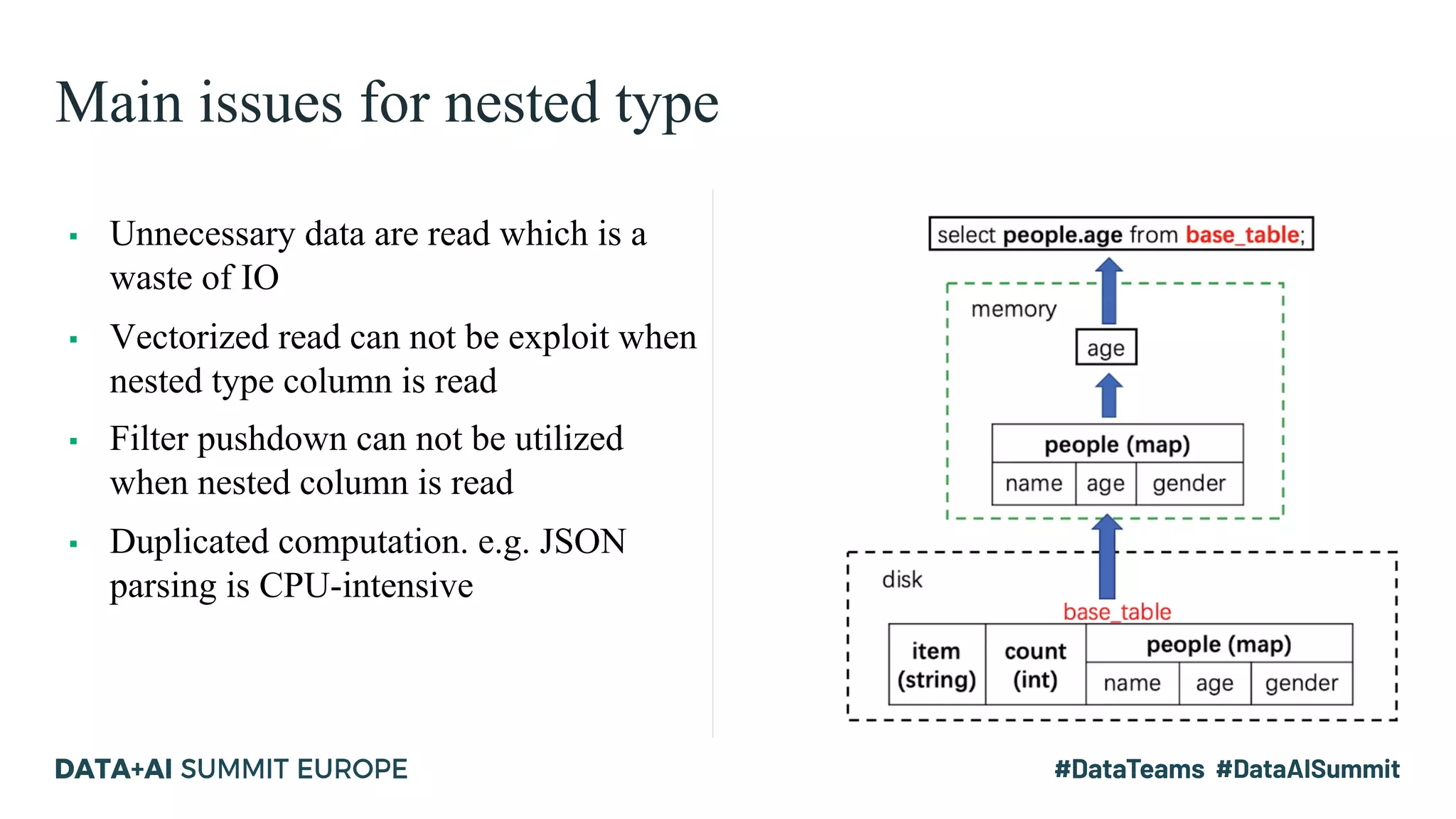

10. Main issues for nested type
▪ Unnecessary data are read which is a
waste of IO
▪ Vectorized read can not be exploit when
nested type column is read
▪ Filter pushdown can not be utilized
when nested column is read
▪ Duplicated computation. e.g. JSON
parsing is CPU-intensive

11. Optional solutions

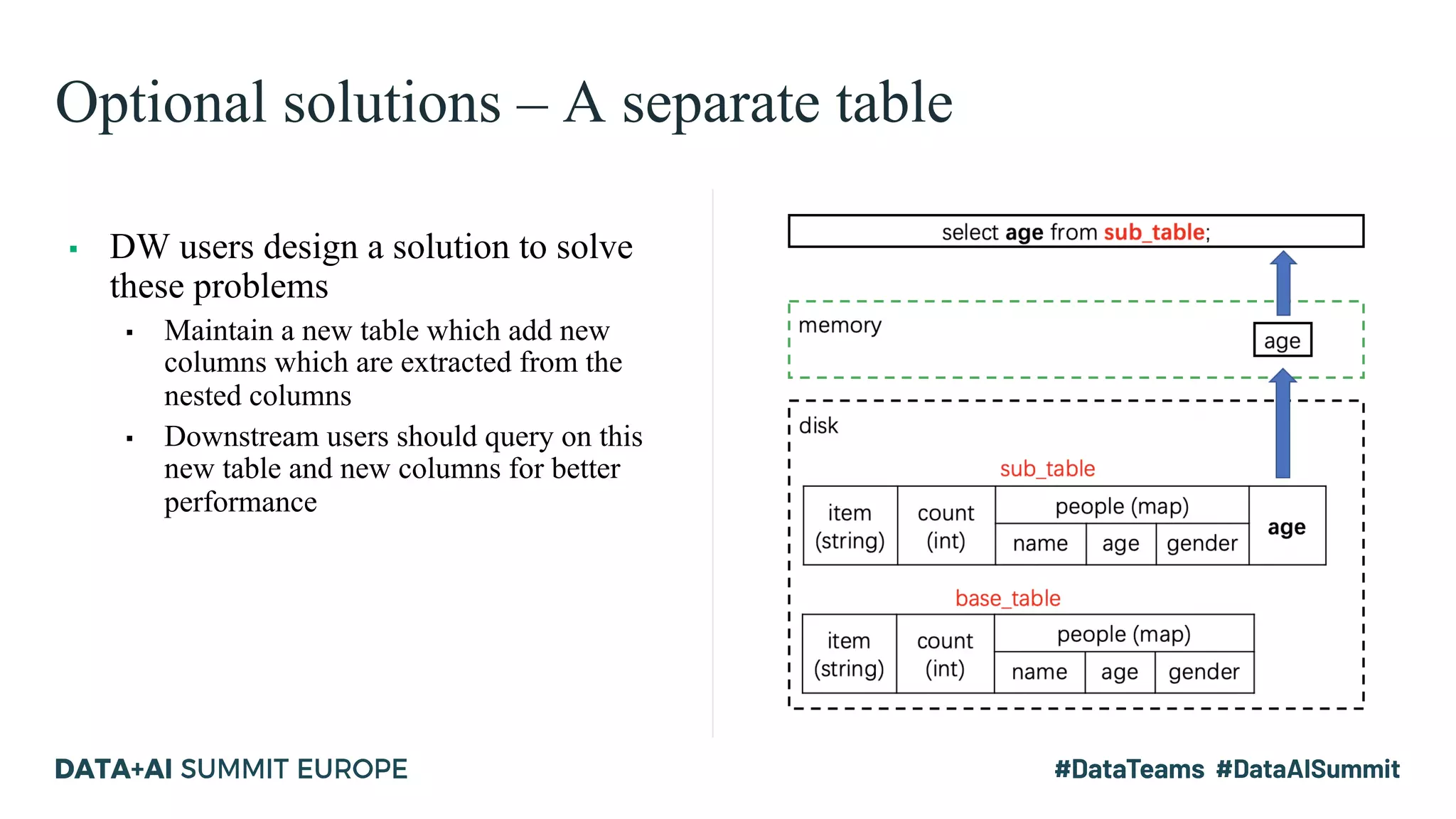

12. Optional solutions – A separate table
▪ DW users design a solution to solve
these problems
▪ Maintain a new table which add new
columns which are extracted from the
nested columns
▪ Downstream users should query on this
new table and new columns for better
performance

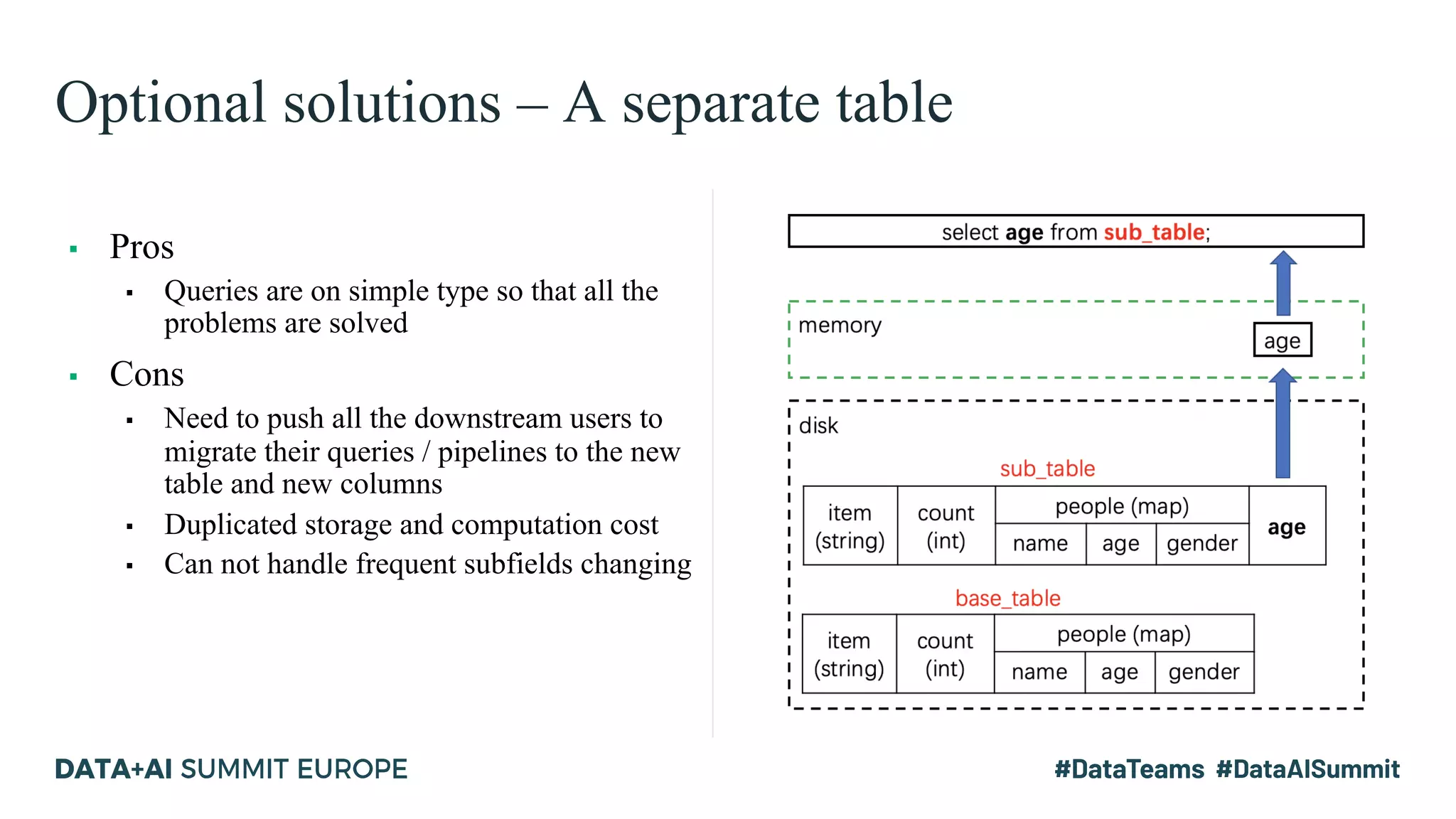

13. Optional solutions – A separate table
▪ Pros
▪ Queries are on simple type so that all the
problems are solved
▪ Cons
▪ Need to push all the downstream users to
migrate their queries / pipelines to the new
table and new columns
▪ Duplicated storage and computation cost
▪ Can not handle frequent subfields changing

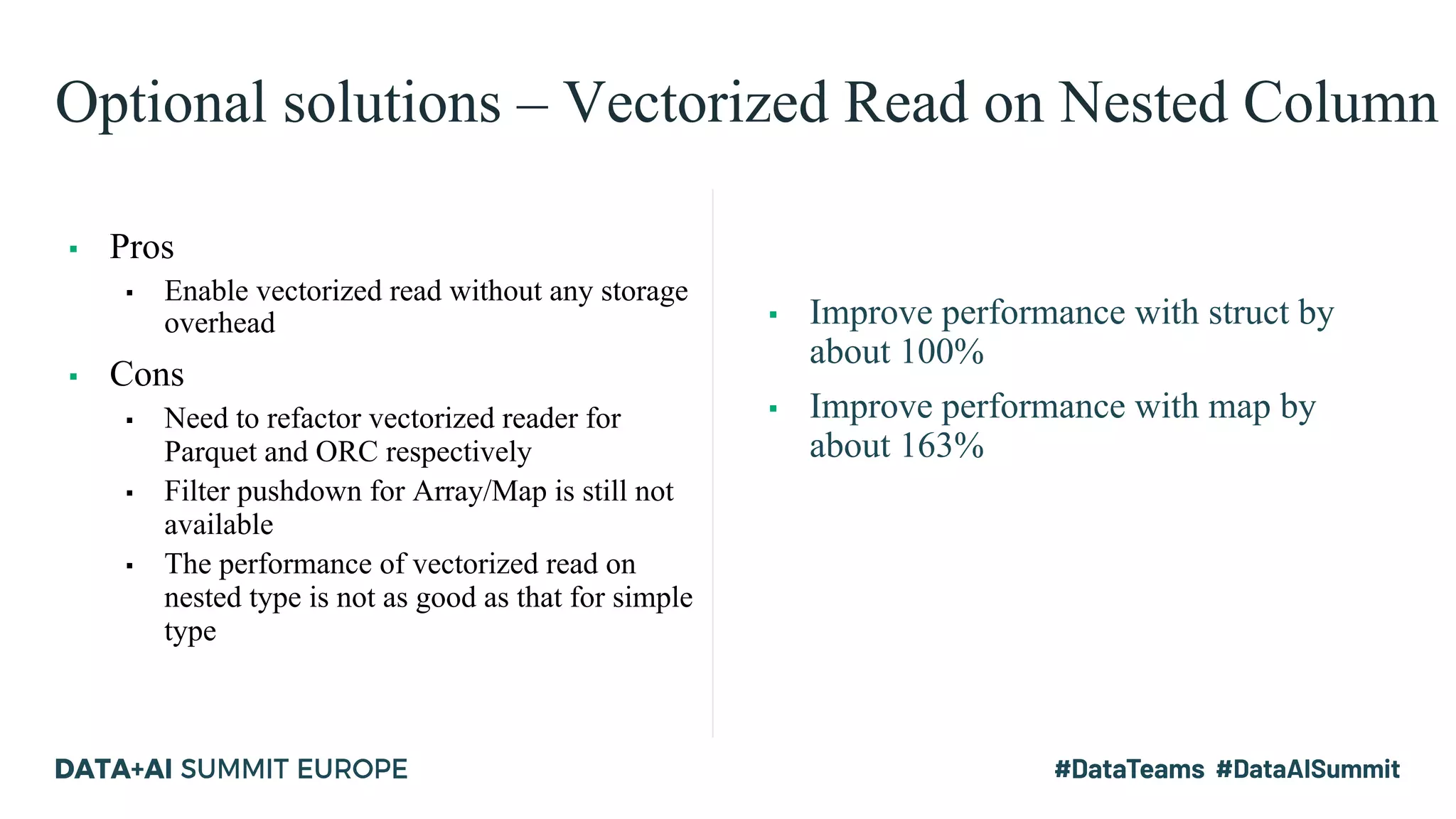

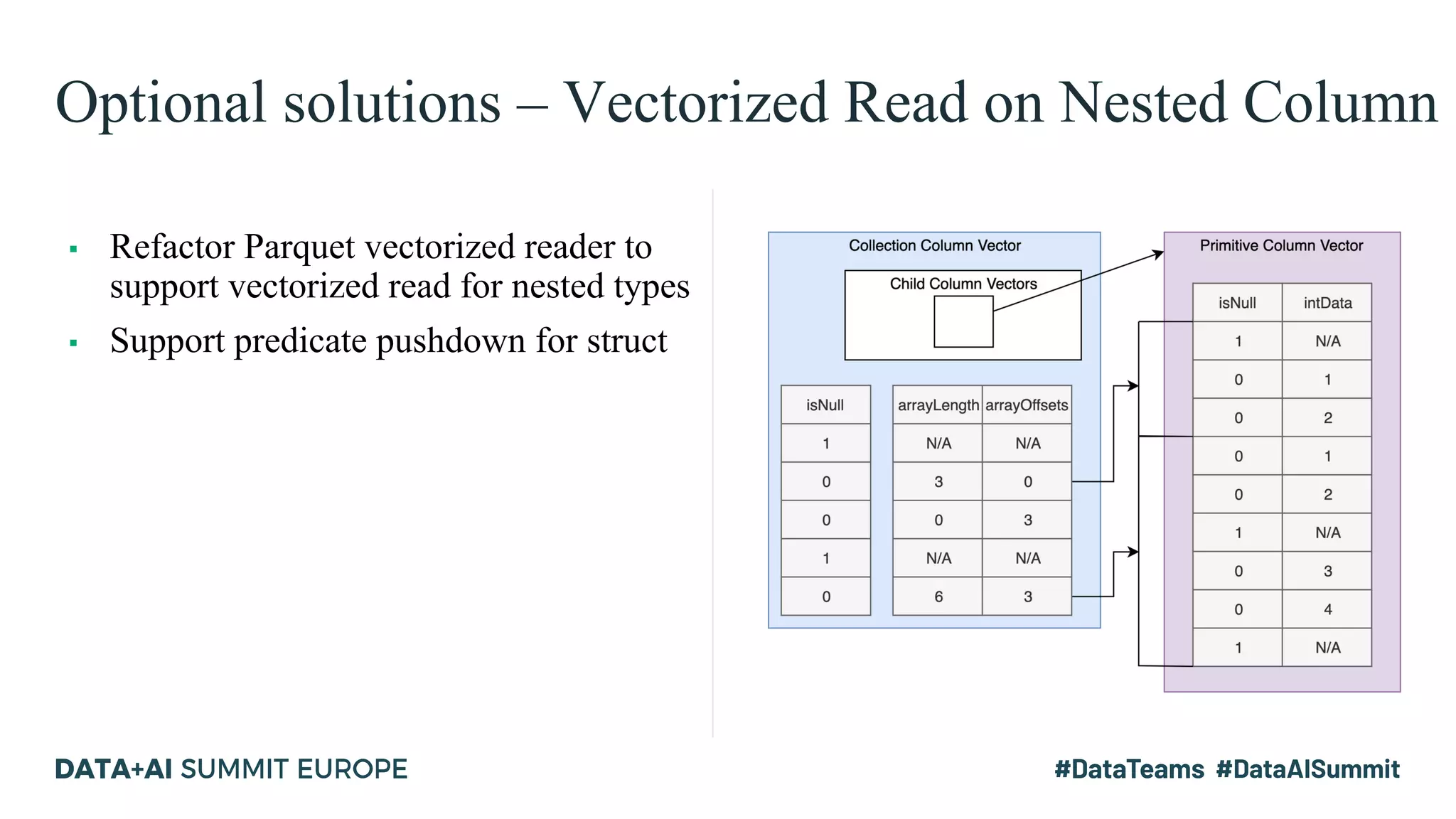

14. Optional solutions – Vectorized Read on Nested Column
▪ Refactor Parquet vectorized reader to
support vectorized read for nested types
▪ Support predicate pushdown for struct

15. Optional solutions – Vectorized Read on Nested Column
▪ Pros
▪ Enable vectorized read without any storage
overhead
▪ Cons
▪ Need to refactor vectorized reader for
Parquet and ORC respectively
▪ Filter pushdown for Array/Map is still not
available
▪ The performance of vectorized read on
nested type is not as good as that for simple
type
▪ Improve performance with struct by
about 100%
▪ Improve performance with map by
about 163%

16. How does Materialized Column solve these problems

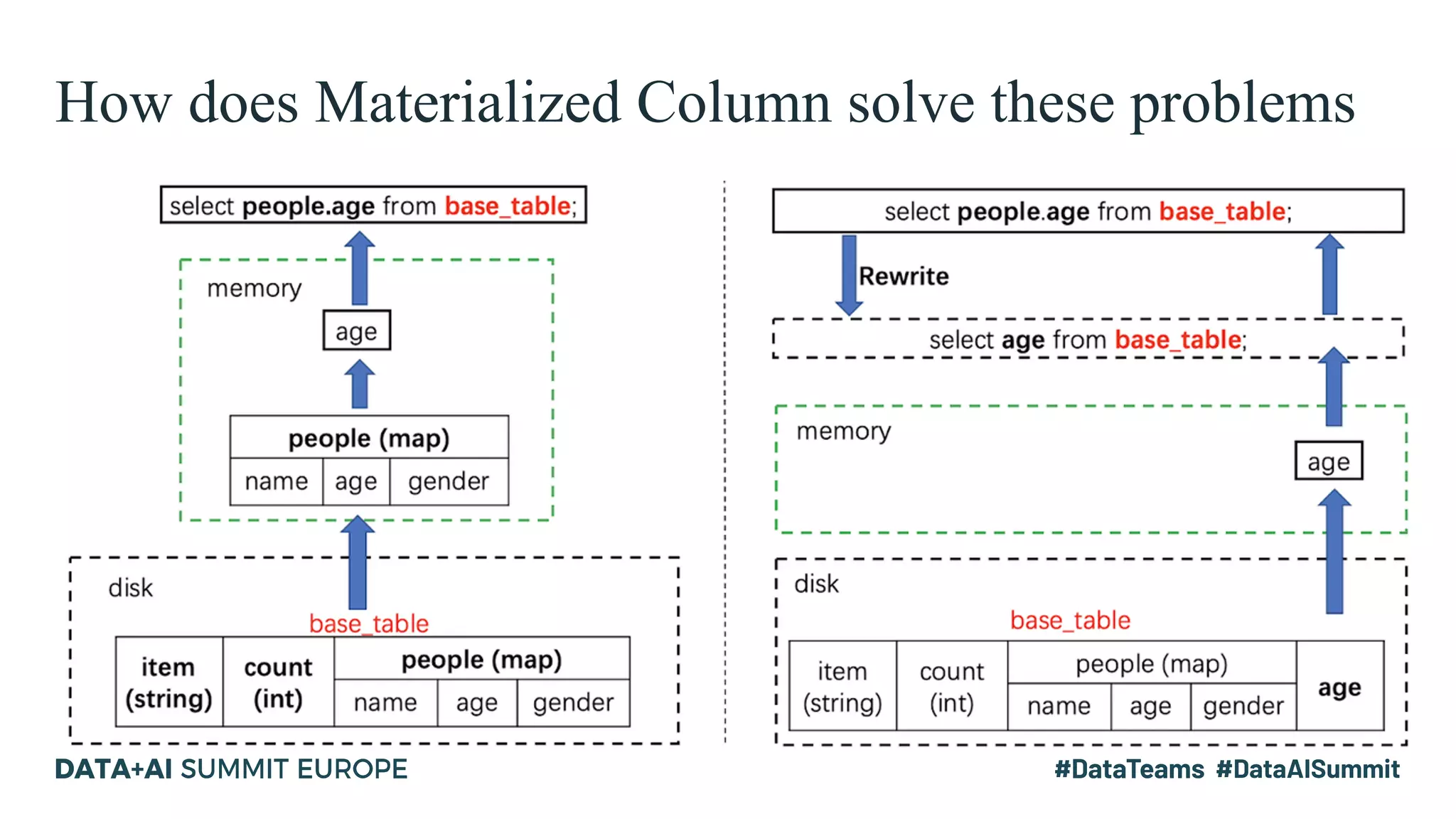

17. How does Materialized Column solve these problems

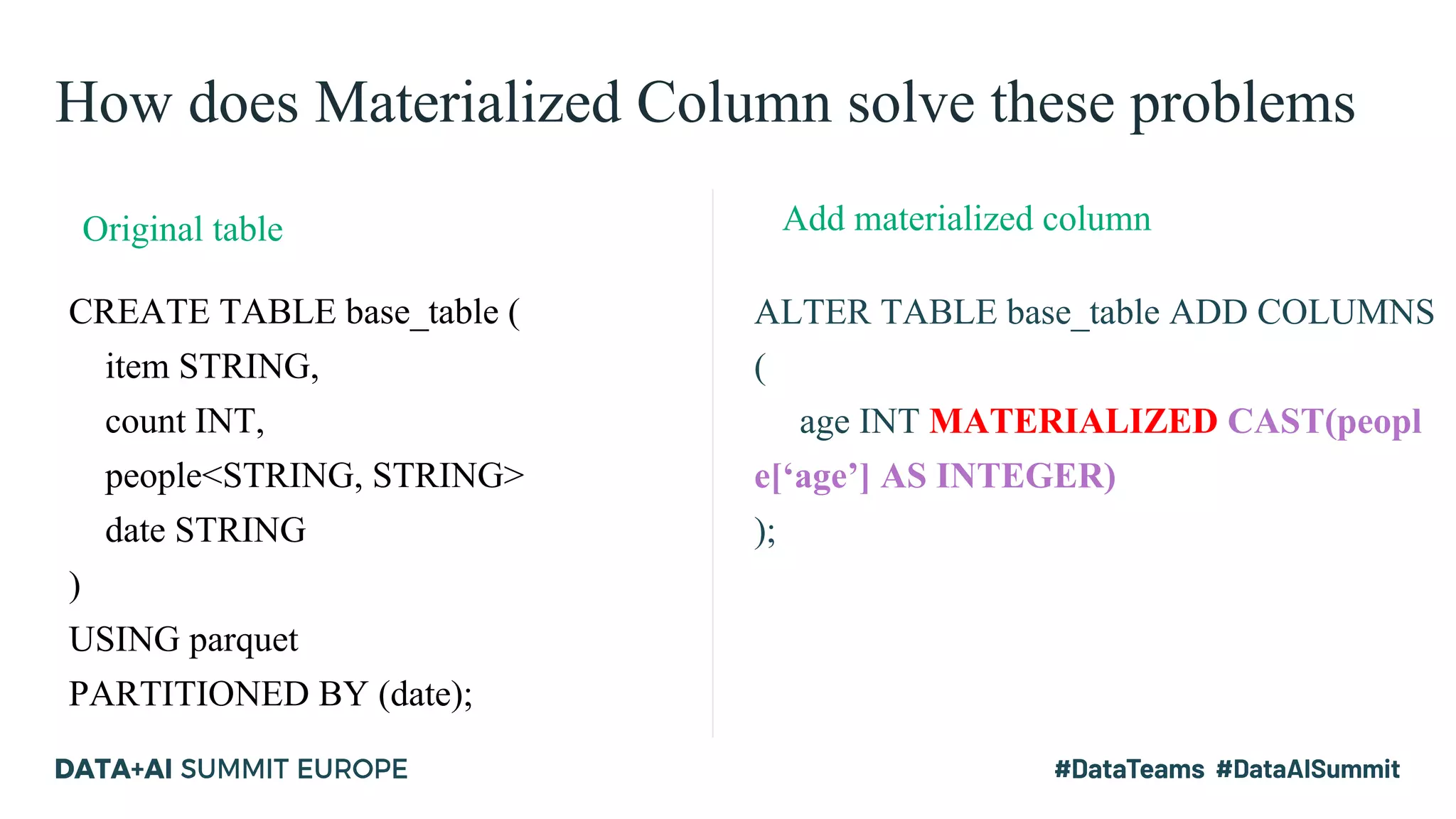

CREATE TABLE base_table (
item STRING,
count INT,
people<STRING, STRING>
date STRING
)
USING parquet
PARTITIONED BY (date);
ALTER TABLE base_table ADD COLUMNS
(
age INT MATERIALIZED CAST(peopl
e[‘age’] AS INTEGER)
);
Add materialized columnOriginal table

18. How does Materialized Column solve these problems

19. How does Materialized Column solve these problems

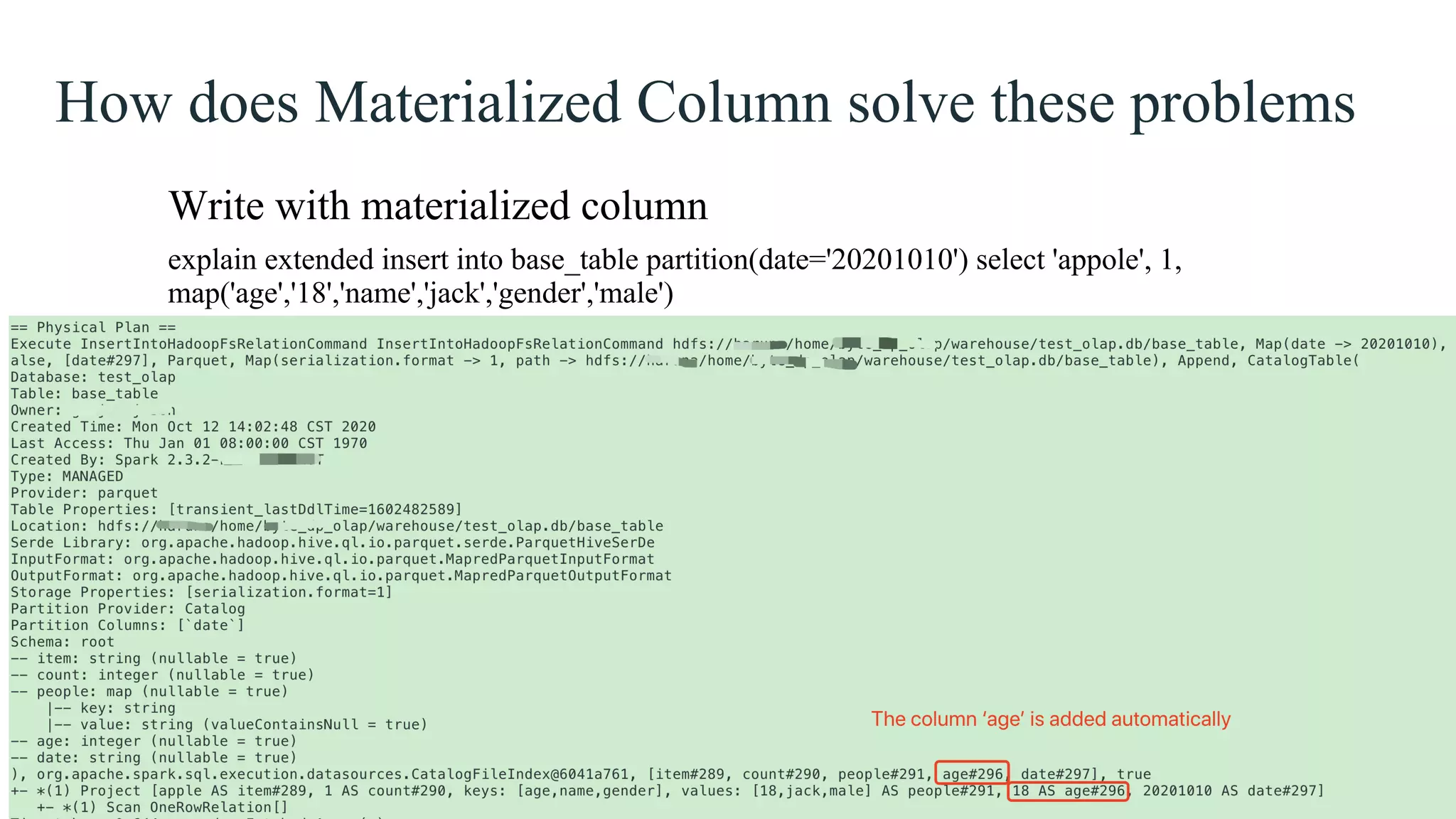

Write with materialized column
explain extended insert into base_table partition(date='20201010') select 'appole', 1,
map('age','18','name','jack','gender','male')

20. How does Materialized Column solve these problems

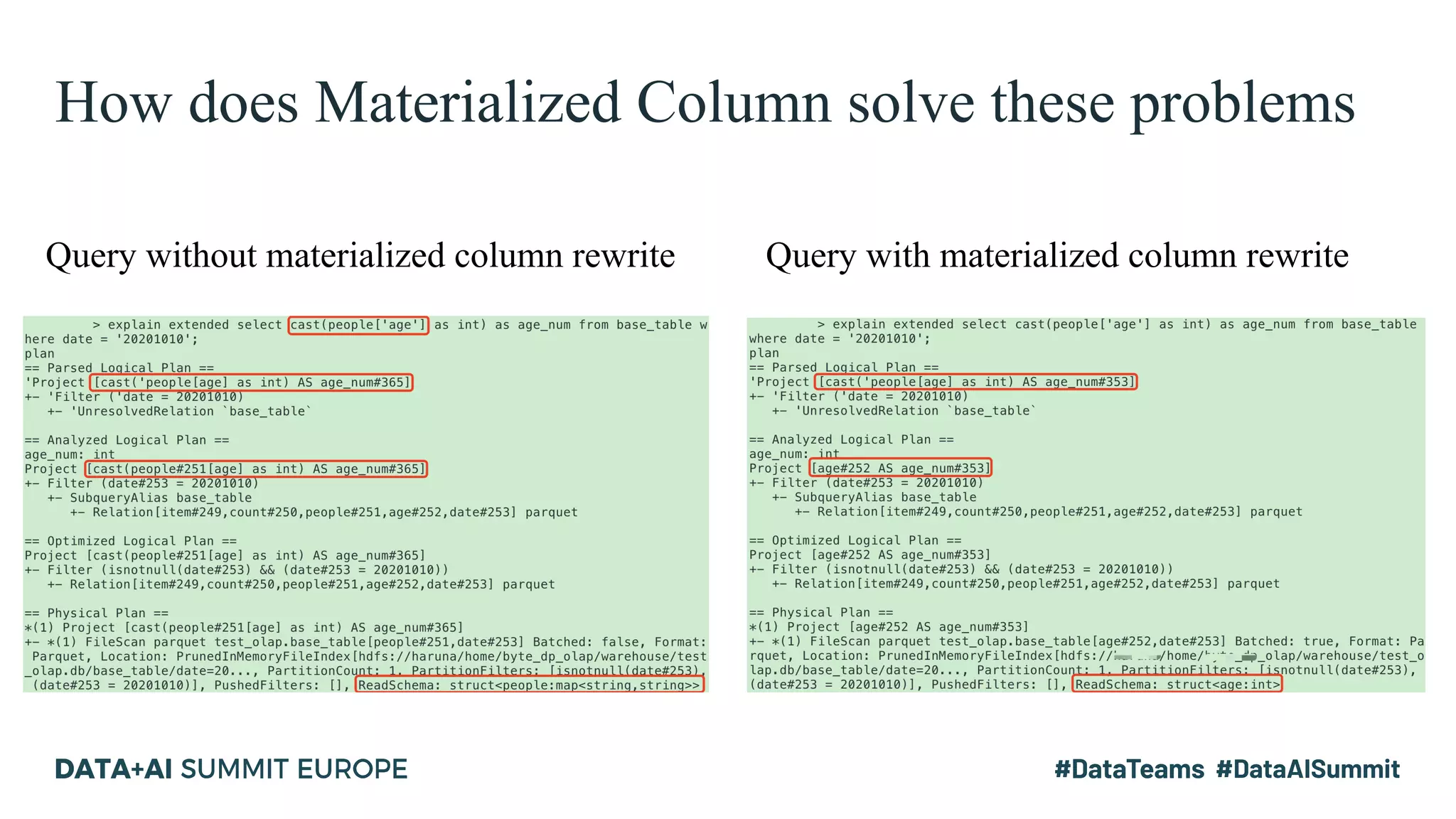

Query with materialized column rewriteQuery without materialized column rewrite

21. How does Materialized Column solve these problems

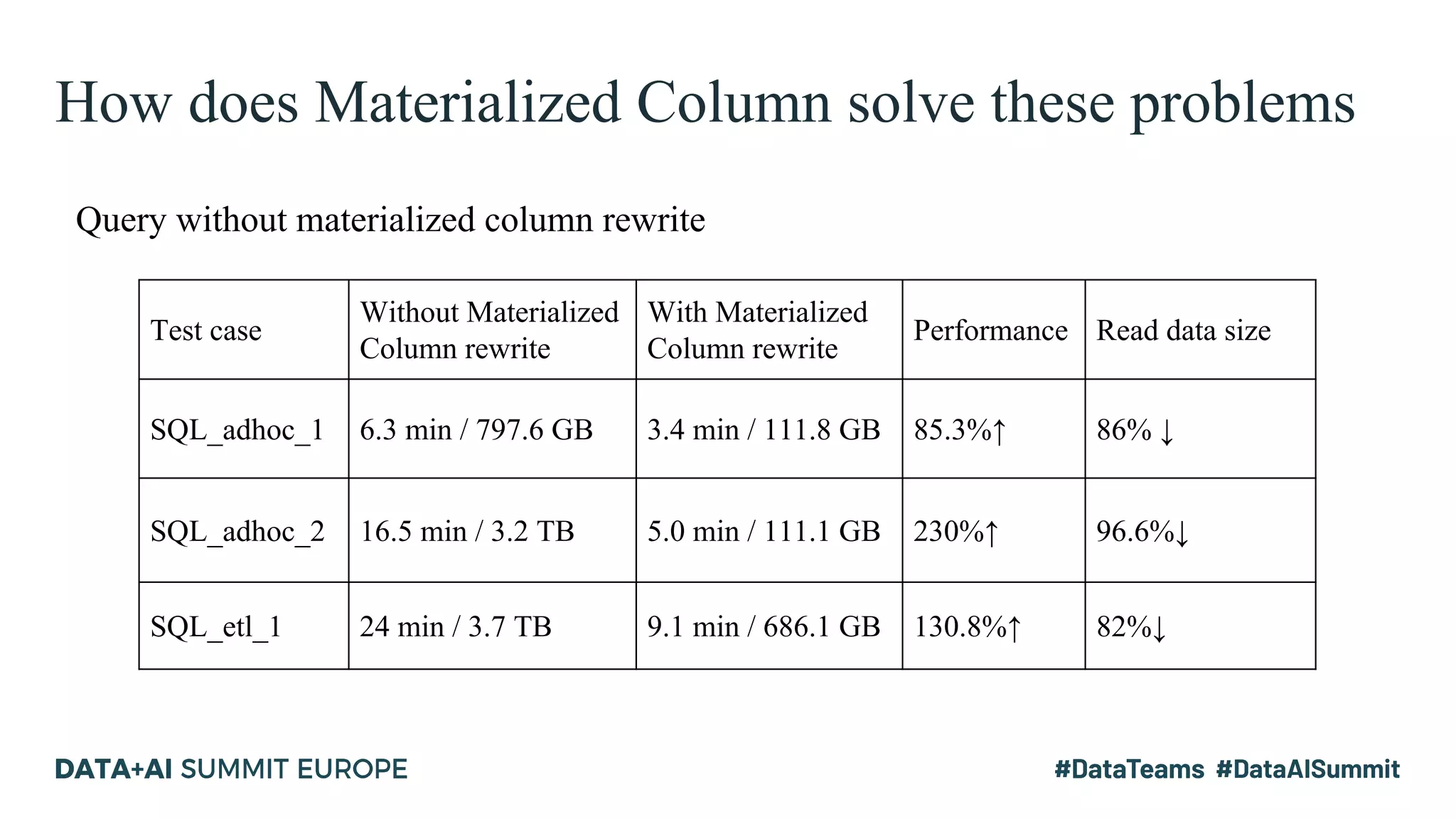

Test case
Without Materialized
Column rewrite
With Materialized
Column rewrite
Performance Read data size
SQL_adhoc_1 6.3 min / 797.6 GB 3.4 min / 111.8 GB 85.3%↑ 86% ↓
SQL_adhoc_2 16.5 min / 3.2 TB 5.0 min / 111.1 GB 230%↑ 96.6%↓
SQL_etl_1 24 min / 3.7 TB 9.1 min / 686.1 GB 130.8%↑ 82%↓
Query without materialized column rewrite
