As a general computing engine, Spark can process data from various data management/storage systems, including HDFS, Hive, Cassandra and Kafka. For flexibility and high throughput, Spark defines the Data Source API, which is an abstraction of the storage layer. The Data Source API has two requirements. 1) Generality: support reading/writing most data management/storage systems. 2) Flexibility: customize and optimize the read and write paths for different systems based on their capabilities. Data Source API V2 is one of the most important features coming with Spark 2.3. This talk will dive into the design and implementation of Data Source API V2, with comparison to the Data Source API V1. We also demonstrate how to implement a file-based data source using the Data Source API V2 for showing its generality and flexibility.

1. Data Source API V2
Wenchen Fan
2018-6-6 | SF | Spark + AI Summit
1

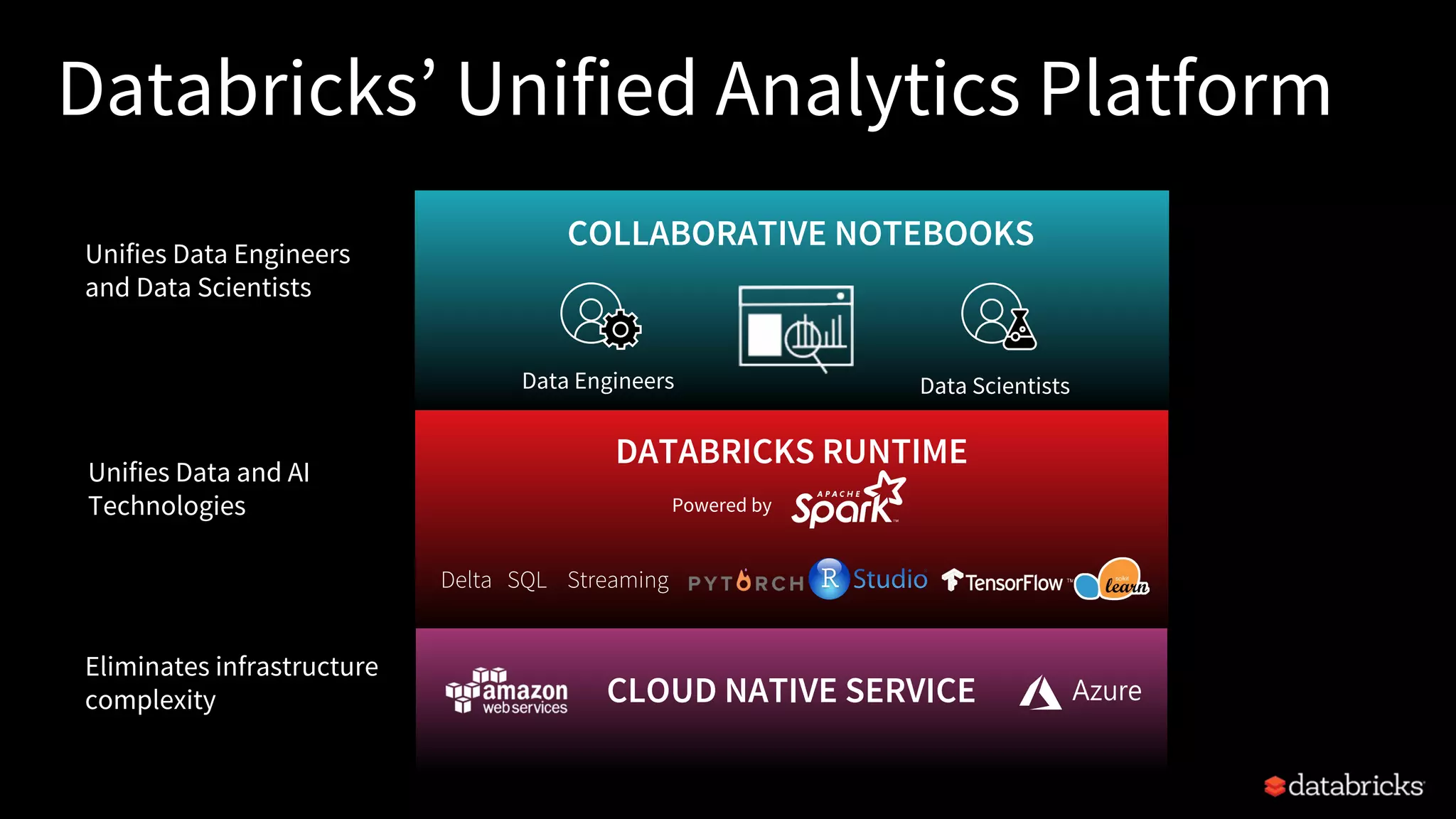

2. Databricks’ Unified Analytics Platform
DATABRICKS RUNTIME
COLLABORATIVE NOTEBOOKS
Delta SQL Streaming
Powered by
Data Engineers Data Scientists
CLOUD NATIVE SERVICE
Unifies Data Engineers
and Data Scientists
Unifies Data and AI
Technologies
Eliminates infrastructure
complexity

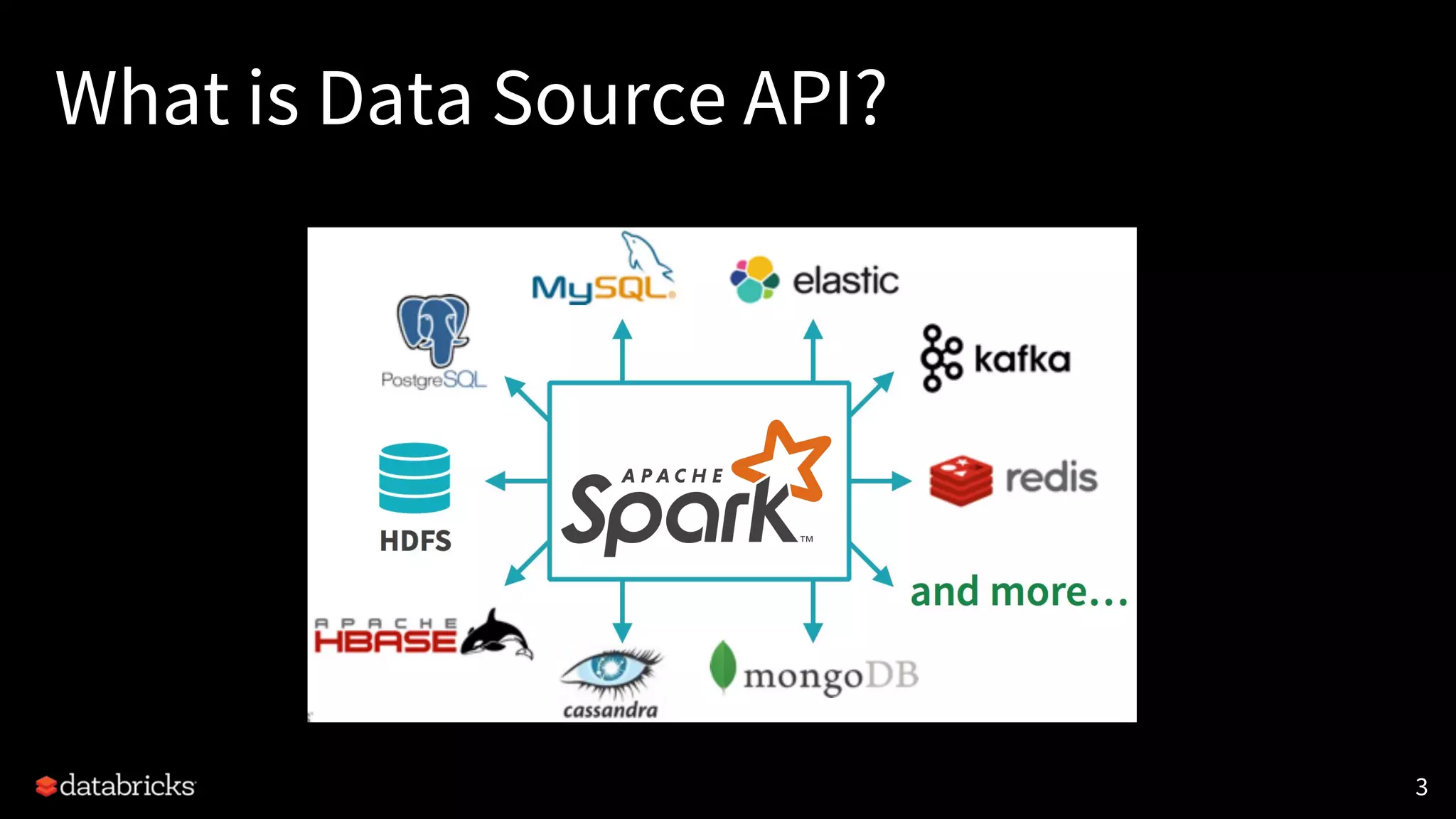

3. What is Data Source API?
3

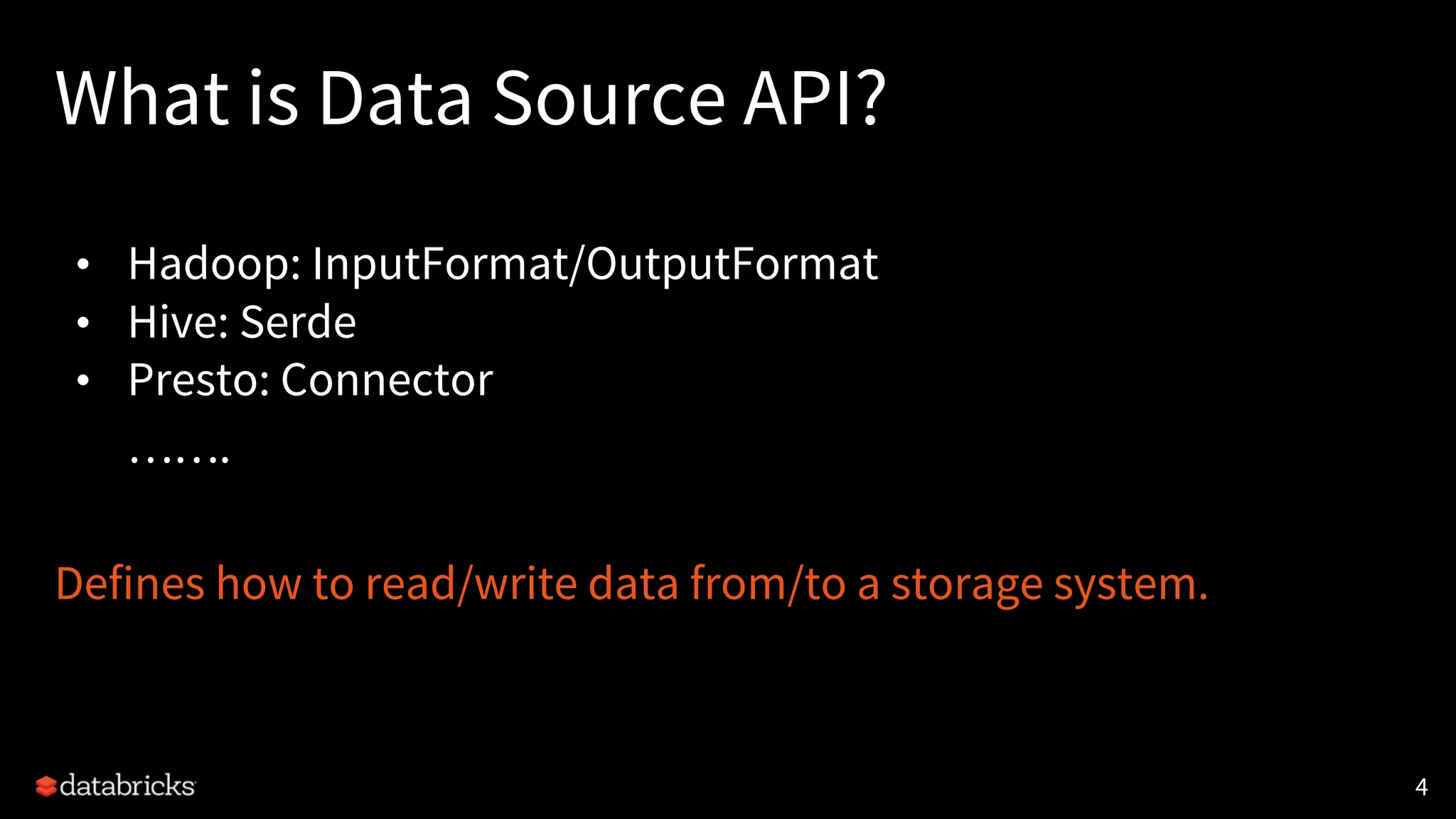

4. What is Data Source API?
• Hadoop: InputFormat/OutputFormat
• Hive: Serde
• Presto: Connector
…….
Defines how to read/write data from/to a storage system.
4

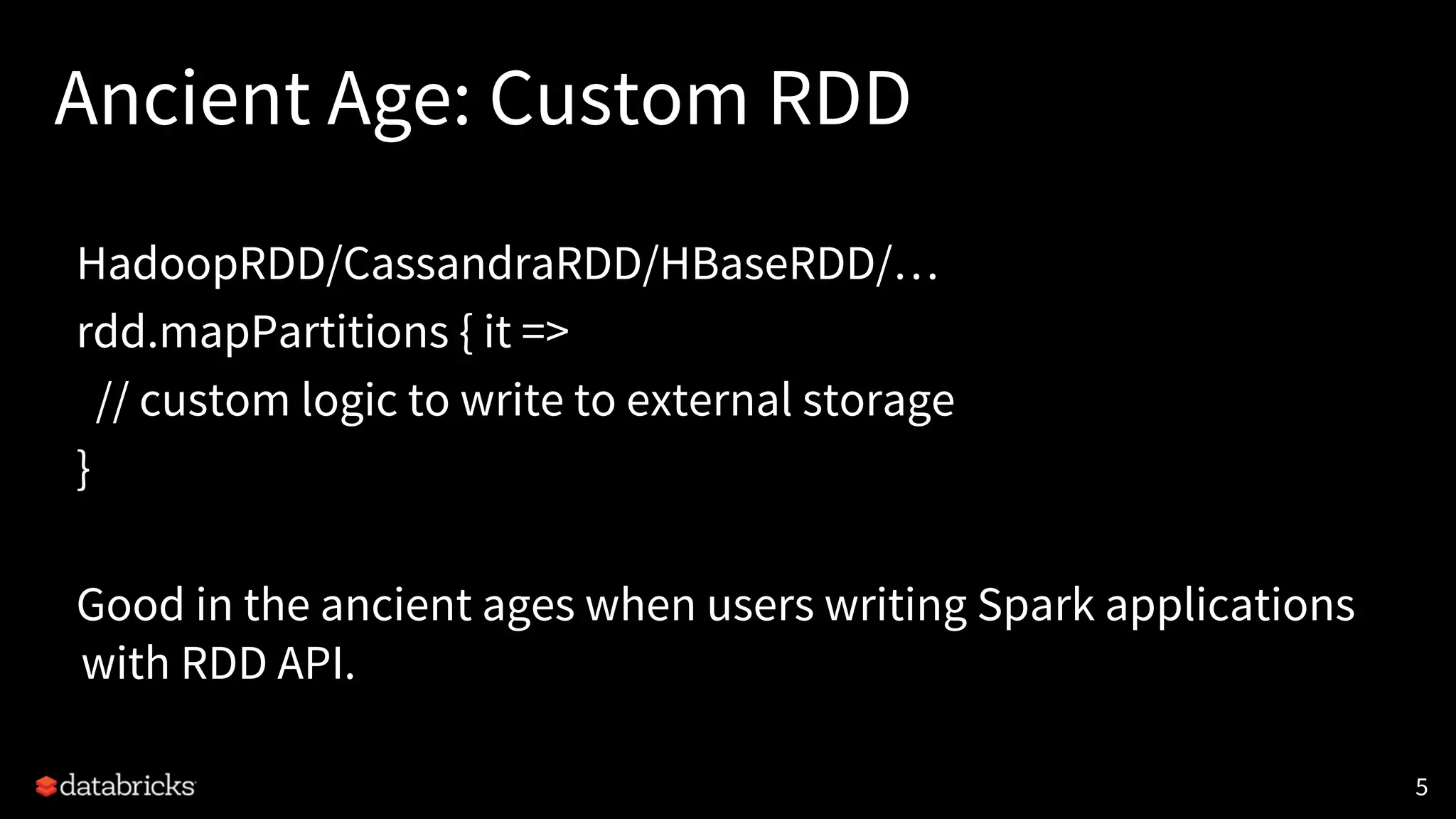

5. Ancient Age: Custom RDD
HadoopRDD/CassandraRDD/HBaseRDD/…
rdd.mapPartitions { it =>
// custom logic to write to external storage
}
Good in the ancient ages when users writing Spark applications
with RDD API.
5

6. New Requirements When
Switching to Spark SQL
6 6

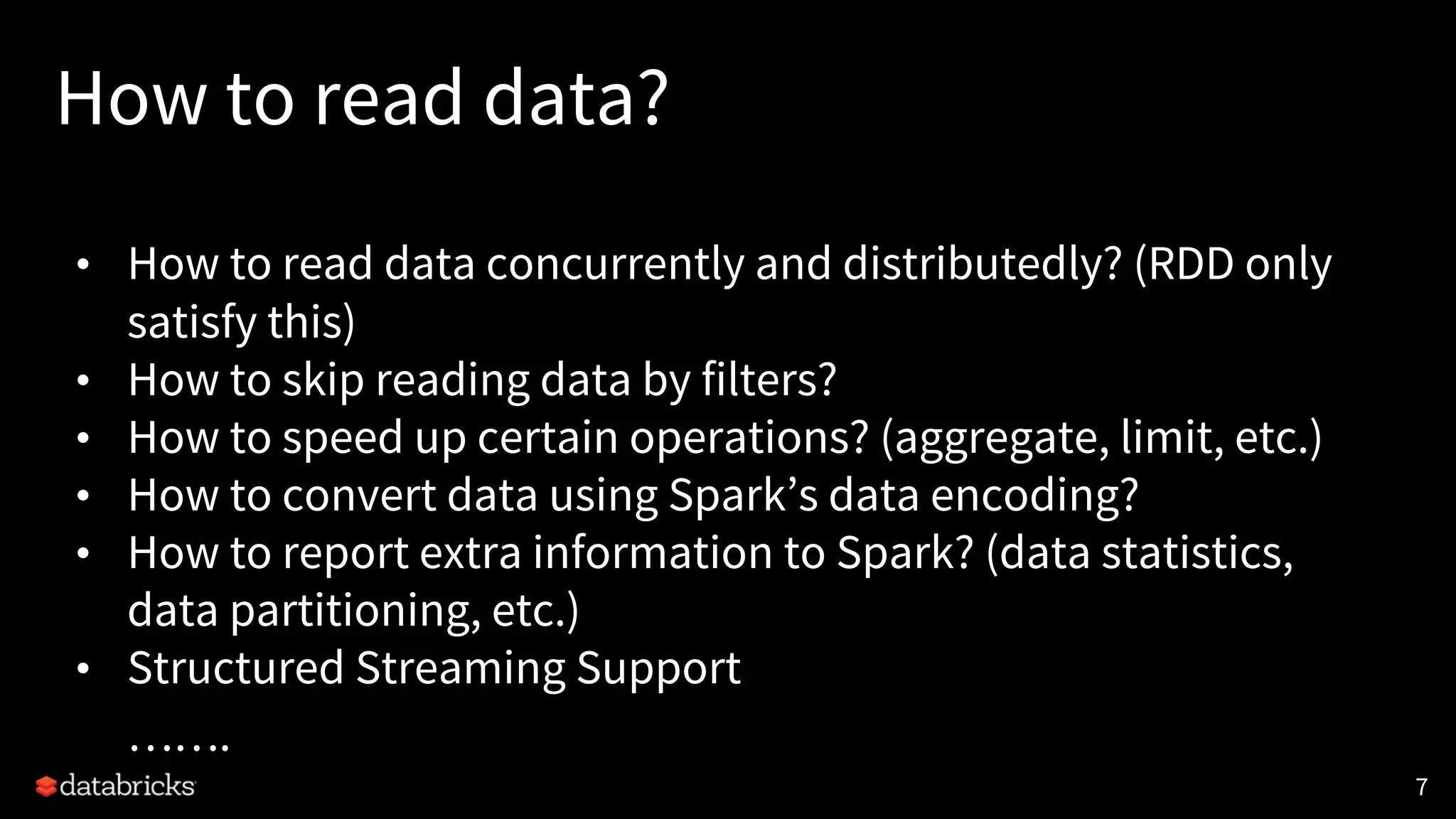

7. How to read data?
• How to read data concurrently and distributedly? (RDD only
satisfy this)
• How to skip reading data by filters?
• How to speed up certain operations? (aggregate, limit, etc.)
• How to convert data using Spark’s data encoding?
• How to report extra information to Spark? (data statistics,
data partitioning, etc.)
• Structured Streaming Support
…….
7

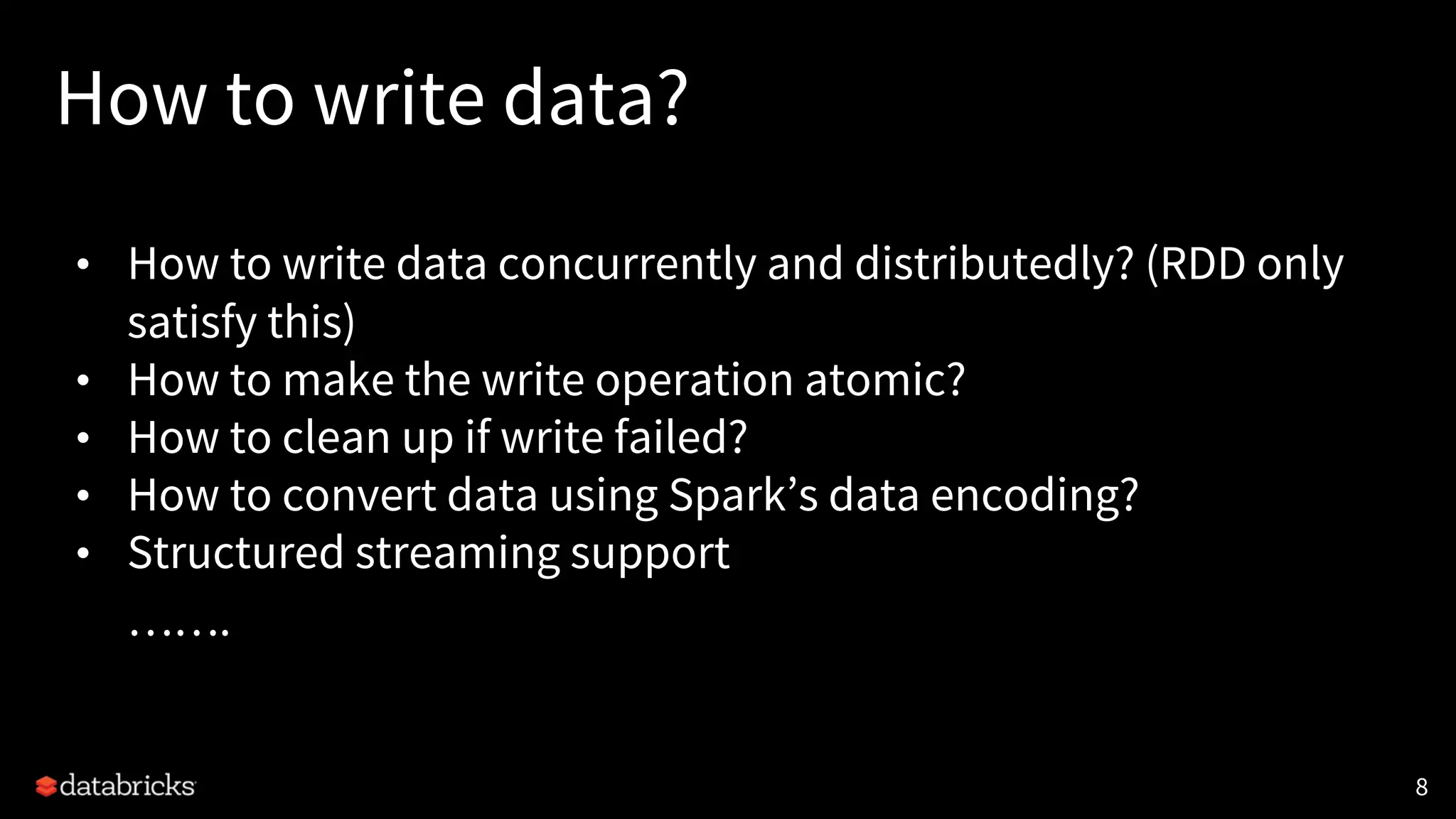

8. How to write data?
• How to write data concurrently and distributedly? (RDD only
satisfy this)
• How to make the write operation atomic?
• How to clean up if write failed?
• How to convert data using Spark’s data encoding?
• Structured streaming support
…….
8

9. Data Source API V1 for
Spark SQL
9 9

10. Data Source API V1
10

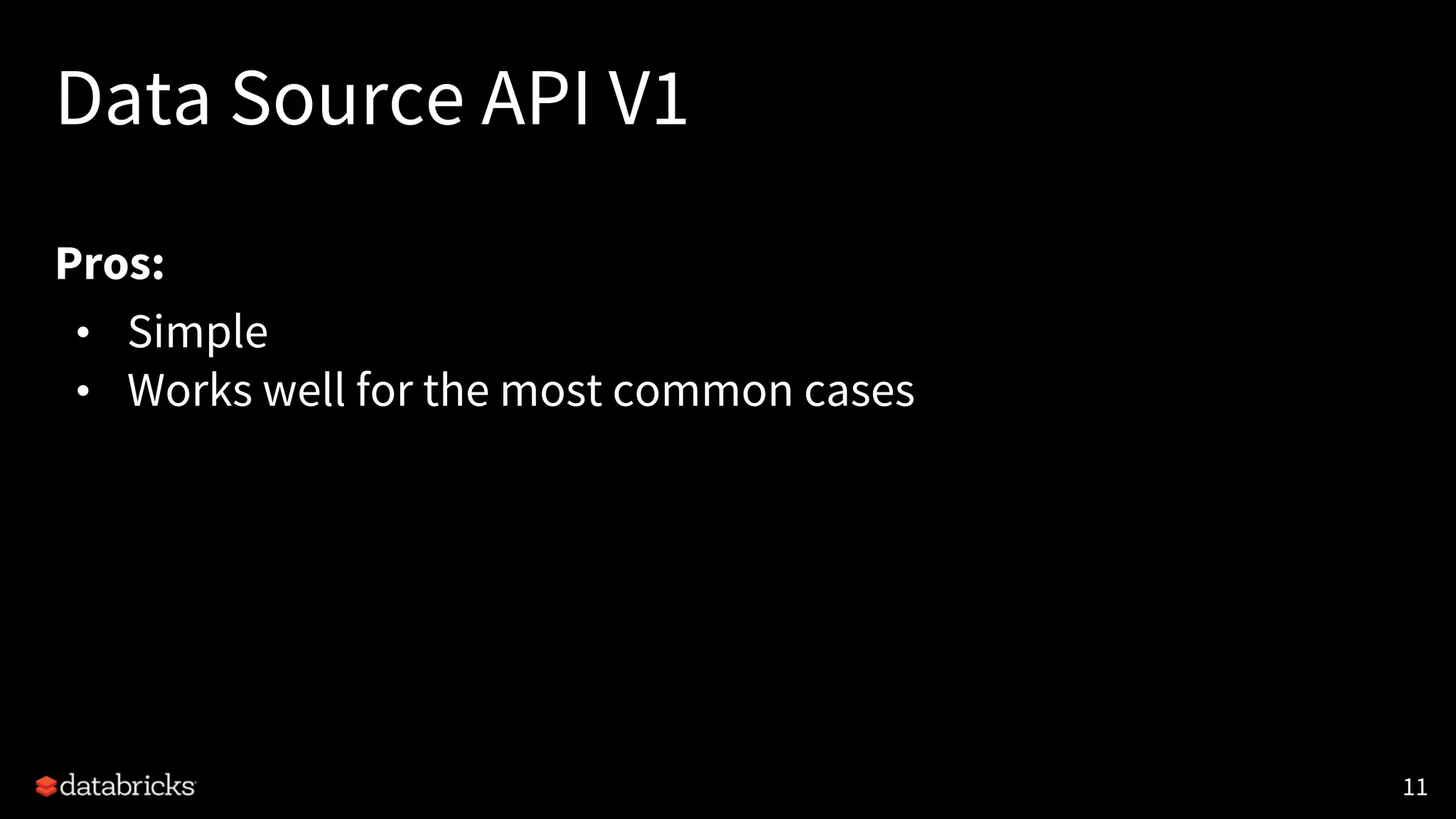

11. Data Source API V1
Pros:
• Simple
• Works well for the most common cases
11

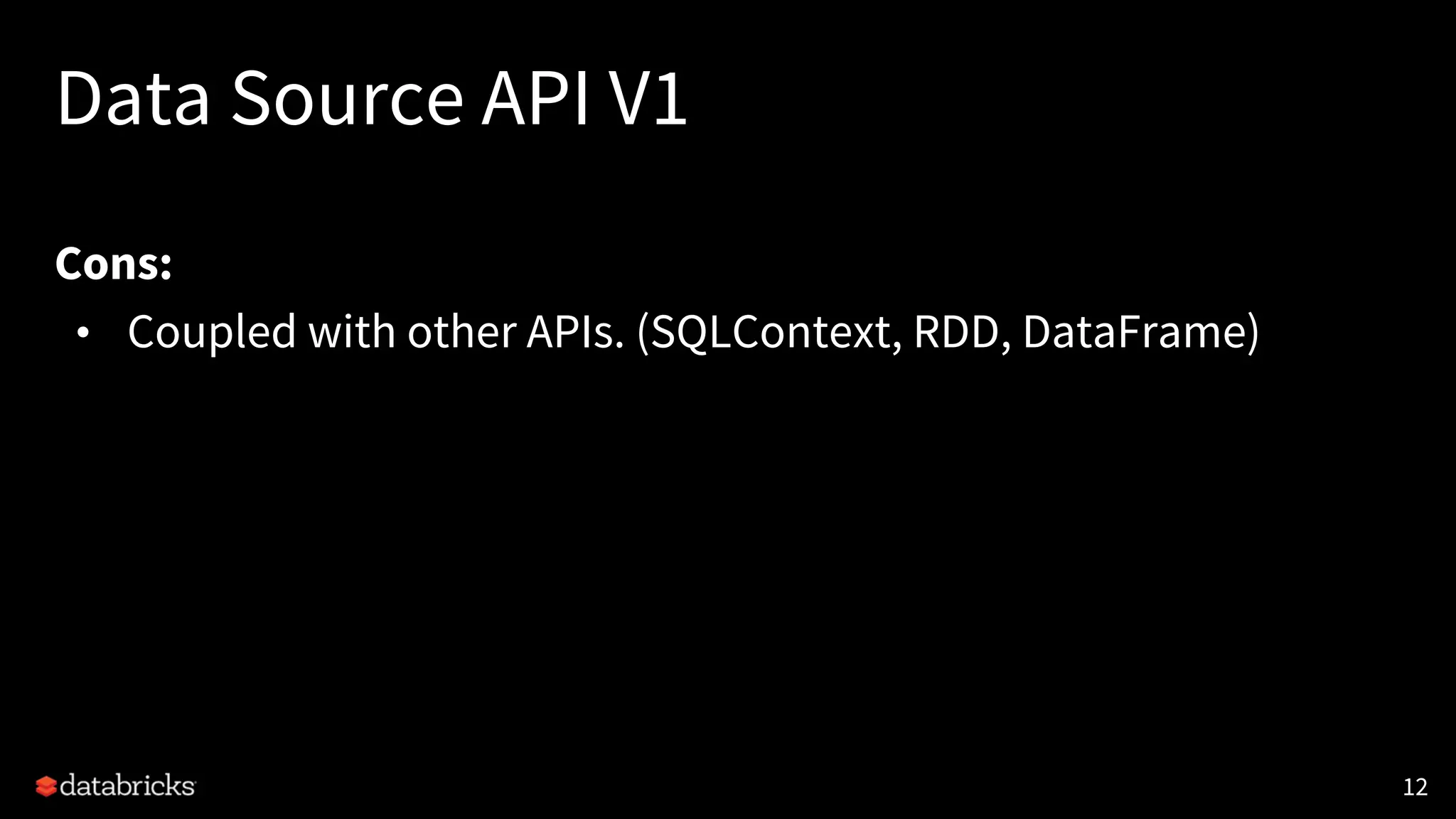

12. Data Source API V1
Cons:
• Coupled with other APIs. (SQLContext, RDD, DataFrame)
12

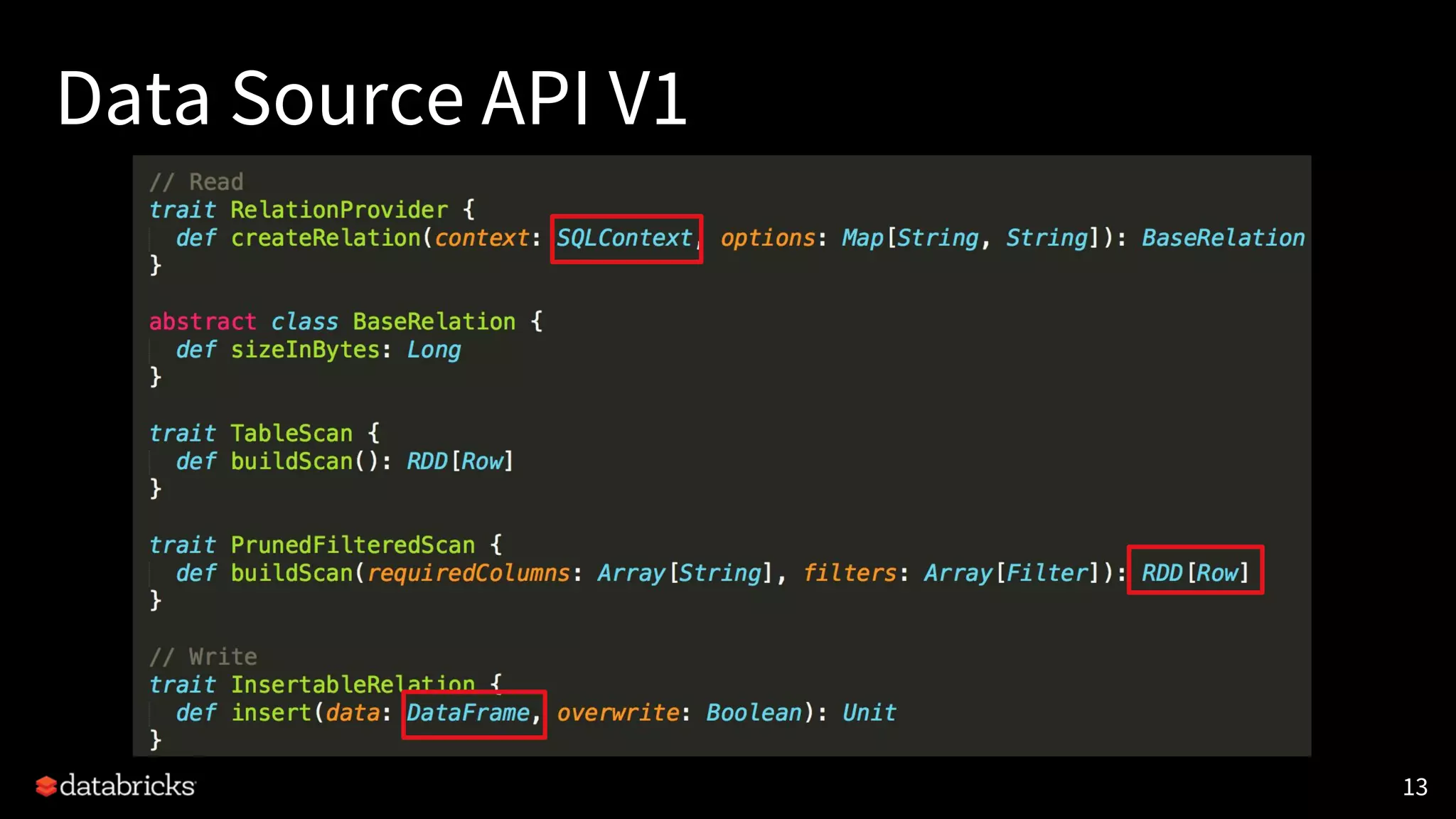

13. Data Source API V1
13

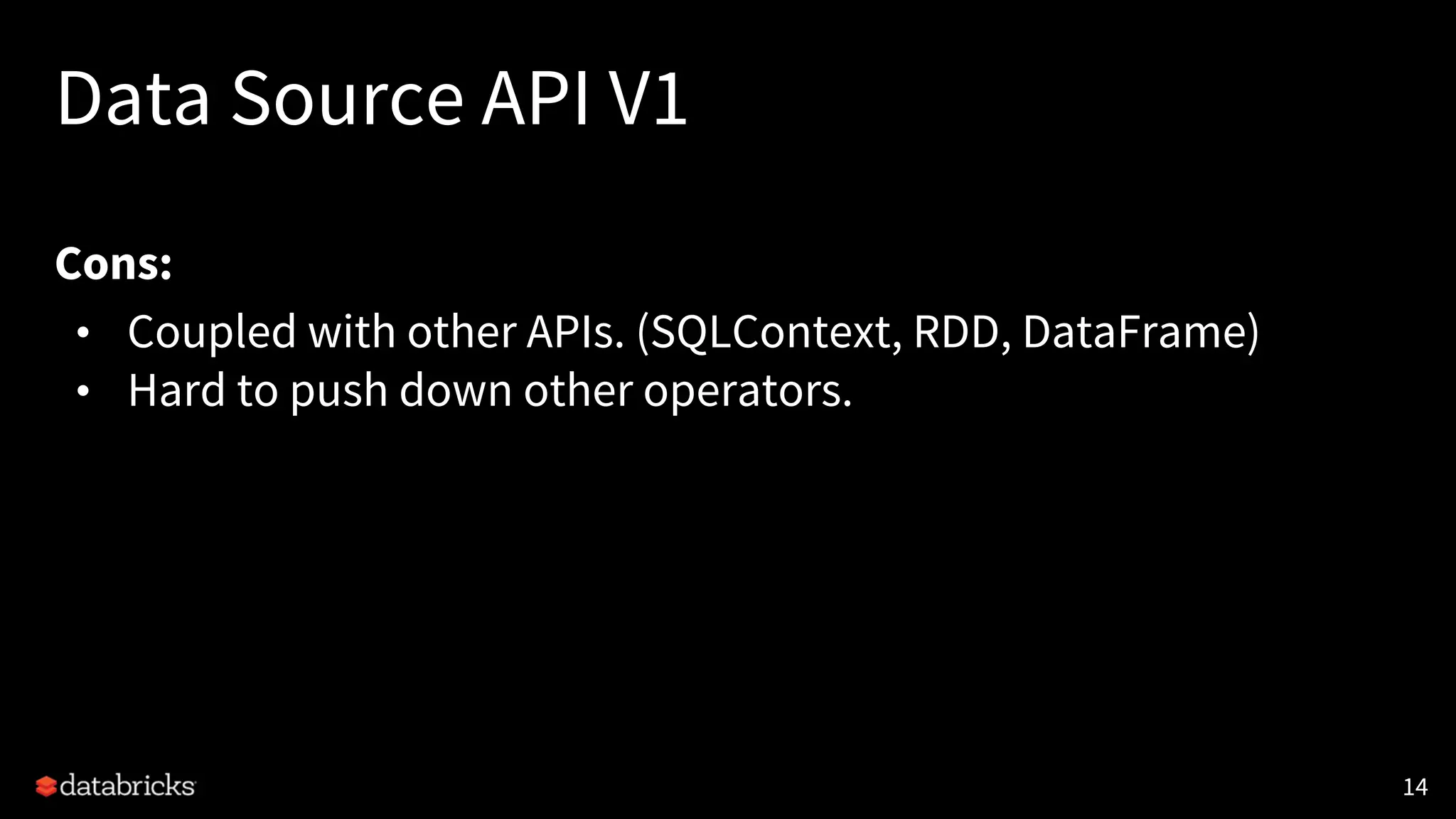

14. Data Source API V1
Cons:
• Coupled with other APIs. (SQLContext, RDD, DataFrame)
• Hard to push down other operators.
14

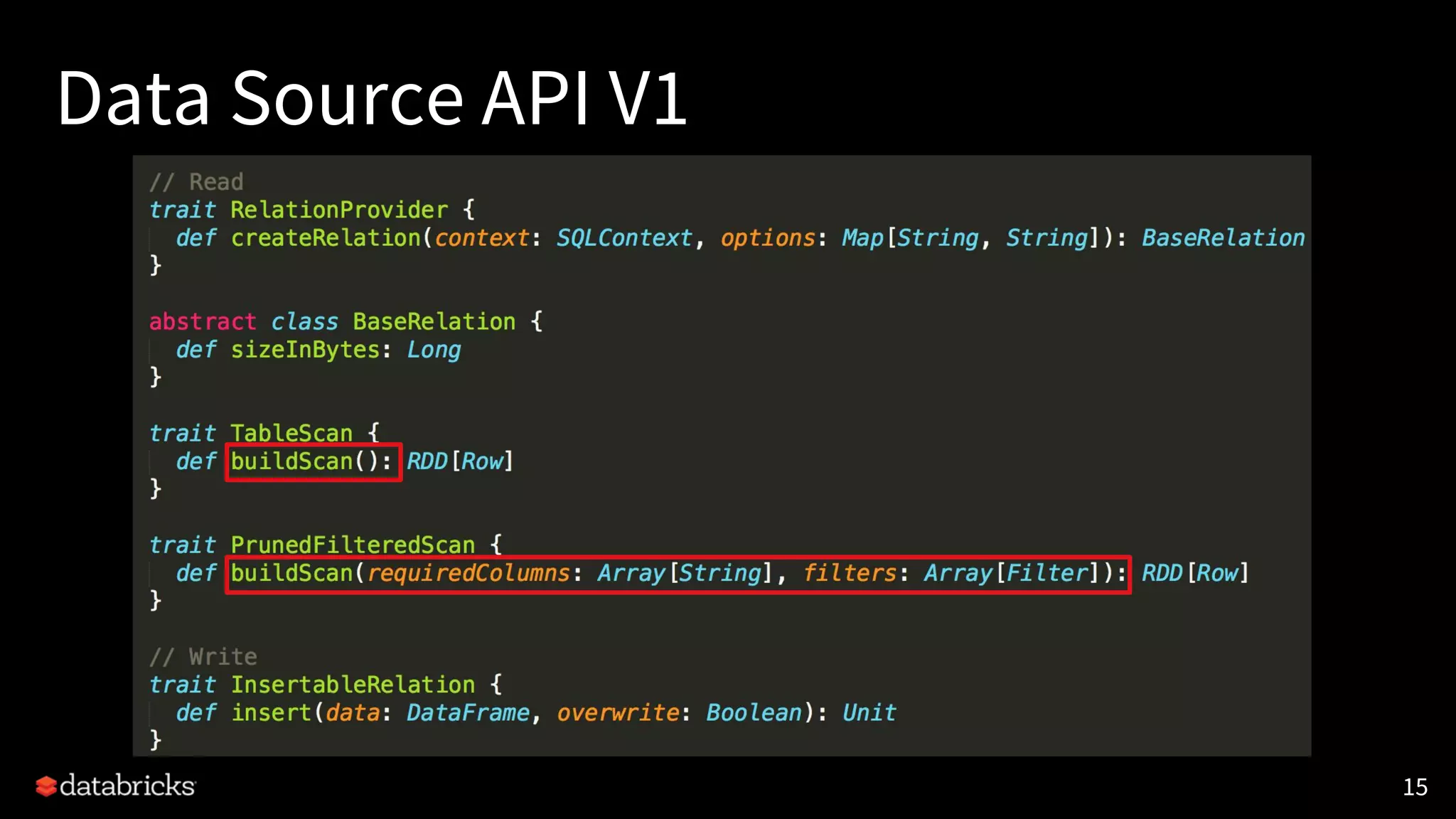

15. Data Source API V1
15

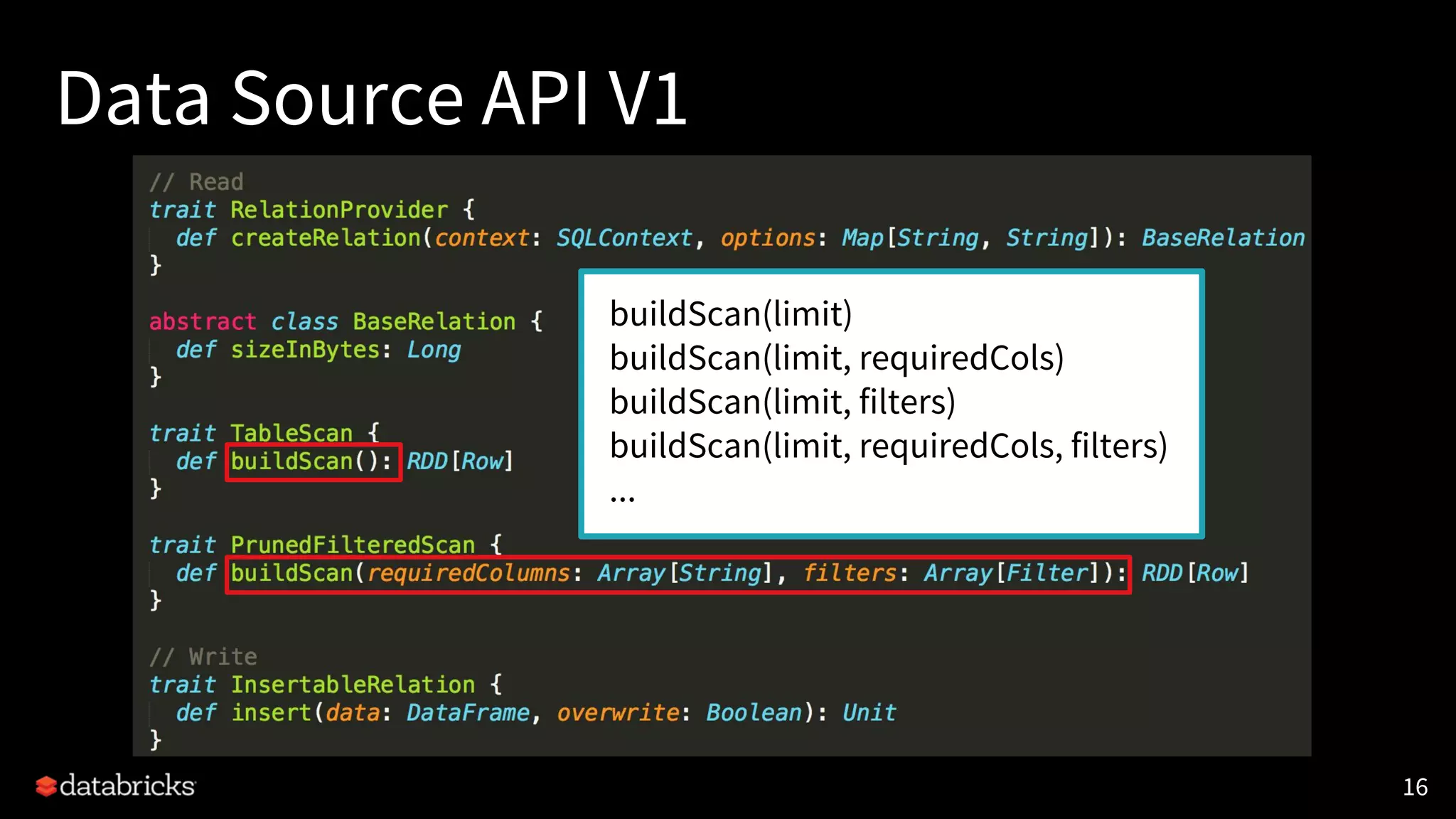

16. Data Source API V1
16
buildScan(limit)
buildScan(limit, requiredCols)
buildScan(limit, filters)
buildScan(limit, requiredCols, filters)
...

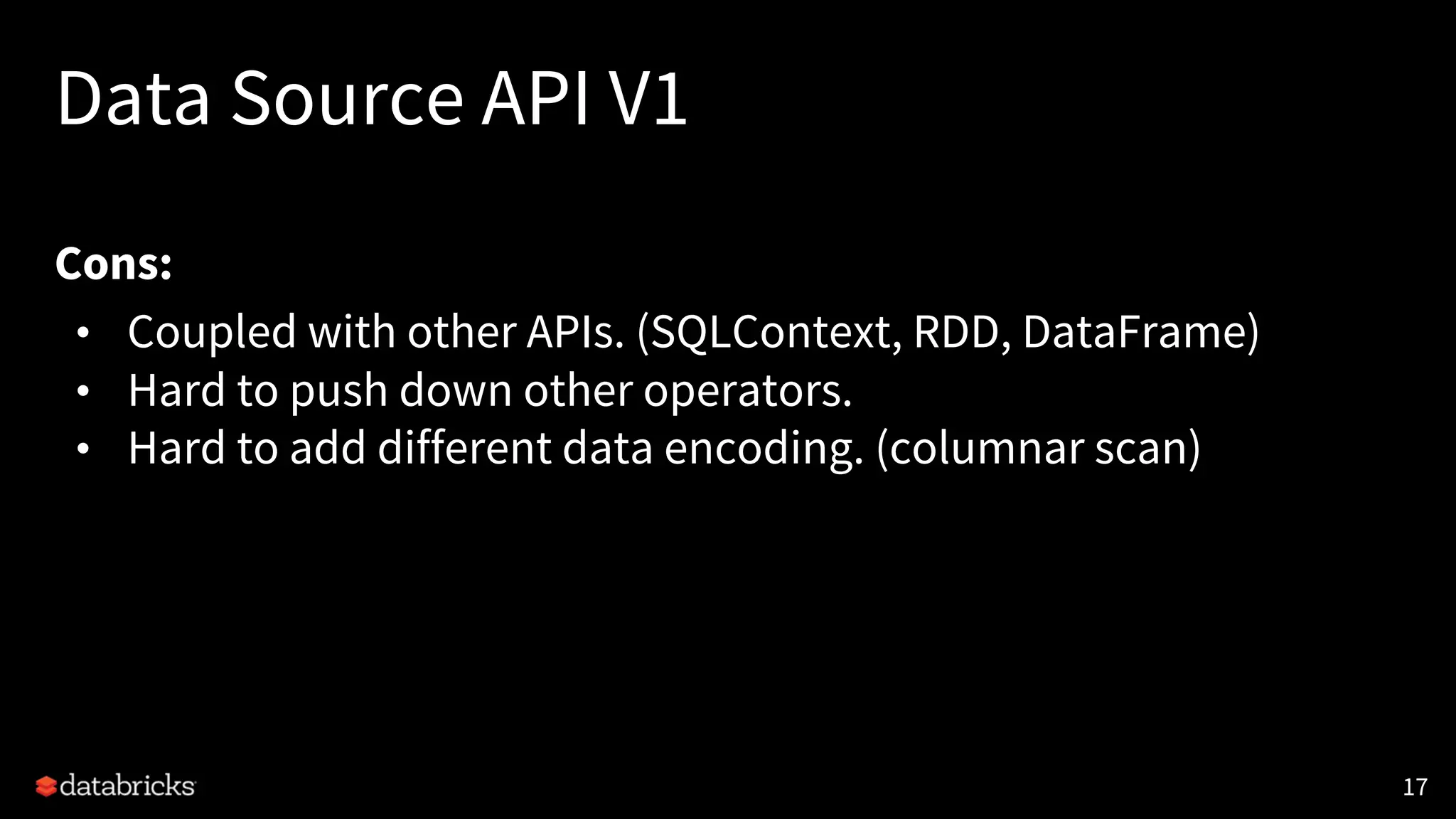

17. Data Source API V1
Cons:
• Coupled with other APIs. (SQLContext, RDD, DataFrame)
• Hard to push down other operators.
• Hard to add different data encoding. (columnar scan)
17

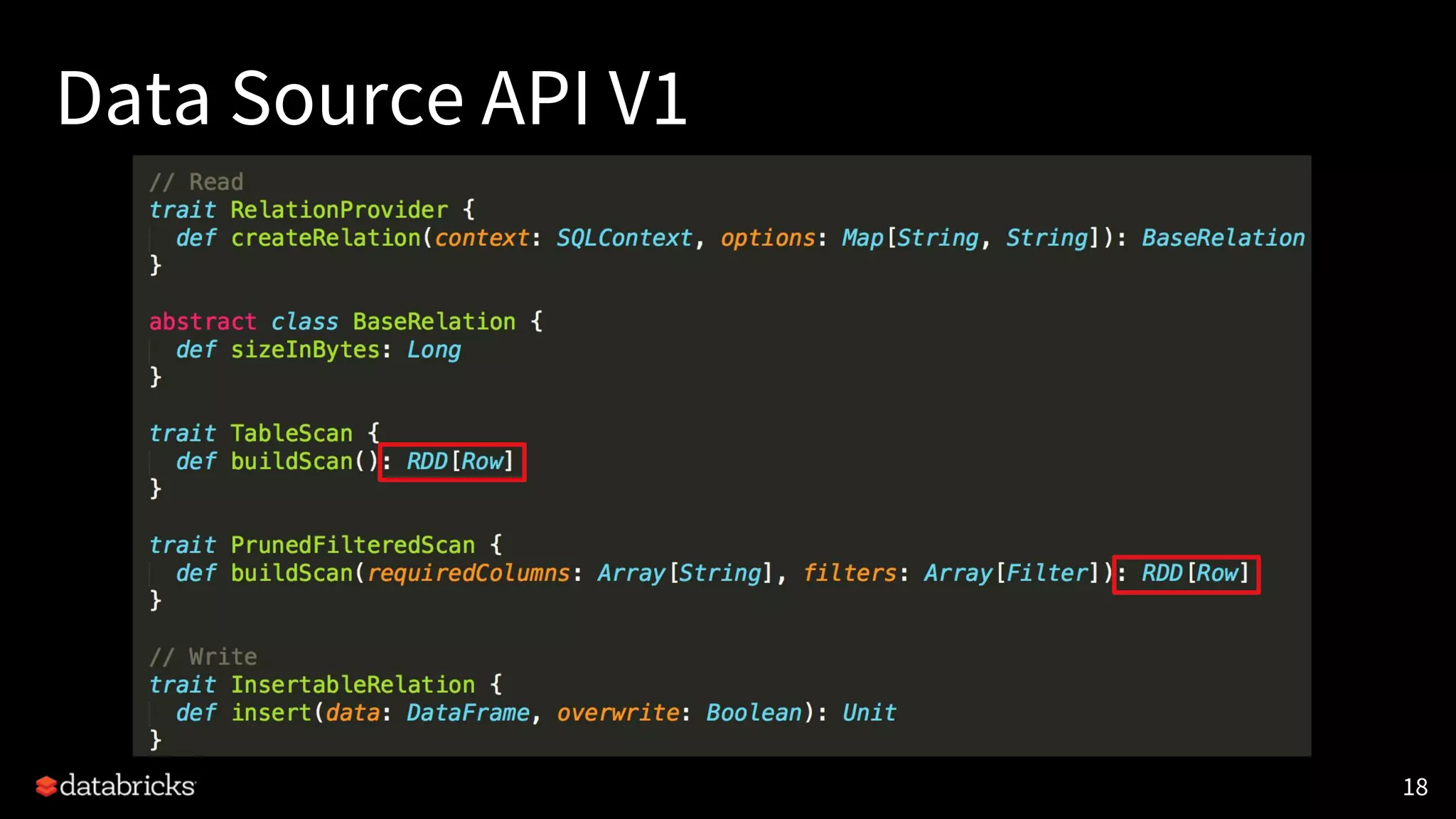

18. Data Source API V1
18

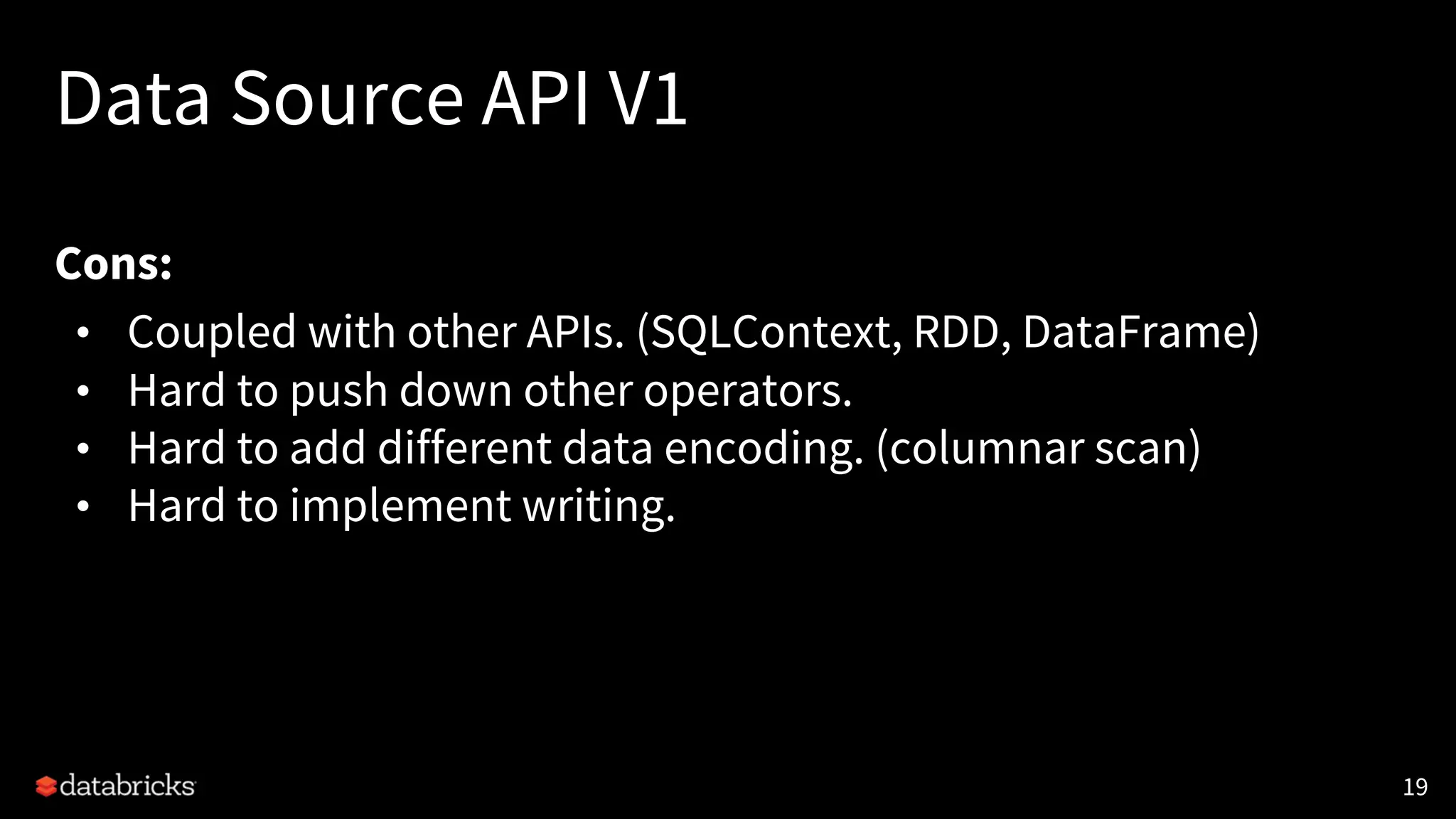

19. Data Source API V1
Cons:
• Coupled with other APIs. (SQLContext, RDD, DataFrame)
• Hard to push down other operators.
• Hard to add different data encoding. (columnar scan)
• Hard to implement writing.
19

20. Data Source API V1
20

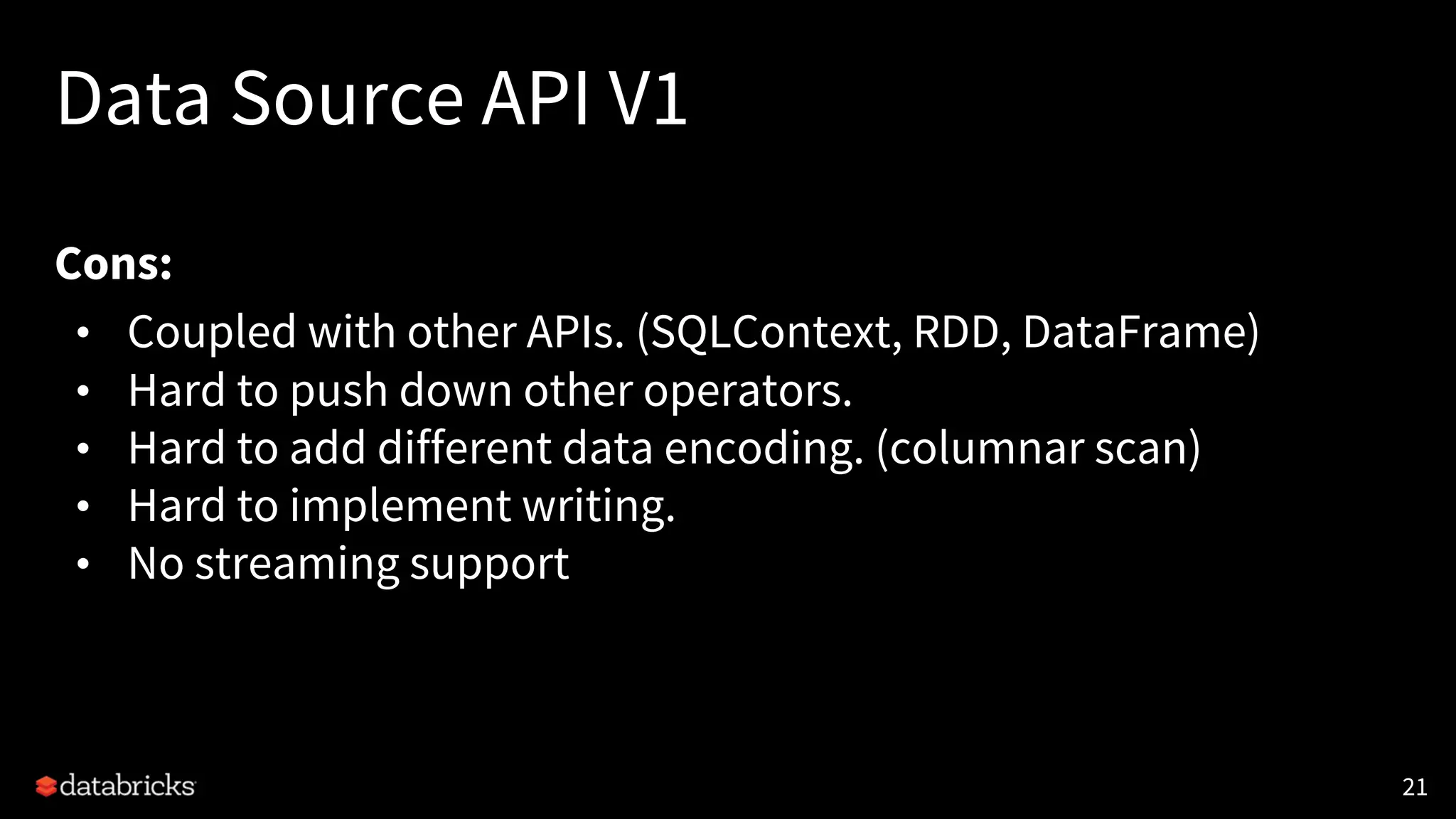

21. Data Source API V1
Cons:
• Coupled with other APIs. (SQLContext, RDD, DataFrame)
• Hard to push down other operators.
• Hard to add different data encoding. (columnar scan)
• Hard to implement writing.
• No streaming support
21

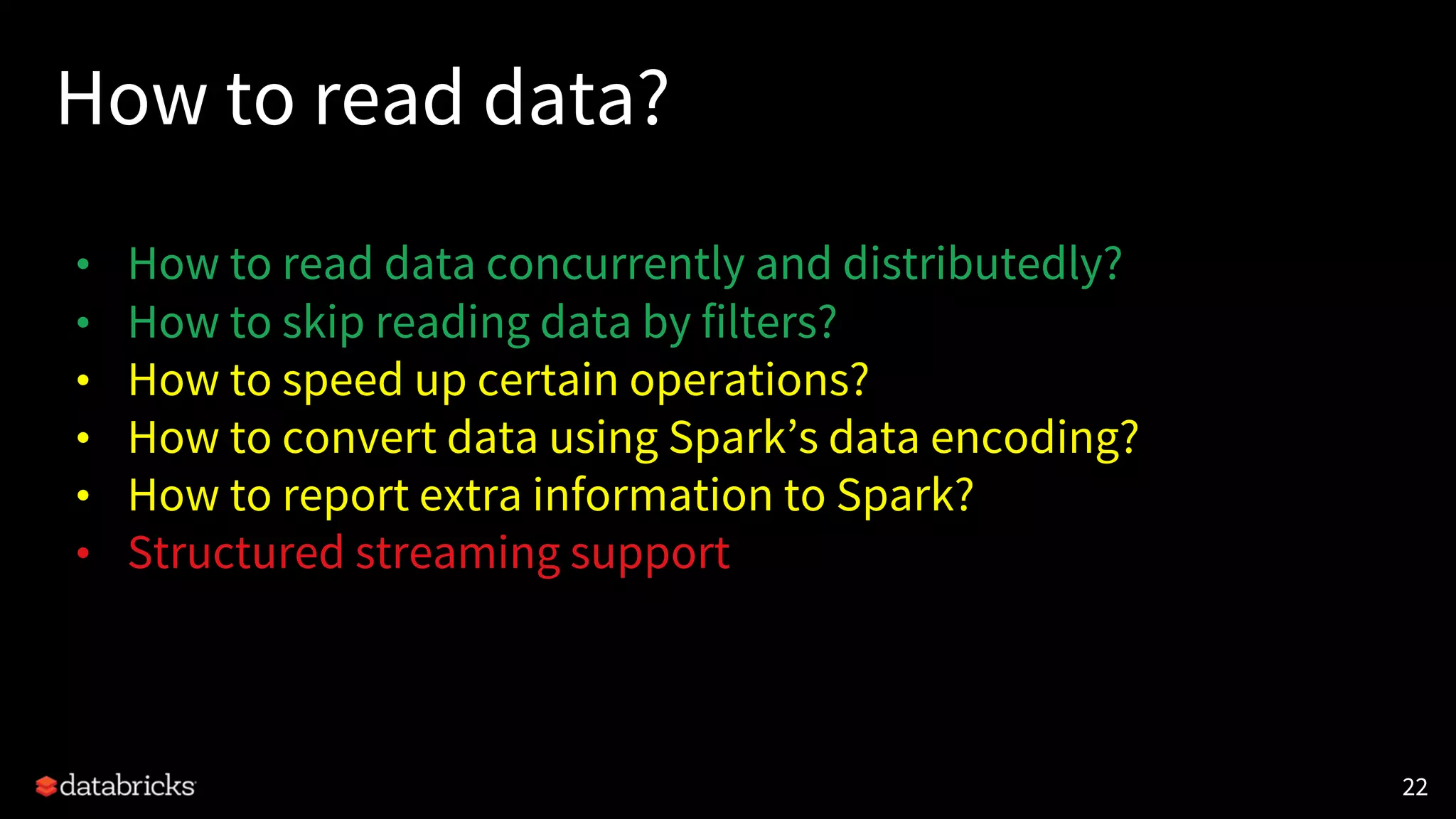

22. How to read data?
• How to read data concurrently and distributedly?
• How to skip reading data by filters?
• How to speed up certain operations?
• How to convert data using Spark’s data encoding?
• How to report extra information to Spark?
• Structured streaming support
22

23. How to write data?
• How to write data concurrently and distributedly?
• How to make the write operation atomic?
• How to clean up if write failed?
• How to convert data using Spark’s data encoding?
• Structured streaming support
23

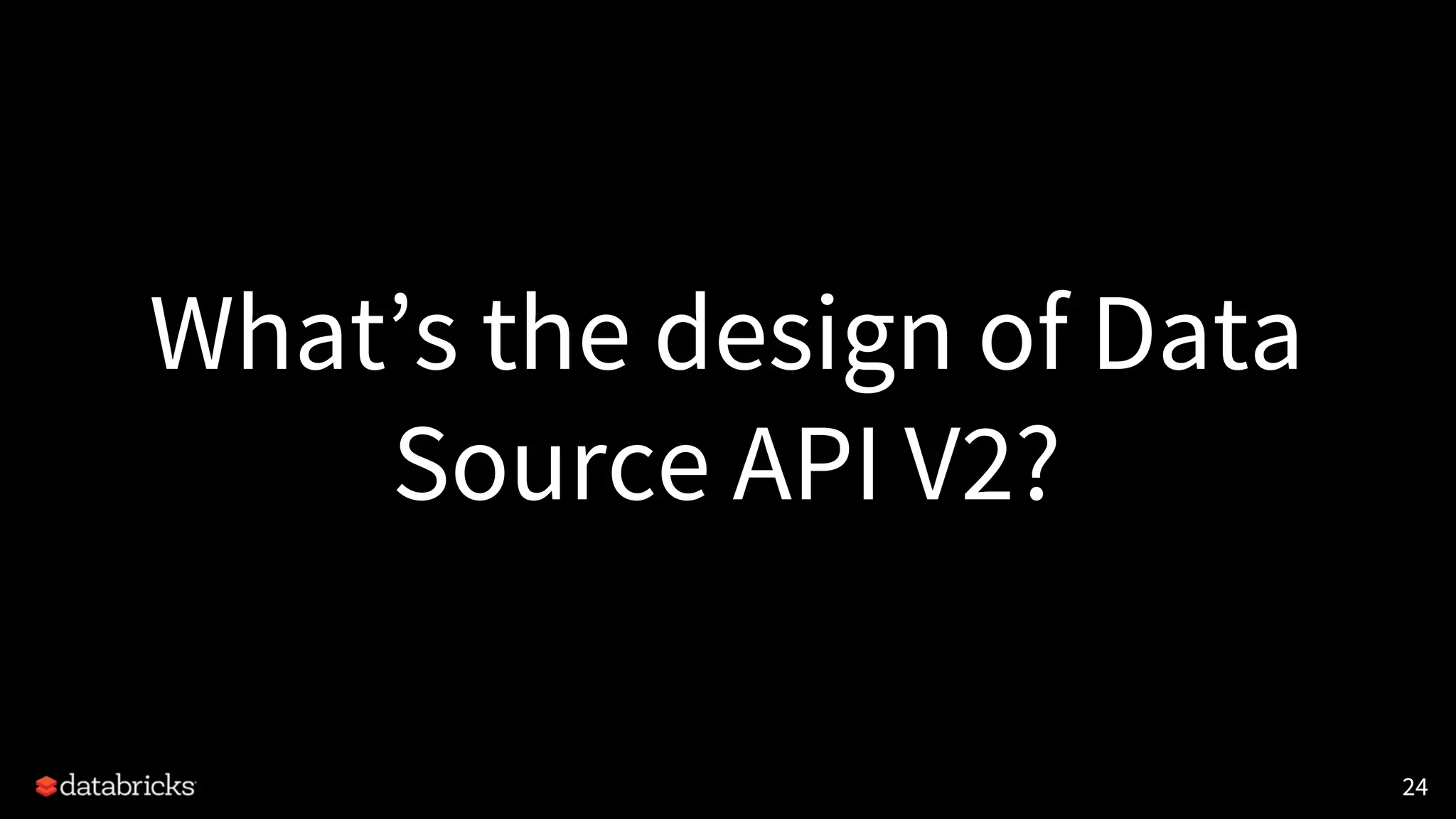

24. What’s the design of Data
Source API V2?
2424

25. API Sketch (read)
25

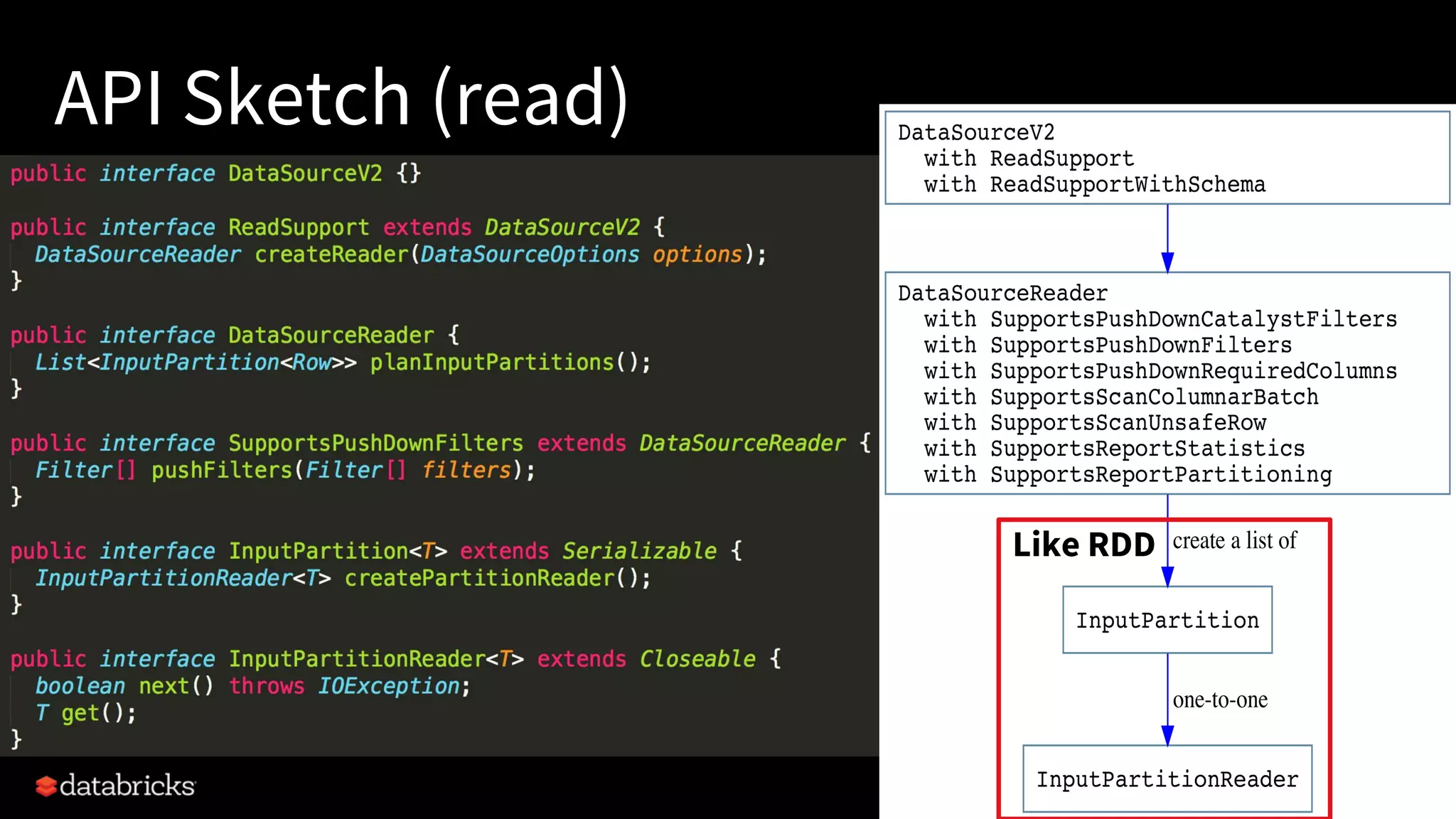

26. API Sketch (read)
26
Like RDD

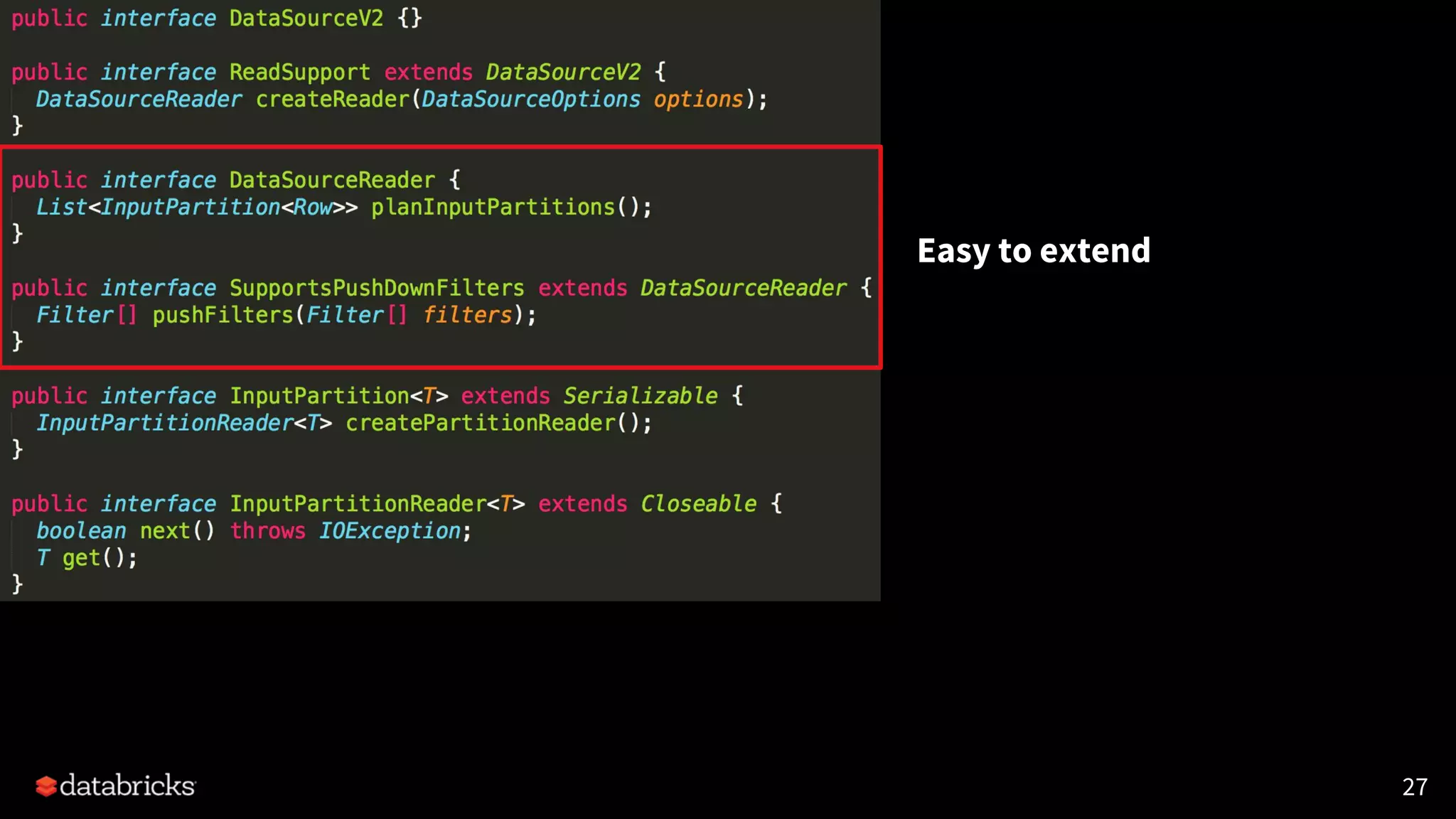

27. 27
Easy to extend

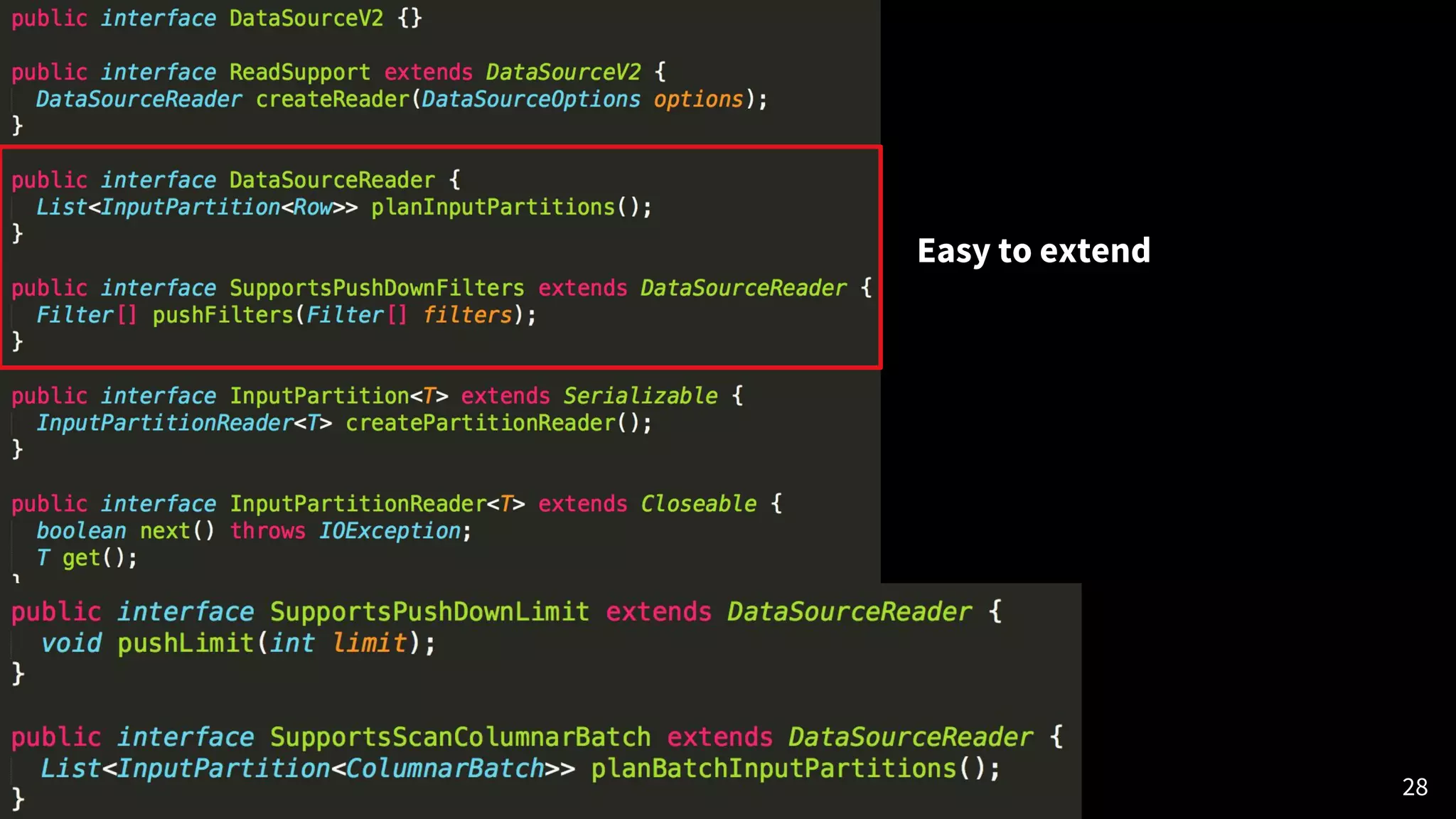

28. 28
Easy to extend

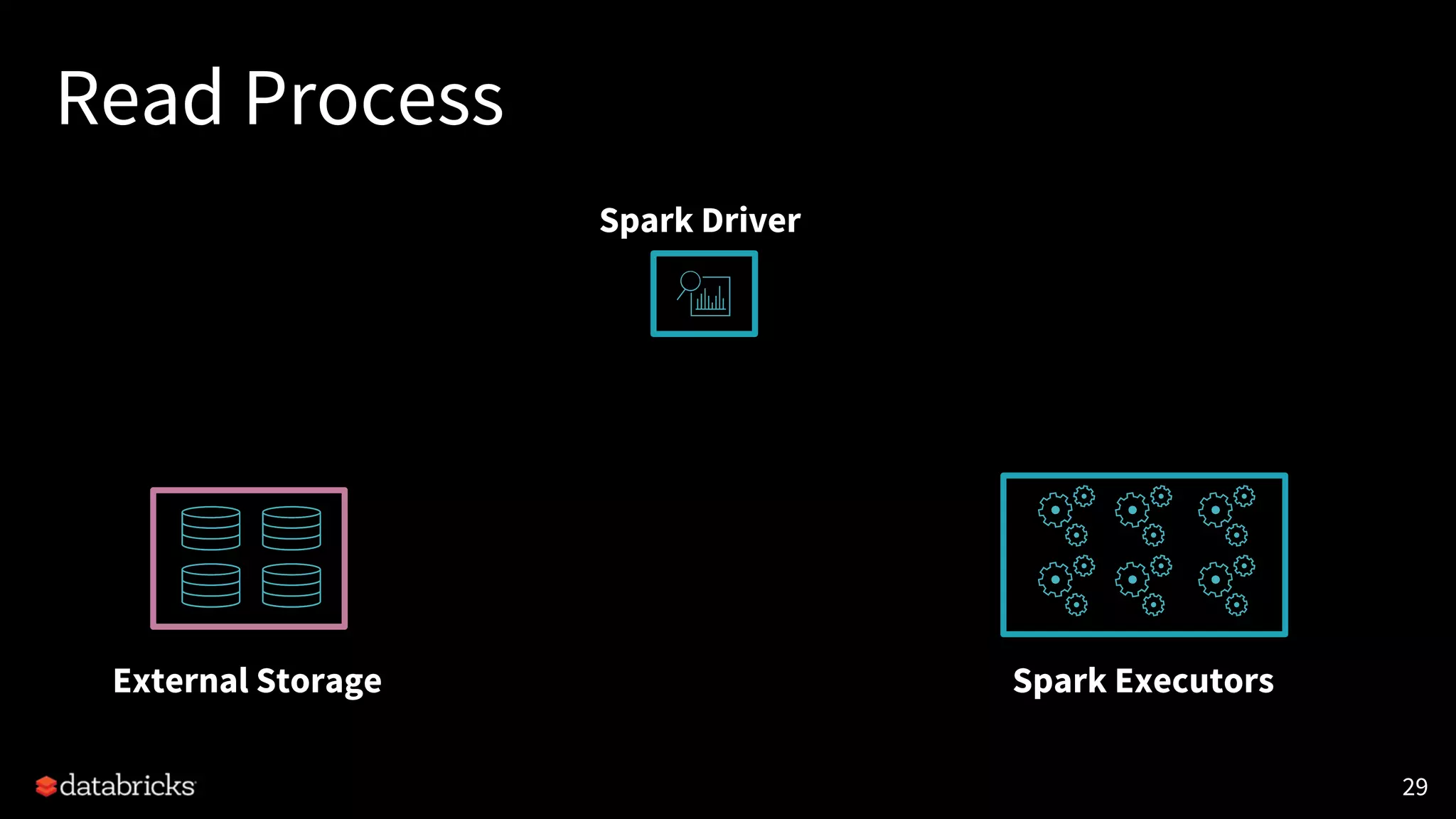

29. Read Process
29
Spark Driver
External Storage Spark Executors

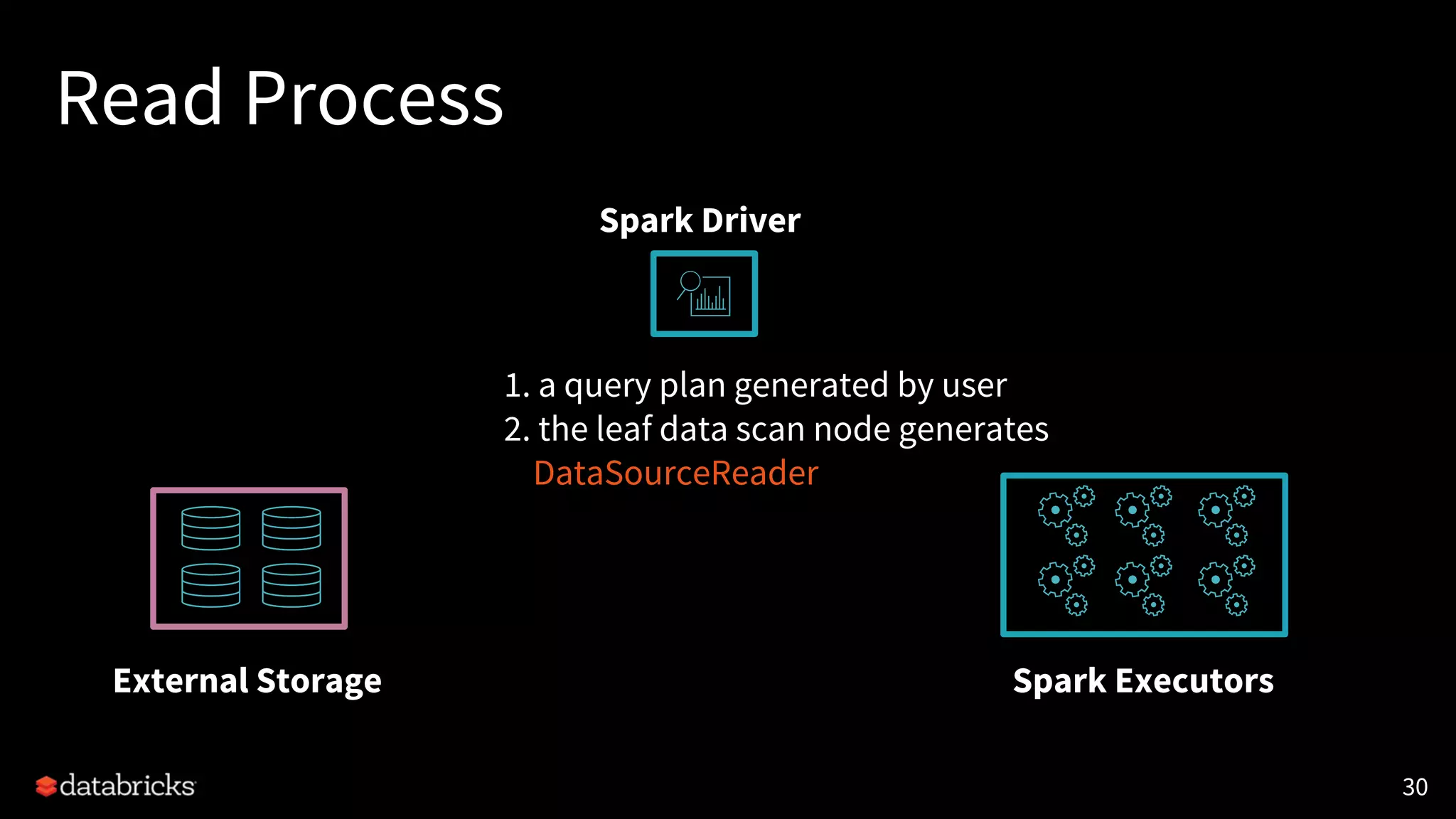

30. Read Process
30
1. a query plan generated by user
2. the leaf data scan node generates
DataSourceReader
Spark Driver
External Storage Spark Executors

31. API Sketch (read)
31

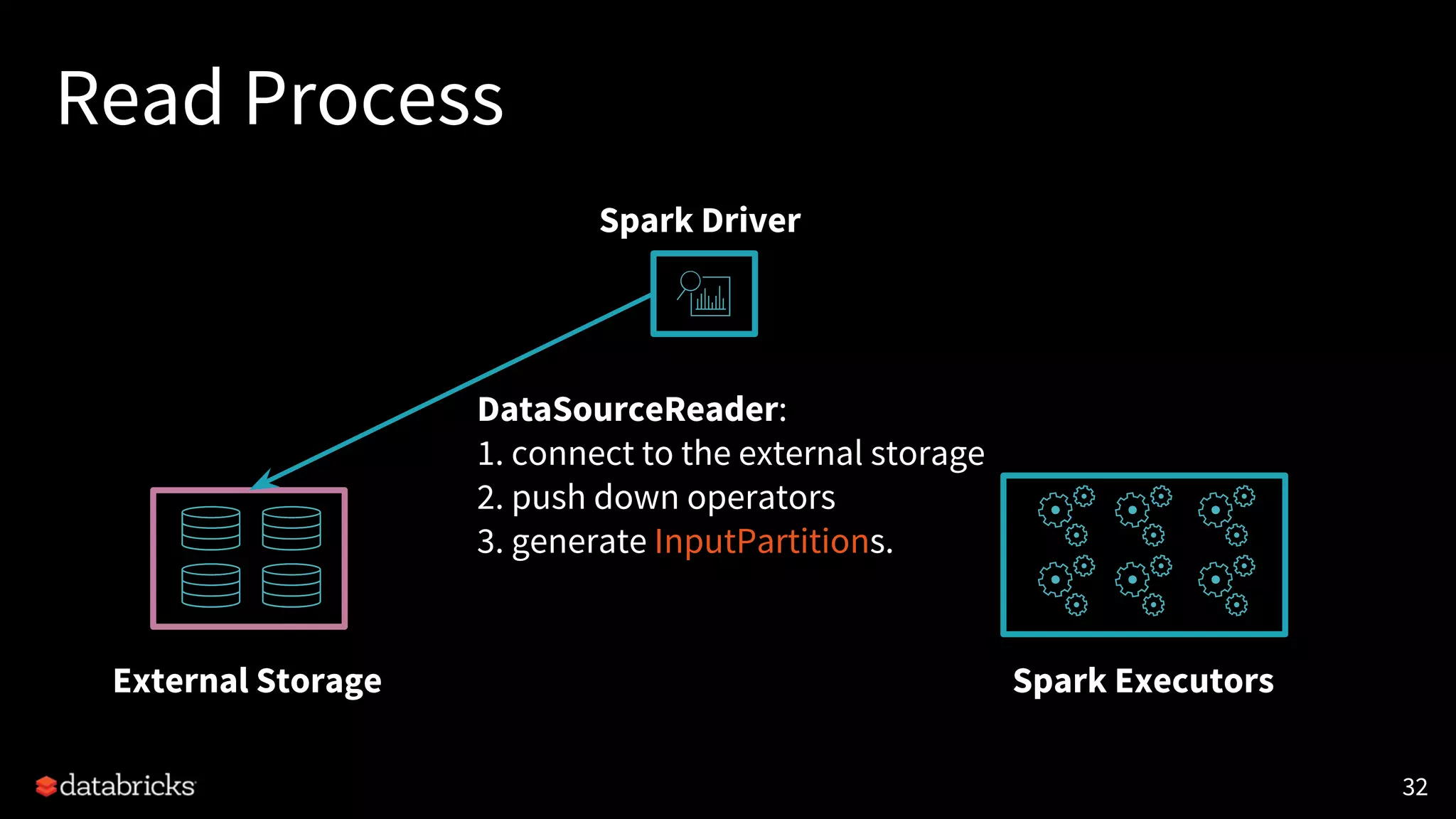

32. Read Process
32
Spark Driver
External Storage Spark Executors
DataSourceReader:
1. connect to the external storage
2. push down operators
3. generate InputPartitions.

33. API Sketch (read)
33

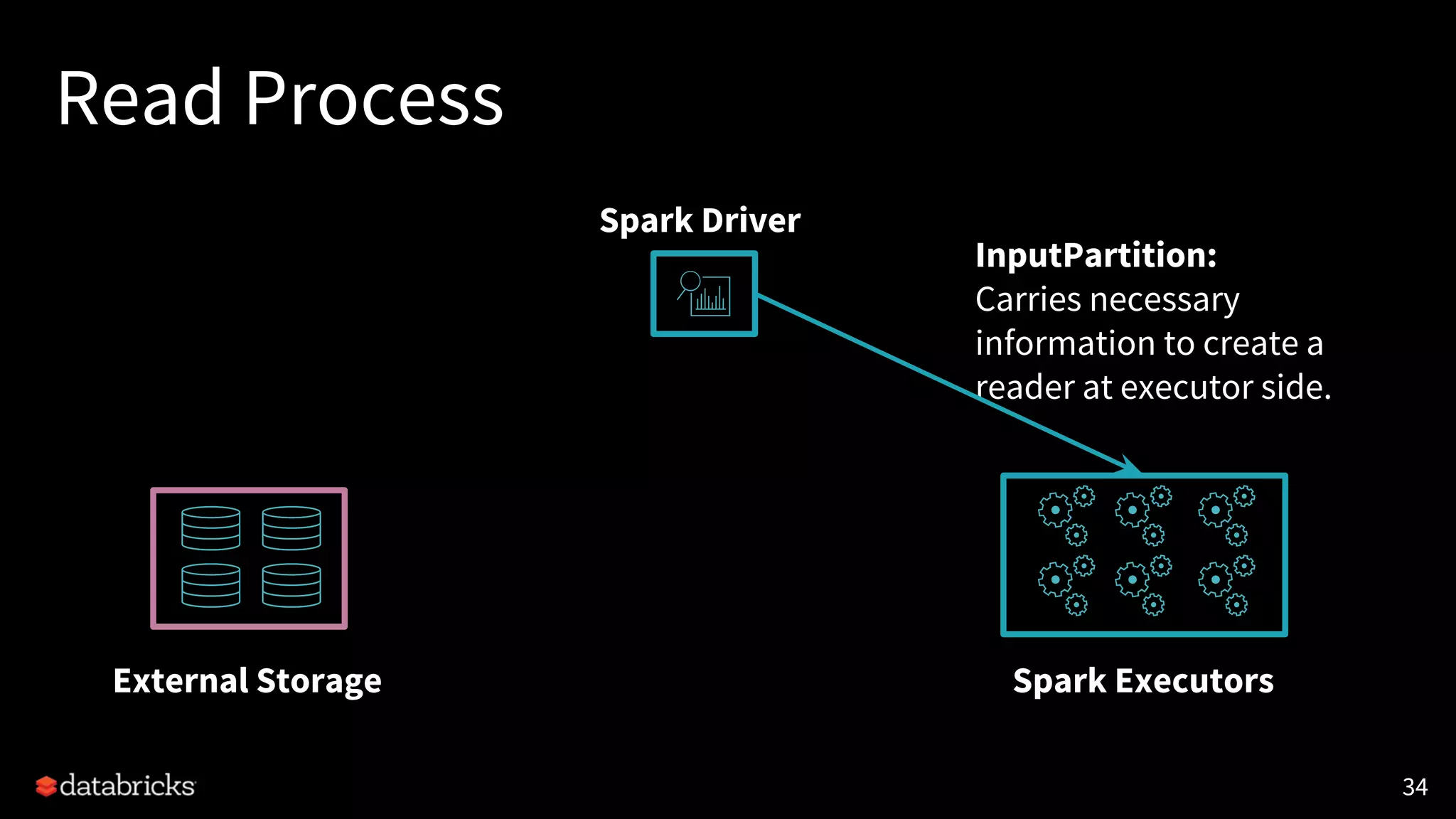

34. Read Process
34
Spark Driver
External Storage Spark Executors
InputPartition:
Carries necessary
information to create a
reader at executor side.

35. API Sketch (read)
35

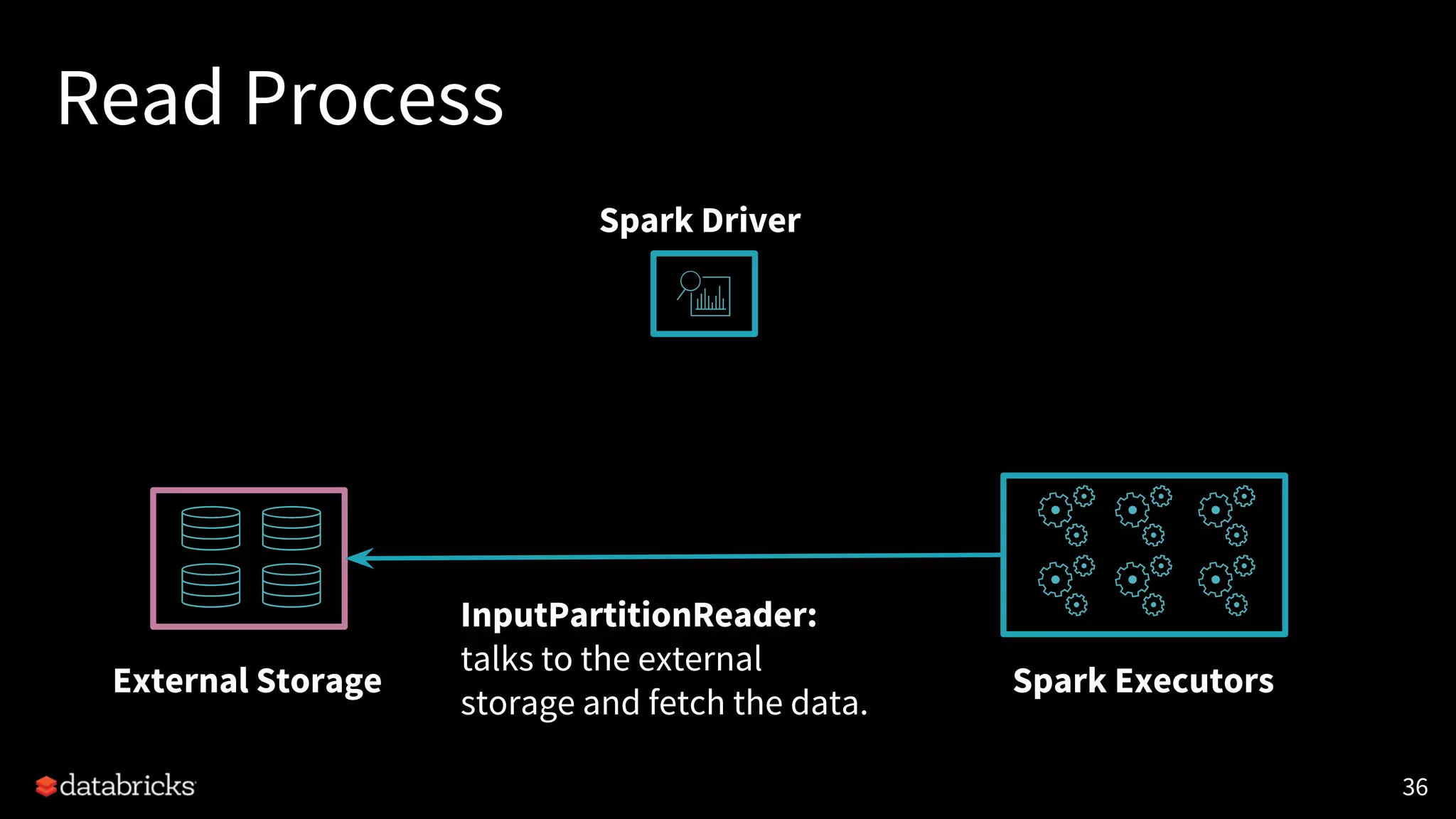

36. Read Process
36
Spark Driver
External Storage Spark Executors
InputPartitionReader:
talks to the external
storage and fetch the data.

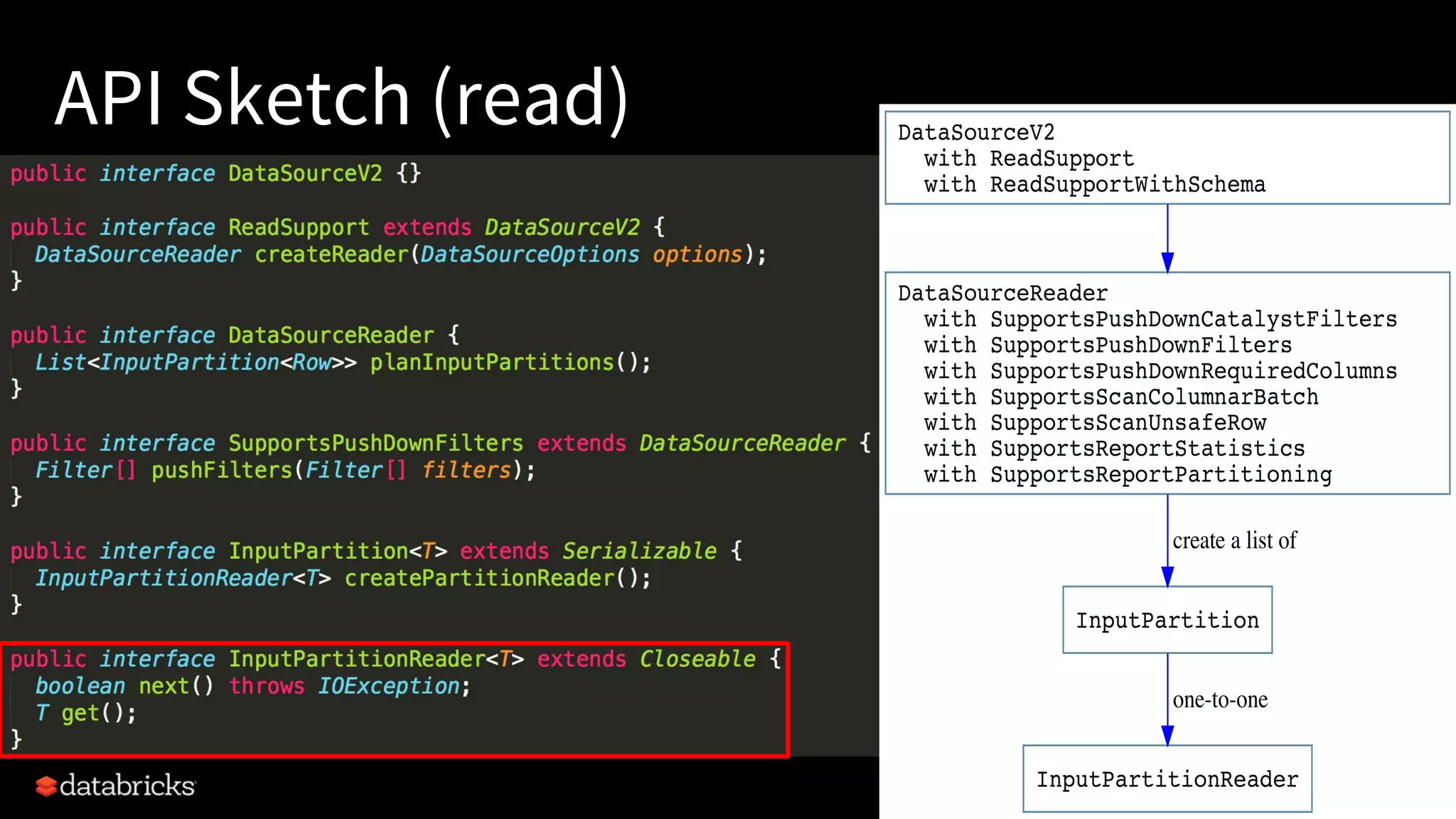

37. API Sketch (read)
37

38. API Sketch (write)
38

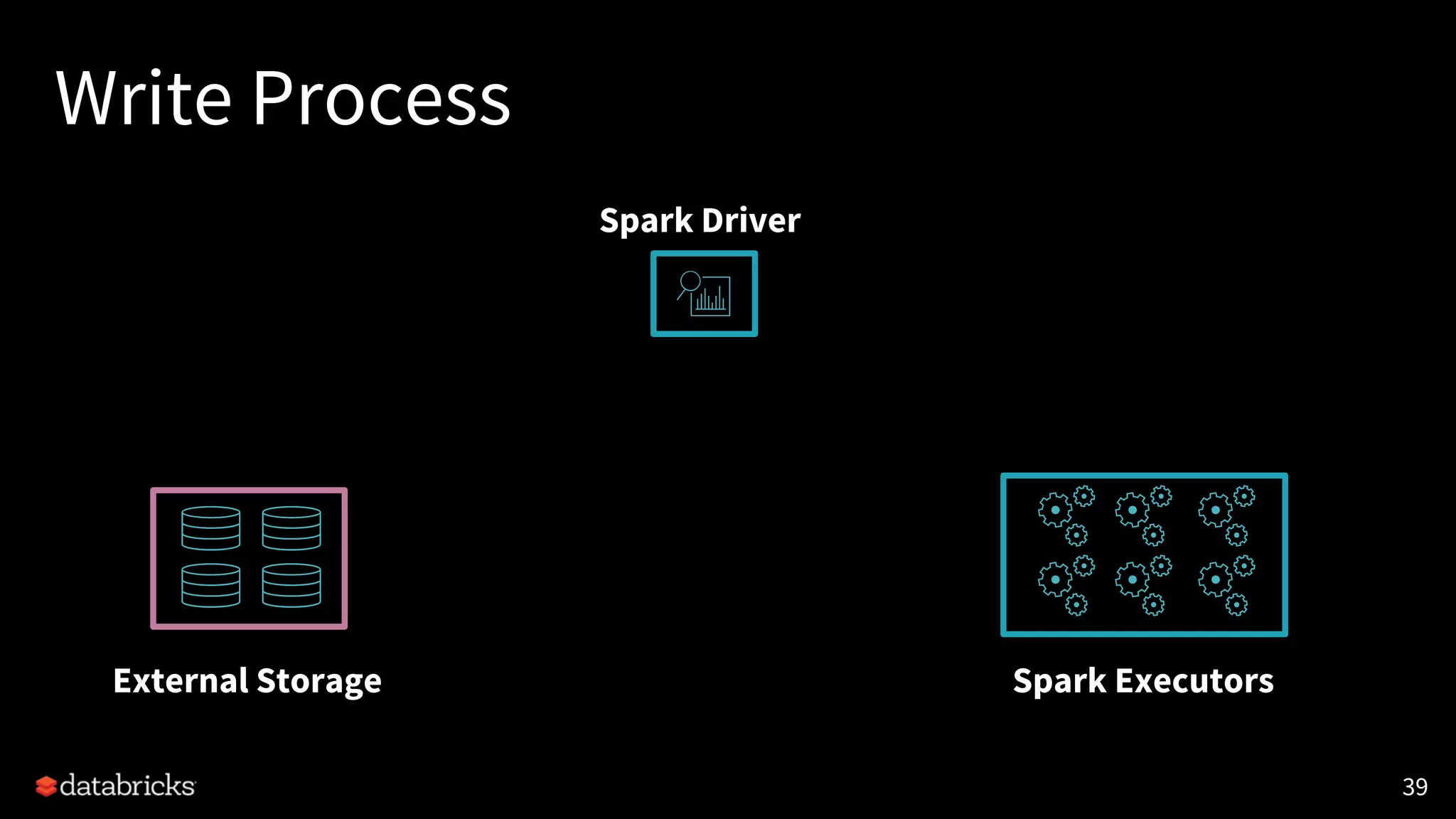

39. Write Process
39
Spark Driver
External Storage Spark Executors

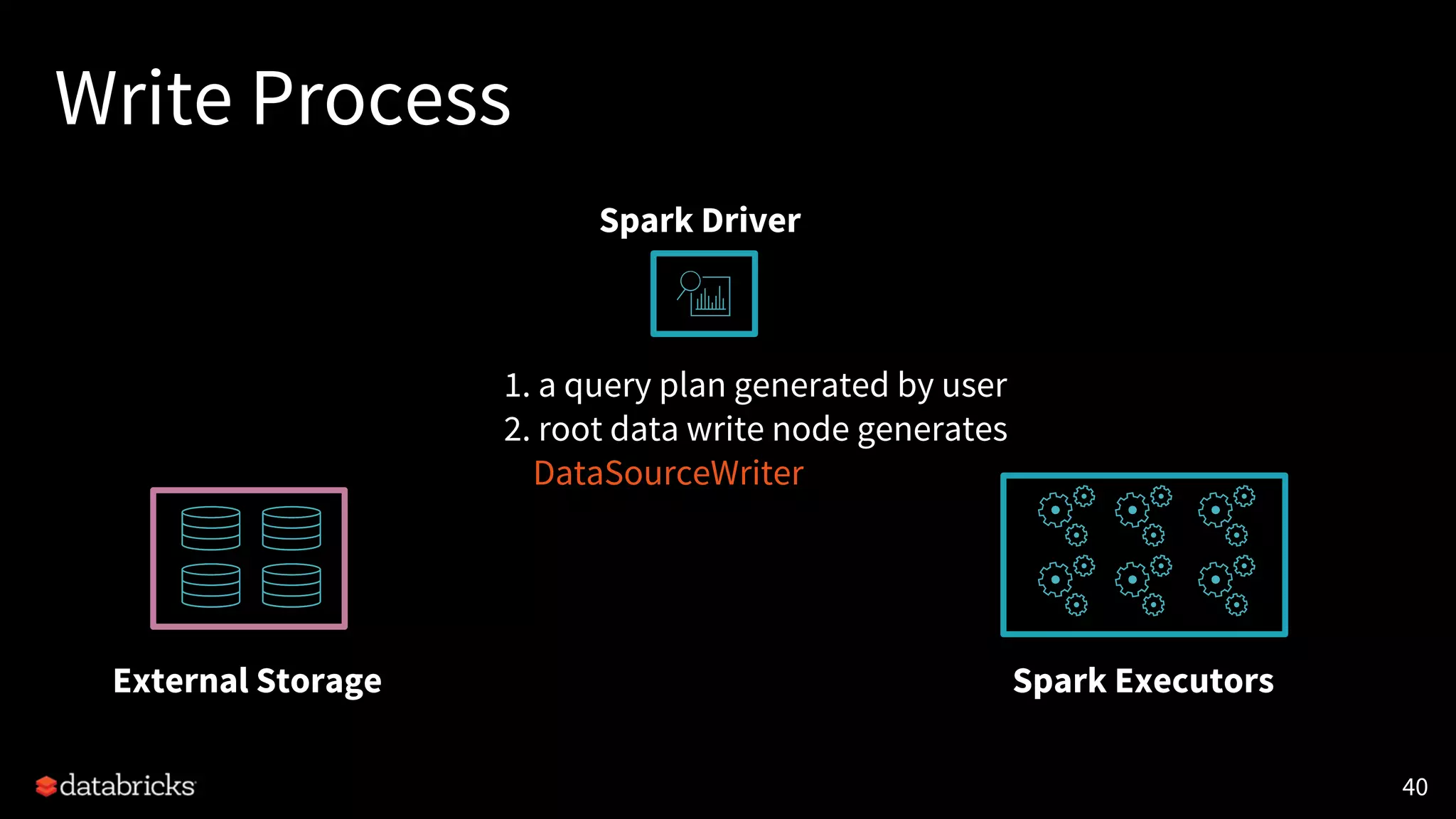

40. Write Process
40
Spark Driver
External Storage Spark Executors
1. a query plan generated by user
2. root data write node generates
DataSourceWriter

41. API Sketch (write)
41

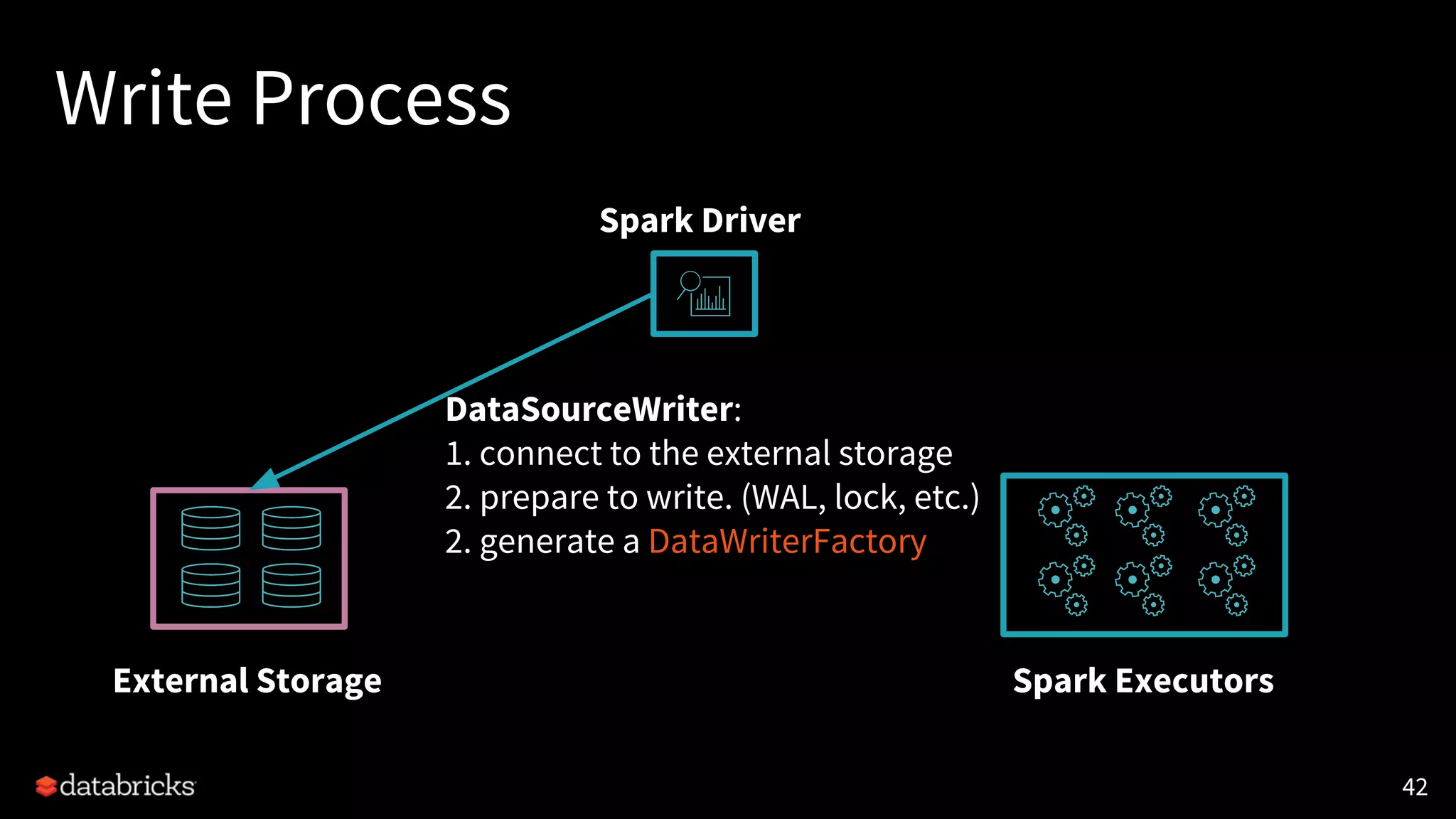

42. Write Process
42
Spark Driver
External Storage Spark Executors
DataSourceWriter:
1. connect to the external storage
2. prepare to write. (WAL, lock, etc.)
2. generate a DataWriterFactory

43. API Sketch (write)
43

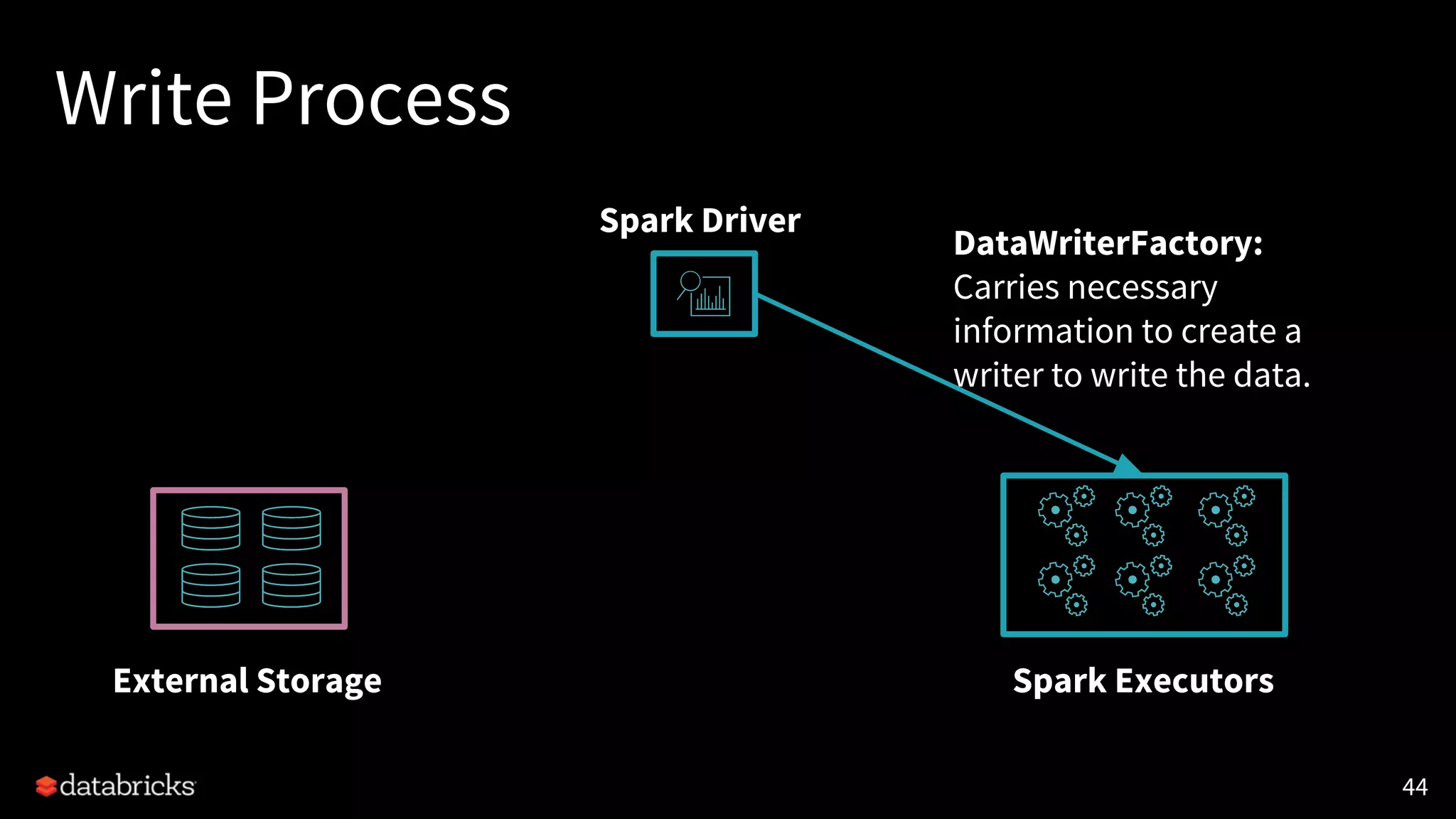

44. Write Process
44
Spark Driver
External Storage Spark Executors
DataWriterFactory:
Carries necessary
information to create a
writer to write the data.

45. API Sketch (write)
45

46. Write Process

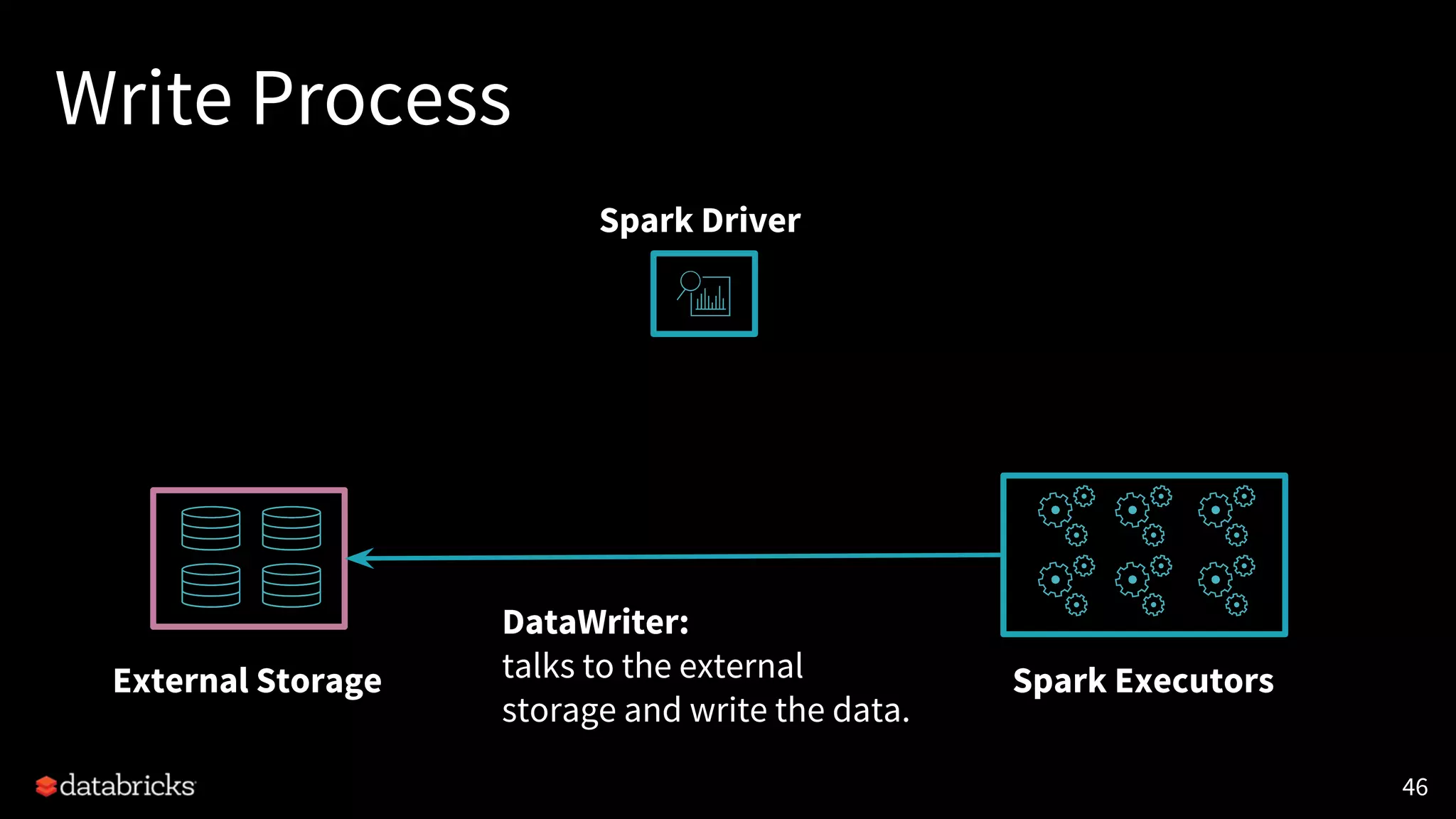

46
Spark Driver
External Storage Spark Executors
DataWriter:
talks to the external
storage and write the data.

47. API Sketch (write)
47

48. Write Process
48
Spark Driver
External Storage Spark Executors

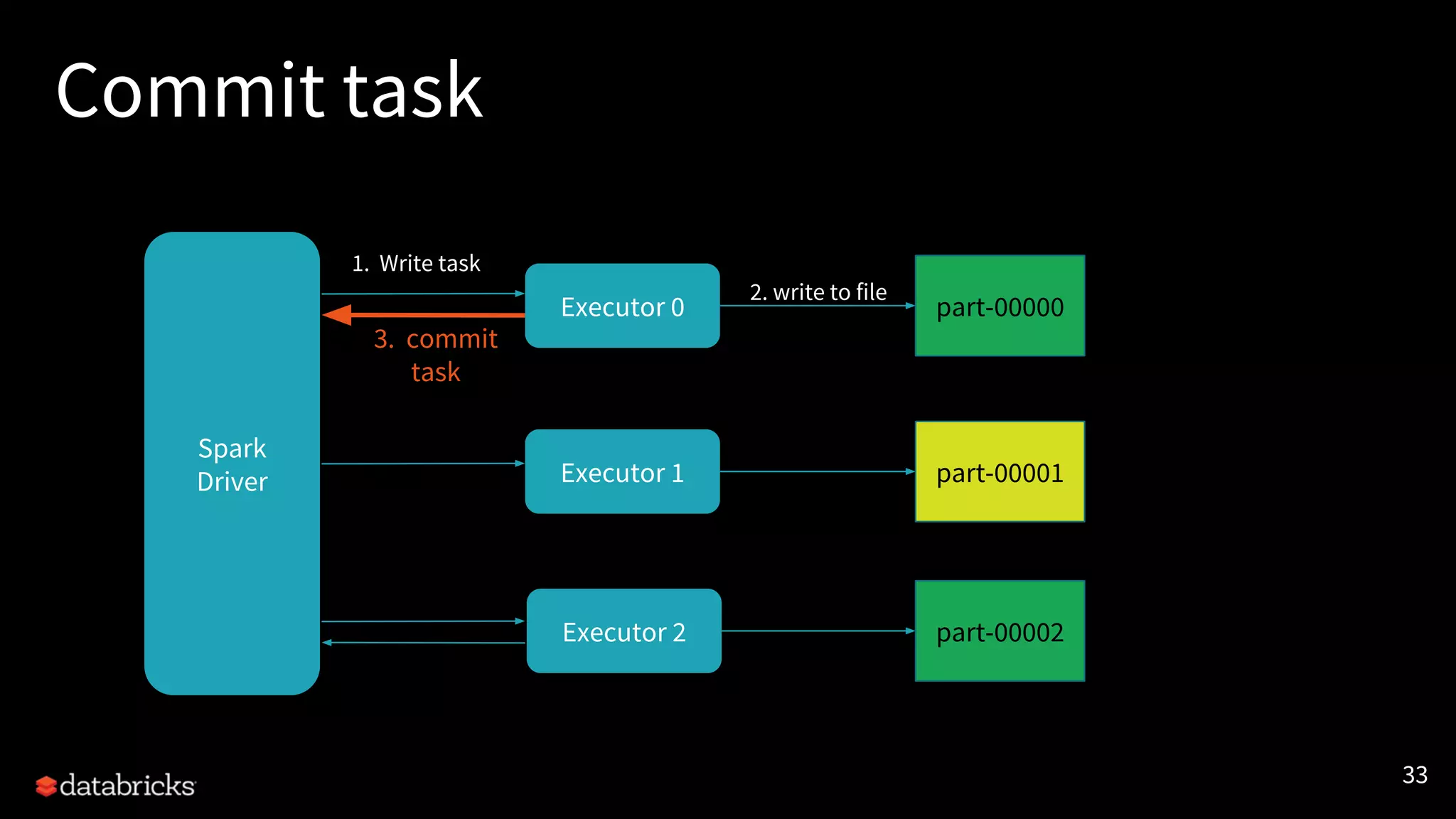

DataWriter:
succeed, commit this
task and send a message
to the driver.
CommitMessage
commit

49. API Sketch (write)
49

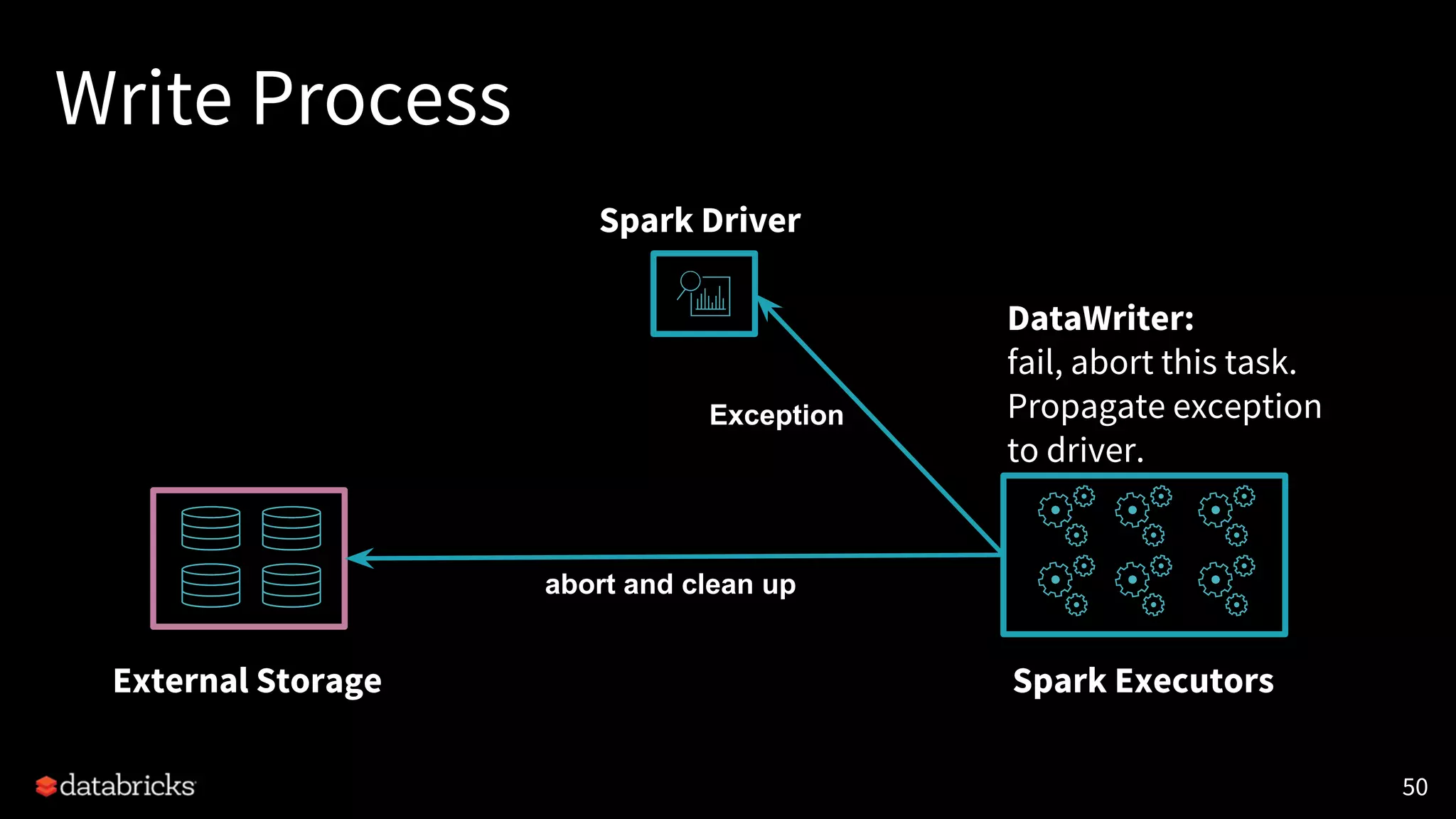

50. Write Process
50
Spark Driver
External Storage Spark Executors
Exception
DataWriter:
fail, abort this task.
Propagate exception
to driver.
abort and clean up

51. API Sketch (write)
51

52. Write Process
52
Spark Driver
External Storage Spark Executors
DataSourceWriter:
all writers succeed, commit
the job.
commit

53. API Sketch (write)
53

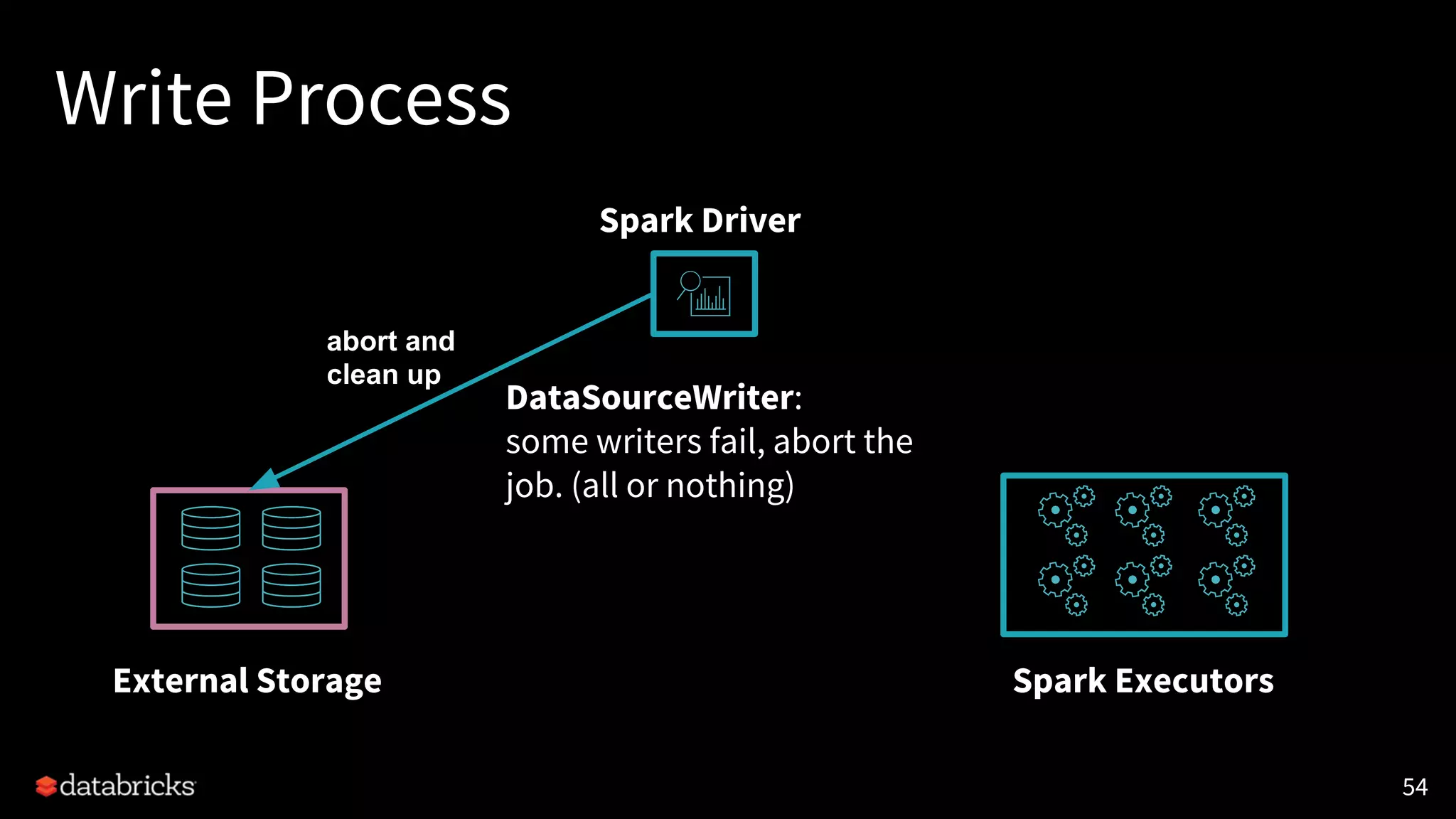

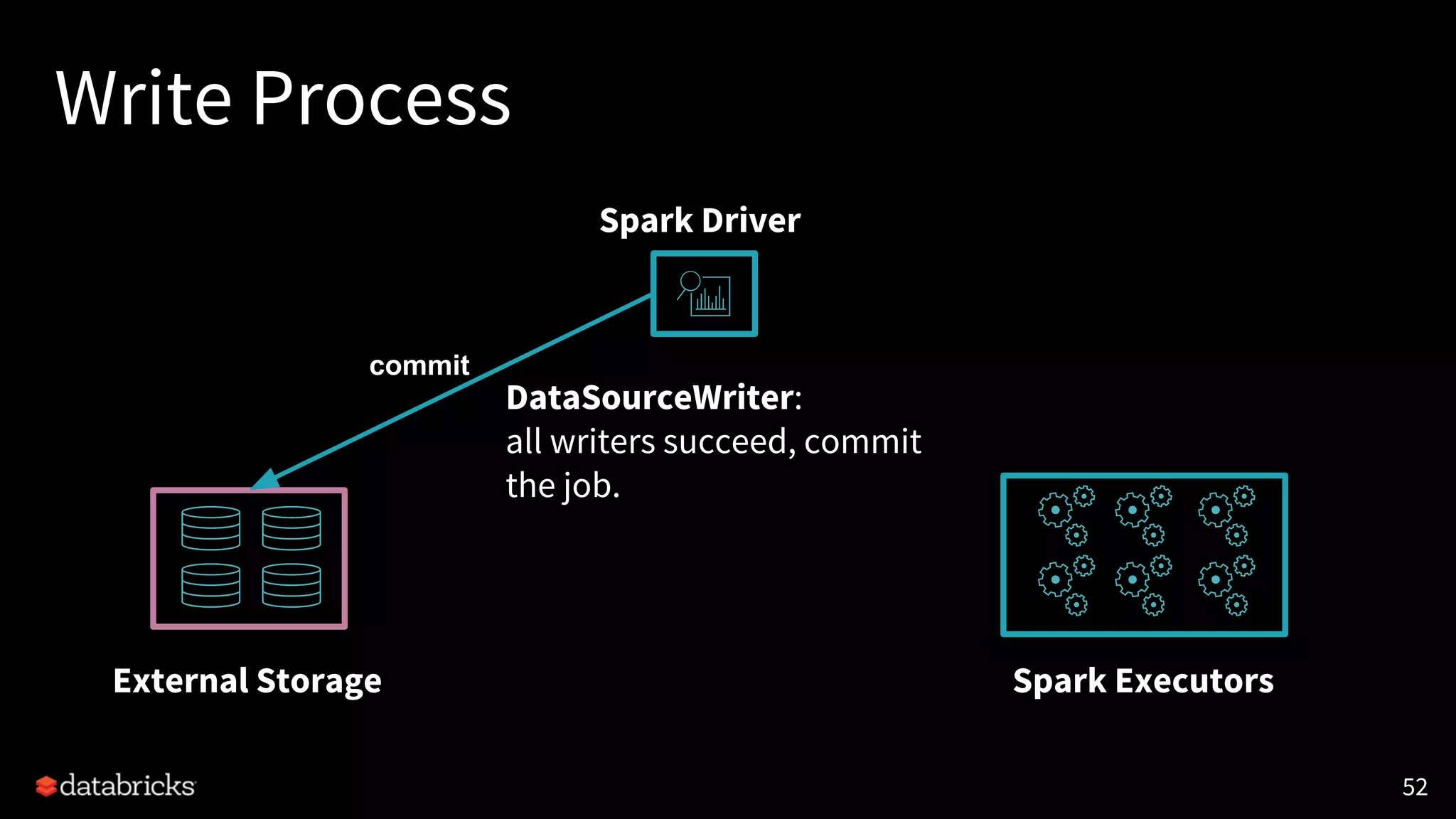

54. Write Process
54
Spark Driver
External Storage Spark Executors
DataSourceWriter:
some writers fail, abort the
job. (all or nothing)
abort and
clean up

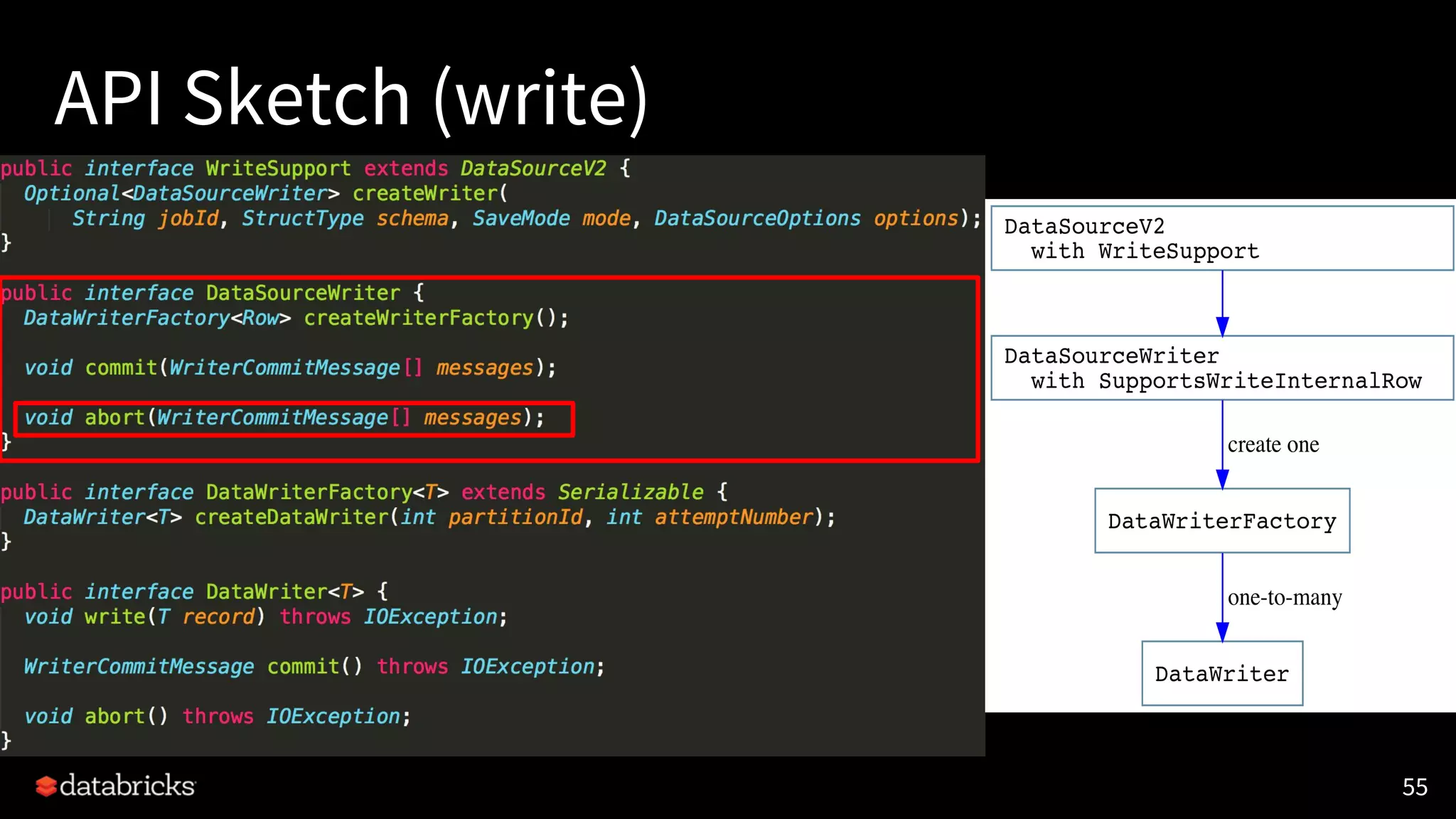

55. API Sketch (write)
55

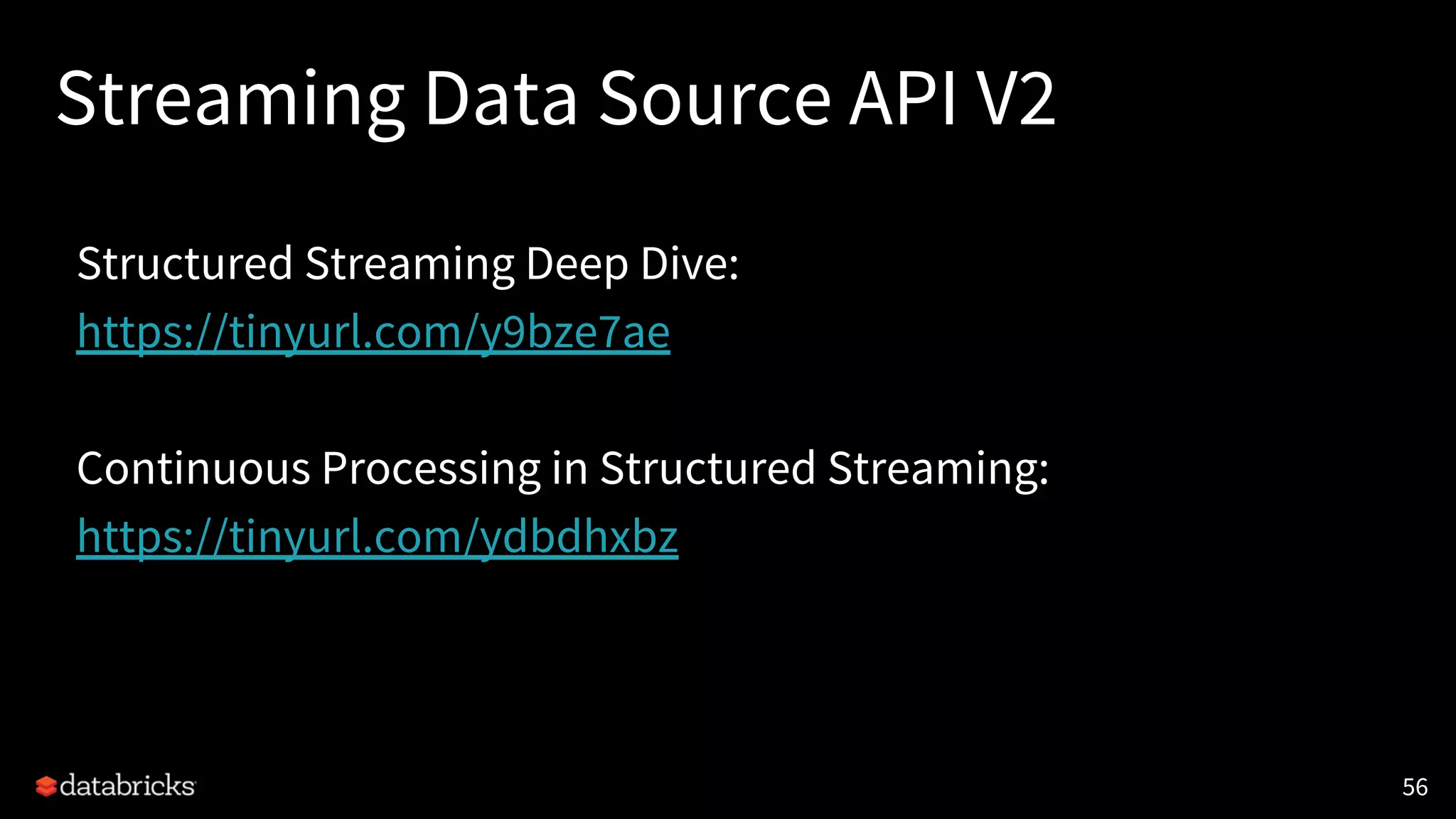

56. Streaming Data Source API V2
Structured Streaming Deep Dive:
https://tinyurl.com/y9bze7ae
Continuous Processing in Structured Streaming:
https://tinyurl.com/ydbdhxbz
56

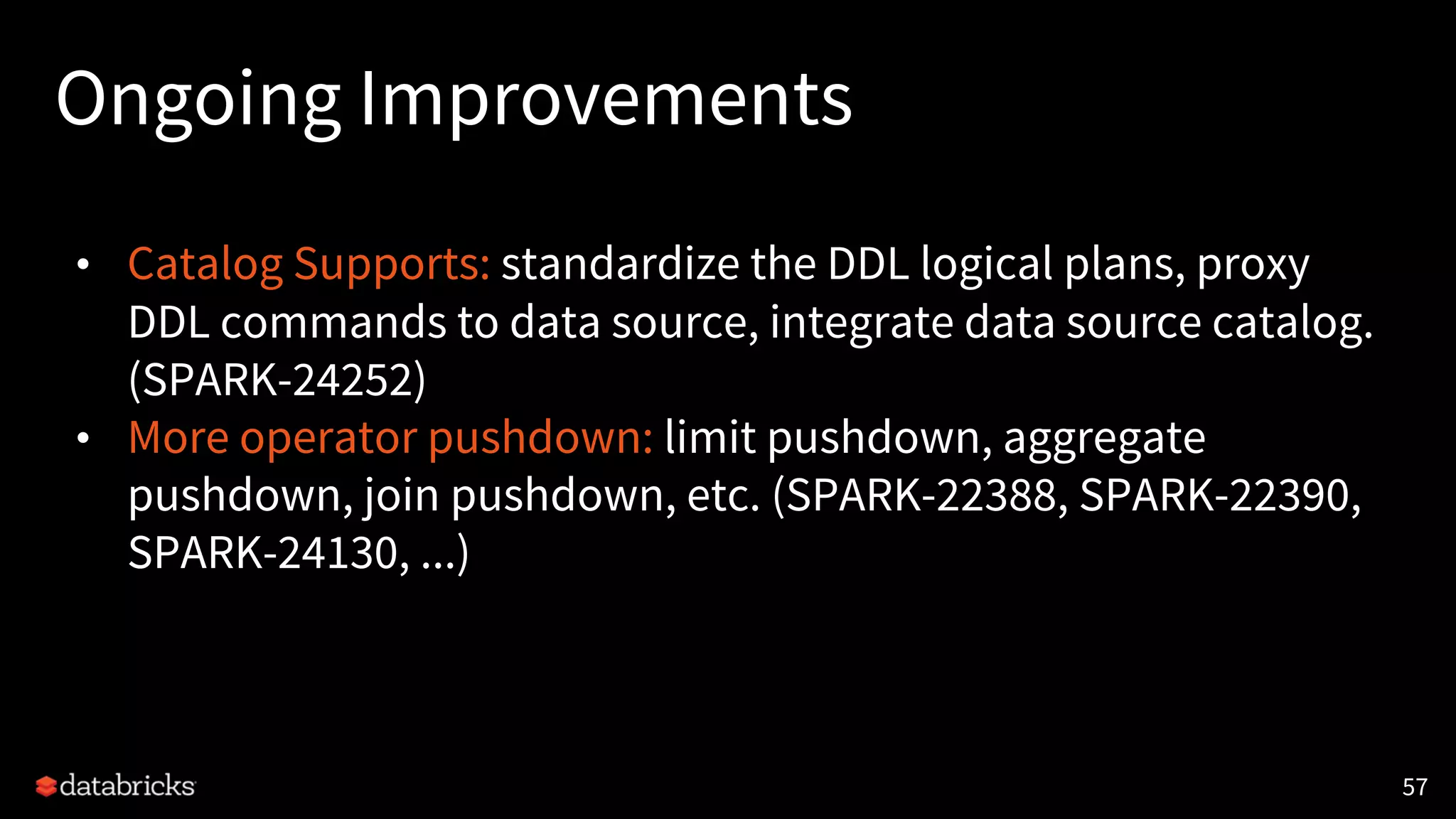

57. Ongoing Improvements
• Catalog Supports: standardize the DDL logical plans, proxy
DDL commands to data source, integrate data source catalog.
(SPARK-24252)
• More operator pushdown: limit pushdown, aggregate
pushdown, join pushdown, etc. (SPARK-22388, SPARK-22390,
SPARK-24130, ...)
57

58. Thank you
58
Wenchen Fan (wenchen@databricks.com)

59. Apache Spark Data Source V2 :
Example
Gengliang Wang
Spark Summit 2018, SF
1

60. About me
• Gengliang Wang (Github: gengliangwang)
• Software Engineer at

61. Databricks’ Unified Analytics Platform
DATABRICKS RUNTIME
COLLABORATIVE NOTEBOOKS
Delta SQL Streaming
Powered by
Data Engineers Data Scientists
CLOUD NATIVE SERVICE
Unifies Data Engineers
and Data Scientists
Unifies Data and AI
Technologies
Eliminates infrastructure
complexity

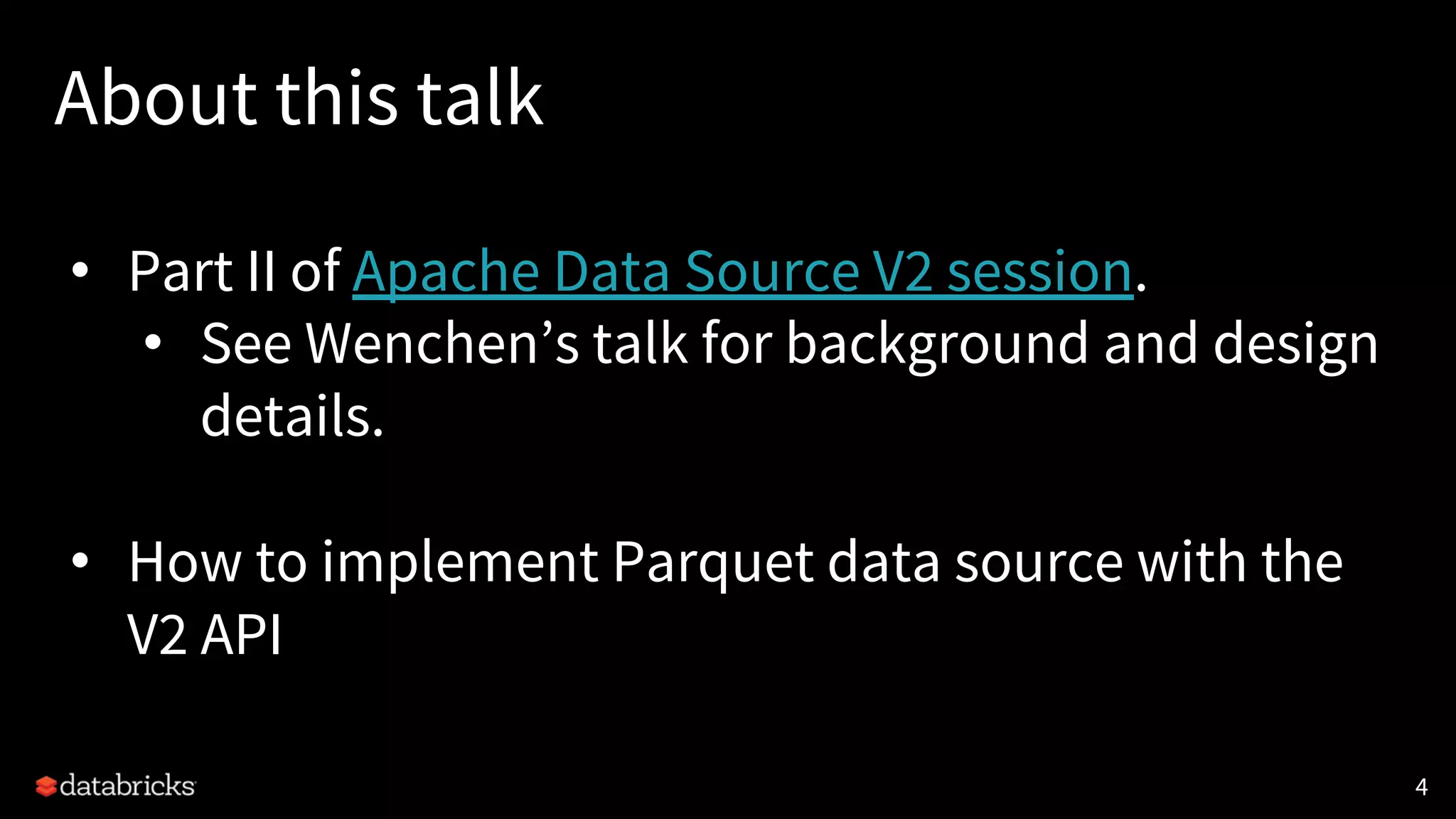

62. About this talk
• Part II of Apache Data Source V2 session.
• See Wenchen’s talk for background and design
details.
• How to implement Parquet data source with the
V2 API
4

63. 5
Spark
Data Source V2
We are migrating...

64. Read Parquet files
6 6

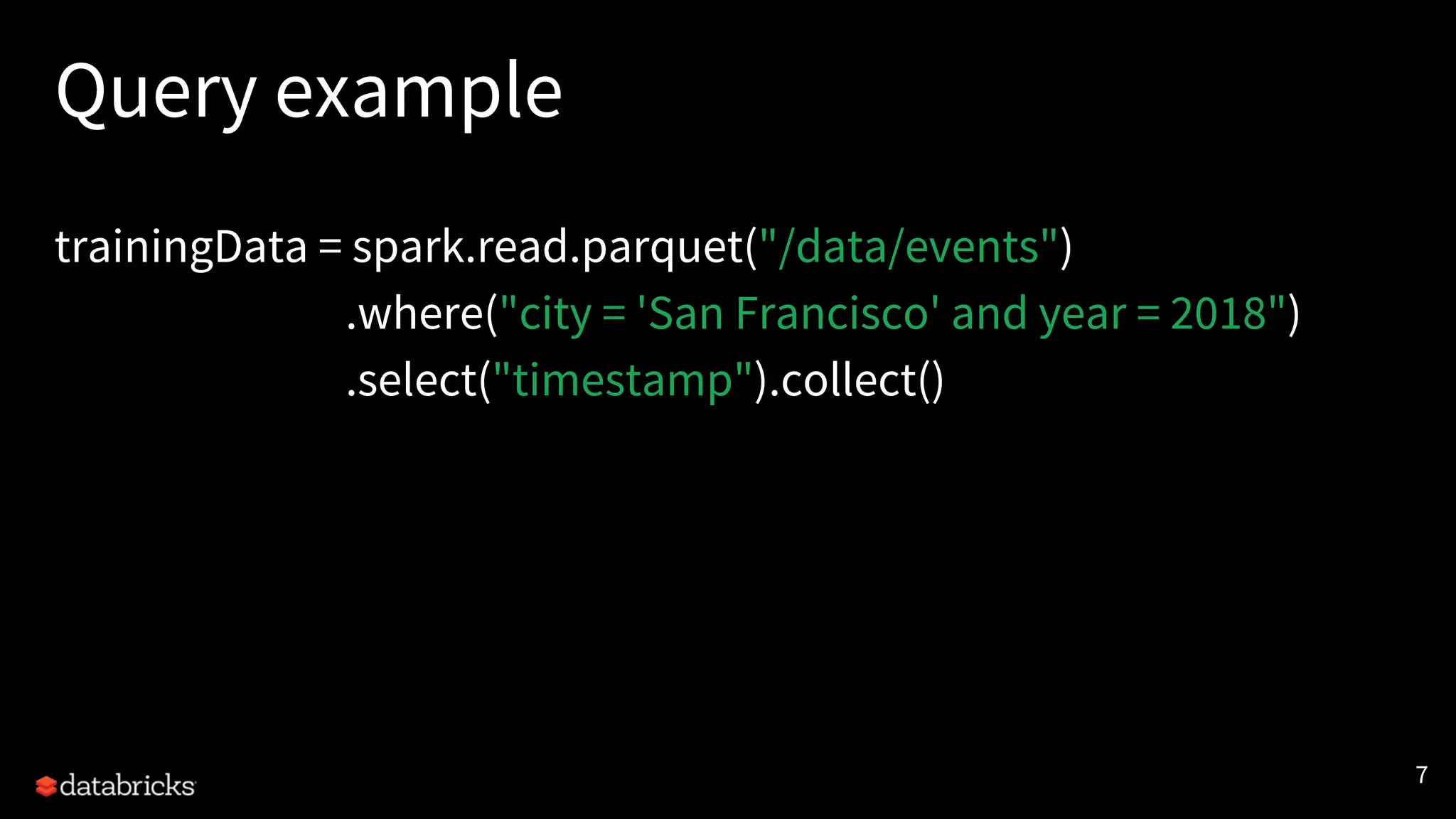

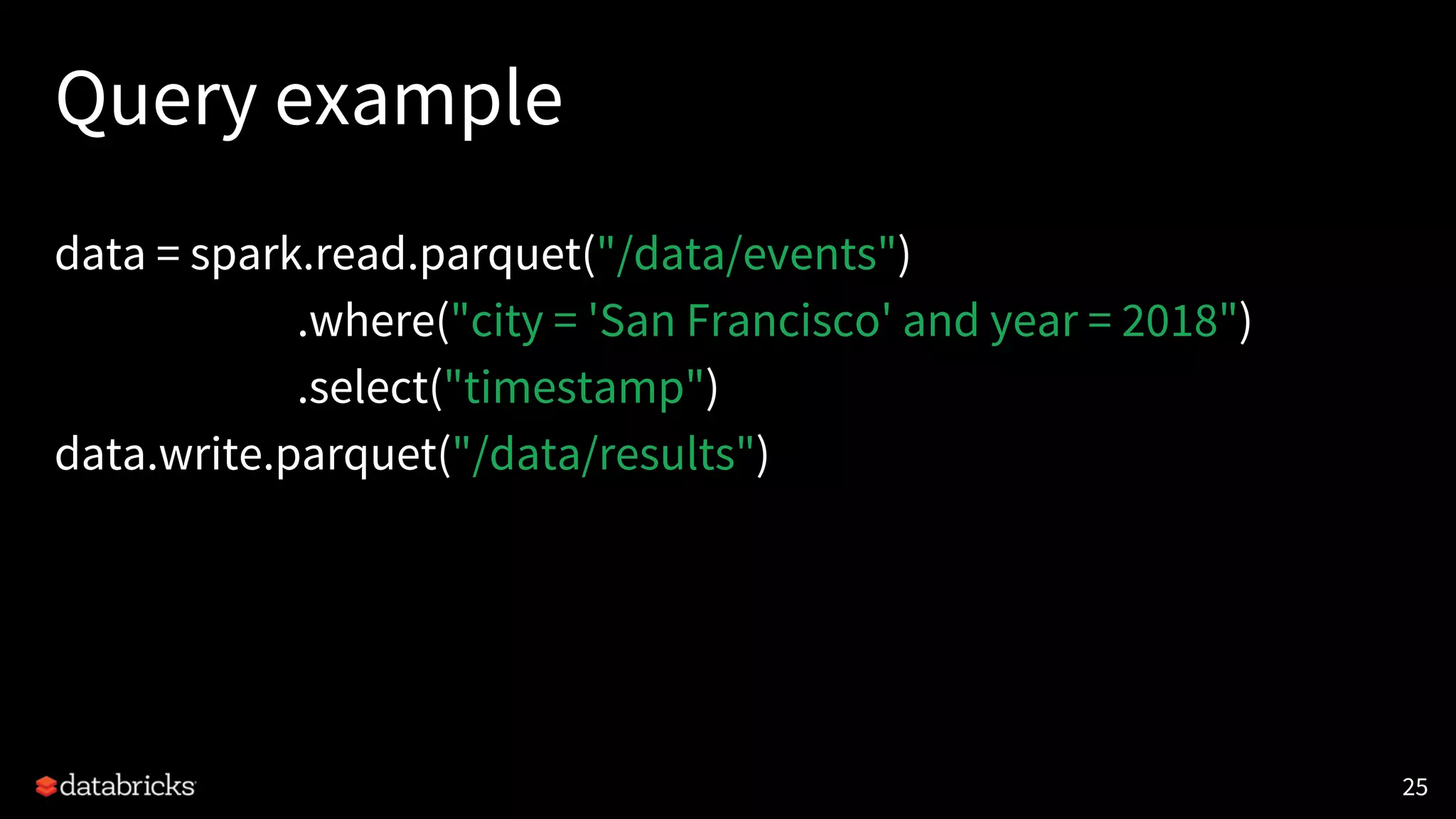

65. Query example
trainingData = spark.read.parquet("/data/events")
.where("city = 'San Francisco' and year = 2018")
.select("timestamp").collect()
7

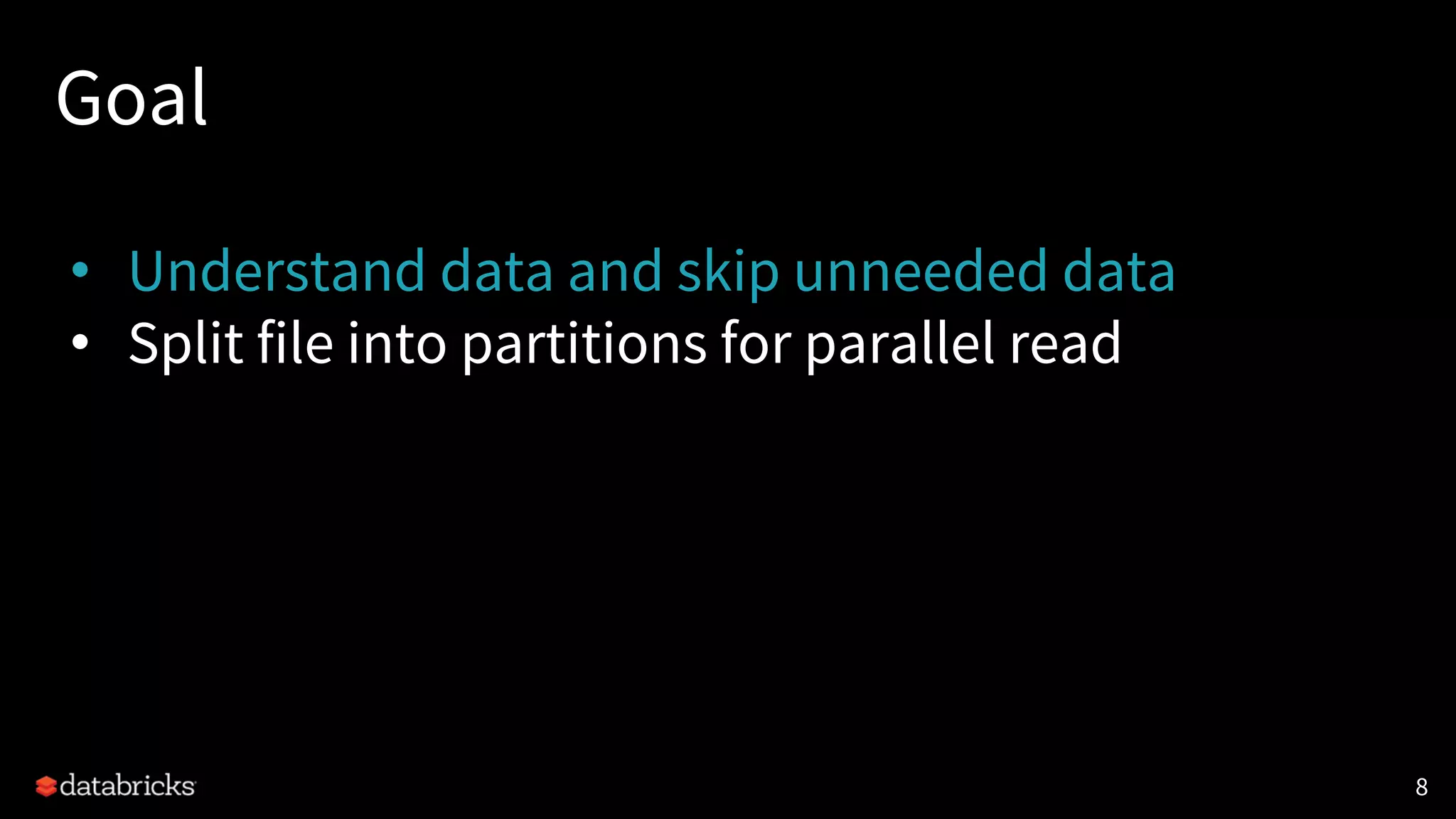

66. Goal
• Understand data and skip unneeded data
• Split file into partitions for parallel read
8

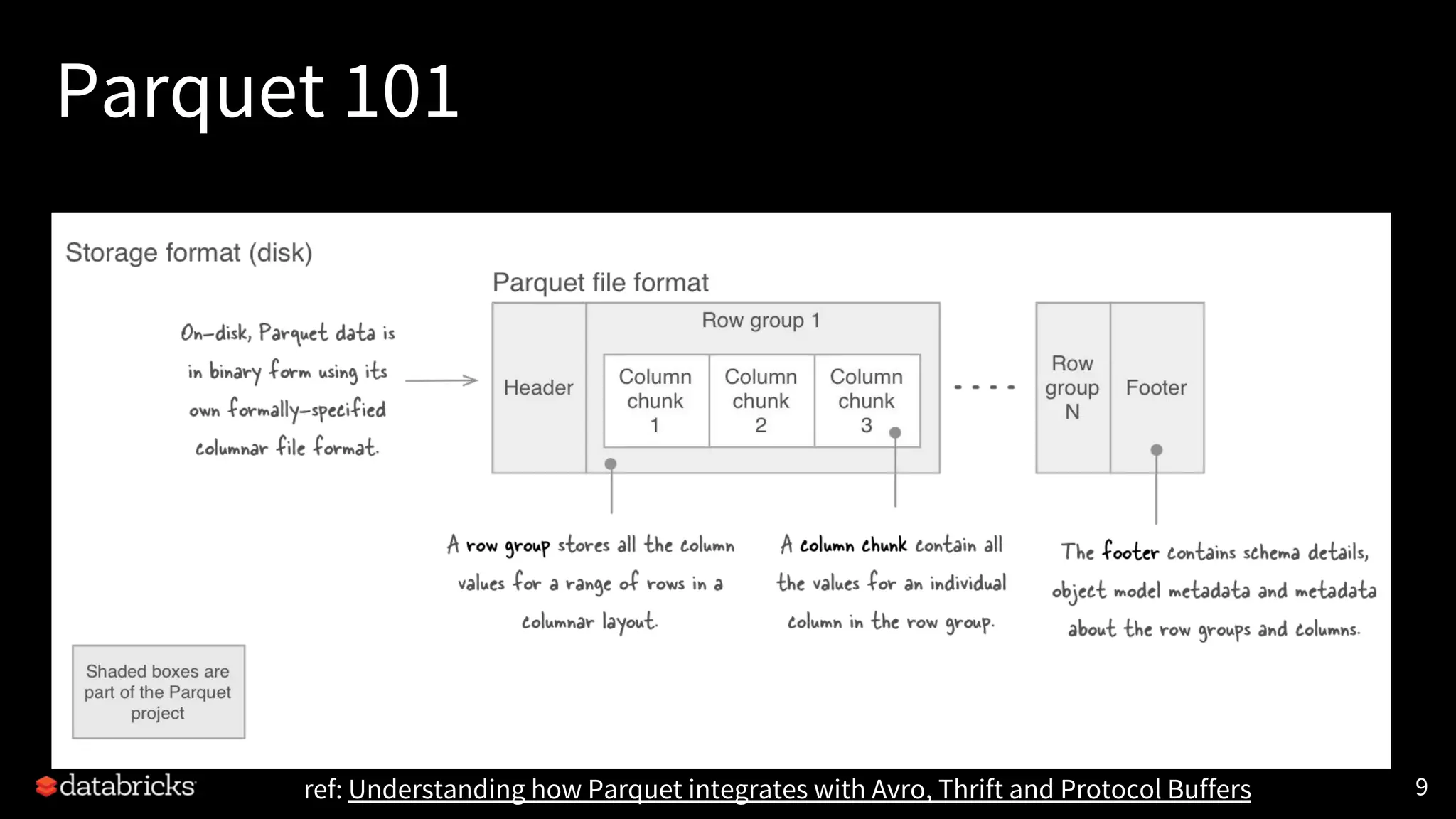

67. ref: http://grepalex.com/2014/05/13/parquet-file-format-and-object-model/
Parquet 101
9ref: Understanding how Parquet integrates with Avro, Thrift and Protocol Buffers

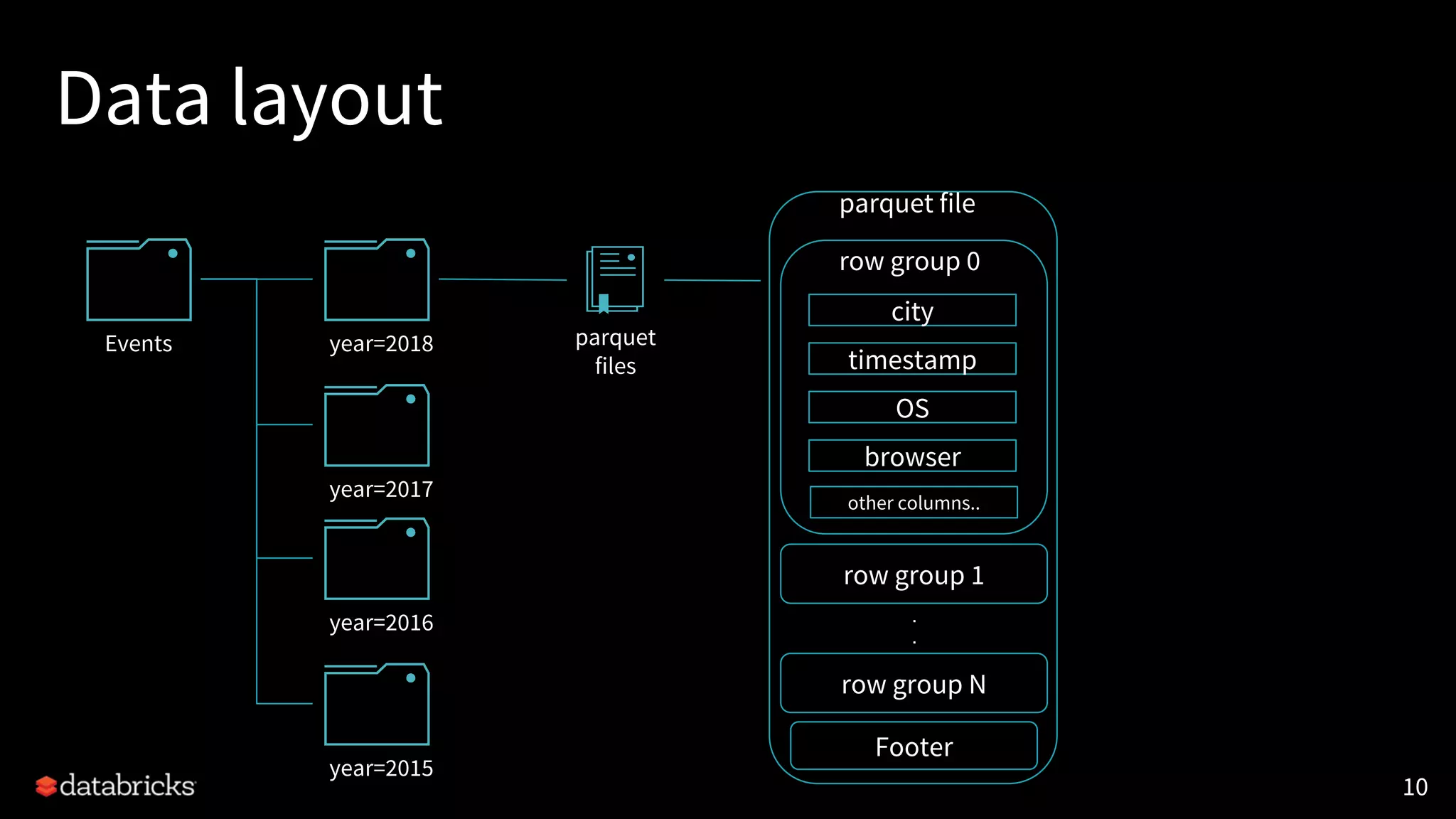

68. Data layout
10
Events year=2018
year=2017
year=2016
year=2015
parquet
files
parquet file
row group 0
city
timestamp
OS
browser
other columns..
row group 1
.
.
row group N
Footer

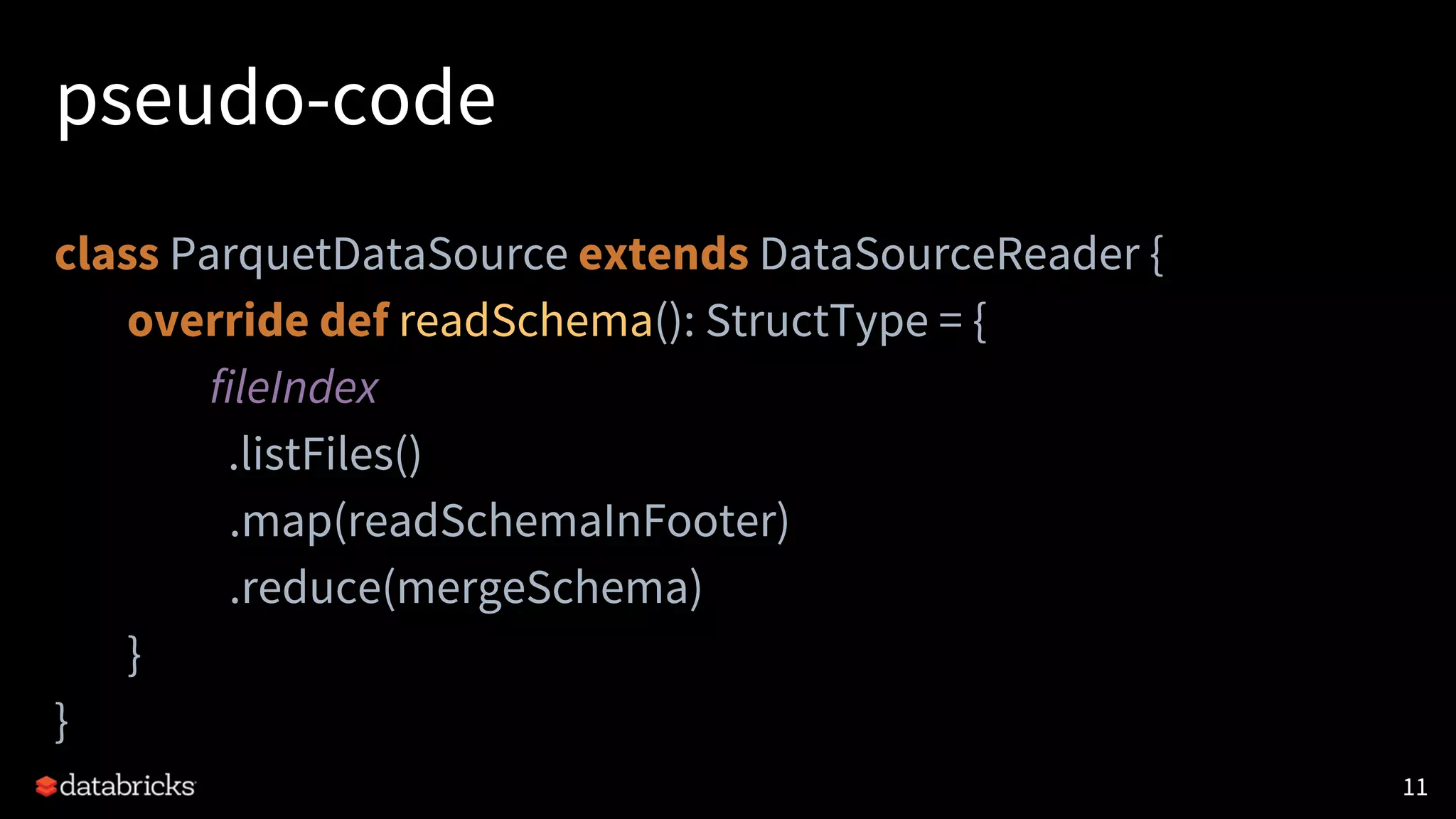

69. pseudo-code
class ParquetDataSource extends DataSourceReader {
override def readSchema(): StructType = {
fileIndex
.listFiles()
.map(readSchemaInFooter)
.reduce(mergeSchema)
}
}
11

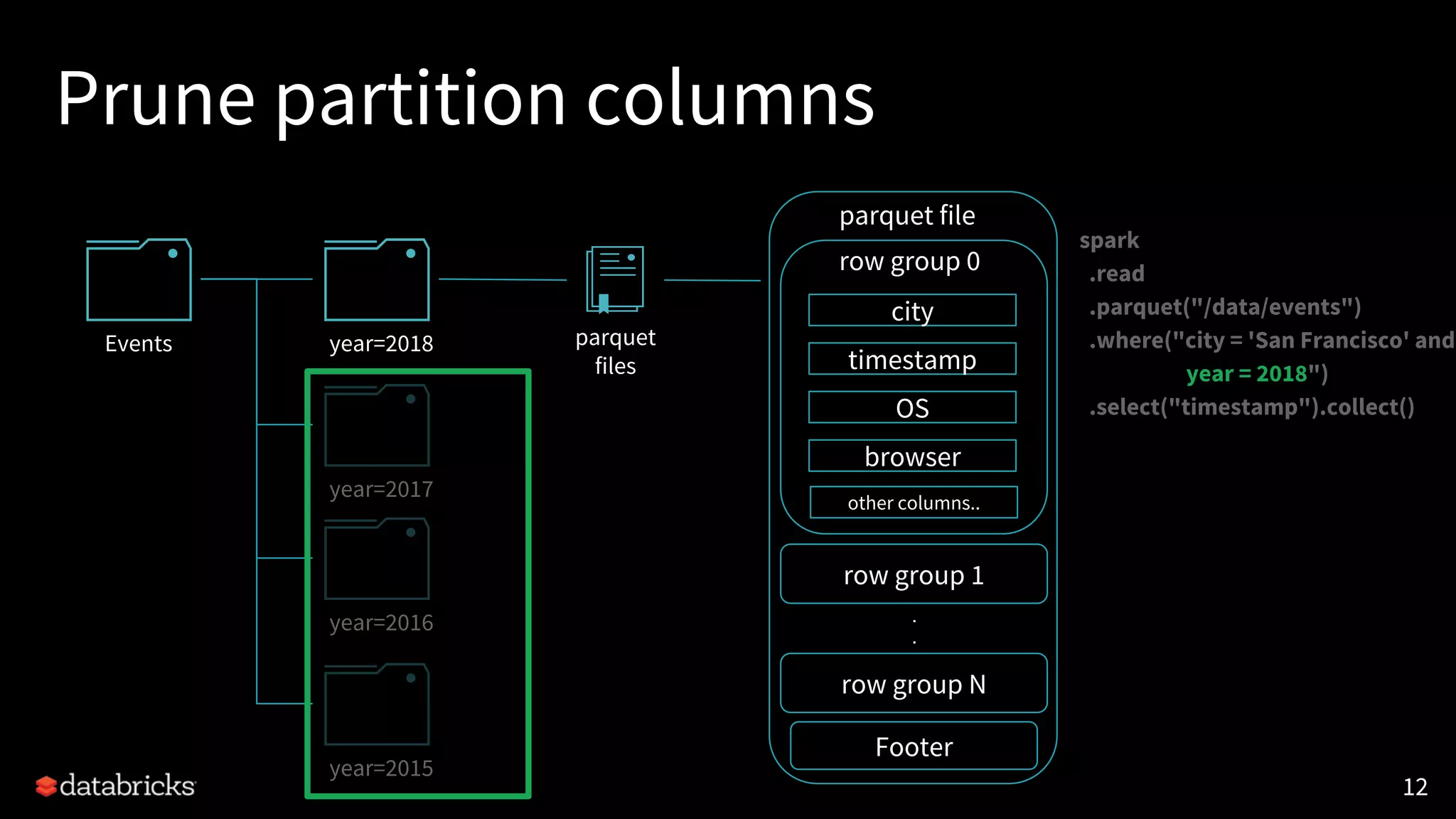

70. Prune partition columns
12
Events year=2018
year=2017
year=2016
year=2015
parquet
files
parquet file
row group 0
city
timestamp
OS
browser
other columns..
row group 1
.
.
row group N
Footer
spark
.read
.parquet("/data/events")
.where("city = 'San Francisco' and
year = 2018")
.select("timestamp").collect()

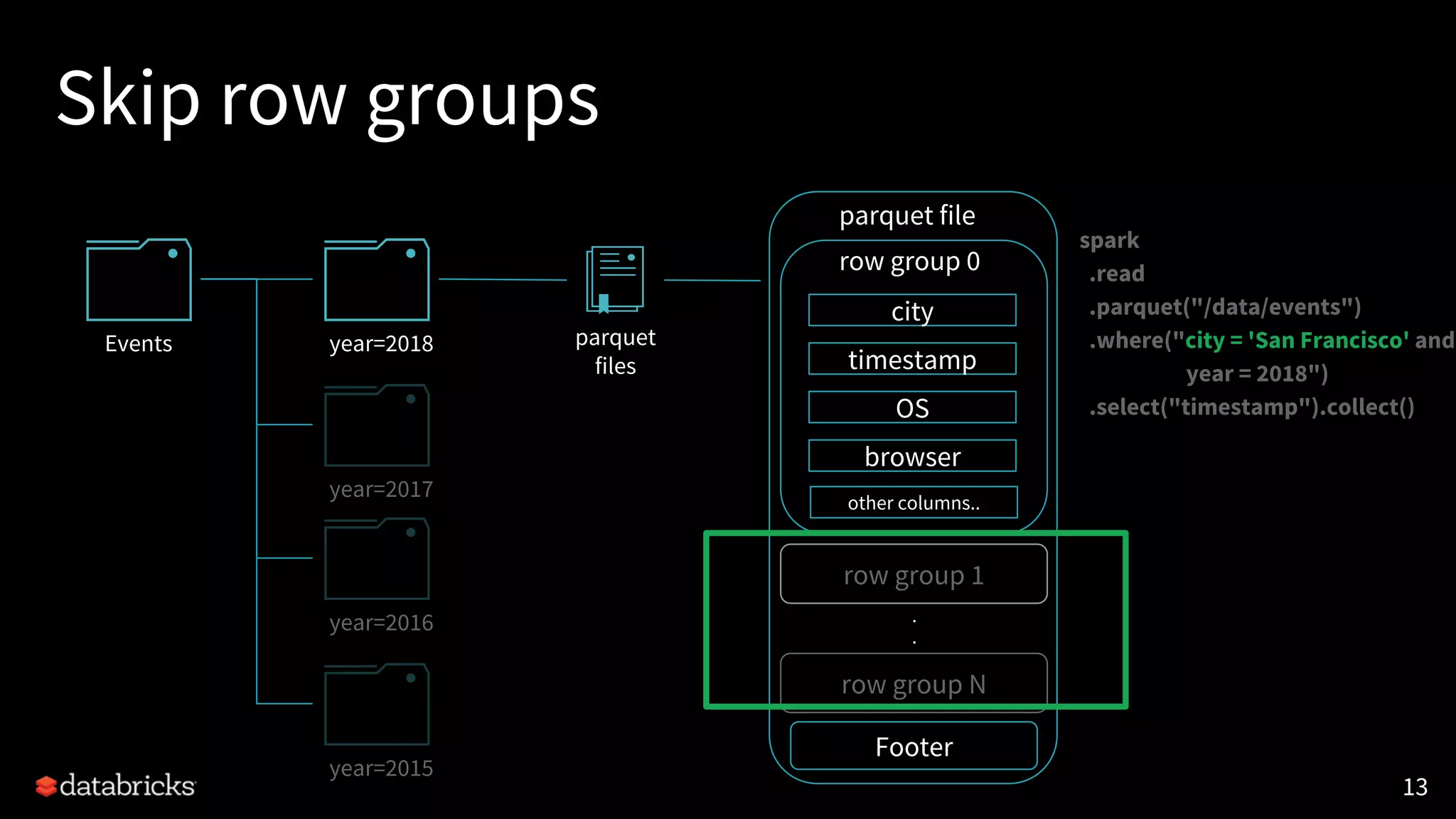

71. Skip row groups
13
Events year=2018
year=2017
year=2016
year=2015
parquet
files
parquet file
row group 0
city
timestamp
OS
browser
other columns..
row group 1
.
.
row group N
Footer
spark
.read
.parquet("/data/events")
.where("city = 'San Francisco' and
year = 2018")
.select("timestamp").collect()

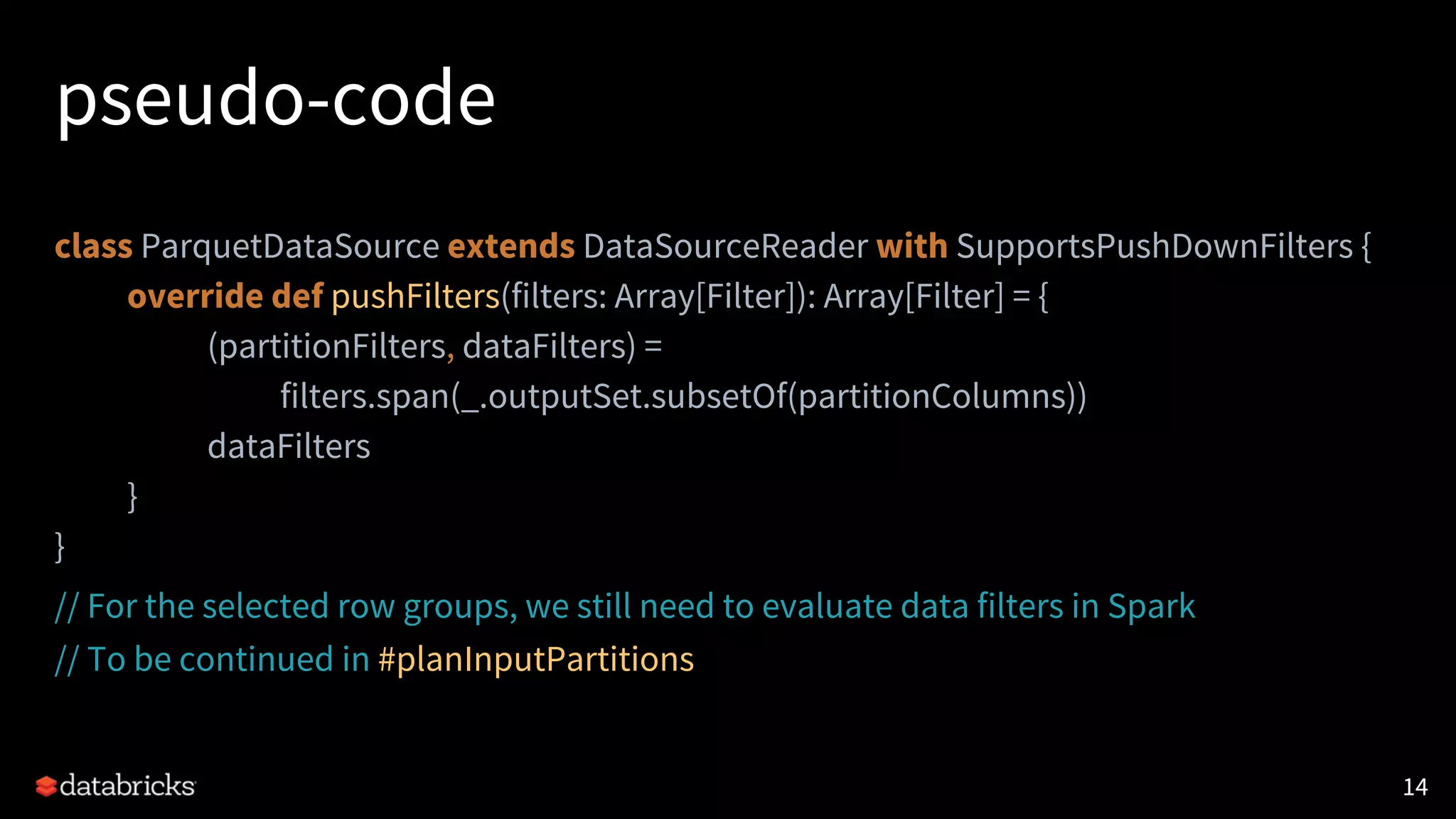

72. pseudo-code
class ParquetDataSource extends DataSourceReader with SupportsPushDownFilters {
override def pushFilters(filters: Array[Filter]): Array[Filter] = {
(partitionFilters, dataFilters) =
filters.span(_.outputSet.subsetOf(partitionColumns))
dataFilters
}
}
// For the selected row groups, we still need to evaluate data filters in Spark
// To be continued in #planInputPartitions
14

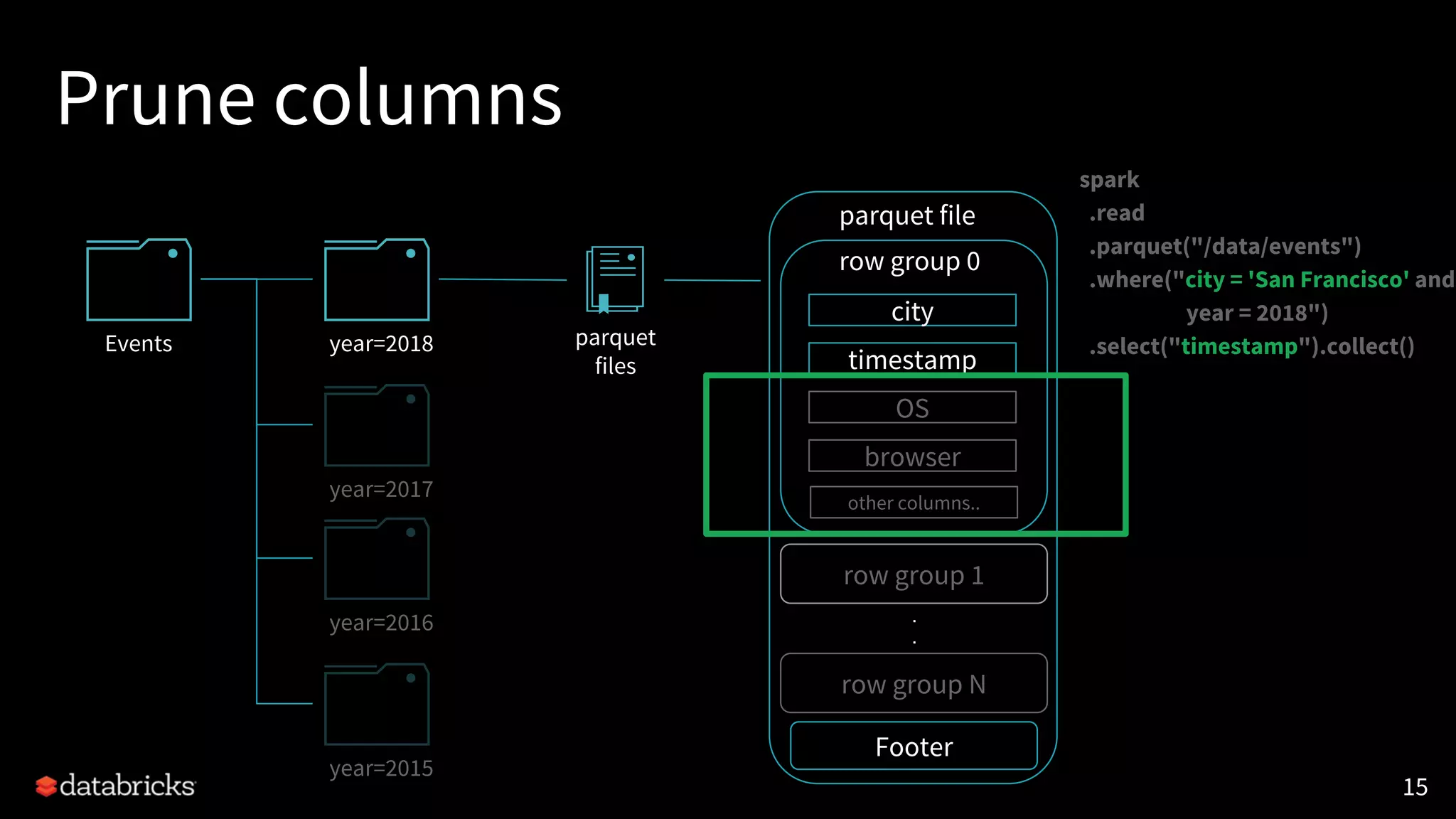

73. Prune columns
15
Events year=2018
year=2017
year=2016
year=2015
parquet
files
parquet file
row group 0
city
timestamp
OS
browser
other columns..
row group 1
.
.
row group N
Footer
spark
.read
.parquet("/data/events")
.where("city = 'San Francisco' and
year = 2018")
.select("timestamp").collect()

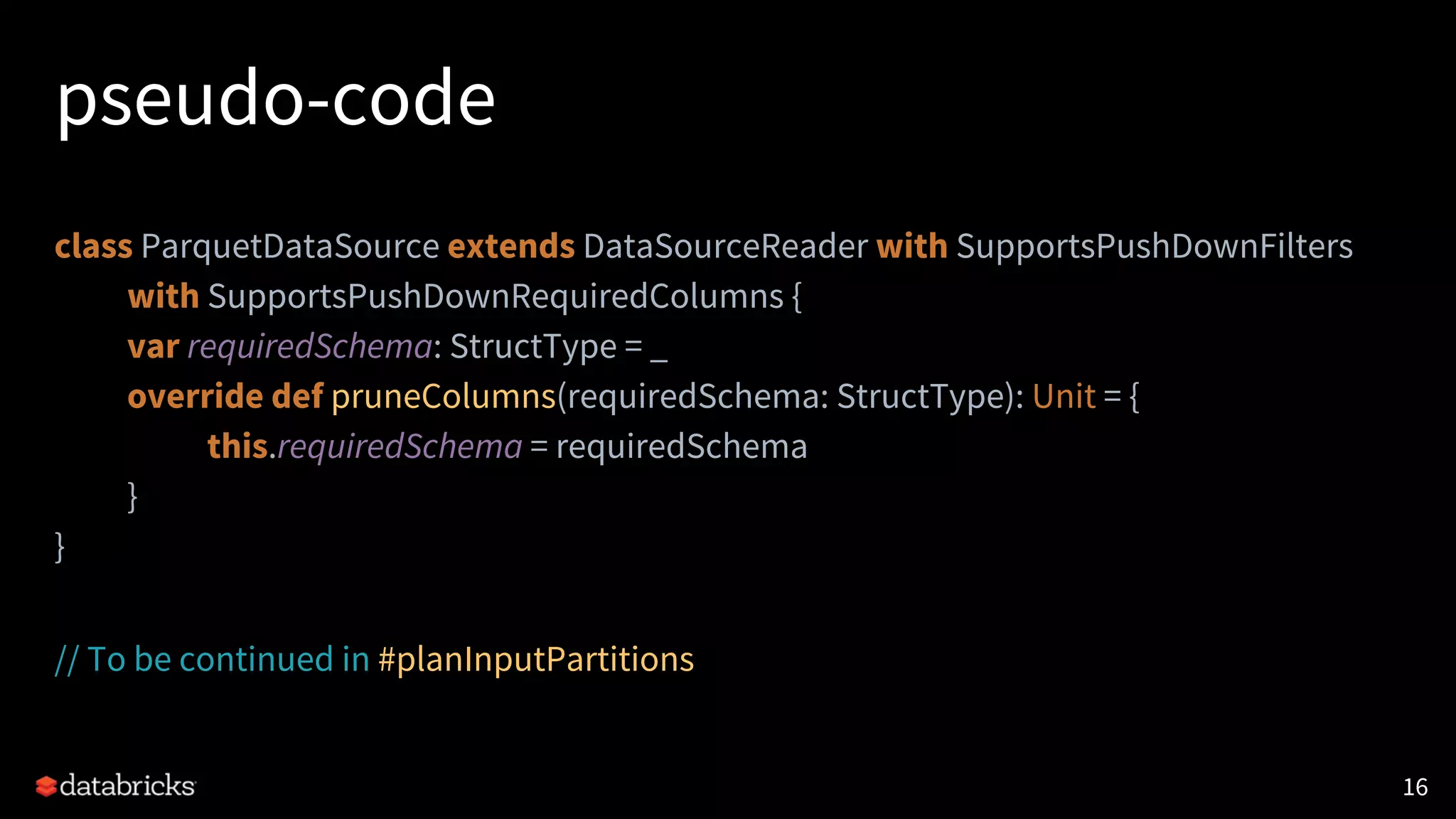

74. pseudo-code
class ParquetDataSource extends DataSourceReader with SupportsPushDownFilters
with SupportsPushDownRequiredColumns {
var requiredSchema: StructType = _
override def pruneColumns(requiredSchema: StructType): Unit = {
this.requiredSchema = requiredSchema
}
}
// To be continued in #planInputPartitions
16

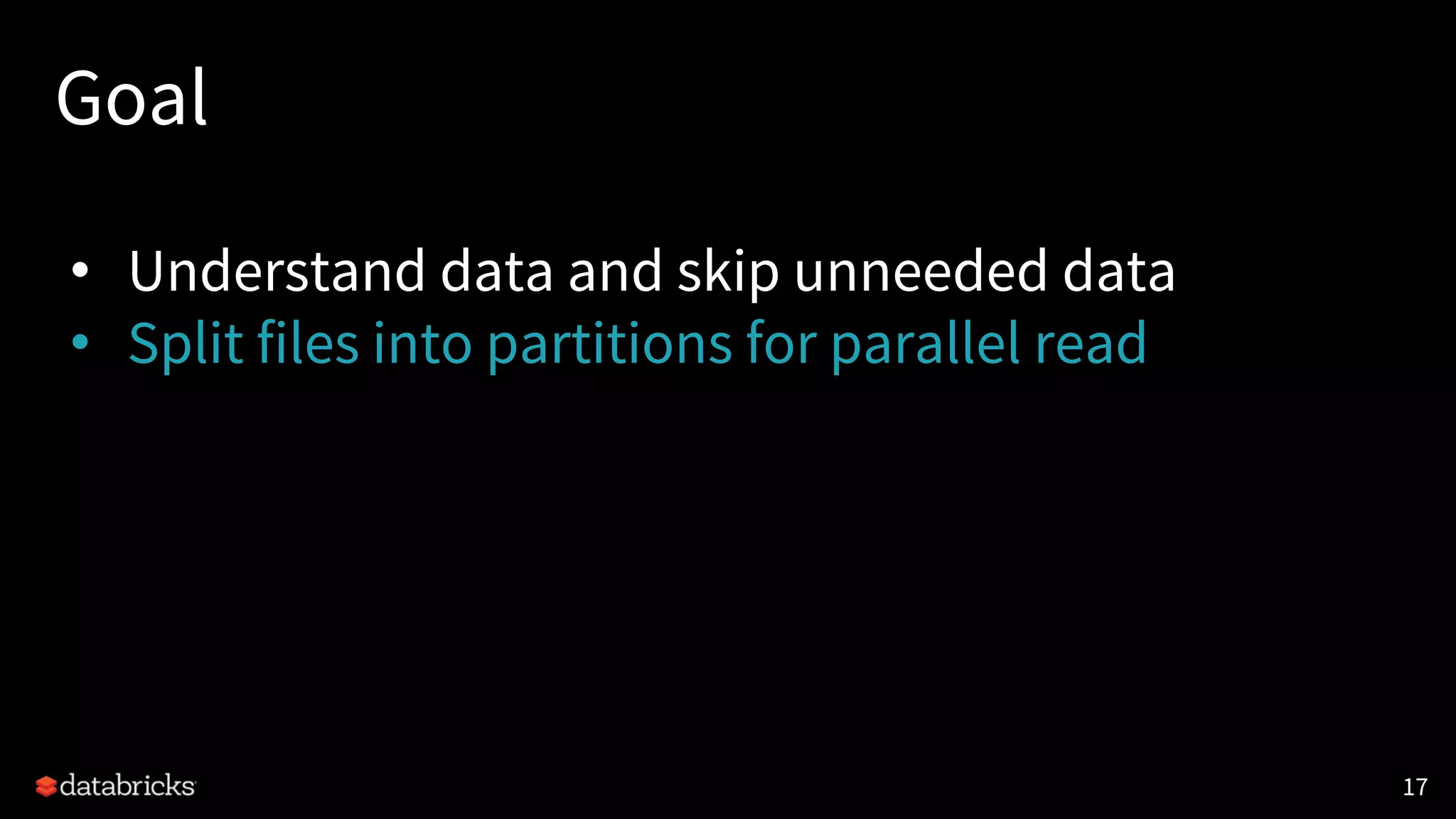

75. Goal
• Understand data and skip unneeded data
• Split files into partitions for parallel read
17

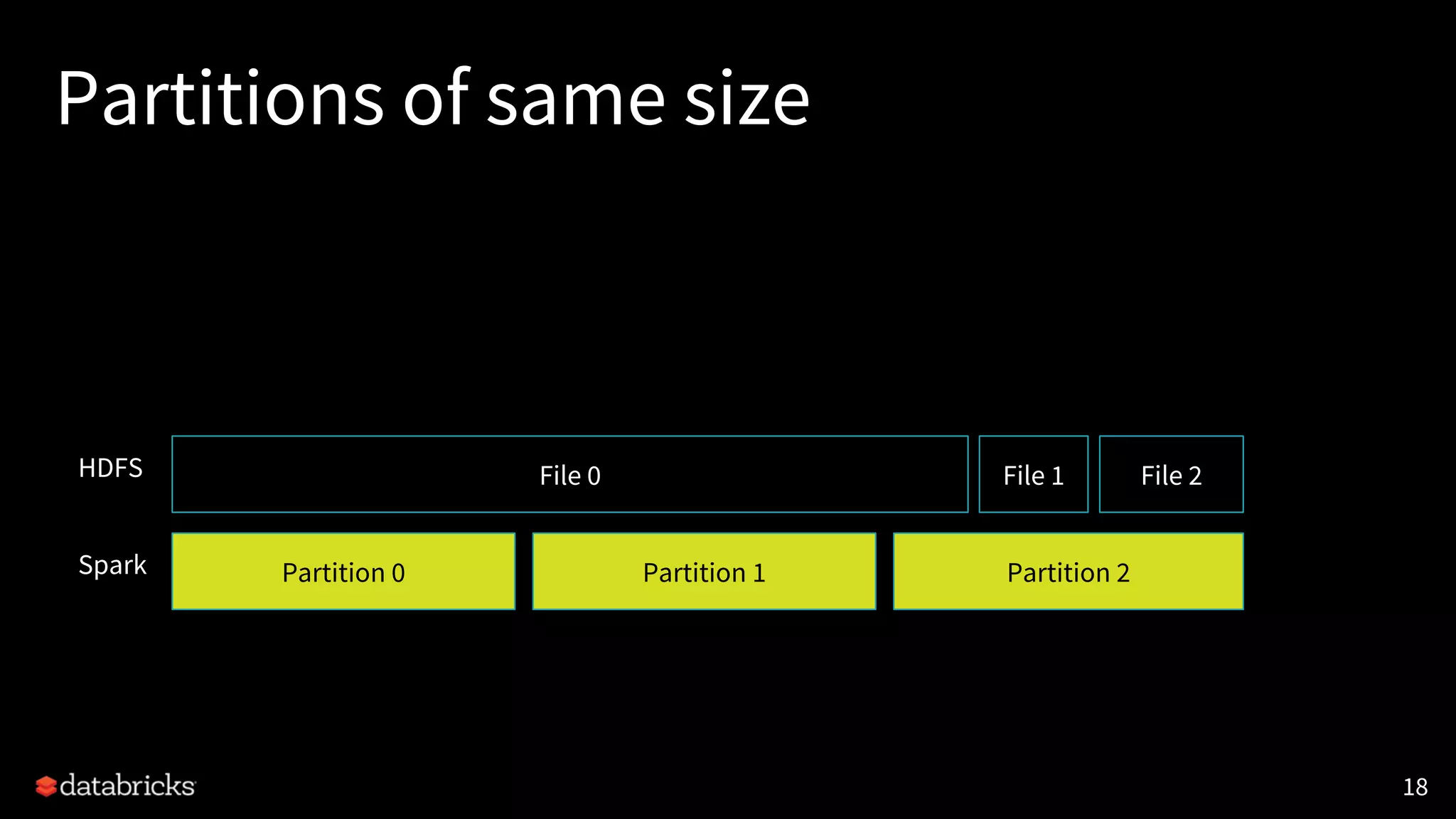

76. Partitions of same size
18
File 0 File 1
Partition 0 Partition 1 Partition 2
File 2HDFS
Spark

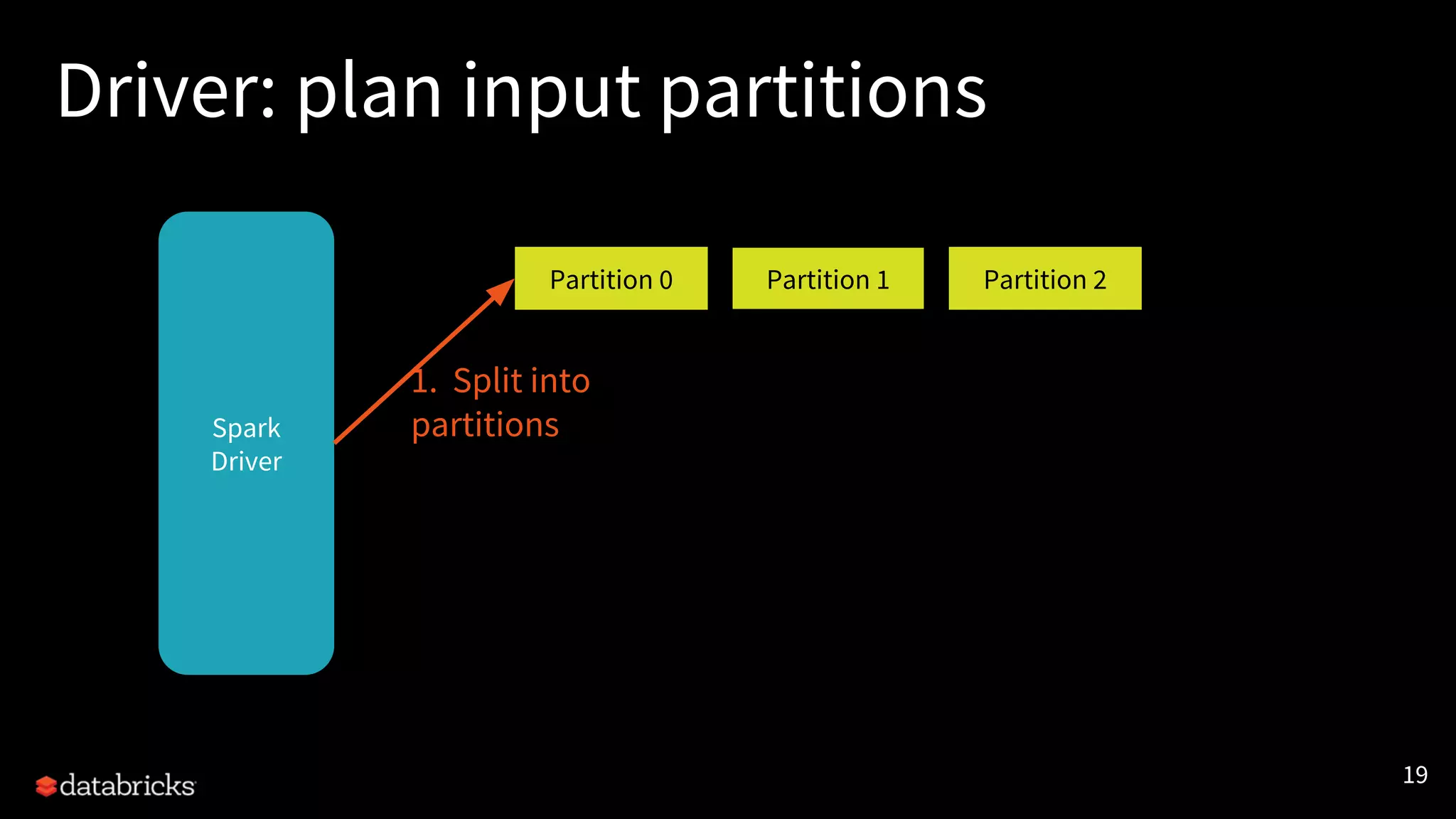

77. Driver: plan input partitions
19
Spark
Driver
Partition 0 Partition 1 Partition 2
1. Split into
partitions

78. Driver: plan input partitions
20
Spark
Driver
Executor 0 Executor 1 Executor 2
1. Split into
partitions
2. Launch read tasks
Partition 0 Partition 1 Partition 2

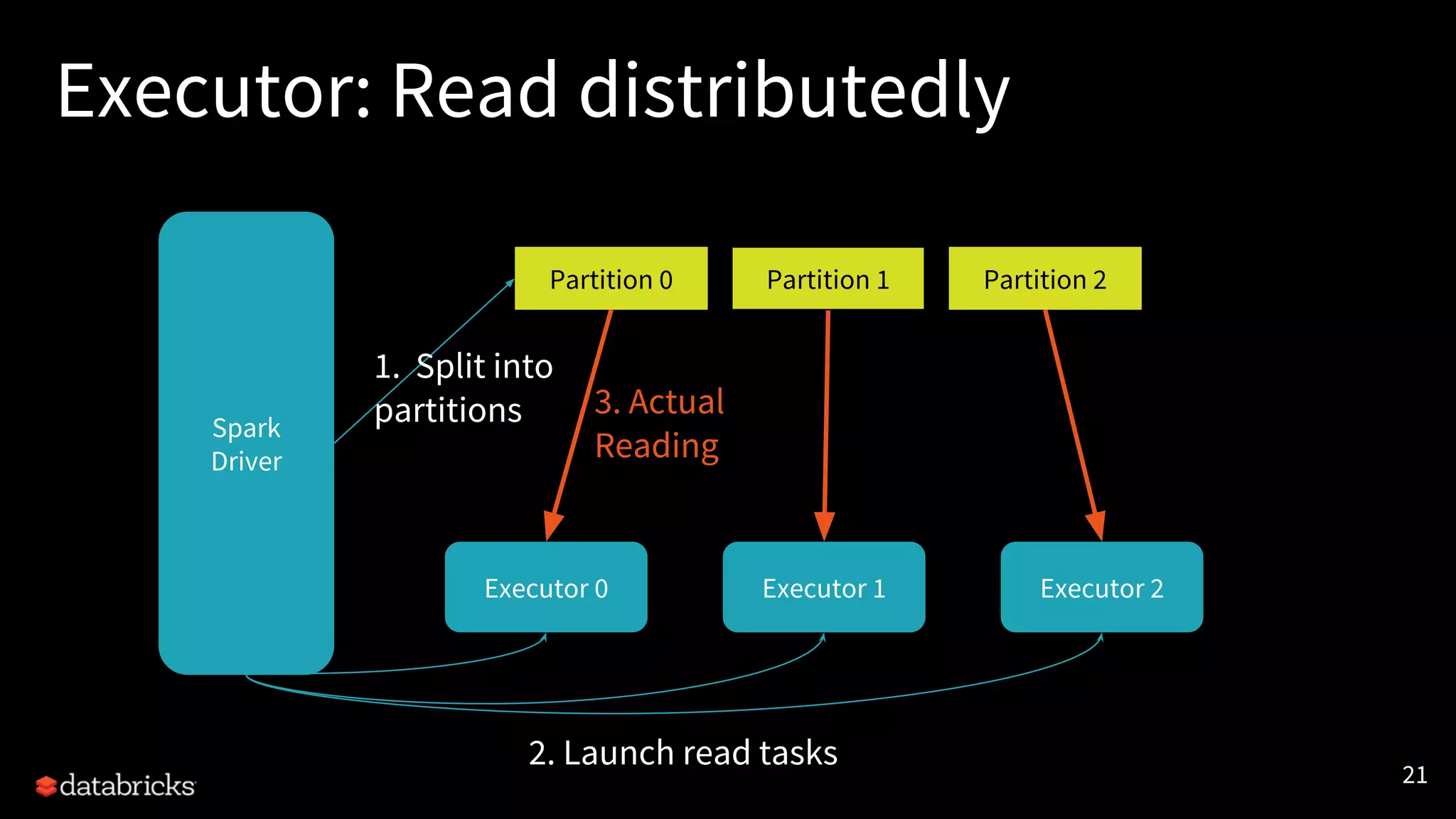

79. Executor: Read distributedly
21
Spark
Driver
Executor 0 Executor 1 Executor 2
3. Actual
Reading
Partition 0 Partition 1 Partition 2
1. Split into
partitions
2. Launch read tasks

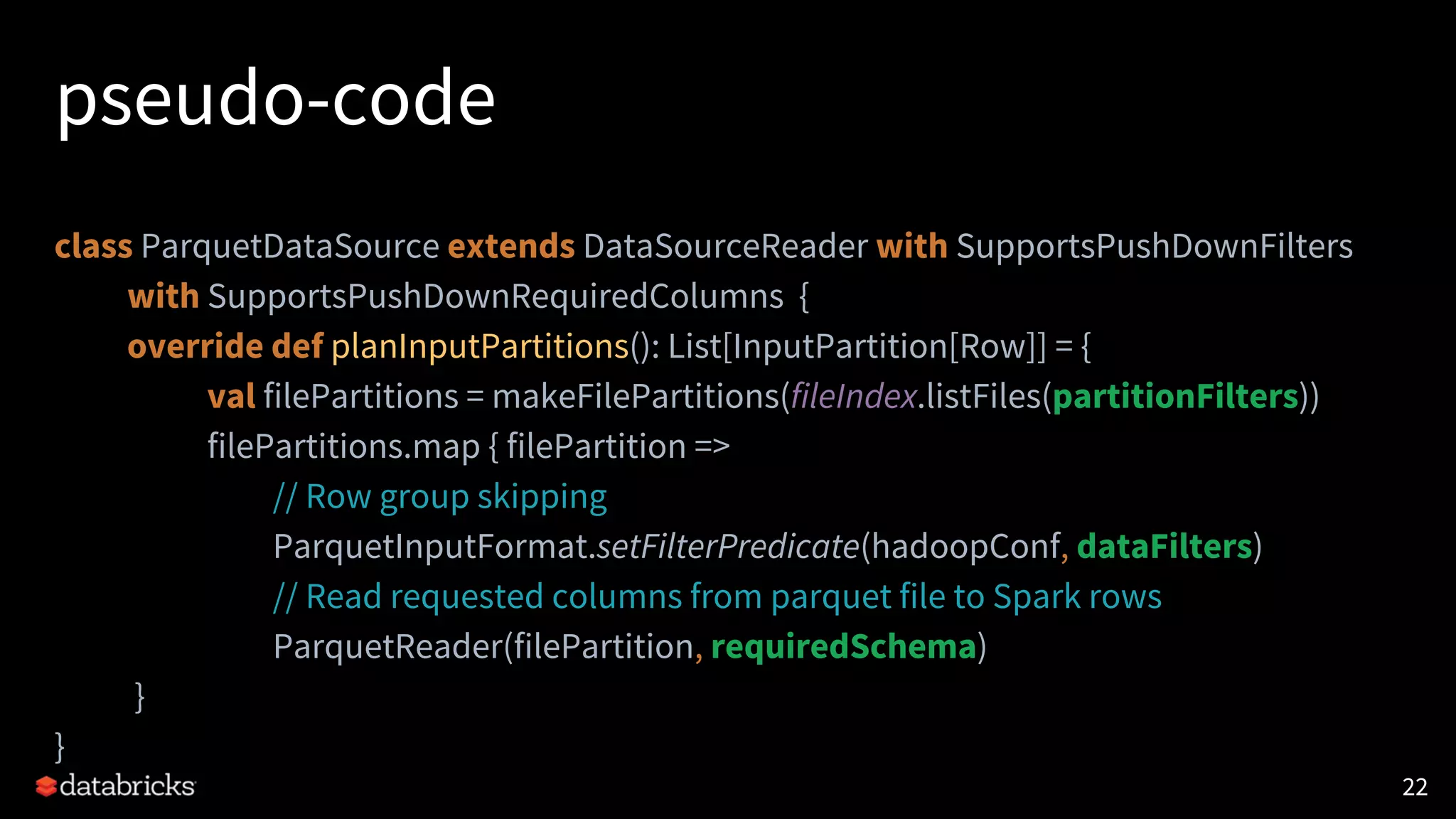

80. pseudo-code
class ParquetDataSource extends DataSourceReader with SupportsPushDownFilters
with SupportsPushDownRequiredColumns {
override def planInputPartitions(): List[InputPartition[Row]] = {
val filePartitions = makeFilePartitions(fileIndex.listFiles(partitionFilters))
filePartitions.map { filePartition =>
// Row group skipping
ParquetInputFormat.setFilterPredicate(hadoopConf, dataFilters)
// Read requested columns from parquet file to Spark rows
ParquetReader(filePartition, requiredSchema)
}
}
22

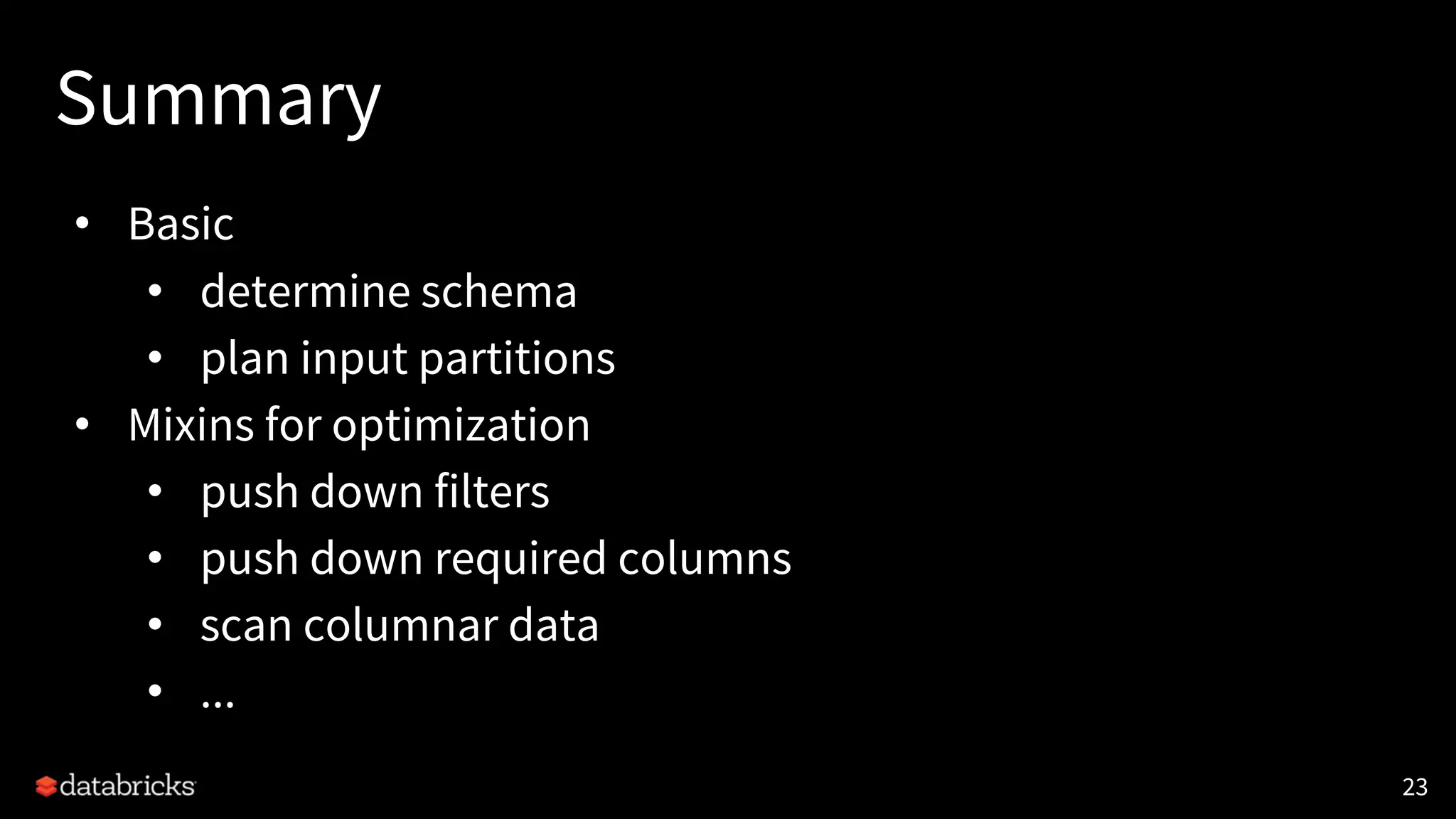

81. Summary
• Basic
• determine schema
• plan input partitions
• Mixins for optimization
• push down filters
• push down required columns
• scan columnar data
• ...
23

82. Parquet Writer on HDFS
2424

83. Query example
data = spark.read.parquet("/data/events")
.where("city = 'San Francisco' and year = 2018")
.select("timestamp")
data.write.parquet("/data/results")
25

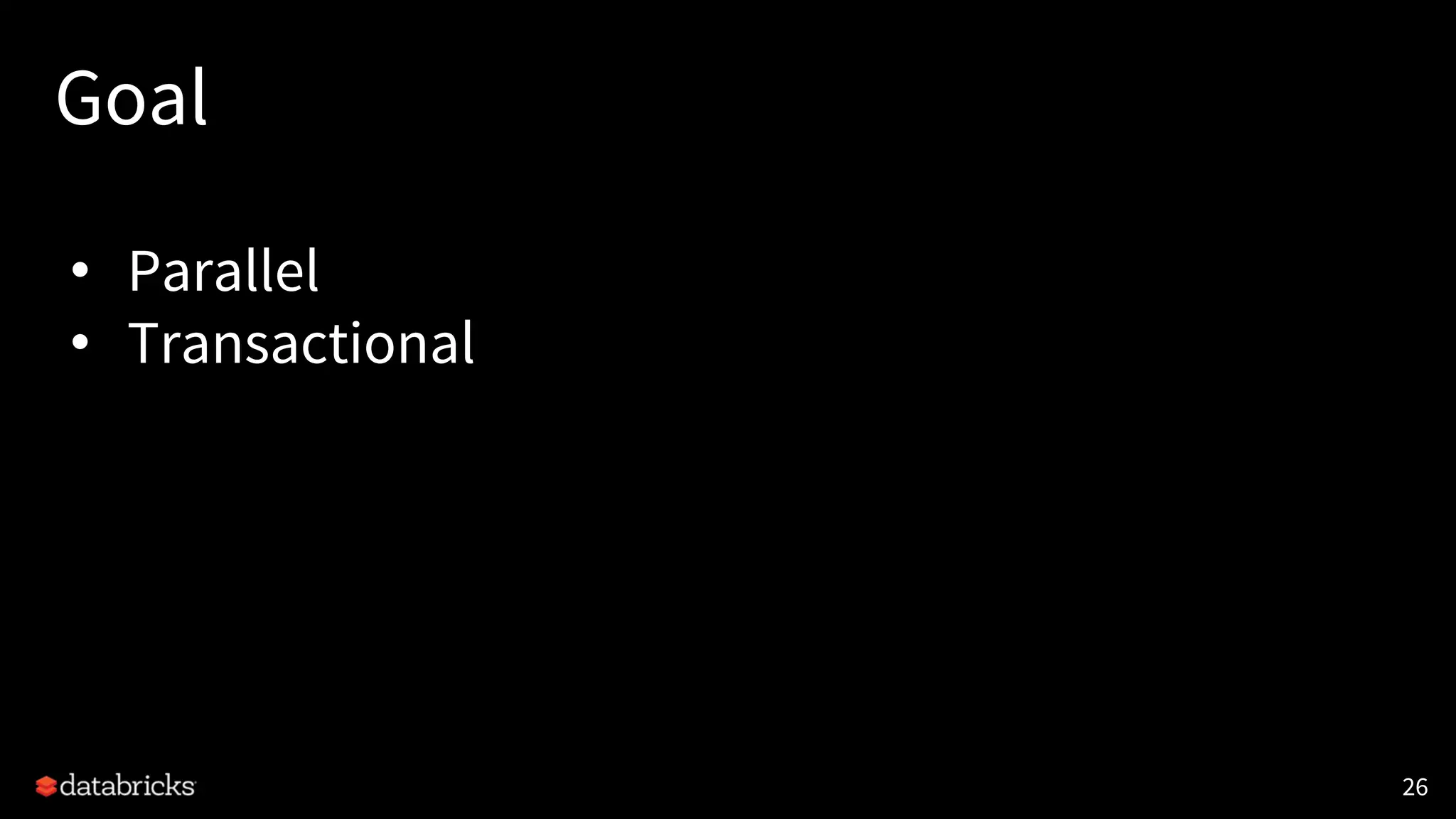

84. Goal
• Parallel
• Transactional
26

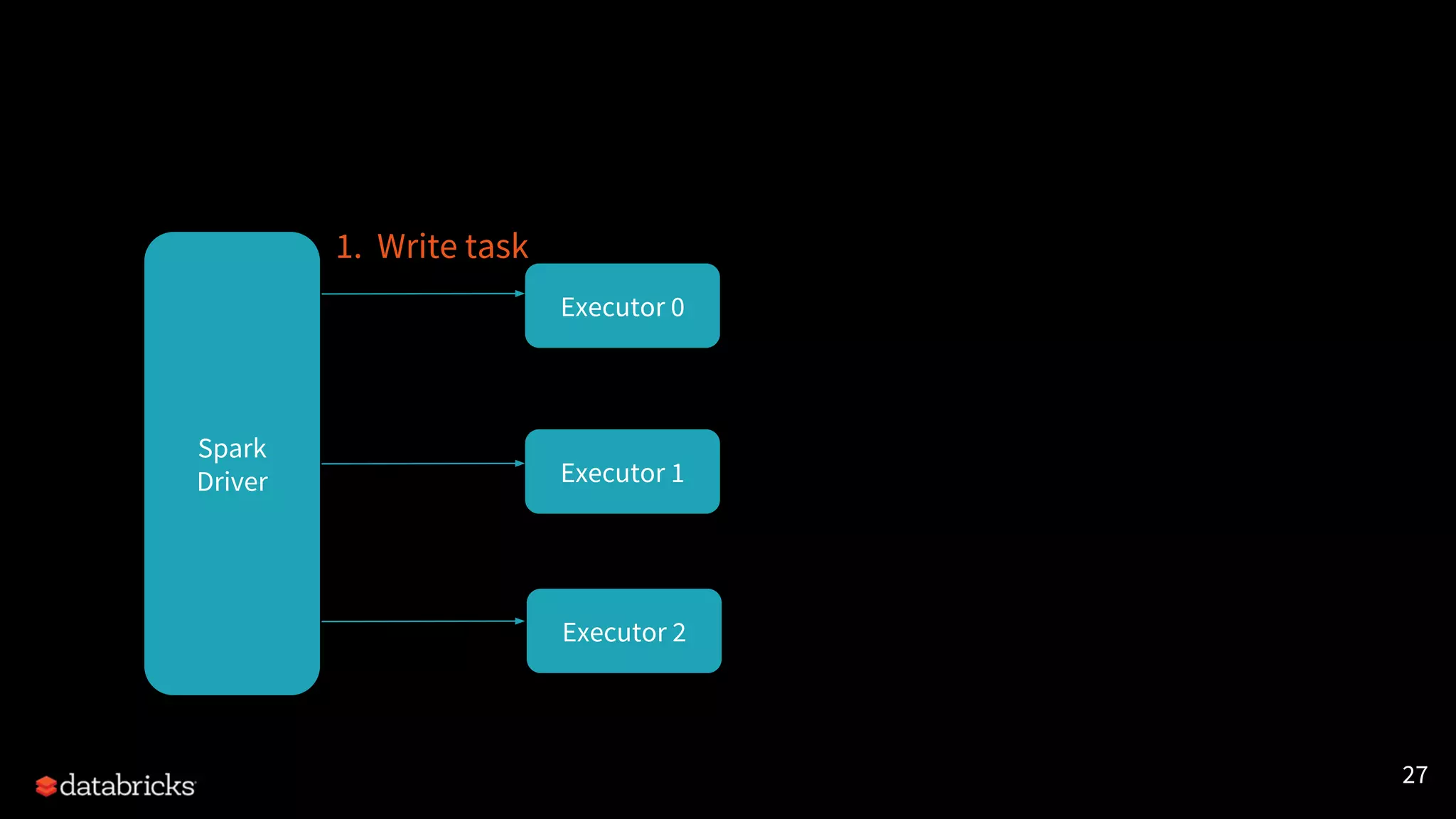

85. 27
Executor 0
Executor 1
Executor 2
1. Write task
Spark
Driver

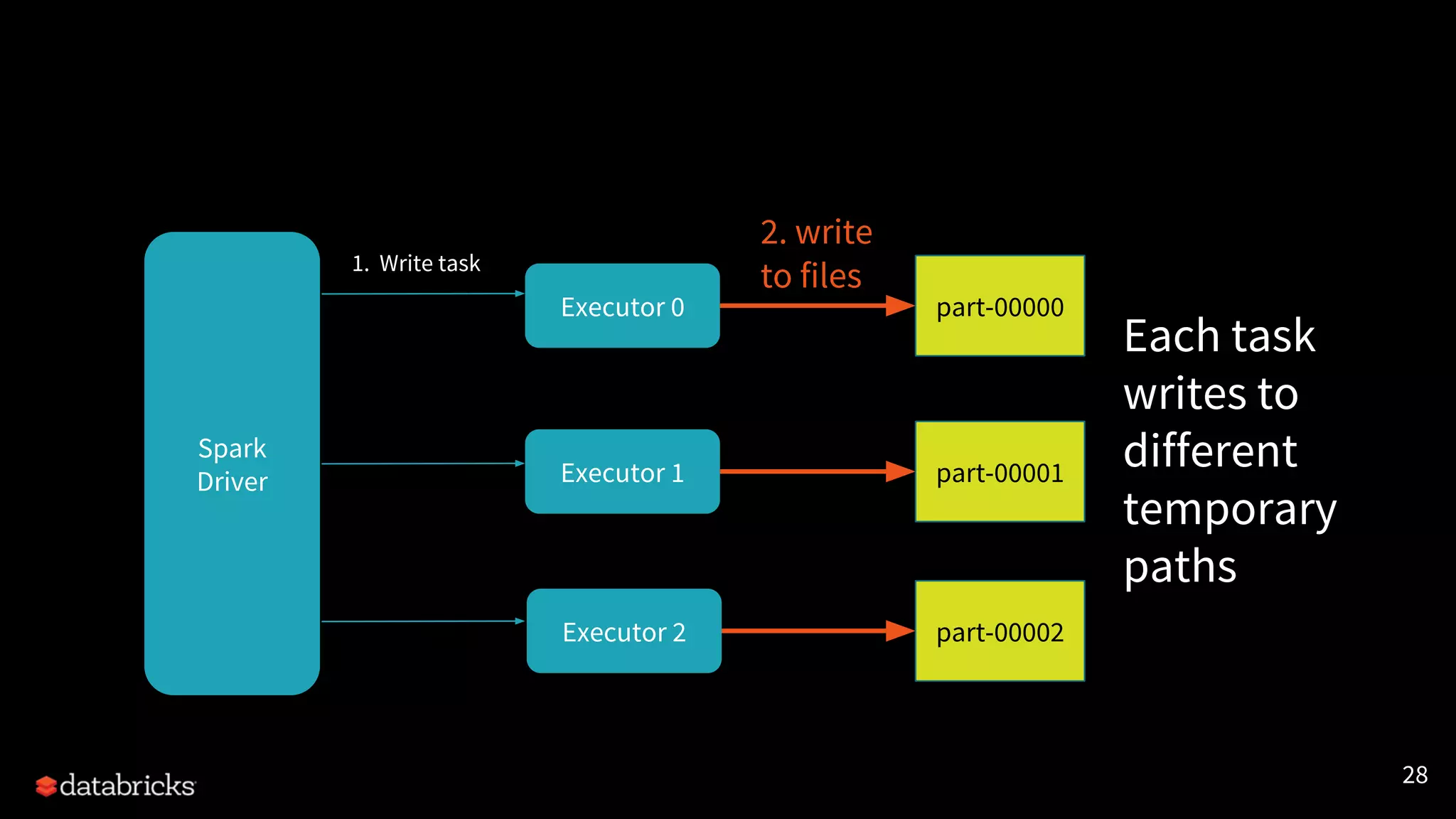

86. 28
part-00000Executor 0
Executor 1
Executor 2
1. Write task
2. write
to files
Spark
Driver
Each task
writes to
different
temporary
paths
part-00001
part-00002

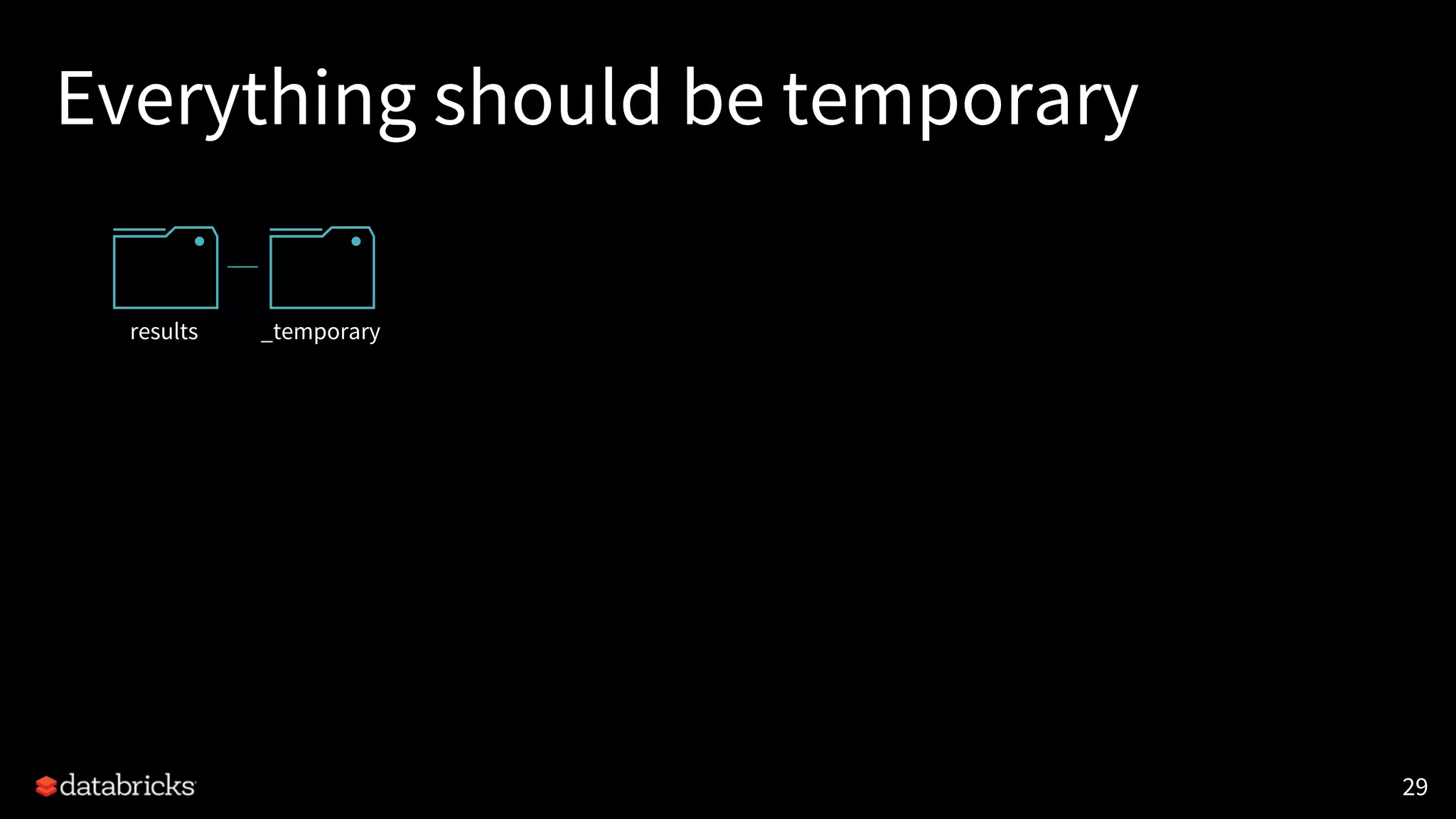

87. Everything should be temporary
29
results _temporary

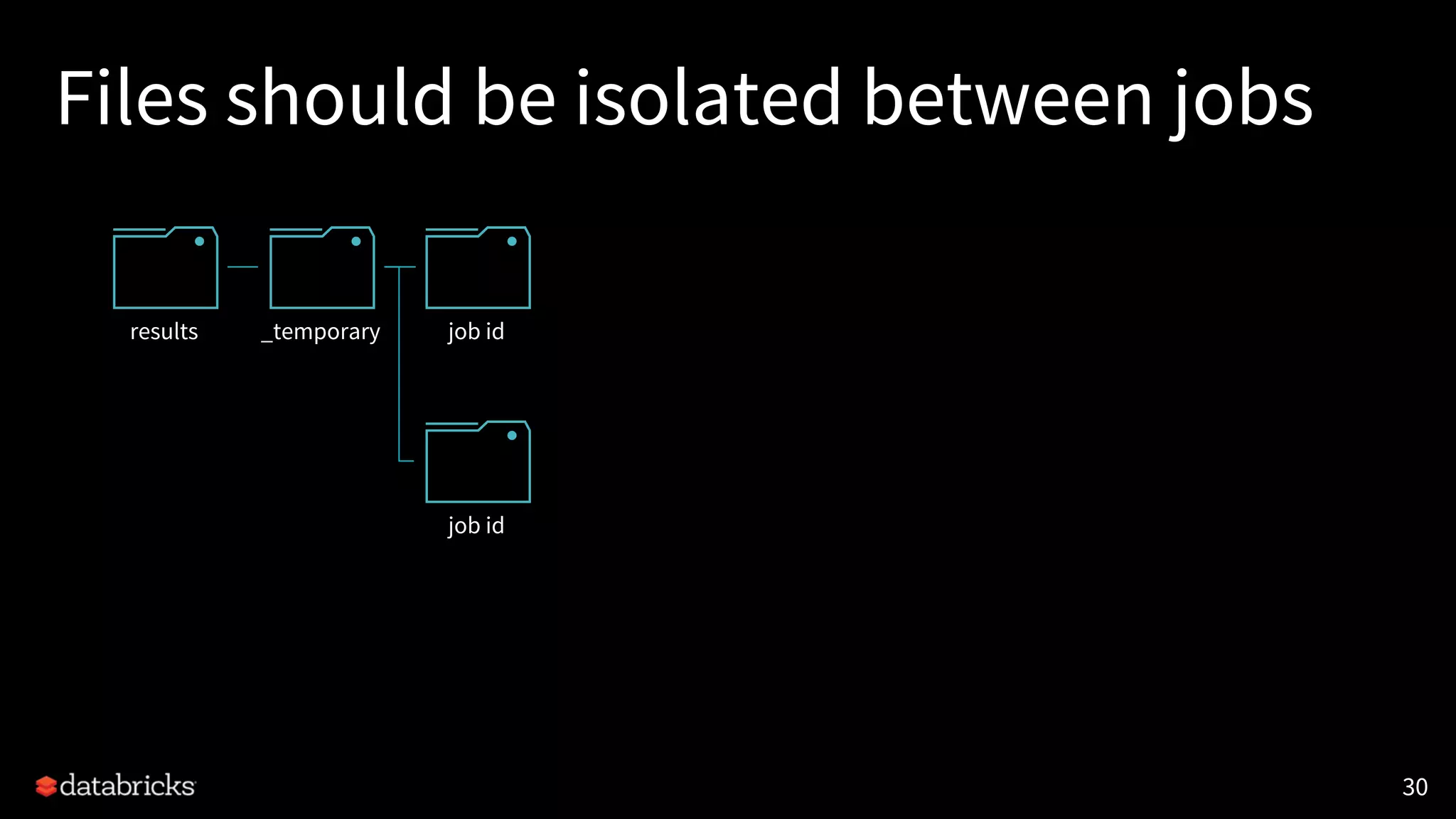

88. Files should be isolated between jobs
30
results _temporary job id
job id

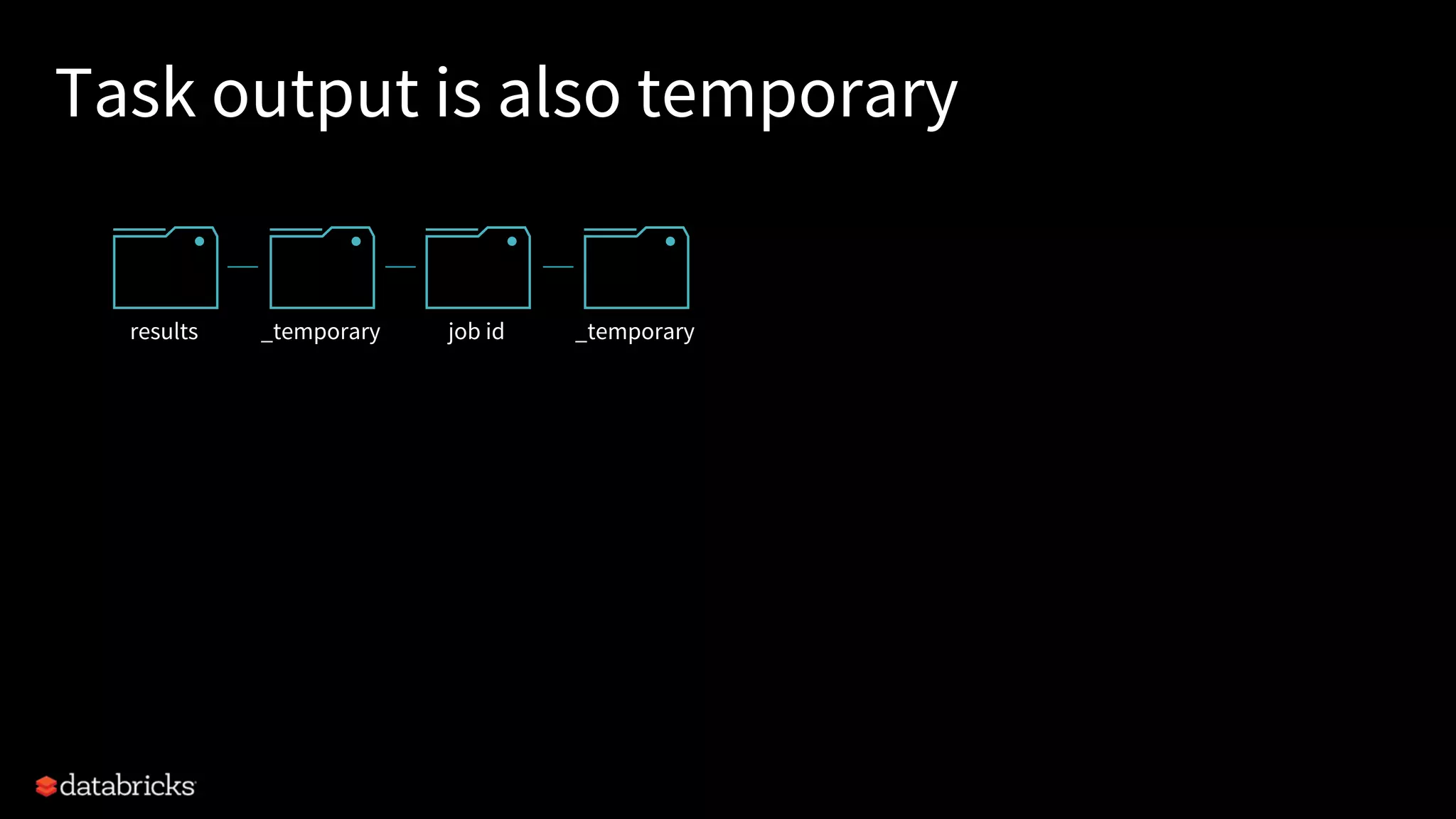

89. Task output is also temporary
results _temporary job id _temporary

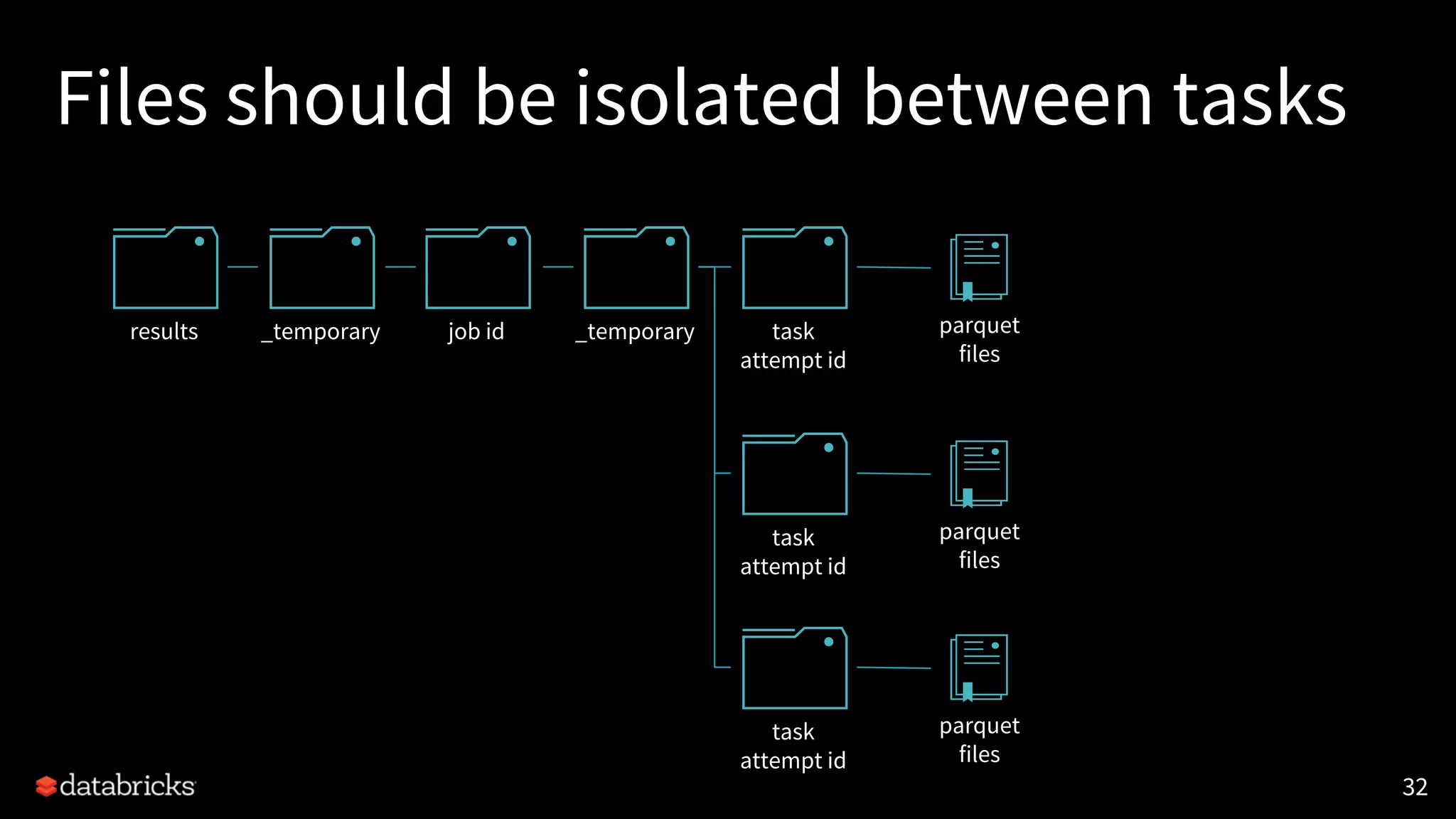

90. Files should be isolated between tasks
32
results _temporary job id _temporary task
attempt id
parquet
files
task
attempt id
parquet
files
task
attempt id
parquet
files

91. Commit task
33
Executor 0
Executor 1
Executor 2
1. Write task
3. commit
task
Spark
Driver
part-00000
2. write to file
part-00001
part-00002

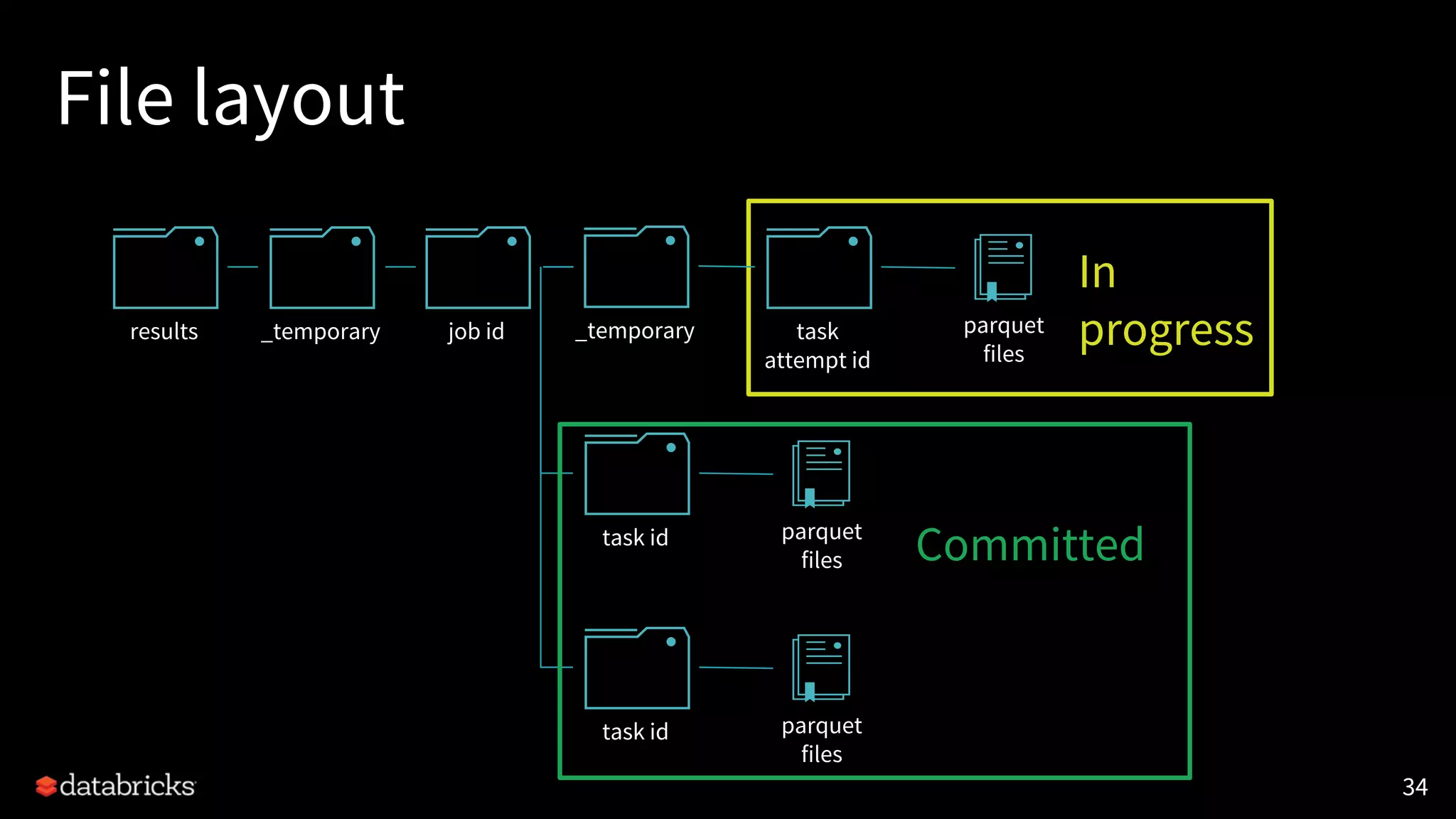

92. File layout
34
results _temporary job id task
attempt id
parquet
files
task id parquet
files
task id parquet
files
_temporary
In
progress
Committed

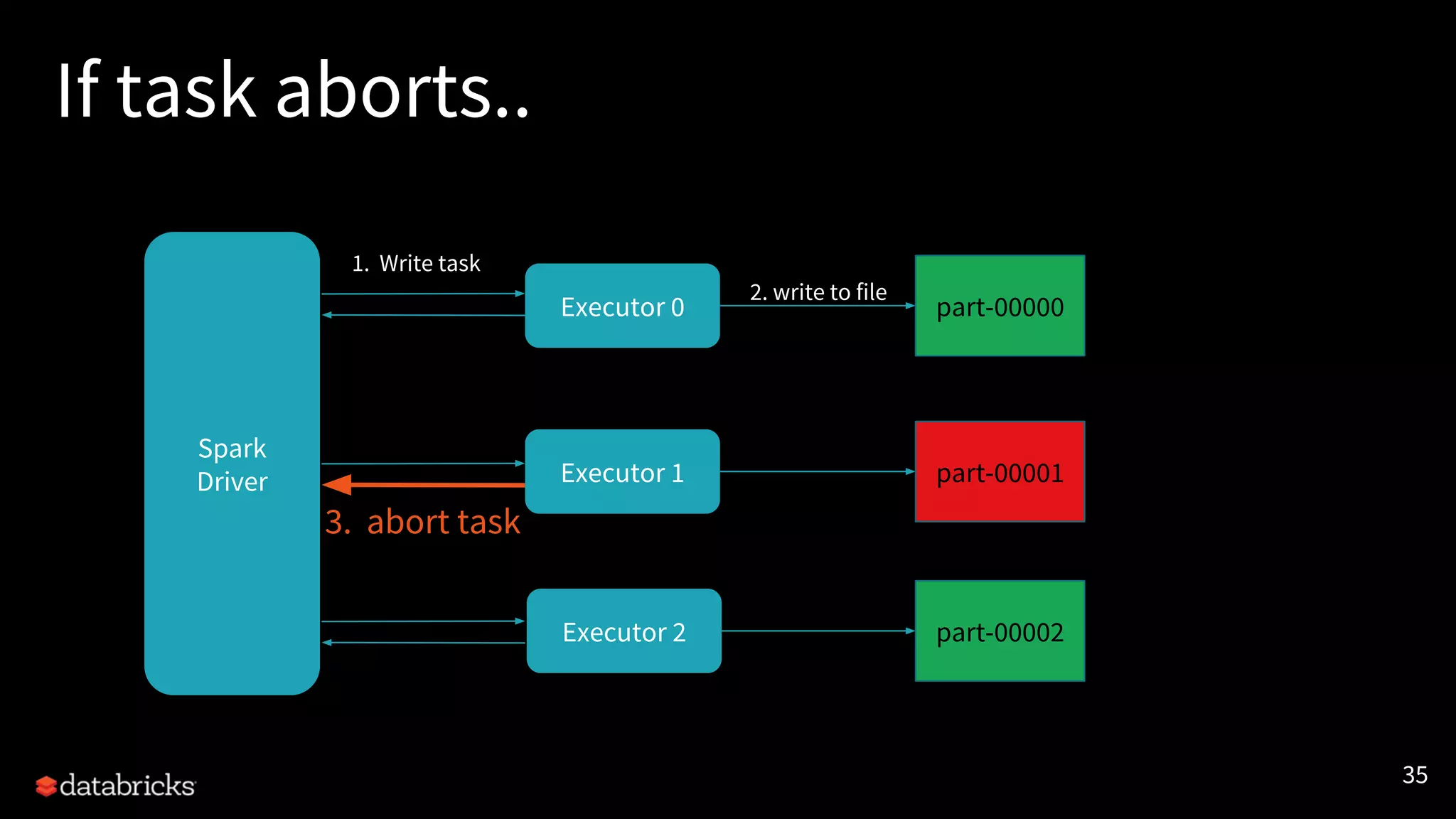

93. 3. abort task
If task aborts..
35
Executor 0
Executor 1
Executor 2
1. Write task
Spark
Driver
part-00000
2. write to file
part-00001
part-00002

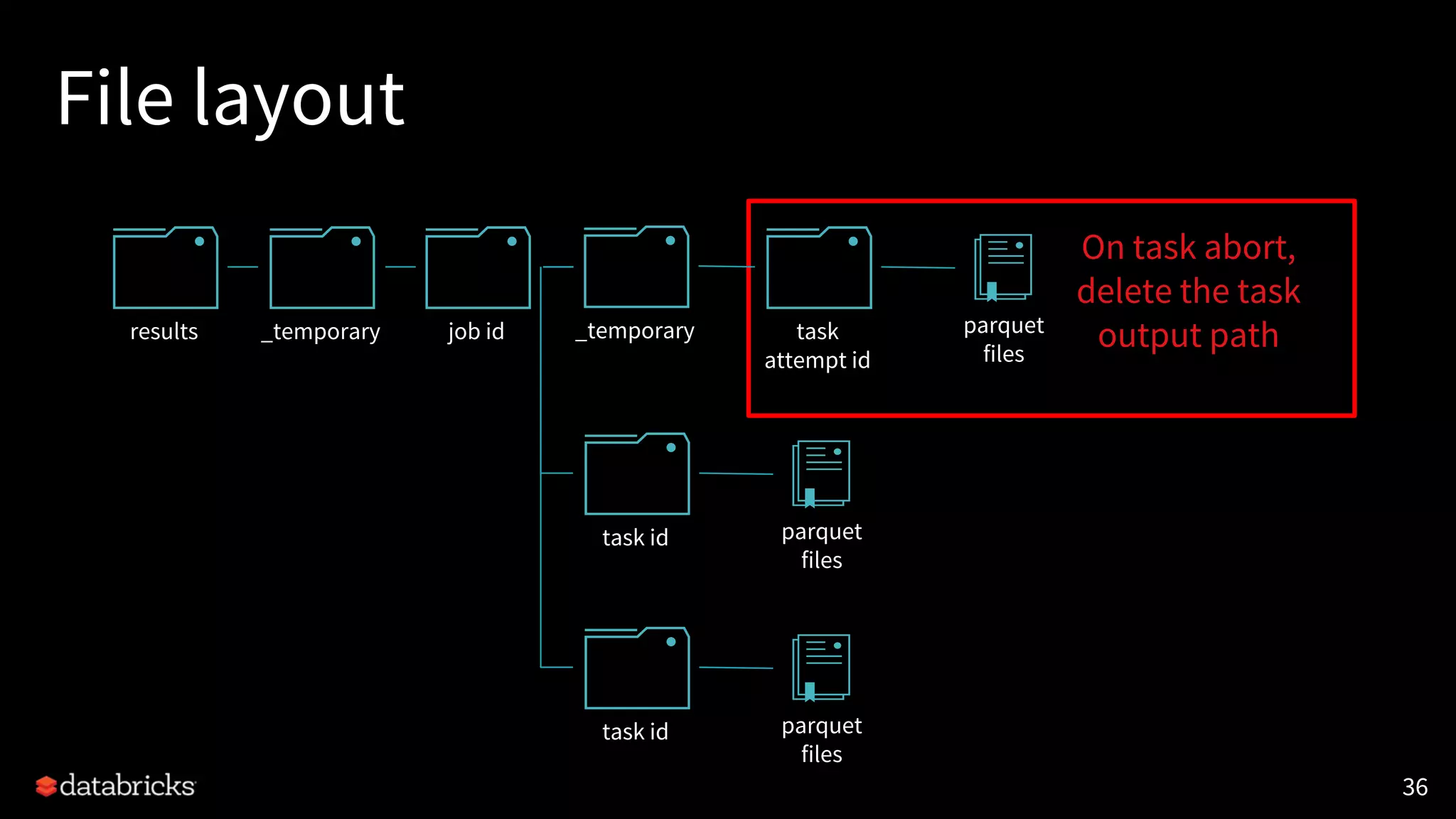

94. File layout
36
results _temporary job id task
attempt id
parquet
files
task id parquet
files
task id parquet
files
_temporary
On task abort,
delete the task
output path

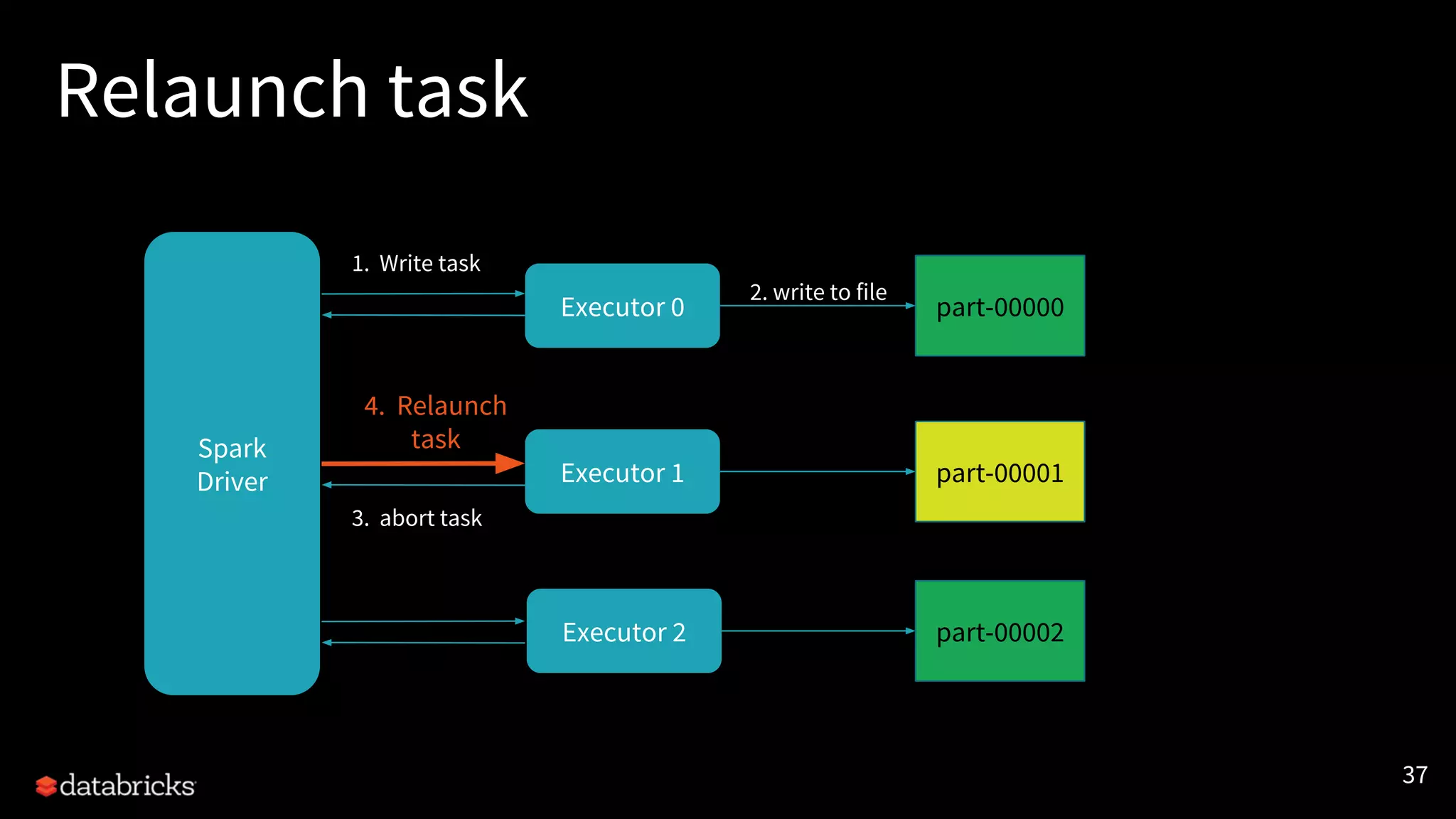

95. Relaunch task
37
Executor 0
Executor 1
Executor 2
1. Write task
3. abort task
Spark
Driver
part-00000
2. write to file
part-00001
part-00002
4. Relaunch
task

96. Distributed and Transactional Write
38
Executor 0
Executor 1
Executor 2
1. Write task
3. commit task
Spark
Driver
4. commit
job
part-00000
2. write to file
part-00001
part-00002

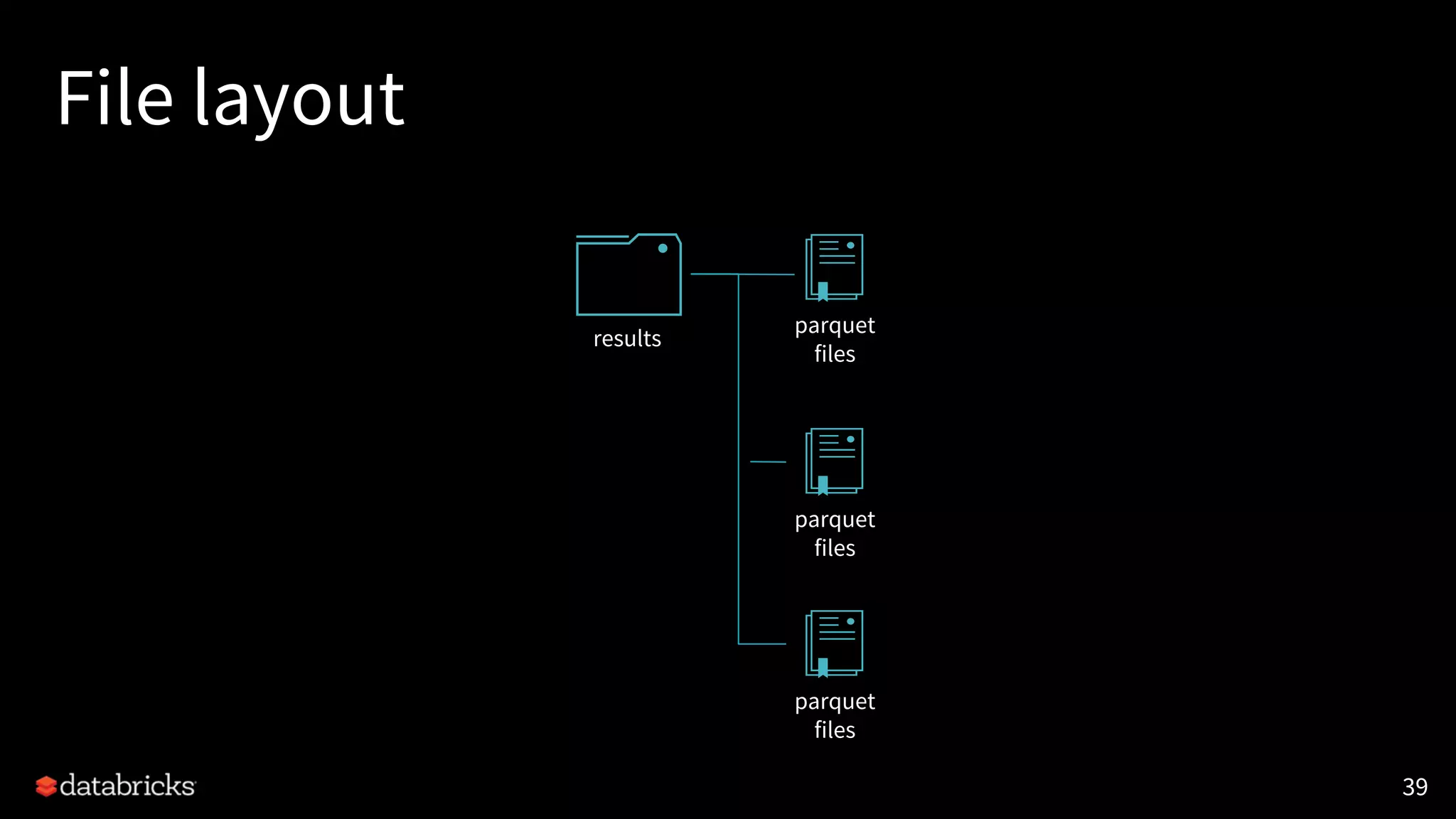

97. File layout
39
results
parquet
files
parquet
files
parquet
files

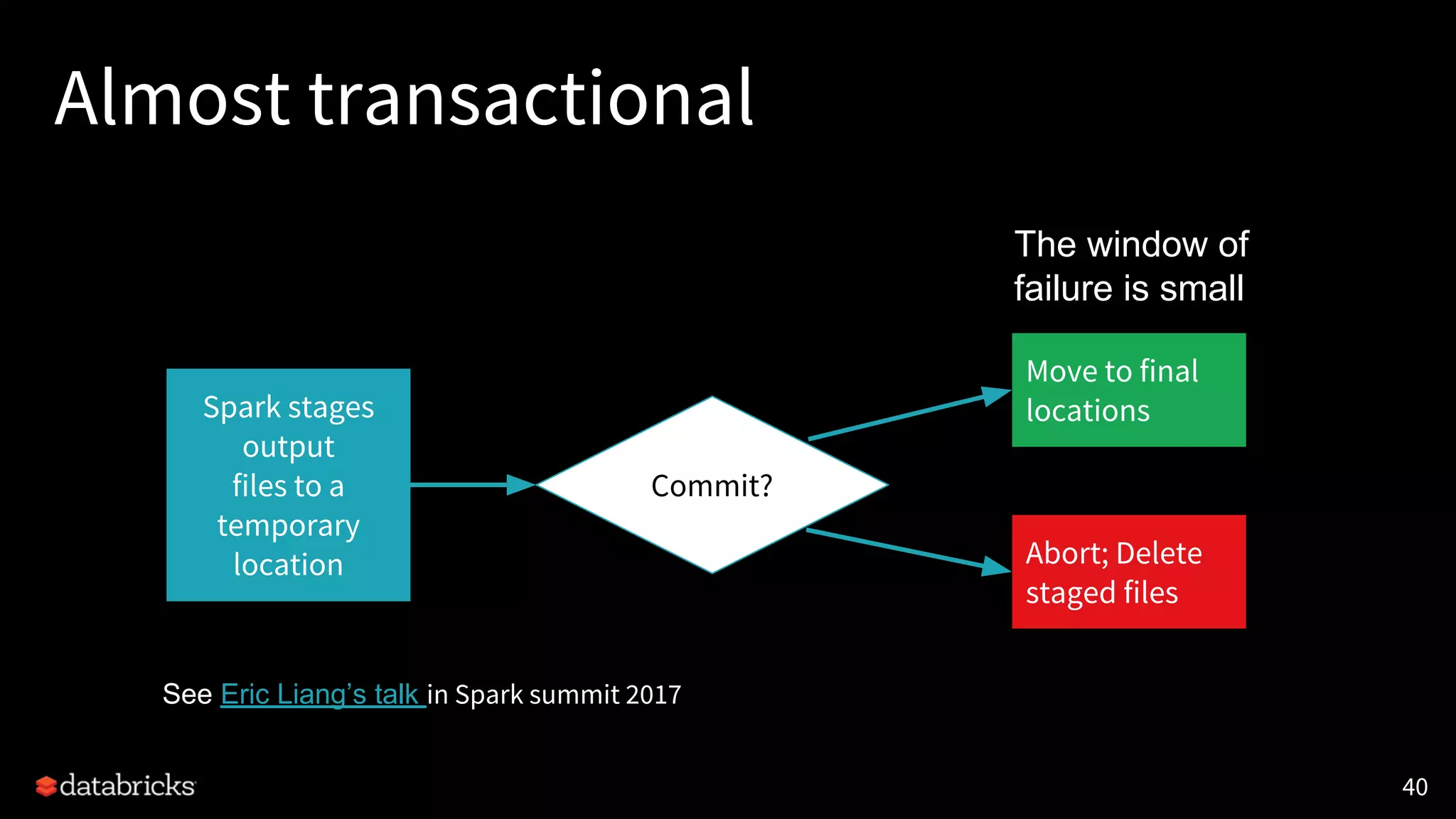

98. Almost transactional
40
Spark stages
output
files to a
temporary
location
Commit?
Move to final
locations
Abort; Delete
staged files
The window of
failure is small
See Eric Liang’s talk in Spark summit 2017

99. pseudo-code
4141

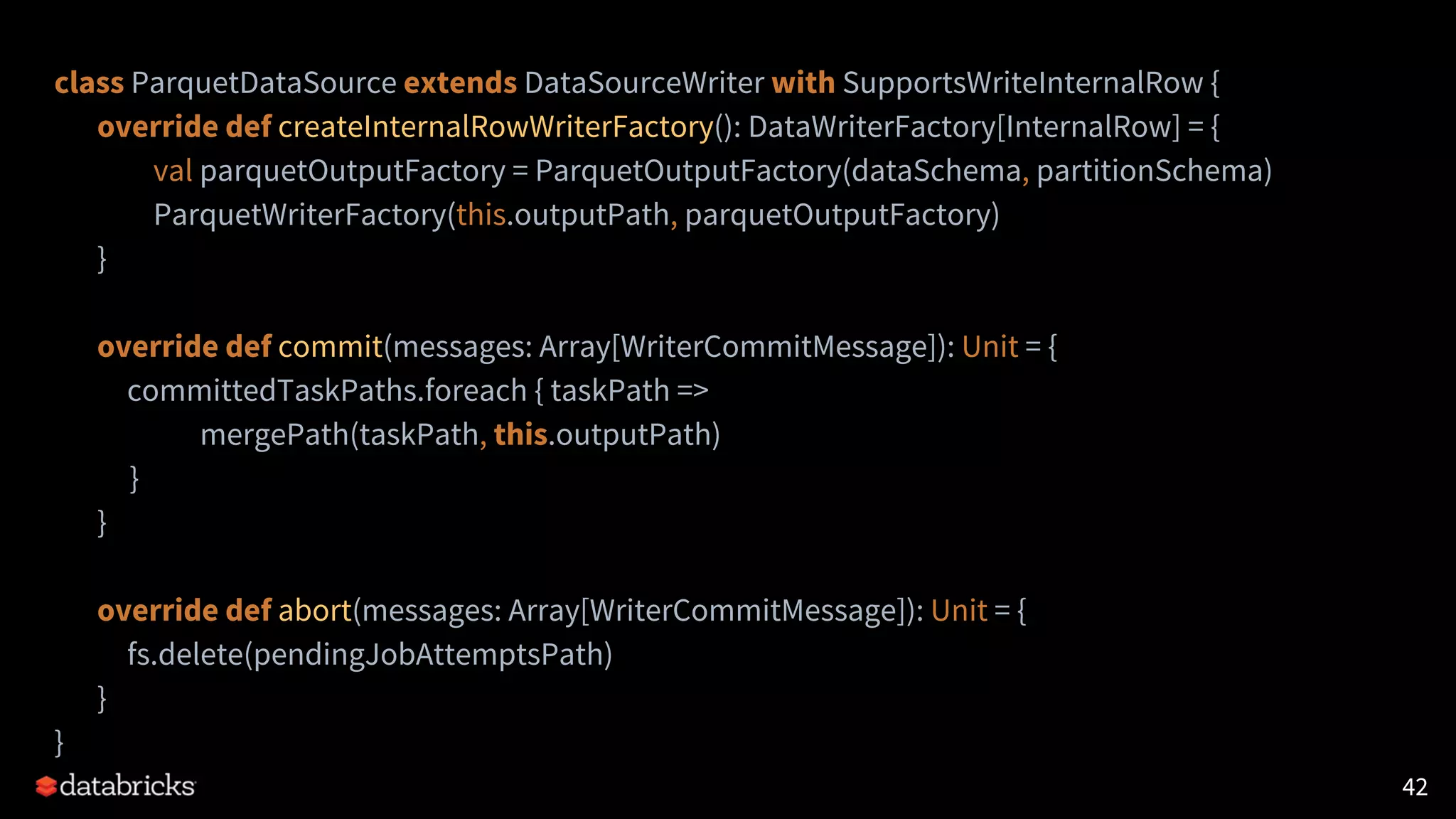

100. class ParquetDataSource extends DataSourceWriter with SupportsWriteInternalRow {
override def createInternalRowWriterFactory(): DataWriterFactory[InternalRow] = {
val parquetOutputFactory = ParquetOutputFactory(dataSchema, partitionSchema)
ParquetWriterFactory(this.outputPath, parquetOutputFactory)
}
override def commit(messages: Array[WriterCommitMessage]): Unit = {
committedTaskPaths.foreach { taskPath =>
mergePath(taskPath, this.outputPath)
}
}
override def abort(messages: Array[WriterCommitMessage]): Unit = {
fs.delete(pendingJobAttemptsPath)
}
}
42

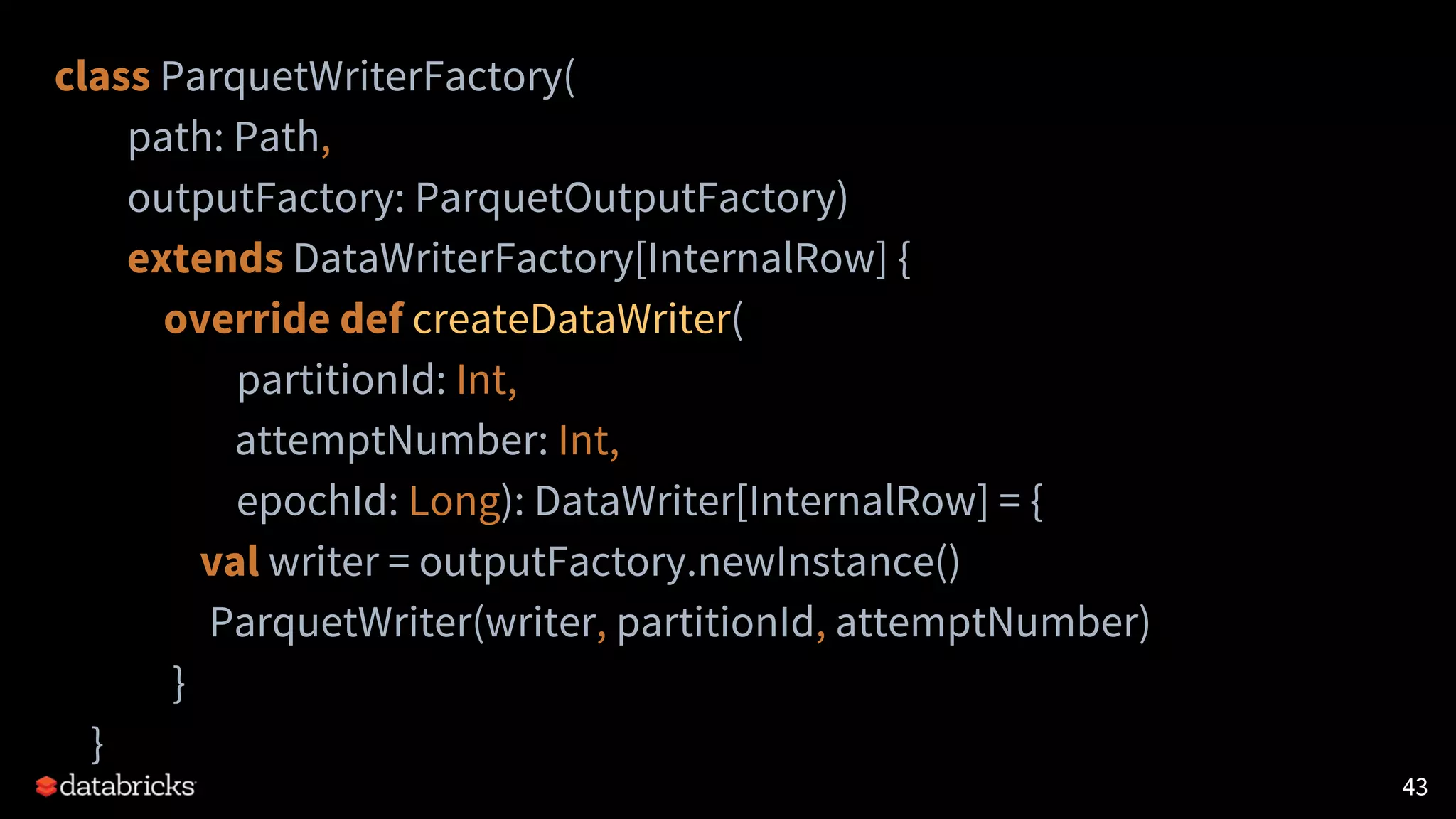

101. class ParquetWriterFactory(
path: Path,
outputFactory: ParquetOutputFactory)
extends DataWriterFactory[InternalRow] {
override def createDataWriter(
partitionId: Int,
attemptNumber: Int,
epochId: Long): DataWriter[InternalRow] = {
val writer = outputFactory.newInstance()
ParquetWriter(writer, partitionId, attemptNumber)
}
}
43

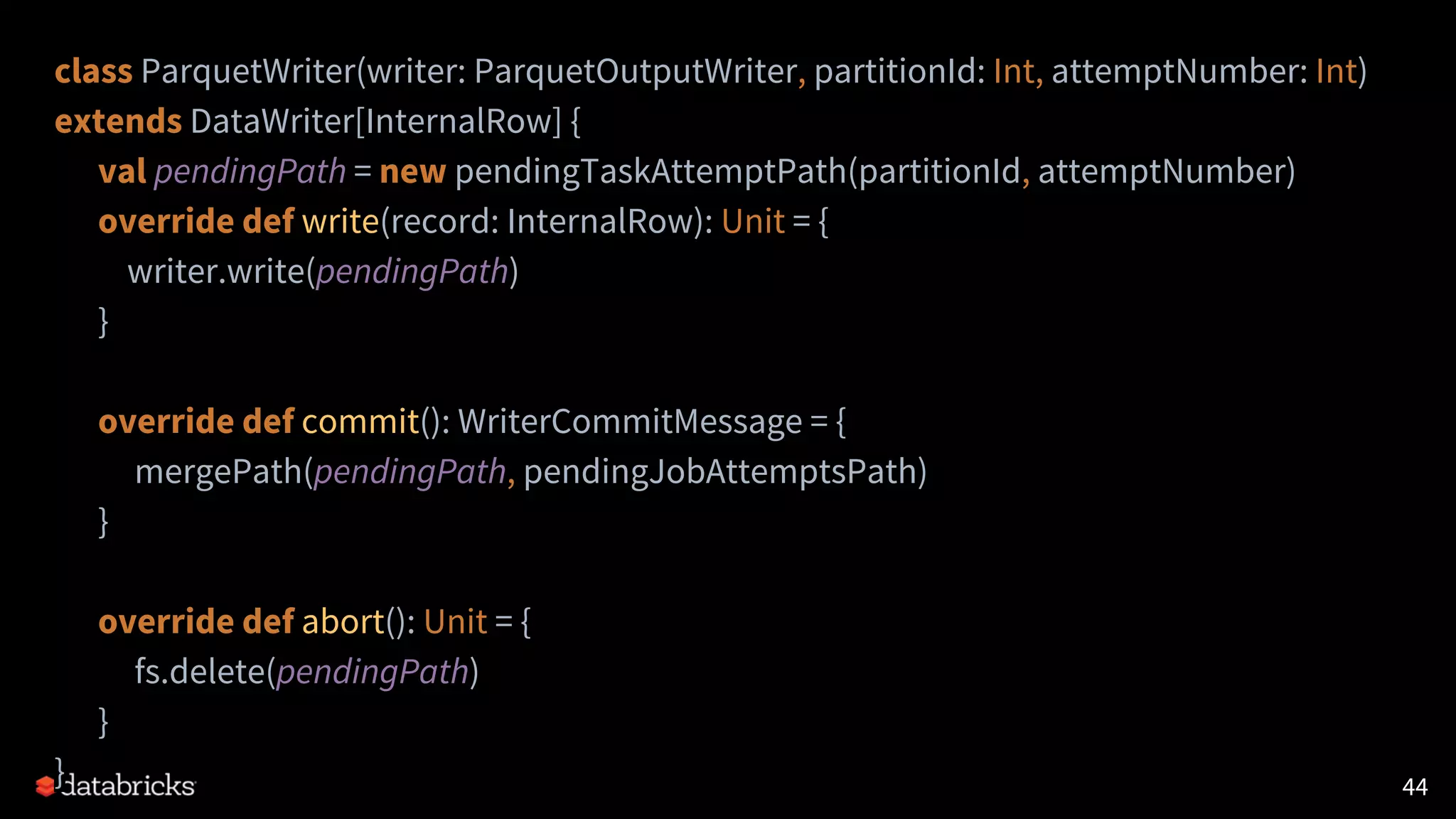

102. class ParquetWriter(writer: ParquetOutputWriter, partitionId: Int, attemptNumber: Int)
extends DataWriter[InternalRow] {
val pendingPath = new pendingTaskAttemptPath(partitionId, attemptNumber)
override def write(record: InternalRow): Unit = {
writer.write(pendingPath)
}
override def commit(): WriterCommitMessage = {
mergePath(pendingPath, pendingJobAttemptsPath)
}
override def abort(): Unit = {
fs.delete(pendingPath)
}
} 44

103. Thank you
45
Gengliang Wang (gengliang.wang@databricks.com)
