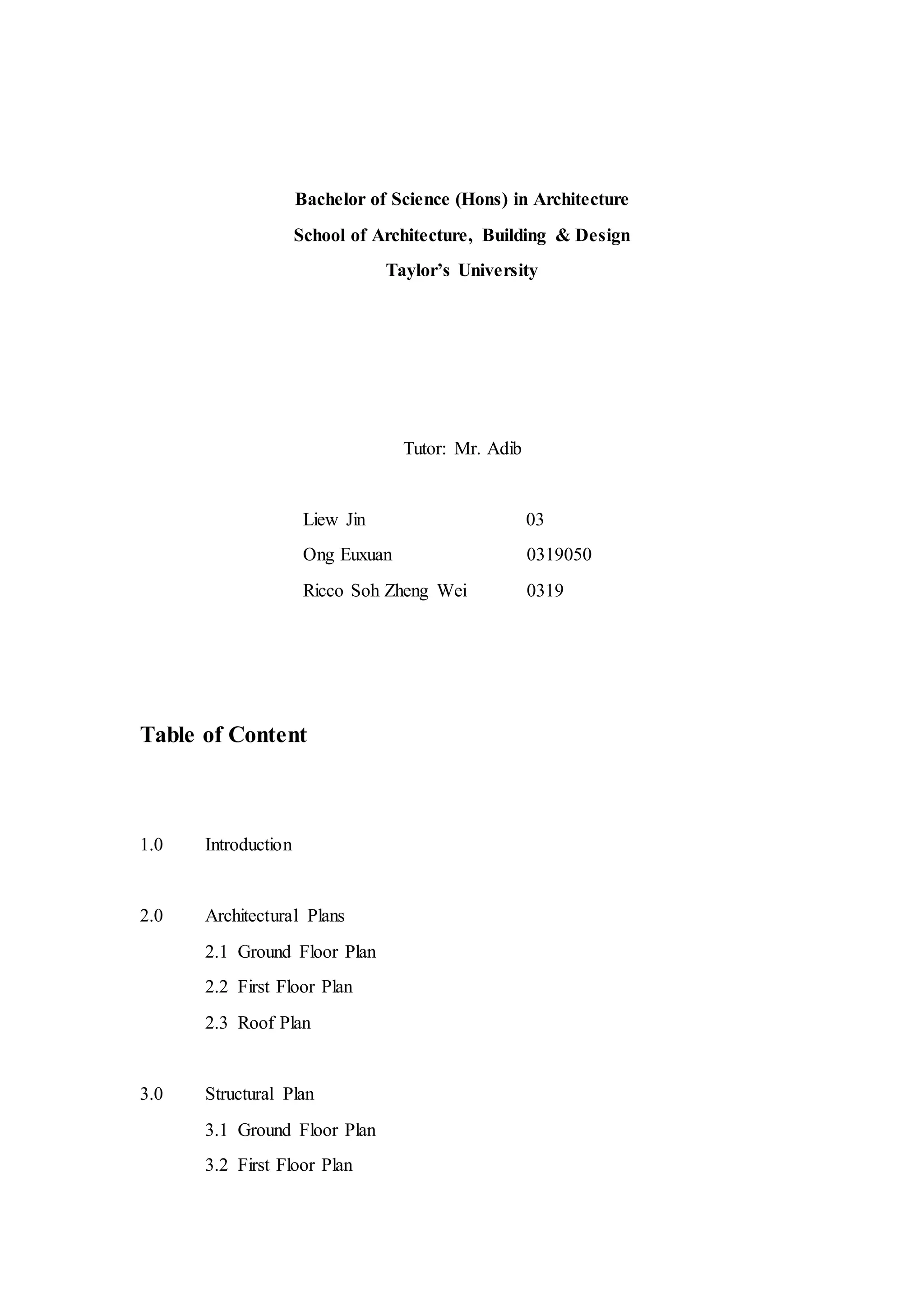

2. Bachelor of Science (Hons) in Architecture
School of Architecture, Building & Design
Taylor’s University
Tutor: Mr. Adib
Liew Jin 03
Ong Euxuan 0319050
Ricco Soh Zheng Wei 0319
Table of Content
1.0 Introduction
2.0 Architectural Plans
2.1 Ground Floor Plan
2.2 First Floor Plan
2.3 Roof Plan
3.0 Structural Plan
3.1 Ground Floor Plan
3.2 First Floor Plan
3. 3.3 Roof Plan
4.0 Load Distribution Plan
4.1 Ground Floor Plan
4.2 First Floor Plan
4.3 Roof Plan
5.0 3D Structural Model
6.0 Individual Beam Analysis
6.1 Liew Jin
6.2 Ong Euxuan
6.3 Ricco Soh
7.0 Individual Column Analysis
7.1 Liew Jin
7.2 Ong Euxuan
7.3 Ricco Soh
8.0 Conclusion
9.0 References
4. 1.0 Introduction
For this project, we are to design a two-storey bungalow unit based on the given outlines. The
layout of the bungalow should be a combination of two chosen outlines.
We are to frame and design the structural skeleton of the bungalow, then identify the beams
and columns in the bungalow design. Then we are to examine and analyze the structure, as
well as its load distribution, then calculate the amount of load each beam/column is subjected
to. Each member is given six beams and three columns.
Bungalow Introduction
The designed bungalow is two-storey high, and it consists of the following components: one
master bedroom with attached bathroom, a minimum of three bedrooms, two bathrooms,
kitchen, living hall, dining area and a storeroom.
The chosen outlines:
6. Columns
Beam self-weight = Beam size x Density of reinforced concrete x Length
Slab dead load = Thickness x density of RC (UBBL) x Tributary area
Slab live load = Live load (Room live load factor - UBBL) x Tributary area
Brick wall dead load = Wall height x Wall thickness x Density of bricks (UBBL) x Length
Column self-weight = Width x Length x Height x Density of RC (UBBL)
Beams
Beam self-weight = Beam size x Density of reinforced concrete
Slab dead load = Thickness x density of RC (UBBL) x Lx/2 (for trapezoids)
= Thickness x density of RC (UBBL) x Lx/2 x 2/3 (for triangles)
Slab live load = Live load (Room live load factor - UBBL) x Lx/2 (for Trapezoids)
= Live load (Room live load factor - UBBL) x Lx/2 x 2/3 (for Triangles)
Brick wall dead load = Wall height x Wall thickness x Density of bricks (UBBL)
UBBL Specifications
Live Load
Bedroom = 1.5 kN/m2
7. Living Room = 4.0 kN/m2
Dining Room = 2.0 kN/m2
Kitchen = 3.0 kN/m2
Corridor = 4.0 kN/m2
Bathroom = 2.0 kN/m2
Study Room = 1.5 kN/m2
Family Area = 2.0 kN/m2
Store Room = 2.5 kN/m2
Dead Load (Structural Materials)
Reinforced Concrete Density = 24kN/m3
Brick Density = 19kN/m3
.
2.0
Architectural Plans
36. By the end of this project, we have came to understand the concept of these structural systems.
We are able to identify these structural components based on evidence. We have gained
understanding and knowledge on the load distribution paths and structural framings of a
building structure.
We learned to identify critical structural members, as well as analyze them. We also learned
to quantify the amount of load acting on beams and columns.
