1. Automation lecture 6
BY: Mahmoud Hussein

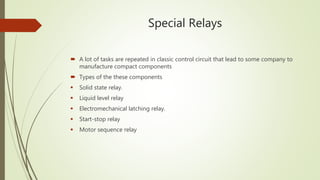

2. Special Relays

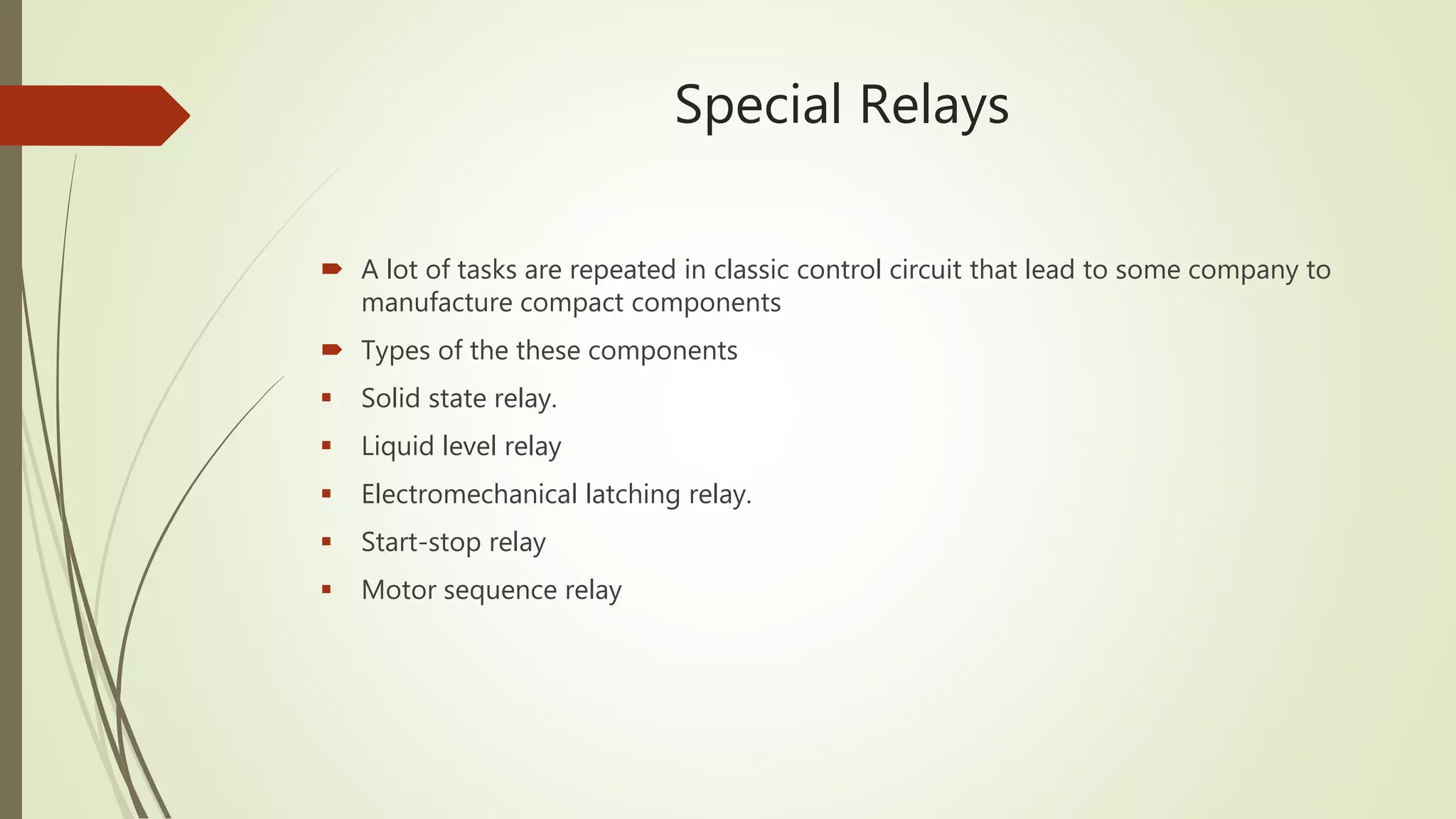

 A lot of tasks are repeated in classic control circuit that lead to some company to
manufacture compact components
 Types of the these components
 Solid state relay.
 Liquid level relay
 Electromechanical latching relay.
 Start-stop relay
 Motor sequence relay

3. Solid state relay

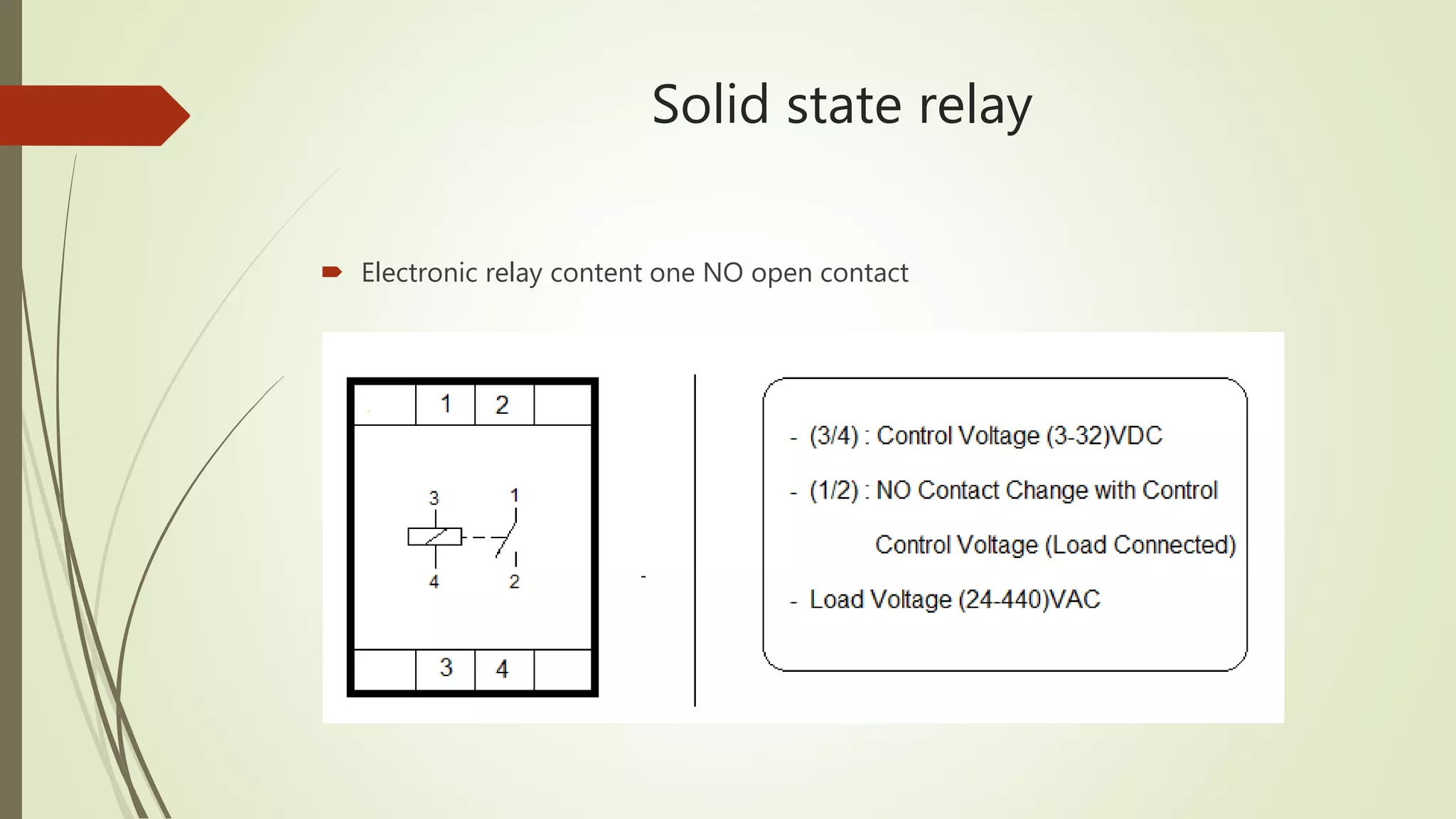

 Electronic relay content one NO open contact

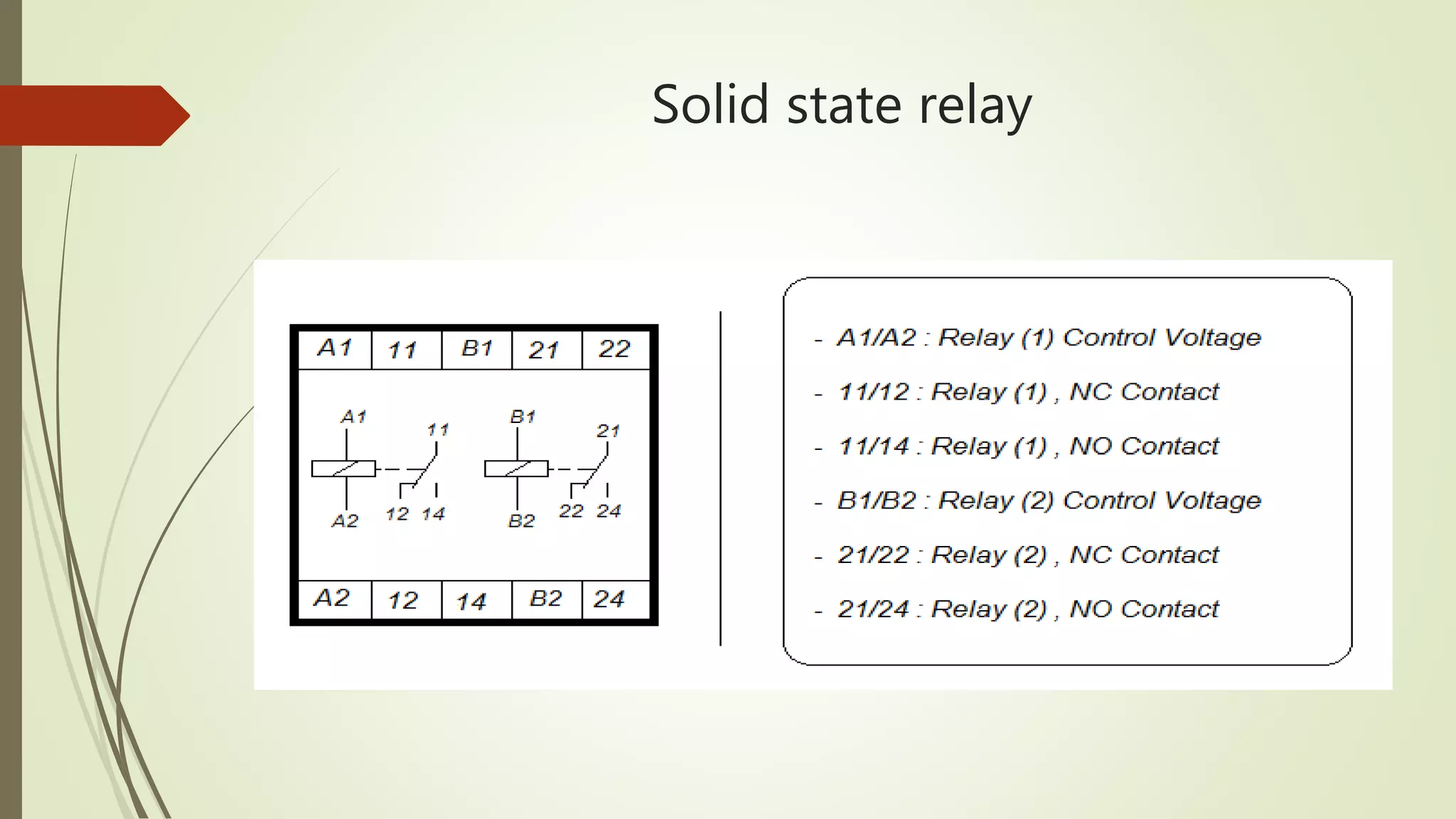

4. Solid state relay

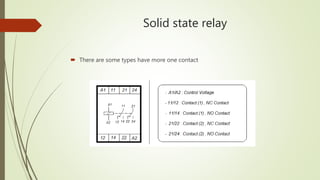

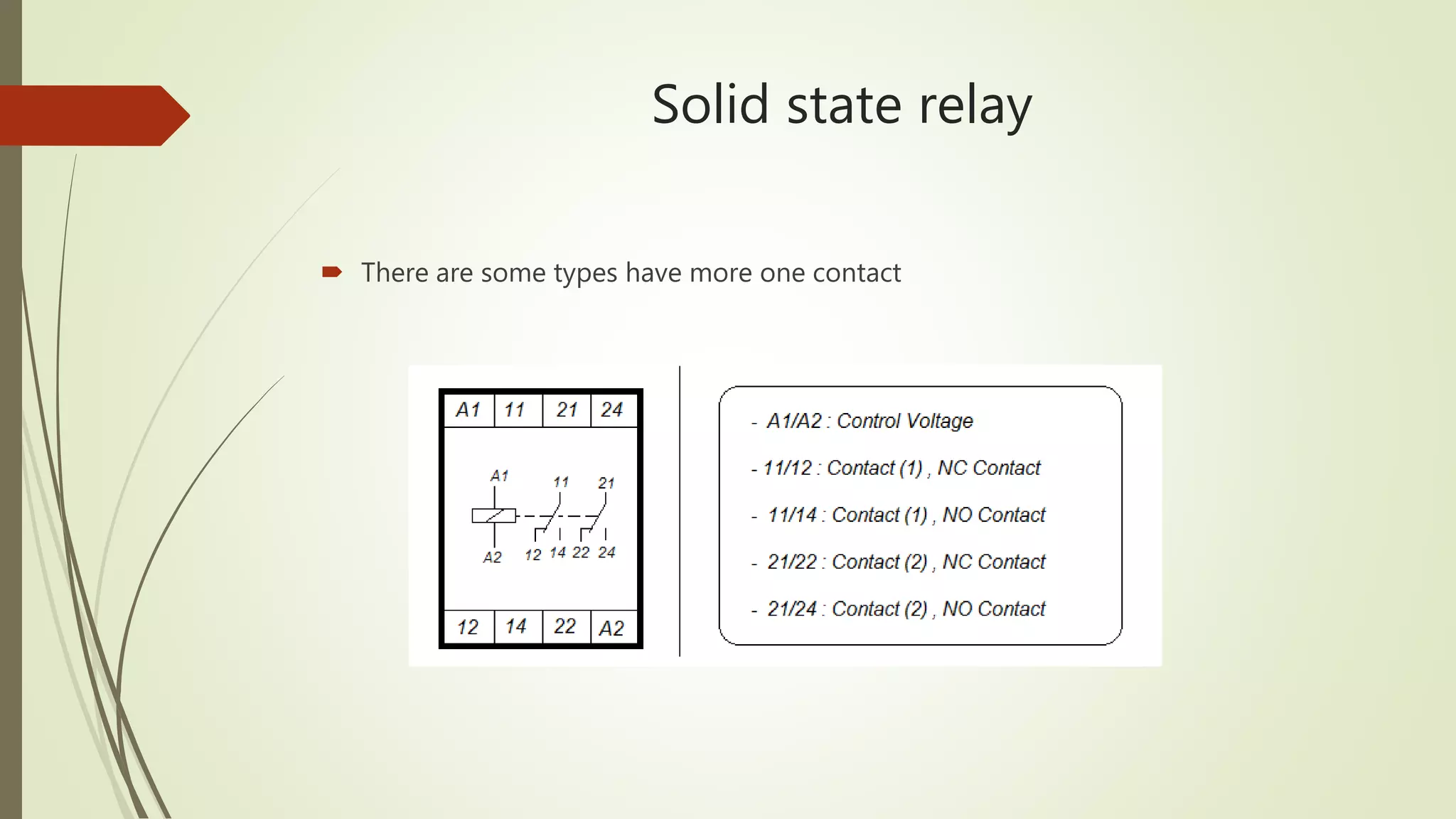

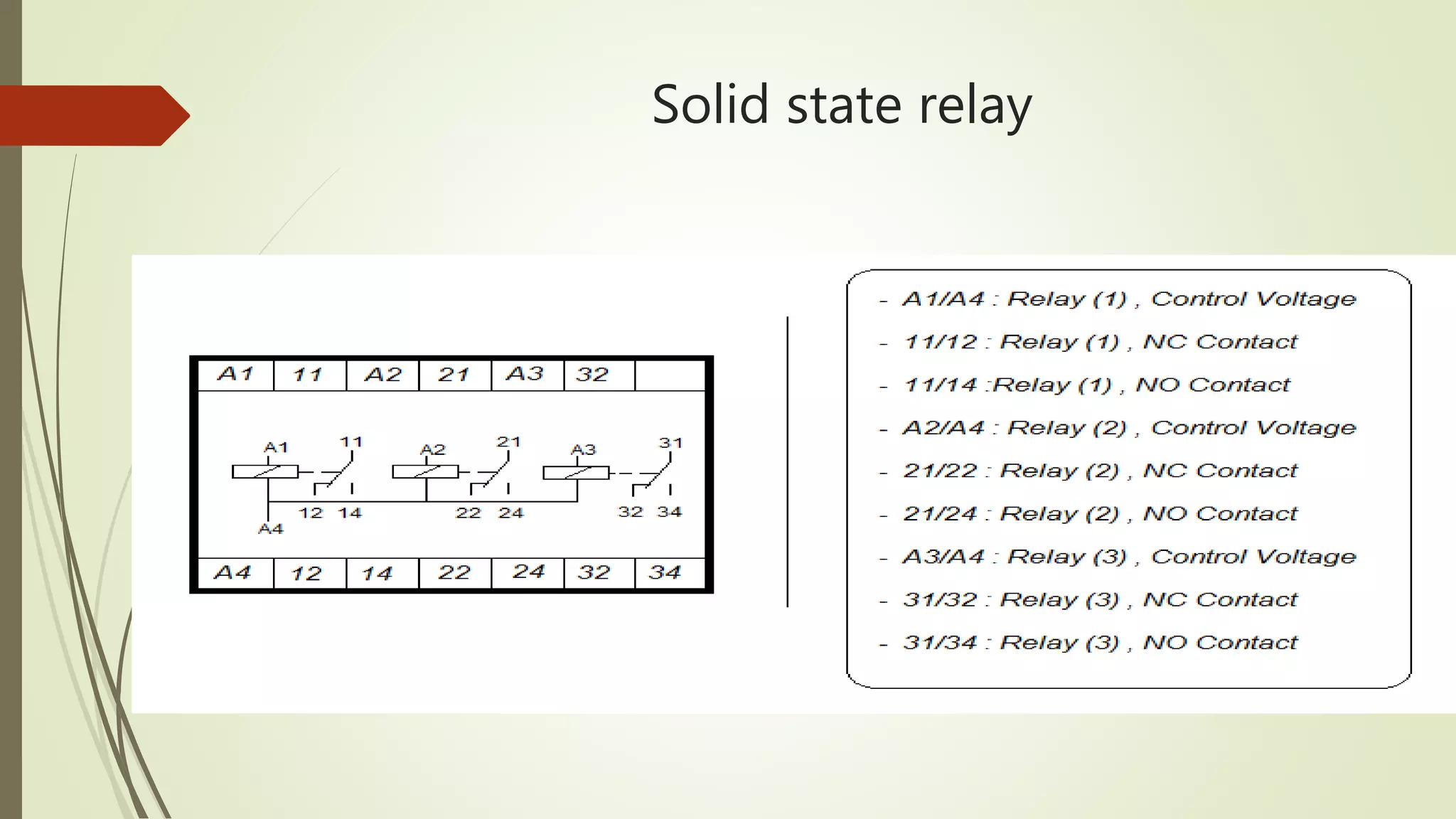

 There are some types have more one contact

5. Solid state relay

6. Solid state relay

7. Solid state relay

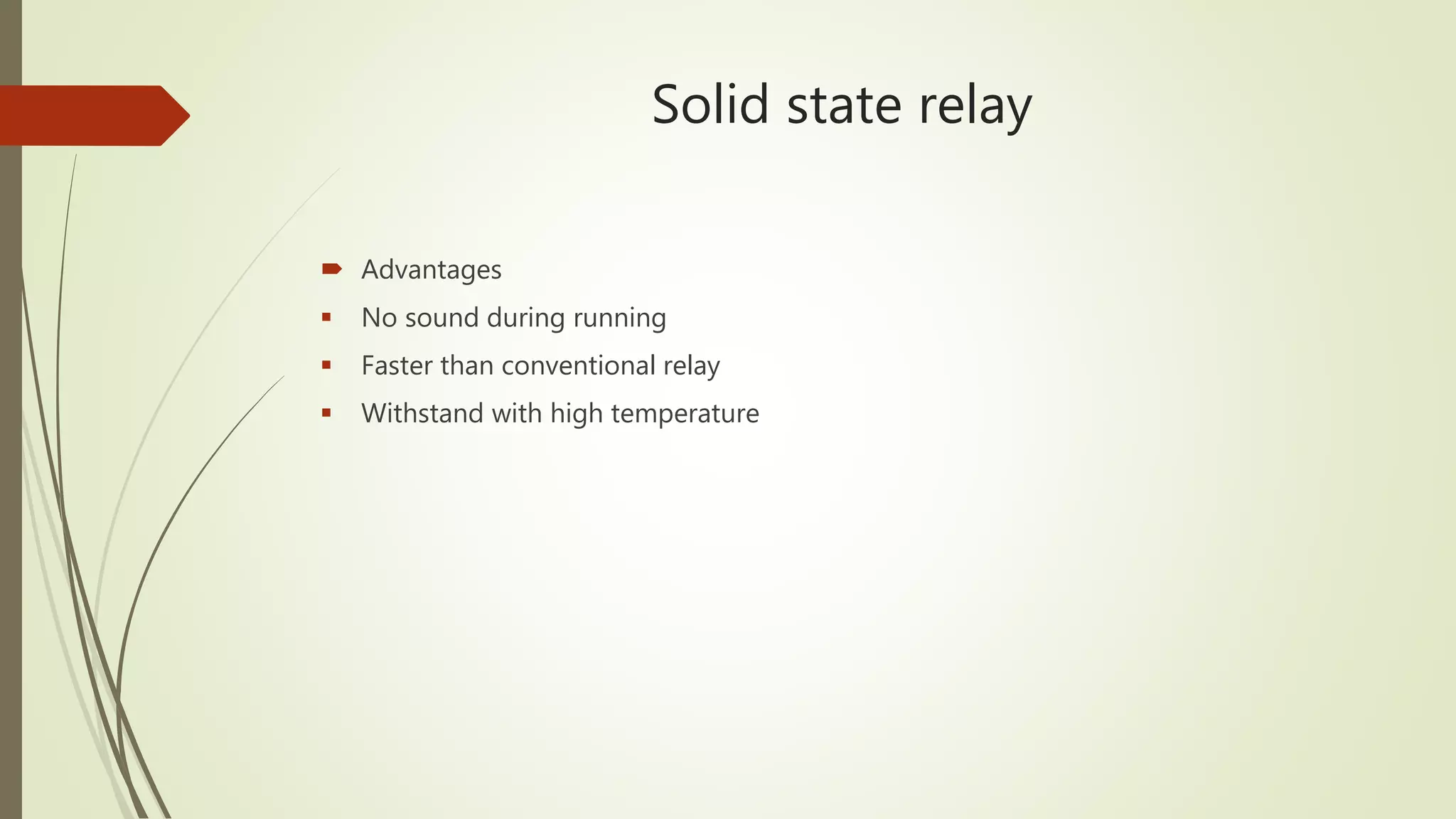

 Advantages
 No sound during running
 Faster than conventional relay
 Withstand with high temperature

8. Exercise

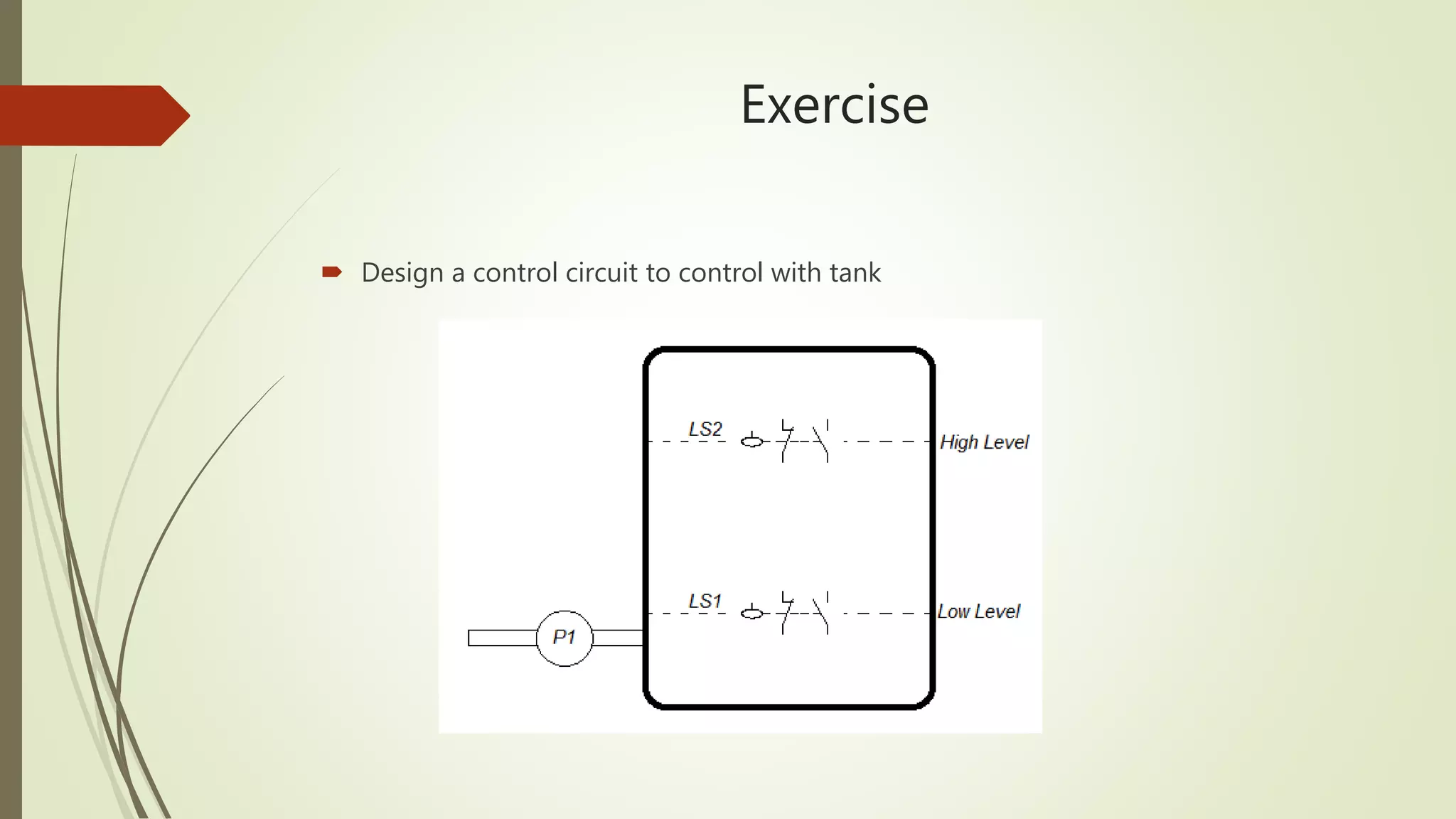

 Design a control circuit to control with tank

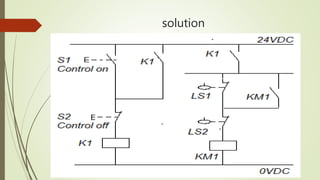

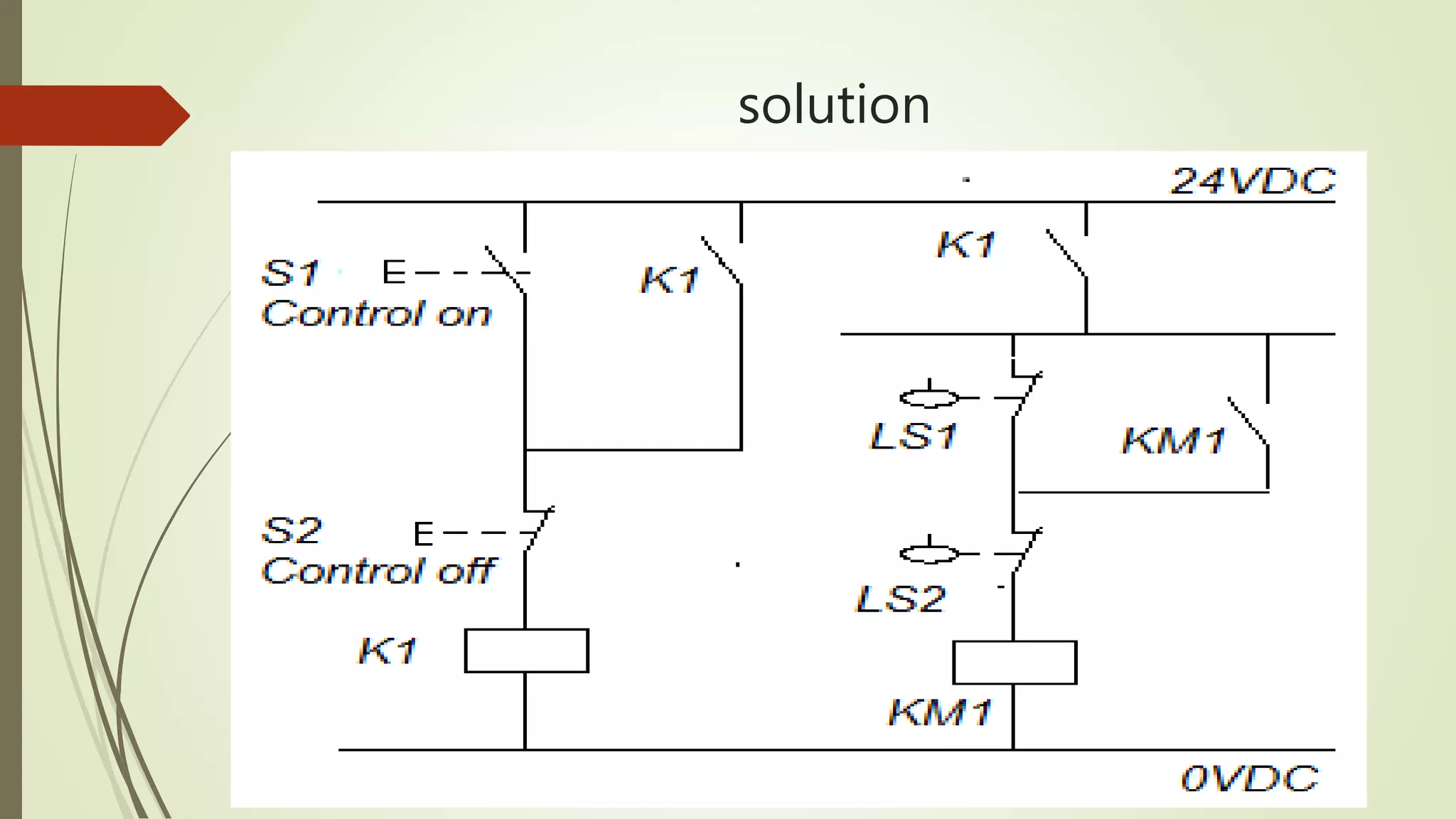

9. solution

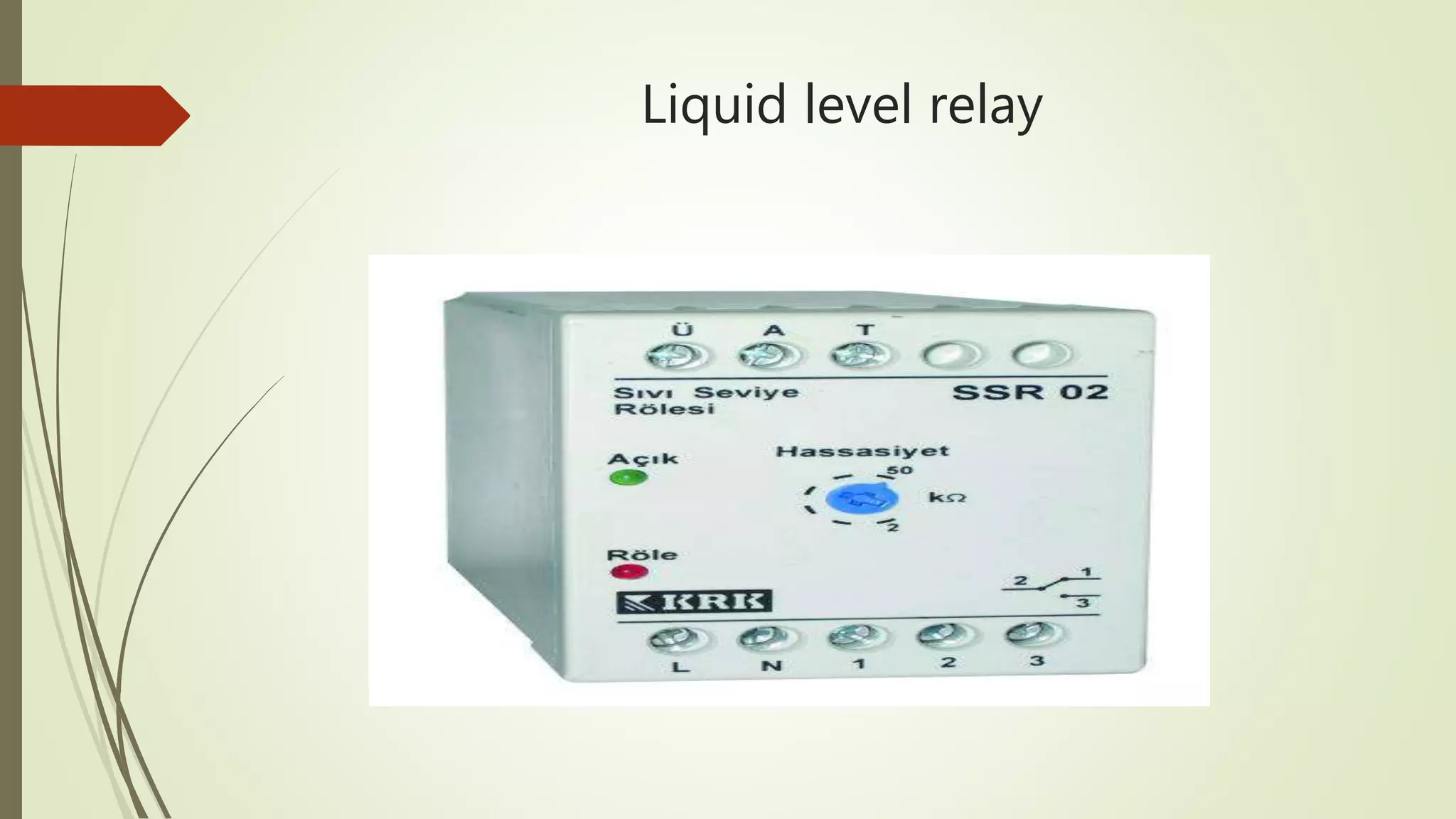

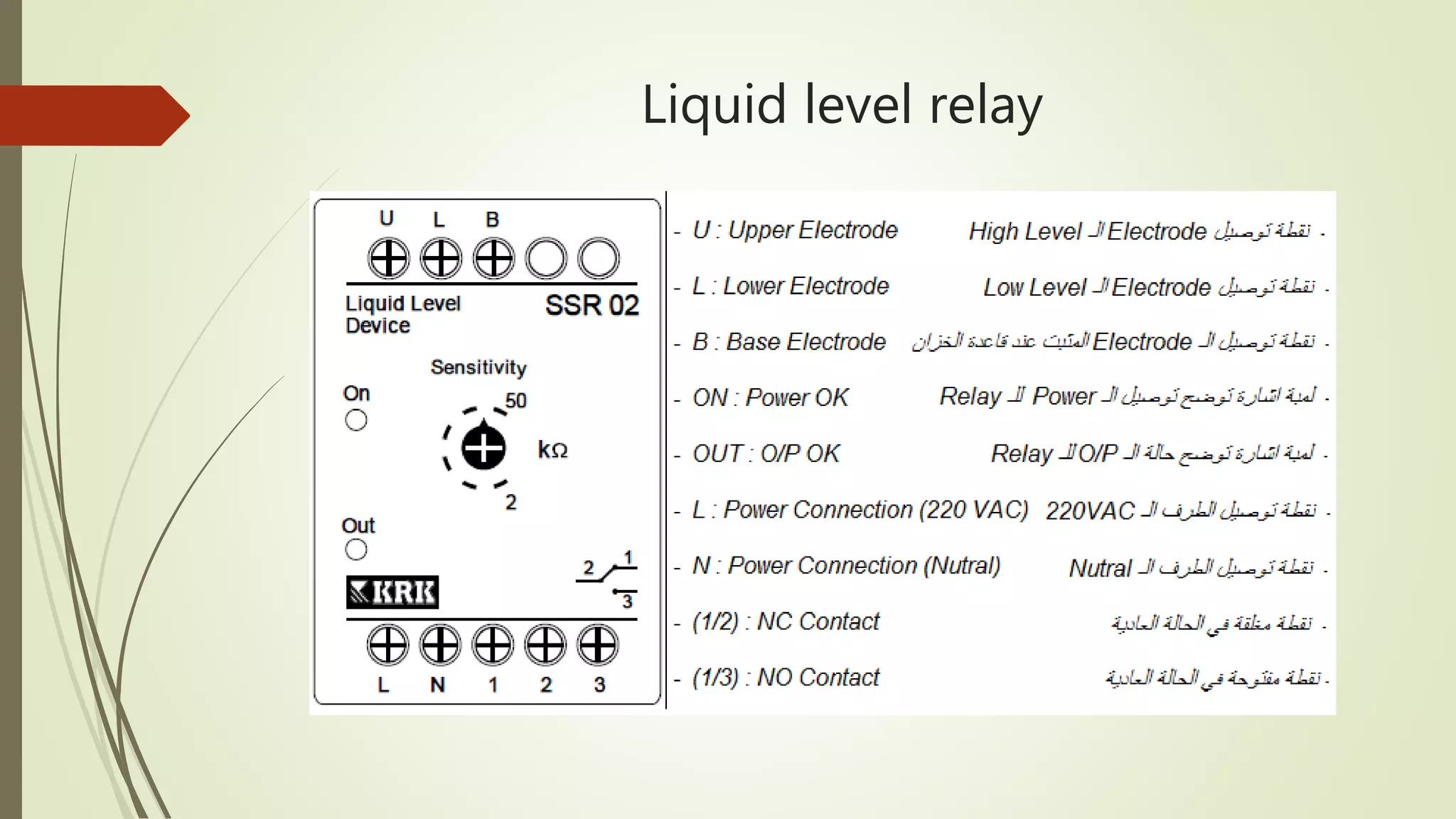

10. Liquid level relay

11. Liquid level relay

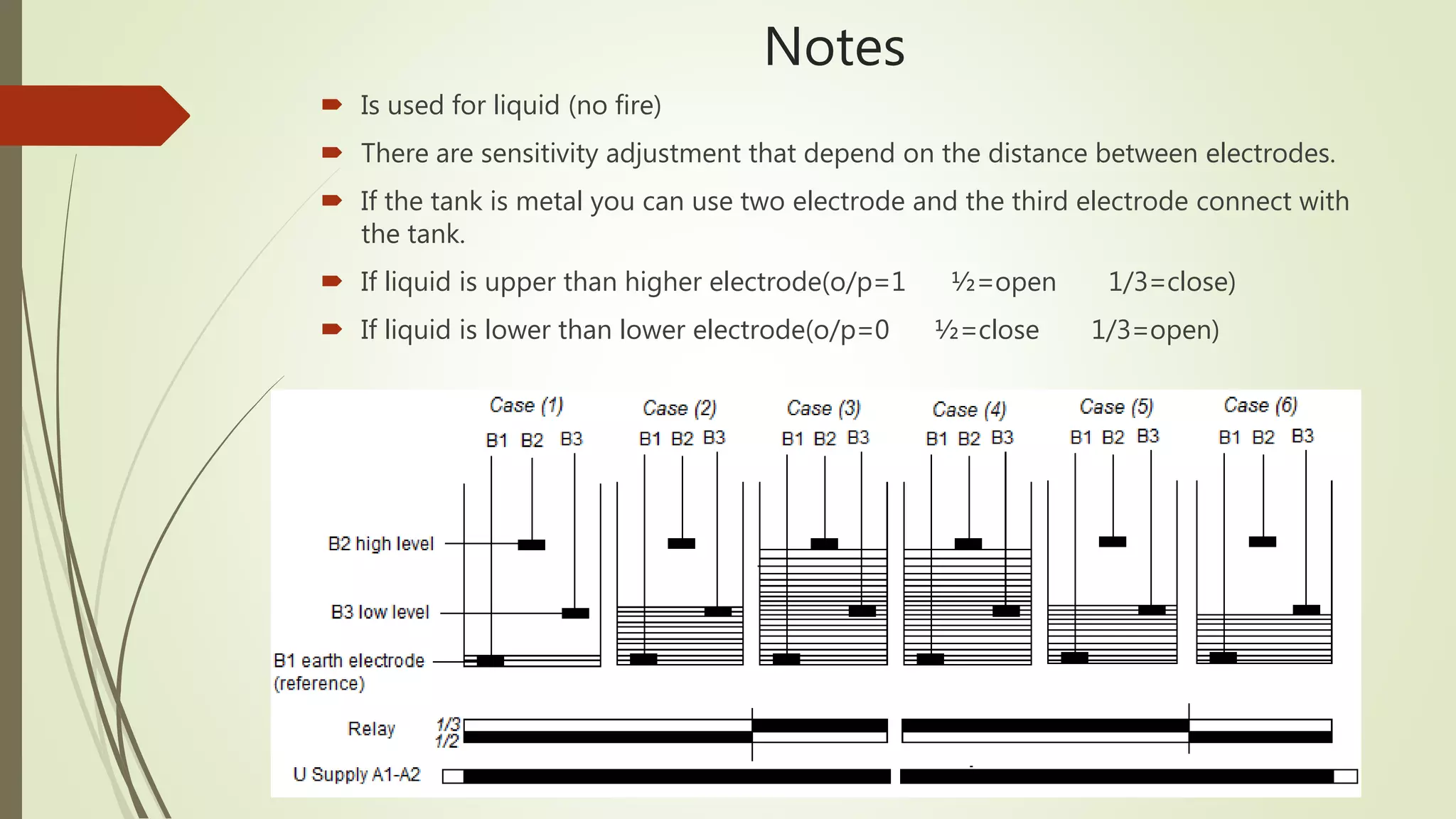

12. Notes
 Is used for liquid (no fire)
 There are sensitivity adjustment that depend on the distance between electrodes.
 If the tank is metal you can use two electrode and the third electrode connect with
the tank.
 If liquid is upper than higher electrode(o/p=1 ½=open 1/3=close)
 If liquid is lower than lower electrode(o/p=0 ½=close 1/3=open)

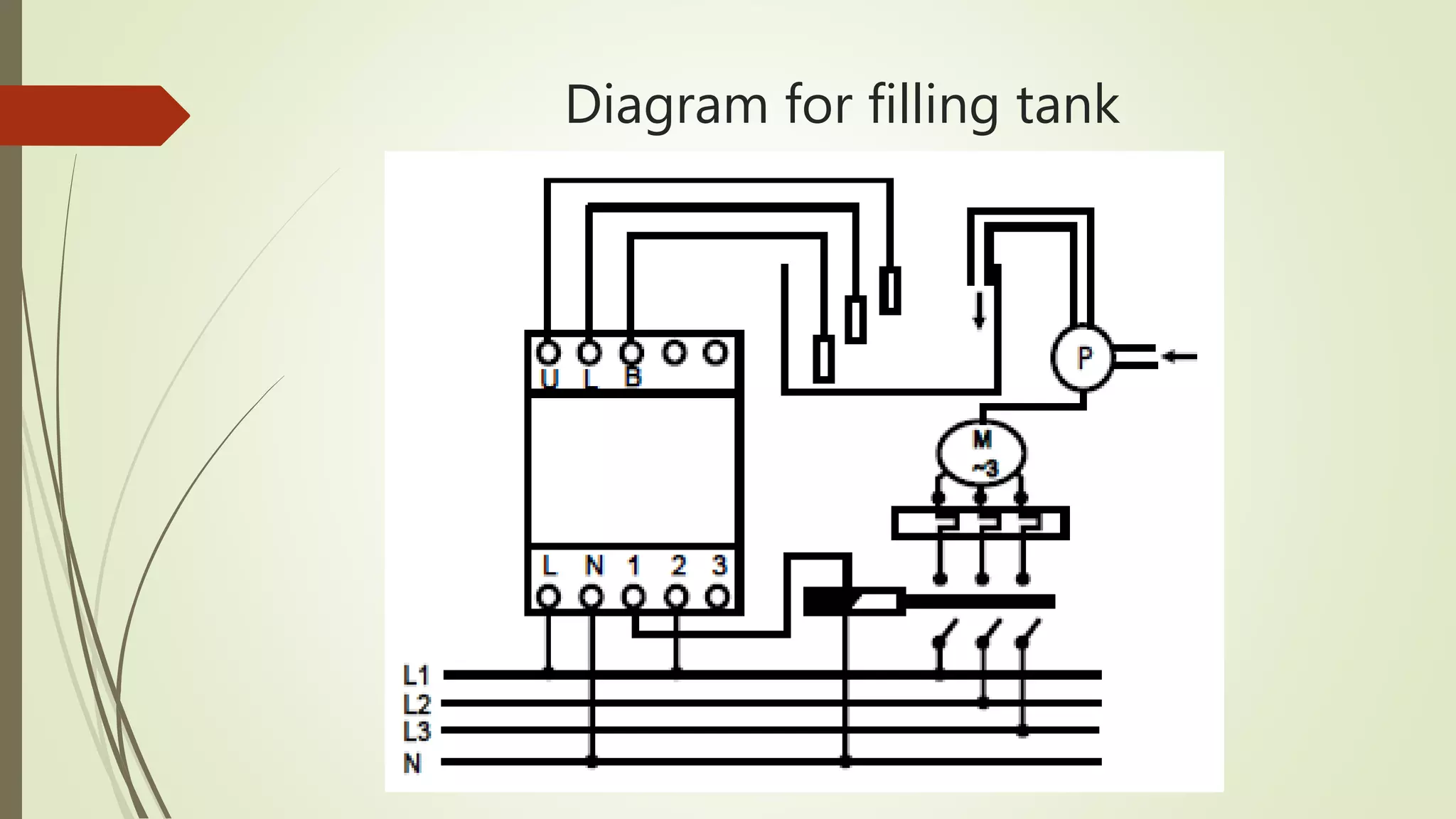

13. Diagram for filling tank

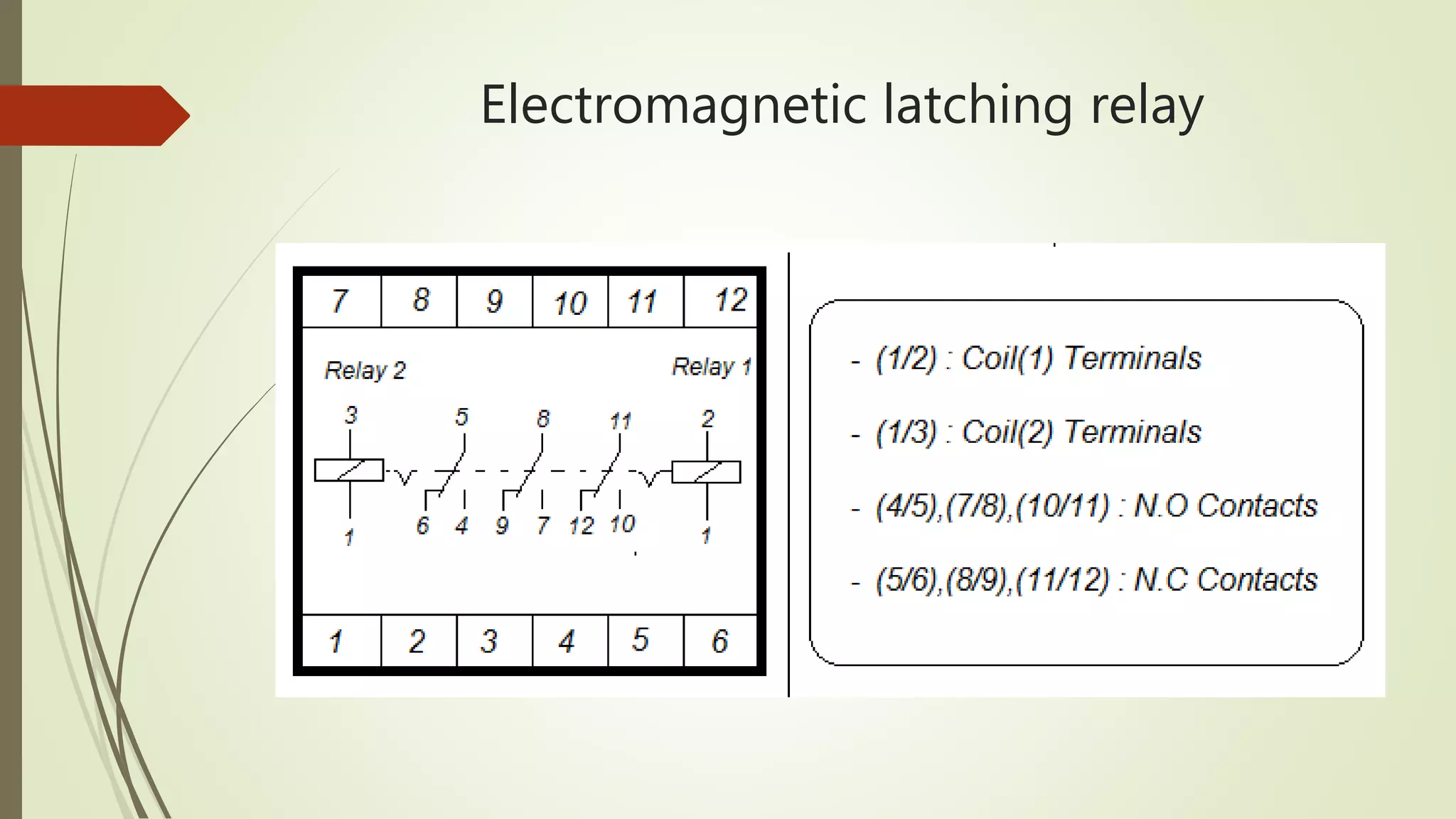

14. Electromagnetic latching relay

15. Exercise

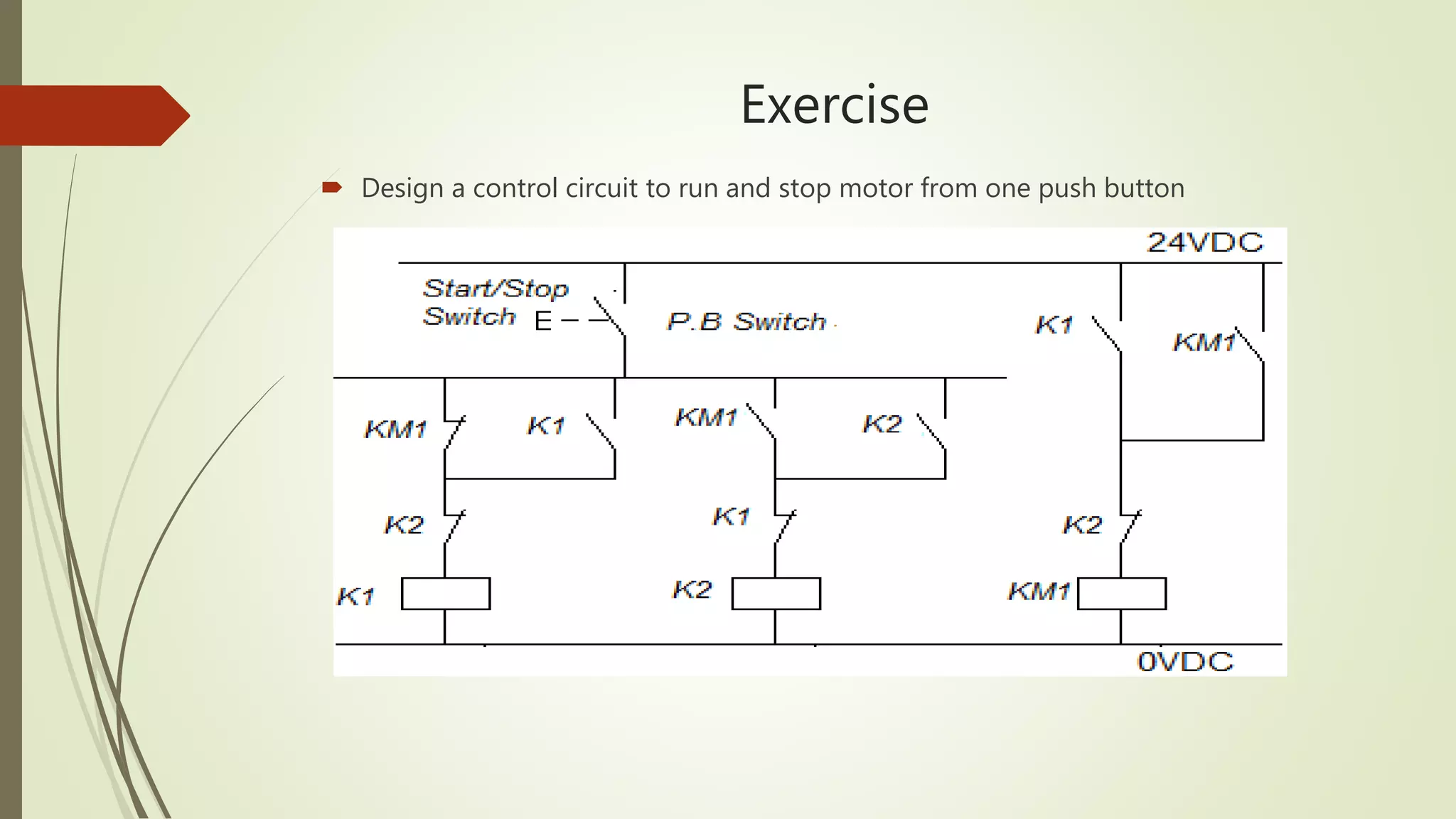

 Design a control circuit to run and stop motor from one push button

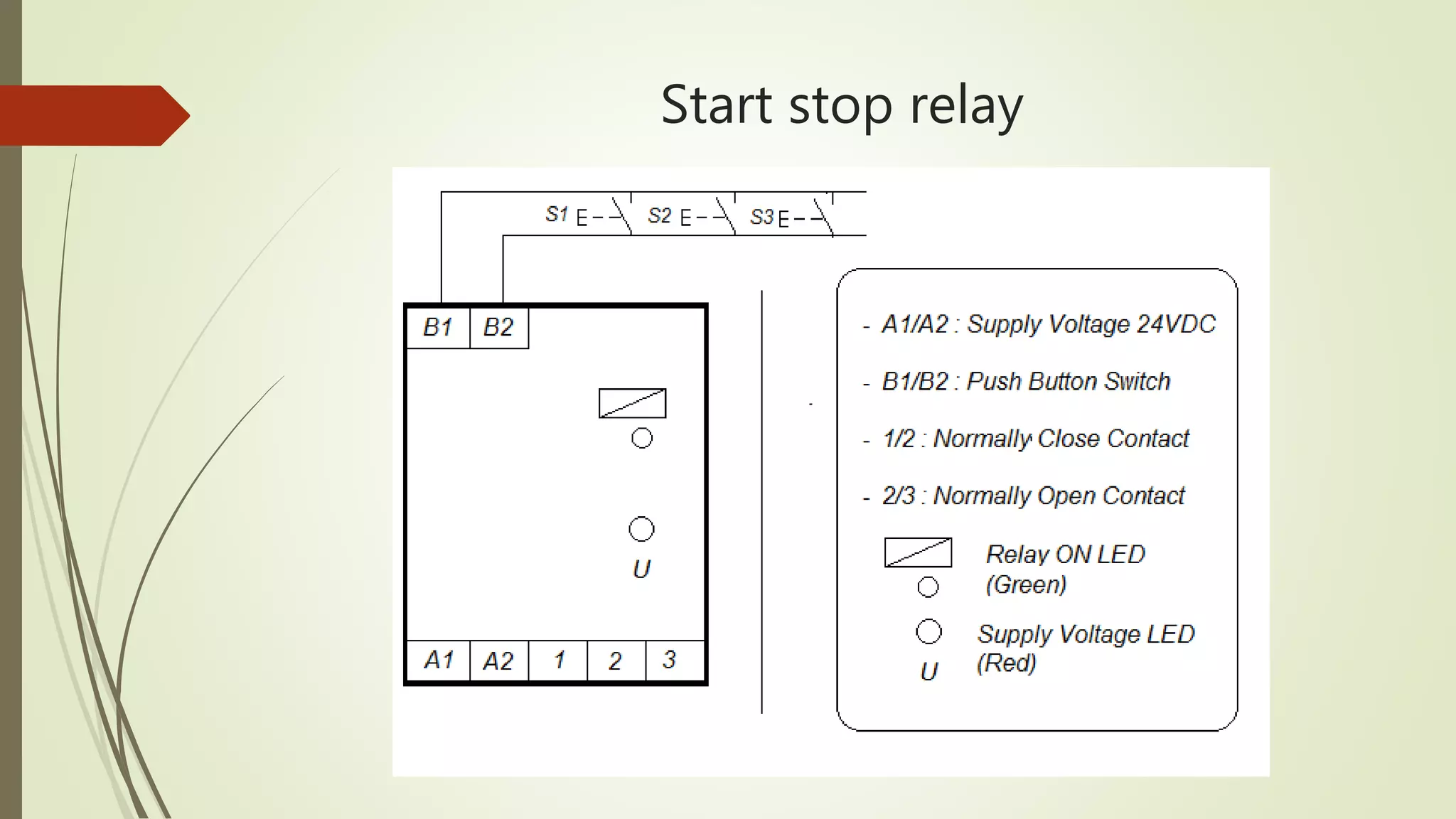

16. Start stop relay

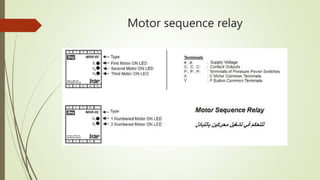

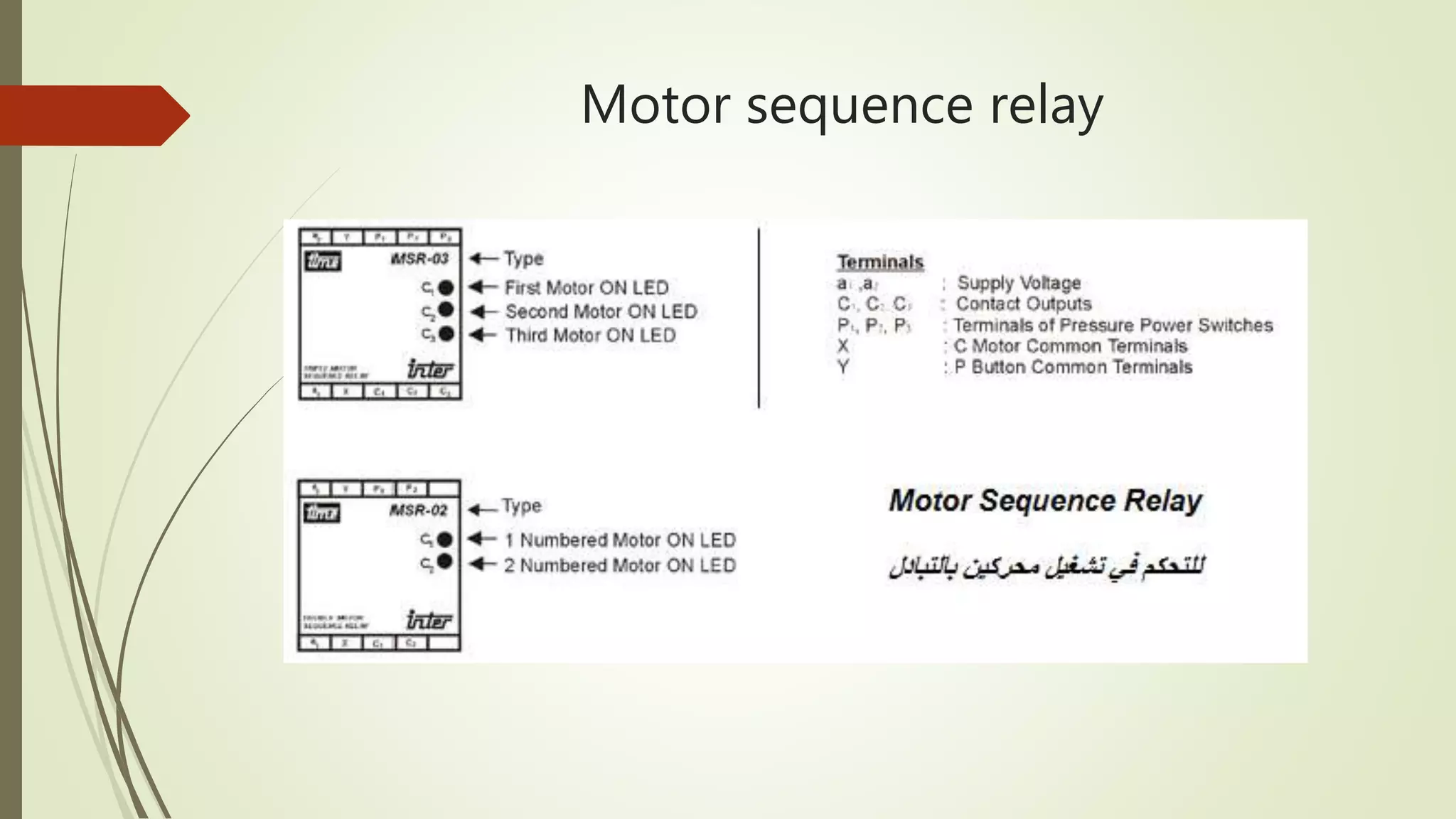

17. Motor sequence relay
