The document discusses mathematical operations in SIMATIC S7 and their usage. It aims to understand math operations and how to use them in different programming languages. It shows the symbols and functions for addition, subtraction, division, and multiplication and explains that the instruction is executed when EN is high and reads the first and second inputs to perform the operation, storing the result at the output address.

1. September 28, 2018SIMATIC S7
SIEMENS LTD EGYPT
1/12

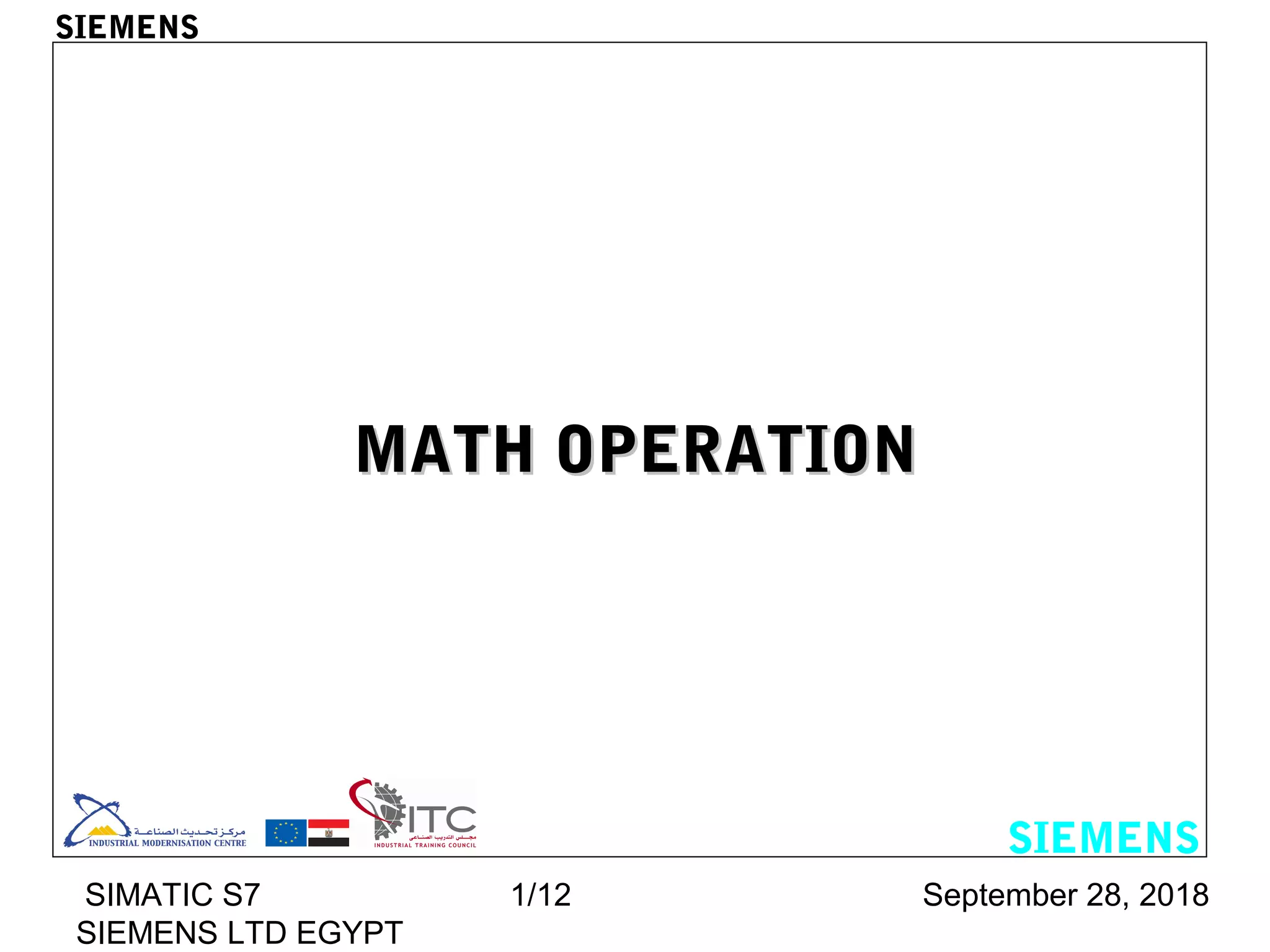

MATH OPERATIONMATH OPERATION
SIEMENS
SIEMENS

2. September 28, 2018SIMATIC S7
SIEMENS LTD EGYPT
2/12
SIEMENS

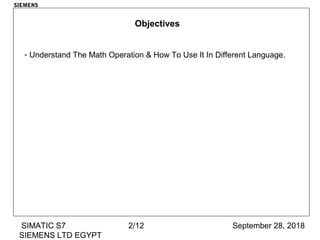

Objectives
- Understand The Math Operation & How To Use It In Different Language.

3. September 28, 2018SIMATIC S7
SIEMENS LTD EGYPT
3/12
MW2
ADD_I
IN2
EN ENO
IN1MW0 OUT MW4
SUB_I
IN2
EN ENO
IN1MW6
MW8
MW10OUT
MD22
MD26
EN ENO
IN1
IN2
MD30OUT
DIV_R
MD12
MD14
MUL_D
EN ENO
IN1 MD18
IN2
OUT
MW2
ADD_I
IN2
EN
ENO
OUT
IN1MW0
MW4
MW8
SUB_I
IN2
EN
ENO
OUT
IN1MW6
MW10
MD26
DIV_R
IN2
EN
ENO
OUT
IN1MD22
MD30
MD14
MUL_D
IN2
EN
ENO
OUT
IN1MD12
MD18
L MW0
L MW2
+ I
T MW4
L MW6
L MW8
- I
T MW10
L MD22
L MD26
/ R
T MD32
L MD12
L MD14
* D
T MD18
Mathematical Operation
EN The instruction is executed if RLO is =1 at Enable input EN.
IN1, IN2 The value at IN1 is read in as the first address and the value at IN2 as the second.
OUT The result of the mathematical operation is stored at the address at output OUT.
LAD Diagram FBD Diagram STL
