Arduino dc motor
- 1. Arduino Moteur CourantContinu Arduino UNO & DC MOTOR HajerEducation.tn

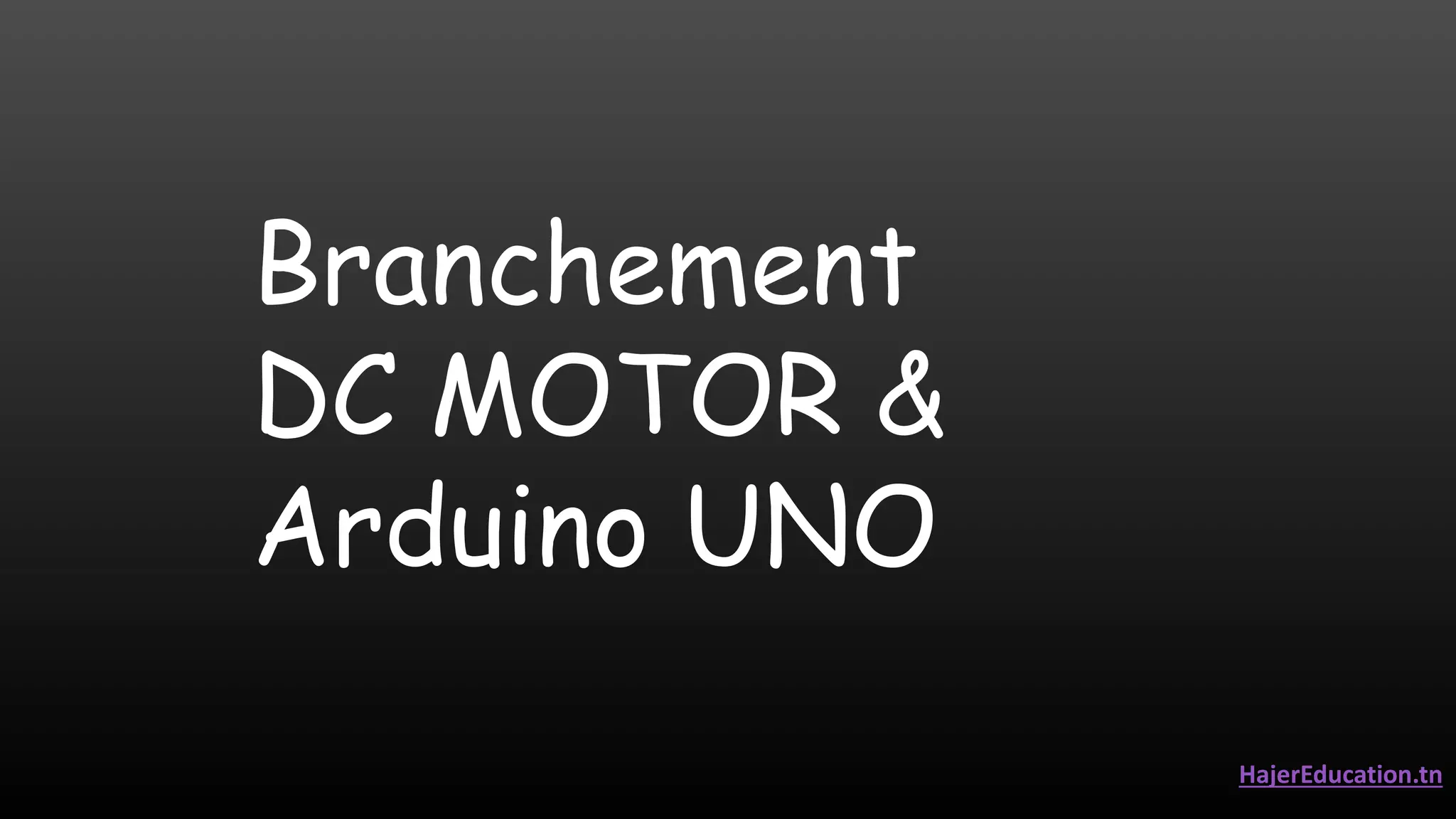

- 2. Branchement DC MOTOR & ArduinoUNO HajerEducation.tn
- 3.
- 4.

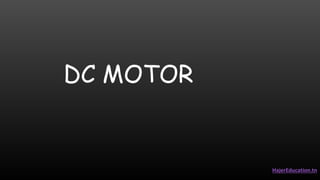

- 5. A simple rotationmotor, rotating 360 degrees, operating without a load at ~6000 RPM. DC Motor - Hobby Motor Gear HajerEducation.tn Energie Electrique Energie Mécanique MOTEUR A COURANT CONTINU DC MOTOR : Direct Curent Motor I I T T Courant Alternatif Courant Continu

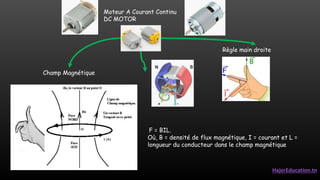

- 6. HajerEducation.tn Champ Magnétique Règle maindroite Moteur A Courant Continu DC MOTOR F = BIL. Où, B = densité de flux magnétique, I = courant et L = longueur du conducteur dans le champ magnétique
- 7.
- 8. A diode isa two-terminal electronic component that conducts primarily in one direction. Diode Rectifier - 1A 50V le redressement de courant alternatif la conversion du courant alternatif (AC) en courant continu (DC) I T Courant Alternatif Courant Continu T I HajerEducation.tn
- 9.

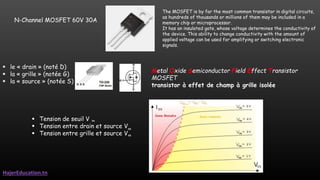

- 10. The MOSFET isby far the most common transistor in digital circuits, as hundreds of thousands or millions of them may be included in a memory chip or microprocessor. It has an insulated gate, whose voltage determines the conductivity of the device. This ability to change conductivity with the amount of applied voltage can be used for amplifying or switching electronic signals. N-Channel MOSFET 60V 30A HajerEducation.tn Metal Oxide Semiconductor Field Effect Transistor MOSFET transistor à effet de champ à grille isolée le « drain » (noté D) la « grille » (notée G) la « source » (notée S) Tension de seuil V Tension entre drain et source V Tension entre grille et source V TH DS GS
- 11.

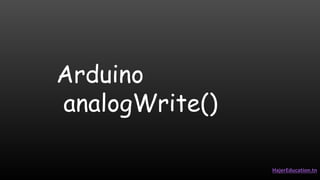

- 12. PWM QUARTZ PWM 0,5 t V PWM0,2 t V PWM 0,8 t V PERIODE CYCLE HajerEducation.tn analogWrite() Fonction Paramètres Pin Arduino UNO Speed analogWrite() Pin , speed 3, 5, 6, 9, 10, 11 0255 Pulse Width Modulation
- 13.
- 14.
- 15.
