1. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56
The Typical Embedded System
Mr. Anand H. D.
1
The Typical Embedded System
Department of Electronics & Communication Engineering
Dr. Ambedkar Institute of Technology
Bengaluru-56

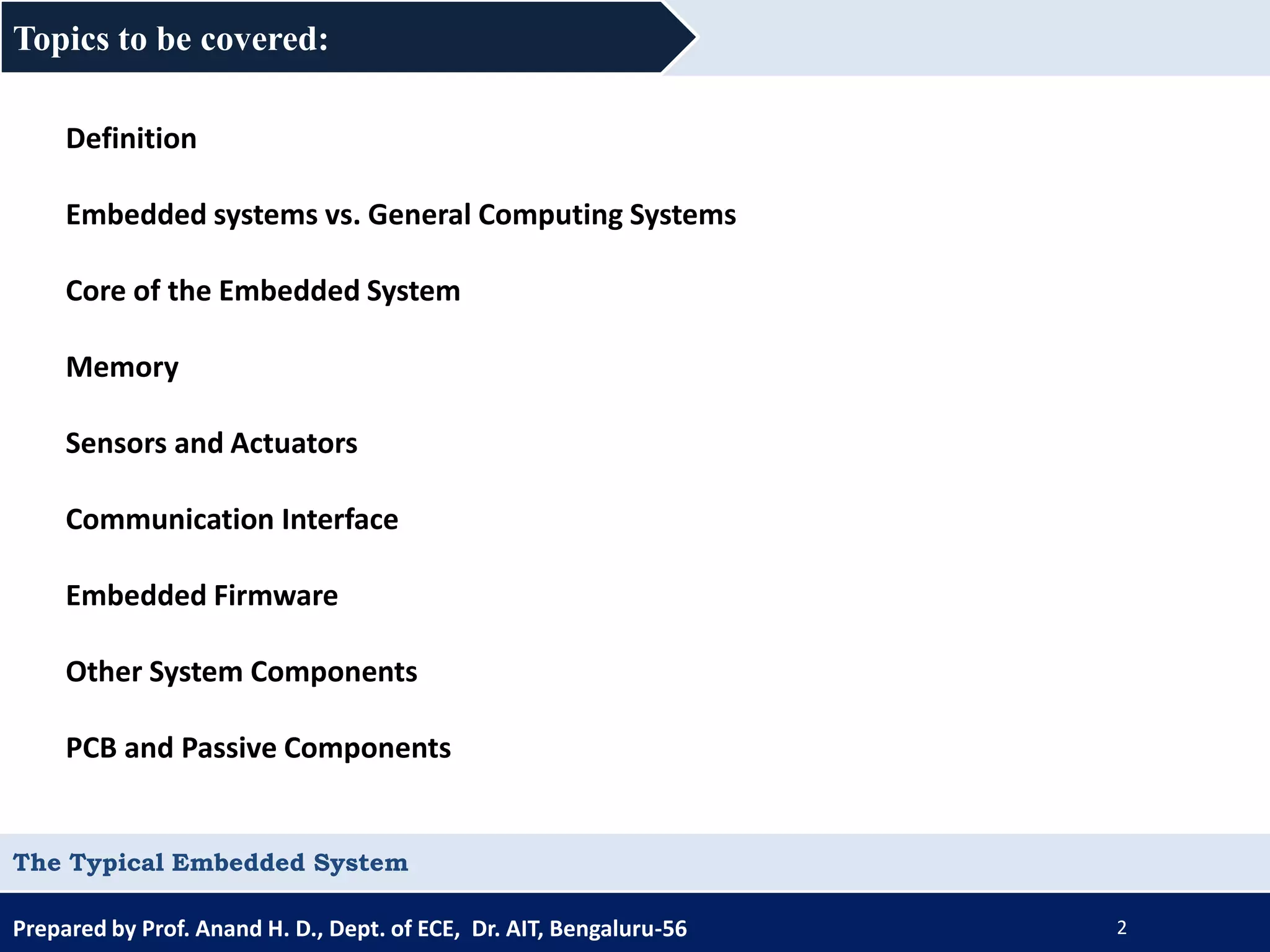

2. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 2
Definition
Embedded systems vs. General Computing Systems
Core of the Embedded System
Memory
Sensors and Actuators
Communication Interface
Embedded Firmware
Other System Components
PCB and Passive Components
Topics to be covered:
The Typical Embedded System
3. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 3
Definition
Embedded systems vs. General Computing Systems
Core of the Embedded System
Memory
Sensors and Actuators
Communication Interface
Embedded Firmware
Other System Components
PCB and Passive Components
Topics to be covered:
The Typical Embedded System
4. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 4
Embedded System:
Definition
Embedded System is combination of hardware and software, designed
for specific application or domain, whose applications ranges from simple toy
car to complex air traffic control system.
The Typical Embedded System
5. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 5
Definition
Embedded systems vs. General Computing Systems
Core of the Embedded System
Memory
Sensors and Actuators
Communication Interface
Embedded Firmware
Other System Components
PCB and Passive Components
Topics to be covered:
The Typical Embedded System
6. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 6
General Purpose Computing System
Embedded systems vs. General Computing Systems
The Typical Embedded System
Embedded System
A system which is combination of a generic
hardware and a general purpose OS for executing a
variety of applications
Contains general purpose Operating System (GPOS)
Applications are alterable (programmable) by the
users.(It is possible for end users to re-install OS, also
add/remove user applications)
Performance is the key deciding factor in selection
of the system. Always ‘Faster is Better’
Less/not at all tailored towards reduced operating
power requirements, options for different levels of
power management.
A system which is combination of special
purpose hardware and Embedded OS for executing
specific set of applications
May or may not contain Operating System
The firmware of the embedded system is pre-
programmed and it is non-alterable by the end
user
Application specific requirements(like
performance, power requirements, memory usage
etc.) are the key deciding factors.
Highly tailored to take advantage of the power
saving modes supported by all hardware and the
operating system
Response requirements are not time critical For certain category of Embedded systems like
mission critical systems, the response is time
critical
Need not be Deterministic in execution behavior Execution behavior is deterministic for certain
types of embedded systems like ‘Hard Real time
systems’
7. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 7
Definition
Embedded systems vs. General Computing Systems
Core of the Embedded System
Memory
Sensors and Actuators
Communication Interface
Embedded Firmware
Other System Components
PCB and Passive Components
Topics to be covered:
The Typical Embedded System
8. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 8
Typical Embedded System
The Typical Embedded System
System
Core
I/P Ports
(Sensors)
O/P Ports
(Actuators)
Memory
Other supporting
ICs & Subsystems
Embedded
Firmware
Embedded System
Real World
Communication
Interfaces
FPGA/ASIC/SoC/DSP
Microprocessor/Microcontroller/COTs
9. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 9
Core of the Embedded System
The Typical Embedded System
1. General Purpose and Domain Specific Processors
2. Application Specific Integrated Circuit (ASIC)
3. Programmable Logic Devices (PLDs)
4. Commercial Off the shelf Components (COTS)
a. Microprocessor
b. Microcontroller
c. Digital Signal Processor (DSP)
10. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 10
Core of the Embedded System
The Typical Embedded System
Microprocessor Microcontroller
A silicon chip representing a Central Processing
Unit (CPU) which is capable of performing arithmetic
as well as logical operations according to a predefined
set of instructions
It is dependent unit. It requires the combination of
other chips like timers. Program and data memory
chips, interrupt controller etc. for functioning
Most of the time general purpose in design and
operation
Doesn’t contain built in I/O port. I/O port
functionally needs to be implemented with the help of
external programmable peripheral interface chips like
8255
Targeted for high end market where performance is
important
A highly integrated chip that contains a CPU,
Scratchpad RAM, Special and general purpose
register arrays, on chip ROM/ Flash memory for
program storage, timer and interrupt control unit
and dedicated IO ports
It is self contained unit and it doesn't require
external interrupt control unit, timers, UART etc,
for functioning
Mostly application oriented and domain specific
Most of the processors contain multiple built in
I/O ports which can be operated as a single
8/16/32 bit port or individual port pin.
Targeted for embedded market where
performance is not so critical.(at present, it is
invalid)
Limited power saving options compared to
microcontroller
Includes lot of power saving features
11. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 11
Core of the Embedded System
The Typical Embedded System
Digital Signal Processor
Are powerful special purpose 8/16/32 bit microprocessor designed specifically to meet the
computational demands and power constraints of audio, video and communication applications.
2 to 3 times faster than General purpose Processors (architectural difference between the two)
In general DSP can be viewed as a microchip designed for performing high speed computational
operations for addition, subtraction multiplication and division.
A typical DSP incorporates the following key units:
Program Memory: for storing program required by DSP to process data
Data Memory: working memory for storing temporary variables and data/signal to be processed
Computational Engine: performs signal processing in accordance with stored program.
Computational engine incorporates many specialized arithmetic units and each of them operates
simultaneously to increase the execution speed and also shifters
I/O unit: acts as an interface between the outside world and DSP. It is responsible for capturing signals
to be processed and delivering the processed signals.
Audio, Video signal processing, telecommunication and multimedia applications are typical examples.
Involves Real time operations like Sum of Products(SoP), Convolution, FFT, DFT etc.
12. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 12
Core of the Embedded System
The Typical Embedded System
RISC
Reduced Instruction Set Computer
CISC
Complex Instruction Set Computer
Lesser number of Instructions
Instruction Pipelining and increased execution
speed
Orthogonal Instruction set.(Allows each instruction
to operate on any register and use any addressing
mode)
A large number of Registers are available.
Programmer needs to write more code to execute a
task since the instructions are simpler ones
Greater number of instructions
Generally no instruction pipelining feature
Non-Orthogonal Instruction set.(All instructions
are not allowed to operate on any register and use
any addressing mode. It is instruction specific)
Limited number of general purpose registers.
Instructions are like macros in C language. A
programmer can achieve desired functionality
with a single instruction which in turn provides
the effect of using more number of instructions in
RISC
Single fixed length instructions Variable length instructions
Less silicon usage and pin count More silicon usage since more additional decoder
logic is required to implement the complex
instruction decoding
With Harvard Architecture Can be Harvard or Von-Neumann Architecture
13. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 13
Core of the Embedded System
The Typical Embedded System
Harvard Architecture Von-Neumann Architecture
Separate buses for instruction and Data fetching
Easier to pipelining, so high performance can be
achieved
Comparatively high cost
Single shared bus for instruction and data
fetching
Low performance compared to Harvard.
Cheaper
No memory alignment problem Allows self modifying codes
Since data memory and program memory are
stored physically in different locations, no
chances for accidental corruption of program
memory
Since data memory and program memory are
stored physically in same location there is
chance for accidental corruption of program
memory
I/O CPU Memory
Program
Memory
CPU
Data
Memory
Single shared
14. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 14
Core of the Embedded System
The Typical Embedded System
Big Endian vs. Little Endian Processors/Controllers
Base Address + 0
Base Address + 1
Base Address + 2
Base Address + 3
0x2000 (Base Address)
0x2001 (Base Address + 1)
0x2002 (Base Address + 2)
0x2003 (Base Address + 3)
BYTE 0
BYTE 1
BYTE 2
BYTE 3
Base Address + 0
Base Address + 1
Base Address + 2
Base Address + 3
0x2000 (Base Address)
0x2001 (Base Address + 1)
0x2002 (Base Address + 2)
0x2003 (Base Address + 3)
BYTE 3
BYTE 2
BYTE 1
BYTE 0
Lower-order byte of data is stored in memory at
lower address
Higher-order byte of data is stored in memory at
higher address
Lower-order byte of data is stored in memory at
higher address
Higher-order byte of data is stored in memory at
lower address
Endianness specifies the order in which the data is stored in memory by the processor operations in a
multi byte system.
Let us consider a 4 bytes long integer Byte 0, Byte 1, Byte 2 and Byte 3
Little Endian Operation Big Endian Operation
Assignment Q1: Consider Data 0xff001234, store this data in memory with starting address from 0x1d04,
Assume each memory location can accommodate 1 byte of data. Show diagrammatically Big Endian
Storage and Little Endian Storage.
15. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 15
Core of the Embedded System
The Typical Embedded System
Load Store Operation and Instruction Pipelining
1. load R1,x
The concept of Load and Store Architecture
R1 R2 R3
00
7F
23
ALU
2. load R2,y
3. add R3,R1, R2
4. store R3,z
x
y
z
16. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 16
Core of the Embedded System
The Typical Embedded System
Instruction Pipelining
Fetch Execute
Fetch Execute
Fetch Execute
Fetch Execute
Fetch Execute Fetch Execute Fetch Execute Fetch Execute
1 2 3 4 5
1 2 3 4 5 6 7 8
17. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 17
Core of the Embedded System
The Typical Embedded System
Application Specific Integrated Circuit ( ASIC)
ASIC is a micro chip designed to perform a specific or unique application
Integrated several functions into a single chip and there by reducing system development cost. Most
of the ASICs are proprietary products,
As a single chip ASIC consumes a very small area in total system and thereby help to design smaller
systems with high capabilities/functionalities.
Can be pre-fabricated for a special application or it can be custom fabricated by using components
from a re-usable “building blocks” library of components for a particular customer application.
ASIC based systems are profitable only for large volume commercial products.
Production of ASIC requires a non-refundable initial investment for the process technology and
configuration expenses- NRE (Non Recurring Engineering Charges), it is one time investment
If NRE is borne by Third Party and ASIC is made openly available in the market, ASIC is
referred as Application Specific Standard Product (ASSP)
Disadvantages: Since ASICs are proprietary products, the developers of such chips may not be
interested in revealing the internal details of it, hence it is very difficult to point out example of it.
It creates legal disputes if an illustration of such an ASIC product is given without prior
permission from manufacturers of ASIC
18. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 18
Core of the Embedded System
The Typical Embedded System
Programmable Logic Devices( PLDs)
Logic devices provides specific functions, including device-to-device interfacing, data communication,
signal processing, data display, timing and control operation.
logic devices can be classified into 2 broad categories:
Fixed Logic Devices
Programmable Logic Devices
--- Perform one/set of functions once manufactured
--- offers customers a wide range of logic capacity, features, speed and
voltage characteristics
---can be reconfigured to perform no. of functions at anytime
With PLDs, designers use inexpensive software tools to quickly develop, simulate and test their
designs.
Design can be quickly programmed into a device and immediately tested in a live circuit.
There are no NRE costs and the final design is completed much faster than that of a custom, fixed
logic devices.
Key Benefit: During design phase customers can change the circuitry as often as they want until design
operates to their satisfaction.
PLD are based on re-writable memory technology. Once design is final, customers can go into
immediate production by simply programming as many PLDs as they need with final S/W design file.
19. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 19
Core of the Embedded System
The Typical Embedded System
Programmable Logic Devices( PLDs) contd.
PLDs can be classified into 2 broad categories:
CPLDs
FPGAs
--- Complex PLDs
--- Field Programmable Gate Arrays
FPGAs offer highest amount of logic density, most features, highest performance
Largest FPGA now available is Xilinx Vertex with 8 million system gates
Advanced FPGAs also provides hardwired processors, substantial amount of memory, clock
management systems and support latest technologies.
Are used in wide variety of applications ranging from data processing and storage, instrumentation,
telecommunication and Digital Signal Processing
CPLDs offer much smaller amount of logic (10,000 Gates).
But offer very predictable timing characteristics and are ideal for critical control applications
Also requires low amount of power and very inexpensive, hence ideal for cost sensitive, battery
operated, portable applications such as mobiles and digital handheld assistances
20. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 20
Core of the Embedded System
The Typical Embedded System
Programmable Logic Devices( PLDs) contd.
Advantages of PLDs:
• Offers more flexibility during design phase.
• Doesn’t require long lead time for prototyping
• Do not require large NRE cost
• PLD offers customers to order just no. of parts they need, when they need them, allowing them to
control inventory. Fixed PLDs customers end up either with excess inventory or caught short of
parts which delays production.
• Can be programmed even after it is shipped to customers- up gradation by uploading program
files to internet
Few years ago largest FPGA measured is 10s thousands of system gates and operated at 40Mhz.
Currently million of gates with integrated functionality like Processors and memory, operating at 300MHz
Assignment Q2: Which is the largest FPGA currently available in market and
what is its operating frequency?
21. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 21
Core of the Embedded System
The Typical Embedded System
Commercial Off the Shelf Components ( COTS)
Designed in such a way to provide easy integration and inter-operability with existing system
components.
May be developed around a general purpose/ domain specific/ ASIC/ PLD
Typical examples - remote controlled toy car unit including the RF circuitry part, high performance
and high frequency microwave electronics, high bandwidth ADC, devices and components for operation
at very high temperature, electro-optic IR imaging arrays, UV/IR detectors etc.
Readily available in market, cheap and a developer can cut down his/her development time to a great
extent, reducing time to market.
TCP/IP plug in module available from various manufacturers like WIZnet, Freescale, Dynalog etc. are
very good examples of COTS
You have to identify COTS for your system and give plug-in option on your board
Though multiple vendors supply COTS for same application there is no operational and manufacturing
standards
COTS manufactured by a vendor need not be having hardware plug-in and firmware compatibility with
one manufactured by a second vendor.
This restricts end-users to stick to a particular vendor for a particular COTS
COTS Manufacturers may withdraw the product/discontinue at any time if a rapid change in
technology occurs.
22. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 22
Definition
Embedded systems vs. General Computing Systems
Core of the Embedded System
Memory
Sensors and Actuators
Communication Interface
Embedded Firmware
Other System Components
PCB and Passive Components
Topics to be covered:
The Typical Embedded System
23. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 23
The Typical Embedded System
Memory
On-Chip Memory and Off-chip Memory
Serial Memory and Parallel Memory
Program Storage Memory (ROM):
Code
Memory
(ROM)
MASK ROM
(MROM)
EPROM EEPROM
NVRAM
FLASH
PROM
(OTP)
ROM and RAM
Volatile Memory and Non Volatile Memory
24. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 24
The Typical Embedded System
Memory
Masked ROM One Time Programmable
Programmed by masking and metallization process at the time of production
itself based on input given by user
Low cost, good for storing Firmware for low cost embedded devices.
Once the design is proven and tested, the binary data corresponding to it can
be given to MROM Fabricator
Disadvantage: disability to modify Firmware
PROM One Time Programmable
Unlike MROM it is not preprogrammed by manufacturer
The end user programs these devices.
has nichrome/polysilicon arranged as matrix. These wires can be used as
fuses.
it is programmed by selectively burning these fuses according to bit pattern
to be stored
fuses not blown represents ‘1’ and those blown are logic ‘0’. Default state is
logic ‘1’
used for commercial production of embedded systems whose prototype is
proven and code is finalized.
low cost is advantage but cannot be reprogrammed
25. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 25
The Typical Embedded System
Memory
EPROM Provides the flexibility to reprogram the same chip
Stores the bit information by charging the FET gate
Contains quartz crystal window for erasing the stored information.
if this window is exposed to UV rays for a fixed duration, the entire memory will be erased
for erasing process, it needs to be taken out of circuit board and put in a UV eraser device
for 20-30 mins, which is tedious and time consuming
EEPROM Information contained in EEPROM can be altered by electrical signals at register/byte level
Can be erased and reprogrammed in-circuit
consists of a ‘chip erase mode’, in this mode they can be erased in ms.
provides flexibility for system design
only limitation is capacity compare to standard ROM
FLASH Latest ROM
Variation of EEPROM
combines flexibility of EEPROM + High capacity of Standard ROM.
organized as sectors(blocks) or pages.
stores information in an array of floating gate MOSFET transistors.
memory can be erased at sector/page level without erasing other sectors
each page/sector must be erased before reprogramming, typical erase cycles is 1000 cycles
26. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 26
The Typical Embedded System
Memory
NVRAM Memory with battery back up
Consists of SRAM memory with minute battery
Memory and battery are packed in a single package
life span is expected to be around 10 years
Data
Memory
(RAM)
DRAM NVRAM
SRAM
Read/ Write Memory or Random Access Memory (RAM):
27. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 27
The Typical Embedded System
Memory
SRAM Data is stored in the form of voltage
Made up of flip-flops
Fastest form of RAM
typically realized using 6 MOSFETS
4 for building flip-flops; 2 for controlling access
in simple form SRAM is a 2 Cross-coupled inverters with read/write control through transistor.
access to memory cell is controlled by word line
for writing, desired value is applied to bit line controller. i.e. for 1, B=1 and B’=0
for 0, B=0 and B’=1
for reading, both the bit lines are asserted/set as 1 and word line is set to 1
28. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 28
The Typical Embedded System
Memory
DRAM Dynamic RAM
Data is stored in the form of charge
Made up of a MOS transistor gate
high density and low cost
Charge gets leaked away hence periodic refresh is done
DRAM Controller refreshes DRAM after certain msecs.
MOSFET acts as gate for incoming and outgoing data
capacitor acts as bit storage unit
SRAM DRAM
made up of 6 CMOS transistors (MOSFETs) made up of a MOSFET and capacitor
doesn’t require refresh periodic refresh is necessary
low capacity (less dense) high capacity
expensive
fast in operation, 10 ns access time
less expensive
slow in operation due to refreshment
60 ns access time
Write is faster than read
29. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 29
The Typical Embedded System
Memory
Memory Shadowing
ROM access speed is very slow compared to
RAM
RAM is 3 times faster than ROM
Shadowing technique is adapted to solve
execution speed problem
Basic I/P O/P configuration ROM or BIOS stores hardware configuration information
like address of various ports.
Now manufactures include RAM behind BIOS at its same address, as a shadow BIOS
First step during Boot up is copying of BIOS to shadowed RAM and write protecting
this RAM and disabling BIOS
RAM is volatile but ROM is permanent, therefore high system performance is
achieved by accessing RAM instead of ROM
ROM
RAM
Non Volatile Slower
Faster Volatile
Advantage Limitation
30. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 30
The Typical Embedded System
Memory
Memory Selection for Embedded System
Code Memory (ROM)
Data Memory (RAM)
Application Specific
if made up of Soc/MC, on-chip memory may be enough, if not must be interfaced with external/off-
chip memory
ROM + RAM to execute program code, for RTOS based embedded system extra RAM is required for
Memory Shadowing
Memory Chip Size available in standard size like 512/1024 bytes (1Kb, 2Kb, 4Kb, 8Kb, 1Gb, 2Gb,
4Gb, 8Gb)
suppose memory required is 740 bytes, 1Kb chip can be selected
word size no. of bits that can be accessed simultaneously, word size <==> bus size
currently FLASH memory is used
FLASH memory NAND FLASH memory
NOR FLASH memory
High density, low cost, DRAM is used
low density, slightly expensive but supports XIP
(execute in place)
31. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 31
Definition
Embedded systems vs. General Computing Systems
Core of the Embedded System
Memory
Sensors and Actuators
Communication Interface
Embedded Firmware
Other System Components
PCB and Passive Components
Topics to be covered:
The Typical Embedded System
32. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 32
The Typical Embedded System
Sensors and Actuators
Sensor is a transducer that converts energy from one form to another for any
measurement and control purpose
Actuator is a transducer device (mechanical/electrical) which converts signals to
corresponding physical actions
Input Output Subsystem facilitates interaction between Embedded System
and external world
Light Emitting Diode (LED)
o/p device for visual indication of signal status like
device ON, Battery Low, charging state
its an p-n junction diode,
anode +ve terminal of Power supply
cathode -ve terminal of Power supply
current conducted by LED is limited, therefore to limit current through LED within
maximum value, resistor is connected in series
33. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 33
The Typical Embedded System
Sensors and Actuators
LED and MP/MC is interfaced in 2 ways
Anode is connected to port pi of MP/MC and cathode is connected to ground
Cathode is connected to port pin and anode is connected to power supply
brightness depends on current sourced by port pin,
may be not of required level
brightness is of required level
Seven Segment Display
o/p device for displaying alpha-numeric characters
8 LED segments are arranged in special form
7 are used for displaying Alpha-numeric characters
named as A to G
1 LED is used for displaying decimal point in
decimal numbers and named as DP
popular choice for low cost Embedded applications
like public telephone call monitoring device, point of
sale terminal etc.
34. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 34
The Typical Embedded System
Sensors and Actuators
When interfaced with MP/MC 8 LEDs are connected such that A is connected to LSB
port pin and DP is connected to MSB port pin
Can be interfaced with MP/MC using any of 2 configurations:
In Common anode, anodes of all the LEDs
are connected commonly and connected to 5V
power supply whereas cathode of each LED is
connected to Port Pins
Common Anode
Common Cathode
In Common cathode, cathodes of all the
LEDs are connected commonly and connected
to ground whereas anode of each LED is
connected to Port Pins
The current through each LED must be limited below maximum value. It is typically
20mA by connecting current limiting resistor to anode/cathode
35. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 35
The Typical Embedded System
Sensors and Actuators
Optocoupler:
to isolate 2 parts of circuit
can be used for suppressing data interference in data
communication, circuit isolation, high voltage
separation, signal intensification
LED + photo transistor in single package
optocoupler can be used at input or output of a
circuit
optocoupler is available as IC MCT2M
36. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 36
The Typical Embedded System
Sensors and Actuators
Stepper motor:
electro-mechanical device that generates discrete displacement in response to DC
electrical signals
based on coil winding arrangements, a 2 phase stepper motor is classified into 2
types:
widely used in industrial embedded applications, consumer electronic products and
robotic control systems
Unipolar Stepper Motor
Bipolar Stepper Motor
Unipolar Stepper Motor
2 windings per phase
direction of rotation is controlled by changing direction of current flow
current in these 2 coils flow in opposite direction wrt. to each other
change of direction implies changing/switching terminals to which
coils are connected
coils are represented as A, B, C and D. A & C carry current in opposite
direction for phase 1, similarly B & D carry current in opposite direction
for phase 2
37. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 37
The Typical Embedded System
Sensors and Actuators
Bipolar Stepper Motor
single winding per phase
direction of motor rotation is dynamically reversed
complex circuit is necessary for current reversal
Implementation: by changing sequence of activation of stator windings different stepping
modes can be implemented
Step A B C D
1 H H L L
2 L H H L
3 L L H H
4 H L L H
Both phases are energized simultaneously
Full Step:
38. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 38
The Typical Embedded System
Sensors and Actuators
Step A B C D
1 H L L L
2 L H L L
3 L L H L
4 L L L H
Only one phase will be active at a time
Wave Step:
Step A B C D
1 H H L L
2 H L L L
3 L H H L
4 L H L L
5 L L H H
6 L L H L
7 H L L H
8 L L L H
Combination of full step and wave step
Half Step:
39. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 39
The Typical Embedded System
Sensors and Actuators
2 phase unipolar stepper motors are popular choice
therefore special circuits are required to interface stepper motor to MP/MC=> COTS->
ULN2803
current requirement for stepper motor is little high, hence port pin of MP/MC may not
be able to drive stepper motor, normally requires 5v-24v supply voltage
40. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 40
The Typical Embedded System
Sensors and Actuators
Relay:
electro-mechanical device
made up of 2 components:
dynamic path selector for signals and power
Relay coil
Metal armature
made up of insulated wire wound over a metal core
with one or more contacts
works on electromagnetic principle
when voltage is applied to relay coil, current flows through the coil which generates
magnetic field, this magnetic field attracts/reflects armature and moves the contact
point
2 configurations single core and single throw
single core and double throw
only 1 path for information flow
2 paths for information flow and selected by
energizing and de-energizing the coil
single core and single throw
normally open
normally closed
41. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 41
The Typical Embedded System
Sensors and Actuators
normally controlled using a relay driver circuit connected to the port pins of MP/MC
free wheeling diode is for protecting relay and transistor
relay driver circuit is built using transistor
special relays Reeds are available for embedded applications for switching low
voltage DC signals
42. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 42
The Typical Embedded System
Sensors and Actuators
Piezo-buzzer:
piezo-electric device for generation of audio indication in embedded applications
2 configurations:
piezo electric diaphragm produces audible sound in response to applied voltage
Self Driving
External Driving
generates sound at a predefined tone
supports generation of different tones.
Tone can be varied by applying variable pulse train
can be directly interfaced or through a transistor based driver circuit
Push Button Switch:
input device
2 configurations:
Push to make
Push to break
43. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 43
The Typical Embedded System
Sensors and Actuators
Push to make
Push to break
switch is normally open
makes contact when pushed or pressed
remains in the closed state unless it is released
when released breaks connection
switch is normally closed
breaks the contact when pushed or pressed
remains in the open state unless it is released
when released circuit connection is made back
used for generating a momentary pulse i.e.
pulse generator, reset and start pulse
high pulse/ low pulse depends on how it is
interfaced with MP/MC
44. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 44
The Typical Embedded System
Sensors and Actuators
Keyboard:
input device
if keys required is very less, push buttons can be directly interfaced to port pins
best solution for such case is Matrix keypad
it generally reduces to number of interface
connections. For example
If 16 keys required, it requires 16 port pins
Instead if 4x4 matrix keypad is used only
4+4 =8 port pins are required i.e. 50%
reduced
In matrix keyboard, keys are arranged in
matrix fashion
if large number of keys are required for user inputs then it is not possible to interface
all the keys, also it will be wastage of port pins
45. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 45
The Typical Embedded System
Sensors and Actuators
Detecting a Key pressed:
Scanning Technique
each row of matrix is pulled low and column is read
when row is pulled low and a key connected to that is pressed then
when status of column is read, it gives logic 0
Disadvantage: keys are mechanical therefore suffer from
Switch Debouncing multiple key pressed effect for
single key pressed
after reading status of each column corresponding o a row, that row is pulled high and next row is
pulled low and process is repeated unless all the rows are checked
H/w key Debouncing circuits:
S/W key Debouncing technique:
additional H/W is required
once key pressed is detected, it is read again after
certain debouncing delay, if key pressed is genuine,
the state remain same on second read also.
pull up resistors are connected to column lines to limit the
current that flows through rows when key is pressed
46. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 46
The Typical Embedded System
Sensors and Actuators
Programmable Peripheral Interface:
used for enhancing I/O capabilities of MP/MC
MP/MC provides limited number of I/O port pins, in some cases there may be need for
more number of I/O pins than that is supported by MP/MC
8255A is popular PPI device it supports 24 I/O pins
three 8 bits parallel ports port A, port B and port C
or two 8 bits parallel ports port A and port B
Port C as 8 individual port pins
or
Two 4-bit parallel ports Port C
upper and Port C Lower
Control Register of 8255A
Assignment Q3: Explain the bit fields of
Control Register of 8255A PPI Device
47. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 47
Definition
Embedded systems vs. General Computing Systems
Core of the Embedded System
Memory
Sensors and Actuators
Communication Interface
Embedded Firmware
Other System Components
PCB and Passive Components
Topics to be covered:
The Typical Embedded System
48. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 48
The Typical Embedded System
Communication Interface
essential for communicating with various subsystems of the embedded system and
also with other systems.
2 prospective:
Device/Board level
Product level
on-board Communication Interfaces
External Communication Interfaces
On-board Communication Interfaces => communication links which interconnect
different subsystems/components with in a Embedded System
External Communication Interfaces => communication links which facilitates
interaction and data transfers between different devces/systems in a distributed
network wired or wireless
Examples: I2C, Serial Peripheral Interface, UART, 1-wire interface, Parallel
Interface
Examples: RS 232C & RS 485, USB, IEEE 1394, IrDA, Bluetooth, Wi-Fi, Zig bee,
GPRS
49. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 49
The Typical Embedded System
Communication Interface
On-board Communication Interfaces
Inter Integrated Circuit (I2C) Bus:
synchronous, bi-directional, half duplex & 2 wire serial interface bus
concept of I2C bus Philips Semiconductor in early 1980s
original intention provide easy communication interface between MP/MC and
other peripheral chips of TV
2 wires:
Serial Clock (SCL)
Serial Data (SDA)
SCL for generation of clock pulse for
synchronization
SDA for transmitting serial data between the
devices
Shared bus system multiple devices connected to a single bus
Device Master/Slave
50. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 50
The Typical Embedded System
Communication Interface
Master controls communication by initiating/terminating data transfer, it sends
data, generates synchronous clock pulse
I2C Supports multiple master devices
connection of master and slave on I2C bus is as
shown in figure
Slave waits for the commands from Master and responds on receiving the commands
Master/Slave Transmitter/receiver, regardless of Transmitter/receiver Master
generates the clock pulse
for proper operation of bus both the lines are
pulled to high voltage 5V for TTL logic and 3V for
CMOS Family devices, through pull up resistors of
2.2 KΩ
therefore with pull-up resistors, the output lines
of bus in ‘idle state’ is High
51. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 51
The Typical Embedded System
Communication Interface
Sequence of operations for communicating between Master & Slave:
START Condition for data transfer
master device sends address (7-10 bits) of slave
device with which it wants to communicate over SDA
Master device pulls the clock line (SCL) HIGH
Therefore: SCL HIGH
SDA LOW
master device sends read/write bit
i.e. if Bit Value = 1, READ operation
Bit Value = 0, WRITE operation
Master device pulls the data line (SDA) LOW
master device waits for the acknowledge bit from
the slave device, whose address is sent along along
with read/write operation command
salve compares received address with its address
52. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 52
The Typical Embedded System
Communication Interface
upon receiving acknowledgement bit master device sends 8 bits data to slave device
over SDA line if requested operation is ‘WRITE to device’ else
slave device with address requested by the master responds by sending
acknowledgement (Bit value 1) over SDA line
if requested operation is ‘READ from device’ then slave device sends data to master
over SDA line.
master device awaits for the acknowledge bit
from the slave device upon byte transfer if WRITE
operation else sends a acknowledgement bit to
salve for READ operation
master device terminates the transfer by pulling
SDA line HIGH when SCL is HIGH
STOP Condition for data transfer
Therefore: SCL HIGH
SDA HIGH
53. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 53
The Typical Embedded System
Communication Interface
Standard Mode
I2C supports different data rates:
Fast Mode
High Speed Mode
100 kbps
400 kbps
3.4 Mbps
Serial Peripheral Interface (SPI) Bus:
synchronous, bi-directional, full duplex & 4 wired serial interface bus
concept was first developed by Motorola
supports single master and multiple slave
also supports more than one master only one master is active at a time
4 wires:
Master Out Slave In (MOSI)Slave In/Slave Data In(SI/SDI)
Master In Slave Out (MISO)Slave Out/Slave Data Out(SO/SDO)
Serial Clock (SCL) carry clock signal
Slave Select (SS) active low
54. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 54
The Typical Embedded System
Communication Interface
Master generates Clock Pulses
selects the slave device by asserting the slave selecting signal low
Data exchange through SPI fully configurable
Serial Peripheral Control Register
stores all configuration parameters
like selection of master/slave for data
transfer, selection of baud rate for
communication, clock signal control,
whether MSB/LSB should be sent first
SPI works on Principle of Shift register
therefore Shift registers of Master & Slave form a Circular buffer
1
0
0
0
0
1
1
0
0
0
1
0
1
0
0
1
1
0
0
0
0
1
1
0
0
0
1
0
1
0
0
1
Master Slave
MOSI
MISO
55. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 55
The Typical Embedded System
Communication Interface
master and slave devices contains a special shift registers for data transfer. Size of the
shift register is device dependent, normally it is multiple of 8
suitable for applications which supports data transfer in streams
only disadvantage is that it doesn’t support acknowledgement mechanism
Universal Asynchronous Receiver Transmitter (UART) Interface:
asynchronous type of data transmission
no need of clock pulse
transmission takes place based on predefined agreement between Transmitter &
Receiver
serial communication settings: Baud rate, number of start bits, parity, number of
bits per byte and flow control, should be identical between transmitter & receiver
special bits in data stream indicates start and stop of data transmission
while sending a data byte, a start bits are added first and stop bits are added the end
of a byte of data LSB follow start bit.
Start bit
MSB LSB
Stop bit
parity bit
56. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 56
The Typical Embedded System
Communication Interface
Start bits inform receiver that a data byte is about to arrive
If baud rate is x bps, time slot for each bit is 1/x seconds. For example if baudrate is
5 then 1/5 seconds.
1/5 (1000) ms = 200ms
If parity is enabled then UART of transmitting device adds parity bit
1 number of 1’s is odd
0 number of 1’s is even
or vice-versa
UART on receiver device calculates the parity of bits received and compares it with
parity bit for error checking
UART on receiver device discards the ‘Start’, ’Stop’ and ‘Parity’ bits from received
bit stream and converts the received signal bits into words
For proper communication, transmitter
line of sending device must be connected to
receiver line of receiving device.
57. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 57
The Typical Embedded System
Communication Interface
UART chips are available from different semiconductor manufacturers but National
Semiconductor’s 8250 UART is considered to be standard
Now a days most of the MP/MC are available with integrated UART functionality and
they provide built-in instructions to support serial data transmission and reception
1 wire Interface:
asynchronous, half duplex
developed by Maxim Dallas Semiconductors
also known as Dallas 1 wire protocol
made up of only single signal line called as
DQ for communication, follows master slave
communication model
supports single master and one or more slave
devices
58. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 58
The Typical Embedded System
Communication Interface
8 bits family code TTL/CMOS
Every 1-wire device contains a globally unique 64 bits identification number. This
UIN can be used for addressing individual devices on bus.
48 bits serial number
8 bits CRC generated from first 56 bits
the identifier has 3 parts
Sequence of operation:
Slave device(s) present on bus responds
with a ‘Presence’ pulse
Master device sends a ROM command
64 bits address of device
this addresses the slave device with
which it want to communicate
Master sends read/write function
command to read/write into internal
memory of slave device
Master initiates read/write from the
device or into the device
Master device sends a ‘Reset’ pulse over 1-wire
59. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 59
The Typical Embedded System
Communication Interface
For starting the communication, master asserts the Reset pulse by pulling 1-wire bus
Low for at least 8 time slots
Communication over 1-wire bus is divided into time slots of 60µsecs
If slave devices are present on bus and is ready for communication, should respond
with ‘Presence’ pulse within 60µsecs of reset pulse
For writing a bit value 1, master pulls the bus LOW for 1-15µsecs and releases for the
rest of the time slots.
A bit value is written by master pulling the
bus LOW for minimum 1 time slot and
maximum 2 time slots.
To read a bit from slave master pulls the bus
LOW for 1 to 15µsecs. If slave wants to send bit
value ‘1’, it simply releases bus for rest of the
time slot
If slave wants to send bit value’0’, it pulls the
bus low for rest of the time slot
60. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 60
The Typical Embedded System
Communication Interface
Parallel Interface:
for communicating with peripheral devices which are memory mapped to host system
the host MP/MC of Embedded system contains a parallel bus & devices can be
directly connected to this bus
communication through parallel bus is controlled by Control Signal Interface
between device and host.
Read/write signal
Control Signals:
Device Select signal
controls direction of data transfer
device activates only when this signal is asserted
address decoder is used for generating chip
select signal for selecting device
if address selected by processor is with in
range assigned for devices, the decoder
activates the chip select line and thereby the
device becomes active
61. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 61
The Typical Embedded System
Communication Interface
the processor can then read/write from/to the device by asserting RD/WR’ control
lines
parallel communication is host initiated. If the device wants to communicate, it
can inform by generating a interrupt.
bus width supported by device must be same as that of host processor (usually 4
bits, 8, 16,32 or 64 bits)
offers the highest speed for data transfer
62. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 62
The Typical Embedded System
Communication Interface
External Communication Interfaces
RS 232C & RS 485:
RS232C Recommended Standard number 232 revision C from Electronic
Industries Association
full duplex, wired, asynchronous serial communication
was developed by EIA in 1960s
Extends UART communication for external data communication
follows EIA standard for bit transmission
according to EIA logic 0 = +3v to +25v, Space
logic 1 = -3v to -25v, Mark
supports 2 different types of connectors
DB-9 9 pins connector
DB-25 25 pins connector
RS 232 point to point communication
Devices involved Data Terminal Equipment (DTE)
Data Communication Equipment (DCE)
63. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 63
The Typical Embedded System
Communication Interface
No control signals are required
only TXD and RXD lines and Gnd line are required
the RXD pin of DCE must be connected to TXD pin of DTE and vice versa for
proper communication
Request to send (RTS) and Clear to send (CTS) coordinate the communication
between DTE and DCE
DTE ----------------------------- DCE
DTE activates RTS line
DTE -----------------------------DCE
As per EIA RS 232 supports Baud rate upto 20Kbps
Commonly used Baud rates are 300bps, 1200 bps, 2400 bps, 9600 bps,
11.52 kbps, 19.2 kbps
DCE activates CTS line
DCE sends DCD (Data carrier Detect) to indicate good signal is received
DTE activates Data Terminal Ready (DTR) if ready to accept
DCE activates Data Set Ready (DSR) when it wants to send data
64. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 64
The Typical Embedded System
Communication Interface
distance supported is 50 feet with full speed
Embedded systems contain UART for serial communication. A level transistor IC
from Maxim Dallas semiconductor is used for converting the signal lines from UART
to RS 232 signal lines for external communication
RS 232 supports only point to point communication and not suited for multiple
drop communication
more susceptible to noise, reduced operating distance
RS 422 supports data rates upto 100 Kbps and distance of 400 ft
Same RS 232 is used at device end RS 232 – RS422 converter is plugged-in and
at the receiver end RS 422 to RS 232 converter is used
RS 422 supports multi drop communication with one transmitter and upto 10
receivers
RS 485 is enhanced version of RS 422 and it supports upto 32 transmitters and
32 receivers
65. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 65
The Typical Embedded System
Communication Interface
Universal Serial Bus (USB):
Wired high speed serial bus
first version USB 1.0 was released in 1995 and created by USB core group
members including Intel, Microsoft, IBM, Compaq, Digital & Northern Telecom
follows star topology with USB host at center and one or more USB peripheral
devices/USB hosts connected to it.
USB communication is initiated by host
USB host is made up of USB controller,
which is responsible for controlling the
data communication, establishing
connectivity with USB slave devices,
Packetizing and formatting the data
USB transmits data in packet form and each packet
has standard format
66. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 66
The Typical Embedded System
Communication Interface
Open Host Control Interface (OHCI)
2 different standards for USB host control interface:
Universal Host Control Interface (UHCI)
Physical connection between USB peripheral device and master device is established
using a USB cable. This cable supports communication distance upto 5 meters.
USB standards use 2 types of connectors (at the end of USB cable):
‘Type A’ for upstream connection (connection with host)
‘Type B’ for downstream connection (connection with slave)
Both Type A and Type B have 4 pins:
Vbus Carrier power (5V)
D- differential data carrier line
D+ differential data carrier line
GND Ground Signal line
67. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 67
The Typical Embedded System
Communication Interface
Uses differential signals for data transfer. This increases the immunity of signal
USB interface has ability to supply power to connecting devices. 2 pins (power &
GND) is dedicated for carrying power. Can carry upto 500mA at 5V enough for low
power devices.
USB devices must have:
Product ID (PID)
Vendor ID(VID)
USB supports 4 different types of data transfer:
1. Control
2. Bulk
3. Isochronous
4. Interrupt
query, configure, issue commands to USB Drivers
Sending block of data, supports error checking & correction(data to printer)
Real time data communication, data is transmitted as streams
(audio devices, medical equipments)
Small amount of data, uses polling checks whether USB device has
any data to send
68. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 68
The Typical Embedded System
Communication Interface
USB supports 4 different rates:
Low speed
full speed
High speed
Super speed
5 Mbps USB 1.0
12 Mbps USB 1.0
480 Mbps USB 2.0
4.8 Gbps USB 3.0
IEEE 1394 (Firewire):
Wired, synchronous, high speed serial communication bus
also known as High Performance Serial Bus
supports peer to peer connection and point to multi point communication allowing
63 devices to be connected on bus in a tree topology
Apple Inc.
Sony Corp.
Texas Instruments
Firewire
I LINK
Lynx
it’s a wired technology and it can support a cable length of upto 15 feet for
interconnection
implementation from different manufacturers with different
name
69. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 69
The Typical Embedded System
Communication Interface
As evolved from IEEE 1394 1995 - IEEE 1394 2008
Supports a data rate of 400 to 3200 Mbps
Uses differential data transfer & interface cable supports 3 types of connectors
namely: 4 pins connector
6 pin connector (alpha connector)
9 pin connector (beta connector)
6 pin & 9 pin connectors also carries power ranging from 24 to 30V
Pin name 4
pin
6
pin
9
pin
Power 1 8
Signal ground 2 6
TPB- 1 3 1
TPB+ 2 4 2
TPA- 3 5 3
TPA+ 4 6 4
TPA(s) 5
TPB(s) 9
NC 7
There are 2 differential lines A & B normally
differential lines of A are connected to B and vice versa.
Popular communication interface for connecting
embedded devices like camera, scanners, camcorders to
desktop for data transfer and storage
Data rate supported by 1394 is for higher than the one
supported by USB
1394 implementation is much costlier than USB
implementation
70. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 70
The Typical Embedded System
Communication Interface
Infrared(IrDA):
serial, half duplex, line of sight based wireless technology
remote control of TV, VCD etc. works on infrared technology
uses infrared waves of electromagnetic spectrum for transmitting the data
supports point to point and point to multi point communication provided all devices
involved are within line of sight.
typical range lies in 10cm to 1m, can be increased by increasing transmitting power
of IR device.
supports data rates ranging from 9600bps to 16Mbps
Depending upon speed of data transmission IR is classified into
Serial IR (SIR)
Medium IR (MIR)
Fast (FIR)
Very Fast IR (VFIR)
9600bps to 115.2 Kbps
0.576 Mbps to 1.152 Mbps
Upto 4 Mbps
Upto 16Mbps
Ultra Fast IR (UFIR) targeting 100Mbps
(Developing Phase)
71. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 71
The Typical Embedded System
Communication Interface
IrDA communication involves a transmitter unit for transmitting the data over
IR and Receiver for receiving data
Infrared LED is the IR source for transmitter and at the receiving end a photo
diode acts as receiver
usually most of Ir-devices contains both transmitter and receiver called as
transreceiver for bidirectional communication
some of the devices have either TxD or RxD.
Example: TV remote control system
TV Remote
TV
TxD
RxD
Infrared Data Association (IrDA) is regulatory body responsible for defining and
licensing the specification for IR data.
IrDA communication has 2 parts
A physical link part
A protocol part
physical transfer of data
Defining rules for communication
72. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 72
The Typical Embedded System
Communication Interface
Control protocol contains implementation for Physical layer (PHY), Media
Access Control (MAC) and Logical Link Control (LLC)
physical layer defines physical characteristics like range, data rates, power etc.
IrDA is popular for file exchange and data transfer in low cost devices.
IrDA was widely used before the discovery of Bluetooth
Bluetooth:
Low cost, low power, short range, wireless technology for data and voice communication
was first proposed by Ericsson in 1994
operates at 2.4 GHz of Radio Frequency spectrum and uses Frequency Hopping
Spread Spectrum (FHSS) technique for communication
supports data rate of upto 1Mbps and range of 30 feet
Similar to IrDA, Bluetooth has 2 essential parts
A physical link part
A protocol part
physical transmission of data between the device using wireless
principles of RF waves
Defining rules for communication
73. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 73
The Typical Embedded System
Communication Interface
Each bluetooth device will have a 48 bit Unique Identification Number(UIN).
Bluetooth follows packet based data transfer
Bluetooth supports point to point and point to multi point communication.
point to point master slave approach
point to multi point1 master more slaves Piconet
A Piconet supports maximum of 7 slaves
Bluetooth is favorite choice for short range communication in handheld devices. Very
popular for cell phones for transferring ringtones, music files, pictures, media files etc.
Generic Access Profile (GAP) defines the requirement for detecting a Bluetooth
device and establishing a connection with it
Serial Port Profile (SPP) defines serial data communication
File Transfer Profile (FTP) defines file transfer between devices
Human Interface Devices (HID) for supporting human interface devices like keypad,
mouse etc.
Bluetooth Special Interest Group (SIG) defines specification and license the
specification.
74. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 74
The Typical Embedded System
Communication Interface
Wi-Fi (Wireless Fidelity):
popular for networked communication of devices
follows IEEE 802.11 standard
essential to have device identities in a multi point communication to address
specific device for communication
In Internet Protocol communication each device is identified by an IP address
unique to each device on a network
Wi-Fi communication requires an intermediate agents called Wi-Fi router. Wireless
Access Port(WAP) •Assigning IP address to a device on network
•Routing data packets to intended devices on network
Wi-Fi enabled devices contains a wireless adaptor for transmitting and receiving data
in the form of radio signals through an antenna H/W part is called as Wi-Fi Radio
For communicating with devices over a Wi-Fi network, Wi-Fi Radio when turned ON,
it searches for the available Wi-Fi network in its vicinity & list out the Service Set
Identifier (SSID) of available networks.
75. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 75
The Typical Embedded System
Communication Interface
If network security is enabled, Password will be required
employs Wired Equivalency Privacy (WEP) and Wireless Protected Access (WPA)
for data security
data rates 1 Mbps to 150 Mbps depending on type of antenna and
location(outdoor/indoor) usage
Operating range is 100 to 300 feet
low power, low cost, wireless network communication protocol
based on IEEE 802.15-2006 standard.
Zig-Bee:
targeted for low power, low data rates and secure applications for wireless Personal
Area Networking (WPAN)
supports mesh-networking containing multiple nodes. Mesh topology makes network
more reliable as it provides multiple paths to get data from one node to another,
operates at 3 frequency ranges 2.4 to 2.484 GHz
902 to 928 MHz
868.0 to 868.6 MHz
76. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 76
The Typical Embedded System
Communication Interface
operating range is of 100 mts and data rates of 20-250 Kbps
In Zig Bee network each device falls under any one of
following devices:
Zig Bee coordinator/Network Coordinator(ZC)
acts as root of ZigBee network
has capability to store more information about the
network
Zig Bee Router (ZR)/Full Function Device (FFD)
responsible for transmitting data from device to other or
to another ZigBee Router
Zig Bee End Device (ZED)/Reduced Function Device (RFD)
contains ZigBee functionality for communication. It can talk with ZC/ZR, cannot
transmit data from one device to other directly
targeting applications: home & industrial automation, energy management,
home control/security, medical/patient tracking, logistics and asset tracking,
Automatic Meter Reading (AMR), Smoke Detectors, HVAC control, Heat & light
Control
Specification for ZigBee is developed & Managed by ZigBee Alliance
77. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 77
The Typical Embedded System
Communication Interface
General Packet Radio Service (GPRS):
Communication technique for transferring data over a mobile communication
network like GSM (Global System for Mobile communication)
data is sent as packets
TxDing device splits data into several related packets
At RxDing end, data is reconstructed by combining received data packets.
theoretical maximum data rate of 171.2 Kbps
radio channel is concurrently shared by several users, instead of single user.
Divides the channel into 8 time slots and data is transmitted over available channel.
78. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 78
Topics to be covered:
Definition
Embedded systems vs. General Computing Systems
Core of the Embedded System
Memory
Sensors and Actuators
Communication Interface
Embedded Firmware
Other System Components
PCB and Passive Components
The Typical Embedded System
79. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 79
The Typical Embedded System
Embedded Firmware
Embedded firmware refers to the control algorithm (Program instructions) and or
the configuration settings that an embedded system developer dumps into the code
(Program) memory of the embedded system.
It is an un-avoidable part of an embedded system. There are various methods
available for developing the embedded firmware. They are listed below.
1. Write the program in high level languages like Embedded C/C++ using an
Integrated Development Environment (The IDE will contain an editor, compiler,
linker, debugger, simulator, etc.
IDEs are different for different family of processors/controllers. For
example, Keil micro vision3. IDE is used for all family members of 805/
microcontroller, since it contains the generic 8051 compiler C51).
2. Write the program in Assembly language using the instructions supported by
your application‘s target processor/controller. The instruction set for each family
of processor/controller is different
80. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 80
The Typical Embedded System
Embedded Firmware
The program written in either of the methods given above should be converted
into a processor understandable machine code before loading it into the program
memory.
The process of converting the program written in either a high level language or
processor/specific Assembly code to machine readable binary code is called "HEX
File Creation".
The methods used for 'HEX File Creation' is different depending on the
programming techniques used.
If the program is written in Embedded C/C++ using an IDE, the cross compiler
included in the IDE converts it into corresponding processor/controller
understandable HEX File'.
If you are following the Assembly language based programming technique
(method 2), you can use the utilities supplied by the processor/controller vendors
to convert the source code into 'HEX File'.
Also third party tools are available, which may be of free of cost, for this
conversion.
81. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 81
The Typical Embedded System
Embedded Firmware
For a beginner in the embedded software field, it is strongly recommended to use
the high level language based development technique.
The reasons for this being: writing codes in a high level language is easy, the code
written in high level language is highly portable which means you can use the same
code to run on different processor/controller with little or less dification.
The only thing you need to do is re-compile the program with the required
processor's IDE, after replacing the include files for that particular processor. Also
the programs written in high level languages are not developer dependent.
Any skilled programmer can trace out the functionalities of the program by just
having a look at the program. It will be much easier if the source code contains
necessary comments and documentation lines.
It is very easy to debug and the overall system development time will be reduced
to a greater extent.
The embedded software development process in assembly language is tedious and
time consuming.
82. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 82
The Typical Embedded System
Embedded Firmware
The developer needs to know about all the instruction sets of the
processor/controller or at least he/she should carry an instruction set reference
manual with her/him.
A programmer using assembly language technique writes the program according
to his/her view and taste.
Often he/she may be writing a method or functionality which can be achieved
through a single instruction as an experienced person‘s point of view, by two or
three instructions in his/her own style.
So the program will be highly dependent on the developer. It is very difficult for a
second person to understand the code written in Assembly even if it is well
documented.
Two types of control algorithm design exist in embedded firmware development.
infinite loop or super loop based approach
with splitting the functions to be executed into tasks and running these tasks
using a scheduler
83. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 83
The Typical Embedded System
Embedded Firmware
The first type of control algorithm development is known as the infinite loop or
super loop based approach, where
the control flow runs from top to bottom and then jumps back to the
top of the program in a conventional procedure.
It is similar to the while (1) { }; based technique in C.
The second method deals with
splitting the functions to be executed into tasks and running these
tasks using a scheduler which is part of a General Purpose or Real Time Embedded
Operating System (GPOS/RTOS).
84. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 84
Definition
Embedded systems vs. General Computing Systems
Core of the Embedded System
Memory
Sensors and Actuators
Communication Interface
Embedded Firmware
Other System Components
PCB and Passive Components
Topics to be covered:
The Typical Embedded System
85. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 85
The Typical Embedded System
Other System Components
The other system components refer to the components/circuits /ICs which are
necessary for the proper functioning of the embedded system.
Some of these circuits may be essential for the proper functioning of the
processor/controller and firmware execution.
Watchdog timer, Reset IC (or passive circuit), brown-out protection IC (or
passive circuit), etc.
Some of the controllers or SoCs integrate these components within a single IC
and doesn't require such components externally connected to the chip for proper
functioning.
Depending on the system requirement, the embedded system may include other
integrated circuits for performing specific functions, level translator ICs for
interfacing circuits with different logic levels, etc.
86. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 86
The Typical Embedded System
Other System Components
Reset Circuit:
The reset circuit is essential to ensure that the device is not operating at a voltage
level where the device is not guaranteed to operate, during system power ON.
The reset signal brings the internal registers and the different hardware systems of
the processor/controller to a known state and starts the firmware execution from the
reset vector
(Normally from vector address 0x0000 for conventional
processors/controllers. The reset vector can be relocated to an address for
processors/controllers supporting boot loader).
The reset signal can be either active high (The processor undergoes reset when the
reset pin of the processor is at logic high) or active low (The processor undergoes
reset when the reset pin of the processor is at logic low).
Since the processor operation is synchronized to a clock signal, the reset pulse
should be wide enough to give time for the clock oscillator to stabilize before the
internal reset state starts.
87. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 87
The Typical Embedded System
Other System Components
The reset signal to the processor can be applied at power ON through an external
passive reset circuit comprising a Capacitor and Resistor or through a standard Reset
IC like MAX810 from Maxim Dallas (www.maxim-ic.com).
Select the reset IC based on the type of reset signal and logic level (CMOS/TTL)
supported by the processor/controller in use.
Some microprocessors/controllers contain built-in internal reset circuitry and they
don't require external reset circuitry.
Figure illustrates a resistor capacitor
based passive reset circuit for active high
and low configurations.
The reset pulse width can be adjusted by
changing the resistance value R and
capacitance value C.
88. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 88
The Typical Embedded System
Other System Components
Brown-out Protection Circuit:
Brown-out protection circuit prevents the processor/controller from unexpected
program execution behavior when the supply voltage to the processor/controller falls
below a specified voltage.
It is essential for battery powered devices since there are greater chances for the
battery voltage to drop below the required threshold. The processor behavior may not
be predictable if the supply voltage falls below the recommended operating voltage. It
may lead to situations like data corruption.
A brown-out protection circuit holds the processor/controller in reset state, when
the operating voltage falls below the threshold, until it rises above the threshold
voltage.
Certain processors/controllers support built in brown-out protection circuit which
monitors the supply voltage internally. If the processor/controller doesn't integrate a
built-in brown-out protection circuit, the same can be implemented using external
passive
89. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 89
The Typical Embedded System
Other System Components
Figure illustrates a brown-out with Active low
output circuit implementation using Zener diode and
transistor for processor/controller with active low
Reset logic,
The Zener diode Dz and transistor Q forms the heart
of this circuit. The transistor conducts always when
the supply voltage Ve is greater than that of the sum
of VBE and VZ (Zener voltage).
The transistor stops conducting when the supply voltage falls below the sum of VBE
and VZ. Select the Zener diode with required voltage for setting the low threshold
value for Vcc.
The values of R1, R2, and R3 can be selected based on the electrical characteristics
(Absolute maximum current and voltage ratings) of the transistor in use.
Microprocessor Supervisor ICs like DS1232 from Maxim Dallas (www.maximis.com)
also provides Brown-out protection.
90. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 90
The Typical Embedded System
Other System Components
Oscillator Unit :
A microprocessor/microcontroller is a digital device made up of digital
combinational and sequential circuits. The instruction execution of a
microprocessor/controller occurs in sync with a clock signal.
It is analogous to the heartbeat of a living being which synchronises the execution of
life. For a living being the heart is responsible for the generation of the beat whereas
the oscillator unit of the embedded system is responsible for generating the precise
clock for the processor.
Certain processors/controllers integrate a built-in oscillator unit and simply
require an external ceramic resonator/quartz crystal for producing the necessary
clock signals. Quartz crystals and ceramic resonators are equivalent in operation,
however they possess physical difference.
A quartz crystal is normally mounted in a hermetically sealed metal case with two
leads protruding out of the case.
91. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 91
The Typical Embedded System
Other System Components
Certain devices may not contain a built-in oscillator unit and require the clock
pulses to be generated and supplied externally. Quartz crystal Oscillators are available
in the form chips and they can be used for generating the clock pulses in such a cases.
The speed of operation of a processor is primarily dependent on the clock frequency.
However we cannot increase the clock frequency blindly for increasing the speed of
execution.
The logical circuits lying inside the processor always have an upper threshold value
for the maximum clock at which the system can run, beyond which the system
becomes unstable and non functional.
The total system power consumption is directly proportional to the clock
frequency. The power consumption increases with increase in clock frequency.
The accuracy of program execution depends on the accuracy of the clock signal.
The accuracy of the crystal oscillator or ceramic resonator is normally expressed in
terms of +/-ppm (Parts per million).
92. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 92
The Typical Embedded System
Other System Components
Figure illustrates the usage of quartz crystal/ceramic resonator and external oscillator chip for
clock generation.
Real-Time Clock (RTC):
Real-Time Clock (RTC) is a system component responsible for keeping track of time. RTC holds
information like current time (In hours, minutes and seconds) in 12 hour/24 hour format, date,
month, year, day of the week, etc. and supplies timing reference to the system. RTC is intended to
function even in the absence of power.
93. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 93
The Typical Embedded System
Other System Components
RTCs are available in the form of Integrated Circuits from different semiconductor manufacturers
like Maxim/Dallas, ST Microelectronics etc.
The RTC chip contains a microchip for holding the time and date related information and
backup battery cell for functioning in the absence of power, in a single IC package. The RTC chip is
interfaced to the processor or controller of the embedded system.
For Operating System based embedded devices, a timing reference is essential for
synchronizing the operations of the OS kernel.
The RTC can interrupt the OS kernel by asserting the interrupt line of the
processor/controller to which the RTC interrupt line is connected.
The OS kernel identifies the interrupt in terms of the Interrupt Request (IRQ) number
generated by an interrupt controller.
One IRQ can be assigned to the RTC interrupt and the kernel can perform necessary operations
like system date time updation, managing software timers etc when an RTC timer tick interrupt
occurs.
The RTC can be configured to interrupt the processor at predefined intervals or to interrupt the
processor when the RTC register reaches a specified value (used as alarm interrupt)
94. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 94
The Typical Embedded System
Other System Components
Watchdog Timer:
In desktop Windows systems, if we feel our application is behaving in an abnormal
way or if the system hangs up, we have the "Ctrl + Alt + Del‘’ to come out of the
situation. What if it happens to our embedded system? Do we really have a "Ctrl + Alt +
Del' to take control of the situation?
Of course not, but we have a watchdog to monitor the firmware execution and reset
the system processor/ microcontroller when the program execution hangs up
A watchdog timer, or simply a watchdog, is a hardware timer for monitoring the
firmware execution.
Depending on the internal implementation, the watchdog timer increments or
decrements a free running counter with each clock pulse and generates a reset signal
to reset the processor if the count reaches zero for a down counting watchdog, or the
highest count value for an upcounting watchdog.
95. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 95
The Typical Embedded System
Other System Components
If the watchdog counter is in the enabled state, the firmware can write a
zero (for upcounting watchdog implementation) to it before starting the execution of a piece
of code (subroutine or portion of code which is susceptible to execution hang up) and the
watchdog will start counting.
If the firmware execution doesn't complete due to malfunctioning, within the time required
by the watchdog to reach the maximum count, the counter will generate a reset pulse and
this will reset the processor (if it is connected to the reset line of the processor).
If the firmware execution completes before the expiration of the watchdog timer you can
reset the count by writing a 0 (for an upcounting watchdog timer) to the watchdog timer
register.
Most of the processors implement watchdog as a built-in component and provides status
register to control the watchdog timer (like enabling and disabling watchdog functioning)
and watchdog timer register for writing the count value. If the processor/controller doesn't
contain a built in watchdog timer, the same can be implemented using an external watchdog
timer IC circuit.
96. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 96
The Typical Embedded System
Other System Components
The external watchdog timer uses hardware logic for enabling/disabling, resetting
the watchdog count, etc instead of the firmware based writing to the status and
watchdog timer register. The Microprocessor supervisor IC DS1232 integrates a
hardware watchdog timer in it.
In modern systems running on embedded operating systems, the watchdog can be
implemented in such a way that when a watchdog timeout occurs, an interrupt is
generated instead of resetting the processor. The interrupt handler for this handles
the situation in an appropriate fashion.
Figure illustrates the implementation of
watchdog timer:
97. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 97
Definition
Embedded systems vs. General Computing Systems
Core of the Embedded System
Memory
Sensors and Actuators
Communication Interface
Embedded Firmware
Other System Components
PCB and Passive Components
Topics to be covered:
The Typical Embedded System
98. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 98
The Typical Embedded System
PCB and Passive Components
Printed Circuit Board (PCB) is the backbone of every embedded system. After
finalizing the components and the inter-connection among them, a schematic design
is created and according to the schematic the PCB is fabricated.
PCB acts as a platform for mounting all the necessary components as per the design
requirement. Also it acts as a platform for testing your embedded firmware.
Apart from the above-mentioned important subsystems of an embedded system, you
can find some passive electronic components like resistor, capacitor, diodes, etc. on
your board. They are the co-workers of various chips contained in your embedded
hardware.
They are very essential for the proper functioning of your embedded system. For
example for providing a regulated ripple-free supply voltage to the system, a regulator
IC and spike suppressor filter capacitors are very essential.
99. Prepared by Prof. Anand H. D., Dept. of ECE, Dr. AIT, Bengaluru-56 52
Reference
Shibu K V, “Introduction to Embedded
Systems”, First Edition, Tata McGraw Hill
Education Private Limited, 2009
For Further Studies:
The Typical Embedded System
100. 100
Prof. Anand H. D.
M. Tech. (PhD.)
Assistant Professor,
Department of Electronics & Communication Engineering
Dr. Ambedkar Institute of Technology, Bengaluru-56
Email: anandhd.ec@drait.edu.in
Phone: 9844518832
