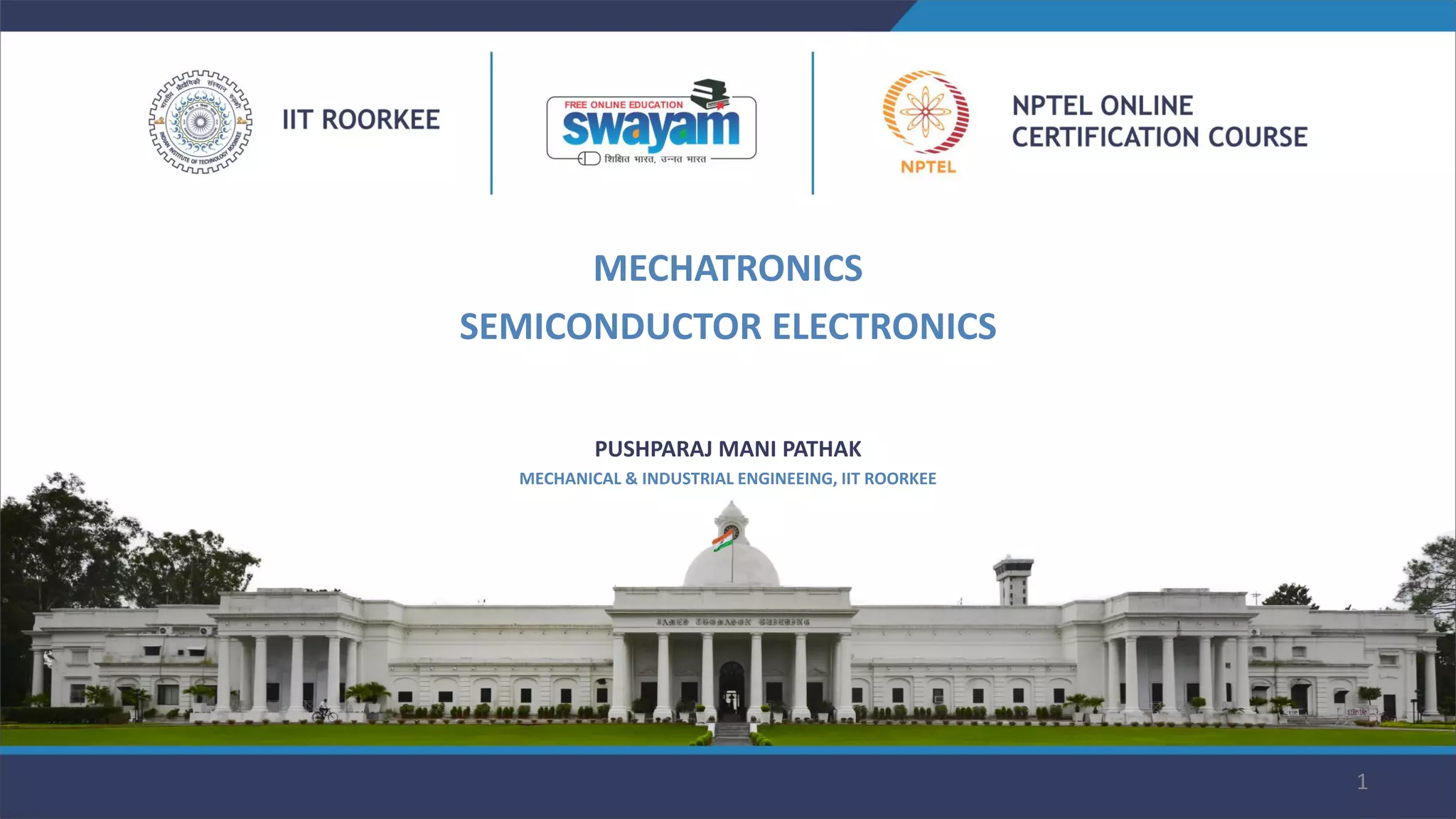

1. MECHATRONICS
SEMICONDUCTOR ELECTRONICS
PUSHPARAJ MANI PATHAK
MECHANICAL & INDUSTRIAL ENGINEEING, IIT ROORKEE
1

2. Introduction
• One needs to understand the physical characteristics of
semiconductors, used in electronic circuits.
• We will see the physics of semiconductors, and learn how
electronic components are designed using different types of
semiconductor materials.
• We also learn the circuit schematic symbols for different
semiconductor diodes and transistors, and use the devices in
circuit design.
2

3. Energy bands in conductor, insulator, semiconductors
• In materials there are three bands.
• Valence band and conduction
band are separated by forbidden
band.
• In metals large number of weakly
bound electrons in conduction
band are there.
• When voltage is applied to metals,
the electrons migrate freely
producing a current.
3

4. Valence and Conduction Bands of Materials
• In conductors, valence
electrons are loosely
bound.
• In insulators valence
electrons are tightly
bound.
• Class of materials,
elements in group IV of
the periodic table, have
properties between
conductors and insulators.
• They are called
semiconductors.
4

5. • Elements of group IV of periodic table are silicon and
germanium.
• The properties of pure semiconductor crystals can be
significantly changed by inserting small quantities of elements
from group III or group V of the periodic table into the crystal
lattice of the semiconductor.
• These elements, known as dopants.
5

6. • Silicon has four valence electrons.
• If Arsenic or phosphorous of group V is added to the
crystal lattice, one of the five valence electrons in each
dopant atom remains freer to move around.
• The dopant is called a donor.
• The resulting semiconductor is called n-type silicon due
to the electrons available in the crystal lattice as charge
carriers.
6

7. • If the silicon is doped with boron or gallium from group III,
holes form due to missing electrons in the lattice where
acceptor dopant atoms have replaced silicon atoms.
• This is because the dopant atom only has three valence
electrons.
• A hole can jump from atom to atom, producing a positive
current.
• This type semi conductor is called p-type.
7

8. 8
pn Junction Characteristics
0.6–0.7 V

9. • In forward bias as the applied voltage approaches the value of the contact
potential (0.6–0.7 V for silicon), the current increases exponentially
𝐼𝐷 = 𝐼0 𝑒
𝑞𝑉𝐷
𝑘𝑇 − 1
• where ID is the current through the junction,
• I0 is the reverse saturation current,
• q is the charge of one electron (1.60×10-19 C),
• k is Boltzmann’s constant (1.381×10-23 J/K),
• VD is the forward bias voltage across the junction,
• T is the absolute temperature of the junction in Kelvin
• In case of reverse bias a reverse saturation current (I0 ) does flow, but it is
very small ( of the order of 10-9 to 10-15 A).
9

10. Silicon Diode
• A pn junction passes
current in only one
direction.
• It is known as a silicon
diode and is sometimes
referred to as a rectifier.
10

11. 11
Examples of Common Diodes
Introduction to Mechatronics: D.G. Alciatore &
Michael B. Histand; Tata Mc Graw Hill, 4th Edition

12. 12

13. 13
Ideal, Approximate and Real Diode Curves

14. Half Wave Rectifier Circuit Assuming an Ideal Diode
• When Vi is +ve diode is
reverse bias so behaves as
open circuit thus no current
flows through resistance so
Vo=Vi
• When Vi is –ve, diode is
forward bias equivalent to
short circuit thus no voltage
drops across diode so Vo =0
14

15. Ac-to-dc Converter With Full-bridge Rectifier
15

16. Full-bridge Rectifier Action
16

17. Diode Bridges
17

18. ▪ The cylindrical device on the right in the photograph has a
current limit of 1A. Physically, it is 7 mm high, and 10 mm in
diameter.
▪ The flat device on the left has a current limit of 4A. It is has a
thickness of 6 mm, is 16 mm in height, and 19 mm in width.
▪ photograph on the right shows a large, high-power diode
bridge.
▪ It has a current capacity of 15A. The peak reverse-bias voltage
is 400V.
18

19. Zener Diode (avalanche, or voltage-regulator diodes)
• Most diode breakdown voltage is 50 V.
• These have steep breakdown curves with well defined
breakdown voltage.
• Thus maintains nearly constant voltage over a wide range of
currents.
• Thus they are good voltage regulators.
• To properly use the zener diode in a circuit, the zener should
be reverse biased with a voltage kept in excess of its
breakdown or zener voltage Vz .
19

20. 20

21. Zener as voltage regulator
21
𝐼𝑧 =
𝑉𝑖 − 𝑉
𝑧
𝑅
Using KVL
∆𝐼𝑧=
∆𝑉𝑖 − ∆𝑉
𝑧
𝑅
• This tells how change in current is related to change in voltage.
• The zener diode is a nonlinear circuit element, and therefore Vz is not
directly proportional to Iz

22. • However, it is useful to define a dynamic resistance Rd that is
the slope of the zener characteristic curve at a particular
operating point.
∆𝐼𝑧=
∆𝑉
𝑧
𝑅𝑑
So on substitution we can get
∆𝑉
𝑜 = ∆𝑉
𝑧 =
𝑅𝑑
𝑅𝑑+𝑅
∆𝑉𝑖
22

23. Light Emitting Diode
• LED are diodes that
emit photons when
forward bias
23

24. Photodiode
• These are designed to detect
photons and can be used in
a circuit to sense light.
24

25. Transistors
• Bipolar Junction Transistor
• Field Effect Transistors
25

26. Bipolar Junction Transistor
• A bipolar junction transistor (BJT), consists of three adjacent
regions of doped silicon, each of which is connected to an
external lead.
• There are two types of BJTs: npn and pnp transistors
• It consists of a thin region or layer of p-type silicon
sandwiched between two layers of n-type silicon.
• Three leads are connected to the three regions, and they are
called the collector, base, and emitter.
26

27. npn Bipolar Junction Transistor
• The n-type
silicon in the
emitter is more
heavily doped
than the
collector
• So the collector
and emitter are
not
interchangeable.
27

28. • VCE is the voltage between the collector and emitter,
• VBE is the voltage between the base and emitter.
𝑉𝐵𝐸 = 𝑉𝐵 − 𝑉𝐸
𝑉𝐶𝐸 = 𝑉𝐶 − 𝑉𝐸
𝐼𝐸 = 𝐼𝐵 + 𝐼𝐶
• Normally VC>VB>VE so BE jn forward bias; BC jn is reverse bias
• IB controls IC, acts as current amplifier.
• 𝐼𝐶 = 𝛽𝐼𝐵
• Transistor connections are common base, common emitter and
common collector.
28

29. References
• W. Bolton, Mechatronics: Electronic Control Systems in
Mechanical and Electrical Engineering (6th Edition), Pearson,
2015
• D.G. Alciatore and Michael B. Histand, Introduction to
Mechatronics, Tata Mc Graw Hill, 2012.
29
