introduction to rotating machines

•Download as PPTX, PDF•

7 likes•3,951 views

The document discusses rotating electrical machines such as generators and motors. It covers topics such as: - The basic components of rotating machines including stators, rotors, field windings, and armature windings. - How electromechanical energy conversion occurs through relative movement between coils and magnetic fields. - Different types of rotor designs for low and high speed applications. - Constructional features of synchronous and induction machines including placement of field and armature windings. - Types of windings used in three-phase alternators such as star and delta connections.

Mr. D. GaneshElectrical Science – II
INTRODUCTION TO ROTATING MACHINES

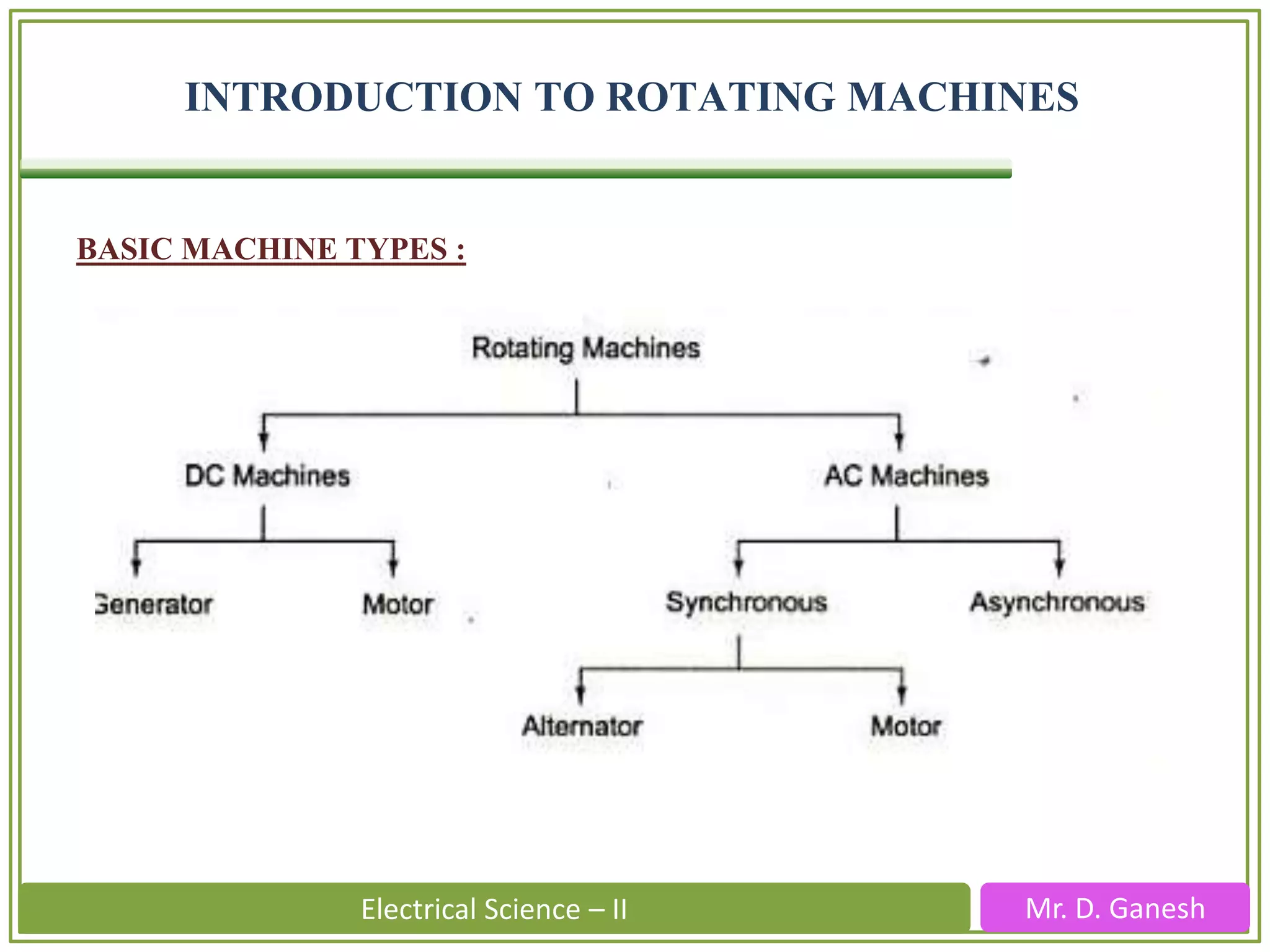

BASIC MACHINE TYPES :

Mr. D. GaneshElectrical Science – II
INTRODUCTION TO ROTATING MACHINES

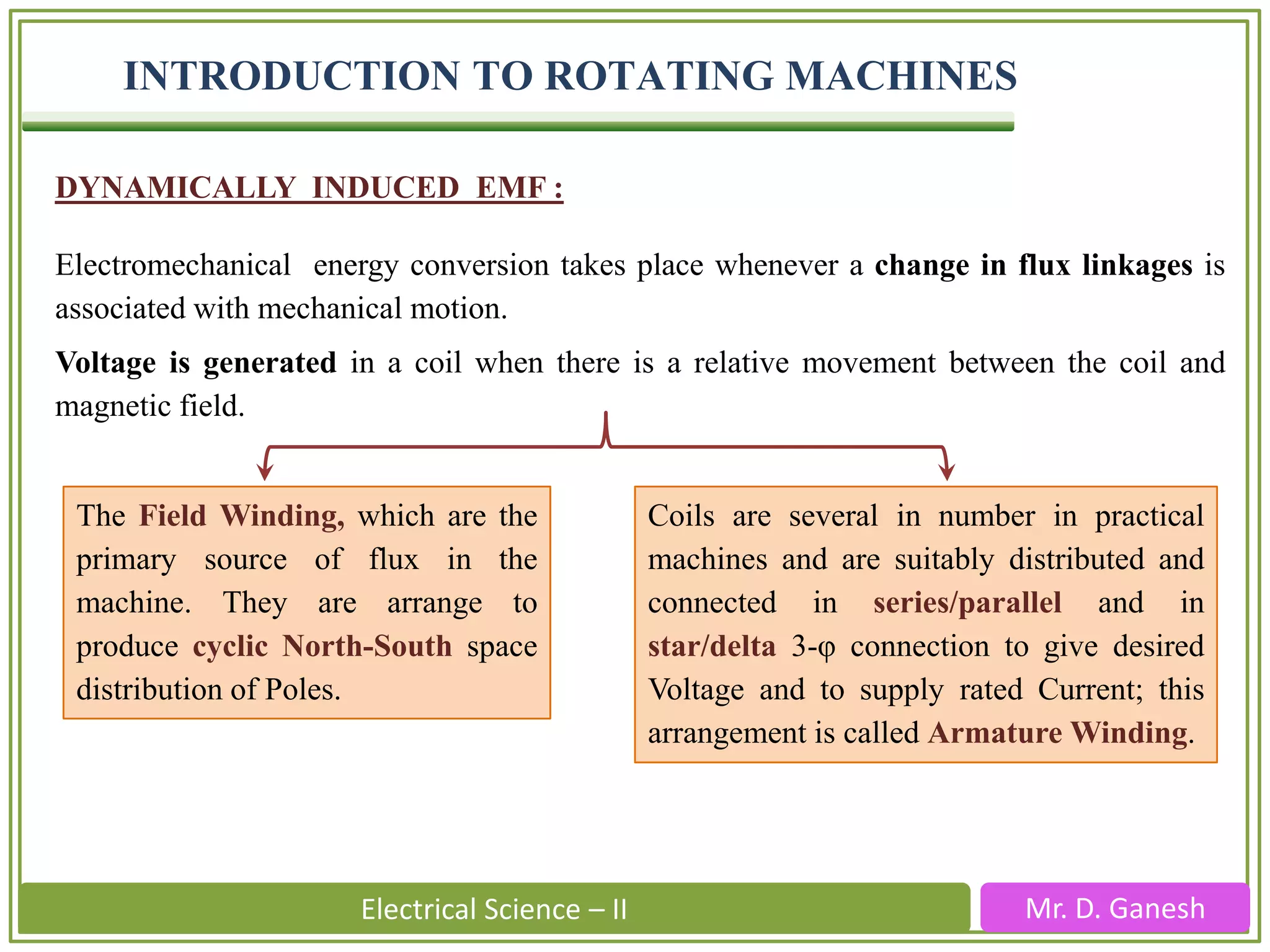

DYNAMICALLY INDUCED EMF :
Electromechanical energy conversion takes place whenever a change in flux linkages is
associated with mechanical motion.
Voltage is generated in a coil when there is a relative movement between the coil and
magnetic field.
The Field Winding, which are the
primary source of flux in the
machine. They are arrange to
produce cyclic North-South space
distribution of Poles.
Coils are several in number in practical
machines and are suitably distributed and
connected in series/parallel and in
star/delta 3-φ connection to give desired
Voltage and to supply rated Current; this
arrangement is called Armature Winding.

Mr. D. GaneshElectrical Science – II
INTRODUCTION TO ROTATING MACHINES
WHERE TO PLACE FIELD & ARMATURE WINDINGS ?
Stationary Member Rotating Member
STATOR ROTOR

Mr. D. GaneshElectrical Science – II
INTRODUCTION TO ROTATING MACHINES
ROTATING MACHINES :
Electric Generator (TPM=TG) : TPM :Prime mover Torque
TG: Generator Torque
Electric Motor (TM=TL) : TM :Motor Torque
TL: Load Torque

Mr. D. GaneshElectrical Science – II
INTRODUCTION TO ROTATING MACHINES
CONSTRUCTIONAL FEATURES :
STATOR ROTOR
Field Winding Armature WindingIn General
In Case of Synchronous Machines
Field WindingArmature Winding
These are DC exited to produce
alternate N-S poles in pairs
The interaction between primary field and current carrying armature
conductors causes production of torque of electromagnetic origin.

Mr. D. GaneshElectrical Science – II
INTRODUCTION TO ROTATING MACHINES
Salient-pole Rotor
Non-Salient-pole Rotor (Cylindrical Rotor)
For Low Speed Applications
For High Speed Applications

Mr. D. GaneshElectrical Science – II
INTRODUCTION TO ROTATING MACHINES
1. Field wdgs are placed on rotor and
stator carries armature wdgs.
2. The field wdgs are excited through
slip-rings from a DC Source.
3. Generally a small DC Generator
called exited is coupled to the shaft of
the synchronous machine.

Mr. D. GaneshElectrical Science – II
INTRODUCTION TO ROTATING MACHINES
1. Field wdgs are placed on stator and
Rotor carries armature wdgs.
2. AC voltages and Currents induced in
the armature wdg has to converted to
DC using rotational mechanical
converter called commutator.

Mr. D. GaneshElectrical Science – II
INTRODUCTION TO ROTATING MACHINES
1. The stator carries 3-φ wdg , which when excited by 3-φ
ac source that sets up rotating flux pattern with N-S poles
in the air-gap at synchronous speed.
2. Armature wdgs are short circuited.

Mr. D. GaneshElectrical Science – II
INTRODUCTION TO ROTATING MACHINES
FLUX DENSITY DISTRIBUTION IN ELECTRICAL MACHINES:
To generate Sinusoidal flux , the pole faces in
such a machine are there fore CLAMPERED.

Mr. D. GaneshElectrical Science – II
INTRODUCTION TO ROTATING MACHINES
ELECTRICAL Vs MECHANICAL ANGLES:
θele = (P/2) θ mech

Mr. D. GaneshElectrical Science – II
INTRODUCTION TO ROTATING MACHINES
FLUX DENSITY DISTRIBUTION IN ELECTRICAL MACHINES:
Another method of achieving a
nearly sinusoidal B-wave is to use
cylindrical rotor structure.

Mr. D. GaneshElectrical Science – II
INTRODUCTION TO ROTATING MACHINES
THREE PHASE ALTERNATOR (GENERATOR )- WINDING TYPES

Mr. D. GaneshElectrical Science – II
INTRODUCTION TO ROTATING MACHINES
THREE PHASE ALTERNATOR (GENERATOR )- WINDING TYPES
θele = (P/2) θ mech

Mr. D. GaneshElectrical Science – II
INTRODUCTION TO ROTATING MACHINES
TYPES OF WINDINGS

Mr. D. GaneshElectrical Science – II
INTRODUCTION TO ROTATING MACHINES
