Dependable Systems - Hardware Dependability with Redundancy (14/16)

1) The document discusses hardware dependability through the use of redundancy. It provides examples of static redundancy like voting and N-modular redundancy as well as dynamic redundancy using techniques like back-up sparing and duplex systems. 2) IBM's zSeries mainframe computers are highlighted as an example of a highly redundant system, using techniques like machine check handling, error correction codes, unit deletion for degradation, and fully redundant I/O subsystems. 3) Redundancy comes at a cost but can effectively improve reliability through techniques that either mask faults or allow systems to reconfigure around faults. The level of redundancy must be weighed against associated costs and design complexity.

Embed presentation

Download as PDF, PPTX
Dependable Systems ! Hardware Dependability - Redundancy Dr. Peter Tröger ! Sources: ! Siewiorek, Daniel P.; Swarz, Robert S.: Reliable Computer Systems. third. Wellesley, MA : A. K. Peters, Ltd., 1998. , 156881092X Roland Trauner, IBM Mainframe Summit, Hasso Plattner Institute, 2012 IBM zEnterprise System Technical Guide, IBM RedBooks Some images (C) Elena Dubrova, ESDLab, Kungl Tekniska Högskolan

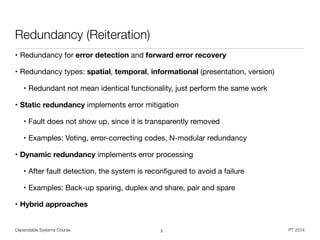

Dependable Systems Course PT 2014 Redundancy (Reiteration) • Redundancy for error detection and forward error recovery • Redundancy types: spatial, temporal, informational (presentation, version) • Redundant not mean identical functionality, just perform the same work • Static redundancy implements error mitigation • Fault does not show up, since it is transparently removed • Examples: Voting, error-correcting codes, N-modular redundancy • Dynamic redundancy implements error processing • After fault detection, the system is reconfigured to avoid a failure • Examples: Back-up sparing, duplex and share, pair and spare • Hybrid approaches 2

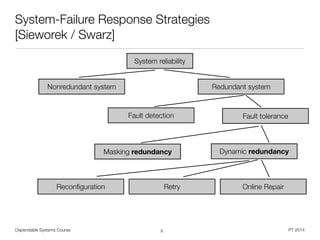

Dependable Systems Course PT 2014 System-Failure Response Strategies [Sieworek / Swarz] 3 System reliability Redundant systemNonredundant system Fault detection Fault tolerance Masking redundancy Dynamic redundancy Reconfiguration Retry Online Repair

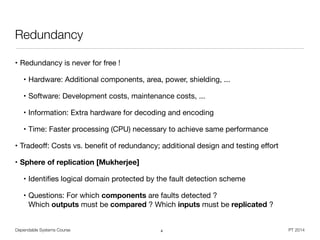

Dependable Systems Course PT 2014 Redundancy • Redundancy is never for free ! • Hardware: Additional components, area, power, shielding, ... • Software: Development costs, maintenance costs, ... • Information: Extra hardware for decoding and encoding • Time: Faster processing (CPU) necessary to achieve same performance • Tradeoff: Costs vs. benefit of redundancy; additional design and testing effort • Sphere of replication [Mukherjee] • Identifies logical domain protected by the fault detection scheme • Questions: For which components are faults detected ?
 Which outputs must be compared ? Which inputs must be replicated ? 4

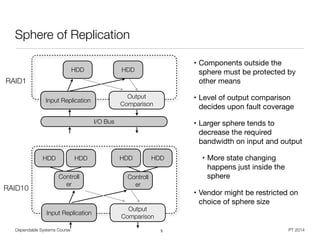

Dependable Systems Course PT 2014 Sphere of Replication • Components outside the sphere must be protected by other means • Level of output comparison decides upon fault coverage • Larger sphere tends to decrease the required bandwidth on input and output • More state changing happens just inside the sphere • Vendor might be restricted on choice of sphere size 5 HDD HDD Input Replication Output Comparison I/O Bus HDD HDD Input Replication Output Comparison HDD HDD Controll er Controll er RAID1 RAID10

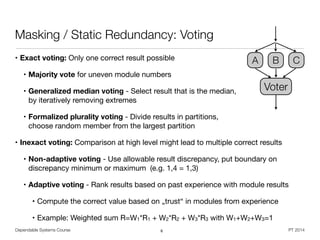

Dependable Systems Course PT 2014 Masking / Static Redundancy: Voting • Exact voting: Only one correct result possible • Majority vote for uneven module numbers • Generalized median voting - Select result that is the median,
 by iteratively removing extremes • Formalized plurality voting - Divide results in partitions,
 choose random member from the largest partition • Inexact voting: Comparison at high level might lead to multiple correct results • Non-adaptive voting - Use allowable result discrepancy, put boundary on discrepancy minimum or maximum (e.g. 1,4 = 1,3) • Adaptive voting - Rank results based on past experience with module results • Compute the correct value based on „trust“ in modules from experience • Example: Weighted sum R=W1*R1 + W2*R2 + W3*R3 with W1+W2+W3=1 6 Voter A B C

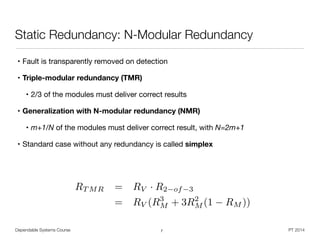

Dependable Systems Course PT 2014 Static Redundancy: N-Modular Redundancy • Fault is transparently removed on detection • Triple-modular redundancy (TMR) • 2/3 of the modules must deliver correct results • Generalization with N-modular redundancy (NMR) • m+1/N of the modules must deliver correct result, with N=2m+1 • Standard case without any redundancy is called simplex 7 RT MR = RV · R2 of 3 = RV (R3 M + 3R2 M (1 RM ))
Dependable Systems Course PT 2014 N-Modular Redundancy (with perfect voter) 8 Module 1 Module 2 Module 3 Voter ... Module N Input Output RNMR = mX i=0 ✓ N i ◆ (1 R)i RN i ✓ n k ◆ = n! k!(n k)! R2 of 3 = ✓ 3 0 ◆ (1 R)0 R3 + ✓ 3 1 ◆ (1 R)R2 R2 of 3 = R3 + 3(1 R)R2 R3 of 5 = ...

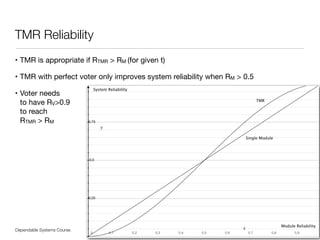

• TMR is appropriate if RTMR > RM (for given t) • TMR with perfect voter only improves system reliability when RM > 0.5 • Voter needs
 to have RV>0.9
 to reach
 RTMR > RM Dependable Systems Course PT 2014 TMR Reliability 90 0,1 0,2 0,3 0,4 0,5 0,6 0,7 0,8 0,9 0,25 0,5 0,75 TMR Single Module System Reliability Module Reliability

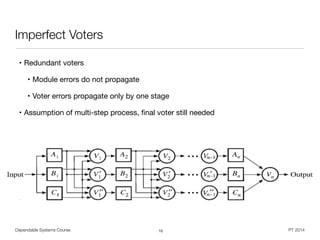

Dependable Systems Course PT 2014 Imperfect Voters 10 • Redundant voters • Module errors do not propagate • Voter errors propagate only by one stage • Assumption of multi-step process, final voter still needed
Dependable Systems Course PT 2014 Hardware Voting • Smallest hardware solution is the 1-bit majority voter • f=ab + ac + bc • Delivers the bit that has the majority • Requires 2 gate delays and 4 gates • Hardware voting can become expensive • 128 gates and 256 flip-flops for 32-bit voter • Input must be synchronized • Central clock source may be single point of failure • Can be solved by special event latching 11

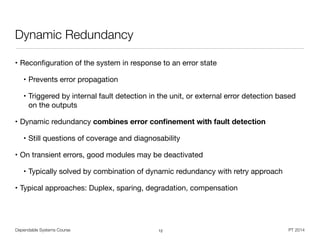

Dependable Systems Course PT 2014 Dynamic Redundancy • Reconfiguration of the system in response to an error state • Prevents error propagation • Triggered by internal fault detection in the unit, or external error detection based on the outputs • Dynamic redundancy combines error confinement with fault detection • Still questions of coverage and diagnosability • On transient errors, good modules may be deactivated • Typically solved by combination of dynamic redundancy with retry approach • Typical approaches: Duplex, sparing, degradation, compensation 12

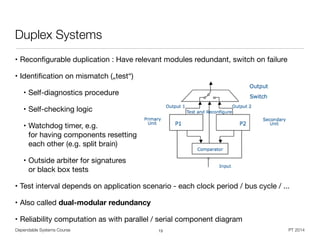

• Reconfigurable duplication : Have relevant modules redundant, switch on failure • Identification on mismatch („test“) • Self-diagnostics procedure • Self-checking logic • Watchdog timer, e.g.
 for having components resetting
 each other (e.g. split brain) • Outside arbiter for signatures
 or black box tests • Test interval depends on application scenario - each clock period / bus cycle / ... • Also called dual-modular redundancy • Reliability computation as with parallel / serial component diagram Dependable Systems Course PT 2014 Duplex Systems 13

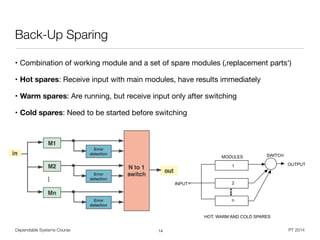

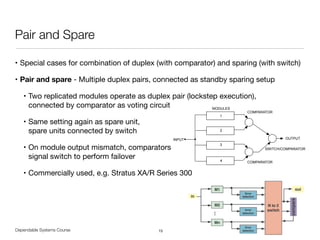

• Combination of working module and a set of spare modules (,replacement parts‘) • Hot spares: Receive input with main modules, have results immediately • Warm spares: Are running, but receive input only after switching • Cold spares: Need to be started before switching Dependable Systems Course PT 2014 Back-Up Sparing 14 MODULES 1 2 n SWITCH OUTPUT INPUT HOT, WARM AND COLD SPARES
• Special cases for combination of duplex (with comparator) and sparing (with switch) • Pair and spare - Multiple duplex pairs, connected as standby sparing setup • Two replicated modules operate as duplex pair (lockstep execution),
 connected by comparator as voting circuit • Same setting again as spare unit,
 spare units connected by switch • On module output mismatch, comparators
 signal switch to perform failover • Commercially used, e.g. Stratus XA/R Series 300 Dependable Systems Course PT 2014 Pair and Spare 15 MODULES 1 2 3 OUTPUTINPUT COMPARATOR 4 COMPARATOR SWITCH/COMPARATOR

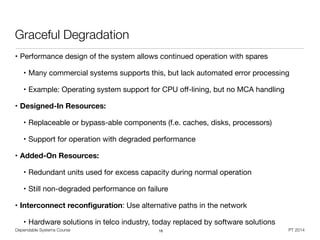

Dependable Systems Course PT 2014 Graceful Degradation • Performance design of the system allows continued operation with spares • Many commercial systems supports this, but lack automated error processing • Example: Operating system support for CPU off-lining, but no MCA handling • Designed-In Resources: • Replaceable or bypass-able components (f.e. caches, disks, processors) • Support for operation with degraded performance • Added-On Resources: • Redundant units used for excess capacity during normal operation • Still non-degraded performance on failure • Interconnect reconfiguration: Use alternative paths in the network • Hardware solutions in telco industry, today replaced by software solutions 16

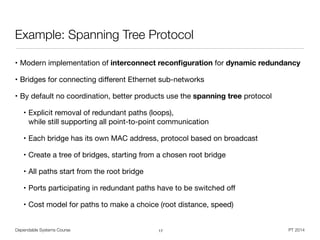

Dependable Systems Course PT 2014 Example: Spanning Tree Protocol • Modern implementation of interconnect reconfiguration for dynamic redundancy • Bridges for connecting different Ethernet sub-networks • By default no coordination, better products use the spanning tree protocol • Explicit removal of redundant paths (loops),
 while still supporting all point-to-point communication • Each bridge has its own MAC address, protocol based on broadcast • Create a tree of bridges, starting from a chosen root bridge • All paths start from the root bridge • Ports participating in redundant paths have to be switched off • Cost model for paths to make a choice (root distance, speed) 17

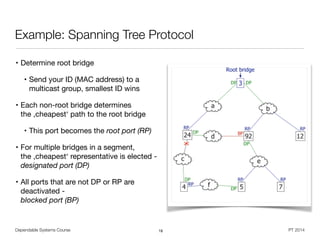

Dependable Systems Course PT 2014 Example: Spanning Tree Protocol • Determine root bridge • Send your ID (MAC address) to a multicast group, smallest ID wins • Each non-root bridge determines the ,cheapest‘ path to the root bridge • This port becomes the root port (RP) • For multiple bridges in a segment, the ,cheapest‘ representative is elected -
 designated port (DP) • All ports that are not DP or RP are deactivated -
 blocked port (BP) 18

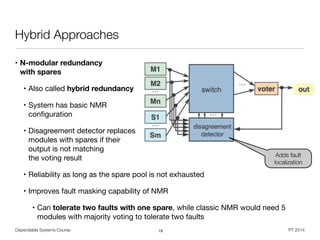

Dependable Systems Course PT 2014 Hybrid Approaches • N-modular redundancy
 with spares • Also called hybrid redundancy • System has basic NMR
 configuration • Disagreement detector replaces
 modules with spares if their
 output is not matching
 the voting result • Reliability as long as the spare pool is not exhausted • Improves fault masking capability of NMR • Can tolerate two faults with one spare, while classic NMR would need 5 modules with majority voting to tolerate two faults 19 Adds fault localization
Dependable Systems Course PT 2014 TMR with Spares 20 NASA Technical Report 32-1467, 1969 • Basic reliability computation based on the assumption of similar module failure rates in spares and non-spares • At least any two of all S+3 modules must survive
Dependable Systems Course PT 2014 Comparison TMR vs. TMR/S vs. NMR 21 NASATechnicalReport32-1467,1969 #Units = 2N + 1

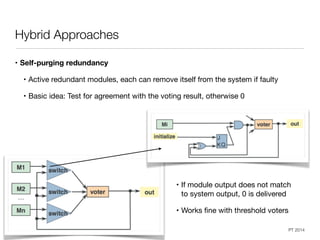

Dependable Systems Course PT 2014 Hybrid Approaches • Self-purging redundancy • Active redundant modules, each can remove itself from the system if faulty • Basic idea: Test for agreement with the voting result, otherwise 0 22 • If module output does not match to system output, 0 is delivered • Works fine with threshold voters

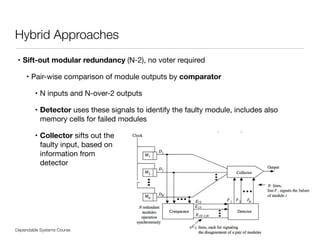

Dependable Systems Course PT 2014 Hybrid Approaches 23 • Sift-out modular redundancy (N-2), no voter required • Pair-wise comparison of module outputs by comparator • N inputs and N-over-2 outputs • Detector uses these signals to identify the faulty module, includes also memory cells for failed modules • Collector sifts out the
 faulty input, based on
 information from
 detector

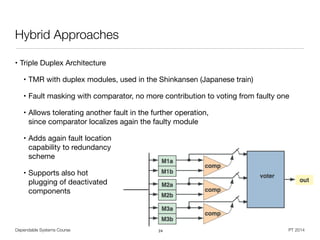

Dependable Systems Course PT 2014 Hybrid Approaches • Triple Duplex Architecture • TMR with duplex modules, used in the Shinkansen (Japanese train) • Fault masking with comparator, no more contribution to voting from faulty one • Allows tolerating another fault in the further operation,
 since comparator localizes again the faulty module • Adds again fault location
 capability to redundancy
 scheme • Supports also hot
 plugging of deactivated
 components 24

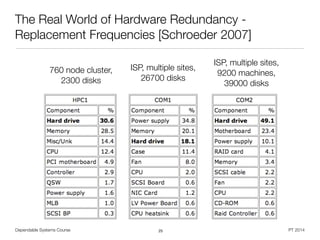

Dependable Systems Course PT 2014 The Real World of Hardware Redundancy - Replacement Frequencies [Schroeder 2007] 25 760 node cluster, 2300 disks ISP, multiple sites, 26700 disks ISP, multiple sites, 9200 machines, 39000 disks

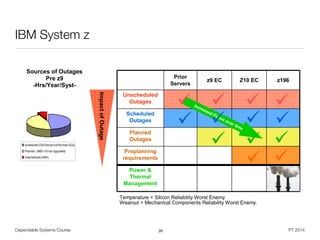

Dependable Systems Course PT 2014 IBM System z 26 © 2011 IBM Corporation56 IBM zEnterprise Scheduled(CIE+DisruptivePatches+ECs) Planned- (MES+Driver Upgrades) Unscheduled(UIRA) Sources of Outages Pre z9 -Hrs/Year/Syst- Prior Servers z9 EC Z10 EC z196 Unscheduled Outages Scheduled Outages Planned Outages Preplanning requirements Power & Thermal Management Increased Focus over time             Temperature = Silicon Reliability Worst Enemy Wearout = Mechanical Components Reliability Worst Enemy. System z overall RAS Strategy …..Continuing our RAS focus helps avoid outages ImpactofOutage

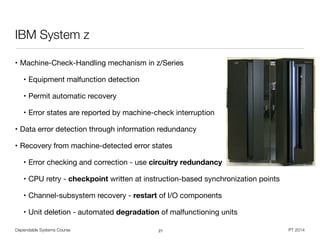

Dependable Systems Course PT 2014 IBM System z • Machine-Check-Handling mechanism in z/Series • Equipment malfunction detection • Permit automatic recovery • Error states are reported by machine-check interruption • Data error detection through information redundancy • Recovery from machine-detected error states • Error checking and correction - use circuitry redundancy • CPU retry - checkpoint written at instruction-based synchronization points • Channel-subsystem recovery - restart of I/O components • Unit deletion - automated degradation of malfunctioning units 27

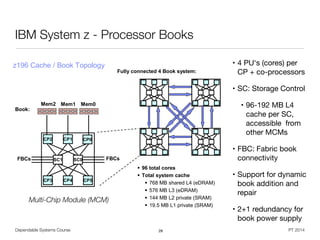

Dependable Systems Course PT 2014 IBM System z - Processor Books 28 © 2011 IBM Corporation52 IBM zEnterprise z196 Cache / Book Topology Fully connected 4 Book system:  96 total cores  Total system cache  768 MB shared L4 (eDRAM)  576 MB L3 (eDRAM)  144 MB L2 private (SRAM)  19.5 MB L1 private (SRAM) CP1CP1CP2CP2 CP4CP4 CP5CP5CP3CP3 SC0SC1 Mem1 Mem0 FBCs Mem2 CP0CP0 Book: FBCs • 4 PU‘s (cores) per CP + co-processors • SC: Storage Control • 96-192 MB L4 cache per SC, accessible from other MCMs • FBC: Fabric book connectivity • Support for dynamic book addition and repair • 2+1 redundancy for book power supply Multi-Chip Module (MCM)

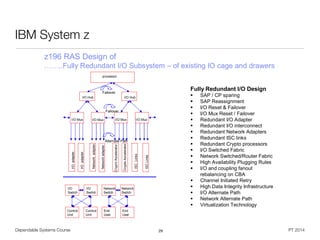

Dependable Systems Course PT 2014 IBM System z 29 © 2011 IBM Corporation57 IBM zEnterprise z196 RAS Design of ……..Fully Redundant I/O Subsystem – of existing IO cage and drawers Fully Redundant I/O Design  SAP / CP sparing  SAP Reassignment  I/O Reset & Failover  I/O Mux Reset / Failover  Redundant I/O Adapter  Redundant I/O interconnect  Redundant Network Adapters  Redundant ISC links  Redundant Crypto processors  I/O Switched Fabric  Network Switched/Router Fabric  High Availability Plugging Rules  I/O and coupling fanout rebalancing on CBA  Channel Initiated Retry  High Data Integrity Infrastructure  I/O Alternate Path  Network Alternate Path  Virtualization Technology processor Failover I/O Mux I/O Hub I/O Hub I/O Mux I/O Mux I/O Mux Failover I/Oadapter. I/Oadapter. Networkadapter. Networkadapter. CryproAccelerator CryptoAccelerator ISCLinks ISCLinks Alternate Path I/O Switch Control Unit I/O Switch Control Unit Network Switch End User Network Switch End User

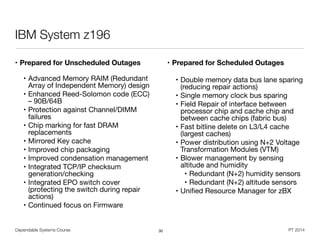

Dependable Systems Course PT 2014 IBM System z196 • Prepared for Unscheduled Outages
 • Advanced Memory RAIM (Redundant Array of Independent Memory) design • Enhanced Reed-Solomon code (ECC) – 90B/64B • Protection against Channel/DIMM failures • Chip marking for fast DRAM replacements • Mirrored Key cache • Improved chip packaging • Improved condensation management • Integrated TCP/IP checksum generation/checking • Integrated EPO switch cover (protecting the switch during repair actions) • Continued focus on Firmware • Prepared for Scheduled Outages
 • Double memory data bus lane sparing (reducing repair actions) • Single memory clock bus sparing • Field Repair of interface between processor chip and cache chip and between cache chips (fabric bus) • Fast bitline delete on L3/L4 cache (largest caches) • Power distribution using N+2 Voltage Transformation Modules (VTM) • Blower management by sensing altitude and humidity • Redundant (N+2) humidity sensors • Redundant (N+2) altitude sensors • Unified Resource Manager for zBX 30

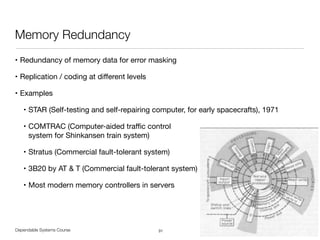

Dependable Systems Course PT 2014 Memory Redundancy • Redundancy of memory data for error masking • Replication / coding at different levels • Examples • STAR (Self-testing and self-repairing computer, for early spacecrafts), 1971 • COMTRAC (Computer-aided traffic control
 system for Shinkansen train system) • Stratus (Commercial fault-tolerant system) • 3B20 by AT & T (Commercial fault-tolerant system) • Most modern memory controllers in servers 31

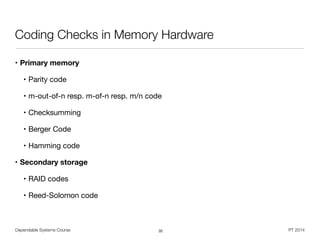

Dependable Systems Course PT 2014 Coding Checks in Memory Hardware • Primary memory • Parity code • m-out-of-n resp. m-of-n resp. m/n code • Checksumming • Berger Code • Hamming code • Secondary storage • RAID codes • Reed-Solomon code 32

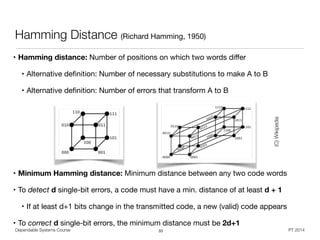

Dependable Systems Course PT 2014 Hamming Distance (Richard Hamming, 1950) • Hamming distance: Number of positions on which two words differ • Alternative definition: Number of necessary substitutions to make A to B • Alternative definition: Number of errors that transform A to B ! ! ! ! • Minimum Hamming distance: Minimum distance between any two code words • To detect d single-bit errors, a code must have a min. distance of at least d + 1 • If at least d+1 bits change in the transmitted code, a new (valid) code appears • To correct d single-bit errors, the minimum distance must be 2d+1 33 (C)Wikipedia

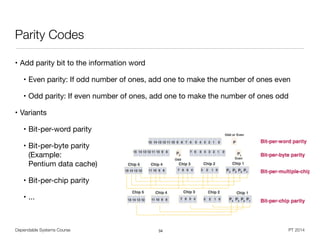

Dependable Systems Course PT 2014 Parity Codes • Add parity bit to the information word • Even parity: If odd number of ones, add one to make the number of ones even • Odd parity: If even number of ones, add one to make the number of ones odd • Variants • Bit-per-word parity • Bit-per-byte parity
 (Example:
 Pentium data cache) • Bit-per-chip parity • ... 34

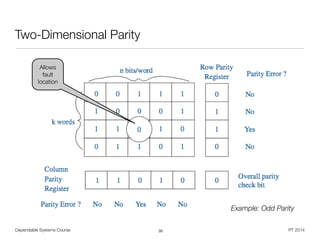

Dependable Systems Course PT 2014 Two-Dimensional Parity 35 Example: Odd Parity Allows fault location

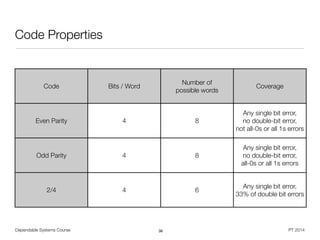

Dependable Systems Course PT 2014 Code Properties 36 Code Bits / Word Number of
 possible words Coverage Even Parity 4 8 Any single bit error,
 no double-bit error,
 not all-0s or all 1s errors Odd Parity 4 8 Any single bit error,
 no double-bit error, all-0s or all 1s errors 2/4 4 6 Any single bit error,
 33% of double bit errors

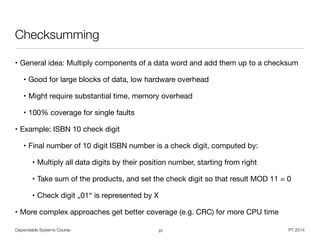

Dependable Systems Course PT 2014 Checksumming • General idea: Multiply components of a data word and add them up to a checksum • Good for large blocks of data, low hardware overhead • Might require substantial time, memory overhead • 100% coverage for single faults • Example: ISBN 10 check digit • Final number of 10 digit ISBN number is a check digit, computed by: • Multiply all data digits by their position number, starting from right • Take sum of the products, and set the check digit so that result MOD 11 = 0 • Check digit „01“ is represented by X • More complex approaches get better coverage (e.g. CRC) for more CPU time 37

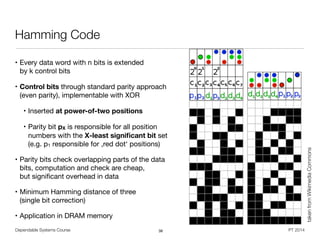

Dependable Systems Course PT 2014 Hamming Code • Every data word with n bits is extended
 by k control bits • Control bits through standard parity approach
 (even parity), implementable with XOR • Inserted at power-of-two positions • Parity bit pX is responsible for all position numbers with the X-least significant bit set (e.g. p1 responsible for ,red dot‘ positions) • Parity bits check overlapping parts of the data bits, computation and check are cheap,
 but significant overhead in data • Minimum Hamming distance of three
 (single bit correction) • Application in DRAM memory 38 takenfromWikimediaCommons

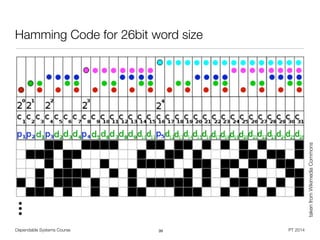

Dependable Systems Course PT 2014 Hamming Code for 26bit word size 39 takenfromWikimediaCommons

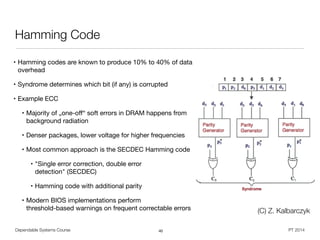

Dependable Systems Course PT 2014 Hamming Code • Hamming codes are known to produce 10% to 40% of data overhead • Syndrome determines which bit (if any) is corrupted • Example ECC • Majority of „one-off“ soft errors in DRAM happens from background radiation • Denser packages, lower voltage for higher frequencies • Most common approach is the SECDEC Hamming code • "Single error correction, double error detection" (SECDEC) • Hamming code with additional parity • Modern BIOS implementations perform
 threshold-based warnings on frequent correctable errors 40 (C) Z. Kalbarczyk

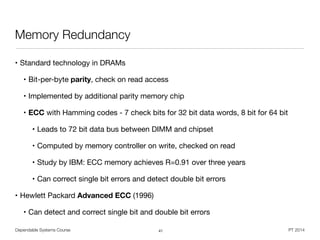

Dependable Systems Course PT 2014 Memory Redundancy • Standard technology in DRAMs • Bit-per-byte parity, check on read access • Implemented by additional parity memory chip • ECC with Hamming codes - 7 check bits for 32 bit data words, 8 bit for 64 bit • Leads to 72 bit data bus between DIMM and chipset • Computed by memory controller on write, checked on read • Study by IBM: ECC memory achieves R=0.91 over three years • Can correct single bit errors and detect double bit errors • Hewlett Packard Advanced ECC (1996) • Can detect and correct single bit and double bit errors 41

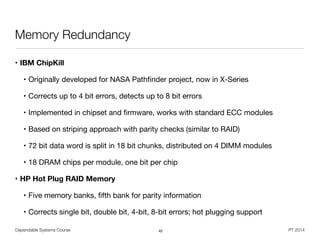

Dependable Systems Course PT 2014 Memory Redundancy • IBM ChipKill • Originally developed for NASA Pathfinder project, now in X-Series • Corrects up to 4 bit errors, detects up to 8 bit errors • Implemented in chipset and firmware, works with standard ECC modules • Based on striping approach with parity checks (similar to RAID) • 72 bit data word is split in 18 bit chunks, distributed on 4 DIMM modules • 18 DRAM chips per module, one bit per chip • HP Hot Plug RAID Memory • Five memory banks, fifth bank for parity information • Corrects single bit, double bit, 4-bit, 8-bit errors; hot plugging support 42

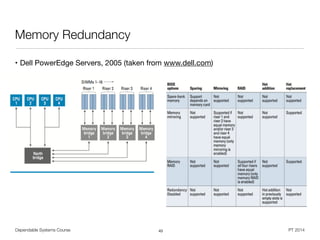

Dependable Systems Course PT 2014 Memory Redundancy • Dell PowerEdge Servers, 2005 (taken from www.dell.com) 43

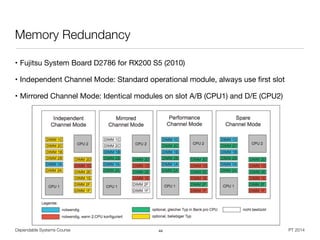

Dependable Systems Course PT 2014 Memory Redundancy • Fujitsu System Board D2786 for RX200 S5 (2010) • Independent Channel Mode: Standard operational module, always use first slot • Mirrored Channel Mode: Identical modules on slot A/B (CPU1) and D/E (CPU2) 44

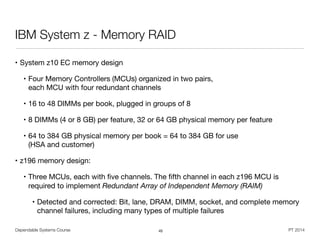

Dependable Systems Course PT 2014 IBM System z - Memory RAID 45 • System z10 EC memory design • Four Memory Controllers (MCUs) organized in two pairs,
 each MCU with four redundant channels • 16 to 48 DIMMs per book, plugged in groups of 8 • 8 DIMMs (4 or 8 GB) per feature, 32 or 64 GB physical memory per feature • 64 to 384 GB physical memory per book = 64 to 384 GB for use
 (HSA and customer) • z196 memory design: • Three MCUs, each with five channels. The fifth channel in each z196 MCU is required to implement Redundant Array of Independent Memory (RAIM) • Detected and corrected: Bit, lane, DRAM, DIMM, socket, and complete memory channel failures, including many types of multiple failures

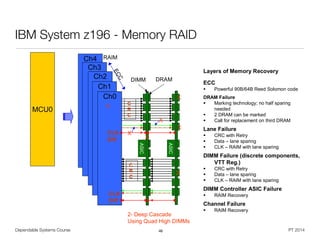

Dependable Systems Course PT 2014 IBM System z196 - Memory RAID 46 © 2011 IBM Corporation62 IBM zEnterprise Ch4 Ch3 Ch2 Ch1 ASIC ASIC Ch0 DIMM CLK Diff CLK Diff C R C C R C DRAM X X X X Layers of Memory Recovery ECC  Powerful 90B/64B Reed Solomon code DRAM Failure  Marking technology; no half sparing needed  2 DRAM can be marked  Call for replacement on third DRAM Lane Failure  CRC with Retry  Data – lane sparing  CLK – RAIM with lane sparing DIMM Failure (discrete components, VTT Reg.)  CRC with Retry  Data – lane sparing  CLK – RAIM with lane sparing DIMM Controller ASIC Failure  RAIM Recovery Channel Failure  RAIM Recovery MCU0 ECC RAIM X X X 2- Deep Cascade Using Quad High DIMMs z196 RAIM Memory Controller Overview

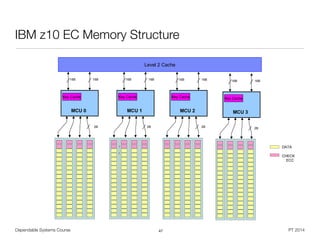

Dependable Systems Course PT 2014 IBM z10 EC Memory Structure 47 © 2011 IBM Corporation63 IBM zEnterprise z10 EC Memory Structure DATA CHECK DATA CHECK ECC Level 2 Cache Key Cache MCU 0 16B 16B 2B Key Cache MCU 1 16B 16B 2B Key Cache MCU 2 16B 16B 2B Key Cache MCU 3 16B 16B 2B

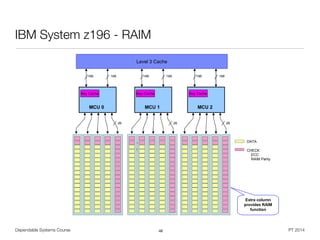

Dependable Systems Course PT 2014 IBM System z196 - RAIM 48 © 2011 IBM Corporation64 IBM zEnterprise z196 Redundant Array of Independent Memory (RAIM) Structure DATA CHECK DATA CHECK ECC RAIM Parity Level 3 Cache Key Cache MCU 0 16B 16B 2B Key Cache MCU 1 16B 16B 2B Key Cache MCU 2 16B 16B 2B Extra column provides RAIM function
Dependable Systems Course PT 2014 Disk Redundancy • Typical measure is the annual failure rate (AFR) - average number of failures / year


 • Can be interpreted as failure probability during a year • MTBF = Mean time before failure, here • Disk MTTF: On average, one failure takes place in the given disk hours • Example: Seagate Barracuda ST3500320AS: MTTF=750000h=85.6 years • With thousand disks, on average every 750h (a month) some disk fails • Measured by the manufacturer under heavy load and physical stress • AFR=0.012 49 AFR = 1 MT BFyears = 8760 MT BFhours
Dependable Systems Course PT 2014 RAID • Redundant Array of Independent Disks (RAID) [Patterson et al. 1988] • Improve I/O performance and / or reliability by building raid groups • Replication for information reconstruction on disk failure (degrading) • Requires computational effort (dedicated controller vs. software) • Assumes failure independence 50

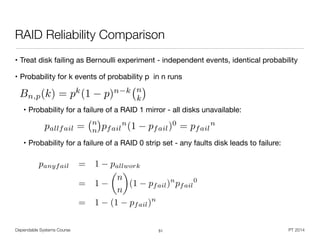

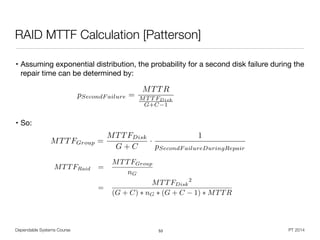

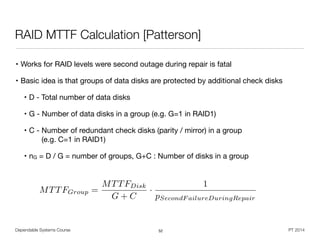

Dependable Systems Course PT 2014 RAID Reliability Comparison • Treat disk failing as Bernoulli experiment - independent events, identical probability • Probability for k events of probability p in n runs ! • Probability for a failure of a RAID 1 mirror - all disks unavailable: ! • Probability for a failure of a RAID 0 strip set - any faults disk leads to failure: 51 Bn,p(k) = pk (1 p)n k n k ⇥ pallfail = n n pfail n (1 pfail)0 = pfail n panyfail = 1 pallwork = 1 ✓ n n ◆ (1 pfail)n pfail 0 = 1 (1 pfail)n
• Works for RAID levels were second outage during repair is fatal • Basic idea is that groups of data disks are protected by additional check disks • D - Total number of data disks • G - Number of data disks in a group (e.g. G=1 in RAID1) • C - Number of redundant check disks (parity / mirror) in a group
 (e.g. C=1 in RAID1) • nG = D / G = number of groups, G+C : Number of disks in a group Dependable Systems Course PT 2014 RAID MTTF Calculation [Patterson] 52 MTTFGroup = MTTFDisk G + C · 1 pSecondF ailureDuringRepair
• Assuming exponential distribution, the probability for a second disk failure during the repair time can be determined by: ! ! • So: Dependable Systems Course PT 2014 RAID MTTF Calculation [Patterson] 53 MTTFGroup = MTTFDisk G + C · 1 pSecondF ailureDuringRepair pSecondF ailure = MTTR MT T FDisk G+C 1 MTTFRaid = MTTFGroup nG = MTTFDisk 2 (G + C) ⇤ nG ⇤ (G + C 1) ⇤ MTTR
Dependable Systems Course PT 2014 RAID 0 • Raid 0 - Block-level striping • I/O performance improvement with many channels and drives • One controller per drive • Optimal stripe size depends on I/O request size, random vs. sequential I/O, concurrent vs. single-threaded I/O • Fine-grained striping: Good load balancing, catastrophic data loss • Coarse-grained striping: Good recovery for small files, worse performance • One option: Strip size = Single-threaded I/O size / number of disks • Parallel read supported, but positioning overhead for small concurrent accesses • No fault tolerance 54 (C) Wikipedia MTTFRaid0 = MTTFDisk N

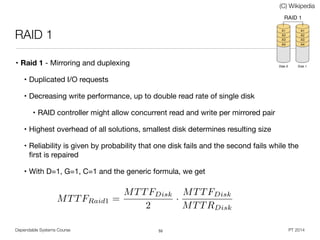

Dependable Systems Course PT 2014 RAID 1 • Raid 1 - Mirroring and duplexing • Duplicated I/O requests • Decreasing write performance, up to double read rate of single disk • RAID controller might allow concurrent read and write per mirrored pair • Highest overhead of all solutions, smallest disk determines resulting size • Reliability is given by probability that one disk fails and the second fails while the first is repaired • With D=1, G=1, C=1 and the generic formula, we get 55 (C) Wikipedia MTTFRaid1 = MTTFDisk 2 · MTTFDisk MTTRDisk

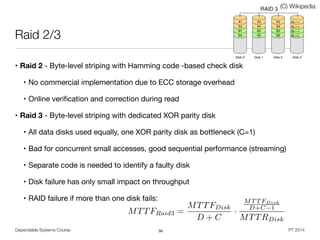

Dependable Systems Course PT 2014 Raid 2/3 • Raid 2 - Byte-level striping with Hamming code -based check disk • No commercial implementation due to ECC storage overhead • Online verification and correction during read • Raid 3 - Byte-level striping with dedicated XOR parity disk • All data disks used equally, one XOR parity disk as bottleneck (C=1) • Bad for concurrent small accesses, good sequential performance (streaming) • Separate code is needed to identify a faulty disk • Disk failure has only small impact on throughput • RAID failure if more than one disk fails: 56 (C) Wikipedia MTTFRaid3 = MTTFDisk D + C · MT T FDisk D+C 1 MTTRDisk

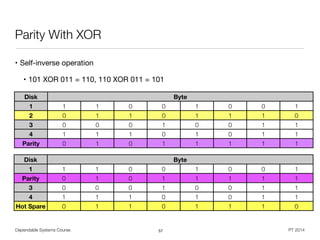

Dependable Systems Course PT 2014 Parity With XOR • Self-inverse operation • 101 XOR 011 = 110, 110 XOR 011 = 101 57 Disk Byte 1 1 1 0 0 1 0 0 1 2 0 1 1 0 1 1 1 0 3 0 0 0 1 0 0 1 1 4 1 1 1 0 1 0 1 1 Parity 0 1 0 1 1 1 1 1 Disk Byte 1 1 1 0 0 1 0 0 1 Parity 0 1 0 1 1 1 1 1 3 0 0 0 1 0 0 1 1 4 1 1 1 0 1 0 1 1 Hot Spare 0 1 1 0 1 1 1 0

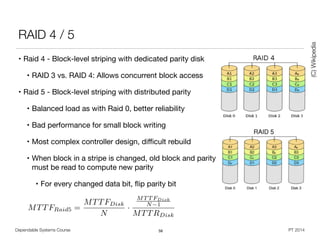

MTTFRaid5 = MTTFDisk N · MT T FDisk N 1 MTTRDisk Dependable Systems Course PT 2014 RAID 4 / 5 • Raid 4 - Block-level striping with dedicated parity disk • RAID 3 vs. RAID 4: Allows concurrent block access • Raid 5 - Block-level striping with distributed parity • Balanced load as with Raid 0, better reliability • Bad performance for small block writing • Most complex controller design, difficult rebuild • When block in a stripe is changed, old block and parity must be read to compute new parity • For every changed data bit, flip parity bit 58 (C)Wikipedia

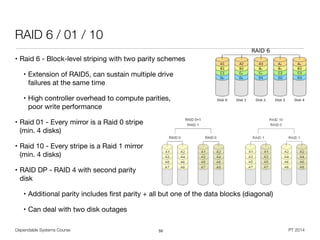

Dependable Systems Course PT 2014 RAID 6 / 01 / 10 • Raid 6 - Block-level striping with two parity schemes • Extension of RAID5, can sustain multiple drive
 failures at the same time • High controller overhead to compute parities,
 poor write performance • Raid 01 - Every mirror is a Raid 0 stripe
 (min. 4 disks) • Raid 10 - Every stripe is a Raid 1 mirror
 (min. 4 disks) • RAID DP - RAID 4 with second parity
 disk • Additional parity includes first parity + all but one of the data blocks (diagonal) • Can deal with two disk outages
 59

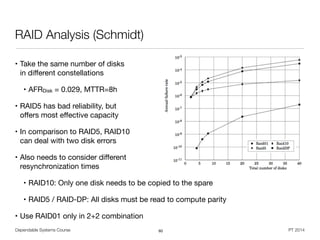

• Take the same number of disks
 in different constellations • AFRDisk = 0.029, MTTR=8h • RAID5 has bad reliability, but
 offers most effective capacity • In comparison to RAID5, RAID10
 can deal with two disk errors • Also needs to consider different
 resynchronization times • RAID10: Only one disk needs to be copied to the spare • RAID5 / RAID-DP: All disks must be read to compute parity • Use RAID01 only in 2+2 combination Dependable Systems Course PT 2014 RAID Analysis (Schmidt) 60

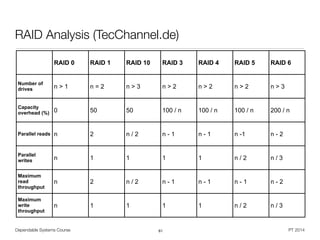

Dependable Systems Course PT 2014 RAID Analysis (TecChannel.de) 61 RAID 0 RAID 1 RAID 10 RAID 3 RAID 4 RAID 5 RAID 6 Number of drives n > 1 n = 2 n > 3 n > 2 n > 2 n > 2 n > 3 Capacity overhead (%) 0 50 50 100 / n 100 / n 100 / n 200 / n Parallel reads n 2 n / 2 n - 1 n - 1 n -1 n - 2 Parallel writes n 1 1 1 1 n / 2 n / 3 Maximum read throughput n 2 n / 2 n - 1 n - 1 n - 1 n - 2 Maximum write throughput n 1 1 1 1 n / 2 n / 3

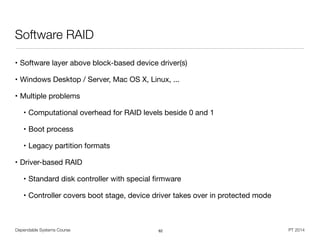

Dependable Systems Course PT 2014 Software RAID • Software layer above block-based device driver(s) • Windows Desktop / Server, Mac OS X, Linux, ... • Multiple problems • Computational overhead for RAID levels beside 0 and 1 • Boot process • Legacy partition formats • Driver-based RAID • Standard disk controller with special firmware • Controller covers boot stage, device driver takes over in protected mode 62

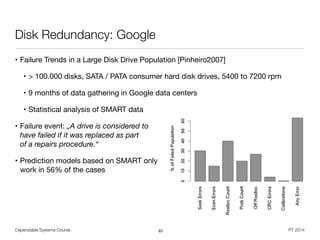

Dependable Systems Course PT 2014 Disk Redundancy: Google • Failure Trends in a Large Disk Drive Population [Pinheiro2007] • > 100.000 disks, SATA / PATA consumer hard disk drives, 5400 to 7200 rpm • 9 months of data gathering in Google data centers • Statistical analysis of SMART data • Failure event: „A drive is considered to
 have failed if it was replaced as part
 of a repairs procedure.“ • Prediction models based on SMART only
 work in 56% of the cases 63

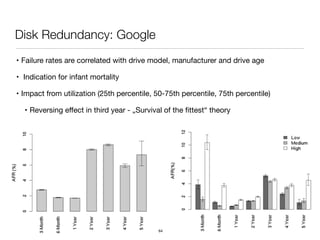

Dependable Systems Course PT 2014 Disk Redundancy: Google • Failure rates are correlated with drive model, manufacturer and drive age • Indication for infant mortality • Impact from utilization (25th percentile, 50-75th percentile, 75th percentile) • Reversing effect in third year - „Survival of the fittest“ theory 64

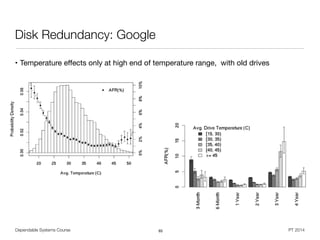

Dependable Systems Course PT 2014 Disk Redundancy: Google 65 • Temperature effects only at high end of temperature range, with old drives
Dependable Systems Course PT 2014 IBM System z - Redundant I/O • Each processor book
 has up to 8 dual port fanouts • Direct data transfer
 between memory and
 PCI/e (8 GBps) or
 Infiniband (6 GBps) • Optical and copper
 connectivity supported • Fanout cards are
 hot-pluggable, without
 loosing the I/O connectivity • Air-moving devices (AMD) have N+1 redundancy for fanouts, memory and power 66 Chapter 2. CPC hardware components 31 well as MES orders. 2.2 Book concept The central processor complex (CPC) uses a packaging design for its processors based on books. A book contains a multi-chip module (MCM), memory, and connectors to I/O cages and other CPCs. Books are located in the processor cage in frame A. The z196 has from one book to four books installed. A book and its components are shown in Figure 2-3. Figure 2-3 Book structure and components 1 Dense Wave Division Multiplexing MCM @ 1800W Refrigeration Cooled or Water Cooled Backup Air Plenum 8 I/O FAN OUT 2 FSP 3x DCA 14X DIMMs 100mm High 16X DIMMs 100mm High 11 VTM Card Assemblies 8 Vertical 3 Horizontal Rear Front DCA Power Supplies Fanout Cards Cooling from/to MRU MCM Memory Memory

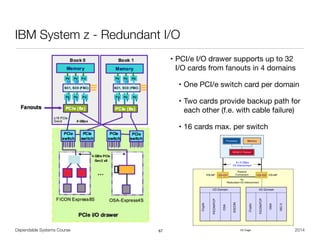

Dependable Systems Course PT 2014 IBM System z - Redundant I/O • PCI/e I/O drawer supports up to 32
 I/O cards from fanouts in 4 domains • One PCI/e switch card per domain • Two cards provide backup path for each other (f.e. with cable failure) • 16 cards max. per switch 67 Figure 4-2 illustrates the I/O structure of a z196. An InfiniBand (IFB) cable connects the HCA2-C fanout to an IFB-MP card in the I/O cage. The passive connection between two IFB-MP cards allows for redundant I/O interconnection. The IFB cable between an HCA2-C fanout in a book and each IFB-MP card in the I/O cage supports a 6 GBps bandwidth. Figure 4-2 z196 I/O structure when using I/O cages I/O Cage for Redundant I/O Interconnect Passive Connection 8 x 6 GBps I/O Interconnect IFB-MP IFB-MP I/O Domain Crypto FICON/FCP OSA ESCON I/O Domain Crypto FICON/FCP OSA ISC-3 Processor Memory HCA2-C Fanout

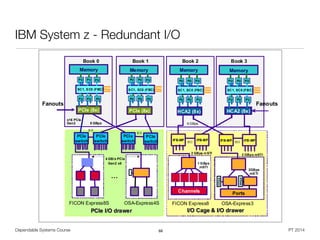

Dependable Systems Course PT 2014 IBM System z - Redundant I/O 68 The HCA3-O LR (1xIFB) fanout comes with 4 ports and each other fanout comes with two ports. Figure 4-10 illustrates the IFB connection from the CPC cage to an I/O cage and an I/O drawer, and the PCIe connection from the CPC cage to an PCIe I/O drawer. Figure 4-10 PCIe and InfiniBand I/O Infrastructure Book 3Book 1 Memory x16 PCIe Gen2 8 GBps Memory Memory Memory Book 0 Book 2 PCIe switch OSA-Express4S PCIe (8x) PCIe (8x) HCA2 (8x) PCIe switch PCIe switch FICON Express8S PCIe switch 4 GB/s PCIe Gen2 x8 … SC1, SC0 (FBC) PU PU PU PU PU PU SC1, SC0 (FBC) PU PU PU PU PU PU SC1, SC0 (FBC) PU PU PU PU PU PU SC1, SC0 (FBC) PU PU PU PU PU PU SC1, SC0 (FBC) PU PU PU PU PU PU SC1, SC0 (FBC) PU PU PU PU PU PU SC1, SC0 (FBC) PU PU PU PU PU PU SC1, SC0 (FBC) PU PU PU PU PU PU PCIe I/O drawerPCIe I/O drawer FanoutsFanouts 6 GBps HCA2 (8x) IFB-MP RII IFB-MP FICON Express8 2 GBps mSTI Channels 1 GBps mSTI 2 GBps mSTI Ports 2GBps mSTI FPGA RII IFB-MPIFB-MP OSA-Express3 I/O Cage & I/O drawerI/O Cage & I/O drawer RII RII FPGA

More Related Content

PPTX
TCP/IP and UDP protocols
byDawood Faheem Abbasi

PPT
Address Resolution Protocol
byRam Dutt Shukla

PPTX
System interconnect architecture
byGagan Kumar

PPTX
Hardware Multi-Threading
bybabuece

PPTX
Interrupt in real time system
byali jawad

PPTX
Schedule and Contention based MAC protocols
byDarwin Nesakumar

PPT
mapping address.ppt
byParam Eswaran

PPTX
Telnet presentation
bytravel_affair

TCP/IP and UDP protocols
byDawood Faheem Abbasi

Address Resolution Protocol
byRam Dutt Shukla

System interconnect architecture
byGagan Kumar

Hardware Multi-Threading
bybabuece

Interrupt in real time system
byali jawad

Schedule and Contention based MAC protocols
byDarwin Nesakumar

mapping address.ppt
byParam Eswaran

Telnet presentation
bytravel_affair


What's hot

PPTX
Embedded system hardware architecture ii
byGrace Abraham

PDF
Lecture 23 27. quality of services in ad hoc wireless networks
byChandra Meena

PDF
CSMA /CD PPT ON SLIDESHARE
byKhushboo Pal

PDF
Introduction to FreeRTOS
byICS

PPTX
Physical organization of parallel platforms
bySyed Zaid Irshad

PPTX
Routers and Routing Configuration
byyasir1122

PPTX
ATM(Asynchronous Transfer Mode)
bylogicgate

PPTX
Mac protocols for ad hoc wireless networks
byDivya Tiwari

PPTX
ADVANCED COMPUTER ARCHITECTURE AND PARALLEL PROCESSING
byZena Abo-Altaheen

DOC
Lab 6.4.1 InterVLAN routing
byMuhd Mu'izuddin

PPSX
Flow Control
byselvakumar_b1985

PPTX
Vector architecture
byBreethiSundar

PPTX
Multivector and multiprocessor
byKishan Panara

PPT
Switching techniques
byGupta6Bindu

PDF
8086 ppt
byraju kusale

PPTX
MicroC/OS-II
byDigicomm Semiconductor Private Limited

PPTX
ALOHA Protocol (in detail)
byHinal Lunagariya

PPT
Parallel processing
byrajshreemuthiah

PPTX
Advanced Pipelining in ARM Processors.pptx
byJoyChowdhury30

PPTX
TCP/IP Protocol Architeture
byManoj Kumar

Embedded system hardware architecture ii
byGrace Abraham

Lecture 23 27. quality of services in ad hoc wireless networks
byChandra Meena

CSMA /CD PPT ON SLIDESHARE
byKhushboo Pal

Introduction to FreeRTOS
byICS

Physical organization of parallel platforms
bySyed Zaid Irshad

Routers and Routing Configuration
byyasir1122

ATM(Asynchronous Transfer Mode)
bylogicgate

Mac protocols for ad hoc wireless networks
byDivya Tiwari

ADVANCED COMPUTER ARCHITECTURE AND PARALLEL PROCESSING
byZena Abo-Altaheen

Lab 6.4.1 InterVLAN routing
byMuhd Mu'izuddin

Flow Control
byselvakumar_b1985

Vector architecture
byBreethiSundar

Multivector and multiprocessor
byKishan Panara

Switching techniques
byGupta6Bindu

8086 ppt
byraju kusale

MicroC/OS-II
byDigicomm Semiconductor Private Limited

ALOHA Protocol (in detail)
byHinal Lunagariya

Parallel processing
byrajshreemuthiah

Advanced Pipelining in ARM Processors.pptx
byJoyChowdhury30

TCP/IP Protocol Architeture
byManoj Kumar


Similar to Dependable Systems - Hardware Dependability with Redundancy (14/16)

PDF
Dependable Systems -Dependability Means (3/16)
byPeter Tröger

PDF
Dependable Systems - Summary (16/16)
byPeter Tröger

PDF
Dependable Systems - Introduction (1/16)
byPeter Tröger

PDF
Dependable Systems -Dependability Threats (2/16)
byPeter Tröger

PDF
Dependable Systems -Fault Tolerance Patterns (4/16)
byPeter Tröger

PDF
Dependable Systems -Software Dependability (15/16)
byPeter Tröger

PDF
Dependable Systems - Structure-Based Dependabiilty Modeling (6/16)
byPeter Tröger

PDF
Dependable Systems - Hardware Dependability with Diagnosis (13/16)
byPeter Tröger

PPTX
Fault tolerance techniques
byRajalakshmiSermadurai

PPT
Lecture07_FaultTolerance in parallel and distributing
bysameerkumar56473

PPT
Lecture07_FaultTolerance in parallel and distributed
bysameerkumar56473

PPT
Chapter- Five fault powers poin lecture
byborchala1

PPT
RBDs-Redundancia-Disponibilidad_(slide).ppt
byAnderGaragorri

PDF
Dependable Systems -Reliability Prediction (9/16)
byPeter Tröger

PDF
l4a.pdf
byrajinooka

PPTX
PPT TARUNA.pptx
byssuser5ba6931

PPT
f33-ft-computing-lec02-measures.ppt
byManish Kumar

PPTX
basic concepts of reliability
bydennis gookyi

PPTX
High dependability of the automated systems
byAlan Tatourian

PPT
3D-DRESD R4R
byMarco Santambrogio

Dependable Systems -Dependability Means (3/16)
byPeter Tröger

Dependable Systems - Summary (16/16)
byPeter Tröger

Dependable Systems - Introduction (1/16)
byPeter Tröger

Dependable Systems -Dependability Threats (2/16)
byPeter Tröger

Dependable Systems -Fault Tolerance Patterns (4/16)
byPeter Tröger

Dependable Systems -Software Dependability (15/16)
byPeter Tröger

Dependable Systems - Structure-Based Dependabiilty Modeling (6/16)
byPeter Tröger

Dependable Systems - Hardware Dependability with Diagnosis (13/16)
byPeter Tröger

Fault tolerance techniques
byRajalakshmiSermadurai

Lecture07_FaultTolerance in parallel and distributing
bysameerkumar56473

Lecture07_FaultTolerance in parallel and distributed
bysameerkumar56473

Chapter- Five fault powers poin lecture
byborchala1

RBDs-Redundancia-Disponibilidad_(slide).ppt
byAnderGaragorri

Dependable Systems -Reliability Prediction (9/16)
byPeter Tröger

l4a.pdf
byrajinooka

PPT TARUNA.pptx
byssuser5ba6931

f33-ft-computing-lec02-measures.ppt
byManish Kumar

basic concepts of reliability
bydennis gookyi

High dependability of the automated systems
byAlan Tatourian

3D-DRESD R4R
byMarco Santambrogio


More from Peter Tröger

PDF
WannaCry - An OS course perspective
byPeter Tröger

PDF
Cloud Standards and Virtualization
byPeter Tröger

PDF
Distributed Resource Management Application API (DRMAA) Version 2
byPeter Tröger

PDF
OpenSubmit - How to grade 1200 code submissions
byPeter Tröger

PDF
Design of Software for Embedded Systems
byPeter Tröger

PDF
Humans should not write XML.
byPeter Tröger

PDF
What activates a bug? A refinement of the Laprie terminology model.
byPeter Tröger

PDF
Dependable Systems - System Dependability Evaluation (8/16)
byPeter Tröger

PDF
Dependable Systems -Dependability Attributes (5/16)
byPeter Tröger

PDF
Verteilte Software-Systeme im Kontext von Industrie 4.0
byPeter Tröger

PDF
Operating Systems 1 (12/12) - Summary
byPeter Tröger

PDF
Operating Systems 1 (8/12) - Concurrency
byPeter Tröger

PDF
Operating Systems 1 (9/12) - Memory Management Concepts
byPeter Tröger

PDF
Operating Systems 1 (7/12) - Threads
byPeter Tröger

PDF
Operating Systems 1 (1/12) - History
byPeter Tröger

PDF
Operating Systems 1 (2/12) - Hardware Basics
byPeter Tröger

PDF
Operating Systems 1 (11/12) - Input / Output
byPeter Tröger

PDF
Operating Systems 1 (3/12) - Architectures
byPeter Tröger

PDF
Operating Systems 1 (6/12) - Processes
byPeter Tröger

PDF
Operating Systems 1 (5/12) - Architectures (Unix)
byPeter Tröger

WannaCry - An OS course perspective
byPeter Tröger

Cloud Standards and Virtualization
byPeter Tröger

Distributed Resource Management Application API (DRMAA) Version 2
byPeter Tröger

OpenSubmit - How to grade 1200 code submissions
byPeter Tröger

Design of Software for Embedded Systems
byPeter Tröger

Humans should not write XML.
byPeter Tröger

What activates a bug? A refinement of the Laprie terminology model.
byPeter Tröger

Dependable Systems - System Dependability Evaluation (8/16)
byPeter Tröger

Dependable Systems -Dependability Attributes (5/16)
byPeter Tröger

Verteilte Software-Systeme im Kontext von Industrie 4.0
byPeter Tröger

Operating Systems 1 (12/12) - Summary
byPeter Tröger

Operating Systems 1 (8/12) - Concurrency
byPeter Tröger

Operating Systems 1 (9/12) - Memory Management Concepts
byPeter Tröger

Operating Systems 1 (7/12) - Threads
byPeter Tröger

Operating Systems 1 (1/12) - History
byPeter Tröger

Operating Systems 1 (2/12) - Hardware Basics
byPeter Tröger

Operating Systems 1 (11/12) - Input / Output
byPeter Tröger

Operating Systems 1 (3/12) - Architectures
byPeter Tröger

Operating Systems 1 (6/12) - Processes
byPeter Tröger

Operating Systems 1 (5/12) - Architectures (Unix)
byPeter Tröger


Recently uploaded

PPTX
Types of counselling Directive, Non Directive, Eclectic Counselling
byPriya Sush

PPTX
How to Manage Reservation Method in Odoo 18 Inventory
byCeline George

PPTX
Q4_PPT MUSIC & ARTS 7 week 1-2, matatag curriculum
byZEN

PPTX
Greengnorance Toolkit Module 2 Energy saving
byKarl Donert

PDF
BP502T Industrial Pharmacy I (Theory) UNIT– I (Part 1)
byRushi Mandali

PPTX
ELIMINATION NEEDS Fundamentals of Nursing .pptx
bySonali Gupta

PDF
Tetracycline Class of Antibiotics: SAR, MOA and Uses
bymominzarinamdnajeeb

PPTX
Problem and Solution (PowerPoint Game Template)
byacpaulite

PPTX
Plato's Insight model teaching and learning.pptx
byNikhitaDS

PDF
AI Is a Tool, Not a Voice: Radio, Trust, and the Human Factor
byN.A. Shah Ansari

PDF
Beyond the Absurd: A Comparative Reading of Waiting for Godot and the Bhagava...
byKruti Vyas

PPTX
Methods & Applications of Enzyme Immobilization Technique.pptx
byAnupkumar Sharma

PPTX
How to Create_Generate Engineering Change Orders ECOs in Odoo 18
byCeline George

PPTX
Greengnorance Toolkit Module1 Climate Change
byKarl Donert

PDF
Family and Marriage __ Sociology __ Jhasketan Kuanar __ NURSING VIBE ONLY .pdf
byJK NURSING VIBES ONLY JHASKETAN KUANAR

PDF
PHARMACOLOGY 1 ( BP 404 T) Unit 1 (Cology 1)
byChetan Mali

PDF
Workshop 29 Crystal Review All Students by YogiGoddess
by©LDMMIA, ©Reiki Yoga

PPTX
Renal Physiology- Juxtaglomerular Apparatus.pptx
byDisha Soriya

PDF
How "Raiders of the Lost Ark" and "Ordinary People" Employ Non-Verbal Acting
by6x5csns4pn

PPTX
Renal Physiology- Functional anatomy of Kidney.pptx
byDisha Soriya

Types of counselling Directive, Non Directive, Eclectic Counselling
byPriya Sush

How to Manage Reservation Method in Odoo 18 Inventory
byCeline George

Q4_PPT MUSIC & ARTS 7 week 1-2, matatag curriculum
byZEN

Greengnorance Toolkit Module 2 Energy saving
byKarl Donert

BP502T Industrial Pharmacy I (Theory) UNIT– I (Part 1)
byRushi Mandali

ELIMINATION NEEDS Fundamentals of Nursing .pptx
bySonali Gupta

Tetracycline Class of Antibiotics: SAR, MOA and Uses
bymominzarinamdnajeeb

Problem and Solution (PowerPoint Game Template)
byacpaulite

Plato's Insight model teaching and learning.pptx
byNikhitaDS

AI Is a Tool, Not a Voice: Radio, Trust, and the Human Factor
byN.A. Shah Ansari

Beyond the Absurd: A Comparative Reading of Waiting for Godot and the Bhagava...
byKruti Vyas

Methods & Applications of Enzyme Immobilization Technique.pptx
byAnupkumar Sharma

How to Create_Generate Engineering Change Orders ECOs in Odoo 18
byCeline George

Greengnorance Toolkit Module1 Climate Change
byKarl Donert

Family and Marriage __ Sociology __ Jhasketan Kuanar __ NURSING VIBE ONLY .pdf
byJK NURSING VIBES ONLY JHASKETAN KUANAR

PHARMACOLOGY 1 ( BP 404 T) Unit 1 (Cology 1)
byChetan Mali

Workshop 29 Crystal Review All Students by YogiGoddess
by©LDMMIA, ©Reiki Yoga

Renal Physiology- Juxtaglomerular Apparatus.pptx
byDisha Soriya

How "Raiders of the Lost Ark" and "Ordinary People" Employ Non-Verbal Acting
by6x5csns4pn

Renal Physiology- Functional anatomy of Kidney.pptx
byDisha Soriya


Dependable Systems - Hardware Dependability with Redundancy (14/16)

  • 1.
    Dependable Systems ! Hardware Dependability- Redundancy Dr. Peter Tröger ! Sources: ! Siewiorek, Daniel P.; Swarz, Robert S.: Reliable Computer Systems. third. Wellesley, MA : A. K. Peters, Ltd., 1998. , 156881092X Roland Trauner, IBM Mainframe Summit, Hasso Plattner Institute, 2012 IBM zEnterprise System Technical Guide, IBM RedBooks Some images (C) Elena Dubrova, ESDLab, Kungl Tekniska Högskolan
  • 2.
    Dependable Systems CoursePT 2014 Redundancy (Reiteration) • Redundancy for error detection and forward error recovery • Redundancy types: spatial, temporal, informational (presentation, version) • Redundant not mean identical functionality, just perform the same work • Static redundancy implements error mitigation • Fault does not show up, since it is transparently removed • Examples: Voting, error-correcting codes, N-modular redundancy • Dynamic redundancy implements error processing • After fault detection, the system is reconfigured to avoid a failure • Examples: Back-up sparing, duplex and share, pair and spare • Hybrid approaches 2
  • 3.
    Dependable Systems CoursePT 2014 System-Failure Response Strategies [Sieworek / Swarz] 3 System reliability Redundant systemNonredundant system Fault detection Fault tolerance Masking redundancy Dynamic redundancy Reconfiguration Retry Online Repair
  • 4.
    Dependable Systems CoursePT 2014 Redundancy • Redundancy is never for free ! • Hardware: Additional components, area, power, shielding, ... • Software: Development costs, maintenance costs, ... • Information: Extra hardware for decoding and encoding • Time: Faster processing (CPU) necessary to achieve same performance • Tradeoff: Costs vs. benefit of redundancy; additional design and testing effort • Sphere of replication [Mukherjee] • Identifies logical domain protected by the fault detection scheme • Questions: For which components are faults detected ?
 Which outputs must be compared ? Which inputs must be replicated ? 4
  • 5.
    Dependable Systems CoursePT 2014 Sphere of Replication • Components outside the sphere must be protected by other means • Level of output comparison decides upon fault coverage • Larger sphere tends to decrease the required bandwidth on input and output • More state changing happens just inside the sphere • Vendor might be restricted on choice of sphere size 5 HDD HDD Input Replication Output Comparison I/O Bus HDD HDD Input Replication Output Comparison HDD HDD Controll er Controll er RAID1 RAID10
  • 6.
    Dependable Systems CoursePT 2014 Masking / Static Redundancy: Voting • Exact voting: Only one correct result possible • Majority vote for uneven module numbers • Generalized median voting - Select result that is the median,
 by iteratively removing extremes • Formalized plurality voting - Divide results in partitions,
 choose random member from the largest partition • Inexact voting: Comparison at high level might lead to multiple correct results • Non-adaptive voting - Use allowable result discrepancy, put boundary on discrepancy minimum or maximum (e.g. 1,4 = 1,3) • Adaptive voting - Rank results based on past experience with module results • Compute the correct value based on „trust“ in modules from experience • Example: Weighted sum R=W1*R1 + W2*R2 + W3*R3 with W1+W2+W3=1 6 Voter A B C
  • 7.
    Dependable Systems CoursePT 2014 Static Redundancy: N-Modular Redundancy • Fault is transparently removed on detection • Triple-modular redundancy (TMR) • 2/3 of the modules must deliver correct results • Generalization with N-modular redundancy (NMR) • m+1/N of the modules must deliver correct result, with N=2m+1 • Standard case without any redundancy is called simplex 7 RT MR = RV · R2 of 3 = RV (R3 M + 3R2 M (1 RM ))
  • 8.
    Dependable Systems CoursePT 2014 N-Modular Redundancy (with perfect voter) 8 Module 1 Module 2 Module 3 Voter ... Module N Input Output RNMR = mX i=0 ✓ N i ◆ (1 R)i RN i ✓ n k ◆ = n! k!(n k)! R2 of 3 = ✓ 3 0 ◆ (1 R)0 R3 + ✓ 3 1 ◆ (1 R)R2 R2 of 3 = R3 + 3(1 R)R2 R3 of 5 = ...
  • 9.
    • TMR isappropriate if RTMR > RM (for given t) • TMR with perfect voter only improves system reliability when RM > 0.5 • Voter needs
 to have RV>0.9
 to reach
 RTMR > RM Dependable Systems Course PT 2014 TMR Reliability 90 0,1 0,2 0,3 0,4 0,5 0,6 0,7 0,8 0,9 0,25 0,5 0,75 TMR Single Module System Reliability Module Reliability
  • 10.
    Dependable Systems CoursePT 2014 Imperfect Voters 10 • Redundant voters • Module errors do not propagate • Voter errors propagate only by one stage • Assumption of multi-step process, final voter still needed
  • 11.
    Dependable Systems CoursePT 2014 Hardware Voting • Smallest hardware solution is the 1-bit majority voter • f=ab + ac + bc • Delivers the bit that has the majority • Requires 2 gate delays and 4 gates • Hardware voting can become expensive • 128 gates and 256 flip-flops for 32-bit voter • Input must be synchronized • Central clock source may be single point of failure • Can be solved by special event latching 11
  • 12.
    Dependable Systems CoursePT 2014 Dynamic Redundancy • Reconfiguration of the system in response to an error state • Prevents error propagation • Triggered by internal fault detection in the unit, or external error detection based on the outputs • Dynamic redundancy combines error confinement with fault detection • Still questions of coverage and diagnosability • On transient errors, good modules may be deactivated • Typically solved by combination of dynamic redundancy with retry approach • Typical approaches: Duplex, sparing, degradation, compensation 12
  • 13.
    • Reconfigurable duplication: Have relevant modules redundant, switch on failure • Identification on mismatch („test“) • Self-diagnostics procedure • Self-checking logic • Watchdog timer, e.g.
 for having components resetting
 each other (e.g. split brain) • Outside arbiter for signatures
 or black box tests • Test interval depends on application scenario - each clock period / bus cycle / ... • Also called dual-modular redundancy • Reliability computation as with parallel / serial component diagram Dependable Systems Course PT 2014 Duplex Systems 13
  • 14.
    • Combination ofworking module and a set of spare modules (,replacement parts‘) • Hot spares: Receive input with main modules, have results immediately • Warm spares: Are running, but receive input only after switching • Cold spares: Need to be started before switching Dependable Systems Course PT 2014 Back-Up Sparing 14 MODULES 1 2 n SWITCH OUTPUT INPUT HOT, WARM AND COLD SPARES
  • 15.
    • Special casesfor combination of duplex (with comparator) and sparing (with switch) • Pair and spare - Multiple duplex pairs, connected as standby sparing setup • Two replicated modules operate as duplex pair (lockstep execution),
 connected by comparator as voting circuit • Same setting again as spare unit,
 spare units connected by switch • On module output mismatch, comparators
 signal switch to perform failover • Commercially used, e.g. Stratus XA/R Series 300 Dependable Systems Course PT 2014 Pair and Spare 15 MODULES 1 2 3 OUTPUTINPUT COMPARATOR 4 COMPARATOR SWITCH/COMPARATOR
  • 16.
    Dependable Systems CoursePT 2014 Graceful Degradation • Performance design of the system allows continued operation with spares • Many commercial systems supports this, but lack automated error processing • Example: Operating system support for CPU off-lining, but no MCA handling • Designed-In Resources: • Replaceable or bypass-able components (f.e. caches, disks, processors) • Support for operation with degraded performance • Added-On Resources: • Redundant units used for excess capacity during normal operation • Still non-degraded performance on failure • Interconnect reconfiguration: Use alternative paths in the network • Hardware solutions in telco industry, today replaced by software solutions 16
  • 17.
    Dependable Systems CoursePT 2014 Example: Spanning Tree Protocol • Modern implementation of interconnect reconfiguration for dynamic redundancy • Bridges for connecting different Ethernet sub-networks • By default no coordination, better products use the spanning tree protocol • Explicit removal of redundant paths (loops),
 while still supporting all point-to-point communication • Each bridge has its own MAC address, protocol based on broadcast • Create a tree of bridges, starting from a chosen root bridge • All paths start from the root bridge • Ports participating in redundant paths have to be switched off • Cost model for paths to make a choice (root distance, speed) 17
  • 18.
    Dependable Systems CoursePT 2014 Example: Spanning Tree Protocol • Determine root bridge • Send your ID (MAC address) to a multicast group, smallest ID wins • Each non-root bridge determines the ,cheapest‘ path to the root bridge • This port becomes the root port (RP) • For multiple bridges in a segment, the ,cheapest‘ representative is elected -
 designated port (DP) • All ports that are not DP or RP are deactivated -
 blocked port (BP) 18
  • 19.
    Dependable Systems CoursePT 2014 Hybrid Approaches • N-modular redundancy
 with spares • Also called hybrid redundancy • System has basic NMR
 configuration • Disagreement detector replaces
 modules with spares if their
 output is not matching
 the voting result • Reliability as long as the spare pool is not exhausted • Improves fault masking capability of NMR • Can tolerate two faults with one spare, while classic NMR would need 5 modules with majority voting to tolerate two faults 19 Adds fault localization
  • 20.
    Dependable Systems CoursePT 2014 TMR with Spares 20 NASA Technical Report 32-1467, 1969 • Basic reliability computation based on the assumption of similar module failure rates in spares and non-spares • At least any two of all S+3 modules must survive
  • 21.
    Dependable Systems CoursePT 2014 Comparison TMR vs. TMR/S vs. NMR 21 NASATechnicalReport32-1467,1969 #Units = 2N + 1
  • 22.
    Dependable Systems CoursePT 2014 Hybrid Approaches • Self-purging redundancy • Active redundant modules, each can remove itself from the system if faulty • Basic idea: Test for agreement with the voting result, otherwise 0 22 • If module output does not match to system output, 0 is delivered • Works fine with threshold voters
  • 23.
    Dependable Systems CoursePT 2014 Hybrid Approaches 23 • Sift-out modular redundancy (N-2), no voter required • Pair-wise comparison of module outputs by comparator • N inputs and N-over-2 outputs • Detector uses these signals to identify the faulty module, includes also memory cells for failed modules • Collector sifts out the
 faulty input, based on
 information from
 detector
  • 24.
    Dependable Systems CoursePT 2014 Hybrid Approaches • Triple Duplex Architecture • TMR with duplex modules, used in the Shinkansen (Japanese train) • Fault masking with comparator, no more contribution to voting from faulty one • Allows tolerating another fault in the further operation,
 since comparator localizes again the faulty module • Adds again fault location
 capability to redundancy
 scheme • Supports also hot
 plugging of deactivated
 components 24
  • 25.
    Dependable Systems CoursePT 2014 The Real World of Hardware Redundancy - Replacement Frequencies [Schroeder 2007] 25 760 node cluster, 2300 disks ISP, multiple sites, 26700 disks ISP, multiple sites, 9200 machines, 39000 disks
  • 26.
    Dependable Systems CoursePT 2014 IBM System z 26 © 2011 IBM Corporation56 IBM zEnterprise Scheduled(CIE+DisruptivePatches+ECs) Planned- (MES+Driver Upgrades) Unscheduled(UIRA) Sources of Outages Pre z9 -Hrs/Year/Syst- Prior Servers z9 EC Z10 EC z196 Unscheduled Outages Scheduled Outages Planned Outages Preplanning requirements Power & Thermal Management Increased Focus over time             Temperature = Silicon Reliability Worst Enemy Wearout = Mechanical Components Reliability Worst Enemy. System z overall RAS Strategy …..Continuing our RAS focus helps avoid outages ImpactofOutage
  • 27.
    Dependable Systems CoursePT 2014 IBM System z • Machine-Check-Handling mechanism in z/Series • Equipment malfunction detection • Permit automatic recovery • Error states are reported by machine-check interruption • Data error detection through information redundancy • Recovery from machine-detected error states • Error checking and correction - use circuitry redundancy • CPU retry - checkpoint written at instruction-based synchronization points • Channel-subsystem recovery - restart of I/O components • Unit deletion - automated degradation of malfunctioning units 27
  • 28.
    Dependable Systems CoursePT 2014 IBM System z - Processor Books 28 © 2011 IBM Corporation52 IBM zEnterprise z196 Cache / Book Topology Fully connected 4 Book system:  96 total cores  Total system cache  768 MB shared L4 (eDRAM)  576 MB L3 (eDRAM)  144 MB L2 private (SRAM)  19.5 MB L1 private (SRAM) CP1CP1CP2CP2 CP4CP4 CP5CP5CP3CP3 SC0SC1 Mem1 Mem0 FBCs Mem2 CP0CP0 Book: FBCs • 4 PU‘s (cores) per CP + co-processors • SC: Storage Control • 96-192 MB L4 cache per SC, accessible from other MCMs • FBC: Fabric book connectivity • Support for dynamic book addition and repair • 2+1 redundancy for book power supply Multi-Chip Module (MCM)
  • 29.
    Dependable Systems CoursePT 2014 IBM System z 29 © 2011 IBM Corporation57 IBM zEnterprise z196 RAS Design of ……..Fully Redundant I/O Subsystem – of existing IO cage and drawers Fully Redundant I/O Design  SAP / CP sparing  SAP Reassignment  I/O Reset & Failover  I/O Mux Reset / Failover  Redundant I/O Adapter  Redundant I/O interconnect  Redundant Network Adapters  Redundant ISC links  Redundant Crypto processors  I/O Switched Fabric  Network Switched/Router Fabric  High Availability Plugging Rules  I/O and coupling fanout rebalancing on CBA  Channel Initiated Retry  High Data Integrity Infrastructure  I/O Alternate Path  Network Alternate Path  Virtualization Technology processor Failover I/O Mux I/O Hub I/O Hub I/O Mux I/O Mux I/O Mux Failover I/Oadapter. I/Oadapter. Networkadapter. Networkadapter. CryproAccelerator CryptoAccelerator ISCLinks ISCLinks Alternate Path I/O Switch Control Unit I/O Switch Control Unit Network Switch End User Network Switch End User
  • 30.
    Dependable Systems CoursePT 2014 IBM System z196 • Prepared for Unscheduled Outages
 • Advanced Memory RAIM (Redundant Array of Independent Memory) design • Enhanced Reed-Solomon code (ECC) – 90B/64B • Protection against Channel/DIMM failures • Chip marking for fast DRAM replacements • Mirrored Key cache • Improved chip packaging • Improved condensation management • Integrated TCP/IP checksum generation/checking • Integrated EPO switch cover (protecting the switch during repair actions) • Continued focus on Firmware • Prepared for Scheduled Outages
 • Double memory data bus lane sparing (reducing repair actions) • Single memory clock bus sparing • Field Repair of interface between processor chip and cache chip and between cache chips (fabric bus) • Fast bitline delete on L3/L4 cache (largest caches) • Power distribution using N+2 Voltage Transformation Modules (VTM) • Blower management by sensing altitude and humidity • Redundant (N+2) humidity sensors • Redundant (N+2) altitude sensors • Unified Resource Manager for zBX 30
  • 31.
    Dependable Systems CoursePT 2014 Memory Redundancy • Redundancy of memory data for error masking • Replication / coding at different levels • Examples • STAR (Self-testing and self-repairing computer, for early spacecrafts), 1971 • COMTRAC (Computer-aided traffic control
 system for Shinkansen train system) • Stratus (Commercial fault-tolerant system) • 3B20 by AT & T (Commercial fault-tolerant system) • Most modern memory controllers in servers 31
  • 32.
    Dependable Systems CoursePT 2014 Coding Checks in Memory Hardware • Primary memory • Parity code • m-out-of-n resp. m-of-n resp. m/n code • Checksumming • Berger Code • Hamming code • Secondary storage • RAID codes • Reed-Solomon code 32
  • 33.
    Dependable Systems CoursePT 2014 Hamming Distance (Richard Hamming, 1950) • Hamming distance: Number of positions on which two words differ • Alternative definition: Number of necessary substitutions to make A to B • Alternative definition: Number of errors that transform A to B ! ! ! ! • Minimum Hamming distance: Minimum distance between any two code words • To detect d single-bit errors, a code must have a min. distance of at least d + 1 • If at least d+1 bits change in the transmitted code, a new (valid) code appears • To correct d single-bit errors, the minimum distance must be 2d+1 33 (C)Wikipedia
  • 34.
    Dependable Systems CoursePT 2014 Parity Codes • Add parity bit to the information word • Even parity: If odd number of ones, add one to make the number of ones even • Odd parity: If even number of ones, add one to make the number of ones odd • Variants • Bit-per-word parity • Bit-per-byte parity
 (Example:
 Pentium data cache) • Bit-per-chip parity • ... 34
  • 35.
    Dependable Systems CoursePT 2014 Two-Dimensional Parity 35 Example: Odd Parity Allows fault location
  • 36.
    Dependable Systems CoursePT 2014 Code Properties 36 Code Bits / Word Number of
 possible words Coverage Even Parity 4 8 Any single bit error,
 no double-bit error,
 not all-0s or all 1s errors Odd Parity 4 8 Any single bit error,
 no double-bit error, all-0s or all 1s errors 2/4 4 6 Any single bit error,
 33% of double bit errors
  • 37.
    Dependable Systems CoursePT 2014 Checksumming • General idea: Multiply components of a data word and add them up to a checksum • Good for large blocks of data, low hardware overhead • Might require substantial time, memory overhead • 100% coverage for single faults • Example: ISBN 10 check digit • Final number of 10 digit ISBN number is a check digit, computed by: • Multiply all data digits by their position number, starting from right • Take sum of the products, and set the check digit so that result MOD 11 = 0 • Check digit „01“ is represented by X • More complex approaches get better coverage (e.g. CRC) for more CPU time 37
  • 38.
    Dependable Systems CoursePT 2014 Hamming Code • Every data word with n bits is extended
 by k control bits • Control bits through standard parity approach
 (even parity), implementable with XOR • Inserted at power-of-two positions • Parity bit pX is responsible for all position numbers with the X-least significant bit set (e.g. p1 responsible for ,red dot‘ positions) • Parity bits check overlapping parts of the data bits, computation and check are cheap,
 but significant overhead in data • Minimum Hamming distance of three
 (single bit correction) • Application in DRAM memory 38 takenfromWikimediaCommons
  • 39.
    Dependable Systems CoursePT 2014 Hamming Code for 26bit word size 39 takenfromWikimediaCommons
  • 40.
    Dependable Systems CoursePT 2014 Hamming Code • Hamming codes are known to produce 10% to 40% of data overhead • Syndrome determines which bit (if any) is corrupted • Example ECC • Majority of „one-off“ soft errors in DRAM happens from background radiation • Denser packages, lower voltage for higher frequencies • Most common approach is the SECDEC Hamming code • "Single error correction, double error detection" (SECDEC) • Hamming code with additional parity • Modern BIOS implementations perform
 threshold-based warnings on frequent correctable errors 40 (C) Z. Kalbarczyk
  • 41.
    Dependable Systems CoursePT 2014 Memory Redundancy • Standard technology in DRAMs • Bit-per-byte parity, check on read access • Implemented by additional parity memory chip • ECC with Hamming codes - 7 check bits for 32 bit data words, 8 bit for 64 bit • Leads to 72 bit data bus between DIMM and chipset • Computed by memory controller on write, checked on read • Study by IBM: ECC memory achieves R=0.91 over three years • Can correct single bit errors and detect double bit errors • Hewlett Packard Advanced ECC (1996) • Can detect and correct single bit and double bit errors 41
  • 42.
    Dependable Systems CoursePT 2014 Memory Redundancy • IBM ChipKill • Originally developed for NASA Pathfinder project, now in X-Series • Corrects up to 4 bit errors, detects up to 8 bit errors • Implemented in chipset and firmware, works with standard ECC modules • Based on striping approach with parity checks (similar to RAID) • 72 bit data word is split in 18 bit chunks, distributed on 4 DIMM modules • 18 DRAM chips per module, one bit per chip • HP Hot Plug RAID Memory • Five memory banks, fifth bank for parity information • Corrects single bit, double bit, 4-bit, 8-bit errors; hot plugging support 42
  • 43.
    Dependable Systems CoursePT 2014 Memory Redundancy • Dell PowerEdge Servers, 2005 (taken from www.dell.com) 43
  • 44.
    Dependable Systems CoursePT 2014 Memory Redundancy • Fujitsu System Board D2786 for RX200 S5 (2010) • Independent Channel Mode: Standard operational module, always use first slot • Mirrored Channel Mode: Identical modules on slot A/B (CPU1) and D/E (CPU2) 44
  • 45.
    Dependable Systems CoursePT 2014 IBM System z - Memory RAID 45 • System z10 EC memory design • Four Memory Controllers (MCUs) organized in two pairs,
 each MCU with four redundant channels • 16 to 48 DIMMs per book, plugged in groups of 8 • 8 DIMMs (4 or 8 GB) per feature, 32 or 64 GB physical memory per feature • 64 to 384 GB physical memory per book = 64 to 384 GB for use
 (HSA and customer) • z196 memory design: • Three MCUs, each with five channels. The fifth channel in each z196 MCU is required to implement Redundant Array of Independent Memory (RAIM) • Detected and corrected: Bit, lane, DRAM, DIMM, socket, and complete memory channel failures, including many types of multiple failures
  • 46.
    Dependable Systems CoursePT 2014 IBM System z196 - Memory RAID 46 © 2011 IBM Corporation62 IBM zEnterprise Ch4 Ch3 Ch2 Ch1 ASIC ASIC Ch0 DIMM CLK Diff CLK Diff C R C C R C DRAM X X X X Layers of Memory Recovery ECC  Powerful 90B/64B Reed Solomon code DRAM Failure  Marking technology; no half sparing needed  2 DRAM can be marked  Call for replacement on third DRAM Lane Failure  CRC with Retry  Data – lane sparing  CLK – RAIM with lane sparing DIMM Failure (discrete components, VTT Reg.)  CRC with Retry  Data – lane sparing  CLK – RAIM with lane sparing DIMM Controller ASIC Failure  RAIM Recovery Channel Failure  RAIM Recovery MCU0 ECC RAIM X X X 2- Deep Cascade Using Quad High DIMMs z196 RAIM Memory Controller Overview
  • 47.
    Dependable Systems CoursePT 2014 IBM z10 EC Memory Structure 47 © 2011 IBM Corporation63 IBM zEnterprise z10 EC Memory Structure DATA CHECK DATA CHECK ECC Level 2 Cache Key Cache MCU 0 16B 16B 2B Key Cache MCU 1 16B 16B 2B Key Cache MCU 2 16B 16B 2B Key Cache MCU 3 16B 16B 2B
  • 48.
    Dependable Systems CoursePT 2014 IBM System z196 - RAIM 48 © 2011 IBM Corporation64 IBM zEnterprise z196 Redundant Array of Independent Memory (RAIM) Structure DATA CHECK DATA CHECK ECC RAIM Parity Level 3 Cache Key Cache MCU 0 16B 16B 2B Key Cache MCU 1 16B 16B 2B Key Cache MCU 2 16B 16B 2B Extra column provides RAIM function
  • 49.
    Dependable Systems CoursePT 2014 Disk Redundancy • Typical measure is the annual failure rate (AFR) - average number of failures / year


 • Can be interpreted as failure probability during a year • MTBF = Mean time before failure, here • Disk MTTF: On average, one failure takes place in the given disk hours • Example: Seagate Barracuda ST3500320AS: MTTF=750000h=85.6 years • With thousand disks, on average every 750h (a month) some disk fails • Measured by the manufacturer under heavy load and physical stress • AFR=0.012 49 AFR = 1 MT BFyears = 8760 MT BFhours
  • 50.
    Dependable Systems CoursePT 2014 RAID • Redundant Array of Independent Disks (RAID) [Patterson et al. 1988] • Improve I/O performance and / or reliability by building raid groups • Replication for information reconstruction on disk failure (degrading) • Requires computational effort (dedicated controller vs. software) • Assumes failure independence 50
  • 51.
    Dependable Systems CoursePT 2014 RAID Reliability Comparison • Treat disk failing as Bernoulli experiment - independent events, identical probability • Probability for k events of probability p in n runs ! • Probability for a failure of a RAID 1 mirror - all disks unavailable: ! • Probability for a failure of a RAID 0 strip set - any faults disk leads to failure: 51 Bn,p(k) = pk (1 p)n k n k ⇥ pallfail = n n pfail n (1 pfail)0 = pfail n panyfail = 1 pallwork = 1 ✓ n n ◆ (1 pfail)n pfail 0 = 1 (1 pfail)n
  • 52.
    • Works forRAID levels were second outage during repair is fatal • Basic idea is that groups of data disks are protected by additional check disks • D - Total number of data disks • G - Number of data disks in a group (e.g. G=1 in RAID1) • C - Number of redundant check disks (parity / mirror) in a group
 (e.g. C=1 in RAID1) • nG = D / G = number of groups, G+C : Number of disks in a group Dependable Systems Course PT 2014 RAID MTTF Calculation [Patterson] 52 MTTFGroup = MTTFDisk G + C · 1 pSecondF ailureDuringRepair
  • 53.
    • Assuming exponentialdistribution, the probability for a second disk failure during the repair time can be determined by: ! ! • So: Dependable Systems Course PT 2014 RAID MTTF Calculation [Patterson] 53 MTTFGroup = MTTFDisk G + C · 1 pSecondF ailureDuringRepair pSecondF ailure = MTTR MT T FDisk G+C 1 MTTFRaid = MTTFGroup nG = MTTFDisk 2 (G + C) ⇤ nG ⇤ (G + C 1) ⇤ MTTR
  • 54.
    Dependable Systems CoursePT 2014 RAID 0 • Raid 0 - Block-level striping • I/O performance improvement with many channels and drives • One controller per drive • Optimal stripe size depends on I/O request size, random vs. sequential I/O, concurrent vs. single-threaded I/O • Fine-grained striping: Good load balancing, catastrophic data loss • Coarse-grained striping: Good recovery for small files, worse performance • One option: Strip size = Single-threaded I/O size / number of disks • Parallel read supported, but positioning overhead for small concurrent accesses • No fault tolerance 54 (C) Wikipedia MTTFRaid0 = MTTFDisk N
  • 55.
    Dependable Systems CoursePT 2014 RAID 1 • Raid 1 - Mirroring and duplexing • Duplicated I/O requests • Decreasing write performance, up to double read rate of single disk • RAID controller might allow concurrent read and write per mirrored pair • Highest overhead of all solutions, smallest disk determines resulting size • Reliability is given by probability that one disk fails and the second fails while the first is repaired • With D=1, G=1, C=1 and the generic formula, we get 55 (C) Wikipedia MTTFRaid1 = MTTFDisk 2 · MTTFDisk MTTRDisk
  • 56.
    Dependable Systems CoursePT 2014 Raid 2/3 • Raid 2 - Byte-level striping with Hamming code -based check disk • No commercial implementation due to ECC storage overhead • Online verification and correction during read • Raid 3 - Byte-level striping with dedicated XOR parity disk • All data disks used equally, one XOR parity disk as bottleneck (C=1) • Bad for concurrent small accesses, good sequential performance (streaming) • Separate code is needed to identify a faulty disk • Disk failure has only small impact on throughput • RAID failure if more than one disk fails: 56 (C) Wikipedia MTTFRaid3 = MTTFDisk D + C · MT T FDisk D+C 1 MTTRDisk
  • 57.
    Dependable Systems CoursePT 2014 Parity With XOR • Self-inverse operation • 101 XOR 011 = 110, 110 XOR 011 = 101 57 Disk Byte 1 1 1 0 0 1 0 0 1 2 0 1 1 0 1 1 1 0 3 0 0 0 1 0 0 1 1 4 1 1 1 0 1 0 1 1 Parity 0 1 0 1 1 1 1 1 Disk Byte 1 1 1 0 0 1 0 0 1 Parity 0 1 0 1 1 1 1 1 3 0 0 0 1 0 0 1 1 4 1 1 1 0 1 0 1 1 Hot Spare 0 1 1 0 1 1 1 0
  • 58.
    MTTFRaid5 = MTTFDisk N · MT TFDisk N 1 MTTRDisk Dependable Systems Course PT 2014 RAID 4 / 5 • Raid 4 - Block-level striping with dedicated parity disk • RAID 3 vs. RAID 4: Allows concurrent block access • Raid 5 - Block-level striping with distributed parity • Balanced load as with Raid 0, better reliability • Bad performance for small block writing • Most complex controller design, difficult rebuild • When block in a stripe is changed, old block and parity must be read to compute new parity • For every changed data bit, flip parity bit 58 (C)Wikipedia
  • 59.
    Dependable Systems CoursePT 2014 RAID 6 / 01 / 10 • Raid 6 - Block-level striping with two parity schemes • Extension of RAID5, can sustain multiple drive
 failures at the same time • High controller overhead to compute parities,
 poor write performance • Raid 01 - Every mirror is a Raid 0 stripe
 (min. 4 disks) • Raid 10 - Every stripe is a Raid 1 mirror
 (min. 4 disks) • RAID DP - RAID 4 with second parity
 disk • Additional parity includes first parity + all but one of the data blocks (diagonal) • Can deal with two disk outages
 59
  • 60.
    • Take thesame number of disks
 in different constellations • AFRDisk = 0.029, MTTR=8h • RAID5 has bad reliability, but
 offers most effective capacity • In comparison to RAID5, RAID10
 can deal with two disk errors • Also needs to consider different
 resynchronization times • RAID10: Only one disk needs to be copied to the spare • RAID5 / RAID-DP: All disks must be read to compute parity • Use RAID01 only in 2+2 combination Dependable Systems Course PT 2014 RAID Analysis (Schmidt) 60
  • 61.
    Dependable Systems CoursePT 2014 RAID Analysis (TecChannel.de) 61 RAID 0 RAID 1 RAID 10 RAID 3 RAID 4 RAID 5 RAID 6 Number of drives n > 1 n = 2 n > 3 n > 2 n > 2 n > 2 n > 3 Capacity overhead (%) 0 50 50 100 / n 100 / n 100 / n 200 / n Parallel reads n 2 n / 2 n - 1 n - 1 n -1 n - 2 Parallel writes n 1 1 1 1 n / 2 n / 3 Maximum read throughput n 2 n / 2 n - 1 n - 1 n - 1 n - 2 Maximum write throughput n 1 1 1 1 n / 2 n / 3
  • 62.
    Dependable Systems CoursePT 2014 Software RAID • Software layer above block-based device driver(s) • Windows Desktop / Server, Mac OS X, Linux, ... • Multiple problems • Computational overhead for RAID levels beside 0 and 1 • Boot process • Legacy partition formats • Driver-based RAID • Standard disk controller with special firmware • Controller covers boot stage, device driver takes over in protected mode 62
  • 63.
    Dependable Systems CoursePT 2014 Disk Redundancy: Google • Failure Trends in a Large Disk Drive Population [Pinheiro2007] • > 100.000 disks, SATA / PATA consumer hard disk drives, 5400 to 7200 rpm • 9 months of data gathering in Google data centers • Statistical analysis of SMART data • Failure event: „A drive is considered to
 have failed if it was replaced as part
 of a repairs procedure.“ • Prediction models based on SMART only
 work in 56% of the cases 63
  • 64.
    Dependable Systems CoursePT 2014 Disk Redundancy: Google • Failure rates are correlated with drive model, manufacturer and drive age • Indication for infant mortality • Impact from utilization (25th percentile, 50-75th percentile, 75th percentile) • Reversing effect in third year - „Survival of the fittest“ theory 64
  • 65.
    Dependable Systems CoursePT 2014 Disk Redundancy: Google 65 • Temperature effects only at high end of temperature range, with old drives
  • 66.
    Dependable Systems CoursePT 2014 IBM System z - Redundant I/O • Each processor book
 has up to 8 dual port fanouts • Direct data transfer
 between memory and
 PCI/e (8 GBps) or
 Infiniband (6 GBps) • Optical and copper
 connectivity supported • Fanout cards are
 hot-pluggable, without
 loosing the I/O connectivity • Air-moving devices (AMD) have N+1 redundancy for fanouts, memory and power 66 Chapter 2. CPC hardware components 31 well as MES orders. 2.2 Book concept The central processor complex (CPC) uses a packaging design for its processors based on books. A book contains a multi-chip module (MCM), memory, and connectors to I/O cages and other CPCs. Books are located in the processor cage in frame A. The z196 has from one book to four books installed. A book and its components are shown in Figure 2-3. Figure 2-3 Book structure and components 1 Dense Wave Division Multiplexing MCM @ 1800W Refrigeration Cooled or Water Cooled Backup Air Plenum 8 I/O FAN OUT 2 FSP 3x DCA 14X DIMMs 100mm High 16X DIMMs 100mm High 11 VTM Card Assemblies 8 Vertical 3 Horizontal Rear Front DCA Power Supplies Fanout Cards Cooling from/to MRU MCM Memory Memory
  • 67.
    Dependable Systems CoursePT 2014 IBM System z - Redundant I/O • PCI/e I/O drawer supports up to 32
 I/O cards from fanouts in 4 domains • One PCI/e switch card per domain • Two cards provide backup path for each other (f.e. with cable failure) • 16 cards max. per switch 67 Figure 4-2 illustrates the I/O structure of a z196. An InfiniBand (IFB) cable connects the HCA2-C fanout to an IFB-MP card in the I/O cage. The passive connection between two IFB-MP cards allows for redundant I/O interconnection. The IFB cable between an HCA2-C fanout in a book and each IFB-MP card in the I/O cage supports a 6 GBps bandwidth. Figure 4-2 z196 I/O structure when using I/O cages I/O Cage for Redundant I/O Interconnect Passive Connection 8 x 6 GBps I/O Interconnect IFB-MP IFB-MP I/O Domain Crypto FICON/FCP OSA ESCON I/O Domain Crypto FICON/FCP OSA ISC-3 Processor Memory HCA2-C Fanout
  • 68.
    Dependable Systems CoursePT 2014 IBM System z - Redundant I/O 68 The HCA3-O LR (1xIFB) fanout comes with 4 ports and each other fanout comes with two ports. Figure 4-10 illustrates the IFB connection from the CPC cage to an I/O cage and an I/O drawer, and the PCIe connection from the CPC cage to an PCIe I/O drawer. Figure 4-10 PCIe and InfiniBand I/O Infrastructure Book 3Book 1 Memory x16 PCIe Gen2 8 GBps Memory Memory Memory Book 0 Book 2 PCIe switch OSA-Express4S PCIe (8x) PCIe (8x) HCA2 (8x) PCIe switch PCIe switch FICON Express8S PCIe switch 4 GB/s PCIe Gen2 x8 … SC1, SC0 (FBC) PU PU PU PU PU PU SC1, SC0 (FBC) PU PU PU PU PU PU SC1, SC0 (FBC) PU PU PU PU PU PU SC1, SC0 (FBC) PU PU PU PU PU PU SC1, SC0 (FBC) PU PU PU PU PU PU SC1, SC0 (FBC) PU PU PU PU PU PU SC1, SC0 (FBC) PU PU PU PU PU PU SC1, SC0 (FBC) PU PU PU PU PU PU PCIe I/O drawerPCIe I/O drawer FanoutsFanouts 6 GBps HCA2 (8x) IFB-MP RII IFB-MP FICON Express8 2 GBps mSTI Channels 1 GBps mSTI 2 GBps mSTI Ports 2GBps mSTI FPGA RII IFB-MPIFB-MP OSA-Express3 I/O Cage & I/O drawerI/O Cage & I/O drawer RII RII FPGA
