Zigbee is a low-power wireless communication protocol standardized for low-speed data transmission over short distances, specifically designed for applications such as remote control of electrical equipment. It operates on IEEE 802.15.4 standards and supports various applications including home automation, healthcare, and retail services. Key features include low data throughput (250 kbit/s), a range of 1-100 meters, and low power consumption, making it suitable for battery-operated devices.

1. By Lebon Mudumba [ l12mudumbagr@gmail.com ]

2. WIRELESS COMMUNICATION
ZIGBEETECHNOLOGY
By LUKOGO Mudumba Lebon
Bachelor Of Science In Information Technology
International University Of Equator – Bujumbura
To Lecturer GANZA Prosper
April 2016By Lebon Mudumba [ l12mudumbagr@gmail.com ]

3. ZIGBEE PRESENTATION
WHAT IS IT?
• A set of high communications protocols level
 Using low power radio transmission,
 For low-speed data transmission (250 kbit / s)
 On a small area (WPAN)
 Based on the IEEE 802.15.4 ("low-rate wireless personal area network (LR-
WPAN) standard ")
IT'S USED FOR
• To make a remote control service a electrical equipment and more.
By Lebon Mudumba [ l12mudumbagr@gmail.com ]

4. PLAN
• PRESENTATION OF ZIGBEE
• ZIGBEE AND OTHER
• APPLICATIONS OF ZIGBEE
• OPERATION OF ZIGBEE
By Lebon Mudumba [ l12mudumbagr@gmail.com ]

5. PRESENTATION OF ZIGBEE
• ZIGBEE:
• OFFERED IN 1998
• STANDARDIZED IN MAY 2003 THEN 2006
• AT LOW COST: $ 1
• WIDE DISTRIBUTION
• AT LOW CONSUMPTION
• LONG LIFE EXPECTANCY
• COMMUNICATION IN A NETWORK
• INCREASE THE SCOPE
By Lebon Mudumba [ l12mudumbagr@gmail.com ]

6. ZIGBEE FEATURES
• LOW DATA THROUGHPUT: 250 KBIT/S
• PROTOCOL STACK: 32 KBYTES
• NUMBER OF NODES: 264
• RANGE: 1 – 100 M
• TOPOLOGY:
- STAR, TREE, MESH
• FREQUENCY BAND: "ISM BAND"
• EUROPE 868 MHZ;
• USA + AUSTRALIA: 915 MHZ;
• WORLD: 2.4 GHZ
• WAKE UP TIME: 30 MS (BLUETOOTH: 3 S)
By Lebon Mudumba [ l12mudumbagr@gmail.com ]

7. ARCHITECTURE ZIGBEE
• BASED ON IEEE 802.15.4
- PHYSICAL LAYER MAC
• ZIGBEE COMPONENTS:
- NETWORK LAYER
- APPLICATION LAYER SUPPORT
(APS)
- ZIGBEE DEVICE OBJECT (ZDO)
- APPLICATION MANUFACTURER'S
OBJECTS
• ZDO:
- DEVICE MANAGEMENT
- NETWORK MANAGEMENT
- DISCOVERY
- SECURITY
• IN 2007, ZIGBEE PRO
• MULTICASTING,
• MANY-TO-ONE ROUTING,
• HIGH SECURITY WITH SYMMETRIC-
KEY KEY EXCHANGE (SKKE)
By Lebon Mudumba [ l12mudumbagr@gmail.com ]

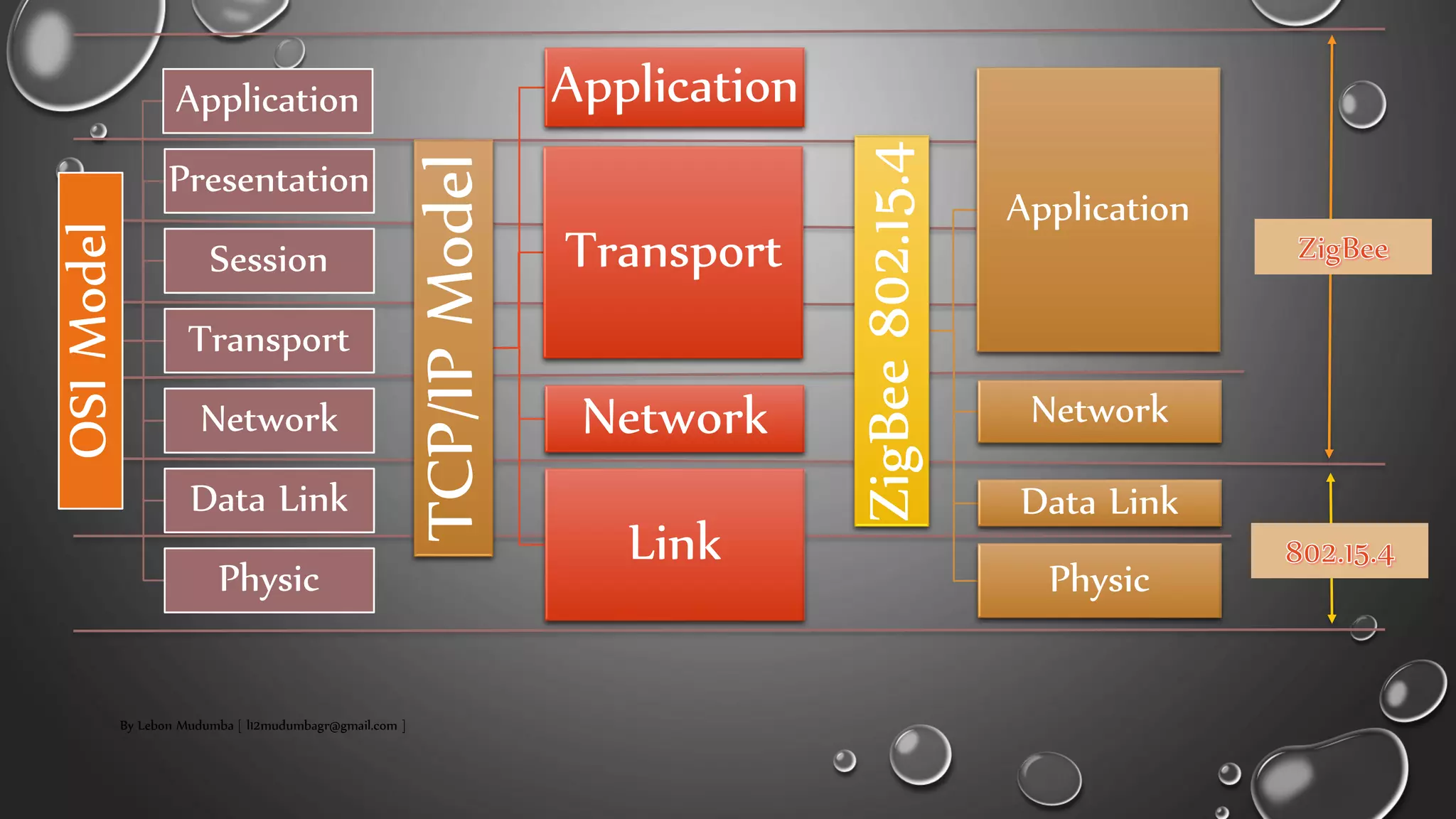

8. OSIModel Application
Presentation
Session
Transport
Network
Data Link
Physic
TCP/IPModel
Application
Transport
Network
Link
ZigBee802.15.4
Application
Network
Data Link
Physic
By Lebon Mudumba [ l12mudumbagr@gmail.com ]

9. Standard Bandwidth Power
Consumption
Protocol Stack
Size
Stronghold Applications
Wi-Fi Up to
54Mbps
400+mA TX,
standby 20mA
100+KB High data rate Internet
browsing, PC
networking, file
transfers
Bluetooth 1Mbps 40mA TX,
standby 0.2mA
~100+KB Interoperability,
cable replacement
Wireless USB,
handset, headset
ZigBee 250kbps 30mA TX,
standby
3#&956;A
4"32KB Long battery life,
low cost
Remote control,
battery-operated
products, sensors
The following table-1 shows the Wireless technology comparison chart,
By Lebon Mudumba [ l12mudumbagr@gmail.com ]

10. APPLICATIONS OF ZIGBEE
• ZIGBEE HOME AUTOMATION
• ZIGBEE SMART ENERGY 1.0 => 2.0
• ZIGBEE TELECOMMUNICATION SERVICES
• ZIGBEE HEALTH CARE
• ZIGBEE RF4CE (RADIO FREQUENCY FOR CONSUMER ELECTRONICS)
• REMOTE CONTROL
• ZIGBEE BUILDING AUTOMATION
• ZIGBEE RETAIL SERVICES
• ZIGBEE INPUT DEVICES
• ZIGBEE 3D SYNCBy Lebon Mudumba [ l12mudumbagr@gmail.com ]

11. ZIGBEE SMART ENERGY
By Lebon Mudumba [ l12mudumbagr@gmail.com ]
