The document summarizes several innovations from Zarafa, including renaming their "twidget" to parse email for twitter references, improving their PDF previewer, integrating SugarCRM archive functionality, adding command line permissions control, specifying sizes in MB and KB, exploring Exchange replication, a Dropbox integration, improving search performance by switching from Clucene to Kyoto Cabinet storage, optimizing indexing, and adding a PST importer called Zarafa-import.

1. Three cool innovations from Zarafa
Steve Hardy

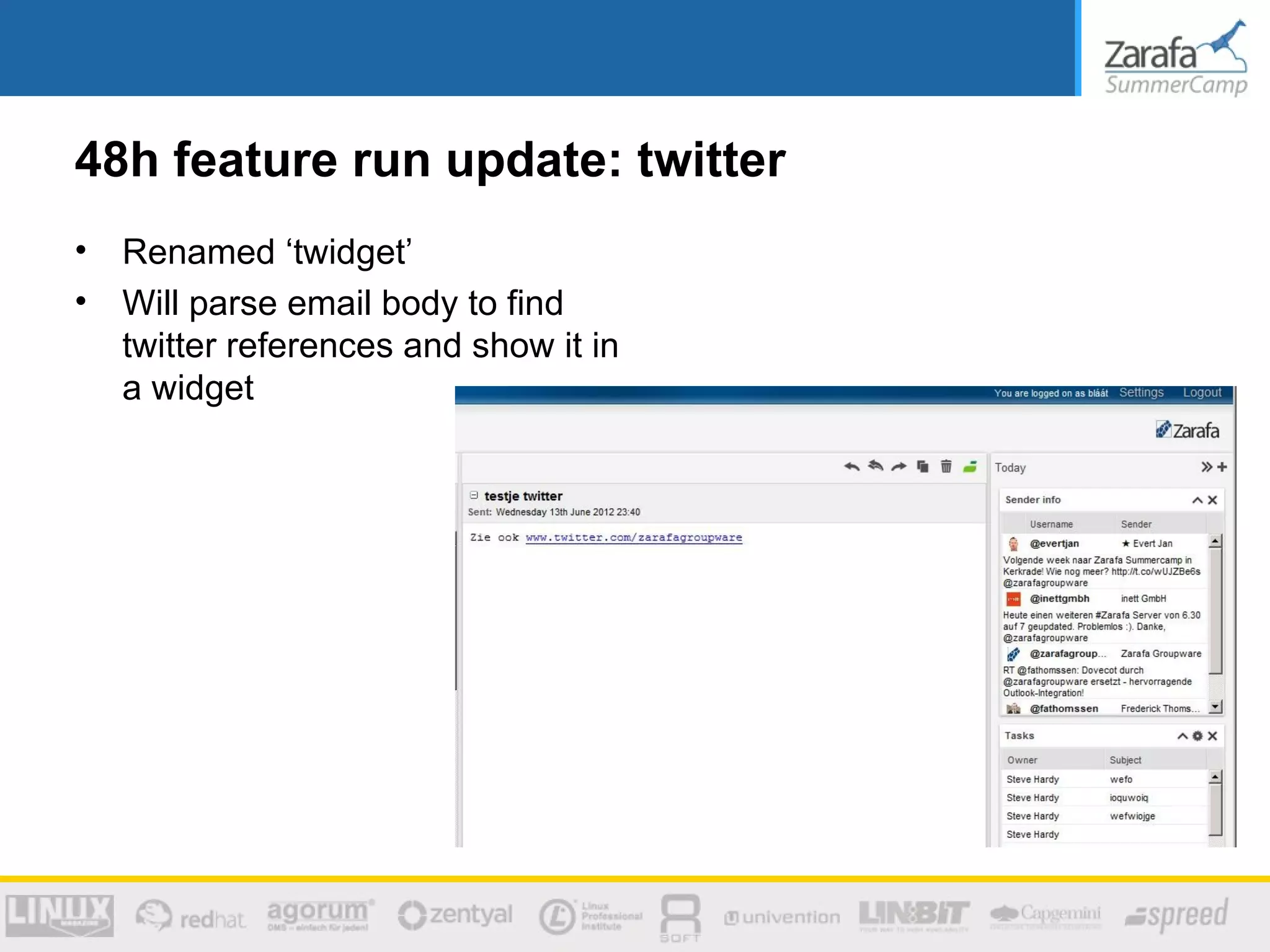

2. 48h feature run update: twitter
• Renamed ‘twidget’
• Will parse email body to find
twitter references and show it in
a widget

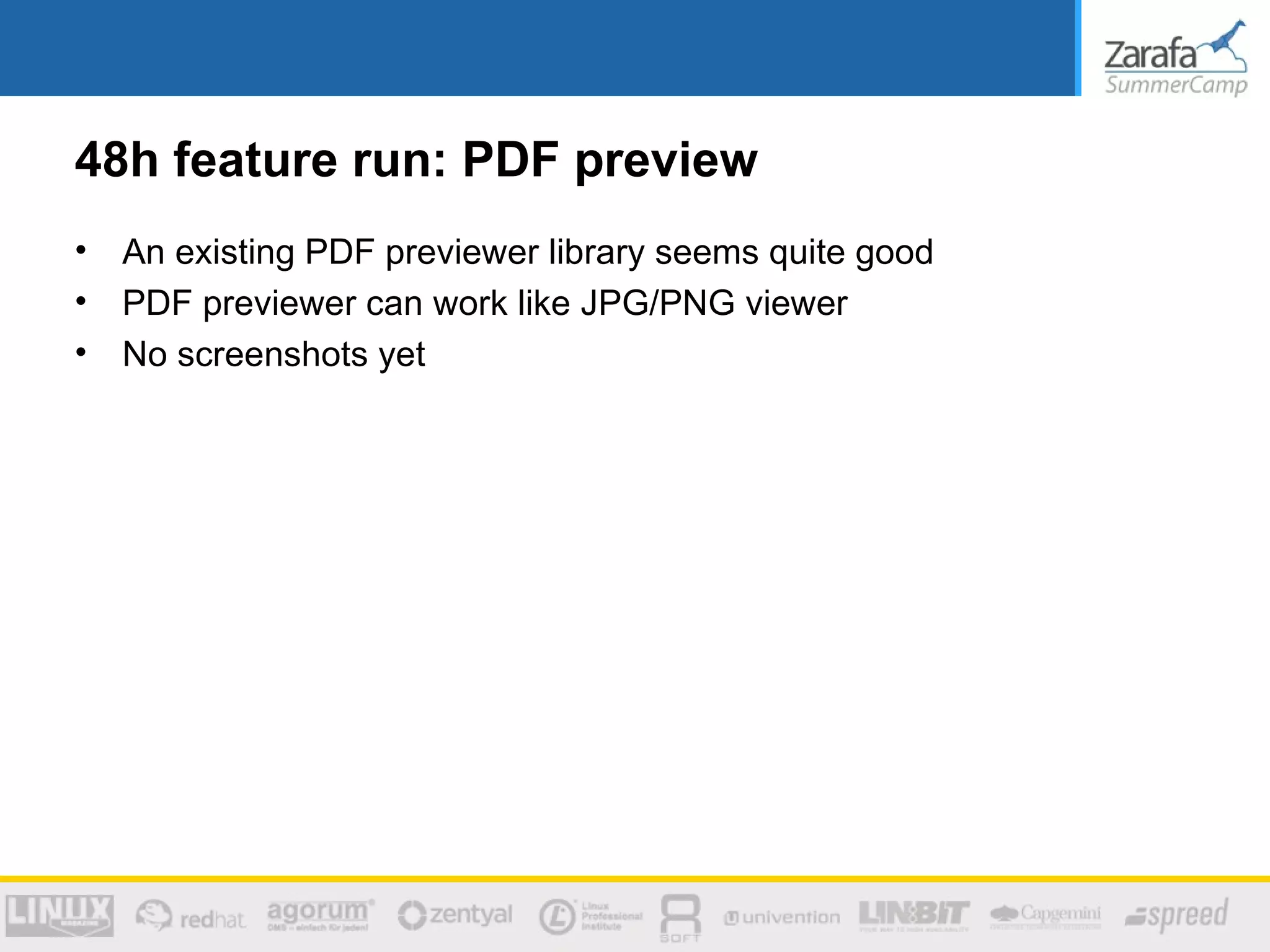

3. 48h feature run: PDF preview
• An existing PDF previewer library seems quite good
• PDF previewer can work like JPG/PNG viewer
• No screenshots yet

4. 48h feature run: SugarCRM archive
• Was already available for WebAccess
• Send entire email to sugarcrm
• Reuse of some WebAccess code
• Looks promising

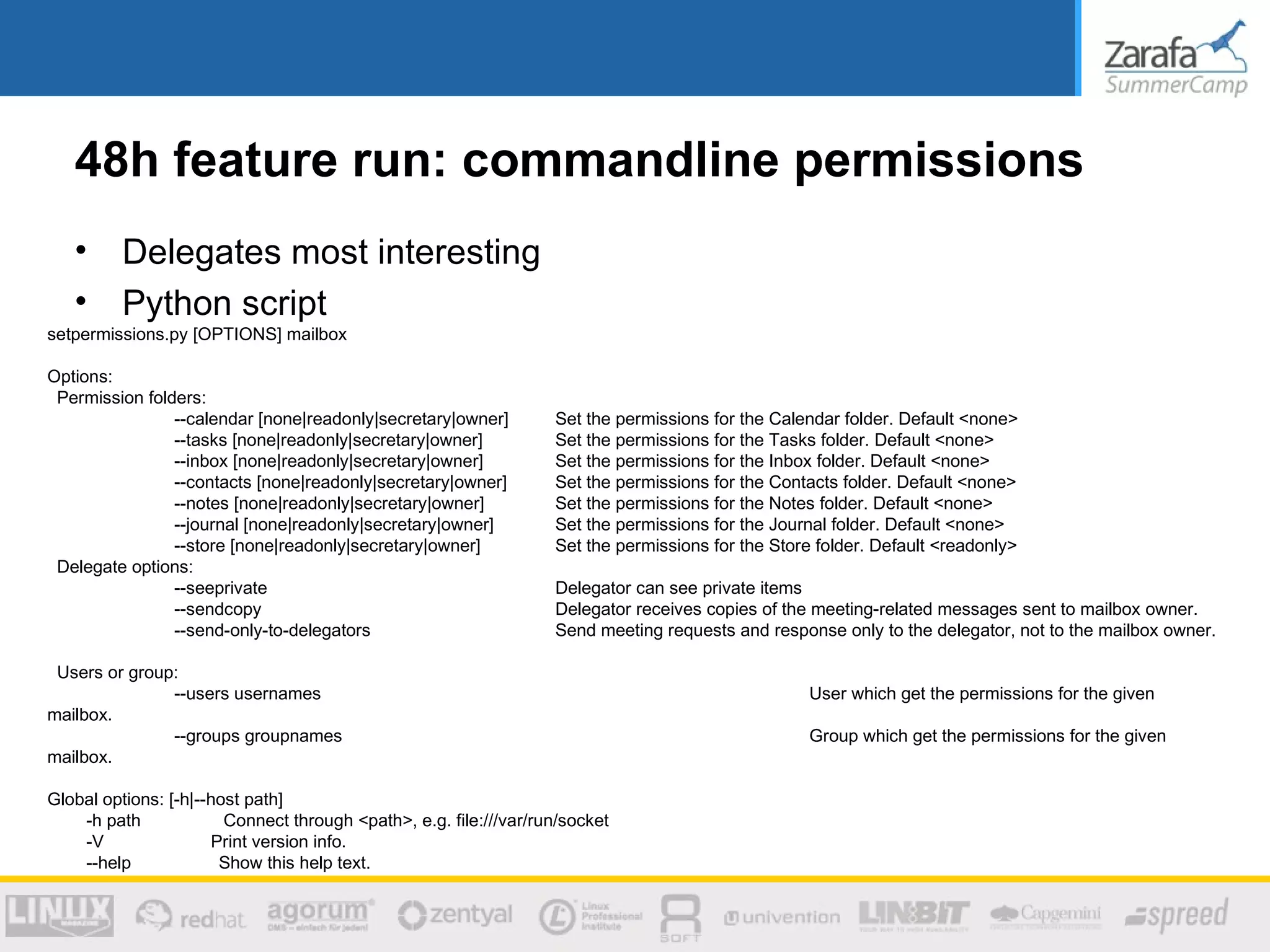

5. 48h feature run: commandline permissions
• Delegates most interesting
• Python script
setpermissions.py [OPTIONS] mailbox
Options:
Permission folders:
--calendar [none|readonly|secretary|owner] Set the permissions for the Calendar folder. Default <none>
--tasks [none|readonly|secretary|owner] Set the permissions for the Tasks folder. Default <none>
--inbox [none|readonly|secretary|owner] Set the permissions for the Inbox folder. Default <none>
--contacts [none|readonly|secretary|owner] Set the permissions for the Contacts folder. Default <none>
--notes [none|readonly|secretary|owner] Set the permissions for the Notes folder. Default <none>
--journal [none|readonly|secretary|owner] Set the permissions for the Journal folder. Default <none>
--store [none|readonly|secretary|owner] Set the permissions for the Store folder. Default <readonly>
Delegate options:
--seeprivate Delegator can see private items
--sendcopy Delegator receives copies of the meeting-related messages sent to mailbox owner.
--send-only-to-delegators Send meeting requests and response only to the delegator, not to the mailbox owner.
Users or group:
--users usernames User which get the permissions for the given
mailbox.
--groups groupnames Group which get the permissions for the given
mailbox.
Global options: [-h|--host path]
-h path Connect through <path>, e.g. file:///var/run/socket
-V Print version info.
--help Show this help text.

6. 48h feature run: Sizes in GB, MB, KB
• It’s done!
• Will be in 7.1
• Any byte size in any applications can be specified with
– “cache_cell_size = 16M” instead of
– “cache_cell_size = 16777216”

7. 48h feature run: Exchange / Zarafa replication
• Pro’s
– ICS is the same (synchronization mechanism)
– Generic synchronization should work
• Con’s
– Address conversion needed in many places
– ID conversion needed in some cases

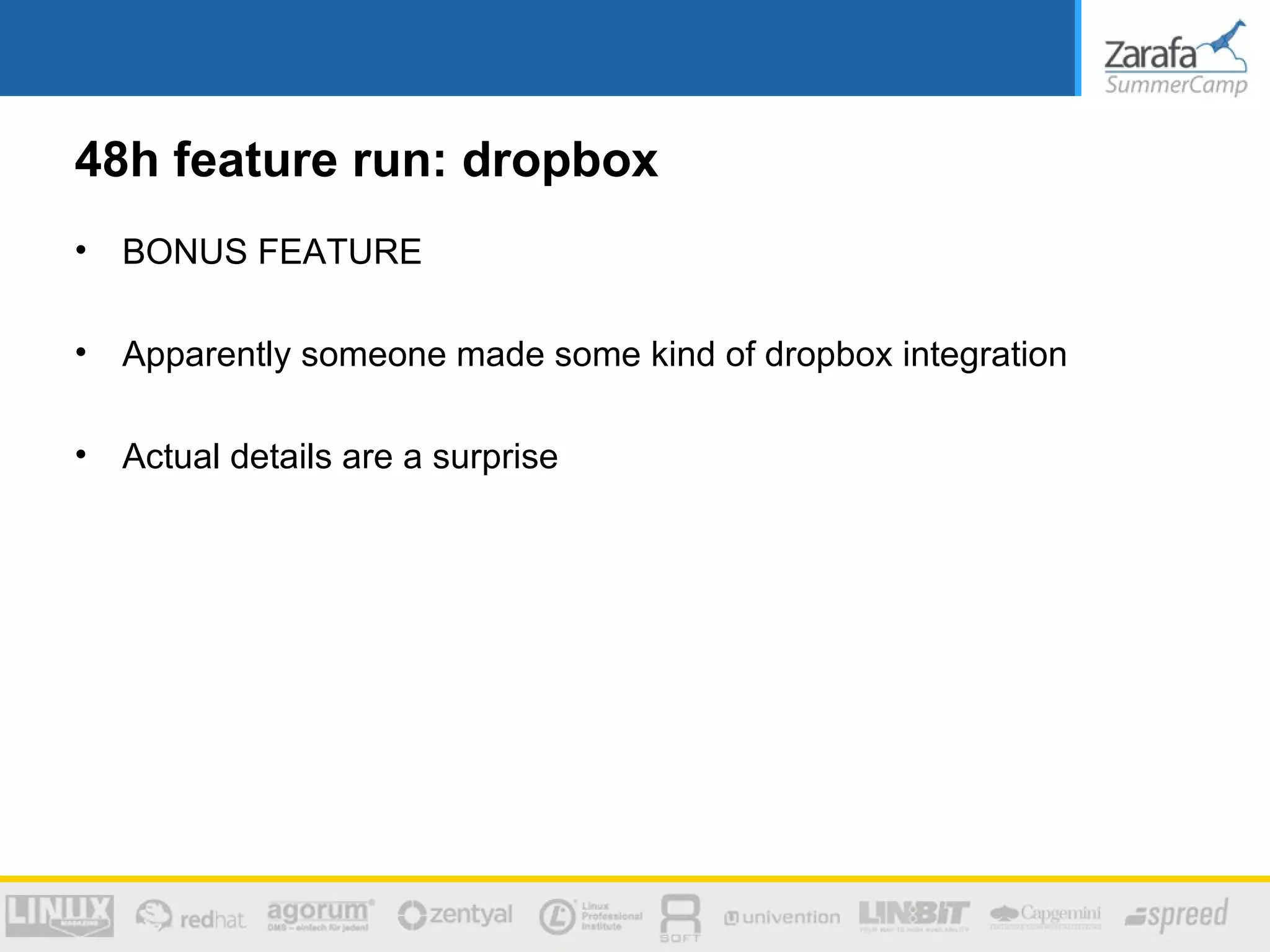

8. 48h feature run: dropbox
• BONUS FEATURE
• Apparently someone made some kind of dropbox integration
• Actual details are a surprise

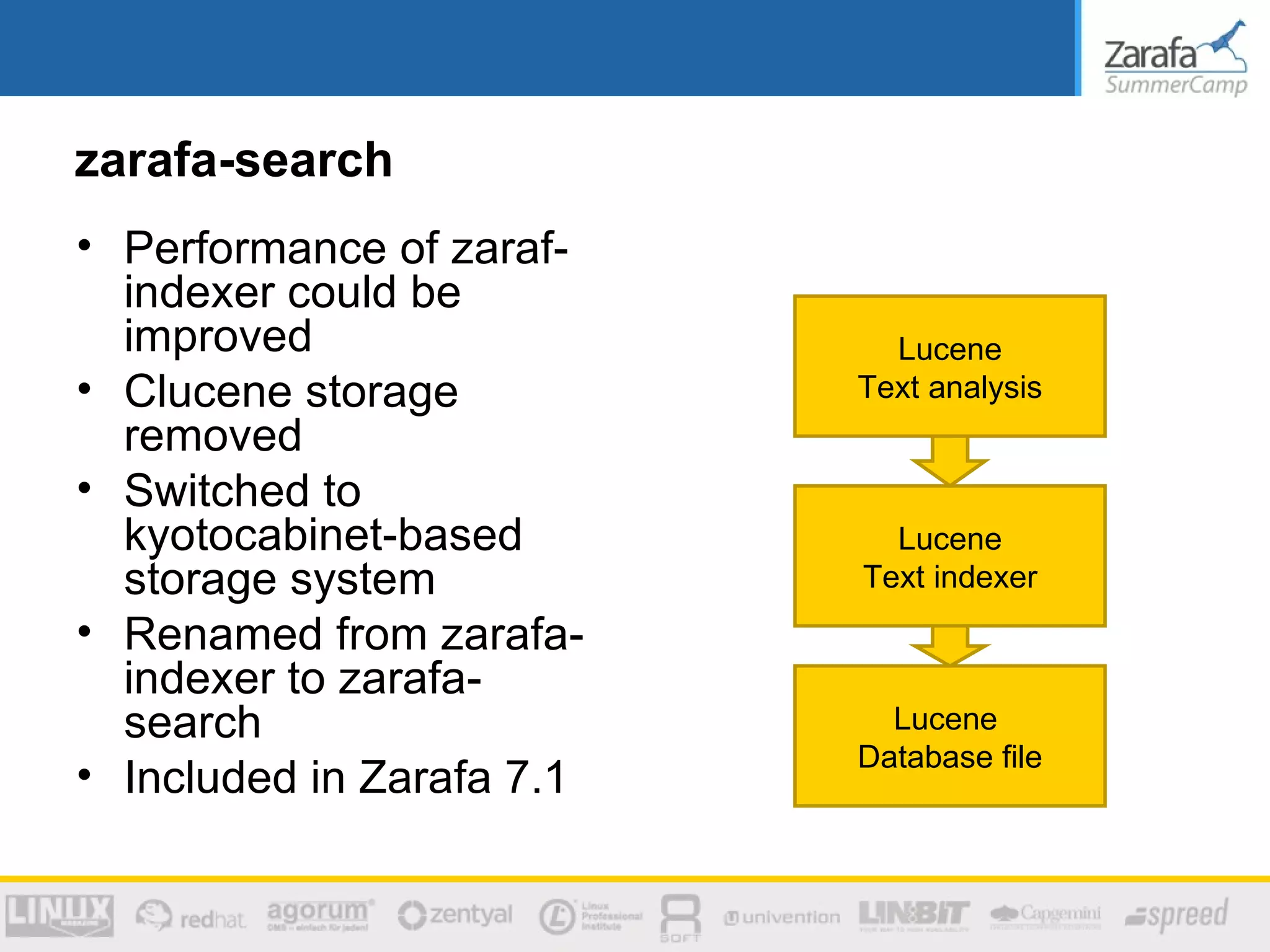

9. zarafa-search
• Performance of zaraf-
indexer could be
improved Lucene
• Clucene storage Text analysis
removed
• Switched to
kyotocabinet-based Lucene
storage system Text indexer
• Renamed from zarafa-
indexer to zarafa-
search Lucene
Database file
• Included in Zarafa 7.1

10. Why not CLucene ?
• One-size-does-not-fit-all
– Clucene optimized for web-like searches
– Top-N results shown, others ignored
• MAPI requires
– All results
– Often many results
• I/O access patterns not optimized for MAPI-like searches

11. I/O solution: re-engineer it yourself
• Generic database
– Kyoto cabinet
– Key/value database Lucene
– High performance Text analysis
– Compression
– Low overhead
– Crash-safe Zarafa-search
• Lucene still used for text analysis text indexer
Kyoto cabinet
database file

12. Improved search protocol
• Search is local to server
• Multiple servers using single indexer no longer possible
• Document ID’s are local
• No more mapping needed between document ID and database ID
– Saves IOPS during search
Zarafa- Zarafa- Zarafa- Zarafa-
server search server search
node1 node2

13. IOPS comparison
IOPS Old New
Search with 10 hits 11 1
Search with 100 hits 101 5
Search with 10000 hits 10001 5

14. Indexing many users
Old method New method
-Scan all users -Wait for signal from
-Scan all folders zarafa-server
-Update index -Index only items
received
Latency: > 30 minutes Latency: < 10 seconds

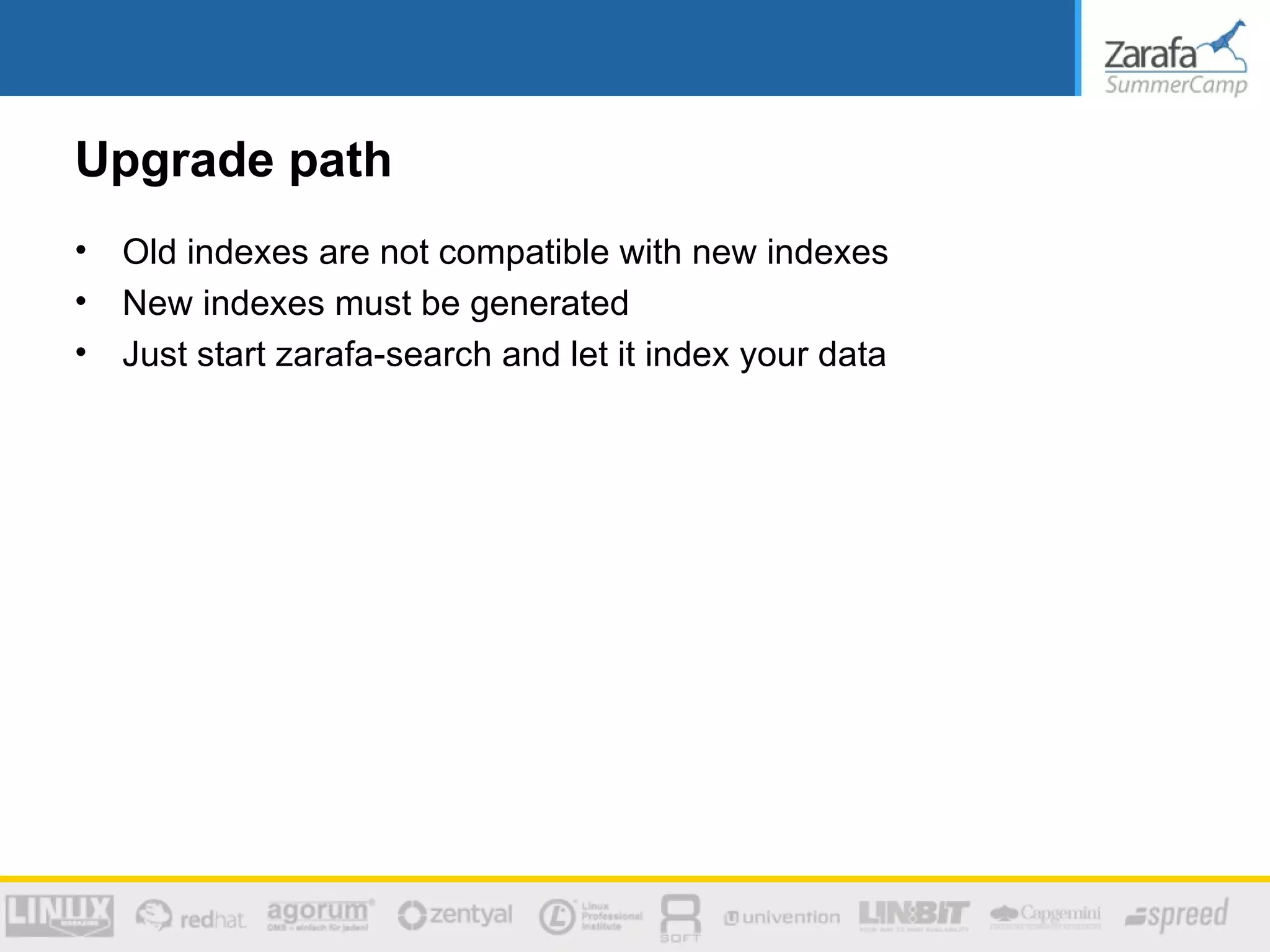

15. Upgrade path
• Old indexes are not compatible with new indexes
• New indexes must be generated
• Just start zarafa-search and let it index your data

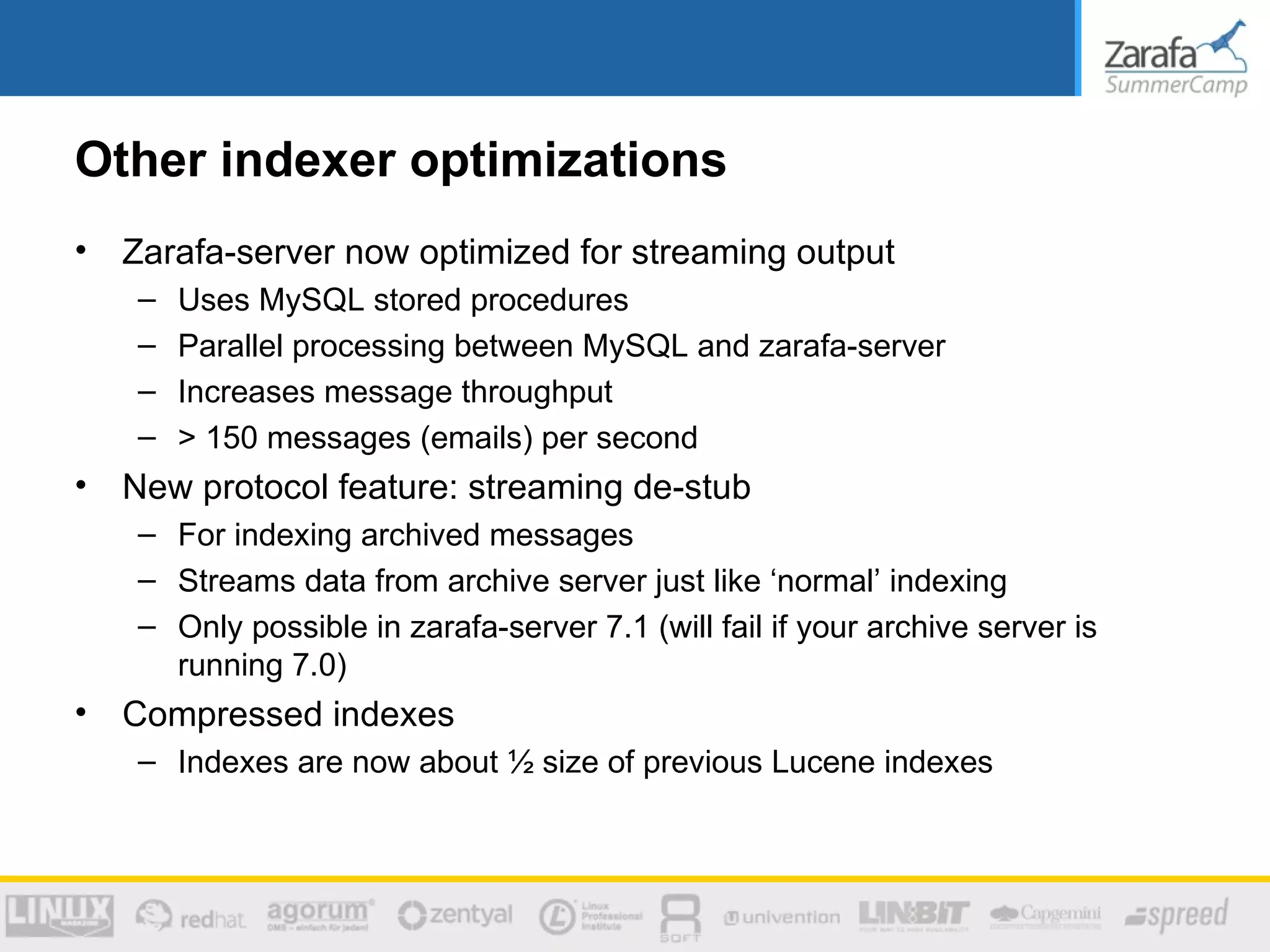

16. Other indexer optimizations
• Zarafa-server now optimized for streaming output
– Uses MySQL stored procedures
– Parallel processing between MySQL and zarafa-server
– Increases message throughput
– > 150 messages (emails) per second
• New protocol feature: streaming de-stub
– For indexing archived messages
– Streams data from archive server just like ‘normal’ indexing
– Only possible in zarafa-server 7.1 (will fail if your archive server is
running 7.0)
• Compressed indexes
– Indexes are now about ½ size of previous Lucene indexes

17. Zarafa-import
• Uses libpff (open source library)
• Able to read .PST files from linux commandline
• Currently imports entire content into MAPI store
• Supports unicode and non-unicode PSTs (97-2002 PSTs vs 2003
PSTs)
Things it does not do:
- Email address conversion
- Folder mapping
Future nice-to-have:
- Import directly into archive
