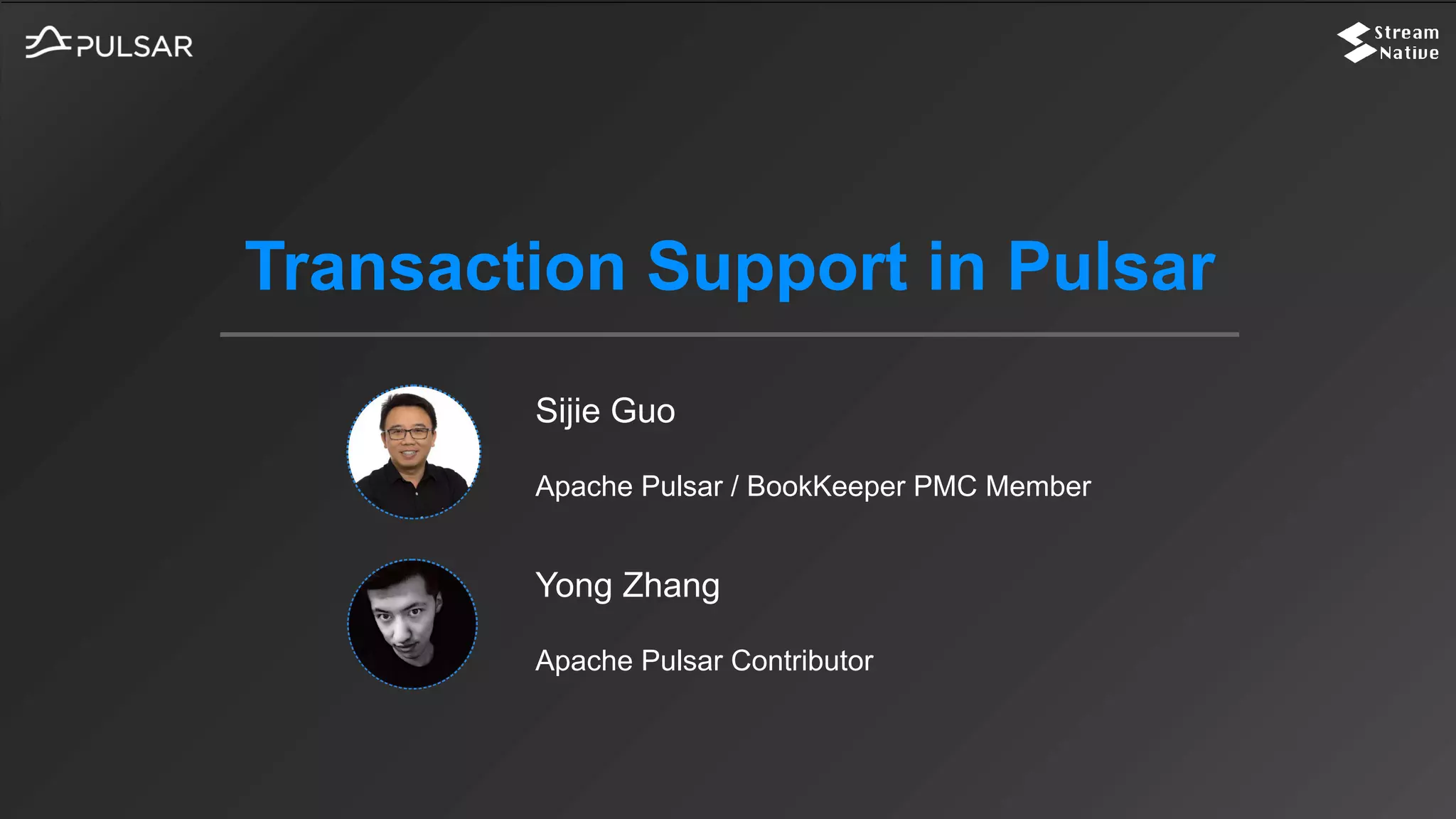

1. Sijie Guo
Apache Pulsar / BookKeeper PMC Member
Transaction Support in Pulsar
Yong Zhang
Apache Pulsar Contributor

2. • At-most once
• At-least once
• Exactly once
Messaging Semantics

3. • At-most once
• At-least once
• Exactly once
Messaging Semantics
Before 1.20.0-incubating

4. • At-most once
• At-least once
• Exactly once
Messaging Semantics
PIP-6: Guaranteed Message Deduplication

5. Revisit Existing Semantics

6. Pulsar’s Existing Semantics
Log
BrokerProducer
send(m1)

7. Pulsar’s Existing Semantics
Log
BrokerProducer
append(m1)

8. Pulsar’s Existing Semantics
Log
BrokerProducer
m1

9. Pulsar’s Existing Semantics
Log
BrokerProducer
ack(m1)
m1

10. Pulsar’s Existing Semantics
Log
BrokerProducer
ack(m1)
m1

11. Pulsar’s Existing Semantics
Log
BrokerProducer
send(m2)
m1

12. Pulsar’s Existing Semantics
Log
BrokerProducer
append(m2)
m1
m2

13. Pulsar’s Existing Semantics
Log
BrokerProducer
m1
m2
ack(m2)

14. Pulsar’s Existing Semantics
Log
BrokerProducer
m1
m2
ack(m2)
What do we do now?

15. At Least Once
Log
BrokerProducer
m1
m2
send(m2)

16. At Least Once
Log
BrokerProducer
m1
m2
append(m2)
m2

17. At Least Once
Log
BrokerProducer
m1
m2
append(m2)
m2
Duplicates !!

18. • Broker can fail
• The request from Producer to Broker can fail
• Producer or Consumer can fail
Why the duplicates are introduced?

19. I want exactly-once

20. • Producer: Idempotent Producer
• Broker: Guaranteed Message Deduplication (PIP-6)
• Consumer: Reader + Checkpoints (Flink / Spark)
Message Deduplication

21. • Producer Name - Identify who is producing the messages
• Sequence ID - Identify the message
• Producer Name + Sequence ID: The unique identifier for a
message
Idempotent Producer

22. • Broker maintains a map between Producer Name and Last-
Produced-Sequence-ID
• Broker accepts messages if the sequence id of a new
message is larger than its last produced sequence id
• Broker treats messages whose sequence id are smaller
• Broker keeps the map in a de-duplication cursor (stored in
bookkeeper)
Guaranteed Message Deduplication

23. Exactly Once
Log
BrokerProducer
send(1, m1)

24. Exactly Once
Log
BrokerProducer
append(1, m1)
1,m1

25. Exactly Once
Log
BrokerProducer
append(2, m2)
1,m1
2,m2

26. Exactly Once
Log
BrokerProducer
1,m1
2,m2
ack(2, m2)
What do we do now?

27. Exactly Once
Log
BrokerProducer
1,m1
2,m2
send(2, m2)

28. Exactly Once
Log
BrokerProducer
1,m1
2,m2
append(2, m2)

29. Exactly Once
Log
BrokerProducer
1,m1
2,m2
append(2, m2)
Duplicate detected

30. Exactly Once
Log
BrokerProducer
1,m1
2,m2
ack(2, m2)

31. • `bin/pulsar-admin set-deduplication -e tenant/namespace`
• Set producer name when creating a Producer
• Specify increasing sequence id when producing messages
Enable Exactly Once

32. • It only works when producing messages to one partition
• It only works for producing one message
• There is no atomicity when producing multiple messages to
one partition or many partitions
• Consumers are required to store the MessageId along with
its state and seek back to the MessageId when restoring
the state
Limitations

33. Introducing Transactions

34. PulsarCash

35. PulsarCash
Transfer $10
Alice Bob

36. • Transfer Topic : record the transfer requests
• Cash Transfer Function: perform the cash transfer action
• BalanceUpdate Topic: record the balance-update requests
PulsarCash, powered by Apache Pulsar

37. PulsarCash
Cash Transfer
Function
Balance
user:alice, debit($10)
balance
update
balance
update
user:bob, credit($10)
(100,0,0): transfer($10, alice -> bob)
Transfer Topic

38. Ack Transfer
Cash Transfer
function
Balance
user:alice, debit($10)
balance
update
balance
update
user:bob, credit($10)
(100,0,0): transfer($10, alice -> bob)
Ack: (100,0,0)

39. Reprocessed Transfer!
Cash Transfer
function
Balance
user:alice, debit($10)
balance
update
balance
update
user:bob, credit($10)
(100,0,0): transfer($10, alice -> bob)
Ack: (100,0,0)

40. Lost Money!
Cash Transfer
function
Balance
user:alice, debit($10)
balance
update
balance
update
user:bob, credit($10)
(100,0,0): transfer($10, alice -> bob)
Ack: (100,0,0)

41. Pulsar Transaction Explained

42. • Atomic writes across multiple partitions
• Atomic acknowledges across multiple subscriptions
• All the actions made within one transaction either all
succeed or all fail
• Consumers are *ONLY* allowed to read committed
messages
Transaction Semantics

43. Message<String> message = inputConsumer.receive();
CompletableFuture<MessageId> sendFuture1 =
producer1.newMessage().value(“output-message-1”).sendAsync();
CompletableFuture<MessageId> sendFuture2 =
producer2.newMessage().value(“output-message-2”).sendAsync();
inputConsumer.acknowledgeAsync(message.getMessageId());
Without Transaction API

44. Broker-0 Broker-1
InputTopic OutputTopic-1 OutputTopic-2
Cursor
Data Log Data Log
Pulsar Client
Input
Consumer
Producer 1 Producer 2
0) Receive Message
1) Produce Messages
2) Ack Messages

45. Message<String> message = inputConsumer.receive();
Transaction txn = client.newTransaction().withTransactionTimeout(…).build().get();
CompletableFuture<MessageId> sendFuture1 =
producer1.newMessage(txn).value(“output-message-1”).sendAsync();
CompletableFuture<MessageId> sendFuture2 =
producer2.newMessage(txn).value(“output-message-2”).sendAsync();
inputConsumer.acknowledgeAsync(message.getMessageId(), txn);
txn.commit().get();
MessageId msgId1 = sendFuture1.get();
MessageId msgId2 = sendFuture2.get();
Transaction API

46. CoordinatorBroker-0 Broker-1
InputTopic OutputTopic-1 OutputTopic-2
Cursor
Transaction Log
Data Log
Txn Buffer
Data Log
Txn Buffer
Pulsar Client
Input
Consumer
Producer 1 Producer 2

47. CoordinatorBroker-0 Broker-1
InputTopic OutputTopic-1 OutputTopic-2
Cursor
Transaction Log
Data Log
Txn Buffer
Data Log
Txn Buffer
Pulsar Client
Input
Consumer
Producer 1 Producer 2

48. • TC: transaction manager, coordinating committing and
aborting transactions
• In-Memory + Transaction Log
• Transaction Log is powered by a partitioned Pulsar topic
• `pulsar/system/__transaction_coordinator_log`
• Locating a TC is locating a partition of the transaction log
topic
Transaction Coordinator (TC)

49. CoordinatorBroker-0 Broker-1
InputTopic OutputTopic-1 OutputTopic-2
Cursor
Transaction Log
Data Log
Txn Buffer
Data Log
Txn Buffer
Pulsar Client
Input
Consumer
Producer 1 Producer 2

50. • TB: store and index transaction data per topic partition
• TB is implemented using another ML (managed-ledger) as
TB log
• Messages are appended to into TB log
• Transaction Index is maintained in memory and
snapshotted to ledgers
• Transaction Index can be replayed from TB log
Transaction Buffer (TB)

51. CoordinatorBroker-0 Broker-1
InputTopic OutputTopic-1 OutputTopic-2
Cursor
Transaction Log
Data Log
Txn Buffer
Data Log
Txn Buffer
Pulsar Client
Input
Consumer
Producer 1 Producer 2

52. • Introduce ACK_PENDING state
• Add response for acknowledgement, aka ack-on-ack
• Ack state is updated to cursor ledger
• Ack state can be replayed from cursor ledger
Transactional Subscription State

53. Transaction Execution Flow

54. Message<String> message = inputConsumer.receive();
Transaction txn = client.newTransaction().withTransactionTimeout(…).build().get();
CompletableFuture<MessageId> sendFuture1 =
producer1.newMessage(txn).value(“output-message-1”).sendAsync();
CompletableFuture<MessageId> sendFuture2 =
producer2.newMessage(txn).value(“output-message-2”).sendAsync();
inputConsumer.acknowledgeAsync(message.getMessageId(), txn);
txn.commit().get();
MessageId msgId1 = sendFuture1.get();
MessageId msgId2 = sendFuture2.get();
Transaction API - New Transaction

55. CoordinatorBroker-0 Broker-1
InputTopic OutputTopic-1 OutputTopic-2
Cursor
Transaction Log
Data Log
Txn Buffer
Data Log
Txn Buffer
Pulsar Client
Input
Consumer
Producer 1 Producer 2
Txn
New Txn
1. New Txn
Tx1

56. Message<String> message = inputConsumer.receive();
Transaction txn = client.newTransaction().withTransactionTimeout(…).build().get();
CompletableFuture<MessageId> sendFuture1 =
producer1.newMessage(txn).value(“output-message-1”).sendAsync();
CompletableFuture<MessageId> sendFuture2 =
producer2.newMessage(txn).value(“output-message-2”).sendAsync();
inputConsumer.acknowledgeAsync(message.getMessageId(), txn);
txn.commit().get();
MessageId msgId1 = sendFuture1.get();
MessageId msgId2 = sendFuture2.get();
Transaction API - Produce Messages

57. CoordinatorBroker-0 Broker-1
InputTopic OutputTopic-1 OutputTopic-2
Cursor
Transaction Log
Data Log
Txn Buffer
Data Log
Txn Buffer
Pulsar Client
Input
Consumer
Producer 1 Producer 2
Txn
New Txn
2.0 Add Produced Topics
To Txn
Tx1
Tx1: add [T1, T2] Tx1: M1 Tx1: M2
2.1 Produced Messages
To Topics with Txn

58. Message<String> message = inputConsumer.receive();
Transaction txn = client.newTransaction().withTransactionTimeout(…).build().get();
CompletableFuture<MessageId> sendFuture1 =
producer1.newMessage(txn).value(“output-message-1”).sendAsync();
CompletableFuture<MessageId> sendFuture2 =
producer2.newMessage(txn).value(“output-message-2”).sendAsync();
inputConsumer.acknowledgeAsync(message.getMessageId(), txn);
txn.commit().get();
MessageId msgId1 = sendFuture1.get();
MessageId msgId2 = sendFuture2.get();
Transaction API - Acknowledges

59. CoordinatorBroker-0 Broker-1
InputTopic OutputTopic-1 OutputTopic-2
Cursor
Transaction Log
Data Log
Txn Buffer
Data Log
Txn Buffer
Pulsar Client
Input
Consumer
Producer 1 Producer 2
Txn
New Txn
3.0 Add Acked Subscriptions To Txn
Tx1
Tx1: add [T1, T2] Tx1: M1 Tx1: M2
3.0 Ack messages with Txn
Tx1: ACK (M0)
Tx1: add [S0]

60. Message<String> message = inputConsumer.receive();
Transaction txn = client.newTransaction().withTransactionTimeout(…).build().get();
CompletableFuture<MessageId> sendFuture1 =
producer1.newMessage(txn).value(“output-message-1”).sendAsync();
CompletableFuture<MessageId> sendFuture2 =
producer2.newMessage(txn).value(“output-message-2”).sendAsync();
inputConsumer.acknowledgeAsync(message.getMessageId(), txn);
txn.commit().get();
MessageId msgId1 = sendFuture1.get();
MessageId msgId2 = sendFuture2.get();
Transaction API - Commit

61. CoordinatorBroker-0 Broker-1
InputTopic OutputTopic-1 OutputTopic-2
Cursor
Transaction Log
Data Log
Txn Buffer
Data Log
Txn Buffer
Pulsar Client
Input
Consumer
Producer 1 Producer 2
Txn
New Txn
4.0 Commit Txn
Tx1
Tx1: add [T1, T2] Tx1: M1 Tx1: M2
Tx1: ACK (M0)
Tx1: add [S0]
4.0 Committing Txn
Tx1: Committing

62. CoordinatorBroker-0 Broker-1
InputTopic OutputTopic-1 OutputTopic-2
Cursor
Transaction Log
Data Log
Txn Buffer
Data Log
Txn Buffer
Pulsar Client
Input
Consumer
Producer 1 Producer 2
Txn
New Txn
Tx1
Tx1: add [T1, T2] Tx1: M1 Tx1: M2
Tx1: ACK (M0)
Tx1: add [S0]
4.1.0 Commit Txn
On Topics
4.1.1 Commit Txn
On Subscriptions
Tx1 (c) Tx1 (c)
Tx1: Committing
Tx1: Committed
Tx1: Committed

63. CoordinatorBroker-0 Broker-1
InputTopic OutputTopic-1 OutputTopic-2
Cursor
Transaction Log
Data Log
Txn Buffer
Data Log
Txn Buffer
Pulsar Client
Input
Consumer
Producer 1 Producer 2
Txn
New Txn
Tx1
Tx1: add [T1, T2] Tx1: M1 Tx1: M2
Tx1: ACK (M0)
Tx1: add [S0]
Tx1: Committing
Tx1 (c) Tx1 (c)
Tx1: Committed
Tx1: Committed
4.2 Committed Txn

64. inputConsumer.receiveAsync().thenCompose(message -> {
return client.newTransaction().withTransactionTimeout(…).build().thenCompose(txn -> {
producer1.newMessage(txn).value(“output-message-1”).sendAsync();
producer2.newMessage(txn).value(“output-message-2”).sendAsync();
inputConsumer.acknowledgeAsync(message.getMessageId(), txn);
return txn.commit();
});
})
Transaction API - Async Example

65. PulsarCash
Cash Transfer
function
Balance
user:alice, debit($10)
balance
update
balance
update
user:bob, credit($10)
(100,0,0): transfer($10, alice -> bob)Ack: (100,0,0)

66. PulsarCash
Cash Transfer
function
Balance
user:alice, debit($10)
balance
update
balance
update
user:bob, credit($10)
(100,0,0): transfer($10, alice -> bob)Ack: (100,0,0)
Transaction

67. Make Event Streaming
easy, simple, and reliable for everyone
Pulsar Transaction

68. Available to use in Pulsar 2.5.0
When is it available?

69. • Transaction support in other languages (e.g. C++, Go)
• Transaction in Pulsar Functions & Pulsar IO
• Transaction in Kafka-on-Pulsar (KOP)
• Transaction for Flink / Spark job
• Transaction for State storage in Pulsar Functions
• …
Roadmap

70. • Ivan Kelly
• Matteo Merli
• Jia Zhai
• Penghui Li
• Marvin Cai
• Yong Zhang
• … and many other Pulsar users & contributors
Credits

71. Thanks!
Sijie Guo
(@sijieg)
Yong Zhang

72. Thanks!
Sam
ple
