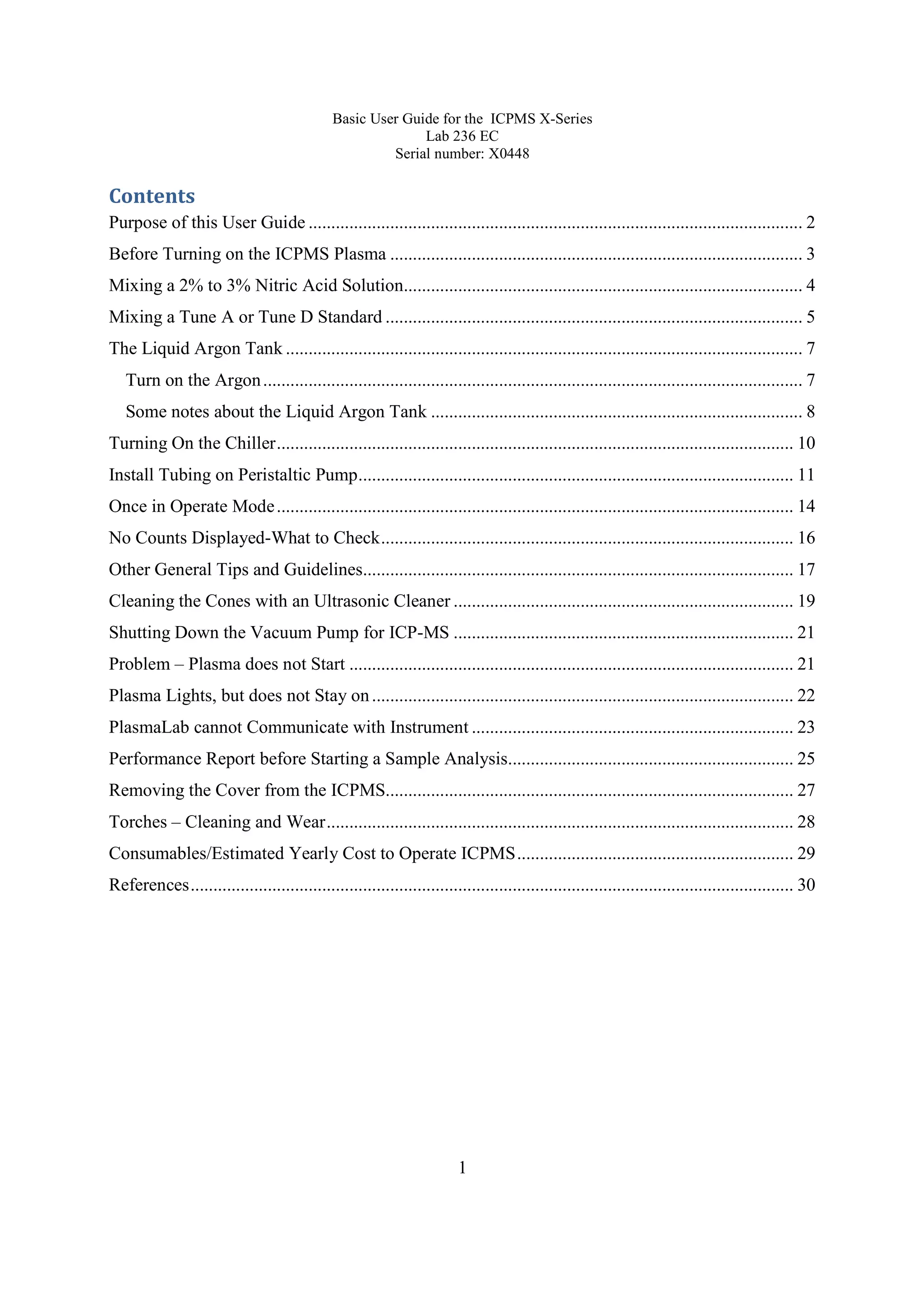

Contents
Purpose of this User Guide ............................................................................................................. 2
Before Turning on the ICPMS Plasma ........................................................................................... 3
Mixing a 2% to 3% Nitric Acid Solution........................................................................................ 4
Mixing a Tune A or Tune D Standard ............................................................................................ 5
The Liquid Argon Tank .................................................................................................................. 7
Turn on the Argon....................................................................................................................... 7
Some notes about the Liquid Argon Tank .................................................................................. 8
Turning On the Chiller.................................................................................................................. 10
Install Tubing on Peristaltic Pump................................................................................................ 11
Once in Operate Mode.................................................................................................................. 14
No Counts Displayed-What to Check........................................................................................... 16
Other General Tips and Guidelines............................................................................................... 17
Cleaning the Cones with an Ultrasonic Cleaner ........................................................................... 19
Shutting Down the Vacuum Pump for ICP-MS ........................................................................... 21
Problem – Plasma does not Start .................................................................................................. 21
Plasma Lights, but does not Stay on............................................................................................. 22
PlasmaLab cannot Communicate with Instrument ....................................................................... 23
Performance Report before Starting a Sample Analysis............................................................... 25
Removing the Cover from the ICPMS.......................................................................................... 27
Torches – Cleaning and Wear....................................................................................................... 28
Consumables/Estimated Yearly Cost to Operate ICPMS............................................................. 29
References..................................................................................................................................... 30

Lab 236 EC
2

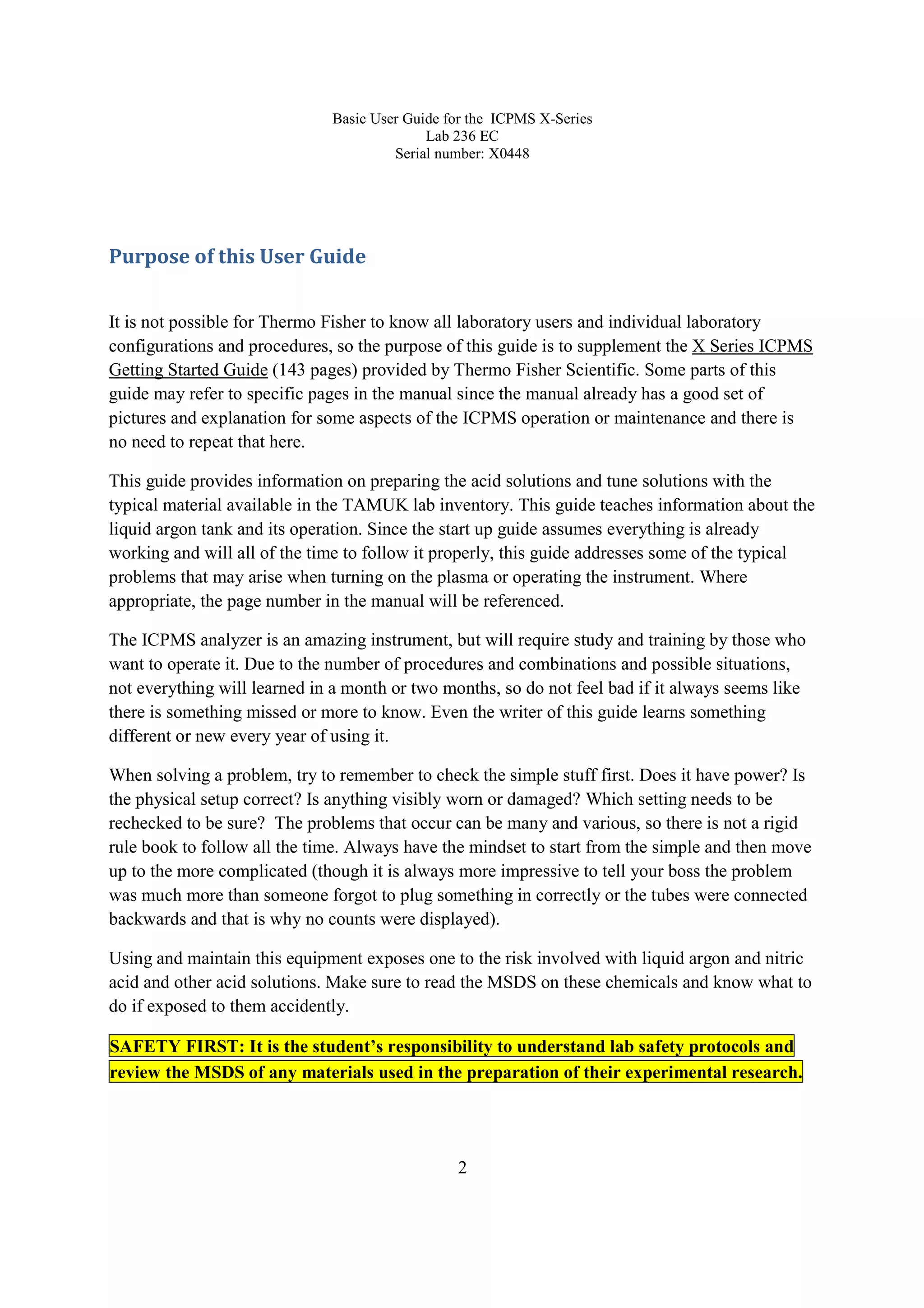

Purpose of this User Guide
It is not possible for Thermo Fisher to know all laboratory users and individual laboratory
configurations and procedures, so the purpose of this guide is to supplement the X Series ICPMS
Getting Started Guide (143 pages) provided by Thermo Fisher Scientific. Some parts of this
guide may refer to specific pages in the manual since the manual already has a good set of
pictures and explanation for some aspects of the ICPMS operation or maintenance and there is
no need to repeat that here.
This guide provides information on preparing the acid solutions and tune solutions with the
typical material available in the TAMUK lab inventory. This guide teaches information about the
liquid argon tank and its operation. Since the start up guide assumes everything is already
working and will all of the time to follow it properly, this guide addresses some of the typical
problems that may arise when turning on the plasma or operating the instrument. Where
appropriate, the page number in the manual will be referenced.
The ICPMS analyzer is an amazing instrument, but will require study and training by those who
want to operate it. Due to the number of procedures and combinations and possible situations,
not everything will learned in a month or two months, so do not feel bad if it always seems like
there is something missed or more to know. Even the writer of this guide learns something
different or new every year of using it.
When solving a problem, try to remember to check the simple stuff first. Does it have power? Is
the physical setup correct? Is anything visibly worn or damaged? Which setting needs to be
rechecked to be sure? The problems that occur can be many and various, so there is not a rigid
rule book to follow all the time. Always have the mindset to start from the simple and then move
up to the more complicated (though it is always more impressive to tell your boss the problem
was much more than someone forgot to plug something in correctly or the tubes were connected
backwards and that is why no counts were displayed).
Using and maintain this equipment exposes one to the risk involved with liquid argon and nitric
acid and other acid solutions. Make sure to read the MSDS on these chemicals and know what to
do if exposed to them accidently.
SAFETY FIRST: It is the student’s responsibility to understand lab safety protocols and
review the MSDS of any materials used in the preparation of their experimental research.

Lab 236 EC
3

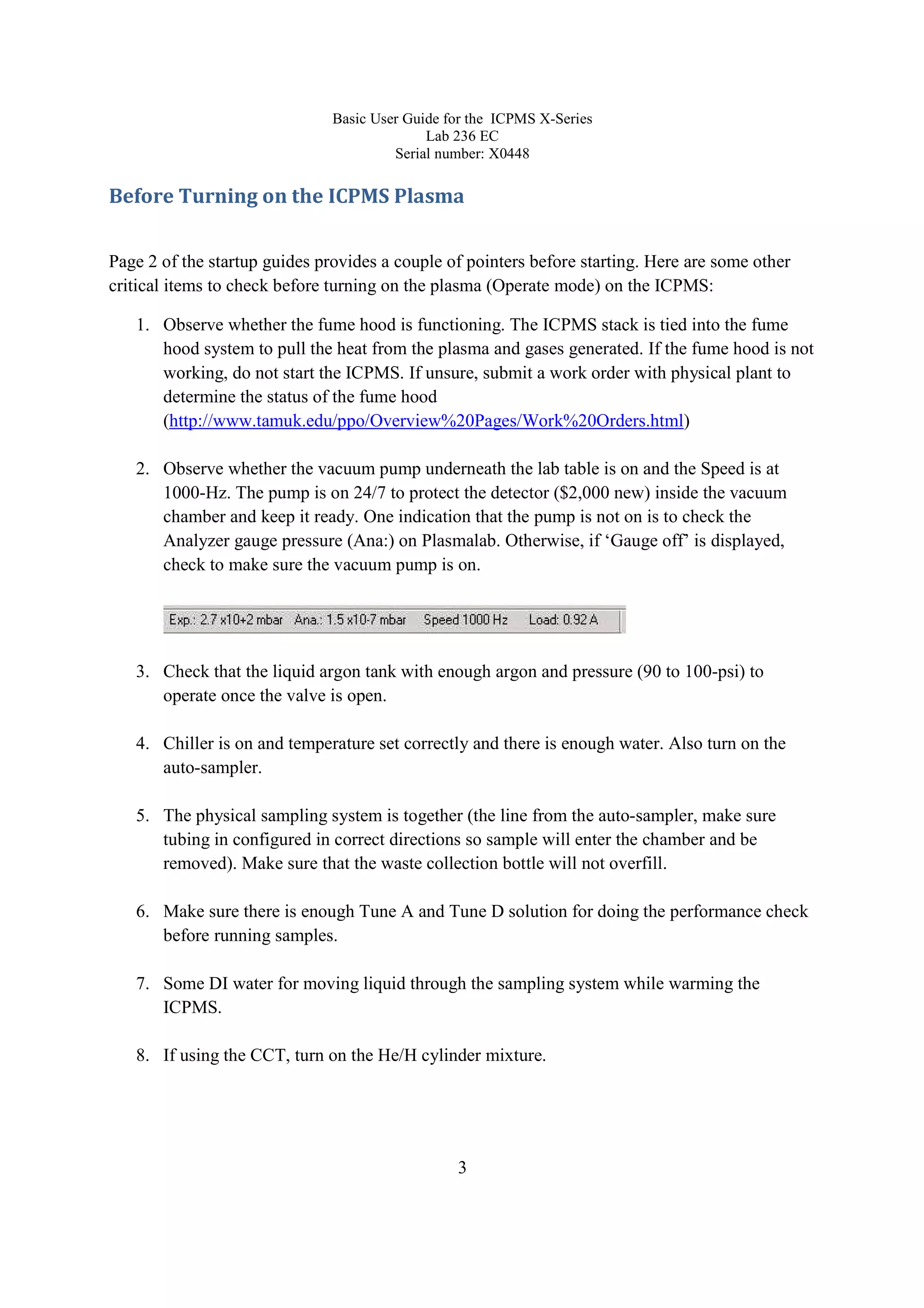

Before Turning on the ICPMS Plasma
Page 2 of the startup guides provides a couple of pointers before starting. Here are some other
critical items to check before turning on the plasma (Operate mode) on the ICPMS:
1. Observe whether the fume hood is functioning. The ICPMS stack is tied into the fume
hood system to pull the heat from the plasma and gases generated. If the fume hood is not
working, do not start the ICPMS. If unsure, submit a work order with physical plant to
determine the status of the fume hood
(http://www.tamuk.edu/ppo/Overview%20Pages/Work%20Orders.html)
2. Observe whether the vacuum pump underneath the lab table is on and the Speed is at
1000-Hz. The pump is on 24/7 to protect the detector ($2,000 new) inside the vacuum
chamber and keep it ready. One indication that the pump is not on is to check the
Analyzer gauge pressure (Ana:) on Plasmalab. Otherwise, if ‘Gauge off’ is displayed,
check to make sure the vacuum pump is on.
3. Check that the liquid argon tank with enough argon and pressure (90 to 100-psi) to
operate once the valve is open.
4. Chiller is on and temperature set correctly and there is enough water. Also turn on the
auto-sampler.
5. The physical sampling system is together (the line from the auto-sampler, make sure
tubing in configured in correct directions so sample will enter the chamber and be
removed). Make sure that the waste collection bottle will not overfill.
6. Make sure there is enough Tune A and Tune D solution for doing the performance check
before running samples.
7. Some DI water for moving liquid through the sampling system while warming the
ICPMS.
8. If using the CCT, turn on the He/H cylinder mixture.

Lab 236 EC
4
Mixing a 2% to 3% Nitric Acid Solution
MSDS Nitric Acid: https://us.vwr.com/stibo/hi_res/8923775.pdf
This is the basis for all other solutions and sample preparations. This will also be used to rinse
the sampling line between samples. To mix a liter (1-L) or so at a time, mix 20-mL for a 2% or
30-mL for a 3% solution of nitric acid and ultra pure DI water. Use a graduated cylinder to
measure the amount necessary. Add about ¼ or so of water to the 1-liter container. Add the nitric
acid and then add more water. There may be a bit of a heat reaction as the strong acid is diluted.
Remember, acid to water. If making more than a liter, use HDPE or Nalgene containers to store
the additional amount required. Don’t forget to properly label.
ote: Concentrated acids have a tendency to fume, so make sure to work under a fume
hood. Once the mixture is diluted, it can be used outside of a fume hood. Also, blue
nitrile gloves, goggles, and close toed shows are a must.

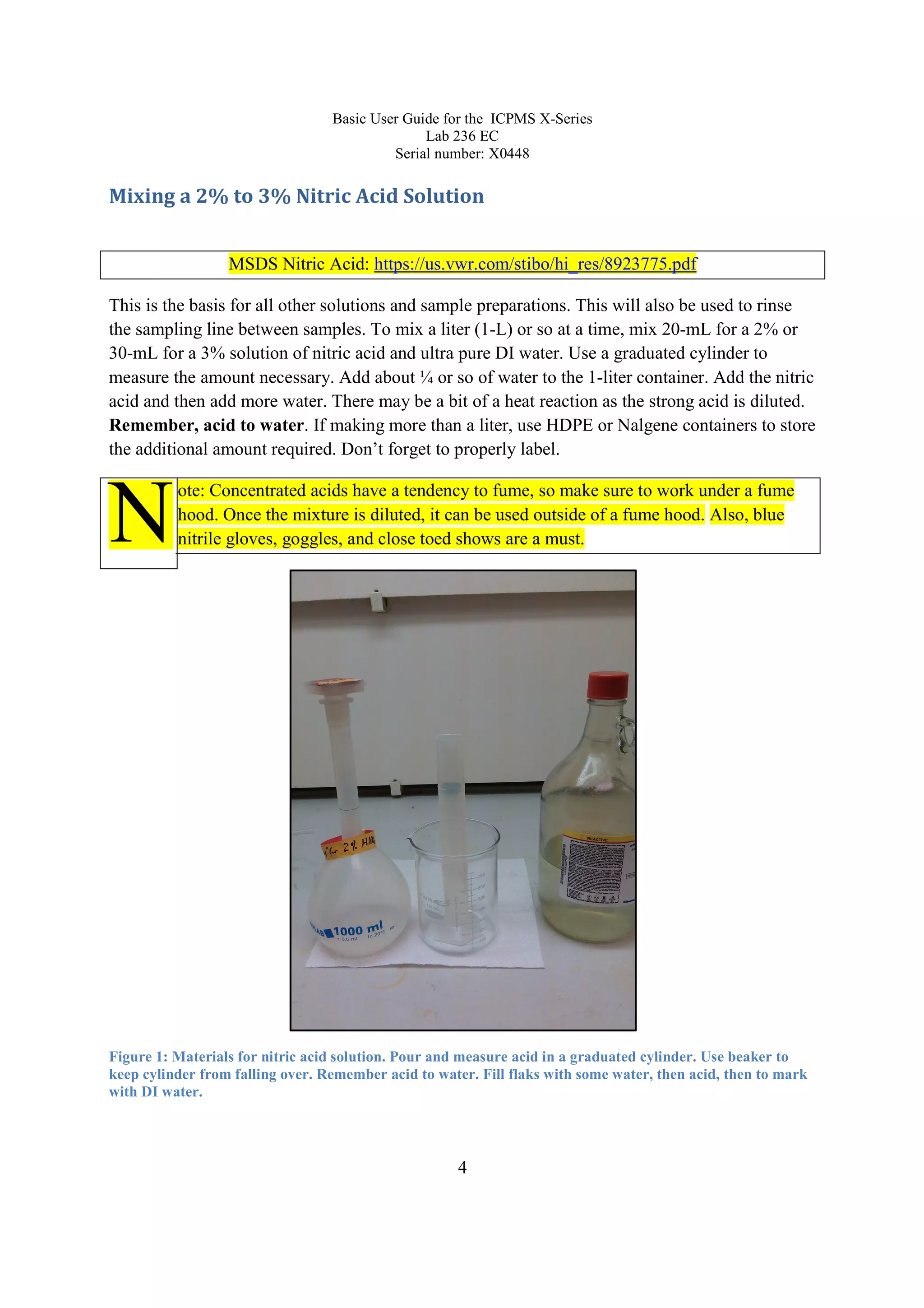

Figure 1: Materials for nitric acid solution. Pour and measure acid in a graduated cylinder. Use beaker to
keep cylinder from falling over. Remember acid to water. Fill flaks with some water, then acid, then to mark
with DI water.
N

Lab 236 EC
5
For most of the applications for environmental work, Nitric Acid BDH Aristar Plus, VWR
#87003-261 (2.5-L bottle at about $75) is adequate. In some exceptional cases for lower trace
analysis, an Omni Trace Ultra Nitric Acid may be necessary, but is also much more expensive. If
there are ever any questions about the application, contact Thermo Fisher Scientific and an
applications chemist can advise.
Mixing a Tune A or Tune D Standard
The primary purpose of the Tune A and Tune D standards is to calibrate the ICPMS before
analyzing samples. The ICPMS is different from most other analytical instrumentation in that
one only uses a specific metal standard to check the functioning of the instrument as opposed to
building a calibration curve as would be the case for atomic absorption or a UV-VIS
spectrometer. The Tune A is for the daily check, auto-tuning, and mass calibration. Tune D is for
calibrating the PC voltage and analog voltage of the detector. Each tune solutions also have
various elements, so the solutions can also be used as standard checks when looking for other
metals.
Materials: Tune A 10 ppm, Tune D 10 ppm, a 1000-mL polypropylene volumetric flask, ultra
pure DI water (from blue Barnstead dispenser in Lab 239), an Eppendorf pipette set for 1-mL, 1-
mL Eppendorf tip.

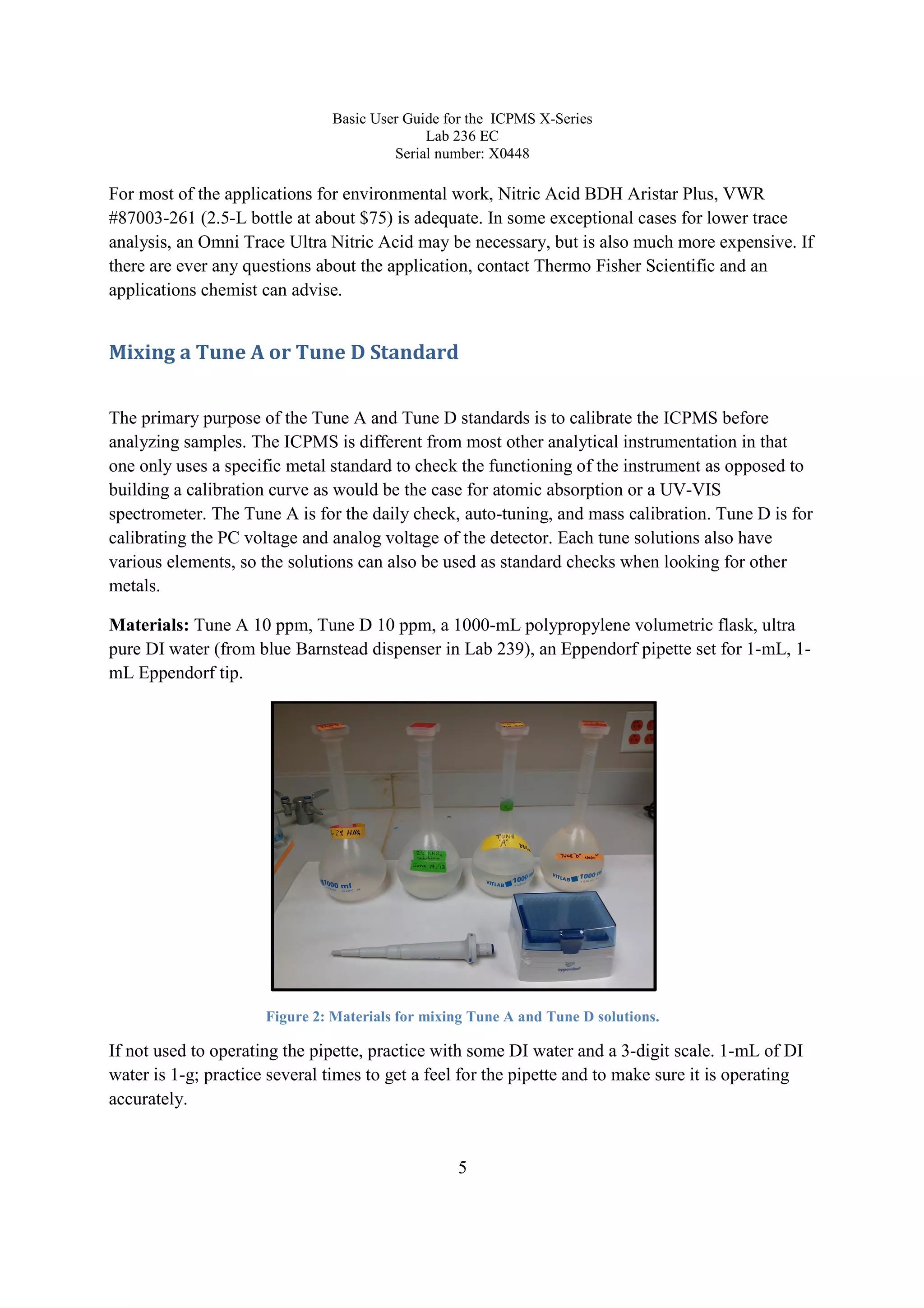

Figure 2: Materials for mixing Tune A and Tune D solutions.
If not used to operating the pipette, practice with some DI water and a 3-digit scale. 1-mL of DI
water is 1-g; practice several times to get a feel for the pipette and to make sure it is operating
accurately.

Lab 236 EC
6
Take 1-mL of the 10-ppm Tune A or Tune D with the Eppendorf pipette. Put it inside the 1-Liter
volumetric flask. Fill flask to mark with 2% to 3% nitric acid solution. Remember the meniscus.
Make sure to date and label the solution. Do not EVER mix the Tune A and Tune D together in
the same flask since this is of no practical use.
Store the solution in the flask with a cap or in another HDPE or PPE container with a lid. There
is no real expiration date, but it is good practice to mix a new solution every 3 to 6 months. It is
good to keep some older solution around to test or compare if troubleshooting an issue.
Here is the basic calculation for 10-ppb of Tune A or Tune D:
How many milliliters of Tune A at 10 mg/L (10, 000-ppb) are needed to prepare 1 L (1000-mL)
of 10 ppb Tune A?
Ci Vi = Cf Vf
(10,000 ppb) Vi = (1000 mL) (10 ppb)
After rearranging and dividing out the ppb units, the final result is:
Vi = 1 mL
ote: Accuracy with the pipette and volumetric mark is of great importance! The Tune
A and Tune D need to be at 10-ppb concentration for accurate calibration of the
ICPMS. Also, make sure to store the pipette in an upright position.
What if it was necessary to prepare 250 mL of 5 ppb Tune A solution starting with the 10-ppb
Tune A?
Ci Vi = Cf Vf
(10 ppb) Vi = (250 mL) (5 ppb)
After rearranging, 125 mL of 10 ppb Tune is necessary. Pour 125 mL of Tune A into 250 mL
volumetric flask and fill the rest with 1% to 5% nitric acid solution to the fill mark on the flask.
Use this formula and procedure for making other concentrations of standard.
Note: Refer to the Eppendorf SOP for Pipettes for more information about using and
maintaining the Eppendorf pipette.
N

Lab 236 EC
7
The Liquid Argon Tank
Turn on the Argon
MSDS for Liquid Argon: https://www.mathesongas.com/pdfs/msds/00225009.pdf
Turn the Argon gas valve on by turning to the left. Remember: right tight, left loose. The
pressure on the secondary lower pressure regulator will need to maintain at ≥85 psi to light the
plasma. A setting of 90 psi to 100 psi is good; never set over 100 psi to protect the flow
controllers in ICPMS.
To check whether the pressure is correct, turn off the argon to the regulator if it is connected.
Loosen the nut holding the hose to the regulator to relieve any residual pressure in the regulator;
tighten firmly (not crushing!) after releasing gas. Turn the knob to “Decrease” several turns.
Turn the gas on again and adjust to the 85 psi or so pressure by turning the knob in the direction
of “Increase”. If the tank has adequate pressure, it should be ready for use.

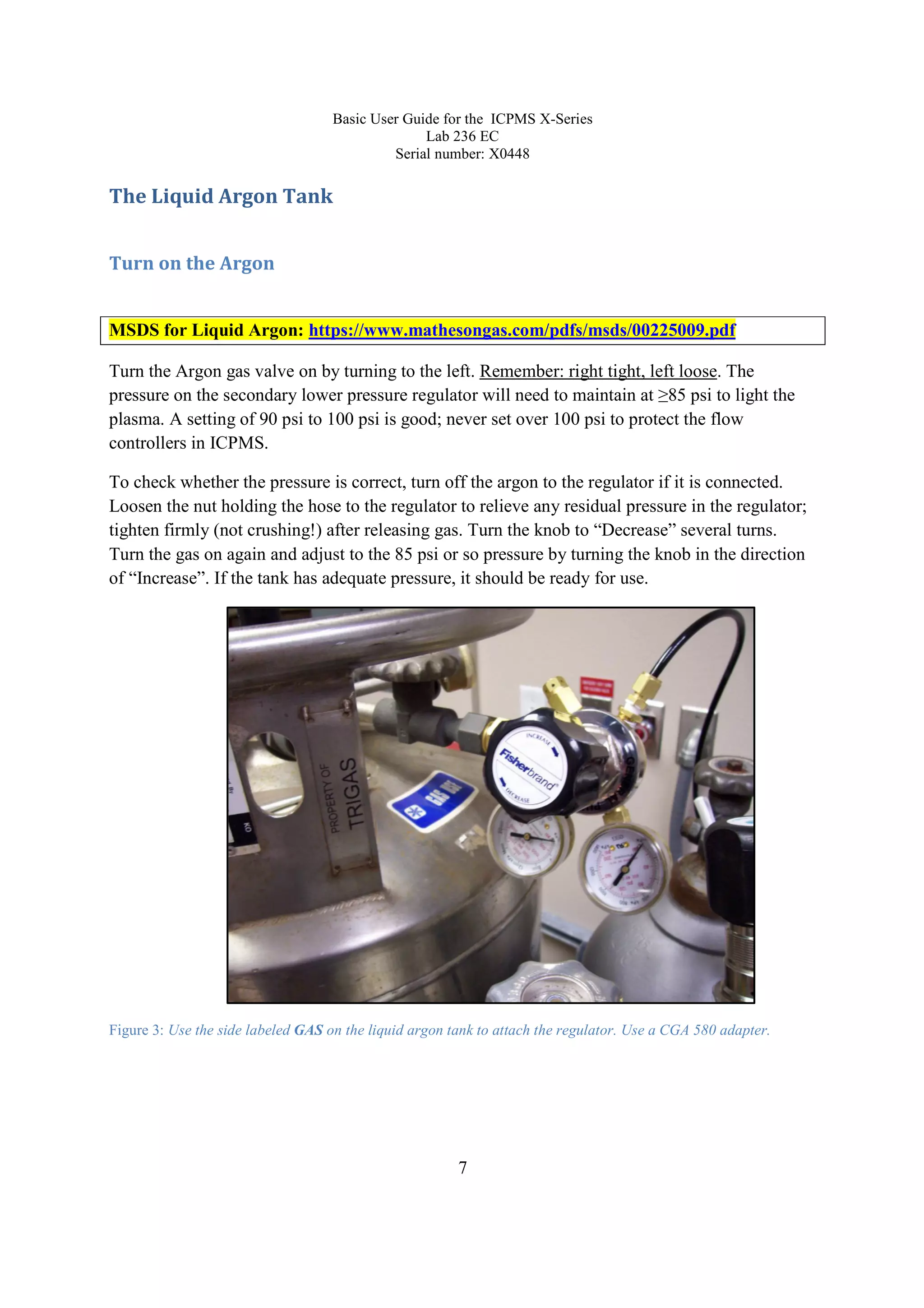

Figure 3: Use the side labeled GAS on the liquid argon tank to attach the regulator. Use a CGA 580 adapter.

Lab 236 EC
8
Some notes about the Liquid Argon Tank
Liquid argon is purchased since the ICPMS uses a tremendous amount of gas. The average
regular compressed gas cylinder would only last about 8 hours at most. These tanks are basically
a large thermos. So, if the liquid is not used, eventually it must slowly heat up and vent to the
atmosphere. The tank should be vented by the gas vendor before arrival, but there will be times
when it will vent. If the tank was recently received, monitor this for a day or so. If venting too
much, this may indicate an issue with the tank. Check with the vendor for more details.

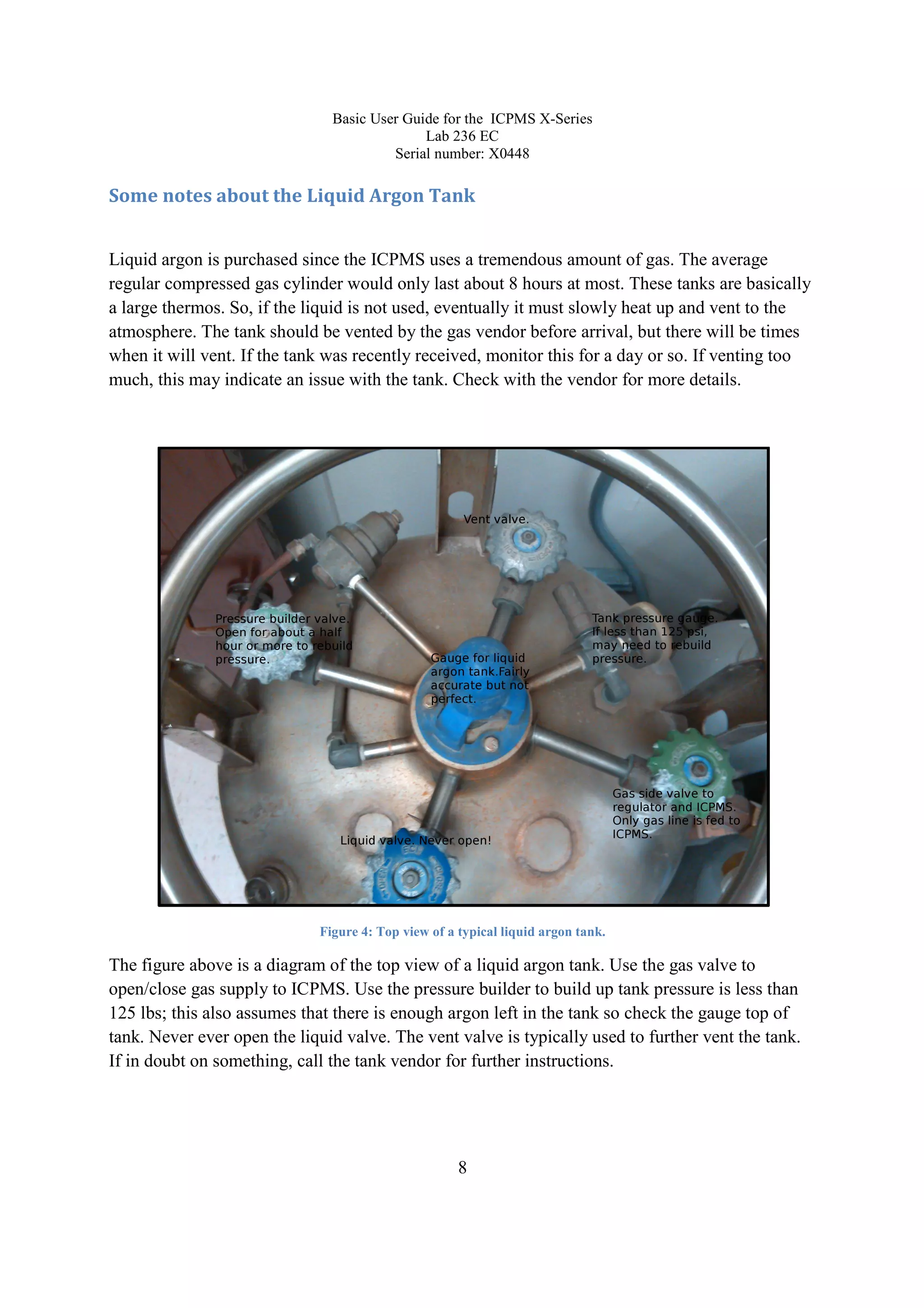

Figure 4: Top view of a typical liquid argon tank.
The figure above is a diagram of the top view of a liquid argon tank. Use the gas valve to
open/close gas supply to ICPMS. Use the pressure builder to build up tank pressure is less than
125 lbs; this also assumes that there is enough argon left in the tank so check the gauge top of
tank. Never ever open the liquid valve. The vent valve is typically used to further vent the tank.
If in doubt on something, call the tank vendor for further instructions.

Lab 236 EC
9
After turning off the plasma and returning the ICPMS to vacuum state, it is a good idea to turn
off the gas valve on the tank. In the past, the gas line disconnected and a $350 or delivered tank
of argon was lost.
Due to the laws of thermodynamics, there will always be loss of product. So it is a use it or lose
it proposition. Typically, if used two or three times a week, a liquid tank can last up to five
weeks. However, always make sure that there appears to be enough argon to run whatever
number samples expected. That judgment call will come with experience.

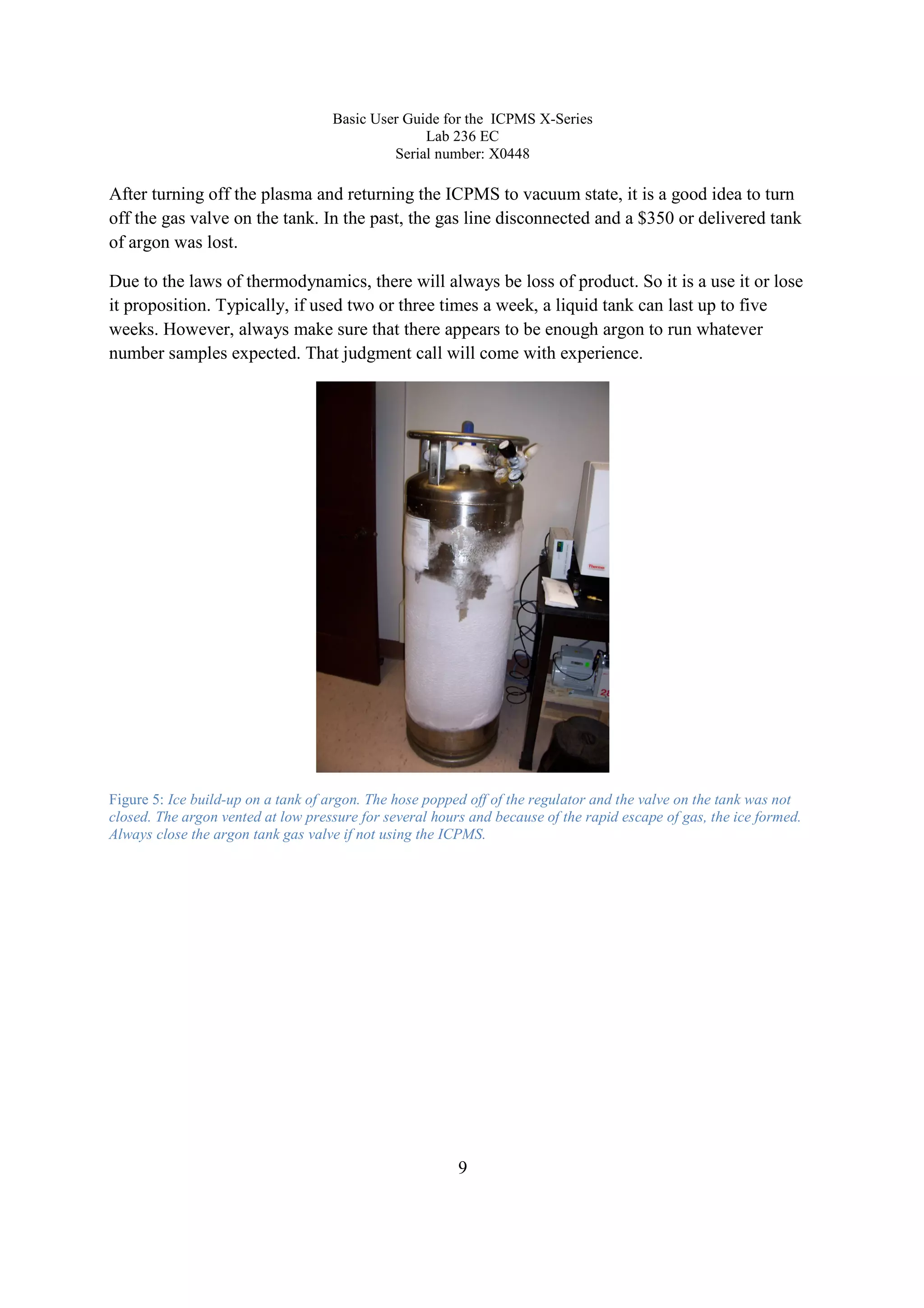

Figure 5: Ice build-up on a tank of argon. The hose popped off of the regulator and the valve on the tank was not
closed. The argon vented at low pressure for several hours and because of the rapid escape of gas, the ice formed.
Always close the argon tank gas valve if not using the ICPMS.

Lab 236 EC
10
Turning On the Chiller
Turn on the chiller. The chiller is set for a water temperature of 20°C. If operating properly, the
chiller should reach its target temperature in less than 3 minutes. Otherwise, when trying to
ignite the plasma, an error message will appear. Make sure to check the water level before
powering and once in a while clean the air filter.
Figure 6: The chiller for the ICPMS.

Lab 236 EC
11

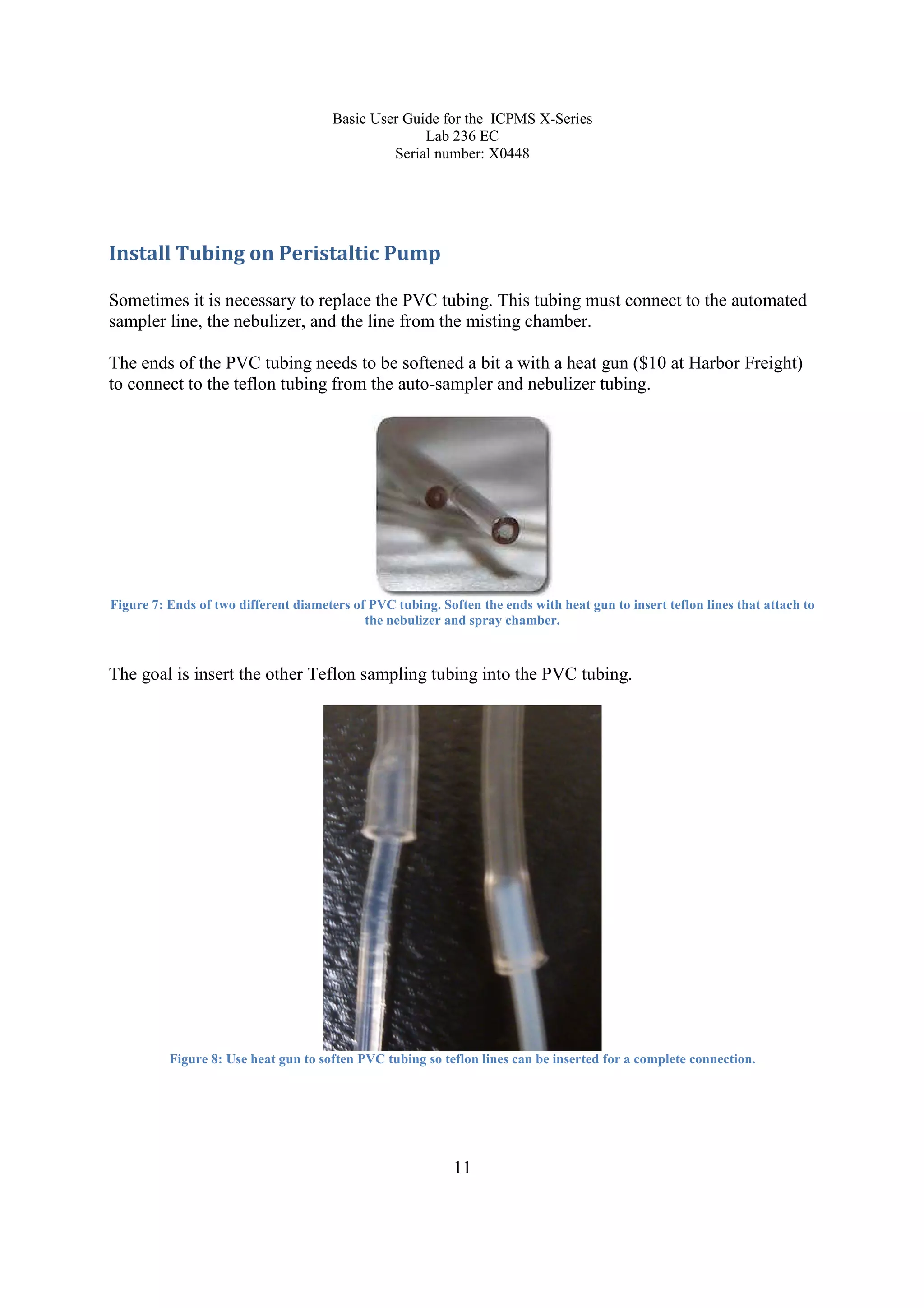

Install Tubing on Peristaltic Pump
Sometimes it is necessary to replace the PVC tubing. This tubing must connect to the automated
sampler line, the nebulizer, and the line from the misting chamber.
The ends of the PVC tubing needs to be softened a bit a with a heat gun ($10 at Harbor Freight)
to connect to the teflon tubing from the auto-sampler and nebulizer tubing.
Figure 7: Ends of two different diameters of PVC tubing. Soften the ends with heat gun to insert teflon lines that attach to
the nebulizer and spray chamber.
The goal is insert the other Teflon sampling tubing into the PVC tubing.
Figure 8: Use heat gun to soften PVC tubing so teflon lines can be inserted for a complete connection.

Lab 236 EC
12

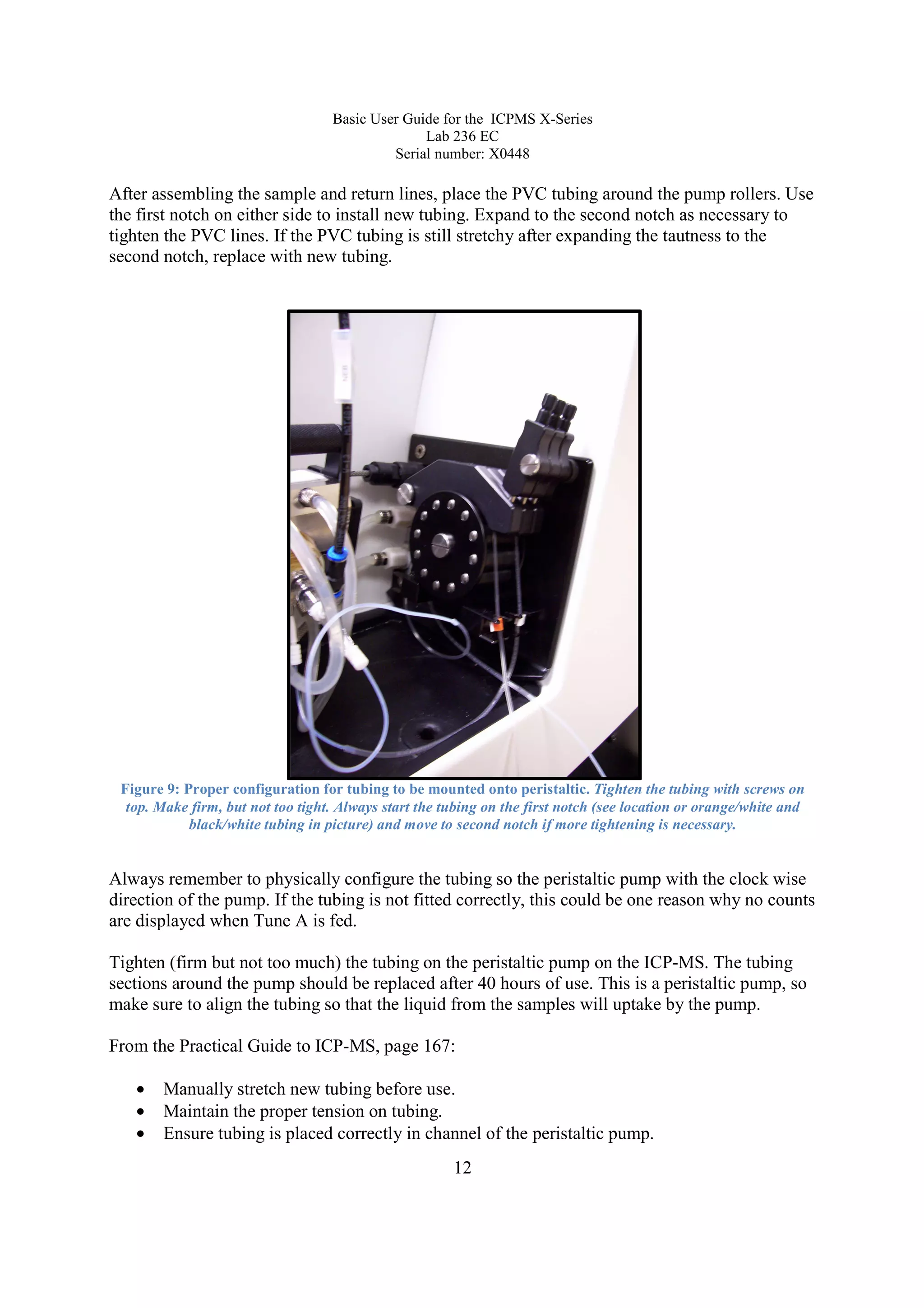

After assembling the sample and return lines, place the PVC tubing around the pump rollers. Use
the first notch on either side to install new tubing. Expand to the second notch as necessary to
tighten the PVC lines. If the PVC tubing is still stretchy after expanding the tautness to the
second notch, replace with new tubing.
Figure 9: Proper configuration for tubing to be mounted onto peristaltic. Tighten the tubing with screws on
top. Make firm, but not too tight. Always start the tubing on the first notch (see location or orange/white and
black/white tubing in picture) and move to second notch if more tightening is necessary.
Always remember to physically configure the tubing so the peristaltic pump with the clock wise
direction of the pump. If the tubing is not fitted correctly, this could be one reason why no counts
are displayed when Tune A is fed.
Tighten (firm but not too much) the tubing on the peristaltic pump on the ICP-MS. The tubing
sections around the pump should be replaced after 40 hours of use. This is a peristaltic pump, so
make sure to align the tubing so that the liquid from the samples will uptake by the pump.
From the Practical Guide to ICP-MS, page 167:
• Manually stretch new tubing before use.
• Maintain the proper tension on tubing.
• Ensure tubing is placed correctly in channel of the peristaltic pump.

Lab 236 EC
13

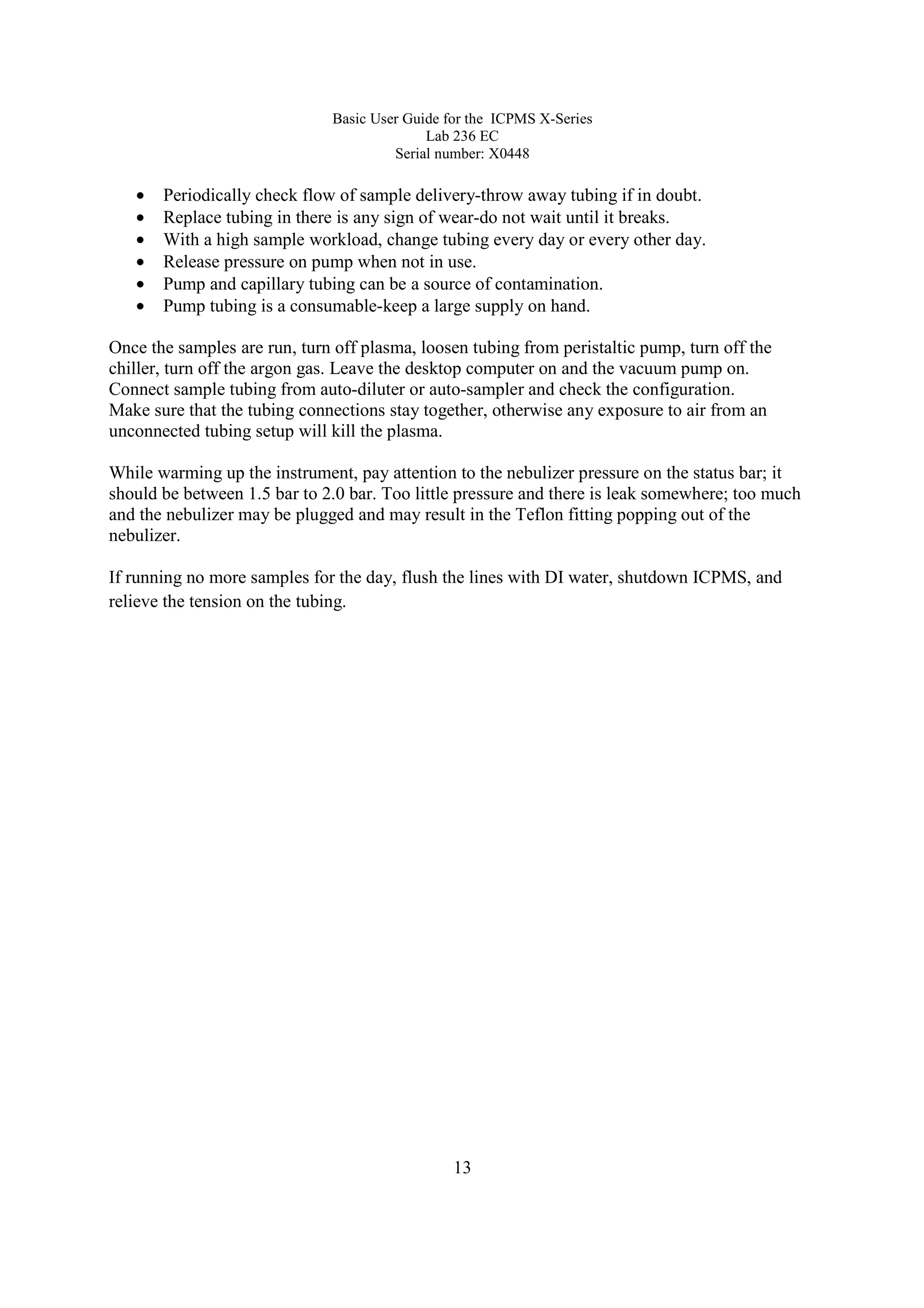

• Periodically check flow of sample delivery-throw away tubing if in doubt.
• Replace tubing in there is any sign of wear-do not wait until it breaks.
• With a high sample workload, change tubing every day or every other day.
• Release pressure on pump when not in use.
• Pump and capillary tubing can be a source of contamination.
• Pump tubing is a consumable-keep a large supply on hand.
Once the samples are run, turn off plasma, loosen tubing from peristaltic pump, turn off the
chiller, turn off the argon gas. Leave the desktop computer on and the vacuum pump on.
Connect sample tubing from auto-diluter or auto-sampler and check the configuration.
Make sure that the tubing connections stay together, otherwise any exposure to air from an
unconnected tubing setup will kill the plasma.
While warming up the instrument, pay attention to the nebulizer pressure on the status bar; it
should be between 1.5 bar to 2.0 bar. Too little pressure and there is leak somewhere; too much
and the nebulizer may be plugged and may result in the Teflon fitting popping out of the
nebulizer.
If running no more samples for the day, flush the lines with DI water, shutdown ICPMS, and
relieve the tension on the tubing.

Lab 236 EC
14

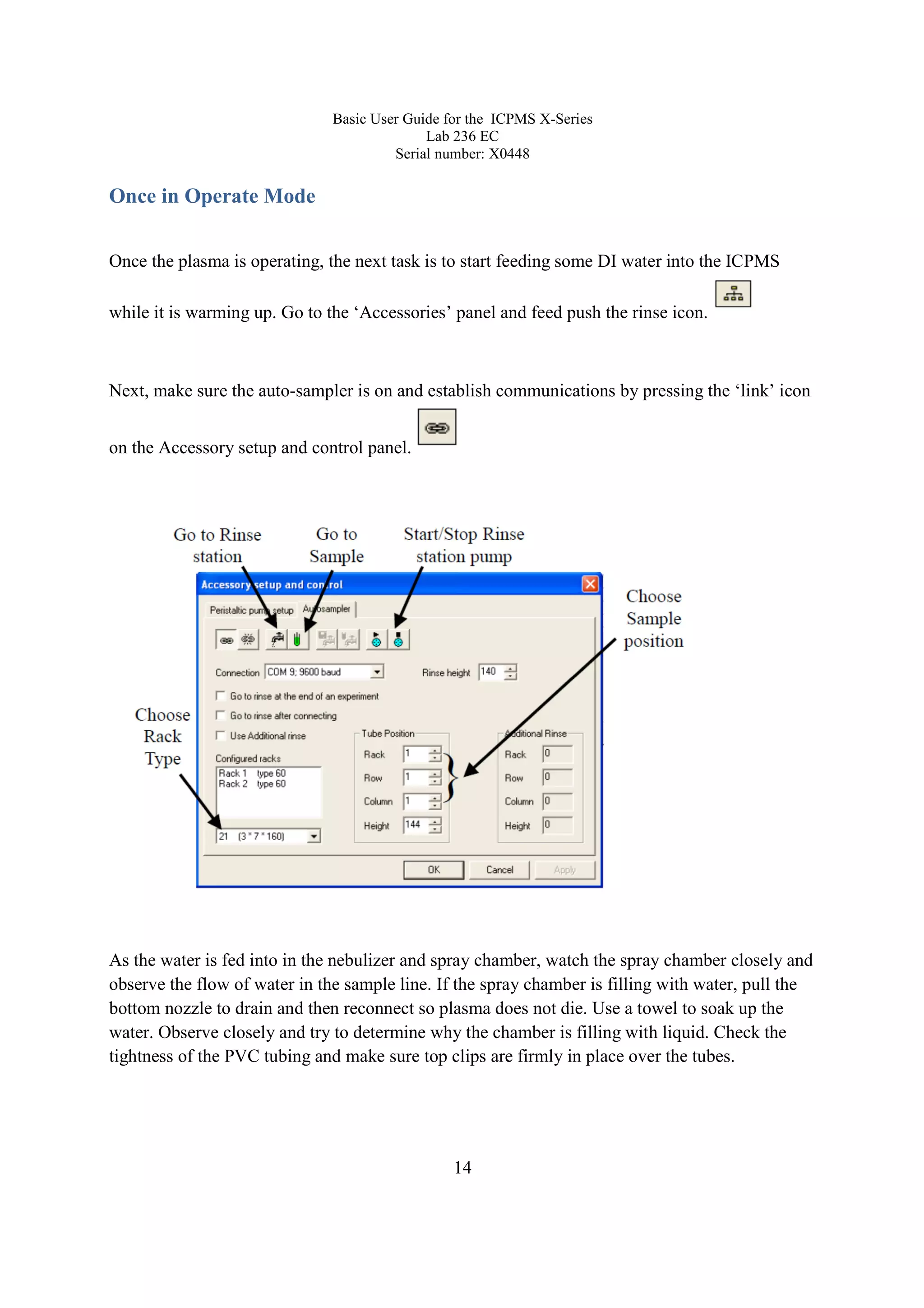

Once in Operate Mode
Once the plasma is operating, the next task is to start feeding some DI water into the ICPMS
while it is warming up. Go to the ‘Accessories’ panel and feed push the rinse icon.
Next, make sure the auto-sampler is on and establish communications by pressing the ‘link’ icon
on the Accessory setup and control panel.
As the water is fed into in the nebulizer and spray chamber, watch the spray chamber closely and
observe the flow of water in the sample line. If the spray chamber is filling with water, pull the
bottom nozzle to drain and then reconnect so plasma does not die. Use a towel to soak up the
water. Observe closely and try to determine why the chamber is filling with liquid. Check the
tightness of the PVC tubing and make sure top clips are firmly in place over the tubes.

Lab 236 EC
15

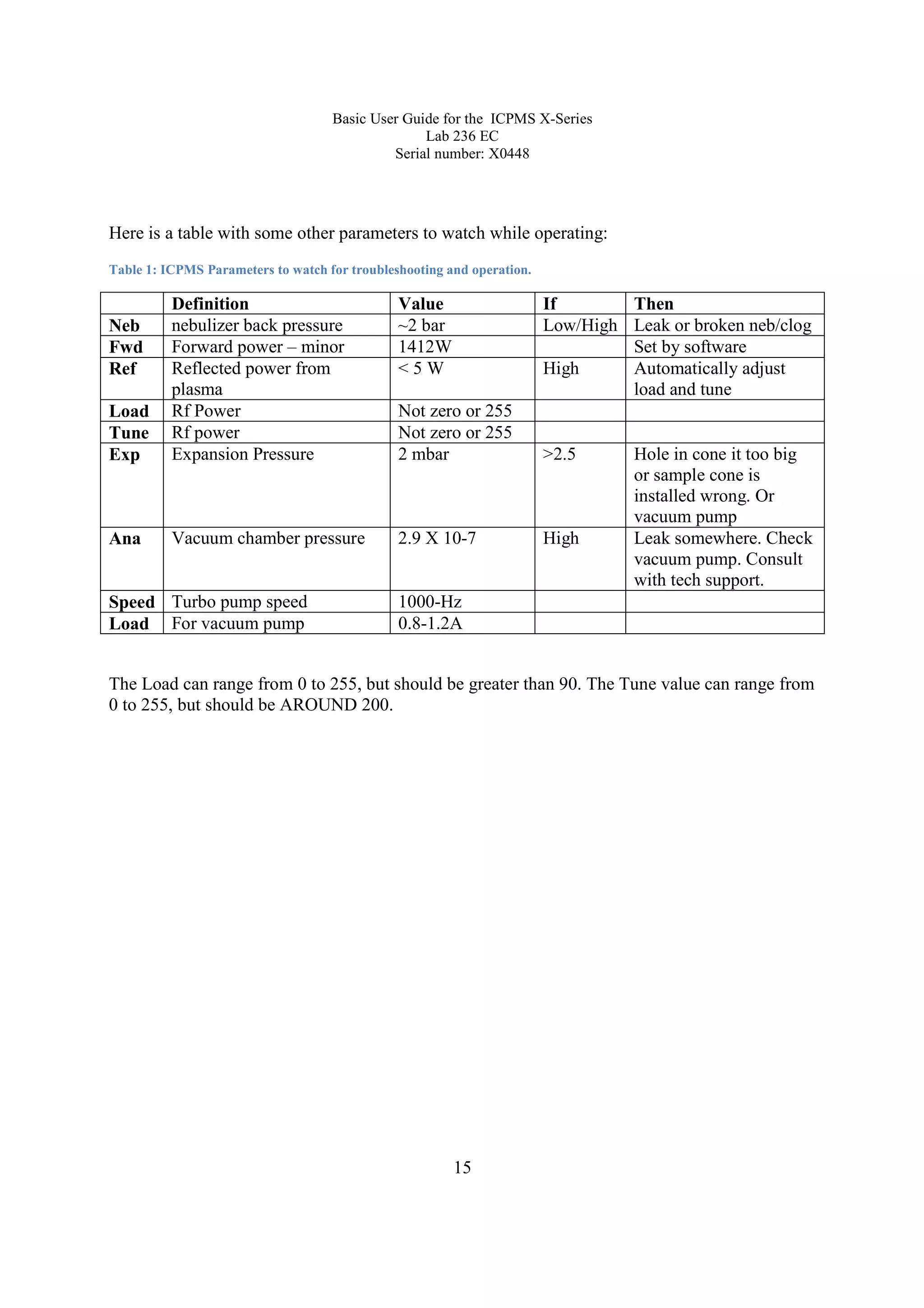

Here is a table with some other parameters to watch while operating:
Table 1: ICPMS Parameters to watch for troubleshooting and operation.
Definition Value If Then
Neb nebulizer back pressure ~2 bar Low/High Leak or broken neb/clog
Fwd Forward power – minor 1412W Set by software
Ref Reflected power from
plasma
< 5 W High Automatically adjust
load and tune
Load Rf Power Not zero or 255
Tune Rf power Not zero or 255
Exp Expansion Pressure 2 mbar >2.5 Hole in cone it too big
or sample cone is
installed wrong. Or
vacuum pump
Ana Vacuum chamber pressure 2.9 X 10-7 High Leak somewhere. Check
vacuum pump. Consult
with tech support.
Speed Turbo pump speed 1000-Hz
Load For vacuum pump 0.8-1.2A
The Load can range from 0 to 255, but should be greater than 90. The Tune value can range from
0 to 255, but should be AROUND 200.

Lab 236 EC
16

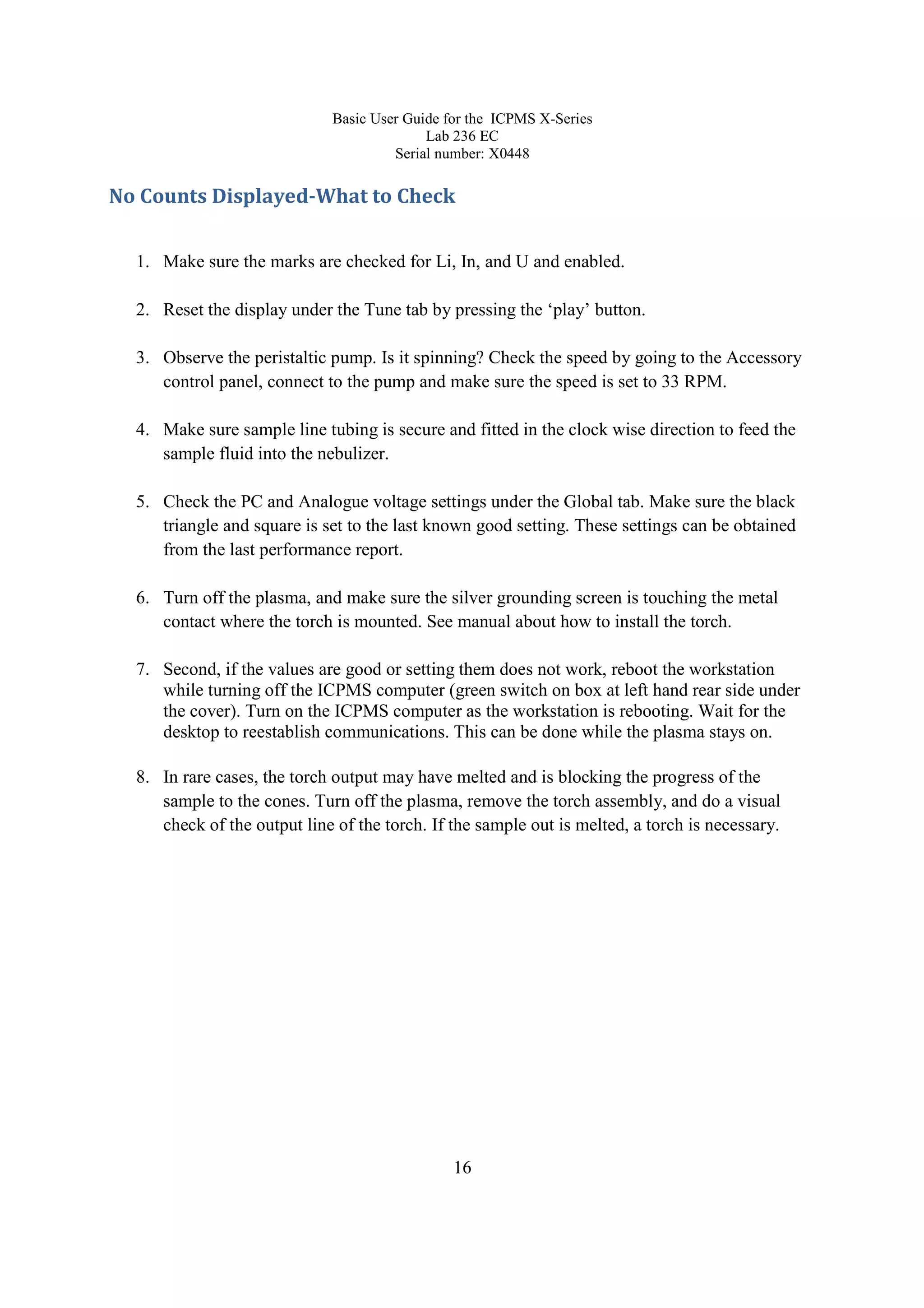

No Counts Displayed-What to Check
1. Make sure the marks are checked for Li, In, and U and enabled.
2. Reset the display under the Tune tab by pressing the ‘play’ button.
3. Observe the peristaltic pump. Is it spinning? Check the speed by going to the Accessory
control panel, connect to the pump and make sure the speed is set to 33 RPM.
4. Make sure sample line tubing is secure and fitted in the clock wise direction to feed the
sample fluid into the nebulizer.
5. Check the PC and Analogue voltage settings under the Global tab. Make sure the black
triangle and square is set to the last known good setting. These settings can be obtained
from the last performance report.
6. Turn off the plasma, and make sure the silver grounding screen is touching the metal
contact where the torch is mounted. See manual about how to install the torch.
7. Second, if the values are good or setting them does not work, reboot the workstation
while turning off the ICPMS computer (green switch on box at left hand rear side under
the cover). Turn on the ICPMS computer as the workstation is rebooting. Wait for the
desktop to reestablish communications. This can be done while the plasma stays on.
8. In rare cases, the torch output may have melted and is blocking the progress of the
sample to the cones. Turn off the plasma, remove the torch assembly, and do a visual
check of the output line of the torch. If the sample out is melted, a torch is necessary.

Lab 236 EC
17

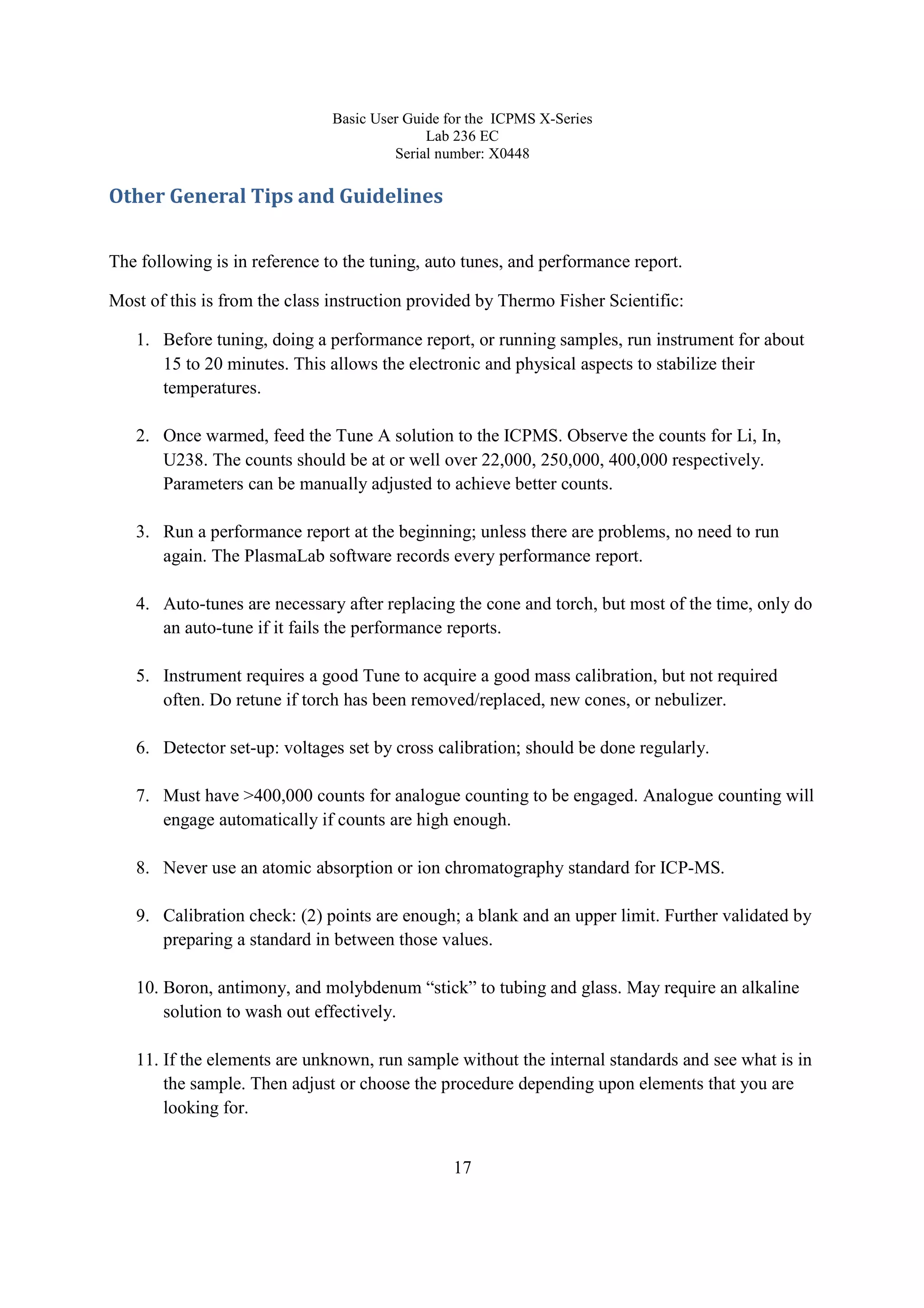

Other General Tips and Guidelines
The following is in reference to the tuning, auto tunes, and performance report.
Most of this is from the class instruction provided by Thermo Fisher Scientific:
1. Before tuning, doing a performance report, or running samples, run instrument for about
15 to 20 minutes. This allows the electronic and physical aspects to stabilize their
temperatures.
2. Once warmed, feed the Tune A solution to the ICPMS. Observe the counts for Li, In,
U238. The counts should be at or well over 22,000, 250,000, 400,000 respectively.
Parameters can be manually adjusted to achieve better counts.
3. Run a performance report at the beginning; unless there are problems, no need to run
again. The PlasmaLab software records every performance report.
4. Auto-tunes are necessary after replacing the cone and torch, but most of the time, only do
an auto-tune if it fails the performance reports.
5. Instrument requires a good Tune to acquire a good mass calibration, but not required
often. Do retune if torch has been removed/replaced, new cones, or nebulizer.
6. Detector set-up: voltages set by cross calibration; should be done regularly.
7. Must have >400,000 counts for analogue counting to be engaged. Analogue counting will
engage automatically if counts are high enough.
8. Never use an atomic absorption or ion chromatography standard for ICP-MS.
9. Calibration check: (2) points are enough; a blank and an upper limit. Further validated by
preparing a standard in between those values.
10. Boron, antimony, and molybdenum “stick” to tubing and glass. May require an alkaline
solution to wash out effectively.
11. If the elements are unknown, run sample without the internal standards and see what is in
the sample. Then adjust or choose the procedure depending upon elements that you are
looking for.

Lab 236 EC
18

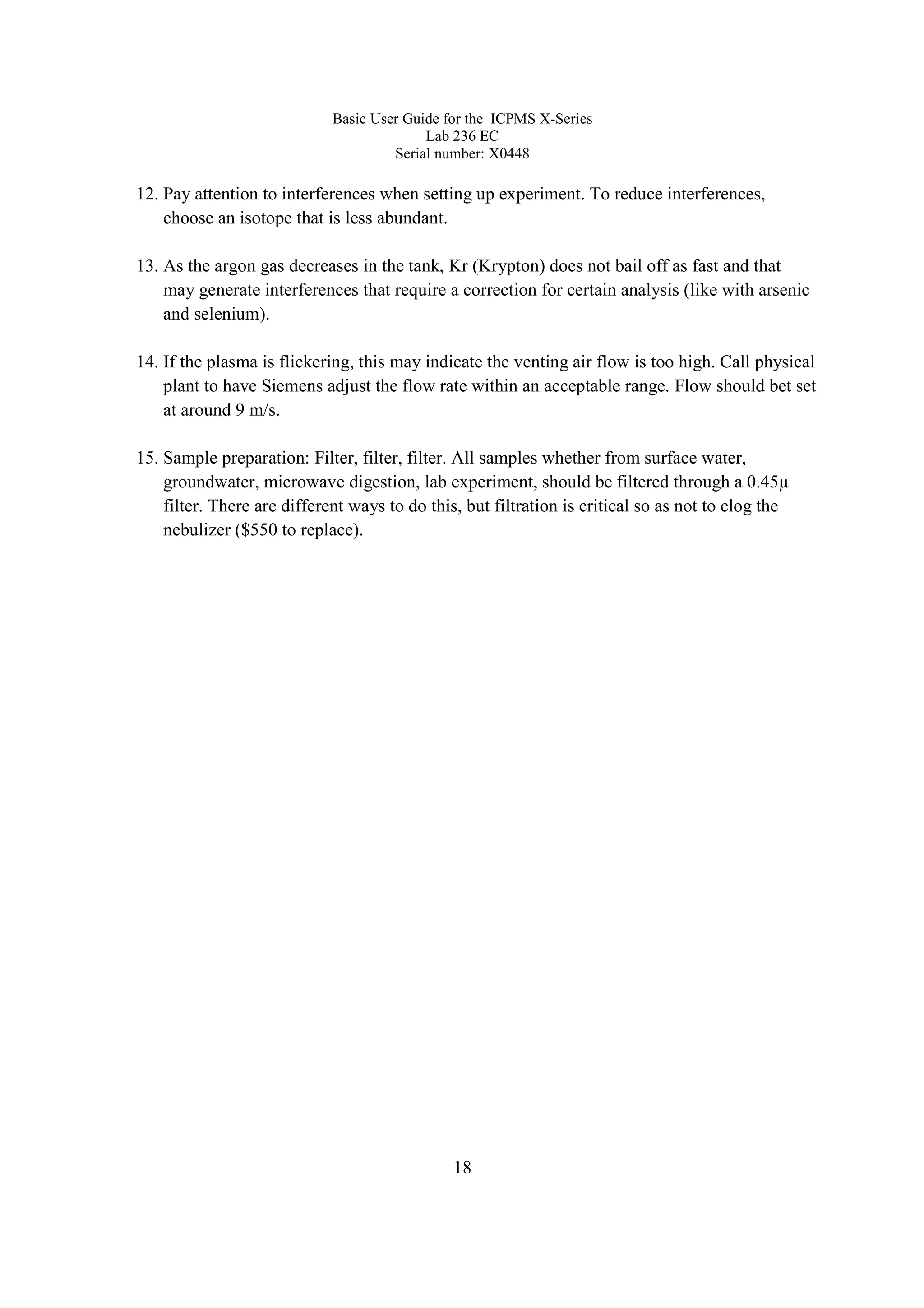

12. Pay attention to interferences when setting up experiment. To reduce interferences,
choose an isotope that is less abundant.
13. As the argon gas decreases in the tank, Kr (Krypton) does not bail off as fast and that
may generate interferences that require a correction for certain analysis (like with arsenic
and selenium).
14. If the plasma is flickering, this may indicate the venting air flow is too high. Call physical
plant to have Siemens adjust the flow rate within an acceptable range. Flow should bet set
at around 9 m/s.
15. Sample preparation: Filter, filter, filter. All samples whether from surface water,
groundwater, microwave digestion, lab experiment, should be filtered through a 0.45µ
filter. There are different ways to do this, but filtration is critical so as not to clog the
nebulizer ($550 to replace).

Lab 236 EC
19
Cleaning the Cones with an Ultrasonic Cleaner
After some hours of sample analysis, the cones at the entry point of mass spectrometer will
become dirty.
arning: Remember that these are nickel metal cones. DO NOT clean with an
acid or base. DI water only or a light mixture of Micro-90 soap will suffice!
Follow the instructions in the manual for removing the cones from the ICPMS. See page 118 of
the X Series ICPMS Getting Started Guide.
Fill the ultrasonic unit pictured below with DI water to about an 1 inch to 1.5 inches of the top.
Find a small beaker to put the cones in with some DI water filling the beaker. Do each cone
separately for up to 15 minutes. Five and ten minute can also be enough depending upon the
dirtiness of the cones.
Rinse the cones a couple of times with DI water while in the beaker. Try to minimize contact
with the cones unless wearing gloves. The cones need to be dried and this can be either air
drying or with a heat gun. Another quick way is to rinse the cones with alcohol and air dry. Set
the cones out to dry. After drying, reinstall the cones.

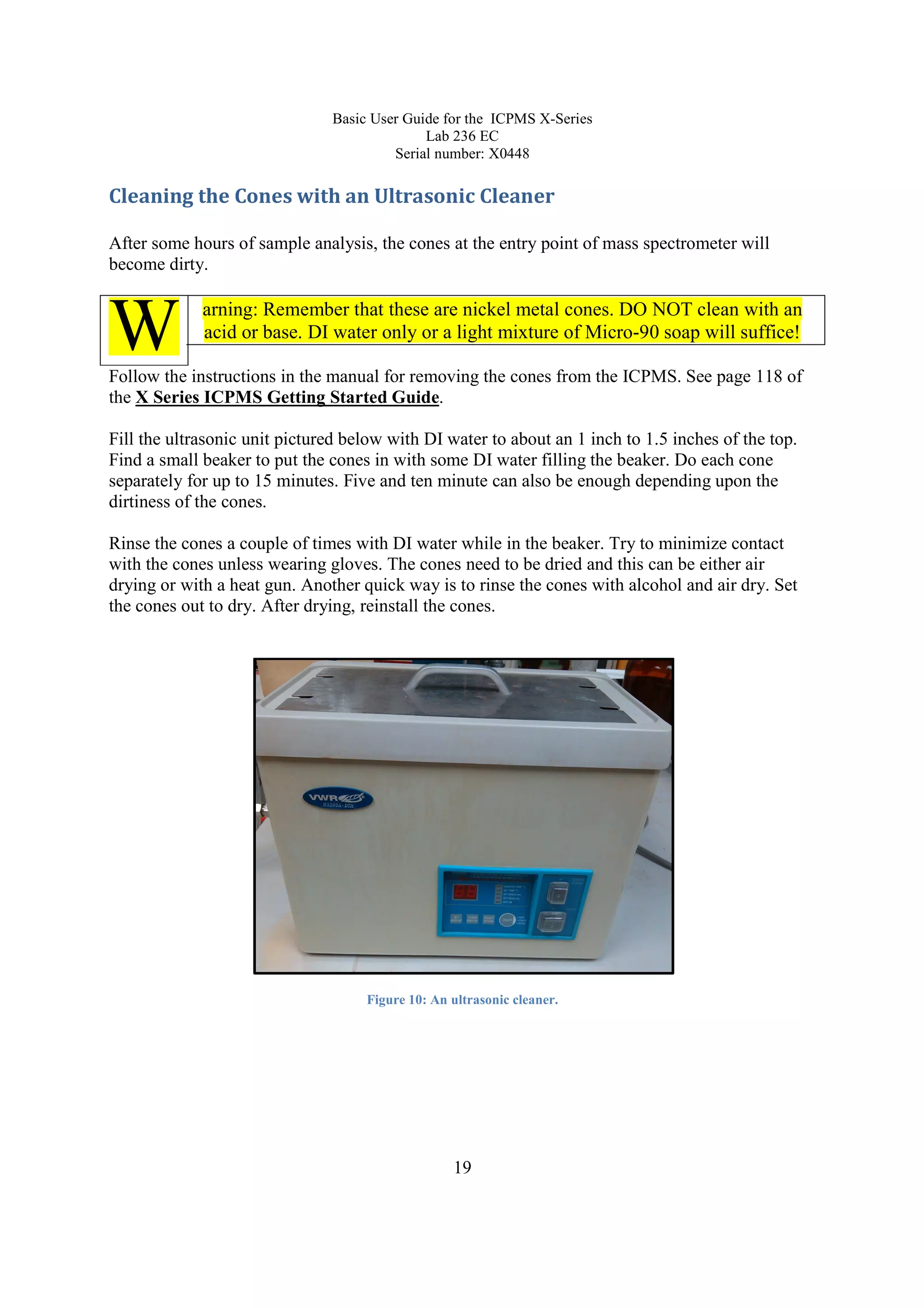

Figure 10: An ultrasonic cleaner.
W

Lab 236 EC
20

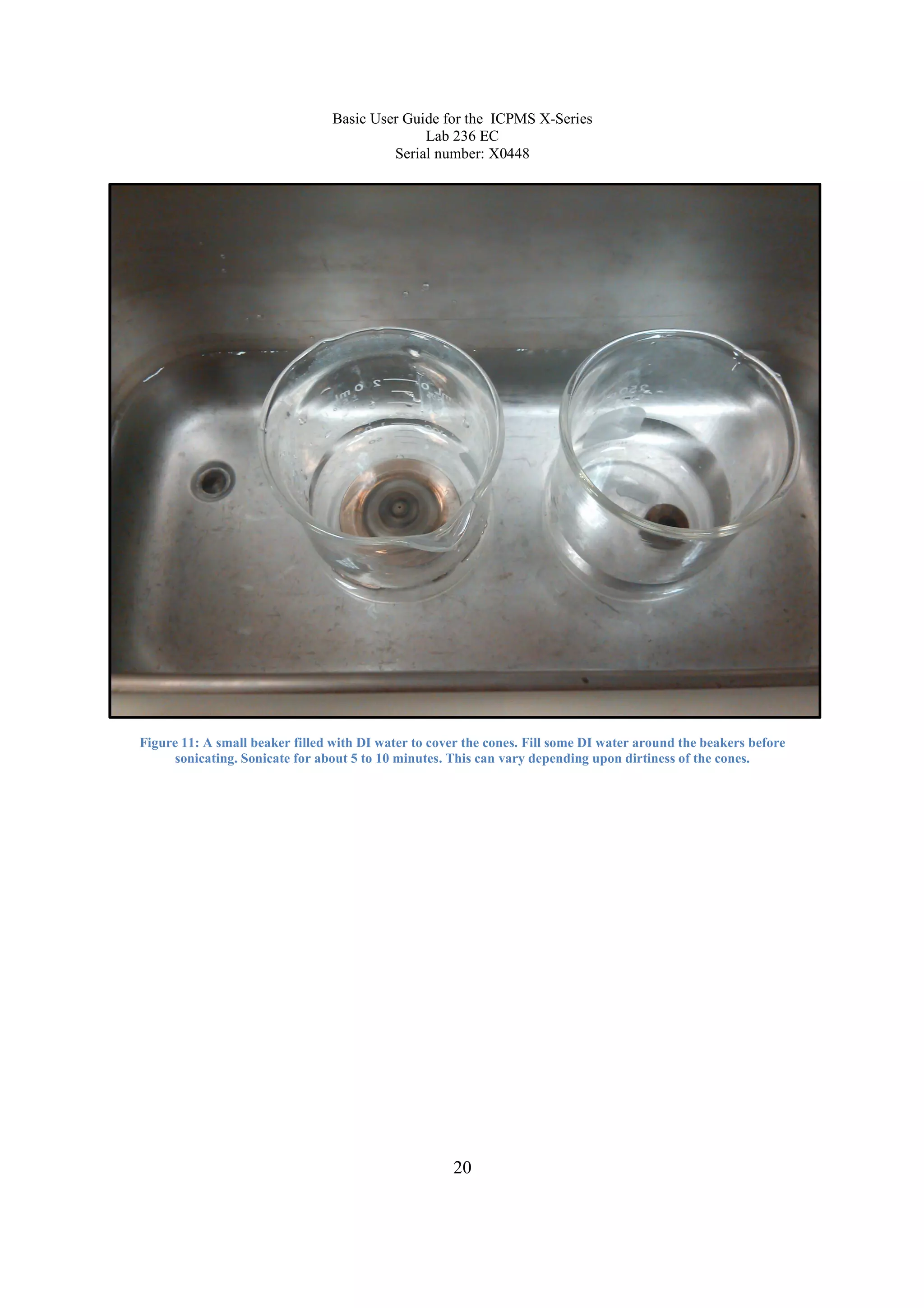

Figure 11: A small beaker filled with DI water to cover the cones. Fill some DI water around the beakers before
sonicating. Sonicate for about 5 to 10 minutes. This can vary depending upon dirtiness of the cones.

Lab 236 EC
21

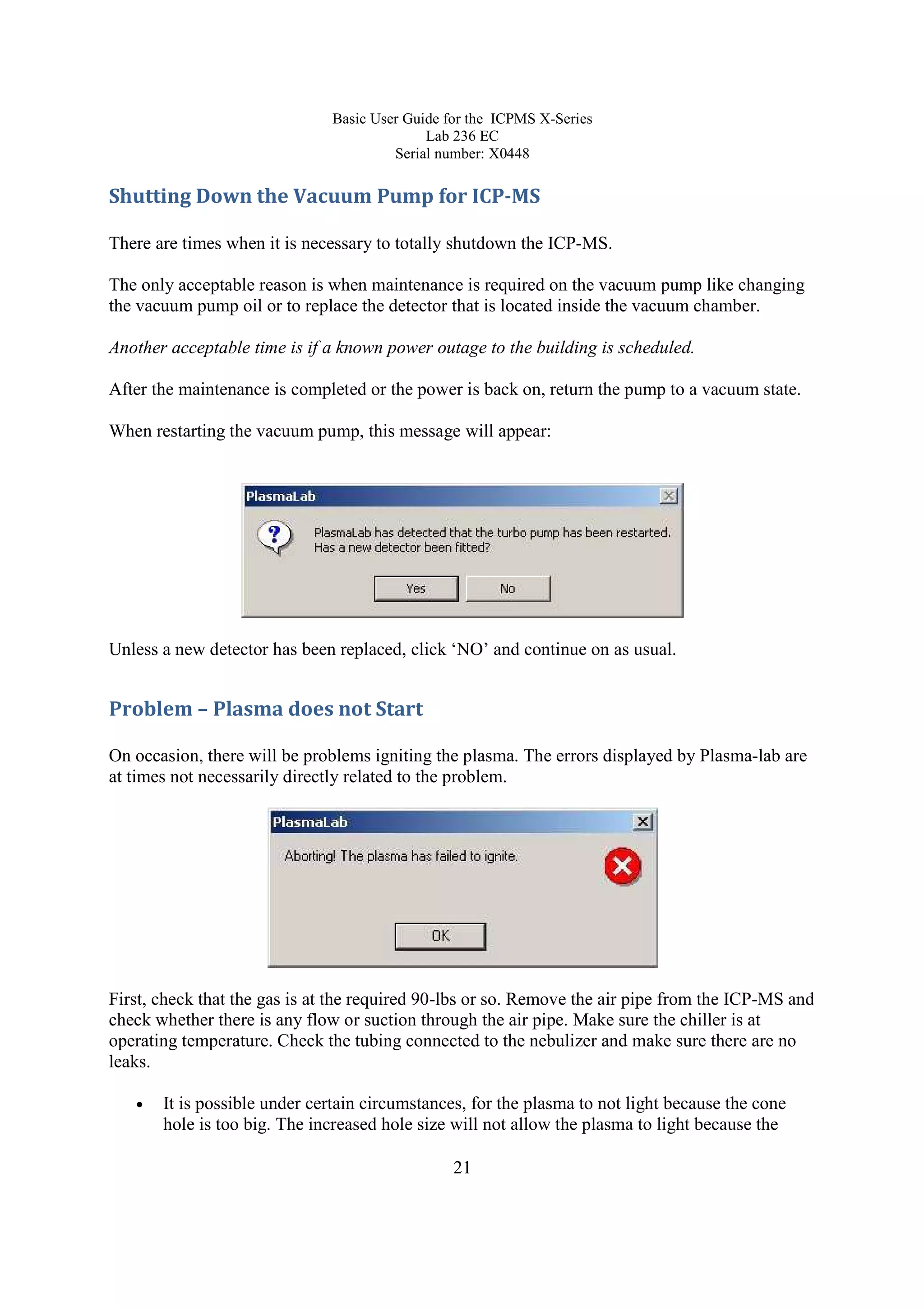

Shutting Down the Vacuum Pump for ICP-MS
There are times when it is necessary to totally shutdown the ICP-MS.
The only acceptable reason is when maintenance is required on the vacuum pump like changing
the vacuum pump oil or to replace the detector that is located inside the vacuum chamber.
Another acceptable time is if a known power outage to the building is scheduled.
After the maintenance is completed or the power is back on, return the pump to a vacuum state.
When restarting the vacuum pump, this message will appear:
Unless a new detector has been replaced, click ‘NO’ and continue on as usual.
Problem – Plasma does not Start
On occasion, there will be problems igniting the plasma. The errors displayed by Plasma-lab are
at times not necessarily directly related to the problem.
First, check that the gas is at the required 90-lbs or so. Remove the air pipe from the ICP-MS and
check whether there is any flow or suction through the air pipe. Make sure the chiller is at
operating temperature. Check the tubing connected to the nebulizer and make sure there are no
leaks.
• It is possible under certain circumstances, for the plasma to not light because the cone
hole is too big. The increased hole size will not allow the plasma to light because the

Lab 236 EC
22
proper vacuum is not obtainable. Examine the cone for wear and replace with another and
see what happens.
• Pages 130 to 131 from the X Series ICP-MS Getting Started Guide startup guide has a
flowchart for troubleshooting plasma start issues.

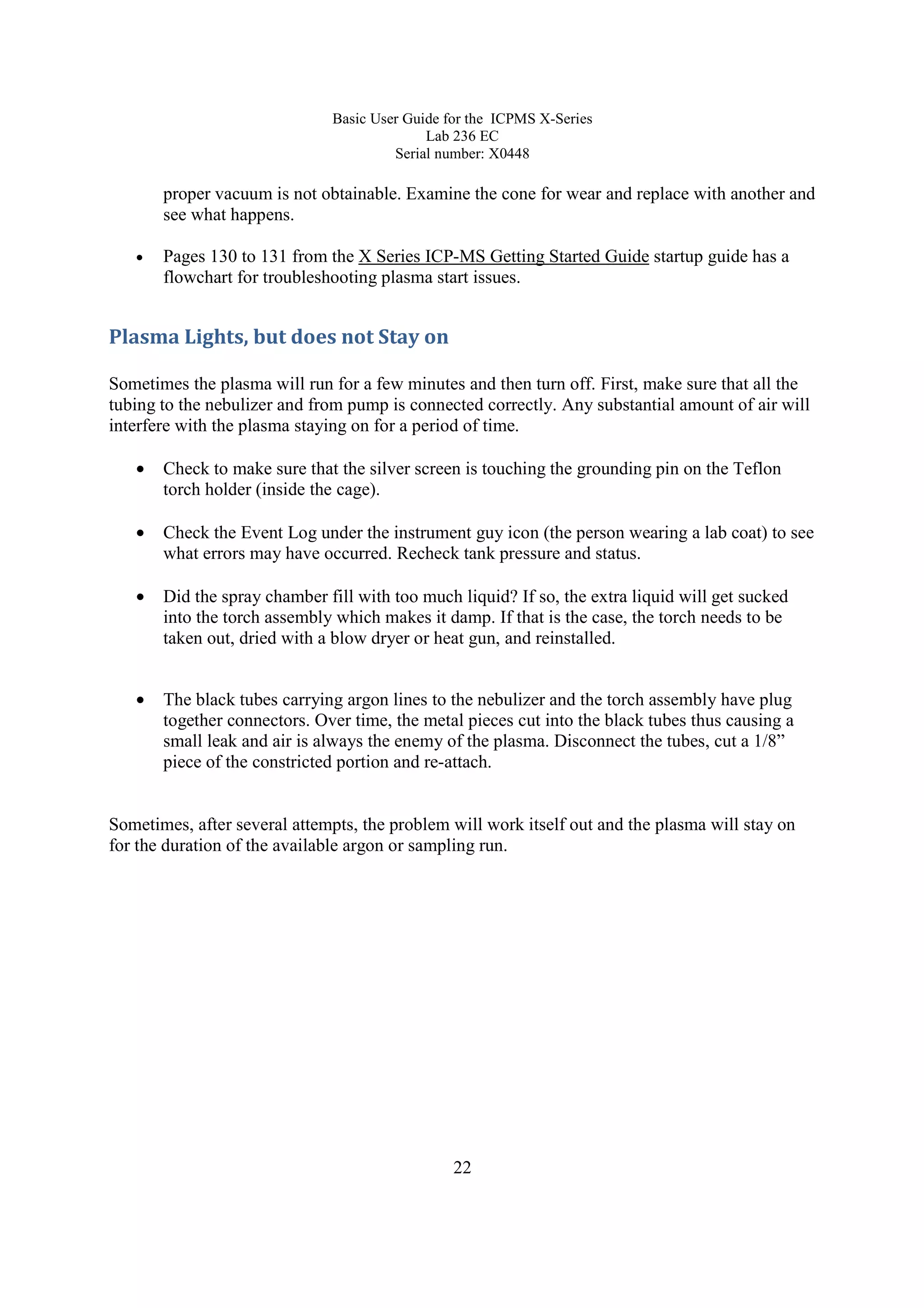

Plasma Lights, but does not Stay on
Sometimes the plasma will run for a few minutes and then turn off. First, make sure that all the
tubing to the nebulizer and from pump is connected correctly. Any substantial amount of air will
interfere with the plasma staying on for a period of time.
• Check to make sure that the silver screen is touching the grounding pin on the Teflon
torch holder (inside the cage).
• Check the Event Log under the instrument guy icon (the person wearing a lab coat) to see
what errors may have occurred. Recheck tank pressure and status.
• Did the spray chamber fill with too much liquid? If so, the extra liquid will get sucked
into the torch assembly which makes it damp. If that is the case, the torch needs to be
taken out, dried with a blow dryer or heat gun, and reinstalled.
• The black tubes carrying argon lines to the nebulizer and the torch assembly have plug
together connectors. Over time, the metal pieces cut into the black tubes thus causing a
small leak and air is always the enemy of the plasma. Disconnect the tubes, cut a 1/8”
piece of the constricted portion and re-attach.
Sometimes, after several attempts, the problem will work itself out and the plasma will stay on
for the duration of the available argon or sampling run.

Lab 236 EC
23
PlasmaLab cannot Communicate with Instrument
Sometimes the communication fails between the PC and the ICPMS. The ICPMS has its own
low end PC inside of it. The purpose of the desk PC is to record errors and store data from the
sample analysis. If rebooting the computer, the following error will occur when starting

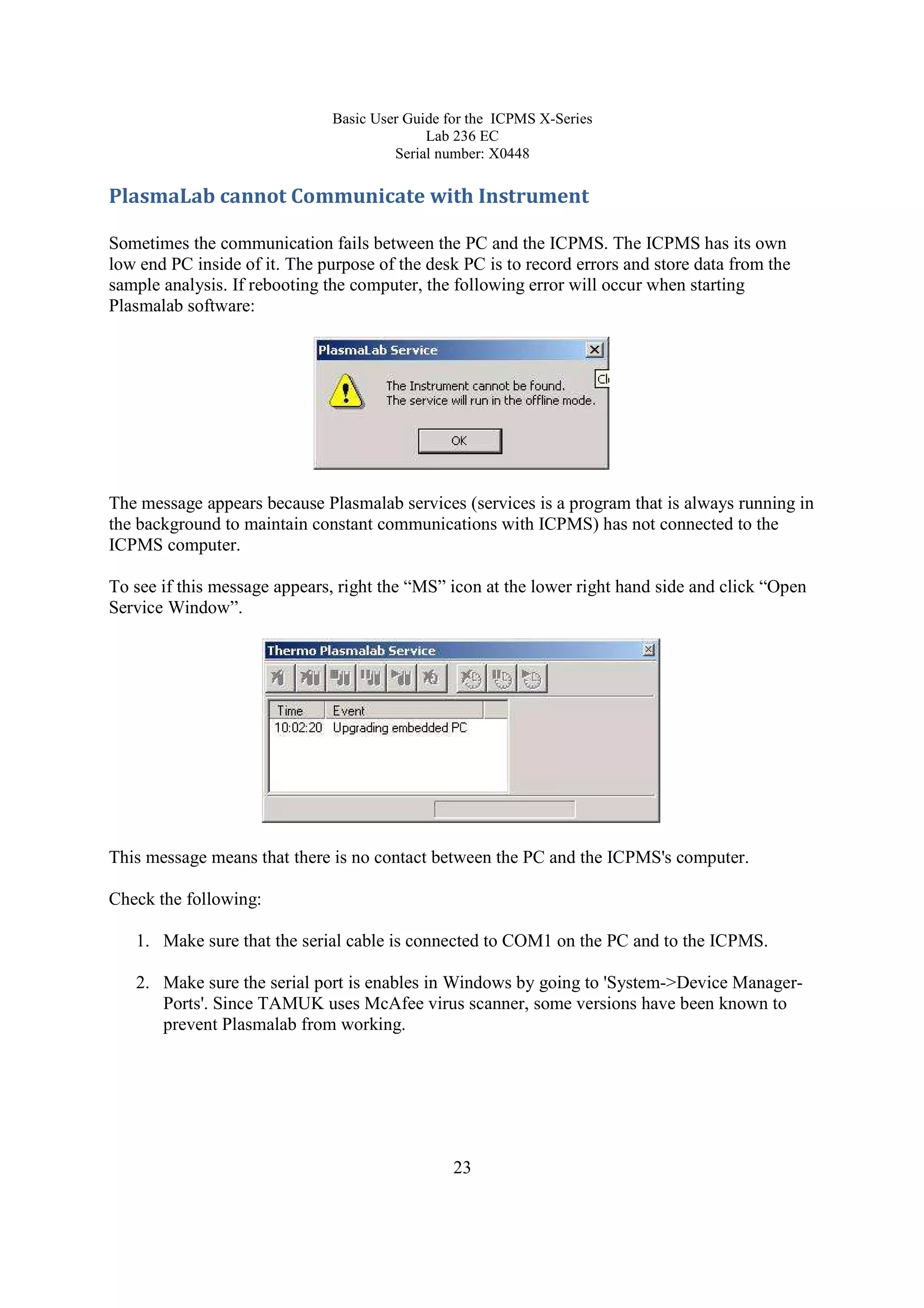

Plasmalab software:
The message appears because Plasmalab services (services is a program that is always running in
the background to maintain constant communications with ICPMS) has not connected to the
ICPMS computer.
To see if this message appears, right the “MS” icon at the lower right hand side and click “Open
Service Window”.
This message means that there is no contact between the PC and the ICPMS's computer.
Check the following:
1. Make sure that the serial cable is connected to COM1 on the PC and to the ICPMS.
2. Make sure the serial port is enables in Windows by going to 'System->Device Manager-
Ports'. Since TAMUK uses McAfee virus scanner, some versions have been known to
prevent Plasmalab from working.

Lab 236 EC
24
If communication is established between the ICPMS computer and desktop, this message will
appear under the “MS” icon and “Open Service Window”. The time stamp followed by
“Checking for modules” followed by another time stamp and the words “Idle” should appear.

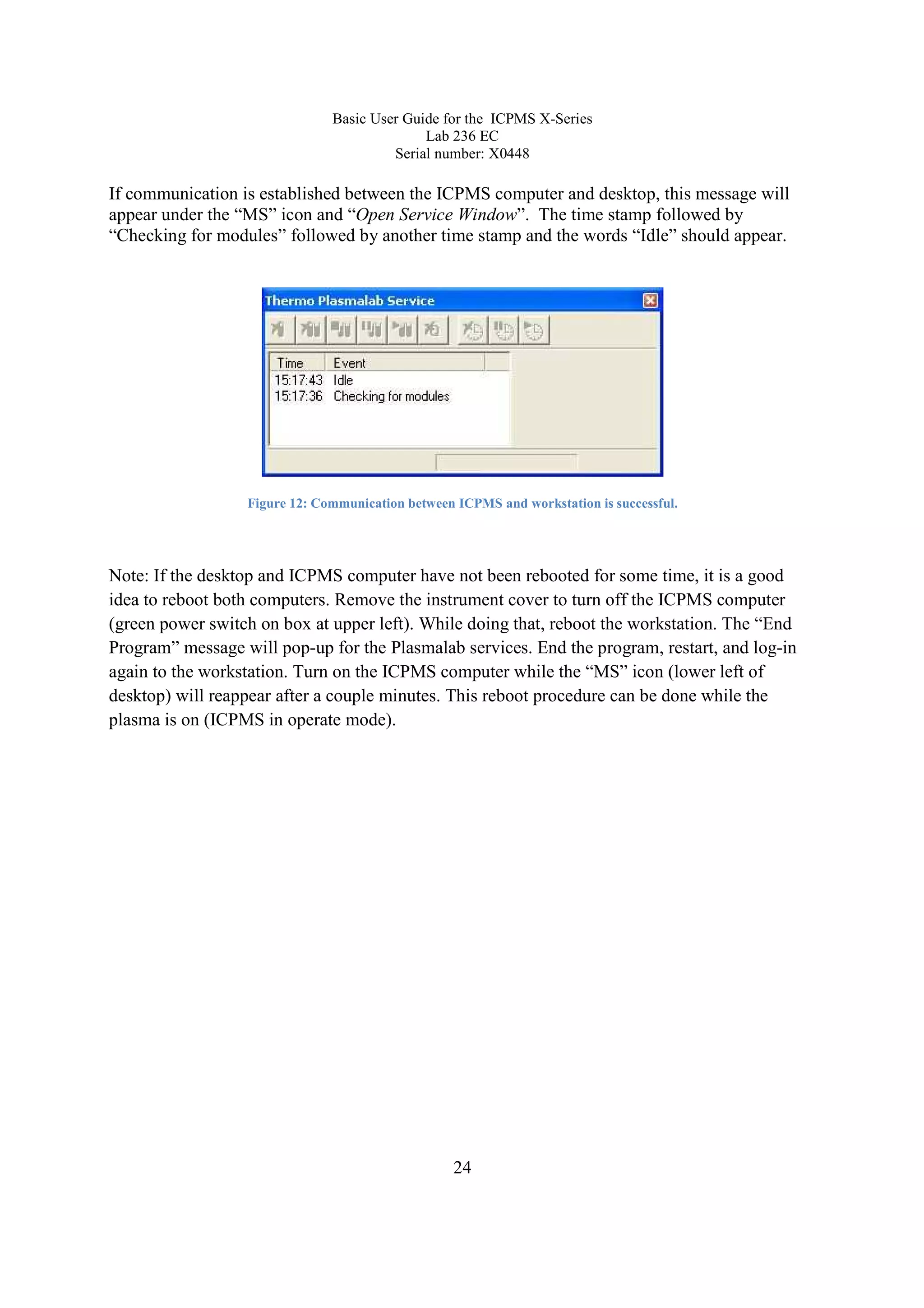

Figure 12: Communication between ICPMS and workstation is successful.
Note: If the desktop and ICPMS computer have not been rebooted for some time, it is a good
idea to reboot both computers. Remove the instrument cover to turn off the ICPMS computer
(green power switch on box at upper left). While doing that, reboot the workstation. The “End
Program” message will pop-up for the Plasmalab services. End the program, restart, and log-in
again to the workstation. Turn on the ICPMS computer while the “MS” icon (lower left of
desktop) will reappear after a couple minutes. This reboot procedure can be done while the
plasma is on (ICPMS in operate mode).

Lab 236 EC
25
Performance Report before Starting a Sample Analysis
A daily performance check is a necessary before running an experiment. Before running a
performance check, have the plasma operating for at least 15 to 20 minutes. Next, go to the
“Configurations” tab and select the following:

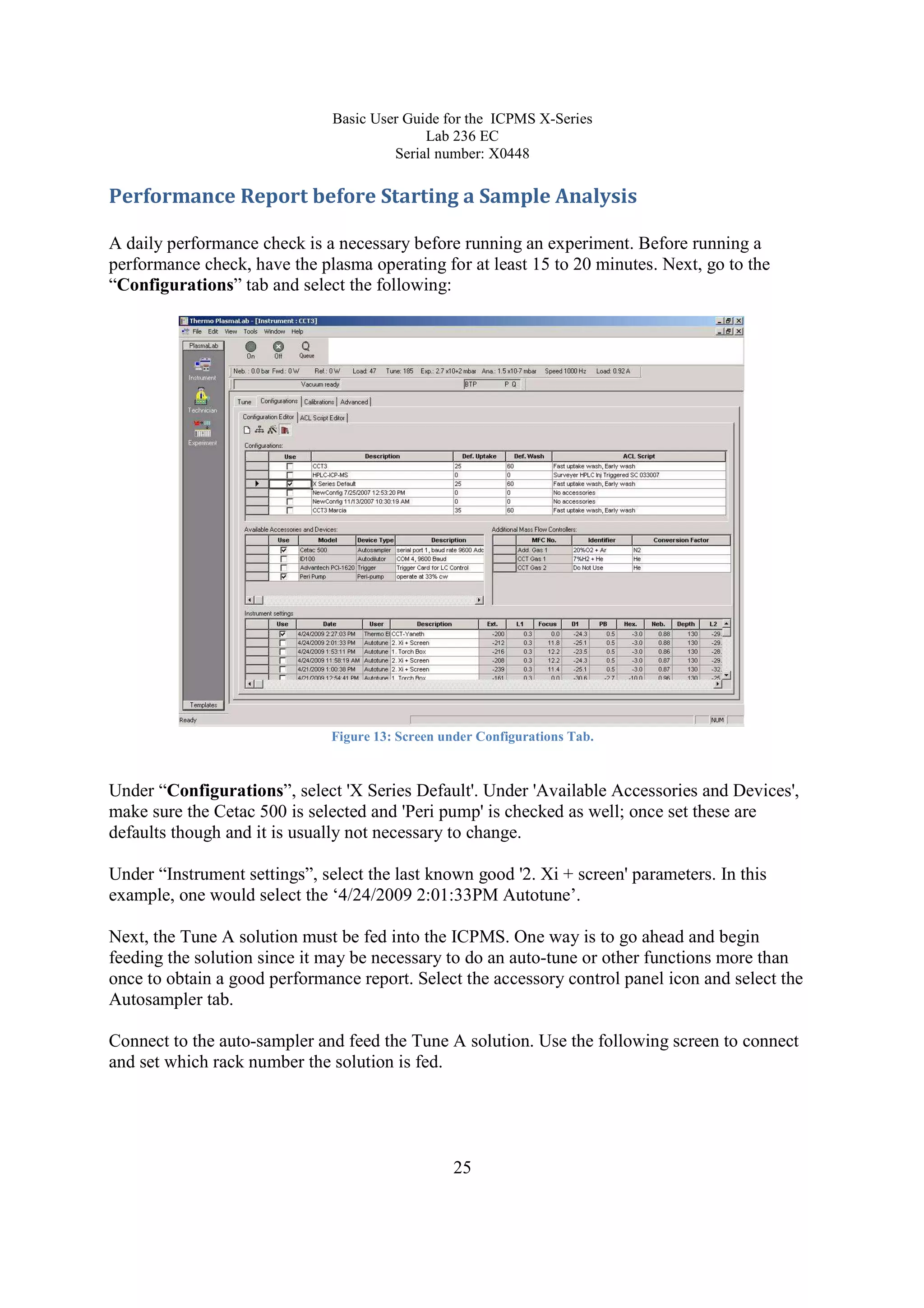

Figure 13: Screen under Configurations Tab.
Under “Configurations”, select 'X Series Default'. Under 'Available Accessories and Devices',
make sure the Cetac 500 is selected and 'Peri pump' is checked as well; once set these are
defaults though and it is usually not necessary to change.
Under “Instrument settings”, select the last known good '2. Xi + screen' parameters. In this
example, one would select the ‘4/24/2009 2:01:33PM Autotune’.
Next, the Tune A solution must be fed into the ICPMS. One way is to go ahead and begin
feeding the solution since it may be necessary to do an auto-tune or other functions more than
once to obtain a good performance report. Select the accessory control panel icon and select the
Autosampler tab.

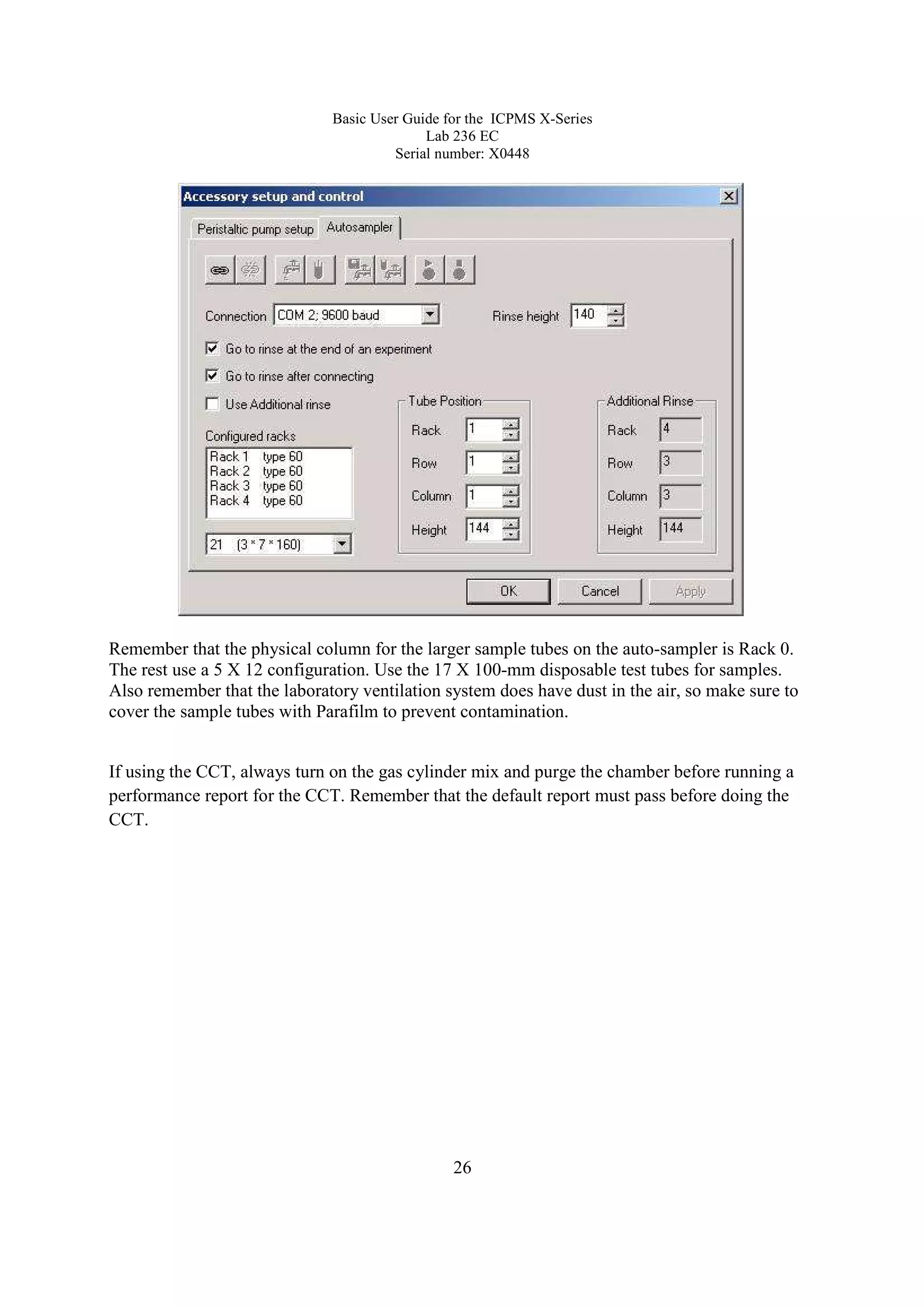

Connect to the auto-sampler and feed the Tune A solution. Use the following screen to connect
and set which rack number the solution is fed.

Lab 236 EC
26
Remember that the physical column for the larger sample tubes on the auto-sampler is Rack 0.
The rest use a 5 X 12 configuration. Use the 17 X 100-mm disposable test tubes for samples.
Also remember that the laboratory ventilation system does have dust in the air, so make sure to
cover the sample tubes with Parafilm to prevent contamination.
If using the CCT, always turn on the gas cylinder mix and purge the chamber before running a
performance report for the CCT. Remember that the default report must pass before doing the
CCT.

Lab 236 EC
27
Removing the Cover from the ICPMS
Sometimes it is necessary to remove the cover from the ICP-MS to access the circuit breakers,
vacuum cage, or vacuum chamber.
If turning off the breakers to reset the instrument, leave them off for at least 30 seconds before
turning back on. This should allow for most of the electronics to discharge.
The breaker to the far right says “Electronics Embedded PC Rotary Pump Turbo Pump”. This
breaker also controls the roughing pump on sitting on the floor beneath the table. If it does not
come back on after resetting the breaker, press the GRAY button on the board just to the right.
The RED button stops the roughing pump. Sometimes, this may require up to three or more
attempts. Open Plasmalab and watch the ‘Hertz:’ display; it should reach 1000-Hz in about five
minutes.

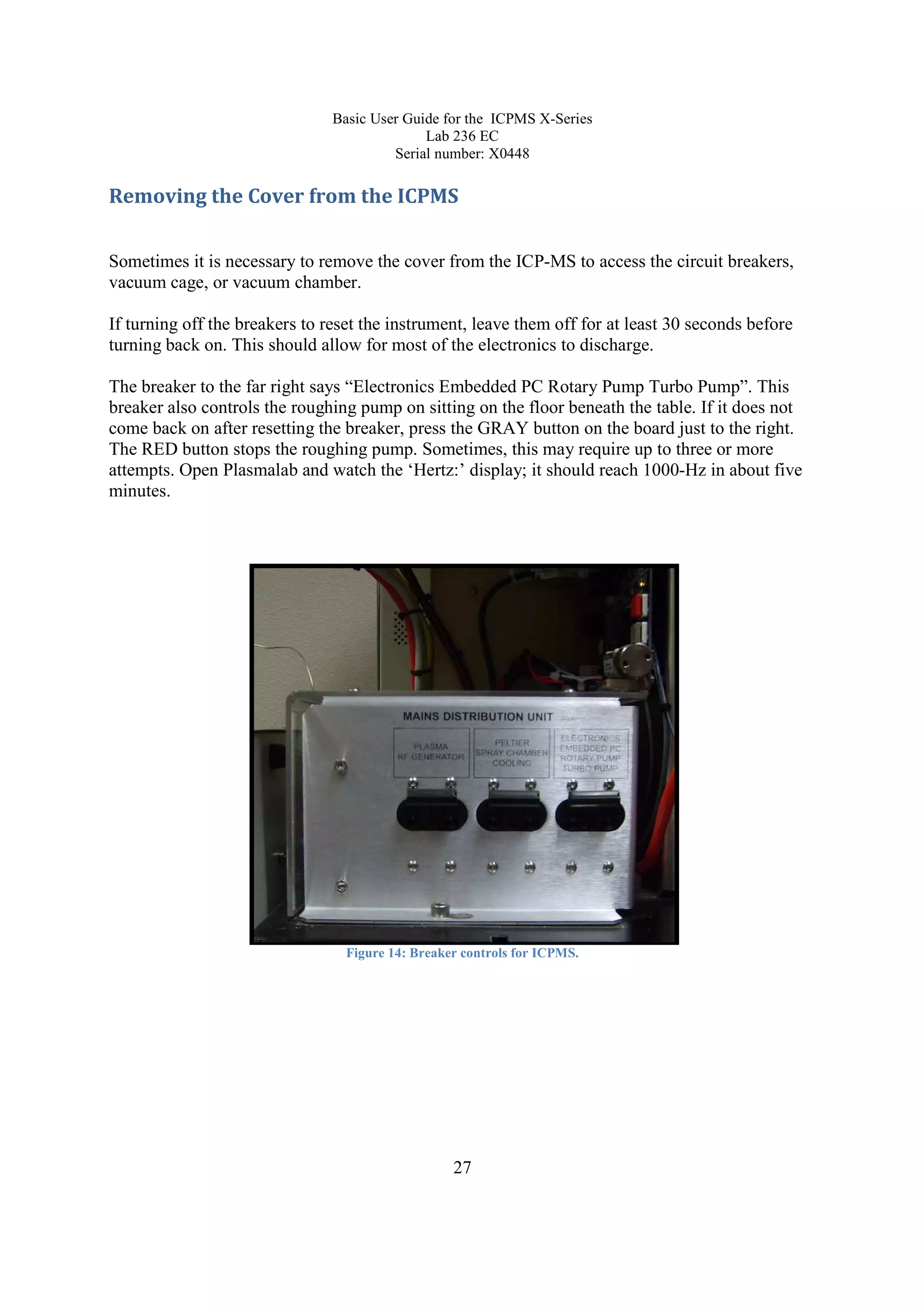

Figure 14: Breaker controls for ICPMS.

Lab 236 EC
28
Torches – Cleaning and Wear
The torch assembly consists of the torch, the silver grounding screen, and the bonnet to protect
the screen from the intense heat of the plasma. This item is a consumable and should last about 6
months. It is good practice when not using the ICPMS to soak the glass portions in higher
percentage of nitric acid. Rinse and dry thoroughly before replacing.

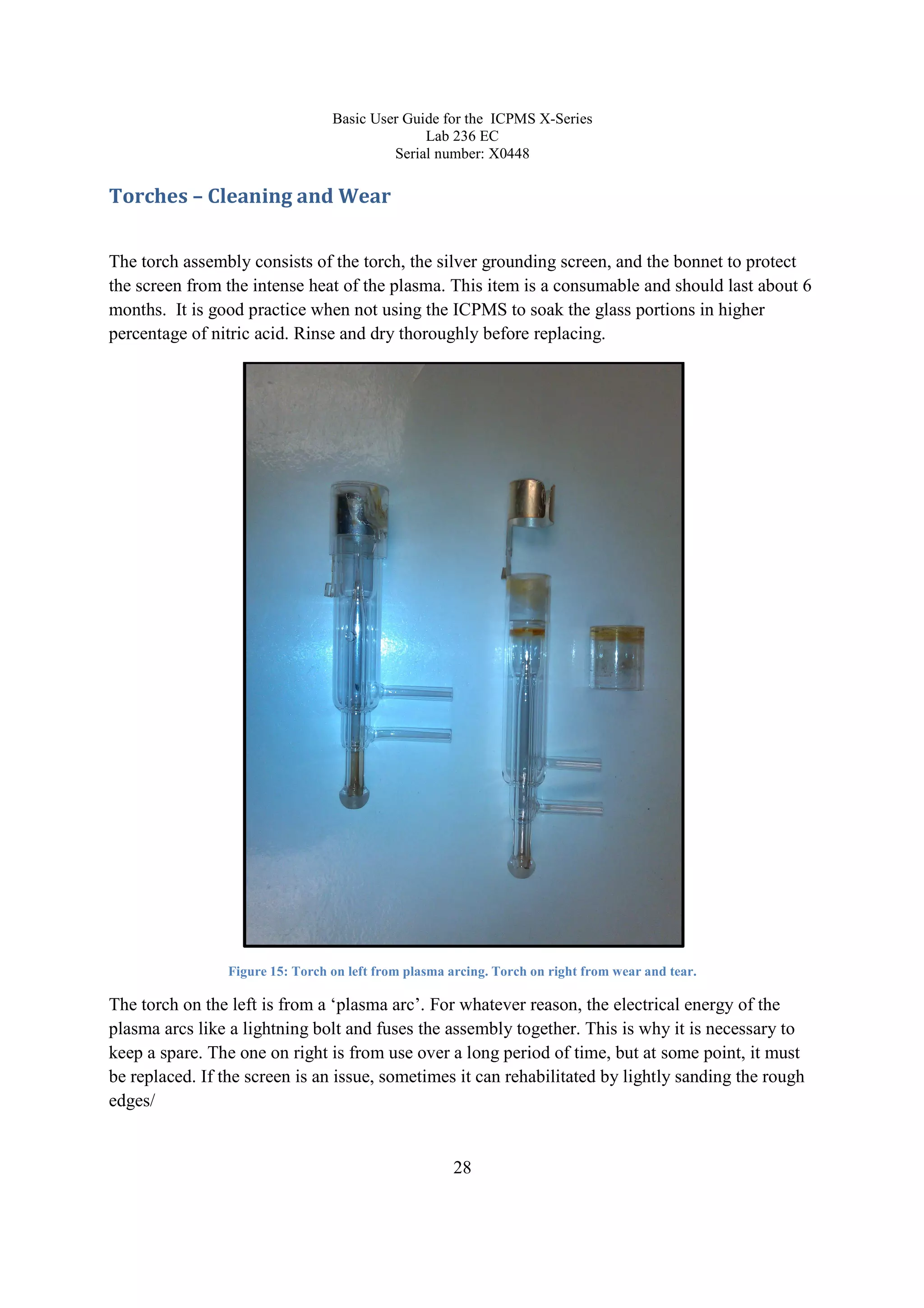

Figure 15: Torch on left from plasma arcing. Torch on right from wear and tear.
The torch on the left is from a ‘plasma arc’. For whatever reason, the electrical energy of the
plasma arcs like a lightning bolt and fuses the assembly together. This is why it is necessary to
keep a spare. The one on right is from use over a long period of time, but at some point, it must
be replaced. If the screen is an issue, sometimes it can rehabilitated by lightly sanding the rough
edges/

Lab 236 EC
29
Consumables/Estimated Yearly Cost to Operate ICPMS
Here is a table showing some of the typical consumable for the ICPMS during the course of a
year in this lab. The detector should last at least two years but was included to show it is an
important consumable. A couple packages of PVC tubing should last for more than a year. The
liquid argon cost assumes that a minimum of six tanks may be consumed during the year. The
prices may change for any of the listed items of course, but this is a close estimate.
The items that have a quantity of two are consumables that one should have more than on hand at
all times. This is so these consumables can be swapped to isolate some of the problems that may
arise while operating. Note also these all have to do with the sampling system.

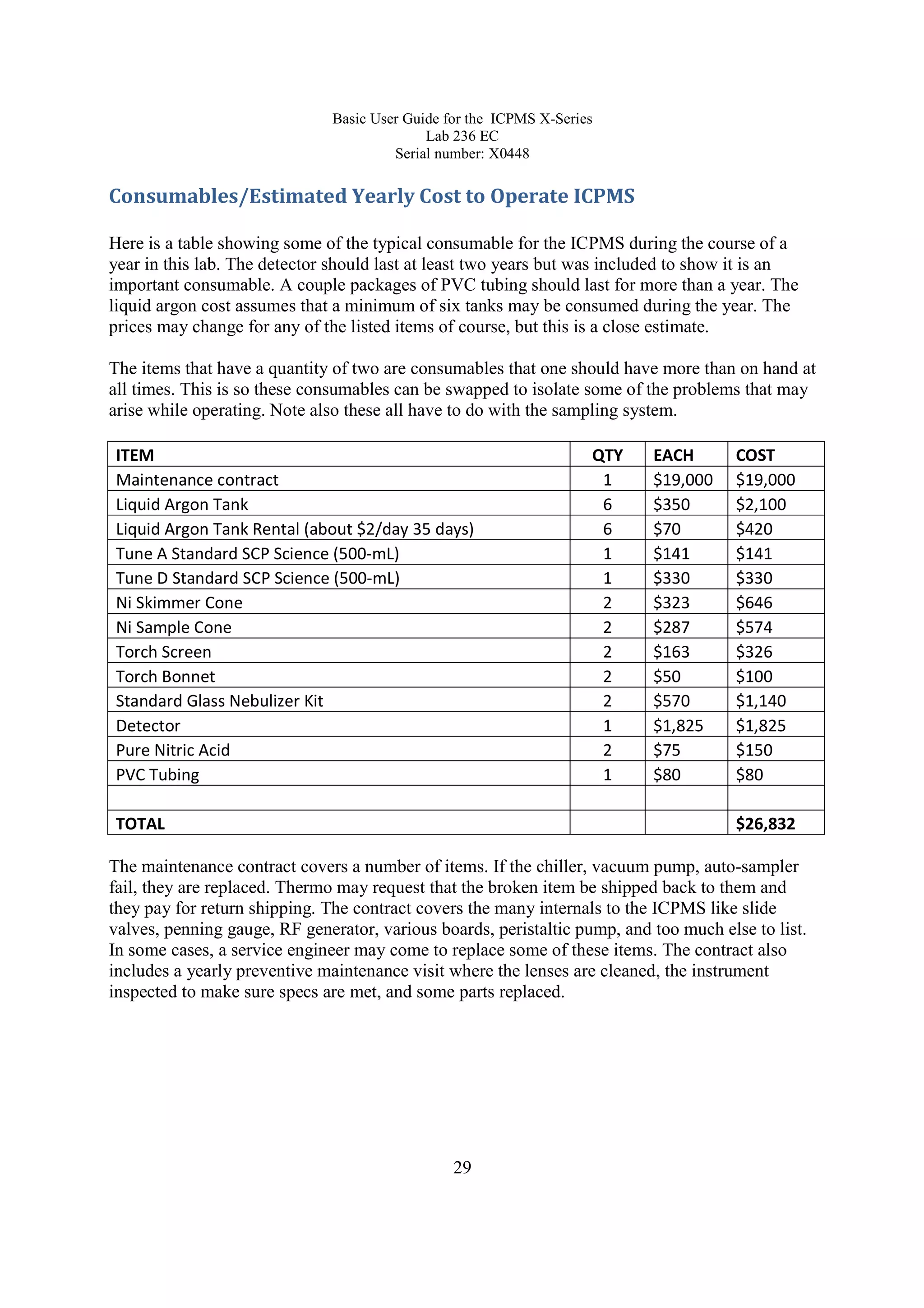

ITEM QTY EACH COST
Maintenance contract 1 $19,000 $19,000
Liquid Argon Tank 6 $350 $2,100
Liquid Argon Tank Rental (about $2/day 35 days) 6 $70 $420
Tune A Standard SCP Science (500-mL) 1 $141 $141
Tune D Standard SCP Science (500-mL) 1 $330 $330
Ni Skimmer Cone 2 $323 $646
Ni Sample Cone 2 $287 $574
Torch Screen 2 $163 $326
Torch Bonnet 2 $50 $100
Standard Glass Nebulizer Kit 2 $570 $1,140
Detector 1 $1,825 $1,825
Pure Nitric Acid 2 $75 $150
PVC Tubing 1 $80 $80
TOTAL $26,832
The maintenance contract covers a number of items. If the chiller, vacuum pump, auto-sampler
fail, they are replaced. Thermo may request that the broken item be shipped back to them and
they pay for return shipping. The contract covers the many internals to the ICPMS like slide
valves, penning gauge, RF generator, various boards, peristaltic pump, and too much else to list.
In some cases, a service engineer may come to replace some of these items. The contract also
includes a yearly preventive maintenance visit where the lenses are cleaned, the instrument
inspected to make sure specs are met, and some parts replaced.

Lab 236 EC
30
References
Thermo Electron Corporation, X-Series ICP-MS Getting Started Guide, Issue 1.3 : January 2004,
Ref. No. : S419MA
Thermo Electron Corporation, X-Series ICP-MS Training Course Lectures, Issue 1.1: Nov 2002,
Part No. 3601078
Eppendorf, Eppendorf SOP, Standard Operating Procedure for Pipettes
Long, S.E. METHOD 200.8 : DETERMINATION OF TRACE ELEMENTS IN WATERS AND
WASTES BY INDUCTIVELY COUPLED PLASMA - MASS SPECTROMETRY, Revision
5.4, EMMCC Version.
http://water.epa.gov/scitech/methods/cwa/bioindicators/upload/2007_07_10_methods_method_2
00_8.pdf
Thermo Scientific, NESLAB ThermoFlex Recirculating Chillers, Installation, Operation, Basic
Maintenance.
Csuros, Maria. 1997. Environmental Sampling and Analysis: Lab Manual, ISBN-13:978-
1566701785.

X-Series ICPMS User Guide

More Related Content

What's hot

Viewers also liked

Similar to X-Series ICPMS User Guide

More from TAMUK

Recently uploaded

X-Series ICPMS User Guide
