The document provides solutions to mathematical problems about calculating fabric weight and production rates. It calculates: 1) The weight of 1000m of fabric with specifications of 60" x 50 PPI x 70 EPI is 1073.98 pounds or 487.72 kg. 2) The production rate per hour of this fabric at 180 PPM is 6 yards/hour or 5.50 meters/hour. 3) It provides the calculations and solutions for additional fabric specification problems to practice the techniques.
![Mathematical Problem (Weaving)
width.FabricX
PPIXEPI
countweftXcountwarp
Problem: Fabric specification: 06
5070
810
′′×
×
×
1. Calculate the fabric weight
of 1000m.
2. Calculate production per hour if
PPM=180
Solution:
Warp calculation
EPI = 70
Width of fabric = 60 inch
So, Total no. of warp = 70 X 60 = 4200
Now, Length of each warp = 1000m + 1000 X 3% [3% = crimp]
= 1030m.
Total length of the warps = 4200 X 1030
= 4326000m.
= (4326000 X 1.09) = 4715340 yards
Total weight of the warps =
10x840
4715340
pounds [warp count = 10]
= 561.35 pounds
Weft calculation
PPI = 50
Fabric length = 1000 meter = 1000 X 39.37 inch = 39370 inch
So, Total no. of wefts = 50 X 39370
Now, Length of each weft = 60 + 60 X 5% [crimp = 5%]
= 63 inch = 63/36= 1.75 yards
Total length of the wefts = 50 X 39.37 X 1000 X 1.75 yards
= 3444875 yards
Total weight of the wefts =
8x840
3444875
Pounds [Weft count = 8]
= 512.63 pounds
So total weight of fabric = 561.35+512.63 = 1073.98 pounds (Answer)](https://image.slidesharecdn.com/weavingcalculation-151215094437/85/Weaving-calculation-1-320.jpg)
Recommended
More Related Content
What's hot
What's hot (20)
Viewers also liked
Viewers also liked (18)
Similar to Weaving calculation
Similar to Weaving calculation (20)
More from BGMEA University of Fashion & Technology
More from BGMEA University of Fashion & Technology (20)
Recently uploaded
Recently uploaded (20)
Weaving calculation
- 1. Mathematical Problem (Weaving) width.FabricX PPIXEPI countweftXcountwarp Problem: Fabric specification: 06 5070 810 ′′× × × 1. Calculate the fabric weight of 1000m. 2. Calculate production per hour if PPM=180 Solution: Warp calculation EPI = 70 Width of fabric = 60 inch So, Total no. of warp = 70 X 60 = 4200 Now, Length of each warp = 1000m + 1000 X 3% [3% = crimp] = 1030m. Total length of the warps = 4200 X 1030 = 4326000m. = (4326000 X 1.09) = 4715340 yards Total weight of the warps = 10x840 4715340 pounds [warp count = 10] = 561.35 pounds Weft calculation PPI = 50 Fabric length = 1000 meter = 1000 X 39.37 inch = 39370 inch So, Total no. of wefts = 50 X 39370 Now, Length of each weft = 60 + 60 X 5% [crimp = 5%] = 63 inch = 63/36= 1.75 yards Total length of the wefts = 50 X 39.37 X 1000 X 1.75 yards = 3444875 yards Total weight of the wefts = 8x840 3444875 Pounds [Weft count = 8] = 512.63 pounds So total weight of fabric = 561.35+512.63 = 1073.98 pounds (Answer)

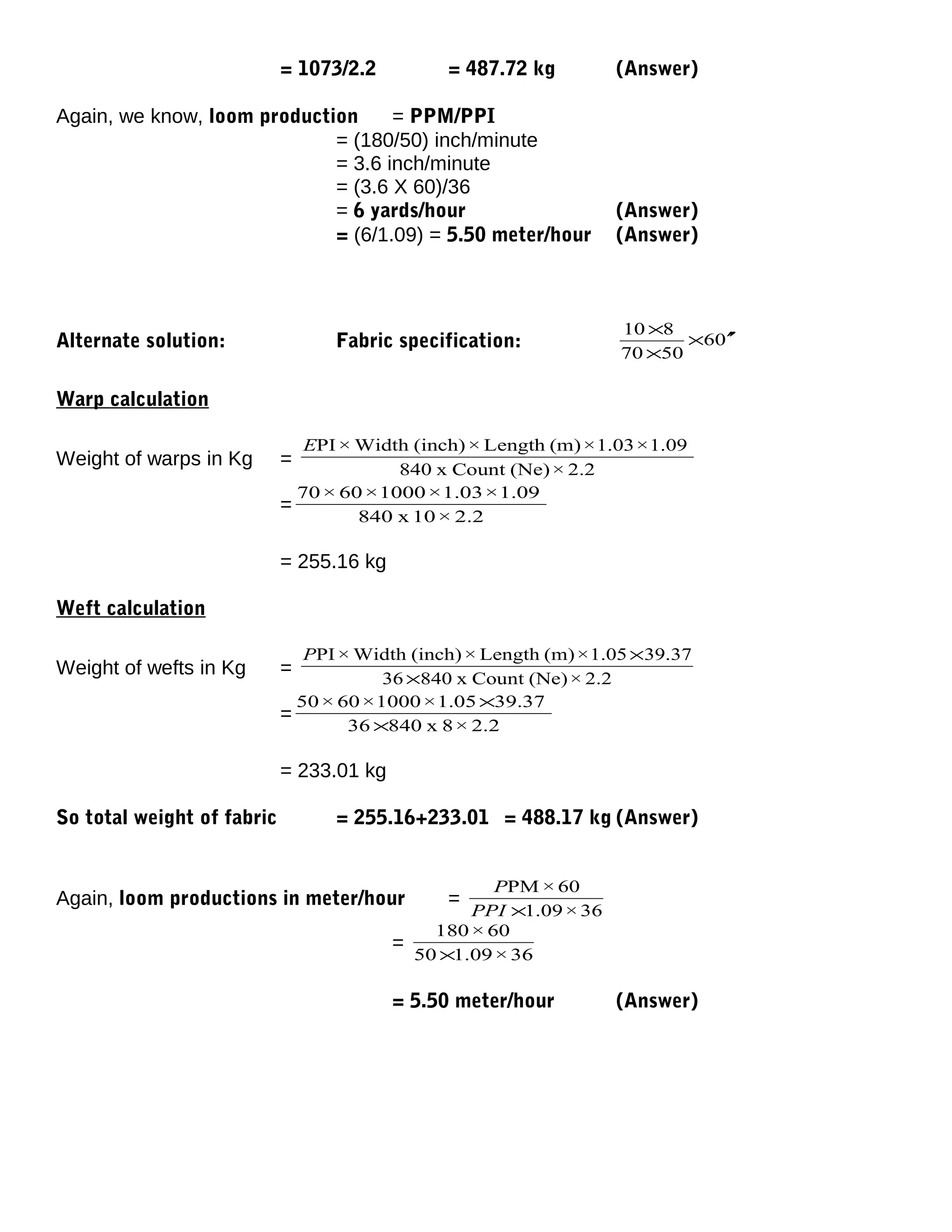

- 2. = 1073/2.2 = 487.72 kg (Answer) Again, we know, loom production = PPM/PPI = (180/50) inch/minute = 3.6 inch/minute = (3.6 X 60)/36 = 6 yards/hour (Answer) = (6/1.09) = 5.50 meter/hour (Answer) Alternate solution: Fabric specification: 06 5070 810 ′′× × × Warp calculation Weight of warps in Kg = 2.2×(Ne)Countx840 1.09×1.03×(m)Length×(inch)Width×PIE = 2.2×10x840 1.09×1.03×1000×60×07 = 255.16 kg Weft calculation Weight of wefts in Kg = 2.2×(Ne)Countx84036 39.371.05×(m)Length×(inch)Width×PI × ×P = 2.2×8x84036 39.371.05×1000×60×05 × × = 233.01 kg So total weight of fabric = 255.16+233.01 = 488.17 kg (Answer) Again, loom productions in meter/hour = 36×1.09 60×PM ×PPI P = 36×1.0950 60×801 × = 5.50 meter/hour (Answer)
- 3. For Practice……………. Problem 2: Find out Wt. of 5000 m fabric. Fabric specification is 65 5860 2202 ′′× × × Problem 3: Find out the wt. of required warp & weft to produce 5000m fabric 85 6266 1618 ′′× × × 18 16 58 66 62 × ′′× × Problem 4: Calculate the yarn consumption of a loom per hour running at 180 PPM for producing 40 60 56 72 48 × ′′× × fabric.
