TTE AND TEE
ASSESSMENT FOR
ASD CLOSURE
Dr . Rahul C

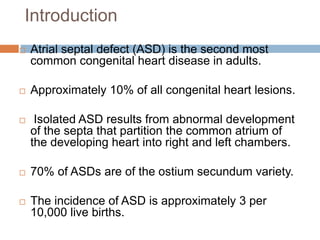

Introduction
 Atrial septal defect (ASD) is the second most
common congenital heart disease in adults.
 Approximately 10% of all congenital heart lesions.
 Isolated ASD results from abnormal development
of the septa that partition the common atrium of
the developing heart into right and left chambers.
 70% of ASDs are of the ostium secundum variety.
 The incidence of ASD is approximately 3 per
10,000 live births.

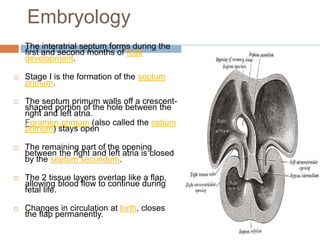

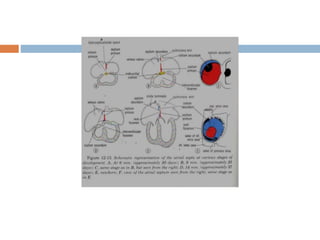

Embryology
 The interatrial septum forms during the
first and second months of fetal
development.
 Stage I is the formation of the septum
primum.
 The septum primum walls off a crescent-
shaped portion of the hole between the
right and left atria.
Foramen primum (also called the ostium
primum) stays open
 The remaining part of the opening
between the right and left atria is closed
by the septum secundum.
 The 2 tissue layers overlap like a flap,
allowing blood flow to continue during
fetal life.

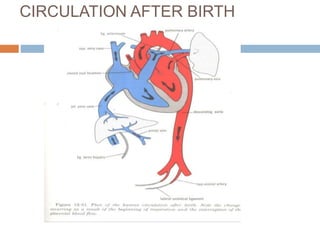

 Changes in circulation at birth, closes
the flap permanently.
Anatomy and Physiology
 Extends from cavo-
atrial junction with
superior and inferior
vena cavae
 Ends near the atrio-
ventricular canal
near the tricuspid
valve

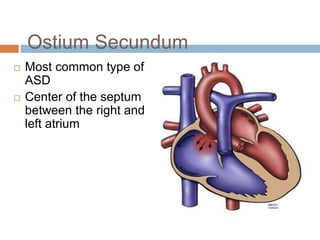

Ostium Secundum
 Most common type of
ASD
 Center of the septum
between the right and
left atrium

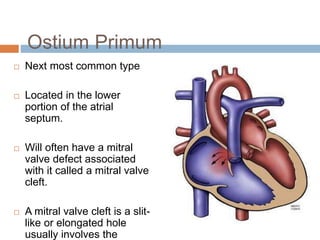

Ostium Primum
 Next most common type
 Located in the lower
portion of the atrial
septum.
 Will often have a mitral
valve defect associated
with it called a mitral valve
cleft.
 A mitral valve cleft is a slit-
like or elongated hole
usually involves the
Sinus Venosus
 Least common type of ASD
 Located in the upper portion of
the atrial septum.
 Association with an abnormal
pulmonary vein connection
 Four pulmonary veins, two from
the right lung and two from the
left lung, normally return red
blood to the left atrium.
 Usually with a sinus venosus
ASD, a pulmonary vein from the
right lung will be abnormally
connected to the right atrium
instead of the left atrium.
 This is called an anomalous
 ..asd-veno.jpg

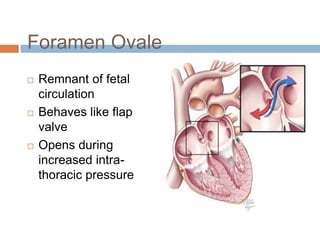

Foramen Ovale
 Remnant of fetal
circulation
 Behaves like flap
valve
 Opens during
increased intra-
thoracic pressure

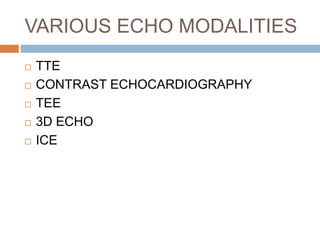

VARIOUS ECHO MODALITIES
 TTE
 CONTRAST ECHOCARDIOGRAPHY
 TEE
 3D ECHO
 ICE

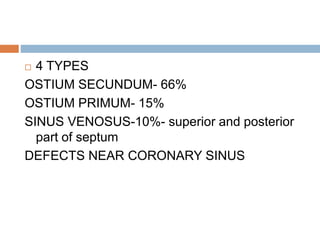

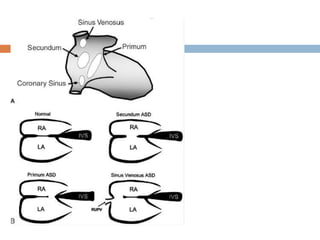

 4 TYPES
OSTIUM SECUNDUM- 66%
OSTIUM PRIMUM- 15%
SINUS VENOSUS-10%- superior and posterior
part of septum
DEFECTS NEAR CORONARY SINUS
ASD

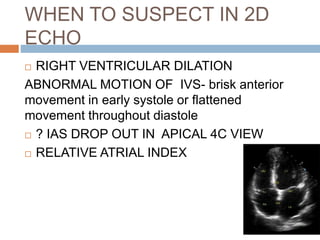

WHEN TO SUSPECT IN 2D
ECHO
 RIGHT VENTRICULAR DILATION
ABNORMAL MOTION OF IVS- brisk anterior
movement in early systole or flattened
movement throughout diastole
 ? IAS DROP OUT IN APICAL 4C VIEW
 RELATIVE ATRIAL INDEX

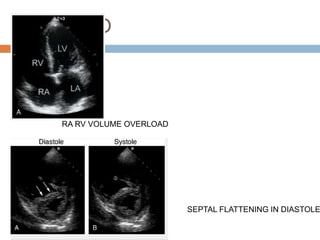

2D ECHO
RA RV VOLUME OVERLOAD
SEPTAL FLATTENING IN DIASTOLE

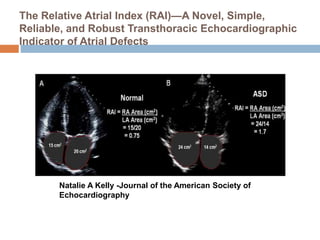

RELATIVE ATRIAL INDEX
 Standard apical 4C views- right atrial area divided by
left atrial area
 Cutoff value of >0.92 predicted patients with ASDs
v/s matched controls with 99.1% sensitivity and 90.5%
specificity.
 After closure, significant atrial remodeling occurred
immediately, with a reduction in the mean RAI at day
1 to 0.93 ± 0.16 (P < .0001) and complete
normalization at early follow-up to 0.81 ± 0.12.
The Relative Atrial Index (RAI)—A Novel, Simple,
Reliable, and Robust Transthoracic Echocardiographic
Indicator of Atrial Defects
Natalie A Kelly -Journal of the American Society of
Echocardiography

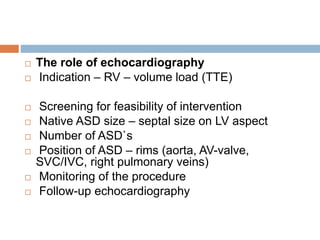

 The role of echocardiography
 Indication – RV – volume load (TTE)
 Screening for feasibility of intervention
 Native ASD size – septal size on LV aspect
 Number of ASD`s
 Position of ASD – rims (aorta, AV-valve,
SVC/IVC, right pulmonary veins)
 Monitoring of the procedure
 Follow-up echocardiography

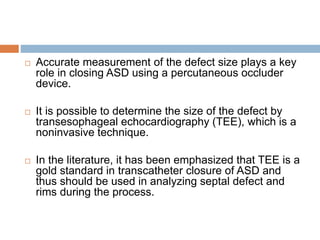

 Accurate measurement of the defect size plays a key
role in closing ASD using a percutaneous occluder
device.
 It is possible to determine the size of the defect by
transesophageal echocardiography (TEE), which is a
noninvasive technique.
 In the literature, it has been emphasized that TEE is a
gold standard in transcatheter closure of ASD and
thus should be used in analyzing septal defect and
rims during the process.

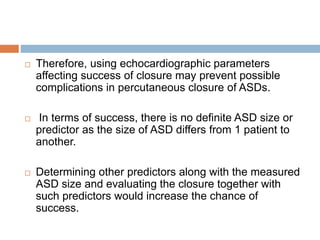

 Therefore, using echocardiographic parameters
affecting success of closure may prevent possible
complications in percutaneous closure of ASDs.
 In terms of success, there is no definite ASD size or
predictor as the size of ASD differs from 1 patient to
another.
 Determining other predictors along with the measured
ASD size and evaluating the closure together with
such predictors would increase the chance of
success.
 Conventionally, the rims of a secundum ASD are
labeled as
 aortic (superoanterior),
 atrioventricular (AV) valve (mitral or
inferoanterior),
 superior venacaval (SVC or superoposterior),
 inferior venacaval (IVC or inferoposterior), and
 posterior (from the posterior free wall of the atria,
coronary sinus rim).

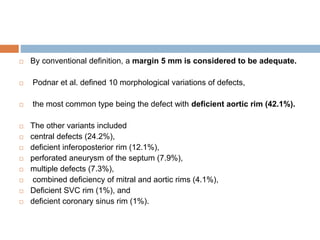

 By conventional definition, a margin 5 mm is considered to be adequate.
 Podnar et al. defined 10 morphological variations of defects,
 the most common type being the defect with deficient aortic rim (42.1%).
 The other variants included
 central defects (24.2%),
 deficient inferoposterior rim (12.1%),
 perforated aneurysm of the septum (7.9%),
 multiple defects (7.3%),
 combined deficiency of mitral and aortic rims (4.1%),
 Deficient SVC rim (1%), and
 deficient coronary sinus rim (1%).

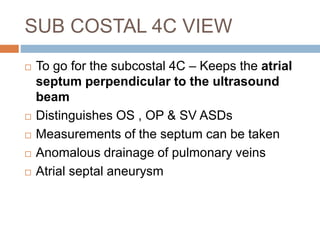

SUB COSTAL 4C VIEW
 To go for the subcostal 4C – Keeps the atrial
septum perpendicular to the ultrasound
beam
 Distinguishes OS , OP & SV ASDs
 Measurements of the septum can be taken
 Anomalous drainage of pulmonary veins
 Atrial septal aneurysm

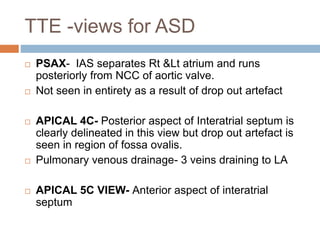

TTE -views for ASD
 PSAX- IAS separates Rt &Lt atrium and runs
posteriorly from NCC of aortic valve.
 Not seen in entirety as a result of drop out artefact
 APICAL 4C- Posterior aspect of Interatrial septum is
clearly delineated in this view but drop out artefact is
seen in region of fossa ovalis.
 Pulmonary venous drainage- 3 veins draining to LA
 APICAL 5C VIEW- Anterior aspect of interatrial
septum
PSAX VIEW
IAS AGAINST NCC
OF AORTA
APICAL 4C VIEW
SHOWING THE IAS AND 3
VEINS DRAINING TO LA, RT
LOWER PULMONARY VEIN
IS USUALLY NOT SEEN

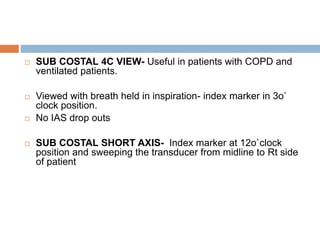

 SUB COSTAL 4C VIEW- Useful in patients with COPD and
ventilated patients.
 Viewed with breath held in inspiration- index marker in 3o`
clock position.
 No IAS drop outs
 SUB COSTAL SHORT AXIS- Index marker at 12o`clock
position and sweeping the transducer from midline to Rt side
of patient

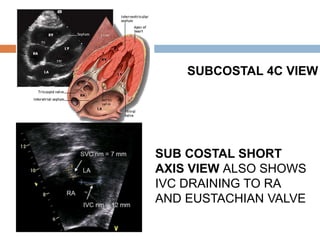

SUBCOSTAL 4C VIEW
SUB COSTAL SHORT
AXIS VIEW ALSO SHOWS
IVC DRAINING TO RA
AND EUSTACHIAN VALVE

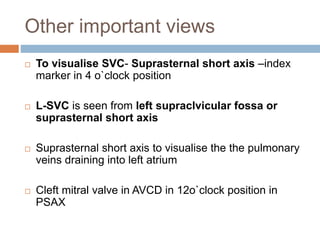

Other important views
 To visualise SVC- Suprasternal short axis –index
marker in 4 o`clock position
 L-SVC is seen from left supraclvicular fossa or
suprasternal short axis
 Suprasternal short axis to visualise the the pulmonary
veins draining into left atrium
 Cleft mitral valve in AVCD in 12o`clock position in
PSAX

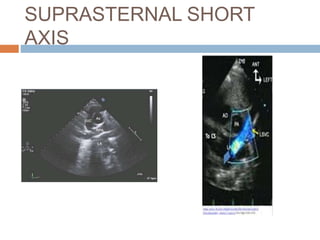

SUPRASTERNAL SHORT
AXIS

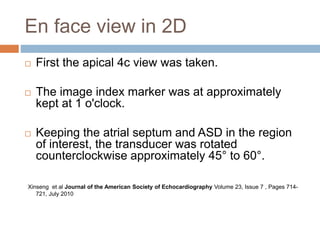

En face view in 2D
 First the apical 4c view was taken.
 The image index marker was at approximately
kept at 1 o'clock.
 Keeping the atrial septum and ASD in the region
of interest, the transducer was rotated
counterclockwise approximately 45° to 60°.
Xinseng et al Journal of the American Society of Echocardiography Volume 23, Issue 7 , Pages 714-
721, July 2010

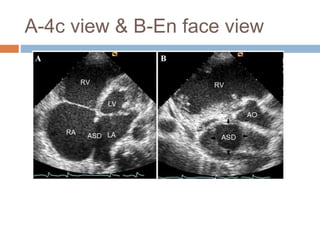

A-4c view & B-En face view
Ostium primum ASD
 Defect in lower part of IAS
 Associated sometimes with inlet VSD
 Cleft mitral valve
 AV Valve regurgitation
 Partial attachment of mitral valve to IVS

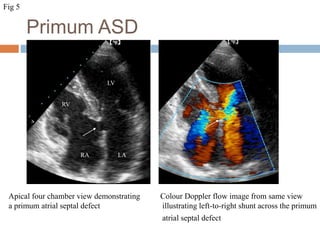

Primum ASD
LARA
LV
RV
Apical four chamber view demonstrating
a primum atrial septal defect
Colour Doppler flow image from same view
illustrating left-to-right shunt across the primum
atrial septal defect
Fig 5

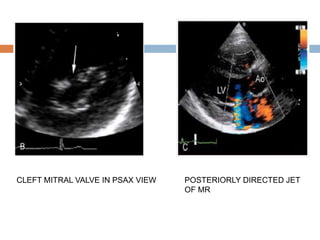

CLEFT MITRAL VALVE IN PSAX VIEW POSTERIORLY DIRECTED JET
OF MR

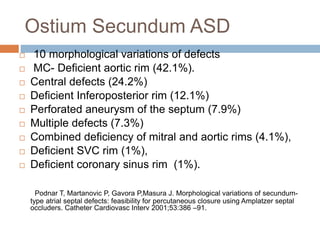

Ostium Secundum ASD
 10 morphological variations of defects
 MC- Deficient aortic rim (42.1%).
 Central defects (24.2%)
 Deficient Inferoposterior rim (12.1%)
 Perforated aneurysm of the septum (7.9%)
 Multiple defects (7.3%)
 Combined deficiency of mitral and aortic rims (4.1%),
 Deficient SVC rim (1%),
 Deficient coronary sinus rim (1%).
Podnar T, Martanovic P, Gavora P,Masura J. Morphological variations of secundum-
type atrial septal defects: feasibility for percutaneous closure using Amplatzer septal
occluders. Catheter Cardiovasc Interv 2001;53:386 –91.

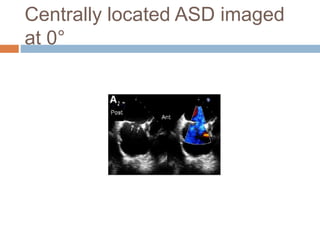

Centrally located ASD imaged
at 0°

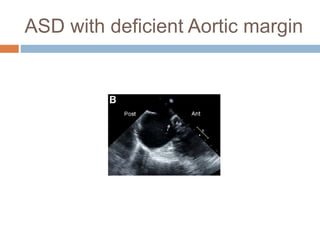

ASD with deficient Aortic margin

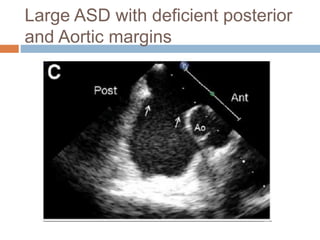

Large ASD with deficient posterior
and Aortic margins

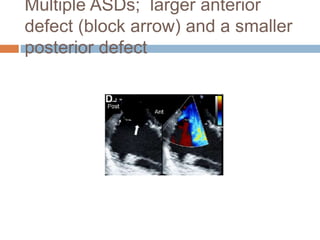

Multiple ASDs; larger anterior
defect (block arrow) and a smaller
posterior defect

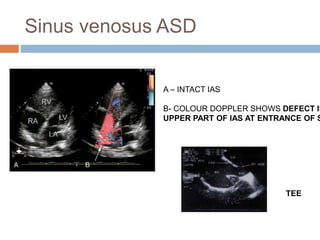

Sinus venosus ASD
A – INTACT IAS
B- COLOUR DOPPLER SHOWS DEFECT IN
UPPER PART OF IAS AT ENTRANCE OF S
TEE

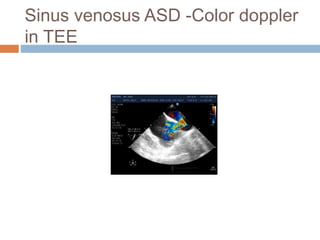

Sinus venosus ASD -Color doppler
in TEE

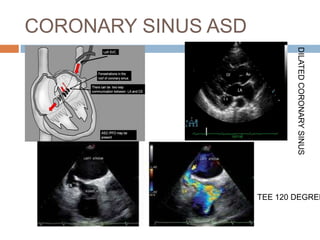

CORONARY SINUS ASD
DILATEDCORONARYSINUS
TEE 120 DEGREE

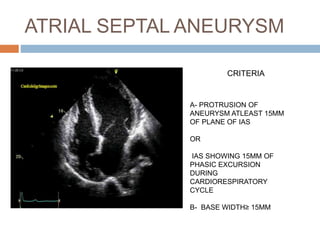

ATRIAL SEPTAL ANEURYSM
CRITERIA
A- PROTRUSION OF
ANEURYSM ATLEAST 15MM
OF PLANE OF IAS
OR
IAS SHOWING 15MM OF
PHASIC EXCURSION
DURING
CARDIORESPIRATORY
CYCLE
B- BASE WIDTH≥ 15MM

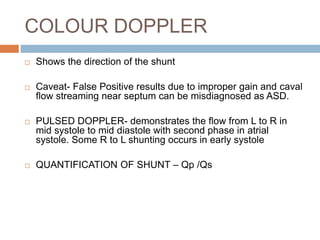

COLOUR DOPPLER
 Shows the direction of the shunt
 Caveat- False Positive results due to improper gain and caval
flow streaming near septum can be misdiagnosed as ASD.
 PULSED DOPPLER- demonstrates the flow from L to R in
mid systole to mid diastole with second phase in atrial
systole. Some R to L shunting occurs in early systole

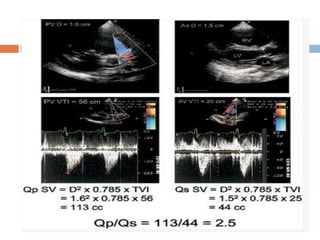

 QUANTIFICATION OF SHUNT – Qp /Qs

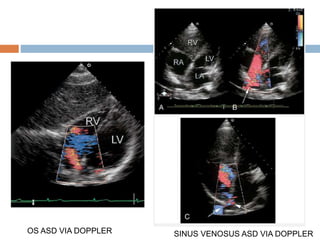

OS ASD VIA DOPPLER SINUS VENOSUS ASD VIA DOPPLER

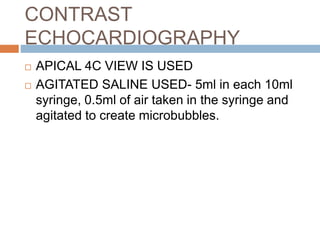

CONTRAST
ECHOCARDIOGRAPHY
 APICAL 4C VIEW IS USED
 AGITATED SALINE USED- 5ml in each 10ml
syringe, 0.5ml of air taken in the syringe and
agitated to create microbubbles.
• ARROW SHOWS NEGATIVE
CONTRAST EFFECT
• DIRECT EVIDENCE OF SHUNT-
NON
CONTRAST BLOOD IN RA
•Extent of shunting tend to focus on
numbers of bubbles seen in a single
still frame in the left atrium.
Shunt grading incorporates :
Grade 1: 5 bubbles;
Grade 2: 5 to 25 bubbles;
Grade 3: >25 bubbles;
Grade 4: Opacification of chamber
Echocardiographic Evaluation of Patent Foramen Ovale Prior to Device
Closure
Bushra et al JACC 2010 VOL. 3, NO. 7, 2010

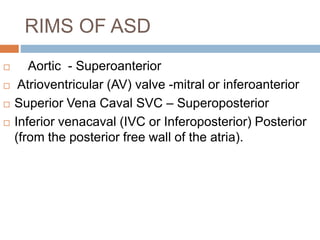

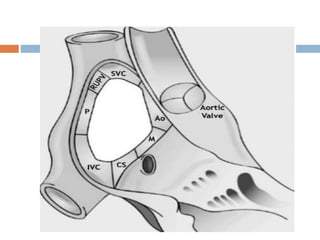

RIMS OF ASD
 Aortic - Superoanterior
 Atrioventricular (AV) valve -mitral or inferoanterior
 Superior Vena Caval SVC – Superoposterior
 Inferior venacaval (IVC or Inferoposterior) Posterior
(from the posterior free wall of the atria).

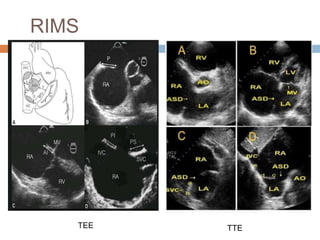

RIMS
TEE TTE
TEE

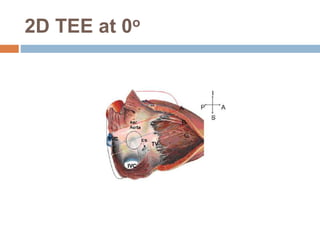

2D TEE at 0o

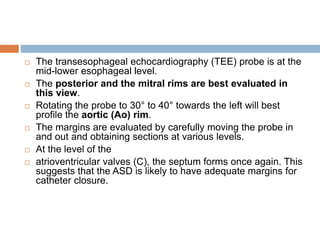

 The transesophageal echocardiography (TEE) probe is at the
mid-lower esophageal level.
 The posterior and the mitral rims are best evaluated in
this view.

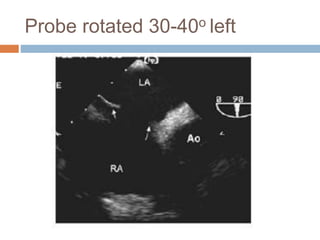

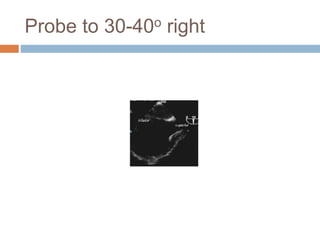

 Rotating the probe to 30° to 40° towards the left will best
profile the aortic (Ao) rim.
 The margins are evaluated by carefully moving the probe in
and out and obtaining sections at various levels.

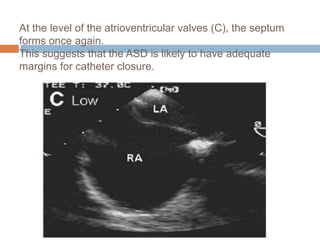

 At the level of the
 atrioventricular valves (C), the septum forms once again. This
suggests that the ASD is likely to have adequate margins for
catheter closure.

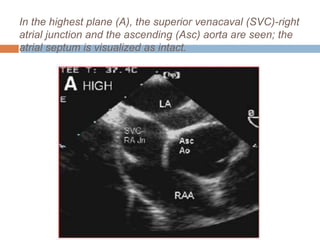

In the highest plane (A), the superior venacaval (SVC)-right
atrial junction and the ascending (Asc) aorta are seen; the
atrial septum is visualized as intact.

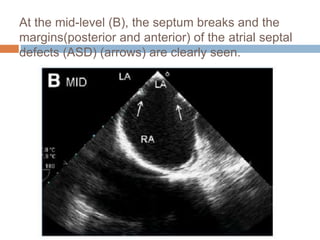

At the mid-level (B), the septum breaks and the
margins(posterior and anterior) of the atrial septal
defects (ASD) (arrows) are clearly seen.
At the level of the atrioventricular valves (C), the septum
forms once again.
This suggests that the ASD is likely to have adequate
margins for catheter closure.

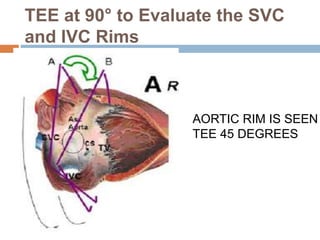

TEE at 90° to Evaluate the SVC
and IVC Rims
AORTIC RIM IS SEEN
TEE 45 DEGREES

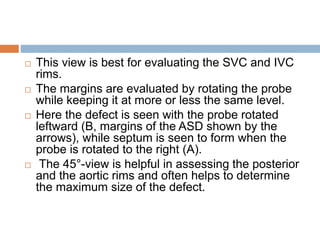

 This view is best for evaluating the SVC and IVC
rims.
 The margins are evaluated by rotating the probe
while keeping it at more or less the same level.
 Here the defect is seen with the probe rotated
leftward (B, margins of the ASD shown by the
arrows), while septum is seen to form when the
probe is rotated to the right (A).
 The 45°-view is helpful in assessing the posterior
and the aortic rims and often helps to determine
the maximum size of the defect.
Probe to 30-40o right
Probe rotated 30-40o left

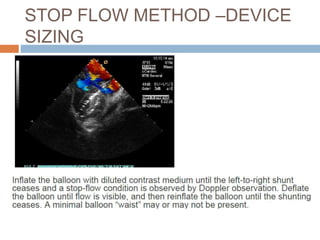

STOP FLOW METHOD –DEVICE
SIZING

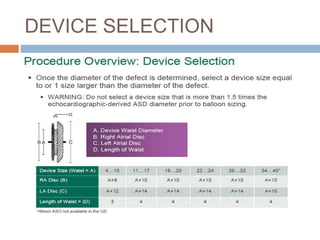

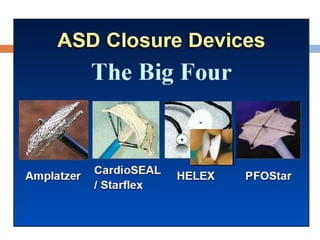

DEVICE SELECTION

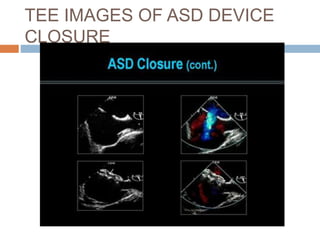

TEE IMAGES OF ASD DEVICE
CLOSURE

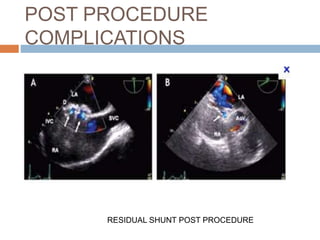

POST PROCEDURE
COMPLICATIONS
RESIDUAL SHUNT POST PROCEDURE

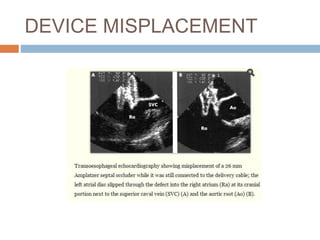

DEVICE MISPLACEMENT

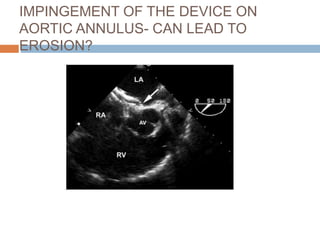

IMPINGEMENT OF THE DEVICE ON
AORTIC ANNULUS- CAN LEAD TO
EROSION?

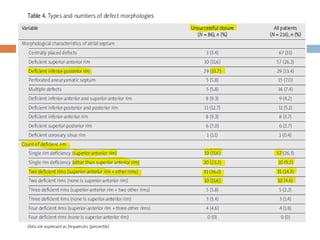

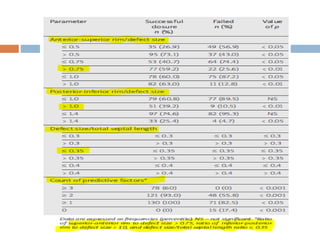

Morphological characteristics
of septal rims affecting
successful transcatheter
atrial septal defect
closure in children and adults

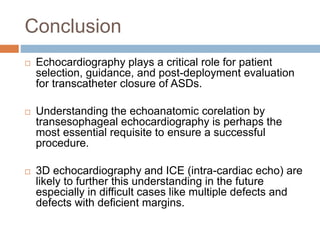

Conclusion
 Echocardiography plays a critical role for patient
selection, guidance, and post-deployment evaluation
for transcatheter closure of ASDs.
 Understanding the echoanatomic corelation by
transesophageal echocardiography is perhaps the
most essential requisite to ensure a successful
procedure.
 3D echocardiography and ICE (intra-cardiac echo) are
likely to further this understanding in the future
especially in difficult cases like multiple defects and
defects with deficient margins.
THANK
YOU

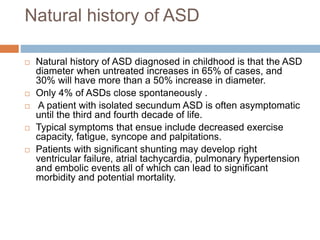

Natural history of ASD
 Natural history of ASD diagnosed in childhood is that the ASD
diameter when untreated increases in 65% of cases, and
30% will have more than a 50% increase in diameter.
 Only 4% of ASDs close spontaneously .
 A patient with isolated secundum ASD is often asymptomatic
until the third and fourth decade of life.
 Typical symptoms that ensue include decreased exercise
capacity, fatigue, syncope and palpitations.
 Patients with significant shunting may develop right
ventricular failure, atrial tachycardia, pulmonary hypertension
and embolic events all of which can lead to significant
morbidity and potential mortality.

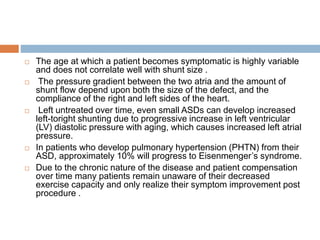

 The age at which a patient becomes symptomatic is highly variable
and does not correlate well with shunt size .
 The pressure gradient between the two atria and the amount of
shunt flow depend upon both the size of the defect, and the
compliance of the right and left sides of the heart.
 Left untreated over time, even small ASDs can develop increased
left-toright shunting due to progressive increase in left ventricular
(LV) diastolic pressure with aging, which causes increased left atrial
pressure.
 In patients who develop pulmonary hypertension (PHTN) from their
ASD, approximately 10% will progress to Eisenmenger’s syndrome.
 Due to the chronic nature of the disease and patient compensation
over time many patients remain unaware of their decreased
exercise capacity and only realize their symptom improvement post
procedure .

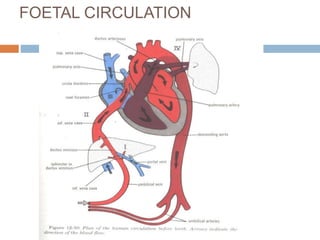

FOETAL CIRCULATION
CIRCULATION AFTER BIRTH

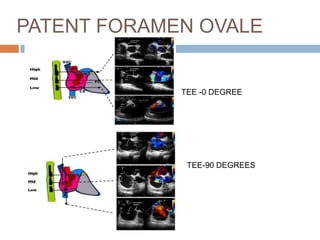

PATENT FORAMEN OVALE
TEE -0 DEGREE
TEE-90 DEGREES

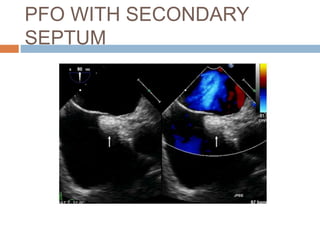

PFO WITH SECONDARY
SEPTUM

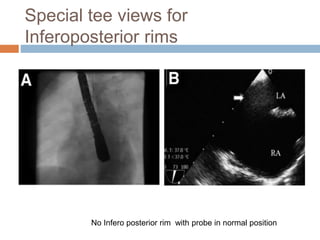

Special tee views for
Inferoposterior rims
No Infero posterior rim with probe in normal position

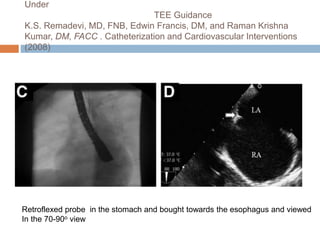

Under
TEE Guidance
K.S. Remadevi, MD, FNB, Edwin Francis, DM, and Raman Krishna
Kumar, DM, FACC . Catheterization and Cardiovascular Interventions
(2008)
Retroflexed probe in the stomach and bought towards the esophagus and viewed
In the 70-90o view

More Related Content

What's hot

In stent restenosis
In stent restenosis In stent restenosis
In stent restenosis
Sahar Gamal

Asd device closure
Asd device closureAsd device closure
Asd device closure
sruthiMeenaxshiSR

Echocardiographic evaluation of Aortic stenosis
Echocardiographic evaluation of Aortic stenosisEchocardiographic evaluation of Aortic stenosis
Echocardiographic evaluation of Aortic stenosis
Aswin Rm

Coronary anomalies
Coronary anomalies Coronary anomalies
Coronary anomalies
hospital

ECHOCARDIOGRAPHIC EVALUATION OF MITRAL VALVE DISEASE -MITRAL REGURGITATION
ECHOCARDIOGRAPHIC EVALUATION OF MITRAL VALVE DISEASE -MITRAL REGURGITATIONECHOCARDIOGRAPHIC EVALUATION OF MITRAL VALVE DISEASE -MITRAL REGURGITATION
ECHOCARDIOGRAPHIC EVALUATION OF MITRAL VALVE DISEASE -MITRAL REGURGITATION
Praveen Nagula

L-TGA or CCTGA
L-TGA or CCTGA L-TGA or CCTGA
L-TGA or CCTGA
Malleswara rao Dangeti

DRUG ELUTING BALLOONS (DCB/DEB)
DRUG ELUTING BALLOONS (DCB/DEB)DRUG ELUTING BALLOONS (DCB/DEB)
DRUG ELUTING BALLOONS (DCB/DEB)
Satyam Rajvanshi

Echocardiography assessment of Aortic Regurgitation severity
Echocardiography assessment of Aortic Regurgitation severityEchocardiography assessment of Aortic Regurgitation severity
Echocardiography assessment of Aortic Regurgitation severity
PRAVEEN GUPTA

How to echo... tricuspid regurgitation.ppt
How to echo... tricuspid regurgitation.pptHow to echo... tricuspid regurgitation.ppt
How to echo... tricuspid regurgitation.ppt
Vinayak Vadgaonkar

Fraction flow reserve
Fraction flow reserveFraction flow reserve
Fraction flow reserve
Priyanka Thakur

Ventricular Septal defects Echocardiography
Ventricular Septal defects EchocardiographyVentricular Septal defects Echocardiography
Ventricular Septal defects Echocardiography
Sruthi Meenaxshi

Dobutamine stress echocardiography
Dobutamine stress echocardiographyDobutamine stress echocardiography
Dobutamine stress echocardiography
Himanshu Rana

Echocardiography of CHD in Adults
Echocardiography of CHD in AdultsEchocardiography of CHD in Adults
Echocardiography of CHD in Adults
Dr. Yash Kumar Achantani

FFR(fractional flow reserve)
FFR(fractional flow reserve)FFR(fractional flow reserve)
FFR(fractional flow reserve)
DIPAK PATADE

Hemodynamic assessment in cardiology
Hemodynamic assessment in cardiologyHemodynamic assessment in cardiology
Hemodynamic assessment in cardiology
Sujit Sahu

Left atrial appendage closure
Left atrial appendage closureLeft atrial appendage closure
Left atrial appendage closure
Yogesh Shilimkar

Strain and strain rate
Strain  and strain rateStrain  and strain rate
Strain and strain rate
Malleswara rao Dangeti

PBMV:Tips and Tricks
PBMV:Tips and TricksPBMV:Tips and Tricks
PBMV:Tips and Tricks
Ramachandra Barik

Cardiac catheteriztion, Oximetery study in a patient with VSD
Cardiac catheteriztion, Oximetery study in a patient with VSDCardiac catheteriztion, Oximetery study in a patient with VSD
Cardiac catheteriztion, Oximetery study in a patient with VSD
PRAVEEN GUPTA

Shunt quantification
Shunt quantificationShunt quantification
Shunt quantification
Ankur Gupta


What's hot (20)

In stent restenosis
In stent restenosis In stent restenosis
In stent restenosis

Asd device closure
Asd device closureAsd device closure
Asd device closure

Echocardiographic evaluation of Aortic stenosis
Echocardiographic evaluation of Aortic stenosisEchocardiographic evaluation of Aortic stenosis
Echocardiographic evaluation of Aortic stenosis

Coronary anomalies
Coronary anomalies Coronary anomalies
Coronary anomalies

ECHOCARDIOGRAPHIC EVALUATION OF MITRAL VALVE DISEASE -MITRAL REGURGITATION
ECHOCARDIOGRAPHIC EVALUATION OF MITRAL VALVE DISEASE -MITRAL REGURGITATIONECHOCARDIOGRAPHIC EVALUATION OF MITRAL VALVE DISEASE -MITRAL REGURGITATION
ECHOCARDIOGRAPHIC EVALUATION OF MITRAL VALVE DISEASE -MITRAL REGURGITATION

L-TGA or CCTGA
L-TGA or CCTGA L-TGA or CCTGA
L-TGA or CCTGA

DRUG ELUTING BALLOONS (DCB/DEB)
DRUG ELUTING BALLOONS (DCB/DEB)DRUG ELUTING BALLOONS (DCB/DEB)
DRUG ELUTING BALLOONS (DCB/DEB)

Echocardiography assessment of Aortic Regurgitation severity
Echocardiography assessment of Aortic Regurgitation severityEchocardiography assessment of Aortic Regurgitation severity
Echocardiography assessment of Aortic Regurgitation severity

How to echo... tricuspid regurgitation.ppt
How to echo... tricuspid regurgitation.pptHow to echo... tricuspid regurgitation.ppt
How to echo... tricuspid regurgitation.ppt

Fraction flow reserve
Fraction flow reserveFraction flow reserve
Fraction flow reserve

Ventricular Septal defects Echocardiography
Ventricular Septal defects EchocardiographyVentricular Septal defects Echocardiography
Ventricular Septal defects Echocardiography

Dobutamine stress echocardiography
Dobutamine stress echocardiographyDobutamine stress echocardiography
Dobutamine stress echocardiography

Echocardiography of CHD in Adults
Echocardiography of CHD in AdultsEchocardiography of CHD in Adults
Echocardiography of CHD in Adults

FFR(fractional flow reserve)
FFR(fractional flow reserve)FFR(fractional flow reserve)
FFR(fractional flow reserve)

Hemodynamic assessment in cardiology
Hemodynamic assessment in cardiologyHemodynamic assessment in cardiology
Hemodynamic assessment in cardiology

Left atrial appendage closure
Left atrial appendage closureLeft atrial appendage closure
Left atrial appendage closure

Strain and strain rate
Strain  and strain rateStrain  and strain rate
Strain and strain rate

PBMV:Tips and Tricks
PBMV:Tips and TricksPBMV:Tips and Tricks
PBMV:Tips and Tricks

Cardiac catheteriztion, Oximetery study in a patient with VSD
Cardiac catheteriztion, Oximetery study in a patient with VSDCardiac catheteriztion, Oximetery study in a patient with VSD
Cardiac catheteriztion, Oximetery study in a patient with VSD

Shunt quantification
Shunt quantificationShunt quantification
Shunt quantification


Similar to Tte and tee assessment for asd closure 2

The fetal heart
The fetal heartThe fetal heart
The fetal heart
Vrishit Saraswat

Atrioventricular canal defect, Firas Aljanadi,MD
Atrioventricular canal defect, Firas Aljanadi,MDAtrioventricular canal defect, Firas Aljanadi,MD
Atrioventricular canal defect, Firas Aljanadi,MD
FIRAS ALJANADI

A v canal defect may 2021
A v canal defect  may 2021A v canal defect  may 2021
A v canal defect may 2021
rajasthan govt

Shunt Detection And Quantification
Shunt Detection And QuantificationShunt Detection And Quantification
Shunt Detection And QuantificationDang Thanh Tuan

Sami asd work
Sami asd workSami asd work
Sami asd work
sami islam

Co arctation of aorta may 2021
Co arctation of aorta  may 2021Co arctation of aorta  may 2021
Co arctation of aorta may 2021
rajasthan govt

seminar ASD
seminar ASDseminar ASD
seminar ASD
Dr. Habibur Rahim

Surgical management of tetralogy of fallot
Surgical management of tetralogy of fallotSurgical management of tetralogy of fallot
Surgical management of tetralogy of fallot
rahul arora

2-Fetal Echo part 2 Dr Ahmed Esawy
2-Fetal Echo part 2 Dr Ahmed Esawy2-Fetal Echo part 2 Dr Ahmed Esawy
2-Fetal Echo part 2 Dr Ahmed Esawy
AHMED ESAWY

CT in congenital heart diseases
CT in congenital heart diseasesCT in congenital heart diseases
CT in congenital heart diseases
Mohamed Gibreel

Asd may 2021
Asd  may 2021Asd  may 2021
Asd may 2021
rajasthan govt

Congenital heart diseases2020
Congenital heart diseases2020Congenital heart diseases2020
Congenital heart diseases2020
RiyadhWaheed

ECHOCARDIOGRAPHIC EVALUATION OF AORTIC STENOSIS
ECHOCARDIOGRAPHIC EVALUATION OF AORTIC STENOSISECHOCARDIOGRAPHIC EVALUATION OF AORTIC STENOSIS
ECHOCARDIOGRAPHIC EVALUATION OF AORTIC STENOSISPraveen Nagula

Endocardial Cushion Defect / AVSD
Endocardial Cushion Defect / AVSDEndocardial Cushion Defect / AVSD
Endocardial Cushion Defect / AVSD
Harshitha

Anomalous pulmonary venous drainage total & partial CT role
Anomalous pulmonary venous drainage total & partial CT roleAnomalous pulmonary venous drainage total & partial CT role
Anomalous pulmonary venous drainage total & partial CT role
Mohamed Gibreel

Tricuspid pulmonary valves
Tricuspid  pulmonary valvesTricuspid  pulmonary valves
Tricuspid pulmonary valves
RiyadhWaheed

Pediatric Cardiology (1).pptx
Pediatric Cardiology (1).pptxPediatric Cardiology (1).pptx
Pediatric Cardiology (1).pptx
elgieaulia

siêu âm tim trong thông liên nhĩ.pptx
siêu âm tim trong thông liên nhĩ.pptxsiêu âm tim trong thông liên nhĩ.pptx
siêu âm tim trong thông liên nhĩ.pptx
LimDanhDng

V s d may 2021
V s d  may 2021V s d  may 2021
V s d may 2021
rajasthan govt


Similar to Tte and tee assessment for asd closure 2 (20)

The fetal heart
The fetal heartThe fetal heart
The fetal heart

Atrioventricular canal defect, Firas Aljanadi,MD
Atrioventricular canal defect, Firas Aljanadi,MDAtrioventricular canal defect, Firas Aljanadi,MD
Atrioventricular canal defect, Firas Aljanadi,MD

A v canal defect may 2021
A v canal defect  may 2021A v canal defect  may 2021
A v canal defect may 2021

Shunt Detection And Quantification
Shunt Detection And QuantificationShunt Detection And Quantification
Shunt Detection And Quantification

Sami asd work
Sami asd workSami asd work
Sami asd work

Co arctation of aorta may 2021
Co arctation of aorta  may 2021Co arctation of aorta  may 2021
Co arctation of aorta may 2021

seminar ASD
seminar ASDseminar ASD
seminar ASD

Surgical management of tetralogy of fallot
Surgical management of tetralogy of fallotSurgical management of tetralogy of fallot
Surgical management of tetralogy of fallot

2-Fetal Echo part 2 Dr Ahmed Esawy
2-Fetal Echo part 2 Dr Ahmed Esawy2-Fetal Echo part 2 Dr Ahmed Esawy
2-Fetal Echo part 2 Dr Ahmed Esawy

CT in congenital heart diseases
CT in congenital heart diseasesCT in congenital heart diseases
CT in congenital heart diseases

Asd may 2021
Asd  may 2021Asd  may 2021
Asd may 2021

Congenital heart diseases2020
Congenital heart diseases2020Congenital heart diseases2020
Congenital heart diseases2020

ECHOCARDIOGRAPHIC EVALUATION OF AORTIC STENOSIS
ECHOCARDIOGRAPHIC EVALUATION OF AORTIC STENOSISECHOCARDIOGRAPHIC EVALUATION OF AORTIC STENOSIS
ECHOCARDIOGRAPHIC EVALUATION OF AORTIC STENOSIS

Endocardial Cushion Defect / AVSD
Endocardial Cushion Defect / AVSDEndocardial Cushion Defect / AVSD
Endocardial Cushion Defect / AVSD

Anomalous pulmonary venous drainage total & partial CT role
Anomalous pulmonary venous drainage total & partial CT roleAnomalous pulmonary venous drainage total & partial CT role
Anomalous pulmonary venous drainage total & partial CT role

A case of ASD - Sinus Venosus type
A case of ASD - Sinus Venosus typeA case of ASD - Sinus Venosus type
A case of ASD - Sinus Venosus type

Tricuspid pulmonary valves
Tricuspid  pulmonary valvesTricuspid  pulmonary valves
Tricuspid pulmonary valves

Pediatric Cardiology (1).pptx
Pediatric Cardiology (1).pptxPediatric Cardiology (1).pptx
Pediatric Cardiology (1).pptx

siêu âm tim trong thông liên nhĩ.pptx
siêu âm tim trong thông liên nhĩ.pptxsiêu âm tim trong thông liên nhĩ.pptx
siêu âm tim trong thông liên nhĩ.pptx

V s d may 2021
V s d  may 2021V s d  may 2021
V s d may 2021


More from Rahul Chalwade

Aortic aneurysm final
Aortic aneurysm finalAortic aneurysm final
Aortic aneurysm final
Rahul Chalwade

Vt in normal and abnormal hearts my ppt copy
Vt in normal and abnormal hearts my ppt   copyVt in normal and abnormal hearts my ppt   copy
Vt in normal and abnormal hearts my ppt copy
Rahul Chalwade

Ep diagnosis and ablation of avnrt
Ep diagnosis and ablation of avnrtEp diagnosis and ablation of avnrt
Ep diagnosis and ablation of avnrt
Rahul Chalwade

Ecg in chd presentation final
Ecg in chd presentation finalEcg in chd presentation final
Ecg in chd presentation final
Rahul Chalwade

Infective endocarditis
Infective endocarditisInfective endocarditis
Infective endocarditis
Rahul Chalwade

Mapca 1
Mapca 1Mapca 1

More from Rahul Chalwade (6)

Aortic aneurysm final
Aortic aneurysm finalAortic aneurysm final
Aortic aneurysm final

Vt in normal and abnormal hearts my ppt copy
Vt in normal and abnormal hearts my ppt   copyVt in normal and abnormal hearts my ppt   copy
Vt in normal and abnormal hearts my ppt copy

Ep diagnosis and ablation of avnrt
Ep diagnosis and ablation of avnrtEp diagnosis and ablation of avnrt
Ep diagnosis and ablation of avnrt

Ecg in chd presentation final
Ecg in chd presentation finalEcg in chd presentation final
Ecg in chd presentation final

Infective endocarditis
Infective endocarditisInfective endocarditis
Infective endocarditis

Mapca 1
Mapca 1Mapca 1
Mapca 1


Recently uploaded

Ear and its clinical correlations By Dr. Rabia Inam Gandapore.pptx
Ear and its clinical correlations By Dr. Rabia Inam Gandapore.pptxEar and its clinical correlations By Dr. Rabia Inam Gandapore.pptx
Ear and its clinical correlations By Dr. Rabia Inam Gandapore.pptx
Dr. Rabia Inam Gandapore

Light House Retreats: Plant Medicine Retreat Europe
Light House Retreats: Plant Medicine Retreat EuropeLight House Retreats: Plant Medicine Retreat Europe
Light House Retreats: Plant Medicine Retreat Europe
Lighthouse Retreat

Management of Traumatic Splenic injury.pptx
Management of Traumatic Splenic injury.pptxManagement of Traumatic Splenic injury.pptx
Management of Traumatic Splenic injury.pptx
AkshaySarraf1

#cALL# #gIRLS# In Dehradun ꧁❤8107221448❤꧂#cALL# #gIRLS# Service In Dehradun W...
#cALL# #gIRLS# In Dehradun ꧁❤8107221448❤꧂#cALL# #gIRLS# Service In Dehradun W...#cALL# #gIRLS# In Dehradun ꧁❤8107221448❤꧂#cALL# #gIRLS# Service In Dehradun W...
#cALL# #gIRLS# In Dehradun ꧁❤8107221448❤꧂#cALL# #gIRLS# Service In Dehradun W...
chandankumarsmartiso

ARTHROLOGY PPT NCISM SYLLABUS AYURVEDA STUDENTS
ARTHROLOGY PPT NCISM SYLLABUS AYURVEDA STUDENTSARTHROLOGY PPT NCISM SYLLABUS AYURVEDA STUDENTS
ARTHROLOGY PPT NCISM SYLLABUS AYURVEDA STUDENTS
Dr. Vinay Pareek

Thyroid Gland- Gross Anatomy by Dr. Rabia Inam Gandapore.pptx
Thyroid Gland- Gross Anatomy by Dr. Rabia Inam Gandapore.pptxThyroid Gland- Gross Anatomy by Dr. Rabia Inam Gandapore.pptx
Thyroid Gland- Gross Anatomy by Dr. Rabia Inam Gandapore.pptx
Dr. Rabia Inam Gandapore

Ozempic: Preoperative Management of Patients on GLP-1 Receptor Agonists
Ozempic: Preoperative Management of Patients on GLP-1 Receptor Agonists  Ozempic: Preoperative Management of Patients on GLP-1 Receptor Agonists
Ozempic: Preoperative Management of Patients on GLP-1 Receptor Agonists
Saeid Safari

Antimicrobial stewardship to prevent antimicrobial resistance
Antimicrobial stewardship to prevent antimicrobial resistanceAntimicrobial stewardship to prevent antimicrobial resistance
Antimicrobial stewardship to prevent antimicrobial resistance
GovindRankawat1

Adv. biopharm. APPLICATION OF PHARMACOKINETICS : TARGETED DRUG DELIVERY SYSTEMS
Adv. biopharm. APPLICATION OF PHARMACOKINETICS : TARGETED DRUG DELIVERY SYSTEMSAdv. biopharm. APPLICATION OF PHARMACOKINETICS : TARGETED DRUG DELIVERY SYSTEMS
Adv. biopharm. APPLICATION OF PHARMACOKINETICS : TARGETED DRUG DELIVERY SYSTEMS
AkankshaAshtankar

A Classical Text Review on Basavarajeeyam
A Classical Text Review on BasavarajeeyamA Classical Text Review on Basavarajeeyam
A Classical Text Review on Basavarajeeyam
Dr. Jyothirmai Paindla

DISSERTATION on NEW DRUG DISCOVERY AND DEVELOPMENT STAGES OF DRUG DISCOVERY
DISSERTATION on NEW DRUG DISCOVERY AND DEVELOPMENT STAGES OF DRUG DISCOVERYDISSERTATION on NEW DRUG DISCOVERY AND DEVELOPMENT STAGES OF DRUG DISCOVERY
DISSERTATION on NEW DRUG DISCOVERY AND DEVELOPMENT STAGES OF DRUG DISCOVERY
NEHA GUPTA

Non-respiratory Functions of the Lungs.pdf
Non-respiratory Functions of the Lungs.pdfNon-respiratory Functions of the Lungs.pdf
Non-respiratory Functions of the Lungs.pdf
MedicoseAcademics

Cardiac Assessment for B.sc Nursing Student.pdf
Cardiac Assessment for B.sc Nursing Student.pdfCardiac Assessment for B.sc Nursing Student.pdf
Cardiac Assessment for B.sc Nursing Student.pdf
shivalingatalekar1

Chapter 11 Nutrition and Chronic Diseases.pptx
Chapter 11 Nutrition and Chronic Diseases.pptxChapter 11 Nutrition and Chronic Diseases.pptx
Chapter 11 Nutrition and Chronic Diseases.pptx
Earlene McNair

263778731218 Abortion Clinic /Pills In Harare ,
263778731218 Abortion Clinic /Pills In Harare ,263778731218 Abortion Clinic /Pills In Harare ,
263778731218 Abortion Clinic /Pills In Harare ,
sisternakatoto

Aortic Association CBL Pilot April 19 – 20 Bern
Aortic Association CBL Pilot April 19 – 20 BernAortic Association CBL Pilot April 19 – 20 Bern
Aortic Association CBL Pilot April 19 – 20 Bern
suvadeepdas911

Physiology of Special Chemical Sensation of Taste
Physiology of Special Chemical Sensation of TastePhysiology of Special Chemical Sensation of Taste
Physiology of Special Chemical Sensation of Taste
MedicoseAcademics

ABDOMINAL TRAUMA in pediatrics part one.
ABDOMINAL TRAUMA in pediatrics part one.ABDOMINAL TRAUMA in pediatrics part one.
ABDOMINAL TRAUMA in pediatrics part one.
drhasanrajab

Sex determination from mandible pelvis and skull
Sex determination from mandible pelvis and skullSex determination from mandible pelvis and skull
Sex determination from mandible pelvis and skull
ShashankRoodkee

Netter's Atlas of Human Anatomy 7.ed.pdf
Netter's Atlas of Human Anatomy 7.ed.pdfNetter's Atlas of Human Anatomy 7.ed.pdf
Netter's Atlas of Human Anatomy 7.ed.pdf
BrissaOrtiz3


Recently uploaded (20)

Ear and its clinical correlations By Dr. Rabia Inam Gandapore.pptx
Ear and its clinical correlations By Dr. Rabia Inam Gandapore.pptxEar and its clinical correlations By Dr. Rabia Inam Gandapore.pptx
Ear and its clinical correlations By Dr. Rabia Inam Gandapore.pptx

Light House Retreats: Plant Medicine Retreat Europe
Light House Retreats: Plant Medicine Retreat EuropeLight House Retreats: Plant Medicine Retreat Europe
Light House Retreats: Plant Medicine Retreat Europe

Management of Traumatic Splenic injury.pptx
Management of Traumatic Splenic injury.pptxManagement of Traumatic Splenic injury.pptx
Management of Traumatic Splenic injury.pptx

#cALL# #gIRLS# In Dehradun ꧁❤8107221448❤꧂#cALL# #gIRLS# Service In Dehradun W...
#cALL# #gIRLS# In Dehradun ꧁❤8107221448❤꧂#cALL# #gIRLS# Service In Dehradun W...#cALL# #gIRLS# In Dehradun ꧁❤8107221448❤꧂#cALL# #gIRLS# Service In Dehradun W...
#cALL# #gIRLS# In Dehradun ꧁❤8107221448❤꧂#cALL# #gIRLS# Service In Dehradun W...

ARTHROLOGY PPT NCISM SYLLABUS AYURVEDA STUDENTS
ARTHROLOGY PPT NCISM SYLLABUS AYURVEDA STUDENTSARTHROLOGY PPT NCISM SYLLABUS AYURVEDA STUDENTS
ARTHROLOGY PPT NCISM SYLLABUS AYURVEDA STUDENTS

Thyroid Gland- Gross Anatomy by Dr. Rabia Inam Gandapore.pptx
Thyroid Gland- Gross Anatomy by Dr. Rabia Inam Gandapore.pptxThyroid Gland- Gross Anatomy by Dr. Rabia Inam Gandapore.pptx
Thyroid Gland- Gross Anatomy by Dr. Rabia Inam Gandapore.pptx

Ozempic: Preoperative Management of Patients on GLP-1 Receptor Agonists
Ozempic: Preoperative Management of Patients on GLP-1 Receptor Agonists  Ozempic: Preoperative Management of Patients on GLP-1 Receptor Agonists
Ozempic: Preoperative Management of Patients on GLP-1 Receptor Agonists

Antimicrobial stewardship to prevent antimicrobial resistance
Antimicrobial stewardship to prevent antimicrobial resistanceAntimicrobial stewardship to prevent antimicrobial resistance
Antimicrobial stewardship to prevent antimicrobial resistance

Adv. biopharm. APPLICATION OF PHARMACOKINETICS : TARGETED DRUG DELIVERY SYSTEMS
Adv. biopharm. APPLICATION OF PHARMACOKINETICS : TARGETED DRUG DELIVERY SYSTEMSAdv. biopharm. APPLICATION OF PHARMACOKINETICS : TARGETED DRUG DELIVERY SYSTEMS
Adv. biopharm. APPLICATION OF PHARMACOKINETICS : TARGETED DRUG DELIVERY SYSTEMS

A Classical Text Review on Basavarajeeyam
A Classical Text Review on BasavarajeeyamA Classical Text Review on Basavarajeeyam
A Classical Text Review on Basavarajeeyam

DISSERTATION on NEW DRUG DISCOVERY AND DEVELOPMENT STAGES OF DRUG DISCOVERY
DISSERTATION on NEW DRUG DISCOVERY AND DEVELOPMENT STAGES OF DRUG DISCOVERYDISSERTATION on NEW DRUG DISCOVERY AND DEVELOPMENT STAGES OF DRUG DISCOVERY
DISSERTATION on NEW DRUG DISCOVERY AND DEVELOPMENT STAGES OF DRUG DISCOVERY

Non-respiratory Functions of the Lungs.pdf
Non-respiratory Functions of the Lungs.pdfNon-respiratory Functions of the Lungs.pdf
Non-respiratory Functions of the Lungs.pdf

Cardiac Assessment for B.sc Nursing Student.pdf
Cardiac Assessment for B.sc Nursing Student.pdfCardiac Assessment for B.sc Nursing Student.pdf
Cardiac Assessment for B.sc Nursing Student.pdf

Chapter 11 Nutrition and Chronic Diseases.pptx
Chapter 11 Nutrition and Chronic Diseases.pptxChapter 11 Nutrition and Chronic Diseases.pptx
Chapter 11 Nutrition and Chronic Diseases.pptx

263778731218 Abortion Clinic /Pills In Harare ,
263778731218 Abortion Clinic /Pills In Harare ,263778731218 Abortion Clinic /Pills In Harare ,
263778731218 Abortion Clinic /Pills In Harare ,

Aortic Association CBL Pilot April 19 – 20 Bern
Aortic Association CBL Pilot April 19 – 20 BernAortic Association CBL Pilot April 19 – 20 Bern
Aortic Association CBL Pilot April 19 – 20 Bern

Physiology of Special Chemical Sensation of Taste
Physiology of Special Chemical Sensation of TastePhysiology of Special Chemical Sensation of Taste
Physiology of Special Chemical Sensation of Taste

ABDOMINAL TRAUMA in pediatrics part one.
ABDOMINAL TRAUMA in pediatrics part one.ABDOMINAL TRAUMA in pediatrics part one.
ABDOMINAL TRAUMA in pediatrics part one.

Sex determination from mandible pelvis and skull
Sex determination from mandible pelvis and skullSex determination from mandible pelvis and skull
Sex determination from mandible pelvis and skull

Netter's Atlas of Human Anatomy 7.ed.pdf
Netter's Atlas of Human Anatomy 7.ed.pdfNetter's Atlas of Human Anatomy 7.ed.pdf
Netter's Atlas of Human Anatomy 7.ed.pdf


Tte and tee assessment for asd closure 2

  • 1. TTE AND TEE ASSESSMENT FOR ASD CLOSURE Dr . Rahul C
  • 2. Introduction  Atrial septal defect (ASD) is the second most common congenital heart disease in adults.  Approximately 10% of all congenital heart lesions.  Isolated ASD results from abnormal development of the septa that partition the common atrium of the developing heart into right and left chambers.  70% of ASDs are of the ostium secundum variety.  The incidence of ASD is approximately 3 per 10,000 live births.
  • 3. Embryology  The interatrial septum forms during the first and second months of fetal development.  Stage I is the formation of the septum primum.  The septum primum walls off a crescent- shaped portion of the hole between the right and left atria. Foramen primum (also called the ostium primum) stays open  The remaining part of the opening between the right and left atria is closed by the septum secundum.  The 2 tissue layers overlap like a flap, allowing blood flow to continue during fetal life.  Changes in circulation at birth, closes the flap permanently.
  • 4.
  • 5. Anatomy and Physiology  Extends from cavo- atrial junction with superior and inferior vena cavae  Ends near the atrio- ventricular canal near the tricuspid valve
  • 6. Ostium Secundum  Most common type of ASD  Center of the septum between the right and left atrium
  • 7. Ostium Primum  Next most common type  Located in the lower portion of the atrial septum.  Will often have a mitral valve defect associated with it called a mitral valve cleft.  A mitral valve cleft is a slit- like or elongated hole usually involves the
  • 8. Sinus Venosus  Least common type of ASD  Located in the upper portion of the atrial septum.  Association with an abnormal pulmonary vein connection  Four pulmonary veins, two from the right lung and two from the left lung, normally return red blood to the left atrium.  Usually with a sinus venosus ASD, a pulmonary vein from the right lung will be abnormally connected to the right atrium instead of the left atrium.  This is called an anomalous  ..asd-veno.jpg
  • 9. Foramen Ovale  Remnant of fetal circulation  Behaves like flap valve  Opens during increased intra- thoracic pressure
  • 10. VARIOUS ECHO MODALITIES  TTE  CONTRAST ECHOCARDIOGRAPHY  TEE  3D ECHO  ICE
  • 11.  4 TYPES OSTIUM SECUNDUM- 66% OSTIUM PRIMUM- 15% SINUS VENOSUS-10%- superior and posterior part of septum DEFECTS NEAR CORONARY SINUS
  • 12. ASD
  • 13. WHEN TO SUSPECT IN 2D ECHO  RIGHT VENTRICULAR DILATION ABNORMAL MOTION OF IVS- brisk anterior movement in early systole or flattened movement throughout diastole  ? IAS DROP OUT IN APICAL 4C VIEW  RELATIVE ATRIAL INDEX
  • 14. 2D ECHO RA RV VOLUME OVERLOAD SEPTAL FLATTENING IN DIASTOLE
  • 15. RELATIVE ATRIAL INDEX  Standard apical 4C views- right atrial area divided by left atrial area  Cutoff value of >0.92 predicted patients with ASDs v/s matched controls with 99.1% sensitivity and 90.5% specificity.  After closure, significant atrial remodeling occurred immediately, with a reduction in the mean RAI at day 1 to 0.93 ± 0.16 (P < .0001) and complete normalization at early follow-up to 0.81 ± 0.12.
  • 16. The Relative Atrial Index (RAI)—A Novel, Simple, Reliable, and Robust Transthoracic Echocardiographic Indicator of Atrial Defects Natalie A Kelly -Journal of the American Society of Echocardiography
  • 17.  The role of echocardiography  Indication – RV – volume load (TTE)  Screening for feasibility of intervention  Native ASD size – septal size on LV aspect  Number of ASD`s  Position of ASD – rims (aorta, AV-valve, SVC/IVC, right pulmonary veins)  Monitoring of the procedure  Follow-up echocardiography
  • 18.  Accurate measurement of the defect size plays a key role in closing ASD using a percutaneous occluder device.  It is possible to determine the size of the defect by transesophageal echocardiography (TEE), which is a noninvasive technique.  In the literature, it has been emphasized that TEE is a gold standard in transcatheter closure of ASD and thus should be used in analyzing septal defect and rims during the process.
  • 19.  Therefore, using echocardiographic parameters affecting success of closure may prevent possible complications in percutaneous closure of ASDs.  In terms of success, there is no definite ASD size or predictor as the size of ASD differs from 1 patient to another.  Determining other predictors along with the measured ASD size and evaluating the closure together with such predictors would increase the chance of success.
  • 20.  Conventionally, the rims of a secundum ASD are labeled as  aortic (superoanterior),  atrioventricular (AV) valve (mitral or inferoanterior),  superior venacaval (SVC or superoposterior),  inferior venacaval (IVC or inferoposterior), and  posterior (from the posterior free wall of the atria, coronary sinus rim).
  • 21.  By conventional definition, a margin 5 mm is considered to be adequate.  Podnar et al. defined 10 morphological variations of defects,  the most common type being the defect with deficient aortic rim (42.1%).  The other variants included  central defects (24.2%),  deficient inferoposterior rim (12.1%),  perforated aneurysm of the septum (7.9%),  multiple defects (7.3%),  combined deficiency of mitral and aortic rims (4.1%),  Deficient SVC rim (1%), and  deficient coronary sinus rim (1%).
  • 22. SUB COSTAL 4C VIEW  To go for the subcostal 4C – Keeps the atrial septum perpendicular to the ultrasound beam  Distinguishes OS , OP & SV ASDs  Measurements of the septum can be taken  Anomalous drainage of pulmonary veins  Atrial septal aneurysm
  • 23. TTE -views for ASD  PSAX- IAS separates Rt &Lt atrium and runs posteriorly from NCC of aortic valve.  Not seen in entirety as a result of drop out artefact  APICAL 4C- Posterior aspect of Interatrial septum is clearly delineated in this view but drop out artefact is seen in region of fossa ovalis.  Pulmonary venous drainage- 3 veins draining to LA  APICAL 5C VIEW- Anterior aspect of interatrial septum
  • 24. PSAX VIEW IAS AGAINST NCC OF AORTA APICAL 4C VIEW SHOWING THE IAS AND 3 VEINS DRAINING TO LA, RT LOWER PULMONARY VEIN IS USUALLY NOT SEEN
  • 25.  SUB COSTAL 4C VIEW- Useful in patients with COPD and ventilated patients.  Viewed with breath held in inspiration- index marker in 3o` clock position.  No IAS drop outs  SUB COSTAL SHORT AXIS- Index marker at 12o`clock position and sweeping the transducer from midline to Rt side of patient
  • 26. SUBCOSTAL 4C VIEW SUB COSTAL SHORT AXIS VIEW ALSO SHOWS IVC DRAINING TO RA AND EUSTACHIAN VALVE
  • 27. Other important views  To visualise SVC- Suprasternal short axis –index marker in 4 o`clock position  L-SVC is seen from left supraclvicular fossa or suprasternal short axis  Suprasternal short axis to visualise the the pulmonary veins draining into left atrium  Cleft mitral valve in AVCD in 12o`clock position in PSAX
  • 29. En face view in 2D  First the apical 4c view was taken.  The image index marker was at approximately kept at 1 o'clock.  Keeping the atrial septum and ASD in the region of interest, the transducer was rotated counterclockwise approximately 45° to 60°. Xinseng et al Journal of the American Society of Echocardiography Volume 23, Issue 7 , Pages 714- 721, July 2010
  • 30. A-4c view & B-En face view
  • 31. Ostium primum ASD  Defect in lower part of IAS  Associated sometimes with inlet VSD  Cleft mitral valve  AV Valve regurgitation  Partial attachment of mitral valve to IVS
  • 32. Primum ASD LARA LV RV Apical four chamber view demonstrating a primum atrial septal defect Colour Doppler flow image from same view illustrating left-to-right shunt across the primum atrial septal defect Fig 5
  • 33. CLEFT MITRAL VALVE IN PSAX VIEW POSTERIORLY DIRECTED JET OF MR
  • 34. Ostium Secundum ASD  10 morphological variations of defects  MC- Deficient aortic rim (42.1%).  Central defects (24.2%)  Deficient Inferoposterior rim (12.1%)  Perforated aneurysm of the septum (7.9%)  Multiple defects (7.3%)  Combined deficiency of mitral and aortic rims (4.1%),  Deficient SVC rim (1%),  Deficient coronary sinus rim (1%). Podnar T, Martanovic P, Gavora P,Masura J. Morphological variations of secundum- type atrial septal defects: feasibility for percutaneous closure using Amplatzer septal occluders. Catheter Cardiovasc Interv 2001;53:386 –91.
  • 35. Centrally located ASD imaged at 0°
  • 36. ASD with deficient Aortic margin
  • 37. Large ASD with deficient posterior and Aortic margins
  • 38. Multiple ASDs; larger anterior defect (block arrow) and a smaller posterior defect
  • 39. Sinus venosus ASD A – INTACT IAS B- COLOUR DOPPLER SHOWS DEFECT IN UPPER PART OF IAS AT ENTRANCE OF S TEE
  • 40. Sinus venosus ASD -Color doppler in TEE
  • 42. ATRIAL SEPTAL ANEURYSM CRITERIA A- PROTRUSION OF ANEURYSM ATLEAST 15MM OF PLANE OF IAS OR IAS SHOWING 15MM OF PHASIC EXCURSION DURING CARDIORESPIRATORY CYCLE B- BASE WIDTH≥ 15MM
  • 43. COLOUR DOPPLER  Shows the direction of the shunt  Caveat- False Positive results due to improper gain and caval flow streaming near septum can be misdiagnosed as ASD.  PULSED DOPPLER- demonstrates the flow from L to R in mid systole to mid diastole with second phase in atrial systole. Some R to L shunting occurs in early systole  QUANTIFICATION OF SHUNT – Qp /Qs
  • 44. OS ASD VIA DOPPLER SINUS VENOSUS ASD VIA DOPPLER
  • 45.
  • 46. CONTRAST ECHOCARDIOGRAPHY  APICAL 4C VIEW IS USED  AGITATED SALINE USED- 5ml in each 10ml syringe, 0.5ml of air taken in the syringe and agitated to create microbubbles.
  • 47. • ARROW SHOWS NEGATIVE CONTRAST EFFECT • DIRECT EVIDENCE OF SHUNT- NON CONTRAST BLOOD IN RA •Extent of shunting tend to focus on numbers of bubbles seen in a single still frame in the left atrium. Shunt grading incorporates : Grade 1: 5 bubbles; Grade 2: 5 to 25 bubbles; Grade 3: >25 bubbles; Grade 4: Opacification of chamber Echocardiographic Evaluation of Patent Foramen Ovale Prior to Device Closure Bushra et al JACC 2010 VOL. 3, NO. 7, 2010
  • 48. RIMS OF ASD  Aortic - Superoanterior  Atrioventricular (AV) valve -mitral or inferoanterior  Superior Vena Caval SVC – Superoposterior  Inferior venacaval (IVC or Inferoposterior) Posterior (from the posterior free wall of the atria).
  • 49.
  • 51. TEE
  • 52. 2D TEE at 0o
  • 53.  The transesophageal echocardiography (TEE) probe is at the mid-lower esophageal level.  The posterior and the mitral rims are best evaluated in this view.  Rotating the probe to 30° to 40° towards the left will best profile the aortic (Ao) rim.  The margins are evaluated by carefully moving the probe in and out and obtaining sections at various levels.  At the level of the  atrioventricular valves (C), the septum forms once again. This suggests that the ASD is likely to have adequate margins for catheter closure.
  • 54. In the highest plane (A), the superior venacaval (SVC)-right atrial junction and the ascending (Asc) aorta are seen; the atrial septum is visualized as intact.
  • 55. At the mid-level (B), the septum breaks and the margins(posterior and anterior) of the atrial septal defects (ASD) (arrows) are clearly seen.
  • 56. At the level of the atrioventricular valves (C), the septum forms once again. This suggests that the ASD is likely to have adequate margins for catheter closure.
  • 57. TEE at 90° to Evaluate the SVC and IVC Rims AORTIC RIM IS SEEN TEE 45 DEGREES
  • 58.  This view is best for evaluating the SVC and IVC rims.  The margins are evaluated by rotating the probe while keeping it at more or less the same level.  Here the defect is seen with the probe rotated leftward (B, margins of the ASD shown by the arrows), while septum is seen to form when the probe is rotated to the right (A).  The 45°-view is helpful in assessing the posterior and the aortic rims and often helps to determine the maximum size of the defect.
  • 61. STOP FLOW METHOD –DEVICE SIZING
  • 62.
  • 64. TEE IMAGES OF ASD DEVICE CLOSURE
  • 67. IMPINGEMENT OF THE DEVICE ON AORTIC ANNULUS- CAN LEAD TO EROSION?
  • 68. Morphological characteristics of septal rims affecting successful transcatheter atrial septal defect closure in children and adults
  • 69.
  • 70.
  • 71.
  • 72. Conclusion  Echocardiography plays a critical role for patient selection, guidance, and post-deployment evaluation for transcatheter closure of ASDs.  Understanding the echoanatomic corelation by transesophageal echocardiography is perhaps the most essential requisite to ensure a successful procedure.  3D echocardiography and ICE (intra-cardiac echo) are likely to further this understanding in the future especially in difficult cases like multiple defects and defects with deficient margins.
  • 74.
  • 75.

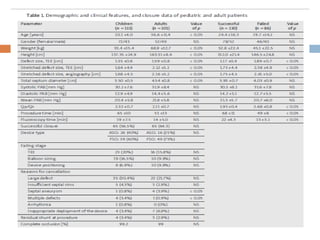

  • 76.
  • 77.
  • 78.
  • 79.
  • 80. Natural history of ASD  Natural history of ASD diagnosed in childhood is that the ASD diameter when untreated increases in 65% of cases, and 30% will have more than a 50% increase in diameter.  Only 4% of ASDs close spontaneously .  A patient with isolated secundum ASD is often asymptomatic until the third and fourth decade of life.  Typical symptoms that ensue include decreased exercise capacity, fatigue, syncope and palpitations.  Patients with significant shunting may develop right ventricular failure, atrial tachycardia, pulmonary hypertension and embolic events all of which can lead to significant morbidity and potential mortality.
  • 81.  The age at which a patient becomes symptomatic is highly variable and does not correlate well with shunt size .  The pressure gradient between the two atria and the amount of shunt flow depend upon both the size of the defect, and the compliance of the right and left sides of the heart.  Left untreated over time, even small ASDs can develop increased left-toright shunting due to progressive increase in left ventricular (LV) diastolic pressure with aging, which causes increased left atrial pressure.  In patients who develop pulmonary hypertension (PHTN) from their ASD, approximately 10% will progress to Eisenmenger’s syndrome.  Due to the chronic nature of the disease and patient compensation over time many patients remain unaware of their decreased exercise capacity and only realize their symptom improvement post procedure .
  • 84. PATENT FORAMEN OVALE TEE -0 DEGREE TEE-90 DEGREES
  • 86.
  • 87. Special tee views for Inferoposterior rims No Infero posterior rim with probe in normal position
  • 88. Under TEE Guidance K.S. Remadevi, MD, FNB, Edwin Francis, DM, and Raman Krishna Kumar, DM, FACC . Catheterization and Cardiovascular Interventions (2008) Retroflexed probe in the stomach and bought towards the esophagus and viewed In the 70-90o view

Editor's Notes

  1. OSTIUM SECUNDUM- MIDDLE OF ATRIAL SEPTUM OSTIUM PRIMUM – LOWER PART OF ATRIAL SEPTUM
