Timeli: Believing Cassandra: Our Big-Data Journey To Enlightenment under the Cassandra Paradigm
- 1. Time Believing Cassandra Timeli.io’s Big-Datajourney to enlightenment under the C* Paradigm Keith Nordstrom, PhD. CTO and Co-Founder, Timeli.io

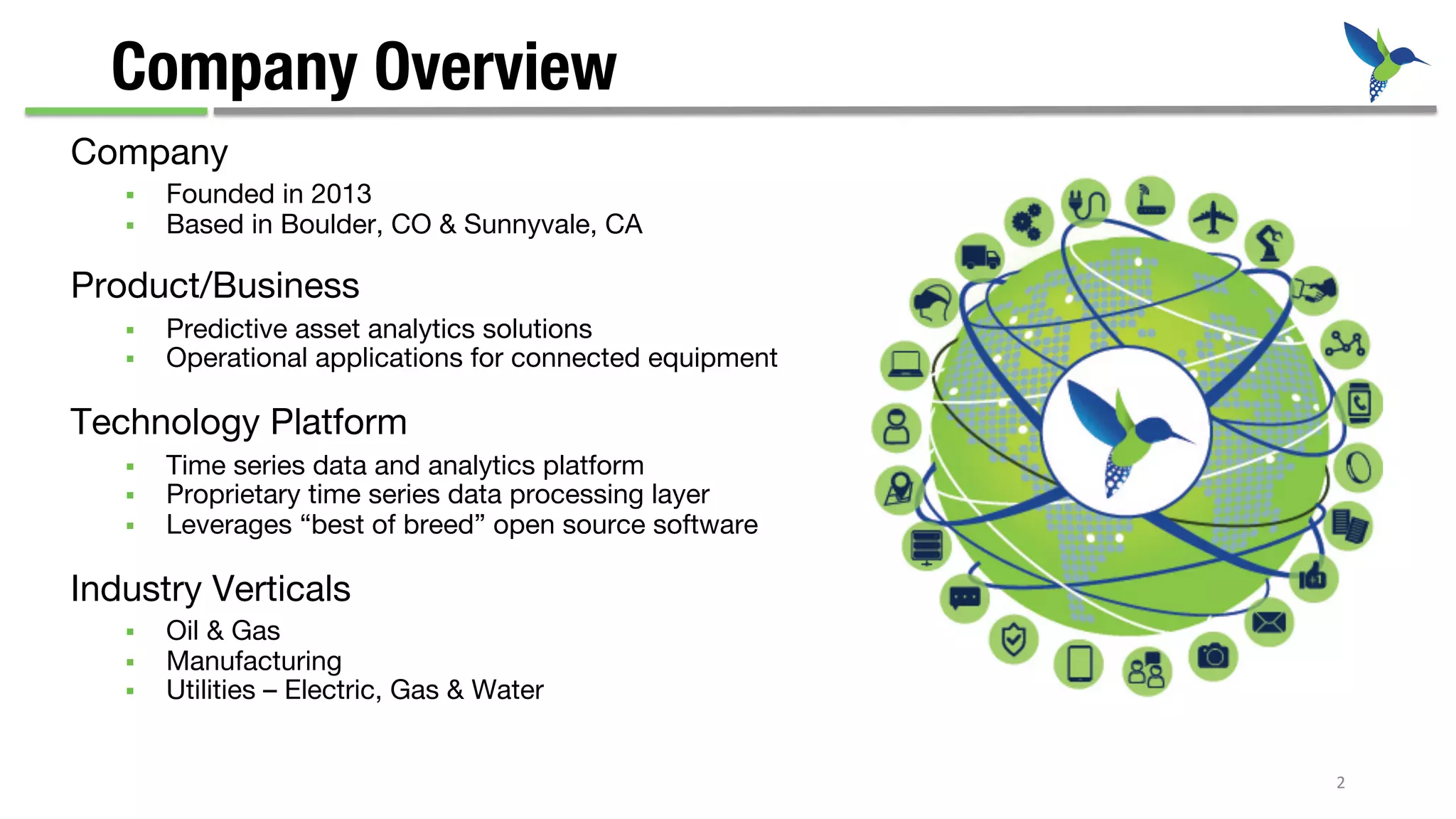

- 2. 2 Company § Foundedin 2013 § Based in Boulder, CO & Sunnyvale, CA Product/Business § Predictive asset analytics solutions § Operational applications for connected equipment Technology Platform § Time series data and analytics platform § Proprietary time series data processing layer § Leverages “best of breed” open source software Industry Verticals § Oil & Gas § Manufacturing § Utilities – Electric, Gas & Water Company Overview

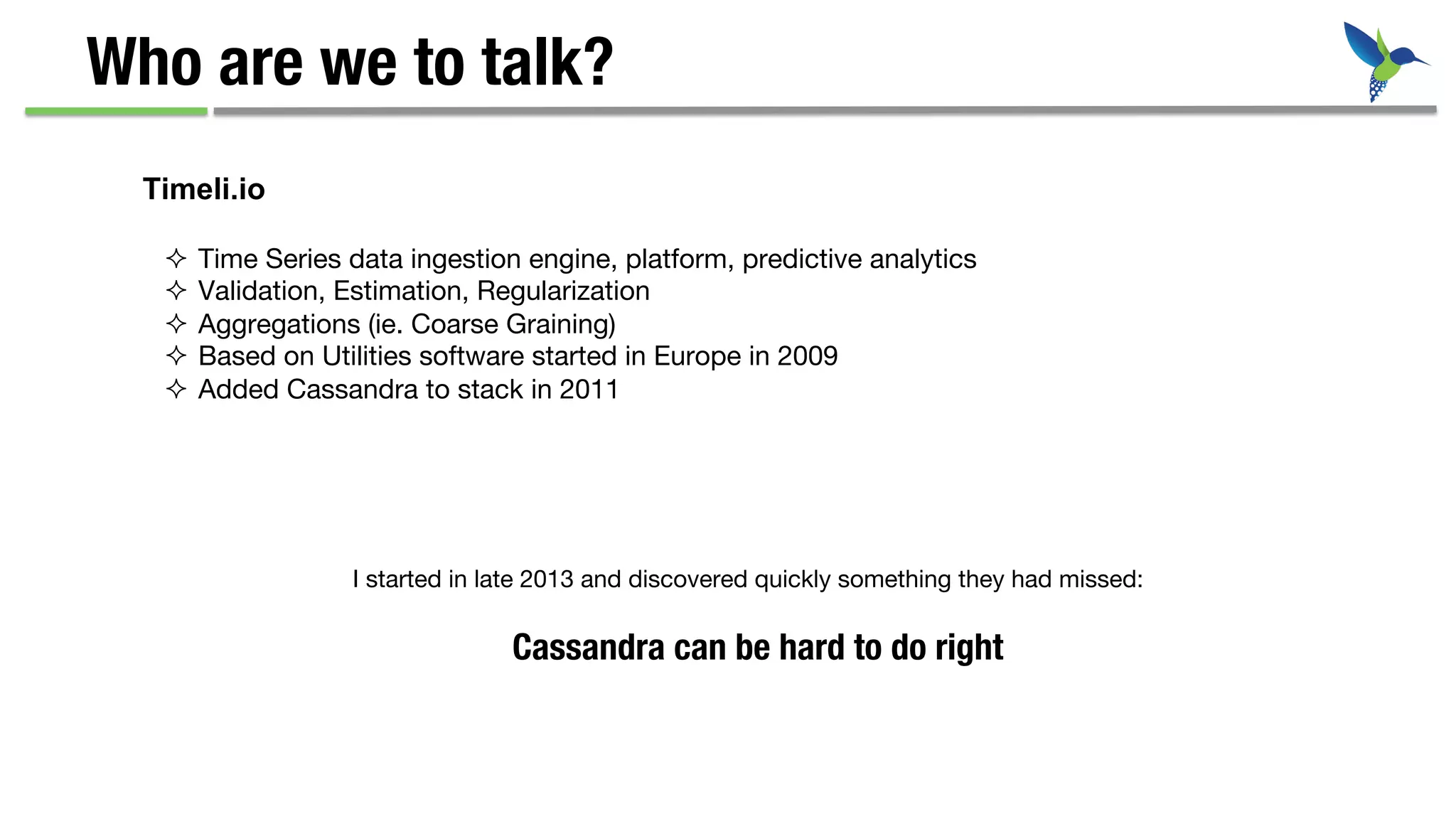

- 3. Who are weto talk? ² Time Series data ingestion engine, platform, predictive analytics ² Validation, Estimation, Regularization ² Aggregations (ie. Coarse Graining) ² Based on Utilities software started in Europe in 2009 ² Added Cassandra to stack in 2011 Timeli.io I started in late 2013 and discovered quickly something they had missed: Cassandra can be hard to do right

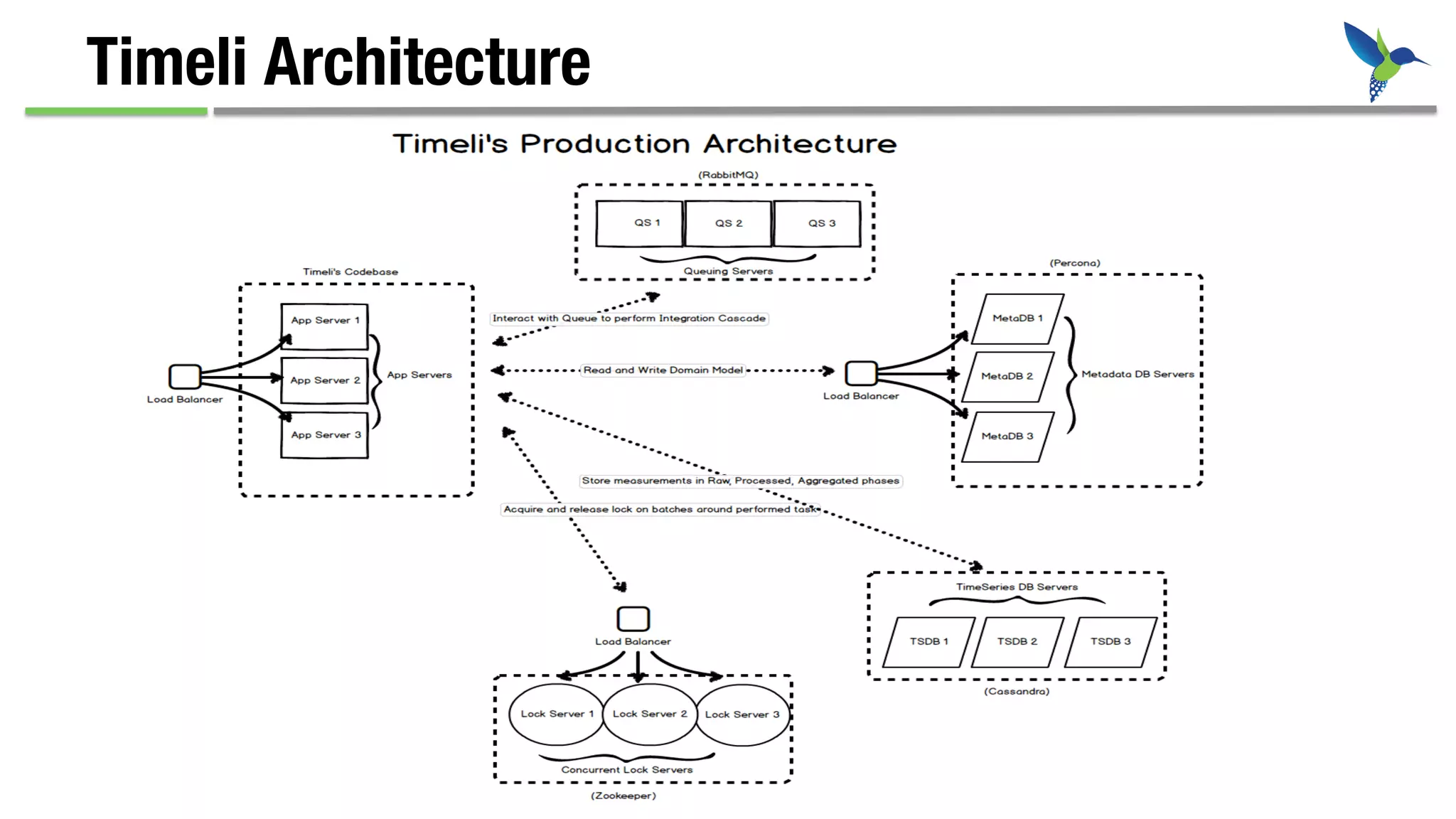

- 4.
- 5. But first … Cassandra: ² Sister to Helen of Troy ² More beautiful, more sought after, wiser ² Even the gods themselves ² Promised a wild night to Apollo for power of prophecy ² Reneged ² Apollo left her with prophecy, but made it so nobody believed her … a minor cultural digression Moral: Cassandra accurately predicted the Fall of Troy.

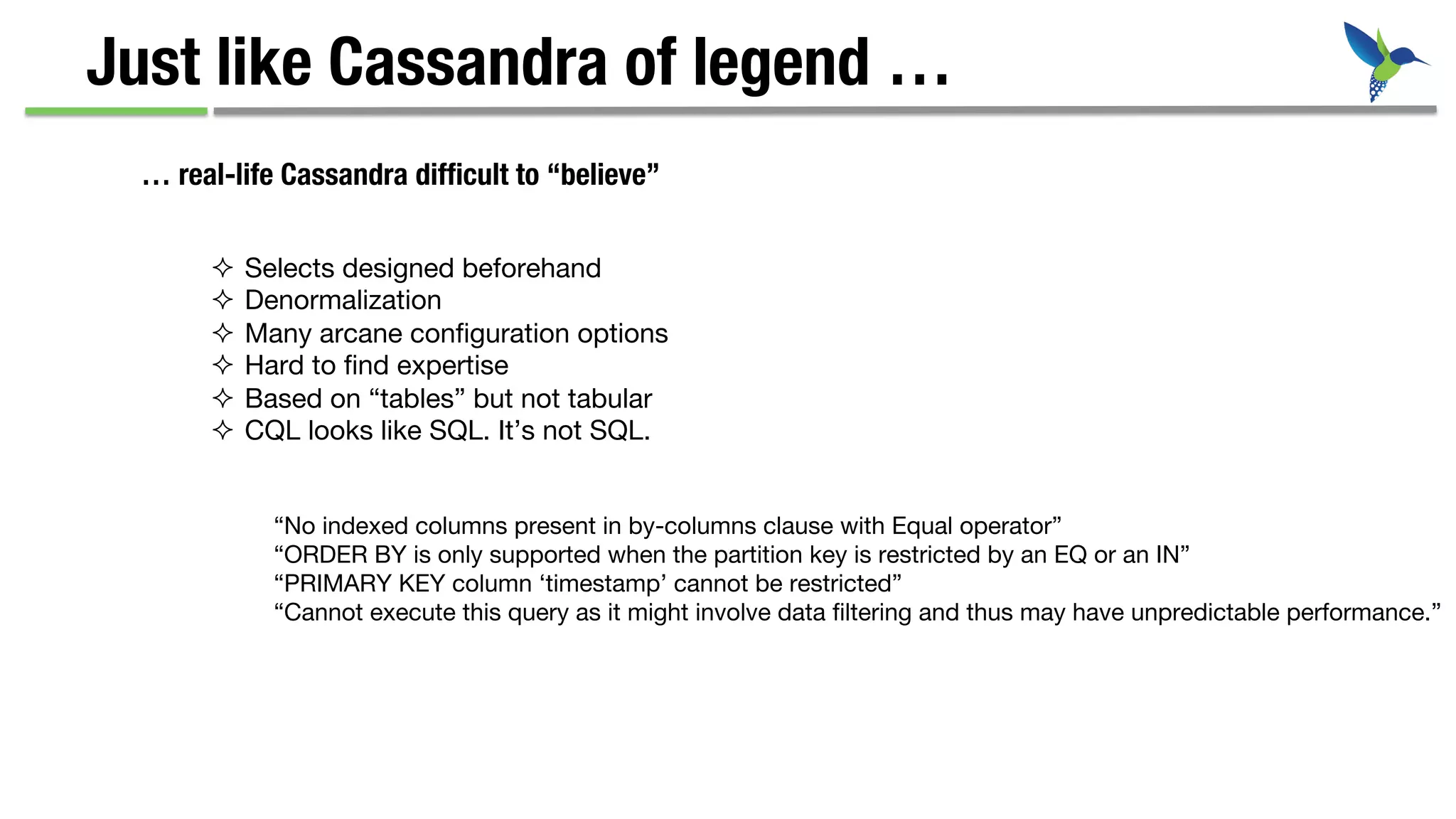

- 6. Just like Cassandraof legend … … real-life Cassandra difficult to “believe” ² Selects designed beforehand ² Denormalization ² Many arcane configuration options ² Hard to find expertise ² Based on “tables” but not tabular ² CQL looks like SQL. It’s not SQL. “No indexed columns present in by-columns clause with Equal operator” “ORDER BY is only supported when the partition key is restricted by an EQ or an IN” “PRIMARY KEY column ‘timestamp’ cannot be restricted” “Cannot execute this query as it might involve data filtering and thus may have unpredictable performance.”

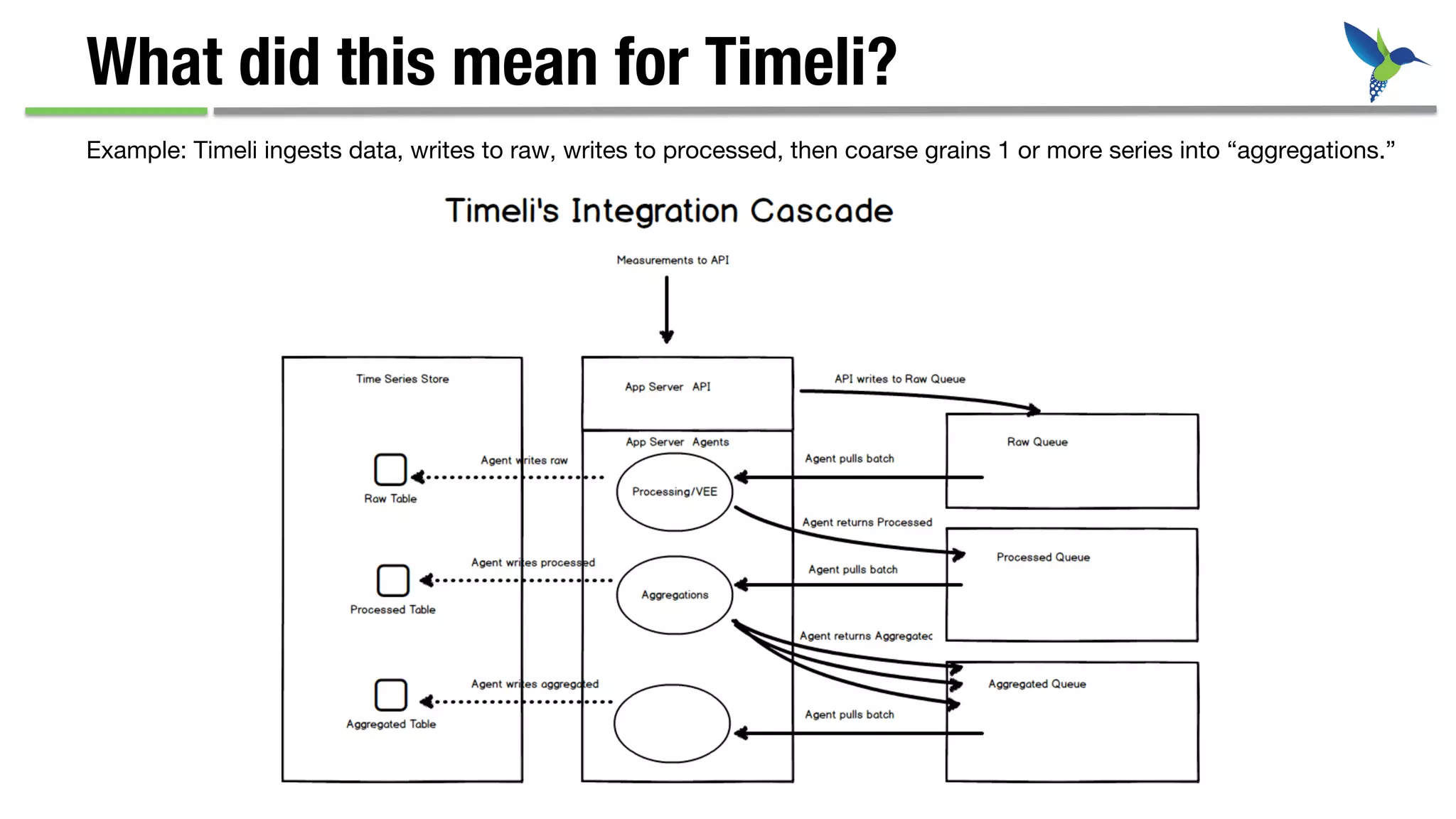

- 7. What did thismean for Timeli? Example: Timeli ingests data, writes to raw, writes to processed, then coarse grains 1 or more series into “aggregations.”

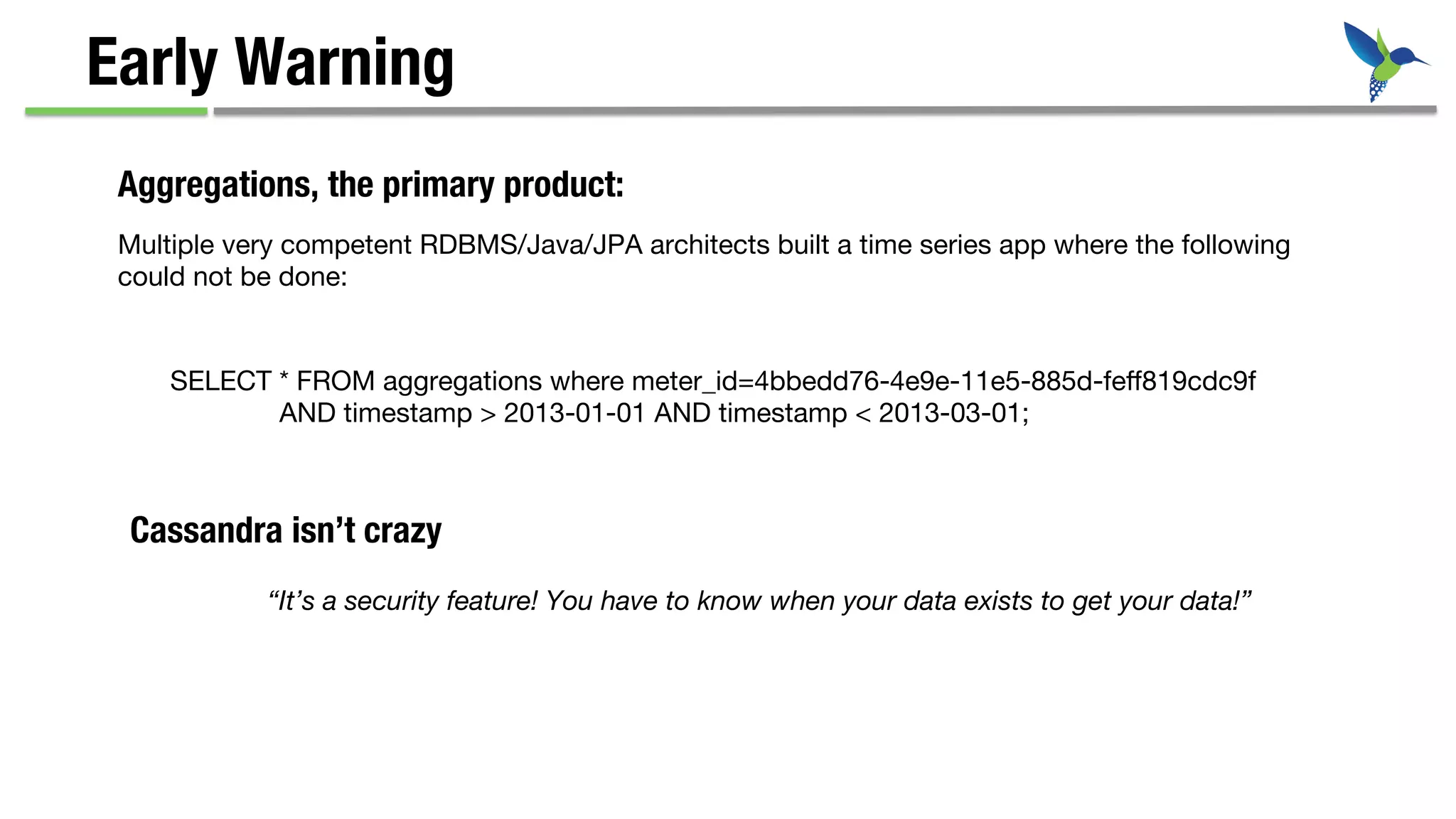

- 8. Multiple very competentRDBMS/Java/JPA architects built a time series app where the following could not be done: SELECT * FROM aggregations where meter_id=4bbedd76-4e9e-11e5-885d-feff819cdc9f AND timestamp > 2013-01-01 AND timestamp < 2013-03-01; Early Warning Aggregations, the primary product: “It’s a security feature! You have to know when your data exists to get your data!” Cassandra isn’t crazy

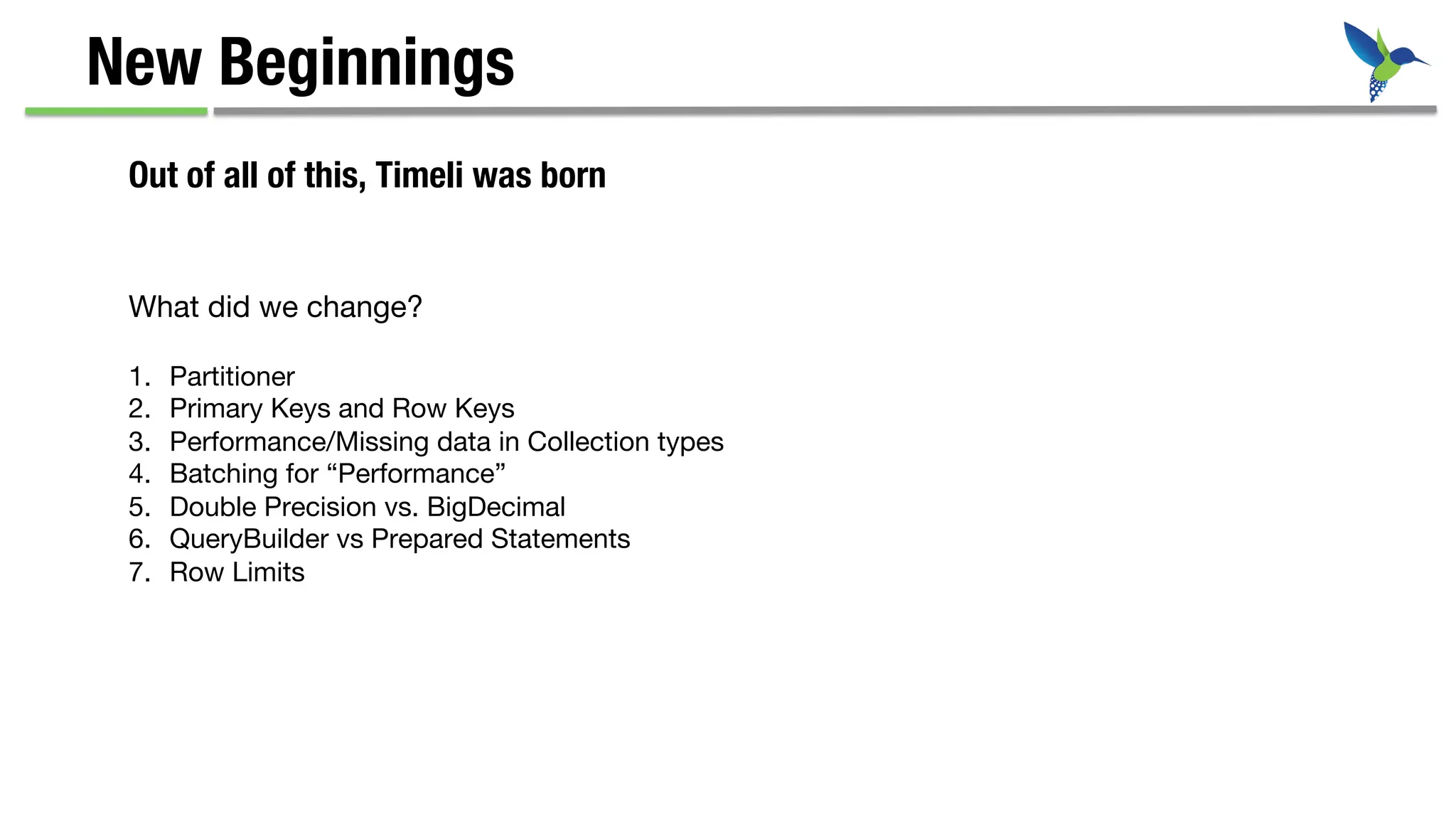

- 9. New Beginnings Out ofall of this, Timeli was born What did we change? 1. Partitioner 2. Primary Keys and Row Keys 3. Performance/Missing data in Collection types 4. Batching for “Performance” 5. Double Precision vs. BigDecimal 6. QueryBuilder vs Prepared Statements 7. Row Limits

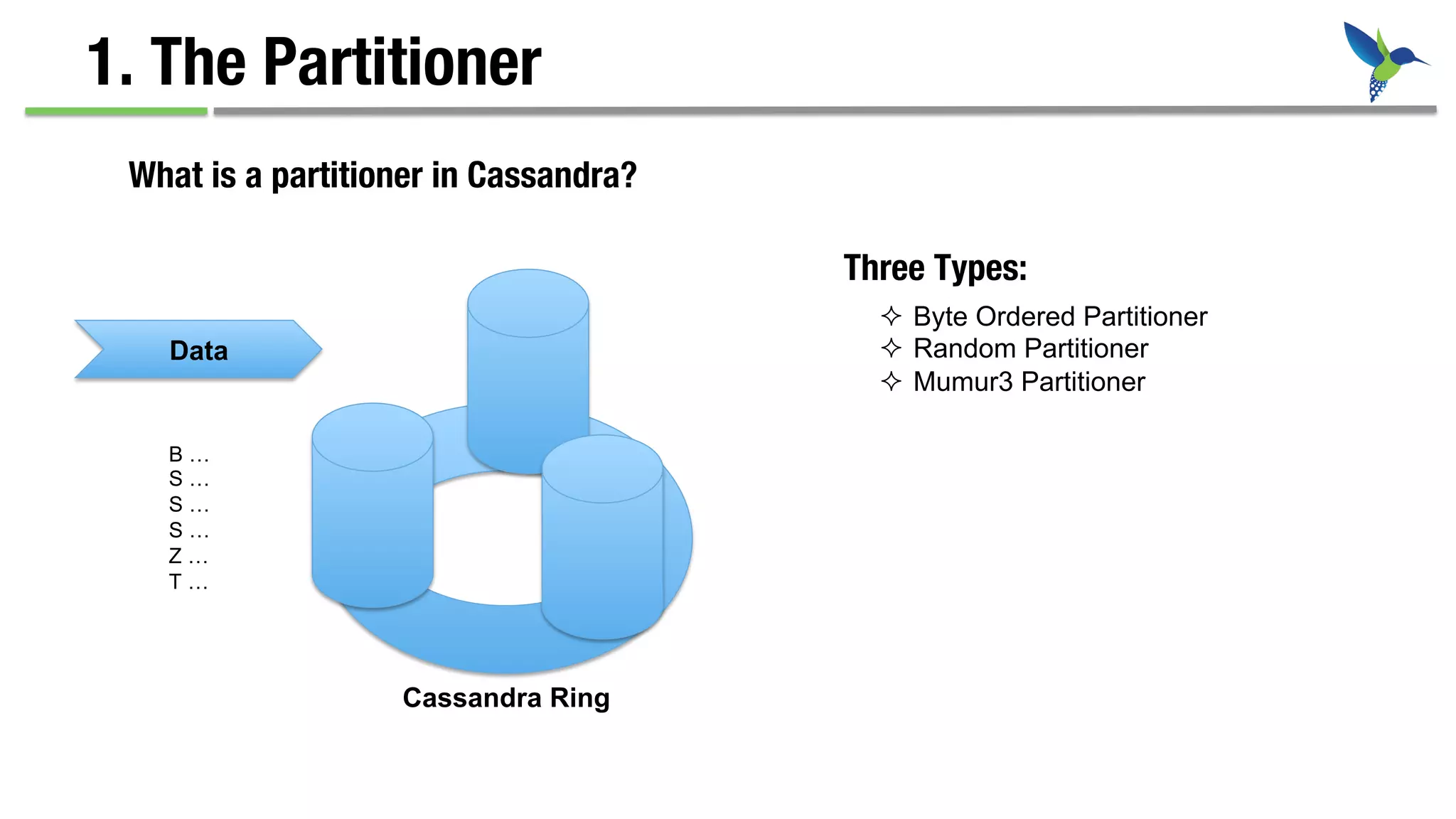

- 10. 1. The Partitioner Whatis a partitioner in Cassandra? Data Cassandra Ring ² Byte Ordered Partitioner ² Random Partitioner ² Mumur3 Partitioner Three Types: B … S … S … S … Z … T …

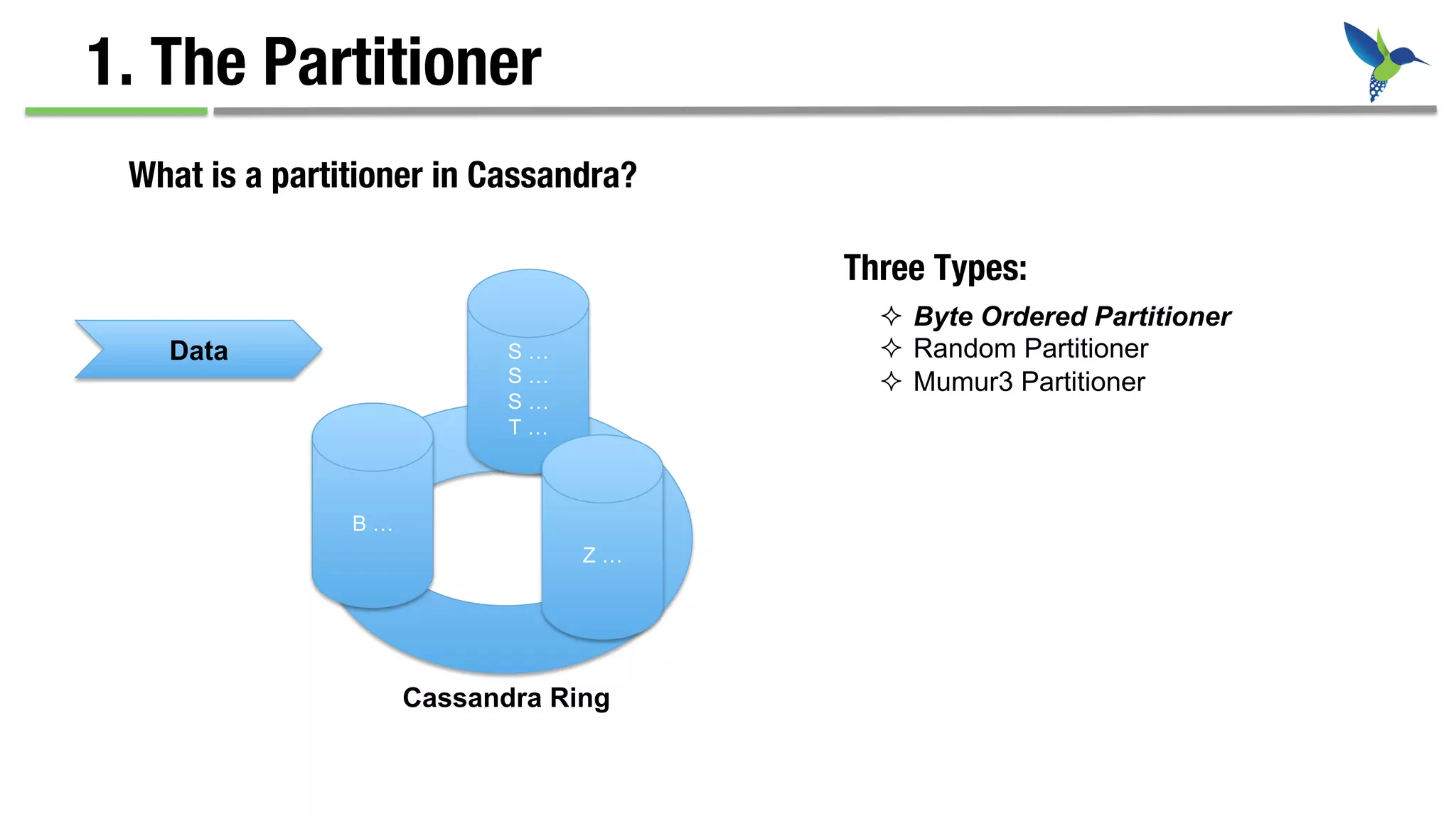

- 11. 1. The Partitioner Whatis a partitioner in Cassandra? S … S … S … T … B … Data Z … Cassandra Ring ² Byte Ordered Partitioner ² Random Partitioner ² Mumur3 Partitioner Three Types:

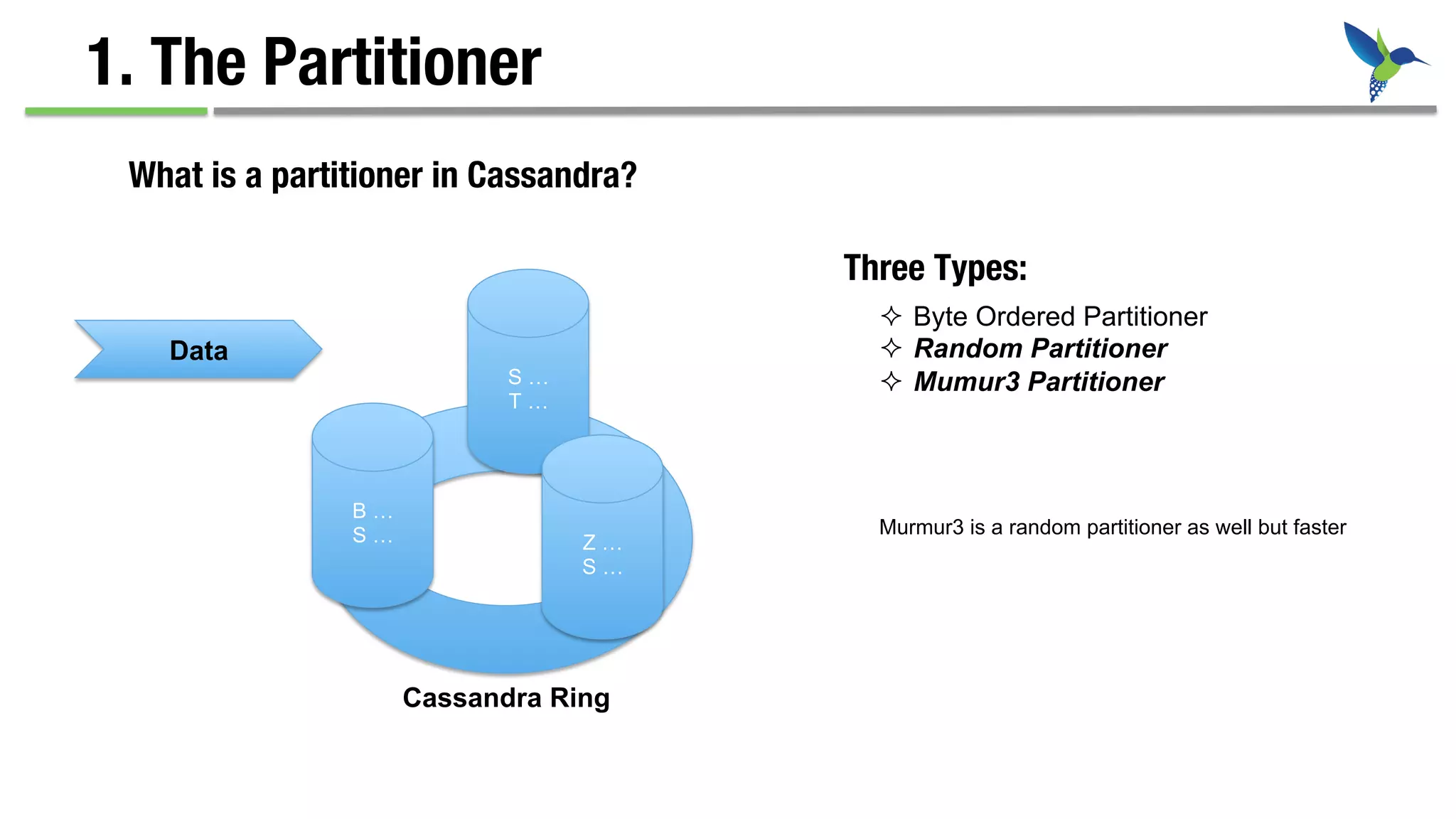

- 12. 1. The Partitioner Whatis a partitioner in Cassandra? S … T … B … S … Data Z … S … Cassandra Ring ² Byte Ordered Partitioner ² Random Partitioner ² Mumur3 Partitioner Three Types: Murmur3 is a random partitioner as well but faster

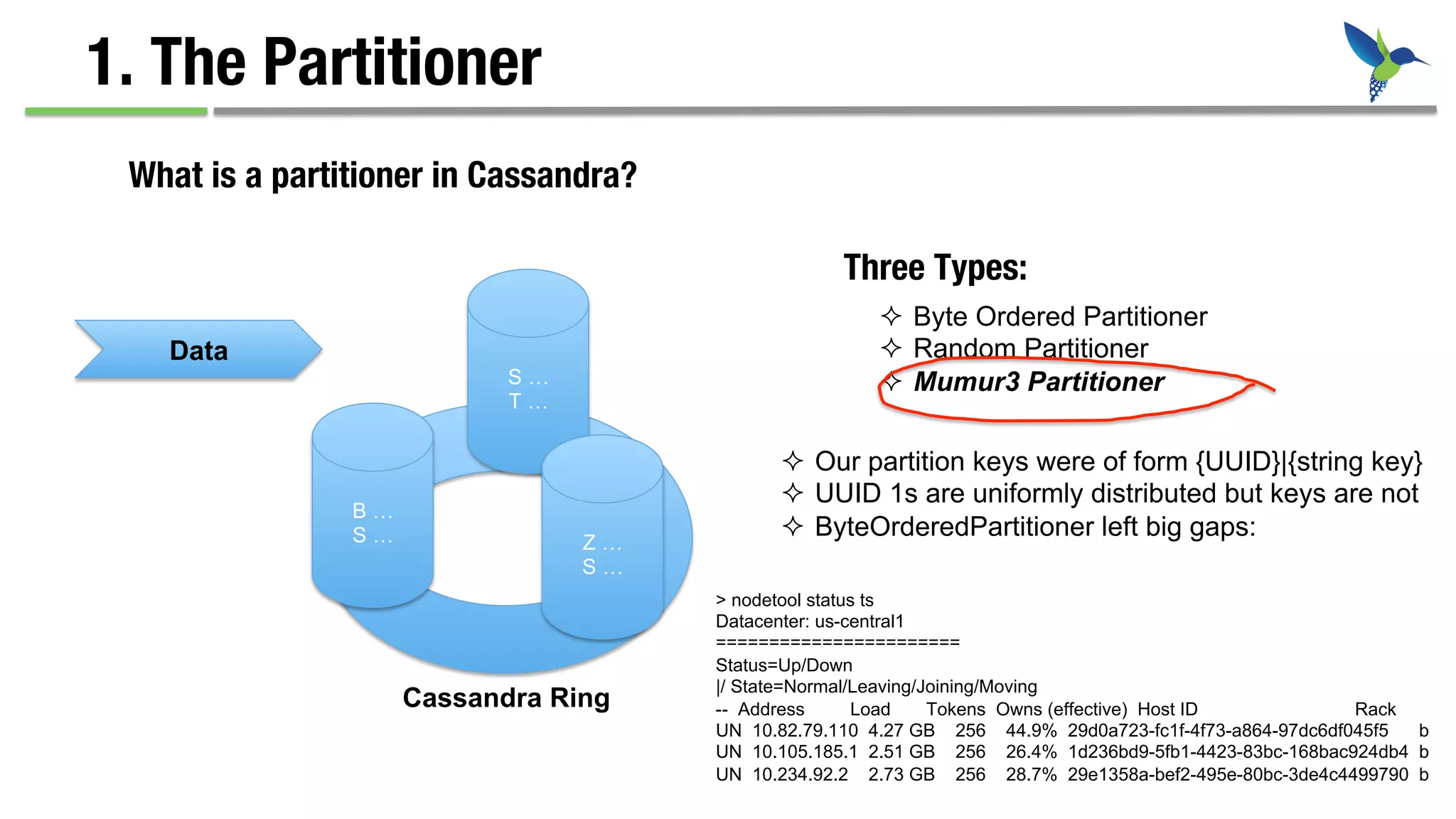

- 13. 1. The Partitioner Whatis a partitioner in Cassandra? S … T … B … S … Data Z … S … Cassandra Ring ² Byte Ordered Partitioner ² Random Partitioner ² Mumur3 Partitioner Three Types: ² Our partition keys were of form {UUID}|{string key} ² UUID 1s are uniformly distributed but keys are not ² ByteOrderedPartitioner left big gaps: > nodetool status ts Datacenter: us-central1 ======================= Status=Up/Down |/ State=Normal/Leaving/Joining/Moving -- Address Load Tokens Owns (effective) Host ID Rack UN 10.82.79.110 4.27 GB 256 44.9% 29d0a723-fc1f-4f73-a864-97dc6df045f5 b UN 10.105.185.1 2.51 GB 256 26.4% 1d236bd9-5fb1-4423-83bc-168bac924db4 b UN 10.234.92.2 2.73 GB 256 28.7% 29e1358a-bef2-495e-80bc-3de4c4499790 b

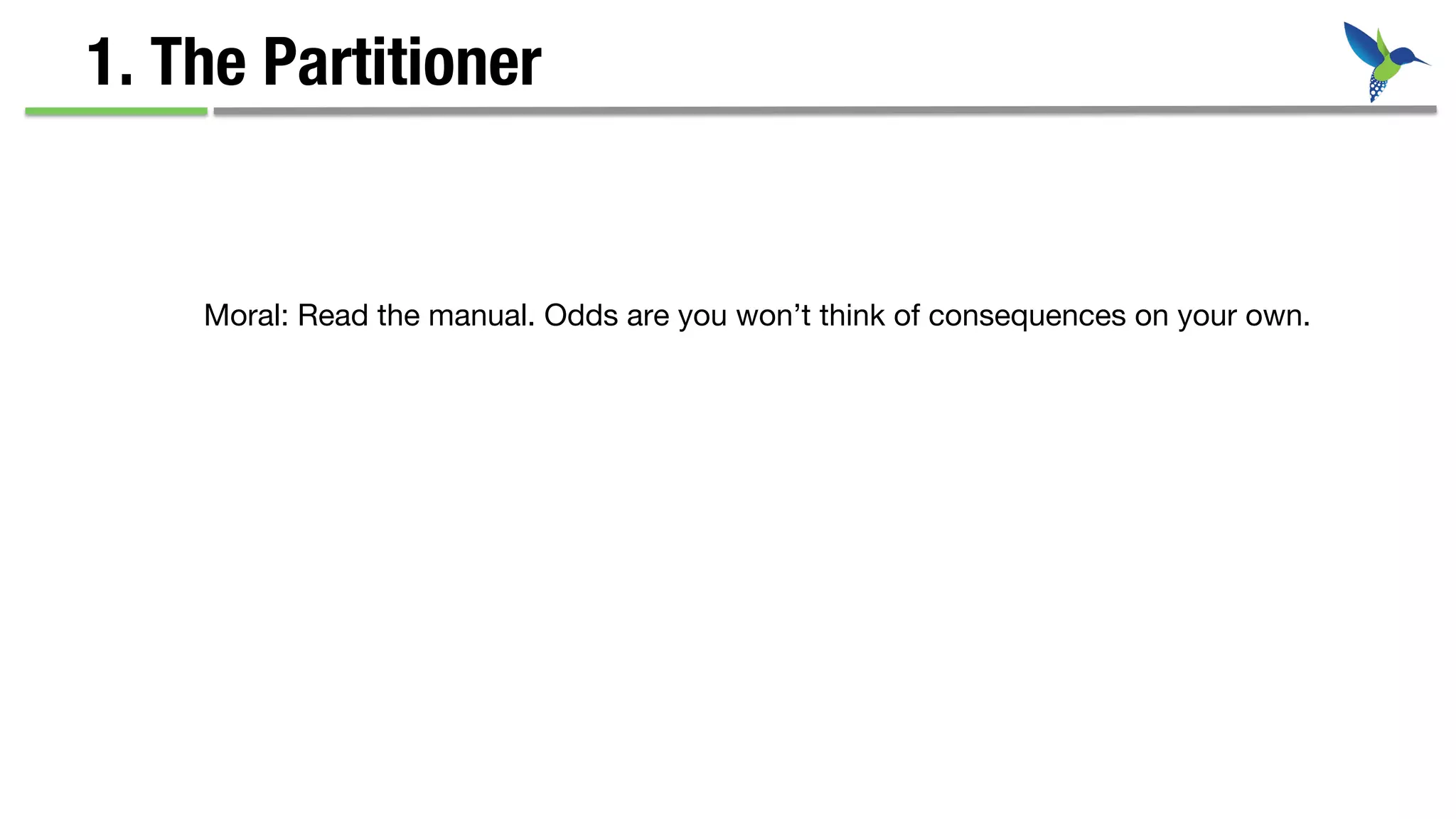

- 14. 1. The Partitioner Moral:Read the manual. Odds are you won’t think of consequences on your own.

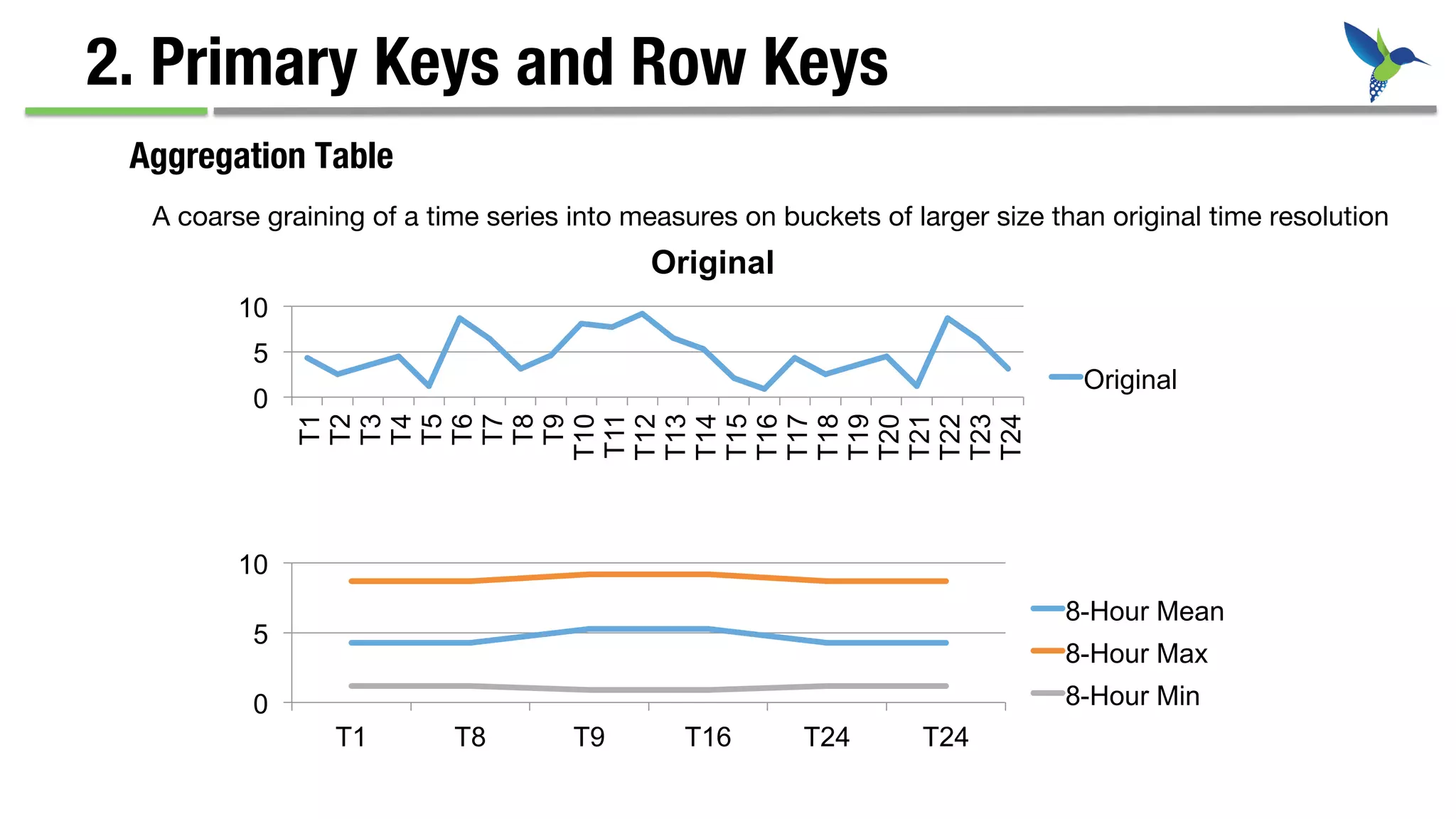

- 15. 2. Primary Keysand Row Keys Aggregation Table A coarse graining of a time series into measures on buckets of larger size than original time resolution 0 5 10 T1 T2 T3 T4 T5 T6 T7 T8 T9 T10 T11 T12 T13 T14 T15 T16 T17 T18 T19 T20 T21 T22 T23 T24 Original Original 0 5 10 T1 T8 T9 T16 T24 T24 8-Hour Mean 8-Hour Max 8-Hour Min

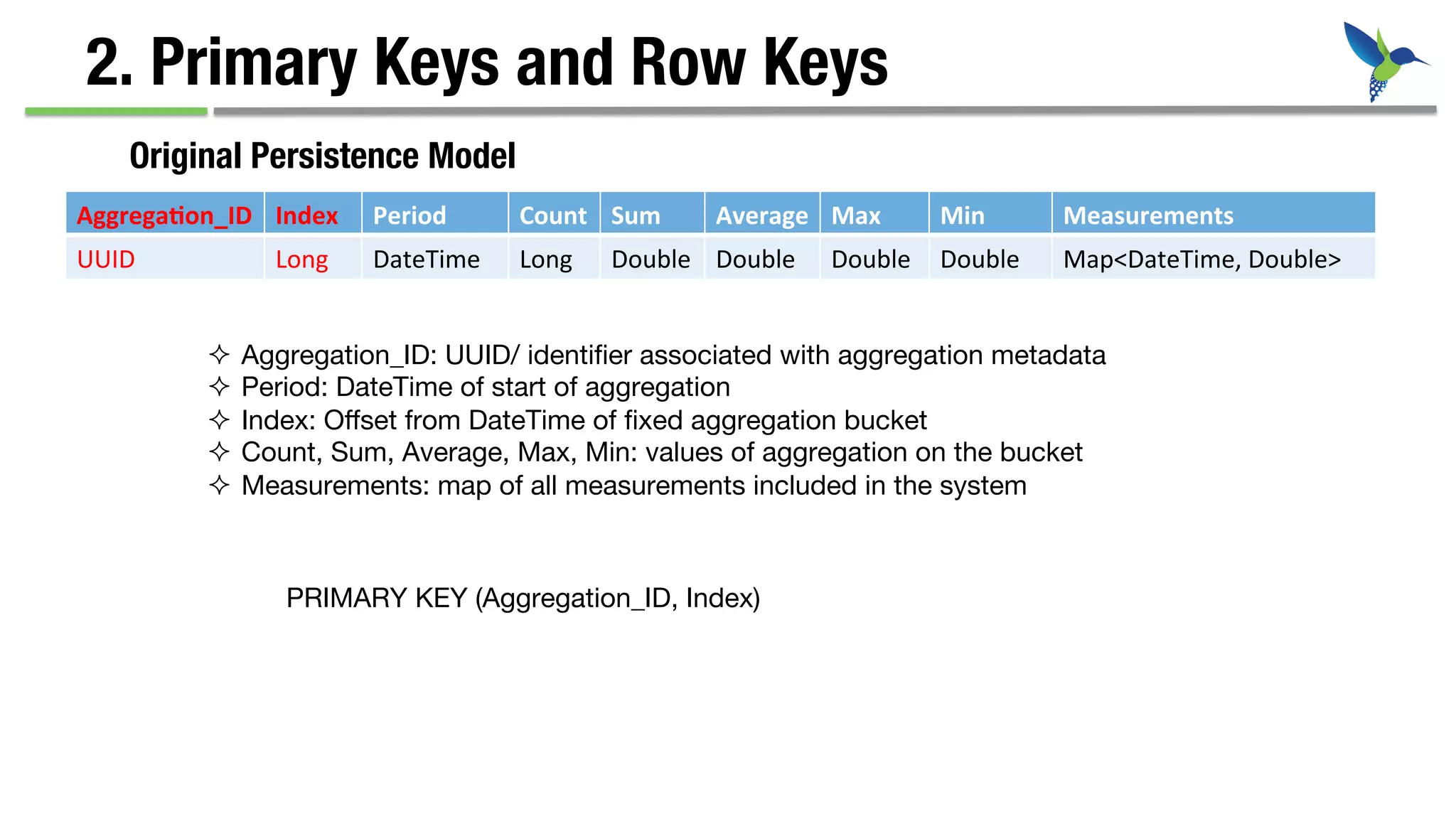

- 16. 2. Primary Keysand Row Keys Original Persistence Model Aggrega&on_ID Index Period Count Sum Average Max Min Measurements UUID Long DateTime Long Double Double Double Double Map<DateTime, Double> ² Aggregation_ID: UUID/ identifier associated with aggregation metadata ² Period: DateTime of start of aggregation ² Index: Offset from DateTime of fixed aggregation bucket ² Count, Sum, Average, Max, Min: values of aggregation on the bucket ² Measurements: map of all measurements included in the system PRIMARY KEY (Aggregation_ID, Index)

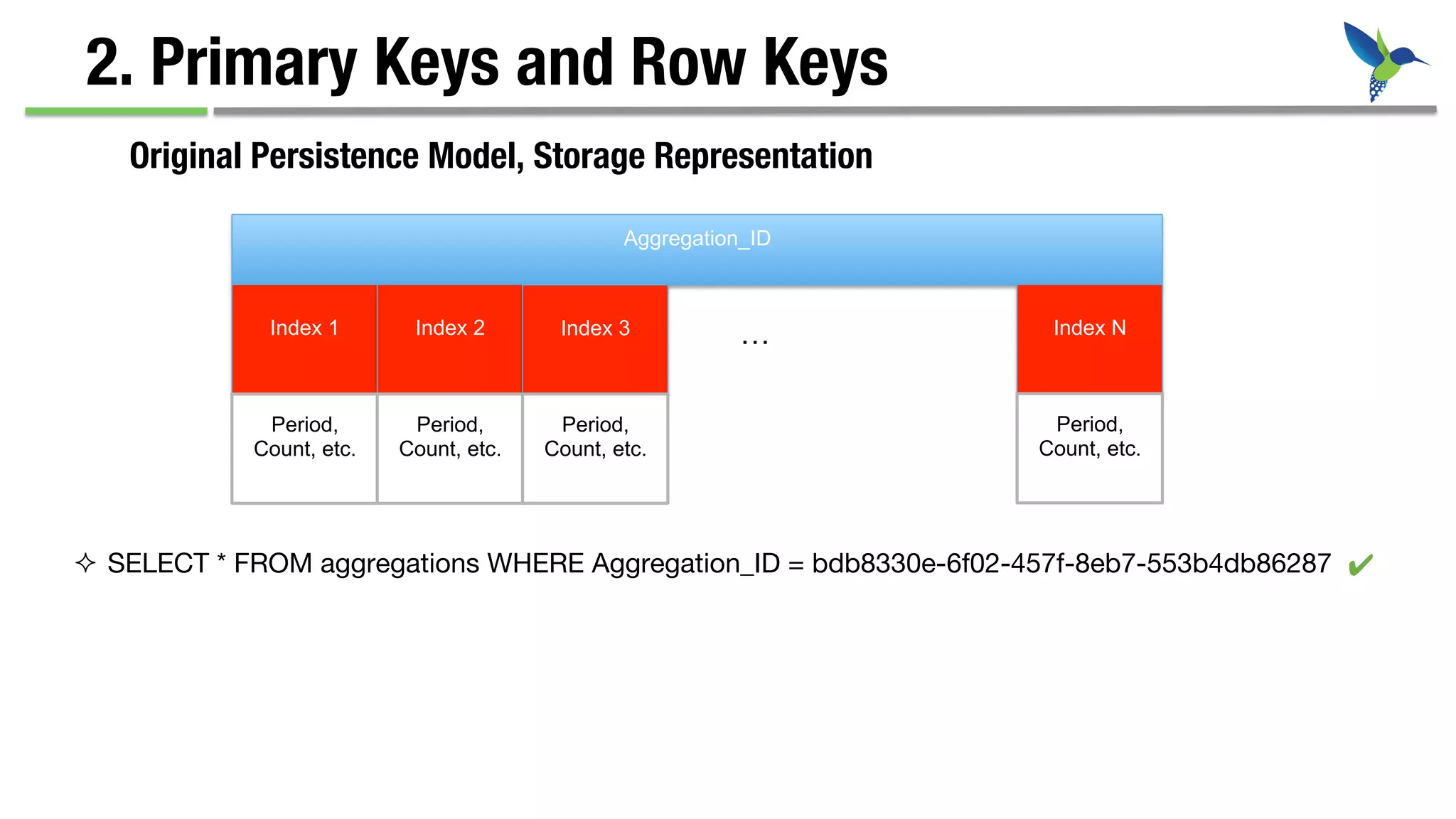

- 17. 2. Primary Keysand Row Keys Original Persistence Model, Storage Representation Aggregation_ID Index 1 Index 2 Index 3 … Period, Count, etc. Period, Count, etc. Period, Count, etc. Index N Period, Count, etc. ² SELECT * FROM aggregations WHERE Aggregation_ID = bdb8330e-6f02-457f-8eb7-553b4db86287 ✔

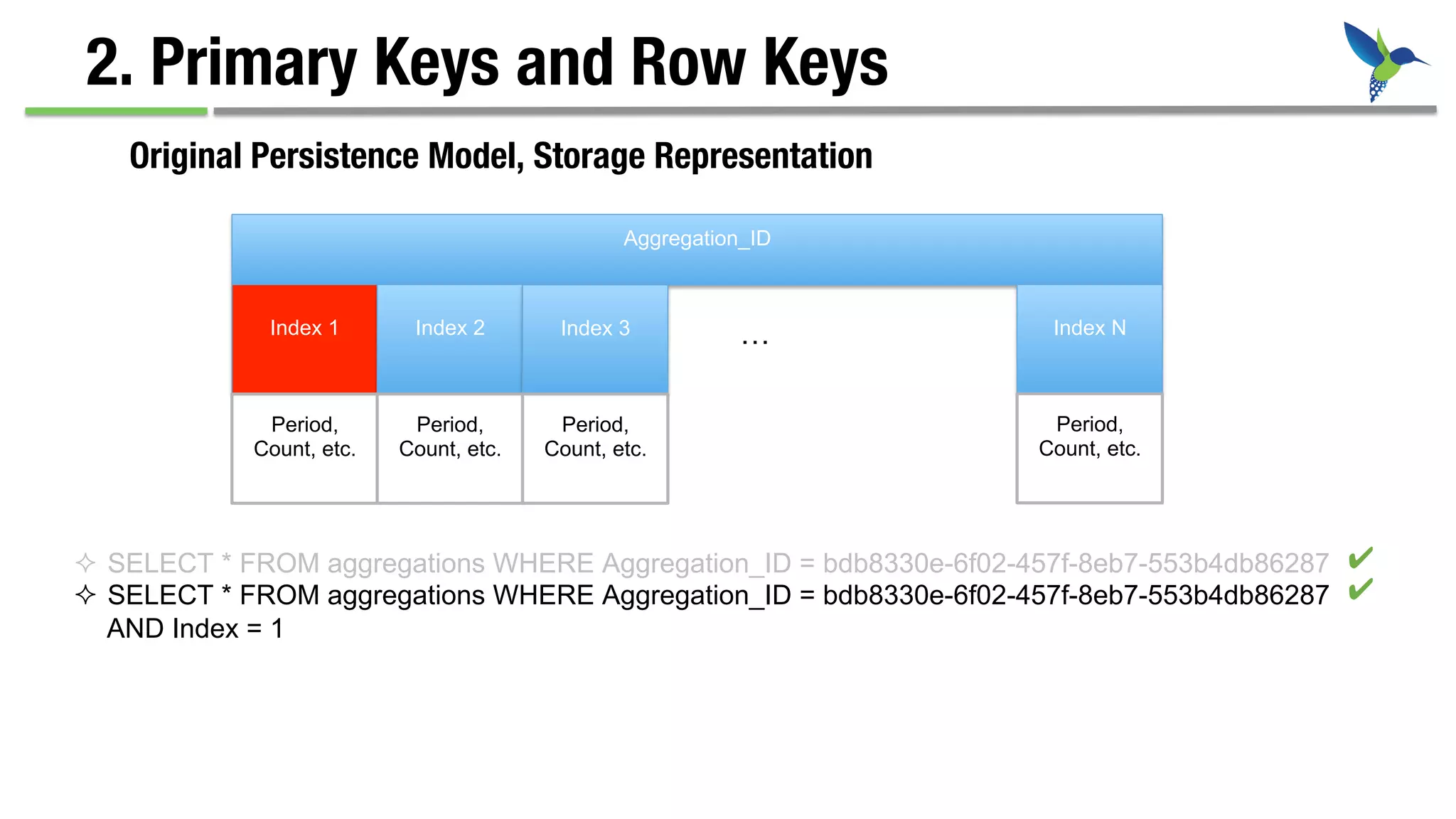

- 18. 2. Primary Keysand Row Keys Original Persistence Model, Storage Representation Aggregation_ID Index 1 Index 2 Index 3 … Period, Count, etc. Period, Count, etc. Period, Count, etc. Index N Period, Count, etc. ² SELECT * FROM aggregations WHERE Aggregation_ID = bdb8330e-6f02-457f-8eb7-553b4db86287 ² SELECT * FROM aggregations WHERE Aggregation_ID = bdb8330e-6f02-457f-8eb7-553b4db86287 AND Index = 1 ✔ ✔

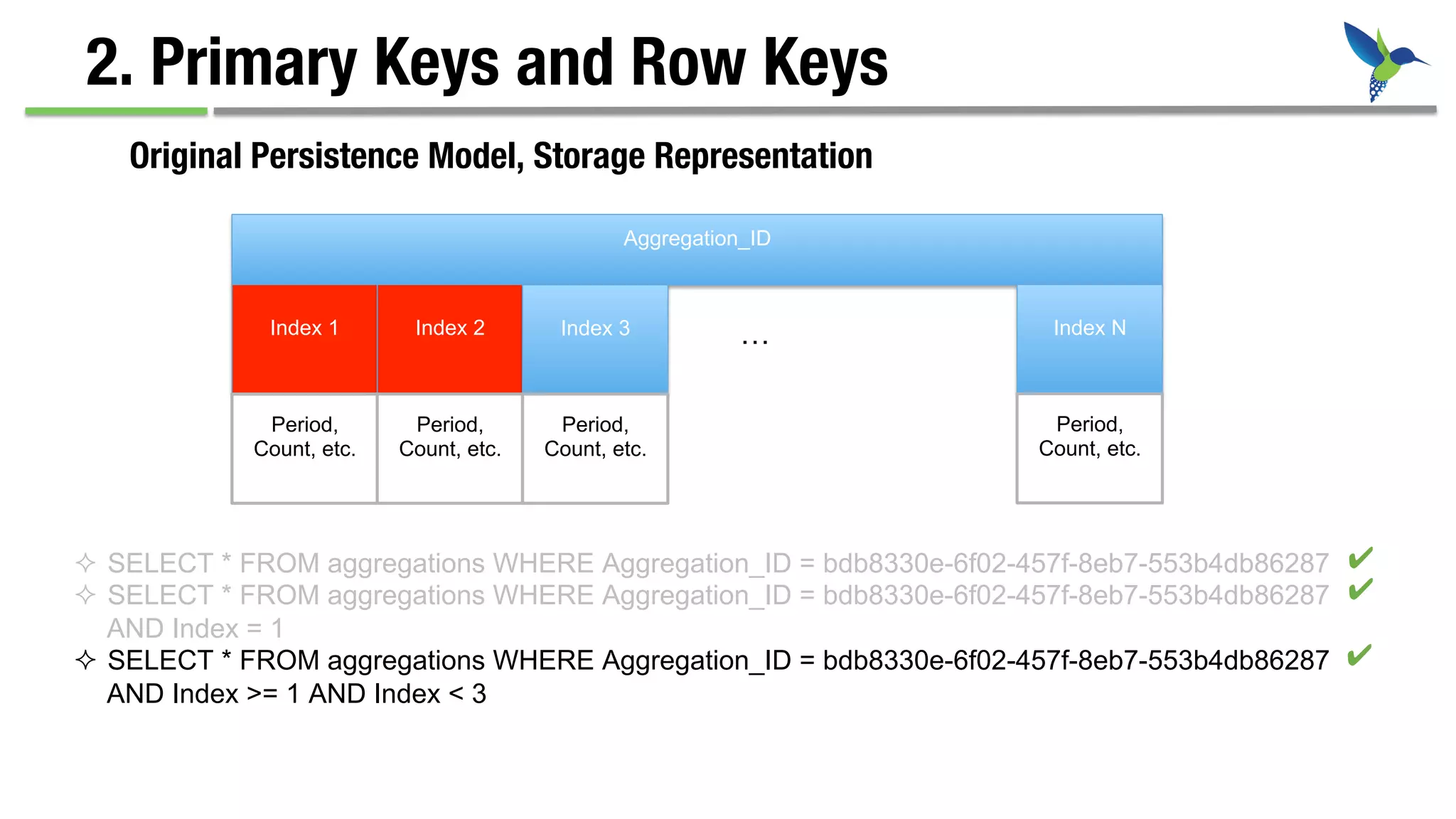

- 19. 2. Primary Keysand Row Keys Original Persistence Model, Storage Representation Aggregation_ID Index 1 Index 2 Index 3 … Period, Count, etc. Period, Count, etc. Period, Count, etc. Index N Period, Count, etc. ² SELECT * FROM aggregations WHERE Aggregation_ID = bdb8330e-6f02-457f-8eb7-553b4db86287 ² SELECT * FROM aggregations WHERE Aggregation_ID = bdb8330e-6f02-457f-8eb7-553b4db86287 AND Index = 1 ² SELECT * FROM aggregations WHERE Aggregation_ID = bdb8330e-6f02-457f-8eb7-553b4db86287 AND Index >= 1 AND Index < 3 ✔ ✔ ✔

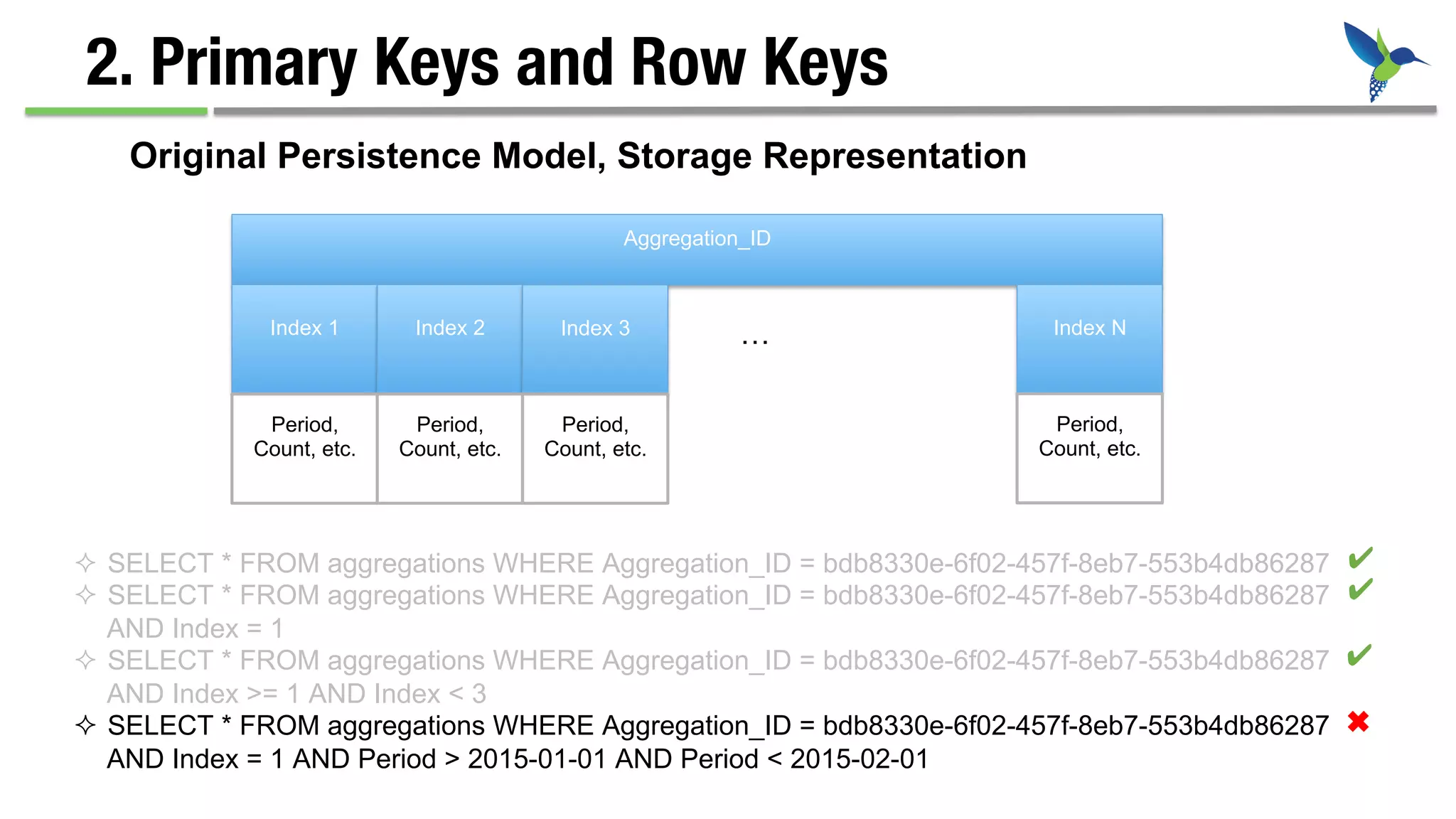

- 20. 2. Primary Keysand Row Keys Original Persistence Model, Storage Representation Aggregation_ID Index 1 Index 2 Index 3 … Period, Count, etc. Period, Count, etc. Period, Count, etc. Index N Period, Count, etc. ² SELECT * FROM aggregations WHERE Aggregation_ID = bdb8330e-6f02-457f-8eb7-553b4db86287 ² SELECT * FROM aggregations WHERE Aggregation_ID = bdb8330e-6f02-457f-8eb7-553b4db86287 AND Index = 1 ² SELECT * FROM aggregations WHERE Aggregation_ID = bdb8330e-6f02-457f-8eb7-553b4db86287 AND Index >= 1 AND Index < 3 ² SELECT * FROM aggregations WHERE Aggregation_ID = bdb8330e-6f02-457f-8eb7-553b4db86287 AND Index = 1 AND Period > 2015-01-01 AND Period < 2015-02-01 ✔ ✔ ✔ ✖

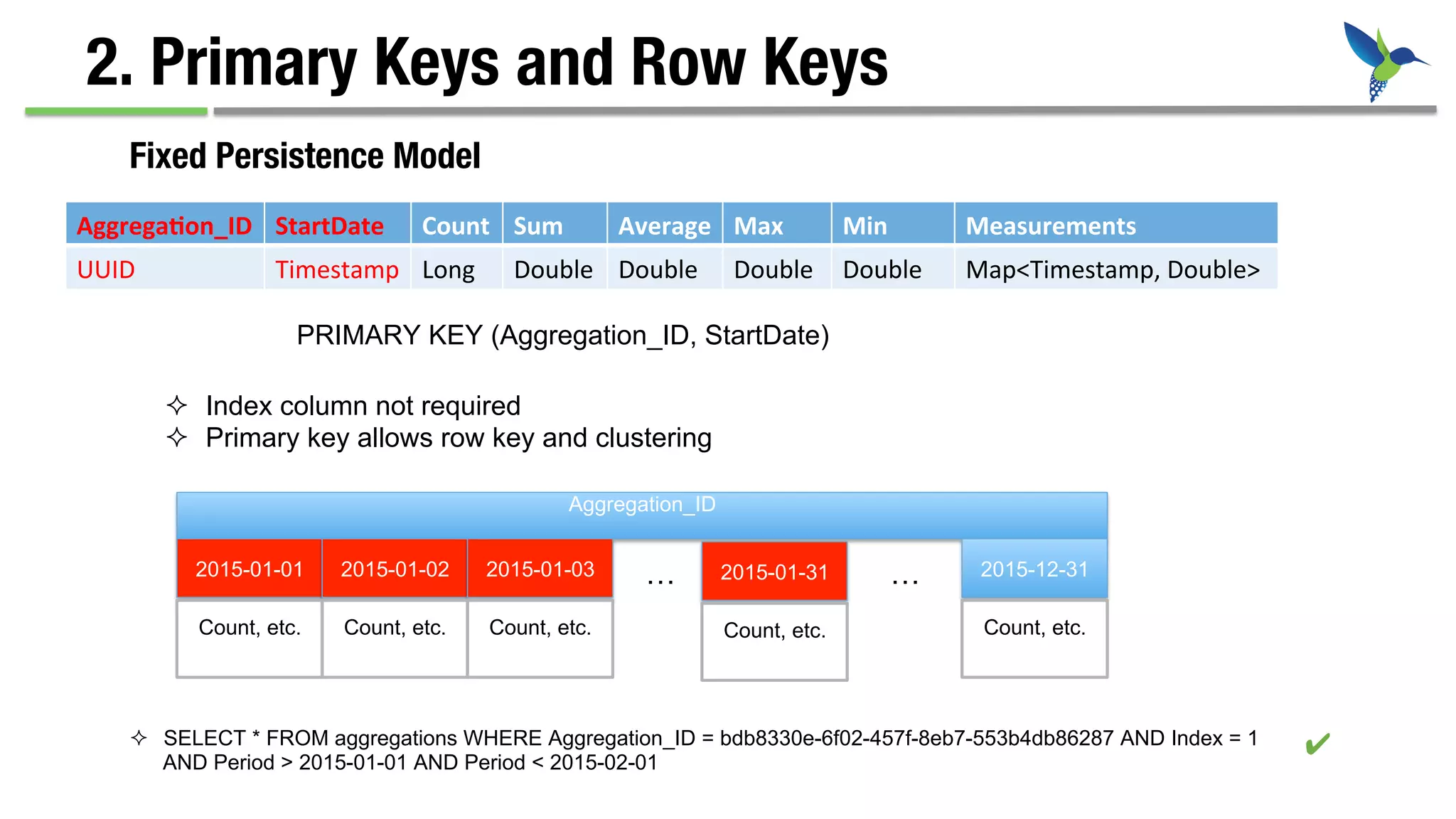

- 21. 2. Primary Keysand Row Keys Fixed Persistence Model Aggrega&on_ID StartDate Count Sum Average Max Min Measurements UUID Timestamp Long Double Double Double Double Map<Timestamp, Double> PRIMARY KEY (Aggregation_ID, StartDate) ² Index column not required ² Primary key allows row key and clustering Aggregation_ID 2015-01-01 2015-01-02 2015-01-03 … Count, etc. Count, etc. Count, etc. 2015-12-31 Count, etc. ² SELECT * FROM aggregations WHERE Aggregation_ID = bdb8330e-6f02-457f-8eb7-553b4db86287 AND Index = 1 AND Period > 2015-01-01 AND Period < 2015-02-01 ✔ 2015-01-31 Count, etc. …

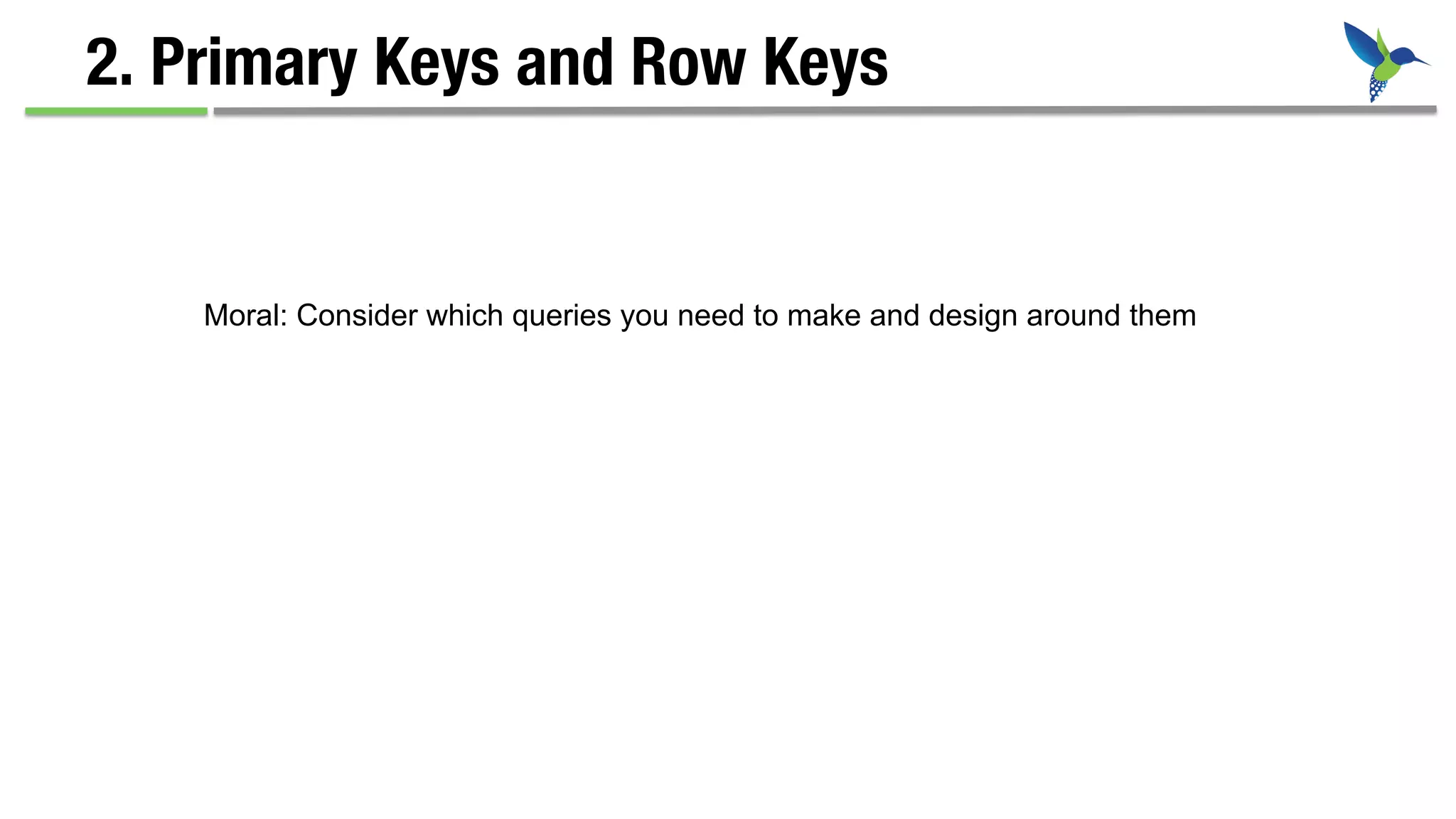

- 22. 2. Primary Keysand Row Keys Moral: Consider which queries you need to make and design around them

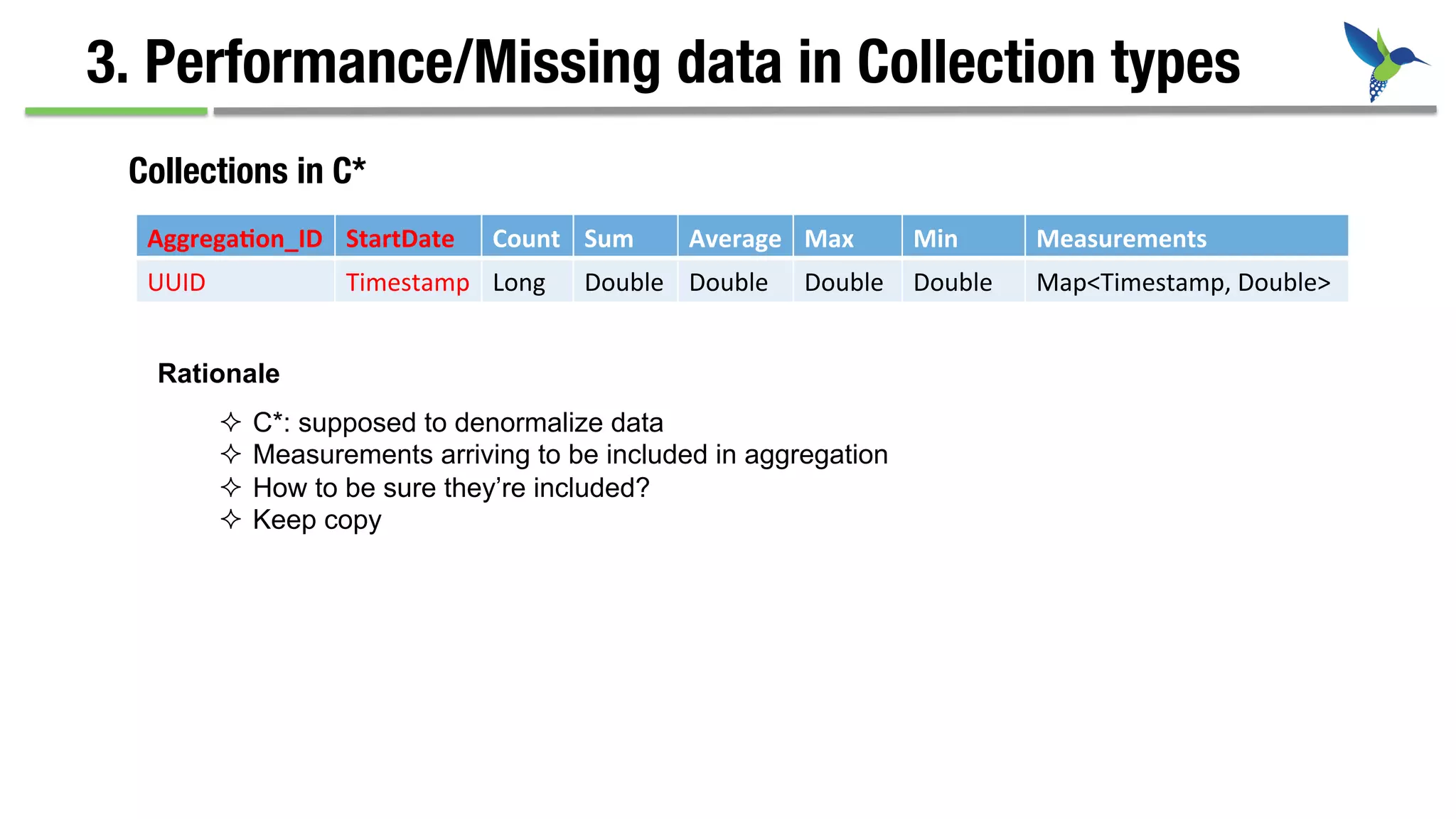

- 23. 3. Performance/Missing datain Collection types Collections in C* ² C*: supposed to denormalize data ² Measurements arriving to be included in aggregation ² How to be sure they’re included? ² Keep copy Rationale Aggrega&on_ID StartDate Count Sum Average Max Min Measurements UUID Timestamp Long Double Double Double Double Map<Timestamp, Double>

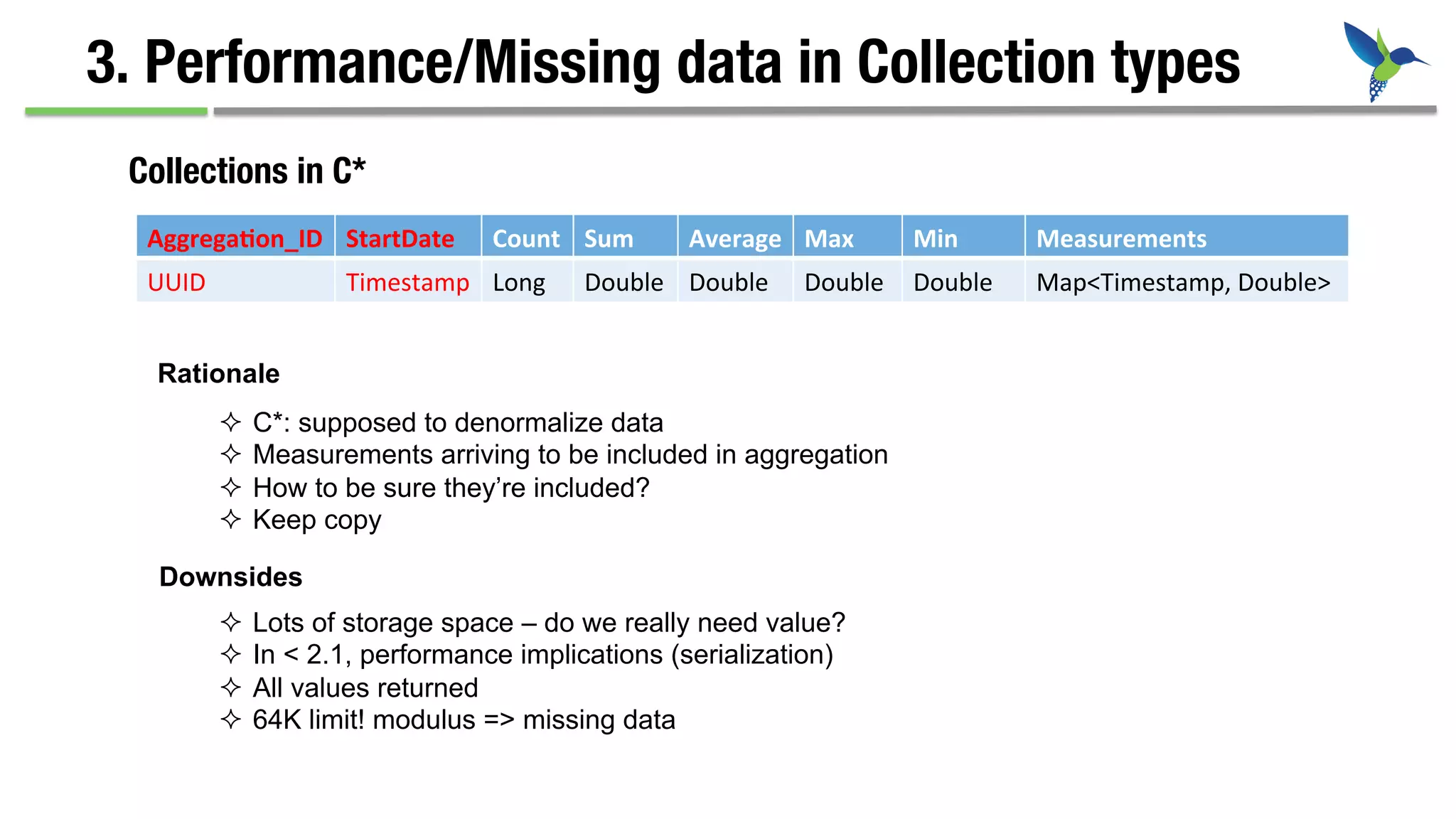

- 24. 3. Performance/Missing datain Collection types Collections in C* ² C*: supposed to denormalize data ² Measurements arriving to be included in aggregation ² How to be sure they’re included? ² Keep copy Rationale Downsides ² Lots of storage space – do we really need value? ² In < 2.1, performance implications (serialization) ² All values returned ² 64K limit! modulus => missing data Aggrega&on_ID StartDate Count Sum Average Max Min Measurements UUID Timestamp Long Double Double Double Double Map<Timestamp, Double>

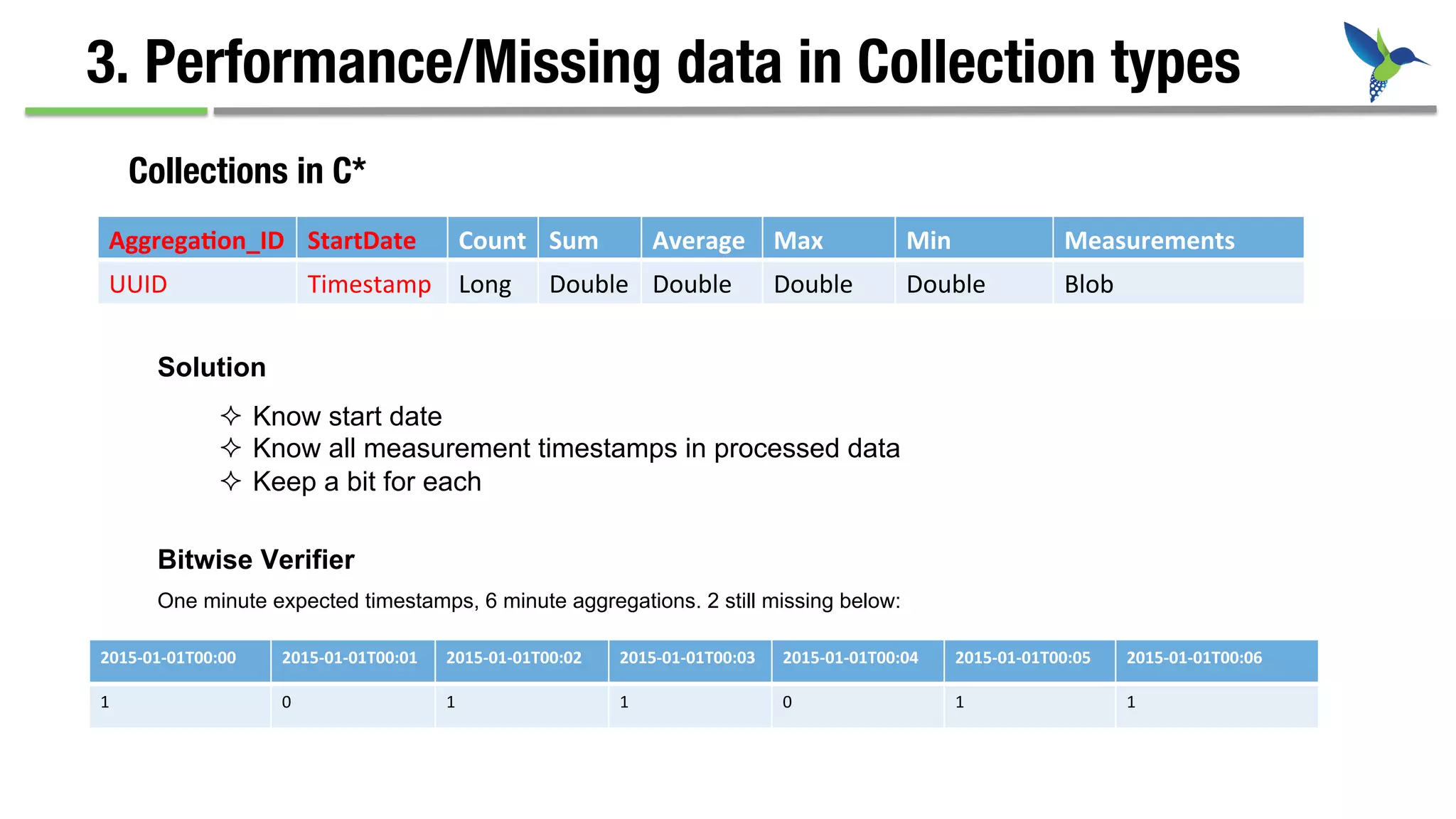

- 25. 3. Performance/Missing datain Collection types Collections in C* Aggrega&on_ID StartDate Count Sum Average Max Min Measurements UUID Timestamp Long Double Double Double Double Blob ² Know start date ² Know all measurement timestamps in processed data ² Keep a bit for each Solution 2015-‐01-‐01T00:00 2015-‐01-‐01T00:01 2015-‐01-‐01T00:02 2015-‐01-‐01T00:03 2015-‐01-‐01T00:04 2015-‐01-‐01T00:05 2015-‐01-‐01T00:06 1 0 1 1 0 1 1 Bitwise Verifier One minute expected timestamps, 6 minute aggregations. 2 still missing below:

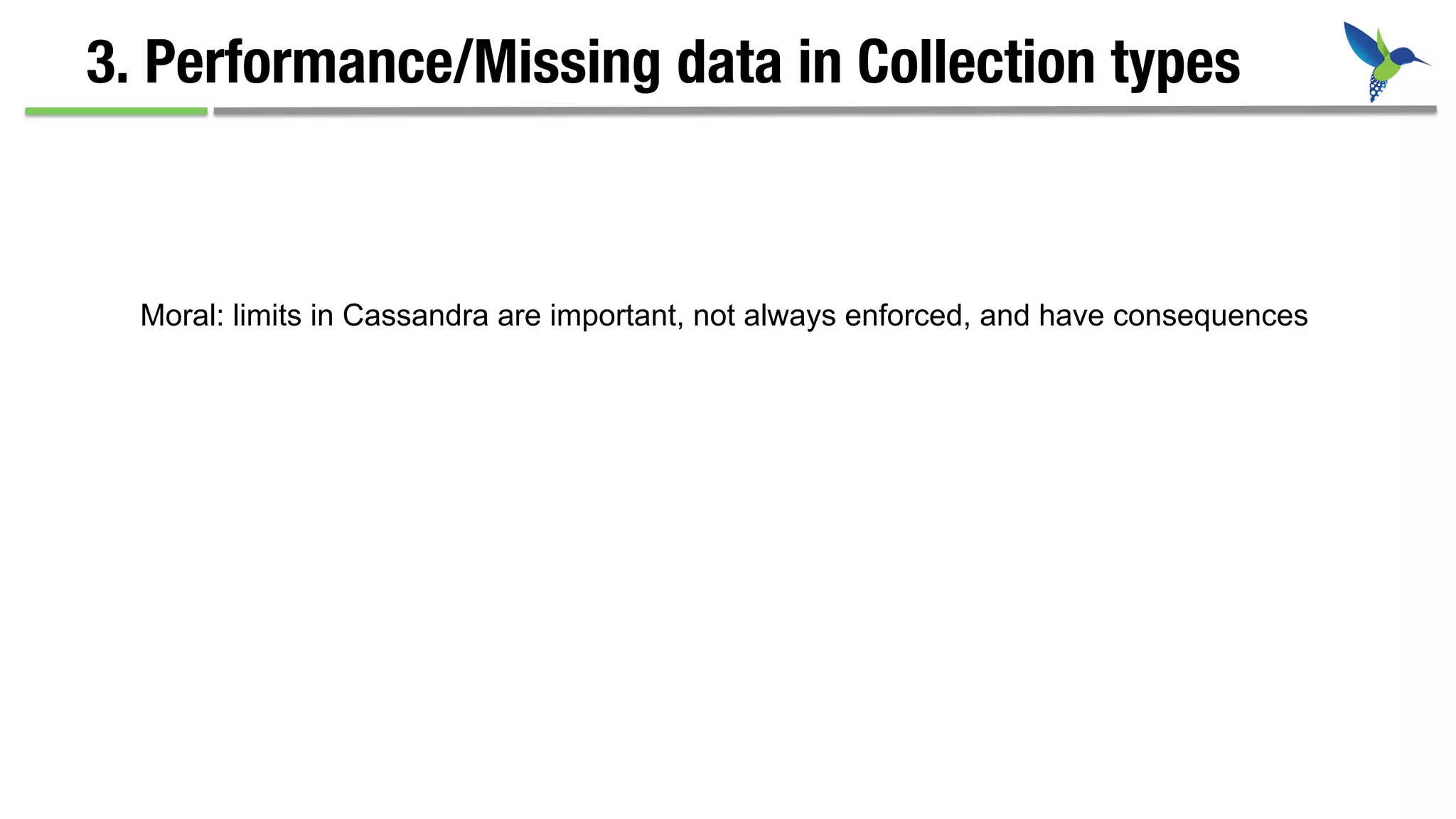

- 26. 3. Performance/Missing datain Collection types Moral: limits in Cassandra are important, not always enforced, and have consequences

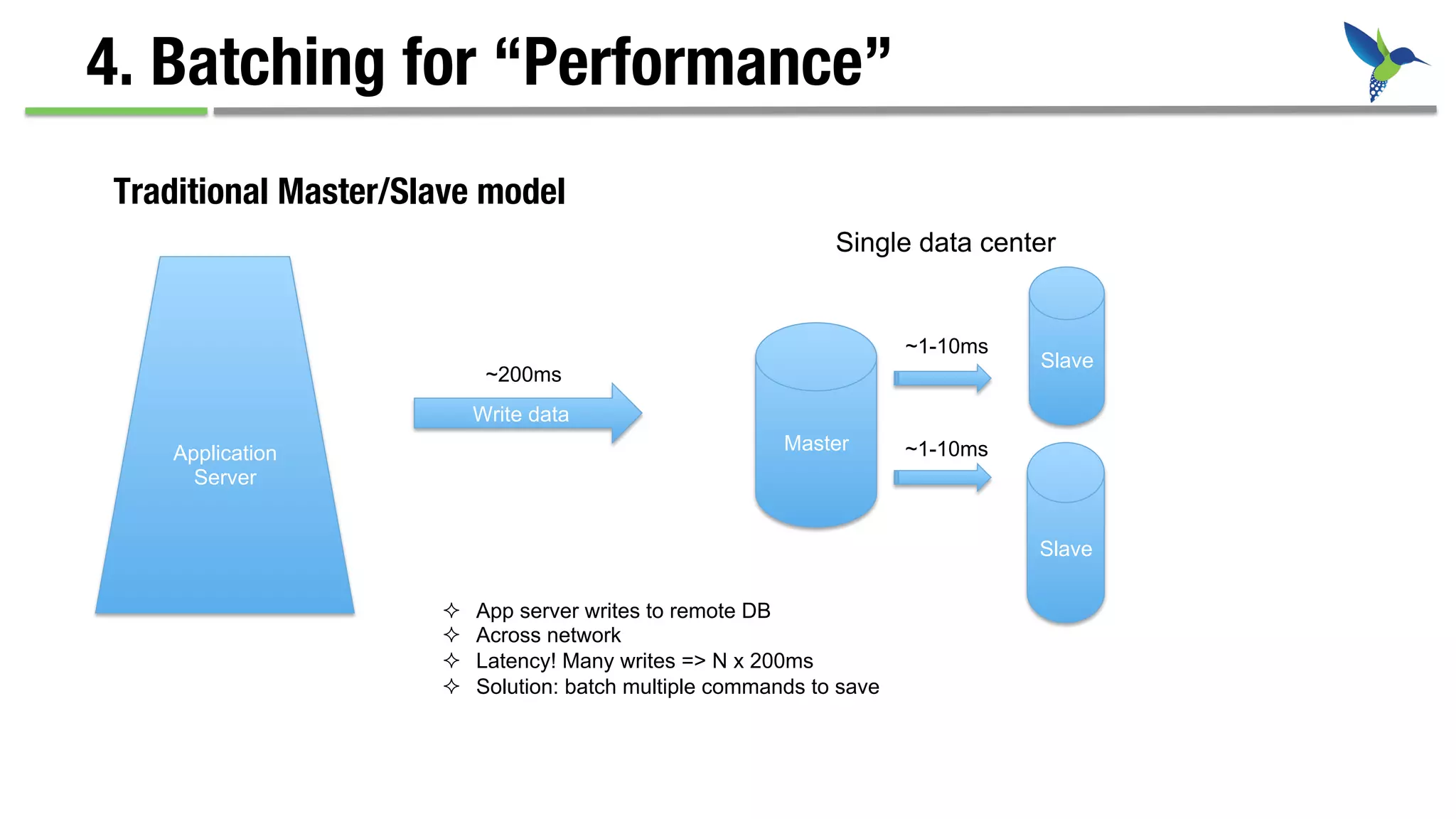

- 27. 4. Batching for“Performance” Slave Master Slave Application Server Traditional Master/Slave model Write data ² App server writes to remote DB ² Across network ² Latency! Many writes => N x 200ms ² Solution: batch multiple commands to save ~200ms ~1-10ms ~1-10ms Single data center

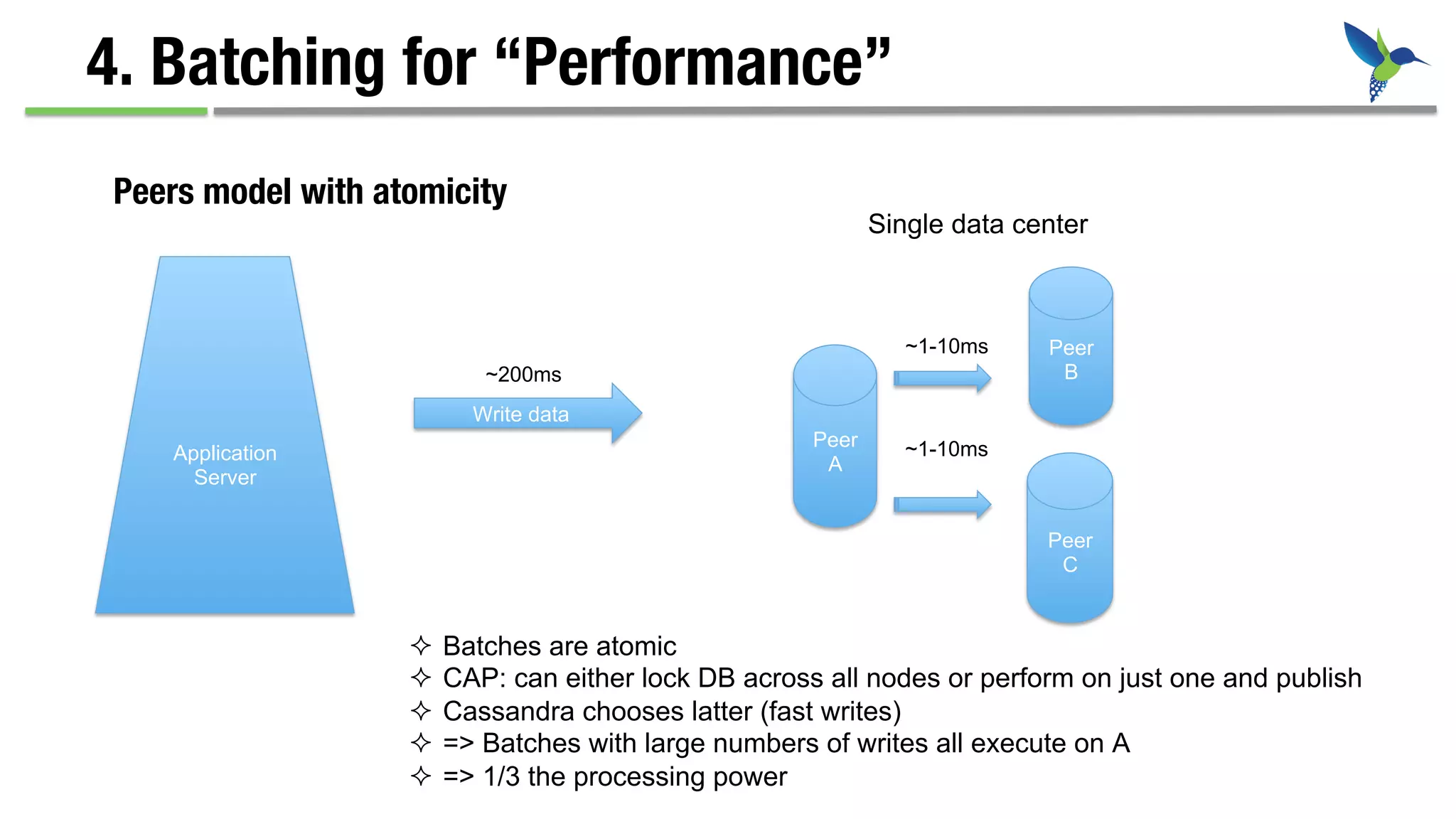

- 28. 4. Batching for“Performance” Peer B Peer A Peer C Application Server Peers model with atomicity Write data ² Batches are atomic ² CAP: can either lock DB across all nodes or perform on just one and publish ² Cassandra chooses latter (fast writes) ² => Batches with large numbers of writes all execute on A ² => 1/3 the processing power ~200ms ~1-10ms ~1-10ms Single data center

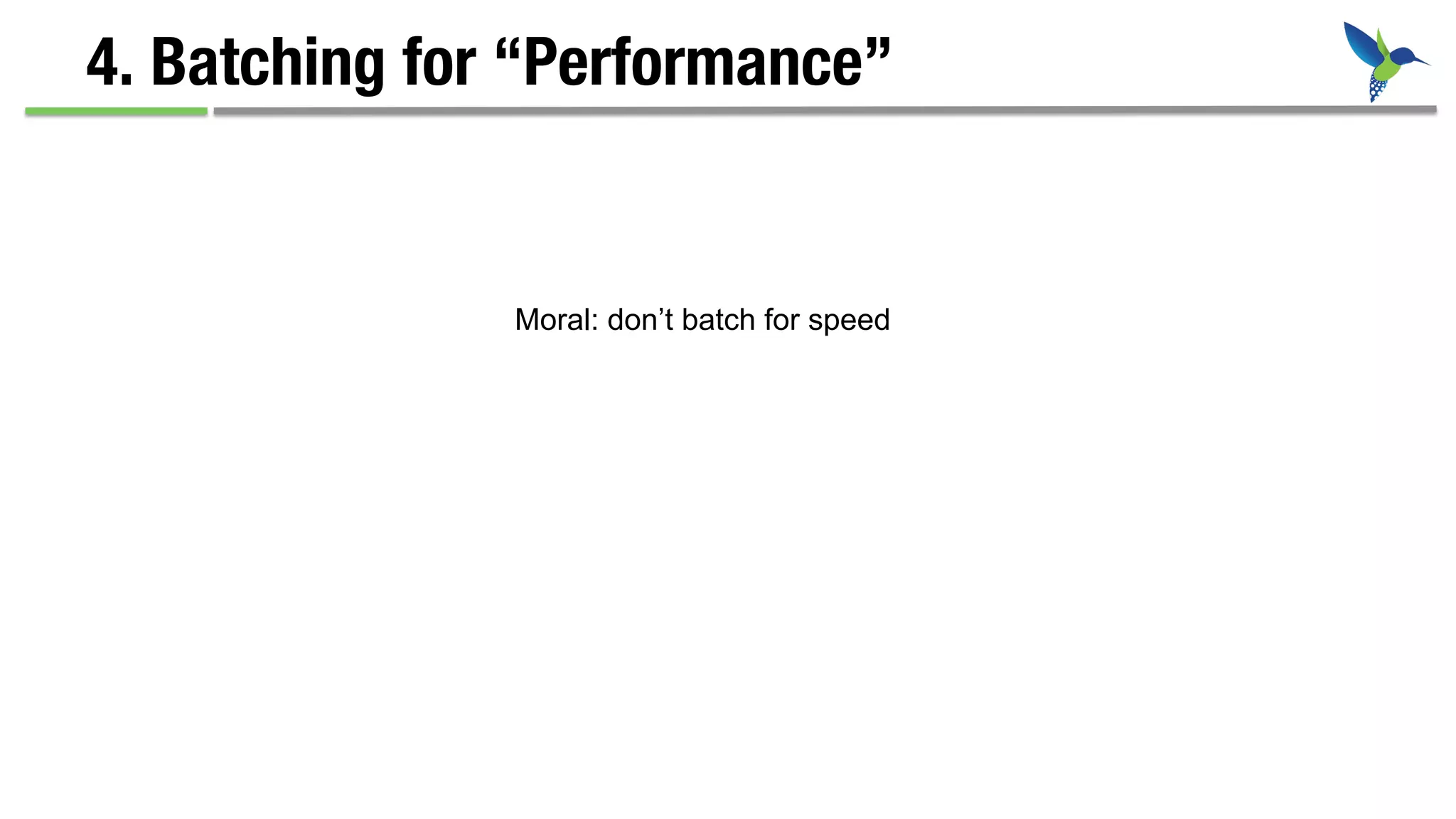

- 29. 4. Batching for“Performance” Moral: don’t batch for speed

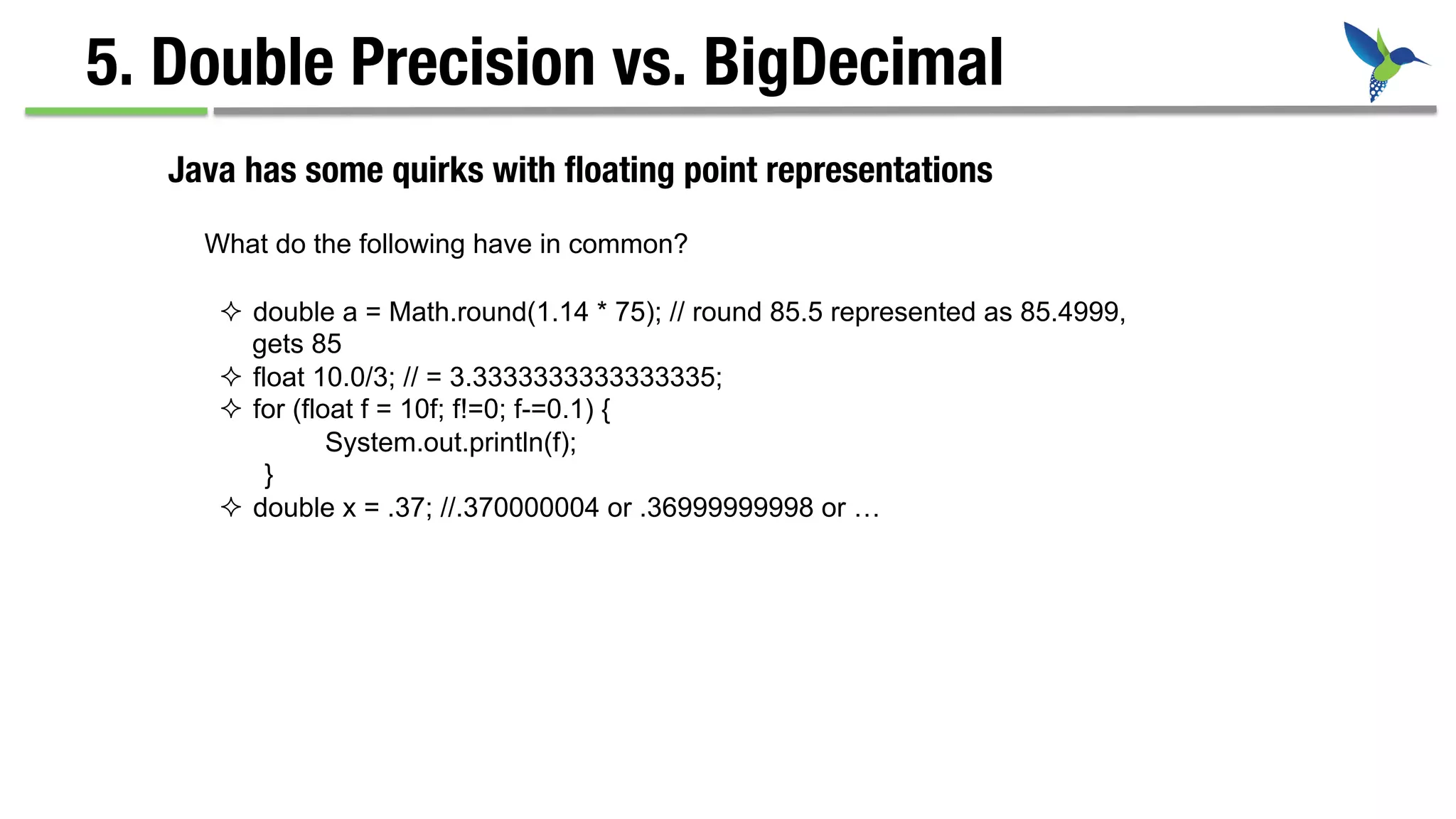

- 30. 5. Double Precisionvs. BigDecimal ² double a = Math.round(1.14 * 75); // round 85.5 represented as 85.4999, gets 85 ² float 10.0/3; // = 3.3333333333333335; ² for (float f = 10f; f!=0; f-=0.1) { System.out.println(f); } ² double x = .37; //.370000004 or .36999999998 or … Java has some quirks with floating point representations What do the following have in common?

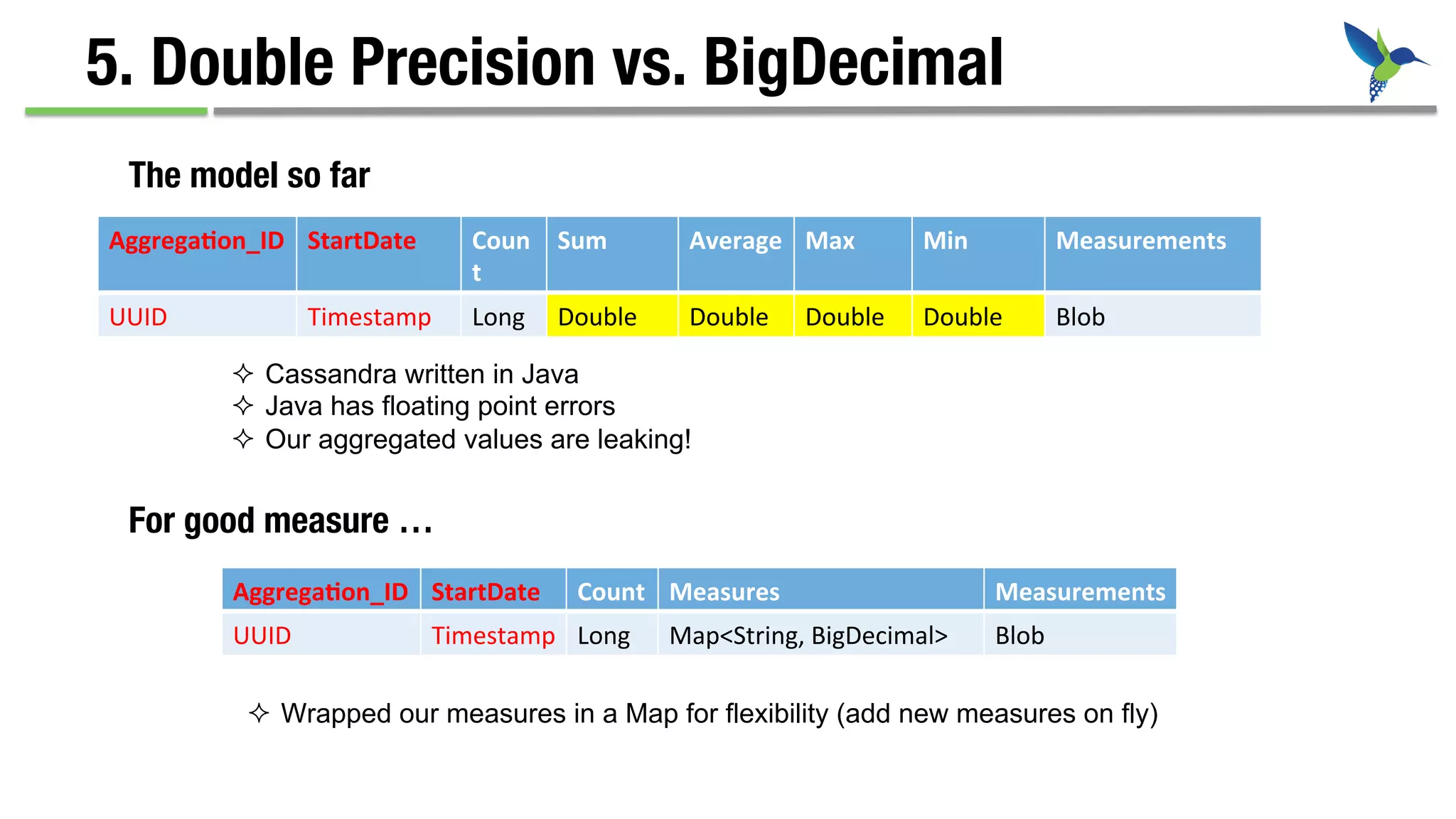

- 31. 5. Double Precisionvs. BigDecimal The model so far Aggrega&on_ID StartDate Coun t Sum Average Max Min Measurements UUID Timestamp Long Double Double Double Double Blob ² Cassandra written in Java ² Java has floating point errors ² Our aggregated values are leaking! Aggrega&on_ID StartDate Count Measures Measurements UUID Timestamp Long Map<String, BigDecimal> Blob For good measure … ² Wrapped our measures in a Map for flexibility (add new measures on fly)

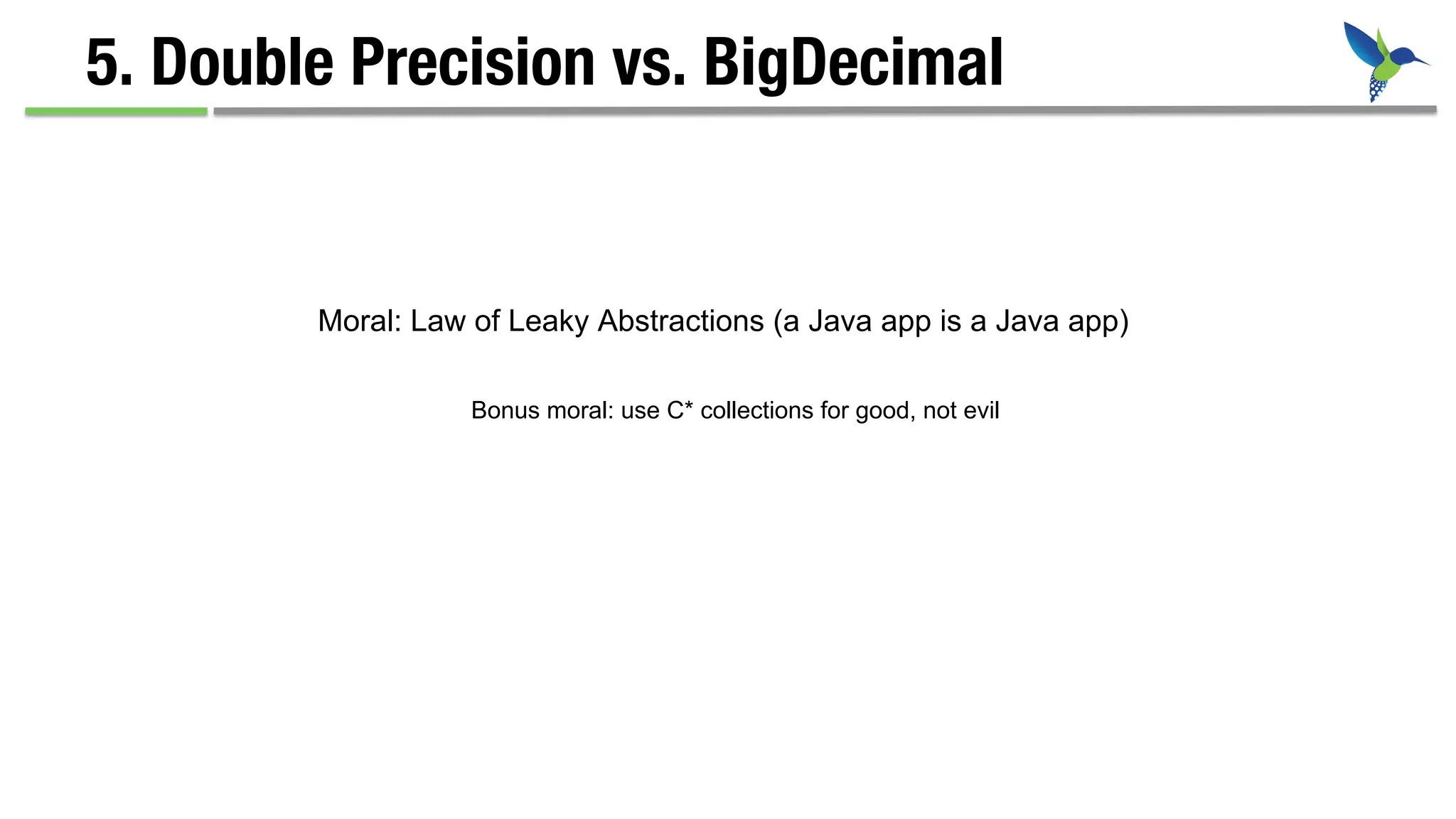

- 32. 5. Double Precisionvs. BigDecimal Moral: Law of Leaky Abstractions (a Java app is a Java app) Bonus moral: use C* collections for good, not evil

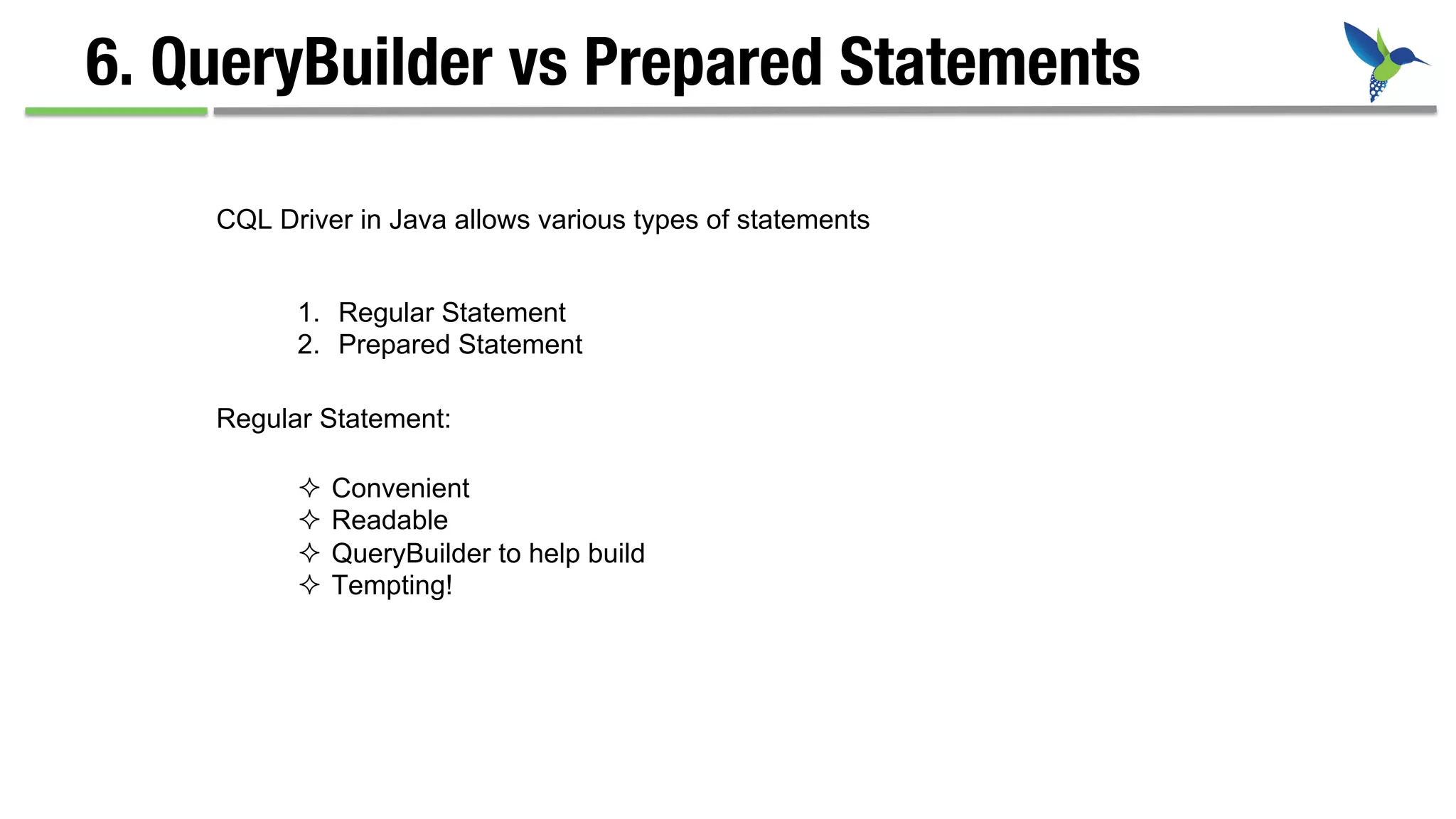

- 33. 6. QueryBuilder vsPrepared Statements CQL Driver in Java allows various types of statements 1. Regular Statement 2. Prepared Statement Regular Statement: ² Convenient ² Readable ² QueryBuilder to help build ² Tempting!

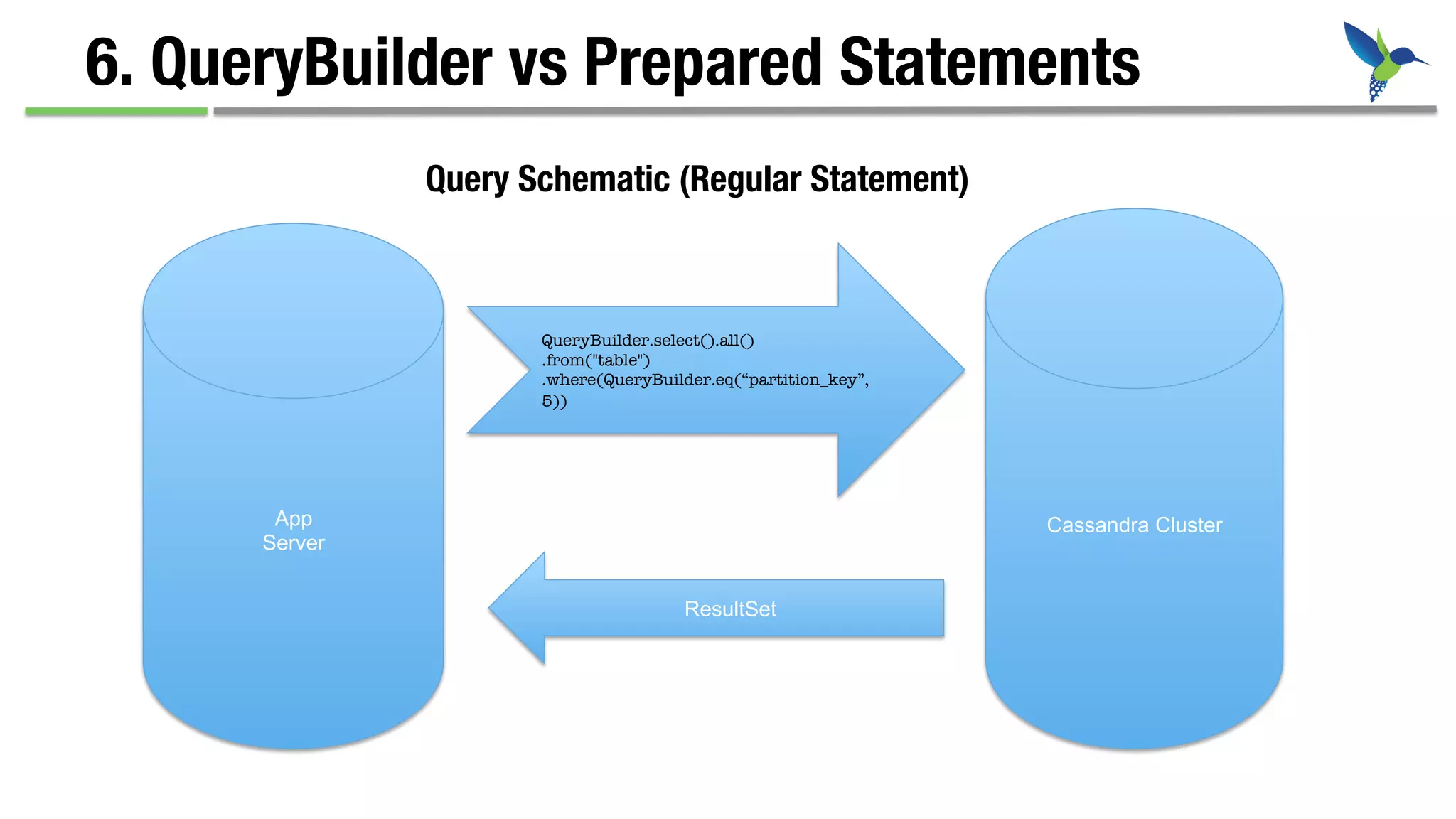

- 34. 6. QueryBuilder vsPrepared Statements QueryBuilder.select().all() .from("table") .where(QueryBuilder.eq(“partition_key”, 5)) App Server Cassandra Cluster Query Schematic (Regular Statement) ResultSet

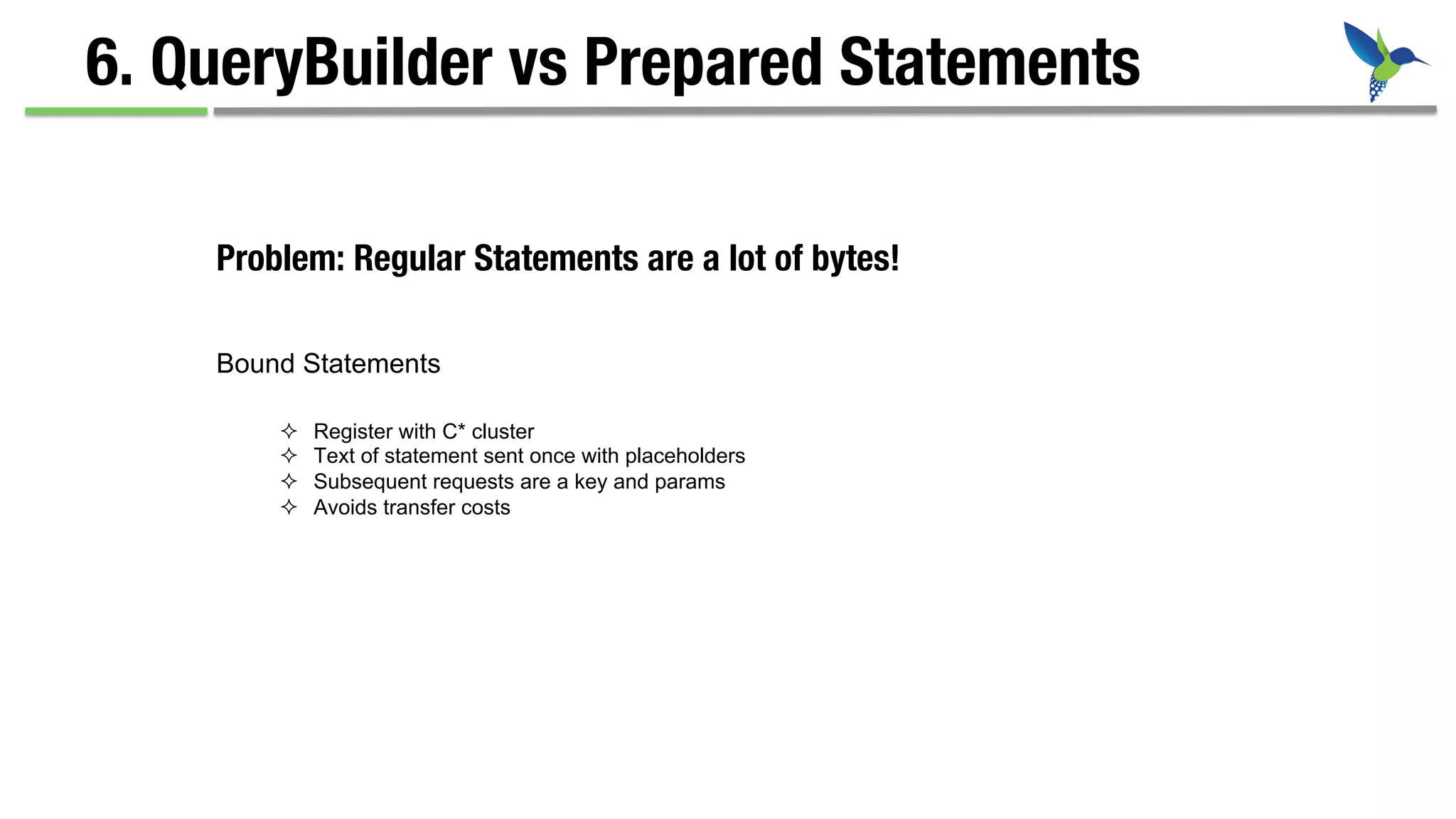

- 35. 6. QueryBuilder vsPrepared Statements Problem: Regular Statements are a lot of bytes! Bound Statements ² Register with C* cluster ² Text of statement sent once with placeholders ² Subsequent requests are a key and params ² Avoids transfer costs

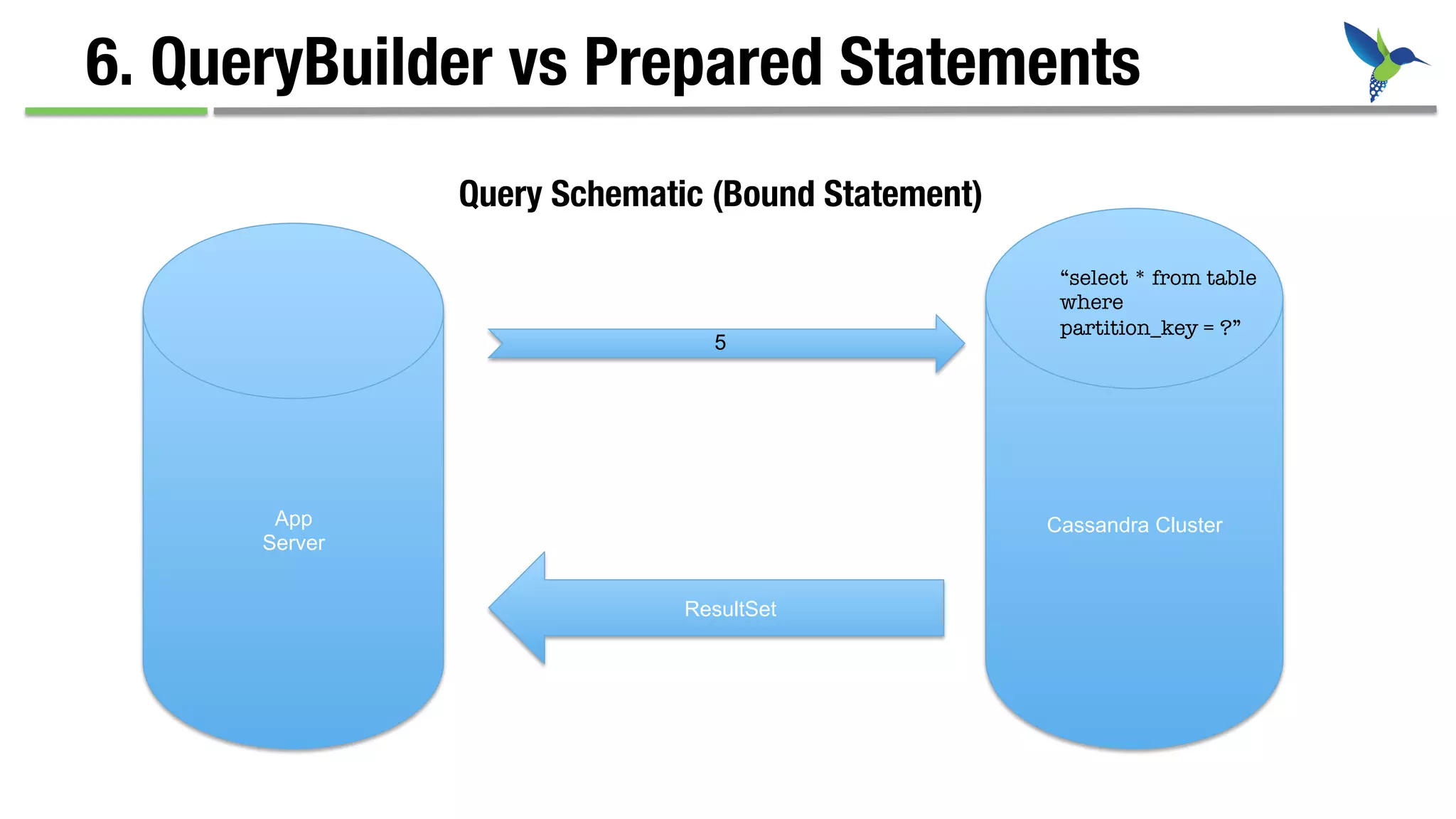

- 36. 6. QueryBuilder vsPrepared Statements App Server Cassandra Cluster Query Schematic (Bound Statement) ResultSet “select * from table where partition_key = ?” 5

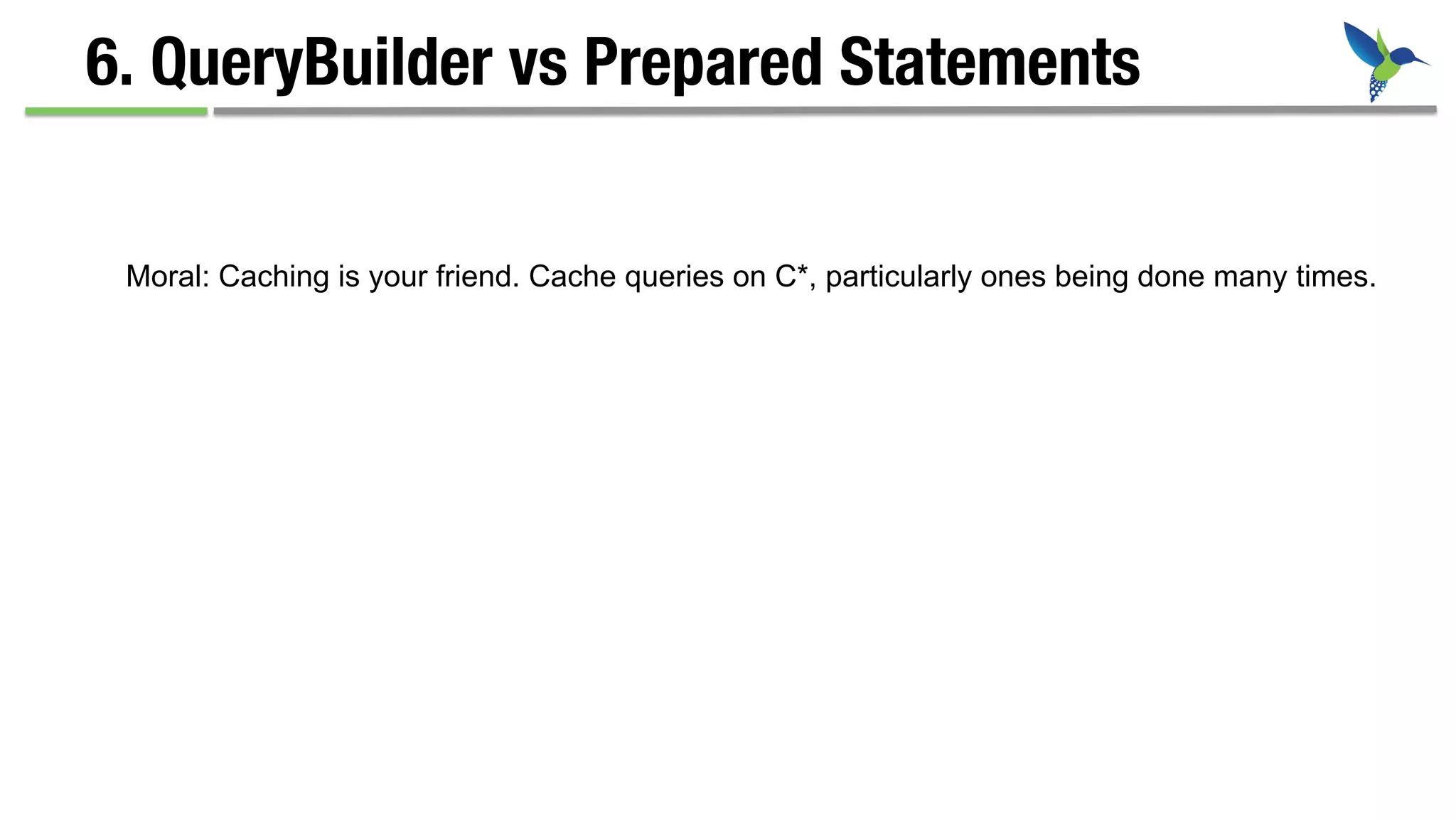

- 37. 6. QueryBuilder vsPrepared Statements Moral: Caching is your friend. Cache queries on C*, particularly ones being done many times.

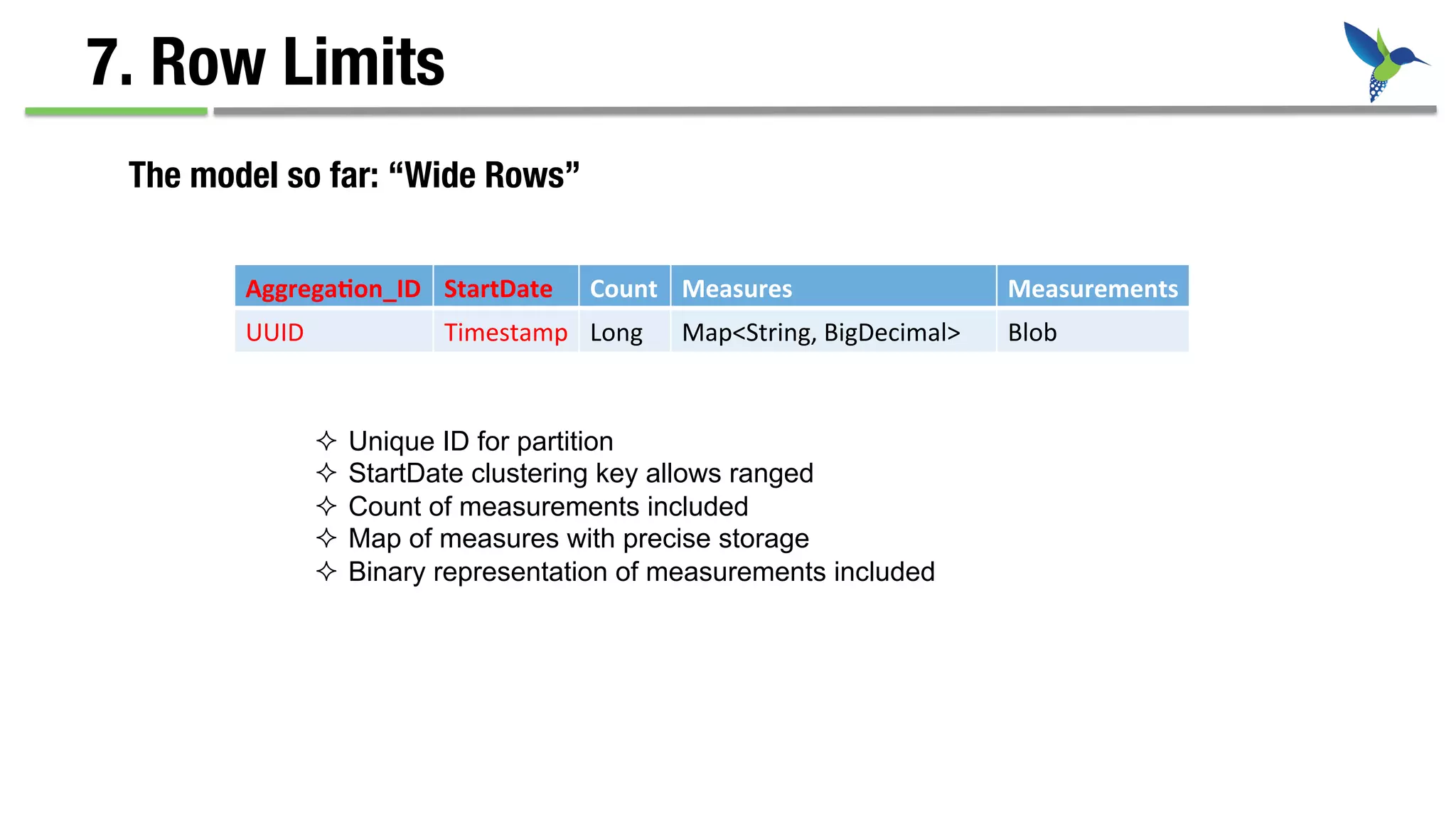

- 38. 7. Row Limits Themodel so far: “Wide Rows” ² Unique ID for partition ² StartDate clustering key allows ranged ² Count of measurements included ² Map of measures with precise storage ² Binary representation of measurements included Aggrega&on_ID StartDate Count Measures Measurements UUID Timestamp Long Map<String, BigDecimal> Blob

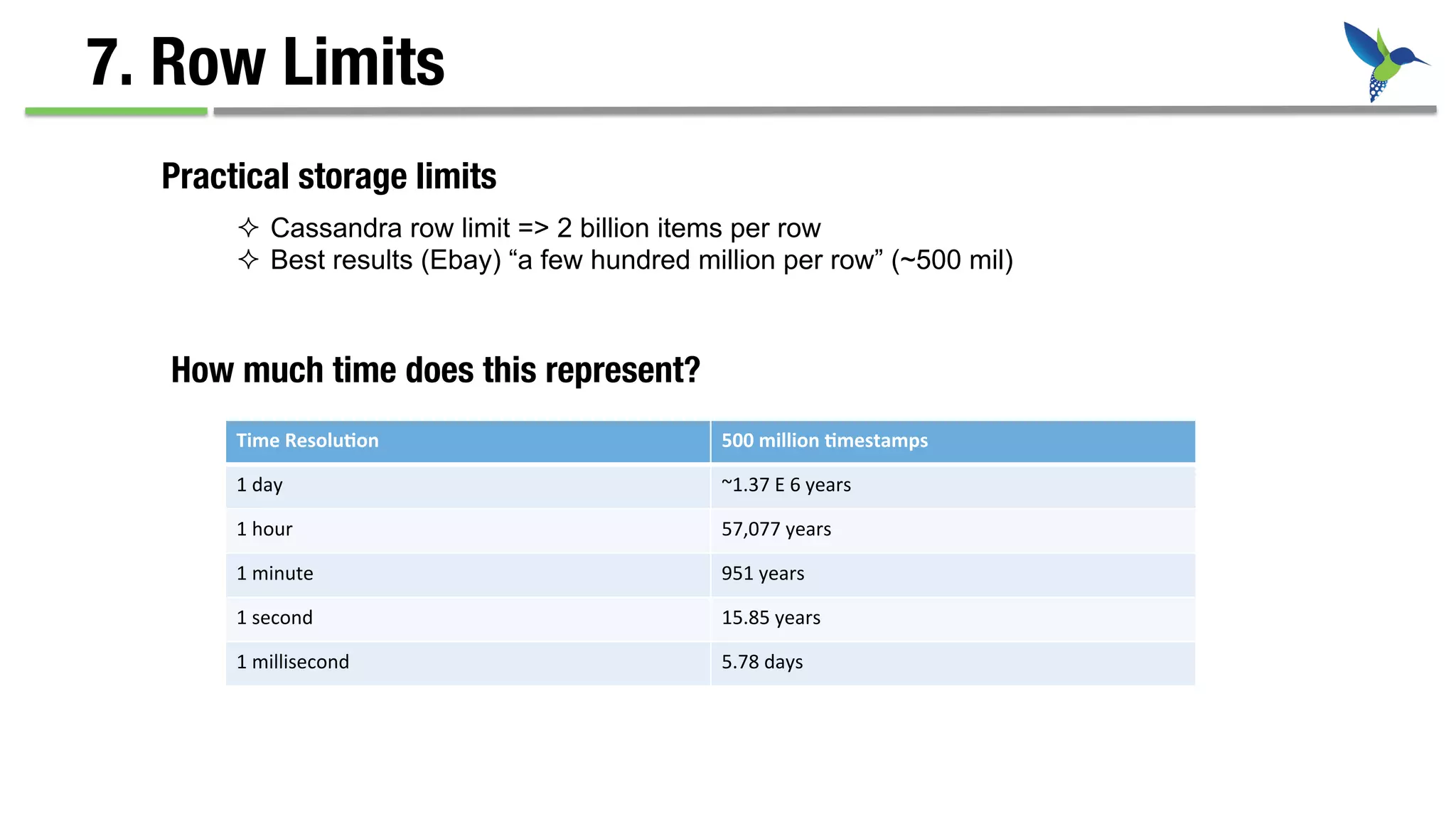

- 39. 7. Row Limits ² Cassandra row limit => 2 billion items per row ² Best results (Ebay) “a few hundred million per row” (~500 mil) Practical storage limits How much time does this represent? Time Resolu&on 500 million &mestamps 1 day ~1.37 E 6 years 1 hour 57,077 years 1 minute 951 years 1 second 15.85 years 1 millisecond 5.78 days

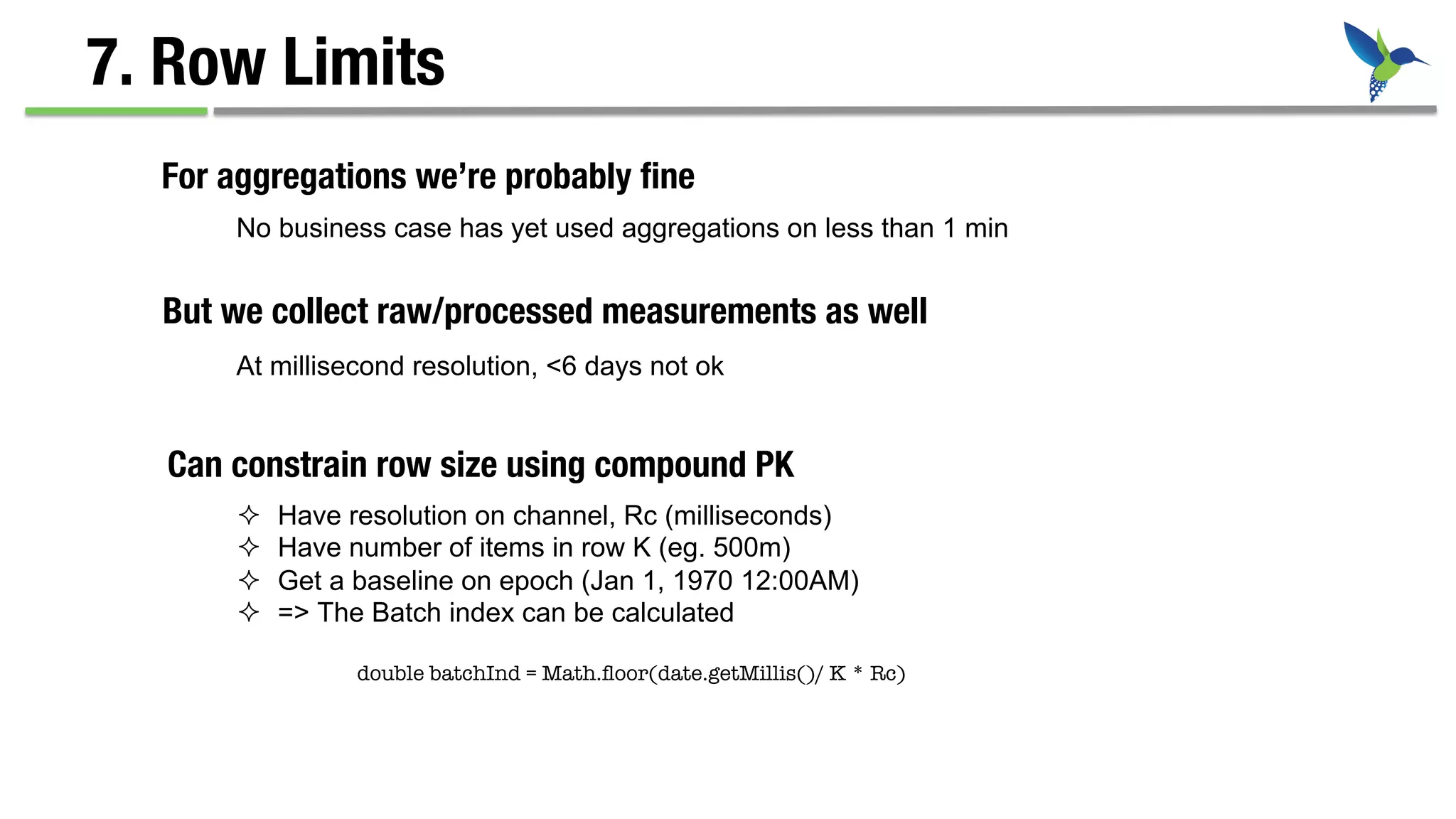

- 40. 7. Row Limits Nobusiness case has yet used aggregations on less than 1 min For aggregations we’re probably fine But we collect raw/processed measurements as well At millisecond resolution, <6 days not ok Can constrain row size using compound PK ² Have resolution on channel, Rc (milliseconds) ² Have number of items in row K (eg. 500m) ² Get a baseline on epoch (Jan 1, 1970 12:00AM) ² => The Batch index can be calculated double batchInd = Math.floor(date.getMillis()/ K * Rc)

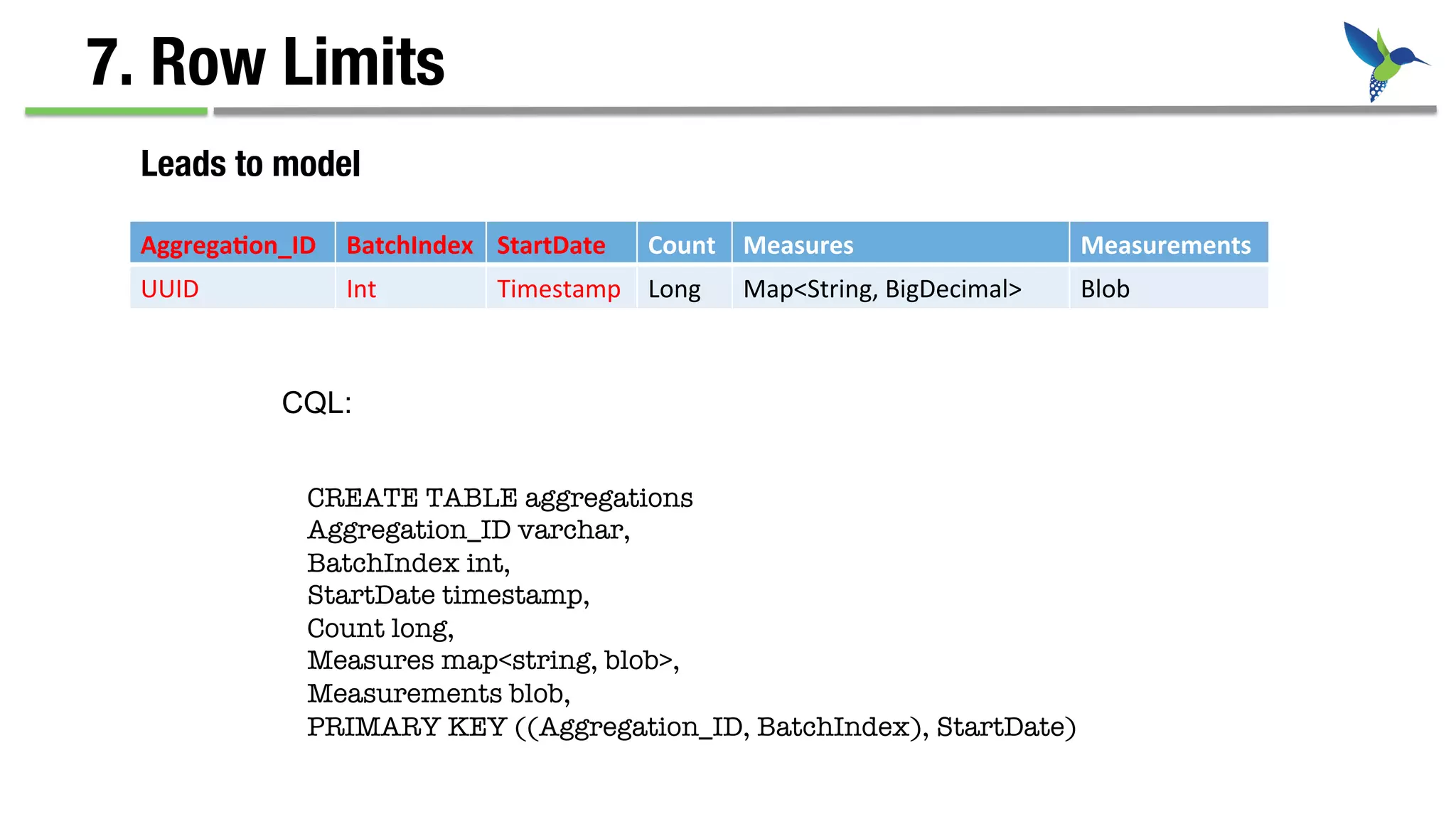

- 41. 7. Row Limits Leadsto model Aggrega&on_ID BatchIndex StartDate Count Measures Measurements UUID Int Timestamp Long Map<String, BigDecimal> Blob CREATE TABLE aggregations Aggregation_ID varchar, BatchIndex int, StartDate timestamp, Count long, Measures map<string, blob>, Measurements blob, PRIMARY KEY ((Aggregation_ID, BatchIndex), StartDate) CQL:
- 42. 7. Row Limits Moral:Haven’t we had enough morals for one story?

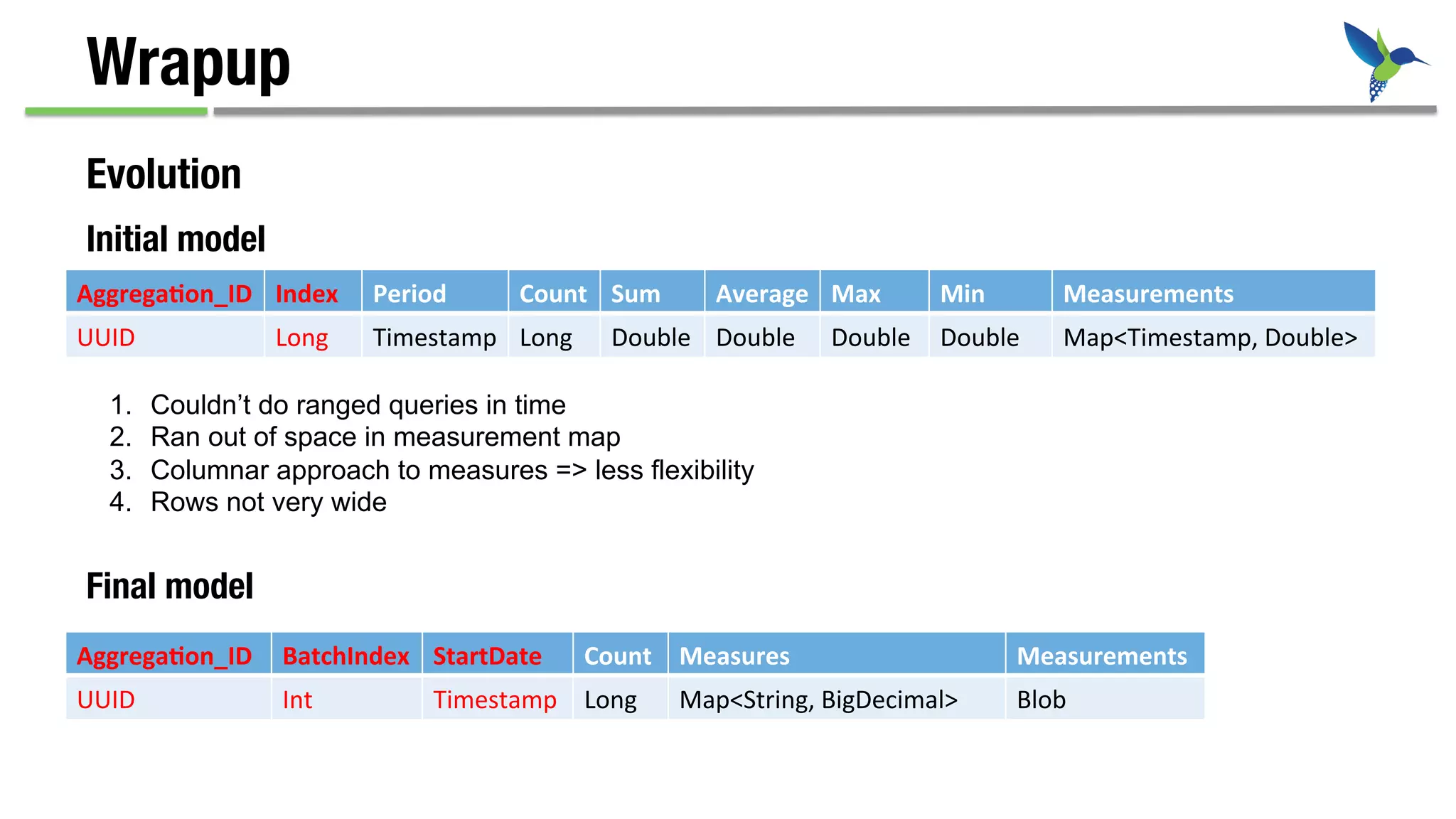

- 43. Wrapup Aggrega&on_ID Index Period Count Sum Average Max Min Measurements UUID Long Timestamp Long Double Double Double Double Map<Timestamp, Double> Final model Initial model Aggrega&on_ID BatchIndex StartDate Count Measures Measurements UUID Int Timestamp Long Map<String, BigDecimal> Blob 1. Couldn’t do ranged queries in time 2. Ran out of space in measurement map 3. Columnar approach to measures => less flexibility 4. Rows not very wide Evolution

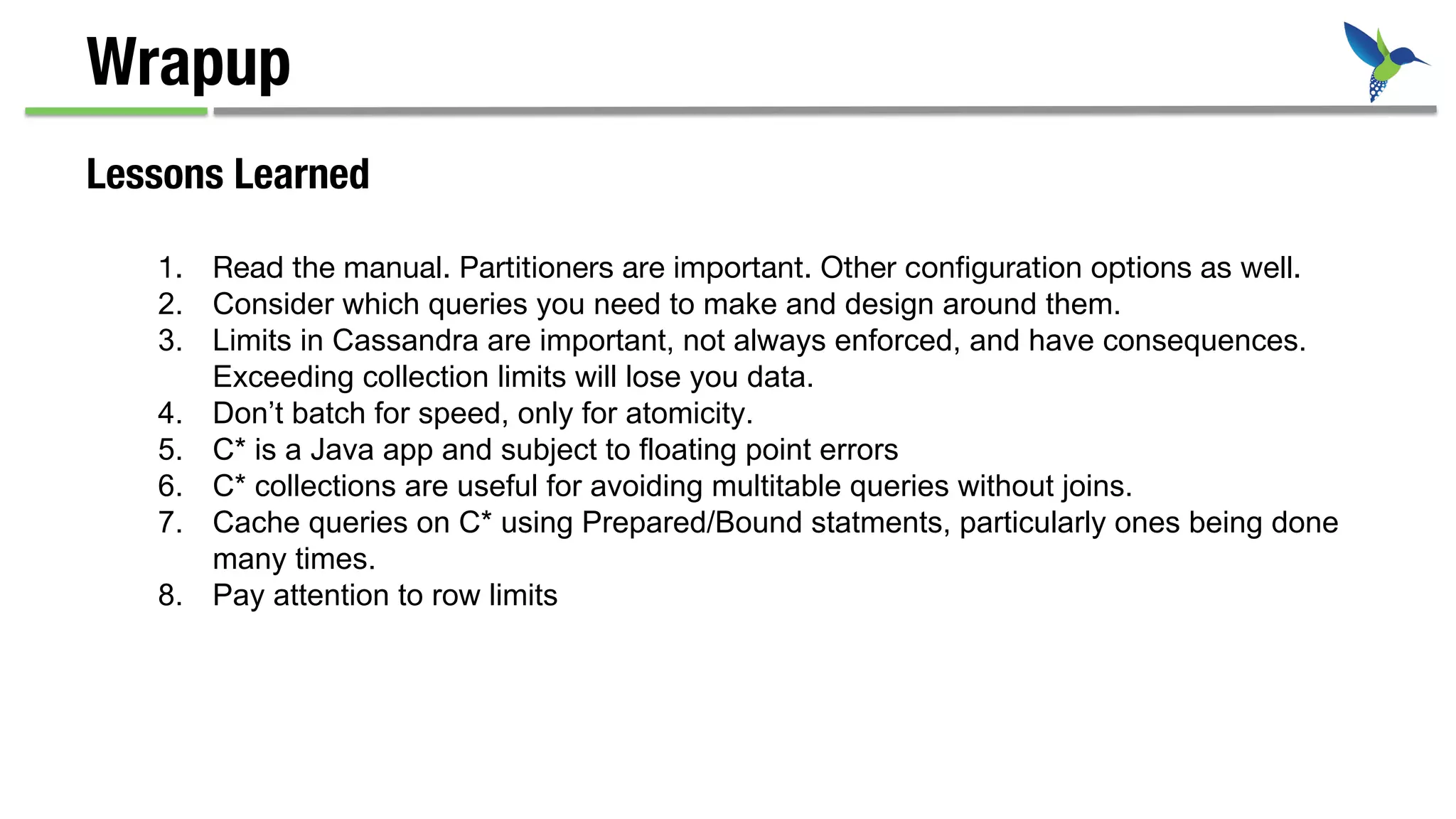

- 44. Wrapup Lessons Learned 1. Readthe manual. Partitioners are important. Other configuration options as well. 2. Consider which queries you need to make and design around them. 3. Limits in Cassandra are important, not always enforced, and have consequences. Exceeding collection limits will lose you data. 4. Don’t batch for speed, only for atomicity. 5. C* is a Java app and subject to floating point errors 6. C* collections are useful for avoiding multitable queries without joins. 7. Cache queries on C* using Prepared/Bound statments, particularly ones being done many times. 8. Pay attention to row limits
- 45. Wrapup By understanding Cassandra(& how she differs from SQL), we avoid our servers (our business) meeting this fate. Sorry Brad.
