Apache TinkerPop is an open source graph computing framework, which centralizes around the Gremlin graph traversal language. It provides a number of libraries and utilities that help simplify the development of graph-related applications. Apache TinkerPop has always provided a vendor-agnostic way to work with different graph databases, like Titan and Neo4j, but now, under TinkerPop3, provides similar capabilities for scalable computation frameworks, like Hadoop and Spark. TinkerPop3 introduces many reinvented concepts from earlier versions of the TinkerPop stack and provides new capabilities that together will require those familiar with TinkerPop to adjust their thinking and those new to the ecosystem to be aware of the important features it presents. This talk will provide an overview of "what's new" in TinkerPop3 and provide detail on the Gremlin query language and supporting utilities, like Gremlin Console and Gremlin Server, which help support analysis and application development.

1. What’s New in Apache TinkerPop?
Open Source Graph Computing Framework
http://tinkerpop.incubator.apache.org/
Stephen Mallette - @spmallette
© 2015. All Rights Reserved.

2. © 2015. All Rights Reserved.

3. By Andrea Mann from London, United Kingdom (Flickr Uploaded by Hohum) [CC BY 2.0 (http:
//creativecommons.org/licenses/by/2.0)], via Wikimedia Commons
© 2015. All Rights Reserved.

4. © 2015. All Rights Reserved.

5. Georgius Agricola, De re metallica 1556
© 2015. All Rights Reserved.

6. “Woman at spinning wheel with man carding” Smithfield Decretals (British Library, Royal 10 E. IV, fol. 147v), c. 1340“Carding, Spinning and Weaving” by Giovanni Boccaccio
from De claris mulieribus 15th Century
© 2015. All Rights Reserved.

7. London, British Library, Royal 18 E.iii (15th century) [Public domain], via Wikimedia Commons
© 2015. All Rights Reserved.

8. [Public domain], via Wikimedia Commons
© 2015. All Rights Reserved.

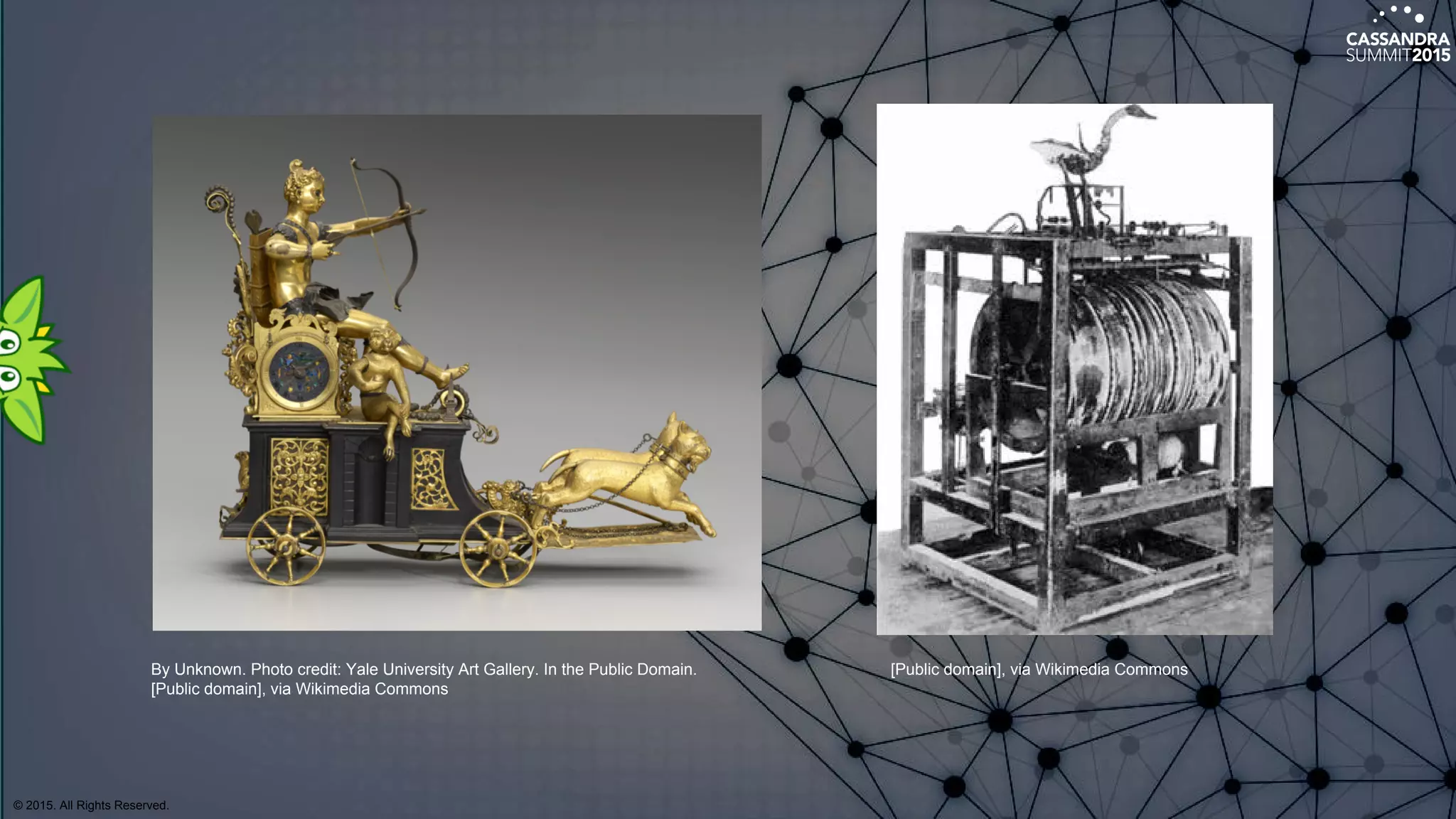

9. By Unknown. Photo credit: Yale University Art Gallery. In the Public Domain.
[Public domain], via Wikimedia Commons
[Public domain], via Wikimedia Commons
© 2015. All Rights Reserved.

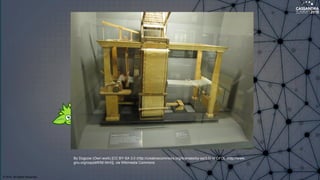

10. By Dogcow (Own work) [CC BY-SA 3.0 (http://creativecommons.org/licenses/by-sa/3.0) or GFDL (http://www.
gnu.org/copyleft/fdl.html)], via Wikimedia Commons
© 2015. All Rights Reserved.

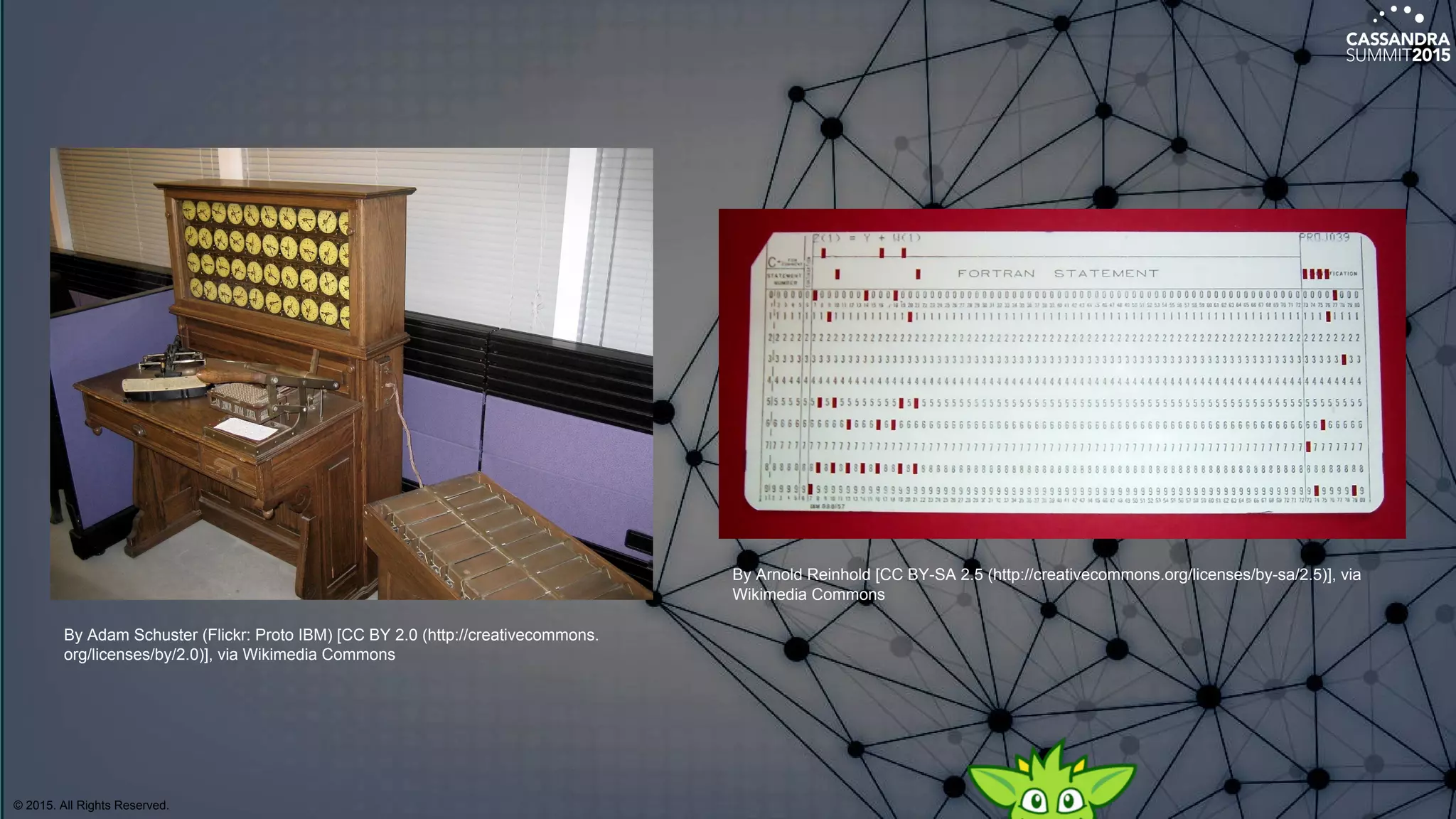

11. By Adam Schuster (Flickr: Proto IBM) [CC BY 2.0 (http://creativecommons.
org/licenses/by/2.0)], via Wikimedia Commons
By Arnold Reinhold [CC BY-SA 2.5 (http://creativecommons.org/licenses/by-sa/2.5)], via
Wikimedia Commons
© 2015. All Rights Reserved.

12. © 2015. All Rights Reserved.

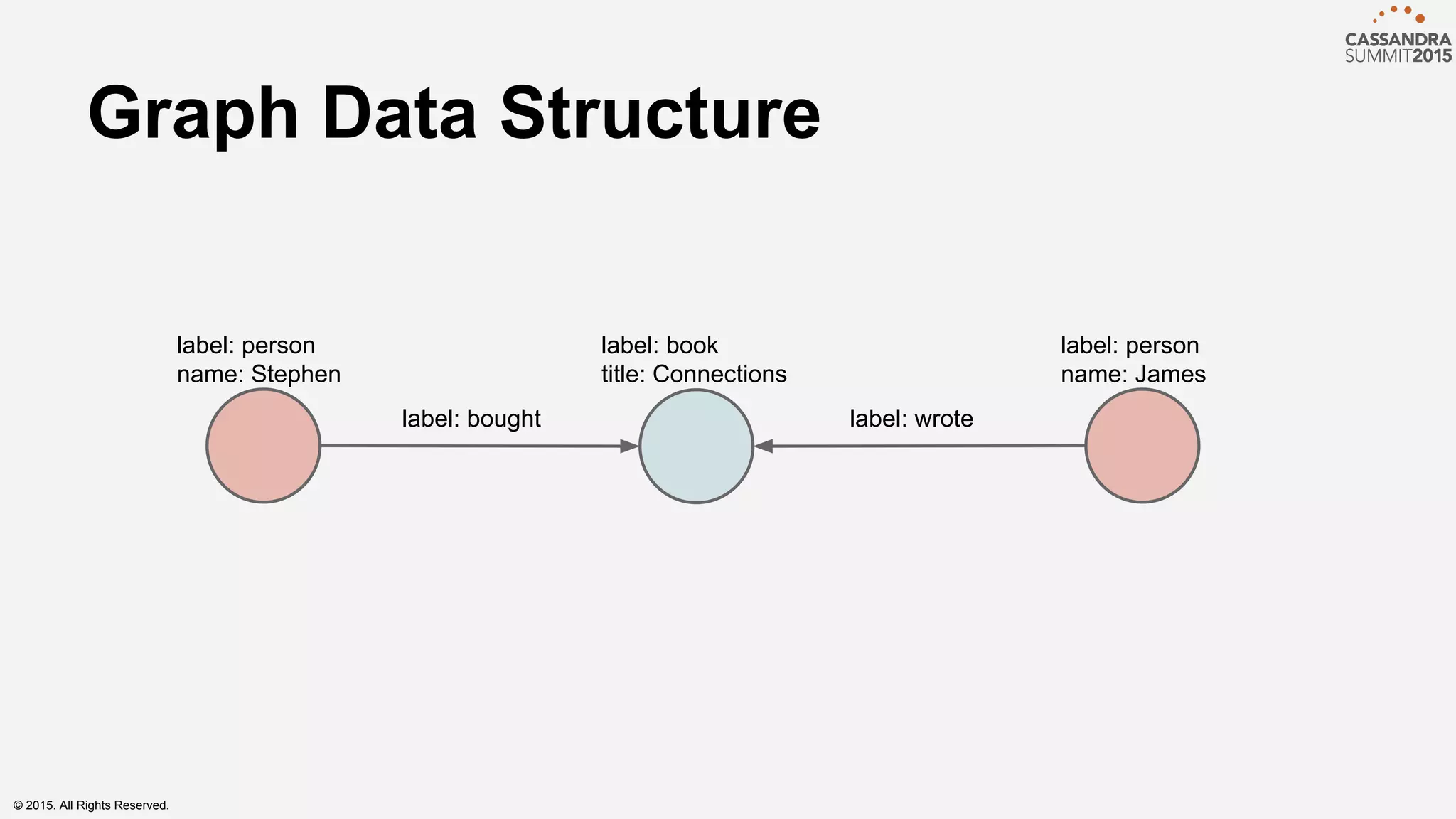

13. label: person
name: Stephen
label: book
title: Connections
label: person
name: James
label: bought label: wrote
Graph Data Structure
© 2015. All Rights Reserved.

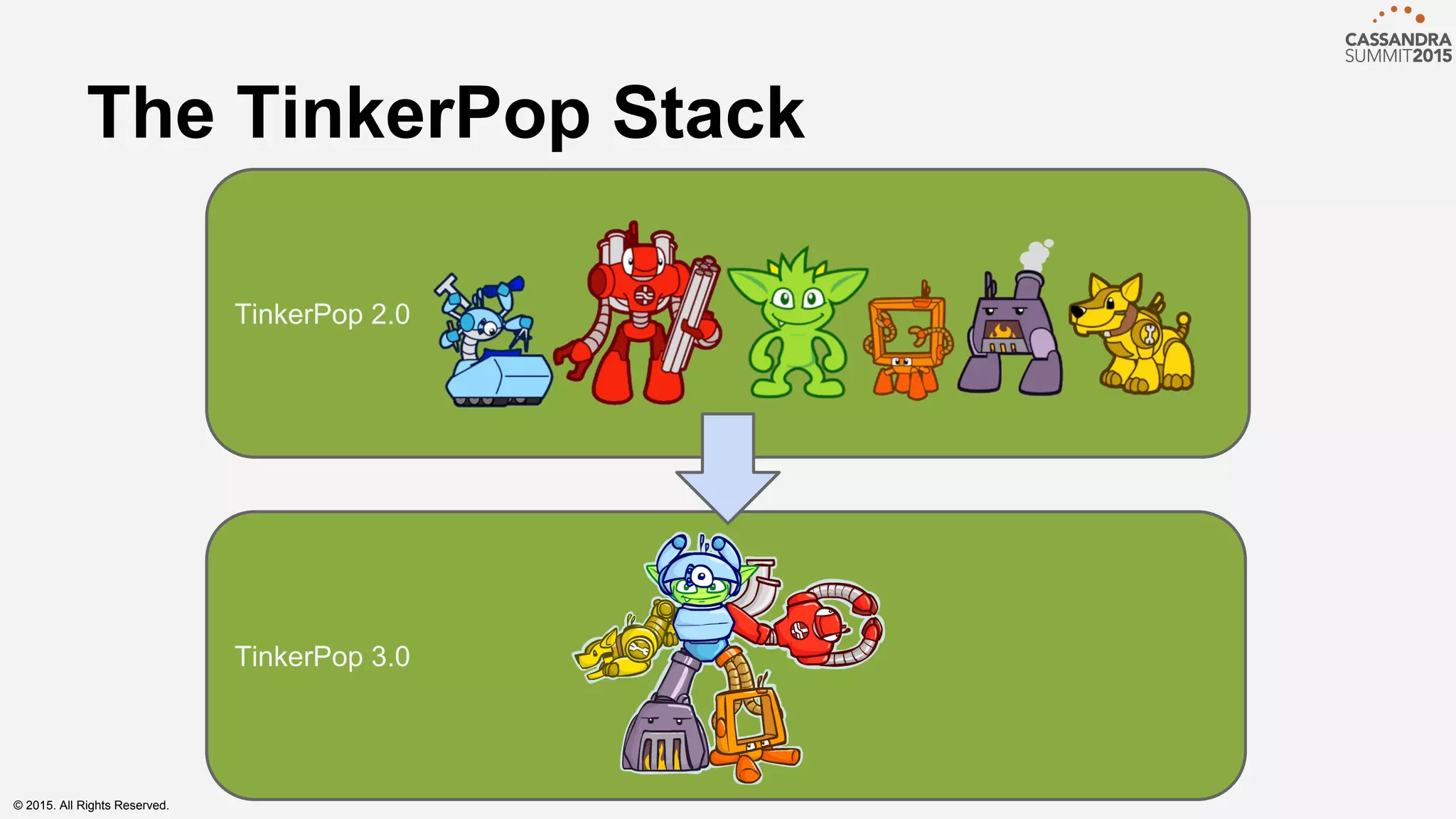

14. TinkerPop 2.0
TinkerPop 3.0
The TinkerPop Stack
© 2015. All Rights Reserved.

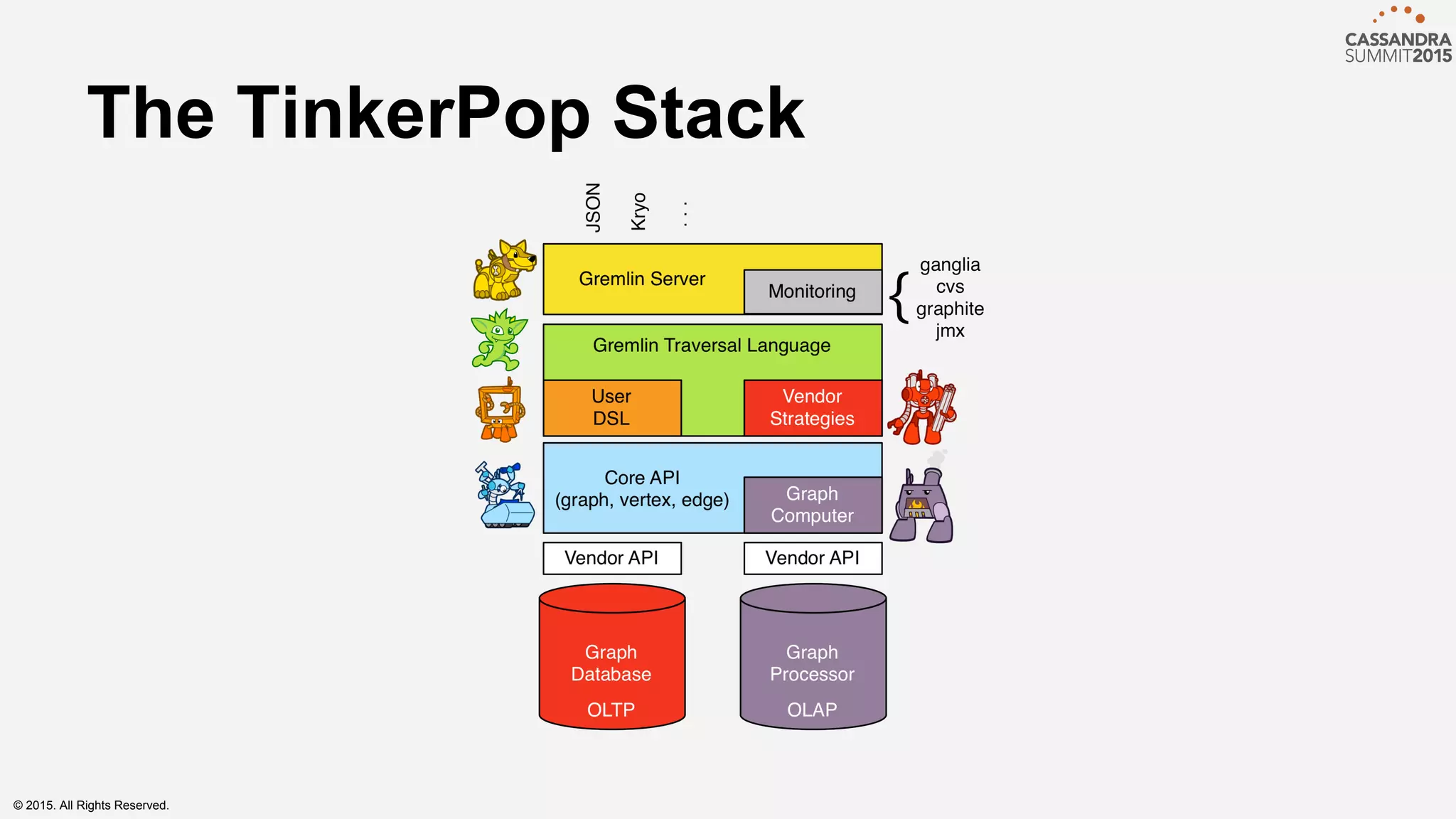

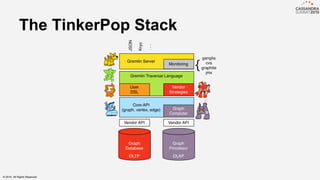

15. The TinkerPop Stack
© 2015. All Rights Reserved.

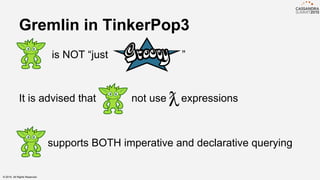

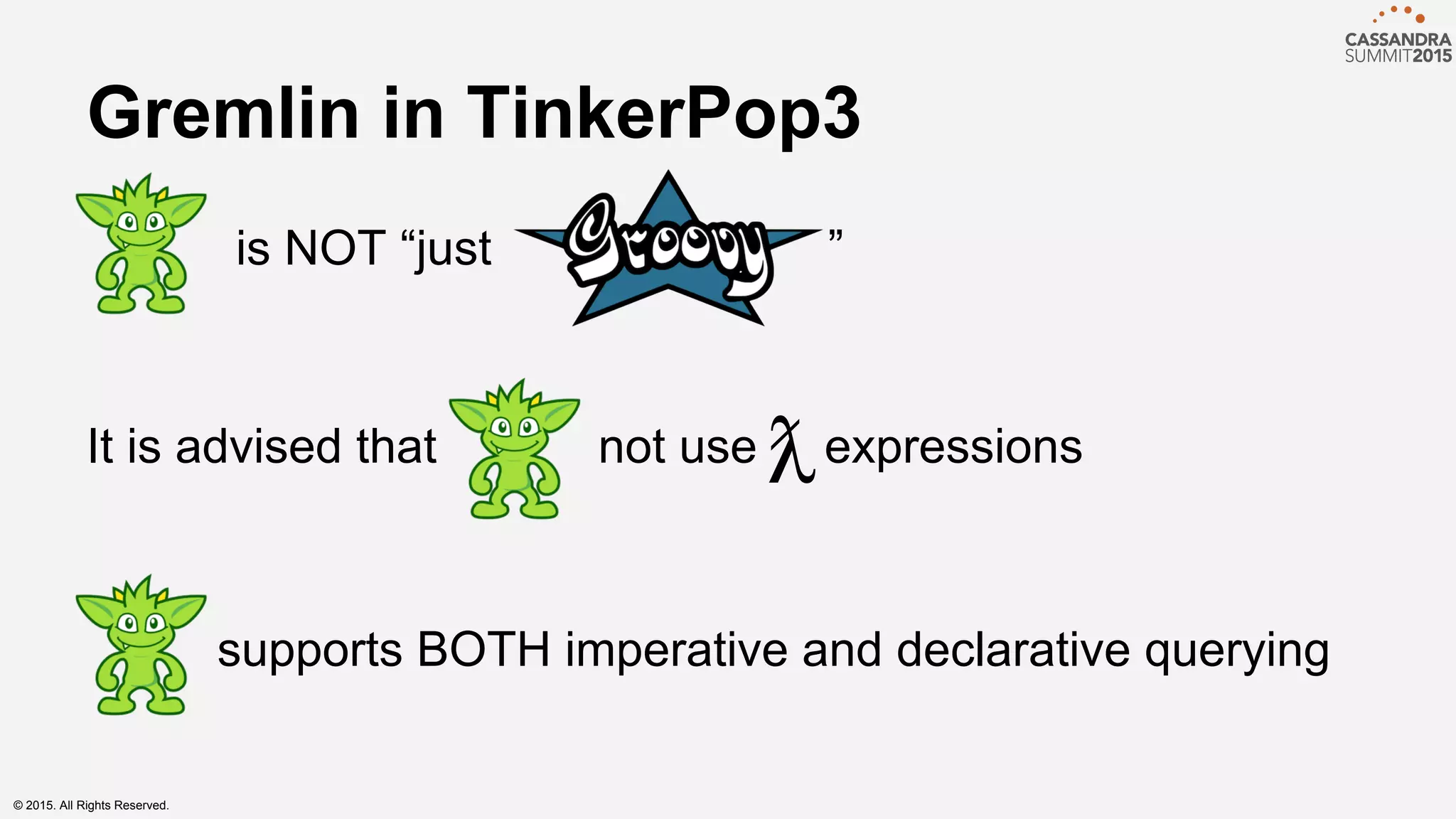

16. Gremlin in TinkerPop3
is NOT “just ”
It is advised that not use expressionsƛ
supports BOTH imperative and declarative querying
© 2015. All Rights Reserved.

17. $ bin/gremlin.sh
,,,/
(o o)
-----oOOo-(3)-oOOo-----
plugin activated: tinkerpop.server
plugin activated: tinkerpop.utilities
plugin activated: tinkerpop.tinkergraph
gremlin>
© 2015. All Rights Reserved.

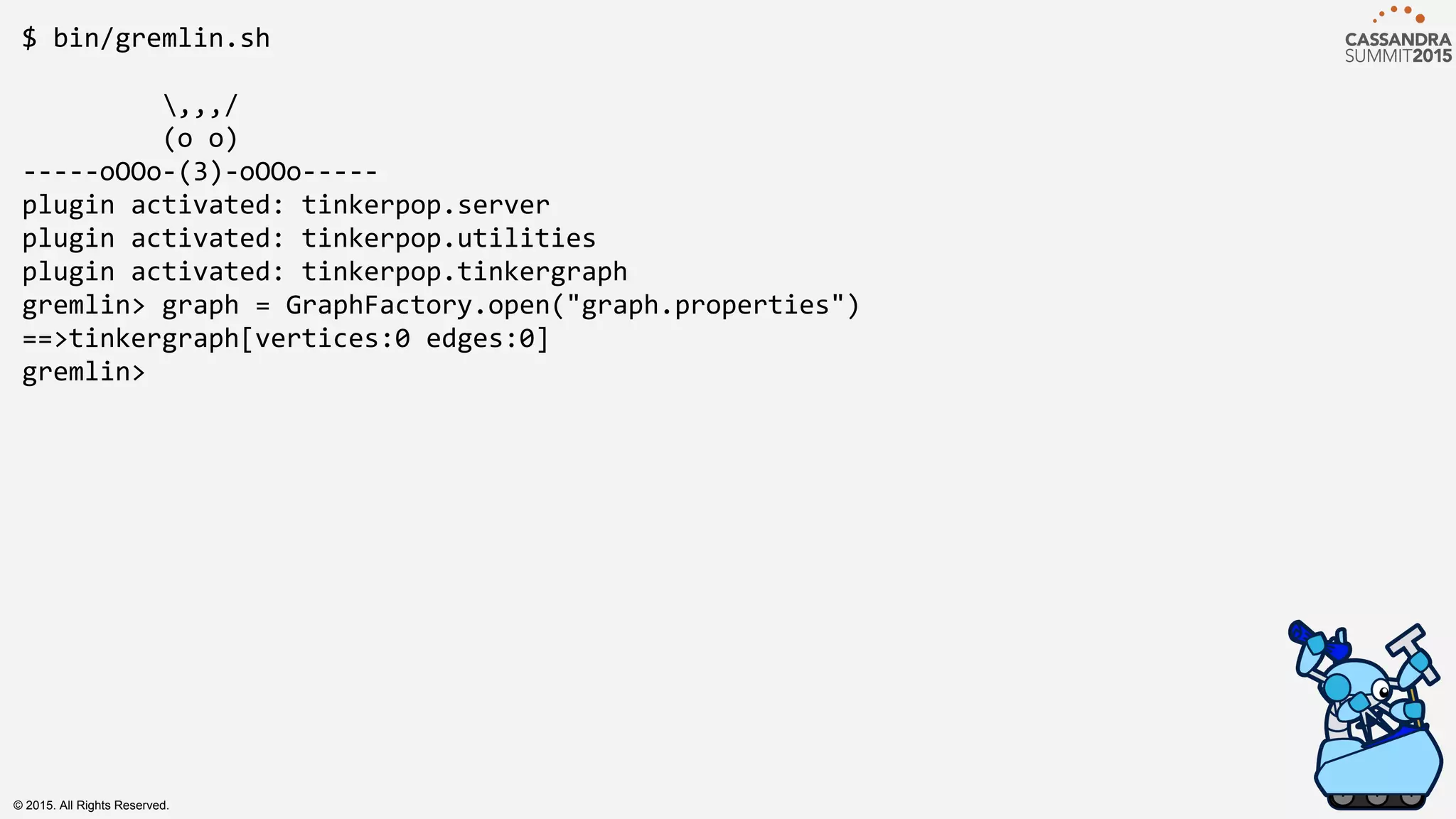

18. $ bin/gremlin.sh
,,,/
(o o)
-----oOOo-(3)-oOOo-----
plugin activated: tinkerpop.server
plugin activated: tinkerpop.utilities
plugin activated: tinkerpop.tinkergraph
gremlin> graph = GraphFactory.open("graph.properties")
==>tinkergraph[vertices:0 edges:0]
gremlin>
© 2015. All Rights Reserved.

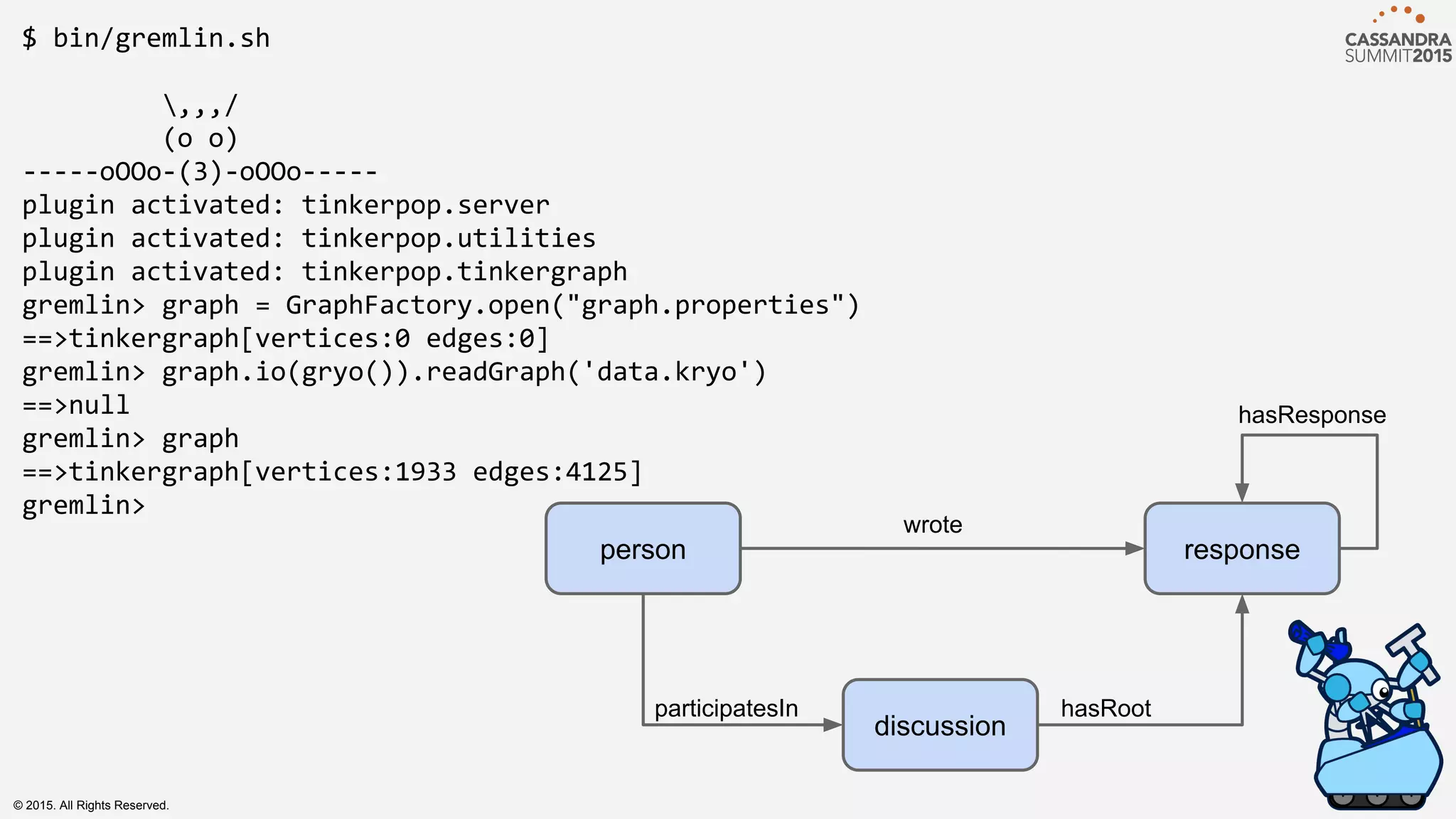

19. $ bin/gremlin.sh
,,,/
(o o)
-----oOOo-(3)-oOOo-----
plugin activated: tinkerpop.server
plugin activated: tinkerpop.utilities
plugin activated: tinkerpop.tinkergraph
gremlin> graph = GraphFactory.open("graph.properties")
==>tinkergraph[vertices:0 edges:0]
gremlin> graph.io(gryo()).readGraph('data.kryo')
==>null
gremlin> graph
==>tinkergraph[vertices:1933 edges:4125]
gremlin>
discussion
wrote
hasResponse
person response
participatesIn hasRoot
© 2015. All Rights Reserved.

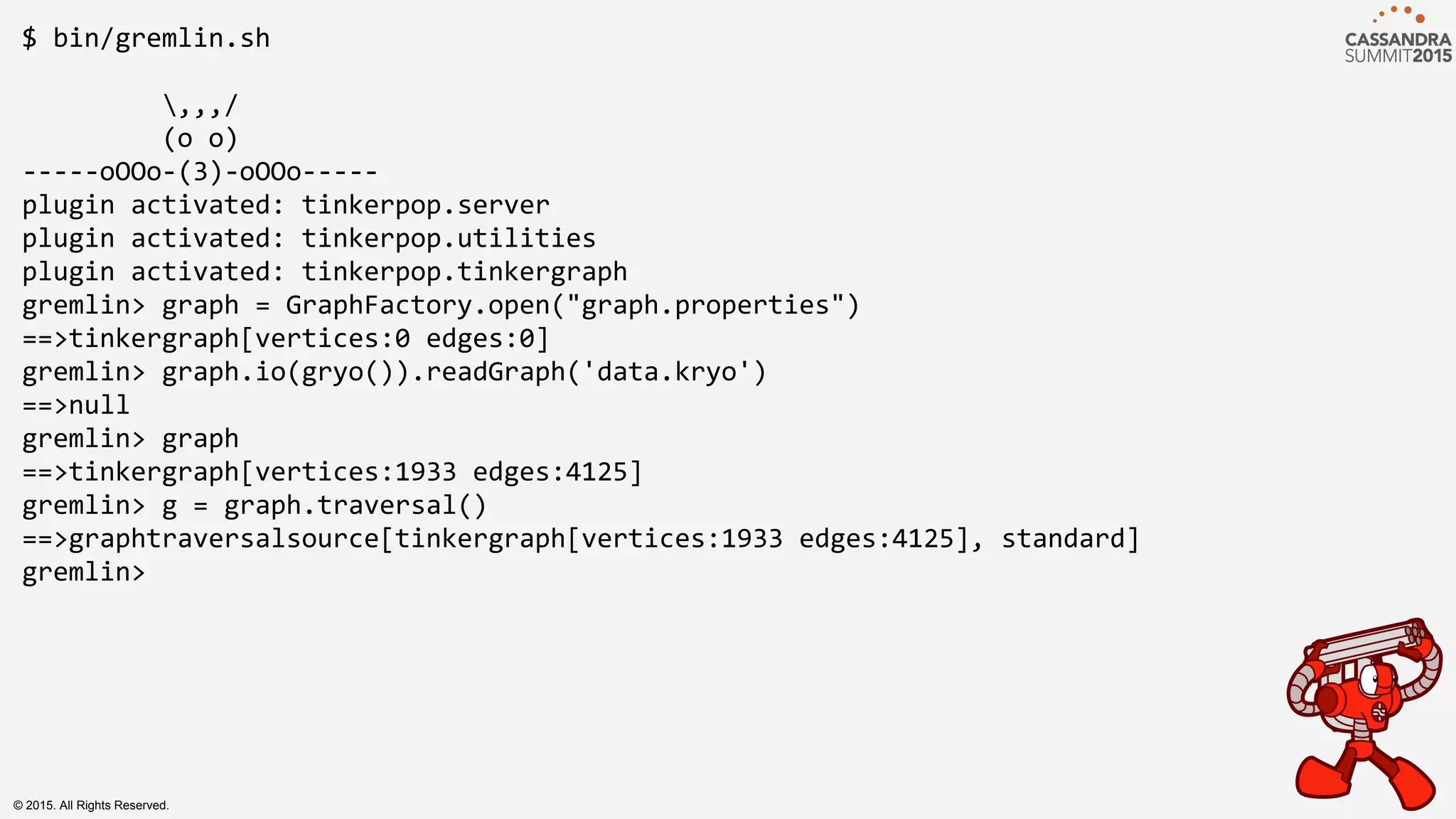

20. $ bin/gremlin.sh
,,,/
(o o)
-----oOOo-(3)-oOOo-----
plugin activated: tinkerpop.server
plugin activated: tinkerpop.utilities
plugin activated: tinkerpop.tinkergraph
gremlin> graph = GraphFactory.open("graph.properties")
==>tinkergraph[vertices:0 edges:0]
gremlin> graph.io(gryo()).readGraph('data.kryo')
==>null
gremlin> graph
==>tinkergraph[vertices:1933 edges:4125]
gremlin> g = graph.traversal()
==>graphtraversalsource[tinkergraph[vertices:1933 edges:4125], standard]
gremlin>
© 2015. All Rights Reserved.

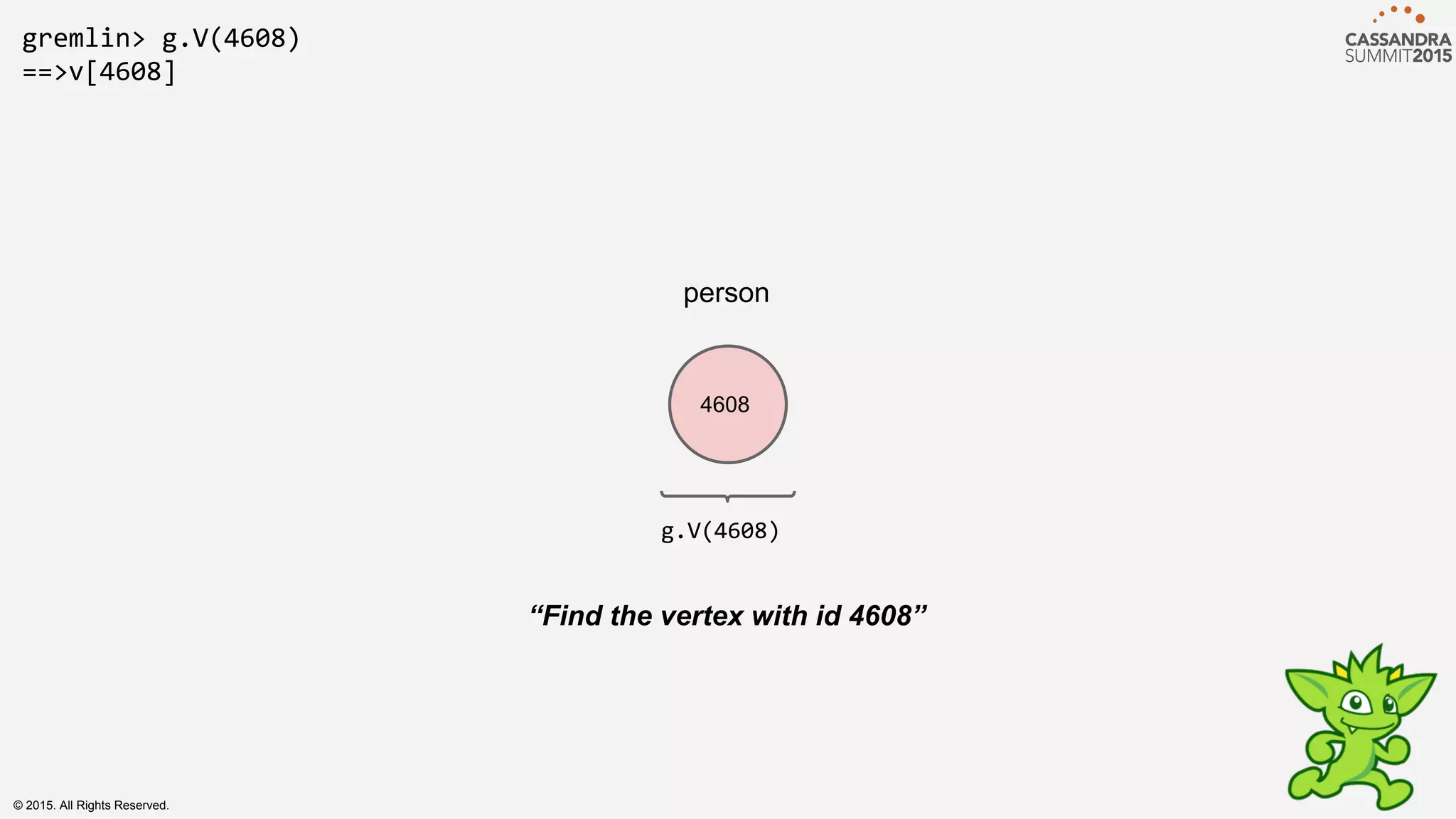

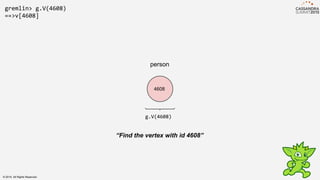

21. gremlin> g.V(4608)
==>v[4608]
4608
person
g.V(4608)
“Find the vertex with id 4608”
© 2015. All Rights Reserved.

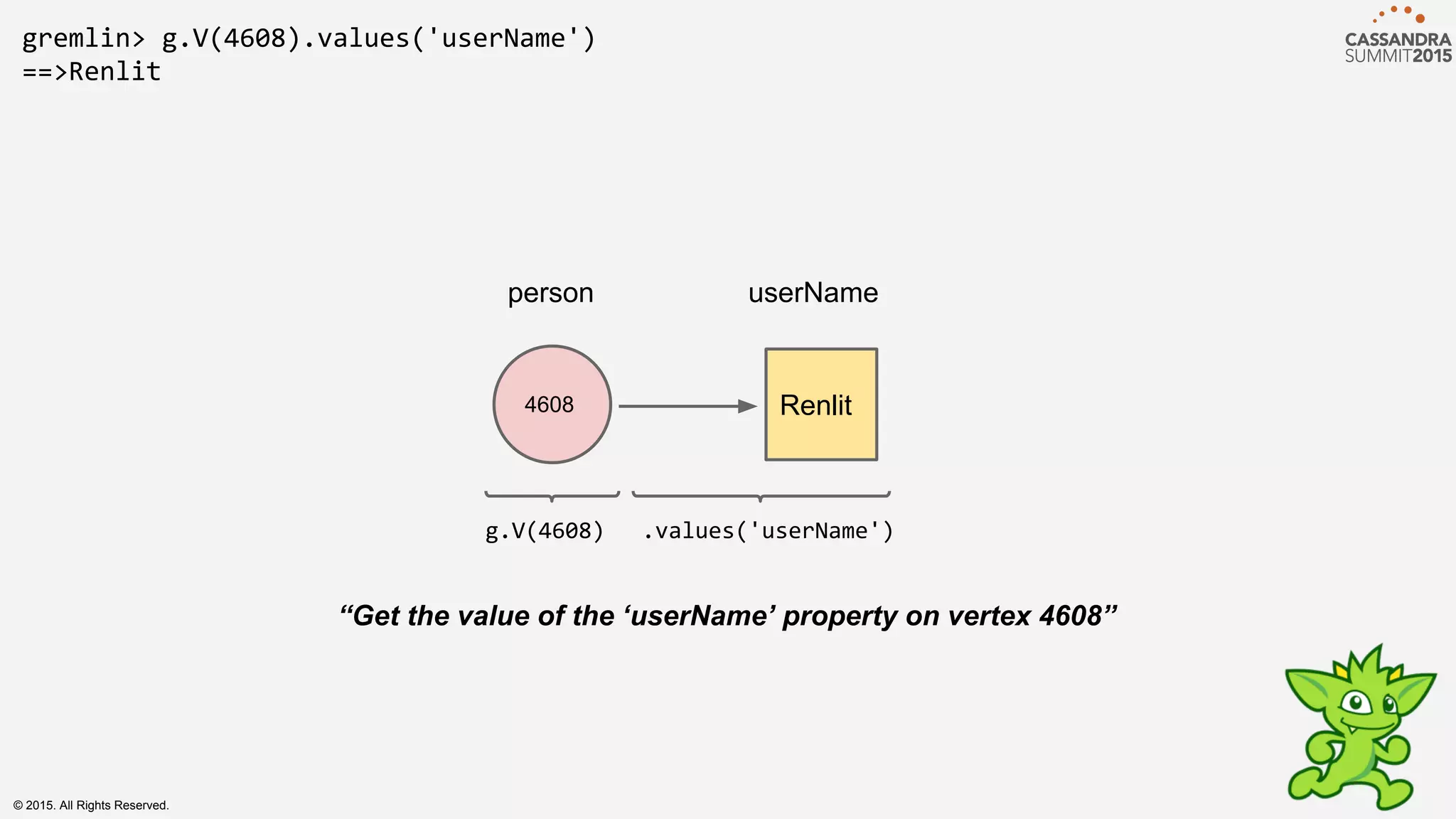

22. gremlin> g.V(4608).values('userName')
==>Renlit
4608
person
g.V(4608)
Renlit
userName
.values('userName')
“Get the value of the ‘userName’ property on vertex 4608”
© 2015. All Rights Reserved.

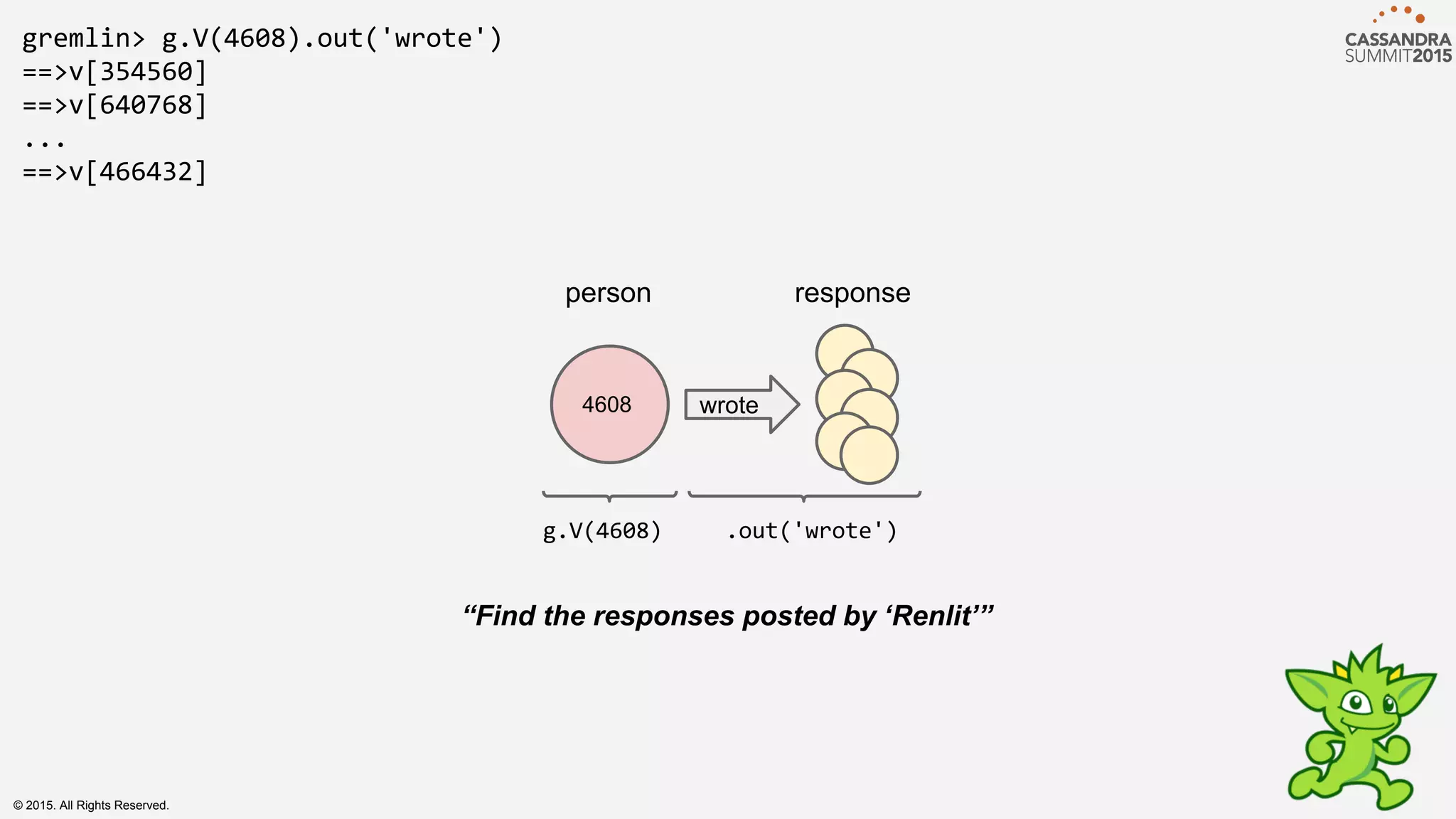

23. gremlin> g.V(4608).out('wrote')
==>v[354560]
==>v[640768]
...
==>v[466432]
4608 wrote
person response
g.V(4608) .out('wrote')
“Find the responses posted by ‘Renlit’”
© 2015. All Rights Reserved.

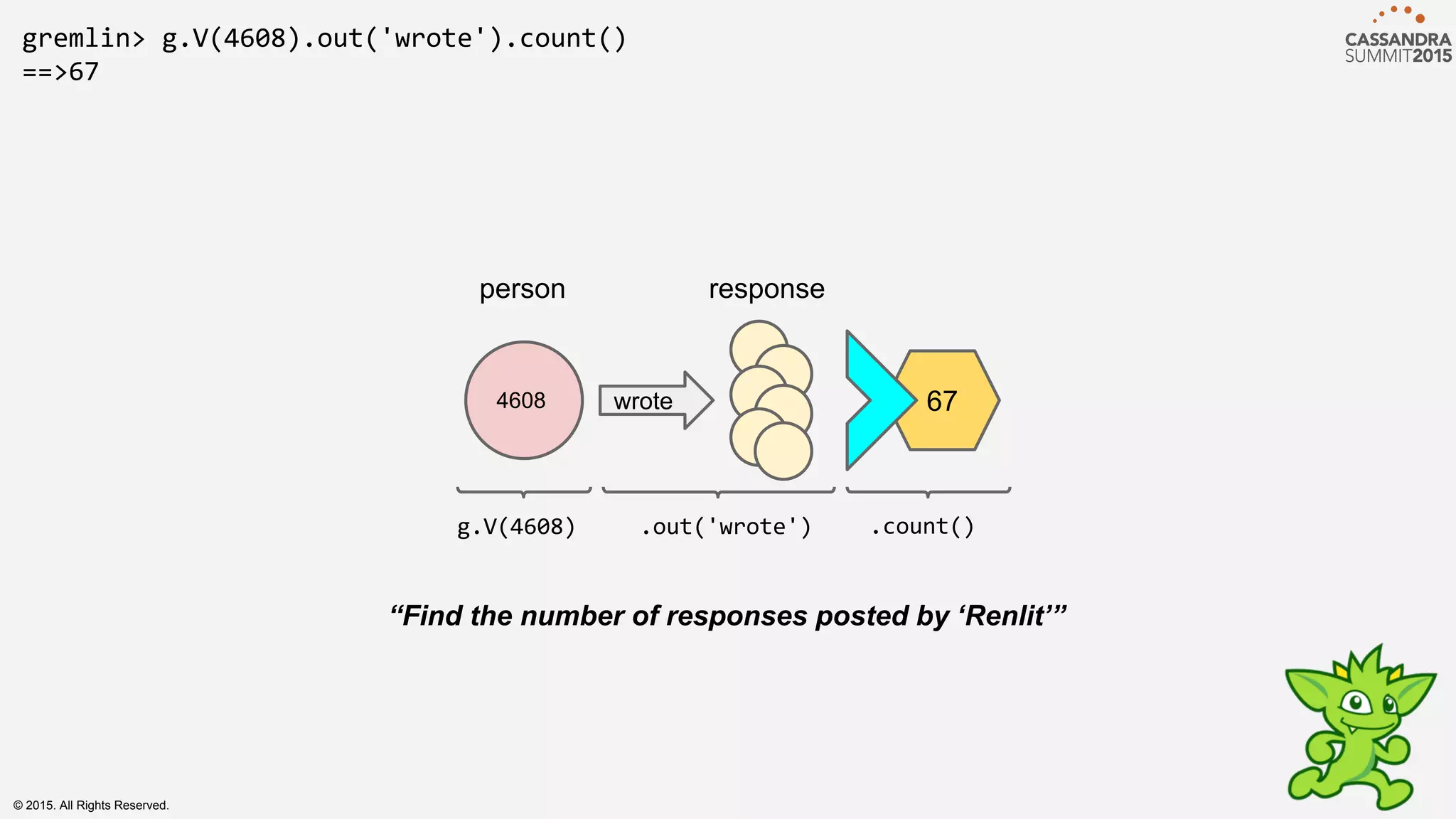

24. gremlin> g.V(4608).out('wrote').count()
==>67
4608 wrote
person response
.out('wrote')
“Find the number of responses posted by ‘Renlit’”
g.V(4608) .count()
67
© 2015. All Rights Reserved.

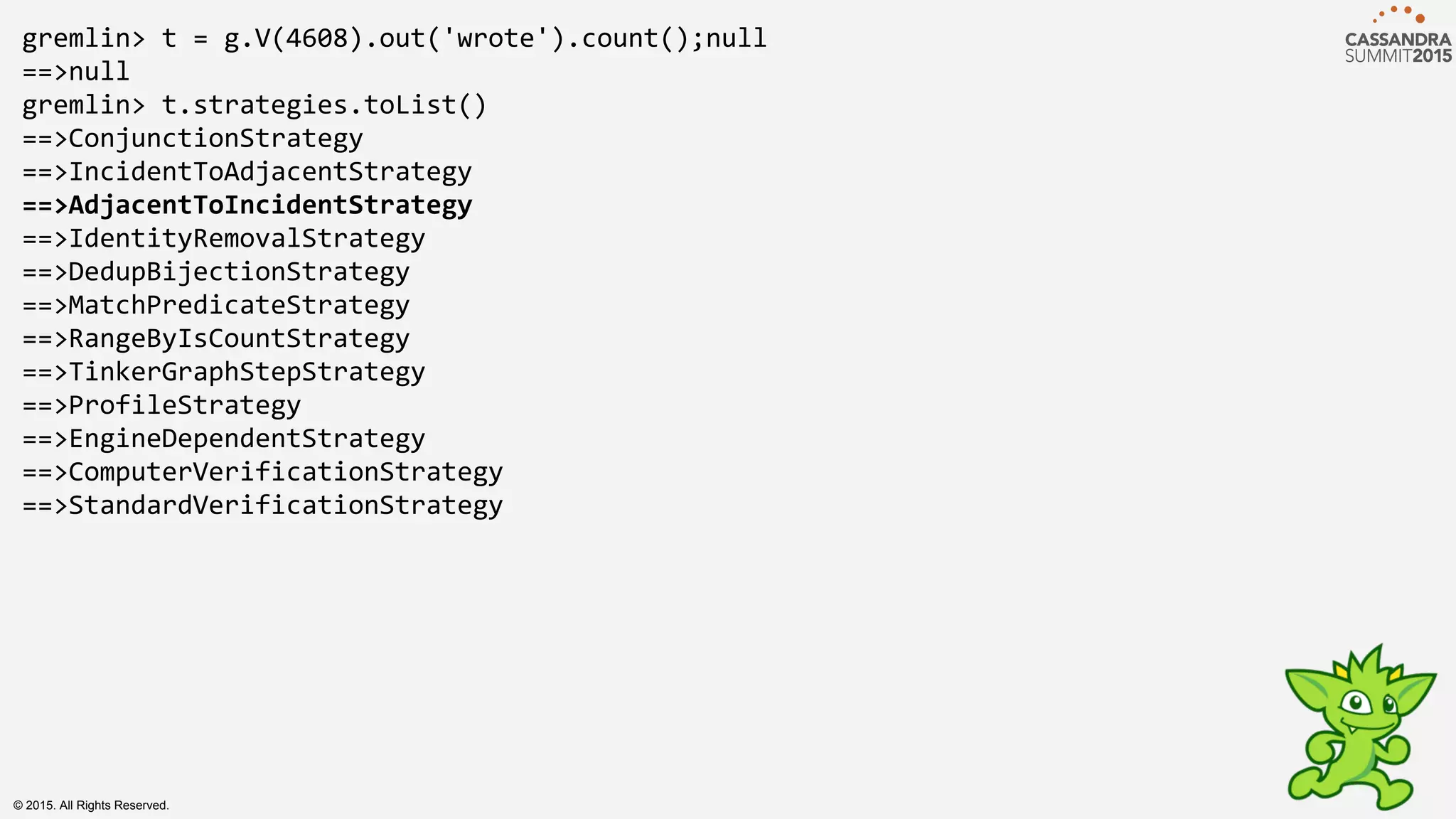

25. gremlin> t = g.V(4608).out('wrote').count();null
==>null
gremlin> t.strategies.toList()
==>ConjunctionStrategy
==>IncidentToAdjacentStrategy
==>AdjacentToIncidentStrategy
==>IdentityRemovalStrategy
==>DedupBijectionStrategy
==>MatchPredicateStrategy
==>RangeByIsCountStrategy
==>TinkerGraphStepStrategy
==>ProfileStrategy
==>EngineDependentStrategy
==>ComputerVerificationStrategy
==>StandardVerificationStrategy
© 2015. All Rights Reserved.

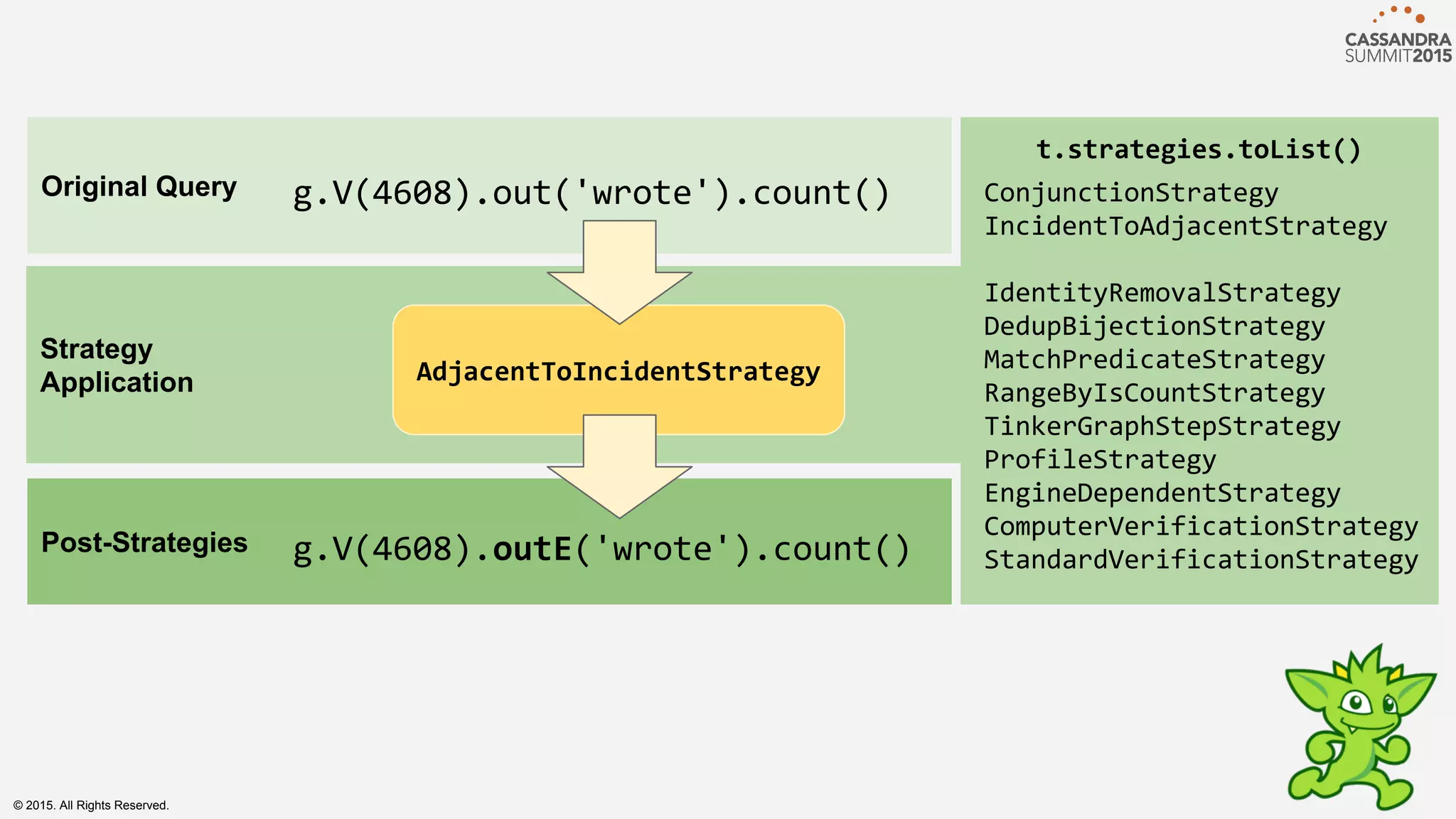

26. t.strategies.toList()
Strategy
Application
Original Query g.V(4608).out('wrote').count()
© 2015. All Rights Reserved.
AdjacentToIncidentStrategy
Post-Strategies g.V(4608).outE('wrote').count()
ConjunctionStrategy
IncidentToAdjacentStrategy
IdentityRemovalStrategy
DedupBijectionStrategy
MatchPredicateStrategy
RangeByIsCountStrategy
TinkerGraphStepStrategy
ProfileStrategy
EngineDependentStrategy
ComputerVerificationStrategy
StandardVerificationStrategy

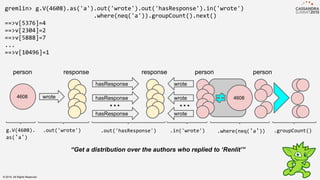

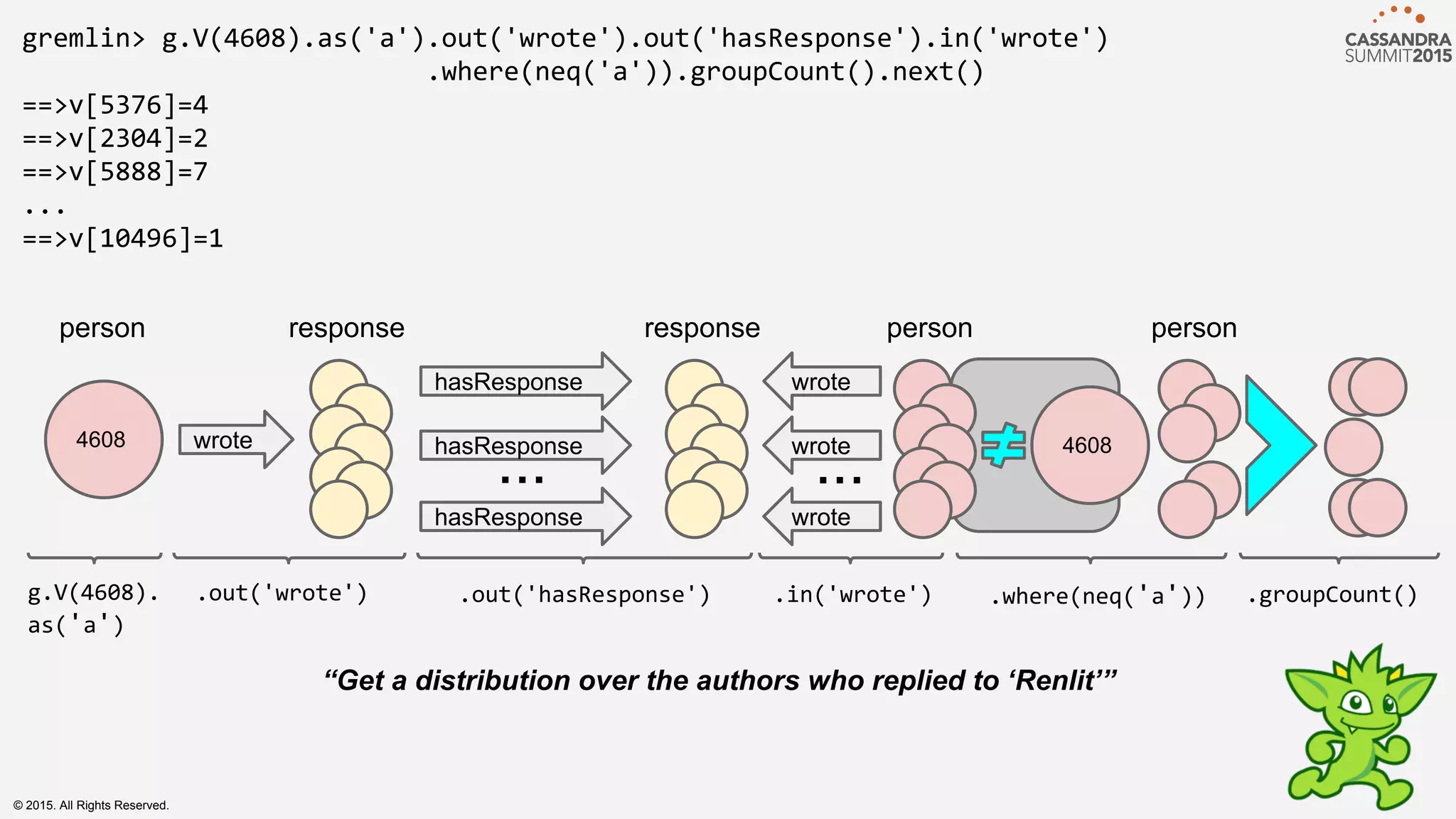

27. gremlin> g.V(4608).as('a').out('wrote').out('hasResponse').in('wrote')
.where(neq('a')).groupCount().next()
==>v[5376]=4
==>v[2304]=2
==>v[5888]=7
...
==>v[10496]=1
4608 wrote
person response
hasResponse
hasResponse
hasResponse
...
response
wrote
wrote
wrote
...
person person
4608
g.V(4608).
as('a')
.out('wrote') .out('hasResponse') .in('wrote') .where(neq('a')) .groupCount()
“Get a distribution over the authors who replied to ‘Renlit’”
© 2015. All Rights Reserved.

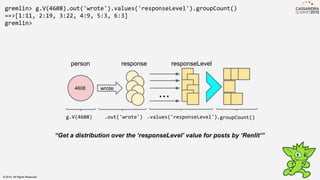

28. gremlin> g.V(4608).out('wrote').values('responseLevel').groupCount()
==>[1:11, 2:19, 3:22, 4:9, 5:3, 6:3]
gremlin>
4608 wrote
person response
g.V(4608) .out('wrote')
...
responseLevel
.values('responseLevel').groupCount()
“Get a distribution over the ‘responseLevel’ value for posts by ‘Renlit’”
© 2015. All Rights Reserved.

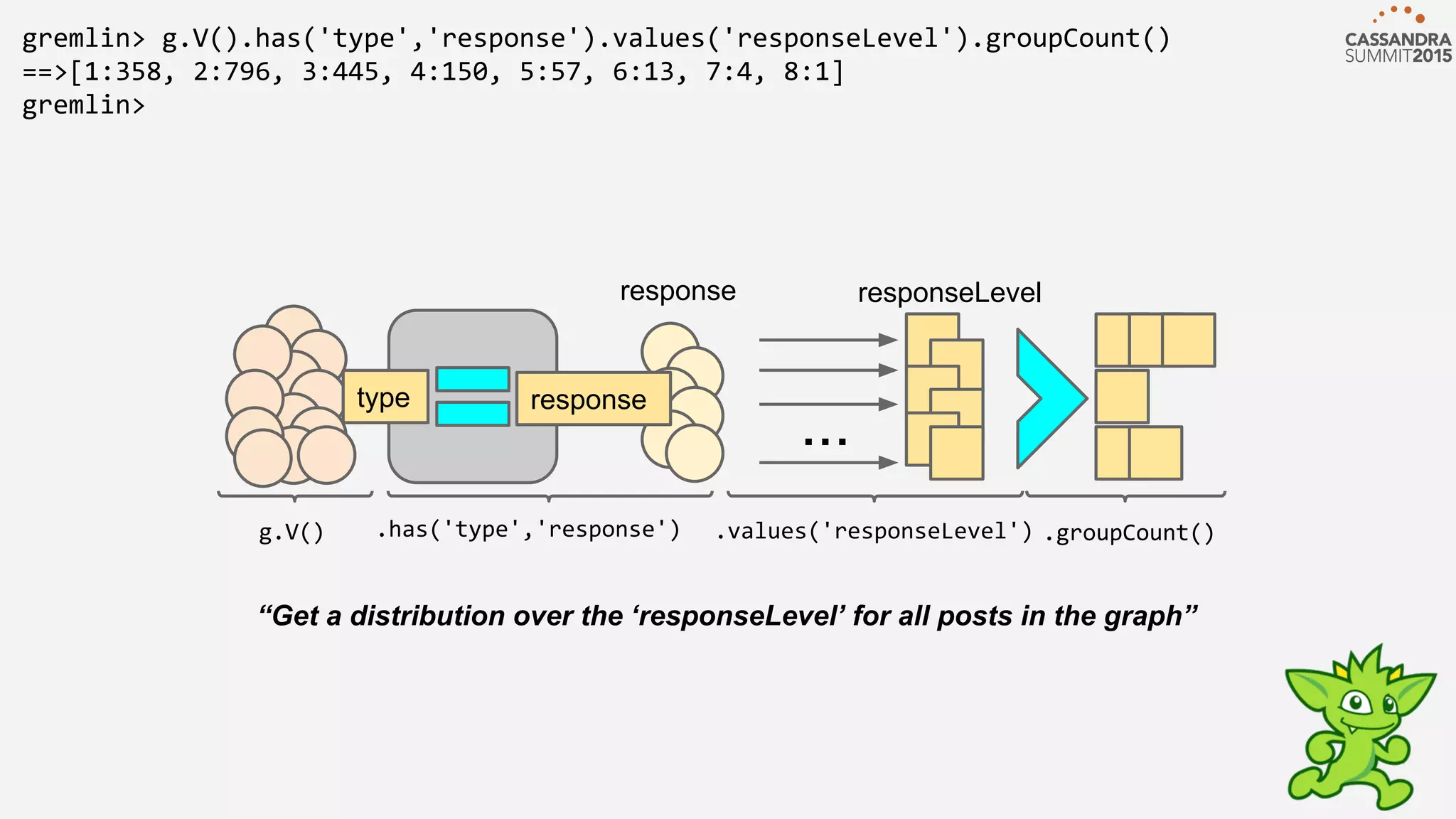

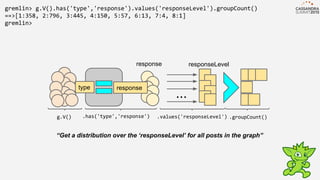

29. gremlin> g.V().has('type','response').values('responseLevel').groupCount()
==>[1:358, 2:796, 3:445, 4:150, 5:57, 6:13, 7:4, 8:1]
gremlin>
response
g.V() .has('type','response')
...
responseLevel
.values('responseLevel') .groupCount()
type response
“Get a distribution over the ‘responseLevel’ for all posts in the graph”

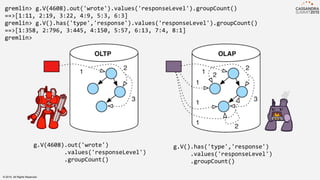

30. gremlin> g.V(4608).out('wrote').values('responseLevel').groupCount()
==>[1:11, 2:19, 3:22, 4:9, 5:3, 6:3]
gremlin> g.V().has('type','response').values('responseLevel').groupCount()
==>[1:358, 2:796, 3:445, 4:150, 5:57, 6:13, 7:4, 8:1]
gremlin>
g.V(4608).out('wrote')
.values('responseLevel')
.groupCount()
g.V().has('type','response')
.values('responseLevel')
.groupCount()
© 2015. All Rights Reserved.

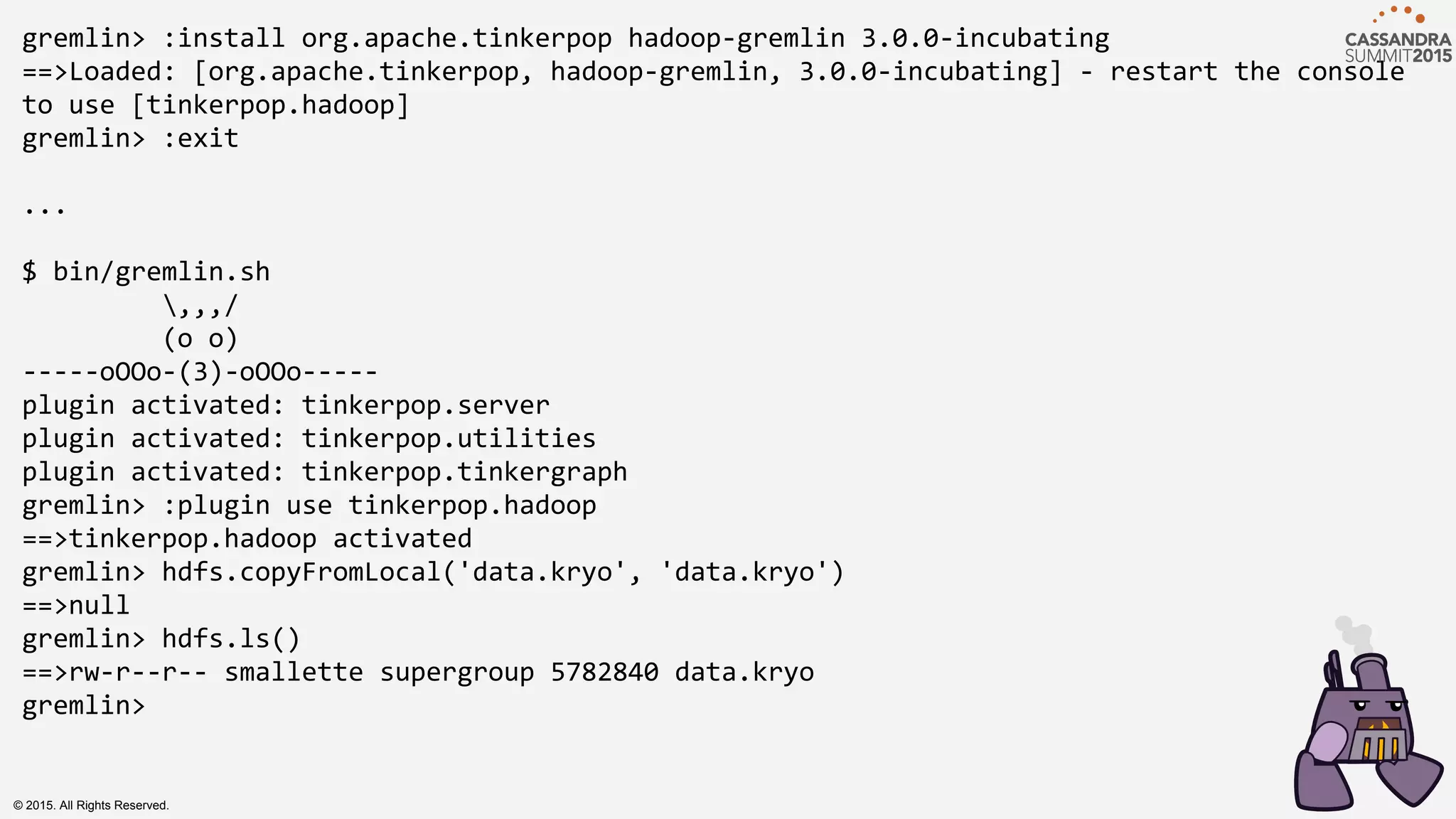

31. gremlin> :install org.apache.tinkerpop hadoop-gremlin 3.0.0-incubating
==>Loaded: [org.apache.tinkerpop, hadoop-gremlin, 3.0.0-incubating] - restart the console
to use [tinkerpop.hadoop]
gremlin> :exit
...
$ bin/gremlin.sh
,,,/
(o o)
-----oOOo-(3)-oOOo-----
plugin activated: tinkerpop.server
plugin activated: tinkerpop.utilities
plugin activated: tinkerpop.tinkergraph
gremlin> :plugin use tinkerpop.hadoop
==>tinkerpop.hadoop activated
gremlin> hdfs.copyFromLocal('data.kryo', 'data.kryo')
==>null
gremlin> hdfs.ls()
==>rw-r--r-- smallette supergroup 5782840 data.kryo
gremlin>
© 2015. All Rights Reserved.

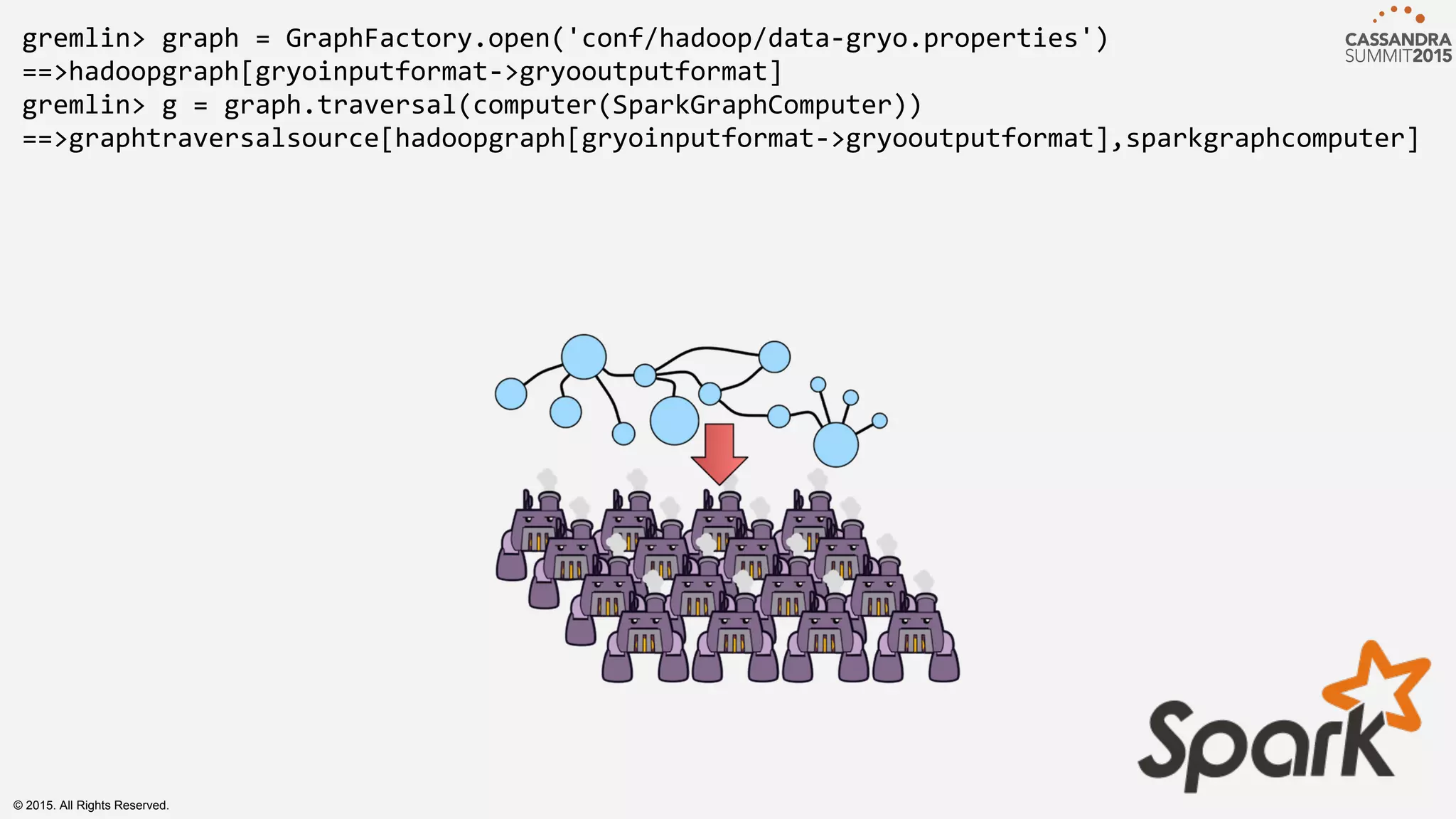

32. gremlin> graph = GraphFactory.open('conf/hadoop/data-gryo.properties')
==>hadoopgraph[gryoinputformat->gryooutputformat]
gremlin> g = graph.traversal(computer(SparkGraphComputer))
==>graphtraversalsource[hadoopgraph[gryoinputformat->gryooutputformat],sparkgraphcomputer]
© 2015. All Rights Reserved.

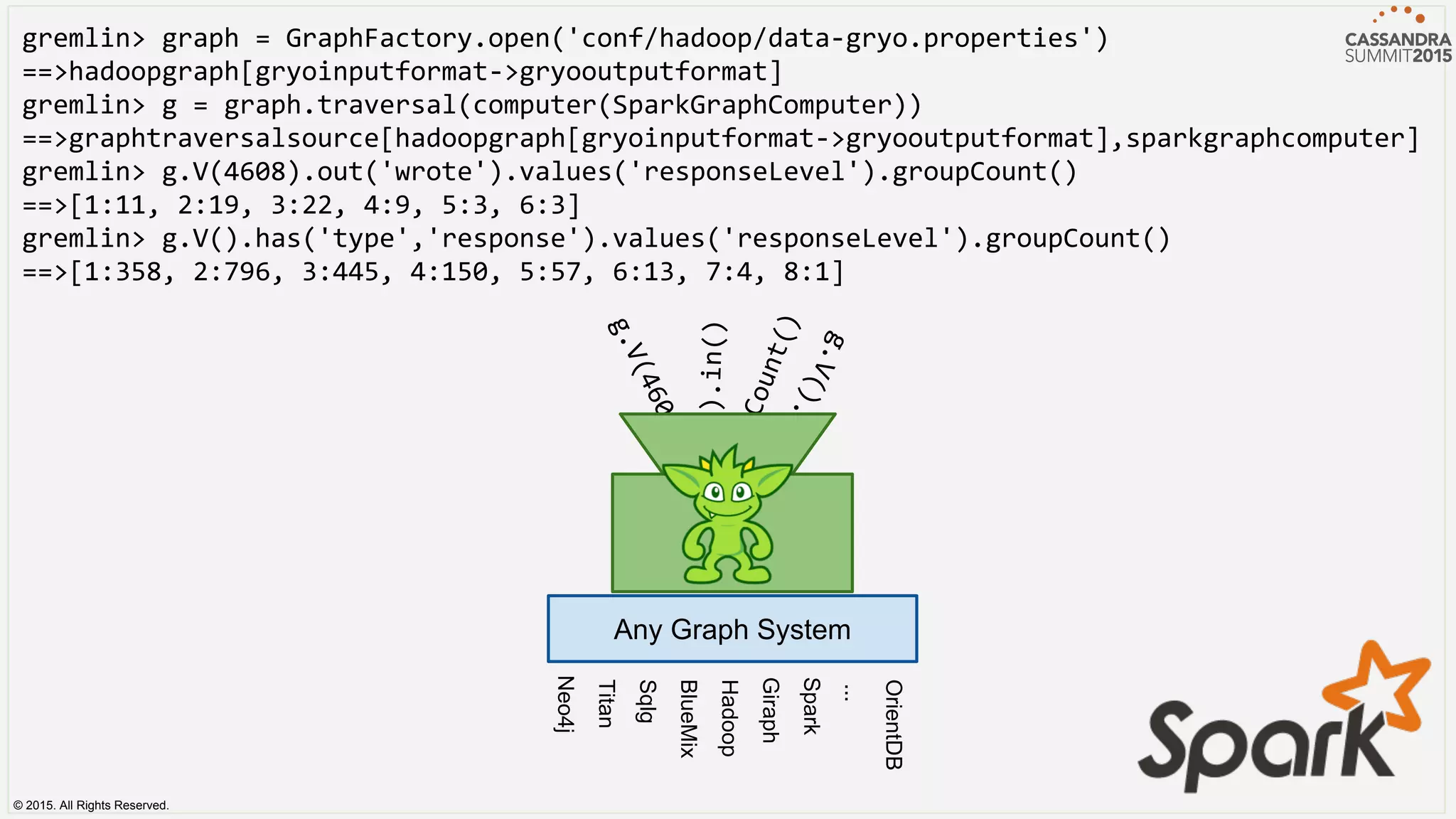

33. gremlin> graph = GraphFactory.open('conf/hadoop/data-gryo.properties')
==>hadoopgraph[gryoinputformat->gryooutputformat]
gremlin> g = graph.traversal(computer(SparkGraphComputer))
==>graphtraversalsource[hadoopgraph[gryoinputformat->gryooutputformat],sparkgraphcomputer]
gremlin> g.V(4608).out('wrote').values('responseLevel').groupCount()
==>[1:11, 2:19, 3:22, 4:9, 5:3, 6:3]
gremlin> g.V().has('type','response').values('responseLevel').groupCount()
==>[1:358, 2:796, 3:445, 4:150, 5:57, 6:13, 7:4, 8:1]
© 2015. All Rights Reserved.
g.V(4608)
groupCount()
out().in()
g.V().
Any Graph System
Neo4j
Titan
Sqlg
BlueMix
Hadoop
Giraph
Spark
OrientDB
...

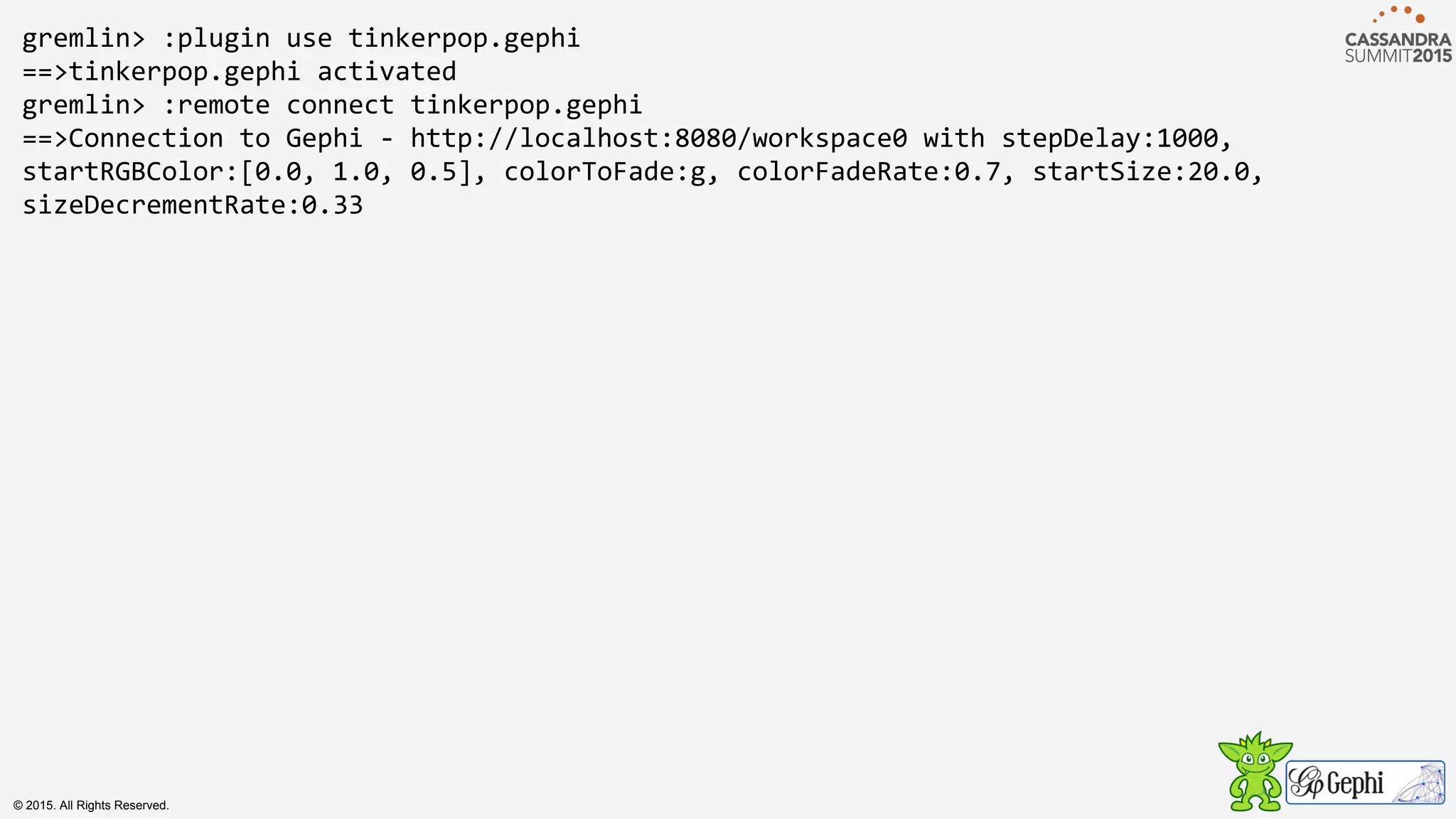

34. gremlin> :plugin use tinkerpop.gephi
==>tinkerpop.gephi activated
gremlin> :remote connect tinkerpop.gephi
==>Connection to Gephi - http://localhost:8080/workspace0 with stepDelay:1000,
startRGBColor:[0.0, 1.0, 0.5], colorToFade:g, colorFadeRate:0.7, startSize:20.0,
sizeDecrementRate:0.33
© 2015. All Rights Reserved.

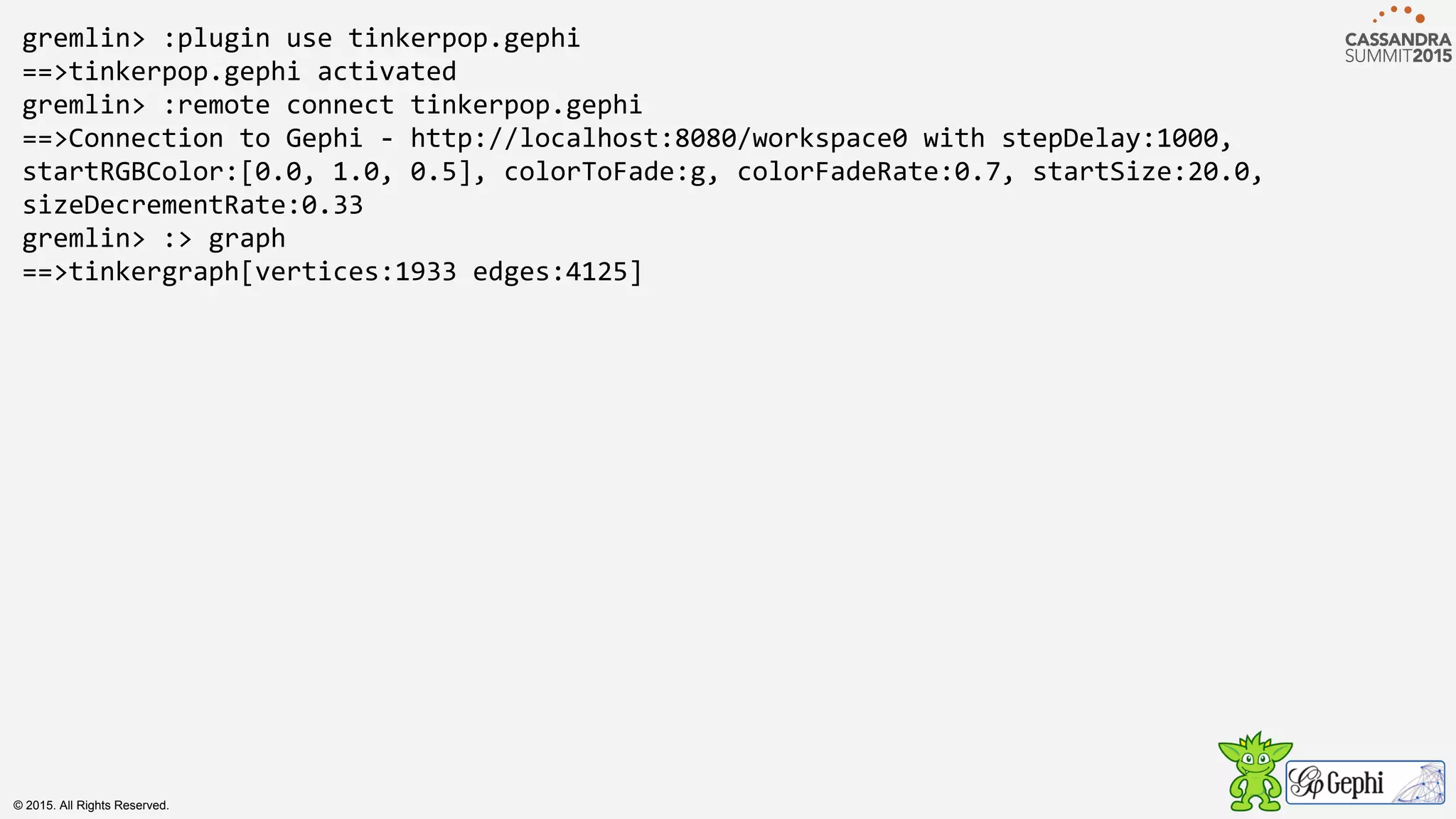

35. gremlin> :plugin use tinkerpop.gephi
==>tinkerpop.gephi activated
gremlin> :remote connect tinkerpop.gephi
==>Connection to Gephi - http://localhost:8080/workspace0 with stepDelay:1000,
startRGBColor:[0.0, 1.0, 0.5], colorToFade:g, colorFadeRate:0.7, startSize:20.0,
sizeDecrementRate:0.33
gremlin> :> graph
==>tinkergraph[vertices:1933 edges:4125]
© 2015. All Rights Reserved.

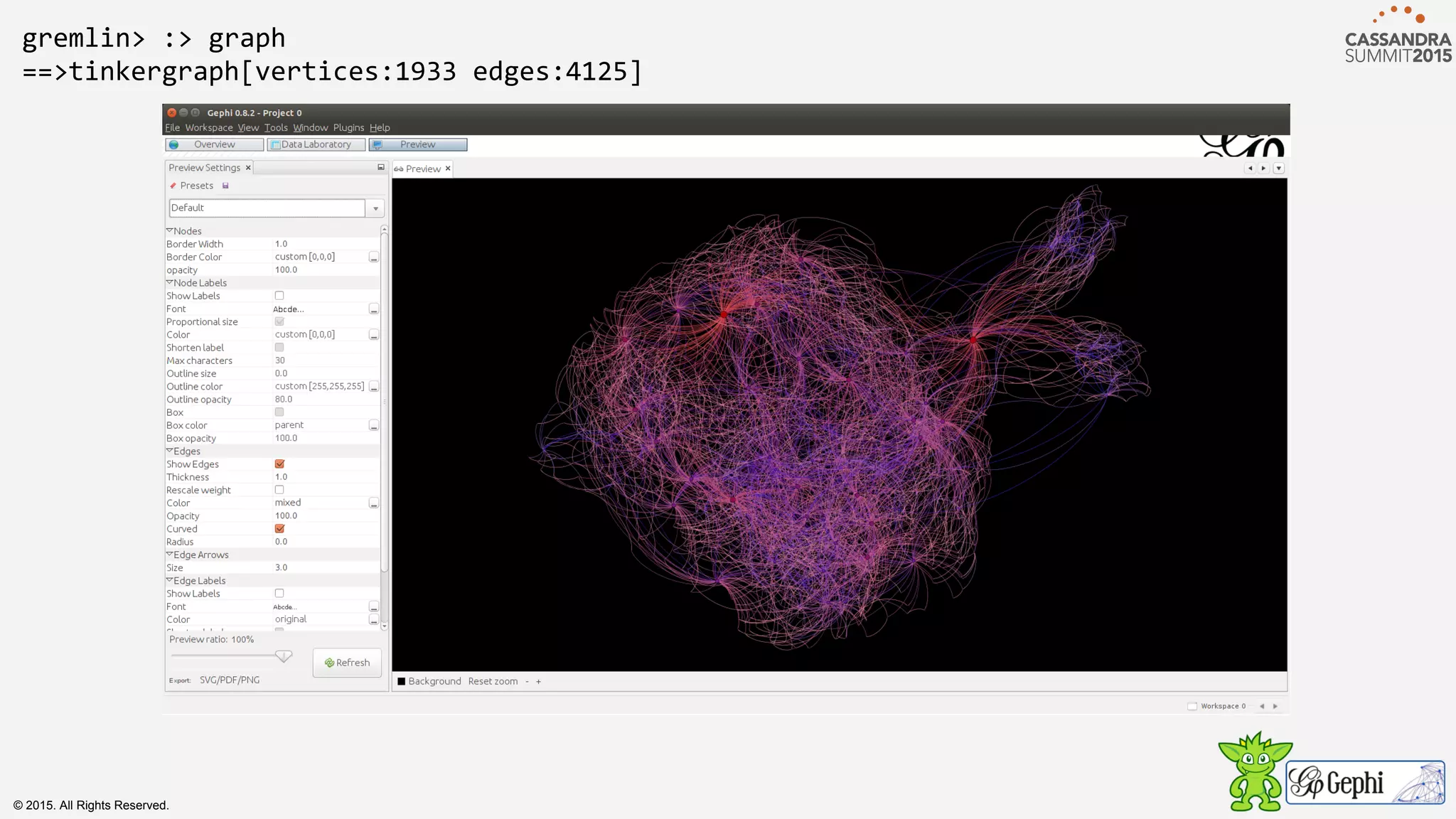

36. gremlin> :> graph
==>tinkergraph[vertices:1933 edges:4125]
© 2015. All Rights Reserved.

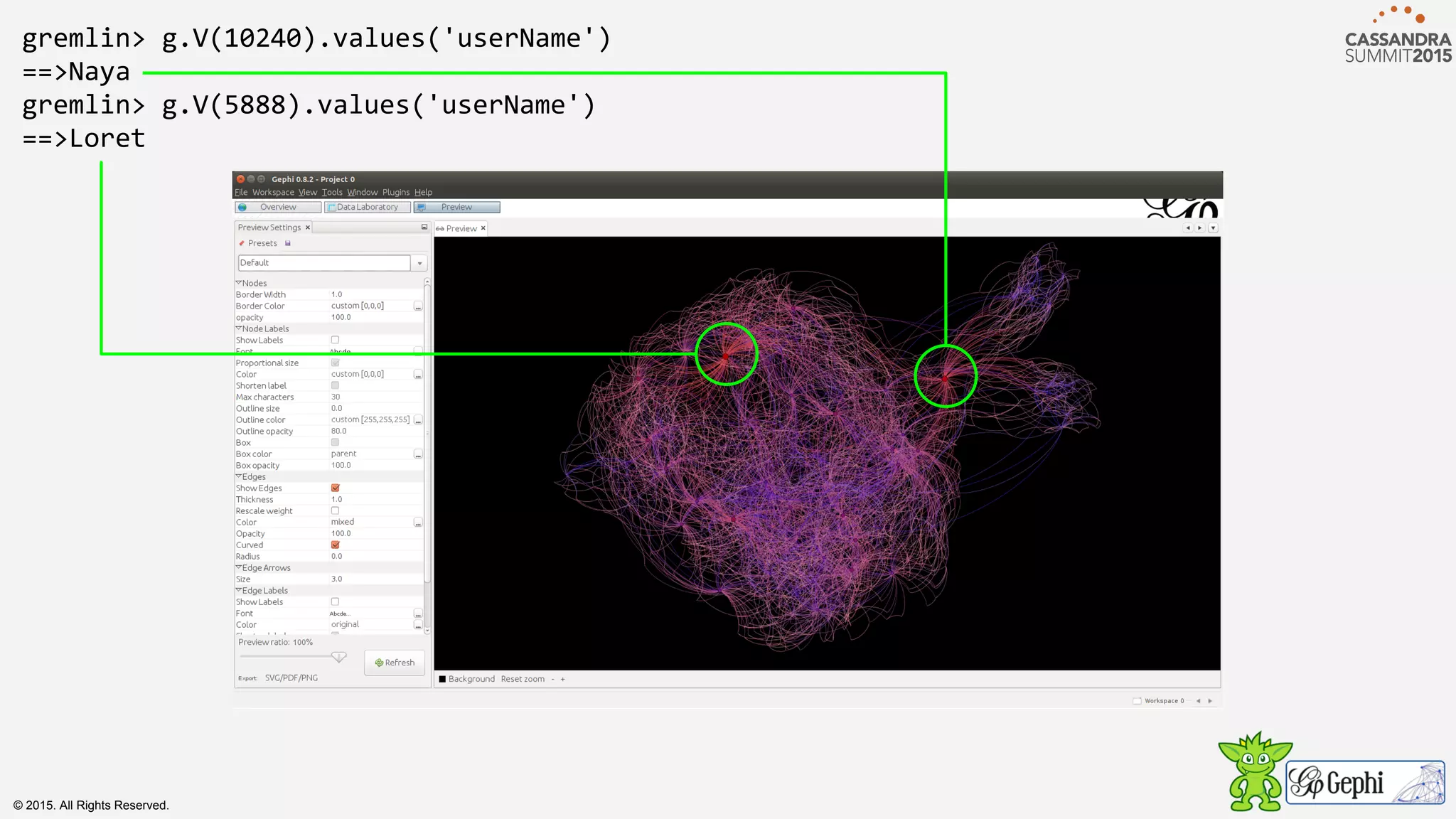

37. gremlin> g.V(10240).values('userName')
==>Naya
gremlin> g.V(5888).values('userName')
==>Loret
© 2015. All Rights Reserved.

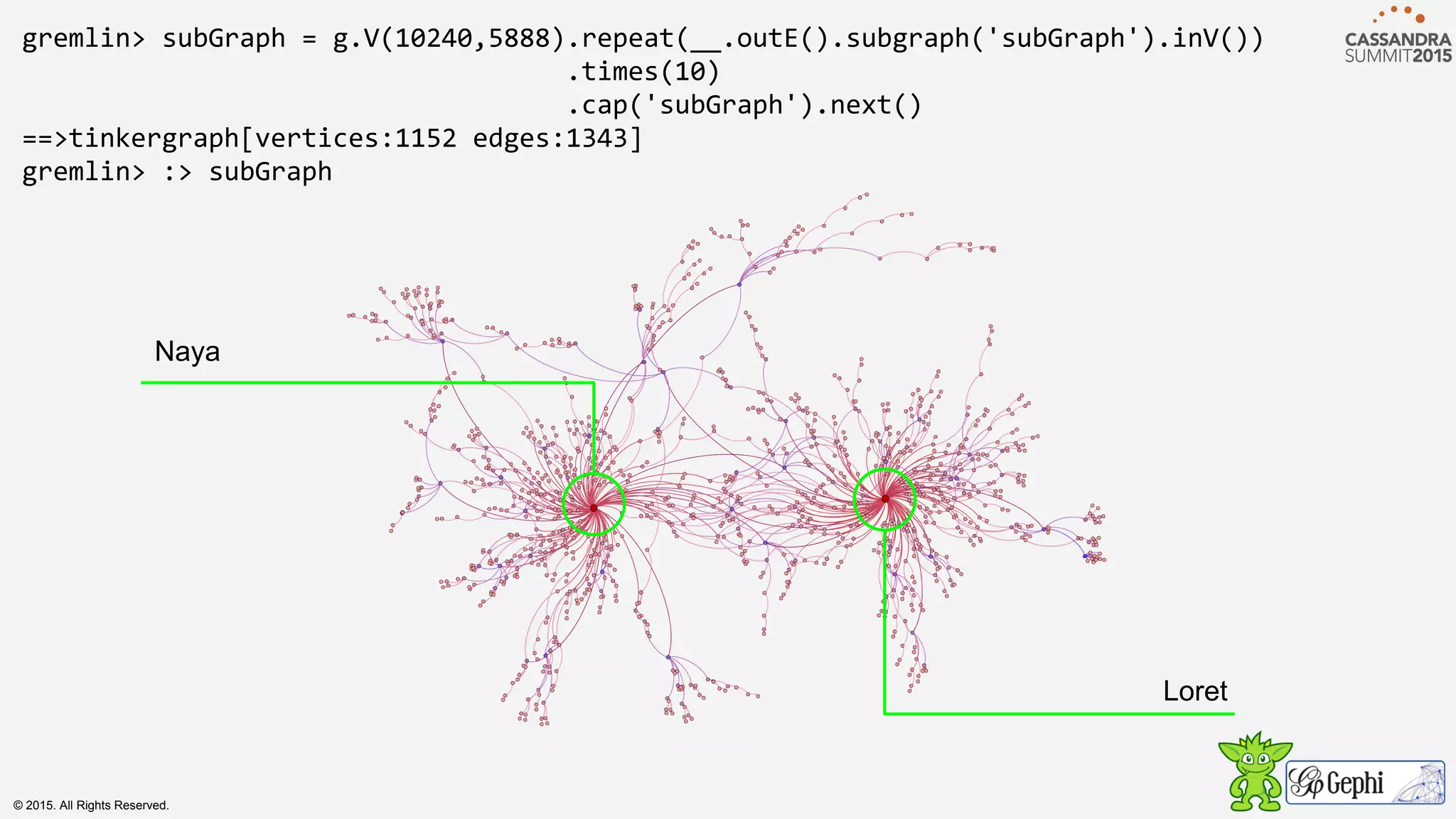

38. gremlin> subGraph = g.V(10240,5888).repeat(__.outE().subgraph('subGraph').inV())
.times(10)
.cap('subGraph').next()
==>tinkergraph[vertices:1152 edges:1343]
gremlin> :> subGraph
© 2015. All Rights Reserved.
Naya
Loret

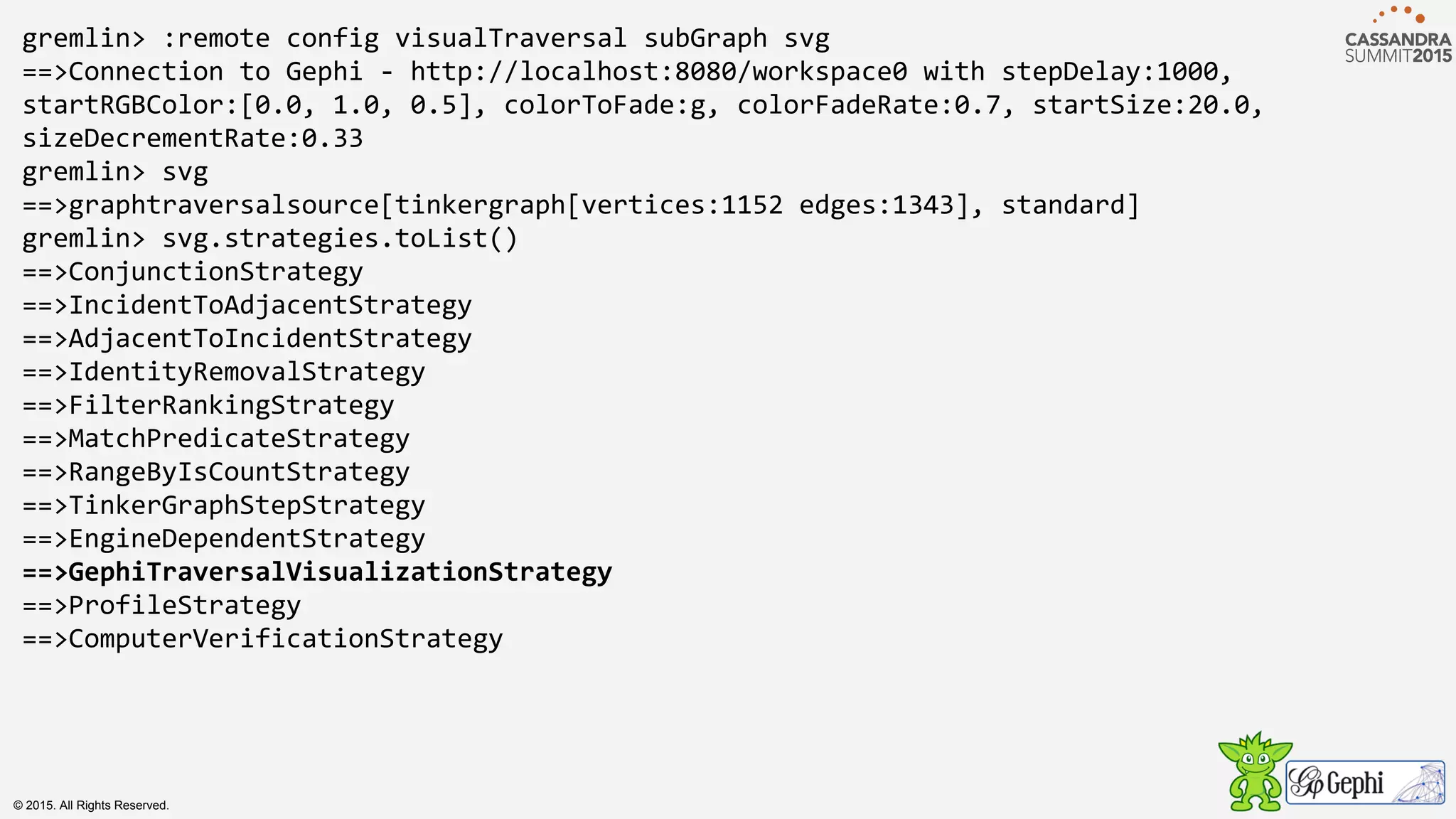

39. gremlin> :remote config visualTraversal subGraph svg
==>Connection to Gephi - http://localhost:8080/workspace0 with stepDelay:1000,
startRGBColor:[0.0, 1.0, 0.5], colorToFade:g, colorFadeRate:0.7, startSize:20.0,
sizeDecrementRate:0.33
gremlin> svg
==>graphtraversalsource[tinkergraph[vertices:1152 edges:1343], standard]
gremlin> svg.strategies.toList()
==>ConjunctionStrategy
==>IncidentToAdjacentStrategy
==>AdjacentToIncidentStrategy
==>IdentityRemovalStrategy
==>FilterRankingStrategy
==>MatchPredicateStrategy
==>RangeByIsCountStrategy
==>TinkerGraphStepStrategy
==>EngineDependentStrategy
==>GephiTraversalVisualizationStrategy
==>ProfileStrategy
==>ComputerVerificationStrategy
© 2015. All Rights Reserved.

40. gremlin> :> svg.V(10240).as('x').out('wrote').out('hasResponse').in('wrote')
.where(neq('x')).groupCount()
==>[v[5888]:4]
© 2015. All Rights Reserved.

41. gremlin> :> svg.V(10240).as('x').out('wrote').out('hasResponse').in('wrote')
.where(neq('x')).groupCount()
==>[v[5888]:4]
© 2015. All Rights Reserved.

42. gremlin> :> svg.V(10240).as('x').out('wrote').out('hasResponse').in('wrote')
.where(neq('x')).groupCount()
==>[v[5888]:4]
© 2015. All Rights Reserved.

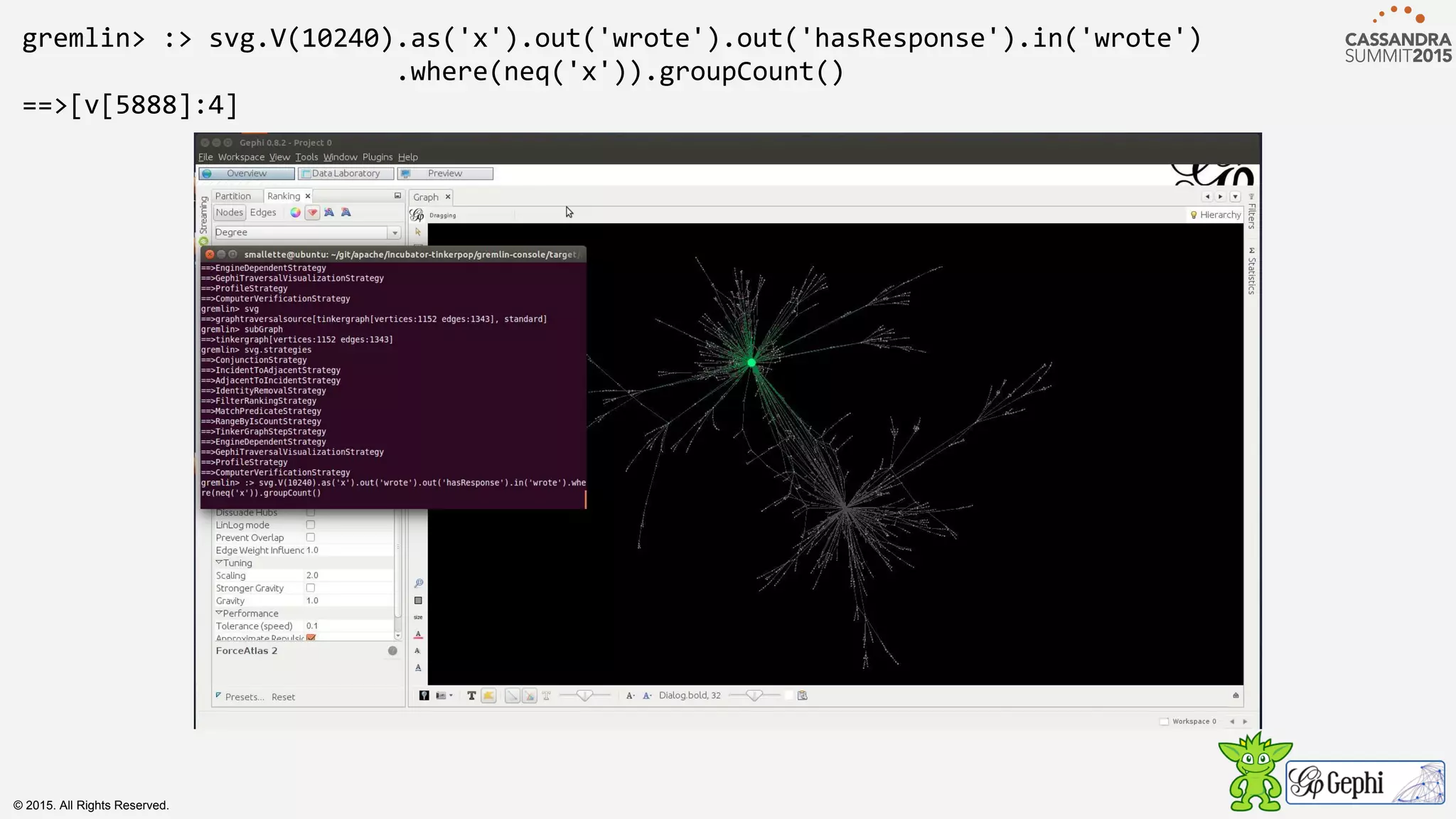

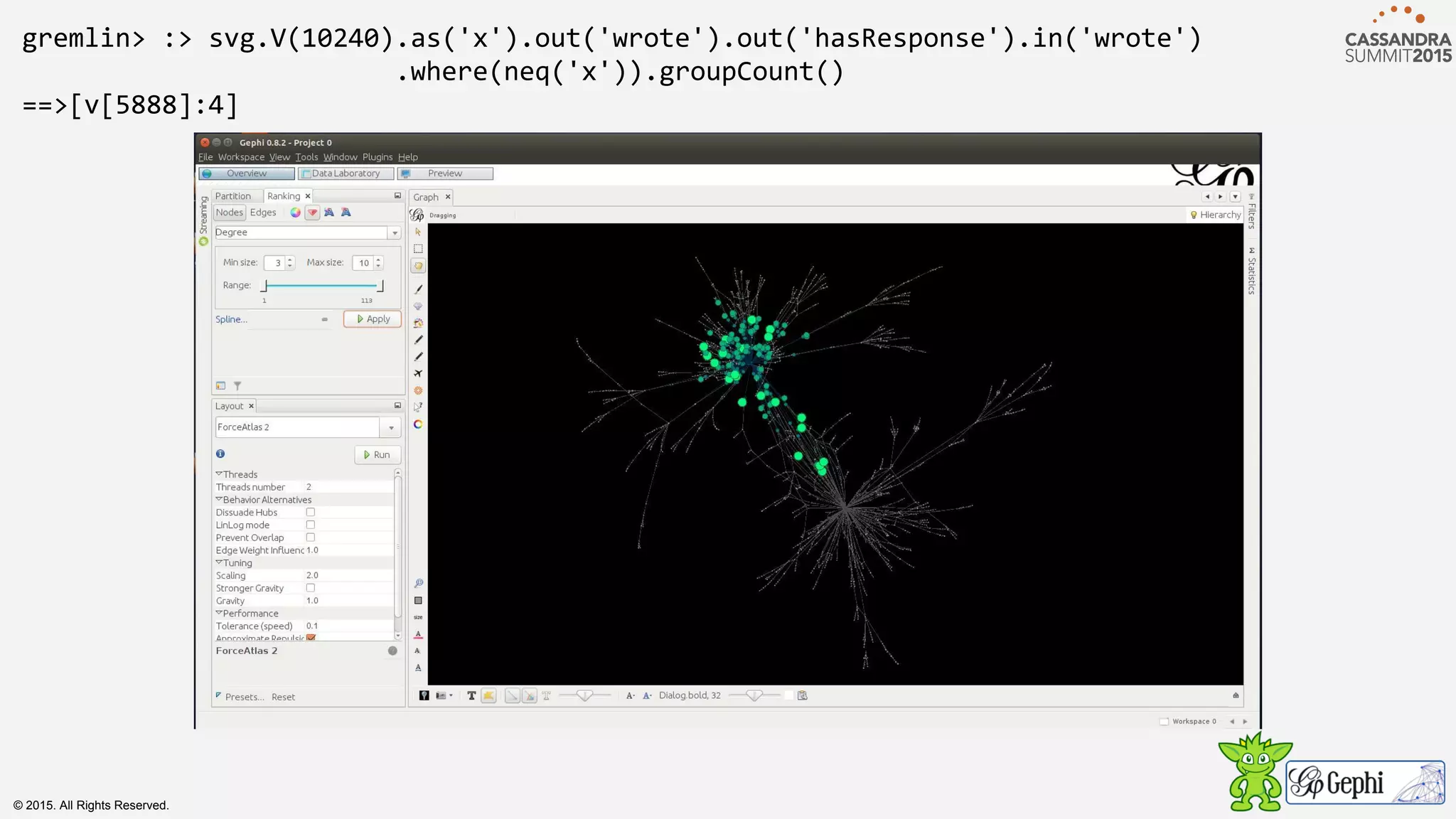

43. gremlin> :> svg.V(10240).as('x').out('wrote').out('hasResponse').in('wrote')
.where(neq('x')).groupCount()
==>[v[5888]:4]
© 2015. All Rights Reserved.

44. gremlin> :> svg.V(10240).as('x').out('wrote').out('hasResponse').in('wrote')
.where(neq('x')).groupCount()
==>[v[5888]:4]
© 2015. All Rights Reserved.

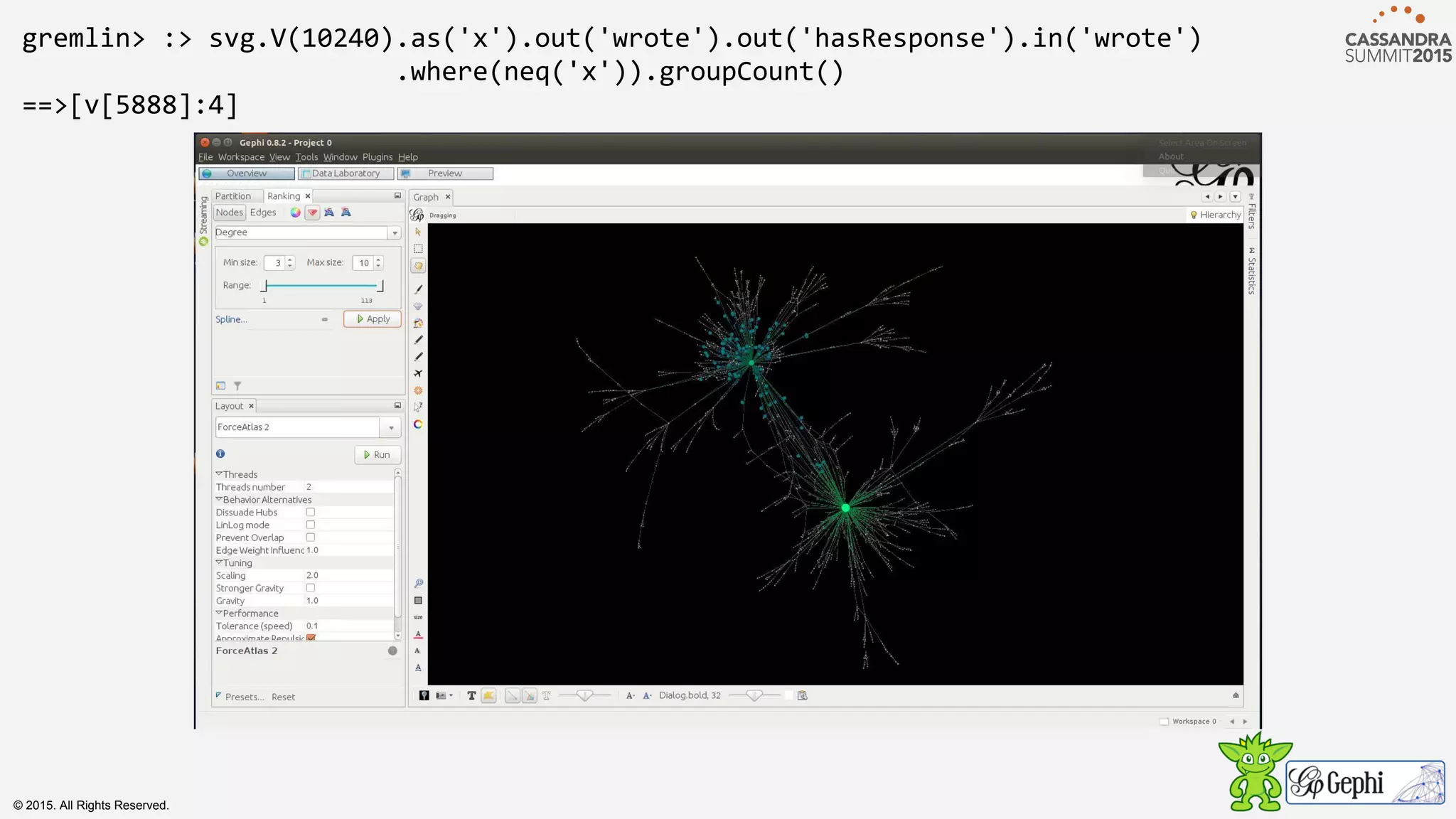

45. gremlin> :> svg.V(10240).as('x').out('wrote').out('hasResponse').in('wrote')
.where(neq('x')).groupCount()
==>[v[5888]:4]
© 2015. All Rights Reserved.

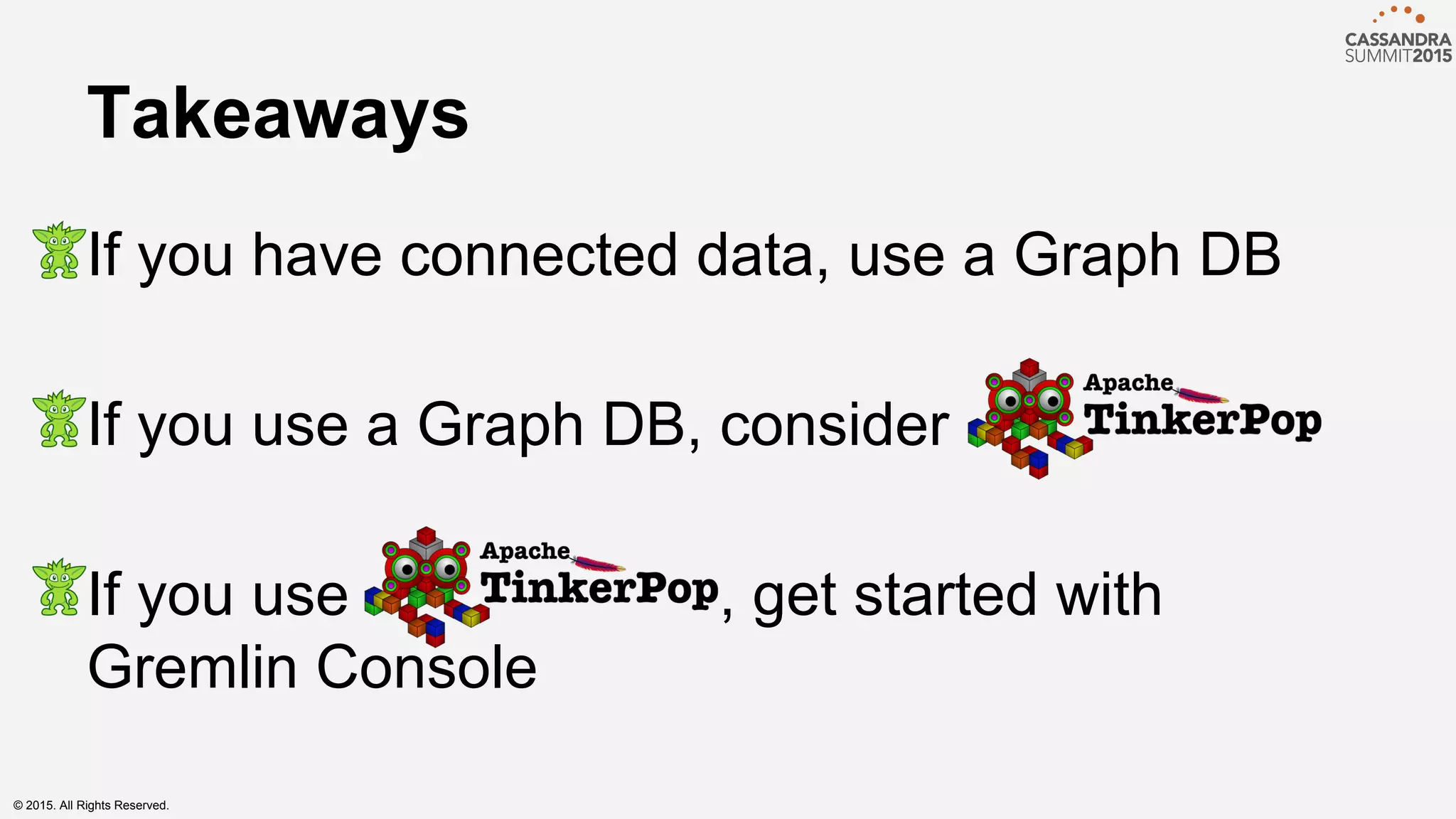

46. Takeaways
If you have connected data, use a Graph DB
If you use a Graph DB, consider
If you use , get started with
Gremlin Console
© 2015. All Rights Reserved.

47. Acknowledgements
Ketrina Yim
@KetrinaYim
Artist behind Gremlin and his friends
Joe Lee
http://jml3designz.com/
Graphic designer providing support on this presentation
Apache TinkerPop
http://tinkerpop.incubator.apache.org/
The TinkerPop Community
© 2015. All Rights Reserved.
