1. Migrating from Relational to
Cassandra ( SQL to CQL )
Rahul Xavier Singh Anant Corporation

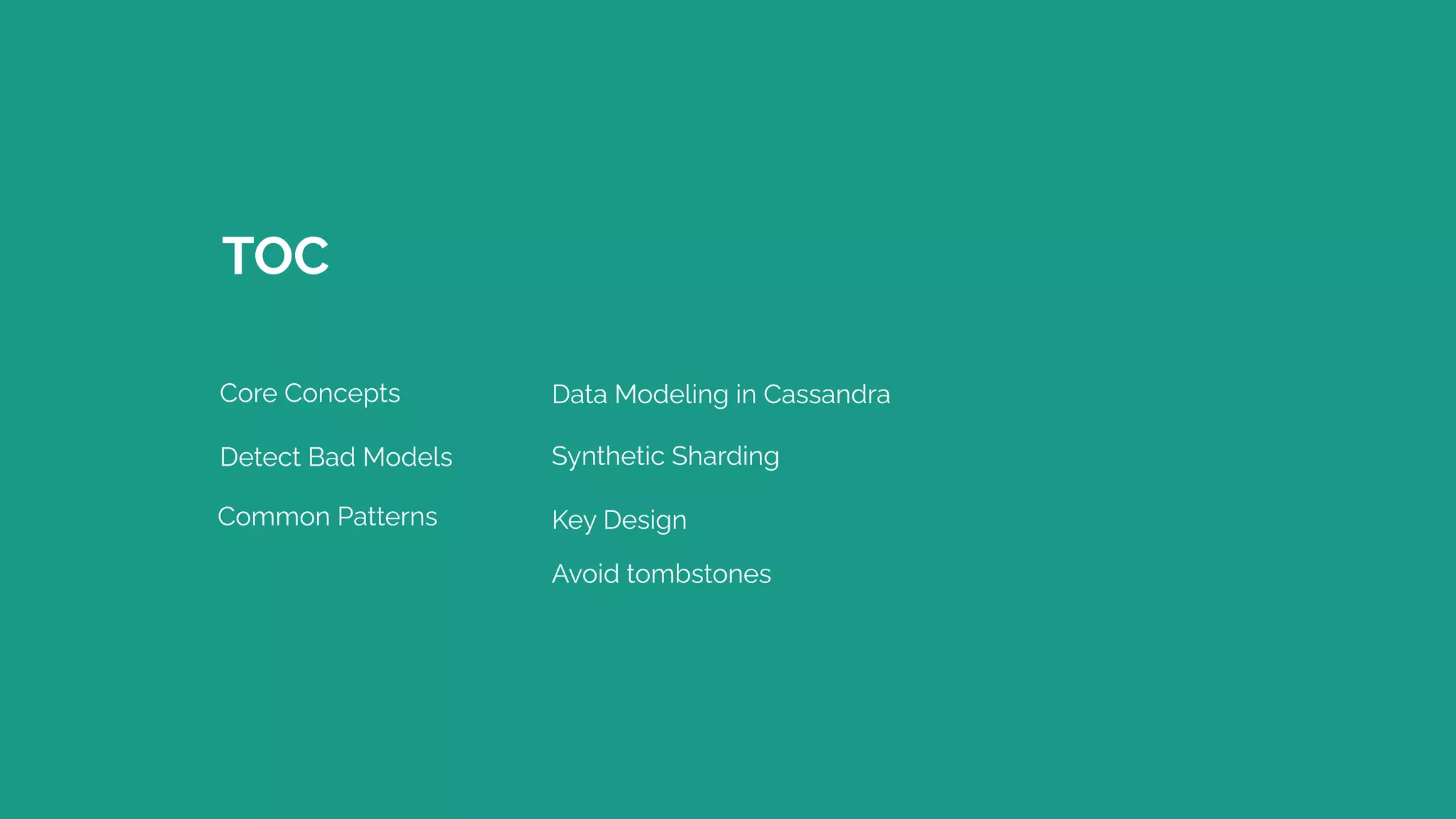

2. TOC
Core Concepts
Detect Bad Models
Data Modeling in Cassandra
Synthetic Sharding
Key DesignCommon Patterns

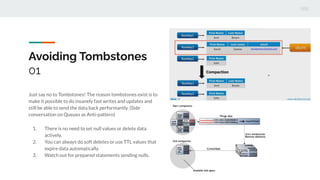

Avoid tombstones

3. Business Platform Success
We build realtime business platforms,
connecting customer experiences,
information systems with realtime data &
analytics platforms like … Cassandra,
Kafka, Spark

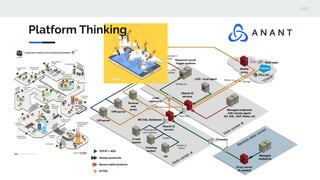

4. Platform Thinking

5. How?
Project
Information
Client Service
Information
Corporate
Guides
Collaborative
Documents
Assets
& Files
Corporate
Assets
Business Platform
● Curate framework of
systems.
● Work with a vetted team
of experts.
● Connect it all together.
● Focus on finding,
analyzing, and acting on
knowledge &
communication towards
business success.

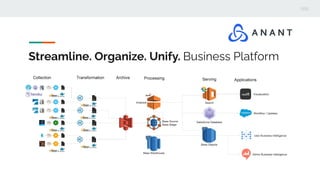

6. Streamline. Organize. Unify. Business Platform

7. Who we help Succeed

8. Differences between
Relational and Cassandra

9. Typical Use Cases in
RDBMS / Relational
01 Relational Use Cases
1. Master / Detail - 1 to N | has
2. Document Attributes - 1 to 1 | is/has
3. Lookup - n to 1 | is/ is part of
4. Connection - n to n | is /is related to
/has
5. ….

10. Why Cassandra
01
1. Familiar Structure: CQL tables ~ SQL
tables
2. Familiar Query language : CQL ~ SQL
3. Schema Constrained Queries : No
arbitrary queries, joins, transactions
4. CQL is a Subset of SQL : CQL < sql

11. Differences between
RDBMS / Cassandra
01 SQL / Relational / RDBMS
1. Reduce redundancy
2. Store once / Relate / Query
3. ACID : “Atomicity, Consistency,
Isolation, and Durability”
4. Immediate consistency
5. Structured with types
6. Set schema for all Rows
7. Scale : master slave , limited scale
8. Joins, Views, Arbitrary Queries
CQL / Non-Relational / Cassandra
1. Store as often as you need.
Redundancy okay!
2. Duplicate as needed.
3. Predefined Queries (no Joins)
4. BASE : “Basically Available, Soft
state, Eventual consistency”
5. Tunable consistency
6. Structured w/ types +
Semi-Structured (Maps, Sets,
Collections)
7. Malleable schema (via New Rows,
Columns)
8. Masterless + Multi DC (Workload
or Regional)
9. Globally Scalable

12. Cassandra Core Concepts

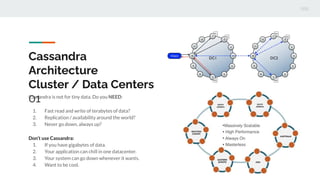

13. Cassandra
Architecture
Cluster / Data Centers
01Cassandra is not for tiny data. Do you NEED:
1. Fast read and write of terabytes of data?
2. Replication / availability around the world?
3. Never go down, always up?
Don’t use Cassandra:
1. If you have gigabytes of data.
2. Your application can chill in one datacenter.
3. Your system can go down whenever it wants.
4. Want to be cool.

14. Cassandra Data Model
Keyspaces & Tables
02
Cassandra Tables / Column Families look like SQL Server /
MySQL / Postgres tables & databases. They are not.
1. CQL Supports queries with a Primary and optional
Clustering Key
2. CQL Does not support arbitrary queries on columns.
3. Cassandra shouldn’t be managing more than a
100-150 tables across any number of keyspaces.

15. Cassandra Operations
Read / Write Paths
03
Cassandra does these things well.
1. Write: It writes data in an immutable way at first into
a commit log, adds it to the memtable to be available,
and then flushes it to disk: sstables.
2. Read: It figures out if the data is on a node (Orlando
Bloom filter is involved) and reads from different
sstables, reconciles the immutable data + deletes into
the latest data.
3. It spreads the load around the ring so that you can
hundreds of nodes doing this and not break a sweat:
beast like performance.

16. Cassandra Operational
Pitfalls Visualized

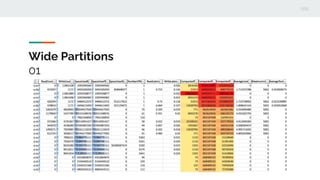

17. Wide Partitions
01

18. Data Skew
02

19. Tombstones
03

20. Monitoring and
Continuous Detection
04
How to check for tombstones.
1. Monitor using cfstats (*Tombstones)
2. Monitor using syslog (“Tombstone Warn Threshold”)
3. Monitor using OpsCenter, Prometheus + Grafana,
Datadog, Sematext
Bad key design can lead to really, really bad data skew. In
some cases if the number of keys is only 1 or 2, that means
that the data only exists in one or two partitions replicated.
1. Monitor using cfstats (NumberOfKeys,
SpaceUsedLive, ReadCounts, WriteCounts)
2. Monitor using OpsCenter, Prometheus + Grafana,
Datadog, Sematext
Wide partitions will completely screw you over on reads and
take a node out if there’s traffic.
1. Monitor using cfstats
(CompactedPartitionMaximumBytes)
2. Monitor in system.log “Compacting large partition”
3. Monitor using toppartitions
4. Monitor using OpsCenter, Prometheus + Grafana,
Datadog, Sematext
https://blog.anant.us/resources-for-monitoring-datastax-cassandra-spark-solr-performance/

21. Monitoring Options
Opscenter, Grafana +
Prometheus, ...

22. Cassandra Vision
05
Objective : Provide a way to Visually Identify “Skew”
1. Extract cfstats, tablestats, and soon from “virtual”
system tables.
2. Transform it to a format that can be
importable/exportable
3. Transform it into an Excel that’s easy to use
4. Provide a Web UI
5. Cassandra “Agnostic”Tooling
1. Visualizing distributed systems is
difficult.
2. Some information is good as a time based
view, others need to be point in time.
3. Sometimes managing Cassandra is like a
Business Intelligence / Data Analytics
job.
Objective : Provide /Support a standard Cassandra
Monitoring Stack (Prometheus + Grafana )
1. Document clearly how to do it manually.
2. Document how to do it w. Automation.
3. Provide ansible playbooks
4. Provide dockerized containers
5. Cassandra “Agnostic” Tooling
https://blog.anant.us/resources-for-monitoring-datastax-cassandra-spark-solr-performance/

23. Common Cassandra
Migration Patterns

24. Monolith to
Microservices
https://www.infoworld.com/article/3236291/how-to-choose-a-database-for-your-microservices.html

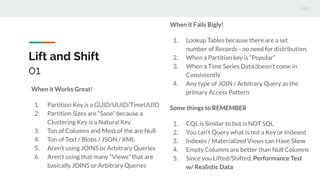

25. Lift and Shift
01
When it Works Great!
1. Partition Key is a GUID/UUID/TimeUUID
2. Partition Sizes are “Sane” because a
Clustering Key is a Natural Key
3. Ton of Columns and Most of the are Null
4. Ton of Text / Blobs / JSON / XML
5. Aren’t using JOINS or Arbitrary Queries
6. Aren’t using that many “Views” that are
basically JOINS or Arbitrary Queries
When it Fails Bigly!
1. Lookup Tables because there are a set
number of Records - no need for distribution.
2. When a Partition key is “Popular”
3. When a Time Series Data doesn’t come in
Consistently
4. Any type of JOIN / Arbitrary Query as the
primary Access Pattern
Some things to REMEMBER
1. CQL is Similar to but is NOT SQL
2. You can’t Query what is not a Key or Indexed
3. Indexes / Materialized Views can Have Skew
4. Empty Columns are better than Null Columns
5. Since you Lifted/Shifted, Performance Test
w/ Realistic Data

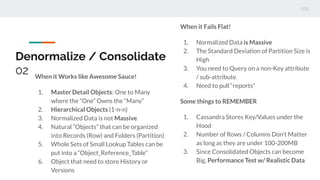

26. Denormalize / Consolidate
02 When it Works like Awesome Sauce!
1. Master Detail Objects: One to Many
where the “One” Owns the “Many”
2. Hierarchical Objects (1-n-n)
3. Normalized Data is not Massive
4. Natural “Objects” that can be organized
into Records (Row) and Folders (Partition)
5. Whole Sets of Small Lookup Tables can be
put into a “Object_Reference_Table”
6. Object that need to store History or
Versions
When it Fails Flat!
1. Normalized Data is Massive
2. The Standard Deviation of Partition Size is
High
3. You need to Query on a non-Key attribute
/ sub-attribute.
4. Need to pull “reports”
Some things to REMEMBER
1. Cassandra Stores Key/Values under the
Hood
2. Number of Rows / Columns Don’t Matter
as long as they are under 100-200MB
3. Since Consolidated Objects can become
Big, Performance Test w/ Realistic Data

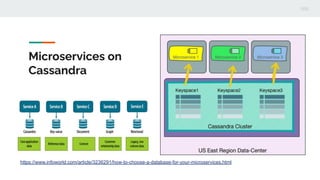

27. Microservices on
Cassandra
https://www.infoworld.com/article/3236291/how-to-choose-a-database-for-your-microservices.html

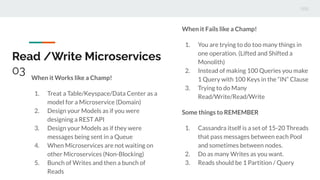

28. Read /Write Microservices
03 When it Works like a Champ!
1. Treat a Table/Keyspace/Data Center as a
model for a Microservice (Domain)
2. Design your Models as if you were
designing a REST API
3. Design your Models as if they were
messages being sent in a Queue
4. When Microservices are not waiting on
other Microservices (Non-Blocking)
5. Bunch of Writes and then a bunch of
Reads
When it Fails like a Champ!
1. You are trying to do too many things in
one operation. (Lifted and Shifted a
Monolith)
2. Instead of making 100 Queries you make
1 Query with 100 Keys in the “IN” Clause
3. Trying to do Many
Read/Write/Read/Write
Some things to REMEMBER
1. Cassandra itself is a set of 15-20 Threads
that pass messages between each Pool
and sometimes between nodes.
2. Do as many Writes as you want.
3. Reads should be 1 Partition / Query

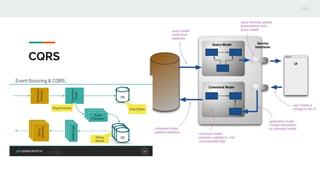

29. CQRS

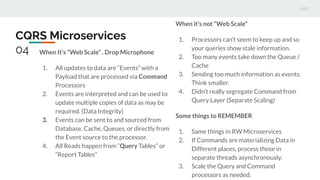

30. CQRS Microservices
04 When It’s “Web Scale” . Drop Microphone
1. All updates to data are “Events” with a
Payload that are processed via Command
Processors
2. Events are interpreted and can be used to
update multiple copies of data as may be
required. (Data Integrity)
3. Events can be sent to and sourced from
Database, Cache, Queues, or directly from
the Event source to the processor.
4. All Reads happen from “Query Tables” or
“Report Tables”
When it’s not “Web Scale”
1. Processors can’t seem to keep up and so
your queries show stale information.
2. Too many events take down the Queue /
Cache
3. Sending too much information as events.
Think smaller.
4. Didn’t really segregate Command from
Query Layer (Separate Scaling)
Some things to REMEMBER
1. Same things in RW Microservices
2. If Commands are materializing Data in
Different places, process those in
separate threads asynchronously.
3. Scale the Query and Command
processors as needed.

31. Cassandra Data Modeling
Best Practices

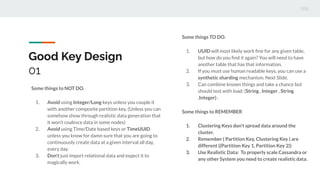

32. Good Key Design
01
Some things to NOT DO.
1. Avoid using Integer/Long keys unless you couple it
with another composite partition key. (Unless you can
somehow show through realistic data generation that
it won’t coalesce data in some nodes)
2. Avoid using Time/Date based keys or TimeUUID
unless you know for damn sure that you are going to
continuously create data at a given interval all day,
every day.
3. Don’t just import relational data and expect it to
magically work.
Some things TO DO.
1. UUID will most likely work fine for any given table,
but how do you find it again? You will need to have
another table that has that information.
2. If you must use human readable keys, you can use a
synthetic sharding mechanism. Next Slide.
3. Can combine known things and take a chance but
should test with load: (String , Integer , String
,Integer) .
Some things to REMEMBER
1. Clustering Keys don’t spread data around the
cluster.
2. Remember ( Partition Key, Clustering Key ) are
different ((Partition Key 1, Partition Key 2))
3. Use Realistic Data: To properly scale Cassandra or
any other System you need to create realistic data.

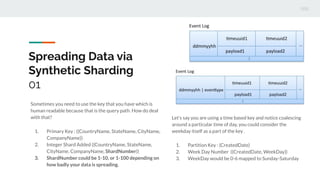

33. Spreading Data via
Synthetic Sharding
01
Sometimes you need to use the key that you have which is
human readable because that is the query path. How do deal
with that?
1. Primary Key : ((CountryName, StateName, CityName,
CompanyName))
2. Integer Shard Added ((CountryName, StateName,
CityName, CompanyName, ShardNumber))
3. ShardNumber could be 1-10, or 1-100 depending on
how badly your data is spreading.
Let’s say you are using a time based key and notice coalescing
around a particular time of day, you could consider the
weekday itself as a part of the key .
1. Partition Key : (CreatedDate)
2. Week Day Number ((CreatedDate, WeekDay))
3. WeekDay would be 0-6 mapped to Sunday-Saturday

34. Just say no to Tombstones! The reason tombstones exist is to
make it possible to do insanely fast writes and updates and
still be able to send the data back performantly. (Side
conversation on Queues as Anti-pattern)
1. There is no need to set null values or delete data
actively.
2. You can always do soft deletes or use TTL values that
expire data automatically.
3. Watch out for prepared statements sending nulls.
Avoiding Tombstones
01

35. Questions?

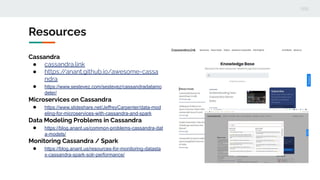

36. Resources
Cassandra
● cassandra.link
● https://anant.github.io/awesome-cassa
ndra
● https://www.sestevez.com/sestevez/cassandradatamo
deler/
Microservices on Cassandra
● https://www.slideshare.net/JeffreyCarpenter/data-mod
eling-for-microservices-with-cassandra-and-spark
Data Modeling Problems in Cassandra
● https://blog.anant.us/common-problems-cassandra-dat
a-models/
Monitoring Cassandra / Spark
● https://blog.anant.us/resources-for-monitoring-datasta
x-cassandra-spark-solr-performance/

37. We’re Partnering / Hiring
Platforms
Datastax, Sitecore, Spark, Docker, Solr, Cassandra,
Kafka, Elastic, AWS, Azure
Frameworks
React/Angular, TypeScript, ASP.NET, Node, Python
