Cisco has a large global IT infrastructure supporting many applications, databases, and employees. The document discusses Cisco's existing customer service and commerce systems (CSCC/SMS3) and some of the performance, scalability, and user experience issues. It then presents a proposed new architecture using modern technologies like Elasticsearch, Cassandra, and microservices to address these issues and improve agility, performance, scalability, uptime, and the user interface.

1. Sukanta Nanda Sr. Database Admin.
Cisco IT

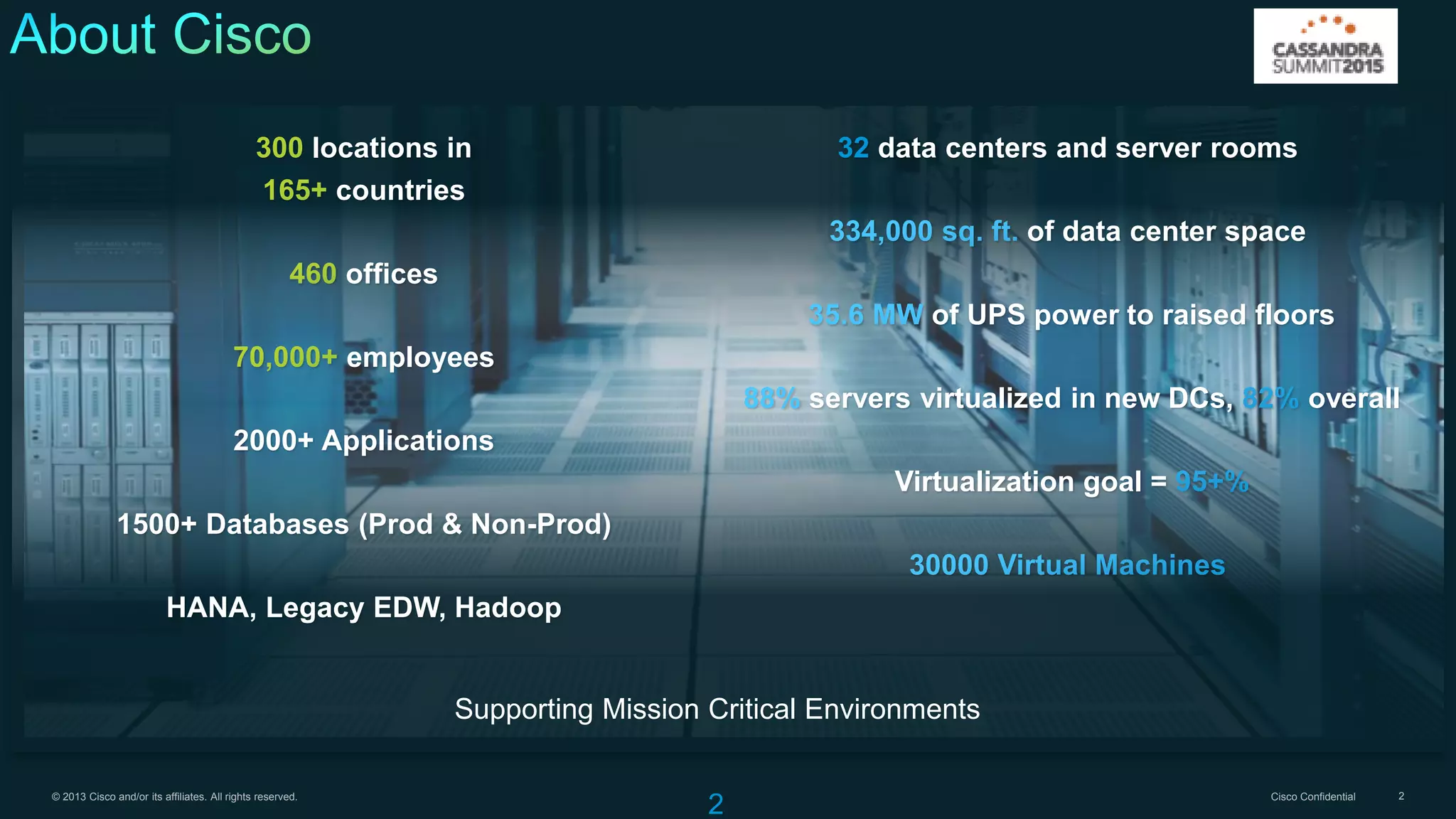

2. © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 2
2
locations in
countries
offices
employees
2000+ Applications
1500+ Databases (Prod & Non-Prod)
HANA, Legacy EDW, Hadoop
Supporting Mission Critical Environments
32 data centers and server rooms
of data center space
of UPS power to raised floors
servers virtualized in new DCs, overall
Virtualization goal =

3. © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 3

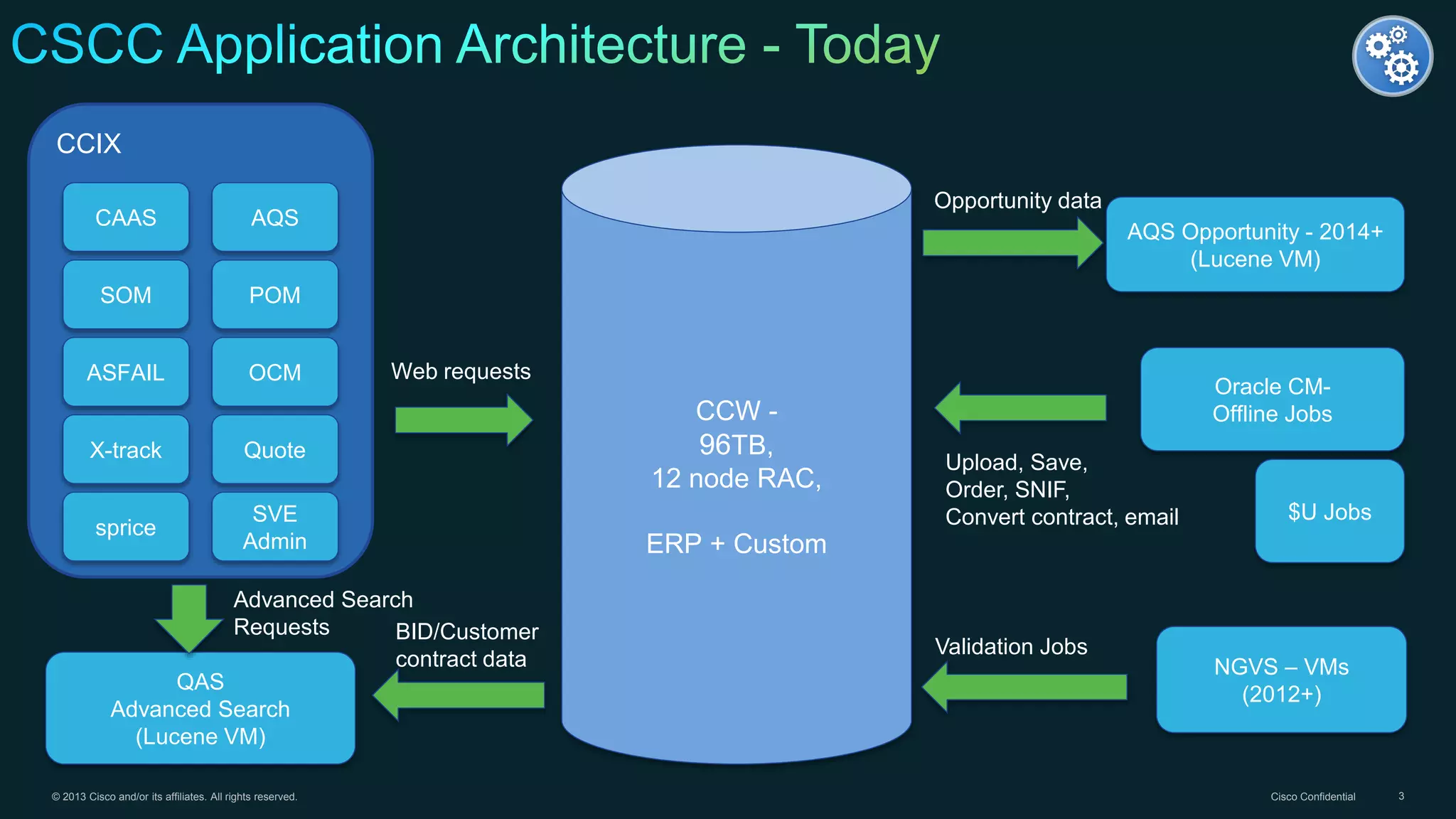

CCIX
Quote
CCW -
96TB,
12 node RAC,
ERP + Custom
OCM
X-track
SOM
Oracle CM-
Offline Jobs
POM
Upload, Save,
Order, SNIF,
Convert contract, email
NGVS – VMs
(2012+)
Validation Jobs
QAS
Advanced Search
(Lucene VM)
SVE
Admin
sprice
AQS
AQS Opportunity - 2014+
(Lucene VM)
Web requests
Advanced Search
Requests
$U Jobs
CAAS
ASFAIL
BID/Customer
contract data
Opportunity data

4. © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 4

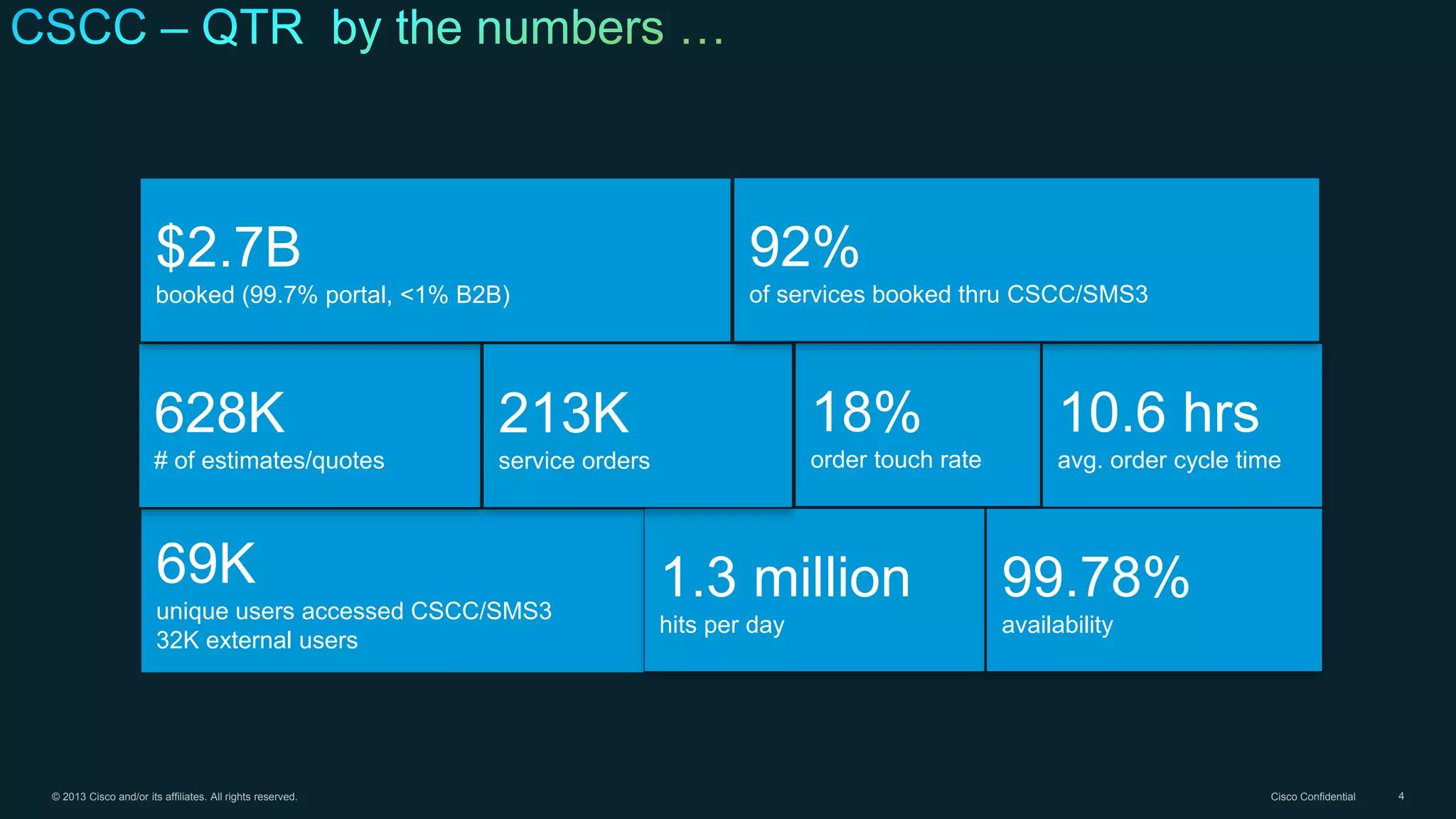

69K
unique users accessed CSCC/SMS3
32K external users
628K
# of estimates/quotes
$2.7B
booked (99.7% portal, <1% B2B)
18%
order touch rate
10.6 hrs
avg. order cycle time
1.3 million
hits per day
213K
service orders
92%
of services booked thru CSCC/SMS3
99.78%
availability

5. © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 5

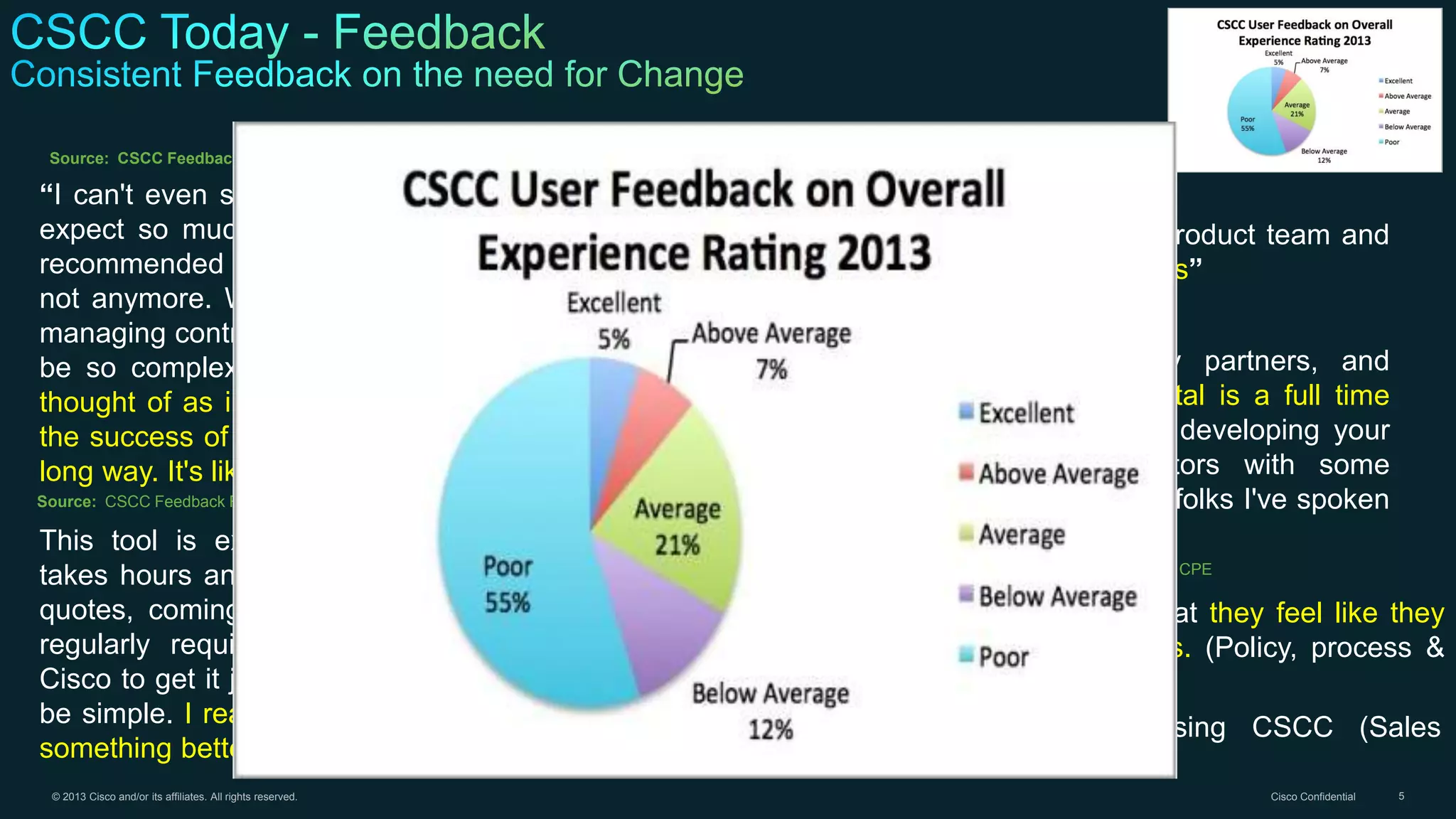

“I can't even see/find my contracts. I used to
expect so much from Cisco and would have
recommended your products to anyone, but
not anymore. Why does everything, including
managing contracts or getting support, have to
be so complex. For being a company that I
thought of as innovative and a big reason for
the success of the internet, Cisco has fallen a
long way. It's like Cisco is stuck in 1999.”
Source: CSCC Feedback Form
“I am new to services from the product team and
have quite a few views on our tools”
Source: Services Sentiment Survey
“Simplify. I've spoken to many partners, and
resellers and managing your portal is a full time
job. Cisco needs less engineers developing your
website and a few administrators with some
common sense. Some of support folks I've spoken
to have trouble with the website...”
Source: CSCC Feedback Form
This tool is extremely complex and slow. It
takes hours and hours to do simple low value
quotes, coming up with error after error, and
regularly requiring manual intervention from
Cisco to get it just to do something that should
be simple. I really hope you can come up with
something better and quickly.”
Source: CSCC Feedback Form
“Our Customers are telling us that they feel like they
did back in the CSCC CAP days. (Policy, process &
tool?)”
Source: Juli Clark, Cisco Director Management Operations – CPE
“We have agents that cry using CSCC (Sales
turnaround expectations)”
Source: Katie, Convergys

6. © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 6

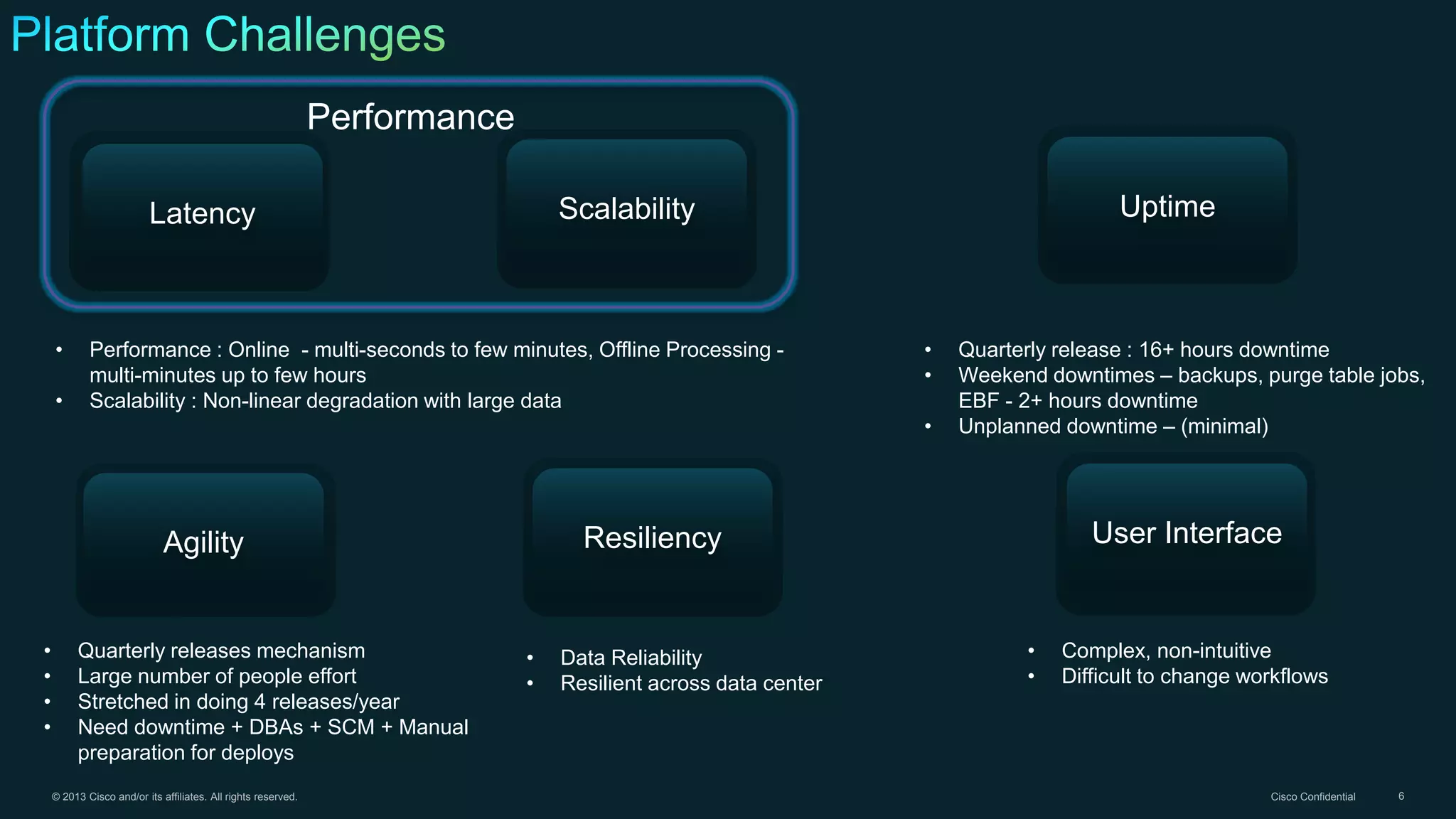

Performance
• Performance : Online - multi-seconds to few minutes, Offline Processing -
multi-minutes up to few hours
• Scalability : Non-linear degradation with large data
• Quarterly release : 16+ hours downtime
• Weekend downtimes – backups, purge table jobs,
EBF - 2+ hours downtime
• Unplanned downtime – (minimal)
• Quarterly releases mechanism
• Large number of people effort
• Stretched in doing 4 releases/year
• Need downtime + DBAs + SCM + Manual
preparation for deploys
• Complex, non-intuitive
• Difficult to change workflows
ScalabilityLatency Uptime
Agility Resiliency User Interface
• Data Reliability
• Resilient across data center

7. © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 7

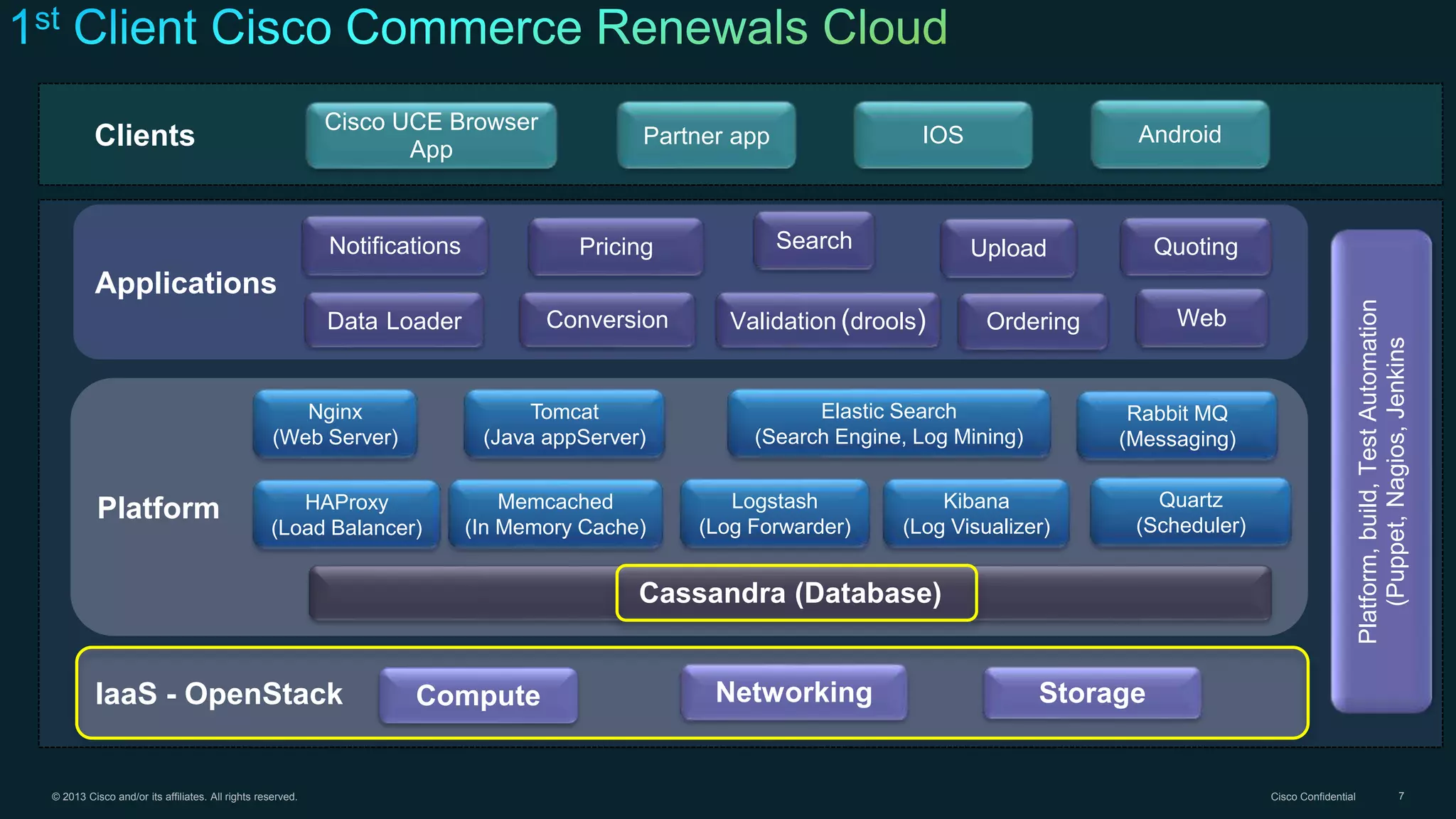

Clients
IaaS - OpenStack StorageCompute Networking
Platform
Cassandra (Database)
Applications
Notifications Pricing Search Quoting
Data Loader Validation (drools)
Cisco UCE Browser
App
AndroidPartner app IOS
Upload
Conversion
Nginx
(Web Server)
Platform,build,TestAutomation
(Puppet,Nagios,Jenkins
Ordering Web
Tomcat
(Java appServer)
Elastic Search
(Search Engine, Log Mining)
Rabbit MQ
(Messaging)
HAProxy
(Load Balancer)
Memcached
(In Memory Cache)
Logstash
(Log Forwarder)
Kibana
(Log Visualizer)
Quartz
(Scheduler)

8. © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 8

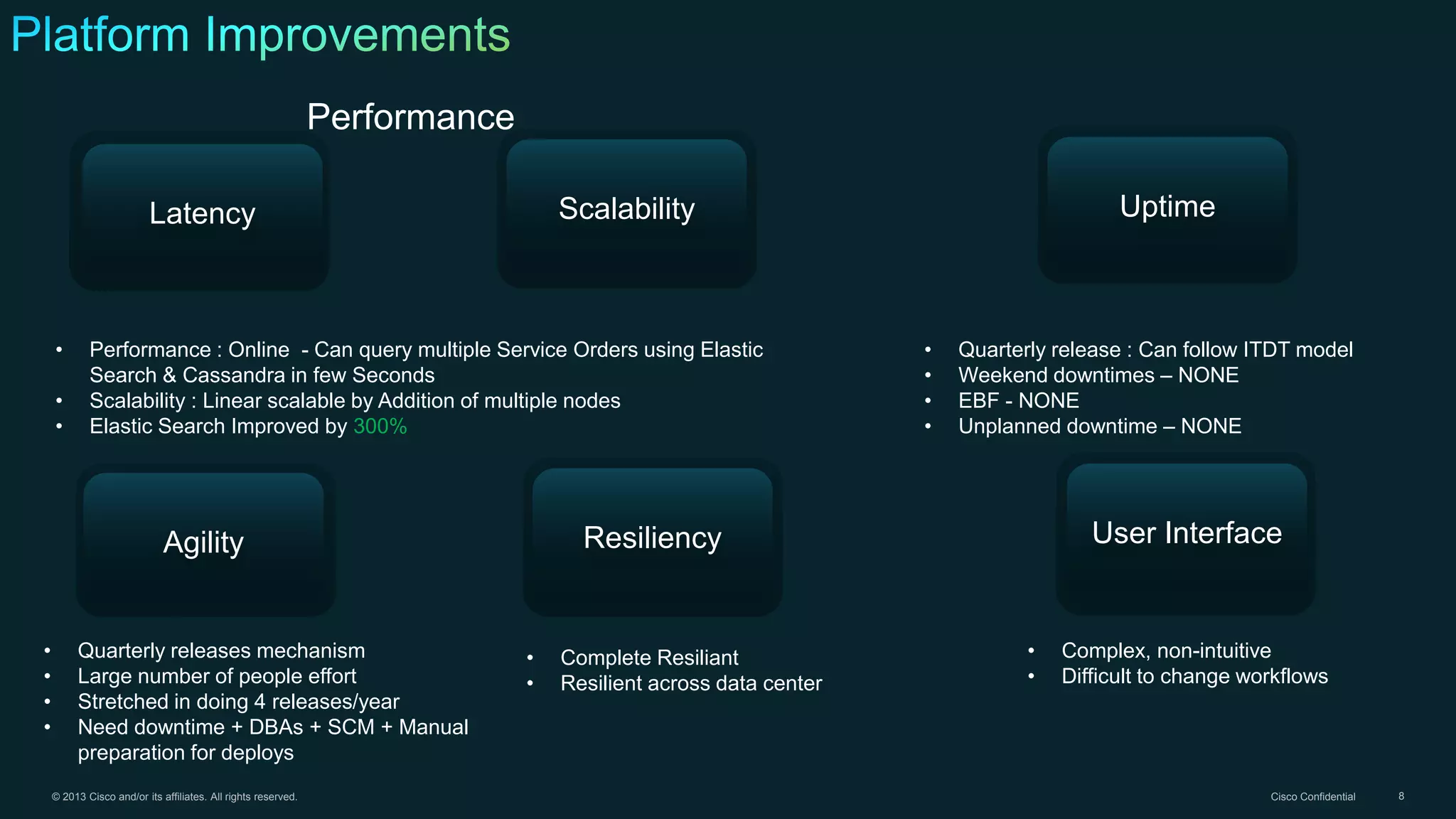

Performance
• Performance : Online - Can query multiple Service Orders using Elastic
Search & Cassandra in few Seconds
• Scalability : Linear scalable by Addition of multiple nodes
• Elastic Search Improved by 300%
• Quarterly release : Can follow ITDT model
• Weekend downtimes – NONE
• EBF - NONE
• Unplanned downtime – NONE
• Quarterly releases mechanism
• Large number of people effort
• Stretched in doing 4 releases/year
• Need downtime + DBAs + SCM + Manual
preparation for deploys
• Complex, non-intuitive
• Difficult to change workflows
ScalabilityLatency Uptime
Agility Resiliency User Interface
• Complete Resiliant
• Resilient across data center

9. © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 9

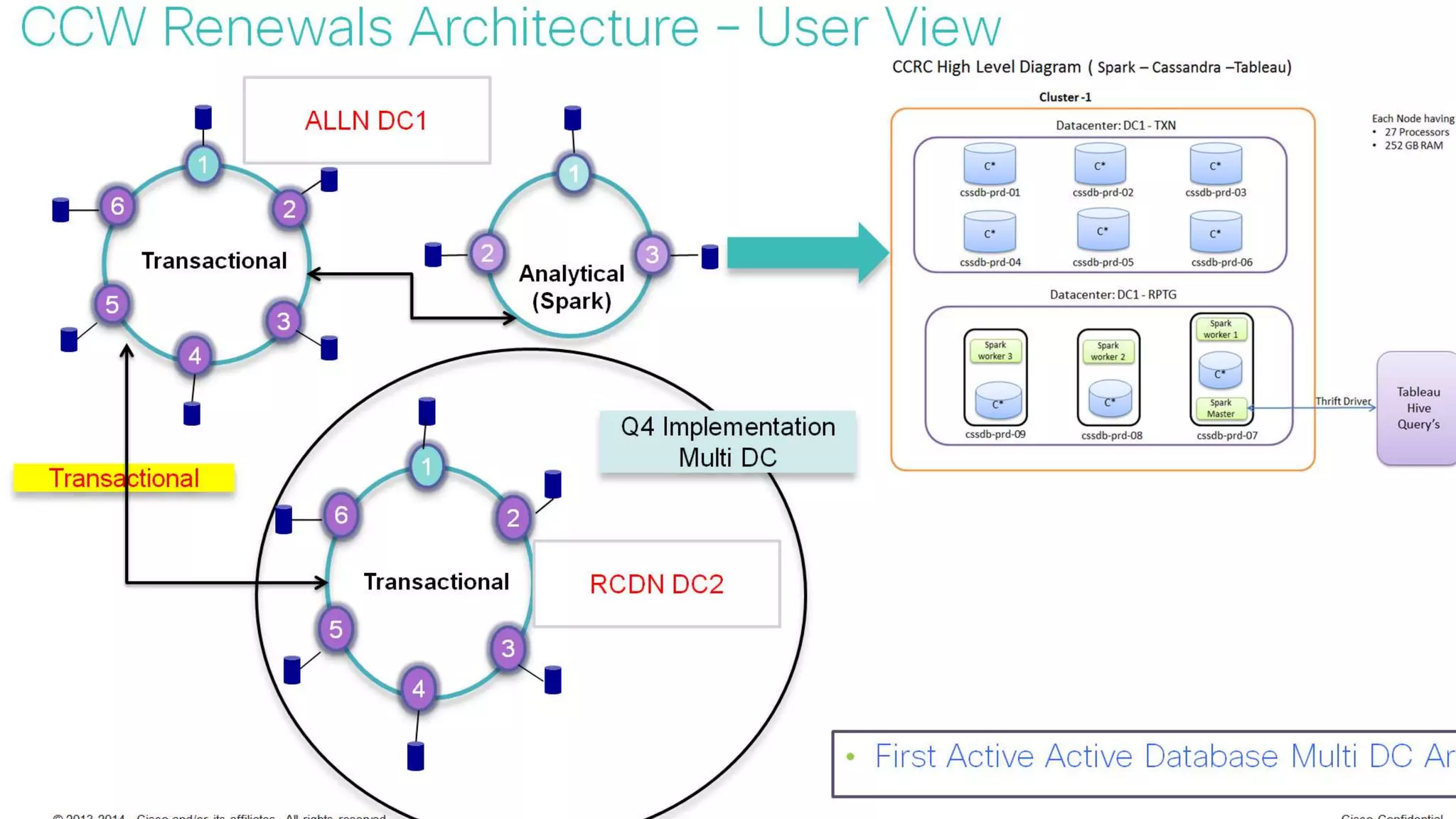

4
1
6
5
2
3

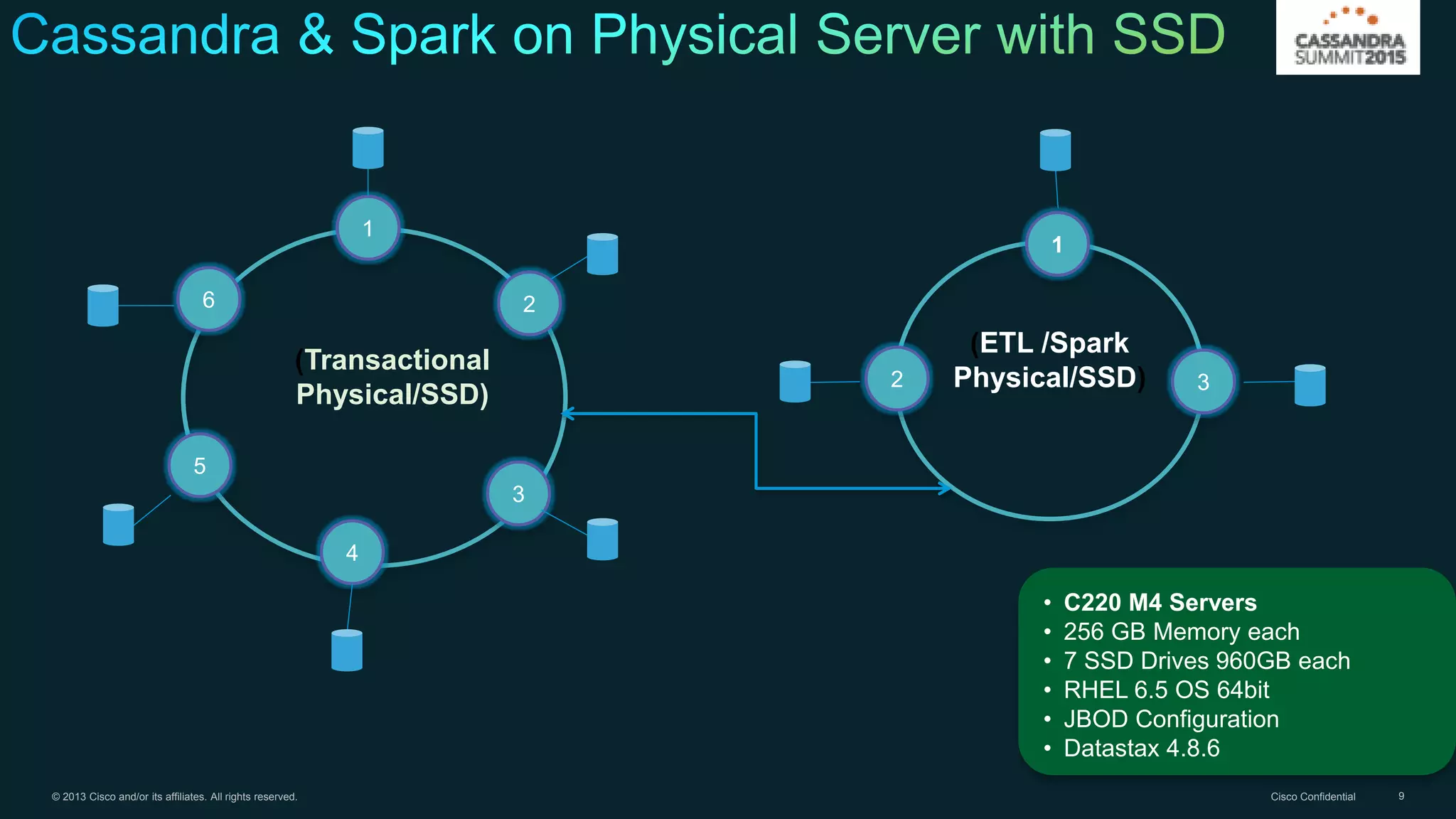

(Transactional
Physical/SSD) 3
1
2
(ETL /Spark
Physical/SSD)
• C220 M4 Servers
• 256 GB Memory each
• 7 SSD Drives 960GB each
• RHEL 6.5 OS 64bit
• JBOD Configuration
• Datastax 4.8.6

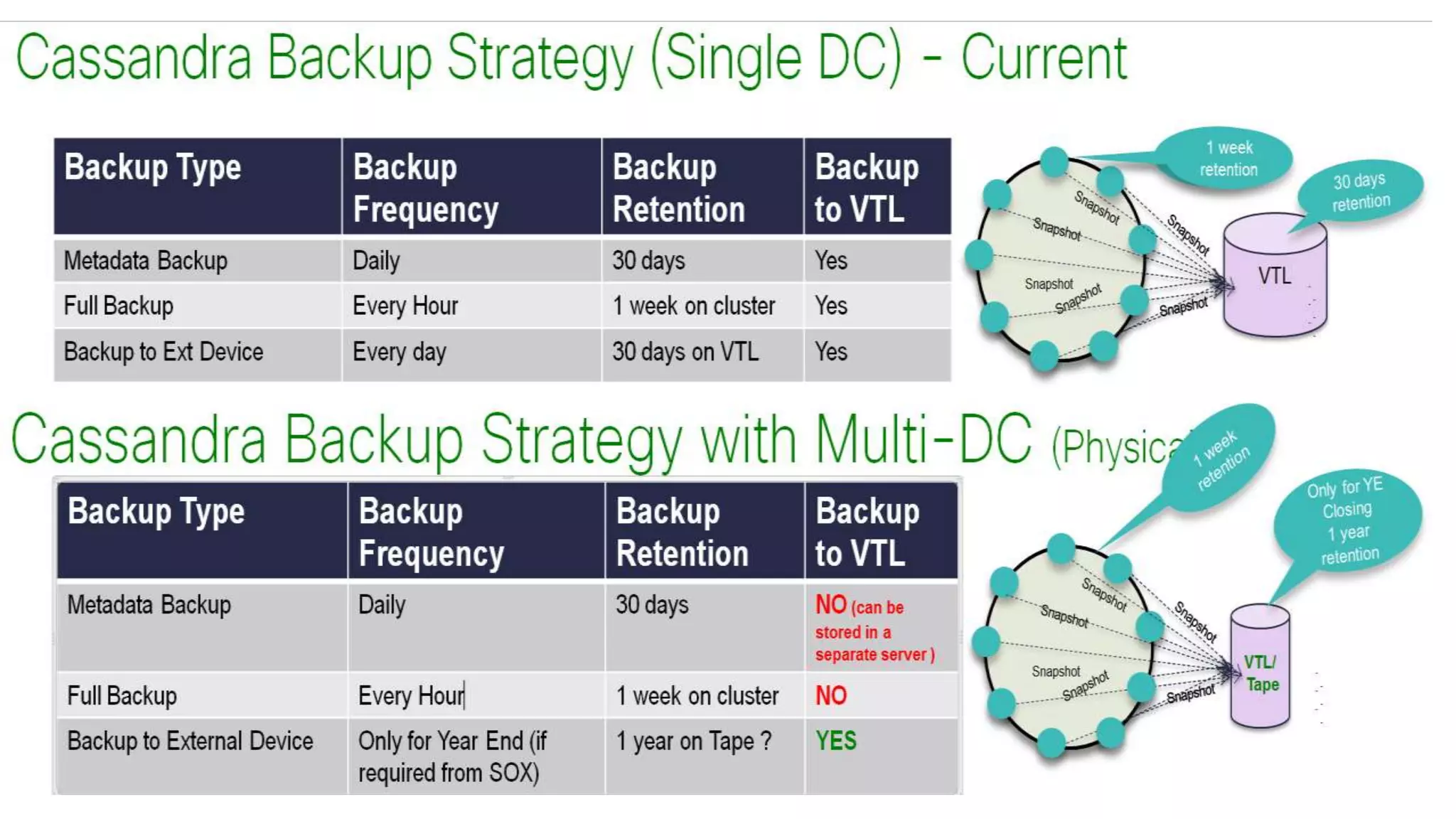

11. © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 11

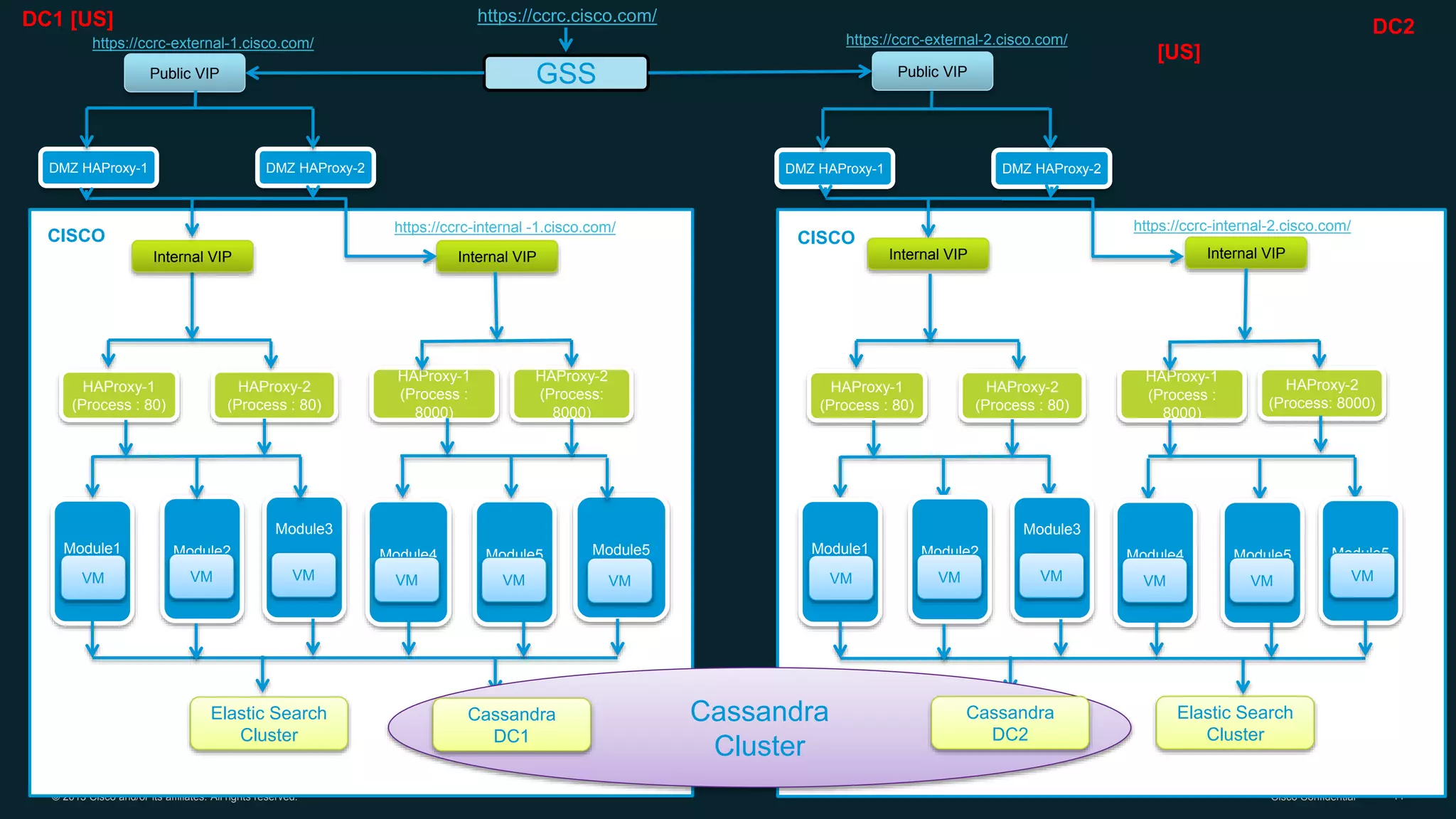

CISCO
DC2
[US]
HAProxy-1
(Process :
8000)
HAProxy-1
(Process : 80)
HAProxy-2
(Process : 80)
HAProxy-2
(Process: 8000)
https://ccrc.cisco.com/
https://ccrc-internal-2.cisco.com/
Public VIP
Internal VIP
Module1
VM
Module2
VM
Module3
VM
Module4
VM
Module5
VM
Module5
VM
Elastic Search
Cluster
CISCO
HAProxy-1
(Process :
8000)
HAProxy-1
(Process : 80)
HAProxy-2
(Process : 80)
HAProxy-2
(Process:
8000)
Public VIP
Internal VIP
Module1
VM
Module2
VM
Module3
VM
Module4
VM
Module5
VM
Module5
VM
Elastic Search
Cluster
DC1 [US]
https://ccrc-internal -1.cisco.com/
GSS
https://ccrc-external-1.cisco.com/ https://ccrc-external-2.cisco.com/
DMZ HAProxy-1 DMZ HAProxy-2
Internal VIP
DMZ HAProxy-1 DMZ HAProxy-2
Internal VIP
Cassandra
Cluster
Cassandra
DC1
Cassandra
DC2

13. © 2013 Cisco and/or its affiliates. All rights reserved. Cisco Confidential 13
Thank you.
