• 1.
  ©2013 DataStax Confidential.Do not distribute without consent. @PatrickMcFadin Patrick McFadin
 Chief Evangelist for Apache Cassandra Advanced Data Modeling with Apache Cassandra 1
• 2.
  Advanced? • Two thoughtshere Formal Practical
• 3.
  Formal Data ModelingMethods

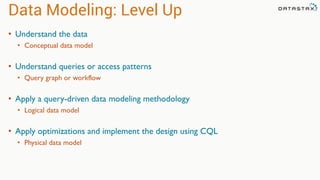

• 4.

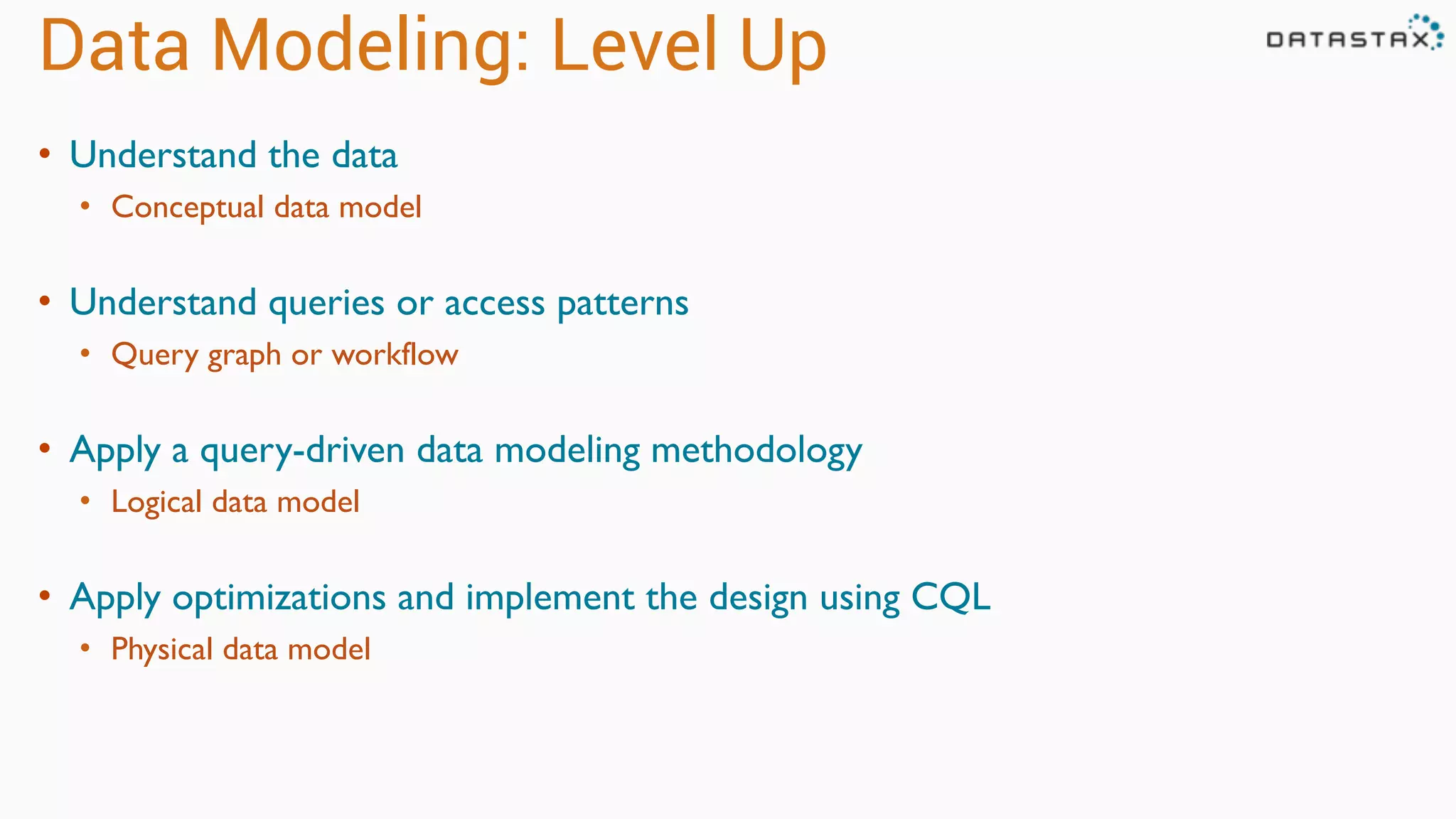

  Data Modeling: LevelUp • Understand the data • Conceptual data model • Understand queries or access patterns • Query graph or workflow • Apply a query-driven data modeling methodology • Logical data model • Apply optimizations and implement the design using CQL • Physical data model
• 5.

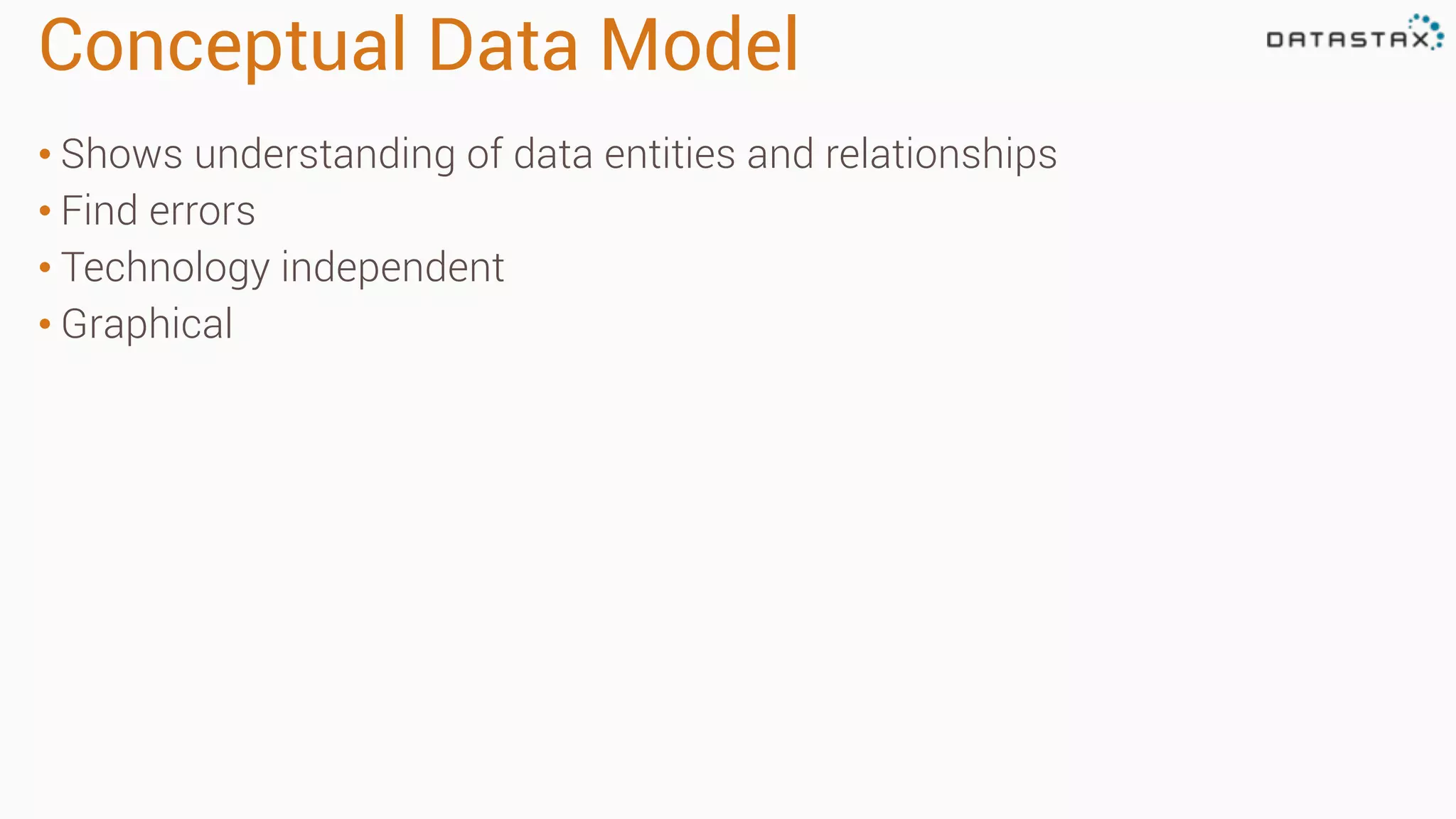

  Conceptual Data Model •Shows understanding of data entities and relationships • Find errors • Technology independent • Graphical
• 6.

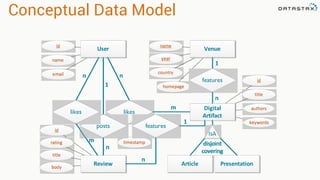

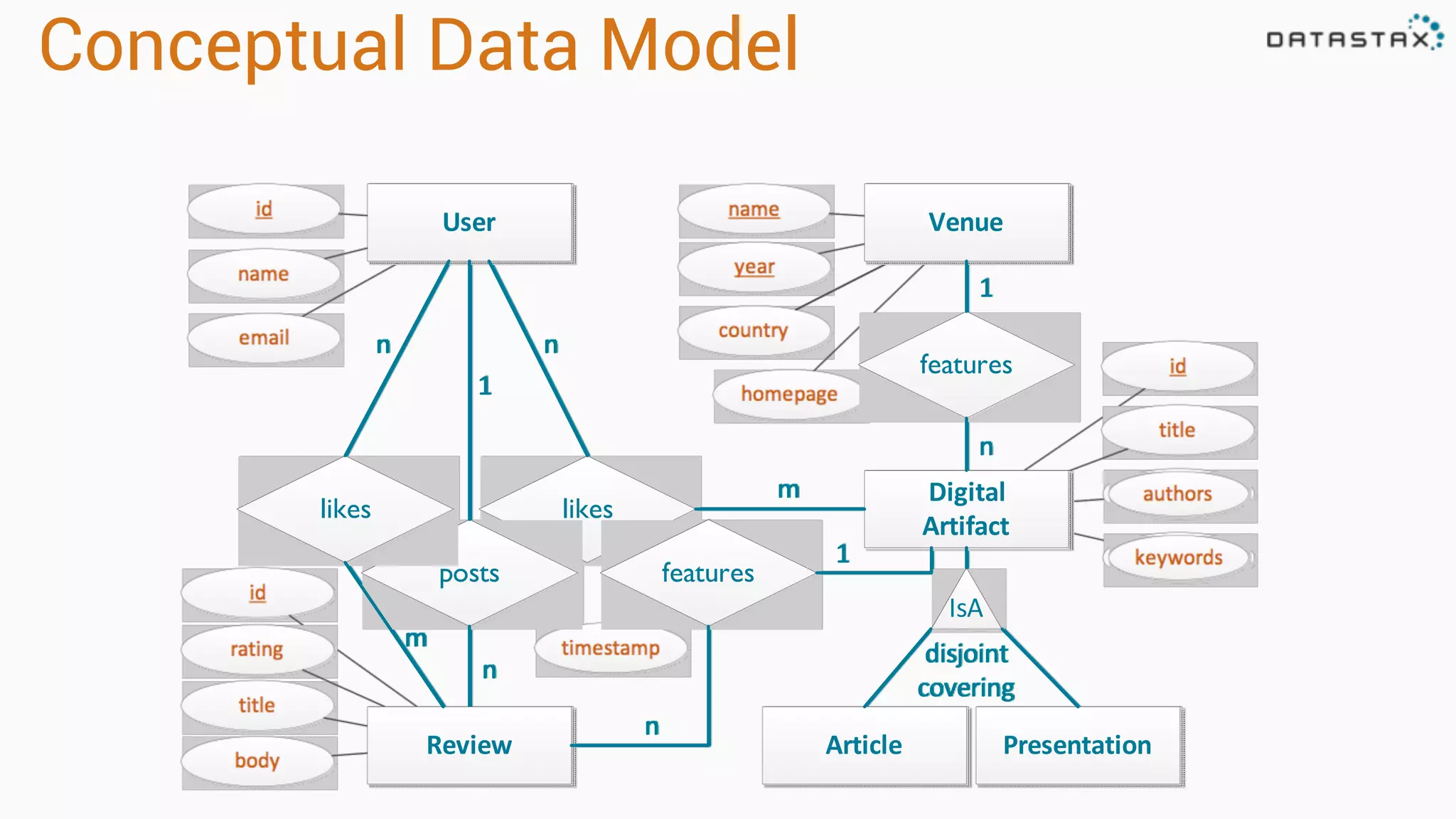

  Conceptual Data Model User Digital Artifact Venue ArticlePresentationReview User Digital Artifact Venue likes n m features 1 n IsA Article Presentation disjoint, covering posts 1 n Review likes features n m n 1

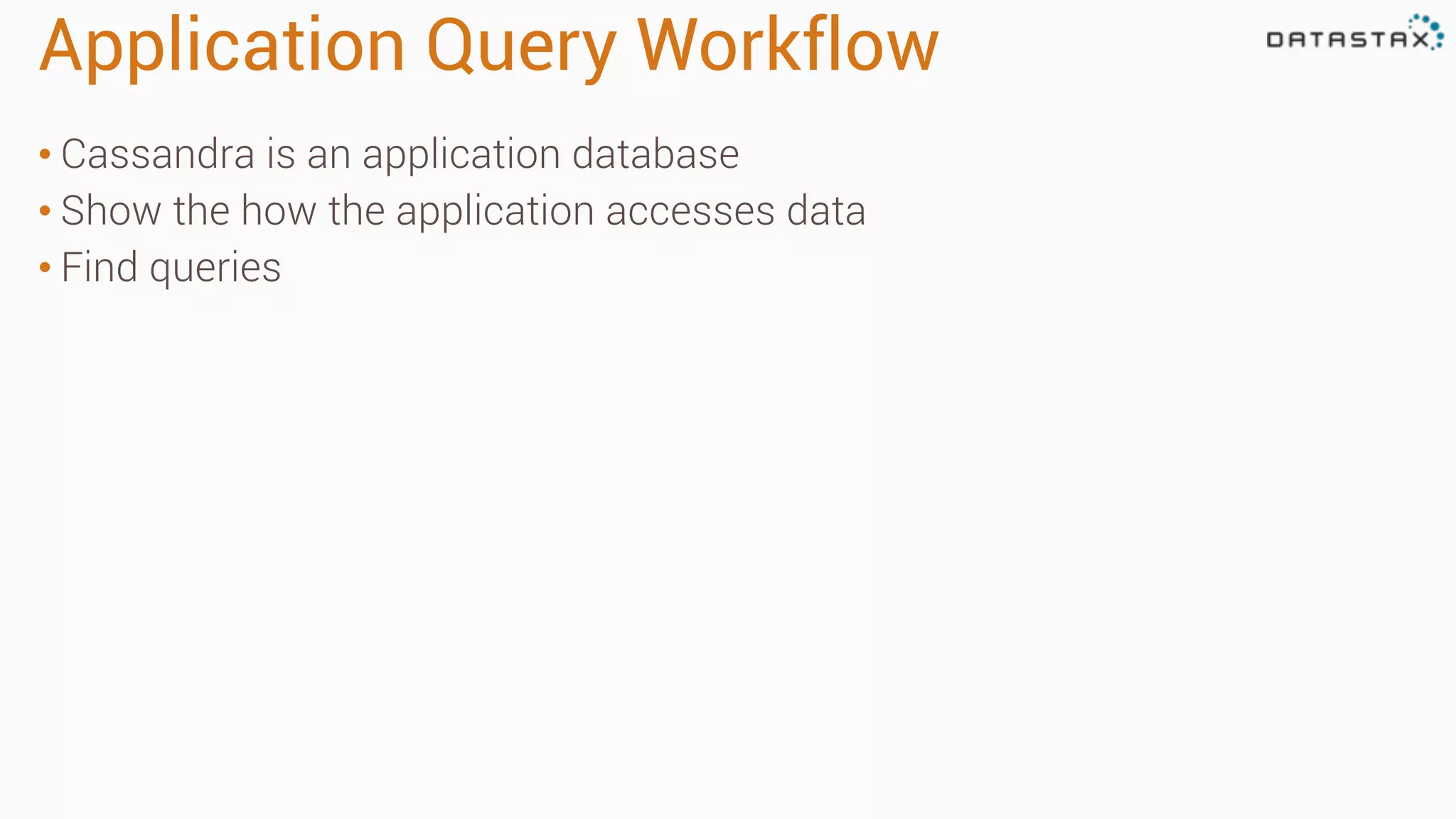

• 7.

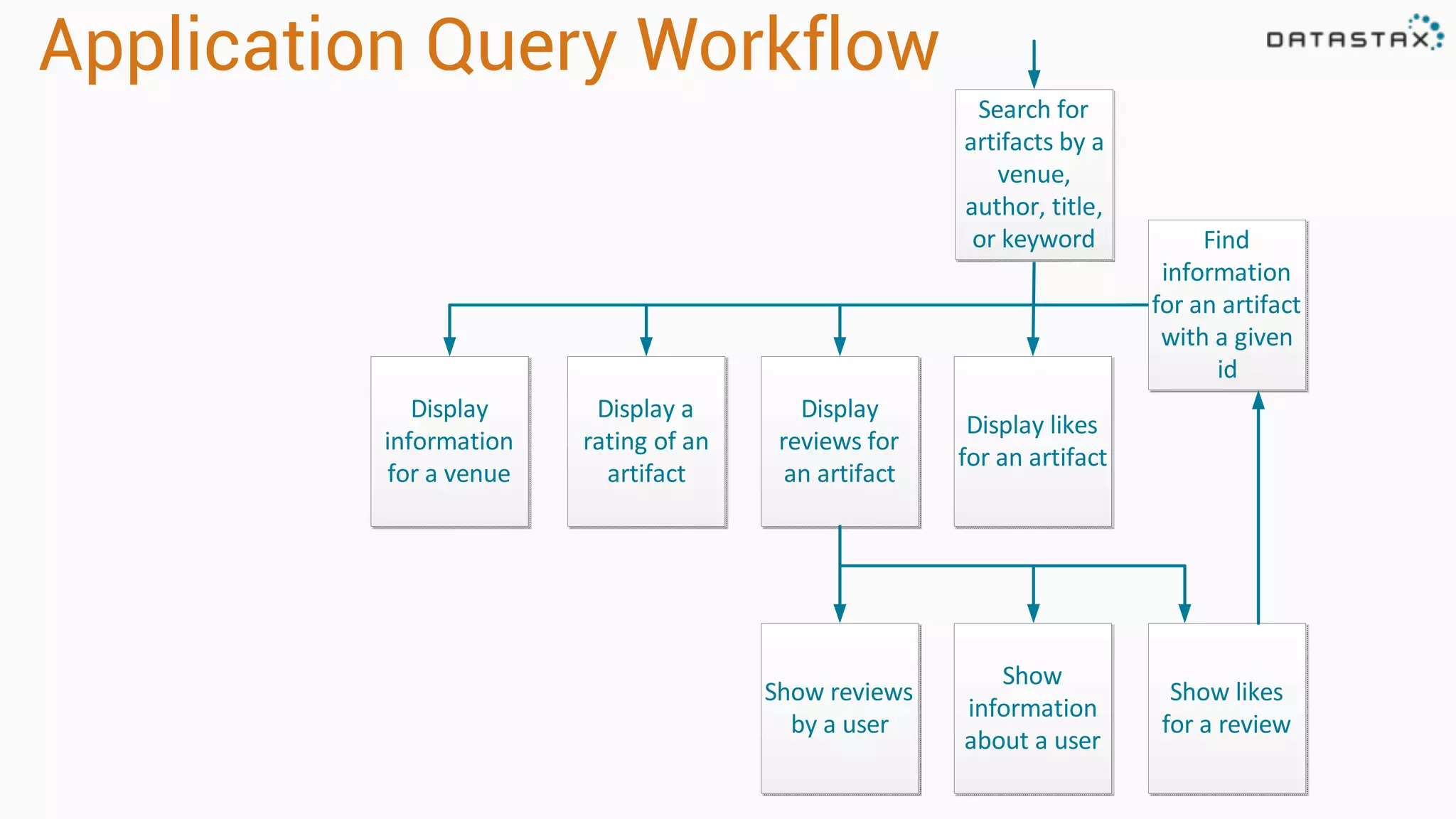

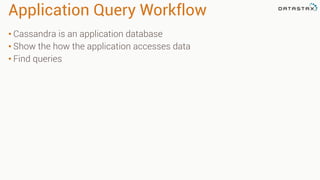

  Application Query Workflow •Cassandra is an application database • Show the how the application accesses data • Find queries
• 8.

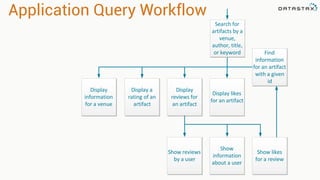

  Application Query Workflow Search'for' artifacts'by'a' venue,' author,'title,' or'keyword Display' information' for'a'venue Display'a' rating'of'an' artifact Display' reviews'for' an'artifact Display'likes' for'an'artifact Find' information' for'an'artifact' with'a'given' id Show' information' about'a'user Show'likes' for'a'review Show'reviews' by'a'user

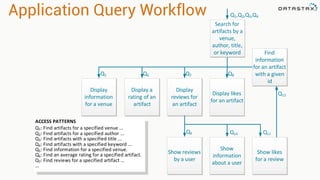

• 9.

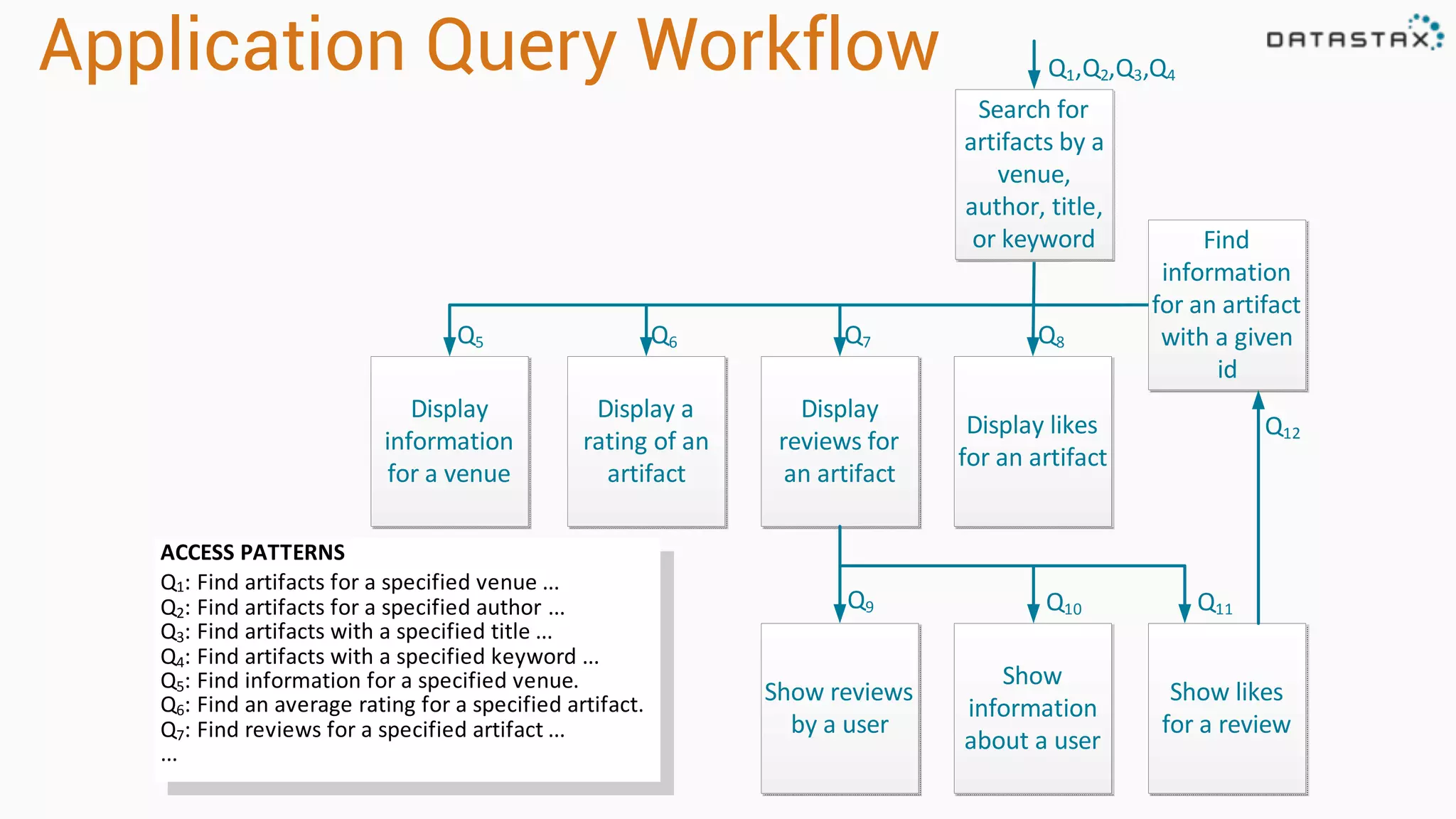

  Application Query Workflow Q5 Q1,Q2,Q3,Q4 Q8Q6Q7 Search1for1 artifacts1by1a1 venue,1 author,1title,1 or1keyword Display1 information1 for1a1venue Display1a1 rating1of1an1 artifact Display1 reviews1for1 an1artifact Display1likes1 for1an1artifact Find1 information1 for1an1artifact1 with1a1given1 id Show1 information1 about1a1user Show1likes1 for1a1review Show1reviews1 by1a1user Q9 Q10 Q12 Q11 ACCESS%PATTERNS Q1:$Find$artifacts$for$a$specified$venue$... Q2:$Find$artifacts$for$a$specified$author$... Q3:$Find$artifacts$with$a$specified$title$... Q4:$Find$artifacts$with$a$specified$keyword$... Q5:$Find$information$for$a$specified$venue. Q6:$Find$an$average$rating$for$a$specified$artifact. Q7:$Find$reviews$for$a$specified$artifact$... ...
• 10.

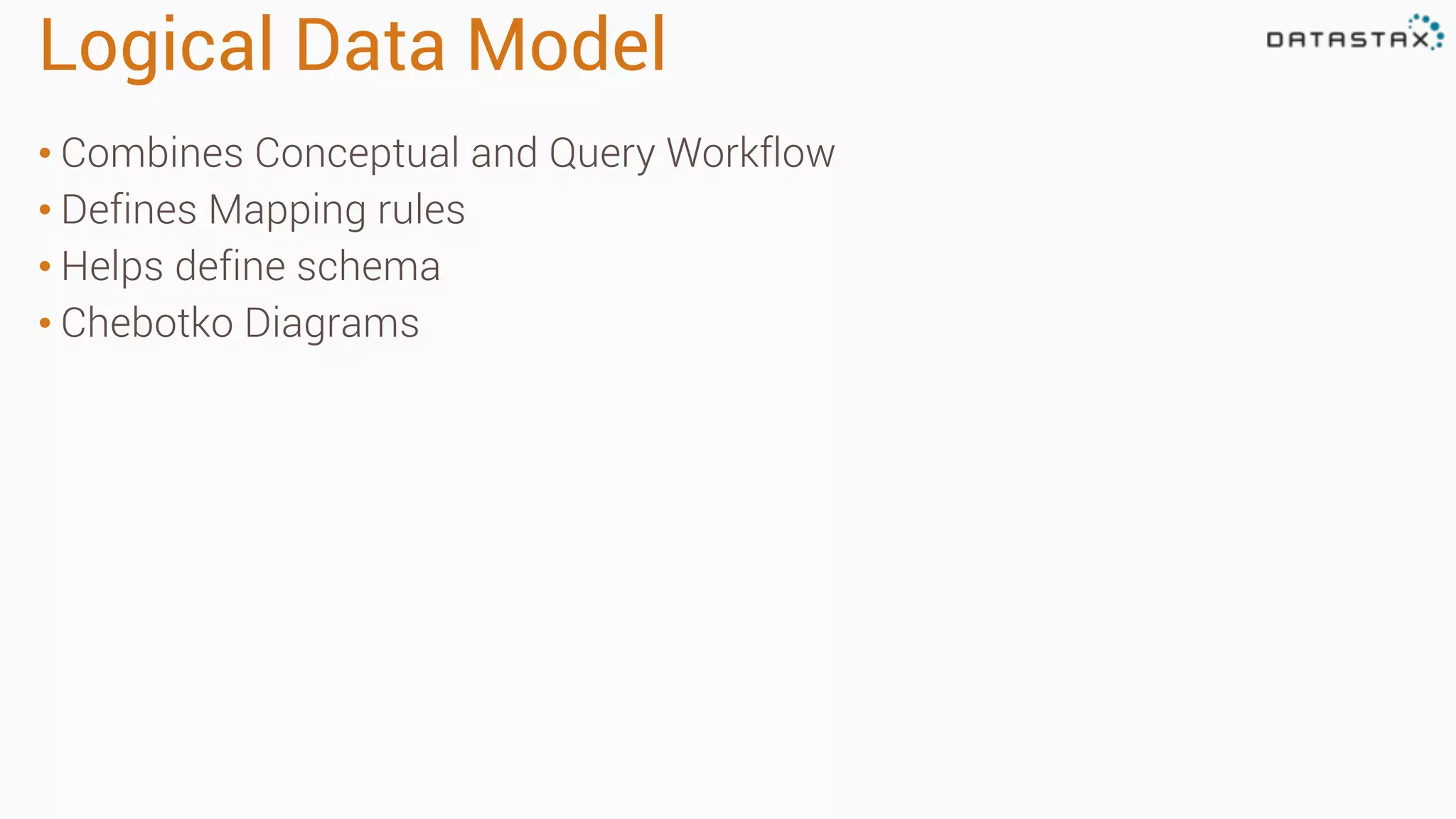

  Logical Data Model •Combines Conceptual and Query Workflow • Defines Mapping rules • Helps define schema • Chebotko Diagrams
• 11.

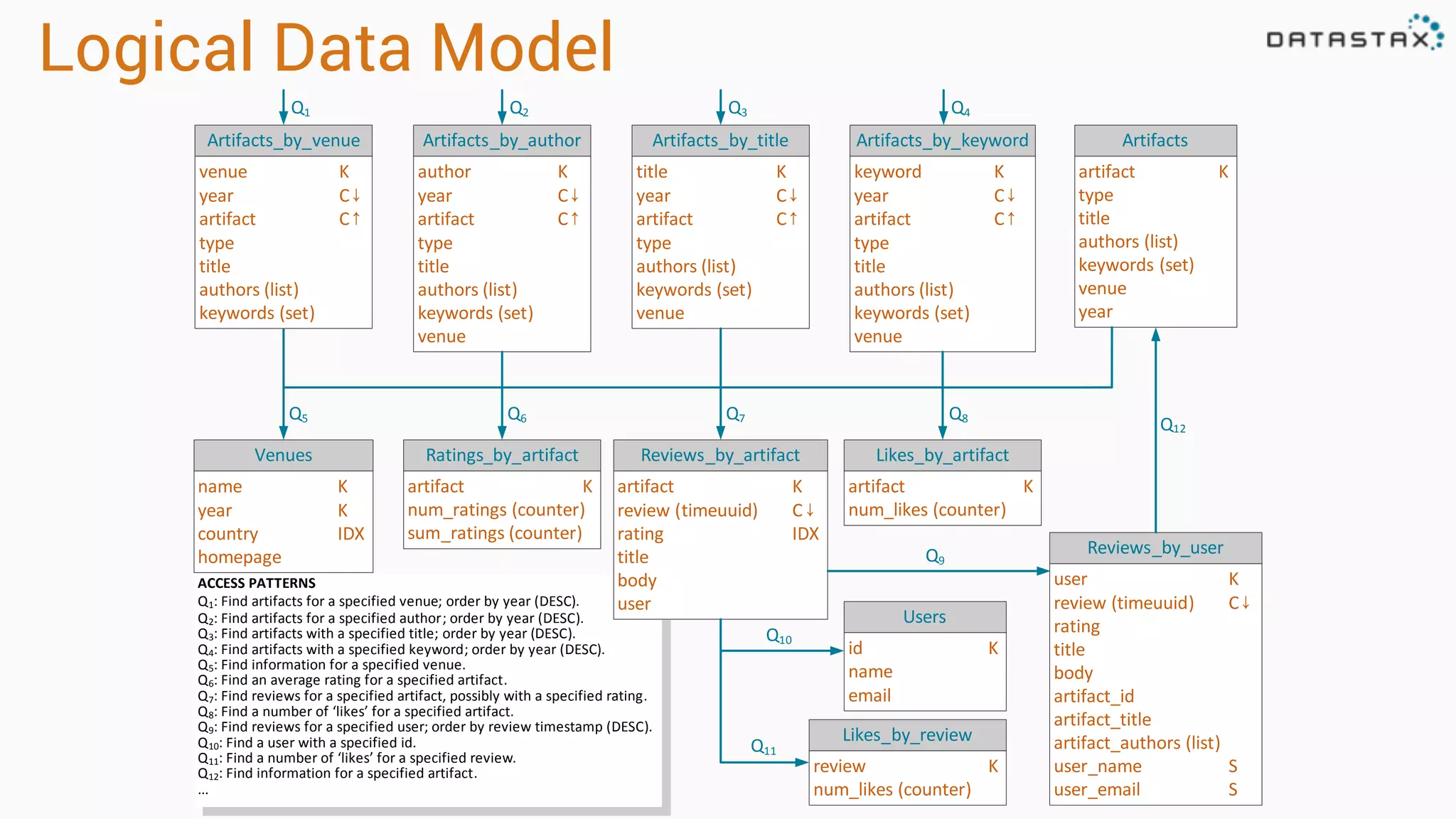

  Logical Data Model ACCESS%PATTERNS Q1:$Find$artifacts$for$a$specified$venue;$order$by$year$(DESC). Q2:$Find$artifacts$for$a$specified$author;$order$by$year$(DESC). Q3:$Find$artifacts$with$a$specified$title;$order$by$year$(DESC). Q4:$Find$artifacts$with$a$specified$keyword;$order$by$year$(DESC). Q5:$Find$information$for$a$specified$venue. Q6:$Find$an$average$rating$for$a$specified$artifact. Q7:$Find$reviews$for$a$specified$artifact,$possibly$with$a$specified$rating. Q8:$Find$a$number$of$‘likes’$for$a$specified$artifact. Q9:$Find$reviews$for$a$specified$user;$order$by$review$timestamp$(DESC). Q10:$Find$a$user$with$a$specified$id. Q11:$Find$a$number$of$‘likes’$for$a$specified$review. Q12:$Find$information$for$a$specified$artifact. ... Venues nameK year K country IDX homepage Q5 Artifacts_by_venue venue K year C artifact C type title authors$(list) keywords$(set) Artifacts_by_author author K year C artifact C type title authors$(list) keywords$(set) venue Artifacts_by_title title K year C artifact C type authors$(list) keywords$(set) venue Artifacts_by_keyword keyword K year C artifact C type title authors$(list) keywords$(set) venue Users id K name email Ratings_by_artifact artifact K num_ratings$(counter) sum_ratings$(counter) Reviews_by_user user K review$(timeuuid) C rating title body artifact_id artifact_title artifact_authors$(list) user_name S user_email S Reviews_by_artifact artifact K review$(timeuuid) C rating IDX title body user Likes_by_artifact artifact K num_likes$(counter) Likes_by_review review K num_likes$(counter) Q1 Q2 Q3 Q4 Artifacts artifact K type title authors$(list) keywords$(set) venue year Q8Q6 Q7 Q11 Q10 Q9 Q12
• 12.

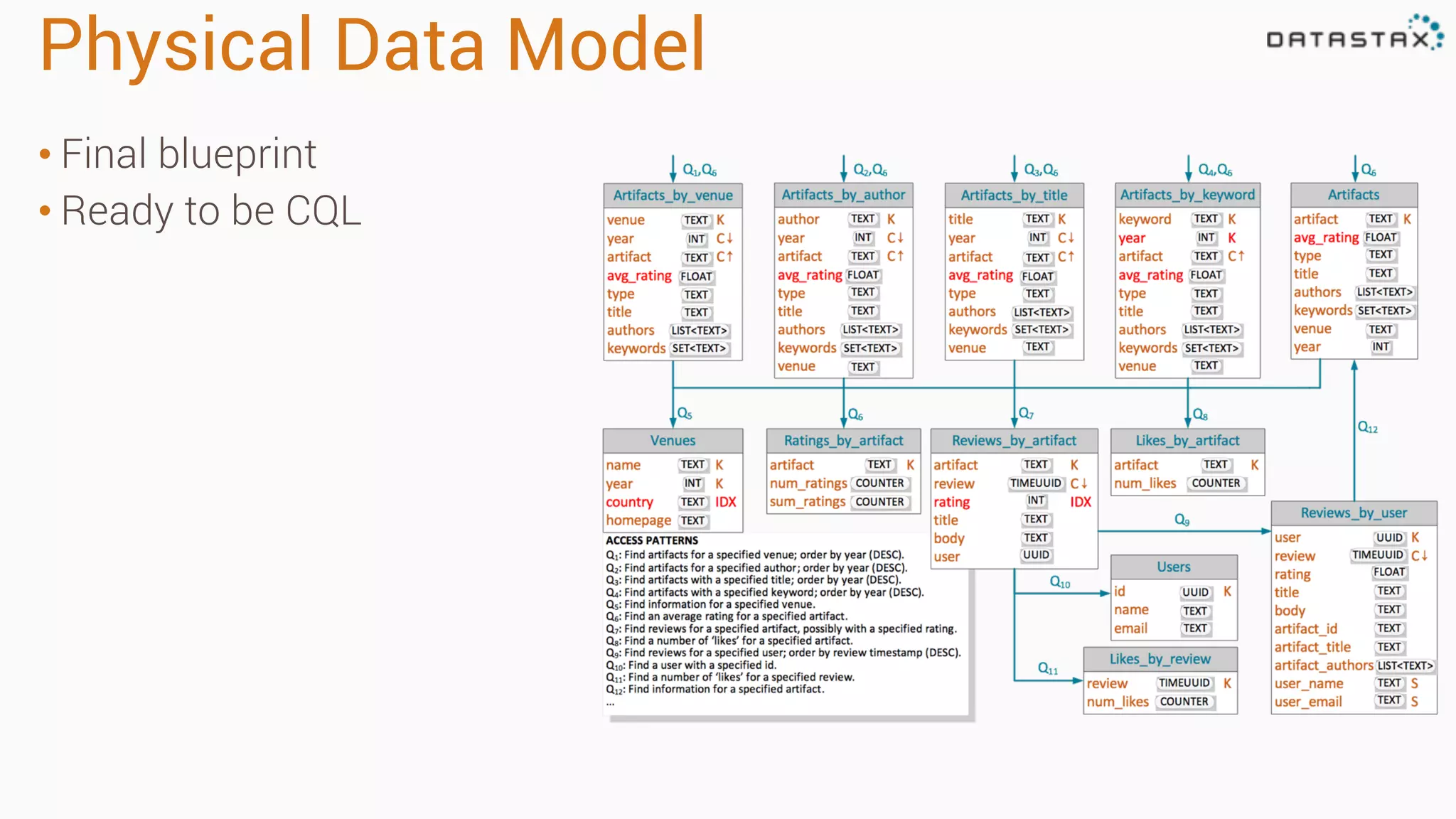

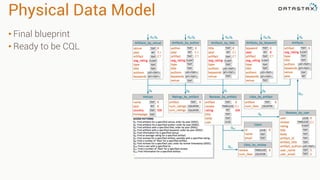

  Physical Data Model •Final blueprint • Ready to be CQL
• 13.
  Practical Modeling Methods
• 14.

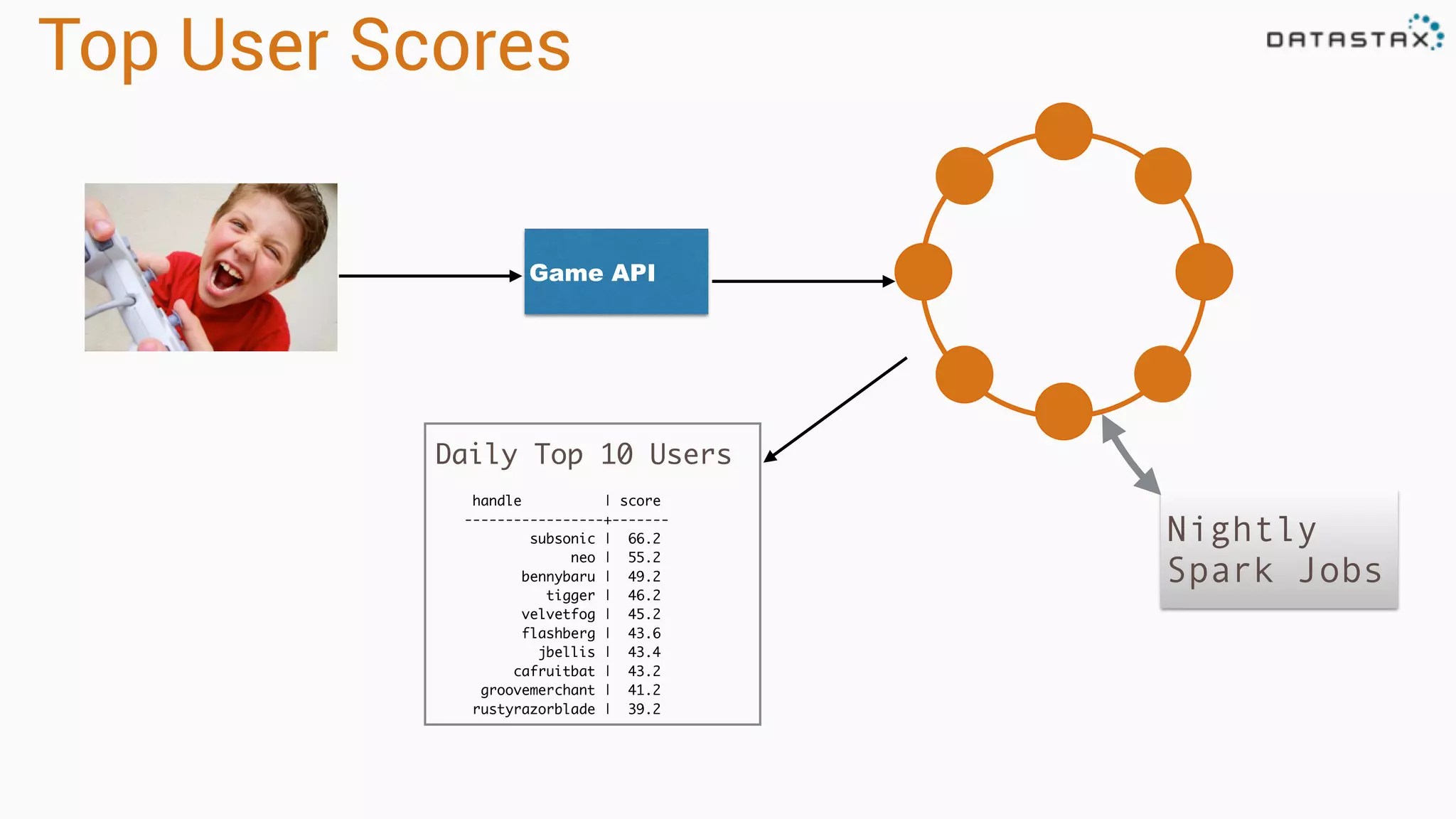

  Top User Scores GameAPI Nightly Spark Jobs Daily Top 10 Users handle | score -----------------+------- subsonic | 66.2 neo | 55.2 bennybaru | 49.2 tigger | 46.2 velvetfog | 45.2 flashberg | 43.6 jbellis | 43.4 cafruitbat | 43.2 groovemerchant | 41.2 rustyrazorblade | 39.2
• 15.

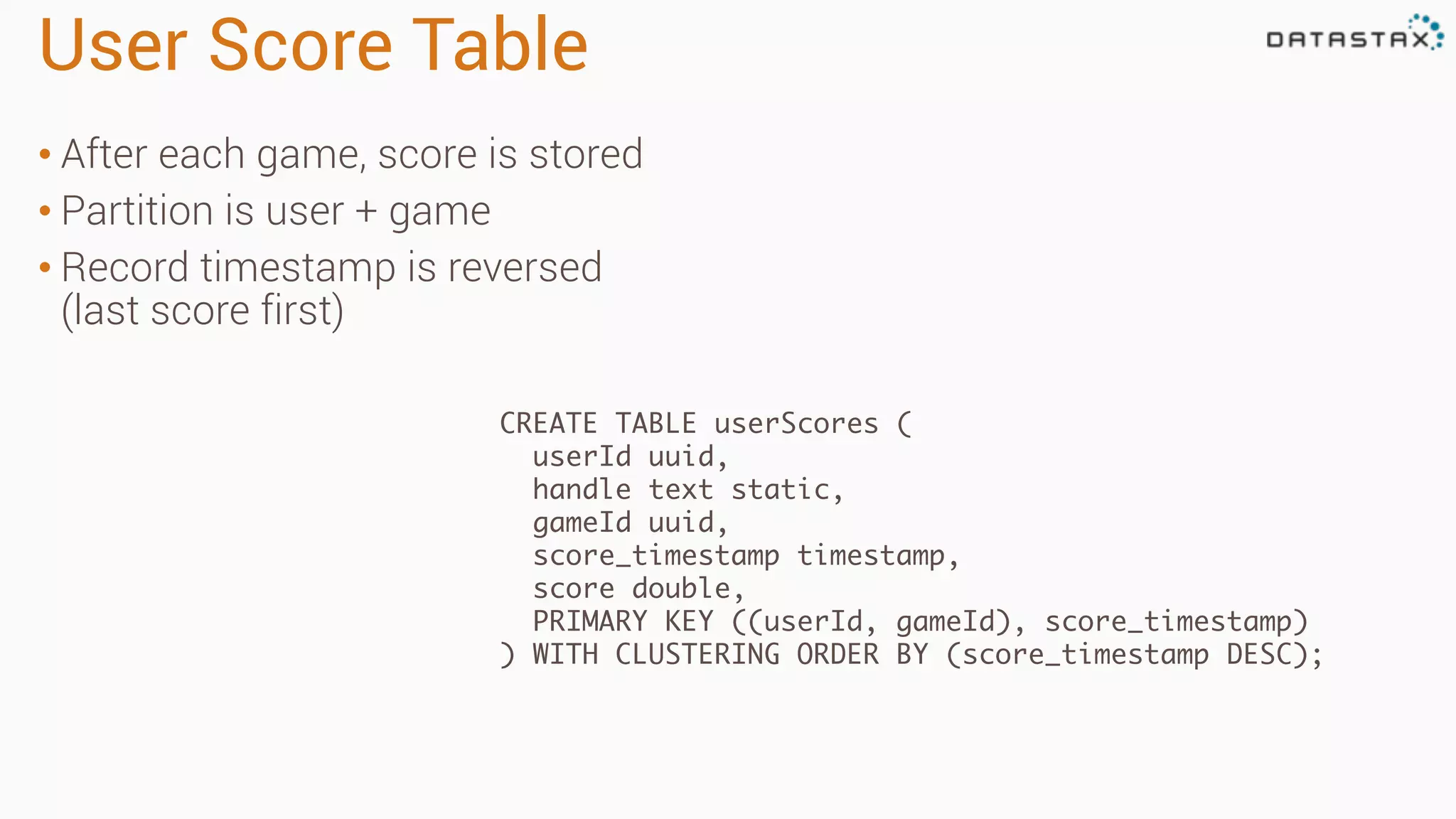

  User Score Table •After each game, score is stored • Partition is user + game • Record timestamp is reversed (last score first) CREATE TABLE userScores ( userId uuid, handle text static, gameId uuid, score_timestamp timestamp, score double, PRIMARY KEY ((userId, gameId), score_timestamp) ) WITH CLUSTERING ORDER BY (score_timestamp DESC);

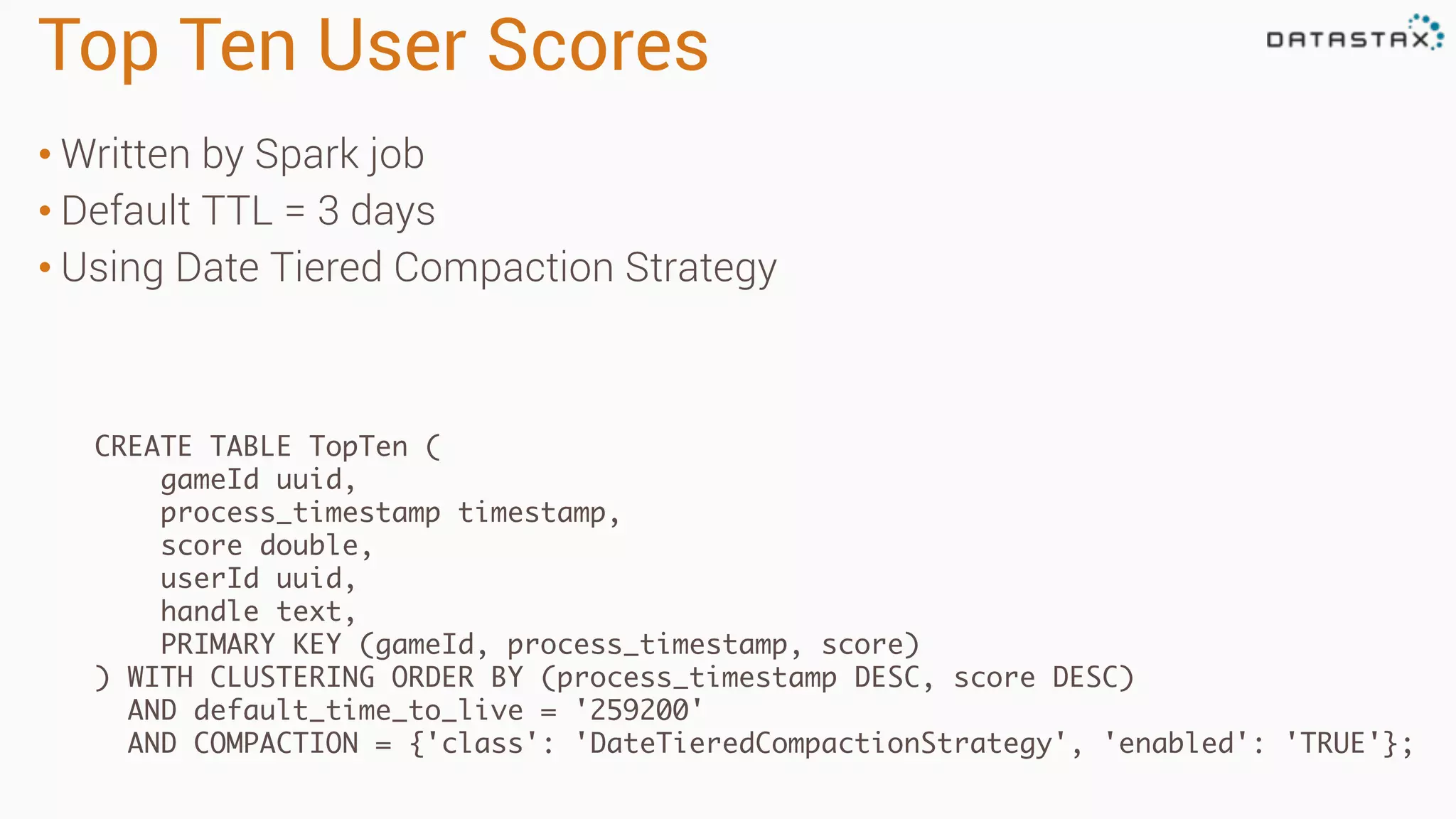

• 16.

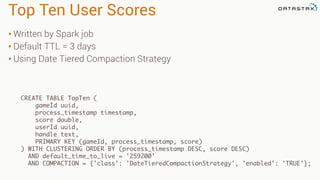

  Top Ten UserScores • Written by Spark job • Default TTL = 3 days • Using Date Tiered Compaction Strategy CREATE TABLE TopTen ( gameId uuid, process_timestamp timestamp, score double, userId uuid, handle text, PRIMARY KEY (gameId, process_timestamp, score) ) WITH CLUSTERING ORDER BY (process_timestamp DESC, score DESC) AND default_time_to_live = '259200' AND COMPACTION = {'class': 'DateTieredCompactionStrategy', 'enabled': 'TRUE'};

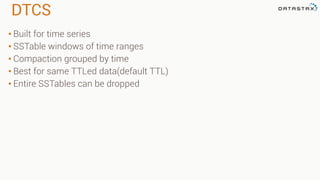

• 17.

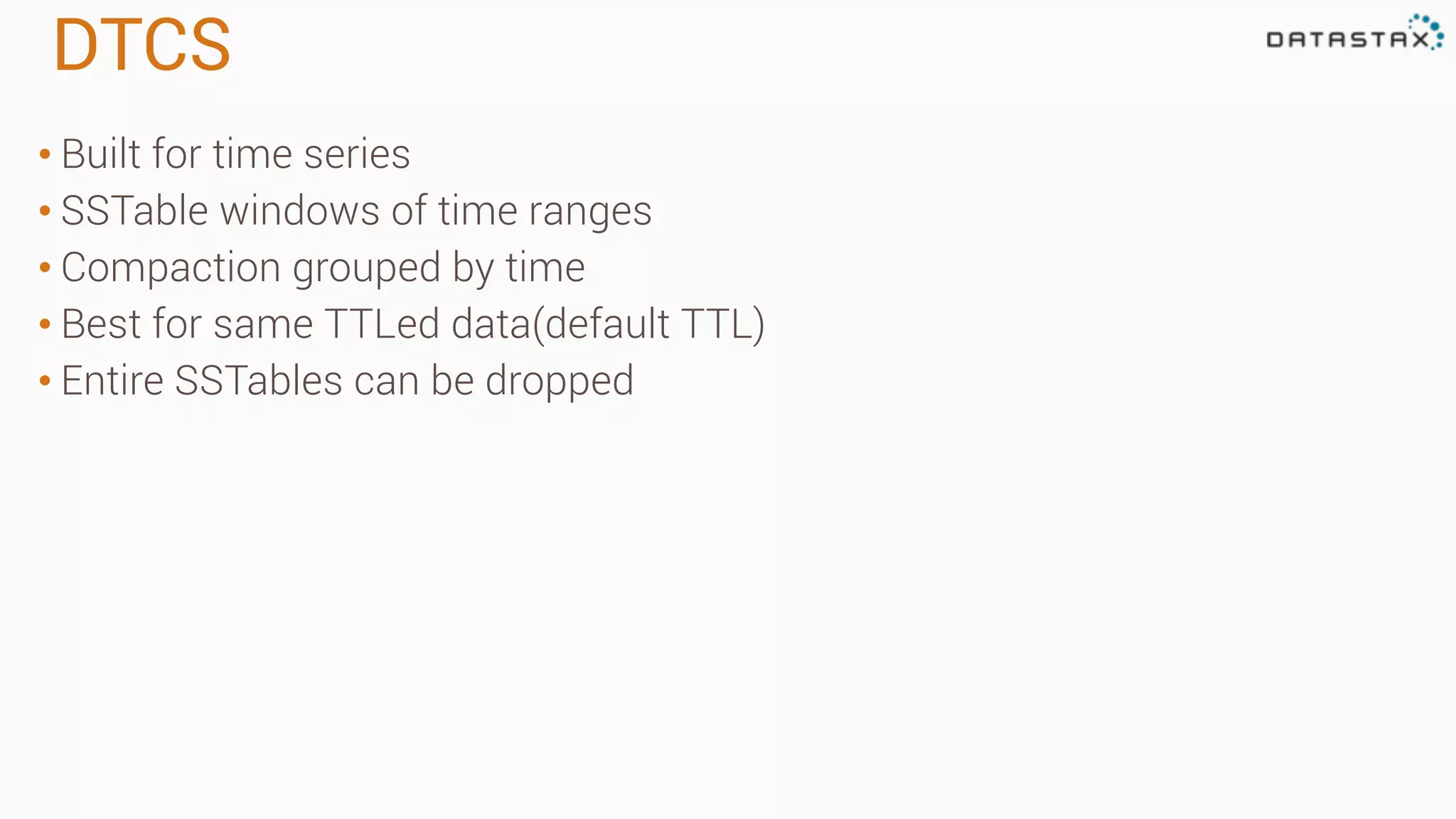

  DTCS • Built fortime series • SSTable windows of time ranges • Compaction grouped by time • Best for same TTLed data(default TTL) • Entire SSTables can be dropped
• 18.

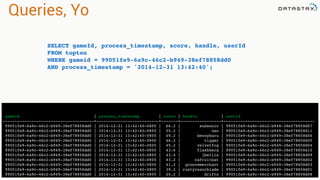

  Queries, Yo gameid |process_timestamp | score | handle | userid --------------------------------------+--------------------------+-------+-----------------+-------------------------------------- 99051fe9-6a9c-46c2-b949-38ef78858dd0 | 2014-12-31 13:42:40-0800 | 66.2 | subsonic | 99051fe9-6a9c-46c2-b949-38ef78858d07 99051fe9-6a9c-46c2-b949-38ef78858dd0 | 2014-12-31 13:42:40-0800 | 55.2 | neo | 99051fe9-6a9c-46c2-b949-38ef78858d11 99051fe9-6a9c-46c2-b949-38ef78858dd0 | 2014-12-31 13:42:40-0800 | 49.2 | bennybaru | 99051fe9-6a9c-46c2-b949-38ef78858d06 99051fe9-6a9c-46c2-b949-38ef78858dd0 | 2014-12-31 13:42:40-0800 | 46.2 | tigger | 99051fe9-6a9c-46c2-b949-38ef78858d05 99051fe9-6a9c-46c2-b949-38ef78858dd0 | 2014-12-31 13:42:40-0800 | 45.2 | velvetfog | 99051fe9-6a9c-46c2-b949-38ef78858d04 99051fe9-6a9c-46c2-b949-38ef78858dd0 | 2014-12-31 13:42:40-0800 | 43.6 | flashberg | 99051fe9-6a9c-46c2-b949-38ef78858d10 99051fe9-6a9c-46c2-b949-38ef78858dd0 | 2014-12-31 13:42:40-0800 | 43.4 | jbellis | 99051fe9-6a9c-46c2-b949-38ef78858d09 99051fe9-6a9c-46c2-b949-38ef78858dd0 | 2014-12-31 13:42:40-0800 | 43.2 | cafruitbat | 99051fe9-6a9c-46c2-b949-38ef78858d02 99051fe9-6a9c-46c2-b949-38ef78858dd0 | 2014-12-31 13:42:40-0800 | 41.2 | groovemerchant | 99051fe9-6a9c-46c2-b949-38ef78858d03 99051fe9-6a9c-46c2-b949-38ef78858dd0 | 2014-12-31 13:42:40-0800 | 39.2 | rustyrazorblade | 99051fe9-6a9c-46c2-b949-38ef78858d01 99051fe9-6a9c-46c2-b949-38ef78858dd0 | 2014-12-31 13:42:40-0800 | 20.2 | driftx | 99051fe9-6a9c-46c2-b949-38ef78858d08 SELECT gameId, process_timestamp, score, handle, userId FROM topten WHERE gameid = 99051fe9-6a9c-46c2-b949-38ef78858dd0 AND process_timestamp = '2014-12-31 13:42:40';
• 19.

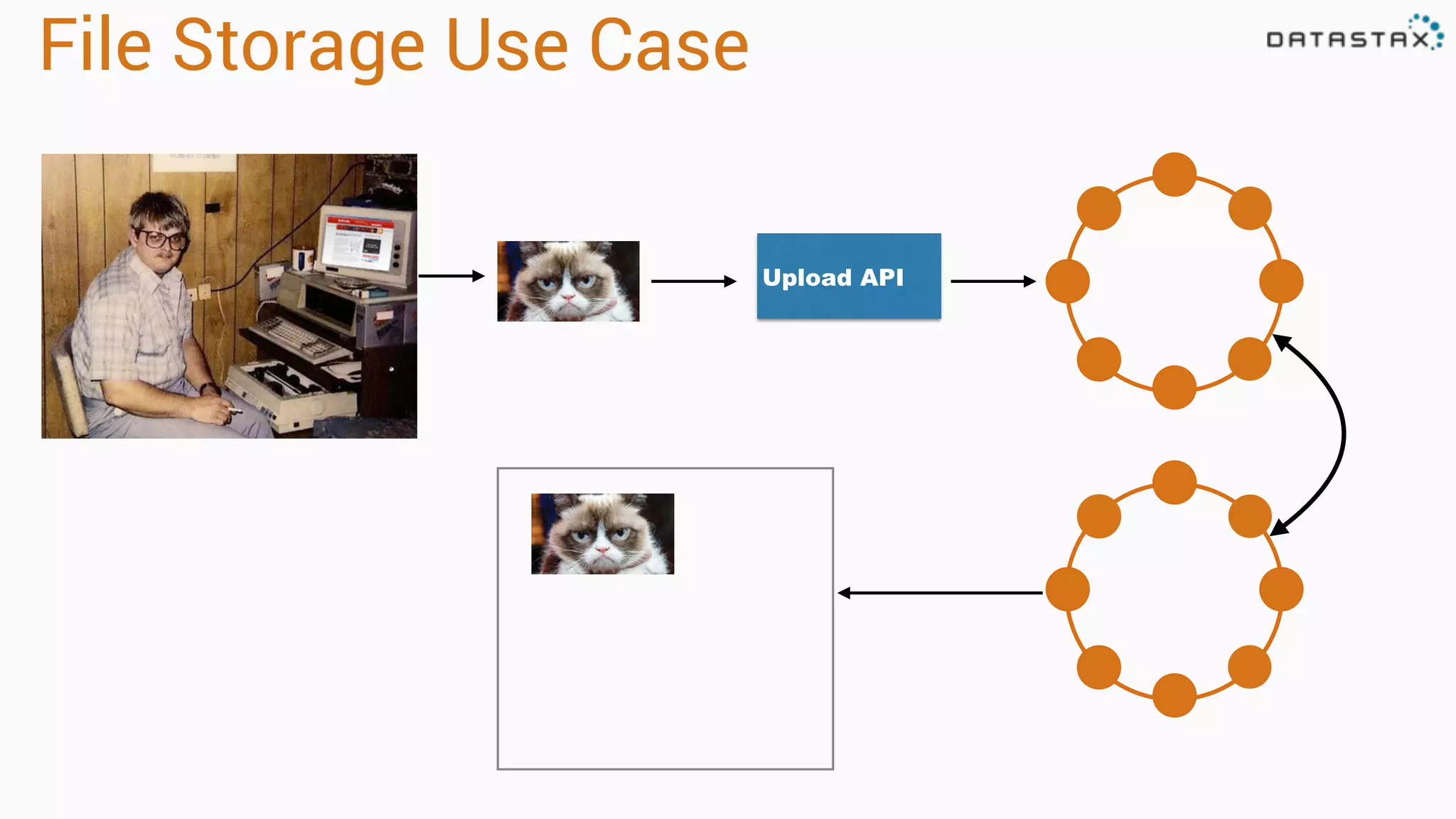

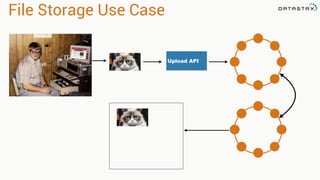

  File Storage UseCase Upload API
• 20.

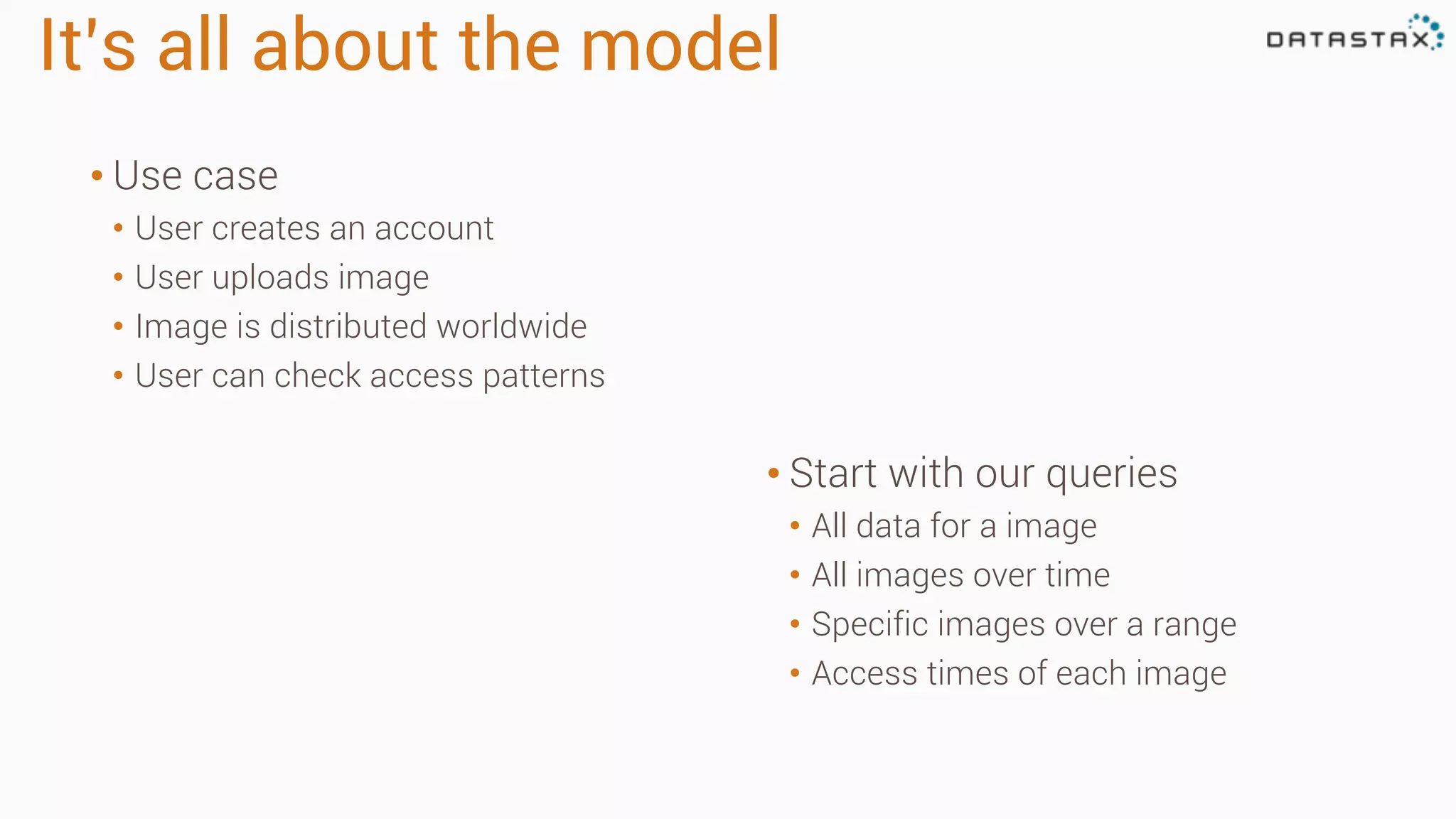

  It’s all aboutthe model • Start with our queries • All data for a image • All images over time • Specific images over a range • Access times of each image • Use case • User creates an account • User uploads image • Image is distributed worldwide • User can check access patterns
• 21.

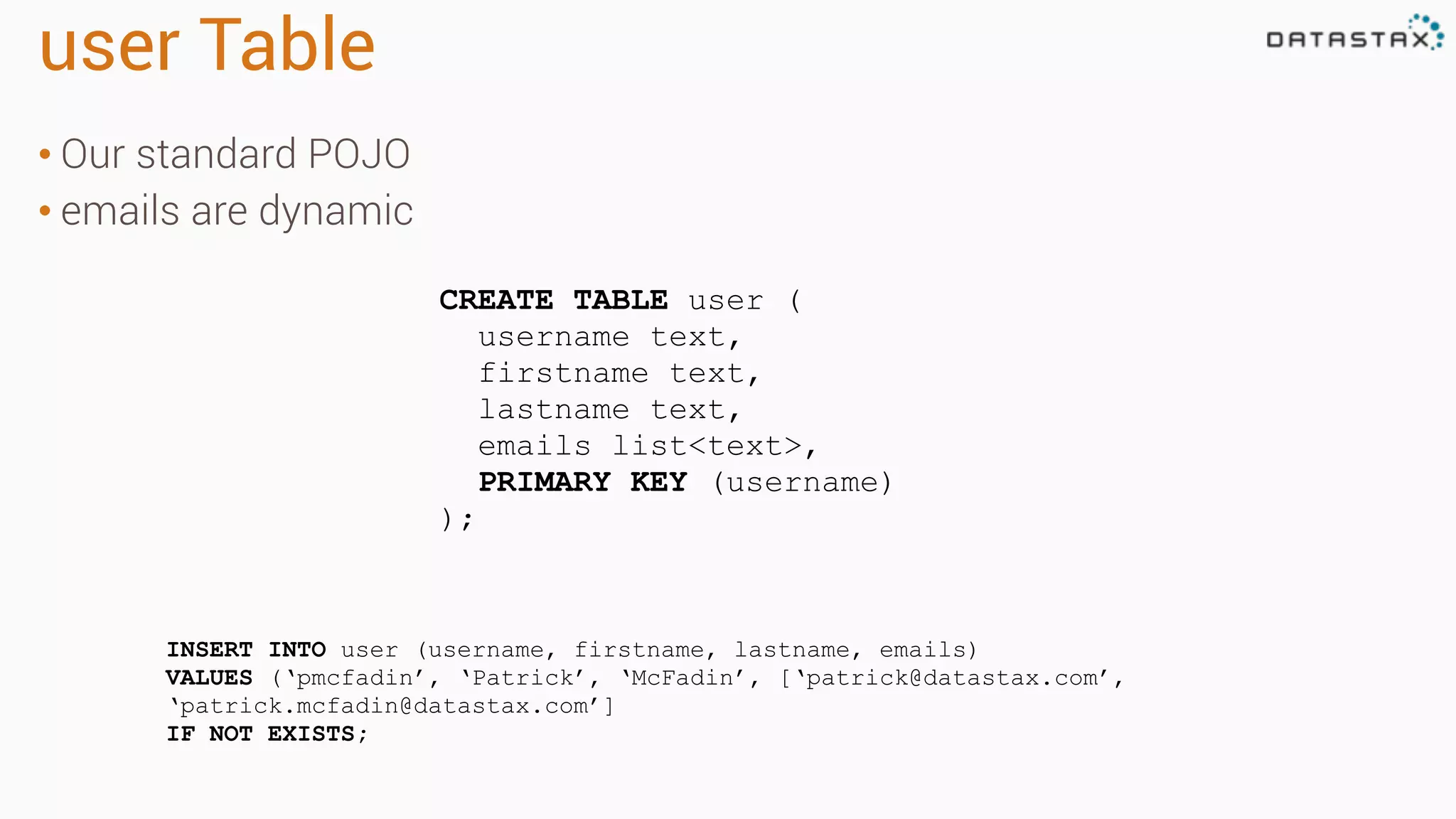

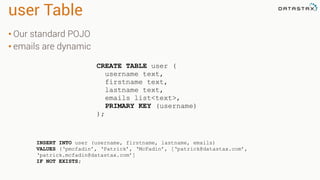

  user Table • Ourstandard POJO • emails are dynamic CREATE TABLE user ( username text, firstname text, lastname text, emails list<text>, PRIMARY KEY (username) ); INSERT INTO user (username, firstname, lastname, emails) VALUES (‘pmcfadin’, ‘Patrick’, ‘McFadin’, [‘patrick@datastax.com’, ‘patrick.mcfadin@datastax.com’] IF NOT EXISTS;
• 22.

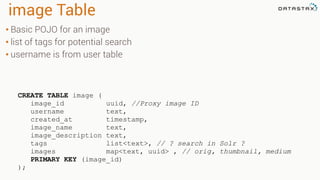

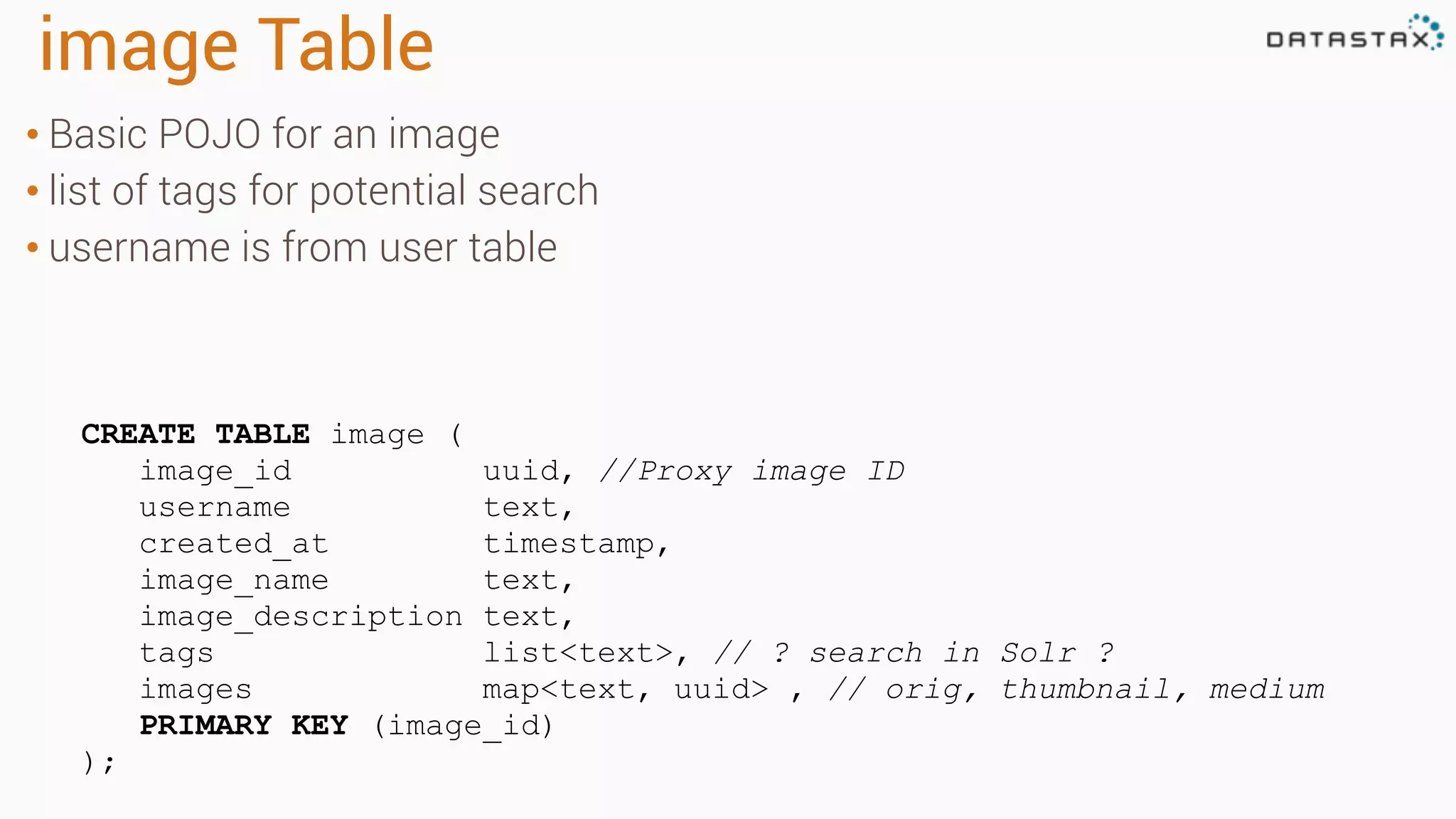

  image Table • BasicPOJO for an image • list of tags for potential search • username is from user table CREATE TABLE image ( image_id uuid, //Proxy image ID username text, created_at timestamp, image_name text, image_description text, tags list<text>, // ? search in Solr ? images map<text, uuid> , // orig, thumbnail, medium PRIMARY KEY (image_id) );
• 23.

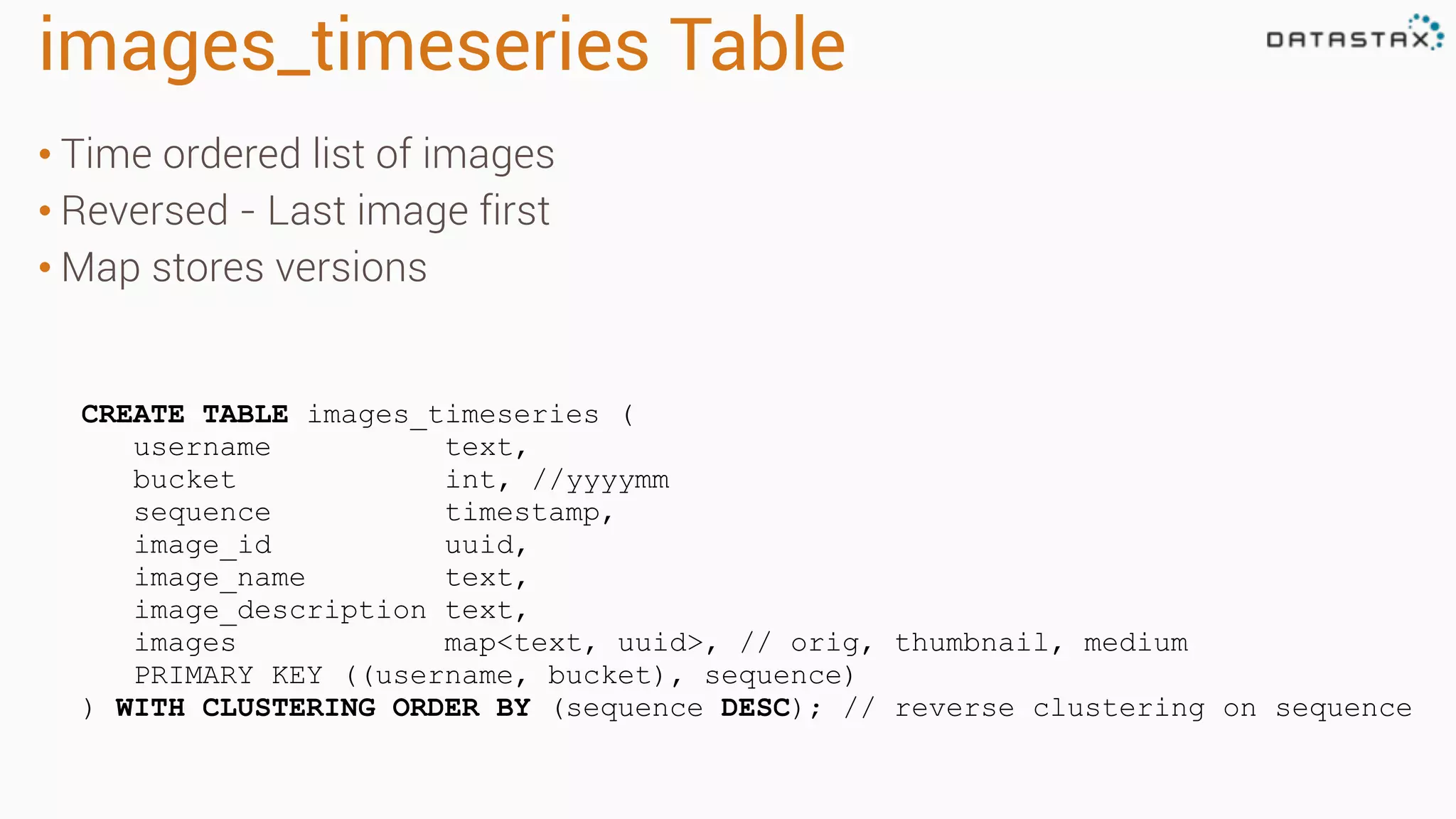

  images_timeseries Table • Timeordered list of images • Reversed - Last image first • Map stores versions CREATE TABLE images_timeseries ( username text, bucket int, //yyyymm sequence timestamp, image_id uuid, image_name text, image_description text, images map<text, uuid>, // orig, thumbnail, medium PRIMARY KEY ((username, bucket), sequence) ) WITH CLUSTERING ORDER BY (sequence DESC); // reverse clustering on sequence
• 24.

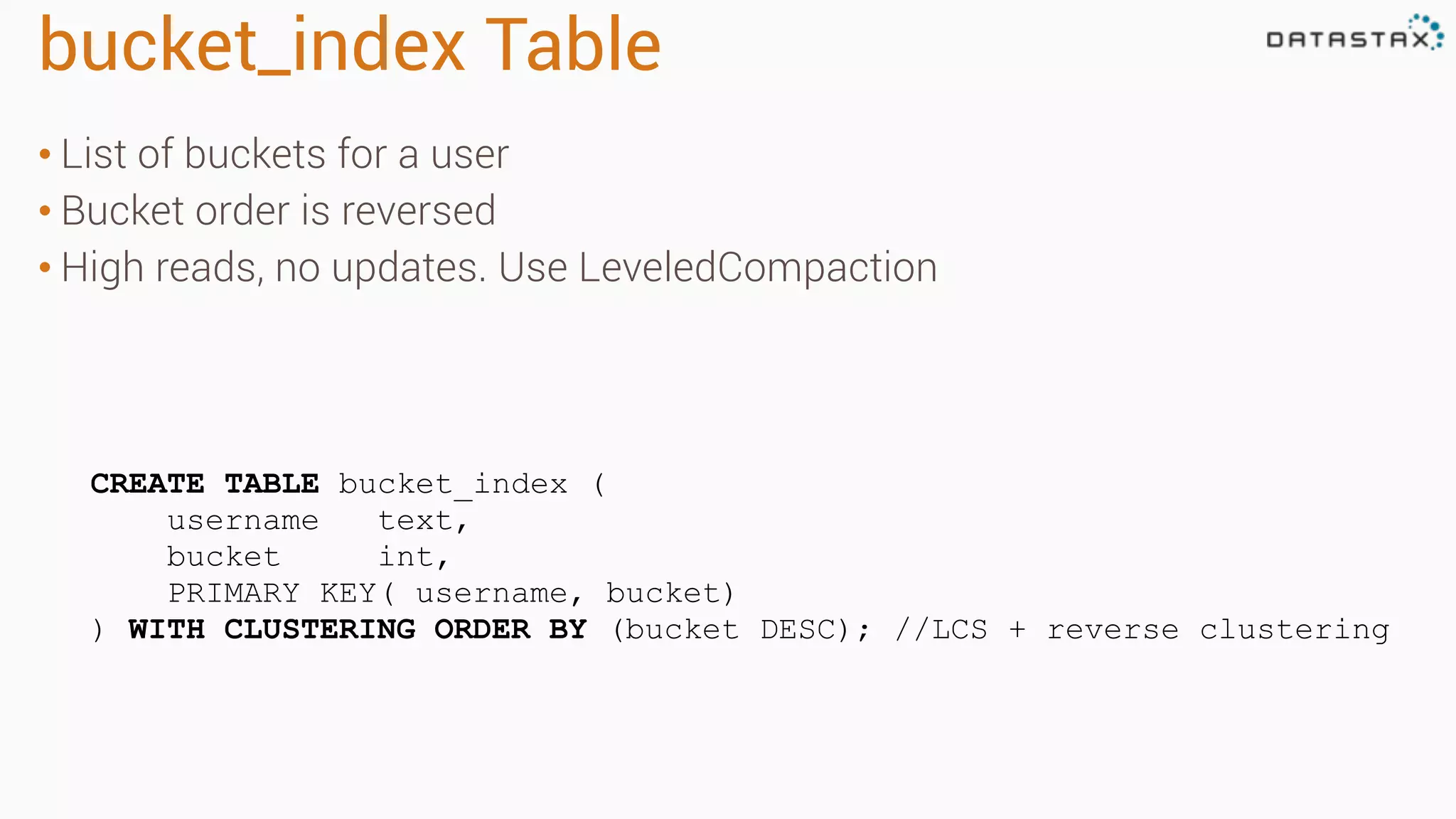

  bucket_index Table • Listof buckets for a user • Bucket order is reversed • High reads, no updates. Use LeveledCompaction CREATE TABLE bucket_index ( username text, bucket int, PRIMARY KEY( username, bucket) ) WITH CLUSTERING ORDER BY (bucket DESC); //LCS + reverse clustering
• 25.

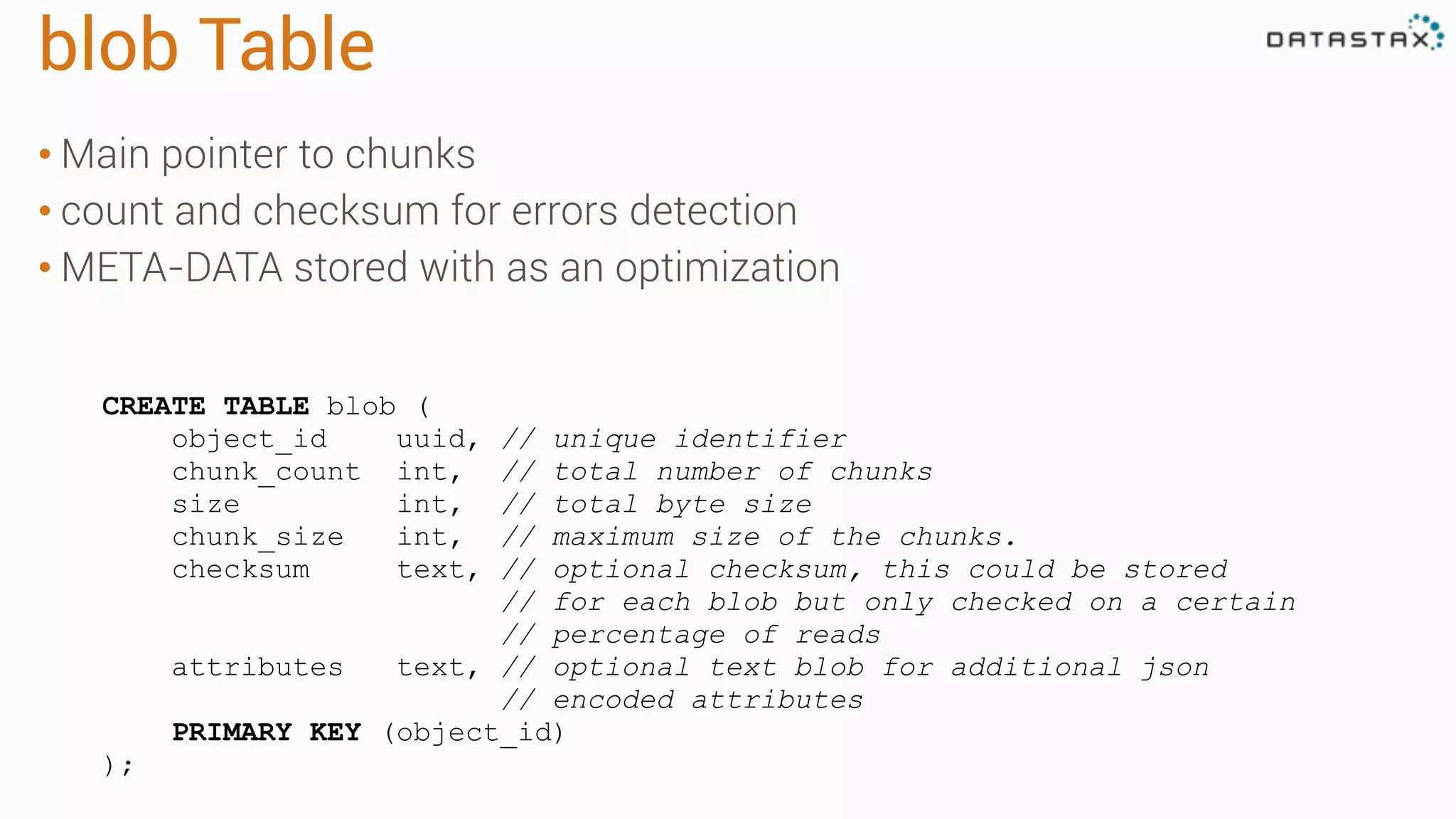

  blob Table • Mainpointer to chunks • count and checksum for errors detection • META-DATA stored with as an optimization CREATE TABLE blob ( object_id uuid, // unique identifier chunk_count int, // total number of chunks size int, // total byte size chunk_size int, // maximum size of the chunks. checksum text, // optional checksum, this could be stored // for each blob but only checked on a certain // percentage of reads attributes text, // optional text blob for additional json // encoded attributes PRIMARY KEY (object_id) );
• 26.

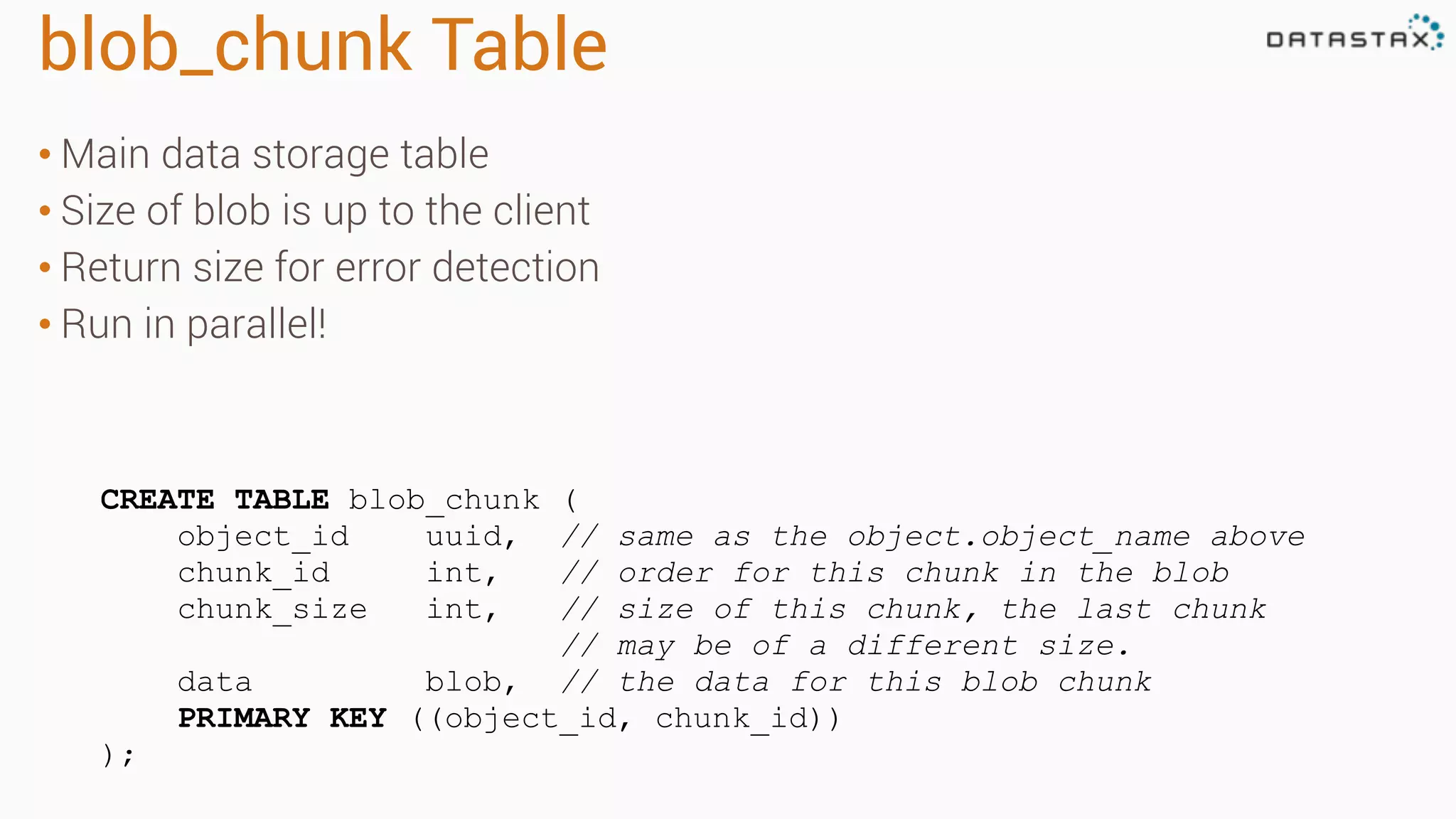

  blob_chunk Table • Maindata storage table • Size of blob is up to the client • Return size for error detection • Run in parallel! CREATE TABLE blob_chunk ( object_id uuid, // same as the object.object_name above chunk_id int, // order for this chunk in the blob chunk_size int, // size of this chunk, the last chunk // may be of a different size. data blob, // the data for this blob chunk PRIMARY KEY ((object_id, chunk_id)) );
• 27.

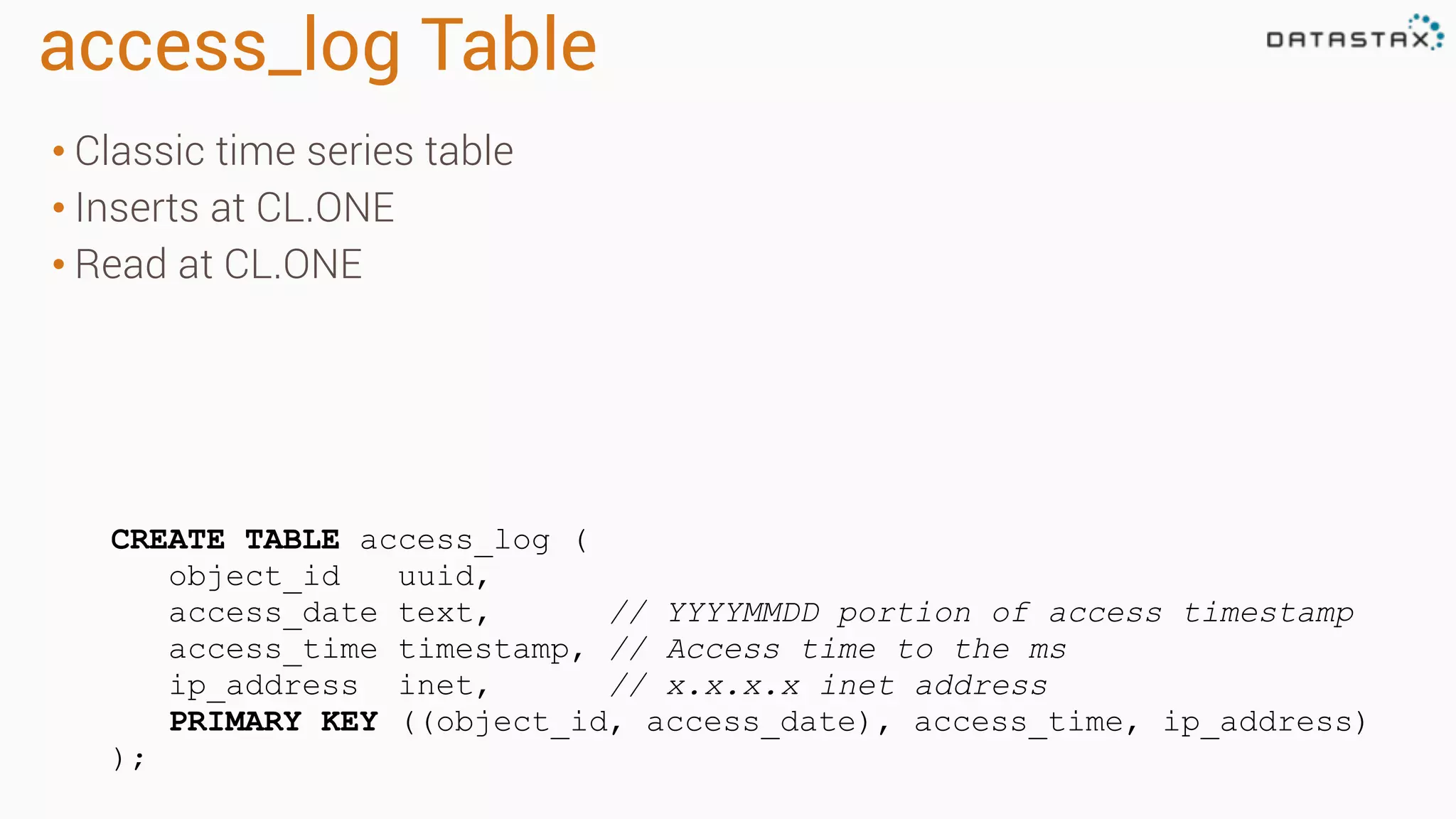

  access_log Table • Classictime series table • Inserts at CL.ONE • Read at CL.ONE CREATE TABLE access_log ( object_id uuid, access_date text, // YYYYMMDD portion of access timestamp access_time timestamp, // Access time to the ms ip_address inet, // x.x.x.x inet address PRIMARY KEY ((object_id, access_date), access_time, ip_address) );
• 28.
  Light Weight Transactions
• 29.

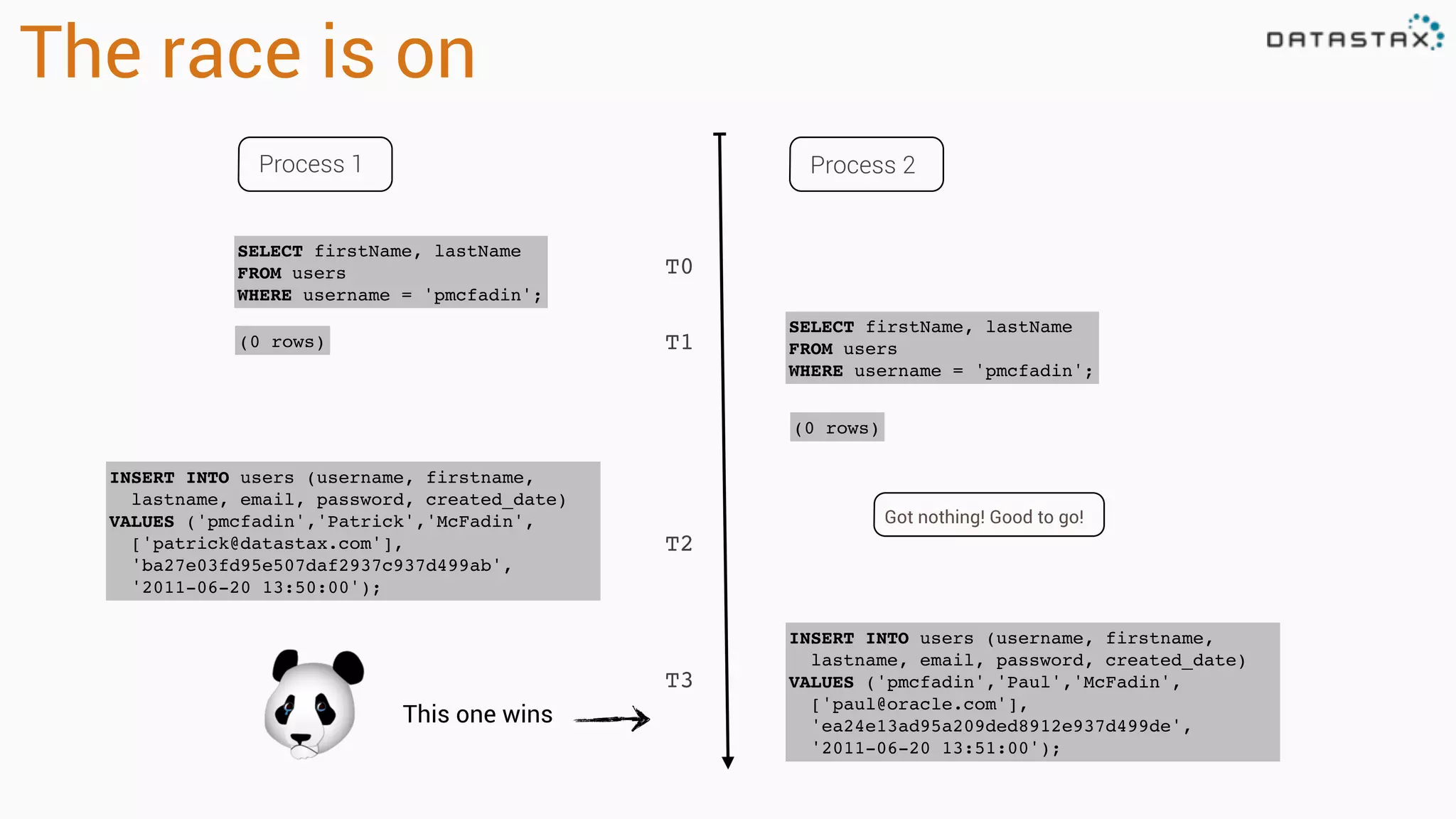

  The race ison Process 1 Process 2 SELECT firstName, lastName FROM users WHERE username = 'pmcfadin'; SELECT firstName, lastName FROM users WHERE username = 'pmcfadin'; (0 rows) (0 rows) INSERT INTO users (username, firstname, lastname, email, password, created_date) VALUES ('pmcfadin','Patrick','McFadin', ['patrick@datastax.com'], 'ba27e03fd95e507daf2937c937d499ab', '2011-06-20 13:50:00'); INSERT INTO users (username, firstname, lastname, email, password, created_date) VALUES ('pmcfadin','Paul','McFadin', ['paul@oracle.com'], 'ea24e13ad95a209ded8912e937d499de', '2011-06-20 13:51:00'); T0 T1 T2 T3 Got nothing! Good to go! This one wins
• 30.

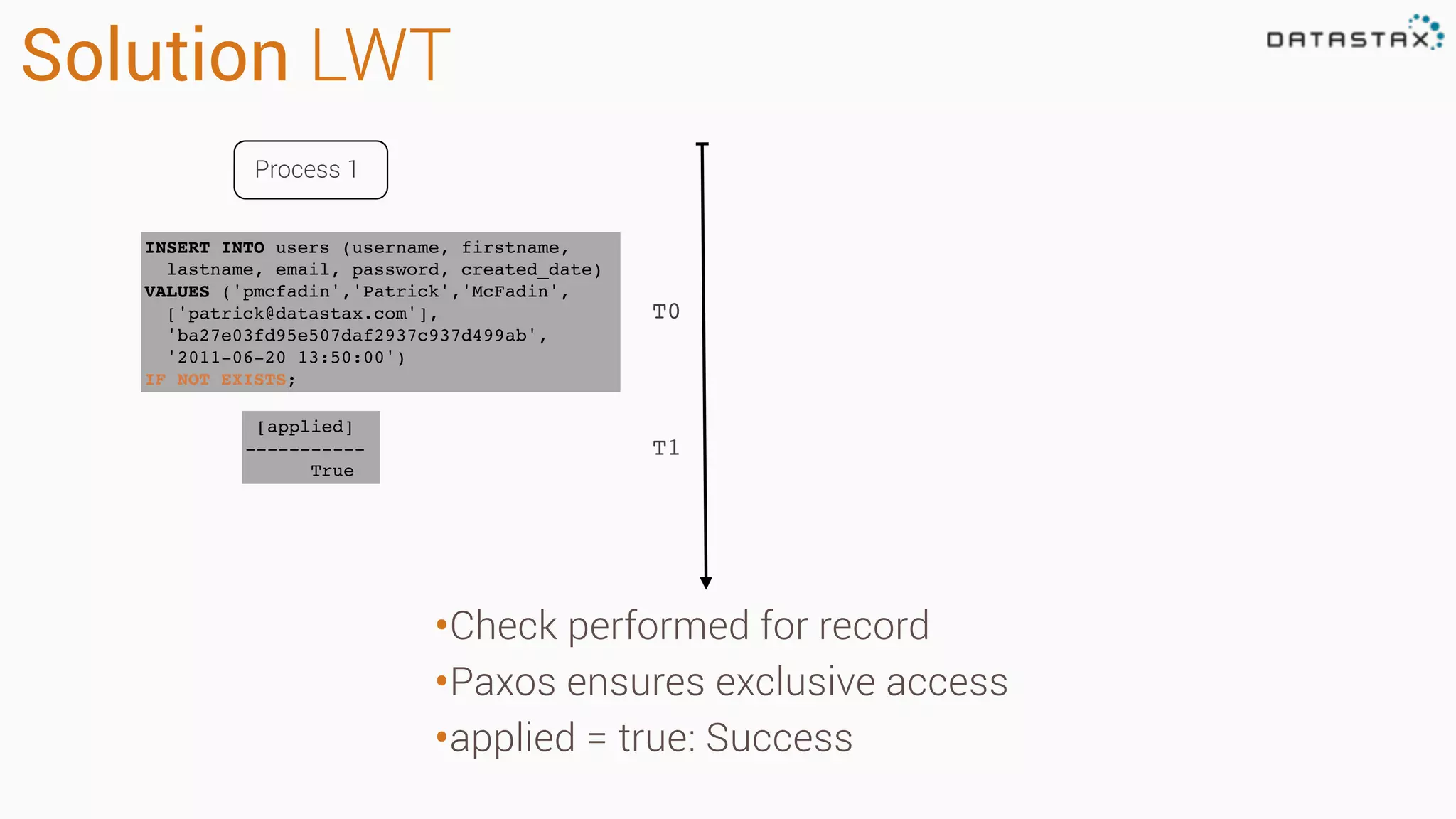

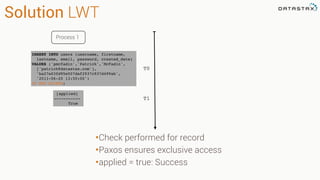

  Solution LWT Process 1 INSERTINTO users (username, firstname, lastname, email, password, created_date) VALUES ('pmcfadin','Patrick','McFadin', ['patrick@datastax.com'], 'ba27e03fd95e507daf2937c937d499ab', '2011-06-20 13:50:00') IF NOT EXISTS; T0 T1 [applied] ----------- True •Check performed for record •Paxos ensures exclusive access •applied = true: Success
• 31.

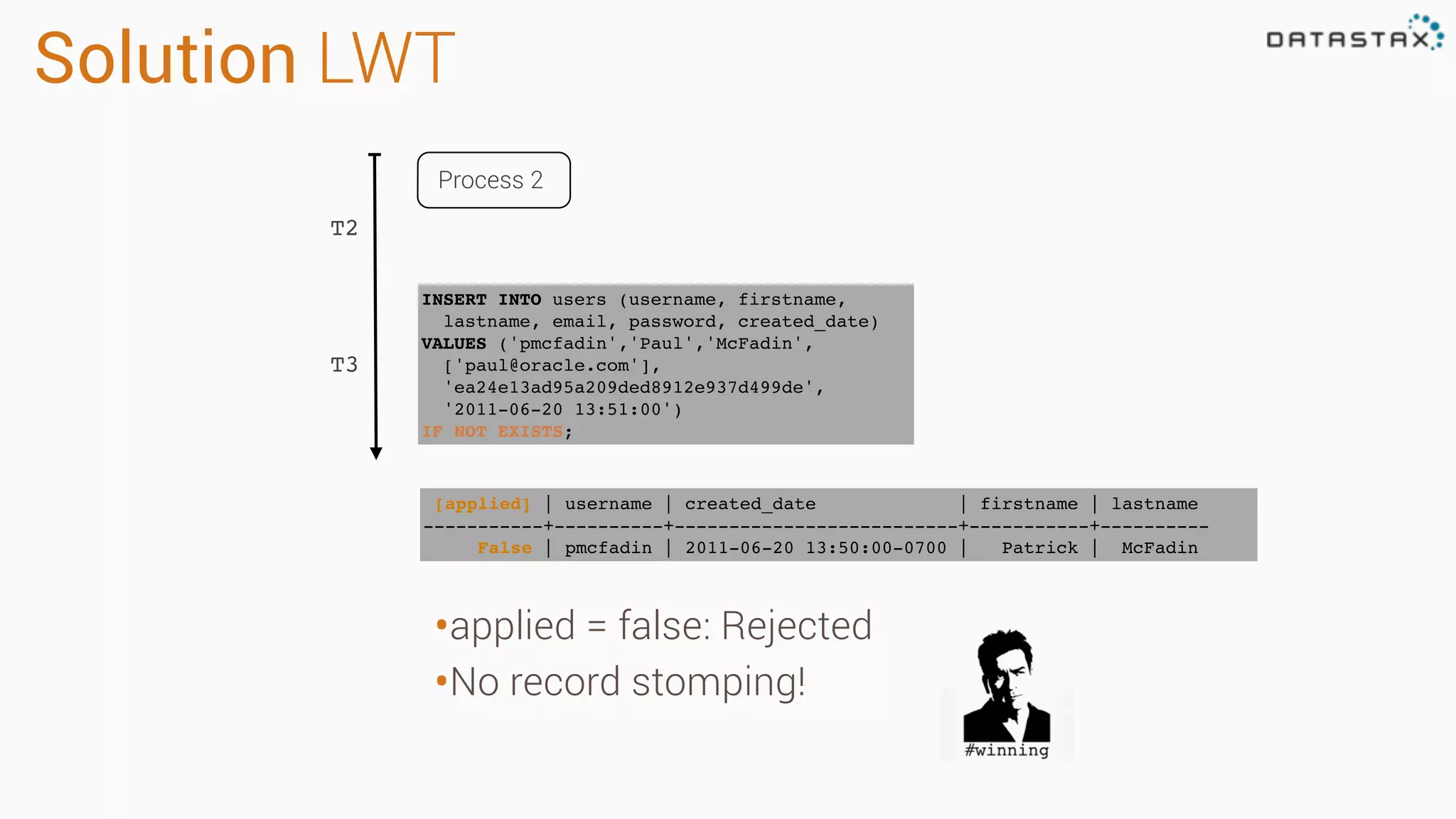

  Solution LWT Process 2 T2 T3 [applied]| username | created_date | firstname | lastname -----------+----------+--------------------------+-----------+---------- False | pmcfadin | 2011-06-20 13:50:00-0700 | Patrick | McFadin INSERT INTO users (username, firstname, lastname, email, password, created_date) VALUES ('pmcfadin','Paul','McFadin', ['paul@oracle.com'], 'ea24e13ad95a209ded8912e937d499de', '2011-06-20 13:51:00') IF NOT EXISTS; •applied = false: Rejected •No record stomping!
• 32.

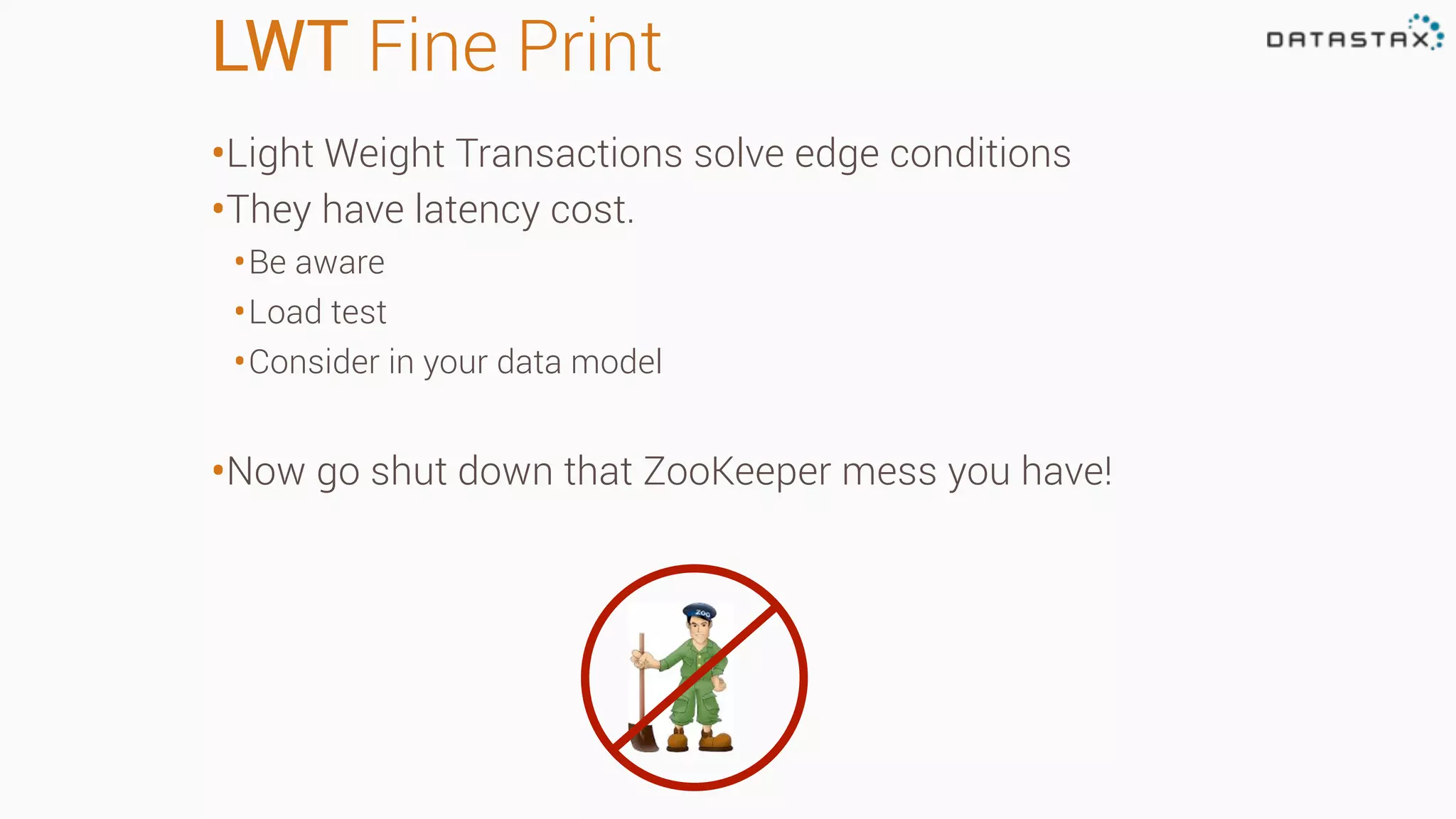

  LWT Fine Print •LightWeight Transactions solve edge conditions •They have latency cost. •Be aware •Load test •Consider in your data model •Now go shut down that ZooKeeper mess you have!
• 33.
  Use case: FormVersioning
• 34.

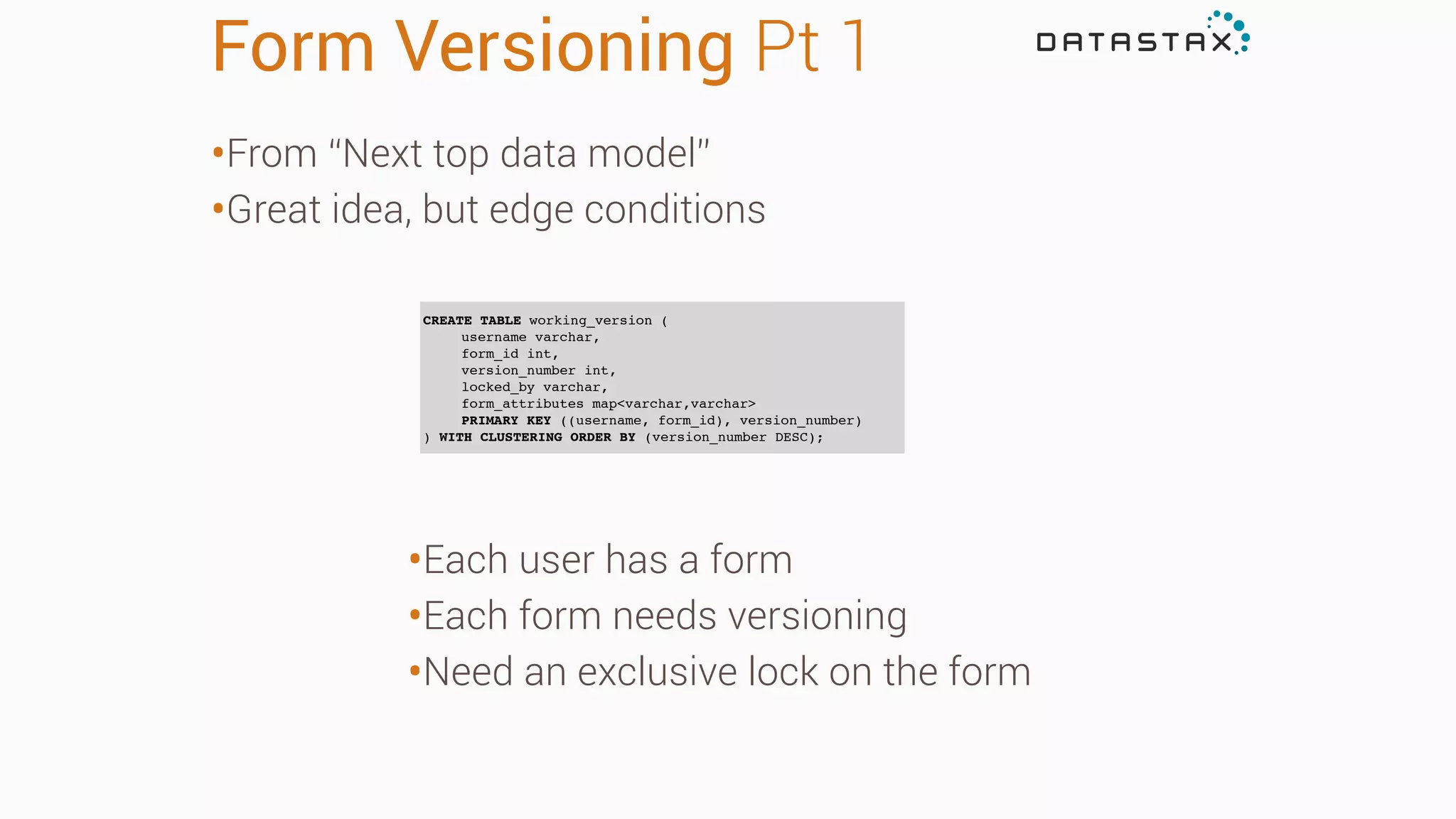

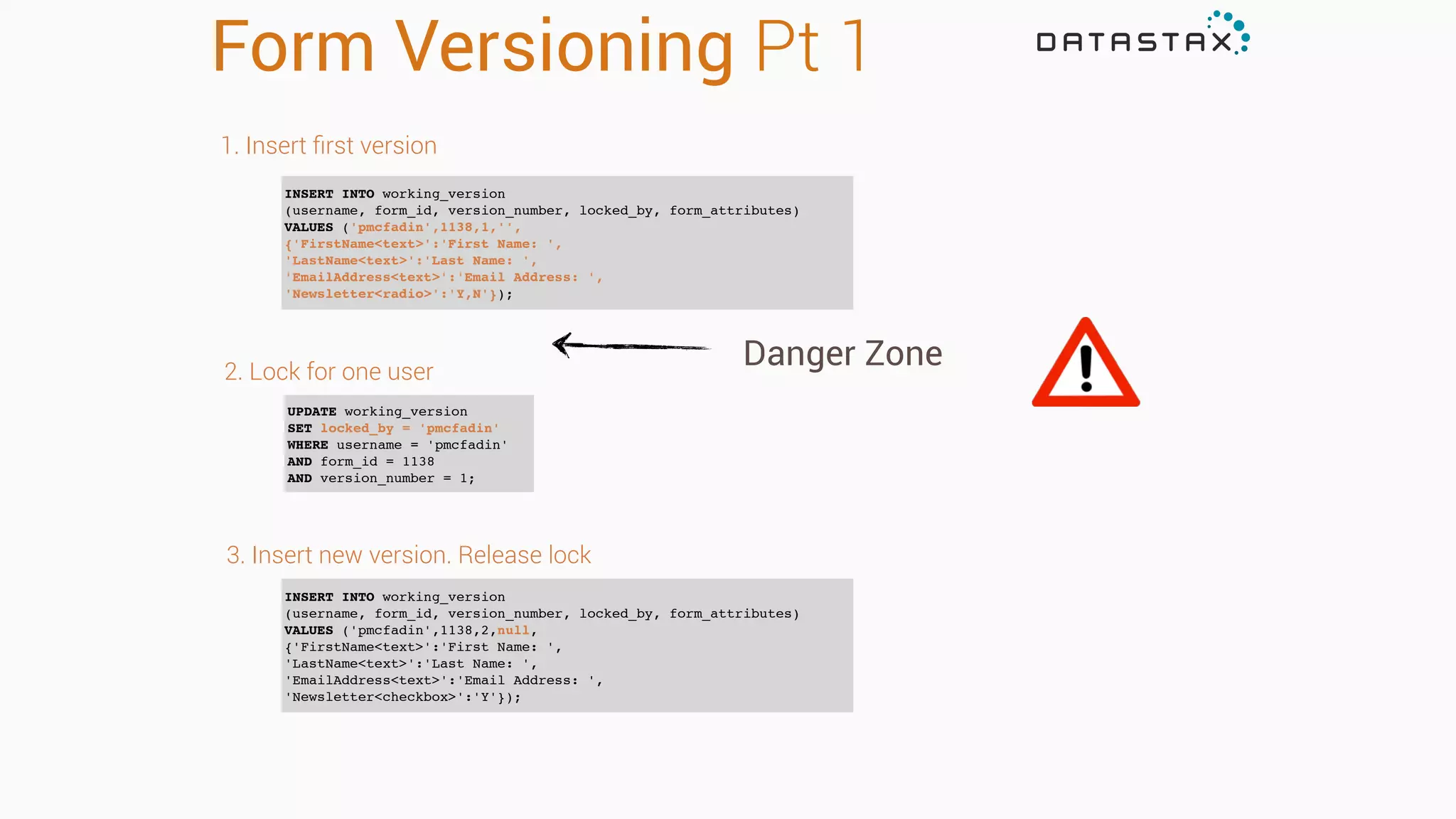

  Form Versioning Pt1 •From “Next top data model” •Great idea, but edge conditions CREATE TABLE working_version ( username varchar, form_id int, version_number int, locked_by varchar, form_attributes map<varchar,varchar> PRIMARY KEY ((username, form_id), version_number) ) WITH CLUSTERING ORDER BY (version_number DESC); •Each user has a form •Each form needs versioning •Need an exclusive lock on the form
• 35.

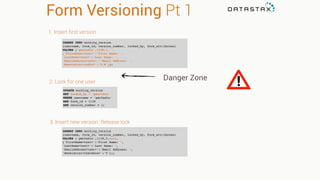

  Form Versioning Pt1 INSERT INTO working_version (username, form_id, version_number, locked_by, form_attributes) VALUES ('pmcfadin',1138,1,'', {'FirstName<text>':'First Name: ', 'LastName<text>':'Last Name: ', 'EmailAddress<text>':'Email Address: ', 'Newsletter<radio>':'Y,N'}); UPDATE working_version SET locked_by = 'pmcfadin' WHERE username = 'pmcfadin' AND form_id = 1138 AND version_number = 1; INSERT INTO working_version (username, form_id, version_number, locked_by, form_attributes) VALUES ('pmcfadin',1138,2,null, {'FirstName<text>':'First Name: ', 'LastName<text>':'Last Name: ', 'EmailAddress<text>':'Email Address: ', 'Newsletter<checkbox>':'Y'}); 1. Insert first version 2. Lock for one user 3. Insert new version. Release lock Danger Zone
• 36.

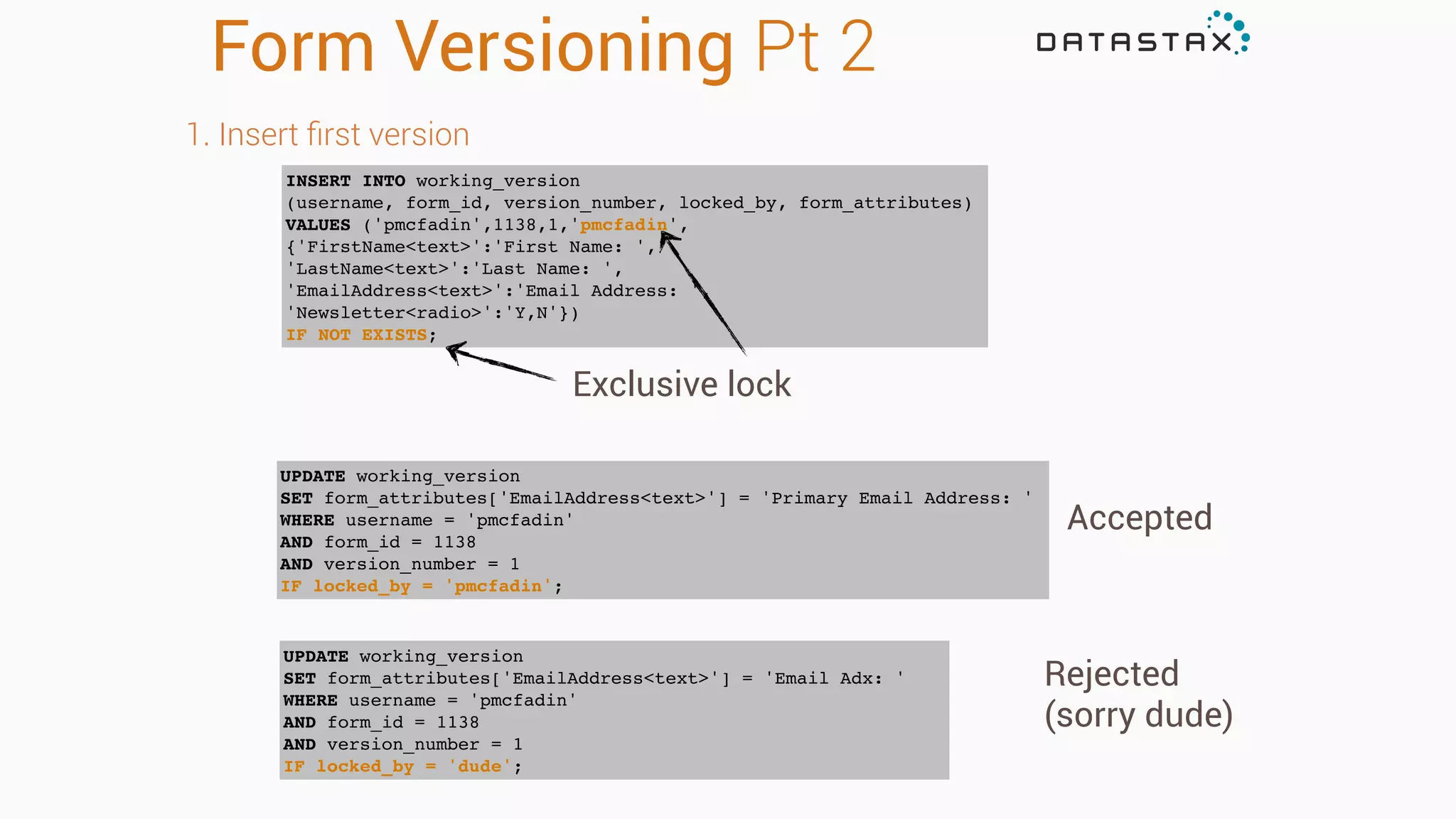

  Form Versioning Pt2 INSERT INTO working_version (username, form_id, version_number, locked_by, form_attributes) VALUES ('pmcfadin',1138,1,'pmcfadin', {'FirstName<text>':'First Name: ', 'LastName<text>':'Last Name: ', 'EmailAddress<text>':'Email Address: ', 'Newsletter<radio>':'Y,N'}) IF NOT EXISTS; UPDATE working_version SET form_attributes['EmailAddress<text>'] = 'Primary Email Address: ' WHERE username = 'pmcfadin' AND form_id = 1138 AND version_number = 1 IF locked_by = 'pmcfadin'; UPDATE working_version SET form_attributes['EmailAddress<text>'] = 'Email Adx: ' WHERE username = 'pmcfadin' AND form_id = 1138 AND version_number = 1 IF locked_by = 'dude'; 1. Insert first version Exclusive lock Accepted Rejected (sorry dude)
• 37.

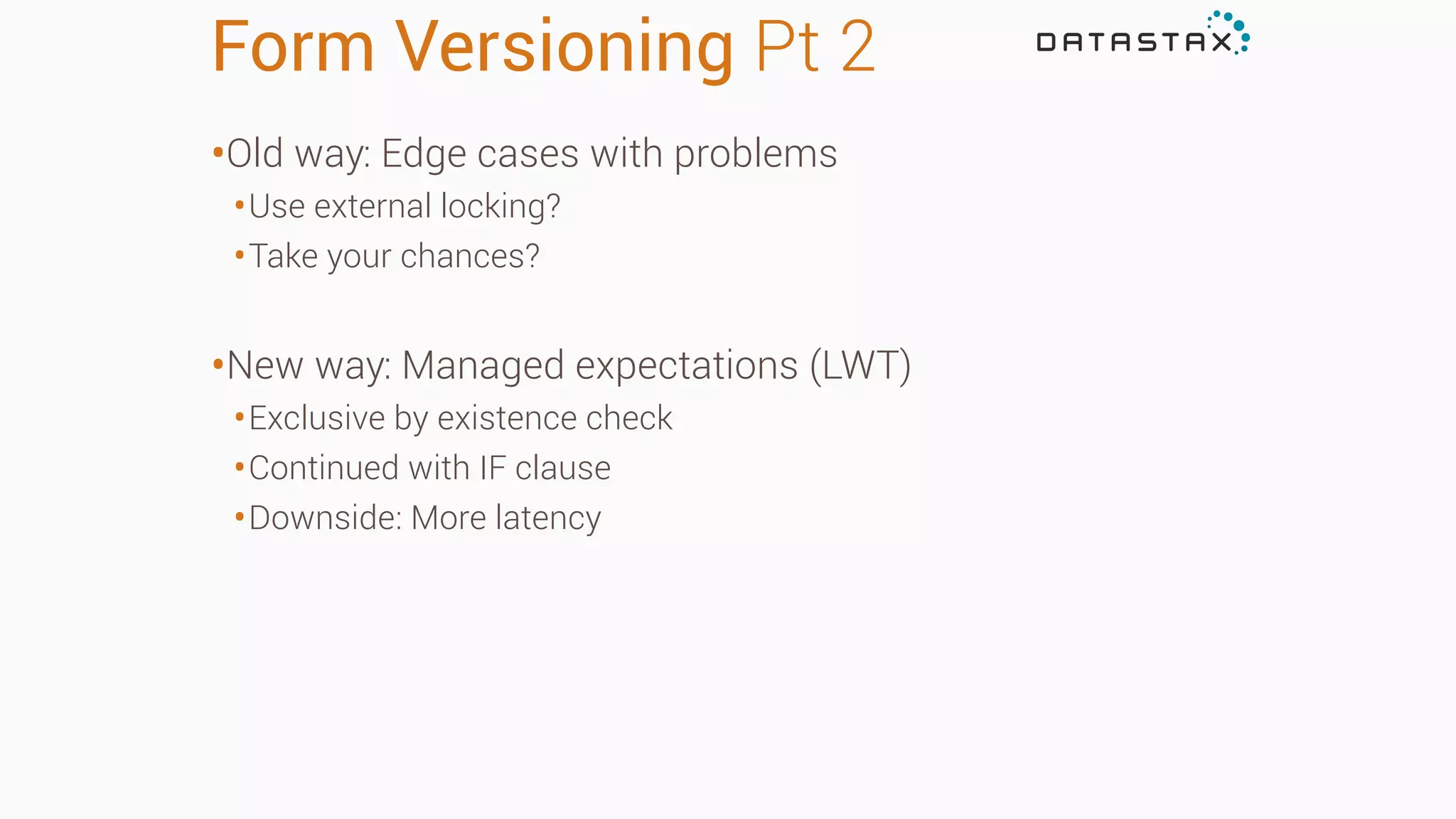

  Form Versioning Pt2 •Old way: Edge cases with problems •Use external locking? •Take your chances? •New way: Managed expectations (LWT) •Exclusive by existence check •Continued with IF clause •Downside: More latency
• 38.

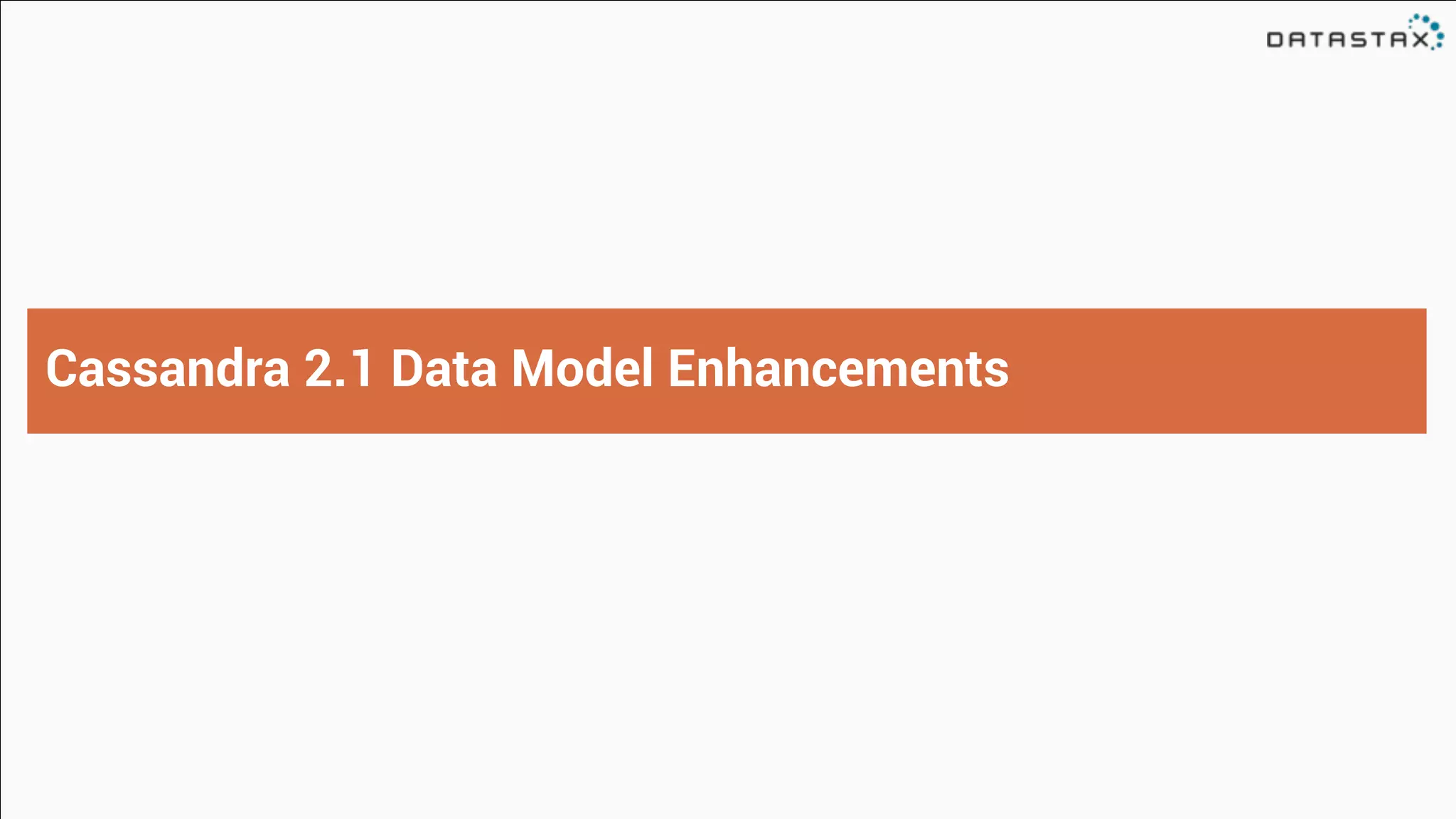

  Cassandra 2.1 DataModel Enhancements
• 39.

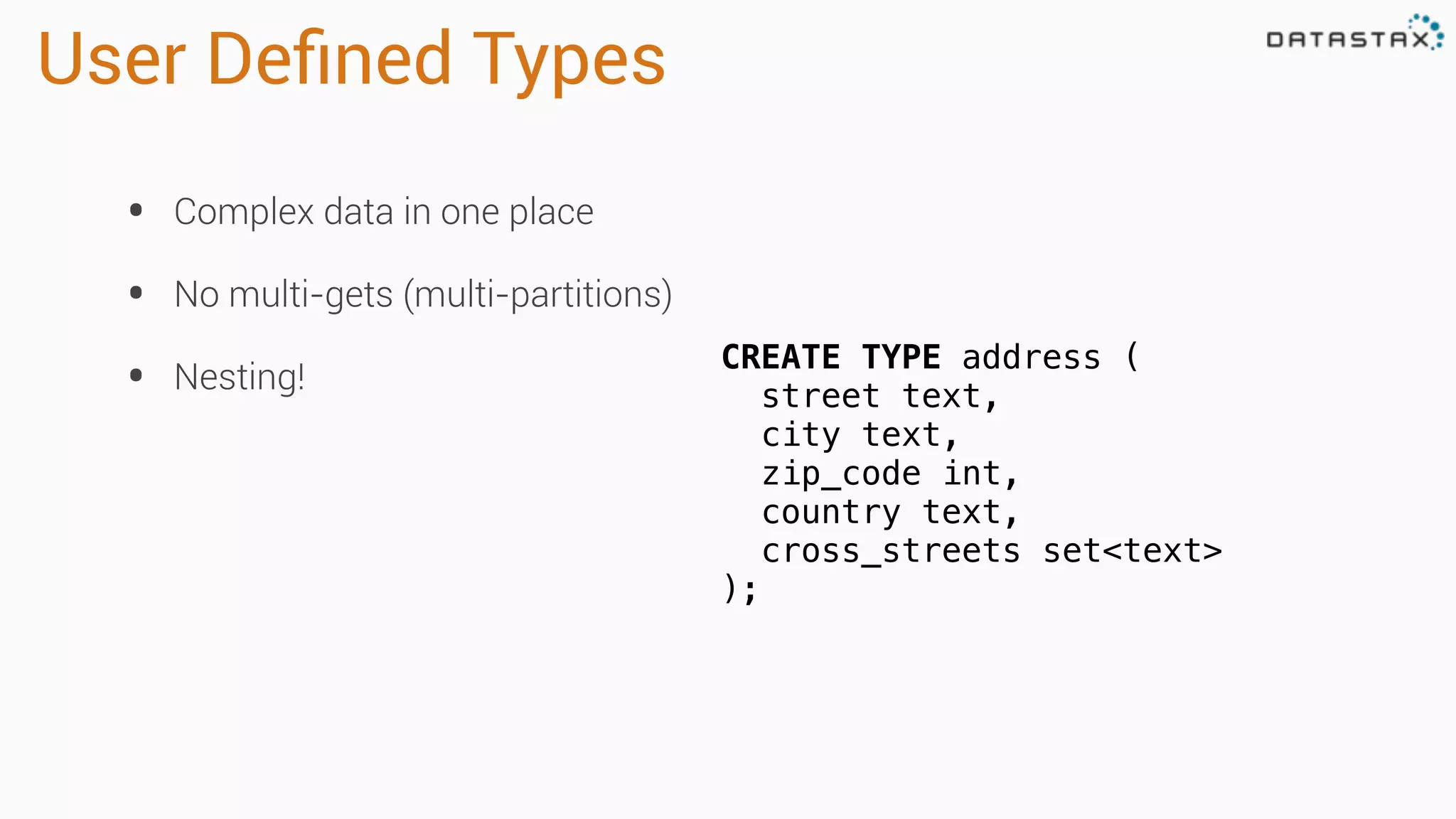

  User Defined Types •Complex data in one place • No multi-gets (multi-partitions) • Nesting! CREATE TYPE address ( street text, city text, zip_code int, country text, cross_streets set<text> );
• 40.

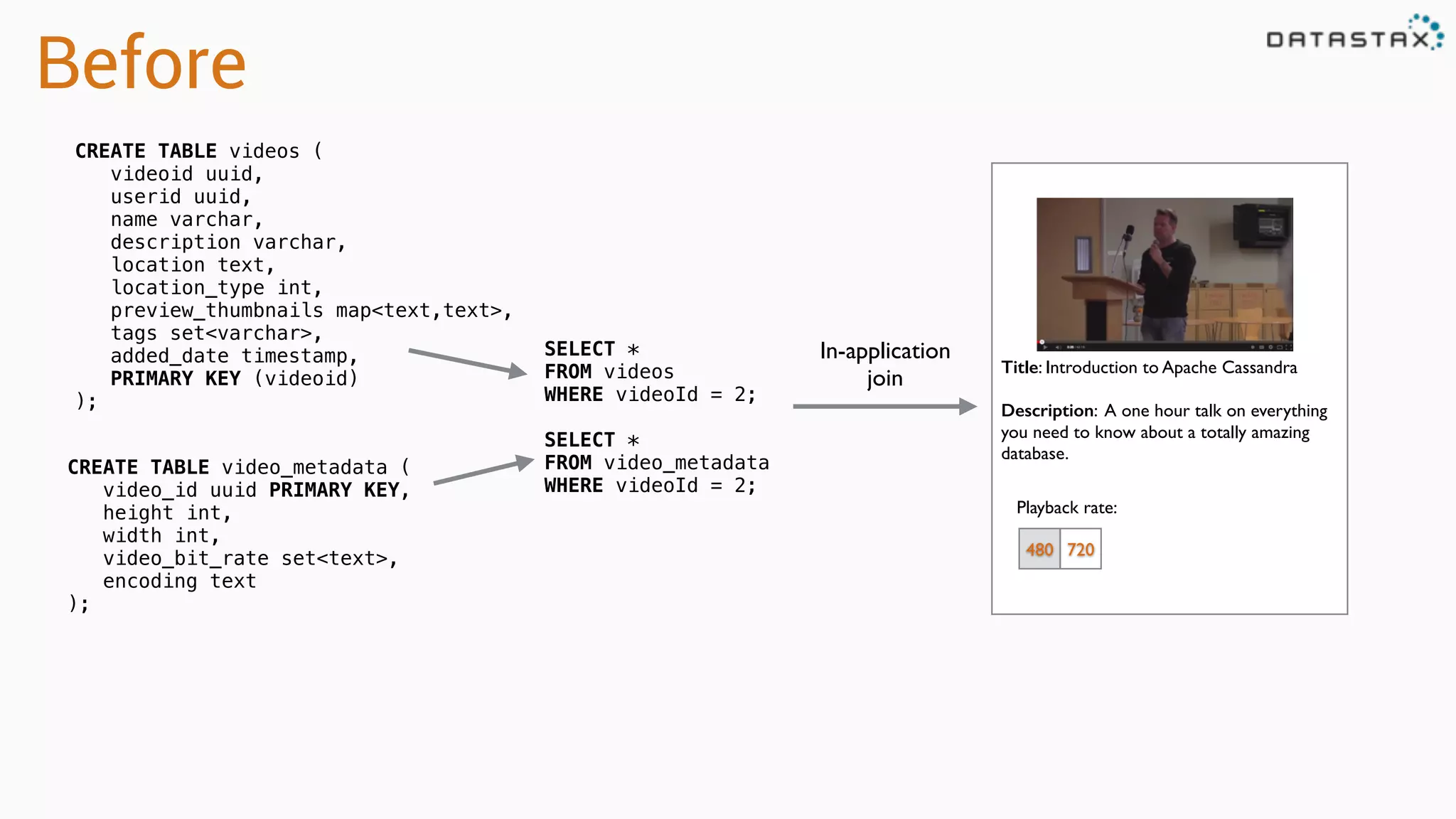

  Before CREATE TABLE videos( videoid uuid, userid uuid, name varchar, description varchar, location text, location_type int, preview_thumbnails map<text,text>, tags set<varchar>, added_date timestamp, PRIMARY KEY (videoid) ); CREATE TABLE video_metadata ( video_id uuid PRIMARY KEY, height int, width int, video_bit_rate set<text>, encoding text ); SELECT * FROM videos WHERE videoId = 2; SELECT * FROM video_metadata WHERE videoId = 2; Title: Introduction to Apache Cassandra Description: A one hour talk on everything you need to know about a totally amazing database. 480 720 Playback rate: In-application join
• 41.

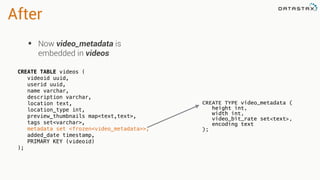

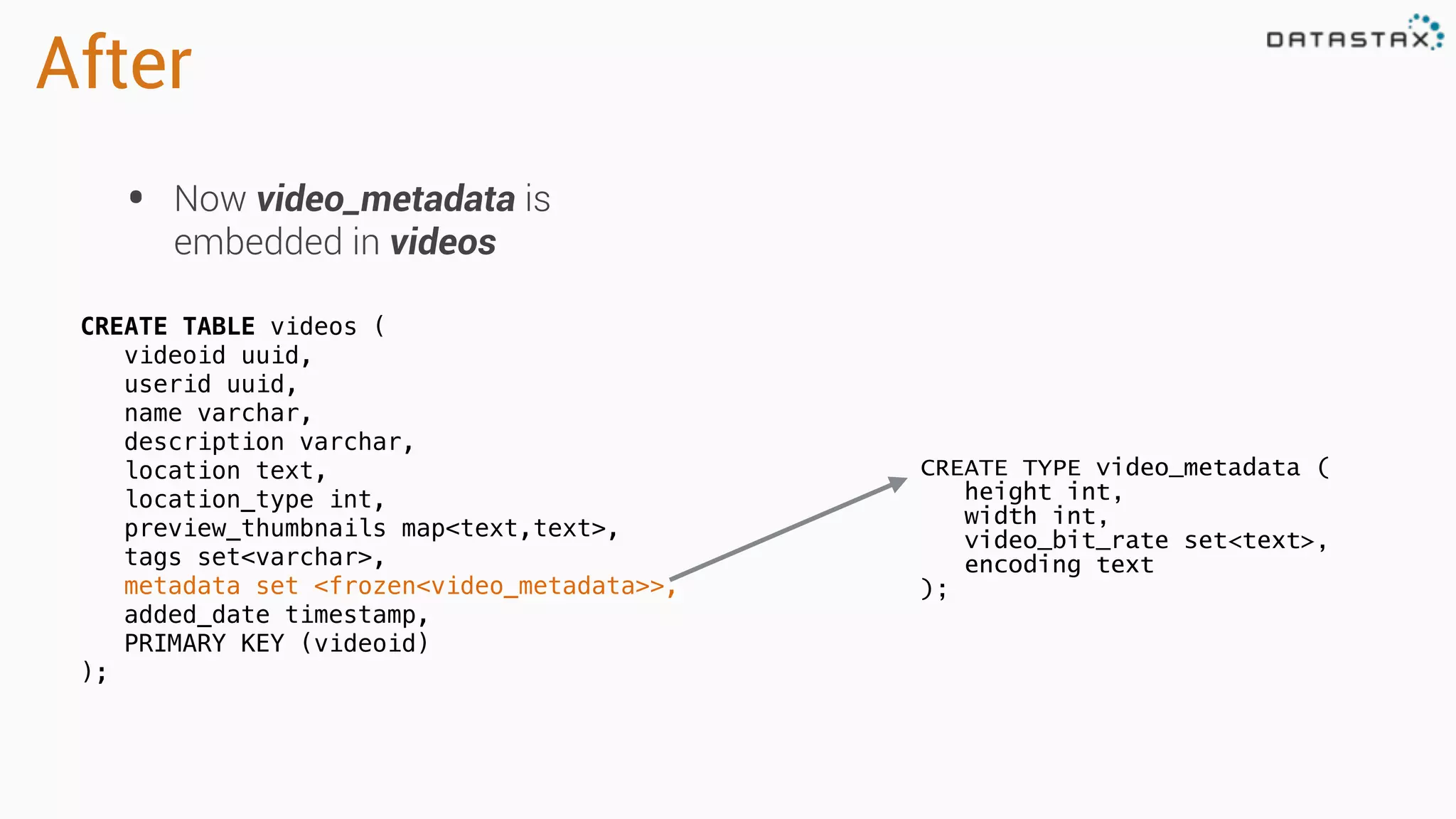

  After • Now video_metadatais embedded in videos CREATE TYPE video_metadata ( height int, width int, video_bit_rate set<text>, encoding text ); CREATE TABLE videos ( videoid uuid, userid uuid, name varchar, description varchar, location text, location_type int, preview_thumbnails map<text,text>, tags set<varchar>, metadata set <frozen<video_metadata>>, added_date timestamp, PRIMARY KEY (videoid) );
• 42.
  Wait! Frozen?? • Stayingout of technical debt • 3.0 UDTs will not have to be frozen • Applicable to User Defined Types and Tuples Do you want to build a schema? Do you want to store some JSON?
• 43.

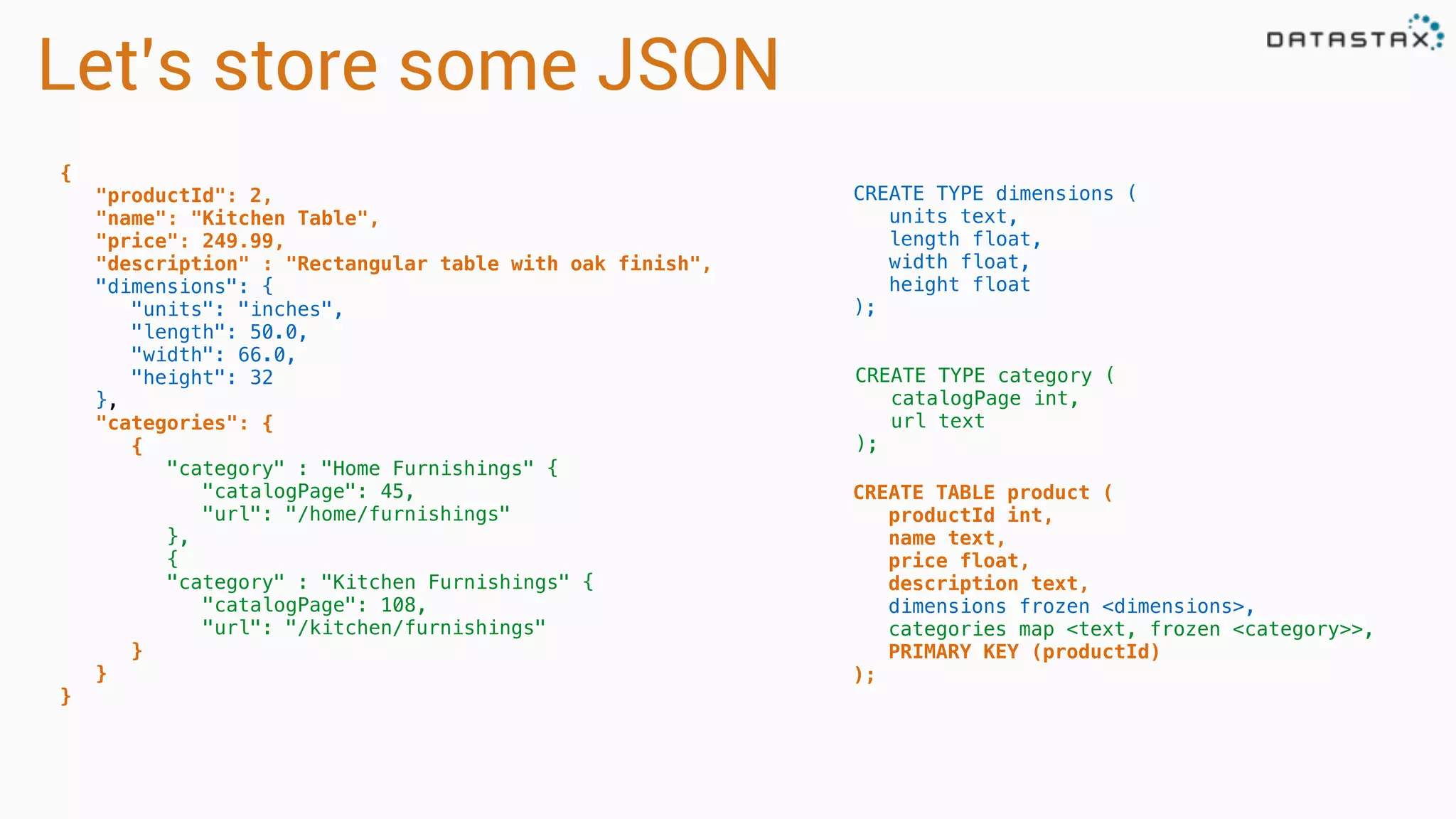

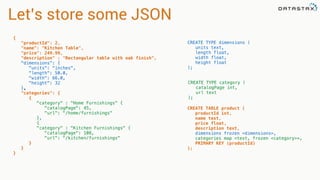

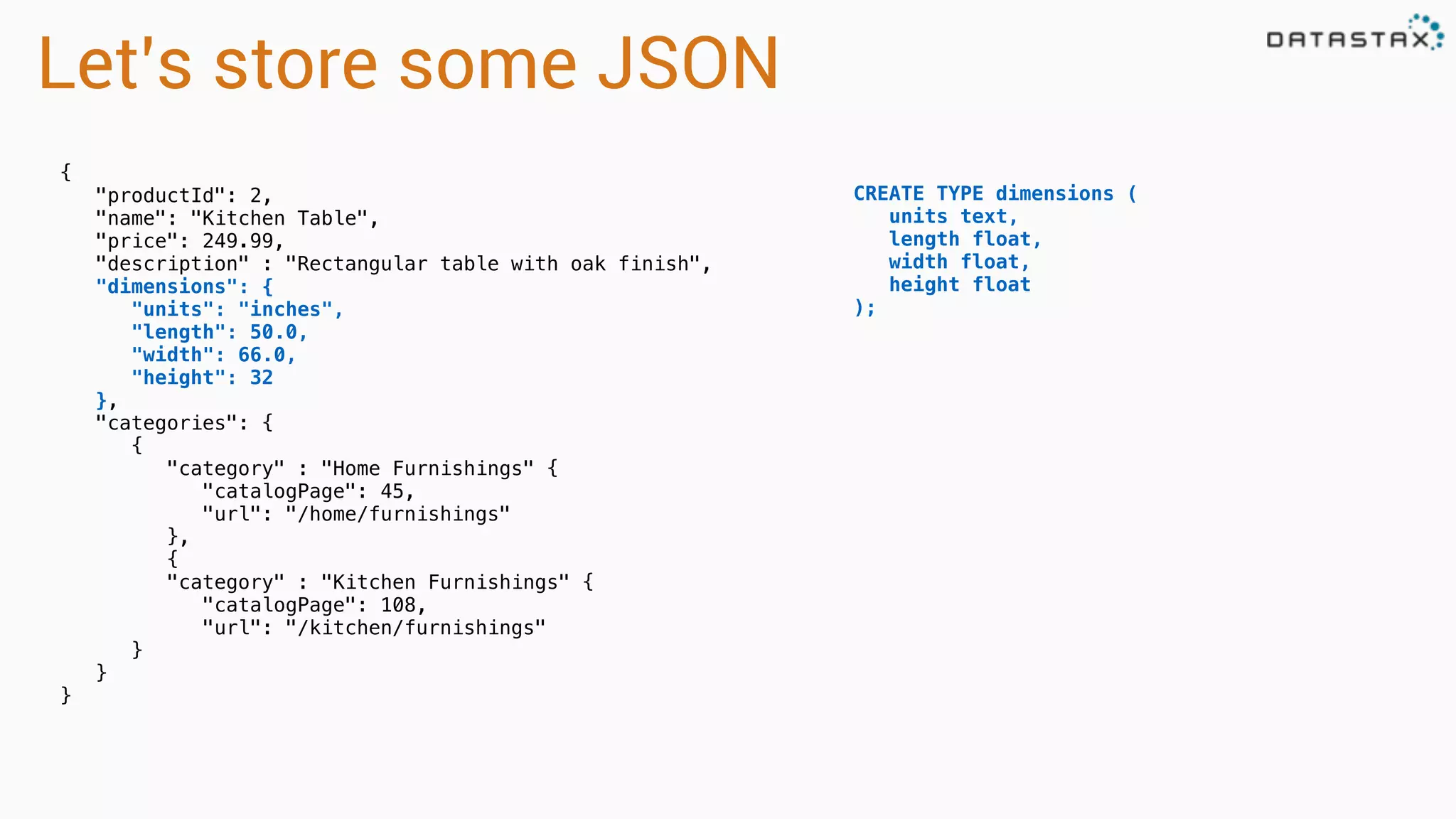

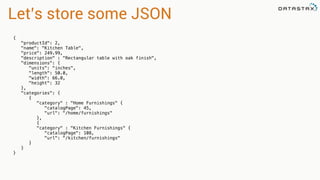

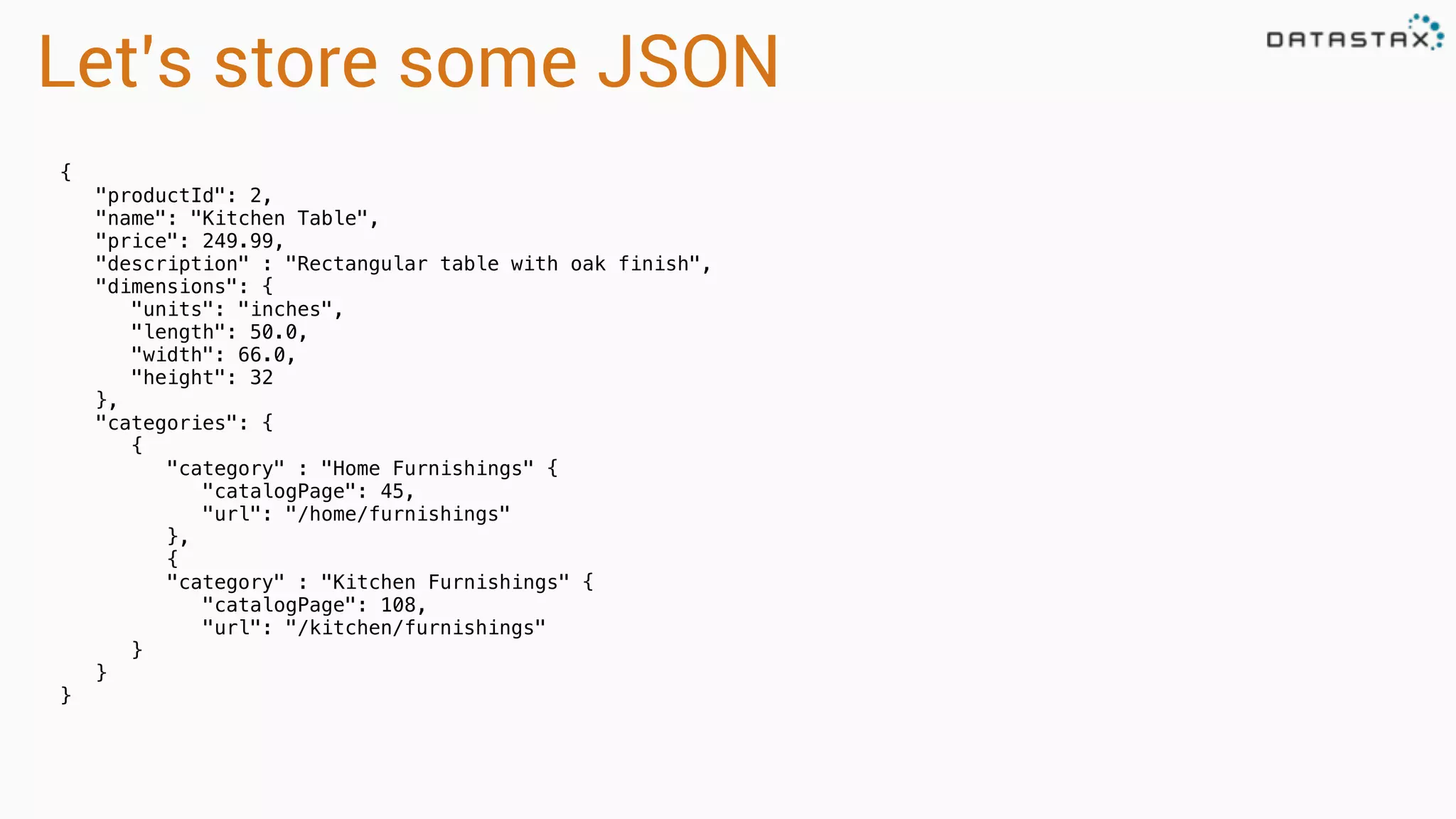

  Let’s store someJSON { "productId": 2, "name": "Kitchen Table", "price": 249.99, "description" : "Rectangular table with oak finish", "dimensions": { "units": "inches", "length": 50.0, "width": 66.0, "height": 32 }, "categories": { { "category" : "Home Furnishings" { "catalogPage": 45, "url": "/home/furnishings" }, { "category" : "Kitchen Furnishings" { "catalogPage": 108, "url": "/kitchen/furnishings" } } }
• 44.

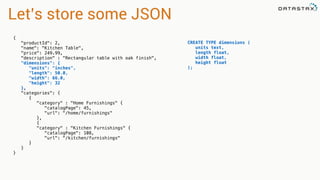

  Let’s store someJSON { "productId": 2, "name": "Kitchen Table", "price": 249.99, "description" : "Rectangular table with oak finish", "dimensions": { "units": "inches", "length": 50.0, "width": 66.0, "height": 32 }, "categories": { { "category" : "Home Furnishings" { "catalogPage": 45, "url": "/home/furnishings" }, { "category" : "Kitchen Furnishings" { "catalogPage": 108, "url": "/kitchen/furnishings" } } } CREATE TYPE dimensions ( units text, length float, width float, height float );
• 45.

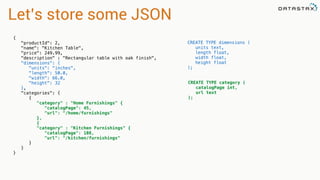

  Let’s store someJSON { "productId": 2, "name": "Kitchen Table", "price": 249.99, "description" : "Rectangular table with oak finish", "dimensions": { "units": "inches", "length": 50.0, "width": 66.0, "height": 32 }, "categories": { { "category" : "Home Furnishings" { "catalogPage": 45, "url": "/home/furnishings" }, { "category" : "Kitchen Furnishings" { "catalogPage": 108, "url": "/kitchen/furnishings" } } } CREATE TYPE dimensions ( units text, length float, width float, height float ); CREATE TYPE category ( catalogPage int, url text );
• 46.

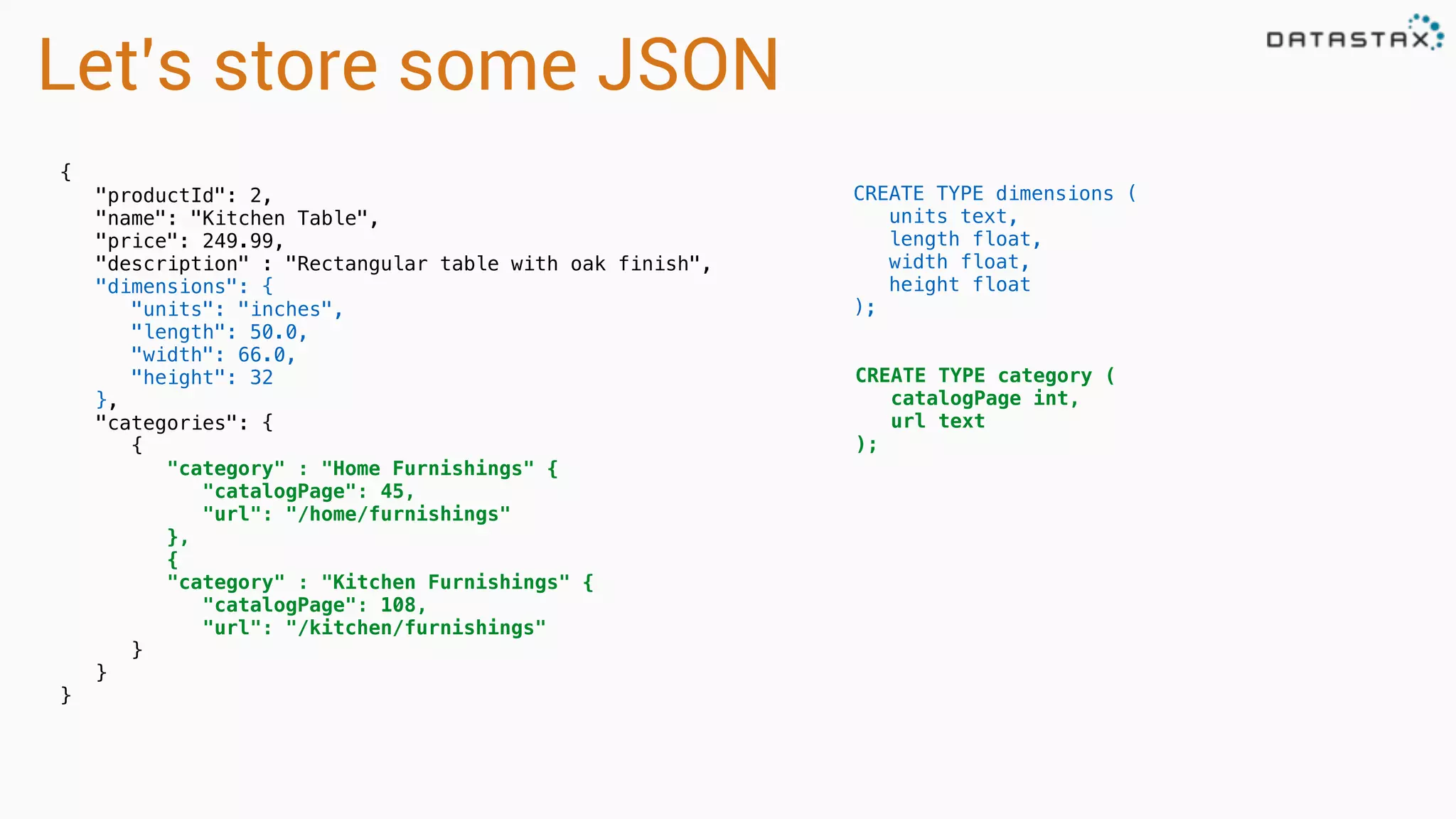

  Let’s store someJSON { "productId": 2, "name": "Kitchen Table", "price": 249.99, "description" : "Rectangular table with oak finish", "dimensions": { "units": "inches", "length": 50.0, "width": 66.0, "height": 32 }, "categories": { { "category" : "Home Furnishings" { "catalogPage": 45, "url": "/home/furnishings" }, { "category" : "Kitchen Furnishings" { "catalogPage": 108, "url": "/kitchen/furnishings" } } } CREATE TYPE dimensions ( units text, length float, width float, height float ); CREATE TYPE category ( catalogPage int, url text ); CREATE TABLE product ( productId int, name text, price float, description text, dimensions frozen <dimensions>, categories map <text, frozen <category>>, PRIMARY KEY (productId) );
• 47.

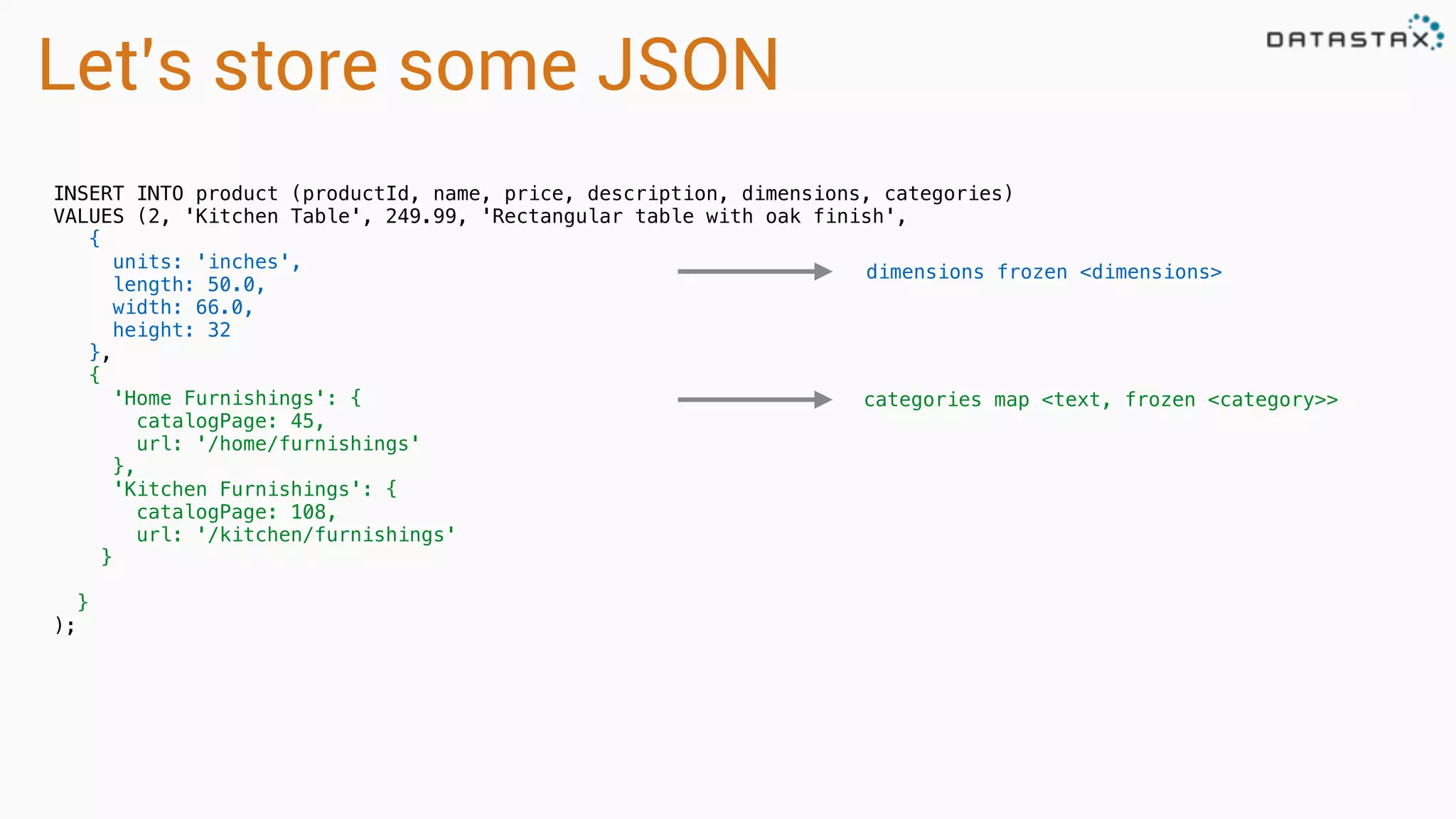

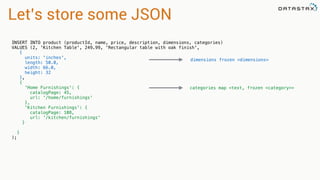

  Let’s store someJSON INSERT INTO product (productId, name, price, description, dimensions, categories) VALUES (2, 'Kitchen Table', 249.99, 'Rectangular table with oak finish', { units: 'inches', length: 50.0, width: 66.0, height: 32 }, { 'Home Furnishings': { catalogPage: 45, url: '/home/furnishings' }, 'Kitchen Furnishings': { catalogPage: 108, url: '/kitchen/furnishings' } } ); dimensions frozen <dimensions> categories map <text, frozen <category>>
• 48.

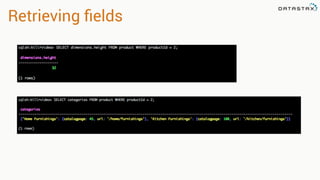

  Retrieving fields
• 49.
  Thank you! Bring thequestions Follow me on twitter @PatrickMcFadin
