Tracking Data Updates in Real-time with Change Data Capture

The document discusses ScyllaDB's Change Data Capture (CDC) feature, which allows real-time tracking of database modifications such as inserts, updates, and deletes. It highlights the benefits of CDC, including its asynchronous data capturing, table level granularity, and multiple deployment options across various clusters. Additionally, it outlines the use cases for CDC, including feeding microservices and real-time analytics, as well as practical examples of implementing CDC in a database context.

Embed presentation

Download as PDF, PPTX
Tracking Data Updates in Real-time with Change Data Capture Tzach Livyatan, ScyllaDB VP of Product Piotr Jastrzębski, ScyllaDB Software Team Lead
2 + The Real-Time Big Data Database + Drop-in replacement for Apache Cassandra and Amazon DynamoDB + 10X the performance & low tail latency + Open Source, Enterprise and Cloud options + Founded by the creators of KVM hypervisor + HQs: Palo Alto, CA, USA; Herzelia, Israel; Warsaw, Poland About ScyllaDB
Presenters Tzach Livyatan, VP of Product Tzach has a 15 year career in development, system engineering and product management. He has worked in the Telecom domain, focusing on carrier grade systems, signalling, policy and charging applications for Oracle and others. 3 Piotr Jastrzębski, Software Development Team Lead Piotr is a software engineer with over 12 years of experience in software development. He worked for a hedge fund called Two Sigma on alpha/system models execution infrastructure and for Google on Android Java Runtime and Google Search on Android.
Agenda 4 + About ScyllaDB + Introducing Scylla Change Data Capture - what is it good for ? + Using CDC - how to use it ? + Roadmap - when can I get it? + QA
Introducing Scylla Change Data Capture (CDC) 5

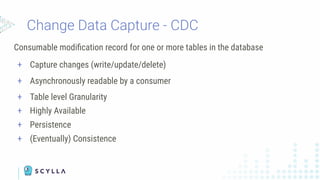

Change Data Capture - CDC Consumable modification record for one or more tables in the database + Capture changes (write/update/delete) + Asynchronously readable by a consumer + Table level Granularity + Highly Available + Persistence + (Eventually) Consistence
Feeding Microservices Kafka CDC Stream Fraud Detection Data Lake Real Time Analysis Search
Low Coupling Replication Agent Agent Multi DC Deployment Multi Cluster Deployment CDC Stream

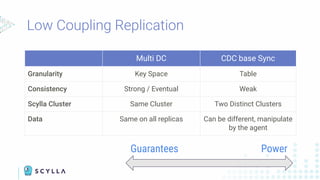

Low Coupling Replication Multi DC CDC base Sync Granularity Key Space Table Consistency Strong / Eventual Weak Scylla Cluster Same Cluster Two Distinct Clusters Data Same on all replicas Can be different, manipulate by the agent PowerGuarantees

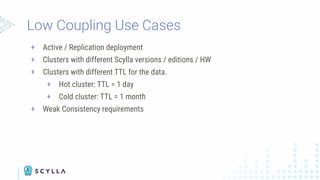

Low Coupling Use Cases + Active / Replication deployment + Clusters with different Scylla versions / editions / HW + Clusters with different TTL for the data. + Hot cluster: TTL = 1 day + Cold cluster: TTL = 1 month + Weak Consistency requirements
Poll Question
Using Scylla CDC

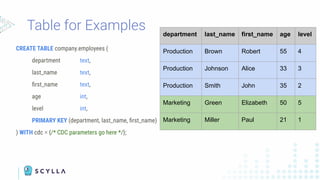

Table for Examples CREATE TABLE company.employees ( department text, last_name text, first_name text, age int, level int, PRIMARY KEY (department, last_name, first_name) ) WITH cdc = {/* CDC parameters go here */}; department last_name first_name age level Production Brown Robert 55 4 Production Johnson Alice 33 3 Production Smith John 35 2 Marketing Green Elizabeth 50 5 Marketing Miller Paul 21 1
CDC Modes + Delta + Preimage + Postimage

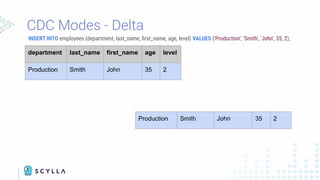

CDC Modes - Delta INSERT INTO employees (department, last_name, first_name, age, level) VALUES ('Production', 'Smith', 'John', 35, 2); department last_name first_name age level Production Smith John 35 2 department last_name first_name age level Production Smith John 35 2

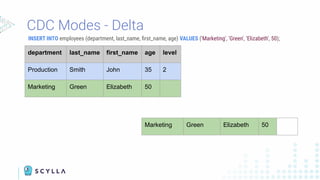

CDC Modes - Delta INSERT INTO employees (department, last_name, first_name, age) VALUES ('Marketing', 'Green', 'Elizabeth', 50); department last_name first_name age level Production Smith John 35 2 Marketing Green Elizabeth 50 department last_name first_name age level Production Smith John 35 2 Marketing Green Elizabeth 50

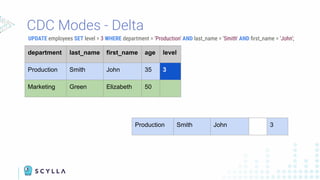

CDC Modes - Delta UPDATE employees SET level = 3 WHERE department = 'Production' AND last_name = 'Smith' AND first_name = 'John'; department last_name first_name age level Production Smith John 35 2 Marketing Green Elizabeth 50 Production Smith John 3 department last_name first_name age level Production Smith John 35 3 Marketing Green Elizabeth 50

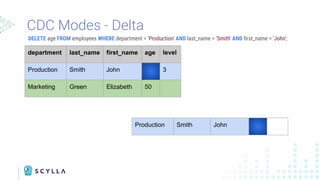

CDC Modes - Delta DELETE age FROM employees WHERE department = 'Production' AND last_name = 'Smith' AND first_name = 'John'; department last_name first_name age level Production Smith John 35 3 Marketing Green Elizabeth 50 Production Smith John department last_name first_name age level Production Smith John 3 Marketing Green Elizabeth 50
CDC Modes - Delta DELETE FROM employees WHERE department = 'Marketing' AND last_name = 'Green' AND first_name = 'Elizabeth'; department last_name first_name age level Production Smith John 3 Marketing Green Elizabeth 50 Marketing Green Elizabeth

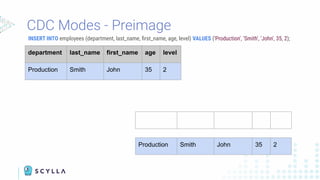

CDC Modes - Preimage INSERT INTO employees (department, last_name, first_name, age, level) VALUES ('Production', 'Smith', 'John', 35, 2); department last_name first_name age leveldepartment last_name first_name age level Production Smith John 35 2 Production Smith John 35 2
CDC Modes - Preimage UPDATE employees SET level = 3 WHERE department = 'Production' AND last_name = 'Smith' AND first_name = 'John'; department last_name first_name age level Production Smith John 35 2 Production Smith John 2 department last_name first_name age level Production Smith John 35 3 Production Smith John 3

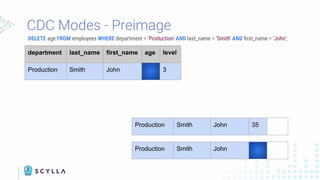

CDC Modes - Preimage DELETE age FROM employees WHERE department = 'Production' AND last_name = 'Smith' AND first_name = 'John'; department last_name first_name age level Production Smith John 35 3 Production Smith John 35 department last_name first_name age level Production Smith John 3 Production Smith John

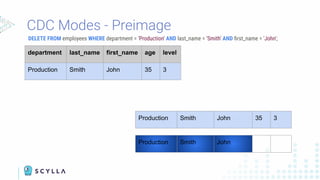

CDC Modes - Preimage DELETE FROM employees WHERE department = 'Production' AND last_name = 'Smith' AND first_name = 'John'; department last_name first_name age level Production Smith John 35 3 Production Smith John 35 3 Production Smith John
CDC Modes - Postimage UPDATE employees SET level = 3 WHERE department = 'Production' AND last_name = 'Smith' AND first_name = 'John'; department last_name first_name age level Production Smith John 35 2 Production Smith John 35 3 department last_name first_name age level Production Smith John 35 3 Production Smith John 3

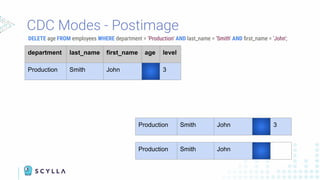

CDC Modes - Postimage DELETE age FROM employees WHERE department = 'Production' AND last_name = 'Smith' AND first_name = 'John'; department last_name first_name age level Production Smith John 35 3 Production Smith John 3 department last_name first_name age level Production Smith John 3 Production Smith John

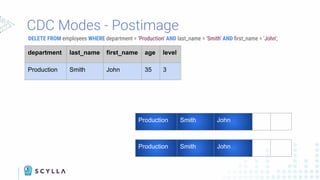

CDC Modes - Postimage DELETE FROM employees WHERE department = 'Production' AND last_name = 'Smith' AND first_name = 'John'; department last_name first_name age level Production Smith John 35 3 Production Smith John Production Smith John
CREATE TABLE company.employees ( department text, last_name text, first_name text, age int, level int, PRIMARY KEY (department, last_name, first_name) ) WITH cdc = {/* CDC parameters go here */}; CDC Log CREATE TABLE company.employees_scylla_cdc_log ( cdc$stream_id blob, cdc$time timeuuid, cdc$batch_seq_no int, cdc$operation tinyint, cdc$ttl bigint, department text, first_name text, last_name text, age int, cdc$deleted_age boolean, level int, cdc$deleted_level boolean, PRIMARY KEY (cdc$stream_id, cdc$time, cdc$batch_seq_no) )

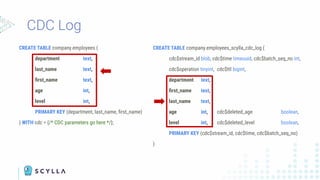

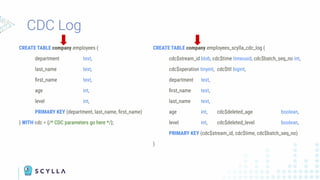

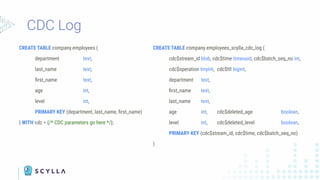

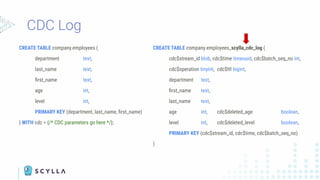

CDC Log CREATE TABLE company.employees ( department text, last_name text, first_name text, age int, level int, PRIMARY KEY (department, last_name, first_name) ) WITH cdc = {/* CDC parameters go here */}; CREATE TABLE company.employees_scylla_cdc_log ( cdc$stream_id blob, cdc$time timeuuid, cdc$batch_seq_no int, cdc$operation tinyint, cdc$ttl bigint, department text, first_name text, last_name text, age int, cdc$deleted_age boolean, level int, cdc$deleted_level boolean, PRIMARY KEY (cdc$stream_id, cdc$time, cdc$batch_seq_no) )
CDC Log CREATE TABLE company.employees ( department text, last_name text, first_name text, age int, level int, PRIMARY KEY (department, last_name, first_name) ) WITH cdc = {/* CDC parameters go here */}; CREATE TABLE company.employees_scylla_cdc_log ( cdc$stream_id blob, cdc$time timeuuid, cdc$batch_seq_no int, cdc$operation tinyint, cdc$ttl bigint, department text, first_name text, last_name text, age int, cdc$deleted_age boolean, level int, cdc$deleted_level boolean, PRIMARY KEY (cdc$stream_id, cdc$time, cdc$batch_seq_no) )
CREATE TABLE company.employees ( department text, last_name text, first_name text, age int, level int, PRIMARY KEY (department, last_name, first_name) ) WITH cdc = {/* CDC parameters go here */}; CREATE TABLE company.employees_scylla_cdc_log ( cdc$stream_id blob, cdc$time timeuuid, cdc$batch_seq_no int, cdc$operation tinyint, cdc$ttl bigint, department text, first_name text, last_name text, age int, cdc$deleted_age boolean, level int, cdc$deleted_level boolean, PRIMARY KEY (cdc$stream_id, cdc$time, cdc$batch_seq_no) ) CDC Log

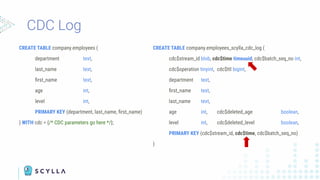

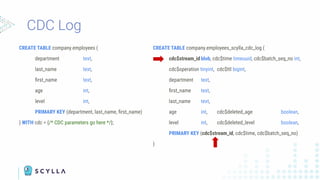

CDC Log CREATE TABLE company.employees_scylla_cdc_log ( cdc$stream_id blob, cdc$time timeuuid, cdc$batch_seq_no int, cdc$operation tinyint, cdc$ttl bigint, department text, first_name text, last_name text, age int, cdc$deleted_age boolean, level int, cdc$deleted_level boolean, PRIMARY KEY (cdc$stream_id, cdc$time, cdc$batch_seq_no) ) CREATE TABLE company.employees ( department text, last_name text, first_name text, age int, level int, PRIMARY KEY (department, last_name, first_name) ) WITH cdc = {/* CDC parameters go here */};

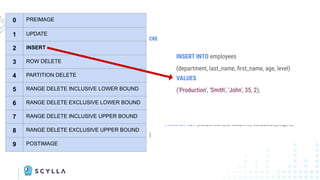

CREATE TABLE company.employees_scylla_cdc_log ( cdc$stream_id blob, cdc$time timeuuid, cdc$batch_seq_no int, cdc$operation tinyint, cdc$ttl bigint, department text, first_name text, last_name text, age int, cdc$deleted_age boolean, level int, cdc$deleted_level boolean, PRIMARY KEY (cdc$stream_id, cdc$time, cdc$batch_seq_no) ) CDC Log CREATE TABLE company.employees ( department text, last_name text, first_name text, age int, level int, PRIMARY KEY (department, last_name, first_name) ) WITH cdc = {/* CDC parameters go here */};
CREATE TABLE company.employees_scylla_cdc_log ( cdc$stream_id blob, cdc$time timeuuid, cdc$batch_seq_no int, cdc$operation tinyint, cdc$ttl bigint, department text, first_name text, last_name text, age int, cdc$deleted_age boolean, level int, cdc$deleted_level boolean, PRIMARY KEY (cdc$stream_id, cdc$time, cdc$batch_seq_no) ) CDC Log CREATE TABLE company.employees ( department text, last_name text, first_name text, age int, level int, PRIMARY KEY (department, last_name, first_name) ) WITH cdc = {/* CDC parameters go here */};

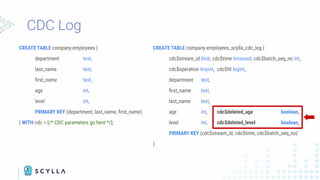

CDC Log CREATE TABLE company.employees_scylla_cdc_log ( cdc$stream_id blob, cdc$time timeuuid, cdc$batch_seq_no int, cdc$operation tinyint, cdc$ttl bigint, department text, first_name text, last_name text, age int, cdc$deleted_age boolean, level int, cdc$deleted_level boolean, PRIMARY KEY (cdc$stream_id, cdc$time, cdc$batch_seq_no) ) CREATE TABLE company.employees ( department text, last_name text, first_name text, age int, level int, PRIMARY KEY (department, last_name, first_name) ) WITH cdc = {/* CDC parameters go here */};

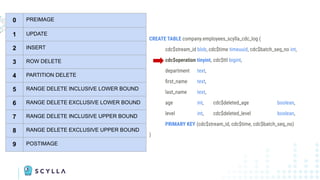

CREATE TABLE company.employees ( department text, last_name text, first_name text, age int, level int, PRIMARY KEY (department, last_name, first_name) ) WITH cdc = {/* CDC parameters go here */}; CDC log CREATE TABLE company.employees_scylla_cdc_log ( cdc$stream_id blob, cdc$time timeuuid, cdc$batch_seq_no int, cdc$operation tinyint, cdc$ttl bigint, department text, first_name text, last_name text, age int, cdc$deleted_age boolean, level int, cdc$deleted_level boolean, PRIMARY KEY (cdc$stream_id, cdc$time, cdc$batch_seq_no) ) 0 PREIMAGE 1 UPDATE 2 INSERT 3 ROW DELETE 4 PARTITION DELETE 5 RANGE DELETE INCLUSIVE LOWER BOUND 6 RANGE DELETE EXCLUSIVE LOWER BOUND 7 RANGE DELETE INCLUSIVE UPPER BOUND 8 RANGE DELETE EXCLUSIVE UPPER BOUND 9 POSTIMAGE

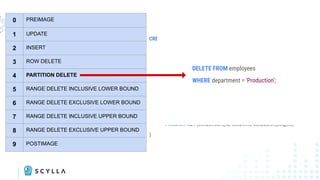

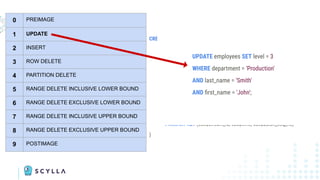

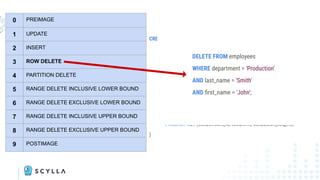

CREATE TABLE company.employees_scylla_cdc_log ( cdc$stream_id blob, cdc$time timeuuid, cdc$batch_seq_no int, cdc$operation tinyint, cdc$ttl bigint, department text, first_name text, last_name text, age int, cdc$deleted_age boolean, level int, cdc$deleted_level boolean, PRIMARY KEY (cdc$stream_id, cdc$time, cdc$batch_seq_no) ) CREATE TABLE company.employees ( department text, last_name text, first_name text, age int, level int, PRIMARY KEY (department, last_name, first_name) ) WITH cdc = {/* CDC parameters go here */}; CDC log0 PREIMAGE 1 UPDATE 2 INSERT 3 ROW DELETE 4 PARTITION DELETE 5 RANGE DELETE INCLUSIVE LOWER BOUND 6 RANGE DELETE EXCLUSIVE LOWER BOUND 7 RANGE DELETE INCLUSIVE UPPER BOUND 8 RANGE DELETE EXCLUSIVE UPPER BOUND 9 POSTIMAGE UPDATE employees SET level = 3 WHERE department = 'Production' AND last_name = 'Smith' AND first_name = 'John';
CREATE TABLE company.employees_scylla_cdc_log ( cdc$stream_id blob, cdc$time timeuuid, cdc$batch_seq_no int, cdc$operation tinyint, cdc$ttl bigint, department text, first_name text, last_name text, age int, cdc$deleted_age boolean, level int, cdc$deleted_level boolean, PRIMARY KEY (cdc$stream_id, cdc$time, cdc$batch_seq_no) ) CREATE TABLE company.employees ( department text, last_name text, first_name text, age int, level int, PRIMARY KEY (department, last_name, first_name) ) WITH cdc = {/* CDC parameters go here */}; CDC log0 PREIMAGE 1 UPDATE 2 INSERT 3 ROW DELETE 4 PARTITION DELETE 5 RANGE DELETE INCLUSIVE LOWER BOUND 6 RANGE DELETE EXCLUSIVE LOWER BOUND 7 RANGE DELETE INCLUSIVE UPPER BOUND 8 RANGE DELETE EXCLUSIVE UPPER BOUND 9 POSTIMAGE INSERT INTO employees (department, last_name, first_name, age, level) VALUES ('Production', 'Smith', 'John', 35, 2);
CREATE TABLE company.employees_scylla_cdc_log ( cdc$stream_id blob, cdc$time timeuuid, cdc$batch_seq_no int, cdc$operation tinyint, cdc$ttl bigint, department text, first_name text, last_name text, age int, cdc$deleted_age boolean, level int, cdc$deleted_level boolean, PRIMARY KEY (cdc$stream_id, cdc$time, cdc$batch_seq_no) ) CREATE TABLE company.employees ( department text, last_name text, first_name text, age int, level int, PRIMARY KEY (department, last_name, first_name) ) WITH cdc = {/* CDC parameters go here */}; CDC log0 PREIMAGE 1 UPDATE 2 INSERT 3 ROW DELETE 4 PARTITION DELETE 5 RANGE DELETE INCLUSIVE LOWER BOUND 6 RANGE DELETE EXCLUSIVE LOWER BOUND 7 RANGE DELETE INCLUSIVE UPPER BOUND 8 RANGE DELETE EXCLUSIVE UPPER BOUND 9 POSTIMAGE DELETE FROM employees WHERE department = 'Production' AND last_name = 'Smith' AND first_name = 'John';
CREATE TABLE company.employees_scylla_cdc_log ( cdc$stream_id blob, cdc$time timeuuid, cdc$batch_seq_no int, cdc$operation tinyint, cdc$ttl bigint, department text, first_name text, last_name text, age int, cdc$deleted_age boolean, level int, cdc$deleted_level boolean, PRIMARY KEY (cdc$stream_id, cdc$time, cdc$batch_seq_no) ) CREATE TABLE company.employees ( department text, last_name text, first_name text, age int, level int, PRIMARY KEY (department, last_name, first_name) ) WITH cdc = {/* CDC parameters go here */}; CDC log0 PREIMAGE 1 UPDATE 2 INSERT 3 ROW DELETE 4 PARTITION DELETE 5 RANGE DELETE INCLUSIVE LOWER BOUND 6 RANGE DELETE EXCLUSIVE LOWER BOUND 7 RANGE DELETE INCLUSIVE UPPER BOUND 8 RANGE DELETE EXCLUSIVE UPPER BOUND 9 POSTIMAGE DELETE FROM employees WHERE department = 'Production';
CREATE TABLE company.employees ( department text, last_name text, first_name text, age int, level int, PRIMARY KEY (department, last_name, first_name) ) WITH cdc = {/* CDC parameters go here */}; CDC log0 PREIMAGE 1 UPDATE 2 INSERT 3 ROW DELETE 4 PARTITION DELETE 5 RANGE DELETE INCLUSIVE LOWER BOUND 6 RANGE DELETE EXCLUSIVE LOWER BOUND 7 RANGE DELETE INCLUSIVE UPPER BOUND 8 RANGE DELETE EXCLUSIVE UPPER BOUND 9 POSTIMAGE CREATE TABLE company.employees_scylla_cdc_log ( cdc$stream_id blob, cdc$time timeuuid, cdc$batch_seq_no int, cdc$operation tinyint, cdc$ttl bigint, department text, first_name text, last_name text, age int, cdc$deleted_age boolean, level int, cdc$deleted_level boolean, PRIMARY KEY (cdc$stream_id, cdc$time, cdc$batch_seq_no) ) DELETE FROM employees WHERE department = 'Production' AND last_name >= 'A' AND last_name < 'C';
CDC Log CREATE TABLE company.employees_scylla_cdc_log ( cdc$stream_id blob, cdc$time timeuuid, cdc$batch_seq_no int, cdc$operation tinyint, cdc$ttl bigint, department text, first_name text, last_name text, age int, cdc$deleted_age boolean, level int, cdc$deleted_level boolean, PRIMARY KEY (cdc$stream_id, cdc$time, cdc$batch_seq_no) ) CREATE TABLE company.employees ( department text, last_name text, first_name text, age int, level int, PRIMARY KEY (department, last_name, first_name) ) WITH cdc = {/* CDC parameters go here */};

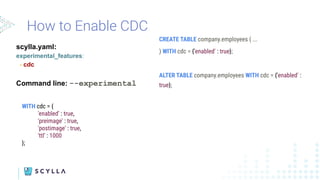

scylla.yaml: experimental_features: - cdc Command line: --experimental CREATE TABLE company.employees ( ... ) WITH cdc = {'enabled' : true}; ALTER TABLE company.employees WITH cdc = {'enabled' : true}; WITH cdc = { 'enabled' : true, 'preimage' : true, 'postimage' : true, 'ttl' : 1000 }; How to Enable CDC
INSERT INTO employees (department, last_name, first_name, level) VALUES ('Production', 'Smith', 'John', 2); cdc$stream_id 0x6f06e163e099df1b8545901cd23663e3 cdc$time 54b28d54-69cb-11ea-6541-6fa9f3f294ae cdc$batch_seq_no 0 cdc$operation 2 cdc$ttl null department Production last_name Smith first_name John age null level 2 cdc$deleted_age null cdc$deleted_level null
UPDATE employees SET age = 35 WHERE department = 'Production' AND last_name = 'Smith' AND first_name = 'John'; cdc$stream_id 0x6f06e163e099df1b8545901cd23663e3 cdc$time b82e2cb0-69cd-11ea-6a10-8c39c8f7dc3a cdc$batch_seq_no 0 cdc$operation 1 cdc$ttl null department Production last_name Smith first_name John age 35 level null cdc$deleted_age null cdc$deleted_level null
DELETE age FROM employees WHERE department = 'Production' AND last_name = 'Smith' AND first_name = 'John'; cdc$stream_id 0x6f06e163e099df1b8545901cd23663e3 cdc$time c8f5b55e-69cd-11ea-68c1-e036079d1ce4 cdc$batch_seq_no 0 cdc$operation 1 cdc$ttl null department Production last_name Smith first_name John age null level null cdc$deleted_age true cdc$deleted_level null

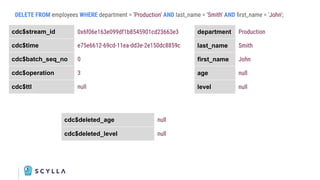

DELETE FROM employees WHERE department = 'Production' AND last_name = 'Smith' AND first_name = 'John'; cdc$stream_id 0x6f06e163e099df1b8545901cd23663e3 cdc$time e75e6612-69cd-11ea-dd3e-2e150dc8859c cdc$batch_seq_no 0 cdc$operation 3 cdc$ttl null department Production last_name Smith first_name John age null level null cdc$deleted_age null cdc$deleted_level null
DELETE FROM employees WHERE department = 'Production'; cdc$stream_id 0x6f06e163e099df1b8545901cd23663e3 cdc$time 0a454bbe-69ce-11ea-31f2-98b4c3f08688 cdc$batch_seq_no 0 cdc$operation 4 cdc$ttl null department Production last_name null first_name null age null level null cdc$deleted_age null cdc$deleted_level null

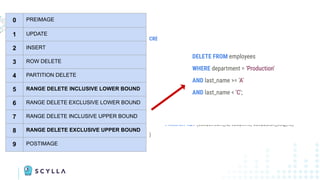

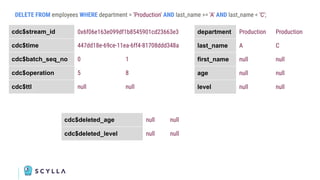

DELETE FROM employees WHERE department = 'Production' AND last_name >= 'A' AND last_name < 'C'; cdc$stream_id 0x6f06e163e099df1b8545901cd23663e3 cdc$time 447dd18e-69ce-11ea-6ff4-81708ddd348a cdc$batch_seq_no 0 1 cdc$operation 5 8 cdc$ttl null null department Production Production last_name A C first_name null null age null null level null null cdc$deleted_age null null cdc$deleted_level null null

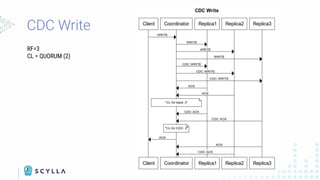

CDC Write RF=3 CL = QUORUM (2)
CDC Streams CREATE TABLE company.employees_scylla_cdc_log ( cdc$stream_id blob, cdc$time timeuuid, cdc$batch_seq_no int, ... PRIMARY KEY (cdc$stream_id, cdc$time, cdc$batch_seq_no) ) CREATE TABLE company.employees ( ... PRIMARY KEY (department, last_name, first_name) ) WITH cdc = {/* CDC parameters go here */};

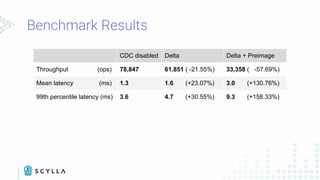

Benchmark Results CDC disabled Delta Delta + Preimage Throughput (ops) 78,847 61,851 ( -21.55%) 33,358 ( -57.69%) Mean latency (ms) 1.3 1.6 (+23.07%) 3.0 (+130.76%) 99th percentile latency (ms) 3.6 4.7 (+30.55%) 9.3 (+158.33%)
Take Away
CDC in Scylla + Easy to integrate and consume + Plain CQL tables + Robust + Replicated in same way as normal data + Reasonable overhead + Coalesced writes to same replica ranges + Does not overflow if consumer fails to act + Data is TTL:ed
Comparison Chart Cassandra DynamoDB MongoDB Scylla Consumer location on-node off-node off-node off-node Replication duplicated deduplicated deduplicated deduplicated Deltas yes no partial yes Pre-image no yes no optional Post-image no yes yes optional Slow consumer reaction Table stopped Consumer loses data Consumer loses data Consumer loses data Ordering no yes yes yes

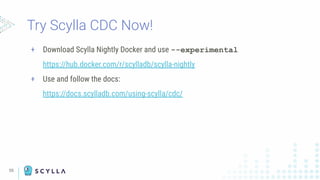

Try Scylla CDC Now! + Download Scylla Nightly Docker and use --experimental https://hub.docker.com/r/scylladb/scylla-nightly + Use and follow the docs: https://docs.scylladb.com/using-scylla/cdc/ 55
Q&A Tzach Livyatan Piotr Jastrzębski
piotr@scylladb.com tzach@scylladb.com Stay in touch
United States 545 Faber Place Palo Alto, CA 94303 Israel 11 Galgalei Haplada Herzelia, Israel www.scylladb.com @scylladb Thank you
