Tight-Binding Method for Evaluation of Energy
Diagram in Nanoelectronic
By:
Hojjatollah Sarvari
E-mail: hojjatsarvari@gmail.com
Supervised by:
Professor Dr. Rahim Ghayour
School of Electrical and Computer Engineering
Shiraz University, Shiraz, Iran
Sep 22, 2010

2. Outline
• Introduction
• Tight-Binding method
• Energy diagram of Polyacetylene
• Energy diagram of single-layer graphene
• Energy diagram of bilayer graphene
• Energy diagram of multi-layer graphene
• Energy diagram of two and four layer graphene in constant electric field
• Energy diagram of single-layer graphene in modulated electric field
• Other applications of Tight-Binding method
2

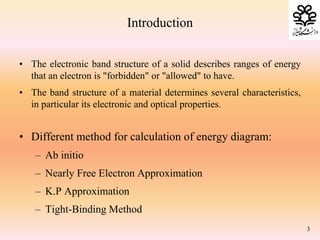

3. Introduction
• The electronic band structure of a solid describes ranges of energy
that an electron is "forbidden" or "allowed" to have.
• The band structure of a material determines several characteristics,
in particular its electronic and optical properties.
• Different method for calculation of energy diagram:
– Ab initio
– Nearly Free Electron Approximation
– K.P Approximation
– Tight-Binding Method
3

4. • In 1928, Bloch provided the initial framework to Calculate the band
structure.
• Bloch’s approach is based on the fact that the crystalline potential
Vc(r) is periodic in a lattice.
• In fact, it was Bloch who first modeled electrons as being tightly
bound to particular atoms, overlapping only weakly with neighbors.
• This tight-binding model was further developed and established by
Wannier in 1937, who showed how Bloch eigenfunctions could
always be summed together to obtain a complete set of
wavefunctions.
Introduction
4

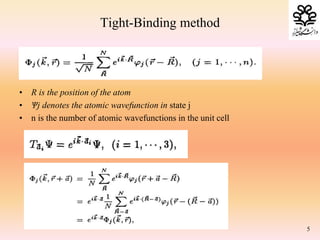

5. • R is the position of the atom
• Ѱj denotes the atomic wavefunction in state j
• n is the number of atomic wavefunctions in the unit cell
Tight-Binding method
5

6. • The eigenfunctions in the solid (based on orbital atomic) are expressed
by a linear combination of Bloch functions or atomic orbital (LCAO)
as follows:
Tight-Binding method
6
The j-th eigenvalue as a function of k:
H is the Hamiltonian of the solid.

7. Tight-Binding method
Secular equation:
( ) 0i iH E k S C    
1
( )iH E k S

  
7
If exist, thus Ci=0 and Ѱ=0
A much simpler interpolation scheme for approximating the electronic band structure
is the parameterized tight-binding method conceived in 1954 by John Clarke Slater
and George Fred Koster. Hence, it is sometimes referred to as the SK tight-binding
method.

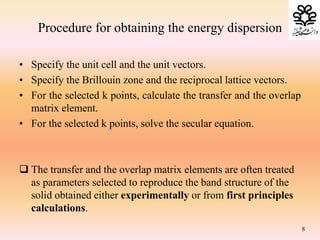

8. Procedure for obtaining the energy dispersion
• Specify the unit cell and the unit vectors.
• Specify the Brillouin zone and the reciprocal lattice vectors.
• For the selected k points, calculate the transfer and the overlap
matrix element.
• For the selected k points, solve the secular equation.
 The transfer and the overlap matrix elements are often treated
as parameters selected to reproduce the band structure of the
solid obtained either experimentally or from first principles
calculations.
8

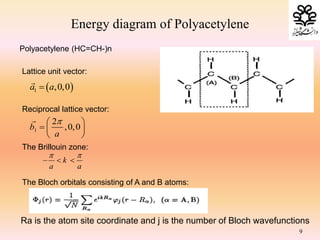

9. Energy diagram of Polyacetylene
Ra is the atom site coordinate and j is the number of Bloch wavefunctions
k
a a
 
  
9
Polyacetylene (HC=CH-)n
Lattice unit vector:
Reciprocal lattice vector:
The Brillouin zone:
The Bloch orbitals consisting of A and B atoms:
1
2
,0,0b
a
 
  
 
 1 ,0,0a a

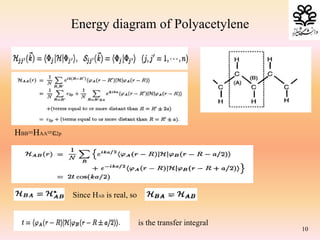

10. HBB=HAA=ε2p
10
Energy diagram of Polyacetylene
is the transfer integral
Since HAB is real, so

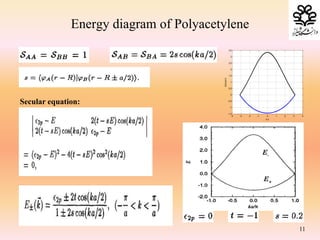

11. Secular equation:
-4 -3 -2 -1 0 1 2 3 4
-1.5
-1
-0.5
0
0.5
1
1.5
2
2.5
3
3.5
k.a
E(k)(eV)
11
Energy diagram of Polyacetylene

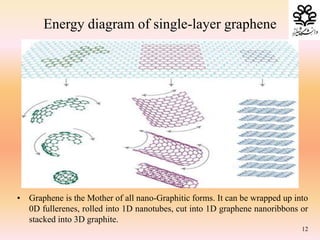

12. • Graphene is the Mother of all nano-Graphitic forms. It can be wrapped up into
0D fullerenes, rolled into 1D nanotubes, cut into 1D graphene nanoribbons or
stacked into 3D graphite.
12
Energy diagram of single-layer graphene

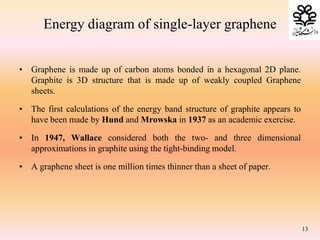

13. • Graphene is made up of carbon atoms bonded in a hexagonal 2D plane.
Graphite is 3D structure that is made up of weakly coupled Graphene
sheets.
• The first calculations of the energy band structure of graphite appears to
have been made by Hund and Mrowska in 1937 as an academic exercise.
• In 1947, Wallace considered both the two- and three dimensional
approximations in graphite using the tight-binding model.
• A graphene sheet is one million times thinner than a sheet of paper.
Energy diagram of single-layer graphene
13

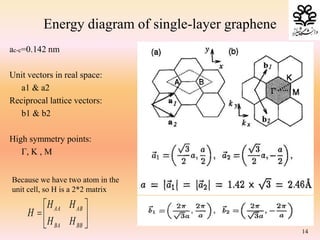

14. ac-c=0.142 nm
Unit vectors in real space:
a1 & a2
Reciprocal lattice vectors:
b1 & b2
High symmetry points:
Г, K , M
AA AB
BA BB
H H
H
H H
 
  
 
14
Energy diagram of single-layer graphene
Because we have two atom in the
unit cell, so H is a 2*2 matrix

15. 1 1 1
2 2 1
3 3 1
( , 0)
3
( , )
22 3
( , )
22 3
B A
B A
B A
a
R R R
a a
R R R
a a
R R R
  
   
    
15
Energy diagram of single-layer graphene

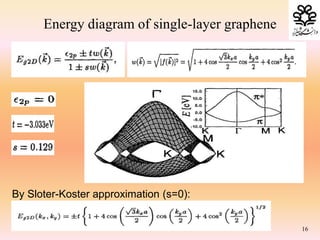

16. By Sloter-Koster approximation (s=0):
16
Energy diagram of single-layer graphene

17. 17
Energy diagram of single-layer graphene

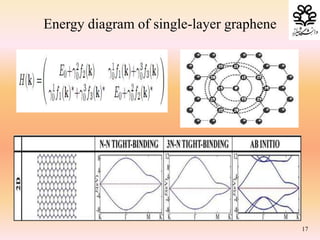

18. 18
Energy diagram of single-layer graphene

19. 19

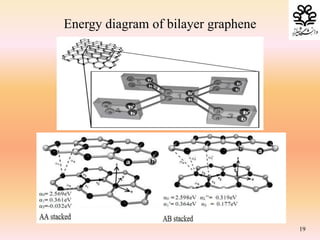

Energy diagram of bilayer graphene

20. 1 1 1 1
1 1 1 1
2 2 2 2
2 2 2
1 2 1 2
1 2 1 2
2 1 2 1
2 1 2 1 2
A A A B
B A
A A A B
B A B B
A A A B
B A B
B B
A A A B
B A B B B
H H
H H
H
H H
H H
H H
H
H
H
HH H
 
 
 
 
 
 
11 22 33 44 2
12 43 0 ( )
pH H H H
H H t f k
   
 
13 1 2 1 2 1| |A A A AH H H t   
14 23 1 2 3| | ( )A BH H H t g k  
  
24 1 2 2| | ( )
6 6
( ) exp( ) 2cos( )exp( )
6 63
B B
x y x
H H t g k
a
g k ik k a ik a
  
  
Layer-layer separation: 0.335 nm
20
Energy diagram of bilayer graphene

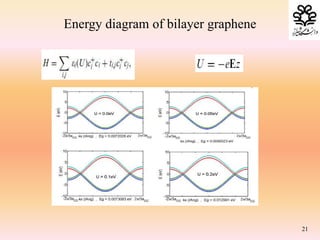

21. 21
Energy diagram of bilayer graphene

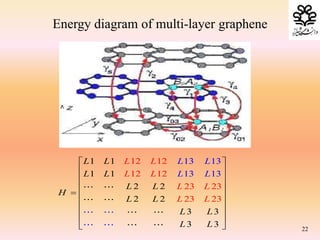

22. 12 12
12 12
23 23
1 1
1 1
2
23
2
2 2
3 3
3
13 13
13
3
13
2
3
LL L
L L
L L
L
L L
L L
L L
L
H
L
L
L L
L
L L
L L
 
 
 
 
  
 
 
 
  22
Energy diagram of multi-layer graphene

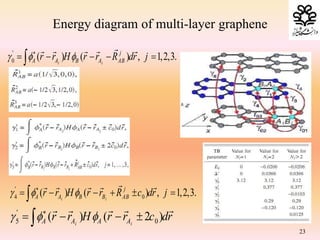

23. '
5 0( ) ( 2 )i iA A A Ar r H r r c dr  
   
'
0 ( ) ( ) , 1,2,3.i i
j
A A B A ABr r H r r R dr j  
    
'
4 0( ) ( ) , 1,2,3.i i
j
A A B B ABr r H r r R c dr j  
     
23
Energy diagram of multi-layer graphene

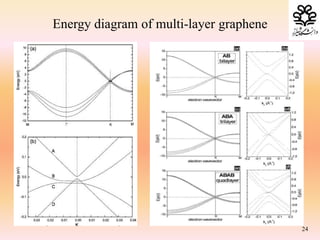

24. -5 -4 -3 -2 -1 0 1 2 3 4 5
-10
-5
0
5
10
15
k.a
E(k)(eV)
24
Energy diagram of multi-layer graphene

25. 25
Energy diagram of multi-layer graphene

26. 26
Energy diagram of multi-layer graphene

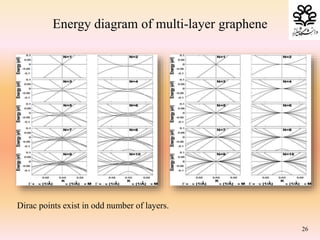

Dirac points exist in odd number of layers.

27. 27
Energy diagram of two and four layer graphene
in constant electric field

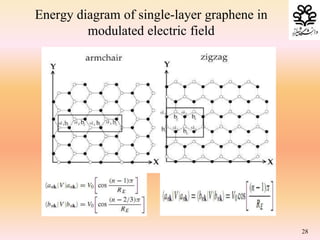

28. Energy diagram of single-layer graphene in
modulated electric field
28

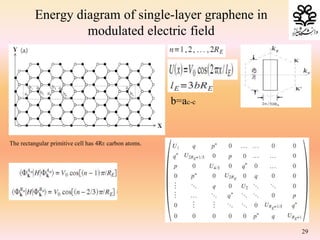

29. Energy diagram of single-layer graphene in
modulated electric field
The rectangular primitive cell has 4RE carbon atoms.
b=ac-c
29

30. (d) The low-energy bands are not sensitive to the direction of a modulated
electric potential.
Energy diagram of single-layer graphene in
modulated electric field
30
(a) Energy dispersion strongly deformed and induce several band-edge states.(b) When the strength increases, the energy bands are further deformed and
more band-edge states are created.
(c) The modulation period can also affect the numbers of band-edge states

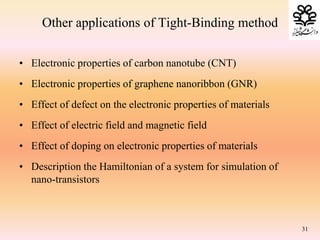

31. Other applications of Tight-Binding method
• Electronic properties of carbon nanotube (CNT)
• Electronic properties of graphene nanoribbon (GNR)
• Effect of defect on the electronic properties of materials
• Effect of electric field and magnetic field
• Effect of doping on electronic properties of materials
• Description the Hamiltonian of a system for simulation of
nano-transistors
31
