1. Temporal Data in PostgreSQL
Scott Bailey
The Evergreen State College
PostgreSQL Conference West 2009
http://scottrbailey.wordpress.com

2. Agenda
✗ Provided data types
✗ Extended data types
✗ Temporal Databases
✗ What is in store for PostgreSQL
✗ Tips, tricks and questions

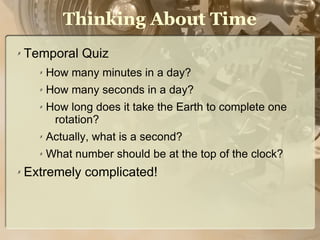

3. Thinking About Time
✗ Temporal Quiz
✗ How many minutes in a day?
✗ How many seconds in a day?
✗ How long does it take the Earth to complete one
rotation?
✗ Actually, what is a second?
✗ What number should be at the top of the clock?
✗ Extremely complicated!

4. Basic Data Types
✗ Timestamp &Timestamp with time zone
✗ Granularity 1 microsecond
✗ Can only subtract two timestamps and
add/subtract with intervals.
✗ Timestamp with out time zone is default for
compliance with SQL specification.
✗ Which should you use?
✗ Date
✗ Granularity 1 day
✗ Can add/subtract dates & integers

5. Basic Types Cont.
✗ Interval – a duration of time
✗ Granularity 1 microsecond
✗ Add/Subtract/Multiply/Divide
✗ Time / Time with time zone
✗ Granularity 1 microsecond
✗ Acts like both time and a (small) interval
✗ Timezone info is useless without date
✗ Depricated types
✗ abstime (Unix timestamp), reltime (limited
interval), timespan (interval), tinterval
(period)

6. Period Data Type
✗ Period – defines an anchored interval or timespan
✗ Often what we are modeling is not an instantaneous
event but a period over which some state is true.
✗ Typically implemented as a start and end timestamp.
Could be implemented with an anchor time and an
interval.
✗ Theory has been around for a while.
✗ Current implementations – PgTemporal, Chronos
✗ Write down a period representing today.
✗ Can be open or closed intervals but are typically half-
open.
✗ [ ] indicates endpoints are contained () not contained.

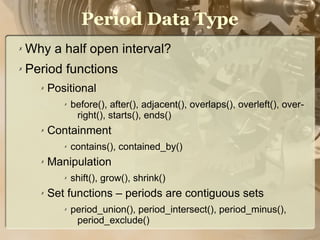

7. Period Data Type
✗ Why a half open interval?
✗ Period functions
✗ Positional
✗ before(), after(), adjacent(), overlaps(), overleft(), over-
right(), starts(), ends()
✗ Containment
✗ contains(), contained_by()
✗ Manipulation
✗ shift(), grow(), shrink()
✗ Set functions – periods are contiguous sets
✗ period_union(), period_intersect(), period_minus(),
period_exclude()

8. Period Issues
✗ When one end point is unknown
✗ Since – period(timestamp, NULL)
✗ Until – period(NULL, timestamp) not as common
✗ Hard to do much with infinity.
✗ Referential integrity
✗ Primary keys – exclusion, can't be two places at
once.
✗ Foreign keys – containment, lifetime of child item
must be contained by parent's lifetime.

9. Non-contiguous Time Sets
✗ Why would we need non-contiguous sets?
✗ Set functions for periods can be applied to
arrays of periods!
✗ Now we can solve (pretty easily) in SQL what
would have taken LOTS of procedural code.
✗ Period Arrays vs Non-Contiguous Sets
Period Array
NCS

10. Bitemporal Data
✗ “Temporal Database” vs temporal data
✗ Both Valid Time (VT) and Transaction Time (TT).
✗ Valid Time – A period for which a fact is true.
✗ Employee X was in position Y from A to B.
✗ Store not just the current fact but a historical record.
✗ Transaction Time – Records the time a row was
inserted and superseded
✗ Provides time travel or temporal rollback.
✗ Very much like the MVCC approach in PostgreSQL.
✗ Logging transaction ids with timestamp would let us
map xmin & xmax to times.

11. Current Implementations
✗ Lots of theory out there, very few actual
implementations.
✗ Oracle – Currently the best implementation in a
general purpose database.
✗ Workspace Manager – version enable tables
✗ Automatically renames table, adds versioning
metadata (VT), creates view w/ original table name,
and defines INSTEAD OF triggers for DML.
✗ Handles temporal constraints.
✗ Provides a period data type and a subset of the
functions provided in pgTemporal, Chronos.
✗ Great implementation but solves only a single problem
domain and does not allow you to reuse them.

12. The Future for PostgreSQL
✗ Version 8.5
✗ Temporal keys and constraints
✗ Changes to the type system
✗ Period data type either added to core or as a
contrib module!
✗ Version 8.6?
✗ Full support for periods, NCS, table versioning and
time travel!
✗ Hands down the most complete temporal
implementation of ANY general purpose
database.

13. Additional Resources
✗ TSQL2 Specification -
http://www.cs.arizona.edu/~rts/tsql2.html
✗ Developing Time-Oriented Database
Applications – Snodgrass
http://www.cs.arizona.edu/~rts/tdbbook.pdf
✗ Temporal Data and the Relational Model – Date,
Darwen, Lorentzos
http://books.google.com/books?isbn=1558608559
✗ TimeDB – For Oracle and IBM Cloudscape
http://www.timeconsult.com/Software/Software.html
✗ Oracle Workspace Manager -
http://www.oracle.com/technology/products/database/workspace_manager/index.html
