Simpycity and Exceptable

Simpycity and
Exceptable
A Q u e ry - F o c u s s e d
D a t a b a s e A b s t r a c t i o n

A u ry n n S h a w
P o s t g r e S Q L E a s t , 2 0 1 0

Saturday, March 27, 2010 1

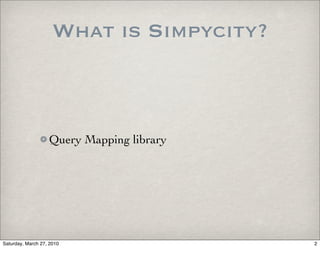

What is Simpycity?

Query Mapping library


Whys and
Wherefores

Lowest level of our data
design

The humble table

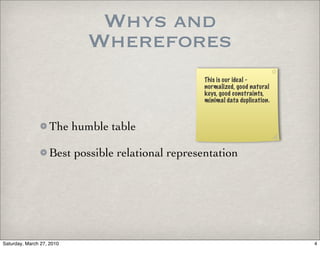

Whys and
Wherefores
This is our ideal -
normalized, good natural
keys, good constraints,
minimal data duplication.

The humble table

Best possible relational representation

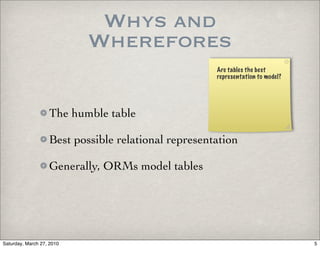

Whys and
Wherefores
Are tables the best
representation to model?

The humble table

Best possible relational representation

Generally, ORMs model tables

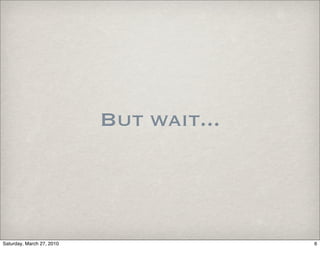

But wait...

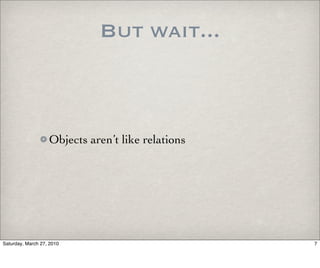

But wait...

Objects aren’t like relations

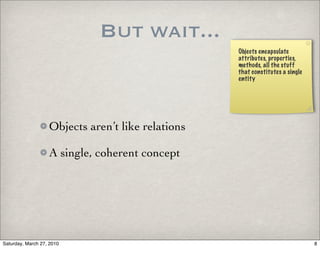

But wait...
Objects encapsulate
attributes, properties,
methods, all the stuff
that constitutes a single
entity


A single, coherent concept

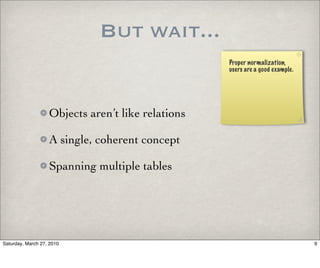

But wait...
Proper normalization,
users are a good example.


A single, coherent concept

Spanning multiple tables

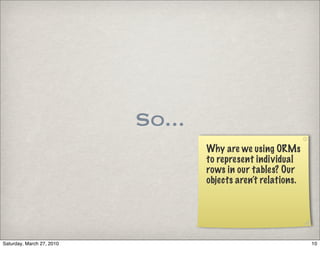

So...
Why are we using ORMs
to represent individual
rows in our tables? Our
objects aren’t relations.


Data Modesty
They are our physical
data representation -
the lowest abstraction
we work with.

Physical data

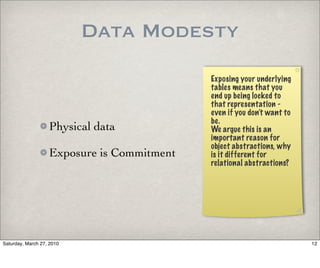

Data Modesty
Exposing your underlying
tables means that you
end up being locked to
that representation -
even if you don’t want to
be.
Physical data We argue this is an
important reason for
object abstractions, why
Exposure is Commitment is it different for
relational abstractions?

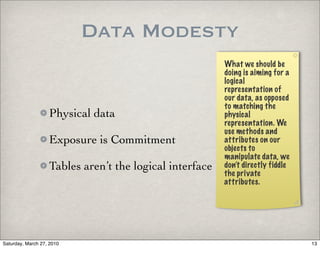

Data Modesty
What we should be
doing is aiming for a
logical
representation of
our data, as opposed
to matching the
Physical data physical
representation. We
use methods and
Exposure is Commitment attributes on our
objects to
manipulate data, we
Tables aren’t the logical interface don’t directly fiddle
the private
attributes.

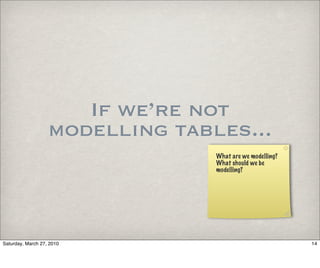

If we’re not
modelling tables...
What are we modelling?
What should we be
modelling?

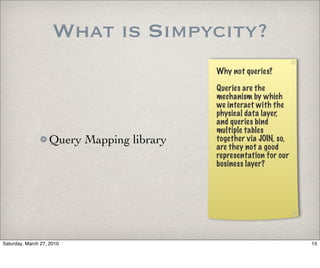

What is Simpycity?
Why not queries?

Queries are the
mechanism by which
we interact with the
physical data layer,
and queries bind
multiple tables
Query Mapping library together via JOIN, so,
are they not a good
representation for our
business layer?

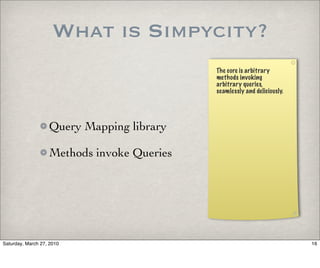

What is Simpycity?
The core is arbitrary
methods invoking
arbitrary queries,
seamlessly and deliciously.

Query Mapping library

Methods invoke Queries

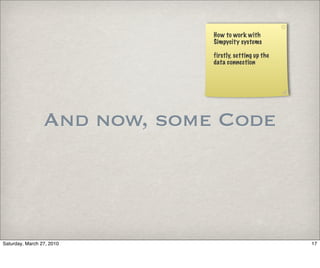

How to work with
Simpycity systems

firstly, setting up the
data connection

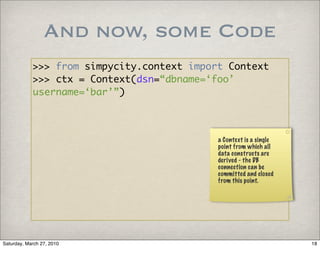

And now, some Code


And now, some Code
>>> from simpycity.context import Context
>>> ctx = Context(dsn=“dbname=‘foo’
username=‘bar’”)

a Context is a single
point from which all
data constructs are
derived - the DB
connection can be
committed and closed
from this point.

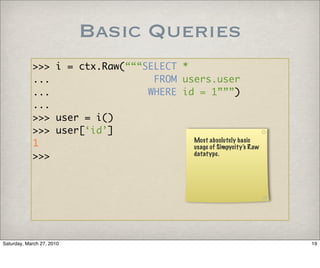

Basic Queries
>>> i = ctx.Raw(“““SELECT *
... FROM users.user
... WHERE id = 1”””)
...
>>> user = i()
>>> user[‘id’]
1 Most absolutely basic
usage of Simpycity’s Raw
>>> datatype.

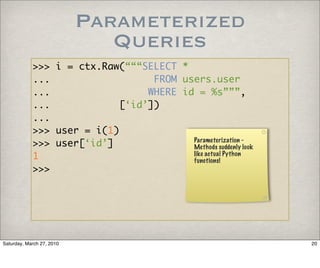

Parameterized
Queries
... FROM users.user
... WHERE id = %s”””,
... [‘id’])
...
>>> user = i(1)
>>> user[‘id’] Parameterization -
Methods suddenly look
1 like actual Python
functions!
>>>

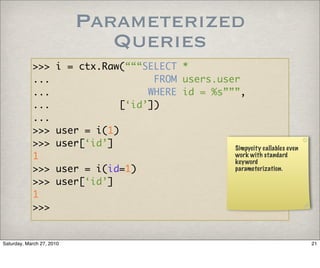

Parameterized
Queries
... FROM users.user
... WHERE id = %s”””,
... [‘id’])
...
>>> user = i(1)
>>> user[‘id’] Simpycity callables even
1 work with standard
keyword
>>> user = i(id=1) parameterization.

>>> user[‘id’]
1
>>>

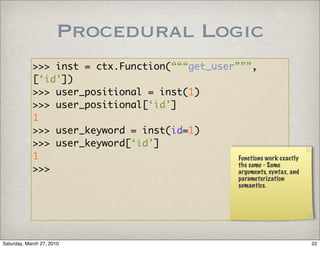

Procedural Logic
>>> inst = ctx.Function(“““get_user”””,
[‘id’])
>>> user_positional = inst(1)
>>> user_positional[‘id’]
1
>>> user_keyword = inst(id=1)
>>> user_keyword[‘id’]
1 Functions work exactly
the same - Same
>>> arguments, syntax, and
parameterization
semantics.

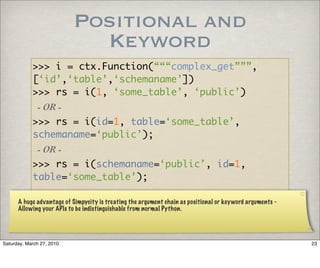

Positional and
Keyword
>>> i = ctx.Function(“““complex_get”””,
[‘id’,‘table’,‘schemaname’])
>>> rs = i(1, ‘some_table’, ‘public’)
- OR -
>>> rs = i(id=1, table=‘some_table’,
schemaname=‘public’);
- OR -
>>> rs = i(schemaname=‘public’, id=1,
table=‘some_table’);

A huge advantage of Simpycity is treating the argument chain as positional or keyword arguments -
Allowing your APIs to be indistinguishable from normal Python.

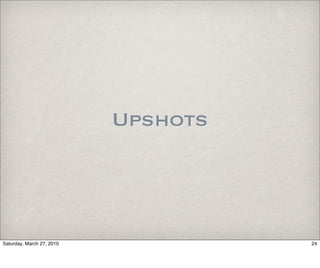

Upshots

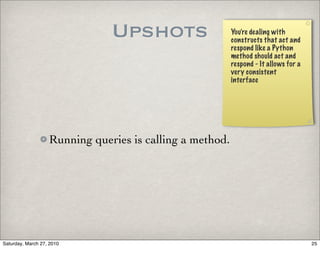

Upshots You’re dealing with
constructs that act and
respond like a Python
method should act and
respond - It allows for a
very consistent
interface

Running queries is calling a method.

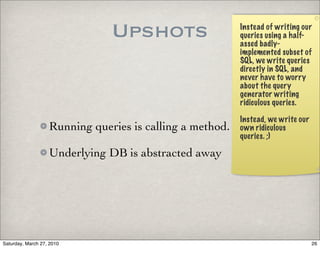

Upshots Instead of writing our
queries using a half-
assed badly-
implemented subset of
SQL, we write queries
directly in SQL, and
never have to worry
about the query
generator writing
ridiculous queries.

Instead, we write our
Running queries is calling a method. own ridiculous
queries. ;)

Underlying DB is abstracted away

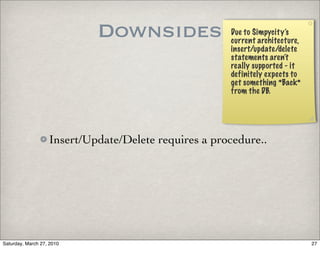

Downsides Due to Simpycity’s
current architecture,
insert/update/delete
statements aren’t
really supported - it
definitely expects to
get something *Back*
from the DB.

Insert/Update/Delete requires a procedure..

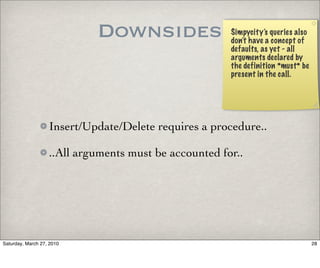

Downsides Simpycity’s queries also
don’t have a concept of
defaults, as yet - all
arguments declared by
the definition *must* be
present in the call.


..All arguments must be accounted for..

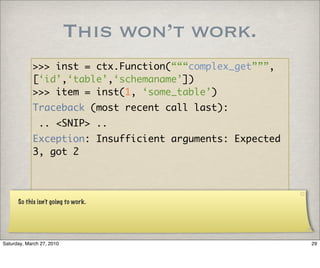

This won’t work.
>>> inst = ctx.Function(“““complex_get”””,
>>> item = inst(1, ‘some_table’)
Traceback (most recent call last):
.. <SNIP> ..
Exception: Insufficient arguments: Expected
3, got 2

So this isn’t going to work.

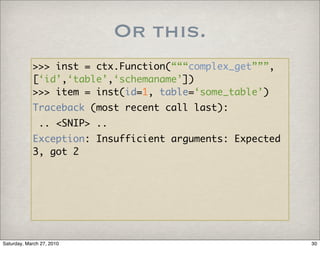

Or this.
>>> item = inst(id=1, table=‘some_table’)
.. <SNIP> ..
Exception: Insufficient arguments: Expected
3, got 2

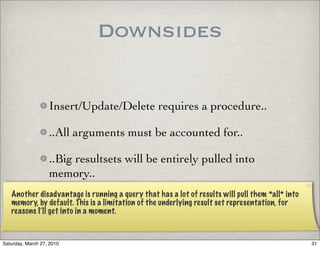

Downsides


..All arguments must be accounted for..

..Big resultsets will be entirely pulled into
memory..
Another disadvantage is running a query that has a lot of results will pull them *all* into
memory, by default. This is a limitation of the underlying result set representation, for
reasons I’ll get into in a moment.

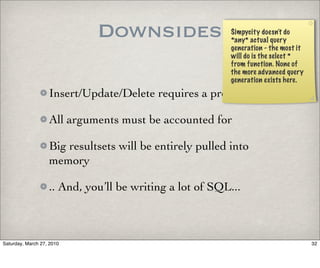

Downsides Simpycity doesn’t do
*any* actual query
generation - the most it
will do is the select *
from function. None of
the more advanced query
generation exists here.


All arguments must be accounted for

Big resultsets will be entirely pulled into
memory

.. And, you’ll be writing a lot of SQL...

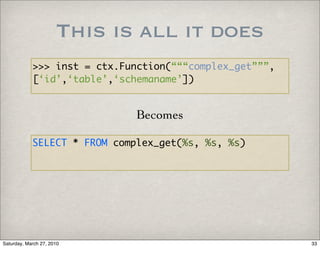

This is all it does

Becomes

SELECT * FROM complex_get(%s, %s, %s)

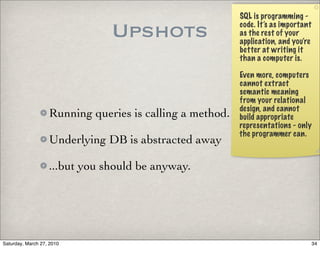

SQL is programming -

Upshots code. It’s as important
as the rest of your
application, and you’re
better at writing it
than a computer is.

Even more, computers
cannot extract
semantic meaning
from your relational
design, and cannot
Running queries is calling a method. build appropriate
representations - only
the programmer can.
Underlying DB is abstracted away

...but you should be anyway.

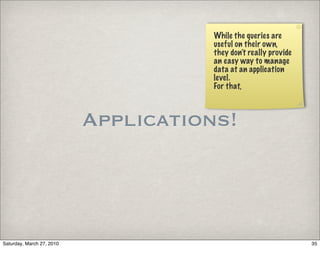

While the queries are
useful on their own,
they don’t really provide
an easy way to manage
data at an application
level.
For that,

Applications!

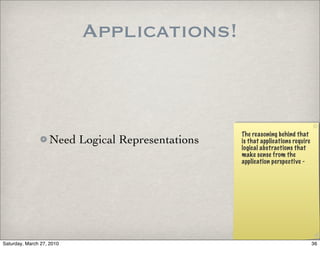

Applications!

The reasoning behind that
Need Logical Representations is that applications require
logical abstractions that
make sense from the
application perspective -

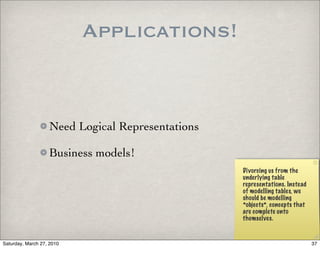

Applications!

Need Logical Representations

Business models!
Divorcing us from the
underlying table
representations. Instead
of modelling tables, we
should be modelling
*objects*, concepts that
are complete unto
themselves.

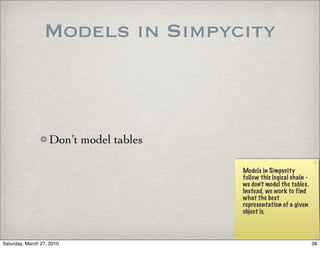

Models in Simpycity

Don’t model tables

Models in Simpycity
follow this logical chain -
we don’t model the tables.
Instead, we work to find
what the best
representation of a given
object is,

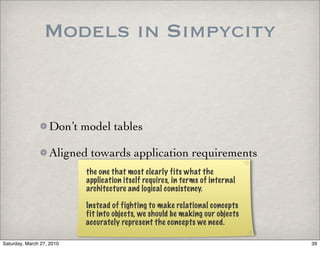

Models in Simpycity


Aligned towards application requirements
the one that most clearly fits what the
application itself requires, in terms of internal
architecture and logical consistency.

Instead of fighting to make relational concepts
fit into objects, we should be making our objects
accurately represent the concepts we need.


Models in Simpycity


Aligned towards application requirements

Still allow for Active Record-style manipulation
At the same time, the Active Record pattern has a lot of useful concepts, like direct
instancing and .save() on dirty objects.

For these reasons, the model pattern that Simpycity uses is less Active Record, as
we’re not modelling result sets, but more


Active Object.

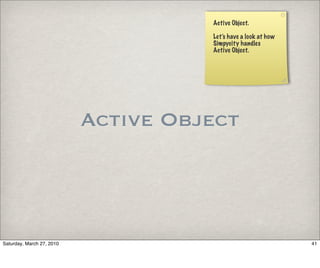

Let’s have a look at how
Simpycity handles
Active Object.

Active Object

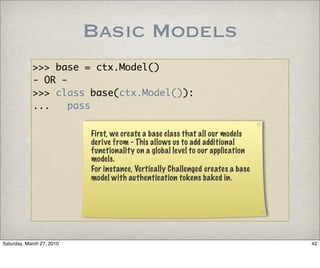

Basic Models
>>> base = ctx.Model()
- OR -
>>> class base(ctx.Model()):
... pass

First, we create a base class that all our models
derive from - This allows us to add additional
functionality on a global level to our application
models.
For instance, Vertically Challenged creates a base
model with authentication tokens baked in.

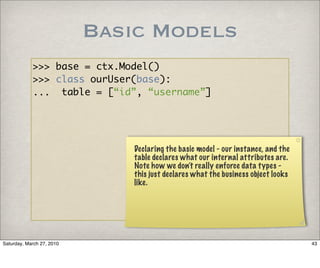

Basic Models
>>> class ourUser(base):
... table = [“id”, “username”]

Declaring the basic model - our instance, and the
table declares what our internal attributes are.
Note how we don’t really enforce data types -
this just declares what the business object looks
like.

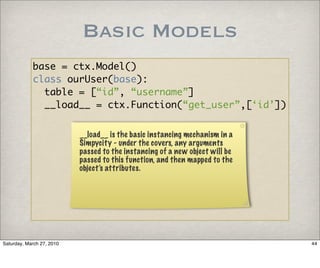

Basic Models
base = ctx.Model()
class ourUser(base):
table = [“id”, “username”]
__load__ = ctx.Function(“get_user”,[‘id’])

__load__ is the basic instancing mechanism in a
Simpycity - under the covers, any arguments
passed to the instancing of a new object will be
passed to this function, and then mapped to the
object’s attributes.

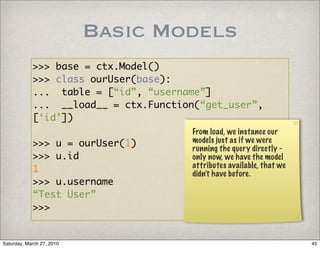

Basic Models
>>> class ourUser(base):
... table = [“id”, “username”]
... __load__ = ctx.Function(“get_user”,
[‘id’])
From load, we instance our
>>> u = ourUser(1) models just as if we were
running the query directly -
>>> u.id only now, we have the model
attributes available, that we
1 didn’t have before.
>>> u.username
“Test User”
>>>

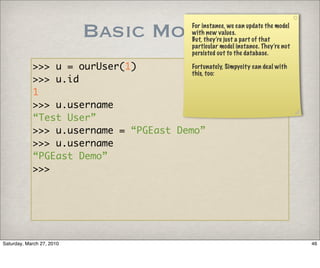

Basic Models For instance, we can update the model
with new values.
But, they’re just a part of that
particular model instance. They’re not
persisted out to the database.

>>> u = ourUser(1) Fortunately, Simpycity can deal with
this, too:
>>> u.id
1
>>> u.username
“Test User”
>>> u.username = “PGEast Demo”
>>> u.username
“PGEast Demo”
>>>


Basic Models
table = [“id”, “username”]
__save__ = ctx.Function(“save_user”,
[‘id’,‘username’])
>>> u.username = “PG Demo”
Coming back to our model, we’ve added
>>> u.username another property - __save__.
By declaring __save__ on our model, we
“PG Demo” get access to the dynamic .save() method.
>>> u.save() This method will take the current model’s
state, test for any dirty values, and use
>>> ctx.commit() the provided callable to save those values.
The callable is allowed to be anything you
like - it doesn’t have to be a Simpycity
function.

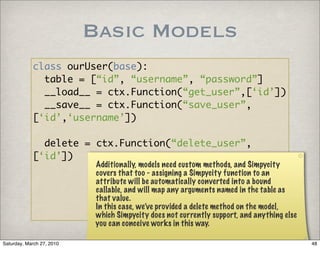

Basic Models
table = [“id”, “username”, “password”]
__save__ = ctx.Function(“save_user”,
[‘id’,‘username’])

delete = ctx.Function(“delete_user”,
[‘id’])
Additionally, models need custom methods, and Simpycity
covers that too - assigning a Simpycity function to an
attribute will be automatically converted into a bound
callable, and will map any arguments named in the table as
that value.
In this case, we’ve provided a delete method on the model,
which Simpycity does not currently support, and anything else
you can conceive works in this way.


Other Instance
Patterns
So, at this point, we have a model that can be instanced, manipulated, and
deleted, similar to a normal ORM. All we know about the underlying
database is there’s a couple of functions, and what their arguments are.
Unfortunately, we only have a single instancing mechanism. This works for
limited cases, but is really lacking in flexibility.
What we need is multiple instancing patterns, a variety of ways to pull data
from the database.

Simpycity can handle that, too - with a nifty little pattern.


Other Instance
Patterns
... # Remember the Code.

by_id = ctx.Function(“get_user”,[‘id’],
returns_type=base)
by_username = ctx.Function(“get_user”,
[‘username’], return_type=ourUser)

Here, we’re stepping back to the core Raw and Function mechanisms, and
passing a new argument, return_type.
Return type takes the provided class and will map the results of the query to
that object.
If the query returned multiple rows, then you’ll get a normal list of objects, all
correctly mapped.
This functionality even allows for the easy creation of new generators, such as

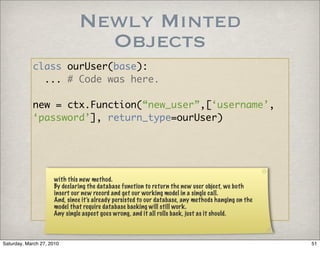

Newly Minted
Objects
... # Code was here.

new = ctx.Function(“new_user”,[‘username’,
‘password’], return_type=ourUser)

with this new method.
By declaring the database function to return the new user object, we both
insert our new record and get our working model in a single call.
And, since it’s already persisted to our database, any methods hanging on the
model that require database backing will still work.
Any single aspect goes wrong, and it all rolls back, just as it should.

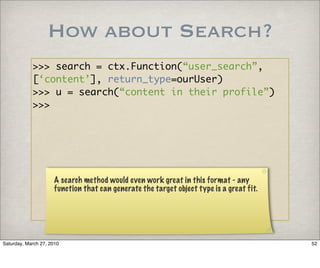

How about Search?
>>> search = ctx.Function(“user_search”,
[‘content’], return_type=ourUser)
>>> u = search(“content in their profile”)
>>>

A search method would even work great in this format - any
function that can generate the target object type is a great fit.

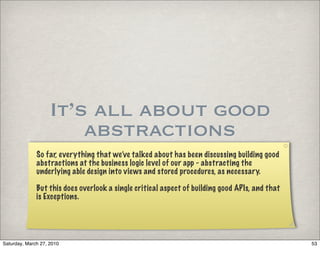

It’s all about good
abstractions
So far, everything that we’ve talked about has been discussing building good
abstractions at the business logic level of our app - abstracting the
underlying able design into views and stored procedures, as necessary.

But this does overlook a single critical aspect of building good APIs, and that
is Exceptions.


Exceptions
By default, exceptions in plpgsql are very generic - a single
exception type, with a text argument.

While functional, this does not provide an abundance of
manipulatable error types.

Stored Procedures get RAISE EXCEPTION


Exceptions

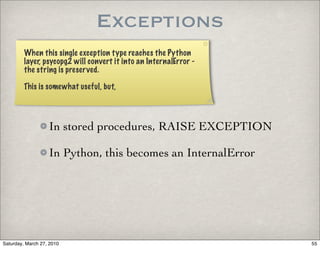

When this single exception type reaches the Python
layer, psycopg2 will convert it into an InternalError -
the string is preserved.

This is somewhat useful, but,

In stored procedures, RAISE EXCEPTION

In Python, this becomes an InternalError

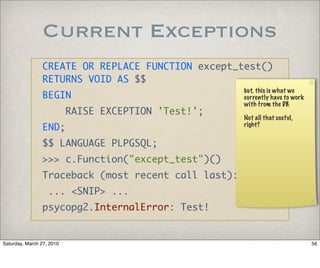

Current Exceptions
CREATE OR REPLACE FUNCTION except_test()
RETURNS VOID AS $$
but, this is what we
BEGIN currently have to work
with from the DB.
RAISE EXCEPTION 'Test!';
Not all that useful,
END; right?

$$ LANGUAGE PLPGSQL;
>>> c.Function("except_test")()
... <SNIP> ...
psycopg2.InternalError: Test!


Exceptions

In stored procedures, RAISE EXCEPTION

This becomes an InternalError

But what was it *really*?
Unless you’re deeply adhering to a consistent style in your exception text - not always
easily done - you’re going to end up with inconsistencies.

Because of this, you’ll end up in a position where you’re parsing error strings, looking for
specific errors. Not the best design practise.

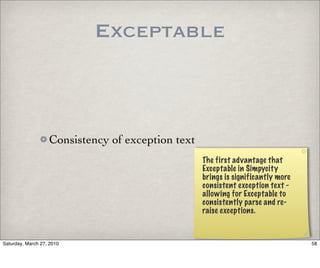

Exceptable

Consistency of exception text
The first advantage that
Exceptable in Simpycity
brings is significantly more
consistent exception text -
allowing for Exceptable to
consistently parse and re-
raise exceptions.

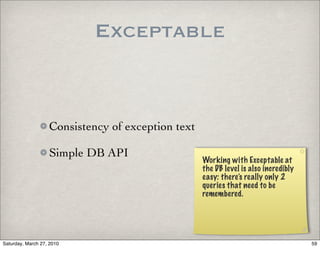

Exceptable

Consistency of exception text

Simple DB API
Working with Exceptable at
the DB level is also incredibly
easy: there’s really only 2
queries that need to be
remembered.

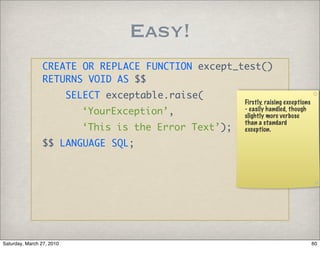

Easy!
CREATE OR REPLACE FUNCTION except_test()
RETURNS VOID AS $$
SELECT exceptable.raise(
Firstly, raising exceptions
‘YourException’, - easily handled, though
slightly more verbose
than a standard
‘This is the Error Text’); exception.

$$ LANGUAGE SQL;


and in Python
>>> c.Function("except_test")()
... <SNIP> ...
psycopg2.InternalError: YourException::
This is the Error Text

This is what the
error string looks
like, now!

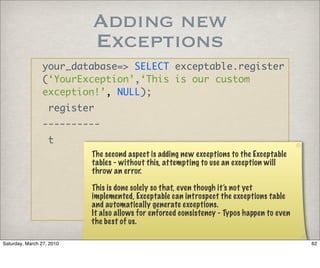

Adding new
Exceptions
your_database=> SELECT exceptable.register
(‘YourException’,‘This is our custom
exception!’, NULL);
register
----------
t
The second aspect is adding new exceptions to the Exceptable
tables - without this, attempting to use an exception will
throw an error.

This is done solely so that, even though it’s not yet
implemented, Exceptable can introspect the exceptions table
and automatically generate exceptions.
It also allows for enforced consistency - Typos happen to even
the best of us.

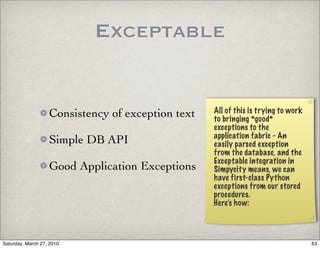

Exceptable

Consistency of exception text All of this is trying to work
to bringing *good*
exceptions to the
application fabric - An
Simple DB API easily parsed exception
from the database, and the
Exceptable integration in
Good Application Exceptions Simpycity means, we can
have first-class Python
exceptions from our stored
procedures.
Here’s how:

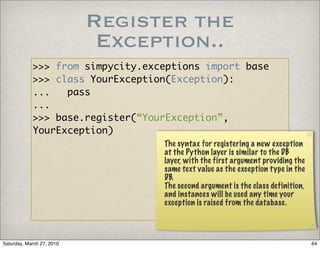

Register the
Exception..
>>> from simpycity.exceptions import base
>>> class YourException(Exception):
... pass
...
>>> base.register(“YourException”,
YourException)
The syntax for registering a new exception
at the Python layer is similar to the DB
layer, with the first argument providing the
same text value as the exception type in the
DB.
The second argument is the class definition,
and instances will be used any time your
exception is raised from the database.


And then use it.
>>> c.Function(“except_test”)()
... SNIP ...
YourException: This is the Error text

And using it is identical to any other
Python exception. Simple and easy.

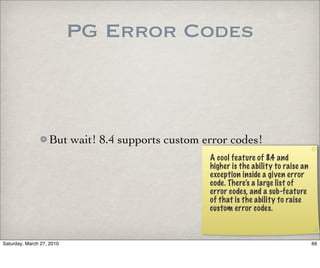

PG Error Codes

But wait! 8.4 supports custom error codes!
A cool feature of 8.4 and
higher is the ability to raise an
exception inside a given error
code. There’s a large list of
error codes, and a sub-feature
of that is the ability to raise
custom error codes.

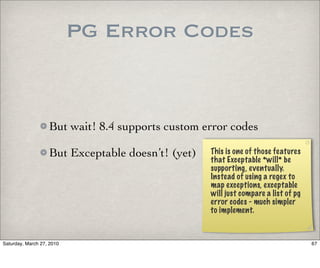

PG Error Codes

But wait! 8.4 supports custom error codes

But Exceptable doesn’t! (yet) This is one of those features
that Exceptable *will* be
supporting, eventually.
Instead of using a regex to
map exceptions, exceptable
will just compare a list of pg
error codes - much simpler
to implement.

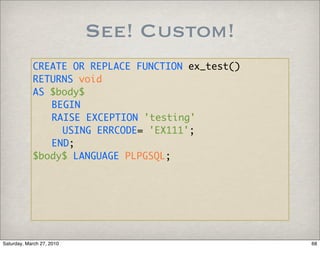

See! Custom!
CREATE OR REPLACE FUNCTION ex_test()
RETURNS void
AS $body$
BEGIN
RAISE EXCEPTION 'testing'
USING ERRCODE= 'EX111';
END;
$body$ LANGUAGE PLPGSQL;


And the Python
>>> try:
... c.Function(“ex_test”)()
... except Exception, e:
... print e.pgcode
...
EX111 And our ex111 exception gets properly
propagated upwards, and Exceptable would
be able to catch it and map it correctly.

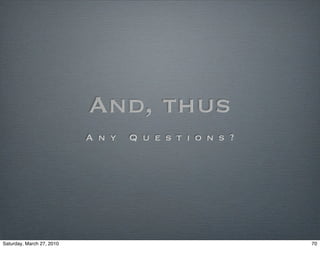

And, thus
A n y Q u e s t i o n s ?

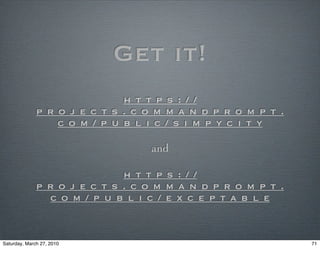

Get it!
h t t p s : / /
p r o j e c t s . c o m m a n d p r o m p t .
c o m / p u b l i c / s i m p y c i t y

and

h t t p s : / /
p r o j e c t s . c o m m a n d p r o m p t .
c o m / p u b l i c / e x c e p t a b l e


And ﬁnally,
Thank you.


Simpycity and Exceptable

More Related Content

Viewers also liked

Similar to Simpycity and Exceptable

More from Command Prompt., Inc

Simpycity and Exceptable
