1. Unit -1
SYSTEM COMPONENTS AND SYSTEM CALLS IN OPERATING SYSTEM
BY RAM K PALIWAL
9/3/2019 OPERATING SYSTEM SERVICES AND SYSTEM COMPONENT - UNIT 1- BY RAM K PALIWAL 1

2. System Components

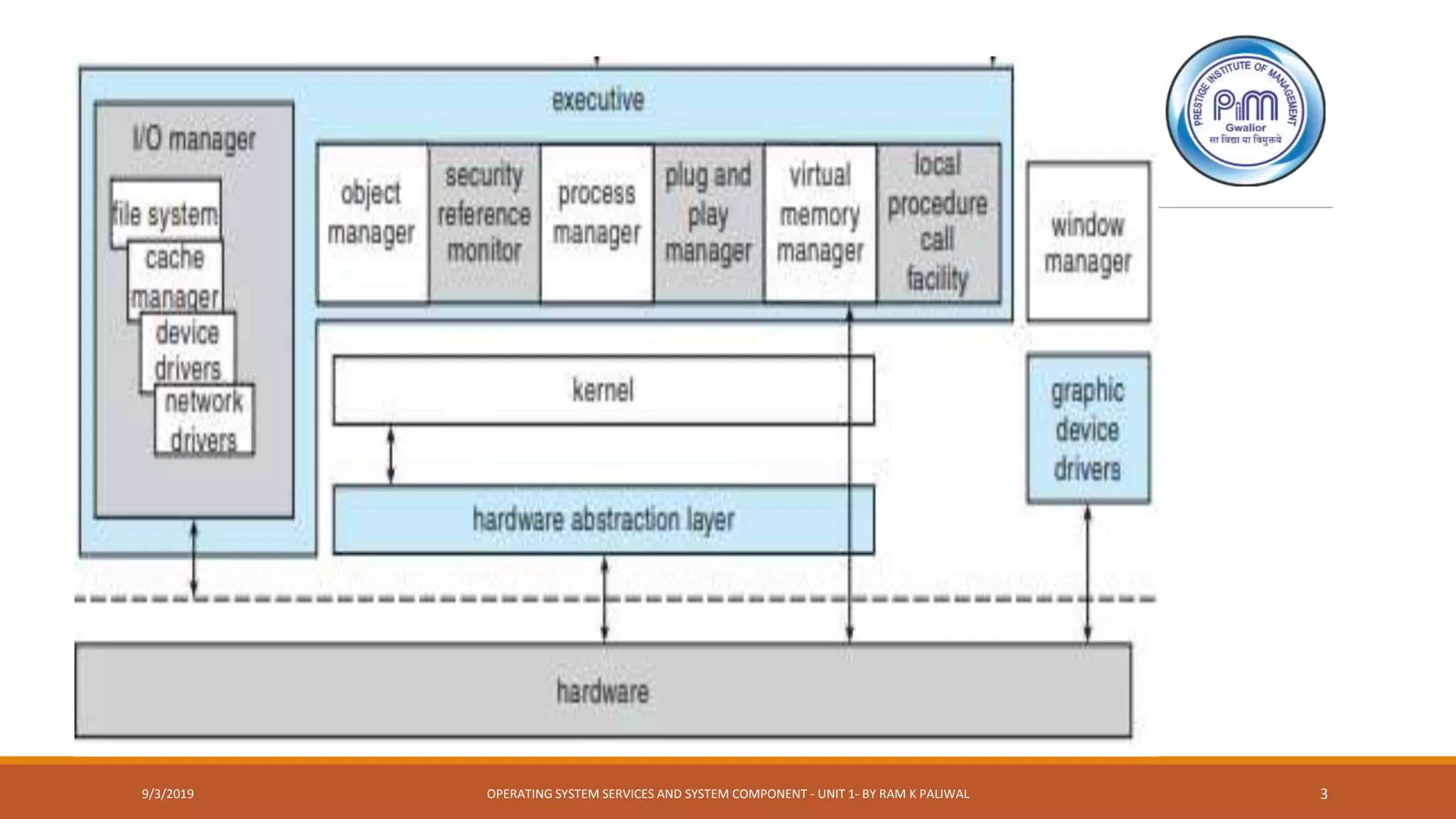

The architecture of Windows Operating System is a layered
system of modules.
◦ The main layers are the HAL, the kernel, and the executive, all of
which run in kernel mode, and a collection of subsystems and
services that run in user mode.
◦ The user-mode subsystems fall into two categories:
◦ the environmental subsystems, which emulate different operating systems.
◦ protection subsystems, which provide security functions.
◦ One of the chief advantages of this type of architecture is that
interactions between modules are kept simple. The remainder of
this section describes these layers and subsystems.
9/3/2019 OPERATING SYSTEM SERVICES AND SYSTEM COMPONENT - UNIT 1- BY RAM K PALIWAL 2

3. 9/3/2019 OPERATING SYSTEM SERVICES AND SYSTEM COMPONENT - UNIT 1- BY RAM K PALIWAL 3

4. System Components
Main Components are
◦ Hardware Abstraction Layer
◦ Kernel
◦ Executive Section
Hardware abstraction Layer
The HAL is the layer of software that hides hardware chipset differences from
upper levels of the operating system. The HAL exports a virtual hardware
interface that is used by the
◦ kernel dispatcher
◦ The executive,
◦ the device drivers.
9/3/2019 OPERATING SYSTEM SERVICES AND SYSTEM COMPONENT - UNIT 1- BY RAM K PALIWAL 4

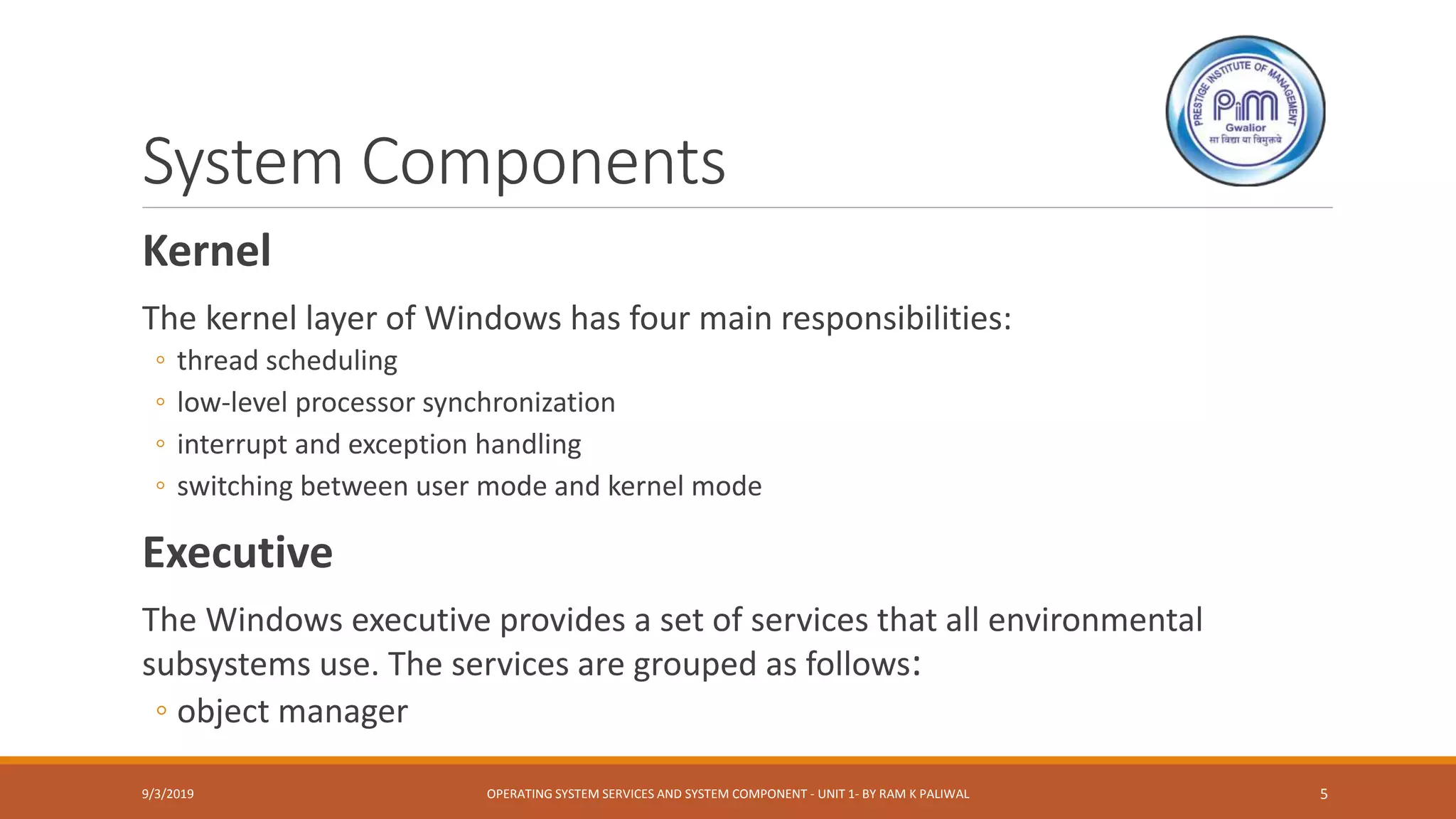

5. System Components
Kernel
The kernel layer of Windows has four main responsibilities:
◦ thread scheduling
◦ low-level processor synchronization
◦ interrupt and exception handling
◦ switching between user mode and kernel mode
Executive
The Windows executive provides a set of services that all environmental
subsystems use. The services are grouped as follows:
◦ object manager
9/3/2019 OPERATING SYSTEM SERVICES AND SYSTEM COMPONENT - UNIT 1- BY RAM K PALIWAL 5

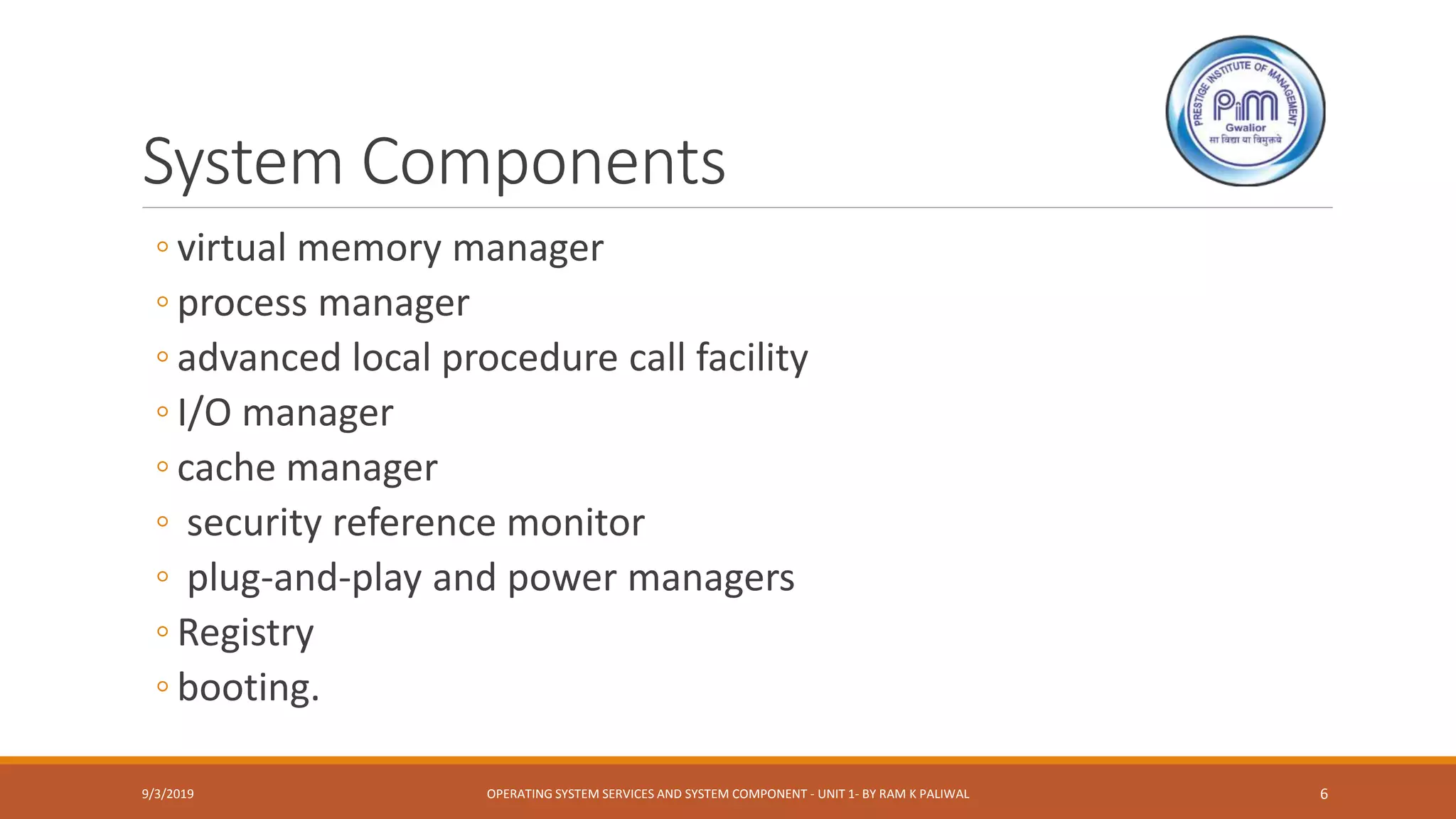

6. System Components
◦ virtual memory manager
◦ process manager
◦ advanced local procedure call facility
◦ I/O manager
◦ cache manager
◦ security reference monitor
◦ plug-and-play and power managers
◦ Registry
◦ booting.
9/3/2019 OPERATING SYSTEM SERVICES AND SYSTEM COMPONENT - UNIT 1- BY RAM K PALIWAL 6

7. System Calls
System calls provide an interface to the services made available by
an operating system.
These calls are generally available as routines written in C and C++,
although certain low-level tasks (for example, tasks where hardware
must be accessed directly) may have to be written using assembly-
language instructions.

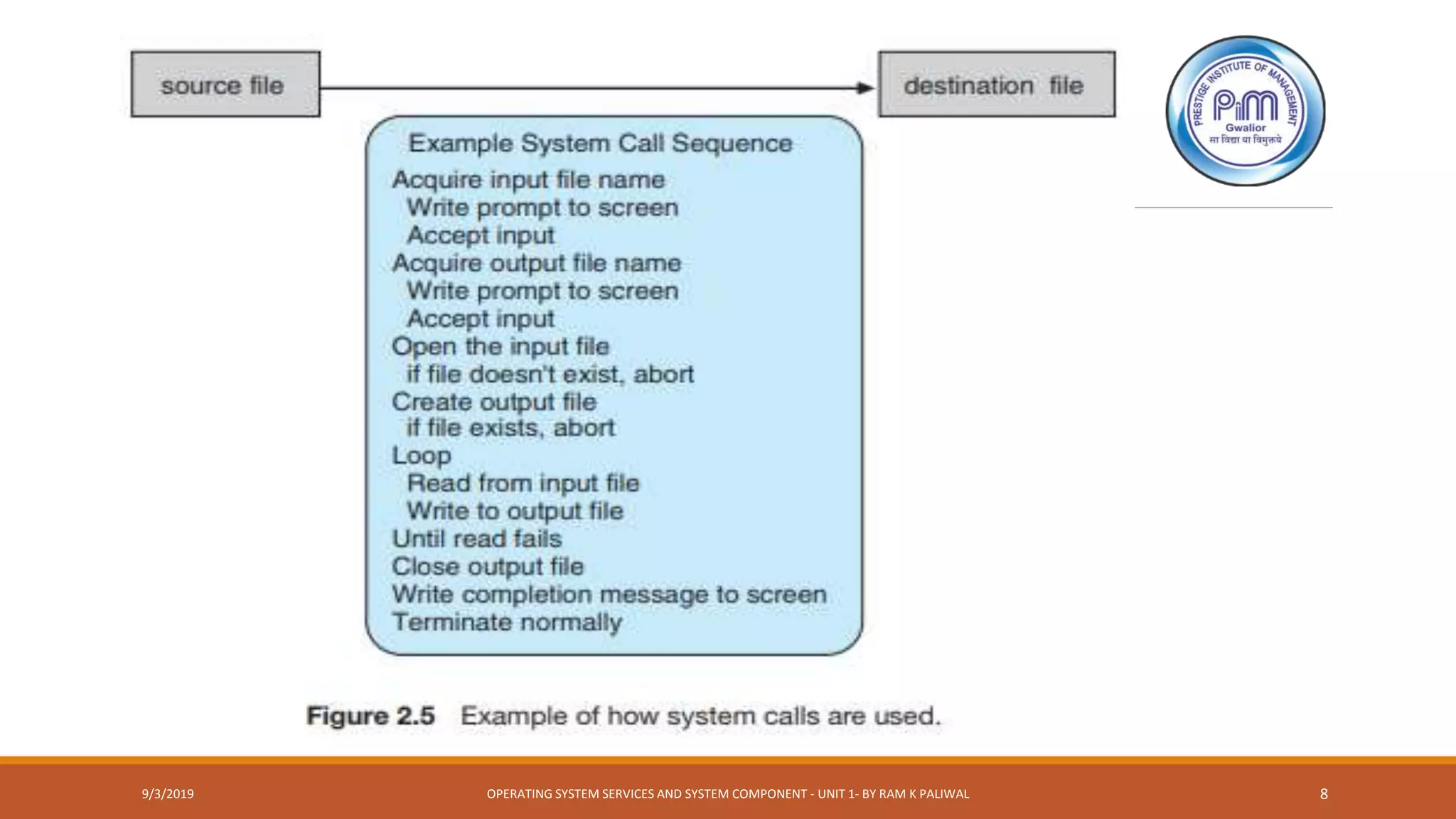

Before we discuss how an operating system makes system calls
available, let’s first use an example to illustrate how system calls are
used: writing a simple program to read data from one file and copy
them to another file.
9/3/2019 OPERATING SYSTEM SERVICES AND SYSTEM COMPONENT - UNIT 1- BY RAM K PALIWAL 7

8. 9/3/2019 OPERATING SYSTEM SERVICES AND SYSTEM COMPONENT - UNIT 1- BY RAM K PALIWAL 8

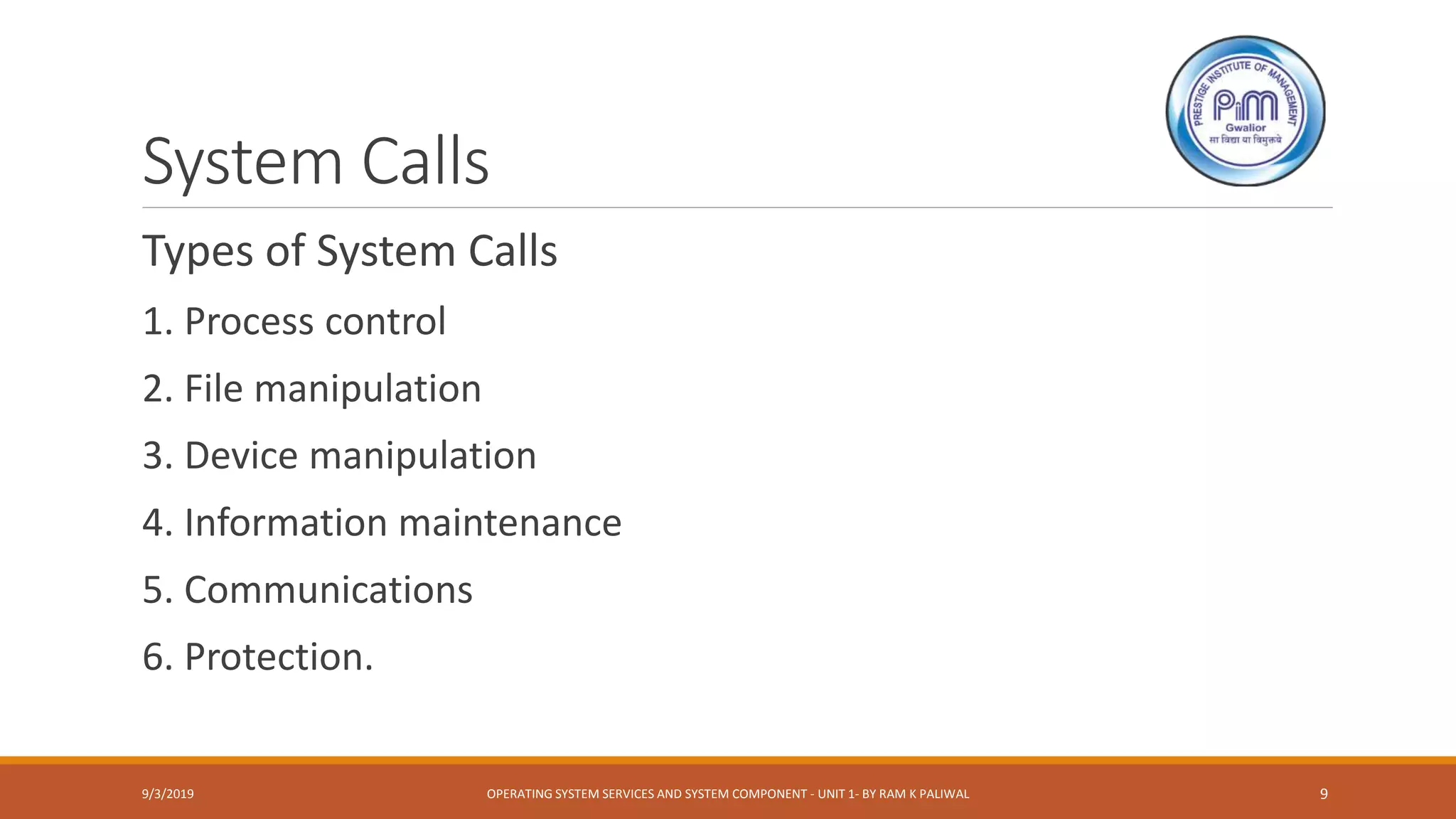

9. System Calls
Types of System Calls
1. Process control
2. File manipulation
3. Device manipulation
4. Information maintenance
5. Communications
6. Protection.
9/3/2019 OPERATING SYSTEM SERVICES AND SYSTEM COMPONENT - UNIT 1- BY RAM K PALIWAL 9

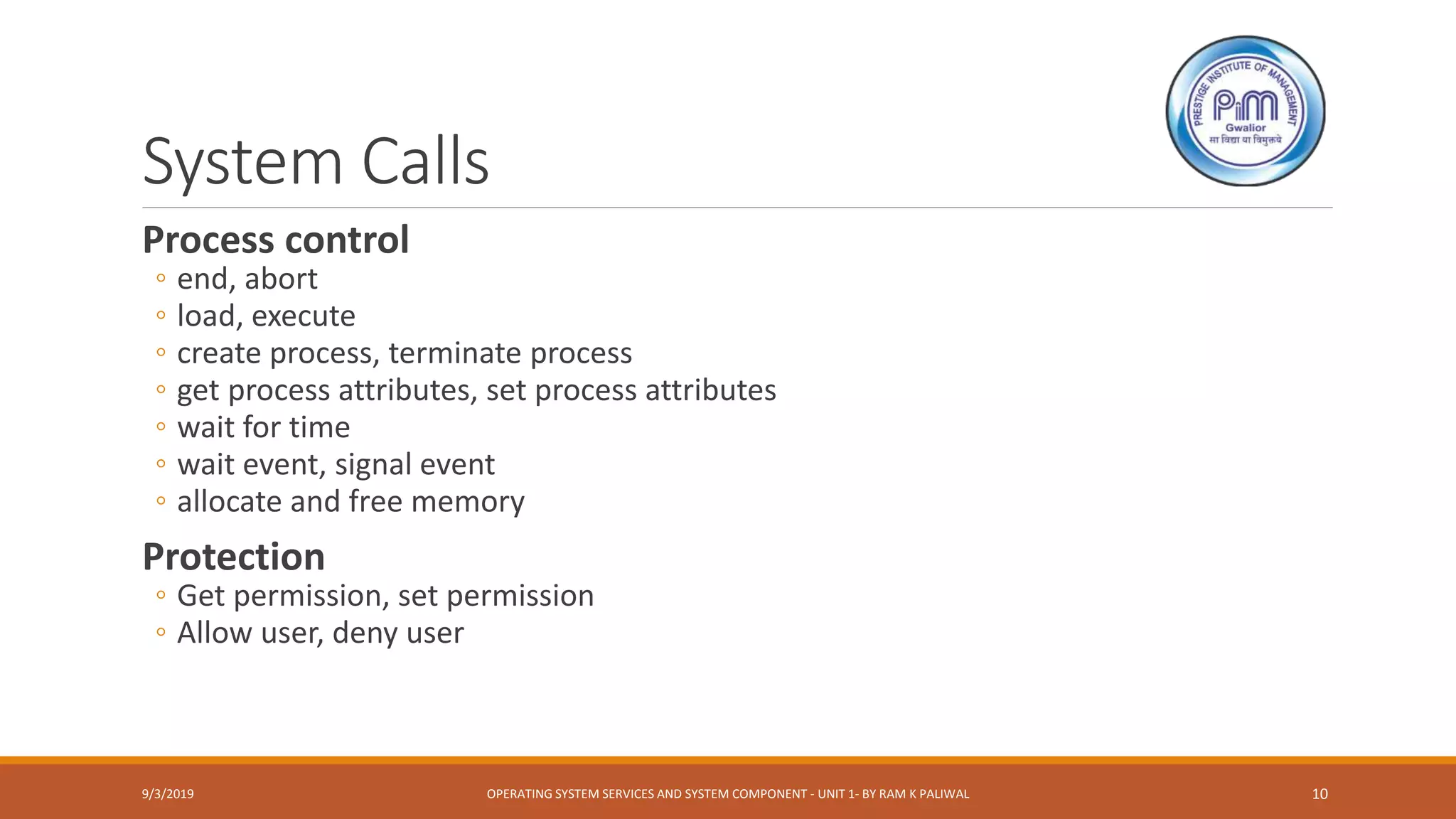

10. System Calls
Process control
◦ end, abort
◦ load, execute
◦ create process, terminate process
◦ get process attributes, set process attributes
◦ wait for time
◦ wait event, signal event
◦ allocate and free memory
Protection
◦ Get permission, set permission
◦ Allow user, deny user
9/3/2019 OPERATING SYSTEM SERVICES AND SYSTEM COMPONENT - UNIT 1- BY RAM K PALIWAL 10

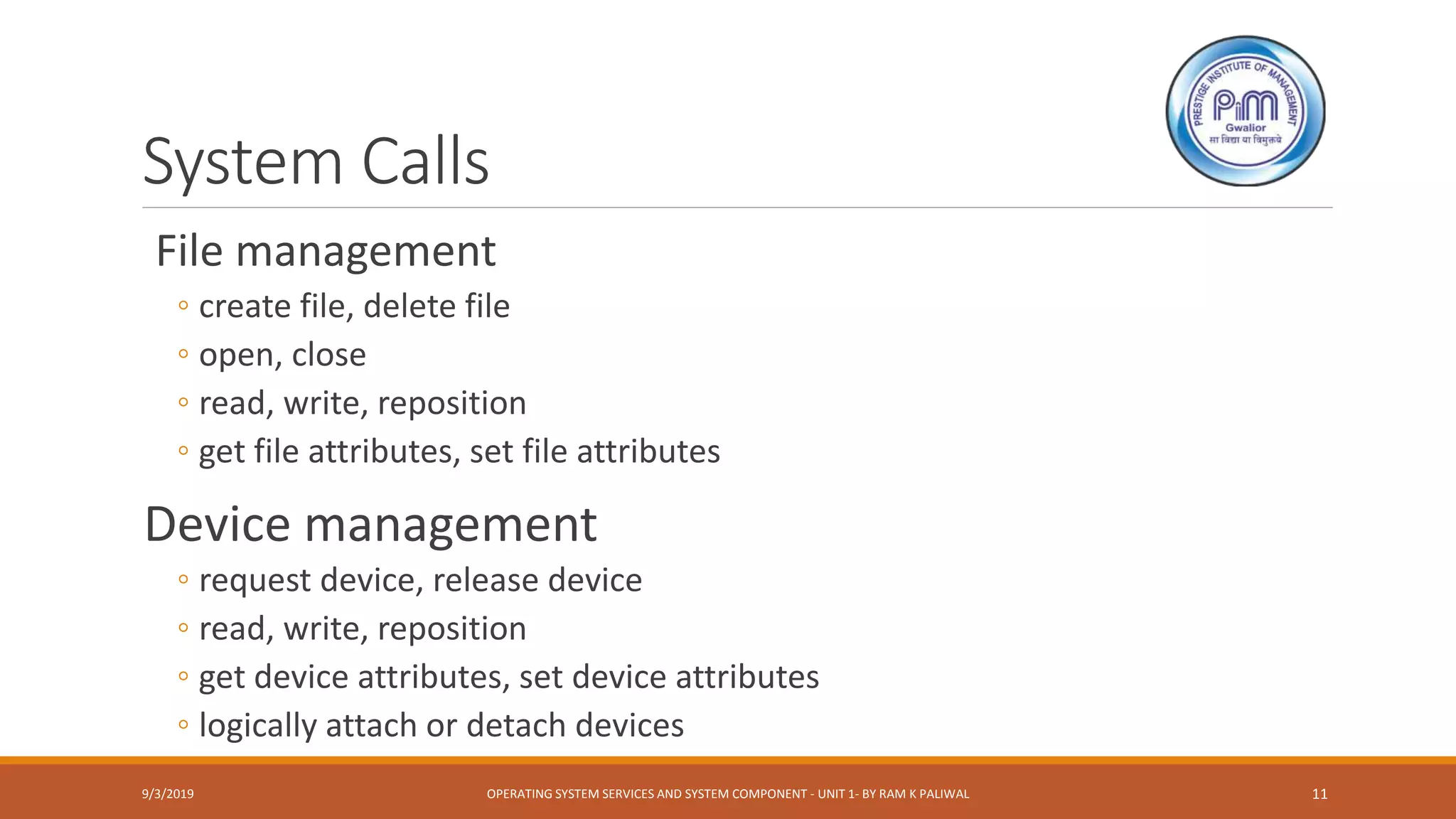

11. System Calls
File management
◦ create file, delete file
◦ open, close
◦ read, write, reposition
◦ get file attributes, set file attributes
Device management
◦ request device, release device
◦ read, write, reposition
◦ get device attributes, set device attributes
◦ logically attach or detach devices
9/3/2019 OPERATING SYSTEM SERVICES AND SYSTEM COMPONENT - UNIT 1- BY RAM K PALIWAL 11

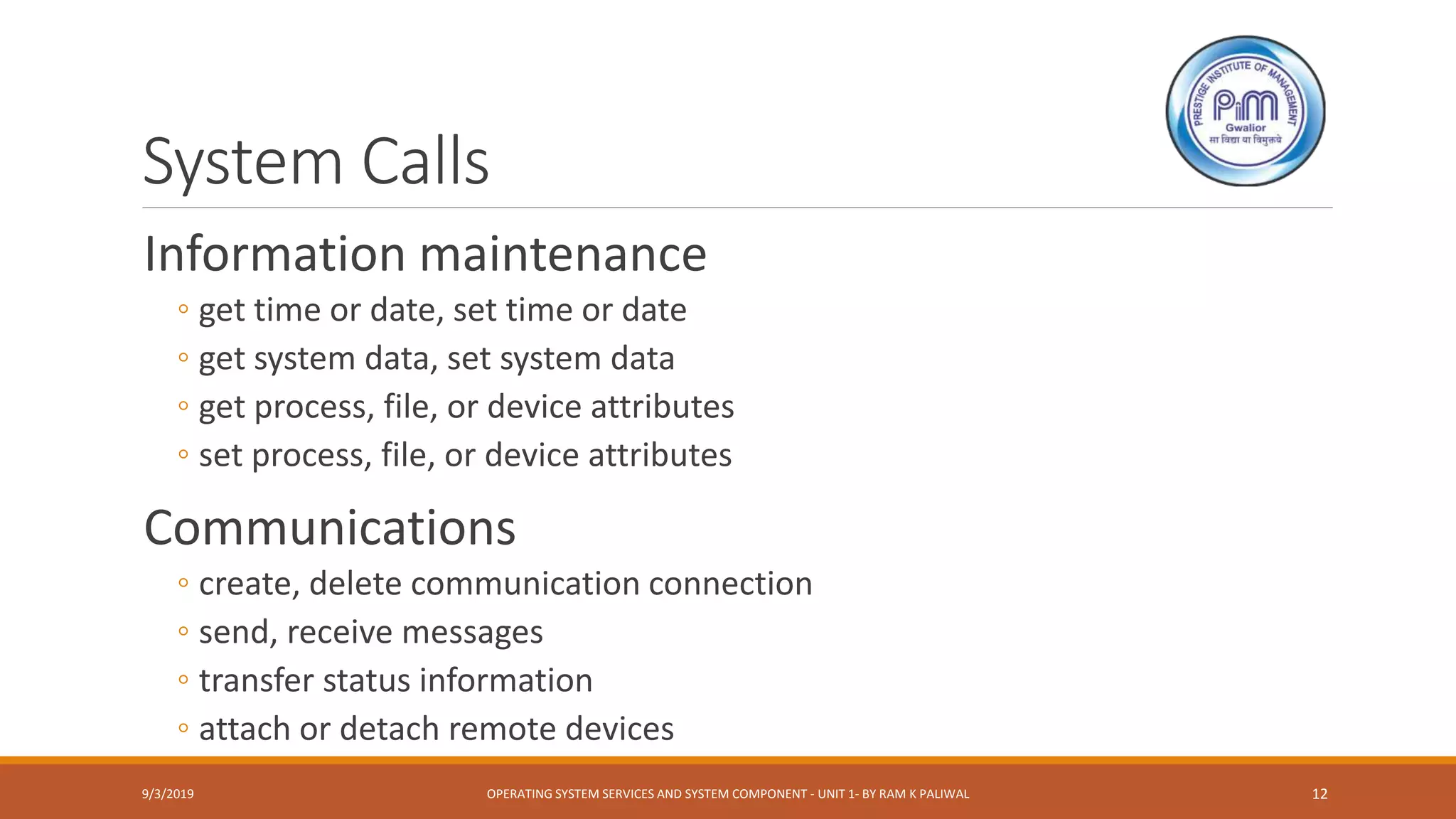

12. System Calls
Information maintenance
◦ get time or date, set time or date
◦ get system data, set system data
◦ get process, file, or device attributes
◦ set process, file, or device attributes
Communications
◦ create, delete communication connection
◦ send, receive messages
◦ transfer status information
◦ attach or detach remote devices
9/3/2019 OPERATING SYSTEM SERVICES AND SYSTEM COMPONENT - UNIT 1- BY RAM K PALIWAL 12

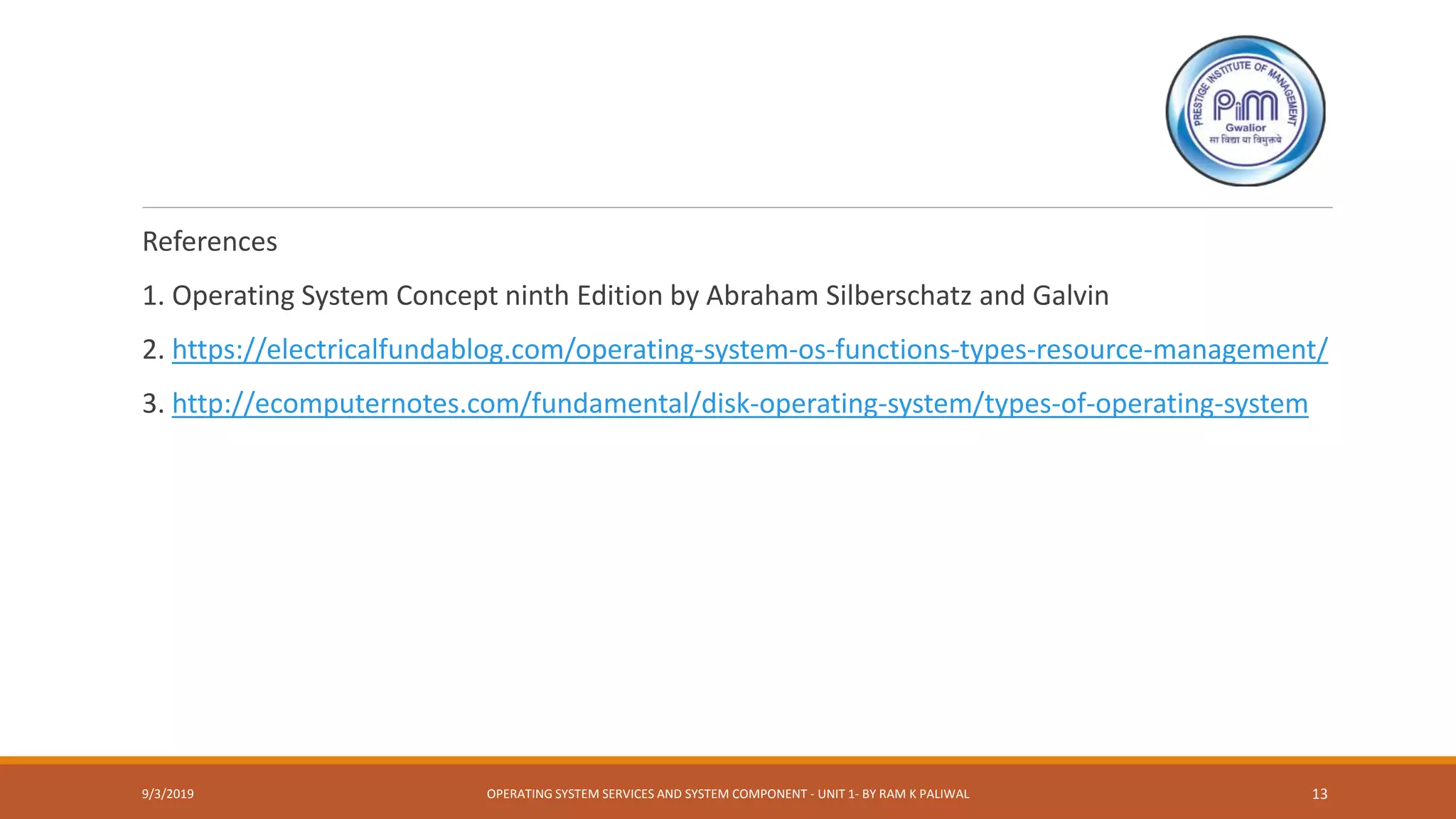

13. References
1. Operating System Concept ninth Edition by Abraham Silberschatz and Galvin
2. https://electricalfundablog.com/operating-system-os-functions-types-resource-management/
3. http://ecomputernotes.com/fundamental/disk-operating-system/types-of-operating-system
