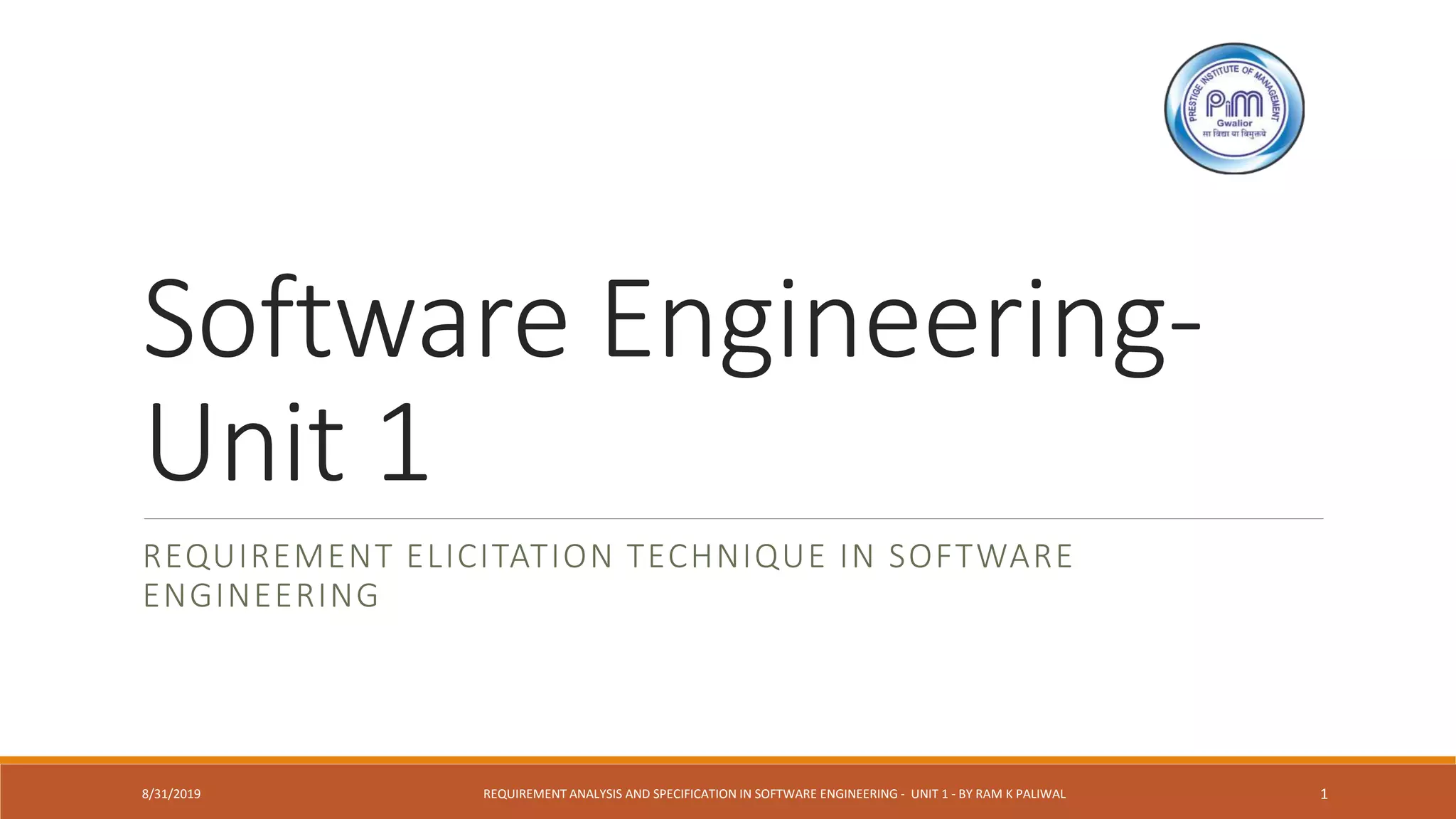

1. Software Engineering-
Unit 1
REQUIREMENT ELICITATION TECHNIQUE IN SOFTWARE
ENGINEERING
8/31/2019 REQUIREMENT ANALYSIS AND SPECIFICATION IN SOFTWARE ENGINEERING - UNIT 1 - BY RAM K PALIWAL 1

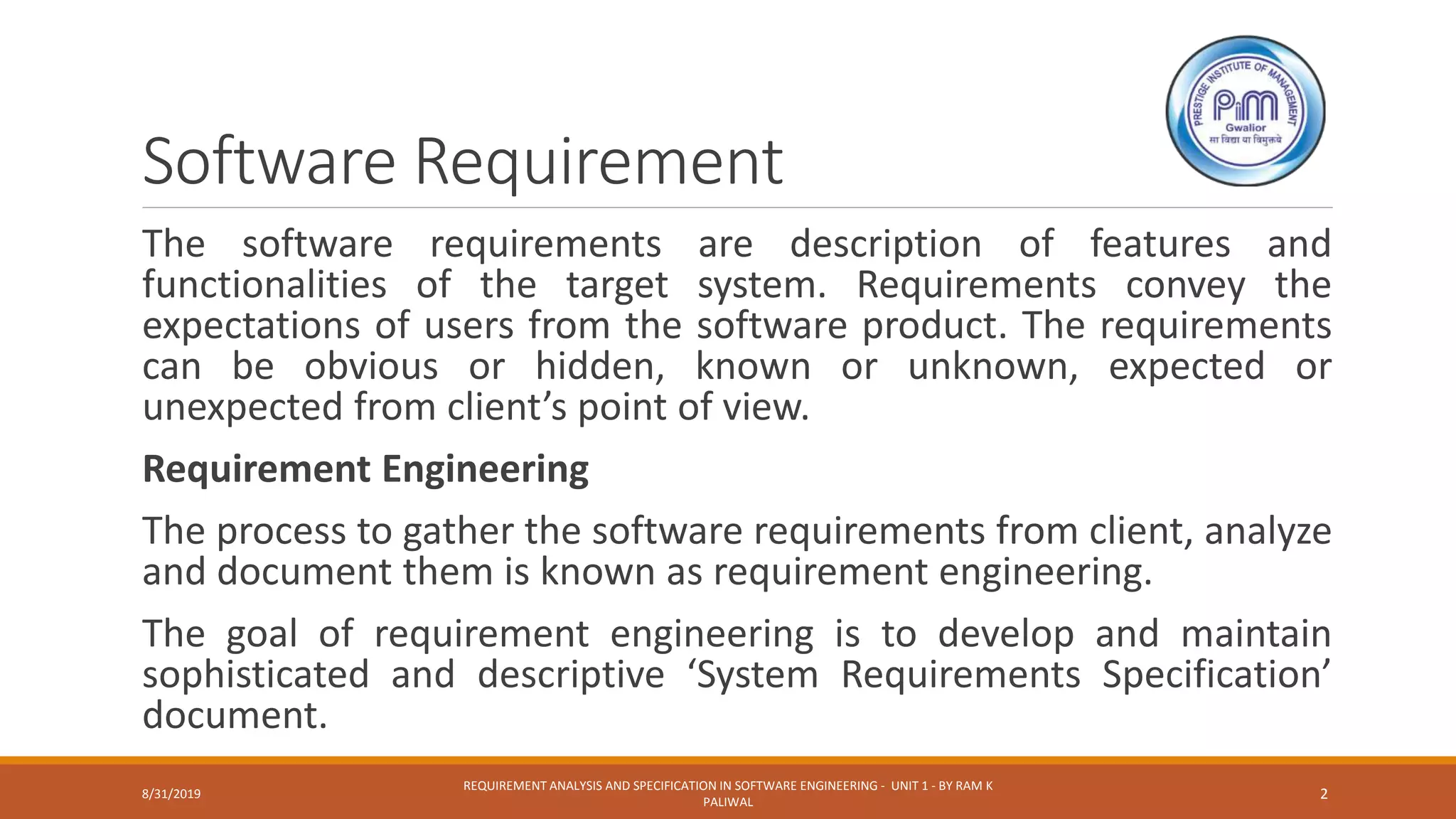

2. Software Requirement
The software requirements are description of features and
functionalities of the target system. Requirements convey the
expectations of users from the software product. The requirements
can be obvious or hidden, known or unknown, expected or
unexpected from client’s point of view.
Requirement Engineering
The process to gather the software requirements from client, analyze
and document them is known as requirement engineering.
The goal of requirement engineering is to develop and maintain
sophisticated and descriptive ‘System Requirements Specification’
document.
8/31/2019
REQUIREMENT ANALYSIS AND SPECIFICATION IN SOFTWARE ENGINEERING - UNIT 1 - BY RAM K
PALIWAL
2

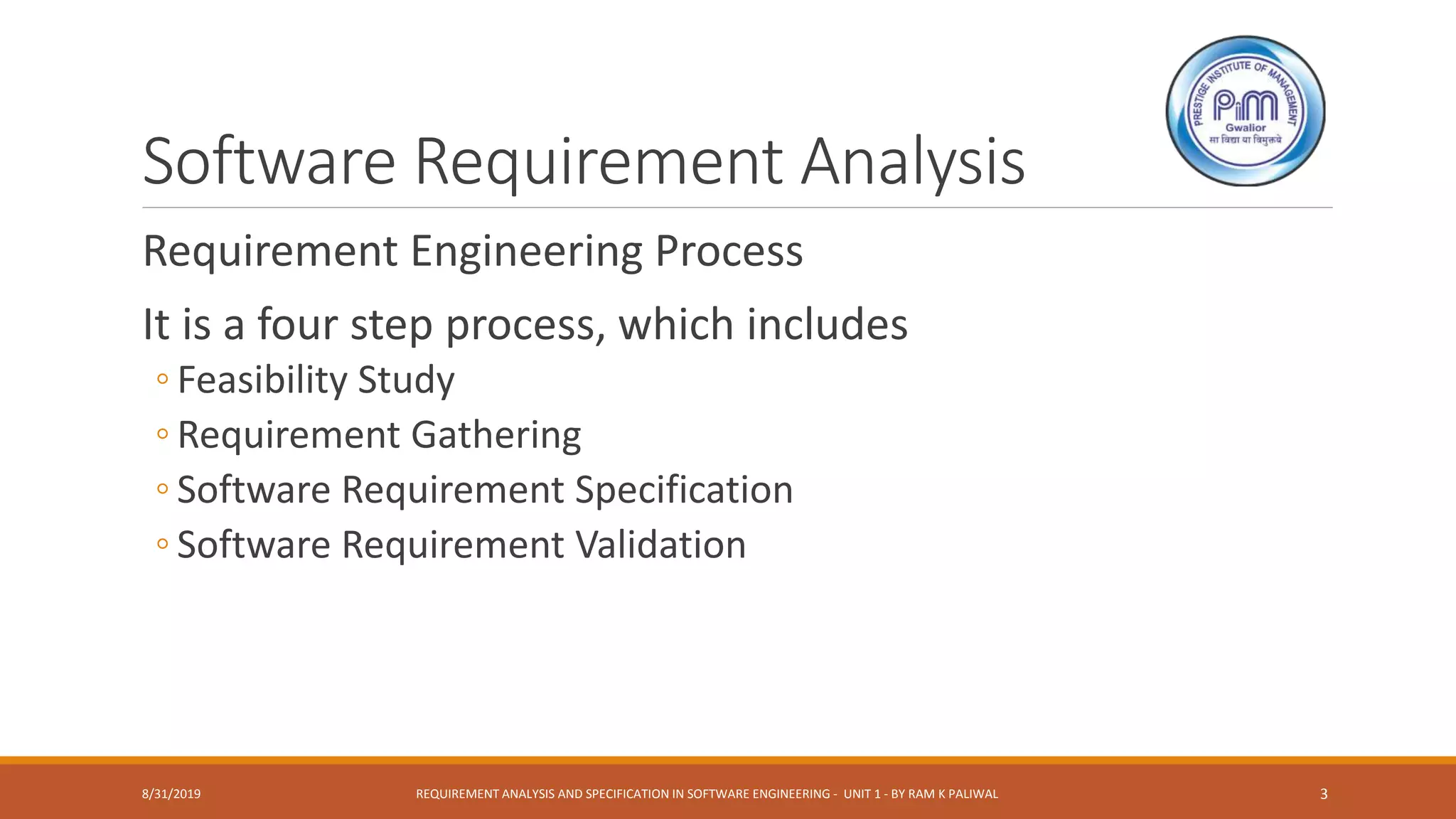

3. Software Requirement Analysis
Requirement Engineering Process
It is a four step process, which includes
◦ Feasibility Study
◦ Requirement Gathering
◦ Software Requirement Specification
◦ Software Requirement Validation
8/31/2019 REQUIREMENT ANALYSIS AND SPECIFICATION IN SOFTWARE ENGINEERING - UNIT 1 - BY RAM K PALIWAL 3

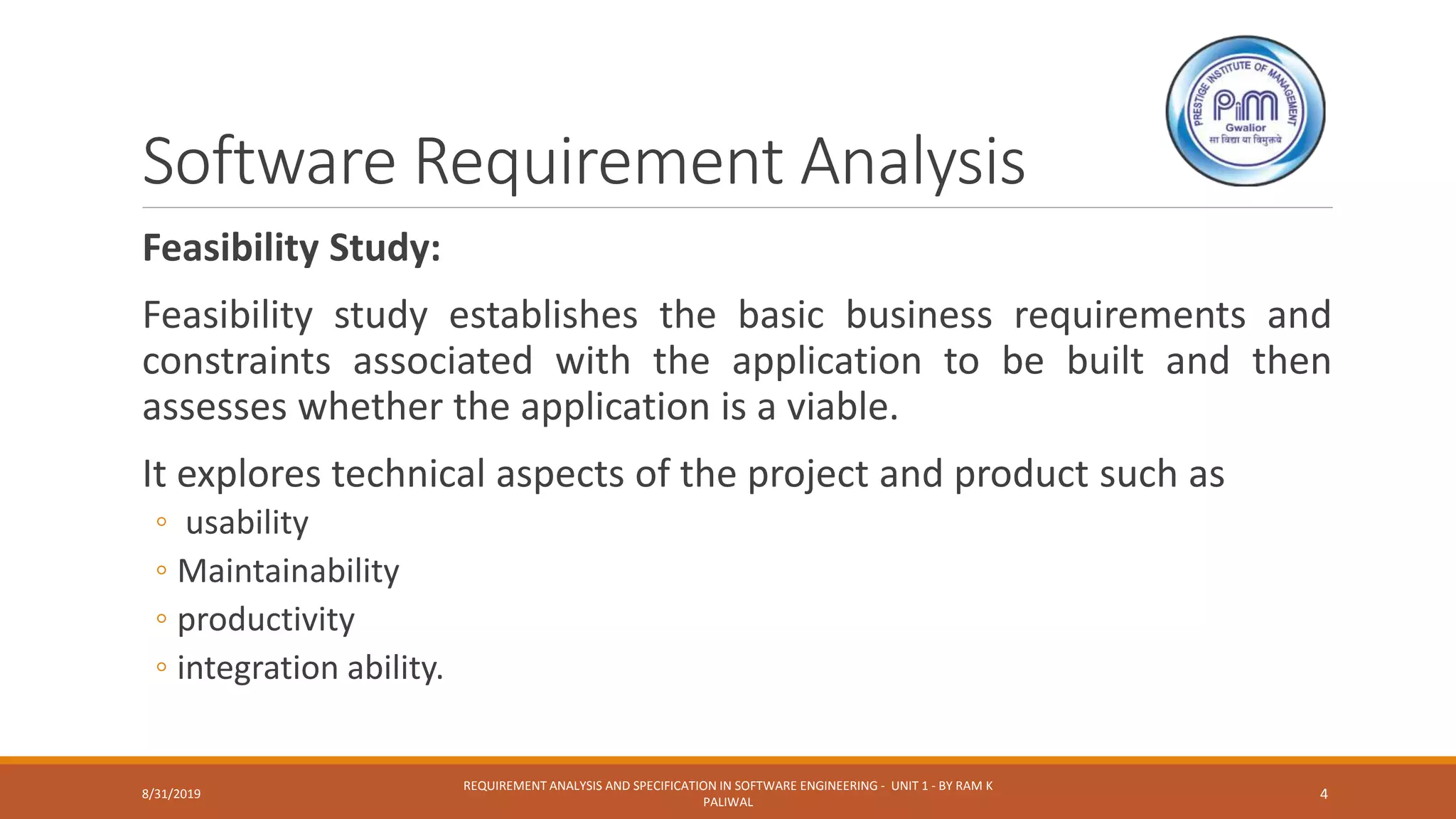

4. Software Requirement Analysis
Feasibility Study:
Feasibility study establishes the basic business requirements and
constraints associated with the application to be built and then
assesses whether the application is a viable.
It explores technical aspects of the project and product such as
◦ usability
◦ Maintainability
◦ productivity
◦ integration ability.
8/31/2019
REQUIREMENT ANALYSIS AND SPECIFICATION IN SOFTWARE ENGINEERING - UNIT 1 - BY RAM K
PALIWAL
4

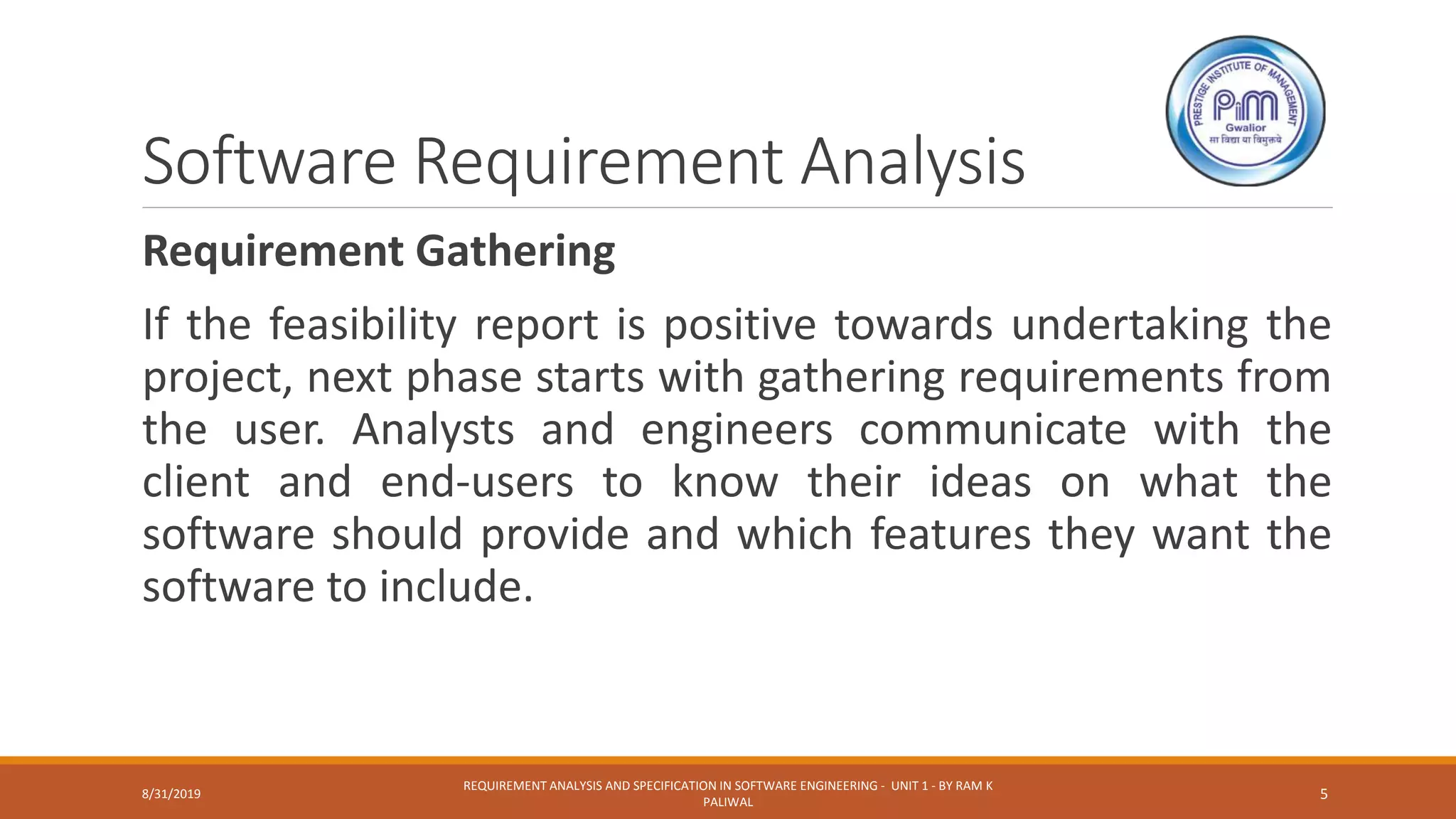

5. Software Requirement Analysis
Requirement Gathering
If the feasibility report is positive towards undertaking the
project, next phase starts with gathering requirements from
the user. Analysts and engineers communicate with the
client and end-users to know their ideas on what the
software should provide and which features they want the
software to include.
8/31/2019
REQUIREMENT ANALYSIS AND SPECIFICATION IN SOFTWARE ENGINEERING - UNIT 1 - BY RAM K
PALIWAL
5

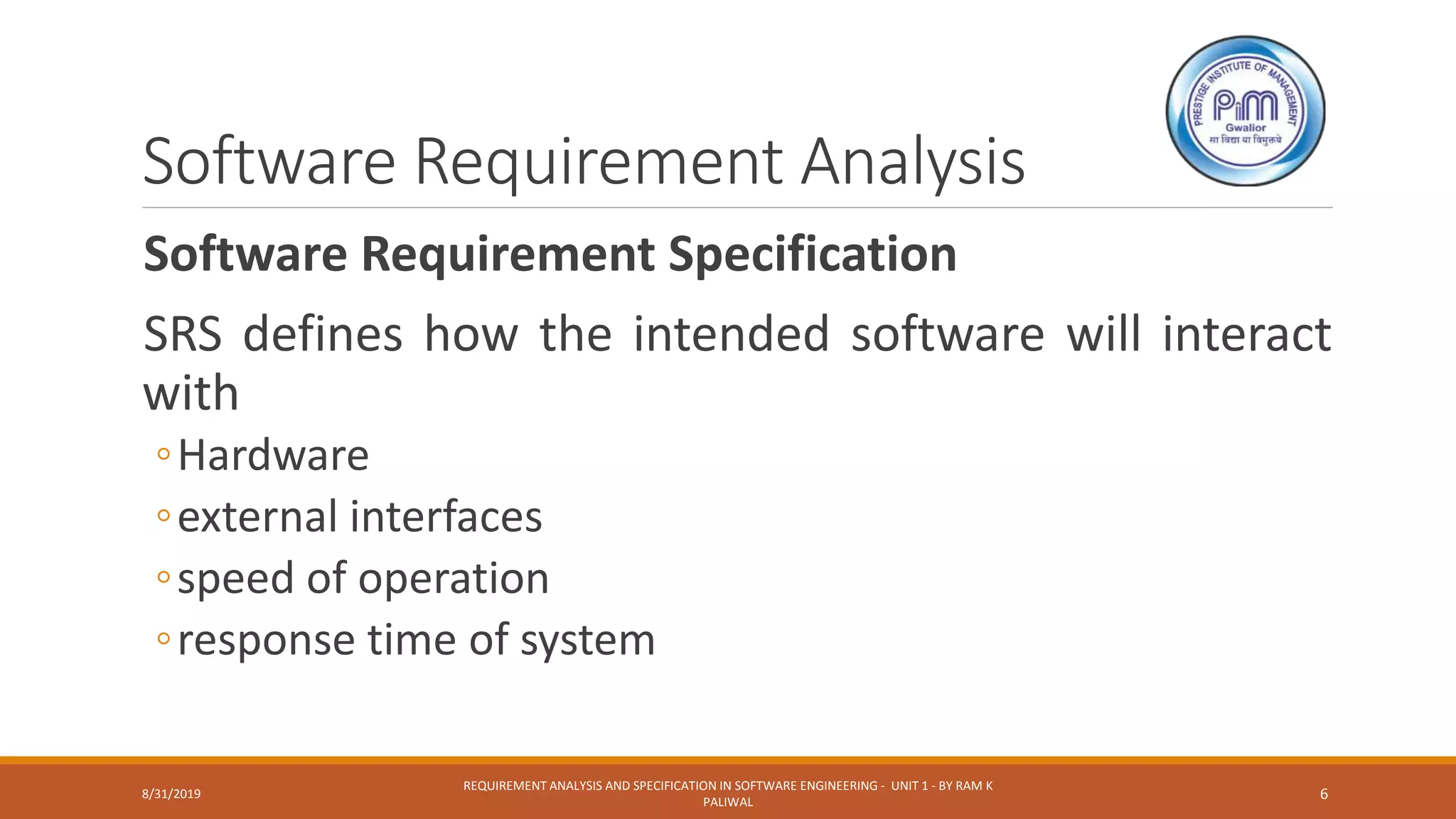

6. Software Requirement Analysis
Software Requirement Specification
SRS defines how the intended software will interact
with
◦Hardware
◦external interfaces
◦speed of operation
◦response time of system
8/31/2019
REQUIREMENT ANALYSIS AND SPECIFICATION IN SOFTWARE ENGINEERING - UNIT 1 - BY RAM K
PALIWAL
6

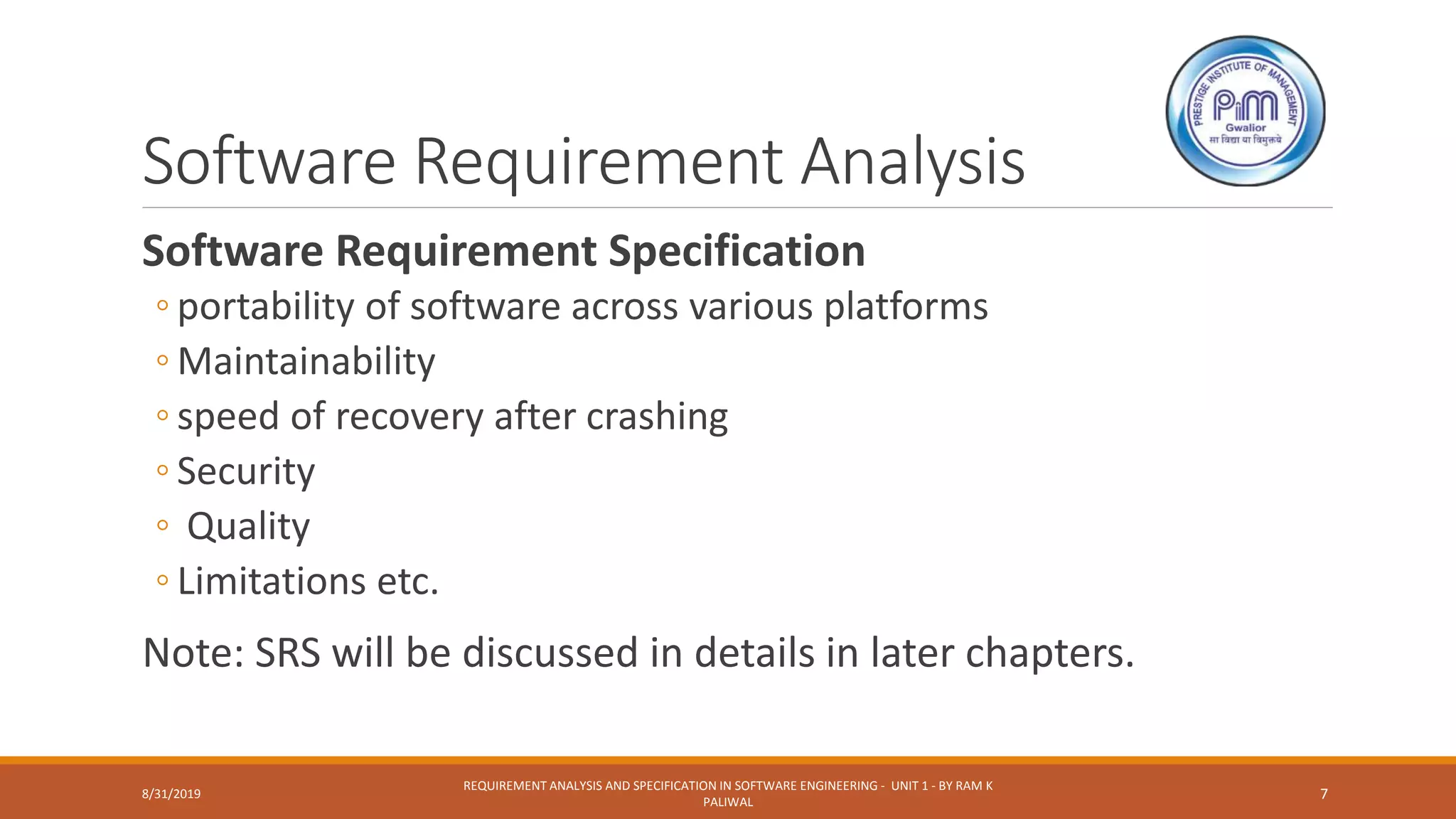

7. Software Requirement Analysis
Software Requirement Specification
◦ portability of software across various platforms
◦ Maintainability
◦ speed of recovery after crashing
◦ Security
◦ Quality
◦ Limitations etc.
Note: SRS will be discussed in details in later chapters.
8/31/2019
REQUIREMENT ANALYSIS AND SPECIFICATION IN SOFTWARE ENGINEERING - UNIT 1 - BY RAM K
PALIWAL
7

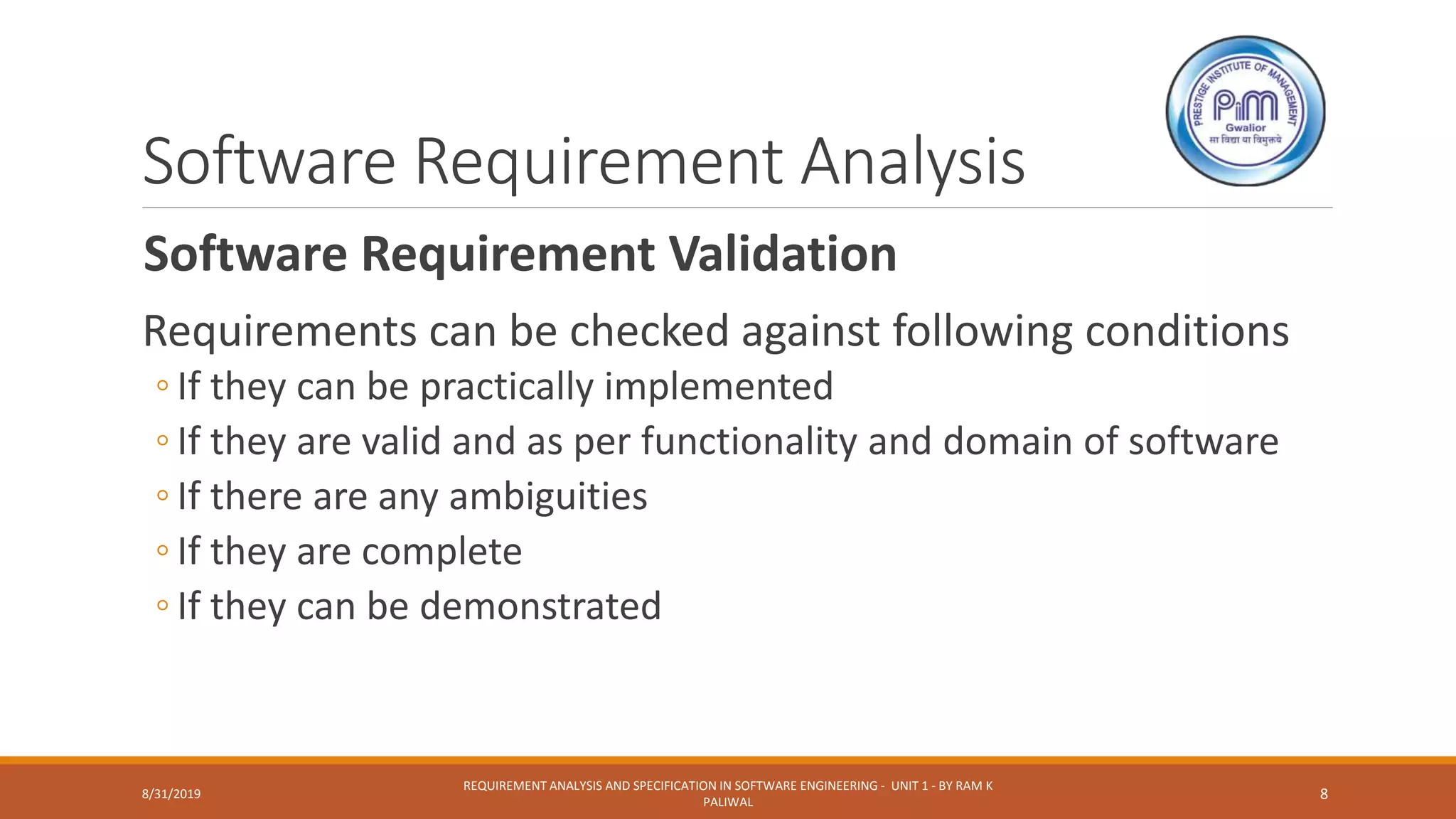

8. Software Requirement Analysis
Software Requirement Validation
Requirements can be checked against following conditions
◦ If they can be practically implemented
◦ If they are valid and as per functionality and domain of software
◦ If there are any ambiguities
◦ If they are complete
◦ If they can be demonstrated
8/31/2019
REQUIREMENT ANALYSIS AND SPECIFICATION IN SOFTWARE ENGINEERING - UNIT 1 - BY RAM K
PALIWAL
8

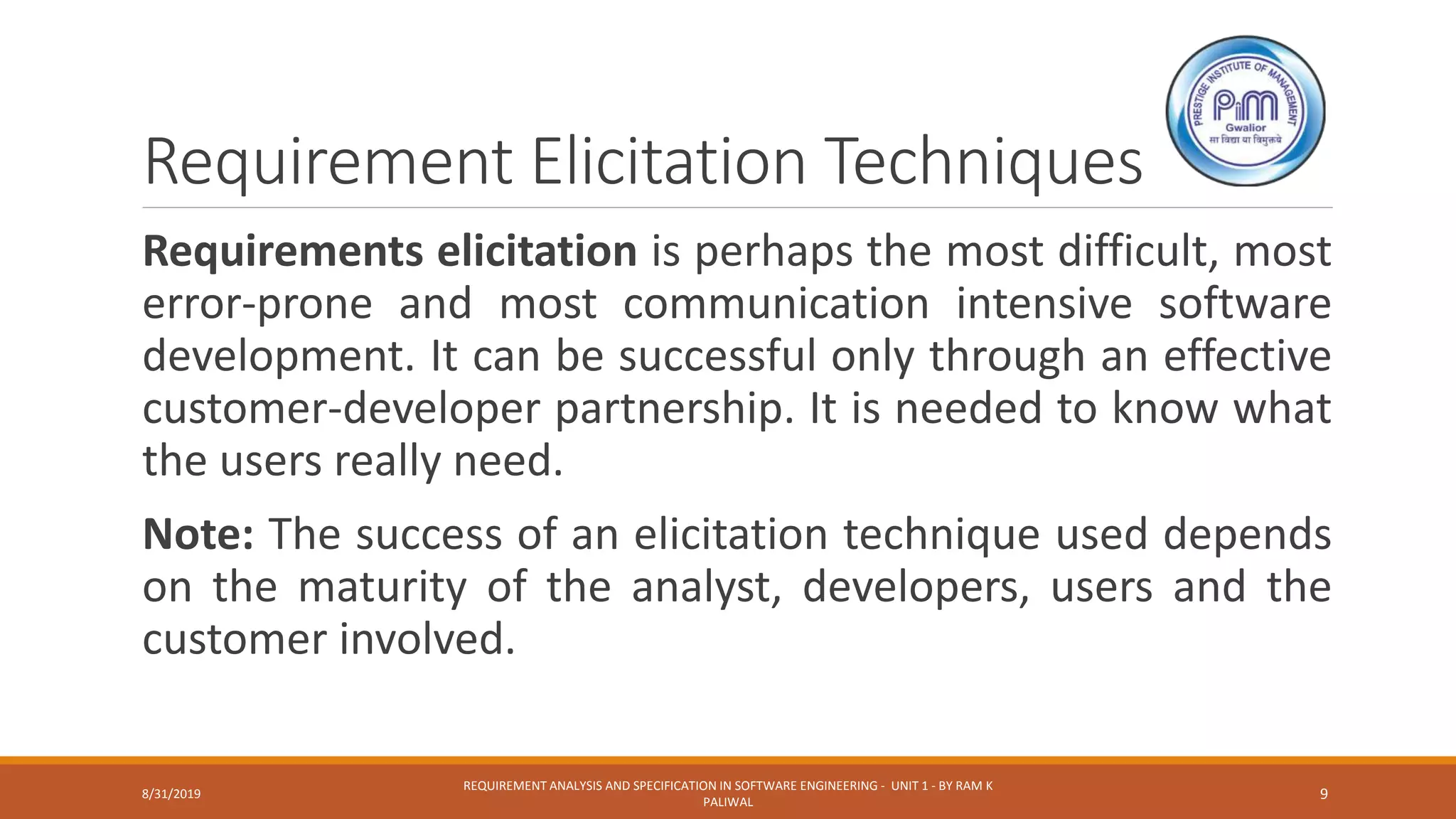

9. Requirement Elicitation Techniques
Requirements elicitation is perhaps the most difficult, most
error-prone and most communication intensive software
development. It can be successful only through an effective
customer-developer partnership. It is needed to know what
the users really need.
Note: The success of an elicitation technique used depends
on the maturity of the analyst, developers, users and the
customer involved.
8/31/2019
REQUIREMENT ANALYSIS AND SPECIFICATION IN SOFTWARE ENGINEERING - UNIT 1 - BY RAM K
PALIWAL
9

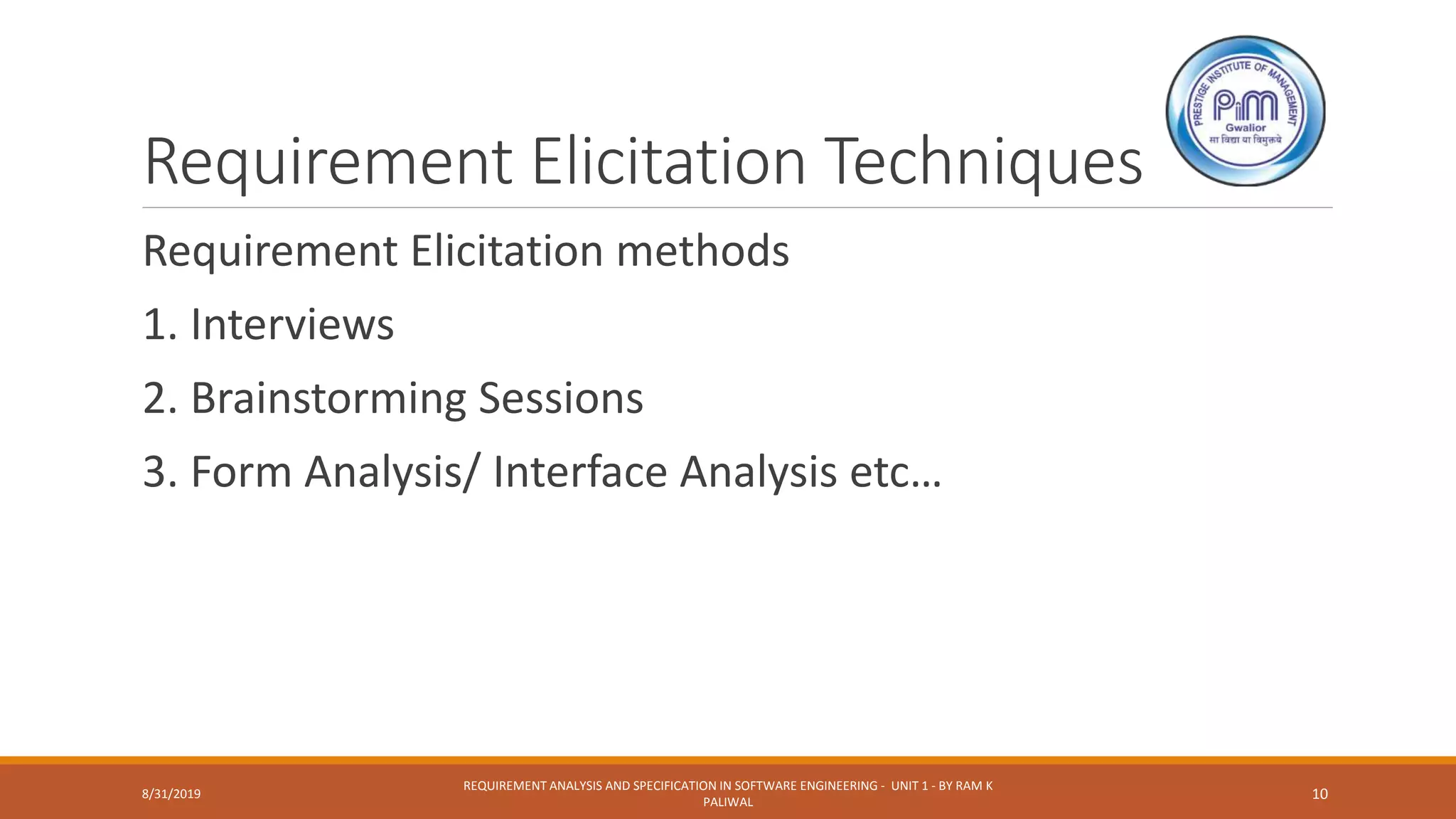

10. Requirement Elicitation Techniques
Requirement Elicitation methods
1. Interviews
2. Brainstorming Sessions
3. Form Analysis/ Interface Analysis etc…
8/31/2019
REQUIREMENT ANALYSIS AND SPECIFICATION IN SOFTWARE ENGINEERING - UNIT 1 - BY RAM K
PALIWAL
10

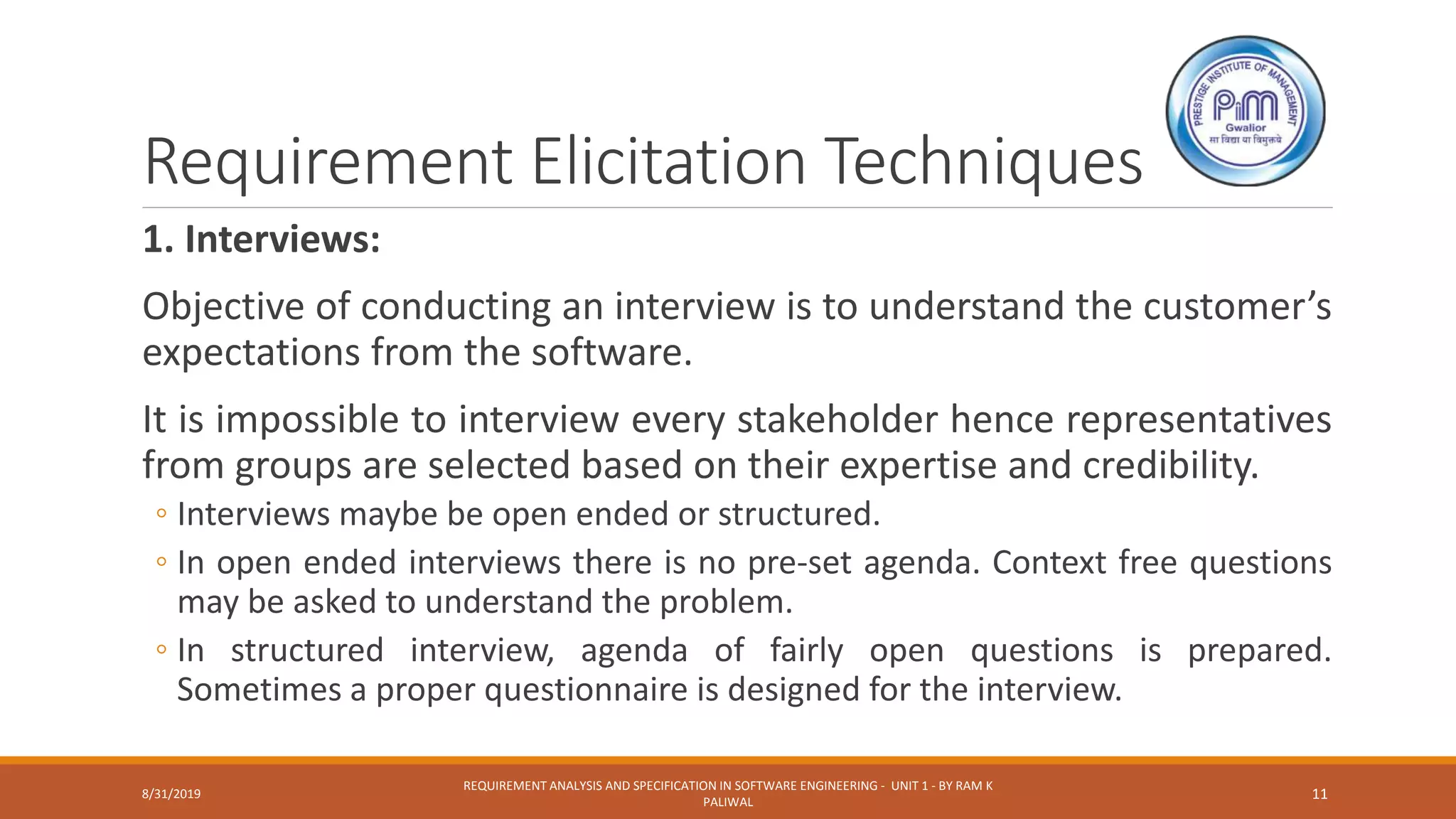

11. Requirement Elicitation Techniques
1. Interviews:
Objective of conducting an interview is to understand the customer’s
expectations from the software.
It is impossible to interview every stakeholder hence representatives
from groups are selected based on their expertise and credibility.
◦ Interviews maybe be open ended or structured.
◦ In open ended interviews there is no pre-set agenda. Context free questions
may be asked to understand the problem.
◦ In structured interview, agenda of fairly open questions is prepared.
Sometimes a proper questionnaire is designed for the interview.
8/31/2019
REQUIREMENT ANALYSIS AND SPECIFICATION IN SOFTWARE ENGINEERING - UNIT 1 - BY RAM K
PALIWAL
11

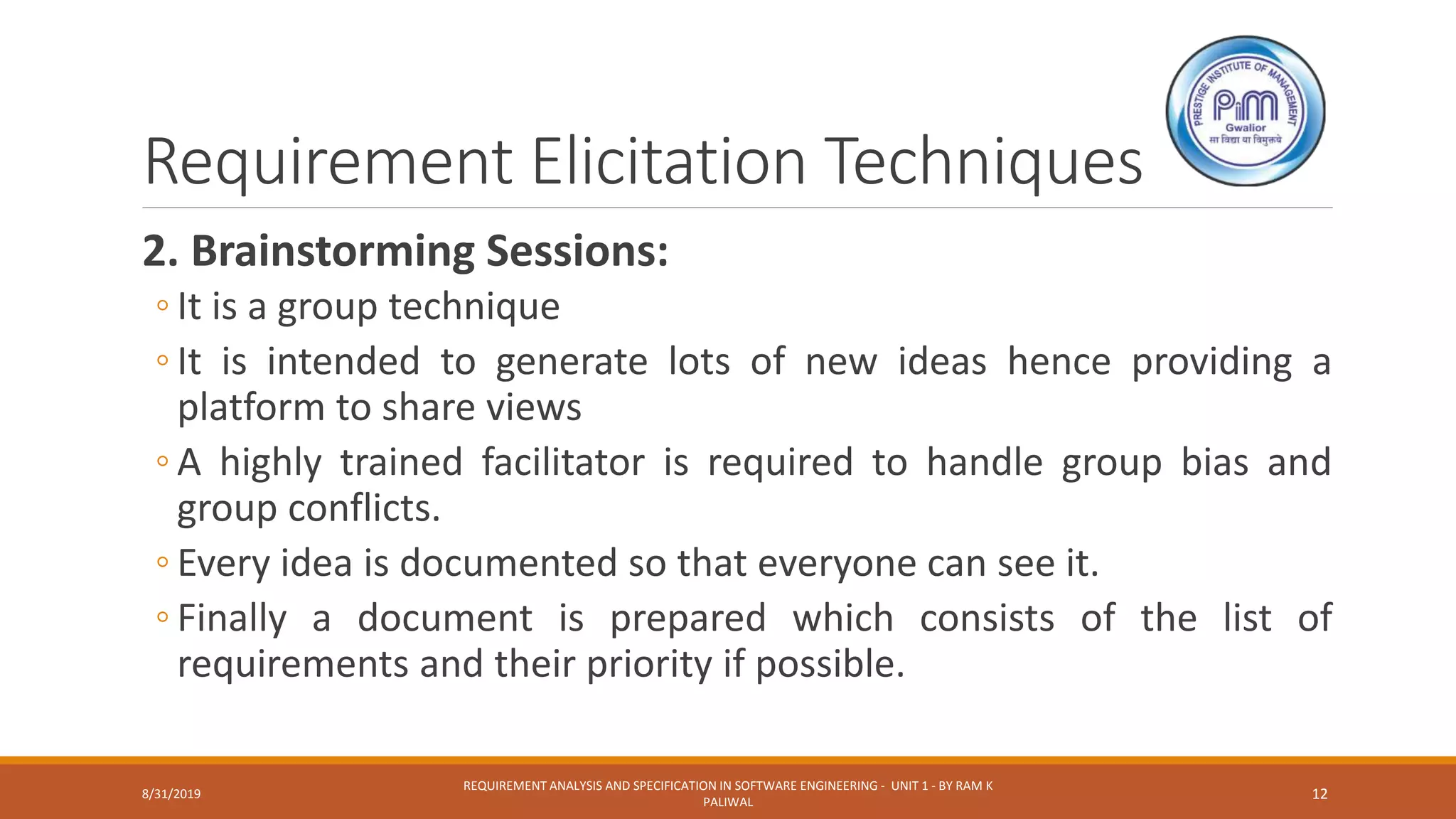

12. Requirement Elicitation Techniques
2. Brainstorming Sessions:
◦ It is a group technique
◦ It is intended to generate lots of new ideas hence providing a
platform to share views
◦ A highly trained facilitator is required to handle group bias and
group conflicts.
◦ Every idea is documented so that everyone can see it.
◦ Finally a document is prepared which consists of the list of
requirements and their priority if possible.
8/31/2019
REQUIREMENT ANALYSIS AND SPECIFICATION IN SOFTWARE ENGINEERING - UNIT 1 - BY RAM K
PALIWAL
12

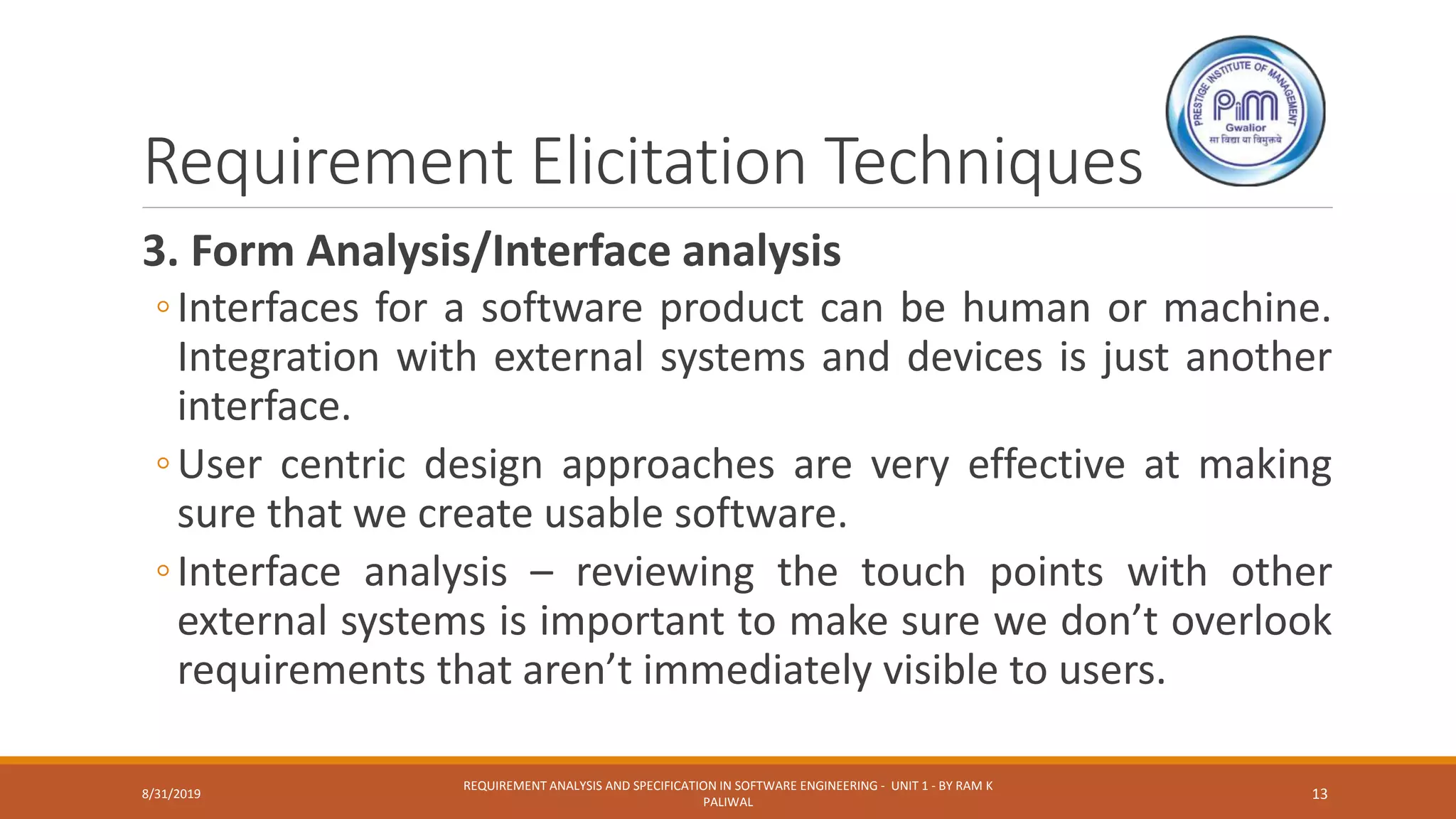

13. Requirement Elicitation Techniques
3. Form Analysis/Interface analysis
◦Interfaces for a software product can be human or machine.
Integration with external systems and devices is just another
interface.
◦User centric design approaches are very effective at making
sure that we create usable software.
◦Interface analysis – reviewing the touch points with other
external systems is important to make sure we don’t overlook
requirements that aren’t immediately visible to users.
8/31/2019
REQUIREMENT ANALYSIS AND SPECIFICATION IN SOFTWARE ENGINEERING - UNIT 1 - BY RAM K
PALIWAL
13

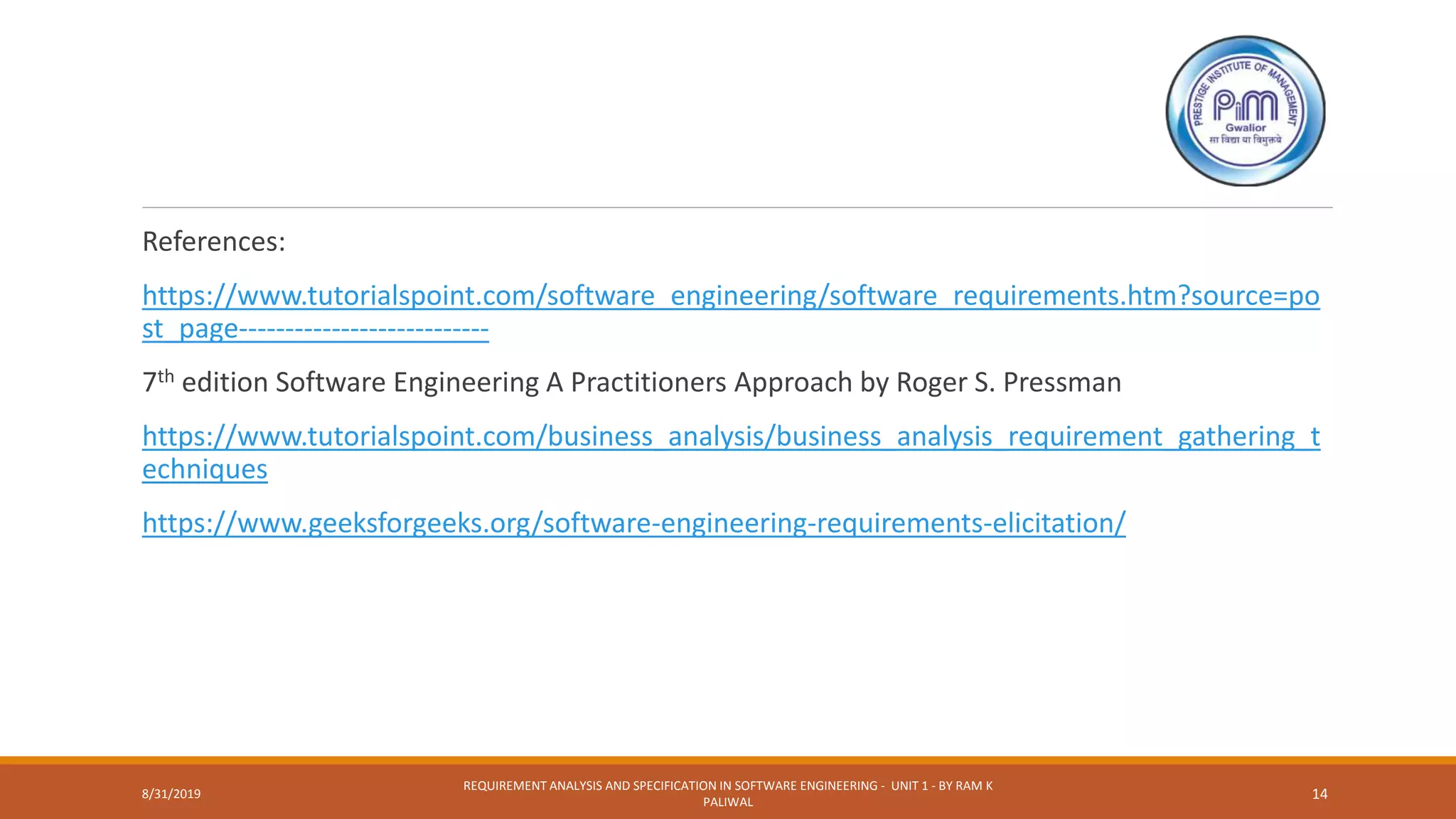

14. References:
https://www.tutorialspoint.com/software_engineering/software_requirements.htm?source=po
st_page---------------------------
7th edition Software Engineering A Practitioners Approach by Roger S. Pressman
https://www.tutorialspoint.com/business_analysis/business_analysis_requirement_gathering_t
echniques
https://www.geeksforgeeks.org/software-engineering-requirements-elicitation/
