Surveying Engineering
Contour & Contouring
In this lecture we will cover
definitions.
Characteristics of contour lines.
Contours used by Engineers .
Methods of locating contour.
Method of Interpolation Contours.
Contour & Contouring
A map showing the natural and cultural features as well
as showing the nature of the surface of the land (topography of the
land) of the up and downs and its representation in (3D)three
dimensions.
A contour is a line drawn on a plan joining all points of the same
height above or below a datum.
Or A contour line
is a line that passes through points having the same elevation.
contour interval
is the constant vertical distance(VD) between any two
consecutive contours is called the contour interval
. The contour interval on this map is 20m
-The choice of suitable contour interval depends on several
factors.
-Topographic Maps
-Characteristics of contour lines.
-Contours are used by Engineers to:
-Methods of locating contour:
A- The direct methods
1- Level and staff method.
2- Plan table and alidade method.
Direct method procedure:
In this method the actual contour is pegged out on the ground and its
planimetric position located. A back-sight is taken to an appropriate BM and
the HPC of the instrument is obtained, say( 34.800m.) A staff reading of
0.800m would then place the foot of the staff at the( 34m )contour level. The
staff is then moved throughout the terrain area, with its position pegged at
every 0.800m reading. In this way the 34m contour is located. Similarly a
staff reading of (1.800m) gives the 33m contour and so on. The planimetric position of the contour needs to be located using an appropriate survey technique.
1- Grid method:-
Methods of Contouring
B- Indirect contouring
*Method of Interpolation Contours.
-Plotting contours.
Prepared by:
Asst. Prof. Salar K.Hussein
Mr. Kamal Y.Abdullah
Asst.Lecturer. Dilveen H. Omar
Erbil Polytechnic University
Technical Engineering College
Civil Engineering Department

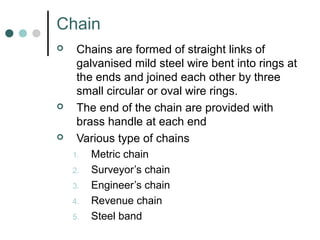

Metric Chain : It Consists of galvanized mild steel wire of 4mm diameter known as link.
It is available in 20m, 30m, 50m length which consists of 100 links.
Gunter’s Chain : A 66 feet long chain consists of 100 links, each of 0.66 feet, it is known as Gunter’s chain.
This chain is suitable for taking length in miles.
Engineer’s Chain : A 100 feet long chain consisting of 100 links each of 1 feet is known as engineer’s chain.
This chain is used to measure length in feet and area in sq.yard.
Revenue Chain : it is 33 feet long chain consisting of 16 links.
This chain is used for distance measurements in feet & inches for smaller areas.
Introduction to surveying, ranging and chainingShital Navghare
This presentation contains the complete introduction of surveying. It also includes all the instrucments used in linear measurement and the terms related to Ranging and Chaining
Surveying Engineering
Contour & Contouring
In this lecture we will cover
definitions.
Characteristics of contour lines.
Contours used by Engineers .
Methods of locating contour.
Method of Interpolation Contours.
Contour & Contouring
A map showing the natural and cultural features as well
as showing the nature of the surface of the land (topography of the
land) of the up and downs and its representation in (3D)three
dimensions.
A contour is a line drawn on a plan joining all points of the same
height above or below a datum.
Or A contour line
is a line that passes through points having the same elevation.
contour interval
is the constant vertical distance(VD) between any two
consecutive contours is called the contour interval
. The contour interval on this map is 20m
-The choice of suitable contour interval depends on several
factors.
-Topographic Maps
-Characteristics of contour lines.
-Contours are used by Engineers to:
-Methods of locating contour:
A- The direct methods
1- Level and staff method.
2- Plan table and alidade method.
Direct method procedure:
In this method the actual contour is pegged out on the ground and its
planimetric position located. A back-sight is taken to an appropriate BM and
the HPC of the instrument is obtained, say( 34.800m.) A staff reading of
0.800m would then place the foot of the staff at the( 34m )contour level. The
staff is then moved throughout the terrain area, with its position pegged at
every 0.800m reading. In this way the 34m contour is located. Similarly a
staff reading of (1.800m) gives the 33m contour and so on. The planimetric position of the contour needs to be located using an appropriate survey technique.
1- Grid method:-
Methods of Contouring
B- Indirect contouring
*Method of Interpolation Contours.
-Plotting contours.
Prepared by:
Asst. Prof. Salar K.Hussein
Mr. Kamal Y.Abdullah
Asst.Lecturer. Dilveen H. Omar
Erbil Polytechnic University
Technical Engineering College
Civil Engineering Department
Metric Chain : It Consists of galvanized mild steel wire of 4mm diameter known as link.
It is available in 20m, 30m, 50m length which consists of 100 links.
Gunter’s Chain : A 66 feet long chain consists of 100 links, each of 0.66 feet, it is known as Gunter’s chain.
This chain is suitable for taking length in miles.
Engineer’s Chain : A 100 feet long chain consisting of 100 links each of 1 feet is known as engineer’s chain.
This chain is used to measure length in feet and area in sq.yard.
Revenue Chain : it is 33 feet long chain consisting of 16 links.
This chain is used for distance measurements in feet & inches for smaller areas.
This ppt presentation covers compass surveying, which explains principal of compass surveying, Types of compass, Difference between compass, Bearing, Definitions related to compass surveying etc.
Surveying instruments; chains, tapes, steel bands, their types & uses.
Ranging & Chaining of Survey lines. Field work & Plotting of Chain survey,Leveling,General principle. Types of levels and their temporary and permanent adjustments. Methods of levelling. Reduction of levels, Precise levelling and Trigonometric Leveling.
Theodolite.
Types and uses of theodolites. Temporary and permanent adjustments. Measurement of horizontal and vertical angles.
,ranging & chaining of survey lines. field work & p ,surveying instruments ,chains ,tapes ,steel bands ,their types & uses. ,leveling ,general principle. types of levels and their tempo ,precise levelling and trigonometric leveling. total station ,edm ,modern surveying instrument
Content- Introduction to surveying and leveling
Object and Uses of Surveying, Fundamental Principles of Surveying, Introduction to conventional methods and equipment used for surveying and Leveling
Introduction to modern equipment’s used in surveying- EDM, Total Station, GIS,GPS, Remote sensing, planimeter.
Introduction to Topo sheets and use of maps.
Course Contents:
Introduction; Linear measurements; Analysis and adjustment of measurements, Survey methods: coordinate systems, bearings, horizontal control, traversing, triangulation, detail surveying; Orientation and position; Areas and volumes; Setting out; Curve ranging; Global Positioning system (GPS); Photogrammetry.
New Land Surveying Key Point With Past Questions & AnswersIzuchukwu Amaefula
Surveying Handbook is a Keypoint in surveying with vivid insite on the basic procedures and principles with formulas on how to solved surveying problem. it is a book for universities and polytechnics and it is also prepared as a study guide for professionals exams.
This ppt presentation covers compass surveying, which explains principal of compass surveying, Types of compass, Difference between compass, Bearing, Definitions related to compass surveying etc.
Surveying instruments; chains, tapes, steel bands, their types & uses.
Ranging & Chaining of Survey lines. Field work & Plotting of Chain survey,Leveling,General principle. Types of levels and their temporary and permanent adjustments. Methods of levelling. Reduction of levels, Precise levelling and Trigonometric Leveling.
Theodolite.
Types and uses of theodolites. Temporary and permanent adjustments. Measurement of horizontal and vertical angles.
,ranging & chaining of survey lines. field work & p ,surveying instruments ,chains ,tapes ,steel bands ,their types & uses. ,leveling ,general principle. types of levels and their tempo ,precise levelling and trigonometric leveling. total station ,edm ,modern surveying instrument
Content- Introduction to surveying and leveling
Object and Uses of Surveying, Fundamental Principles of Surveying, Introduction to conventional methods and equipment used for surveying and Leveling
Introduction to modern equipment’s used in surveying- EDM, Total Station, GIS,GPS, Remote sensing, planimeter.
Introduction to Topo sheets and use of maps.
Course Contents:
Introduction; Linear measurements; Analysis and adjustment of measurements, Survey methods: coordinate systems, bearings, horizontal control, traversing, triangulation, detail surveying; Orientation and position; Areas and volumes; Setting out; Curve ranging; Global Positioning system (GPS); Photogrammetry.
New Land Surveying Key Point With Past Questions & AnswersIzuchukwu Amaefula
Surveying Handbook is a Keypoint in surveying with vivid insite on the basic procedures and principles with formulas on how to solved surveying problem. it is a book for universities and polytechnics and it is also prepared as a study guide for professionals exams.
unit I
Introduction and Basic Concepts: Introduction, Objectives, classification and principles of
surveying, Scales, Shrinkage of Map, Conventional symbols and Code of Signals, Surveying
accessories, phases of surveying.
Measurement of Distances and Directions
Linear distances- Approximate methods, Direct Methods- Chains- Tapes, ranging, Tape corrections.
Prismatic Compass- Bearings, included angles, Local Attraction, Magnetic Declination and dip.
AN INTELLIGENT BUILDING IS THE ONE WHICH PROVIDES A PRODUCTIVE AND
COST-EFFECTIVE ENVIRONMENT THROUGH OPTIMIZATION OF FOUR BASIC
ELEMENTS: STRUCTURE, SYSTEMS, SERVICES AND MANAGEMENT, AND THE
INTERRELATIONSHIP BETWEEN THEM.
IT IS A TYPE OF BUILDING THAT USES BOTH TECHNOLOGY AND PROCESS TO
CREATE AN ENVIRONMENT THAT IS SAFE, HEALTHY, AND COMFORTABLE TO
EVERYONE.
WHAT IS AN INTELLIGENT BUILDING?
A BUILDING…
•
WHO’S SYSTEMS ARE SELF RELIANT
WITH SENSORS RELAYING DATA
THAT USES THE LATEST TECHNOLOGY
THAT IS THE FUTURE OF BUILDINGS
INTELLIGENT BUILDING
: INTELLIGENT BUILDING ADJUSTS THE INSIDE
FUNCTIONAL ASPECTS SUCH AS LIGHTING, VENTILATION, FIRE FIGHTING, AIR
CONDITIONING, ETC. AUTOMATICALLY WITH THE CHANGES IN ENVIRONMENTAL
CONDITIONS CONTROLLED BY COMPUTER.
THE SECURITY SYSTEM, COMMUNICATION SYSTEM, ETC. ARE COORDINATED AND
AUTOMATICALLY CONTROLLED BY COMPUTER WORK STATION.
ORDINARY BUILDING
: ORDINARY BUILDING THERE WILL BE DIFFERENT ROOM
CONDITIONS DEPENDING ON THE CHANGES IN THE ENVIRONMENTAL
CONDITIONS.
THE SECURITY SYSTEM, COMMUNICATION SYSTEM, ETC. ARE NOT
COORDINATED AND AUTOMATICALLY CONTROLLED BY COMPUTER WORK
STATION.
ALL INFORMATION ABOUT ALUMINIUM COMPOSITE PANEL, ALUMINIUM COMPOSITE PANEL (ACP)
ALSO ALUMINIUM COMPOSITE MATERIAL,
(ACM) IS A TYPE OF FLAT PANEL THAT
CONSISTS OF TWO THIN ALUMINIUM
SHEETS BONDED TO A NON ALUMINIUM
CORE. ACPS ARE FREQUENTLY USED FOR
EXTERNAL CLADDING OR FACADES OF
BUILDINGS, INSULATION, AND SIGNAGE.
ALUMINIUM COMPOSITE PANEL CLADDING
IS DONE WITH THE HELP OF 2" X 1" PLAIN
RECTANGULAR TUBE, ADHESIVE TAPE, ACP
SHEET, WEATHERING SEALANT AND TOP
QUALITY HARDWARE.
CASE STUDY OF NATIONAL BUILDING CODE,
Introduction to various building codes in professional practice emphasizing the importance of codes and regulations to protect public health, safety and welfare and to ensure compliance with the local authority.
Philip johnson- history of architectureSelf employed
ACCORDING TO PHILIP JOHNSON ‘CRUTCHES’ BY WHICH ARCHITECTS EVADE THEIR REAL RESPONSIBILITIES ARE:
HISTORY - JUSTIFYING ELEMENTS WHICH ARE EARLIER USED.
UTILITY - IF UTILITY OF A BUILDING OVERCOMES ARTISTIC INVENTIONS ,THEN IT IS MERELY AN ASSEMBLAGE OF USEFUL PARTS.
DESIGN ACCORDING TO HIS BELIEF – “ TO GO AGAINST THE GRAIN”
DECONSTRUCTIVIST ARCHITECTURE – “ HE PRESENTED DESIGN ISSUE IN STRICTLY STYLISTIC TERMS.”
RISE OF ISLAM IN INDIA STARTED WHEN QUTUB-UD-DIN AIBUK THE SLAVE OF MUHAMMAD GHORI WHO CAME TO POWER AFTER HIS MASTERS’ DEATH IN 1206.BEFORE THIS HE WAS JUST THE MIILITARY COMMANDER OF HIS BOSS.HIS EMPIRE EXTENDED FROM LAHORE(PAKISTAN) TO THE YAMUNA AND GANGES PLAINS IN NORTH INDIA. HE RULED FOR FOUR YEARS WHEN HE DIED IN AN ACCIDENT IN 1210.
Bytheendofthe5th centuryAD,Romehadcompletelydeclined.Ithad beensackedtwiceandwasthenunderoccupation.
ItsinfluencewassignificantlyreducedandtheImpetusfor architecturalinnovationshiftedtotheByzantineEmpire.
This shift also marks the movement from early Christian civilizationtothe Byzantinecivilization.
UndertheByzantineEmperorJustinian,theByzantinestyleof architectureevolved.
Hisinterestinchurchbuildingledtothediscoveryofthegroinvault. .andtheevolutionof theByzantinestyle.
COMMON INTERPRETATIONS OF ISLAMIC ARCHITECTURE
D
OME OF ROCK , JERUSALAM
•
G
REAT MOSQUE OF SAMARA AND CORODB DB A
•
UMMAYAD MOSQUE (GRAND MOSQUE OF DAMASCUS)
•
MADRASSA
•
MADRASSA OF SULTAN
Operation “Blue Star” is the only event in the history of Independent India where the state went into war with its own people. Even after about 40 years it is not clear if it was culmination of states anger over people of the region, a political game of power or start of dictatorial chapter in the democratic setup.
The people of Punjab felt alienated from main stream due to denial of their just demands during a long democratic struggle since independence. As it happen all over the word, it led to militant struggle with great loss of lives of military, police and civilian personnel. Killing of Indira Gandhi and massacre of innocent Sikhs in Delhi and other India cities was also associated with this movement.
The French Revolution, which began in 1789, was a period of radical social and political upheaval in France. It marked the decline of absolute monarchies, the rise of secular and democratic republics, and the eventual rise of Napoleon Bonaparte. This revolutionary period is crucial in understanding the transition from feudalism to modernity in Europe.
For more information, visit-www.vavaclasses.com
Instructions for Submissions thorugh G- Classroom.pptxJheel Barad
This presentation provides a briefing on how to upload submissions and documents in Google Classroom. It was prepared as part of an orientation for new Sainik School in-service teacher trainees. As a training officer, my goal is to ensure that you are comfortable and proficient with this essential tool for managing assignments and fostering student engagement.
We all have good and bad thoughts from time to time and situation to situation. We are bombarded daily with spiraling thoughts(both negative and positive) creating all-consuming feel , making us difficult to manage with associated suffering. Good thoughts are like our Mob Signal (Positive thought) amidst noise(negative thought) in the atmosphere. Negative thoughts like noise outweigh positive thoughts. These thoughts often create unwanted confusion, trouble, stress and frustration in our mind as well as chaos in our physical world. Negative thoughts are also known as “distorted thinking”.
Palestine last event orientationfvgnh .pptxRaedMohamed3
An EFL lesson about the current events in Palestine. It is intended to be for intermediate students who wish to increase their listening skills through a short lesson in power point.
Welcome to TechSoup New Member Orientation and Q&A (May 2024).pdfTechSoup
In this webinar you will learn how your organization can access TechSoup's wide variety of product discount and donation programs. From hardware to software, we'll give you a tour of the tools available to help your nonprofit with productivity, collaboration, financial management, donor tracking, security, and more.
Unit 8 - Information and Communication Technology (Paper I).pdfThiyagu K
This slides describes the basic concepts of ICT, basics of Email, Emerging Technology and Digital Initiatives in Education. This presentations aligns with the UGC Paper I syllabus.
2024.06.01 Introducing a competency framework for languag learning materials ...Sandy Millin
http://sandymillin.wordpress.com/iateflwebinar2024
Published classroom materials form the basis of syllabuses, drive teacher professional development, and have a potentially huge influence on learners, teachers and education systems. All teachers also create their own materials, whether a few sentences on a blackboard, a highly-structured fully-realised online course, or anything in between. Despite this, the knowledge and skills needed to create effective language learning materials are rarely part of teacher training, and are mostly learnt by trial and error.
Knowledge and skills frameworks, generally called competency frameworks, for ELT teachers, trainers and managers have existed for a few years now. However, until I created one for my MA dissertation, there wasn’t one drawing together what we need to know and do to be able to effectively produce language learning materials.
This webinar will introduce you to my framework, highlighting the key competencies I identified from my research. It will also show how anybody involved in language teaching (any language, not just English!), teacher training, managing schools or developing language learning materials can benefit from using the framework.
Students, digital devices and success - Andreas Schleicher - 27 May 2024..pptxEduSkills OECD
Andreas Schleicher presents at the OECD webinar ‘Digital devices in schools: detrimental distraction or secret to success?’ on 27 May 2024. The presentation was based on findings from PISA 2022 results and the webinar helped launch the PISA in Focus ‘Managing screen time: How to protect and equip students against distraction’ https://www.oecd-ilibrary.org/education/managing-screen-time_7c225af4-en and the OECD Education Policy Perspective ‘Students, digital devices and success’ can be found here - https://oe.cd/il/5yV
2. FUNDAMENTAL
DEFINITION AND CONCEPT
Surveying is the art of determining the relative
positions of points on, above or beneath the
surface of the earth by means of direct or indirect
measurement of distance, direction and elevation
It also includes the art of establishing points by
predetermined angular and linear measurements.
The application of surveying requires skill as well as
the knowledge of mathematics, physics and to some
extent astronomy.

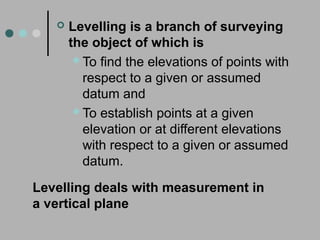

3. Levelling deals with measurement in
a vertical plane
Levelling is a branch of surveying
the object of which is
To find the elevations of points with
respect to a given or assumed
datum and
To establish points at a given
elevation or at different elevations
with respect to a given or assumed
datum.
4. The knowledge of surveying is
advantageous in many phases of
engineering.
The earliest surveys were made in
connection with land surveying.
Practically every engineering
project such as water supply and
irrigation scheme, railroads and
transmission lines, mines, bridges
and buildings etc. require surveys.

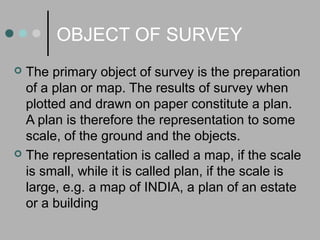

5. OBJECT OF SURVEY
The primary object of survey is the preparation
of a plan or map. The results of survey when
plotted and drawn on paper constitute a plan.
A plan is therefore the representation to some
scale, of the ground and the objects.
The representation is called a map, if the scale
is small, while it is called plan, if the scale is
large, e.g. a map of INDIA, a plan of an estate
or a building

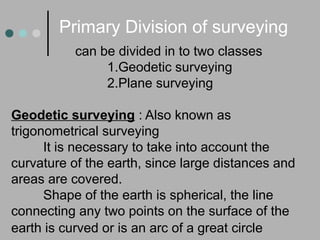

6. can be divided in to two classes
1.Geodetic surveying
2.Plane surveying
Geodetic surveying : Also known as
trigonometrical surveying
It is necessary to take into account the
curvature of the earth, since large distances and
areas are covered.
Shape of the earth is spherical, the line
connecting any two points on the surface of the
earth is curved or is an arc of a great circle
Primary Division of surveying

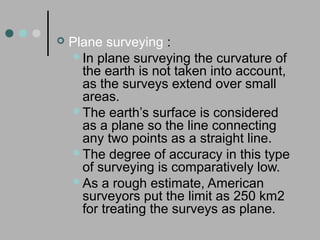

7. Plane surveying :
In plane surveying the curvature of
the earth is not taken into account,
as the surveys extend over small
areas.
The earth’s surface is considered
as a plane so the line connecting
any two points as a straight line.
The degree of accuracy in this type
of surveying is comparatively low.
As a rough estimate, American
surveyors put the limit as 250 km2
for treating the surveys as plane.
8. CLASSIFICATION
Surveys may be classified in a variety of ways
1. Classification based upon the nature of
field of survey
a) Land surveys
b) Marine or navigation surveys : deals with
bodies of water for navigation purpose.
c) Astronomical surveys : This consists in
observations to the heavenly bodies such
as the sun or any fixed star.

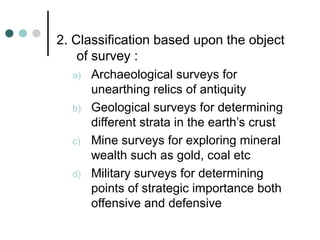

9. 2. Classification based upon the object
of survey :
a) Archaeological surveys for
unearthing relics of antiquity
b) Geological surveys for determining
different strata in the earth’s crust
c) Mine surveys for exploring mineral
wealth such as gold, coal etc
d) Military surveys for determining
points of strategic importance both
offensive and defensive

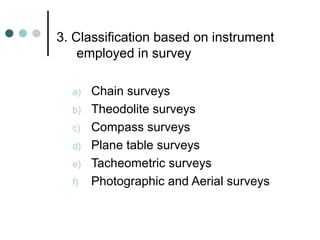

10. 3. Classification based on instrument
employed in survey
a) Chain surveys
b) Theodolite surveys
c) Compass surveys
d) Plane table surveys
e) Tacheometric surveys
f) Photographic and Aerial surveys

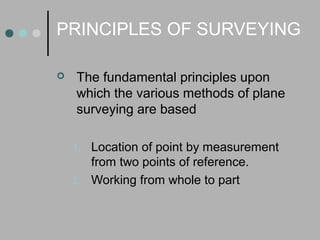

11. PRINCIPLES OF SURVEYING
The fundamental principles upon
which the various methods of plane
surveying are based
1. Location of point by measurement
from two points of reference.
2. Working from whole to part
12. Location of point by measurement
from two points of reference.
P
Q
R
P
Q
R
P
Q
R
Θ
P
Q
R
Θ
Φ
S
After deciding the position of any point, its reference must be
kept from at least two permanent objects or stations whose
position have already been well defined.
13. The purpose of working from whole to part is
To localize the errors and
To control the accumulation of errors.
This is being achieved by establishing a hierarchy of networks of
control points. The less precise networks are established within the
higher precise network and thus restrict the errors. To minimize the
error limit, highest precise network (primary network) of control points
are established using the most accurate / precise instruments for
collection of data and rigorous methods of analysis are employed to
find network parameters. This also involves most skilled manpower
and costly resources which are rare and cost intensive.

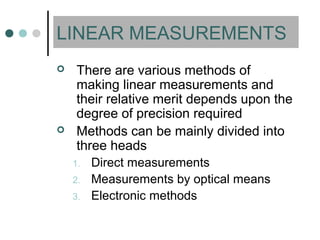

14. LINEAR MEASUREMENTS
There are various methods of
making linear measurements and
their relative merit depends upon the
degree of precision required
Methods can be mainly divided into
three heads
1. Direct measurements
2. Measurements by optical means
3. Electronic methods

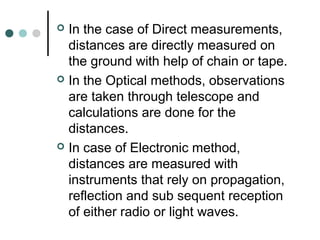

15. In the case of Direct measurements,
distances are directly measured on
the ground with help of chain or tape.
In the Optical methods, observations
are taken through telescope and
calculations are done for the
distances.
In case of Electronic method,
distances are measured with
instruments that rely on propagation,
reflection and sub sequent reception
of either radio or light waves.
16. Direct measurements
Various methods of measuring the
distances directly are as
1. Pacing
2. Measurement with passometer
3. Measurement with pedometer
4. Measurement by odometer and
speedometer
5. Chaining
19. Chain
Chains are formed of straight links of
galvanised mild steel wire bent into rings at
the ends and joined each other by three
small circular or oval wire rings.
The end of the chain are provided with
brass handle at each end
Various type of chains
1. Metric chain
2. Surveyor’s chain
3. Engineer’s chain
4. Revenue chain
5. Steel band

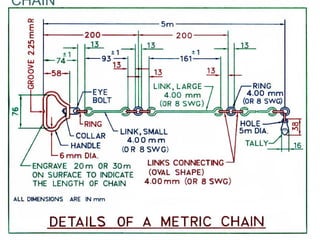

20. Metric chain
Generally available in lengths of 5, 10,
20, 30 meters
Tallies are fixed at every 5m and 10m
lengths and small brass rings are
provided at every meter length
To facilitate holding of arrow in the
positions with the handle of chain, a
groove is cut on the outside surface of
the handle
Length of the chains are engraved on
both the handles.

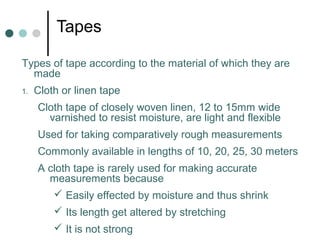

21. Tapes
Types of tape according to the material of which they are
made
1. Cloth or linen tape
Cloth tape of closely woven linen, 12 to 15mm wide
varnished to resist moisture, are light and flexible
Used for taking comparatively rough measurements
Commonly available in lengths of 10, 20, 25, 30 meters
A cloth tape is rarely used for making accurate
measurements because
Easily effected by moisture and thus shrink
Its length get altered by stretching
It is not strong

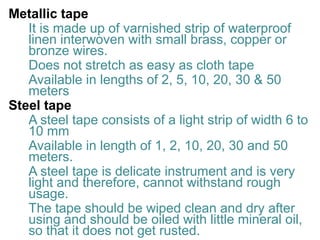

22. Metallic tape
It is made up of varnished strip of waterproof
linen interwoven with small brass, copper or
bronze wires.
Does not stretch as easy as cloth tape
Available in lengths of 2, 5, 10, 20, 30 & 50
meters
Steel tape
A steel tape consists of a light strip of width 6 to
10 mm
Available in length of 1, 2, 10, 20, 30 and 50
meters.
A steel tape is delicate instrument and is very
light and therefore, cannot withstand rough
usage.
The tape should be wiped clean and dry after
using and should be oiled with little mineral oil,
so that it does not get rusted.
23. INVAR TAPE
Invar tapes are used mainly for linear
measurements of very high degree
of precision
Invar tape is made of alloy of nickel and
steel and has very low coefficient of
thermal expansion
The difficulty with invar tape is that they
are easily bent and damaged. They
must therefore be kept on reels of
large diameter.

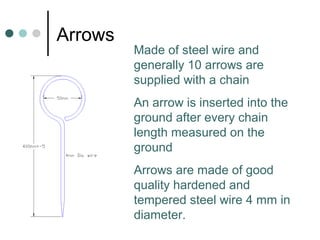

24. Arrows
Made of steel wire and
generally 10 arrows are
supplied with a chain
An arrow is inserted into the
ground after every chain
length measured on the
ground
Arrows are made of good
quality hardened and
tempered steel wire 4 mm in
diameter.

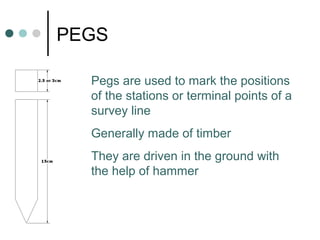

25. PEGS
Pegs are used to mark the positions
of the stations or terminal points of a
survey line
Generally made of timber
They are driven in the ground with
the help of hammer

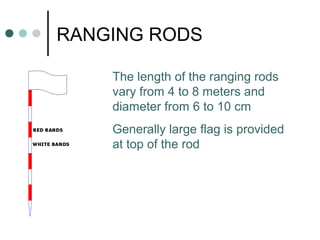

26. RANGING RODS
The length of the ranging rods
vary from 4 to 8 meters and
diameter from 6 to 10 cm
Generally large flag is provided
at top of the rod

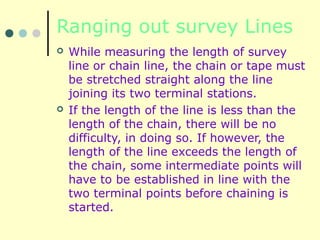

27. Ranging out survey Lines
While measuring the length of survey
line or chain line, the chain or tape must
be stretched straight along the line
joining its two terminal stations.
If the length of the line is less than the
length of the chain, there will be no
difficulty, in doing so. If however, the
length of the line exceeds the length of
the chain, some intermediate points will
have to be established in line with the
two terminal points before chaining is
started.

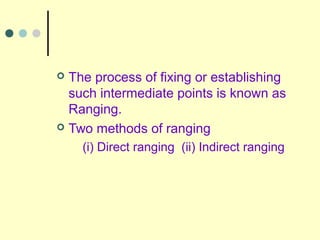

28. The process of fixing or establishing
such intermediate points is known as
Ranging.
Two methods of ranging
(i) Direct ranging (ii) Indirect ranging

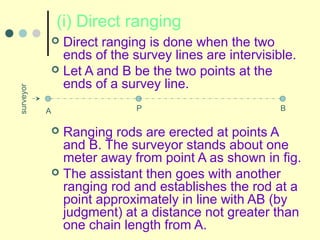

29. (i) Direct ranging
Direct ranging is done when the two
ends of the survey lines are intervisible.
Let A and B be the two points at the
ends of a survey line.
Ranging rods are erected at points A
and B. The surveyor stands about one
meter away from point A as shown in fig.
The assistant then goes with another
ranging rod and establishes the rod at a
point approximately in line with AB (by
judgment) at a distance not greater than
one chain length from A.
A P B
surveyor

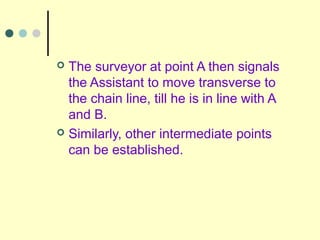

30. The surveyor at point A then signals
the Assistant to move transverse to
the chain line, till he is in line with A
and B.
Similarly, other intermediate points
can be established.

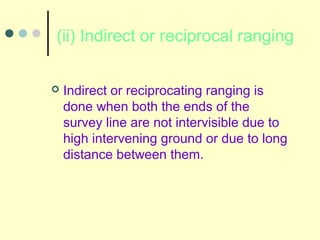

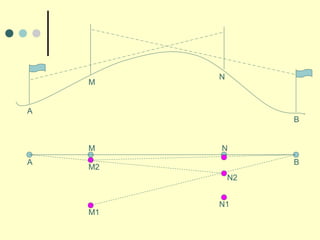

31. (ii) Indirect or reciprocal ranging
Indirect or reciprocating ranging is
done when both the ends of the
survey line are not intervisible due to
high intervening ground or due to long
distance between them.

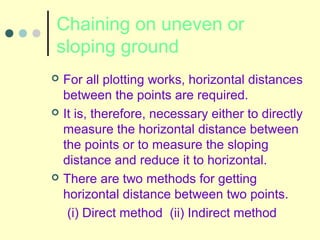

33. Chaining on uneven or
sloping ground
For all plotting works, horizontal distances
between the points are required.
It is, therefore, necessary either to directly
measure the horizontal distance between
the points or to measure the sloping
distance and reduce it to horizontal.
There are two methods for getting
horizontal distance between two points.
(i) Direct method (ii) Indirect method
