Romanesque architecture originated in medieval Europe between 1000-1200 AD. It is characterized by semi-circular arches and thick stone walls with few openings. Churches during this period had massive piers, groin vaults, and large towers to support their weight. Examples include Monreale Cathedral in Sicily with its two projecting towers and elaborate interior, Pisa Cathedral known for its leaning tower and columns cut from single stones, and Durham Cathedral in England notable for its pointed ribbed vaults and tall central tower.
Renaissance
“ Rebirth”
Revival of artistic achievements based on classical world.
‘Rebirth’ of classical Greek and Roman. The movement started in Italy.
During this era, people began to research the culture of the antique world.
The period was triggered by the increasing sophistication of the society, where economic growth, educational pursuits and political stability were key factors.
The limits of renaissance architecture was pushed by wealthy patrons such as Medic family of Florence, Pope Leo X and Pope Julius II
Characteristics
Building was looked upon as works of art. It followed traditions of middle ages that did not separate the structure from the decoration.
In situ construction hence harmony was given between the jointing and the architectural features.
Standardization of classic roman orders- Tuscan, Doric, Ionic, Corinthian & Composite and its reintroduction both structurally and decoratively.
An art of free expression : Architecture became to a great extent a personal art due to the fancy of individual architects, many of whom founded schools of design.
A building was regarded rather as a picture with pleasing combinations of lines and masses
Symmetry and proportion
Appearance of building less in size than in reality due to the largeness and fewness of the parts used.
Towers used sparsely, if used occur symmetrically located.
Interiors planed on roman principles.
Ashlar masonry construction
Materials are large, and carry out the Classic idea of fewness of parts .
Gable end , formed as pediments either pitched or semicircular
Vaults are of simple Roman form
The Classic columns and orders were revived and used decoratively .
The principal cornice plays an important part in the style.
Mouldings produced an effect of horizontality.
Stained glass was little used
Sgraffito – coloured plaster was applied.
Efficiency in the crafts.
Italian Renaissance - Palazzo Ricardi, St. Peters Basilica, Rome, Villa Capra, Vicenza
⦁ Italian Renaissance is divided into three periods
Early Renaissance (Early 15th century)
Includes the works of Brunelleschi & Michelozzo. The concepts of architectural orders were explored, rules were formulated & classical detail & ornamentation was adopted. Space was organized by proportional logic & its form was subject to geometry. Ex. Basilica Santa Maria del Fiore, Florence by Brunelleschi.
II. High Renaissance (Late 15th to Early 16th century)
Renaissance became an individual style in its own right
Purist or Palladian, where Roman tradition was held in high respect (represented by Andrea Palladio)
Proto-Baroque, where there was more confidence in using the acquired vocabulary freely (represented by Michelangelo)
Mannerist, where practices which had no Roman precedent were interspersed with the usual buildings. Eg: Bramante
III. Baroque Period (17th century)
Architects worked with freedom and firmly-acquired knowledge.
Renaissance
“ Rebirth”
Revival of artistic achievements based on classical world.
‘Rebirth’ of classical Greek and Roman. The movement started in Italy.
During this era, people began to research the culture of the antique world.
The period was triggered by the increasing sophistication of the society, where economic growth, educational pursuits and political stability were key factors.
The limits of renaissance architecture was pushed by wealthy patrons such as Medic family of Florence, Pope Leo X and Pope Julius II
Characteristics
Building was looked upon as works of art. It followed traditions of middle ages that did not separate the structure from the decoration.
In situ construction hence harmony was given between the jointing and the architectural features.
Standardization of classic roman orders- Tuscan, Doric, Ionic, Corinthian & Composite and its reintroduction both structurally and decoratively.
An art of free expression : Architecture became to a great extent a personal art due to the fancy of individual architects, many of whom founded schools of design.
A building was regarded rather as a picture with pleasing combinations of lines and masses
Symmetry and proportion
Appearance of building less in size than in reality due to the largeness and fewness of the parts used.
Towers used sparsely, if used occur symmetrically located.
Interiors planed on roman principles.
Ashlar masonry construction
Materials are large, and carry out the Classic idea of fewness of parts .
Gable end , formed as pediments either pitched or semicircular
Vaults are of simple Roman form
The Classic columns and orders were revived and used decoratively .
The principal cornice plays an important part in the style.
Mouldings produced an effect of horizontality.
Stained glass was little used
Sgraffito – coloured plaster was applied.
Efficiency in the crafts.
Italian Renaissance - Palazzo Ricardi, St. Peters Basilica, Rome, Villa Capra, Vicenza
⦁ Italian Renaissance is divided into three periods
Early Renaissance (Early 15th century)
Includes the works of Brunelleschi & Michelozzo. The concepts of architectural orders were explored, rules were formulated & classical detail & ornamentation was adopted. Space was organized by proportional logic & its form was subject to geometry. Ex. Basilica Santa Maria del Fiore, Florence by Brunelleschi.
II. High Renaissance (Late 15th to Early 16th century)
Renaissance became an individual style in its own right
Purist or Palladian, where Roman tradition was held in high respect (represented by Andrea Palladio)
Proto-Baroque, where there was more confidence in using the acquired vocabulary freely (represented by Michelangelo)
Mannerist, where practices which had no Roman precedent were interspersed with the usual buildings. Eg: Bramante
III. Baroque Period (17th century)
Architects worked with freedom and firmly-acquired knowledge.
History of Architecture 2 class
Report by: Group 1 (Leader: Quinto)
Central Colleges of the Philippines
College of Architecture
2nd Semester S.Y. 2015-16
December 2015
gothic architecture and how it started ,history , and more information all explaining this style.
mentioning the advantages of pointed arch
explaining the gothic floor plan
and explaining architecture in three major cities

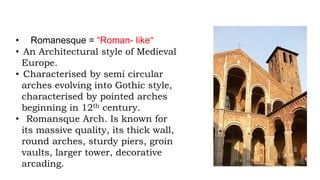

The term Romanesque ("Roman-like") was first used to designate a style of architecture that used Roman arches and had thick, heavy walls, based upon the basilica. The style is pervasive throughout Europe.
The building style of the Baroque era, begun in late 16th-century Italy, that took the Roman vocabulary of Renaissance architecture and used it in a new theatrical fashion, often to express the triumph of the Catholic Church and the absolutist state.
It was characterized by new explorations of form, light and shadow, and dramatic intensity.
Introduction Gothic Architecture Characteristics Features of GOTHIC architecture Major Influences on Gothic Architecture Architecture Character of Gothic Style Difference Between Gothic and Romanesque Architecture Features for Sacredness in Gothic Architecture Types of Gothic Architecture Gothic Architecture-Styles French Gothic Architecture
History of Architecture 2 class
Report by: Group 1 (Leader: Quinto)
Central Colleges of the Philippines
College of Architecture
2nd Semester S.Y. 2015-16
December 2015
gothic architecture and how it started ,history , and more information all explaining this style.
mentioning the advantages of pointed arch
explaining the gothic floor plan
and explaining architecture in three major cities
The term Romanesque ("Roman-like") was first used to designate a style of architecture that used Roman arches and had thick, heavy walls, based upon the basilica. The style is pervasive throughout Europe.
The building style of the Baroque era, begun in late 16th-century Italy, that took the Roman vocabulary of Renaissance architecture and used it in a new theatrical fashion, often to express the triumph of the Catholic Church and the absolutist state.
It was characterized by new explorations of form, light and shadow, and dramatic intensity.
Introduction Gothic Architecture Characteristics Features of GOTHIC architecture Major Influences on Gothic Architecture Architecture Character of Gothic Style Difference Between Gothic and Romanesque Architecture Features for Sacredness in Gothic Architecture Types of Gothic Architecture Gothic Architecture-Styles French Gothic Architecture
ROMANESQUE ARCHITECTURE
Decline of Roman Empire lead to building of large churches called cathedrals in a big way with the spread of organized monasteries called order.
Monastic orders include orders such as the Benedictine order (teachers), Augustinian order (preachers), the Cistercian order (farmers), the Clunaic order (artists), and Carthusian order (Ascetics).
The monks used a simplified Roman style with thick load bearing walls stout columns, small window openings and semi circular arches that came to be known as the “Romanesque” style.
Expansion of Romanesque architecture was linked with pilgrimage to Santiago, expansion of orders, crusades and development of feudal system.
The style can be discovered throughout Europe with its regional variations.
CHARACTERISTICS
Harmonious proportions

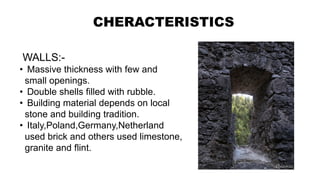

Thick and heavy walls and pillars
Small windows
Round arches supporting the roof.
Round blind arches for decoration
Sculptured decorations on portals, capitals and other surfaces.
Painted decorations

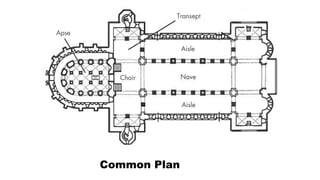

Plan: Retains basic plan of Early Christian Basilica ( Long three aisled nave intercepted by a transept and terminating in a semicircular apse crowned by a half dome ).
Support arches are the combination of half segments of large hollow columns or a clustered group of small shafts.
Cruciform in shape masonry and square or rectangle in section.

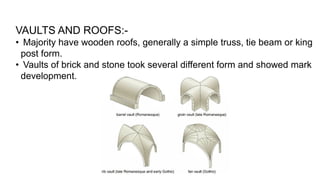

Barrel Vault:
The simplest type of vaulted roof
Single arched surfaces extend from wall to wall, the length of the space to be vaulted.
Barrel Vault requires strong support from solid walls.
Groin Vault: Intersection of two barrel vaults at right angles.
Ribbed Vault: In a ribbed vault, not only are the ribs spanning the vaulted area transversely but each vaulted bay has diagonal ribs.
Pointed arch Vault:
In Late Romanesque period, another solution came into use from regulating the height of diagonal and traverse ribs.

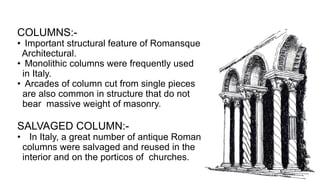

Salvaged Columns
In Italy, during this period, a great number of antique Roman columns were salvaged and reused in the interiors and on the porticos of churches.
The marble columns are most durable and have stone horizontally bedded.
Majority are vertically bedded and are sometimes of a variety of colors.

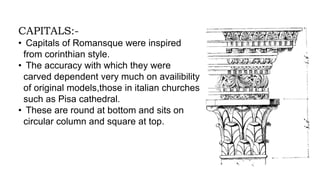

They have retained the original roman capitals, of the Corinthian or Roman Composite style.
Salvaged columns
Drum Columns
Hollow core columns
Alteration of piers and columns.
Building materials
Brick – Italy, Poland , much Germany and parts of the Netherland.
Limestone, granite – other areas
Building stone – small and irregular pieces, bedded in thick mortar.
Architectonical Typology - Church, Monastery, Castle.

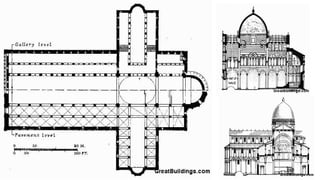

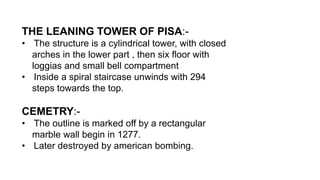

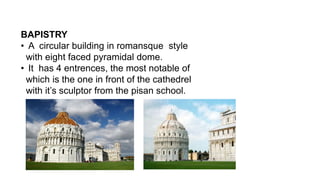

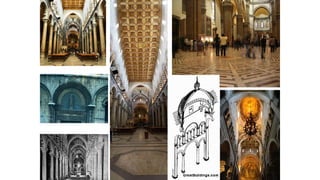

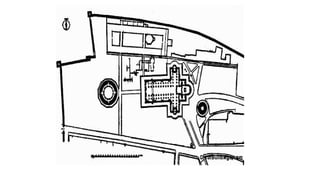

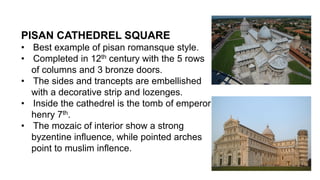

Italian Romanesque - Pisa complex

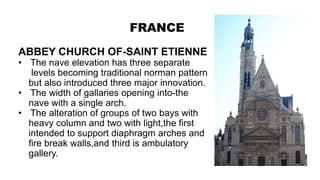

French Romanesque -Abbey aux Hommes
English Romanesque - White tower
EVOLUTION OF ROMANESQUE TO GOTHIC ARCHITECTURE
Module 3- Romanesque Architecture | KTU | Semester 4 | History of Architecture Gary Gilson
Development Of Stone Vaulting Into Groined Systems Leading To Development Of Church Plan
Example - Detail Study Of The Pisa Cathedral With Baptistery & Campanile.
EH202-HISTORY OF ARCHITECTURE III
Gothic architecture
General characteristics :
Focus on Verticality
Airy and Bright – Use of large stained glass windows, Rose window.
Ornamentation – Gargoyles, Pinnacle, Intricate carvings, 3 parts –Arcade, Triforium and Clerestorey.
Pointed Arches :
Pointed arches replaced semicircular arches as:-
Focus was on verticality, to create great height.
Strength and stability of pointed arches. Exert less thrust than semi circular arches of same span.
Pointed arches creates a lighter sensation.
Solves geometrical difficulties inherent in ribbed vaults. It is impossible to align the semicircular arches to a common point in rib vaulting. Pointed arches could be leveled easily.
Vaulting system: Rib Vault
Organic metaphor of ribs in a body , which support tissue.
In ribbed vault, not only are the ribs spanning vaulted area traversely but each vaulted bay has diagonal ribs.
In a ribbed vault, the ribs are structural members and the spaces between them are filled with lighter, non structural materials.
Flying Buttress was used in order to avoid outward collapse of arches.
Freestanding brick or stone supports were attached to the exterior walls by an arch or half-arch.
The arches are supported by colossal freestanding piers.
It absorbs and channels the disruptive forces, such as wind and weight, safely to the ground.
These piers were erected with towers without effecting the nave and choir interior.
Pinnacle is an architectural ornament originally forming the cap of a buttress.
The stained glass windows brought in light and visual beauty to the interiors.
Predominantly colors like red and blue was used to represent the religious stories in stained glass windows. Of this the blue symbolizes the heaven and the red represents the blood of Christ.
Rose window is a circular window which is divided into segments by stone mullions and tracery.
A gargoyle is a waterspout, usually carved to resemble an odd or monstrous creature, that protrudes from a structure's wall or roofline.
French Gothic -Notre Dame Cathedral
English Gothic -Westminster Abbey, Hampton Court Palace
Italian Gothic -Doges Palace, Venice, Milan Cathedral
Comparison studies between Romanesque and Gothic architectureNoorul Mushfika
Romanesque architecture is an architectural style of medieval Europe characterized by semi-circular arches. There is no consensus for the beginning date of the Romanesque style, with proposals ranging from the 6th to the 11th century, this later date being the most commonly held. While, gothic architecture is an architectural style that was particularly popular in Europe from the late 12th century to the 16th century, during the High and Late Middle Ages, surviving into the 17th and 18th centuries in some areas. It evolved from Romanesque architecture and was succeeded by Renaissance architecture.
ENGLISH RENAISSANCE
Renaissance architecture arrived in England during the reign of Elizabeth I, through the Netherlands, where it acquired versions of the Dutch gable, and Flemish strap work in geometric designs adorning the walls. The new style tended to manifest itself in large square tall houses such as Hardwick hall.
The first great exponent of Renaissance architecture in England was Inigo Jones (1573–1652), who had studied architecture in Italy under the influence of Palladio.
Jones returned to England full of enthusiasm for the new movement and immediately began to design such buildings as the Queen's House at Greenwich in 1616 and the Banqueting House at Whitehall three years later.
These works with their clean lines and symmetry , were revolutionary in a country still obsessed with mullion windows, crenellations and turrets.
English Renaissance are divided into:-
1. Elizabethan (A.D. 1558-1603)
2. Jacobean (A.D. 1603-1625)
3. Anglo- Classic or Baroque (1625 – 1702)
4. Georgian Period (1702 – 1830)
INIGO JONES
Inigo Jones was first responsible for popularizing this in England. Eg. Queens house & the Banqueting house.
He was followed by Robert Adam in the later period who redefined Palladianism , with Neo-classism.
CHRISTOPHER WREN
Sir Christopher Wren was influenced by Bernini & Mansard in Paris.
The great fire of London offered Wren a grand opportunity & he became the architect of rebuilding St.Pauls Cathedral.
He also designed the palaces at Hampton court & Greenwich.
AN INTELLIGENT BUILDING IS THE ONE WHICH PROVIDES A PRODUCTIVE AND
COST-EFFECTIVE ENVIRONMENT THROUGH OPTIMIZATION OF FOUR BASIC
ELEMENTS: STRUCTURE, SYSTEMS, SERVICES AND MANAGEMENT, AND THE
INTERRELATIONSHIP BETWEEN THEM.
IT IS A TYPE OF BUILDING THAT USES BOTH TECHNOLOGY AND PROCESS TO
CREATE AN ENVIRONMENT THAT IS SAFE, HEALTHY, AND COMFORTABLE TO
EVERYONE.
WHAT IS AN INTELLIGENT BUILDING?
A BUILDING…
•
WHO’S SYSTEMS ARE SELF RELIANT
WITH SENSORS RELAYING DATA
THAT USES THE LATEST TECHNOLOGY
THAT IS THE FUTURE OF BUILDINGS
INTELLIGENT BUILDING
: INTELLIGENT BUILDING ADJUSTS THE INSIDE
FUNCTIONAL ASPECTS SUCH AS LIGHTING, VENTILATION, FIRE FIGHTING, AIR
CONDITIONING, ETC. AUTOMATICALLY WITH THE CHANGES IN ENVIRONMENTAL
CONDITIONS CONTROLLED BY COMPUTER.
THE SECURITY SYSTEM, COMMUNICATION SYSTEM, ETC. ARE COORDINATED AND
AUTOMATICALLY CONTROLLED BY COMPUTER WORK STATION.
ORDINARY BUILDING
: ORDINARY BUILDING THERE WILL BE DIFFERENT ROOM
CONDITIONS DEPENDING ON THE CHANGES IN THE ENVIRONMENTAL
CONDITIONS.
THE SECURITY SYSTEM, COMMUNICATION SYSTEM, ETC. ARE NOT
COORDINATED AND AUTOMATICALLY CONTROLLED BY COMPUTER WORK
STATION.
ALL INFORMATION ABOUT ALUMINIUM COMPOSITE PANEL, ALUMINIUM COMPOSITE PANEL (ACP)
ALSO ALUMINIUM COMPOSITE MATERIAL,
(ACM) IS A TYPE OF FLAT PANEL THAT
CONSISTS OF TWO THIN ALUMINIUM
SHEETS BONDED TO A NON ALUMINIUM
CORE. ACPS ARE FREQUENTLY USED FOR
EXTERNAL CLADDING OR FACADES OF
BUILDINGS, INSULATION, AND SIGNAGE.
ALUMINIUM COMPOSITE PANEL CLADDING
IS DONE WITH THE HELP OF 2" X 1" PLAIN
RECTANGULAR TUBE, ADHESIVE TAPE, ACP
SHEET, WEATHERING SEALANT AND TOP
QUALITY HARDWARE.
CASE STUDY OF NATIONAL BUILDING CODE,
Introduction to various building codes in professional practice emphasizing the importance of codes and regulations to protect public health, safety and welfare and to ensure compliance with the local authority.
Philip johnson- history of architectureSelf employed
ACCORDING TO PHILIP JOHNSON ‘CRUTCHES’ BY WHICH ARCHITECTS EVADE THEIR REAL RESPONSIBILITIES ARE:
HISTORY - JUSTIFYING ELEMENTS WHICH ARE EARLIER USED.
UTILITY - IF UTILITY OF A BUILDING OVERCOMES ARTISTIC INVENTIONS ,THEN IT IS MERELY AN ASSEMBLAGE OF USEFUL PARTS.
DESIGN ACCORDING TO HIS BELIEF – “ TO GO AGAINST THE GRAIN”
DECONSTRUCTIVIST ARCHITECTURE – “ HE PRESENTED DESIGN ISSUE IN STRICTLY STYLISTIC TERMS.”
RISE OF ISLAM IN INDIA STARTED WHEN QUTUB-UD-DIN AIBUK THE SLAVE OF MUHAMMAD GHORI WHO CAME TO POWER AFTER HIS MASTERS’ DEATH IN 1206.BEFORE THIS HE WAS JUST THE MIILITARY COMMANDER OF HIS BOSS.HIS EMPIRE EXTENDED FROM LAHORE(PAKISTAN) TO THE YAMUNA AND GANGES PLAINS IN NORTH INDIA. HE RULED FOR FOUR YEARS WHEN HE DIED IN AN ACCIDENT IN 1210.
Bytheendofthe5th centuryAD,Romehadcompletelydeclined.Ithad beensackedtwiceandwasthenunderoccupation.
ItsinfluencewassignificantlyreducedandtheImpetusfor architecturalinnovationshiftedtotheByzantineEmpire.
This shift also marks the movement from early Christian civilizationtothe Byzantinecivilization.
UndertheByzantineEmperorJustinian,theByzantinestyleof architectureevolved.
Hisinterestinchurchbuildingledtothediscoveryofthegroinvault. .andtheevolutionof theByzantinestyle.
COMMON INTERPRETATIONS OF ISLAMIC ARCHITECTURE
D
OME OF ROCK , JERUSALAM
•
G
REAT MOSQUE OF SAMARA AND CORODB DB A
•
UMMAYAD MOSQUE (GRAND MOSQUE OF DAMASCUS)
•
MADRASSA
•
MADRASSA OF SULTAN
Operation “Blue Star” is the only event in the history of Independent India where the state went into war with its own people. Even after about 40 years it is not clear if it was culmination of states anger over people of the region, a political game of power or start of dictatorial chapter in the democratic setup.
The people of Punjab felt alienated from main stream due to denial of their just demands during a long democratic struggle since independence. As it happen all over the word, it led to militant struggle with great loss of lives of military, police and civilian personnel. Killing of Indira Gandhi and massacre of innocent Sikhs in Delhi and other India cities was also associated with this movement.
2024.06.01 Introducing a competency framework for languag learning materials ...Sandy Millin
http://sandymillin.wordpress.com/iateflwebinar2024
Published classroom materials form the basis of syllabuses, drive teacher professional development, and have a potentially huge influence on learners, teachers and education systems. All teachers also create their own materials, whether a few sentences on a blackboard, a highly-structured fully-realised online course, or anything in between. Despite this, the knowledge and skills needed to create effective language learning materials are rarely part of teacher training, and are mostly learnt by trial and error.
Knowledge and skills frameworks, generally called competency frameworks, for ELT teachers, trainers and managers have existed for a few years now. However, until I created one for my MA dissertation, there wasn’t one drawing together what we need to know and do to be able to effectively produce language learning materials.
This webinar will introduce you to my framework, highlighting the key competencies I identified from my research. It will also show how anybody involved in language teaching (any language, not just English!), teacher training, managing schools or developing language learning materials can benefit from using the framework.
The Indian economy is classified into different sectors to simplify the analysis and understanding of economic activities. For Class 10, it's essential to grasp the sectors of the Indian economy, understand their characteristics, and recognize their importance. This guide will provide detailed notes on the Sectors of the Indian Economy Class 10, using specific long-tail keywords to enhance comprehension.
For more information, visit-www.vavaclasses.com
Unit 8 - Information and Communication Technology (Paper I).pdfThiyagu K
This slides describes the basic concepts of ICT, basics of Email, Emerging Technology and Digital Initiatives in Education. This presentations aligns with the UGC Paper I syllabus.
Students, digital devices and success - Andreas Schleicher - 27 May 2024..pptxEduSkills OECD
Andreas Schleicher presents at the OECD webinar ‘Digital devices in schools: detrimental distraction or secret to success?’ on 27 May 2024. The presentation was based on findings from PISA 2022 results and the webinar helped launch the PISA in Focus ‘Managing screen time: How to protect and equip students against distraction’ https://www.oecd-ilibrary.org/education/managing-screen-time_7c225af4-en and the OECD Education Policy Perspective ‘Students, digital devices and success’ can be found here - https://oe.cd/il/5yV
The Art Pastor's Guide to Sabbath | Steve ThomasonSteve Thomason
What is the purpose of the Sabbath Law in the Torah. It is interesting to compare how the context of the law shifts from Exodus to Deuteronomy. Who gets to rest, and why?
We all have good and bad thoughts from time to time and situation to situation. We are bombarded daily with spiraling thoughts(both negative and positive) creating all-consuming feel , making us difficult to manage with associated suffering. Good thoughts are like our Mob Signal (Positive thought) amidst noise(negative thought) in the atmosphere. Negative thoughts like noise outweigh positive thoughts. These thoughts often create unwanted confusion, trouble, stress and frustration in our mind as well as chaos in our physical world. Negative thoughts are also known as “distorted thinking”.
Instructions for Submissions thorugh G- Classroom.pptxJheel Barad
This presentation provides a briefing on how to upload submissions and documents in Google Classroom. It was prepared as part of an orientation for new Sainik School in-service teacher trainees. As a training officer, my goal is to ensure that you are comfortable and proficient with this essential tool for managing assignments and fostering student engagement.
2. • Romanesque = “Roman- like”
• An Architectural style of Medieval
Europe.
• Characterised by semi circular
arches evolving into Gothic style,
characterised by pointed arches
beginning in 12th century.
• Romansque Arch. Is known for
its massive quality, its thick wall,
round arches, sturdy piers, groin
vaults, larger tower, decorative
arcading.
3. CHERACTERISTICS
WALLS:-
• Massive thickness with few and
small openings.
• Double shells filled with rubble.
• Building material depends on local
stone and building tradition.
• Italy,Poland,Germany,Netherland
used brick and others used limestone,
granite and flint.
4. PIERS:-
• Piers used to support arches.
• Built of Masonary and square or
rectangular in section generally
having a horizontal molding
representing a capital at the
springing of arch.
• Sometimes piers have vertical
shafts attached to them also
horizontal mouldigs at the level
of base.
5. • Piers occuring at intersection two large
arches such as under the crossing of
the nave and transept are commonly
cruciform in shape. Each arch having
to own supporting rectangular pier at
right angles to the other.
6. COLUMNS:-
• Important structural feature of Romansque
Architectural.
• Monolithic columns were frequently used
in Italy.
• Arcades of column cut from single pieces
are also common in structure that do not
bear massive weight of masonry.
SALVAGED COLUMN:-
• In Italy, a great number of antique Roman
columns were salvaged and reused in the
interior and on the porticos of churches.
7. CAPITALS:-
• Capitals of Romansque were inspired
from corinthian style.
• The accuracy with which they were
carved dependent very much on availibility
of original models,those in italian churches
such as Pisa cathedral.
• These are round at bottom and sits on
circular column and square at top.

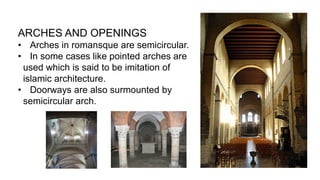

8. ARCHES AND OPENINGS
• Arches in romansque are semicircular.
• In some cases like pointed arches are
used which is said to be imitation of
islamic architecture.
• Doorways are also surmounted by
semicircular arch.
9. VAULTS AND ROOFS:-
• Majority have wooden roofs, generally a simple truss, tie beam or king
post form.
• Vaults of brick and stone took several different form and showed mark
development.

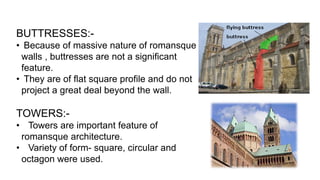

10. BUTTRESSES:-
• Because of massive nature of romansque
walls , buttresses are not a significant
feature.
• They are of flat square profile and do not
project a great deal beyond the wall.
TOWERS:-
• Towers are important feature of
romansque architecture.
• Variety of form- square, circular and
octagon were used.

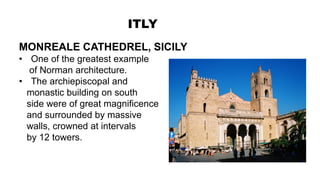

13. ITLY
MONREALE CATHEDREL, SICILY
• One of the greatest example
of Norman architecture.
• The archiepiscopal and
monastic building on south
side were of great magnificence
and surrounded by massive
walls, crowned at intervals
by 12 towers.

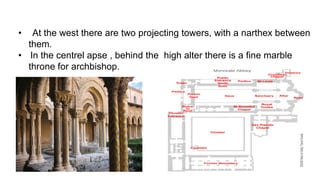

14. • At the west there are two projecting towers, with a narthex between
them.
• In the centrel apse , behind the high alter there is a fine marble
throne for archbishop.
15.
16.
17. PISAN CATHEDREL SQUARE
• Best example of pisan romansque style.
• Completed in 12th century with the 5 rows
of columns and 3 bronze doors.
• The sides and trancepts are embellished
with a decorative strip and lozenges.
• Inside the cathedrel is the tomb of emperor
henry 7th.
• The mozaic of interior show a strong
byzentine influence, while pointed arches
point to muslim inflence.
18. THE LEANING TOWER OF PISA:-
• The structure is a cylindrical tower, with closed
arches in the lower part , then six floor with
loggias and small bell compartment
• Inside a spiral staircase unwinds with 294
steps towards the top.
CEMETRY:-
• The outline is marked off by a rectangular
marble wall begin in 1277.
• Later destroyed by american bombing.
19. BAPISTRY
• A circular building in romansque style
with eight faced pyramidal dome.
• It has 4 entrences, the most notable of
which is the one in front of the cathedrel
with it’s sculptor from the pisan school.
20.
21.
22.

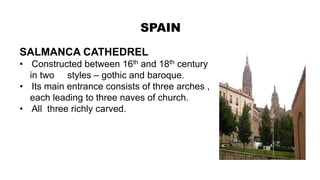

23. SPAIN

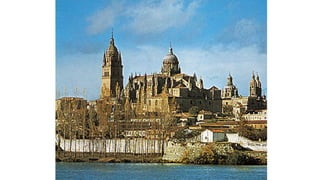

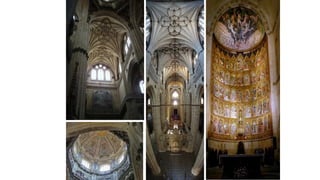

SALMANCA CATHEDREL
• Constructed between 16th and 18th century
in two styles – gothic and baroque.
• Its main entrance consists of three arches ,
each leading to three naves of church.
• All three richly carved.
24.
25.
26.
27. FRANCE
ABBEY CHURCH OF-SAINT ETIENNE
• The nave elevation has three separate
levels becoming traditional norman pattern
but also introduced three major innovation.
• The width of gallaries opening into-the
nave with a single arch.
• The alteration of groups of two bays with
heavy column and two with light,the first
intended to support diaphragm arches and
fire break walls,and third is ambulatory
gallery.

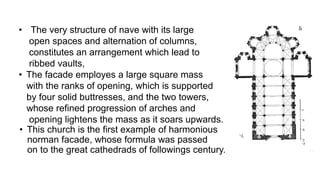

28. • The very structure of nave with its large
open spaces and alternation of columns,
constitutes an arrangement which lead to
ribbed vaults,
• The facade employes a large square mass
with the ranks of opening, which is supported
by four solid buttresses, and the two towers,
whose refined progression of arches and
opening lightens the mass as it soars upwards.
• This church is the first example of harmonious
norman facade, whose formula was passed
on to the great cathedrads of followings century.
29.

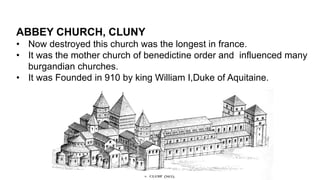

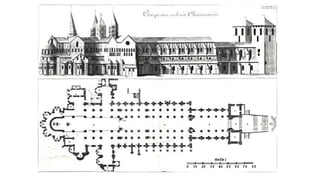

30. ABBEY CHURCH, CLUNY
• Now destroyed this church was the longest in france.
• It was the mother church of benedictine order and influenced many
burgandian churches.
• It was Founded in 910 by king William I,Duke of Aquitaine.
31.

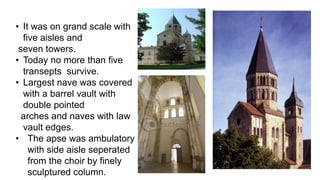

32. • It was on grand scale with
five aisles and
seven towers.
• Today no more than five
transepts survive.
• Largest nave was covered
with a barrel vault with
double pointed
arches and naves with law
vault edges.
• The apse was ambulatory
with side aisle seperated
from the choir by finely
sculptured column.

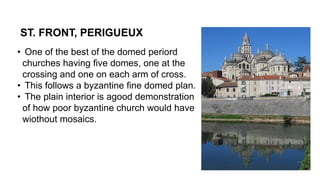

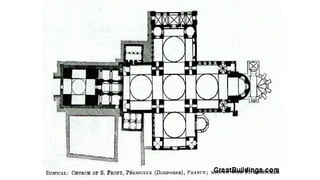

33. ST. FRONT, PERIGUEUX
• One of the best of the domed periord
churches having five domes, one at the
crossing and one on each arm of cross.
• This follows a byzantine fine domed plan.
• The plain interior is agood demonstration
of how poor byzantine church would have
wiothout mosaics.

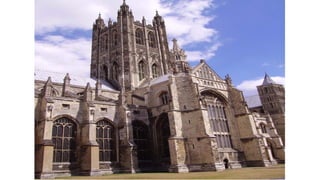

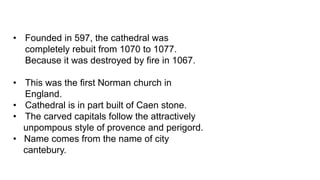

36. • Founded in 597, the cathedral was
completely rebuit from 1070 to 1077.
Because it was destroyed by fire in 1067.
• This was the first Norman church in
England.
• Cathedral is in part built of Caen stone.
• The carved capitals follow the attractively
unpompous style of provence and perigord.
• Name comes from the name of city
cantebury.

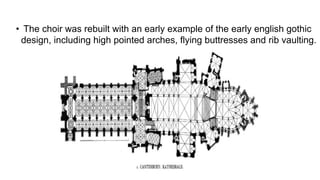

37. • The choir was rebuilt with an early example of the early english gothic
design, including high pointed arches, flying buttresses and rib vaulting.

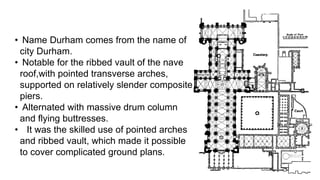

41. • Name Durham comes from the name of
city Durham.
• Notable for the ribbed vault of the nave
roof,with pointed transverse arches,
supported on relatively slender composite
piers.
• Alternated with massive drum column
and flying buttresses.
• It was the skilled use of pointed arches
and ribbed vault, which made it possible
to cover complicated ground plans.
42. • Buttresses made it possible
to build taller buildings and to
open-up the intervening wall
spaces to create large windows.
• The central tower of 66m giving
views of durham and the
surrounding areas.
