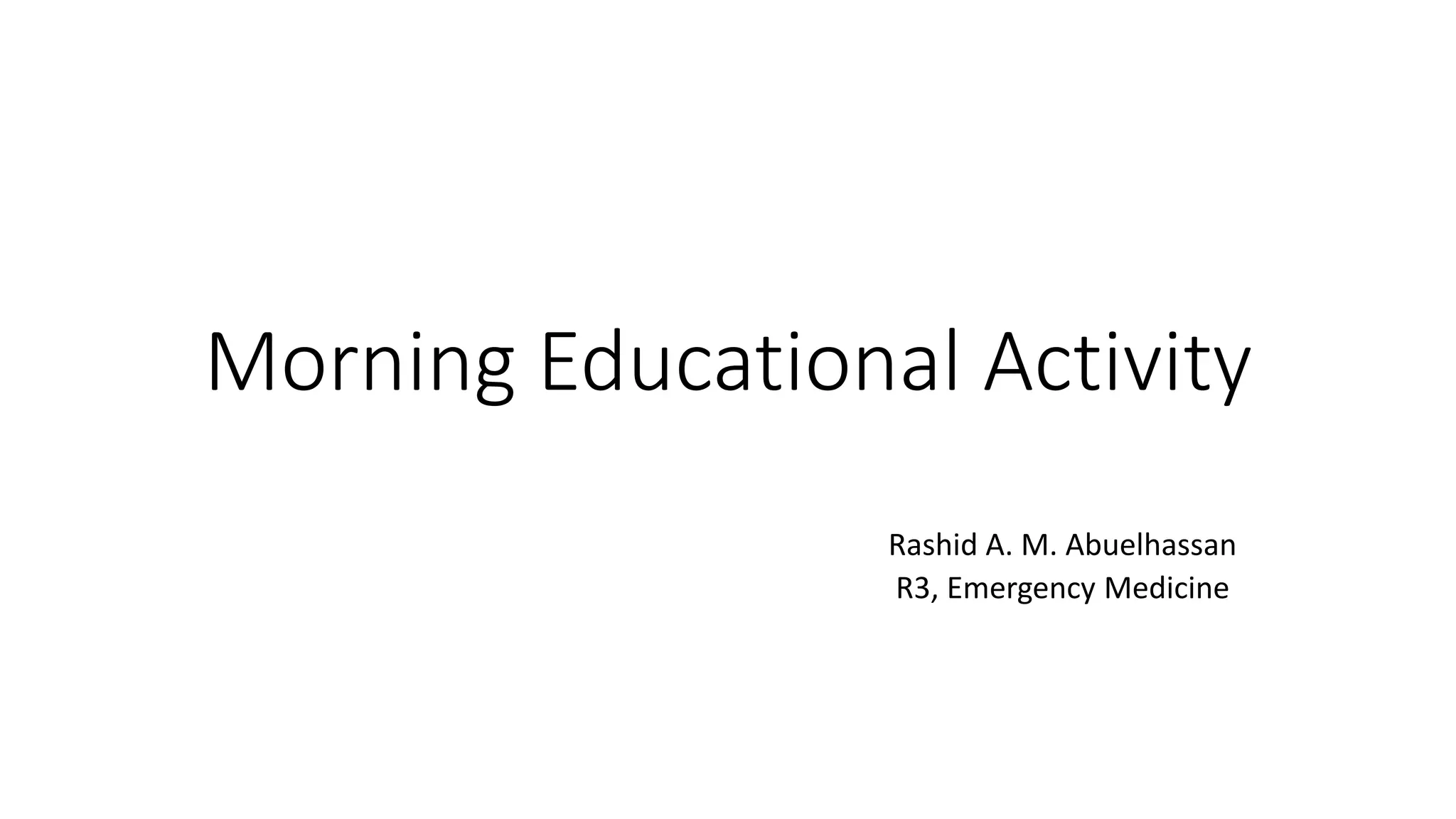

1. Morning Educational Activity
Rashid A. M. Abuelhassan
R3, Emergency Medicine

3. De Winter’s T Waves
Suggestive of proximal LAD lesion
12-Lead ECG findings[5]
Precordial ST-segment depression at the J-point
Tall, peaked, symmetric T waves in the precordial leads
Lead aVR shows slight ST-segment elevation in most cases

5. Posterior MI
RCA (90%), LCA (10%)
12-Lead ECG findings[2]
ST-segment depression (horizontal >> downsloping/upsloping)
Prominent and broad R wave (>30ms)
Relative tall R waves in precordial leads (may find R = S amplitude in V1)[3]
R/S wave ratio >1.0 in lead V2
Prominent, upright T wave
Combination of horizontal ST-segment depression with upright T wave
Posterior ECG or 15-lead ECG may be helpful
V7: Left posterior axillary line along the 5th ICS
V8: Tip of the left scapula line along the 5th ICS
V9: Left paraspinal area line along the 5th ICS
Posterior ECG findings
≥1 mm ST-segment elevation

7. LMCA Occlusion
Seen with occlusion or near-occlusion of the left main artery[4]
Has been reported in occlusion of the proximal left anterior descending
artery and severe multivessel coronary artery disease
12-Lead ECG findings
ST elevation in aVR ≥ 1mm
ST elevation in aVR ≥ V1
ST depression typically seen in lateral

10. Wellens’ Syndrome
Represents critical stenosis of the LAD
Not necessarily STEMI equivalent but will require PCI in the next 24-48hr
12-Lead ECG findings[8]
Deeply-inverted or biphasic T waves in V2-3
Isoelectric or minimally-elevated ST segment (<1 mm)
Absent precordial Q waves with preserved R waves
Two T wave characteristics:
Type A: Biphasic pattern - 25% - Biphasic T-waves (initial + deflection and terminal - deflection)
Type B: Inversion pattern - 75% - Deeply inverted and symmetric T-waves

12. Sgarbossa's Criteria
Original Criteria[6]
≥3 points = 98% probability of STEMI
ST elevation ≥1 mm in a lead with upward (concordant) QRS complex - 5 points
ST depression ≥1 mm in lead V1, V2, or V3 - 3 points
ST elevation ≥5 mm in a lead with downward (discordant) QRS complex - 2 points
Smith's modification[7]
Changes the 3rd rule of original Sgarbossa's Criteria to be ST depression OR elevation
discordant w/ the QRS complex and w/ a magnitude of at least 25% of the QRS increases Sn
from 52% to 91% at the expense of reducing Sp from 98% to 90%

13. STEMI equivalents
• Posterior MI
• LMCA Occlusion
• De Winter’s T Waves
• Sgarbossa's Criteria
• Wellens’ Syndrome

14. Assessing the Ejection Fraction
• Fractional shortening (FS)
= (LVEDD-LVESD/LVEDD)100 (25%-45%)
• Simpson’s Method
(Method of Discs)
• E-point septal separation (EPSS)

15. • inaccurate in
• mitral stenosis
• Calcification
• significant aortic insufficiency
• dilation of the mitral annulus from
dilated cardiomyopathy

16. Steps
• parasternal long axis window

17. • If the MV is touching the septum
 55%.
• Not  distance from MV during
the E-point and the septum
• A distance <0.7cm is normal EF.
• A distance >1.0cm is consistent with
a reduced ejection fraction.
• LVEF = 75.5 − 2.5 × EPSS

19. Thank you
