1. Star Network and its
advantages
.
1

2. In the previous classes, you have learnt about
 Store and forward switch
 Cut through switch mechanisms
2

3. On completion of this period, you would be able
to know about
 Star Network topology
 Its Advantages
 Store and Forward and adaptive switching mechanism
3

4.  Star Network Topology Fig.1 illustrates the star
network topology
• A star topology typically uses a network hub or
switch and is common in home networks
4

5. HUB
Fig.1 Star Network
5

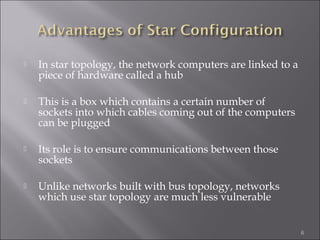

6.  In star topology, the network computers are linked to a
piece of hardware called a hub
 This is a box which contains a certain number of
sockets into which cables coming out of the computers
can be plugged
 Its role is to ensure communications between those
sockets
 Unlike networks built with bus topology, networks
which use star topology are much less vulnerable
6

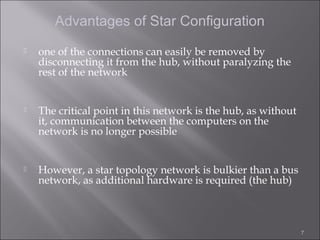

7. Advantages of Star Configuration
 one of the connections can easily be removed by
disconnecting it from the hub, without paralyzing the
rest of the network
 The critical point in this network is the hub, as without
it, communication between the computers on the
network is no longer possible
 However, a star topology network is bulkier than a bus
network, as additional hardware is required (the hub)
7

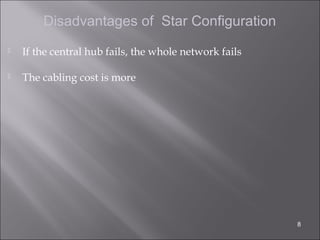

8. Disadvantages of Star Configuration
 If the central hub fails, the whole network fails
 The cabling cost is more
8

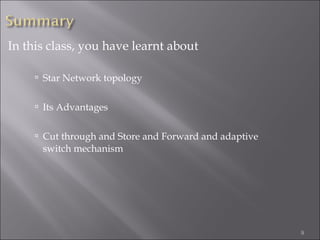

9. In this class, you have learnt about
 Star Network topology
 Its Advantages
 Cut through and Store and Forward and adaptive
switch mechanism
9

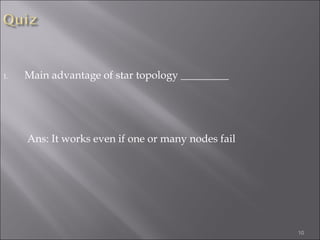

10. 1. Main advantage of star topology _________
Ans: It works even if one or many nodes fail
10

11. Quiz

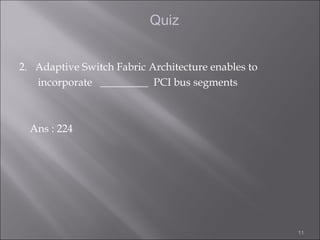

2. Adaptive Switch Fabric Architecture enables to
incorporate _________ PCI bus segments
Ans : 224
11

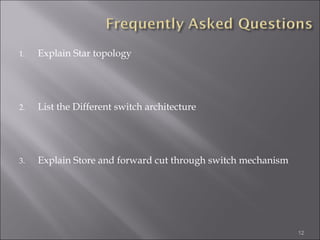

12. 1. Explain Star topology
2. List the Different switch architecture
3. Explain Store and forward cut through switch mechanism
