Satellite pro s300L
The document summarizes the key features and specifications of the Satellite Pro S300L laptop. It provides affordable quality with an Intel Core 2 Duo processor, up to 2GB RAM, and a 15.4" widescreen display. It offers reliable and versatile connectivity through options like 802.11n WiFi, Gigabit Ethernet, and a built-in webcam. Toshiba's EasyGuard software and hardware features provide carefree mobile computing with protections like spill-resistant keyboards and shock absorption.
More Related Content
Satellite pro s300L
- 1.

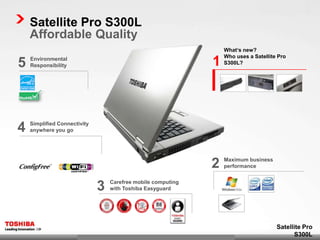

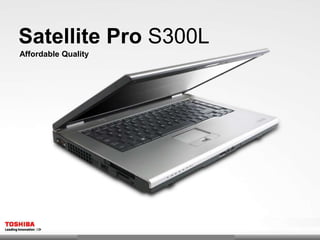

- 2. Satellite Pro S300L Affordable Quality What‘s new? Who uses a Satellite Pro 5 Environmental Responsibility 1 S300L? 4 Simplified Connectivity anywhere you go 2 Maximum business performance Carefree mobile computing 3 with Toshiba Easyguard Satellite Pro S300L
- 3. Home Top Reasons tobuy a Satellite Pro S300L Reliable and Affordable Outstanding Versatile Quality Connectivity • Web camera • Drop tested up to 70cm • Supporting WLAN Draft-N • External s-ata port • Spill resistant keyboard up to • Toshiba Universal Dynadock 30 ml • 3D accelerometer for HDD • Toshiba HDD Shock Protection Latest Convincing Toshiba Intel® Visibility EasyGuard Mobile CPU’s • Intel® Centrino® 2 vPro • 15.4 inch widescreen with • Toshiba Health Monitor: • Frequency: Up to 2.2 GHz WXGA Resolution (1280 x 800) Tracks temperature, HDD and • Level2 Cache: Up to 2MB • TruBright® TFT with 200 cd/m2 battery status • Front Side Bus: 800 MHz • Mobile Intel® GMA 4500MHD • Toshiba ConfigFree™: with up to 1,340MB graphics Easy and secure connection to memory wired or wireless networks Tecra A10
- 4. Home Who uses aSatellite Pro S300L? SOHO: Small Office, Home Office • Best combination of portability, security and performance • High level of robustness ensuring long durability SMB: Small and medium-sized Business • Small companies looking for powerful, highly mobile computing solution • Extended battery options for maximum flexibility • High specification at competitive price • Toshiba EasyGuard – Carefree mobile computing - Reduced TCO Satellite Pro S300L
- 5. Home Main Processor Intel® Core™2Duo Processor Specifications • Intel® Core™2 Duo Processor Technology featuring: - Core™2 T5870 / T6670 - Clock Speed: Up to 2.2 GHz - Cache: Up to 2 MB Level II Cache - Front Side Bus: 800 MHz - Dual Core technology - 64-Bit processor - Execute Disable Bit (XD Bit) support - Enhanced Intel® Speedstep Technology Satellite Pro S300L

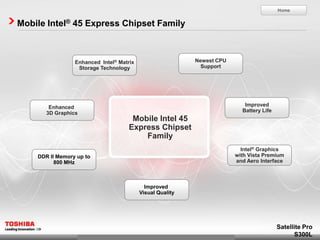

- 6. Home Mobile Intel® 45Express Chipset Family Enhanced Intel® Matrix Newest CPU Storage Technology Support Enhanced Improved 3D Graphics Battery Life Mobile Intel 45 Express Chipset Family Intel® Graphics DDR II Memory up to with Vista Premium 800 MHz and Aero Interface Improved Visual Quality Satellite Pro S300L

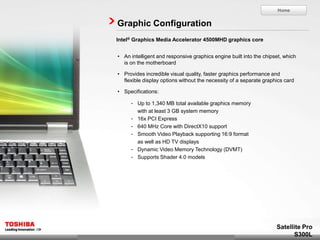

- 7. Home Graphic Configuration Intel® GraphicsMedia Accelerator 4500MHD graphics core • An intelligent and responsive graphics engine built into the chipset, which is on the motherboard • Provides incredible visual quality, faster graphics performance and flexible display options without the necessity of a separate graphics card • Specifications: - Up to 1,340 MB total available graphics memory with at least 3 GB system memory - 16x PCI Express - 640 MHz Core with DirectX10 support - Smooth Video Playback supporting 16:9 format as well as HD TV displays - Dynamic Video Memory Technology (DVMT) - Supports Shader 4.0 models Satellite Pro S300L

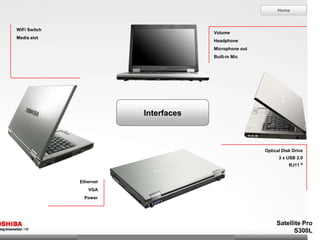

- 8. Home WiFi Switch Volume Media slot Headphone Microphone out Built-in Mic Interfaces Optical Disk Drive 3 x USB 2.0 RJ11 ® Ethernet VGA Power Satellite Pro S300L
- 9. Home Communication Capabilities 1. Integrated 1.3 Megapixel web camera • Ideal cost-effective solution for video conferencing or videochats and delivering outstanding wireless video experiences over IP-based networks 2. Integrated microphone • With echo/noise cancellation enabling high-quality, real- time voice over IP-based networks Satellite Pro S300L
- 10. Toshiba EasyGuard Carefree MobileComputing You’ll get built-in assistance with Toshiba Assist, a graphical user interface that provides direct access to: • PC diagnostics • Expansion, connectivity, security • Manageability utilities • Added productivity features
- 11. Home Toshiba EasyGuard -Carefree Mobile Computing Overview Security Protect Connect Manage • The better way to enhance data security, advanced system protection, easy connectivity and simplified manageability: - Enabling optimal connectivity and security - Toshiba anti-accident innovations - Advanced software utilities for carefree mobile computing • You’ll get built-in assistance with Toshiba Assist, a graphical user interface that provides direct access to: - PC diagnostics - Expansion, connectivity, security and manageability utilities - Added productivity features
- 12. Home Toshiba EasyGuard -Carefree Mobile Computing Overview Security Protect Connect Manage • Software and hardware features that deliver enhanced system and data security including: - Advanced Instant Security - Advanced Encryption including BitLocker™ and Trusted Platform Module (TPM) - Execute Disable Bit (XD-Bit) - Computrace® enabled BIOS
- 13. Home Toshiba EasyGuard -Carefree Mobile Computing Overview Security Protect Connect Manage • Anti-accident design features and diagnostics utilities for maximum uptime including: - Spill-resistant Keyboard 30 ml tested - HDD Protection with 3D accelerometer - Toshiba Anti-Theft Protection Timer - Shock Protection Design 70 cm drop tested - Durable design
- 14. Home Toshiba EasyGuard -Carefree Mobile Computing Overview Security Protect Connect Manage • Features and software utilities that ensure reliable wired and wireless connectivity including: - Toshiba ConfigFree™ Utility - Diversity Antenna - Video/Voice over IP ready - Wireless LAN: 802.11a/g/Draft-N
- 15. Home Toshiba EasyGuard -Carefree Mobile Computing Overview Security Protect Connect Manage • Features to manage the system to be more productive including: - Toshiba Management Console - Toshiba Power Saver Utility - Intel® Virtualization Technology

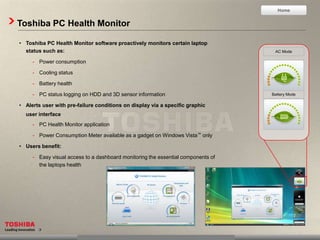

- 16. Home Toshiba PC HealthMonitor • Toshiba PC Health Monitor software proactively monitors certain laptop status such as: AC Mode - Power consumption - Cooling status - Battery health - PC status logging on HDD and 3D sensor information Battery Mode • Alerts user with pre-failure conditions on display via a specific graphic user interface - PC Health Monitor application - Power Consumption Meter available as a gadget on Windows Vista™ only • Users benefit: - Easy visual access to a dashboard monitoring the essential components of the laptops health
- 17. Home Toshiba PC HealthMonitor - Cooling Alert User Scenario • PC Health Monitor always watches cooling status • Display popup alert if pre-failure detected • Message of cause and action • Recommend to start the Cooling Diagnostics Tool Cooling Diagnostic Tool is testing functionality of internal cooling system and provides solutions. Testing… Result Message Maintenance: Customer cleans thermal unit

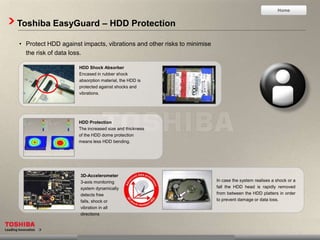

- 18. Home Toshiba EasyGuard –HDD Protection • Protect HDD against impacts, vibrations and other risks to minimise the risk of data loss. HDD Shock Absorber Encased in rubber shock absorption material, the HDD is protected against shocks and vibrations. HDD Protection The increased size and thickness of the HDD dome protection means less HDD bending. 3D-Accelerometer 3-axis monitoring In case the system realises a shock or a system dynamically fall the HDD head is rapidly removed detects free from between the HDD platters in order falls, shock or to prevent damage or data loss. vibration in all directions
- 19. Home Importance of HDDProtection • HDD is sensitive to shock and vibration: - When the laptop is in a mobile mode or simply moved, the hard disk drive is facing strong vibration and even shocks - When reading or writing, disks are spinning rapidly and non-contact (floating) head is hovering over it - Contact of the head and disk caused by unexpected shock or vibration may damage a disk causing to lose data or even destroy HDD Unload head from HDD disks Improvement durability of HDD Data survives Normal state Unloading Toshiba HDD Protection works to prevent your HDD from being damaged from shock and vibration.
- 20. Home Toshiba EasyGuard -Spill-resistant Keyboard • Prevents system damage from accidental spills up to 30 ml on the keyboard and gives the user at least three minutes to close any open files and turn off the machine • Spill-Resistant Test Set-Up - Step 1: Liquid is spilled along a test route - Step 2: Shut down PC after three minutes - Step 3: System boot up without failure After 3 minutes Volume of Liquid Result Up to 30 ml Water OK Up to 30 ml Coffee OK Up to 30 ml Soda OK Up to 30 ml Beer OK Root of spill resistant test 1 2 3 1 The target is to save the data and shut down within 3 min
- 21. Home Toshiba EasyGuard –Additional features Toshiba Anti-theft Protection Timer Allows users to set up a timer-activated BIOS password that will prevent unauthorised system access in the event of theft. Computrace® support BIOS This multi-layered optional third party security software solution provides a theft protection service to track, locate and recover stolen laptops by using a small, undetectable software agent.

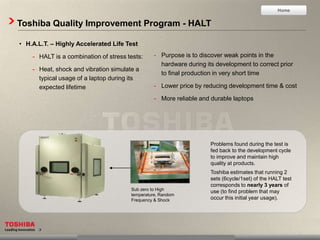

- 22. Home Toshiba Quality ImprovementProgram - HALT • H.A.L.T. – Highly Accelerated Life Test - HALT is a combination of stress tests: - Purpose is to discover weak points in the hardware during its development to correct prior - Heat, shock and vibration simulate a to final production in very short time typical usage of a laptop during its expected lifetime - Lower price by reducing development time & cost - More reliable and durable laptops Problems found during the test is fed back to the development cycle to improve and maintain high quality at products. Toshiba estimates that running 2 sets (6cycle/1set) of the HALT test corresponds to nearly 3 years of Sub zero to High use (to find problem that may temperature, Random Frequency & Shock occur this initial year usage).
- 23. Home Extensive Connectivity Capabilities 1. Wireless LAN (802.11) - Supports Wireless LAN a/b/g/Draft-N - Next-generation wireless network module - Performance up to five times improved vs. previous wireless technology - Increasing laptop battery operating times - Reduced power consumption 2. 10/100 Ethernet LAN 3. Diversity Antenna - Toshiba-patented innovation that features two wireless LAN antennae on top of the LCD. - Provides a stable, reliable wireless experience by automatically adjusting signal reception for optimal connectivity. Satellite Pro S300L

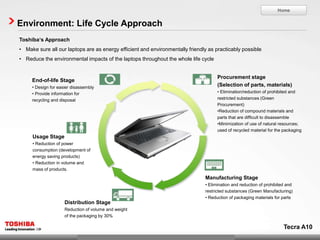

- 24. Home Environment: Life CycleApproach Toshiba‘s Approach • Make sure all our laptops are as energy efficient and environmentally friendly as practicably possible • Reduce the environmental impacts of the laptops throughout the whole life cycle Procurement stage End-of-life Stage • Design for easier disassembly (Selection of parts, materials) • Provide information for • Elimination/reduction of prohibited and recycling and disposal restricted substances (Green Procurement) •Reduction of compound materials and parts that are difficult to disassemble •Minimization of use of natural resources; used of recycled material for the packaging Usage Stage • Reduction of power consumption (development of energy saving products) • Reduction in volume and mass of products. Manufacturing Stage • Elimination and reduction of prohibited and restricted substances (Green Manufacturing) • Reduction of packaging materials for parts Distribution Stage Reduction of volume and weight of the packaging by 30% Tecra A10

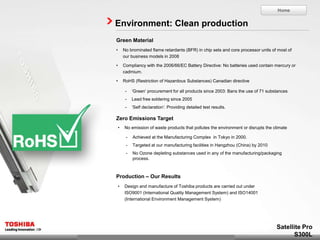

- 25. Home Environment: Clean production GreenMaterial • No brominated flame retardants (BFR) in chip sets and core processor units of most of our business models in 2008 • Compliancy with the 2006/66/EC Battery Directive: No batteries used contain mercury or cadmium. • RoHS (Restriction of Hazardous Substances) Canadian directive - ‘Green’ procurement for all products since 2003: Bans the use of 71 substances - Lead free soldering since 2005 - ‘Self declaration’: Providing detailed test results. Zero Emissions Target • No emission of waste products that pollutes the environment or disrupts the climate - Achieved at the Manufacturing Complex in Tokyo in 2000. - Targeted at our manufacturing facilities in Hangzhou (China) by 2010 - No Ozone depleting substances used in any of the manufacturing/packaging process. Production – Our Results • Design and manufacture of Toshiba products are carried out under ISO9001 (International Quality Management System) and ISO14001 (International Environment Management System) Satellite Pro S300L
- 26. Home Environment: Efficient PowerConsumption & End of Life Return and Recycling • Product design simplifies disassembly and recycling of materials • Packaging consists of 100% recycled cardboard and other recycled materials (up to 80%), new high-performance material without Styrene or CFC and PVC free. Energy Star 5.0 Qualified • Program sets energy efficiency guidelines to help users save money and reduce greenhouse gas emissions. • The Energy Star sticker is affixed on all qualified Toshiba B2B laptops. Information and Transparency • Eco declaration - The measurement of power consumption is done according to ENERGY STAR 4.0. Satellite Pro S300L

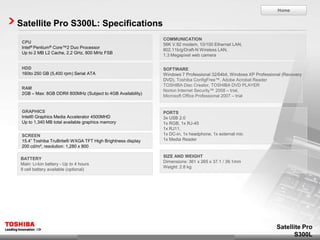

- 27. Home Satellite Pro S300L:Specifications COMMUNICATION CPU 56K V.92 modem, 10/100 Ethernet LAN, Intel® Pentium® Core™2 Duo Processor 802.11b/g/Draft-N Wireless LAN, Up to 2 MB L2 Cache, 2.2 GHz, 800 MHz FSB 1.3 Megapixel web camera HDD SOFTWARE 160to 250 GB (5,400 rpm) Serial ATA Windows 7 Professional 32/64bit, Windows XP Professional (Recovery DVD), Toshiba ConfigFree™, Adobe Acrobat Reader TOSHIBA Disc Creator, TOSHIBA DVD PLAYER RAM Norton Internet Security™ 2008 – trial, 2GB – Max: 8GB DDRII 800MHz (Subject to 4GB Availability) Microsoft Office Professional 2007 – trial GRAPHICS PORTS Intel® Graphics Media Accelerator 4500MHD 3x USB 2.0 Up to 1,340 MB total available graphics memory 1x RGB, 1x RJ-45 1x RJ11, SCREEN 1x DC-in, 1x headphone, 1x external mic 15.4” Toshiba TruBrite® WXGA TFT High Brightness display 1x Media Reader 200 cd/m², resolution: 1,280 x 800 SIZE AND WEIGHT BATTERY Dimensions: 361 x 265 x 37.1 / 39.1mm Main: Li-Ion battery - Up to 4 hours Weight: 2.8 kg 9 cell battery available (optional) Satellite Pro S300L
