- 1. Social Design For Augmented Reality The WebAnd Beyond Amsterdam | June 2010
- 2. Joe Lamantia Experience Design& Strategy @moJoe JoeLamantia.com Joe.Lamantia@gmail.com
- 3. The future... Beyond Findability:Frameworks IA Summit 2009 | Joe Lamantia | MediaCatalyst 3
- 4.
- 5.
- 6.
- 7.
- 8. Cloud Computing Augmente d

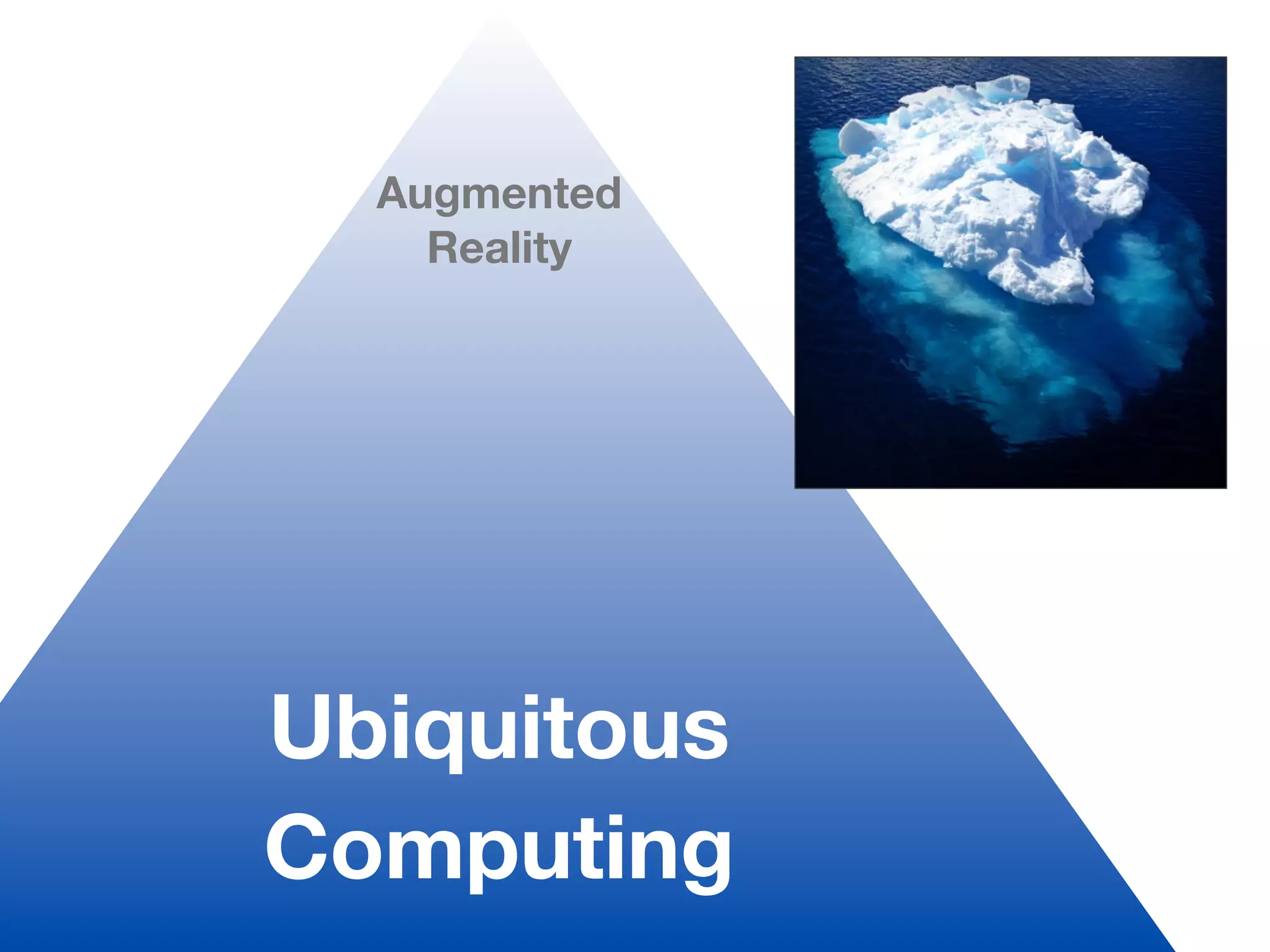

- 9. Augmented Reality Ubiquitous Computing

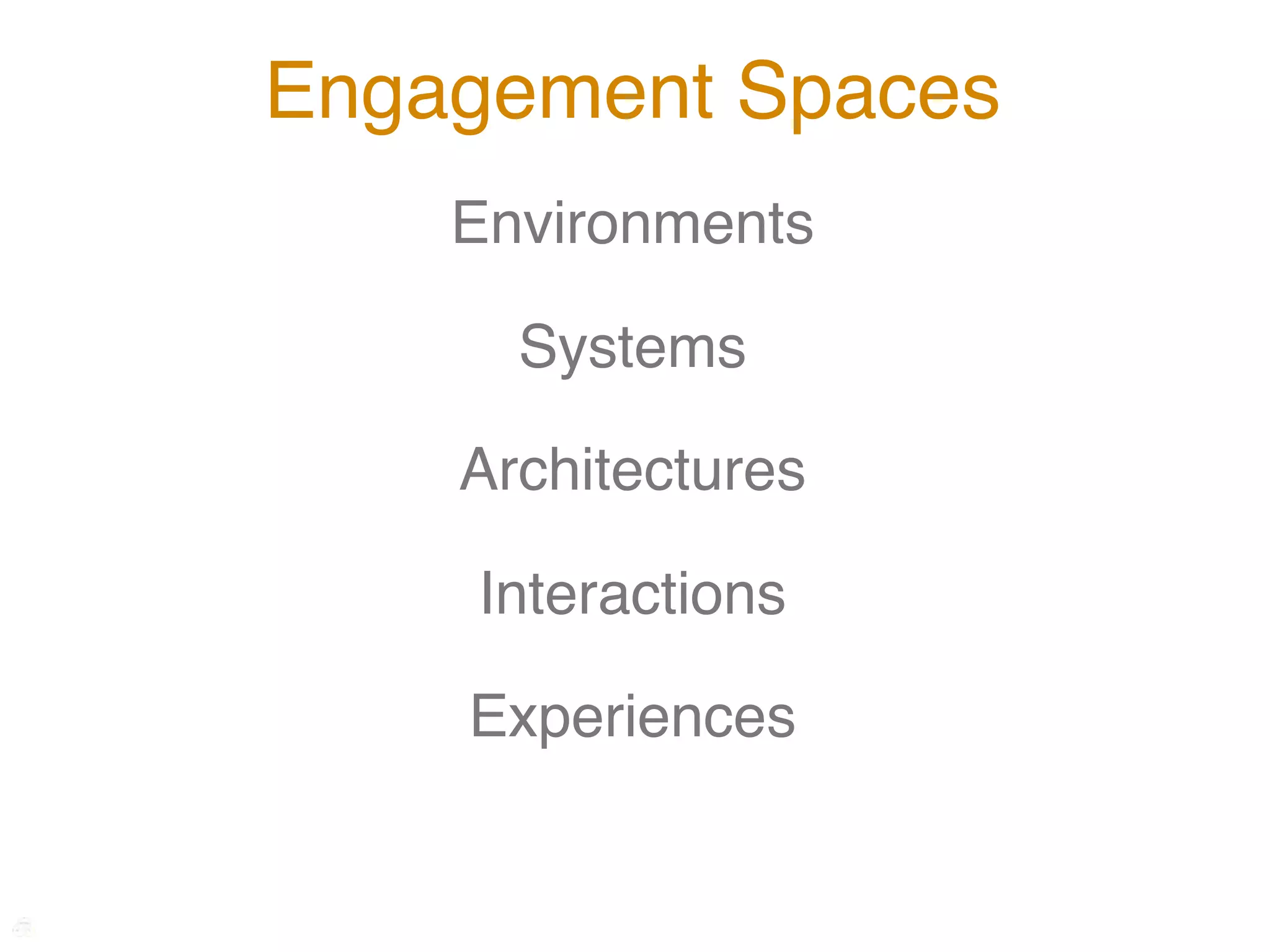

- 10. Engagement Spaces Environments Systems Architectures Interactions Experiences

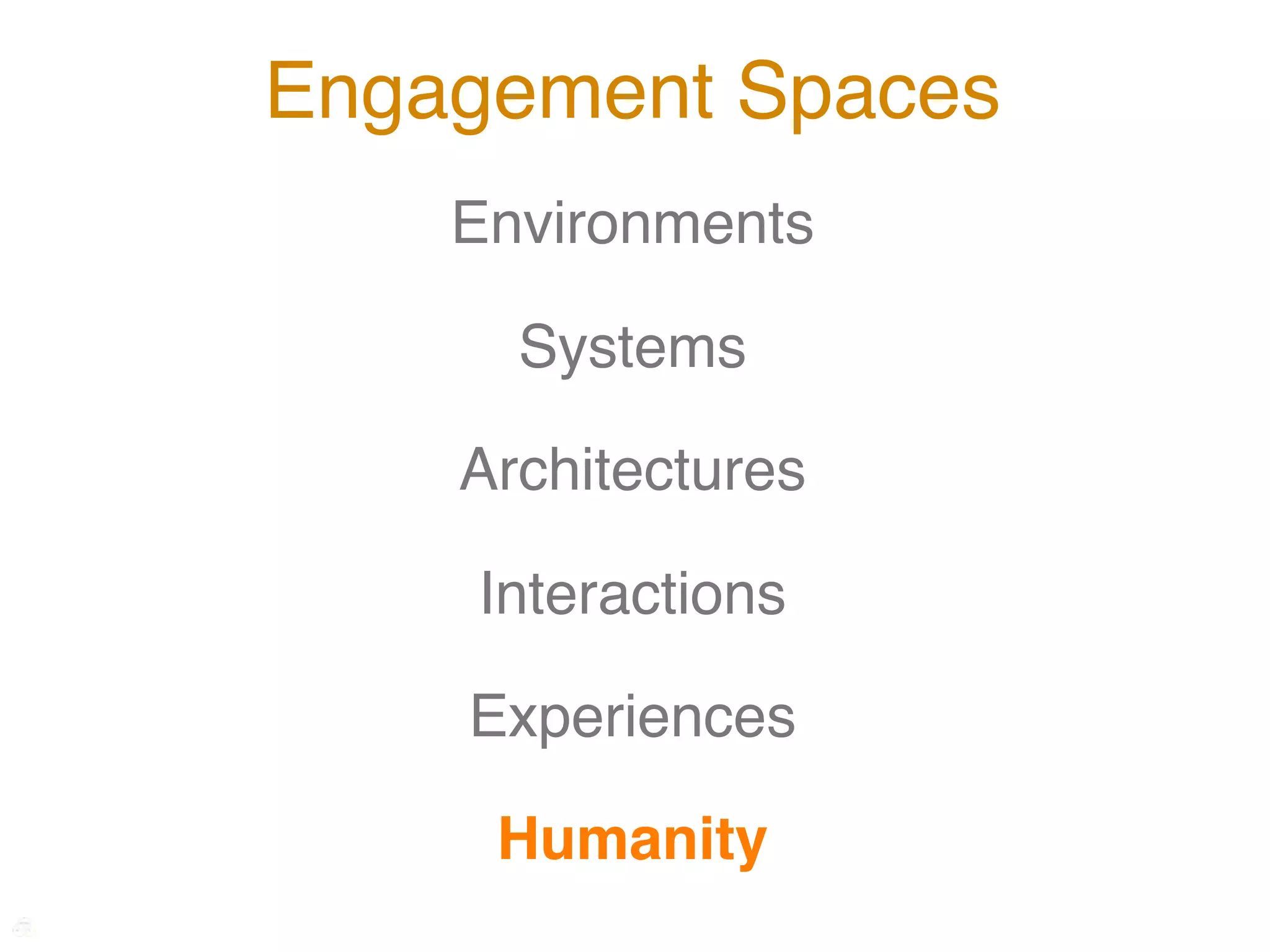

- 11. Engagement Spaces Environments Systems Architectures Interactions Experiences Humanity

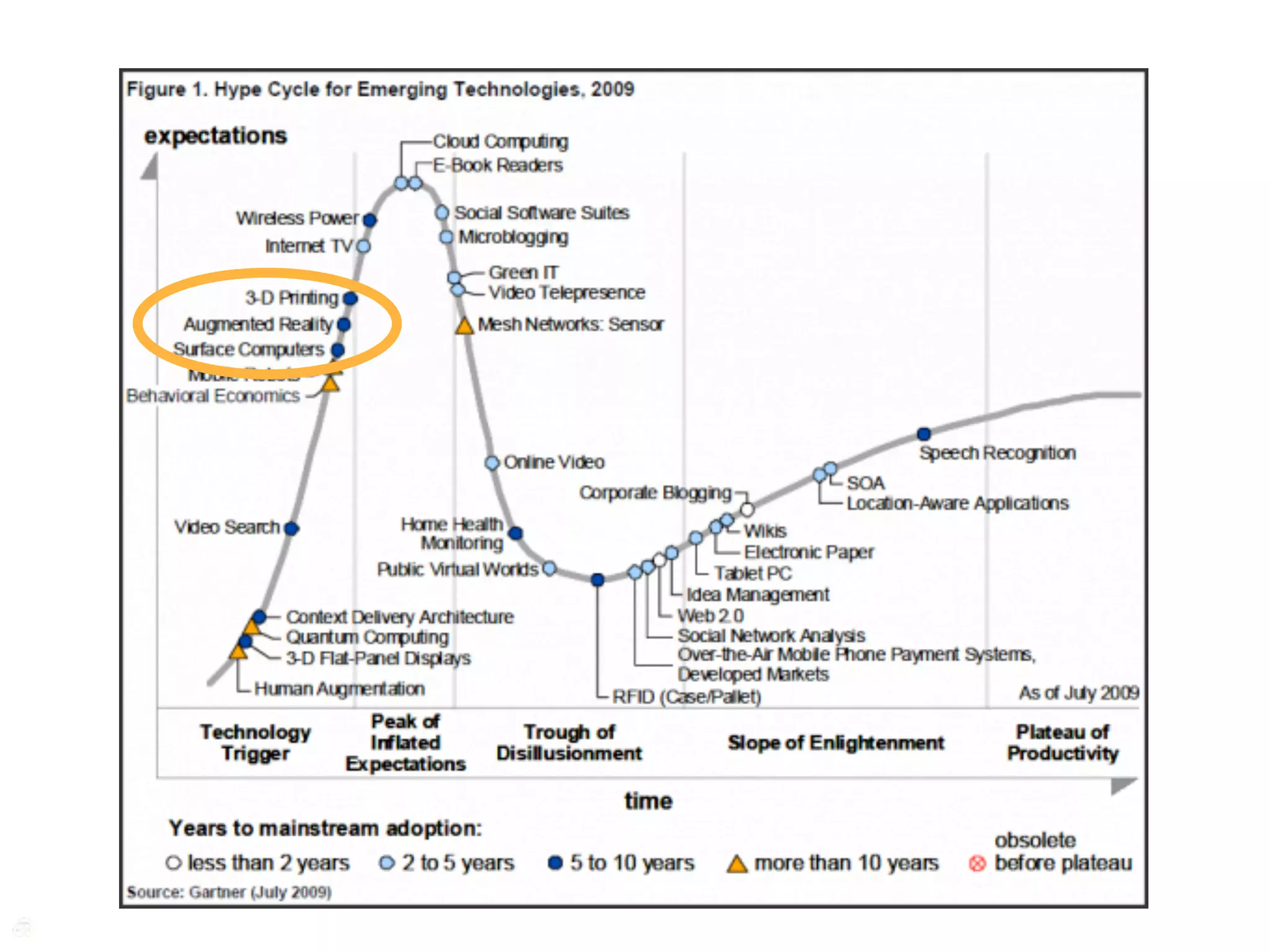

- 13.
- 14.
- 15. “Cyberspace has leaked intothe real world. …what was inside the box …is outside.” Vernor Vinge
- 16.

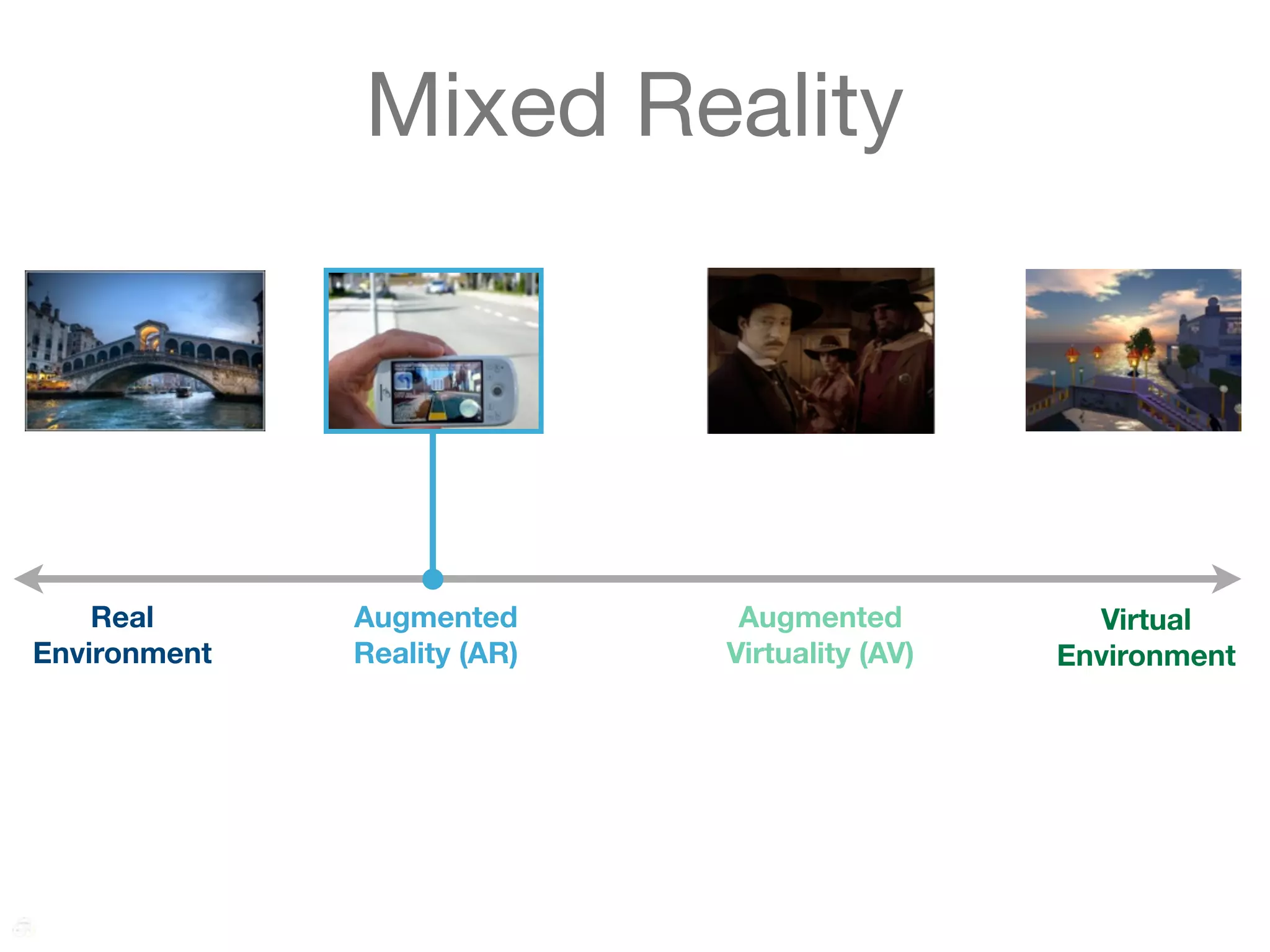

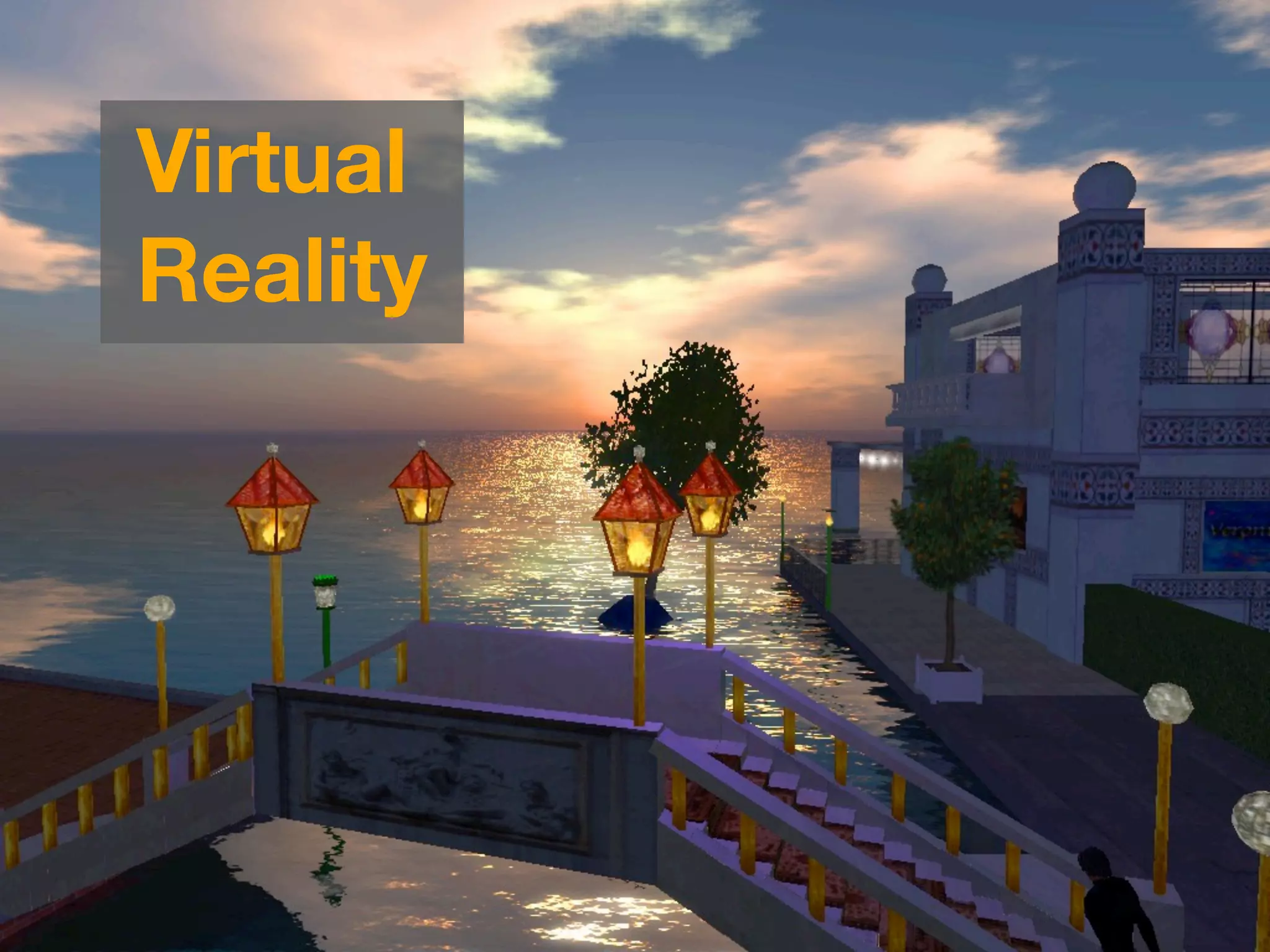

- 17. Mixed Reality Real Augmented Augmented Virtual Environment Reality (AR) Virtuality (AV) Environment

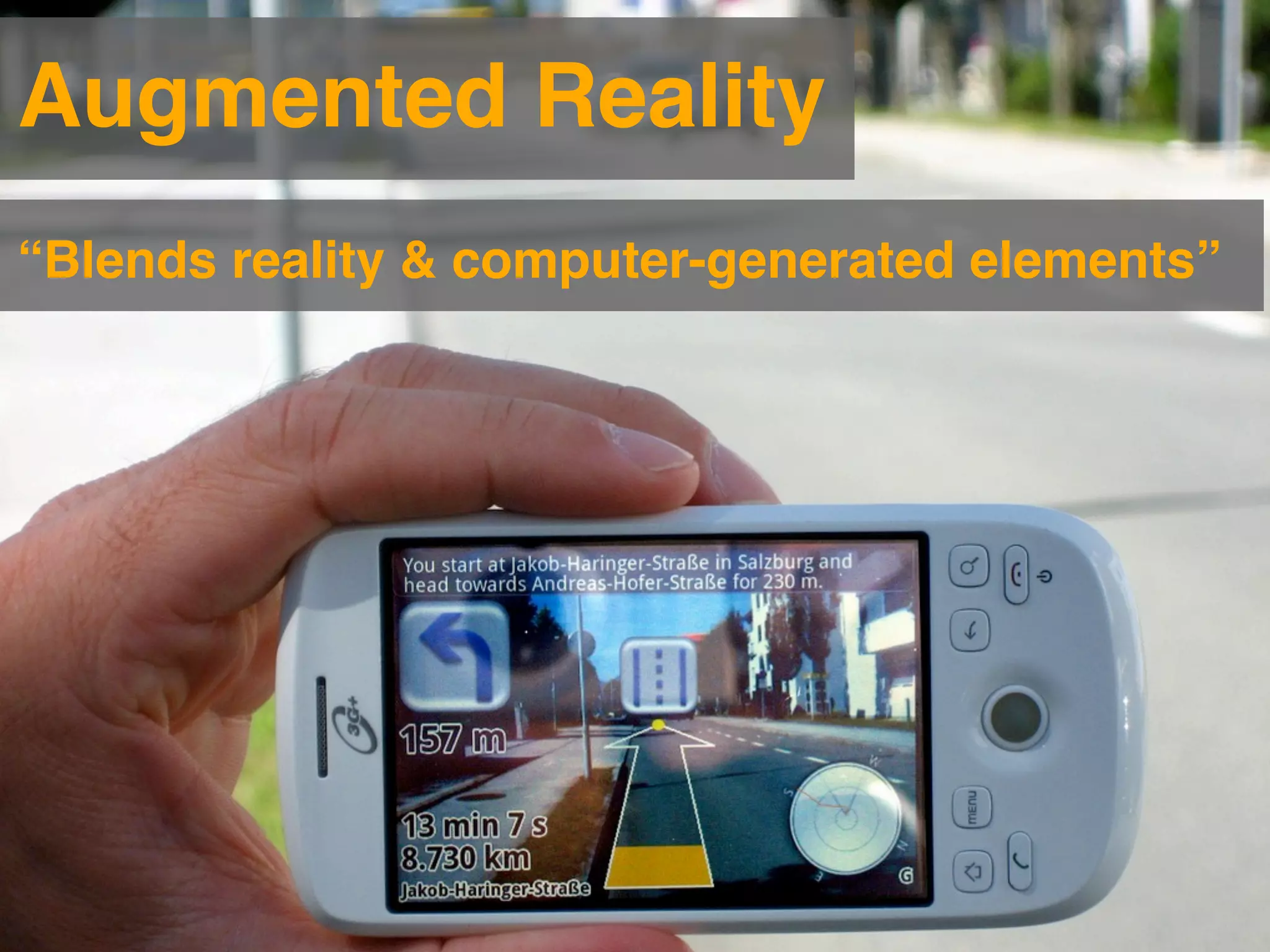

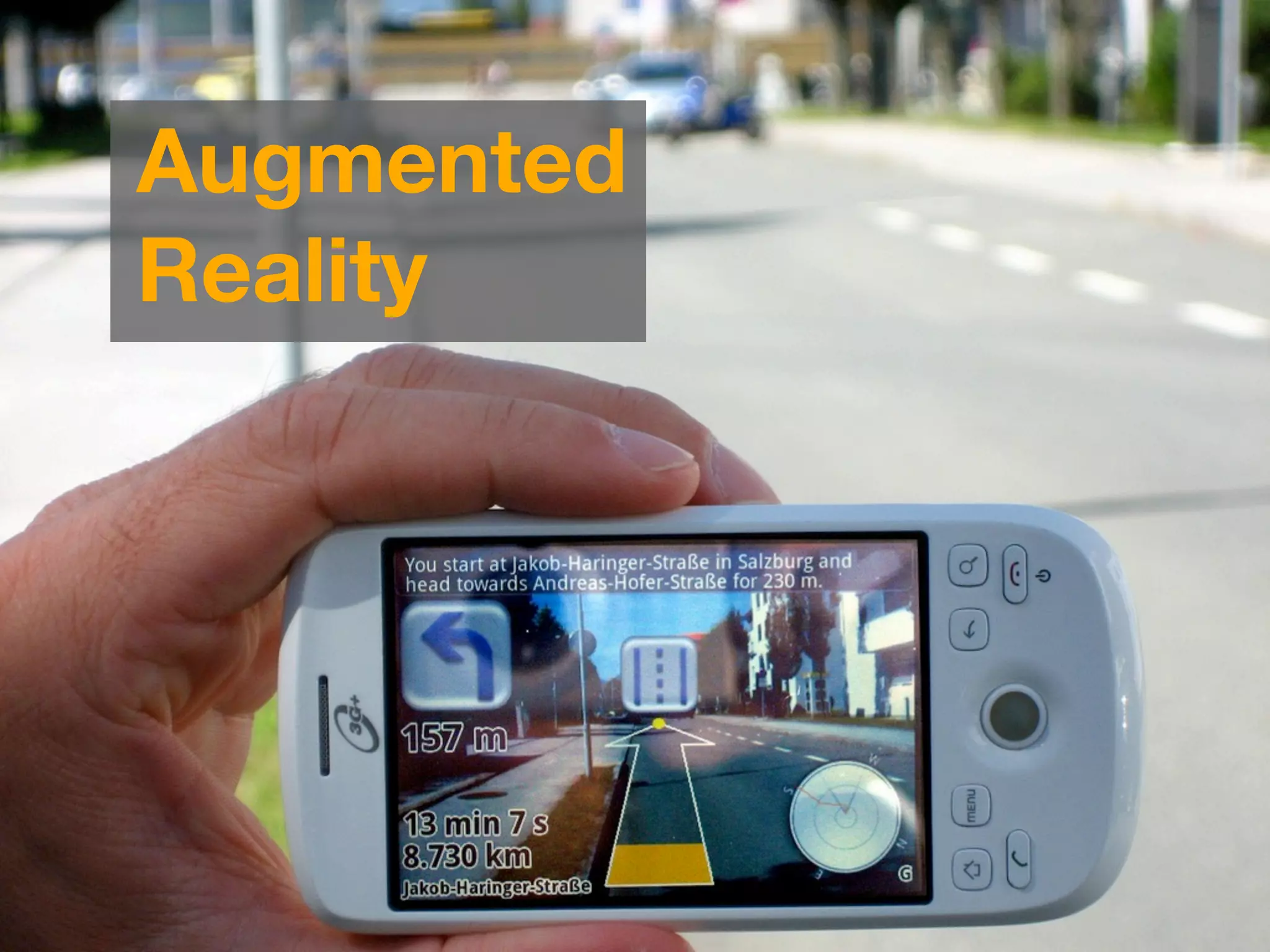

- 18. Augmented Reality “Blends reality& computer-generated elements”
- 19.

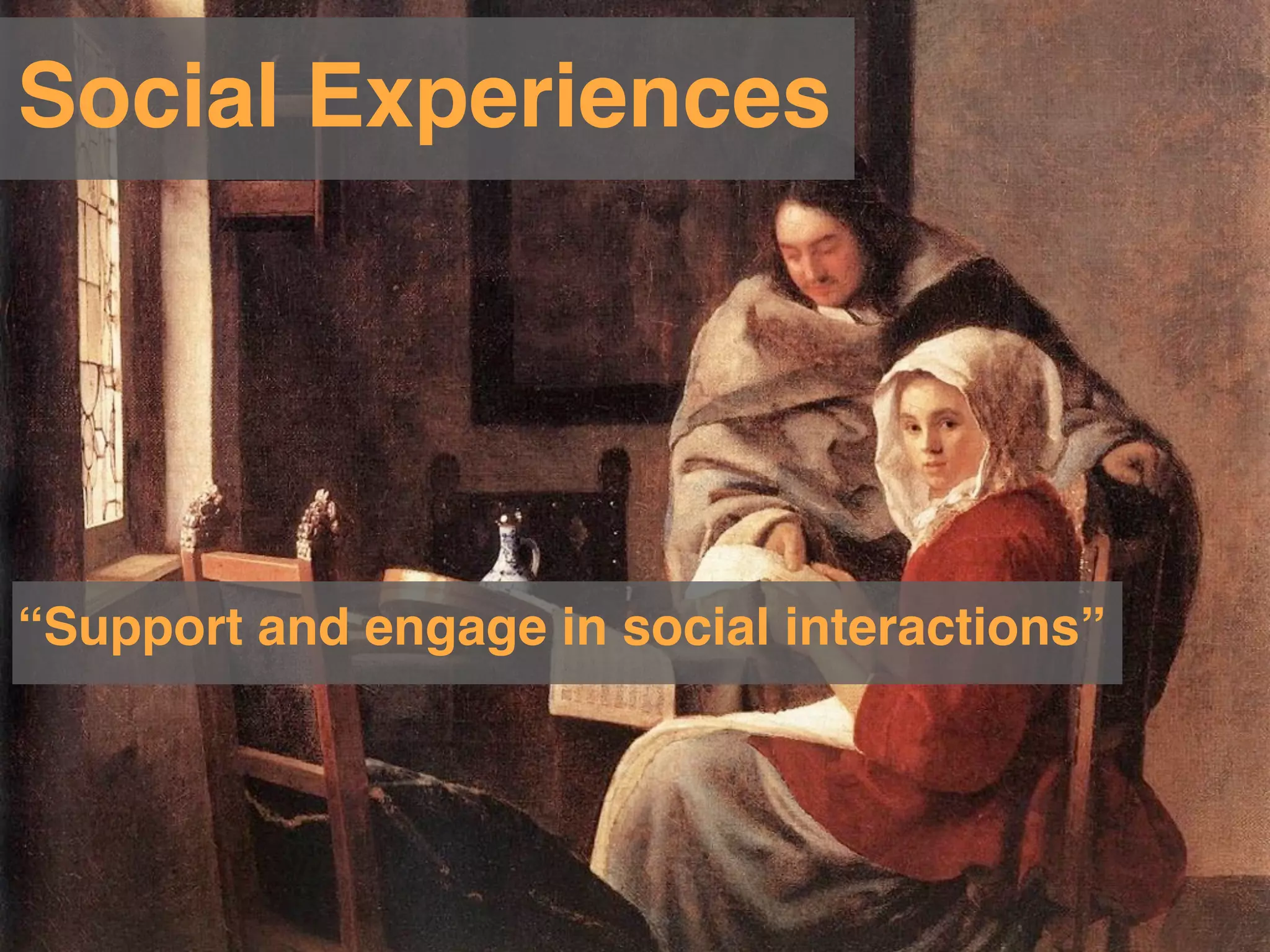

- 20. Social Experiences “Support andengage in social interactions”

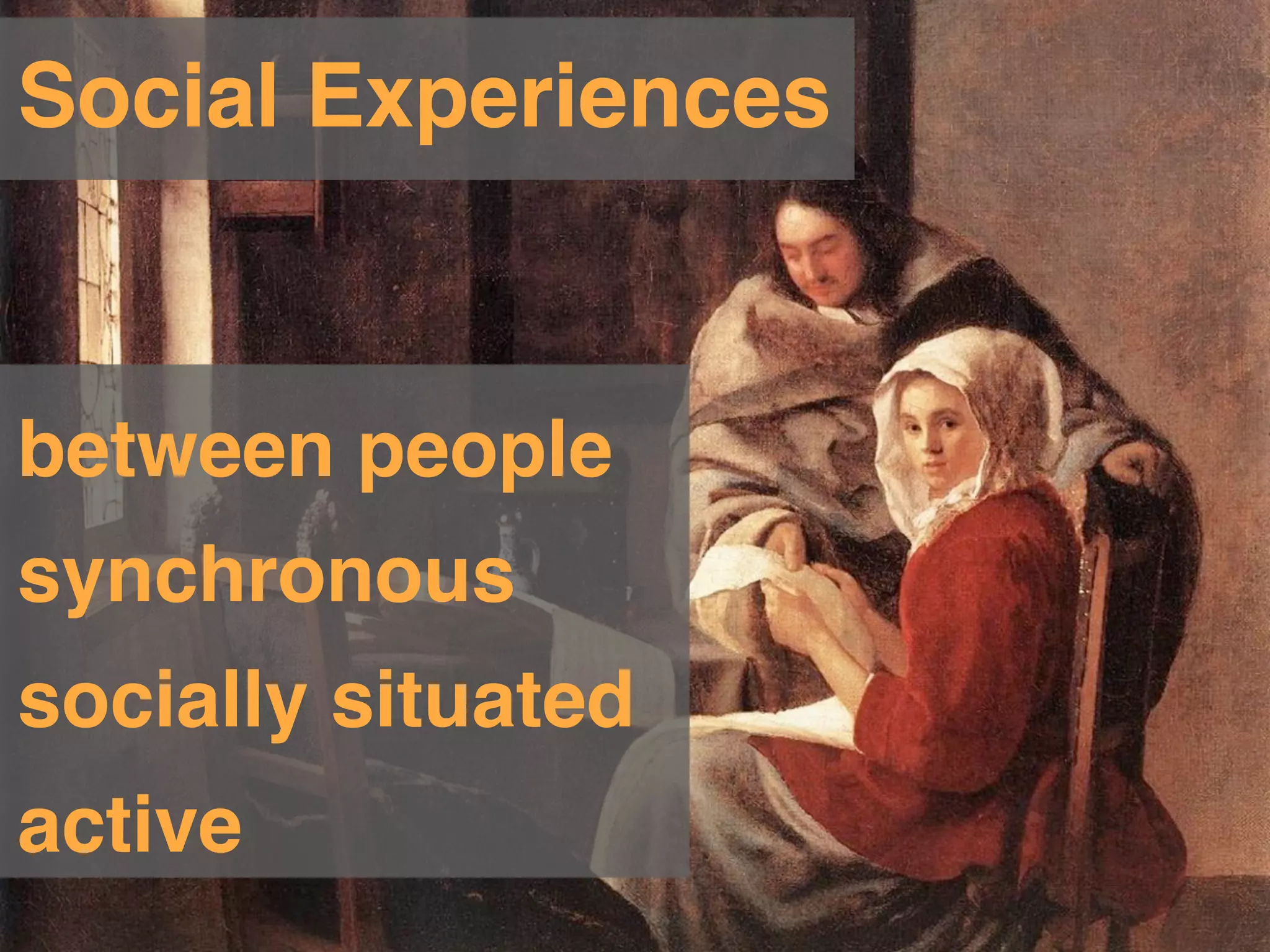

- 21. Social Experiences between people synchronous sociallysituated active

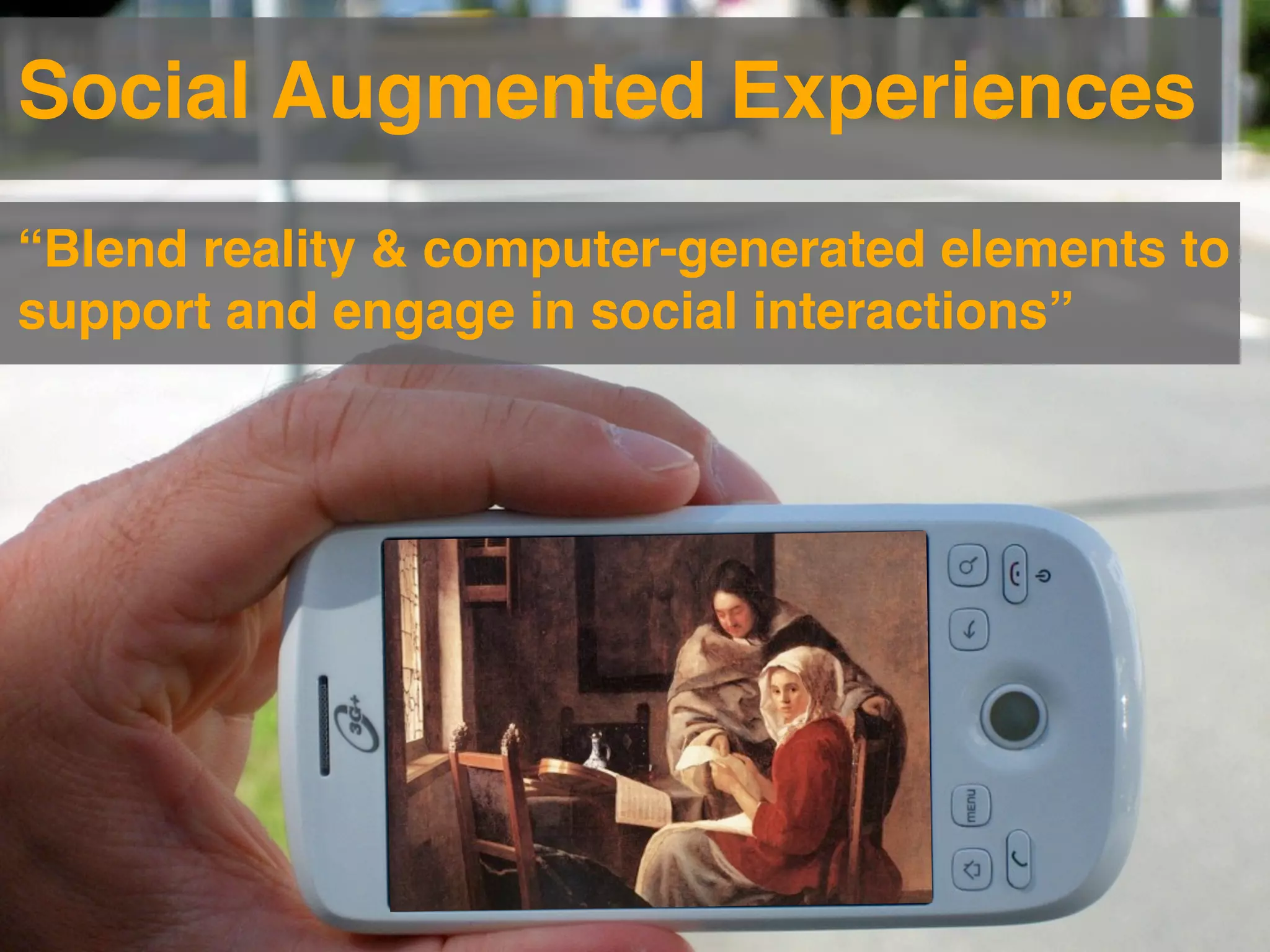

- 22. Social Augmented Experiences “Blendreality & computer-generated elements to support and engage in social interactions”

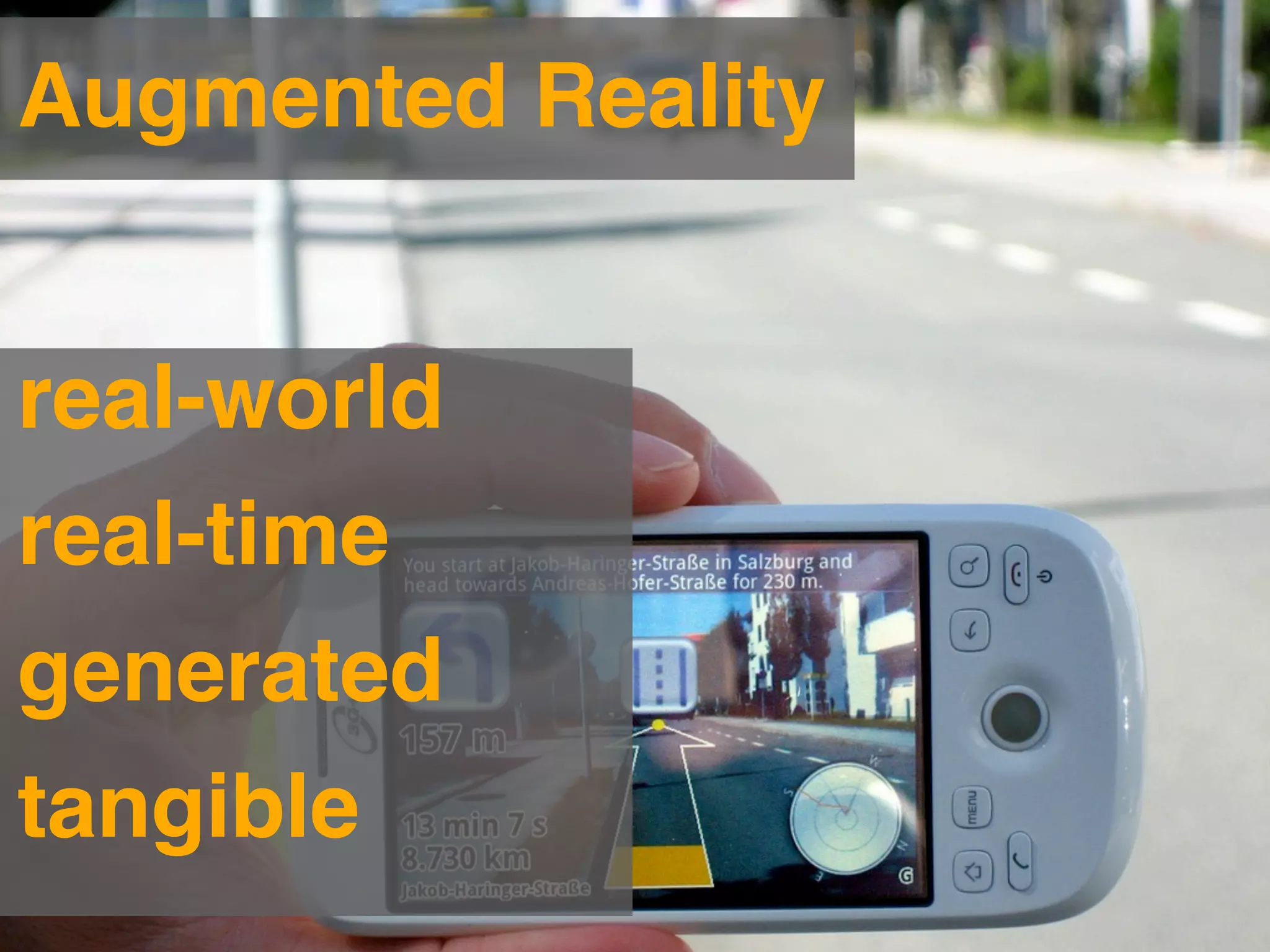

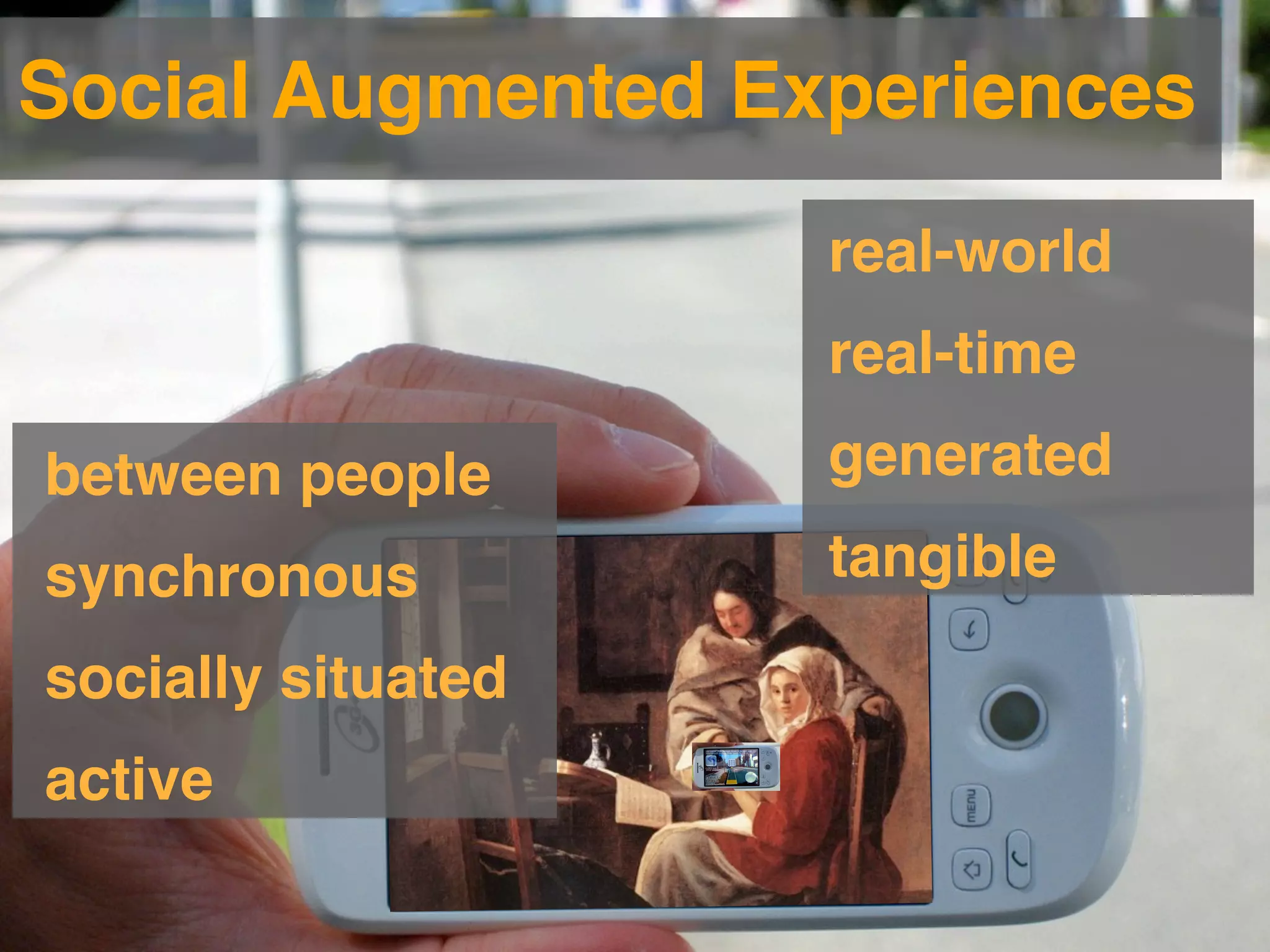

- 23. Social Augmented Experiences real-world real-time between people generated synchronous tangible socially situated active
- 24.

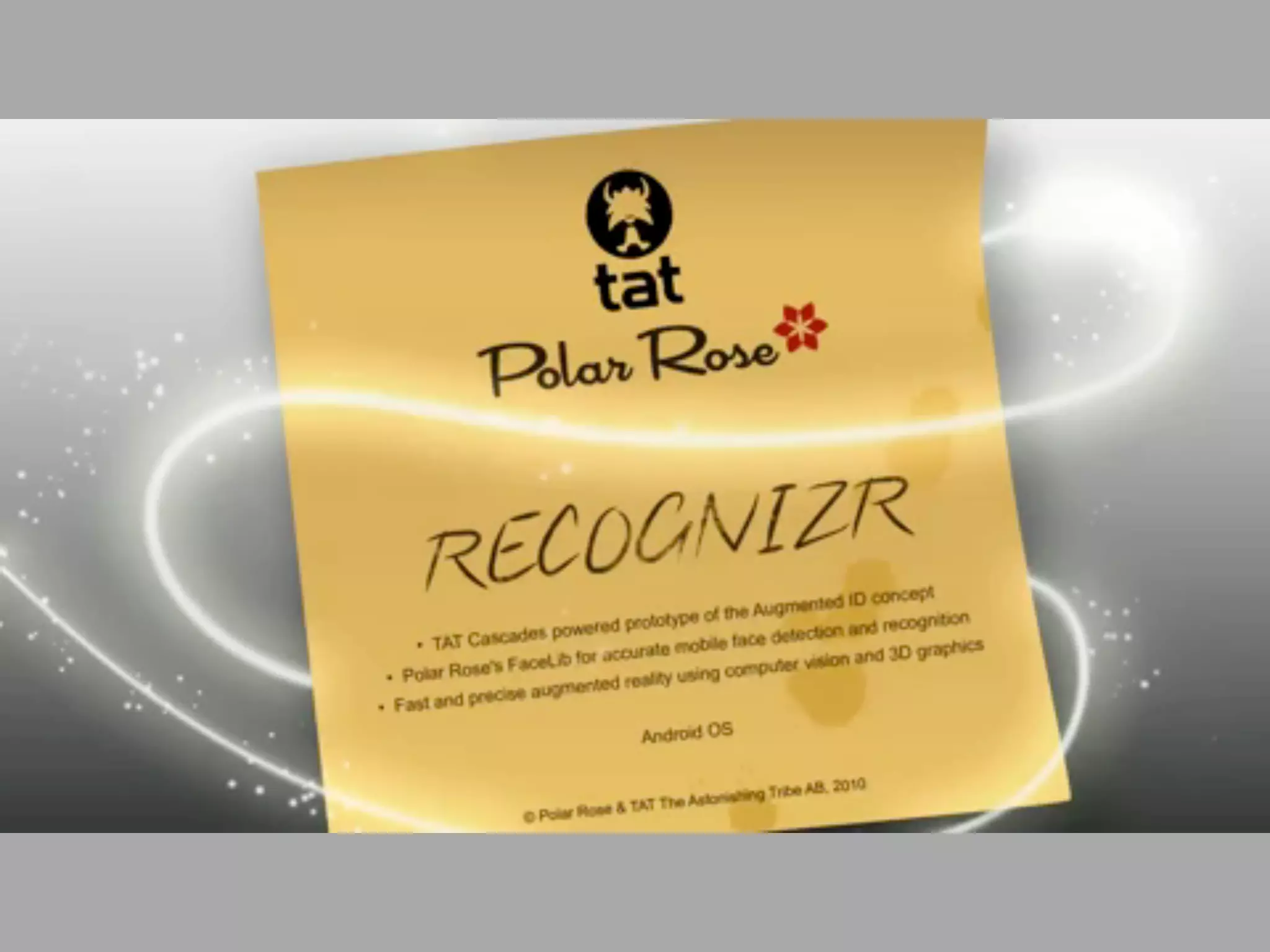

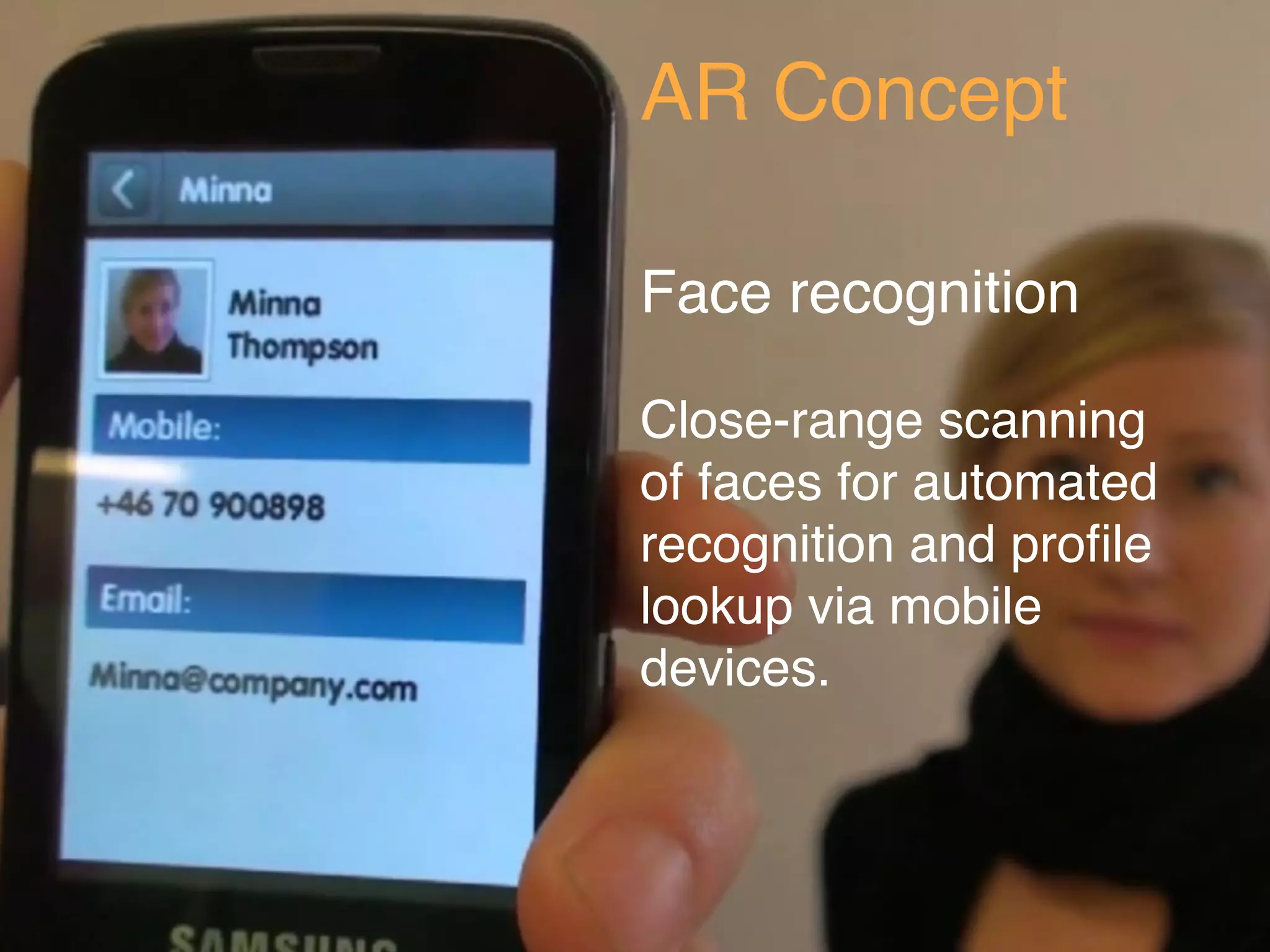

- 26. AR Concept Face recognition Close-rangescanning of faces for automated recognition and profile lookup via mobile devices.

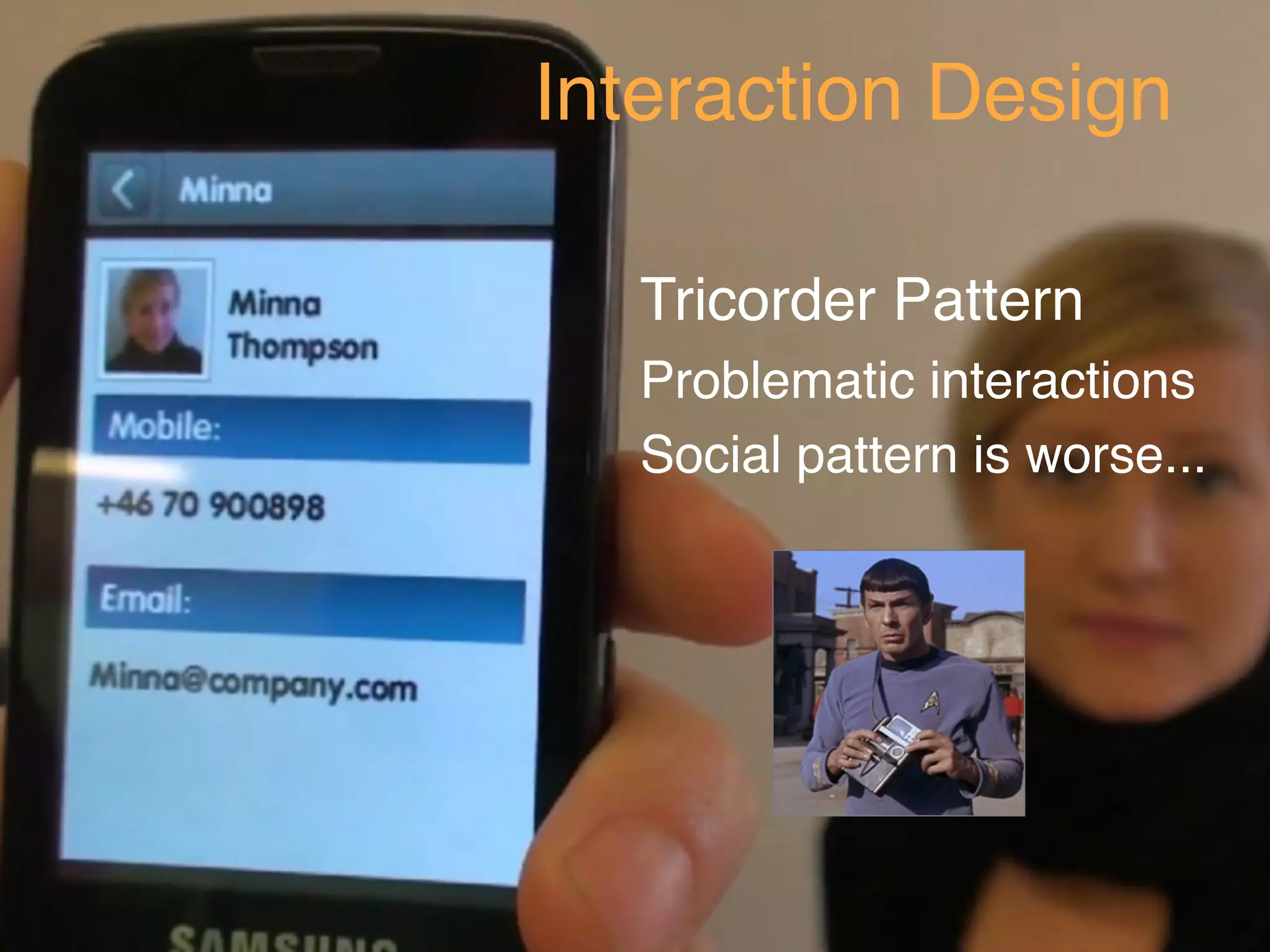

- 27. Interaction Design Tricorder Pattern Problematic interactions Social pattern is worse...
- 28. Social Pattern Like beingstopped by the police for ID. Or security scanned! “Show me your papers.”

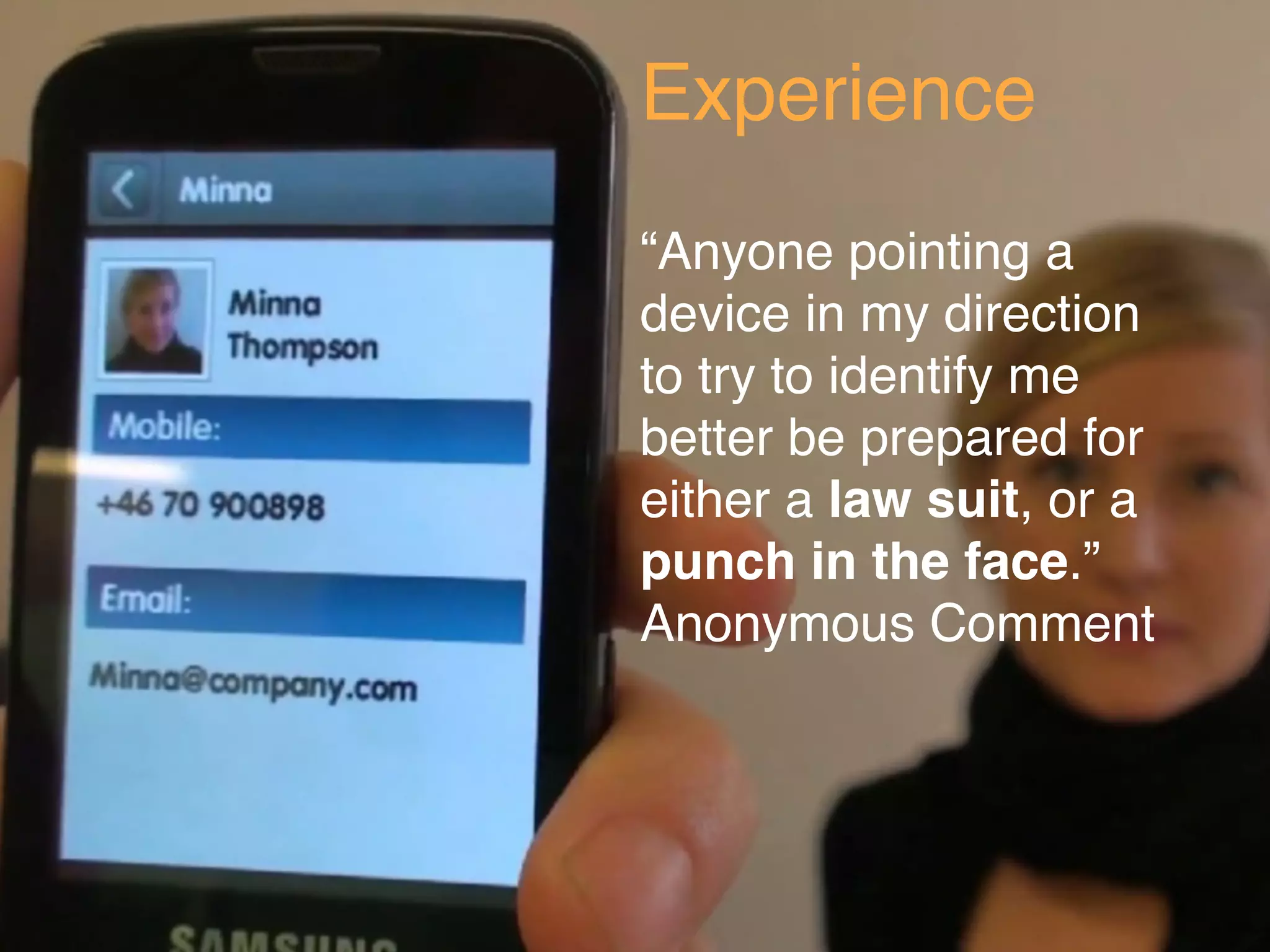

- 29. Experience “Anyone pointing a devicein my direction to try to identify me better be prepared for either a law suit, or a punch in the face.” Anonymous Comment
- 30. AR interaction design 4patterns 4 anti-patterns
- 31.

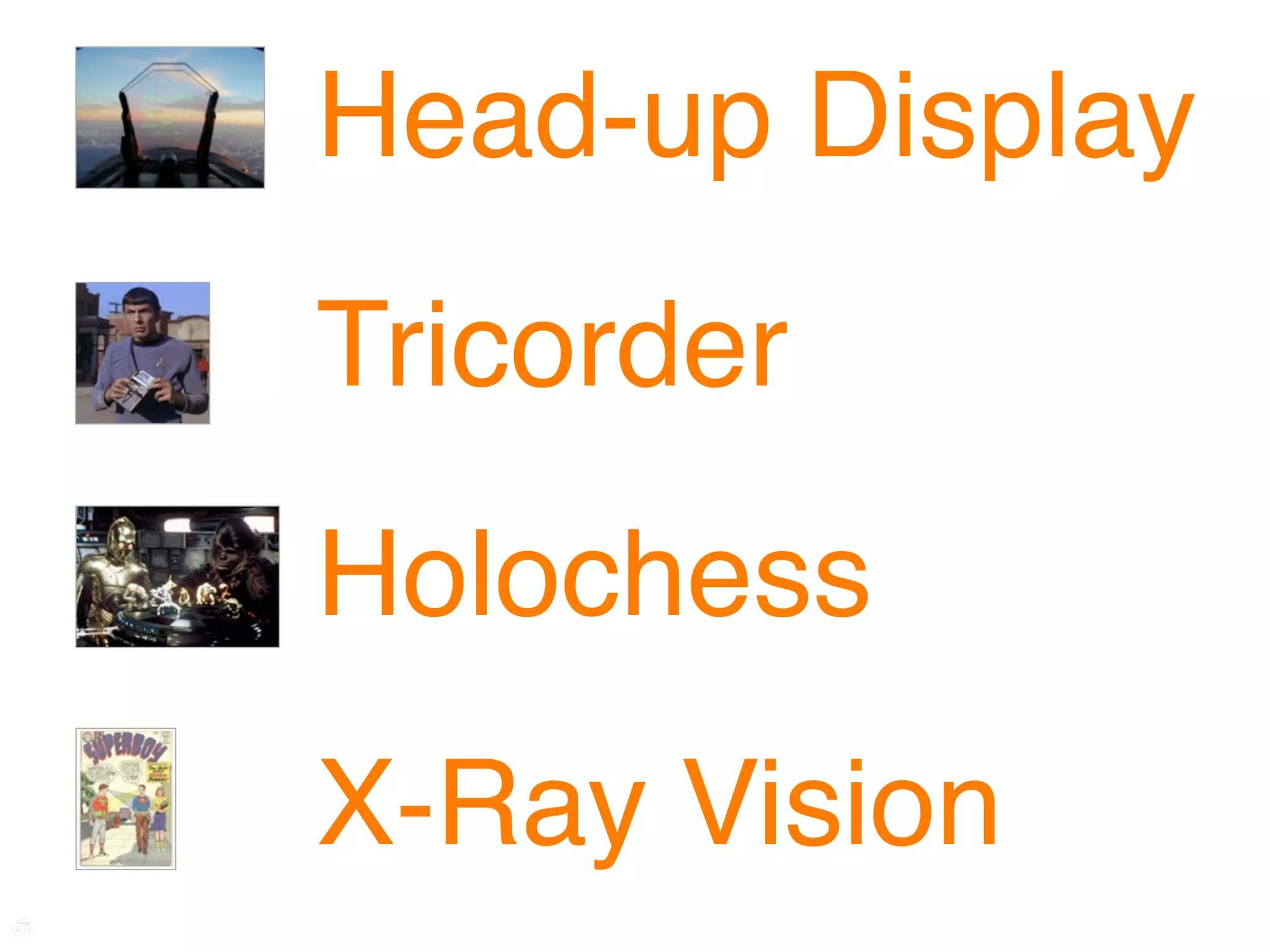

- 33.

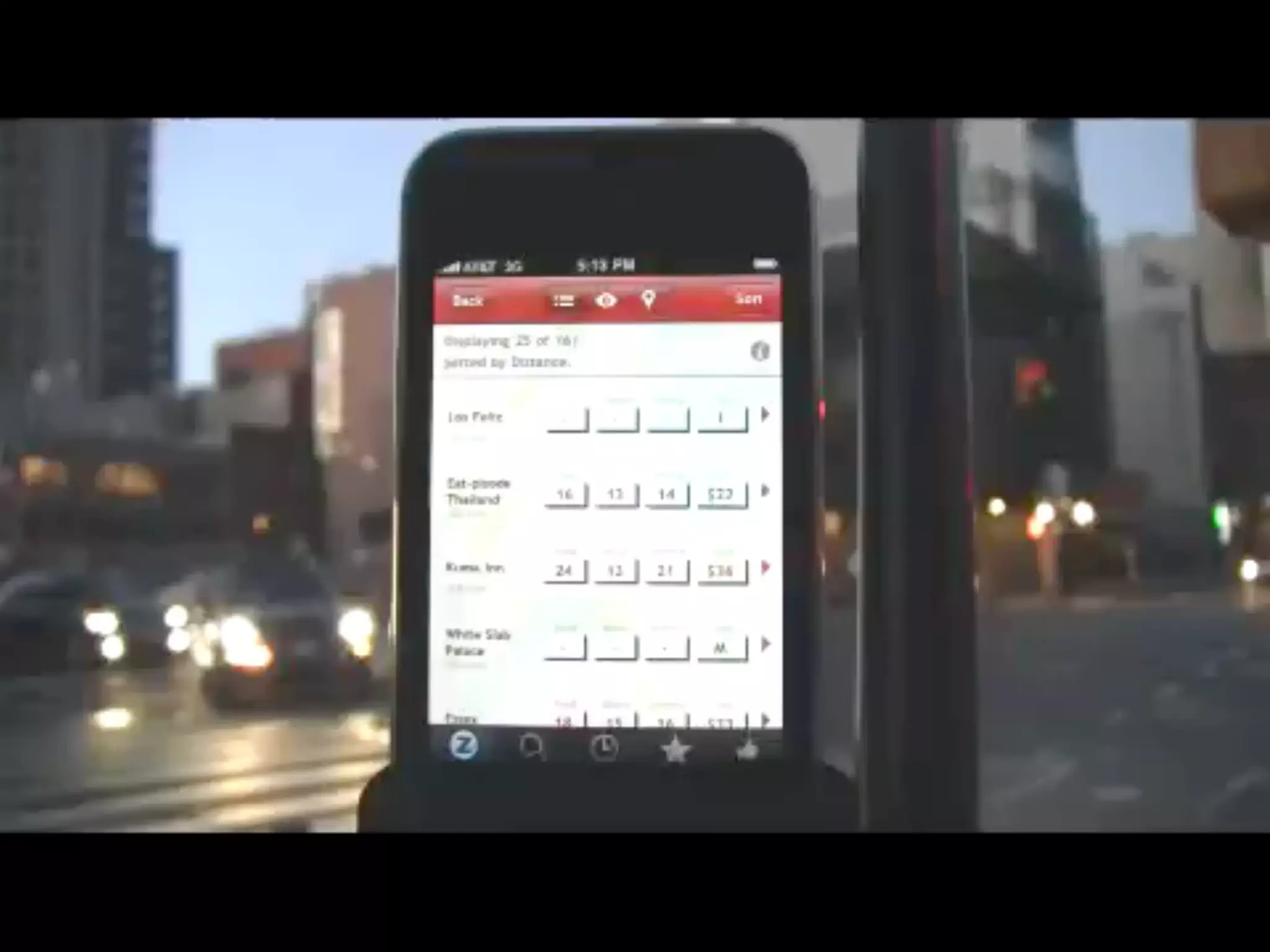

- 35. “People donʼt necessarily wantto walk around the world holding cell-phone screens in front of their faces.”
- 36.
- 38.
- 40.
- 41.
- 42.
- 43.
- 44. Pay No AttentionTo That Man Behind The Curtain
- 46.
- 48. Anti Patterns: Loner Second HandSmoke The Man Behind the Curtain Tunnel Vision
- 49. Anti Patterns: Loner Second HandSmoke The Man Behind the Curtain Tunnel Vision
- 50.
- 51. Anti-social behavior often indicateslow ʻsocial maturityʼ in people Social maturity = ability to • understand social dynamics • follow social norms • engage socially with others • adapt to social situations

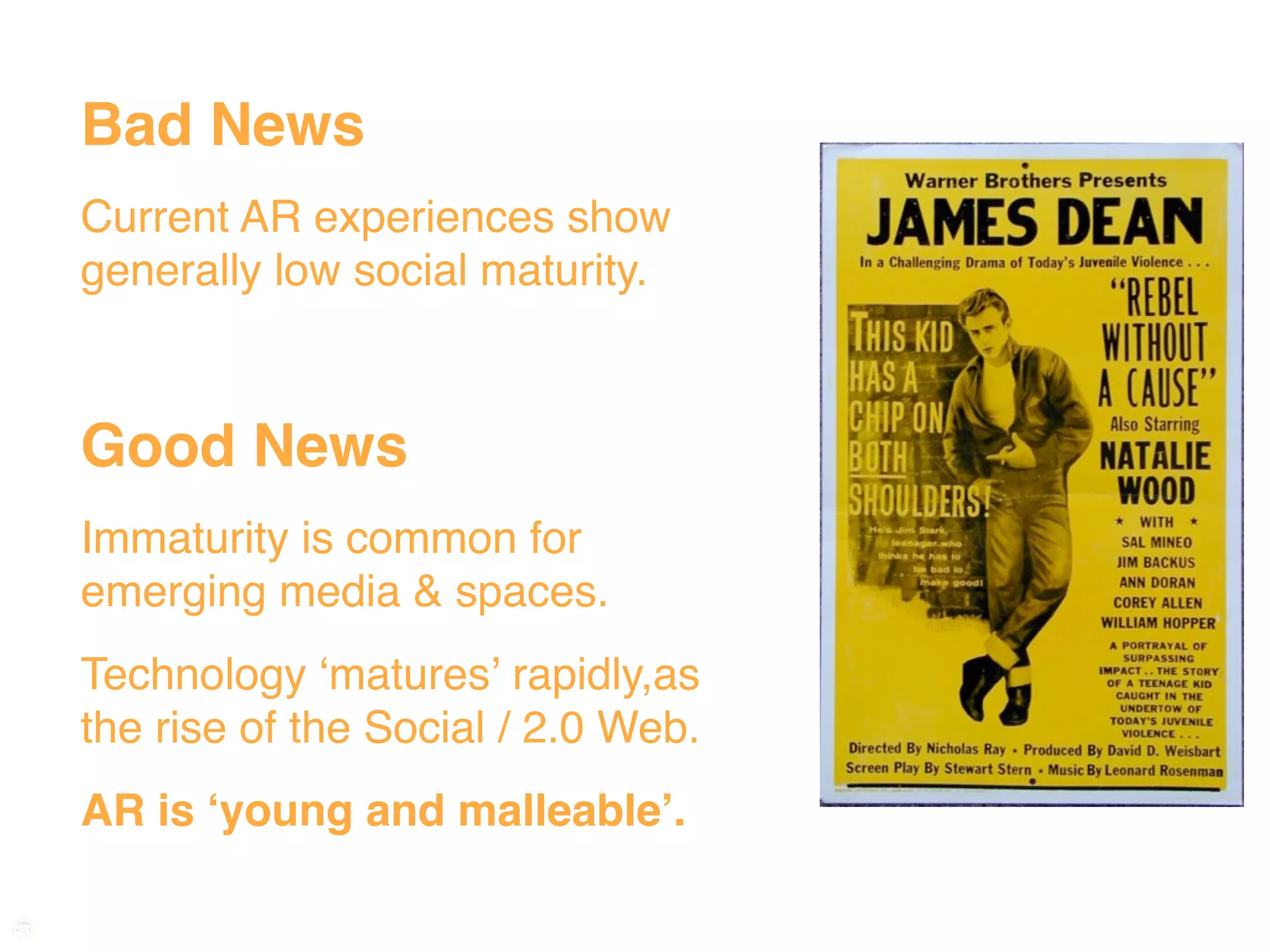

- 52. Bad News Current ARexperiences show generally low social maturity. Good News Immaturity is common for emerging media & spaces. Technology ʻmaturesʼ rapidly,as the rise of the Social / 2.0 Web. AR is ʻyoung and malleableʼ.

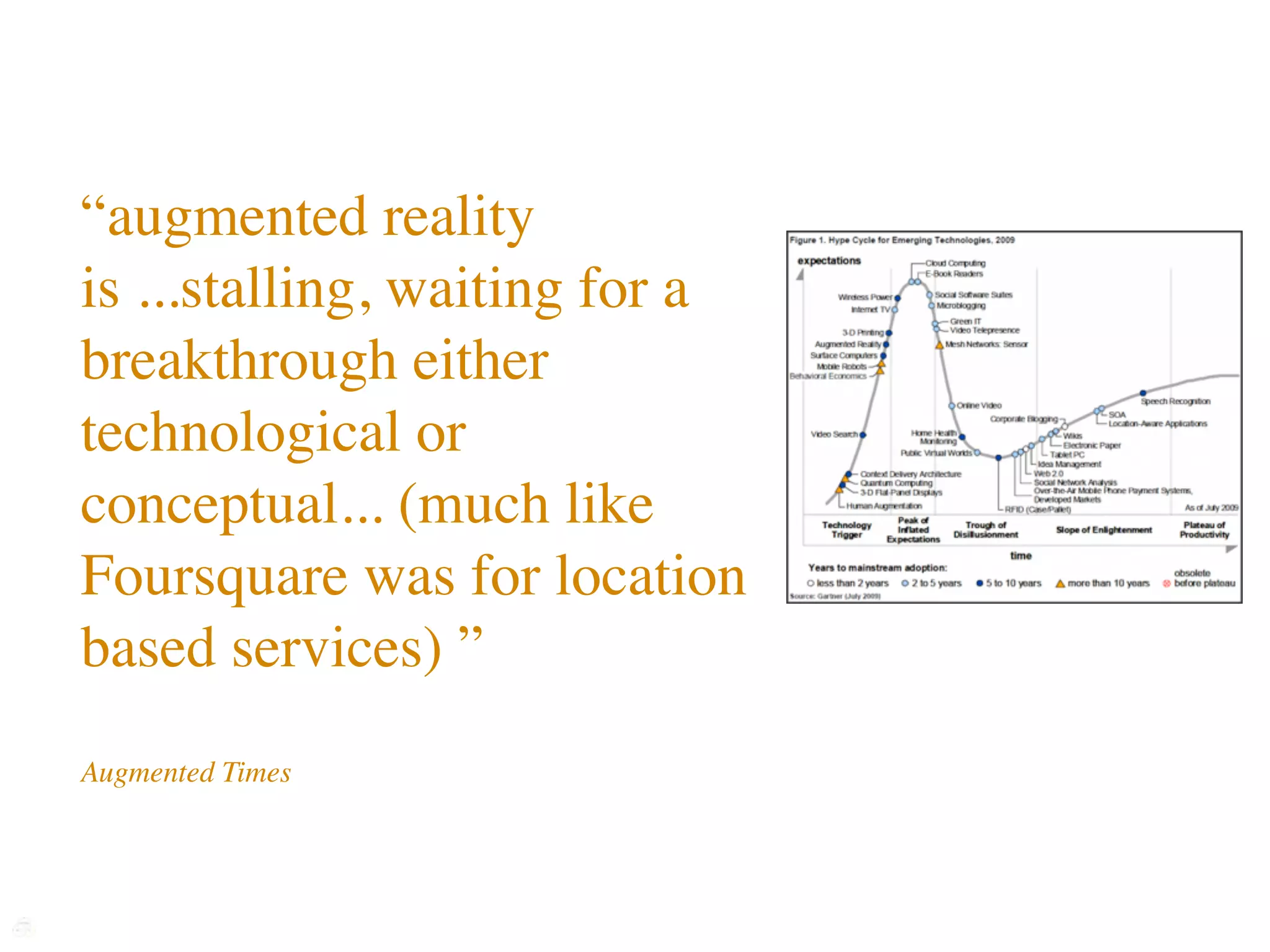

- 53. “augmented reality is ...stalling,waiting for a breakthrough either technological or conceptual... (much like Foursquare was for location based services) ” Augmented Times

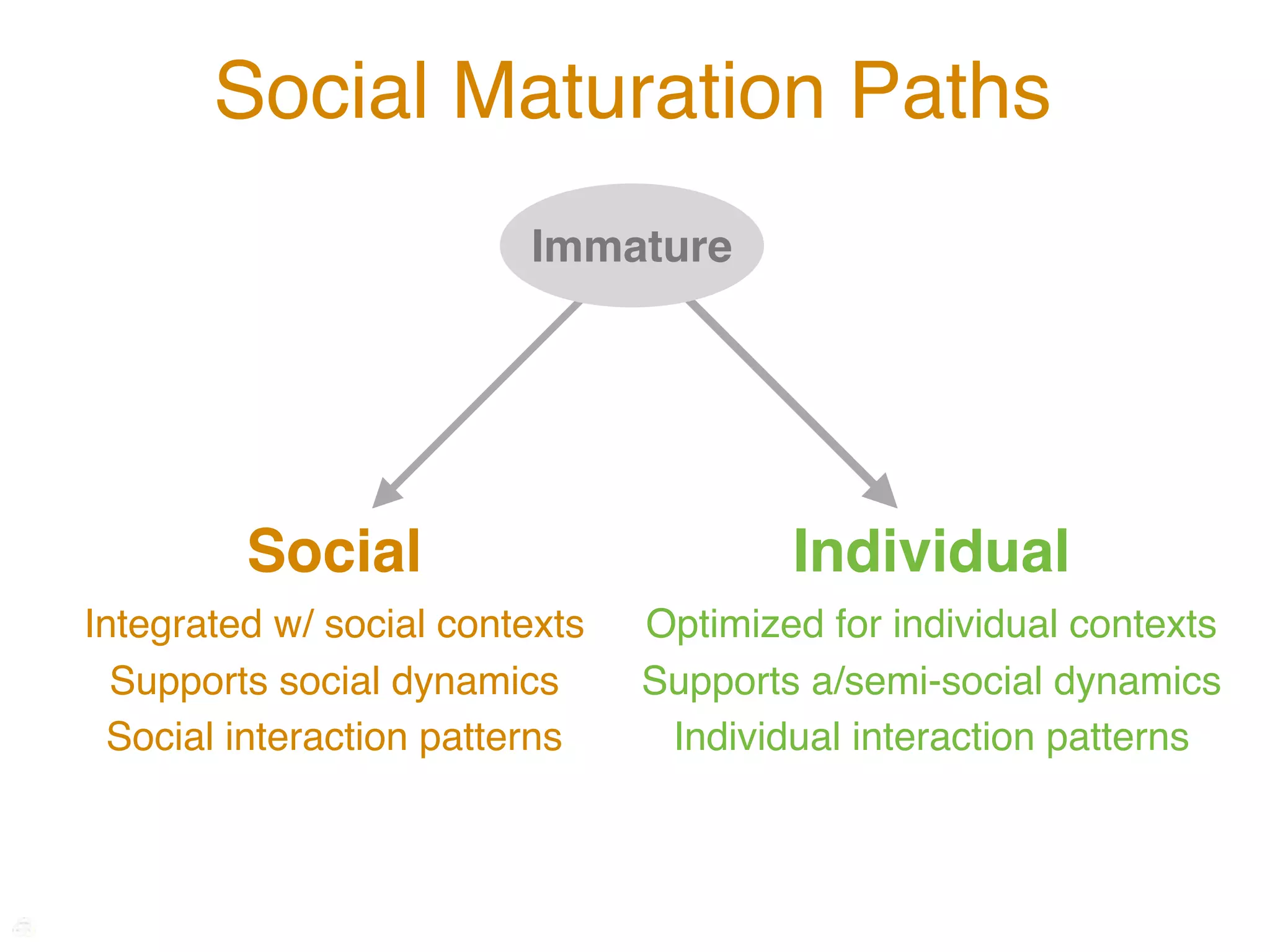

- 54. Social Maturation Paths Immature Social Individual Integrated w/ social contexts Optimized for individual contexts Supports social dynamics Supports a/semi-social dynamics Social interaction patterns Individual interaction patterns
- 55.
- 57. Be Human ByDefault Design experiences that echo human behavior and expectations.
- 59. Looks like a wayto talk to people far away by video.
- 60. Itʼs really just adoor.

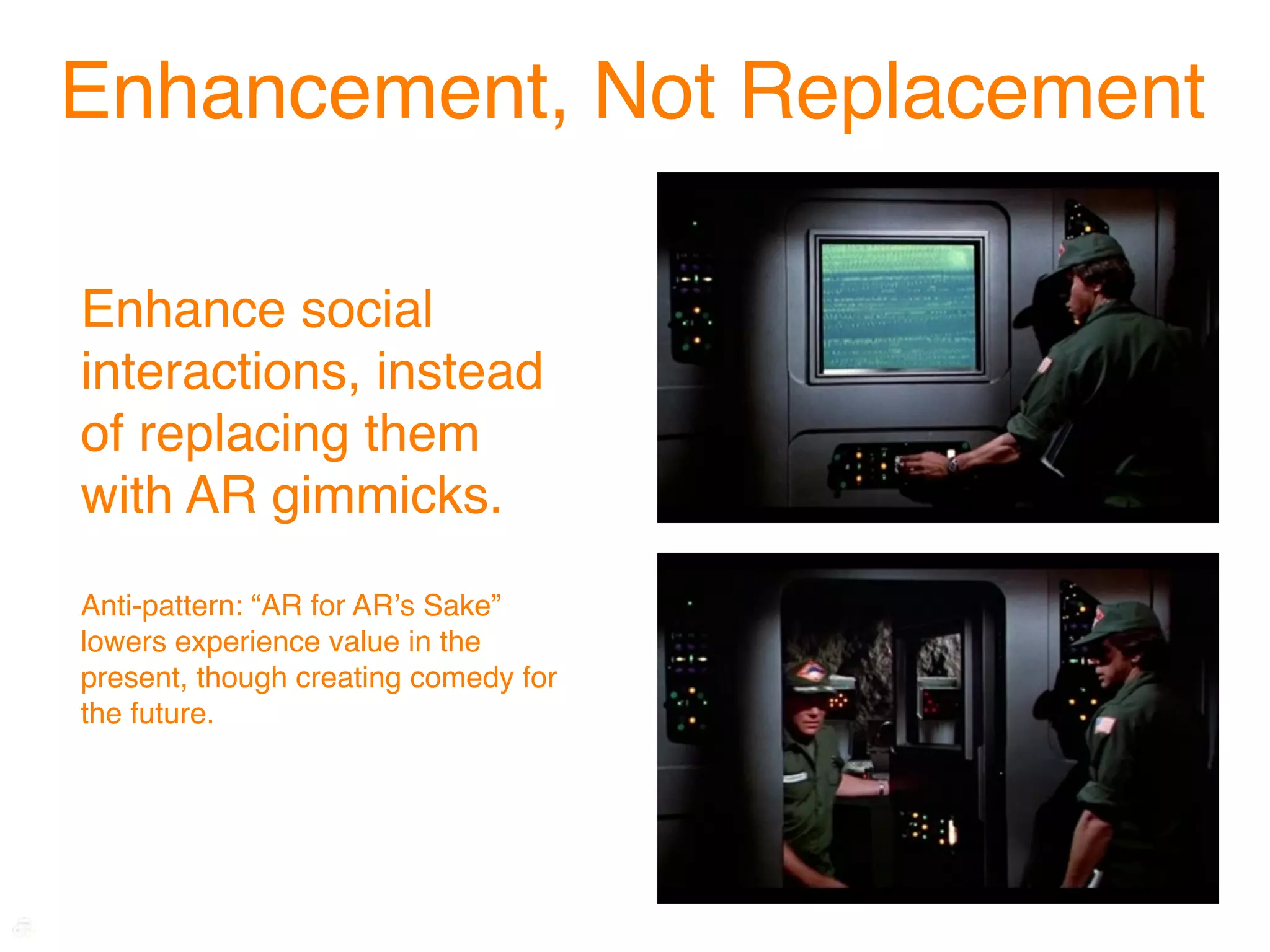

- 61. Enhancement, Not Replacement Enhancesocial interactions, instead of replacing them with AR gimmicks. Anti-pattern: “AR for ARʼs Sake” lowers experience value in the present, though creating comedy for the future.
- 62.
- 63. Build Real Bridges Socialtechnologies succeed when they enable people to overcome genuine barriers to interaction. ʻBridgeʼ experiences are valid only when interaction is impossible.
- 65. Successful Interaction depends onmany details.

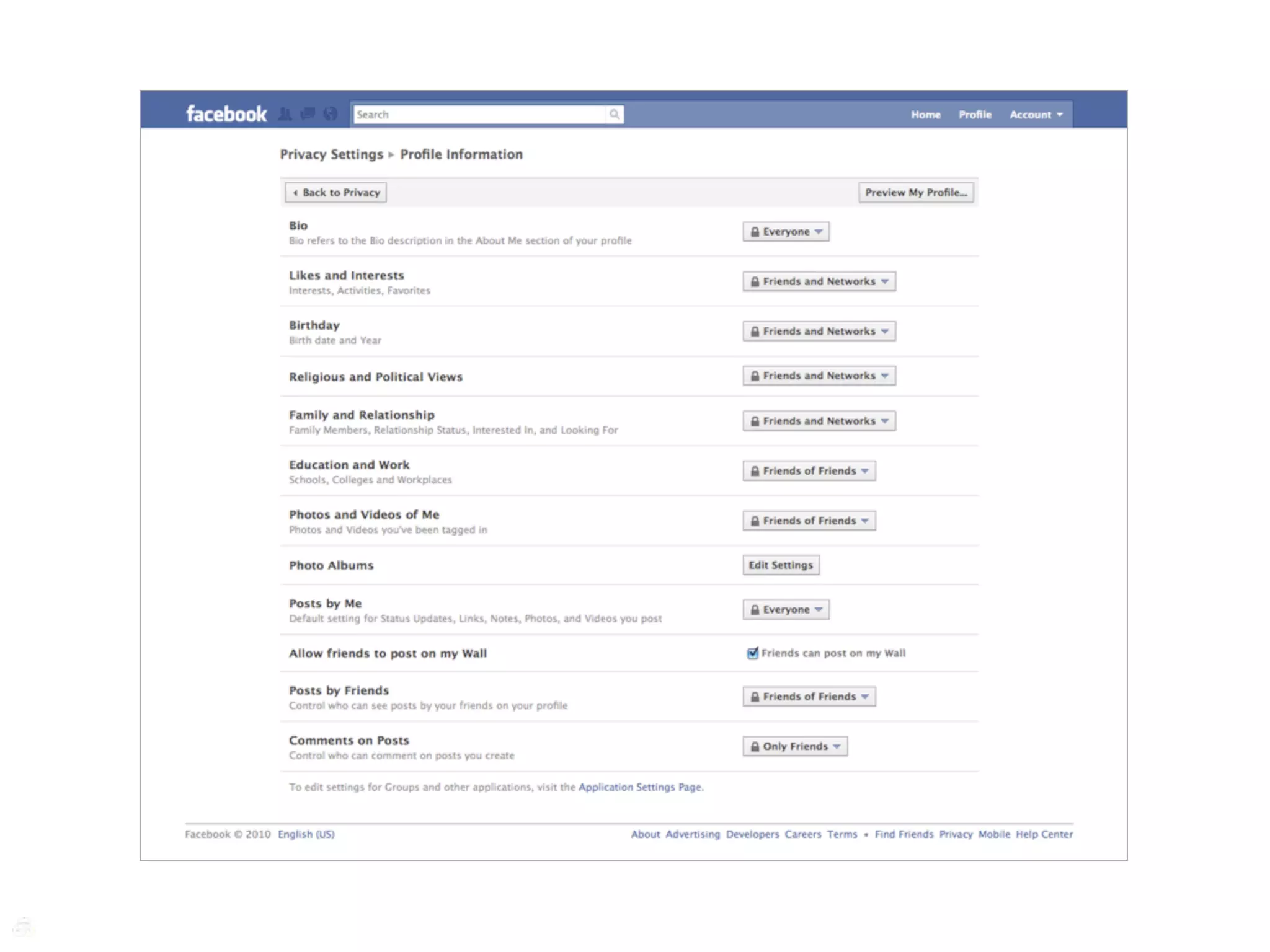

- 66. Avoid the CriticalPath AR elements should be ʻoptionalʼ for social interactions. Making AR elements essential creates a ʻsingle point of failureʼ.

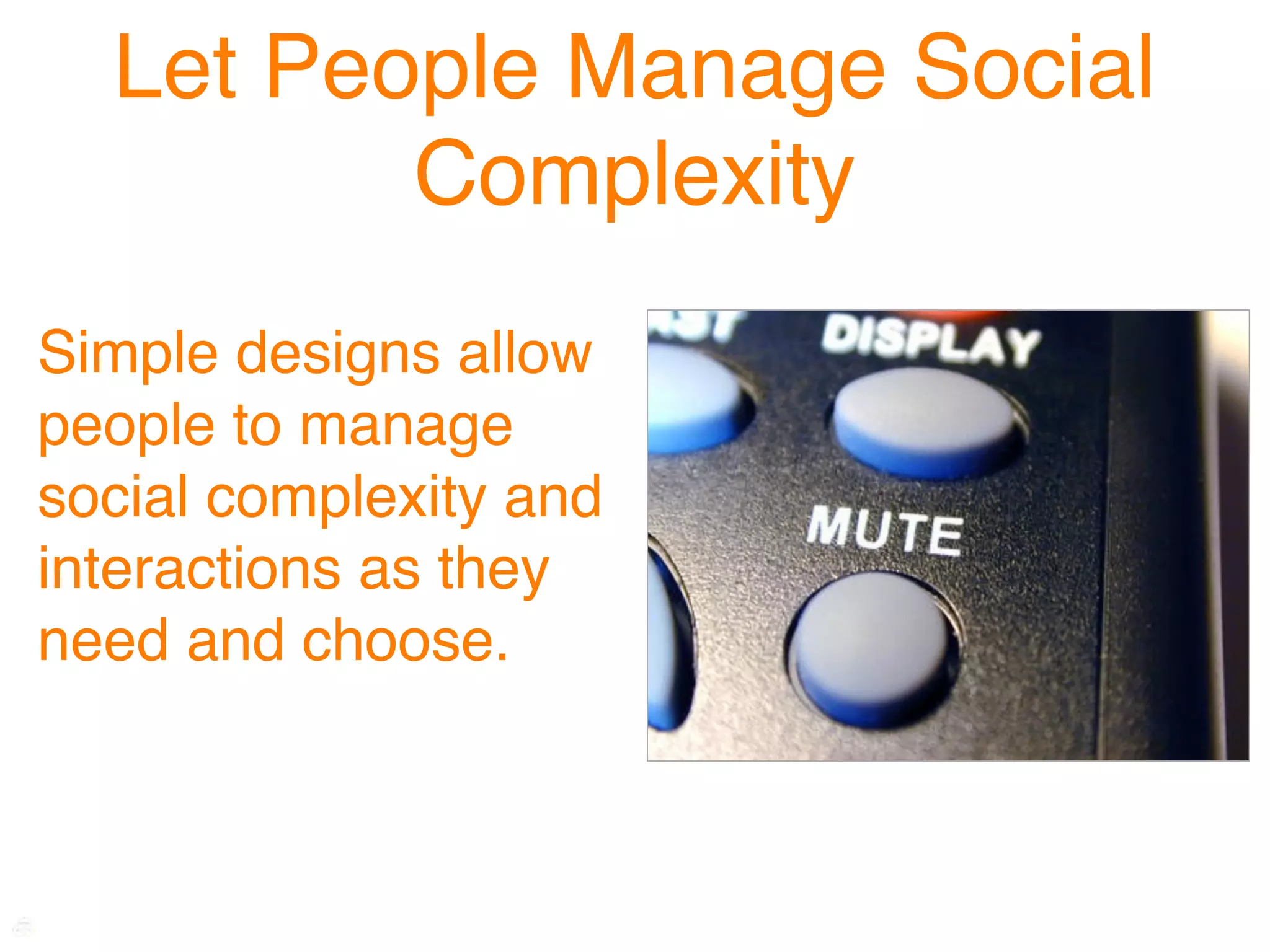

- 70. Let People ManageSocial Complexity Simple designs allow people to manage social complexity and interactions as they need and choose.

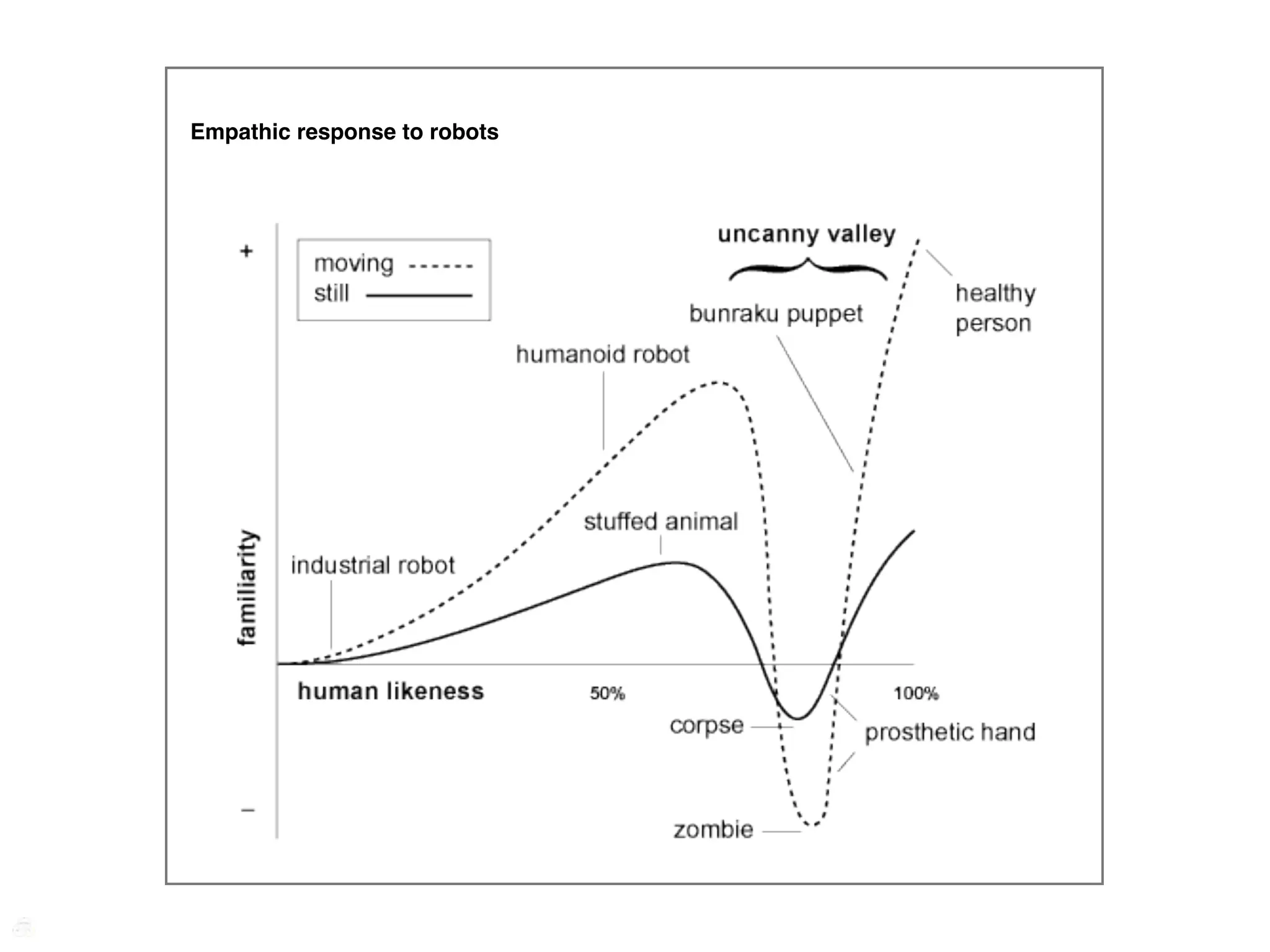

- 71. Empathic response torobots
- 72.
- 73.
- 74. Interactions inspire feelings of creepiness.

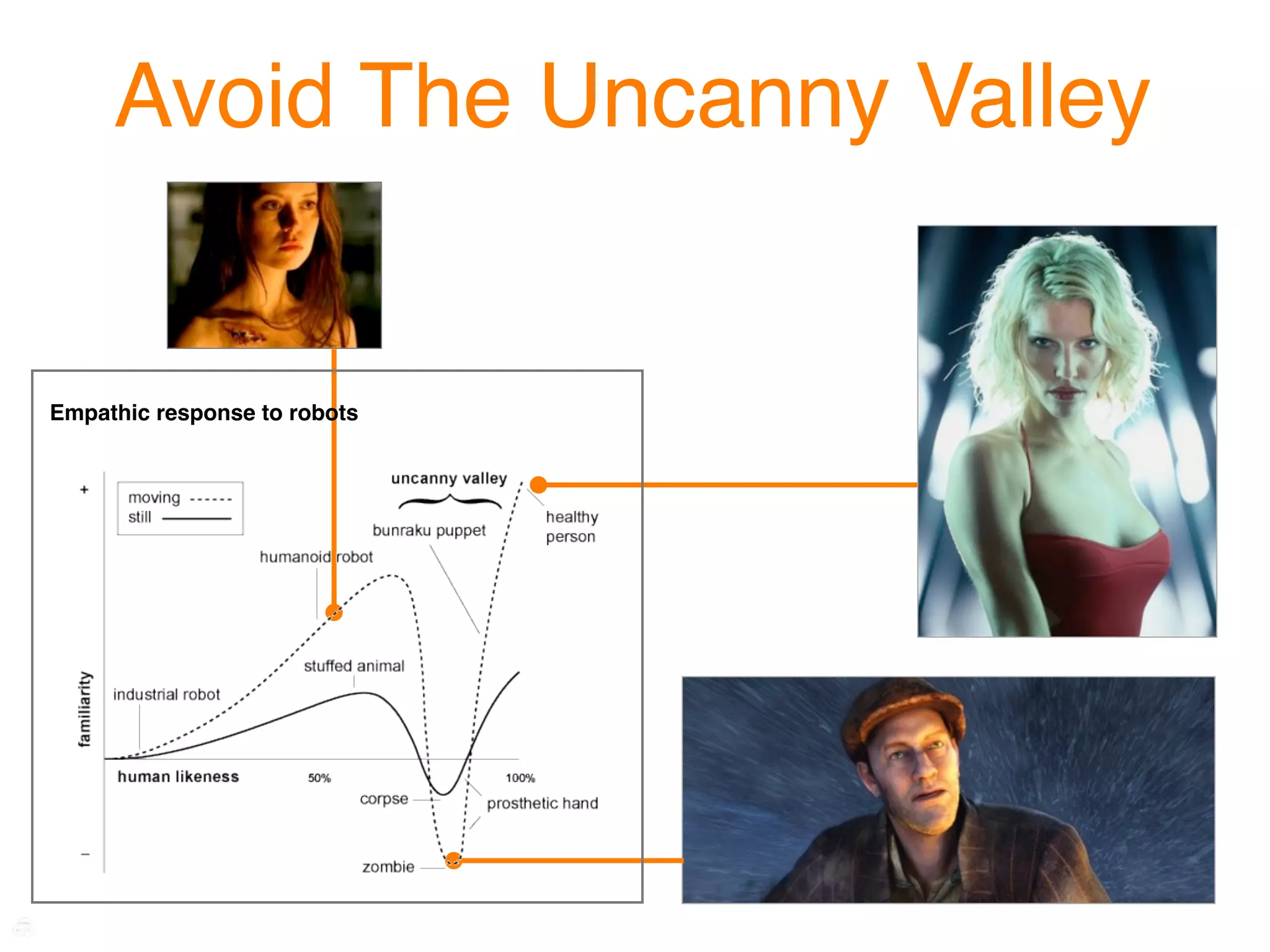

- 75. Avoid The UncannyValley Empathic response to robots
- 76. Just made a baddeal.
- 77. Equal Value All augmented elementsmust be equally valuable to all participants.
- 79. Are We OnAiR? Indicate the presence & status of AR elements to all participants.

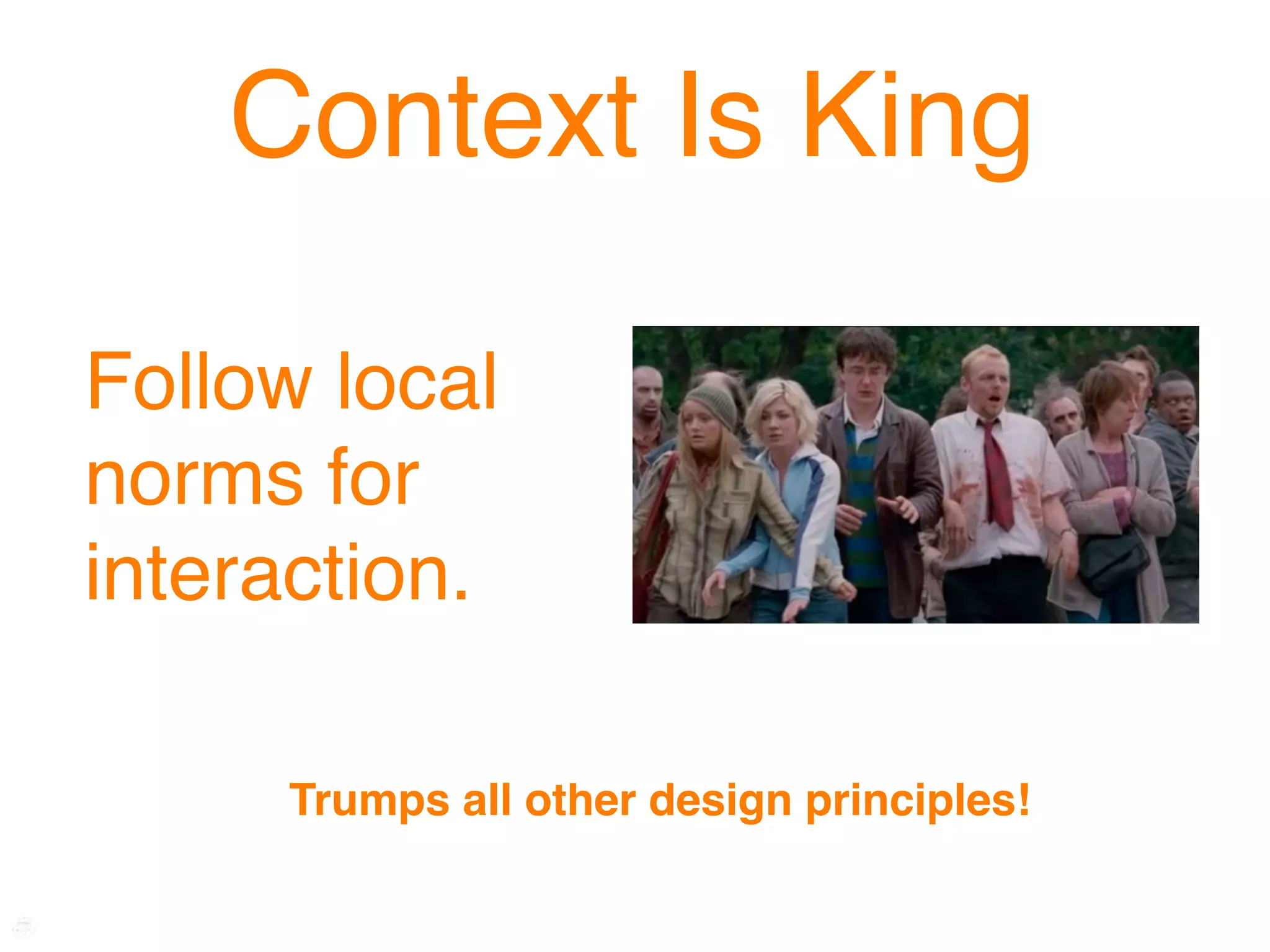

- 81. Context Is King Followlocal norms for interaction. Trumps all other design principles!

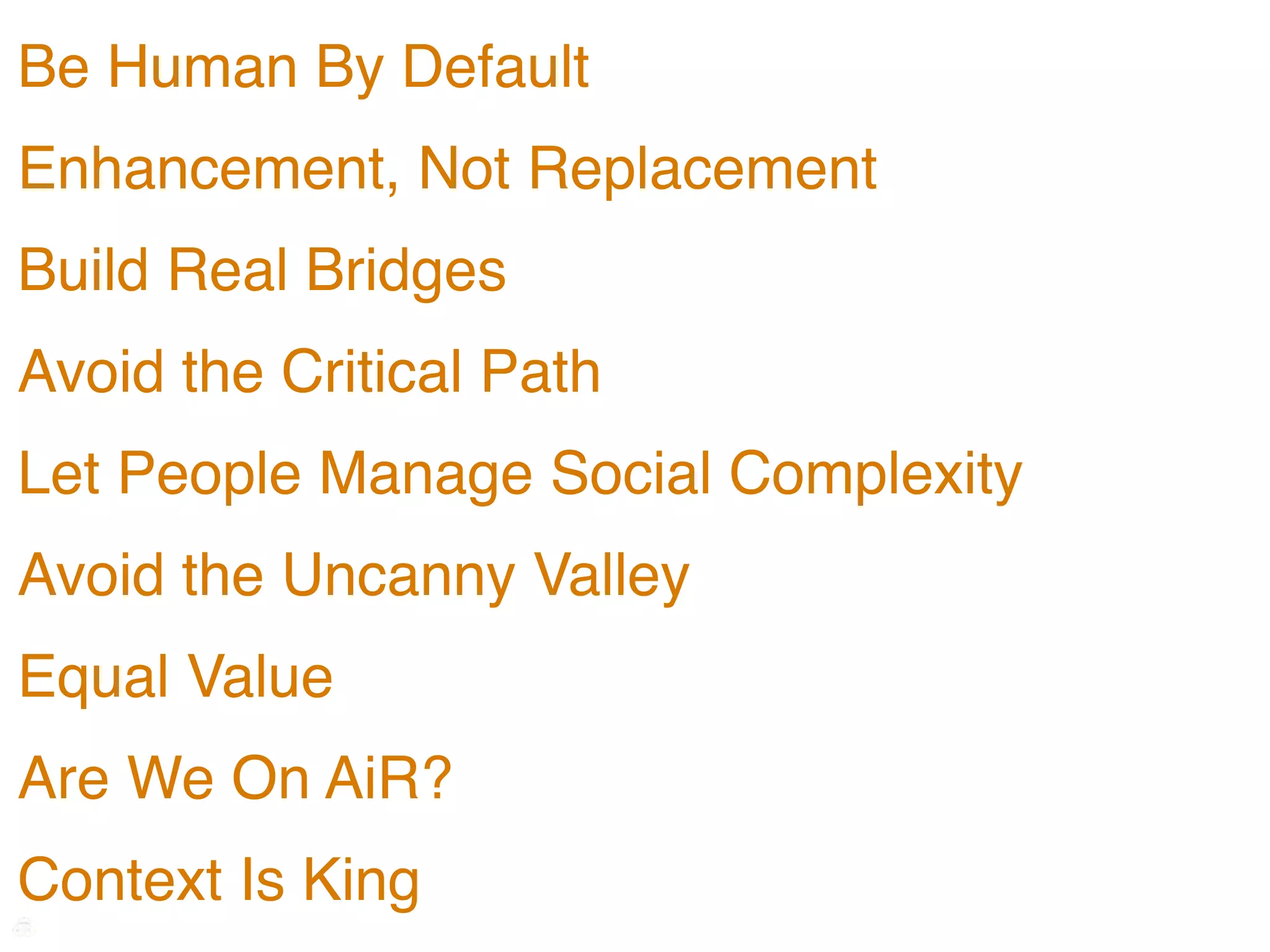

- 82. Be Human ByDefault Enhancement, Not Replacement Build Real Bridges Avoid the Critical Path Let People Manage Social Complexity Avoid the Uncanny Valley Equal Value Are We On AiR? Context Is King
- 83.
- 84. Social Maturation Paths Immature Social Individual Integrated w/ social contexts Optimized for individual contexts Supports social dynamics Supports a/semi-social dynamics Social interaction patterns Individual interaction patterns

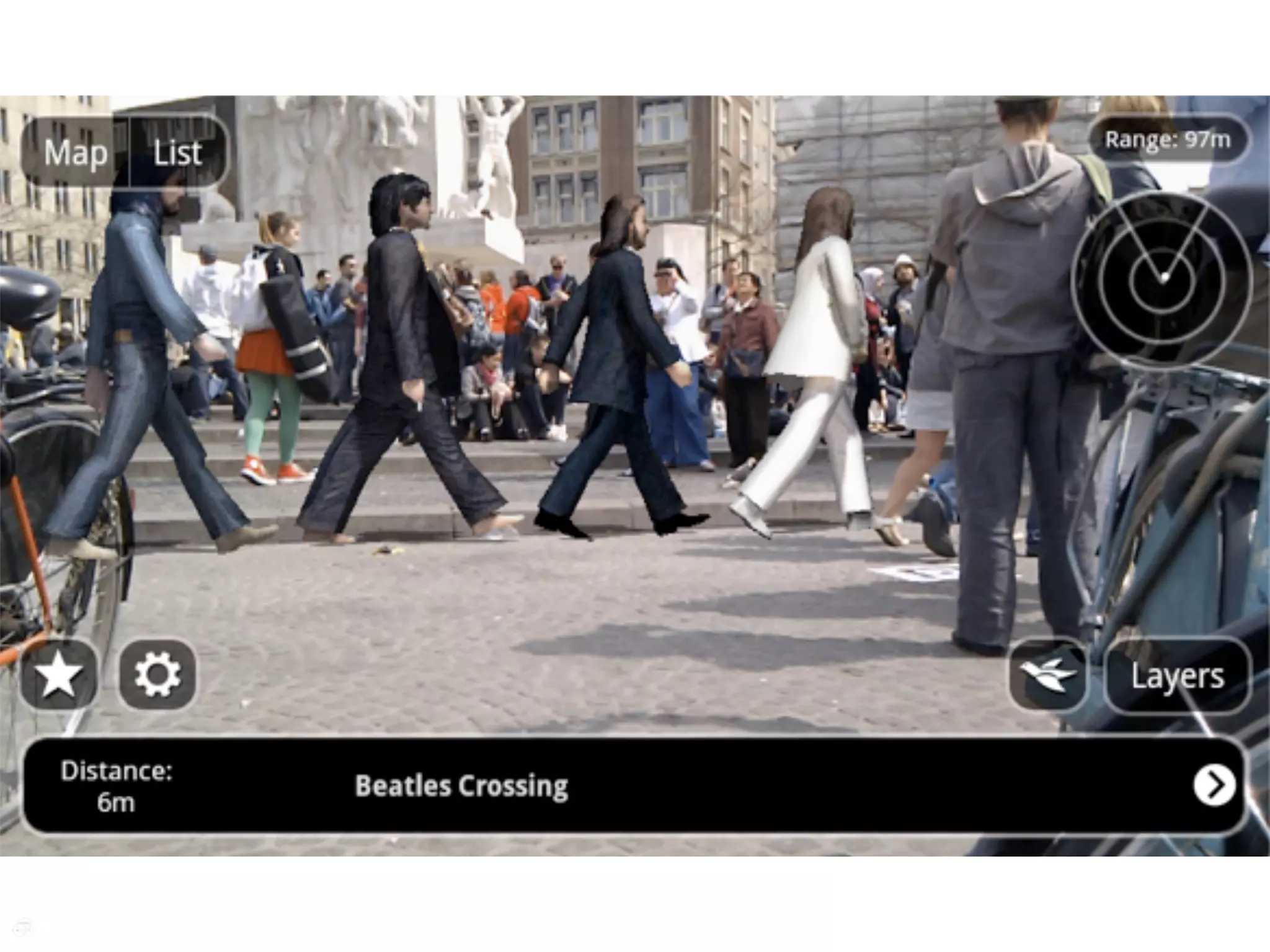

- 85. AR Flashmob Amsterdam “...nerds looking through a phone.” “Its getting busy at the #arflashmob“

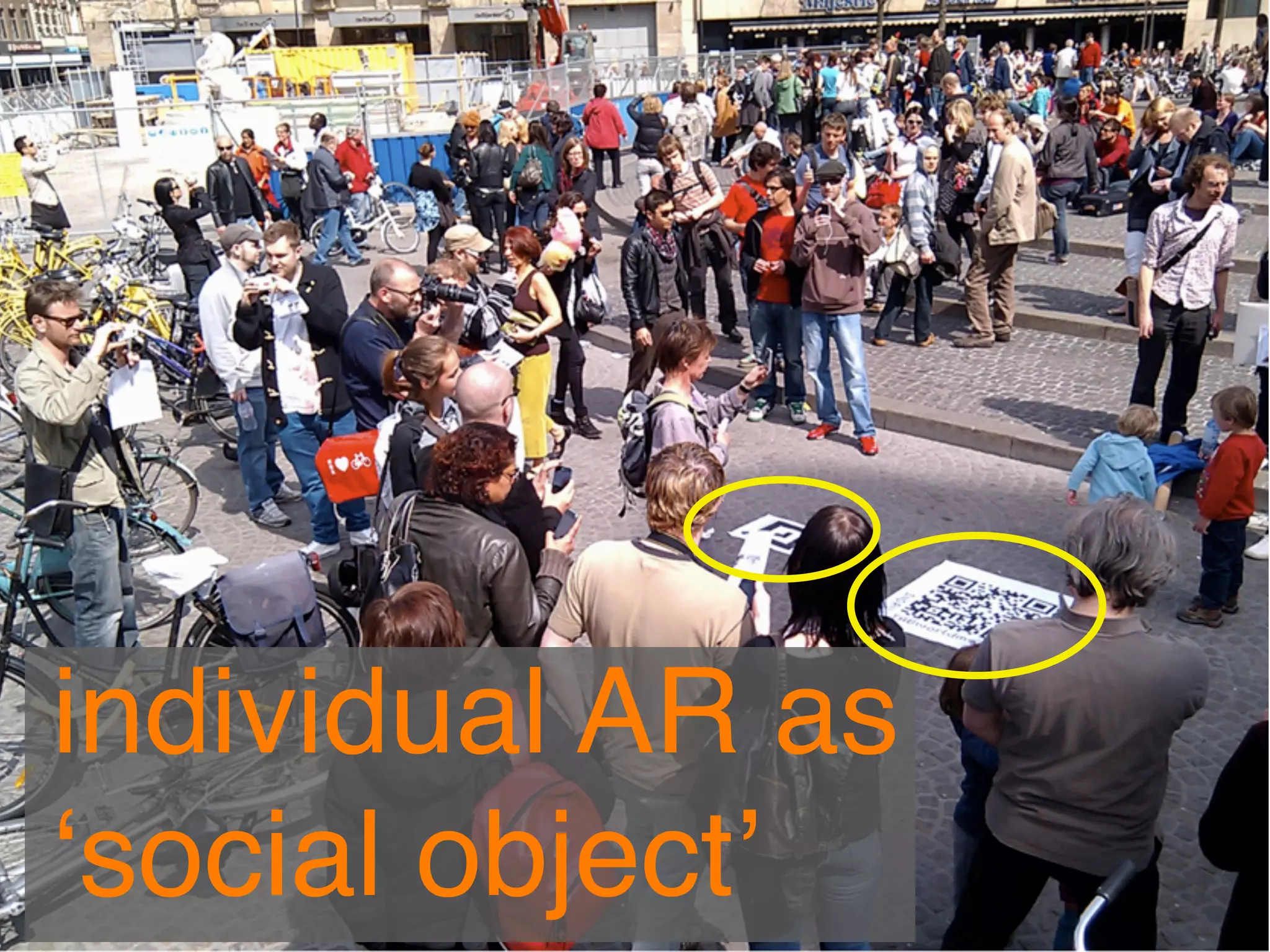

- 87. individual AR as ʻsocialobjectʼ

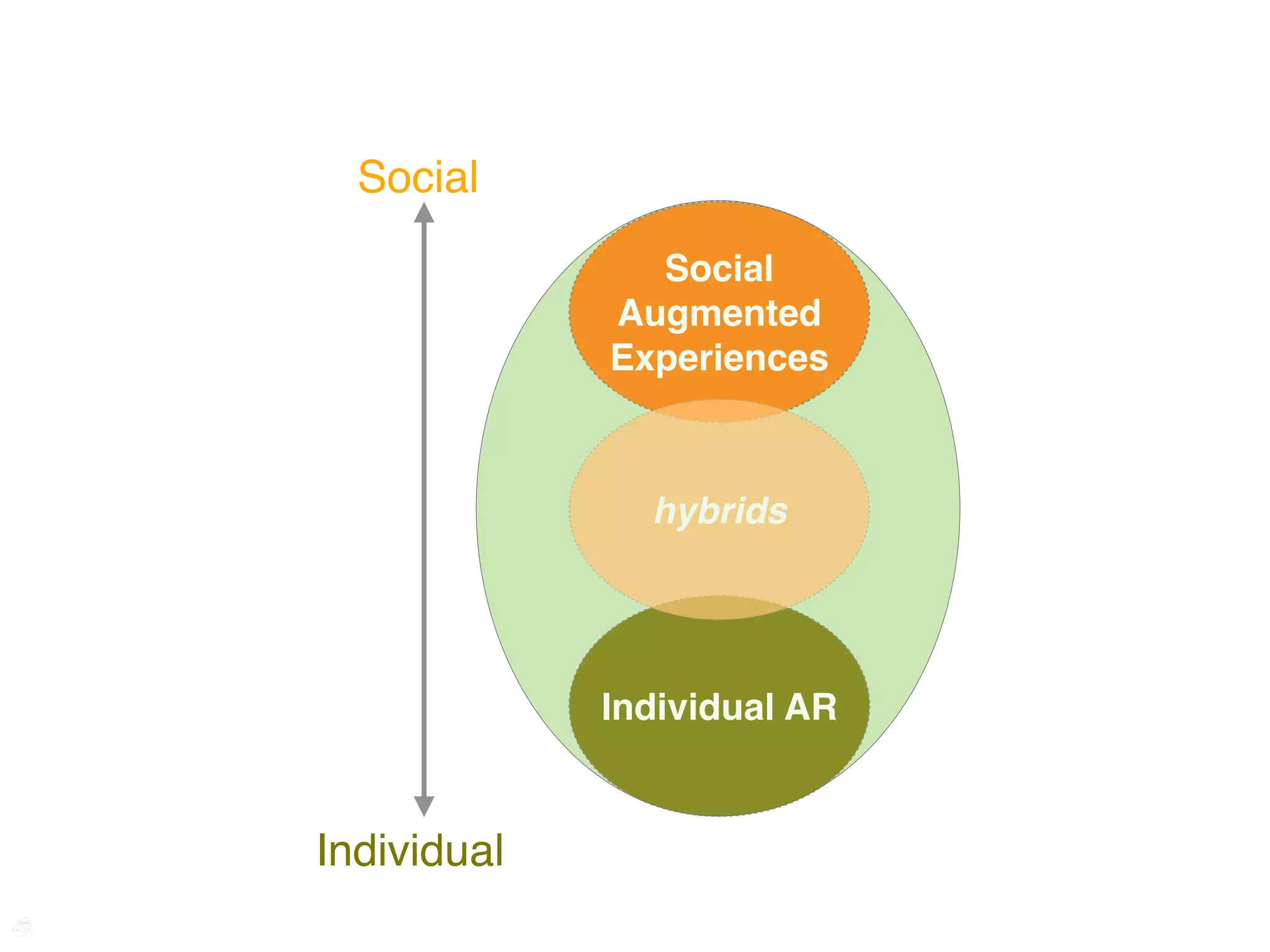

- 88. Social Social Augmented Experiences hybrids Individual AR Individual
- 89. Social Utility ubiquitous accessible public /open mass-market
- 90.

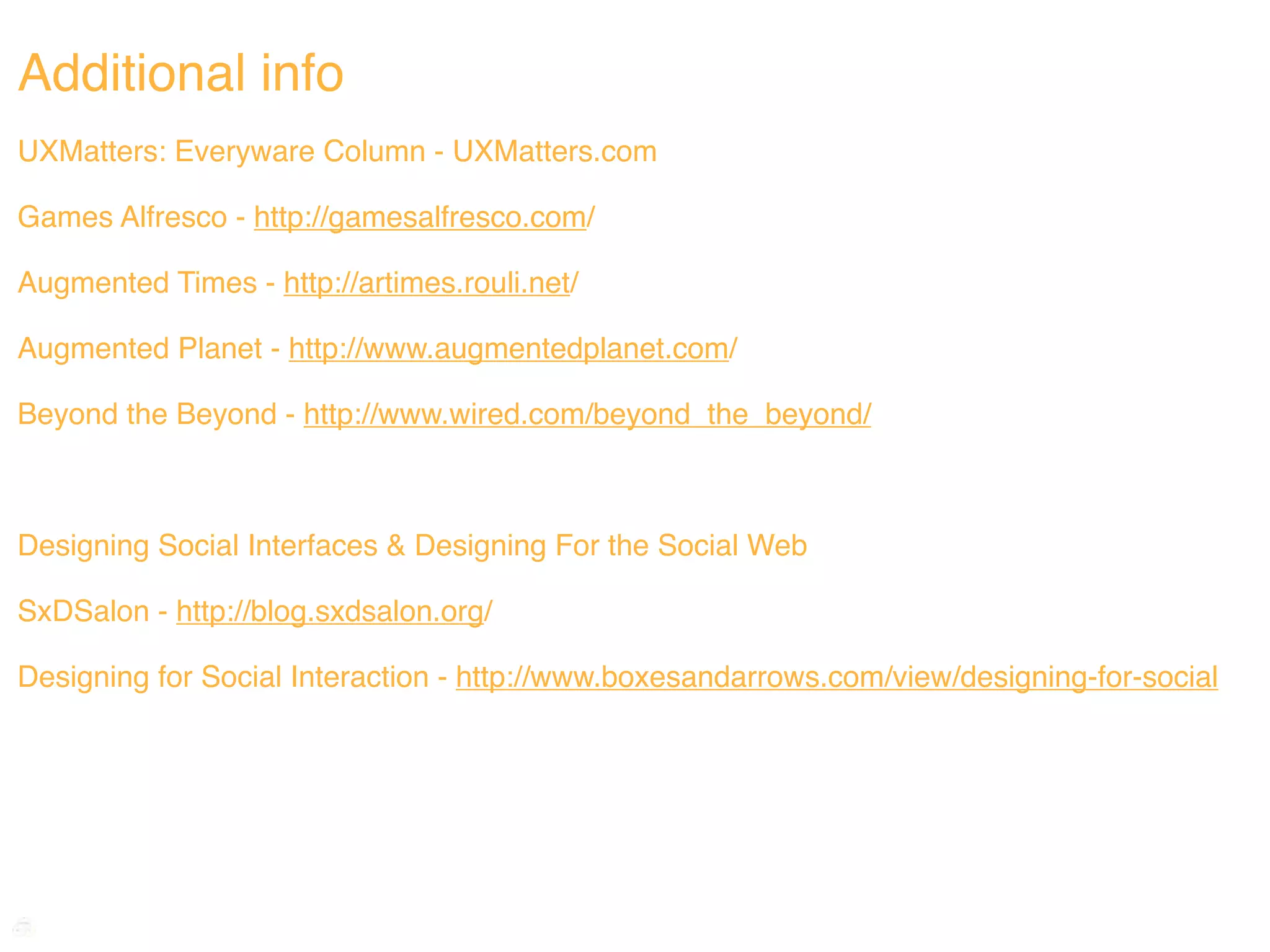

- 91. Additional info UXMatters: EverywareColumn - UXMatters.com Games Alfresco - http://gamesalfresco.com/ Augmented Times - http://artimes.rouli.net/ Augmented Planet - http://www.augmentedplanet.com/ Beyond the Beyond - http://www.wired.com/beyond_the_beyond/ Designing Social Interfaces & Designing For the Social Web SxDSalon - http://blog.sxdsalon.org/ Designing for Social Interaction - http://www.boxesandarrows.com/view/designing-for-social
- 92. Joe Lamantia Experience Design& Strategy @moJoe JoeLamantia.com Joe.Lamantia@gmail.com
Editor's Notes
- #4 http://www.flickr.com/photos/27032340@N00/428068243/
- #12 http://www.flickr.com/photos/lastgunslinger/3354205233/
- #13 http://www.flickr.com/photos/7670505@N02/2236560304/
- #15 http://www.flickr.com/photos/wikitude/3873717201/in/set-72157622291853583
- #16 In 1994 Paul Milgram and Fumio Kishino defined a mixed reality as "...anywhere between the extrema of the virtuality continuum."[4] (VC), where the Virtuality Continuum extends from the completely real through to the completely virtual environment with augmented reality and augmented virtuality ranging between.
- #17 Wikitude mobile AR browser
- #18 key aspects of augmented reality from design perspective
- #19 between people = not human to machine (actors with social norms / perspective in effect) social situated = imbued with meaning based on social context and perspective not simply transactional (e.g recommending a product to a friend vs. making purchase from seller)
- #20 between people = not human to machine (actors with social norms / perspective in effect) social situated = imbued with meaning based on social context and perspective not simply transactional (e.g recommending a product to a friend vs. making purchase from seller)
- #21 key aspects of social augmented experiences from design perspective
- #23 However, as a result of the inherently social nature of augmented reality, we can be sure the value and impact of many augmented experiences depends in large part on how effectively they integrate the social dimensions of real-world settings, in real time. the social maturity of current augmented experiences is similar to that of a young child who is learning the complex rules and norms that determine socially acceptable behavior. With unevenly developed abilities and understanding, fitting into social situations is very difficult.
- #28 The contextual model for this interaction assumes that interrupted or delayed conversations are socially acceptable—though asynchrony is one of the most frustrating aspects of poorly mediated interactions. (‘Can you hear me now...?’) This scenario also depends on directed, gaze-based, device-powered scanning of faces at close personal distances. For strangers who have no affiliation, I would wager this experience is too similar to having a policeman stop you and ask you for identification for most people to consider it an acceptable social interaction. Even among people with existing, but weaker ties like the indirect relationships that loosely link colleagues in a large organization, this feels like a depersonalizing and inherently suspicious way of greeting someone. Using a device in this way also creates a physical barrier between people and, in terms of attention, shifts focus away from the person to the device and the information it presents. This hardly feels like an improvement over the everyday act of introducing yourself or joining a conversation group at a party. Anyone pointing a cell phone or any other device in my direction to try to "identify" me better be prepared for a either a law suit or a punch in the face. Anonymous comment http://www.technologyreview.com/computing/24639/?a=f
- #29 most augmented experiences created using limited set of design patterns for interaction models and concepts http://www.flickr.com/photos/maggiesworld/2502144304/

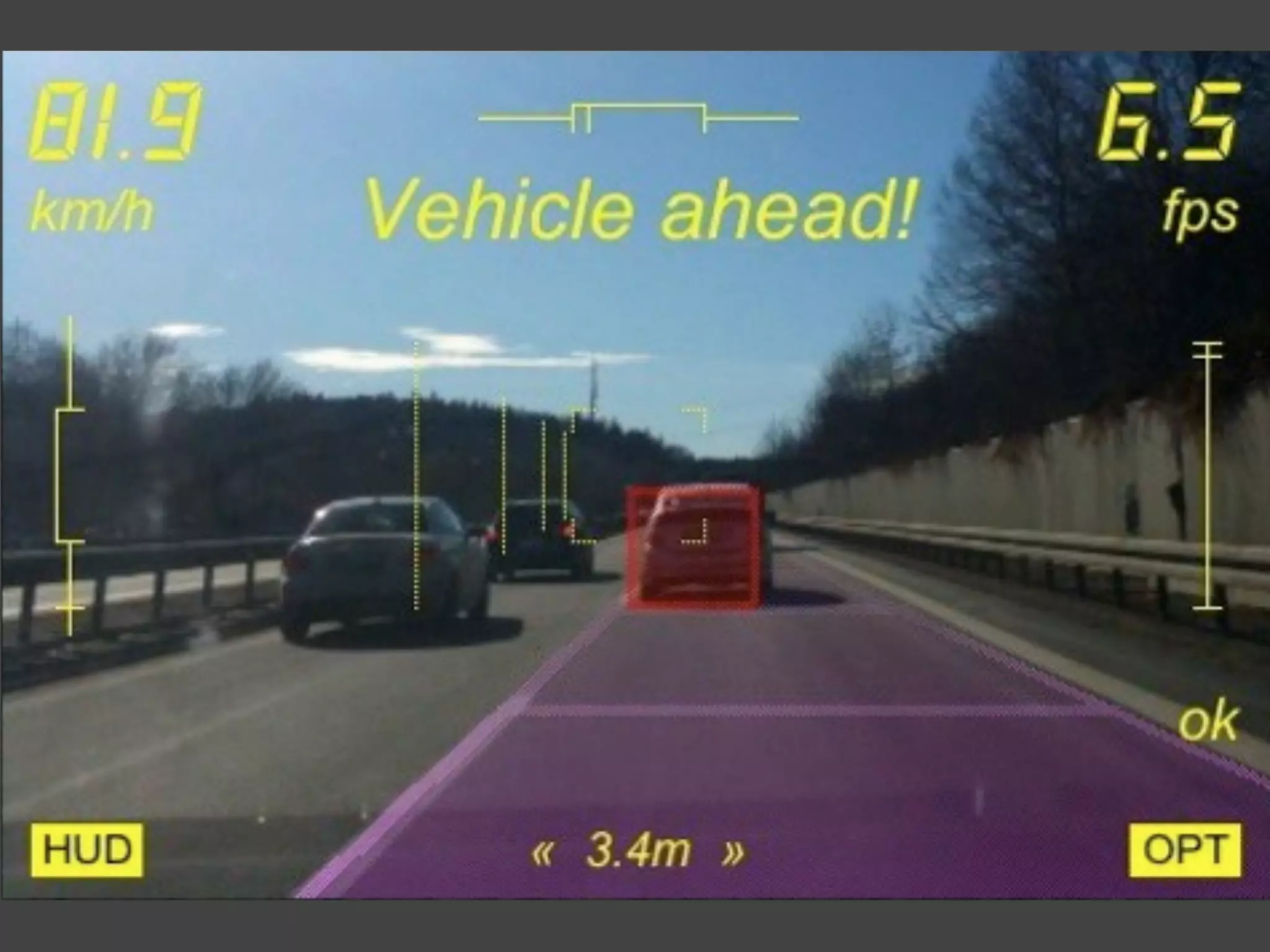

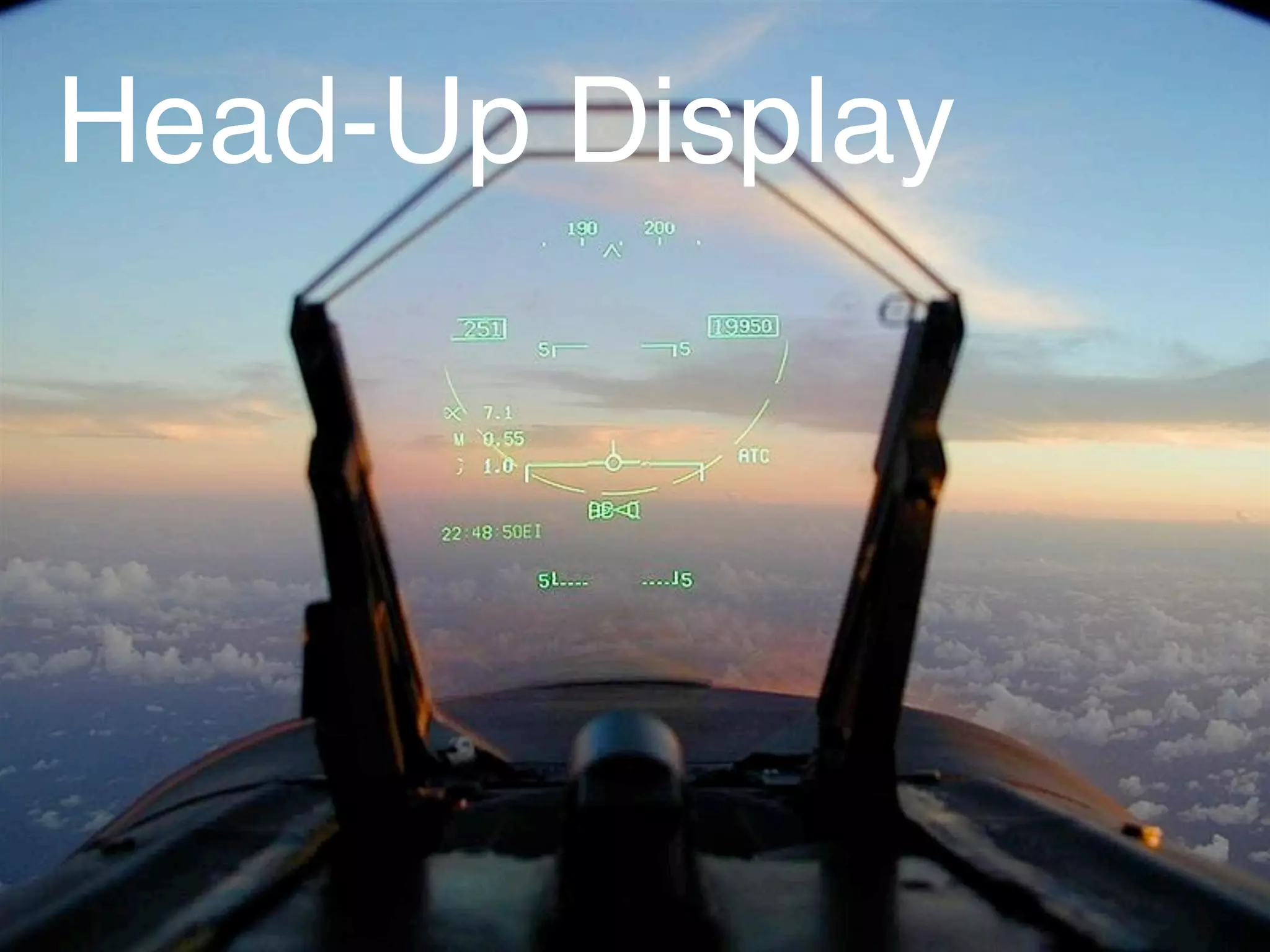

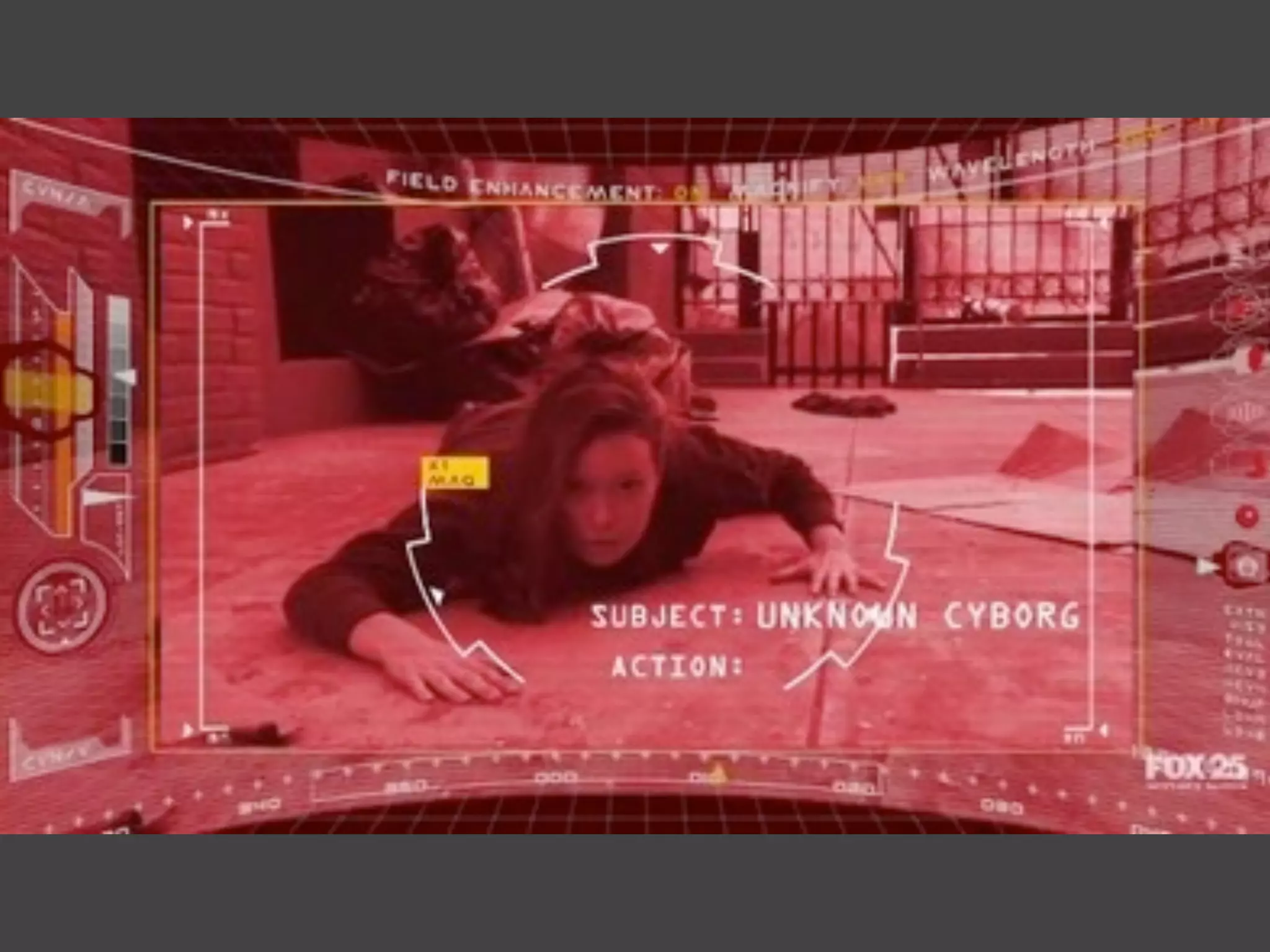

- #30 The Head-Up Display interaction pattern echoes the targeting and navigation displays in military and other aircraft like that shown in Figure 2. This is the oldest of the AR interaction patterns. Augmented experiences using the Head-Up Display pattern add information about the real objects in view into a complete mixed-reality experience that built-in AR tools and devices generate. While many AR experiences rely on external devices—that is, external to the body—those using the Head-Up Display pattern commonly depend on hardware that is integral to a vehicle or cockpit-like physical setting. Another very important attribute of the Head-Up Display pattern is integration with a fixed point of view—typically the focus of the user’s visual field. This pattern also applies to wearable systems such as the helmet-mounted displays modern infantries use.
