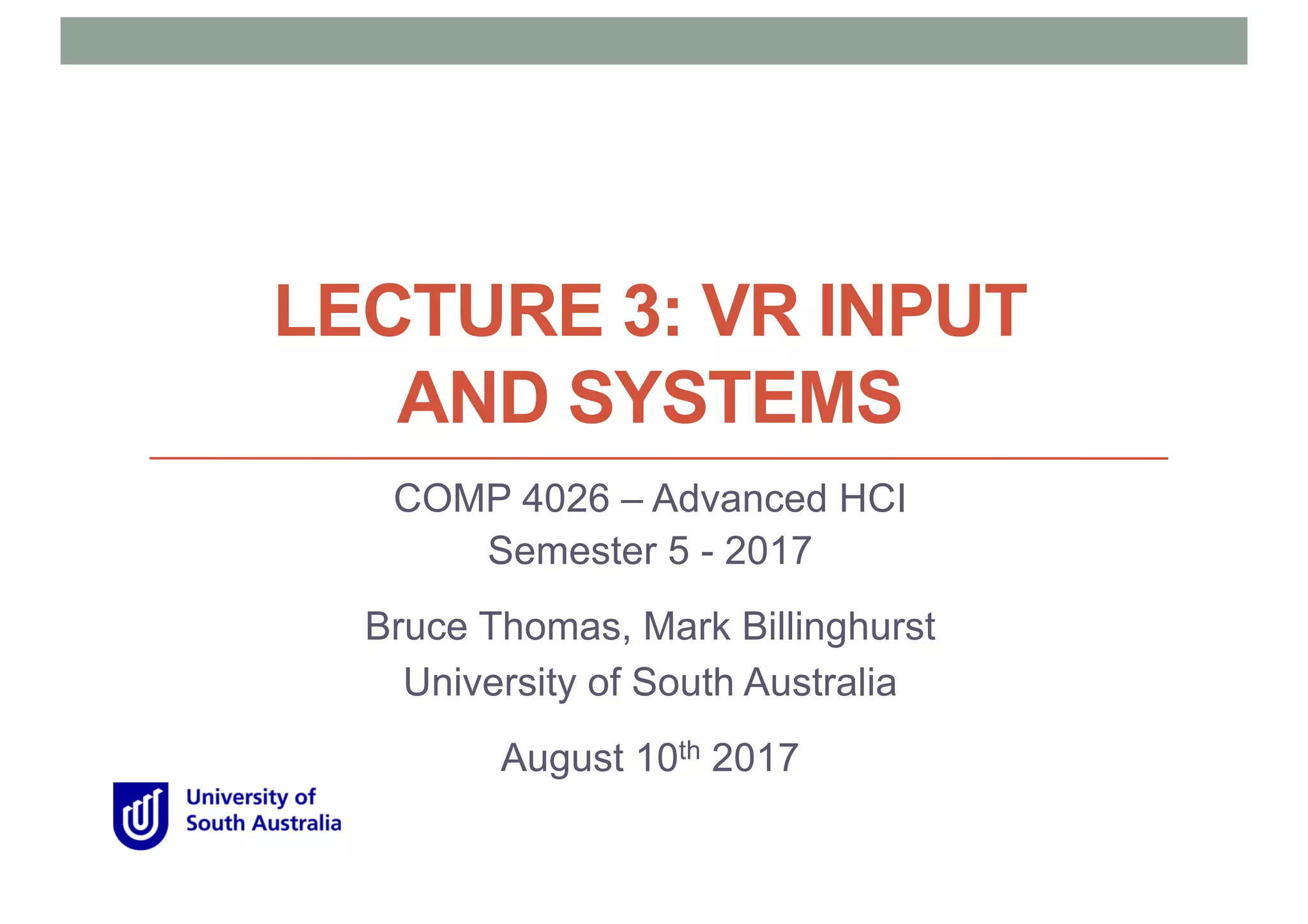

LECTURE 3: VR INPUT
AND SYSTEMS
COMP 4026 – Advanced HCI
Semester 5 - 2017
Bruce Thomas, Mark Billinghurst
University of South Australia
August 10th 2017
• Audio Displays
• Synthesizing audio
• Sound mixing
• Spatial Audio Display
• HRTF, Google VR Spatial Audio SDK
• VR Tracking
• Performance criteria
• Latency, accuracy, update, drift, etc.
• Tracking technologies
• Mechanical, electromagnetic, visual, etc
• Example Vive Lighthouse Tracking

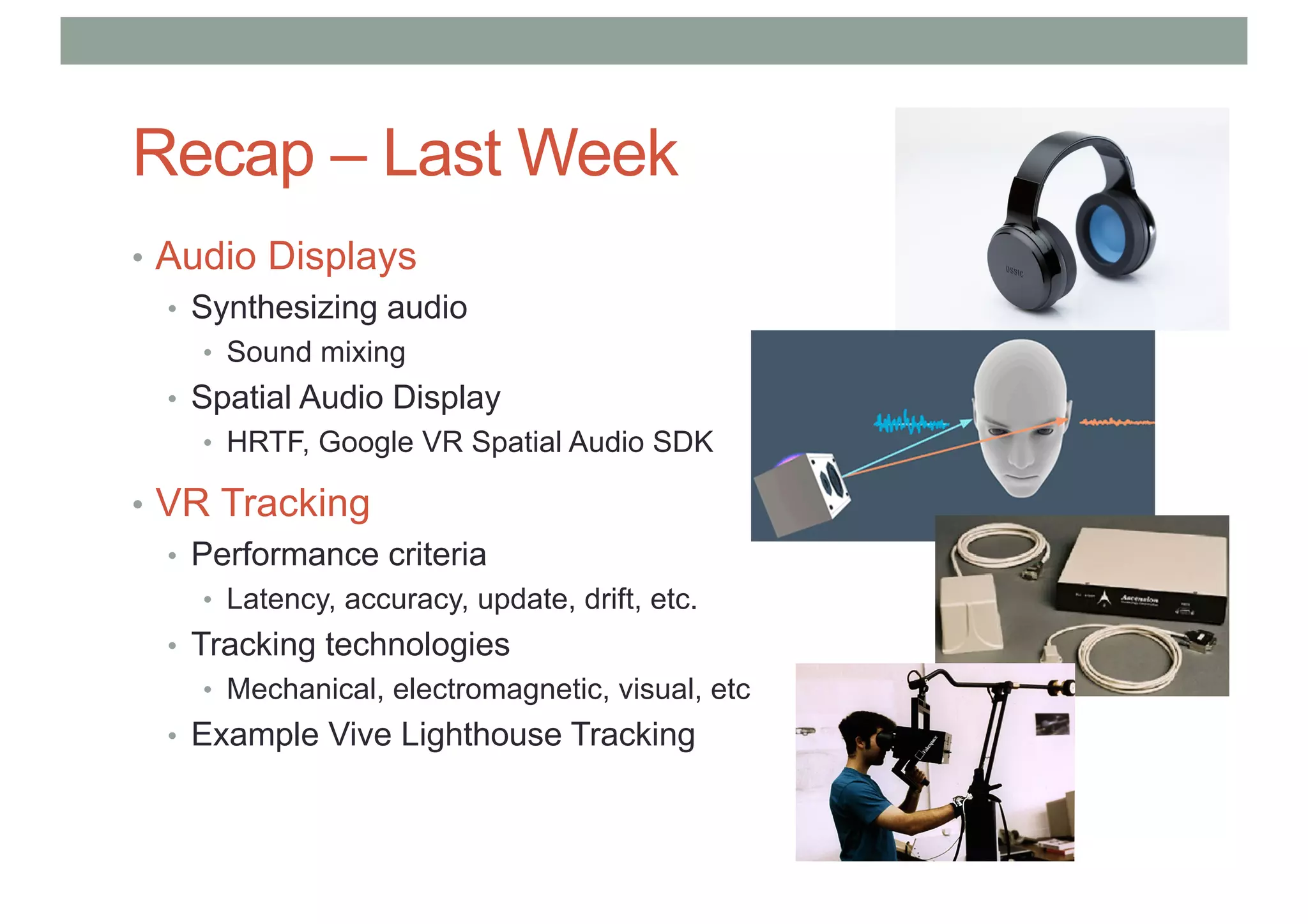

Recap – Last Week

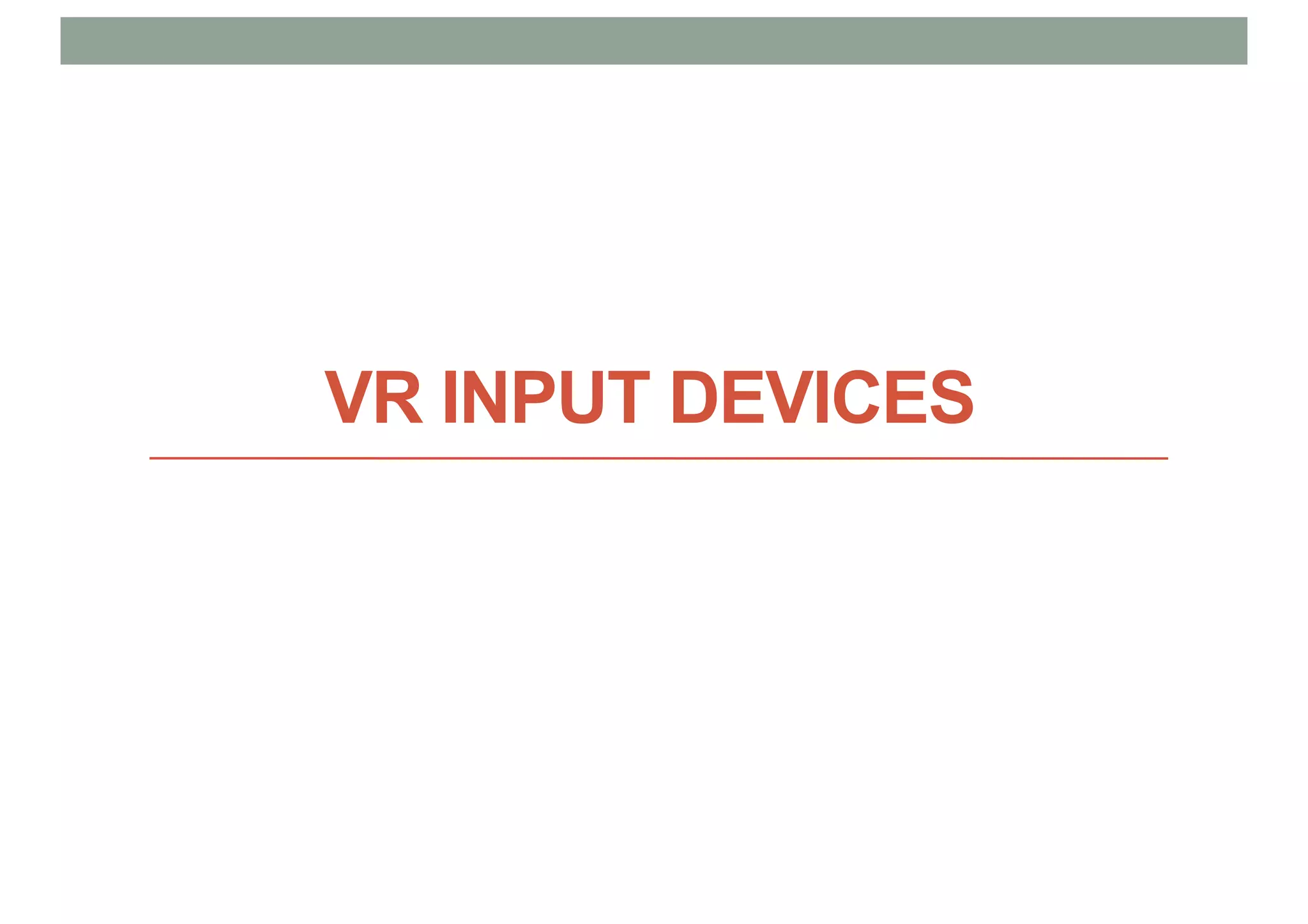

VR INPUT DEVICES

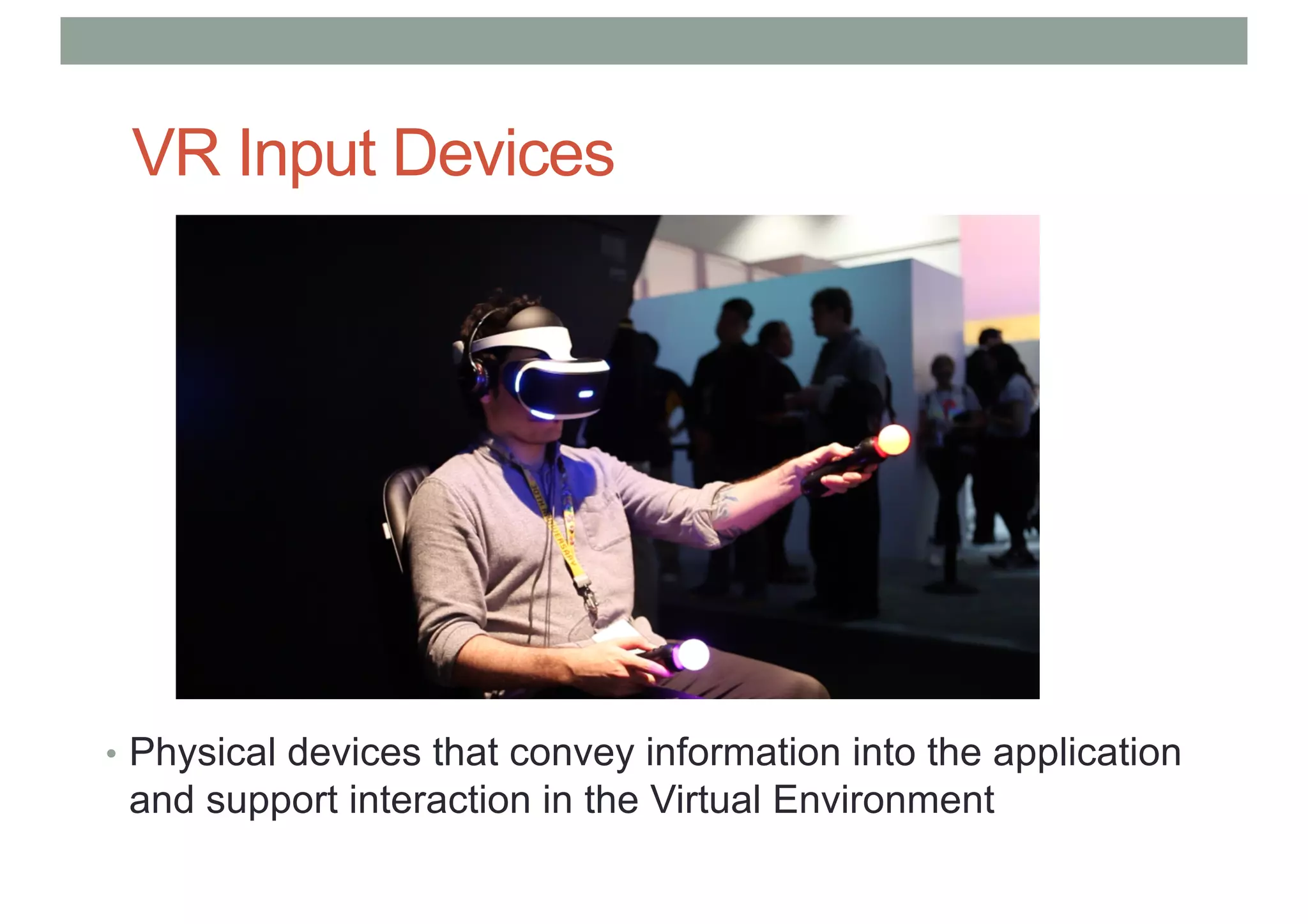

VR Input Devices
• Physical devices that convey information into the application
and support interaction in the Virtual Environment

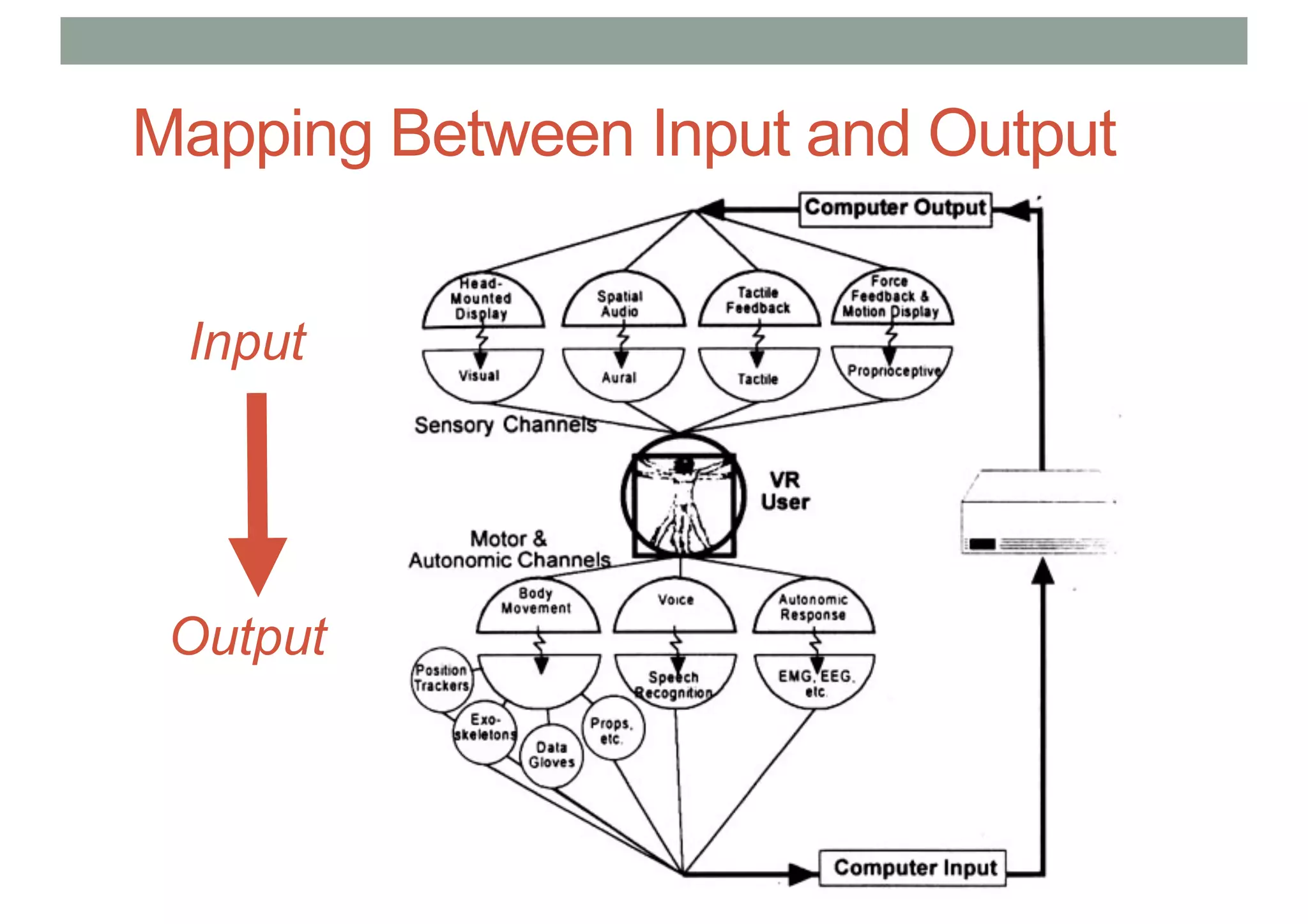

Mapping Between Input and Output
Input
Output
Motivation

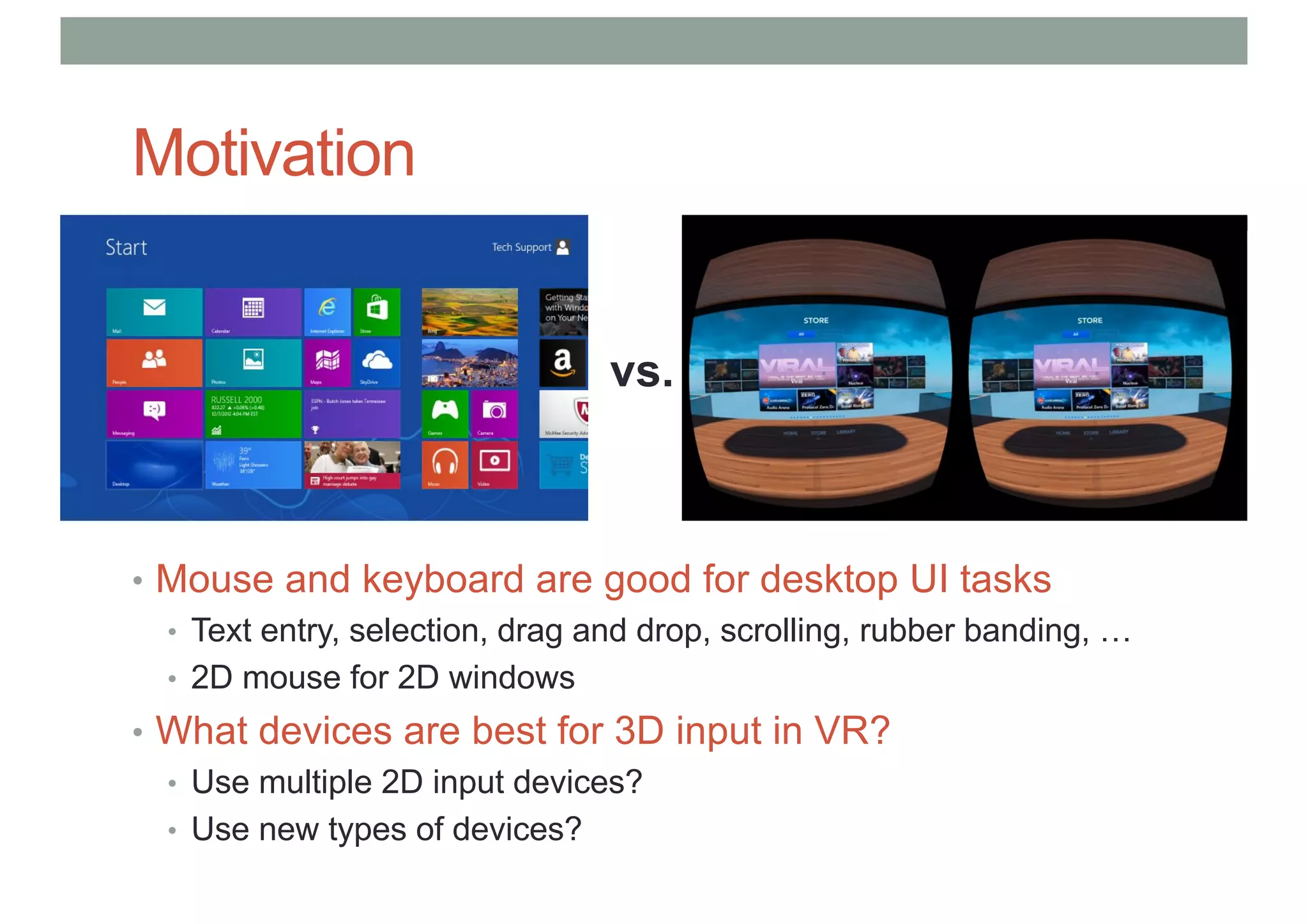

• Mouse and keyboard are good for desktop UI tasks
• Text entry, selection, drag and drop, scrolling, rubber banding, …
• 2D mouse for 2D windows
• What devices are best for 3D input in VR?
• Use multiple 2D input devices?
• Use new types of devices?
vs.

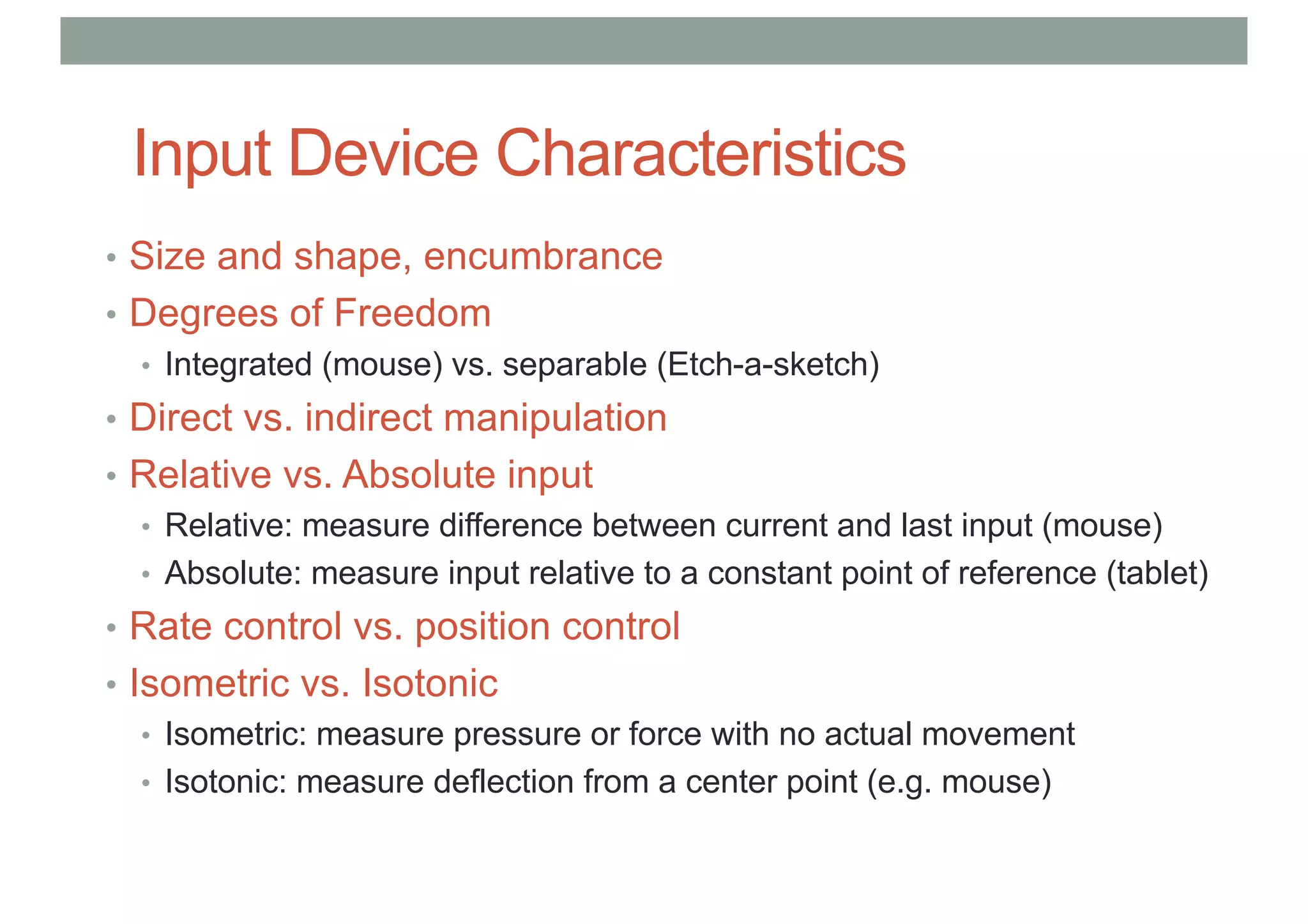

Input Device Characteristics
• Size and shape, encumbrance
• Degrees of Freedom
• Integrated (mouse) vs. separable (Etch-a-sketch)
• Direct vs. indirect manipulation
• Relative vs. Absolute input
• Relative: measure difference between current and last input (mouse)
• Absolute: measure input relative to a constant point of reference (tablet)
• Rate control vs. position control
• Isometric vs. Isotonic
• Isometric: measure pressure or force with no actual movement
• Isotonic: measure deflection from a center point (e.g. mouse)

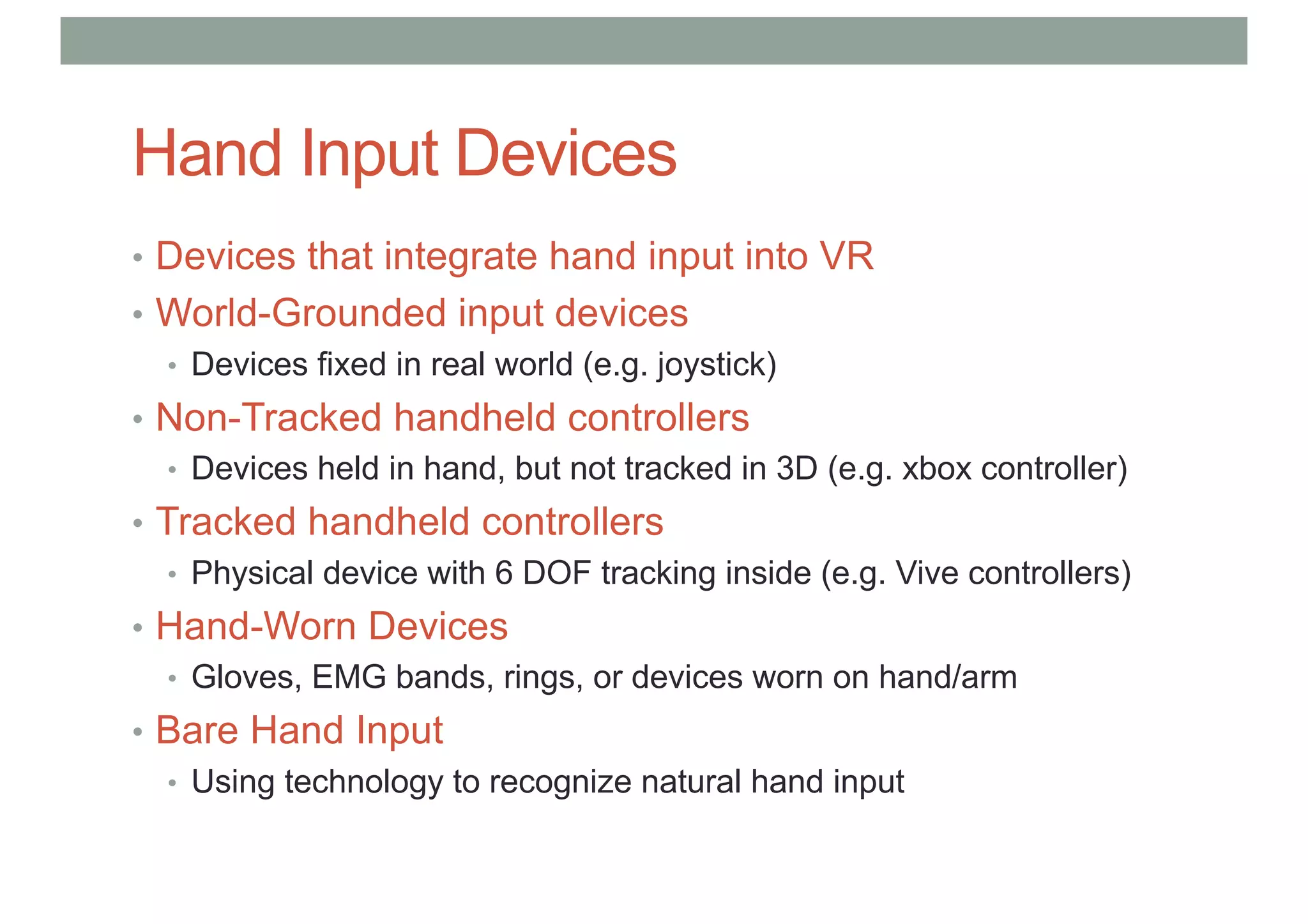

Hand Input Devices
• Devices that integrate hand input into VR
• World-Grounded input devices
• Devices fixed in real world (e.g. joystick)
• Non-Tracked handheld controllers
• Devices held in hand, but not tracked in 3D (e.g. xbox controller)
• Tracked handheld controllers
• Physical device with 6 DOF tracking inside (e.g. Vive controllers)
• Hand-Worn Devices
• Gloves, EMG bands, rings, or devices worn on hand/arm
• Bare Hand Input
• Using technology to recognize natural hand input

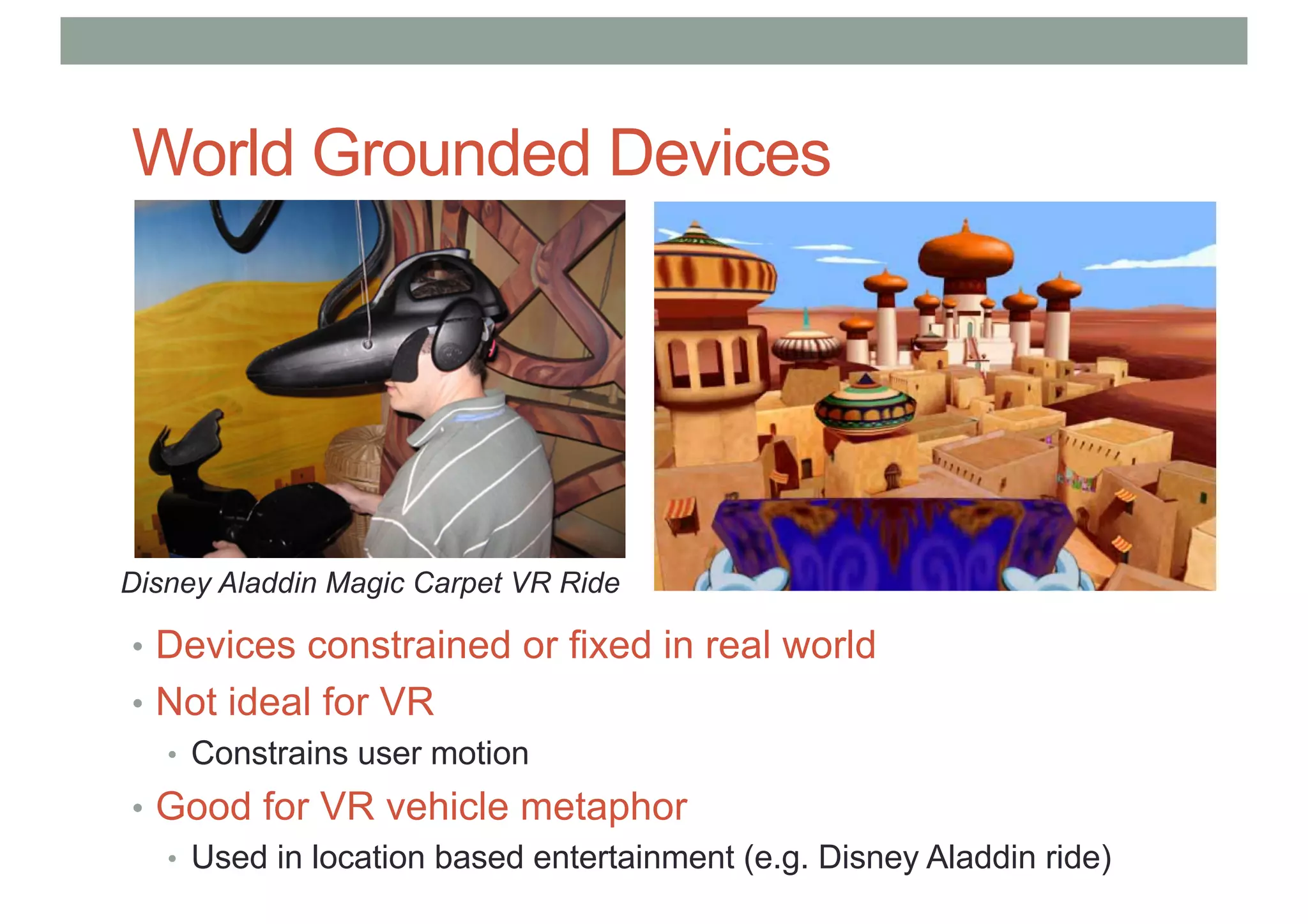

World Grounded Devices
• Devices constrained or fixed in real world
• Not ideal for VR
• Constrains user motion
• Good for VR vehicle metaphor
• Used in location based entertainment (e.g. Disney Aladdin ride)
Disney Aladdin Magic Carpet VR Ride

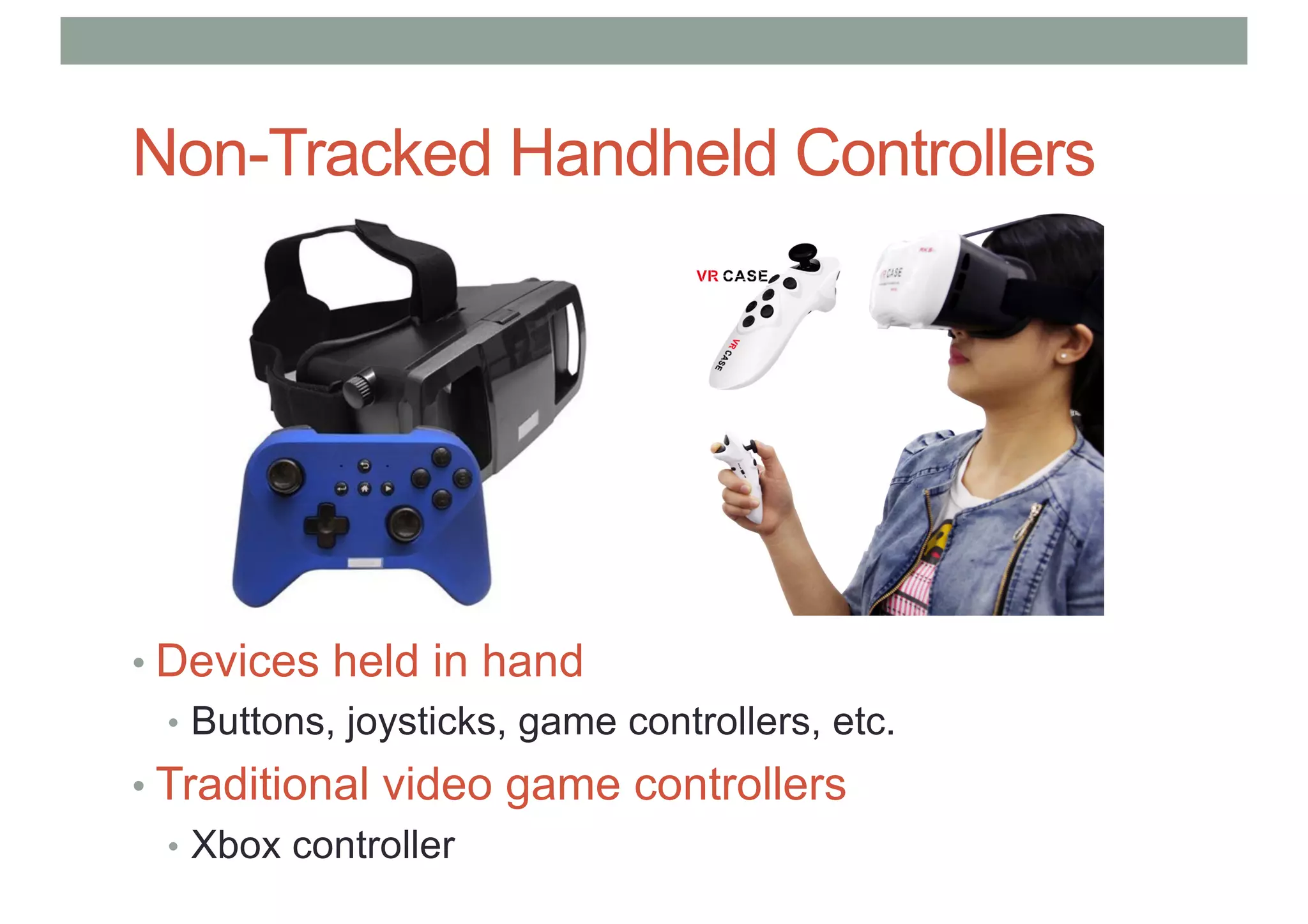

Non-Tracked Handheld Controllers
• Devices held in hand
• Buttons, joysticks, game controllers, etc.
• Traditional video game controllers
• Xbox controller
Tracked Handheld Controllers
• Handheld controller with 6 DOF tracking
• Combines button/joystick input plus tracking
• One of the best options for VR applications
• Physical prop enhancing VR presence
• Providing proprioceptive, passive haptic touch cues
• Direct mapping to real hand motion

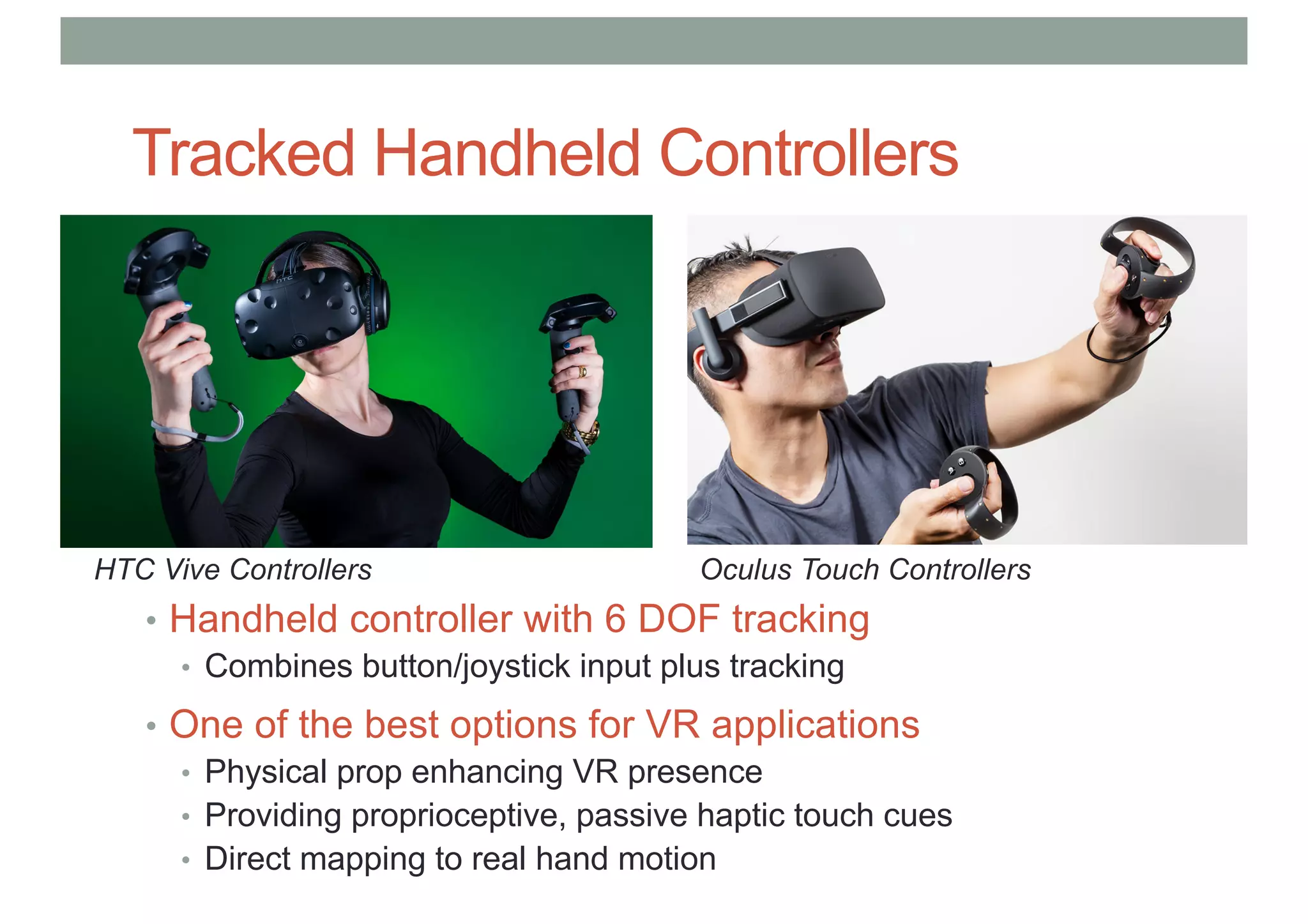

HTC Vive Controllers Oculus Touch Controllers

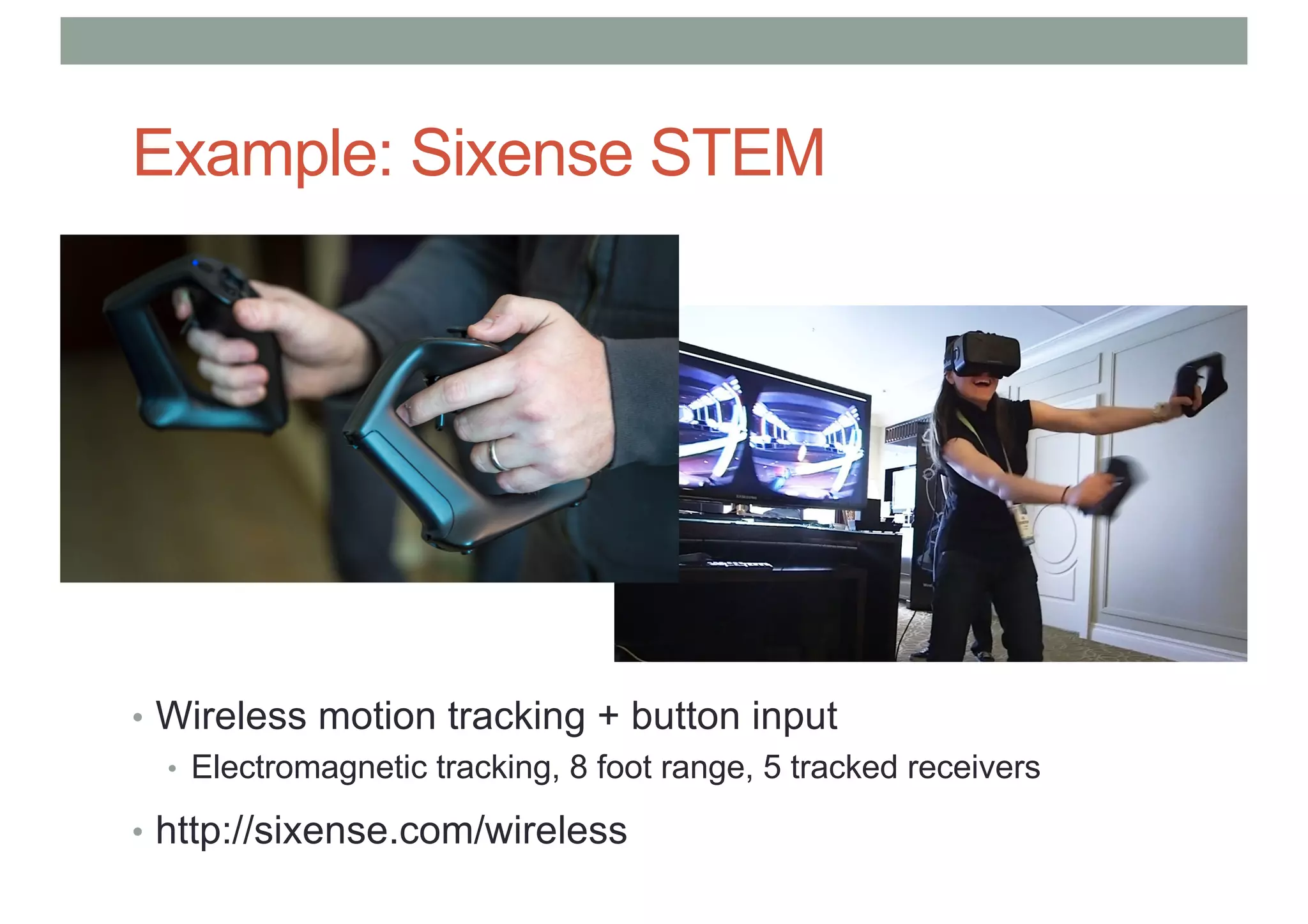

Example: Sixense STEM
• Wireless motion tracking + button input
• Electromagnetic tracking, 8 foot range, 5 tracked receivers
• http://sixense.com/wireless
Sixense Demo Video
• https://www.youtube.com/watch?v=2lY3XI0zDWw

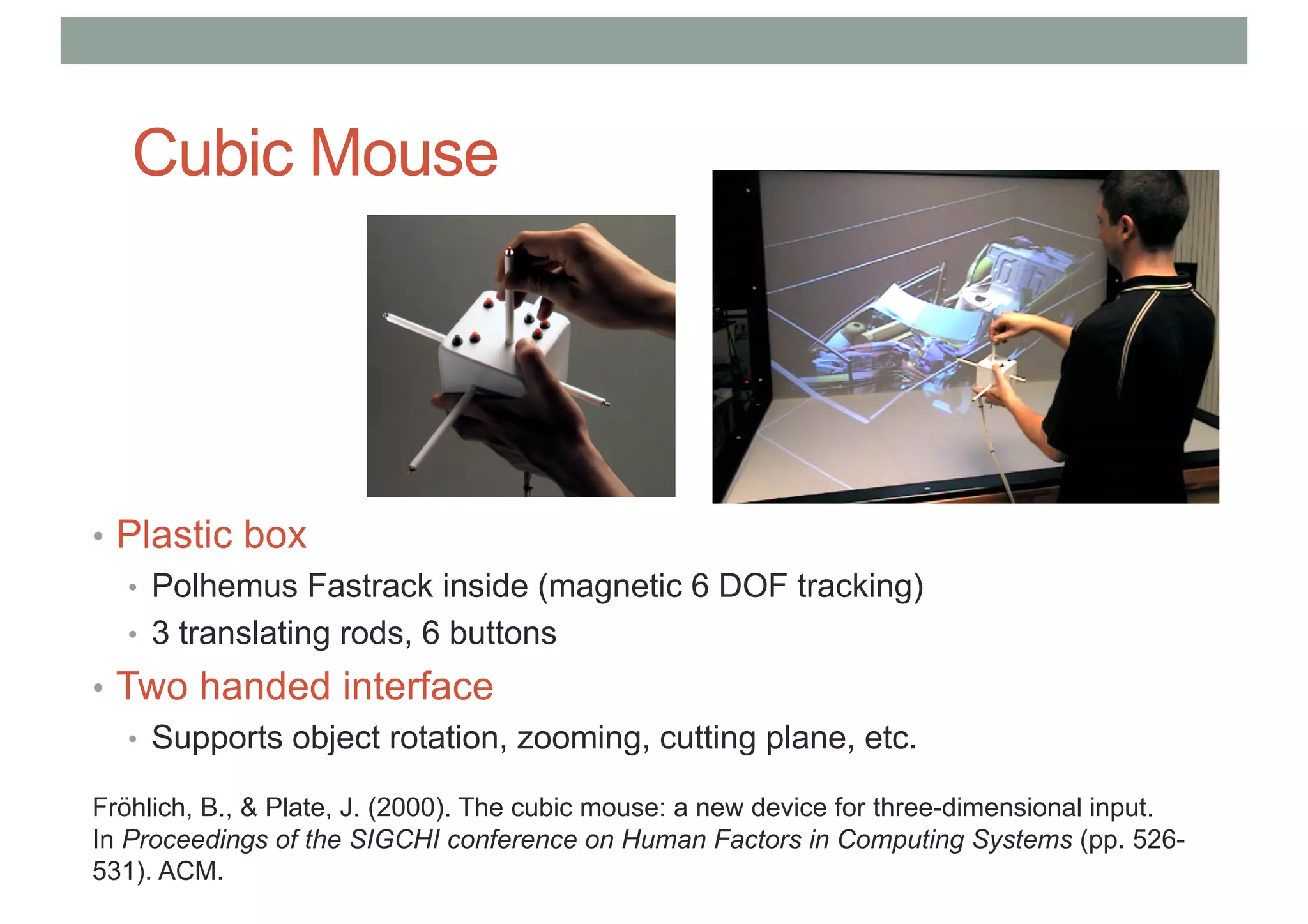

Cubic Mouse
• Plastic box
• Polhemus Fastrack inside (magnetic 6 DOF tracking)
• 3 translating rods, 6 buttons
• Two handed interface
• Supports object rotation, zooming, cutting plane, etc.
Fröhlich, B., & Plate, J. (2000). The cubic mouse: a new device for three-dimensional input.
In Proceedings of the SIGCHI conference on Human Factors in Computing Systems (pp. 526-
531). ACM.

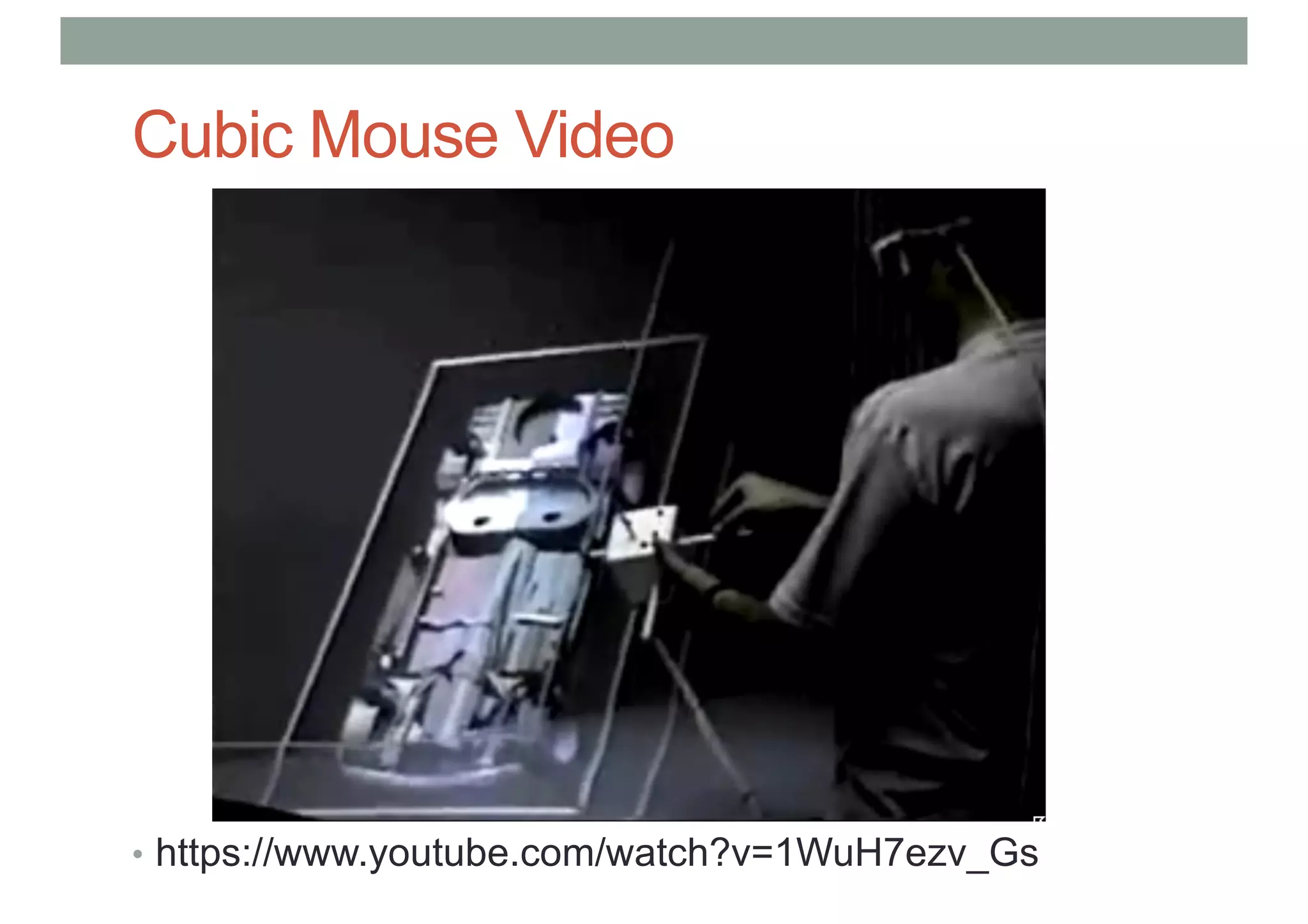

Cubic Mouse Video
• https://www.youtube.com/watch?v=1WuH7ezv_Gs

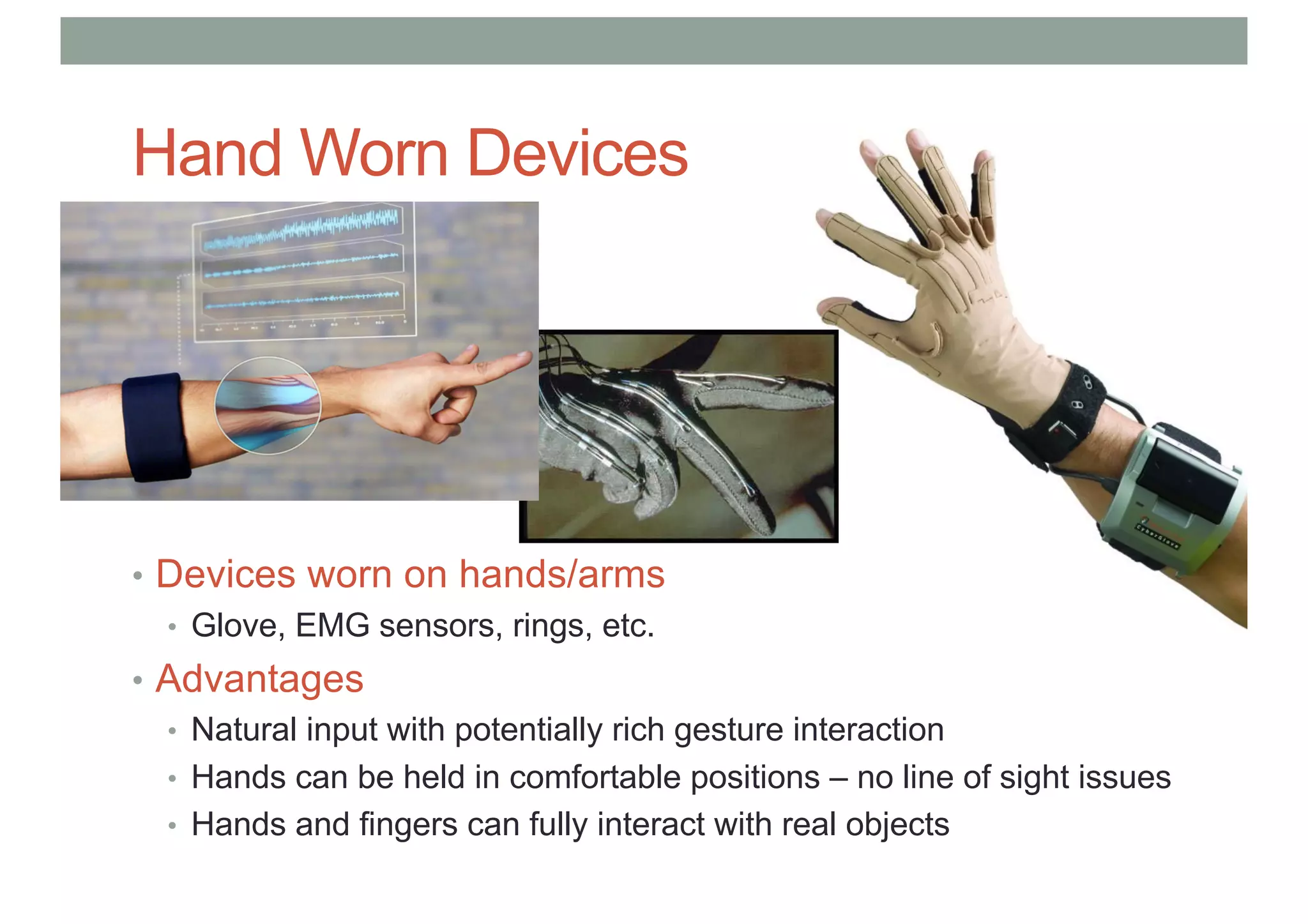

Hand Worn Devices
• Devices worn on hands/arms
• Glove, EMG sensors, rings, etc.
• Advantages
• Natural input with potentially rich gesture interaction
• Hands can be held in comfortable positions – no line of sight issues
• Hands and fingers can fully interact with real objects

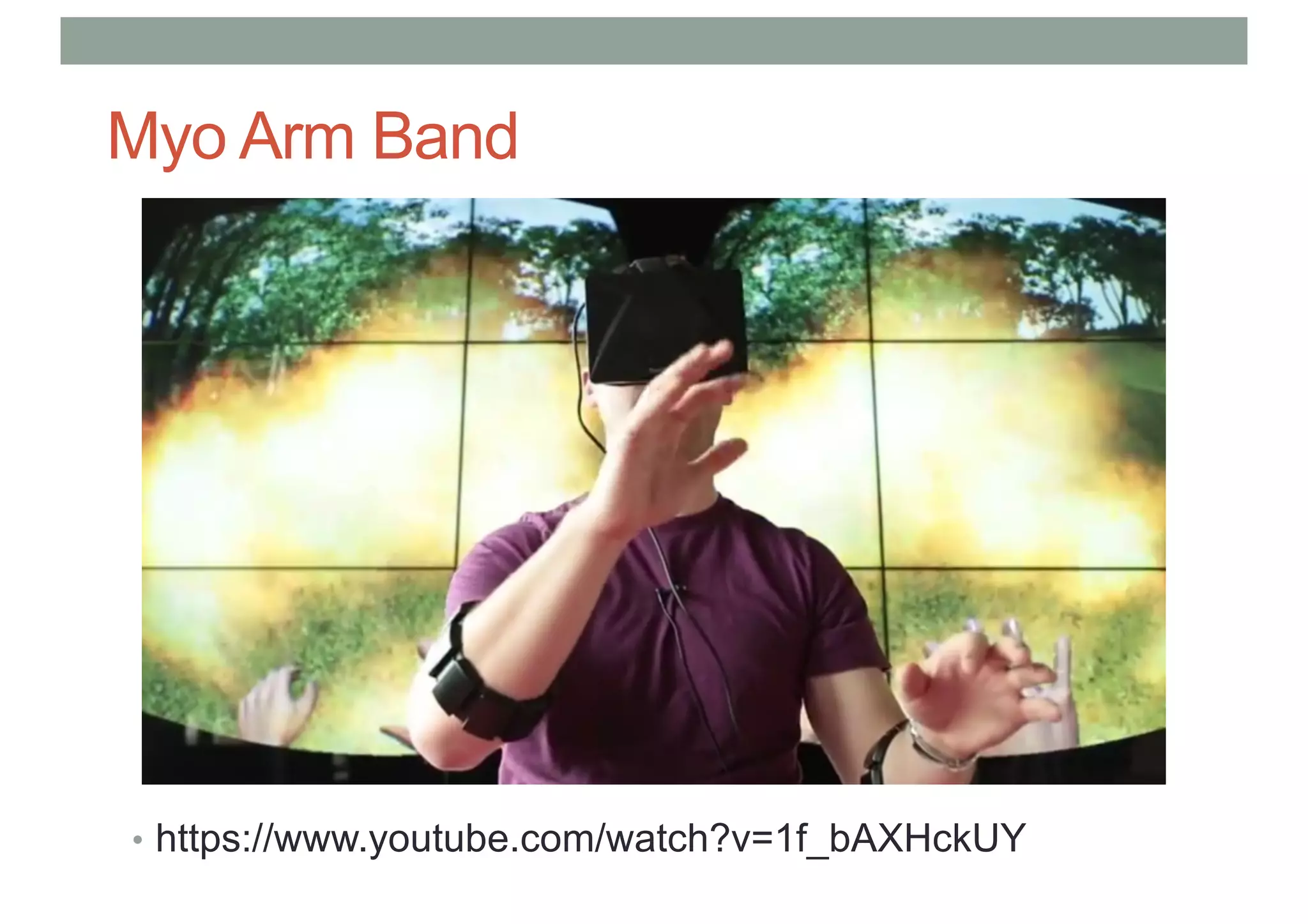

Myo Arm Band
• https://www.youtube.com/watch?v=1f_bAXHckUY

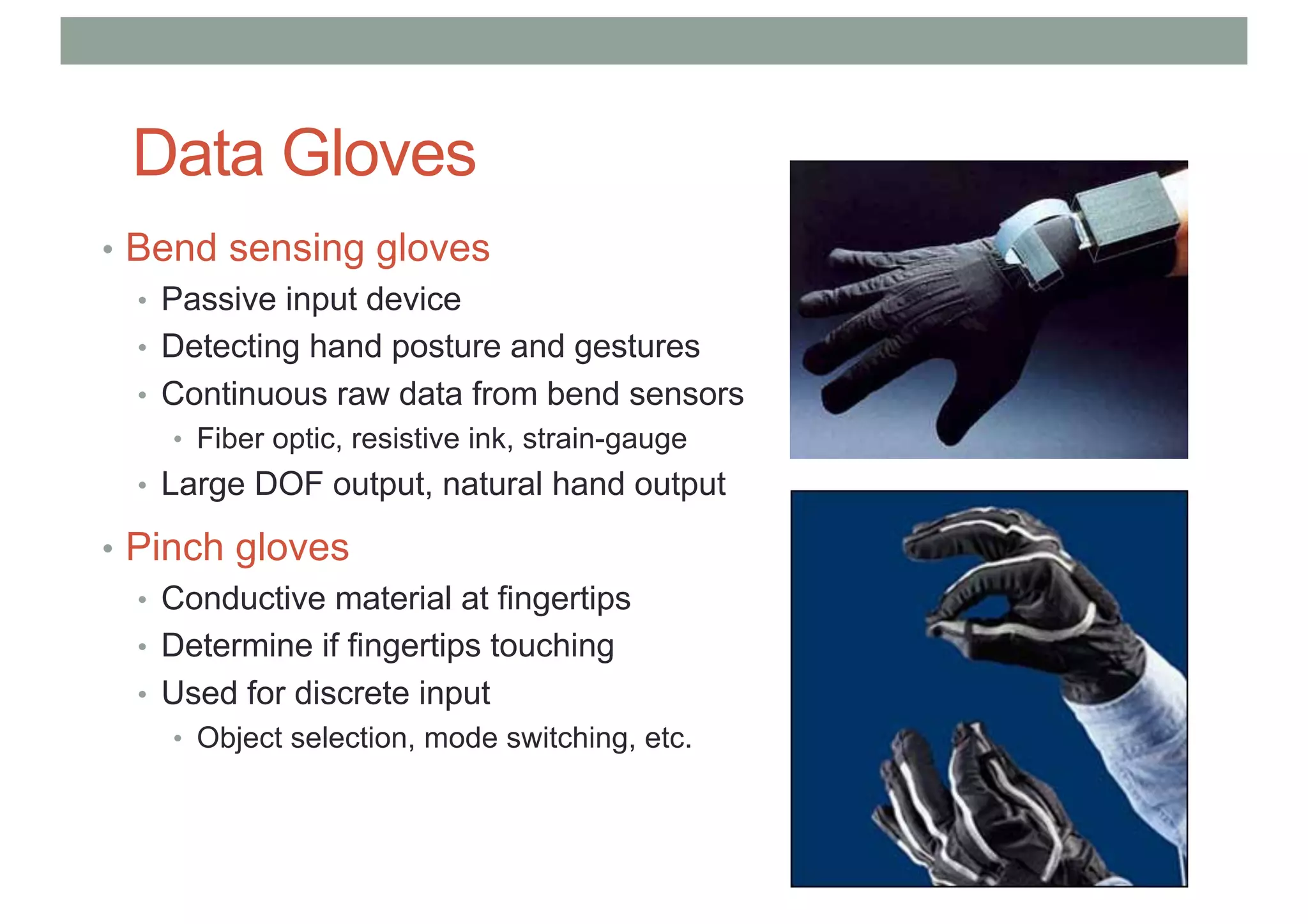

Data Gloves
• Bend sensing gloves
• Passive input device
• Detecting hand posture and gestures
• Continuous raw data from bend sensors
• Fiber optic, resistive ink, strain-gauge
• Large DOF output, natural hand output
• Pinch gloves
• Conductive material at fingertips
• Determine if fingertips touching
• Used for discrete input
• Object selection, mode switching, etc.

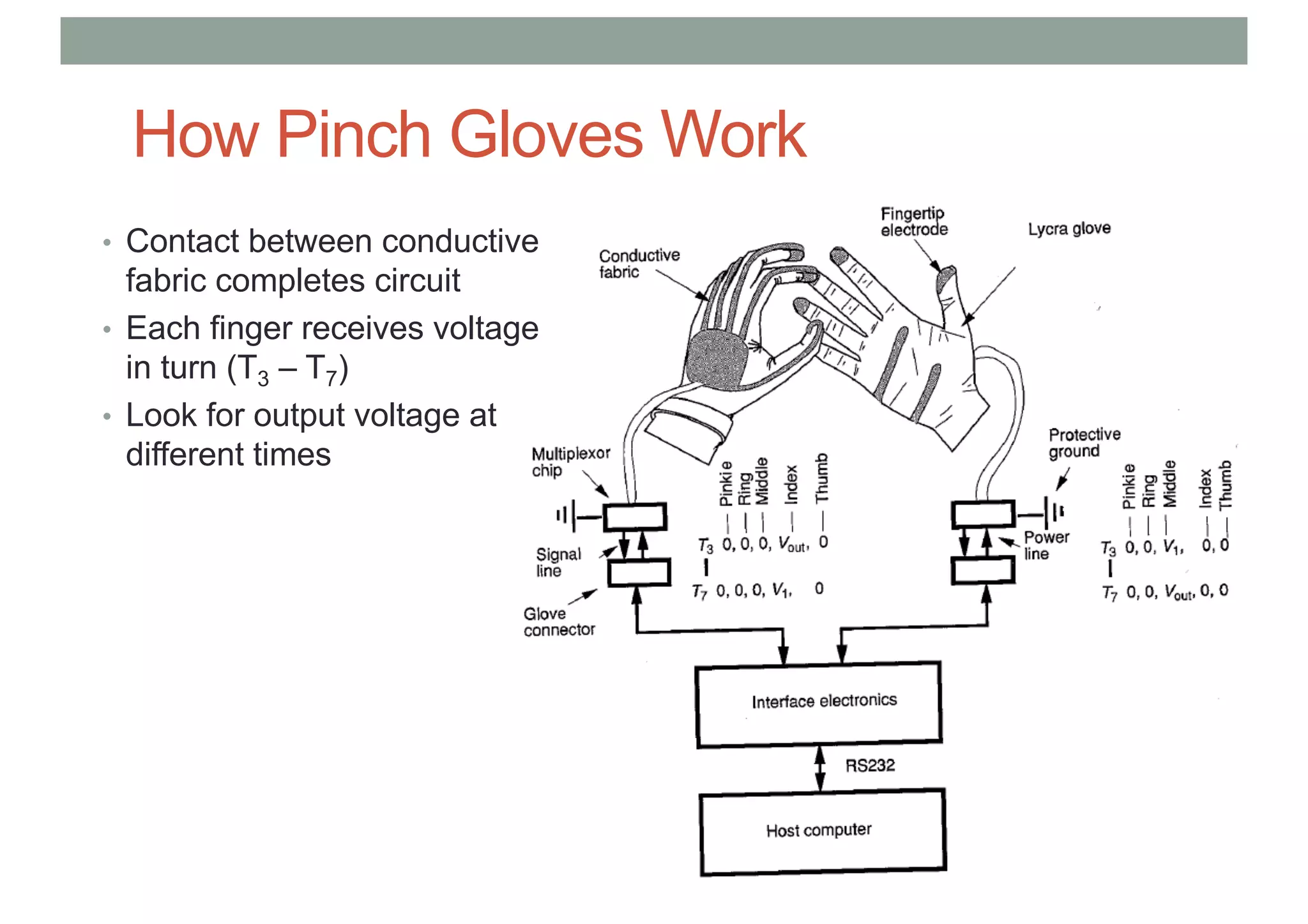

How Pinch Gloves Work
• Contact between conductive
fabric completes circuit
• Each finger receives voltage
in turn (T3 – T7)
• Look for output voltage at
different times

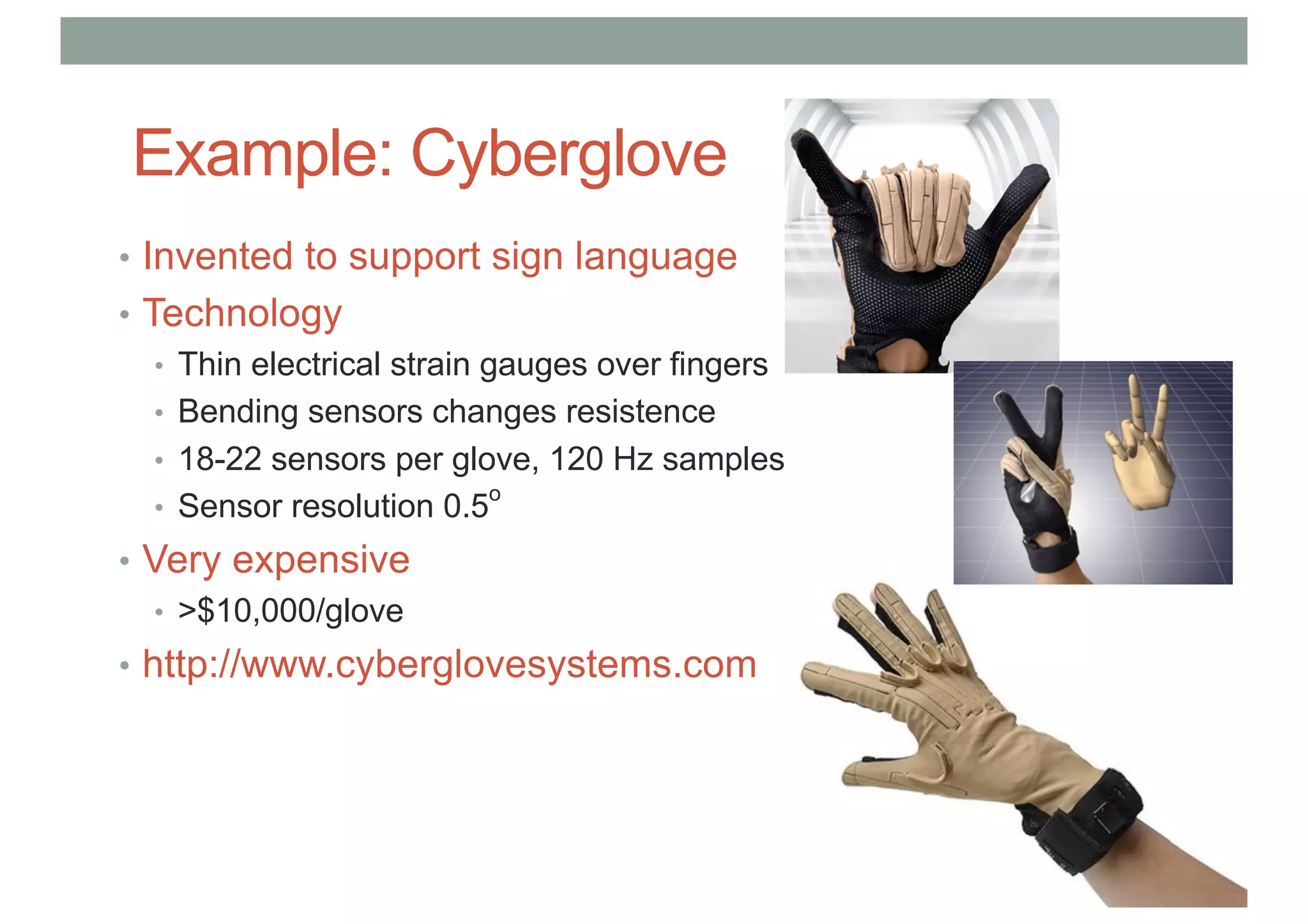

Example: Cyberglove
• Invented to support sign language
• Technology
• Thin electrical strain gauges over fingers
• Bending sensors changes resistence
• 18-22 sensors per glove, 120 Hz samples
• Sensor resolution 0.5o
• Very expensive
• >$10,000/glove
• http://www.cyberglovesystems.com

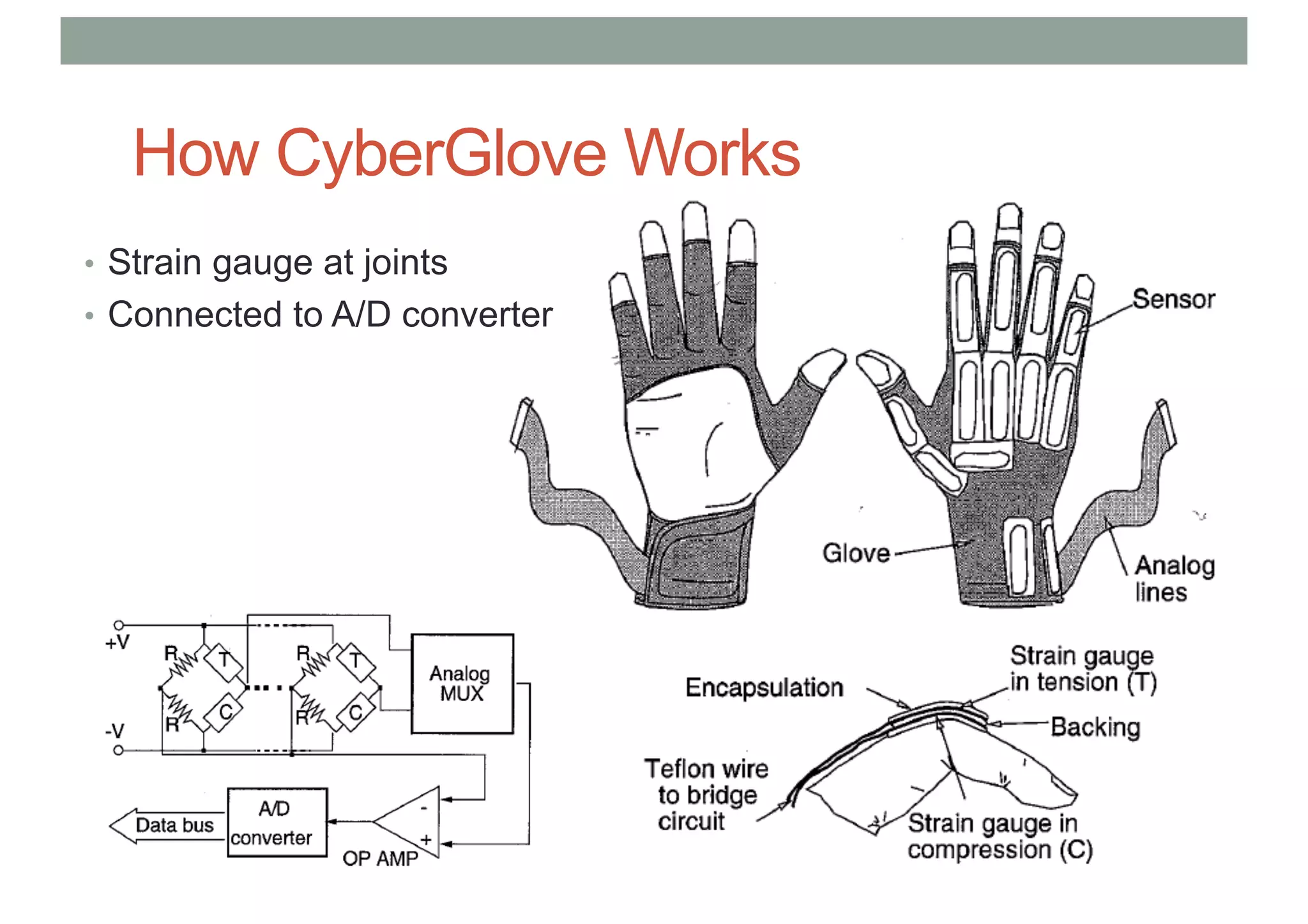

How CyberGlove Works
• Strain gauge at joints
• Connected to A/D converter

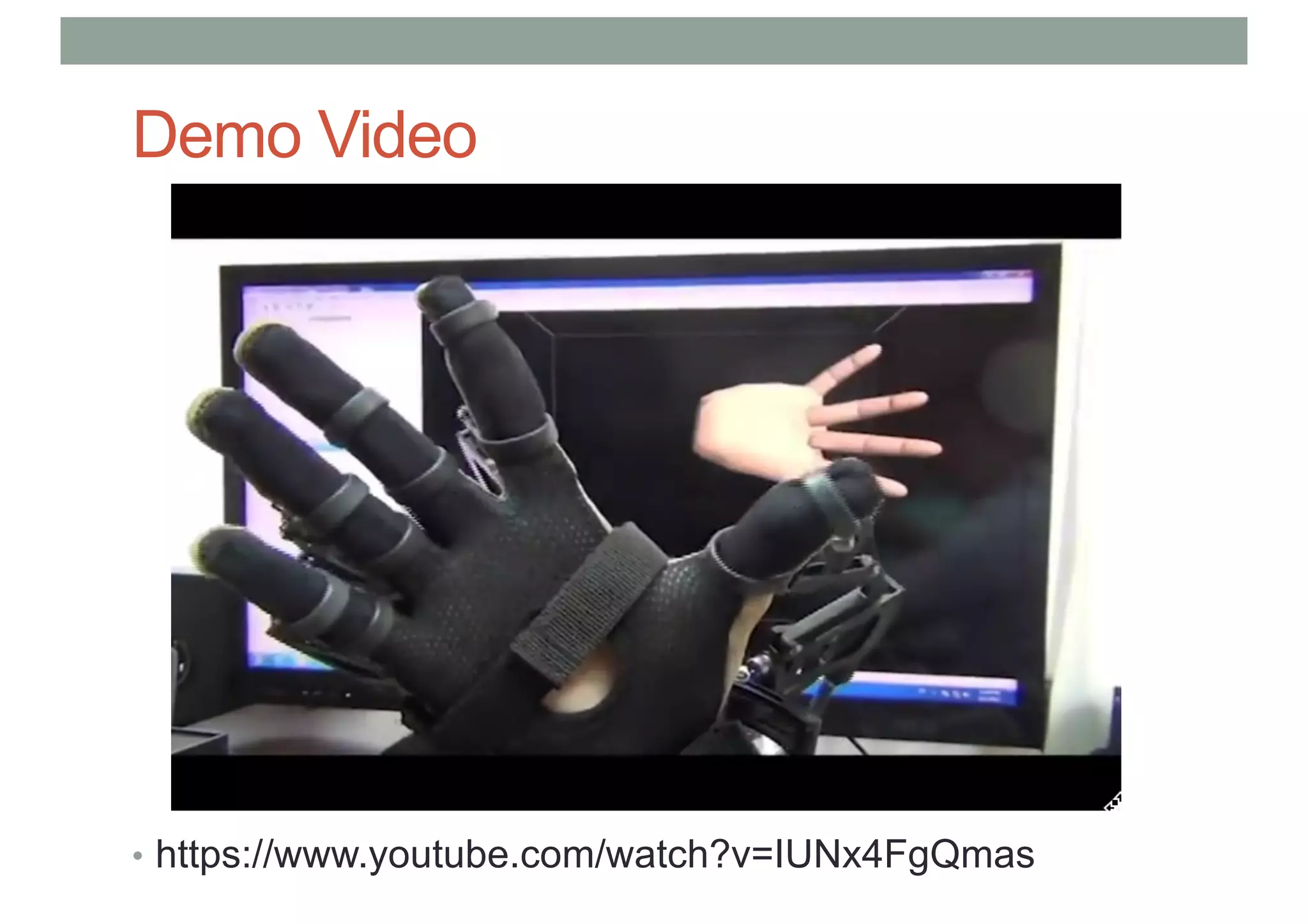

Demo Video
• https://www.youtube.com/watch?v=IUNx4FgQmas

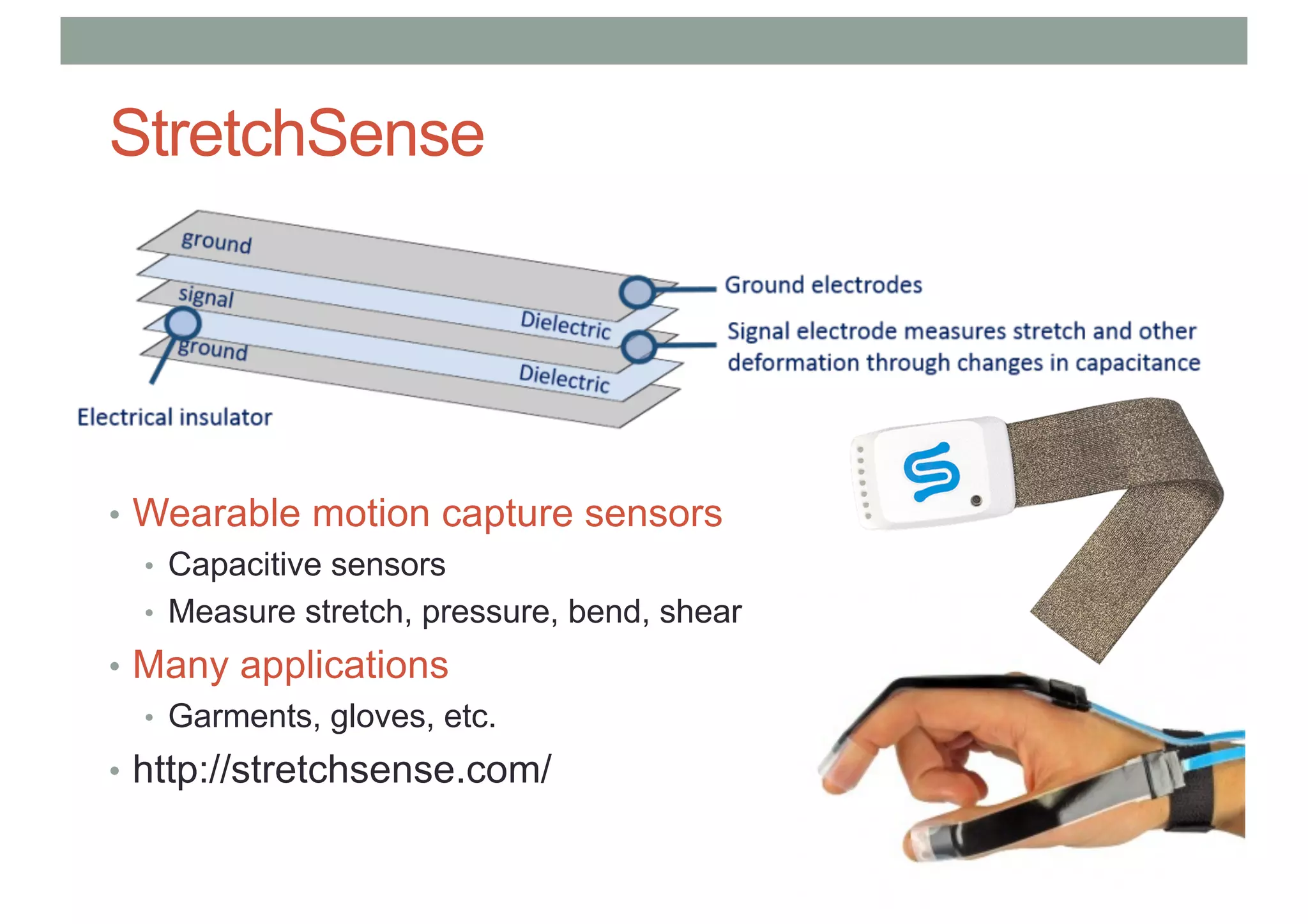

StretchSense
• Wearable motion capture sensors
• Capacitive sensors
• Measure stretch, pressure, bend, shear
• Many applications
• Garments, gloves, etc.
• http://stretchsense.com/

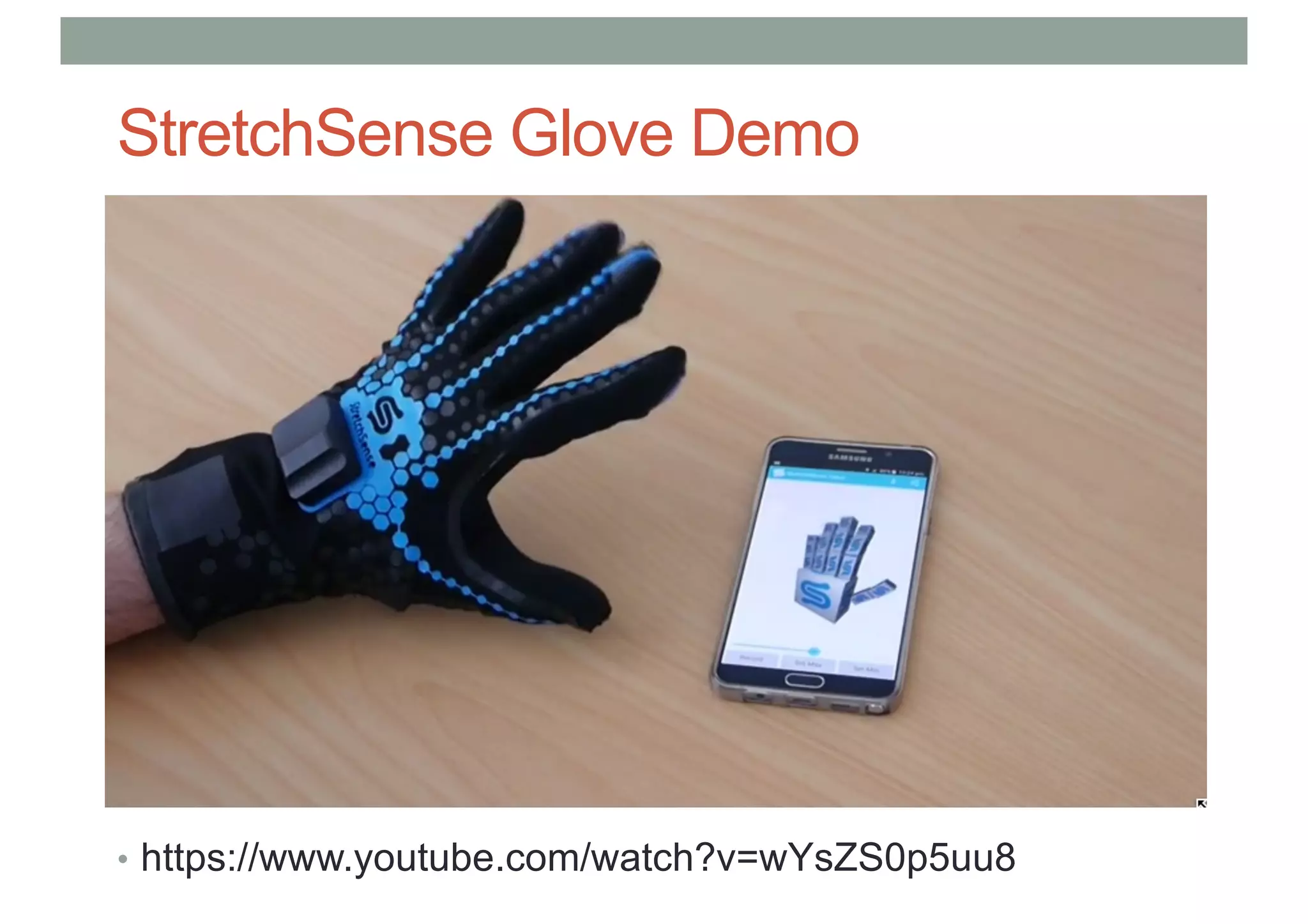

StretchSense Glove Demo
• https://www.youtube.com/watch?v=wYsZS0p5uu8

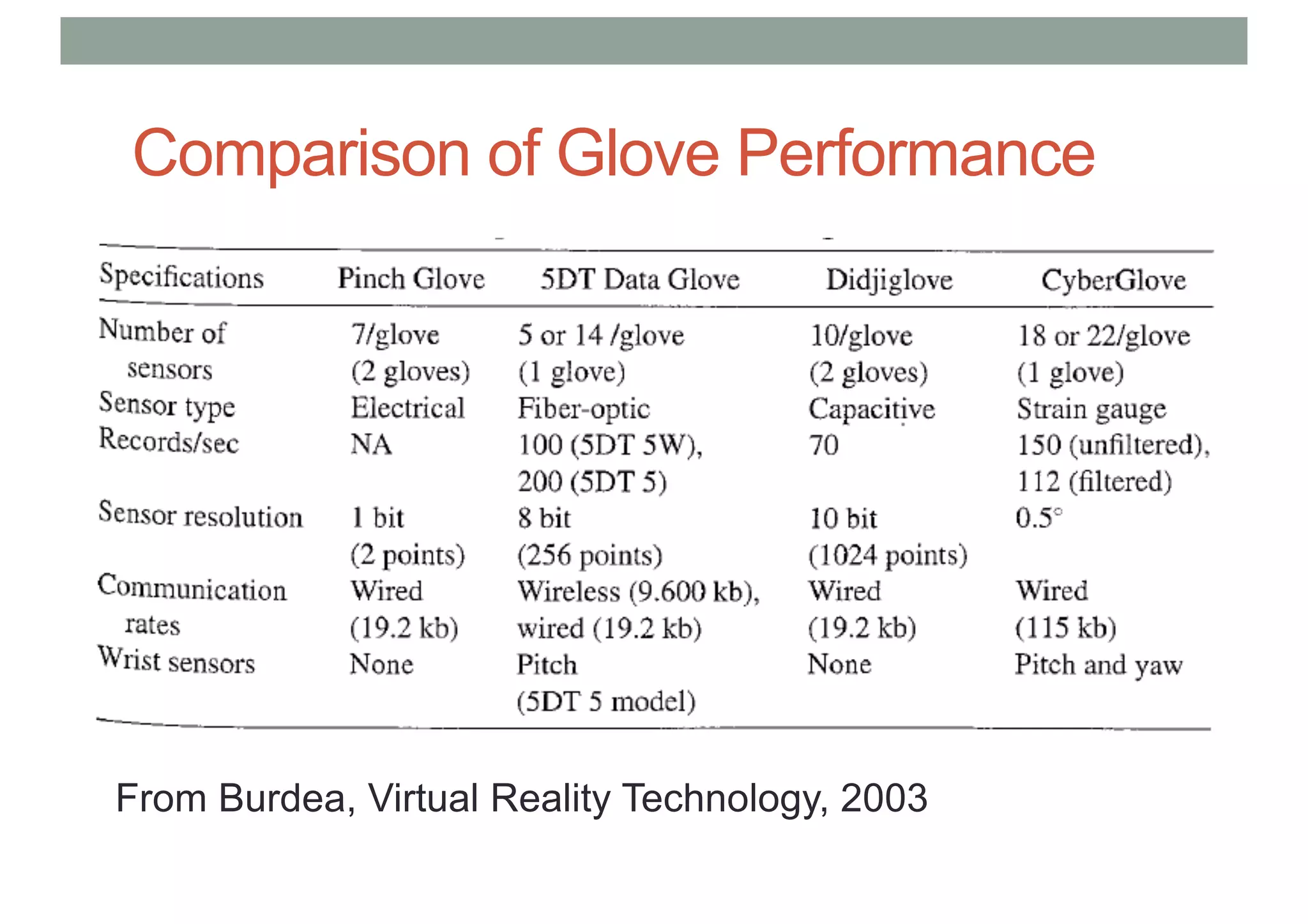

Comparison of Glove Performance
From Burdea, Virtual Reality Technology, 2003

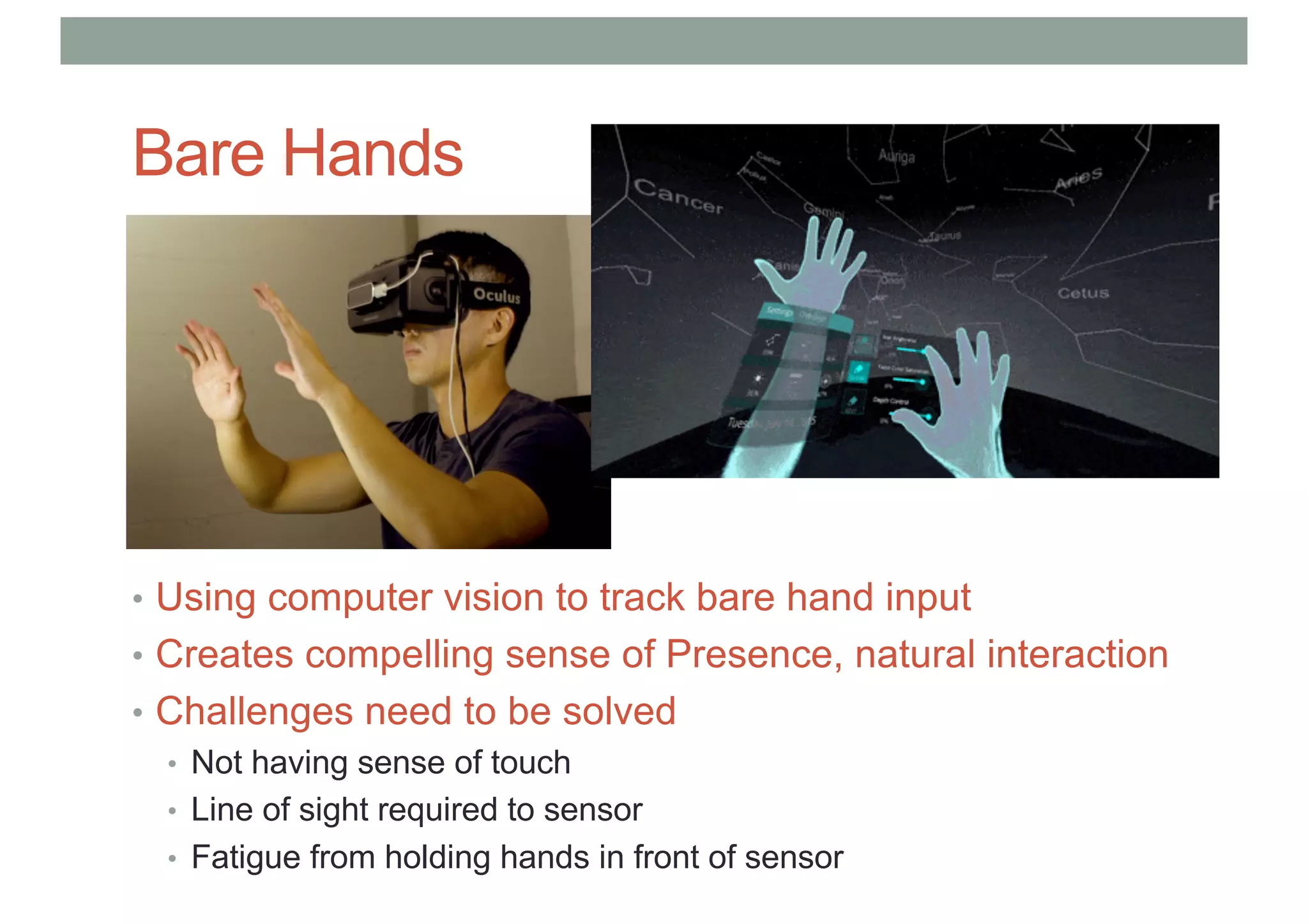

Bare Hands
• Using computer vision to track bare hand input
• Creates compelling sense of Presence, natural interaction
• Challenges need to be solved
• Not having sense of touch
• Line of sight required to sensor
• Fatigue from holding hands in front of sensor

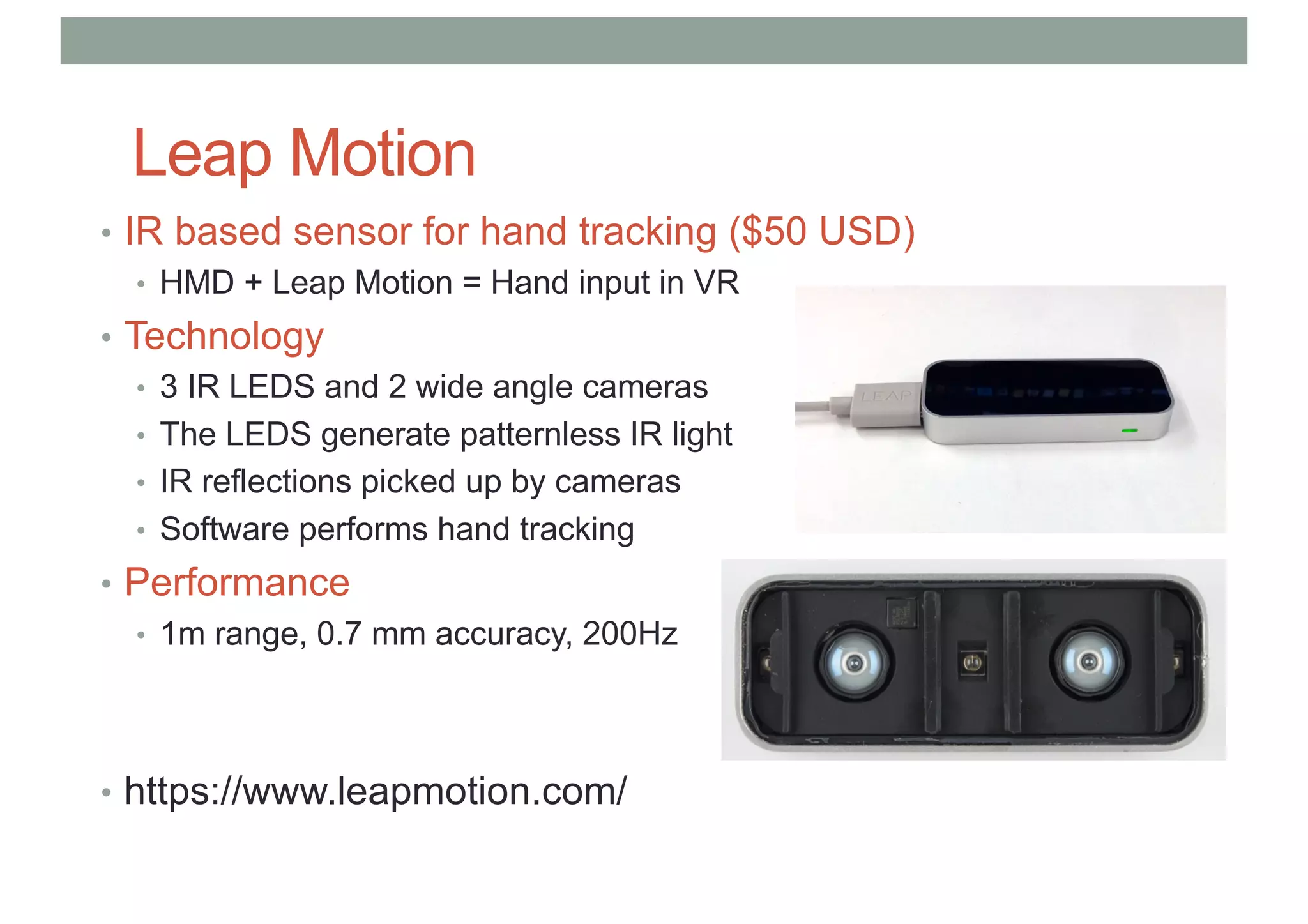

Leap Motion
• IR based sensor for hand tracking ($50 USD)
• HMD + Leap Motion = Hand input in VR
• Technology
• 3 IR LEDS and 2 wide angle cameras
• The LEDS generate patternless IR light
• IR reflections picked up by cameras
• Software performs hand tracking
• Performance
• 1m range, 0.7 mm accuracy, 200Hz
• https://www.leapmotion.com/

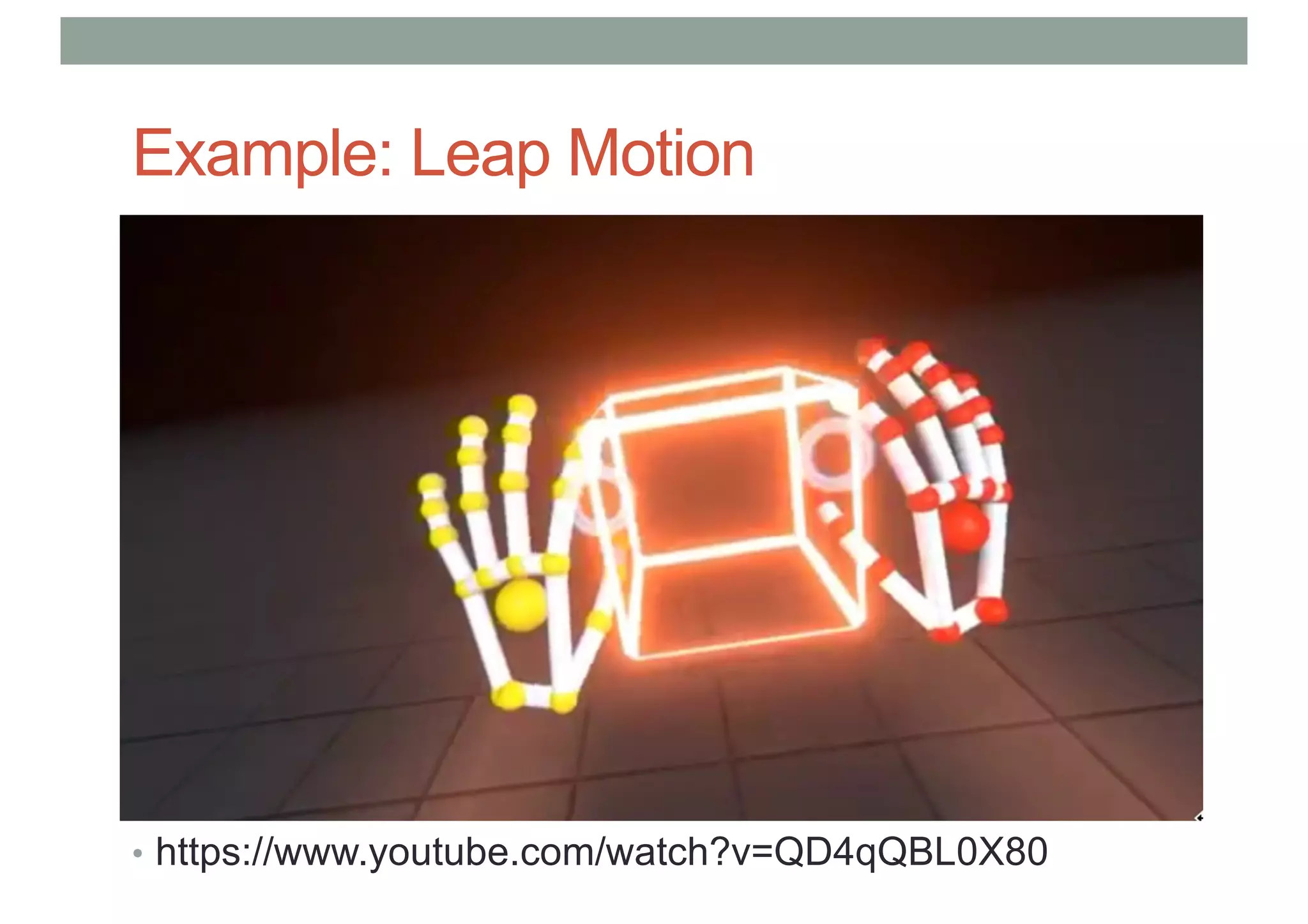

Example: Leap Motion
• https://www.youtube.com/watch?v=QD4qQBL0X80

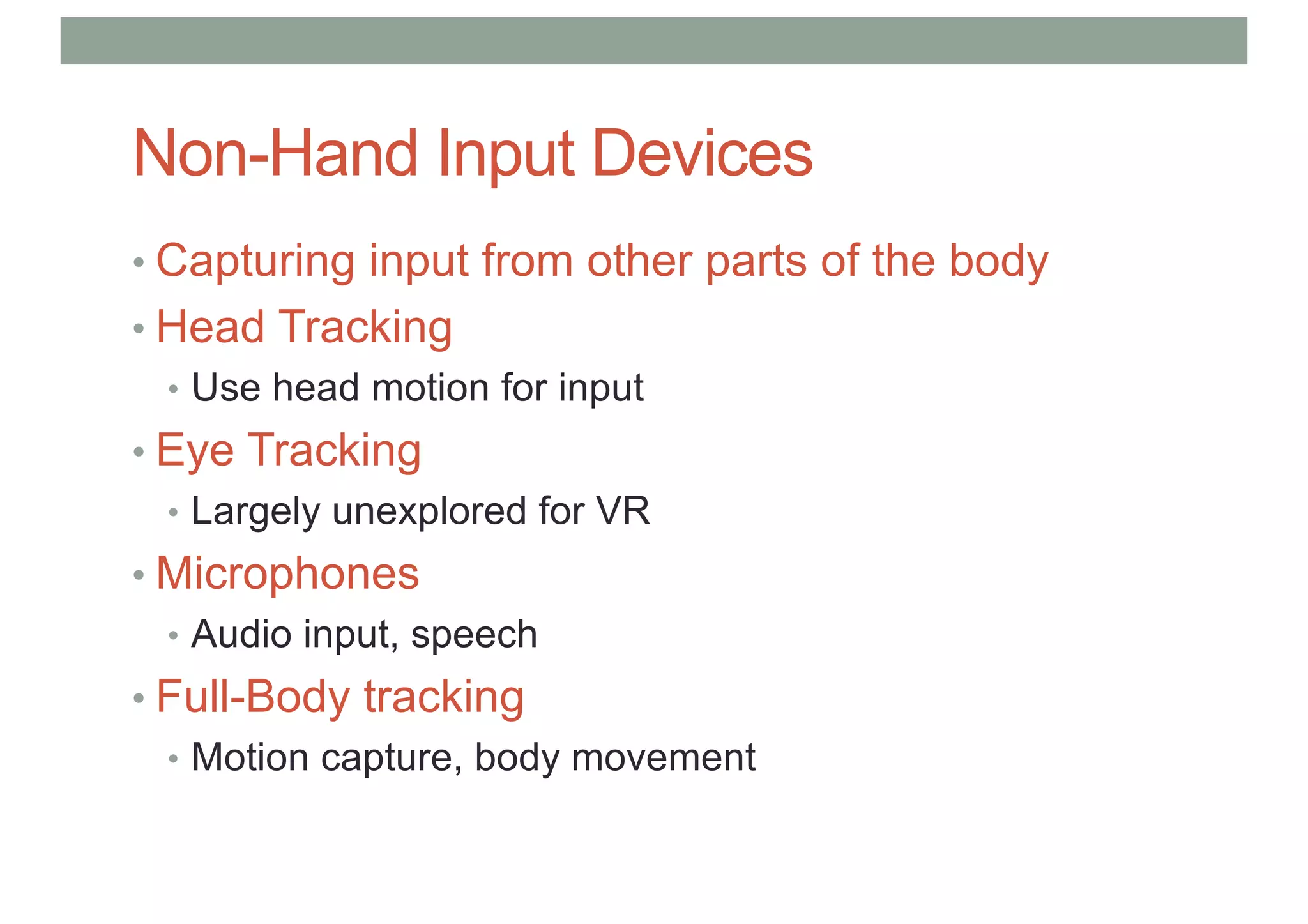

Non-Hand Input Devices
• Capturing input from other parts of the body
• Head Tracking
• Use head motion for input
• Eye Tracking
• Largely unexplored for VR
• Microphones
• Audio input, speech
• Full-Body tracking
• Motion capture, body movement

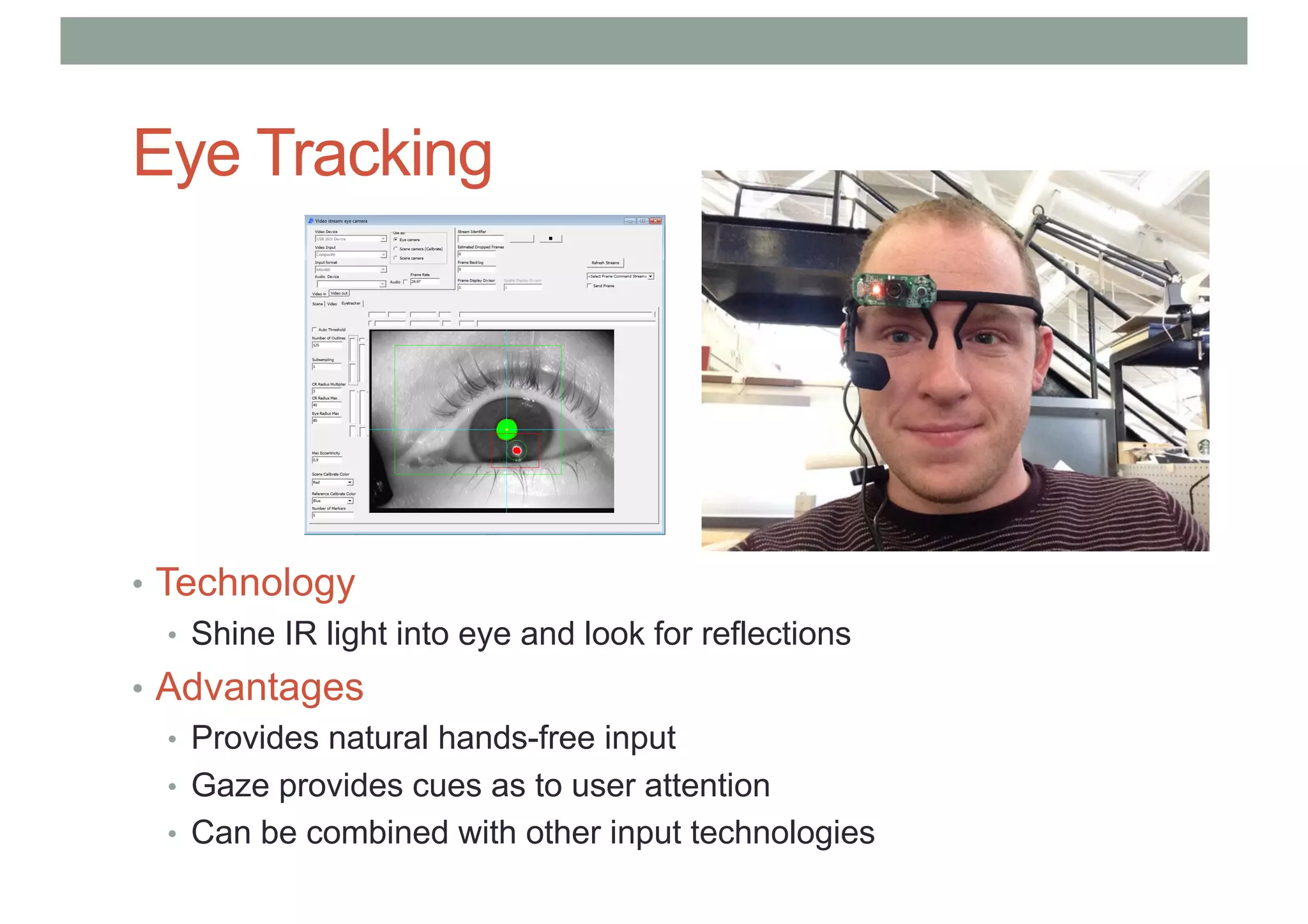

Eye Tracking
• Technology
• Shine IR light into eye and look for reflections
• Advantages
• Provides natural hands-free input
• Gaze provides cues as to user attention
• Can be combined with other input technologies

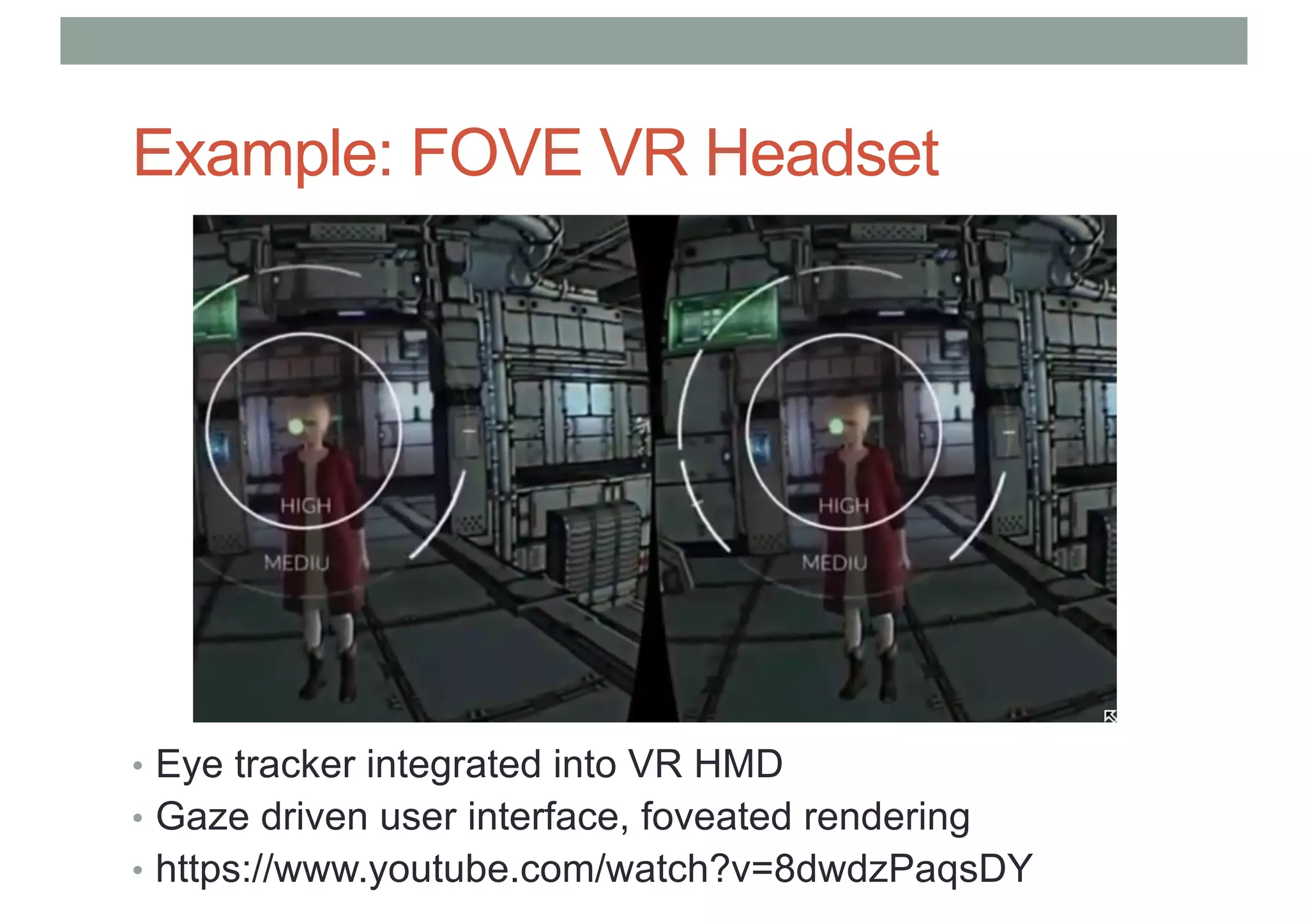

Example: FOVE VR Headset
• Eye tracker integrated into VR HMD
• Gaze driven user interface, foveated rendering
• https://www.youtube.com/watch?v=8dwdzPaqsDY

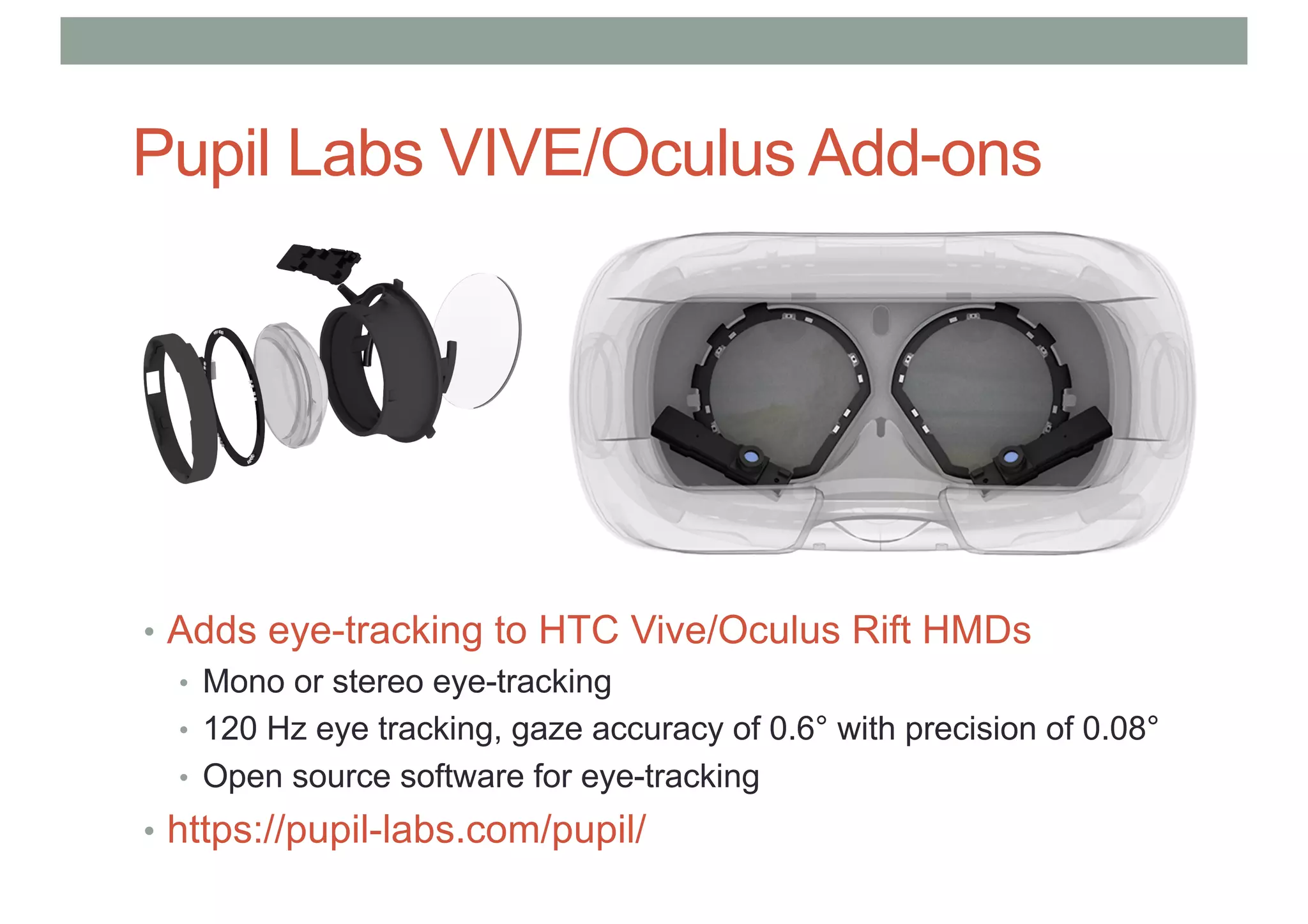

Pupil Labs VIVE/Oculus Add-ons
• Adds eye-tracking to HTC Vive/Oculus Rift HMDs
• Mono or stereo eye-tracking
• 120 Hz eye tracking, gaze accuracy of 0.6° with precision of 0.08°
• Open source software for eye-tracking
• https://pupil-labs.com/pupil/

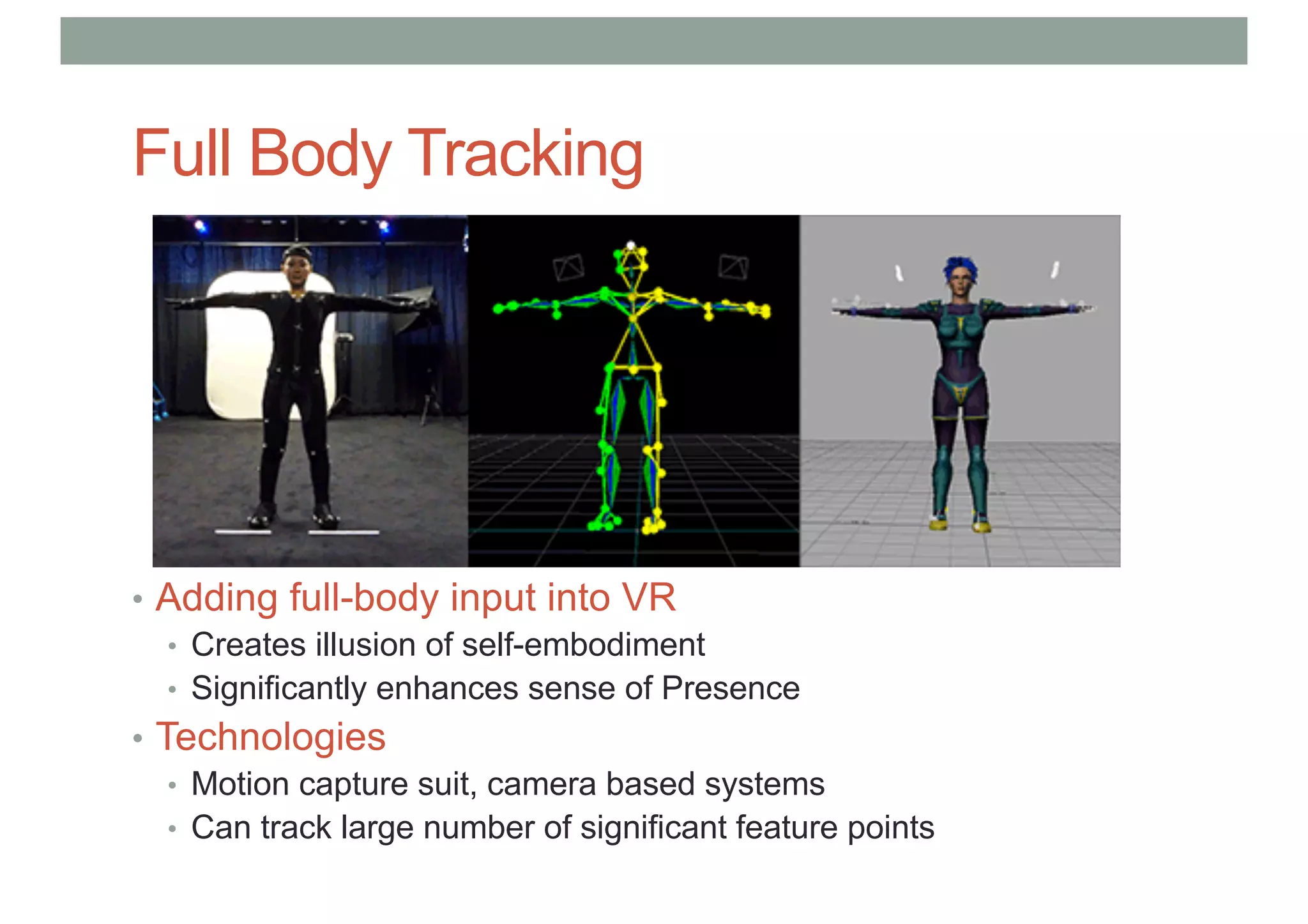

Full Body Tracking
• Adding full-body input into VR
• Creates illusion of self-embodiment
• Significantly enhances sense of Presence
• Technologies
• Motion capture suit, camera based systems
• Can track large number of significant feature points

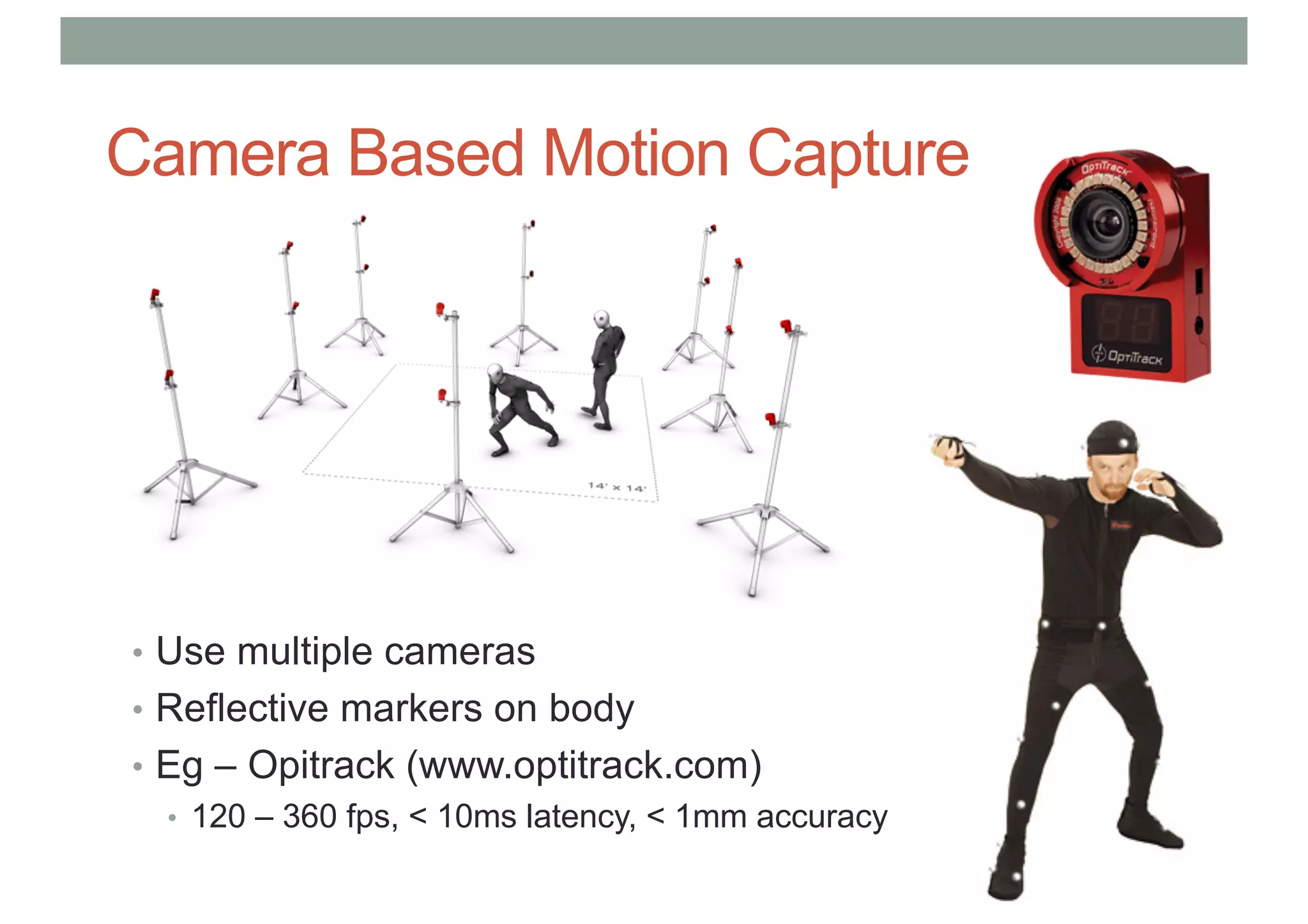

Camera Based Motion Capture
• Use multiple cameras
• Reflective markers on body
• Eg – Opitrack (www.optitrack.com)
• 120 – 360 fps, < 10ms latency, < 1mm accuracy

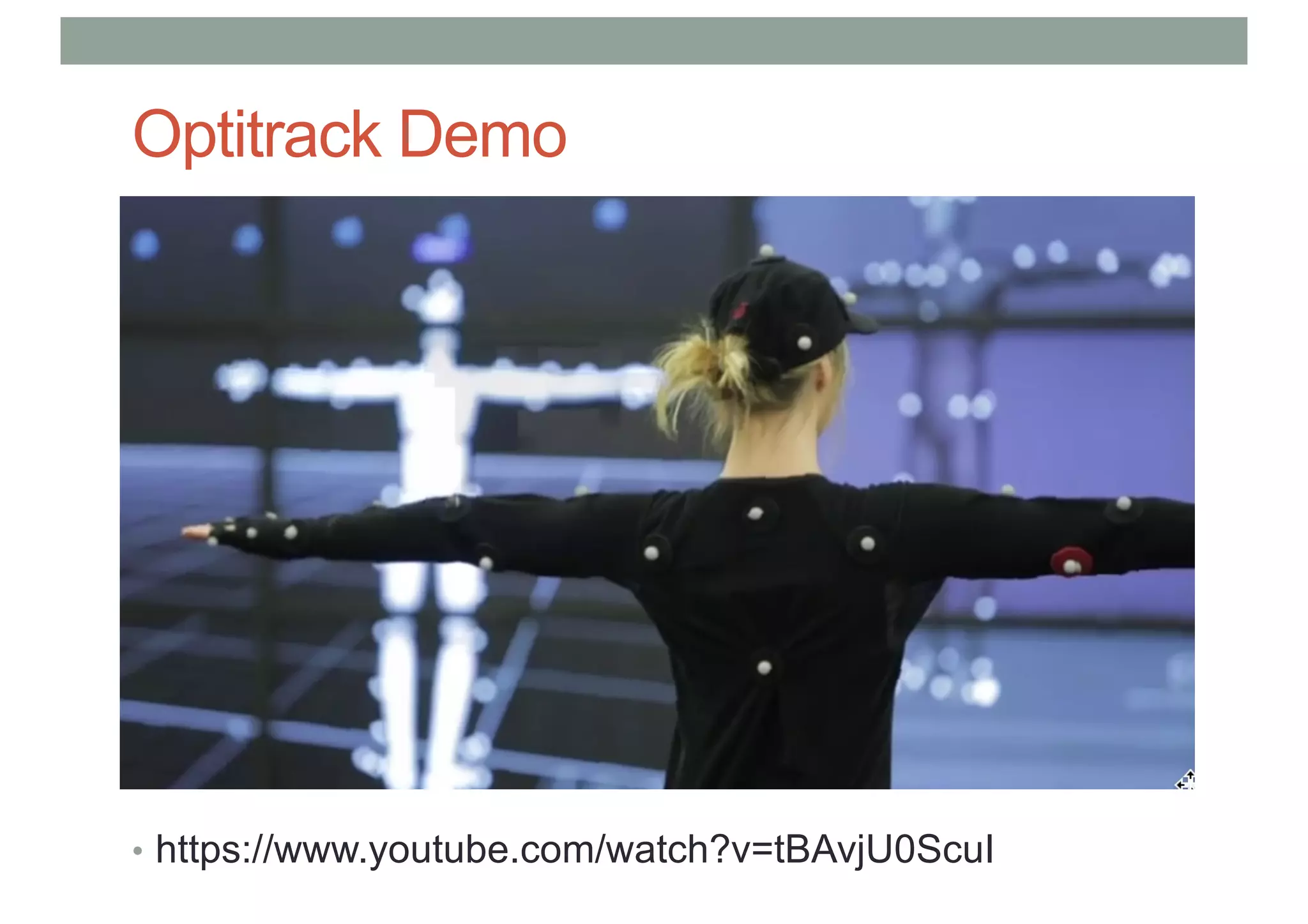

Optitrack Demo
• https://www.youtube.com/watch?v=tBAvjU0ScuI

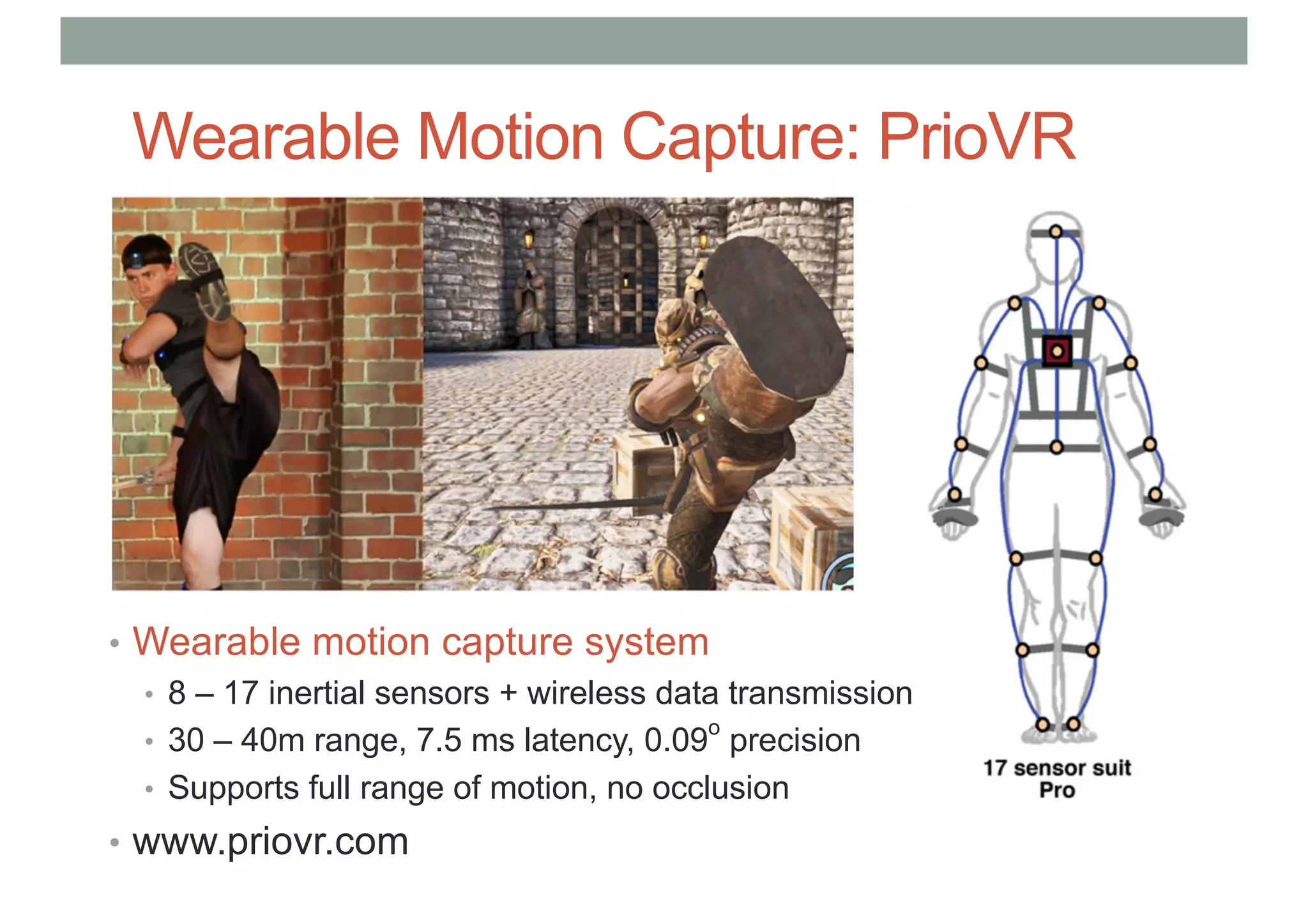

Wearable Motion Capture: PrioVR
• Wearable motion capture system
• 8 – 17 inertial sensors + wireless data transmission
• 30 – 40m range, 7.5 ms latency, 0.09o
precision
• Supports full range of motion, no occlusion
• www.priovr.com

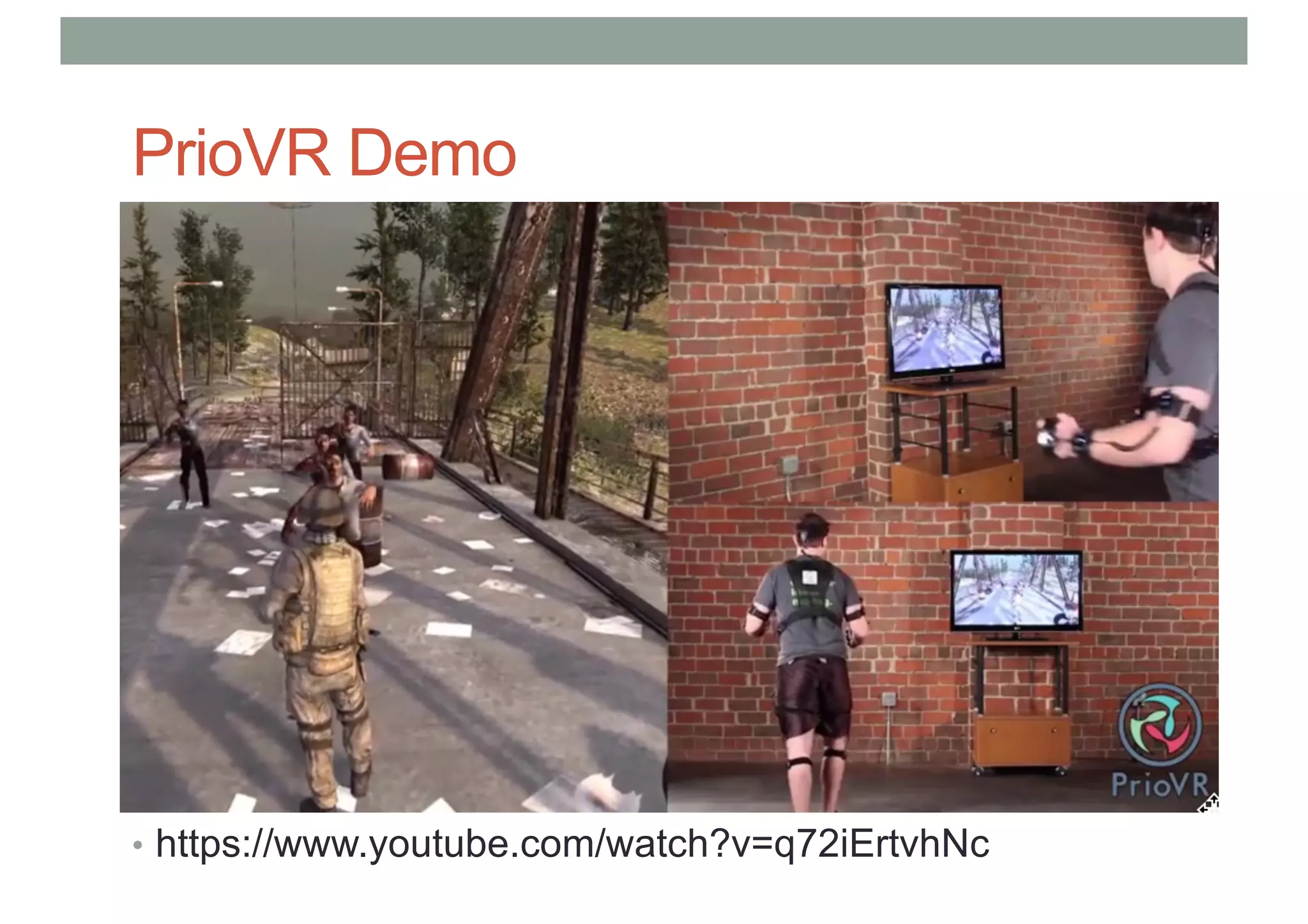

PrioVR Demo
• https://www.youtube.com/watch?v=q72iErtvhNc

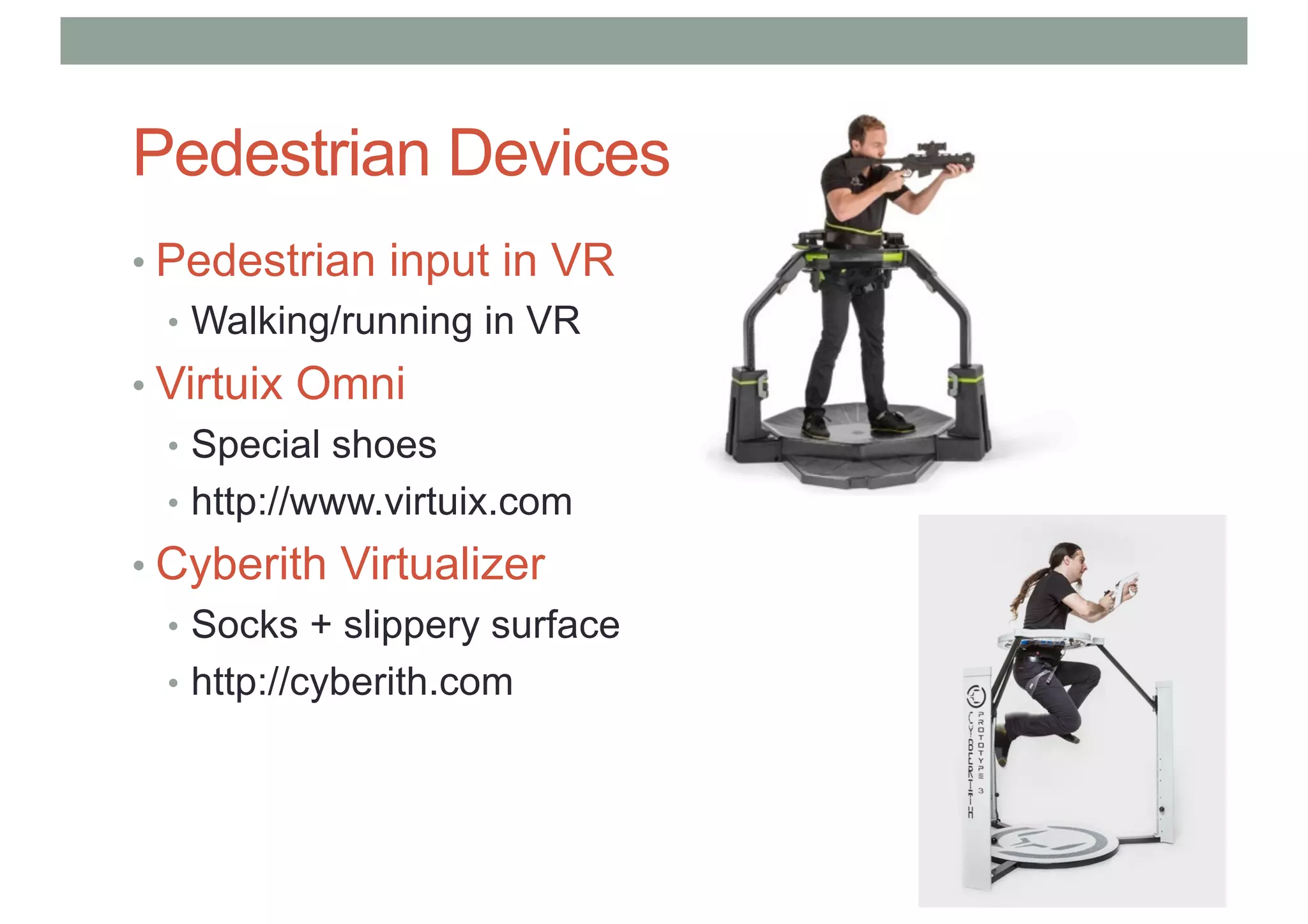

Pedestrian Devices
• Pedestrian input in VR
• Walking/running in VR
• Virtuix Omni
• Special shoes
• http://www.virtuix.com
• Cyberith Virtualizer
• Socks + slippery surface
• http://cyberith.com

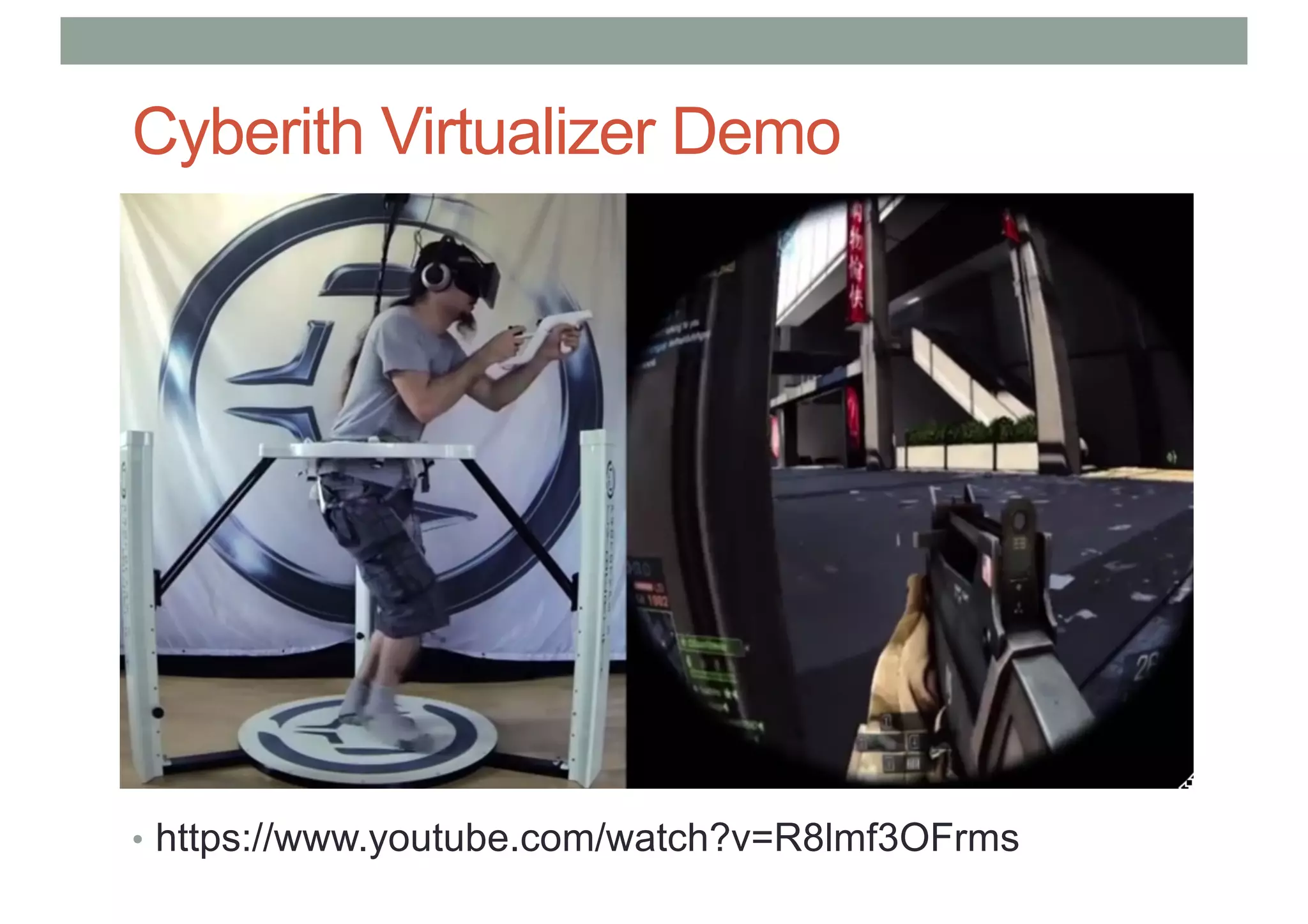

Cyberith Virtualizer Demo
• https://www.youtube.com/watch?v=R8lmf3OFrms

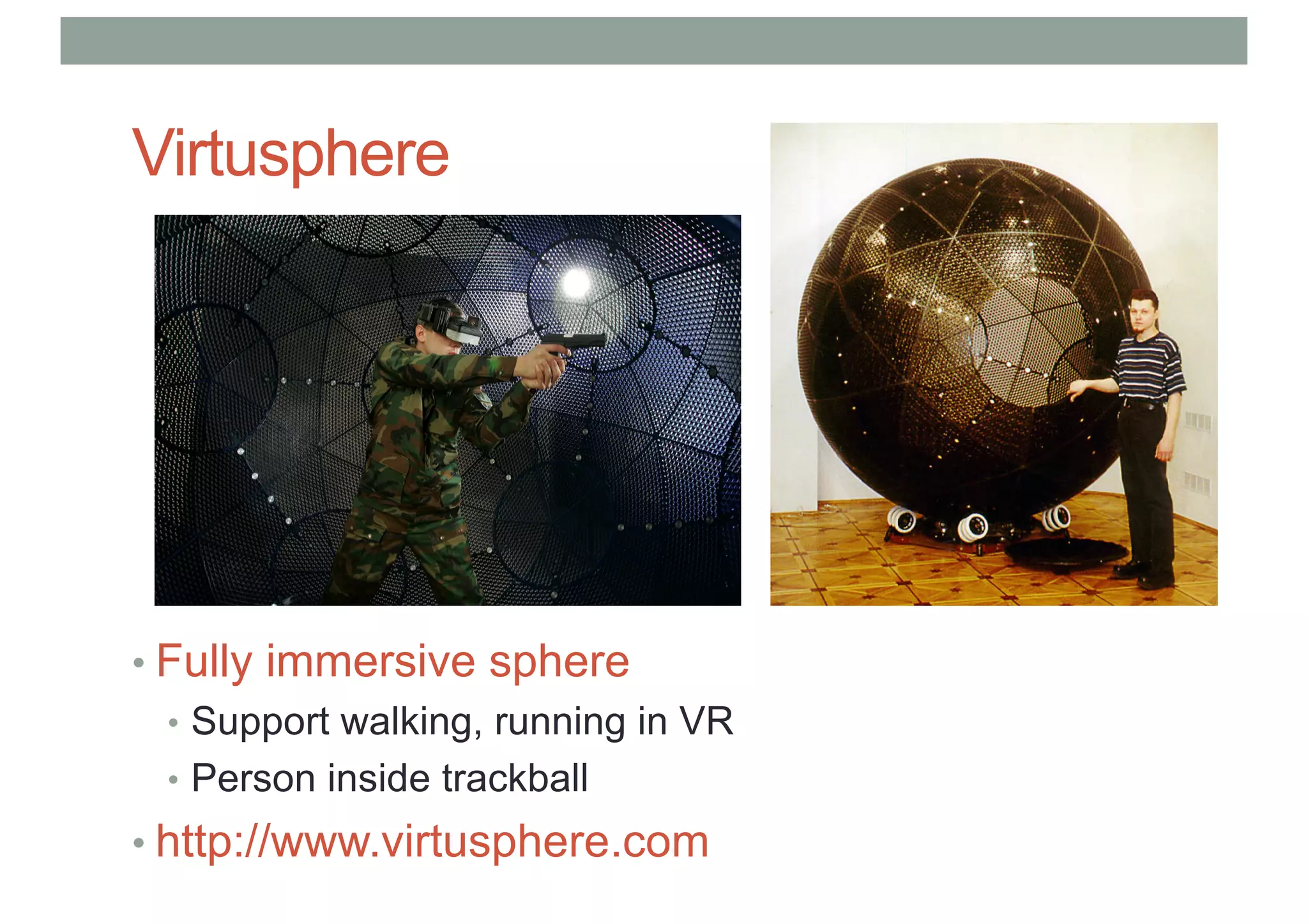

Virtusphere
• Fully immersive sphere
• Support walking, running in VR
• Person inside trackball
• http://www.virtusphere.com

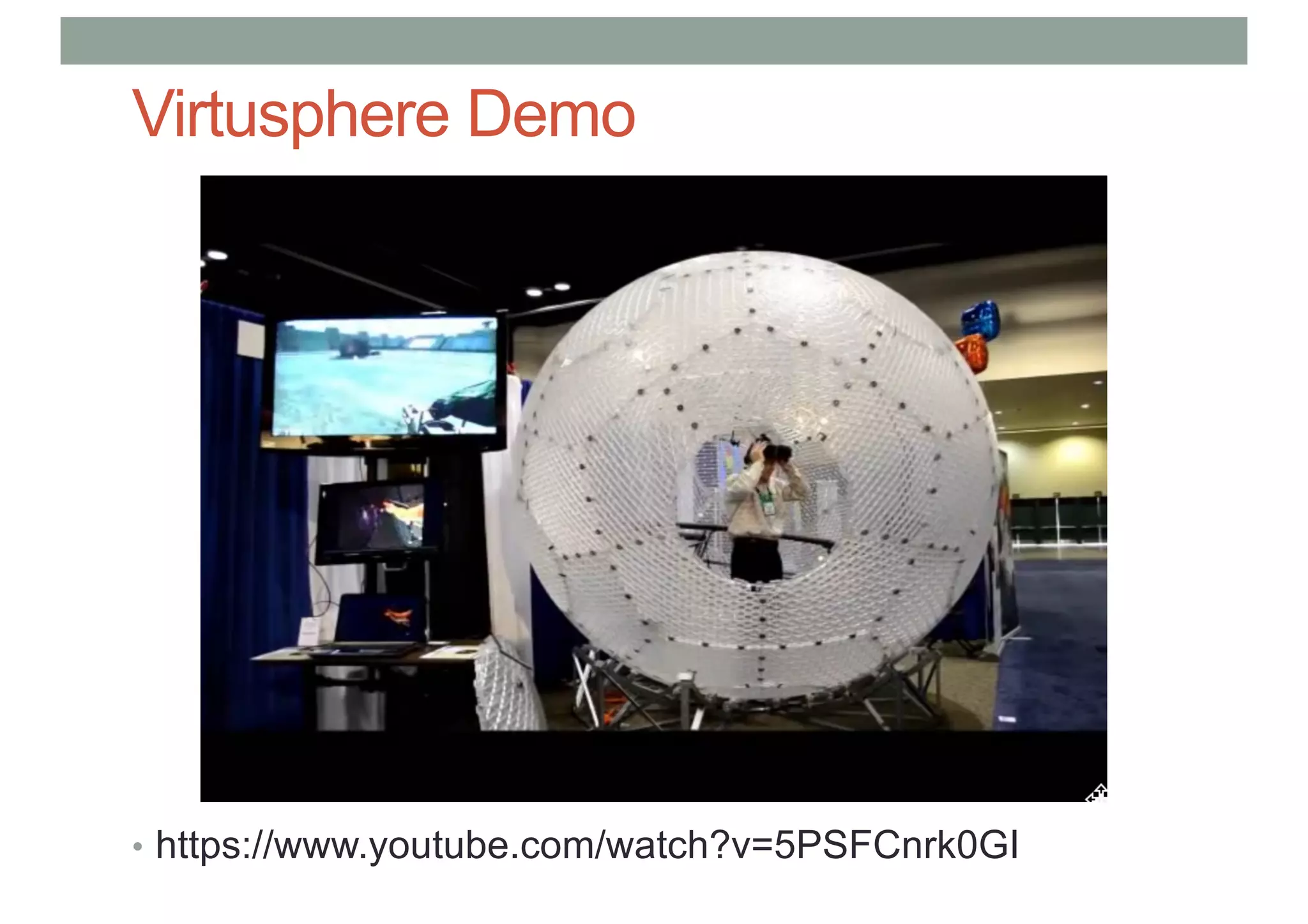

Virtusphere Demo
• https://www.youtube.com/watch?v=5PSFCnrk0GI

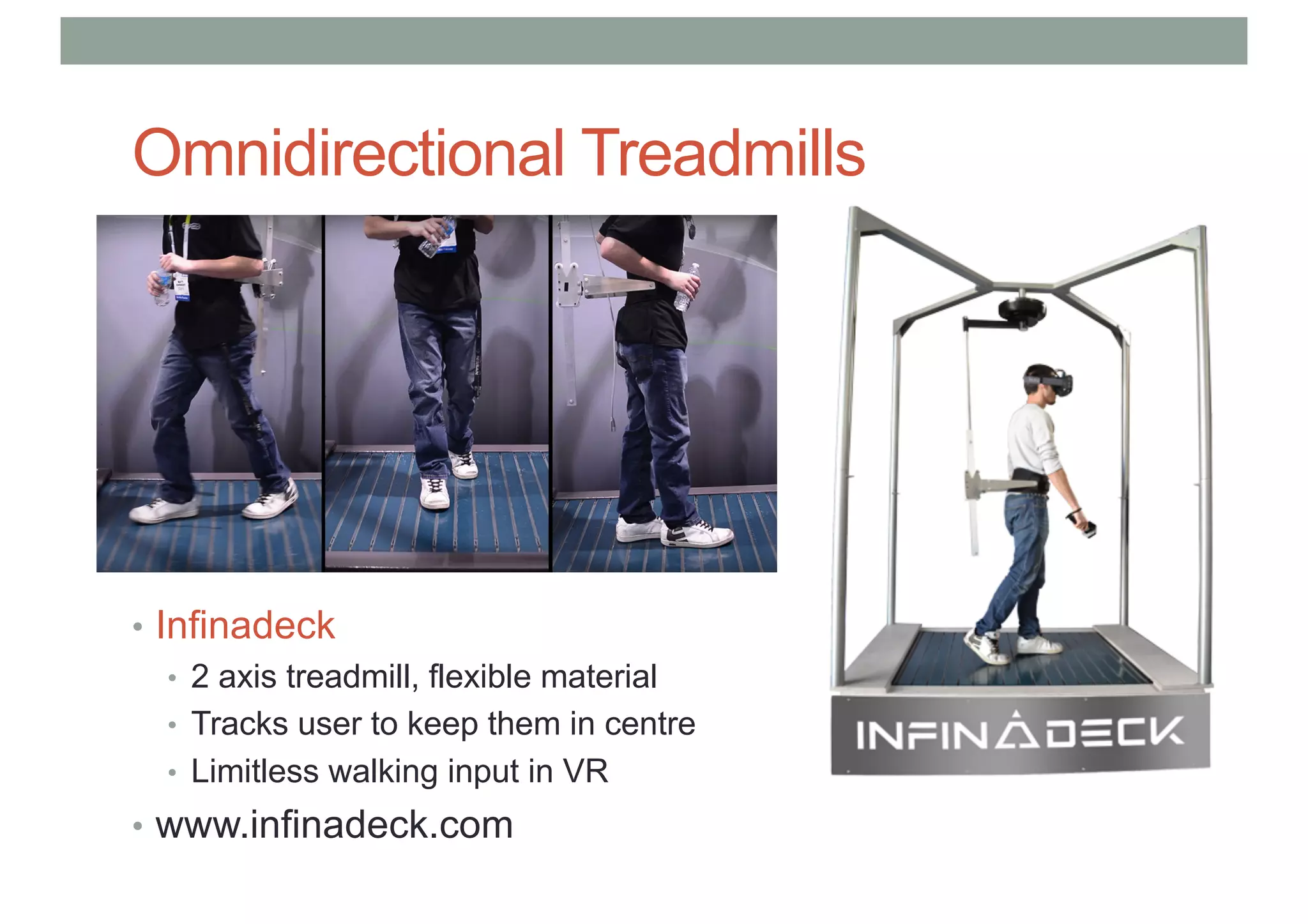

Omnidirectional Treadmills
• Infinadeck
• 2 axis treadmill, flexible material
• Tracks user to keep them in centre
• Limitless walking input in VR
• www.infinadeck.com

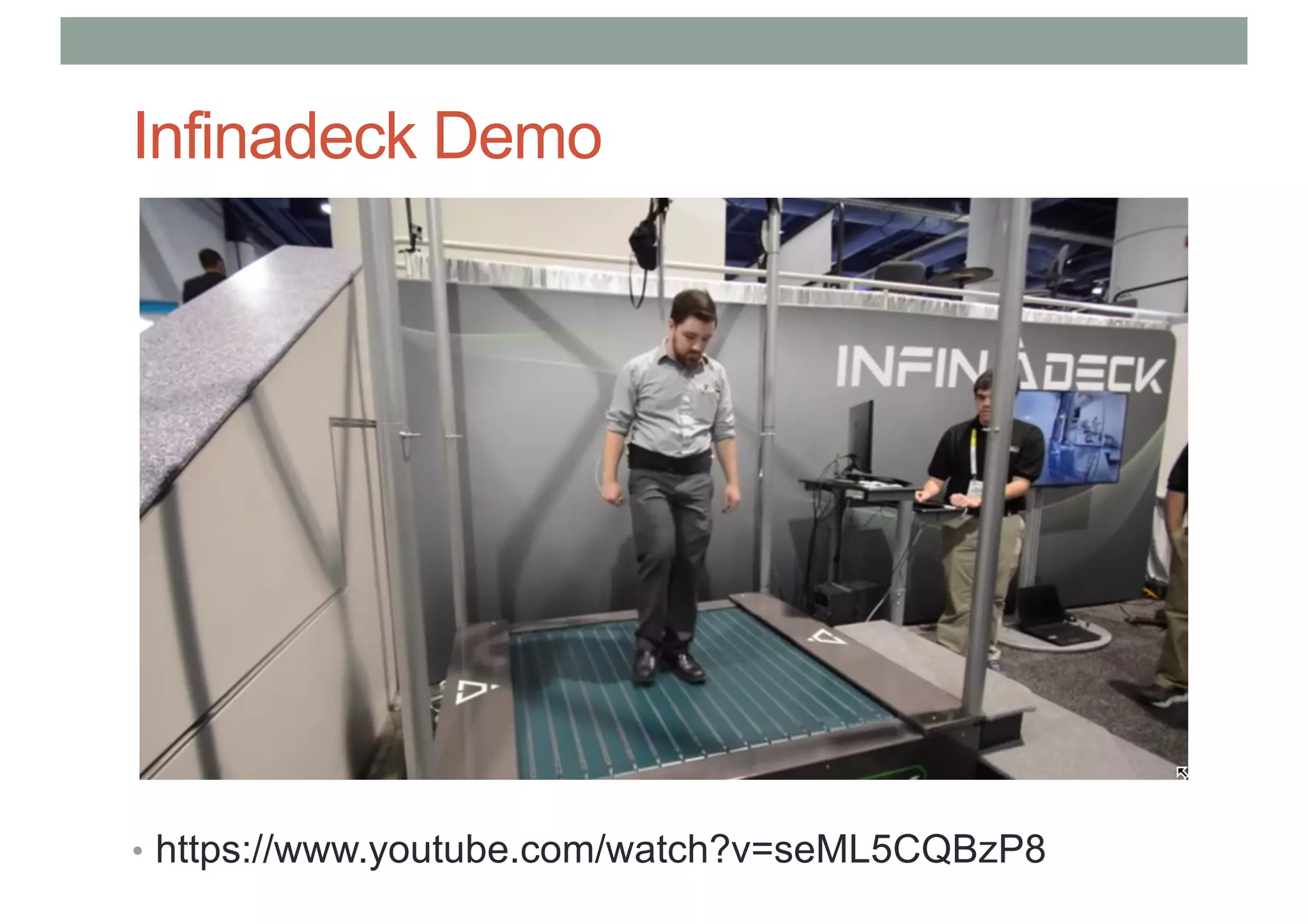

Infinadeck Demo
• https://www.youtube.com/watch?v=seML5CQBzP8

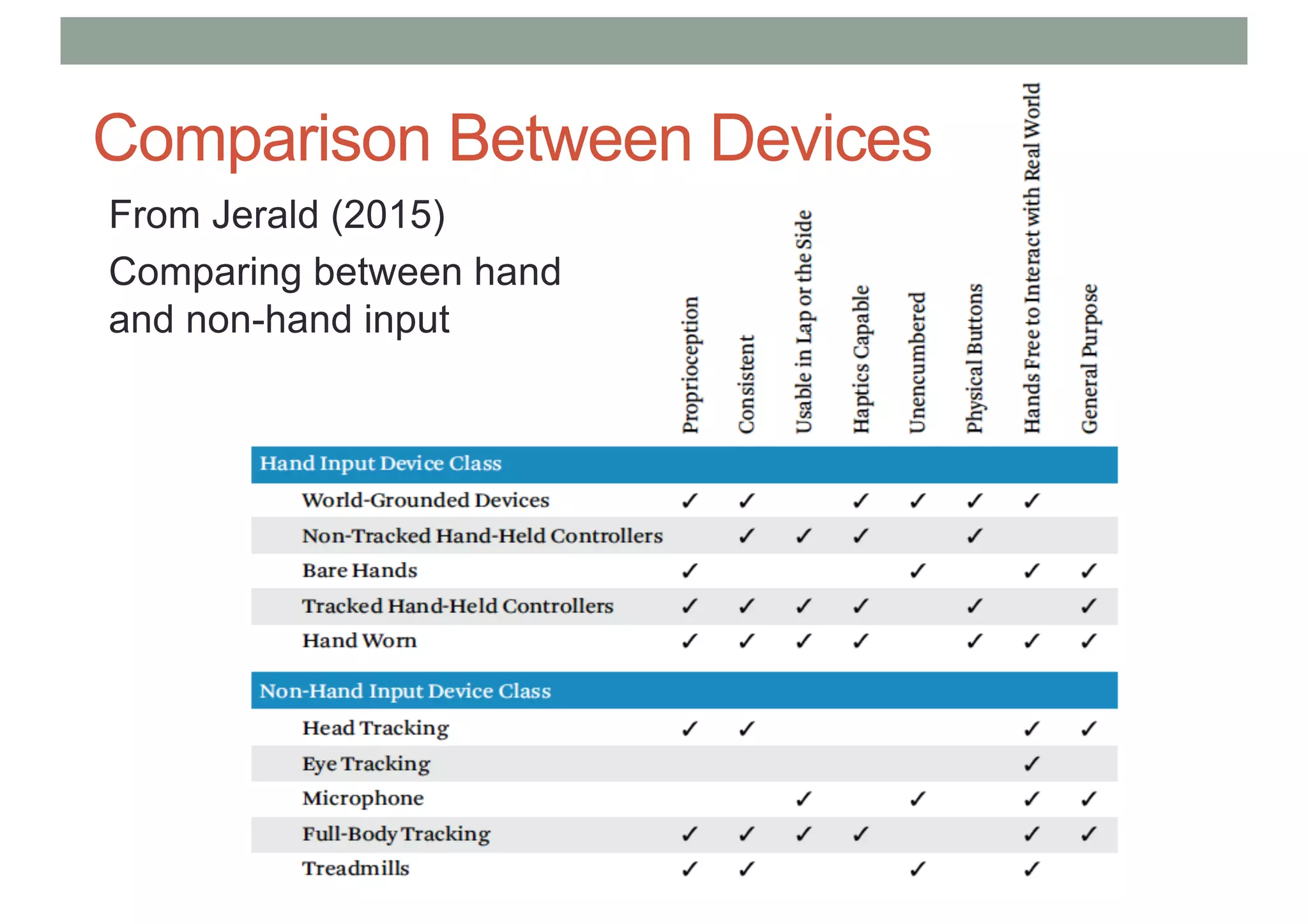

Comparison Between Devices
From Jerald (2015)
Comparing between hand
and non-hand input

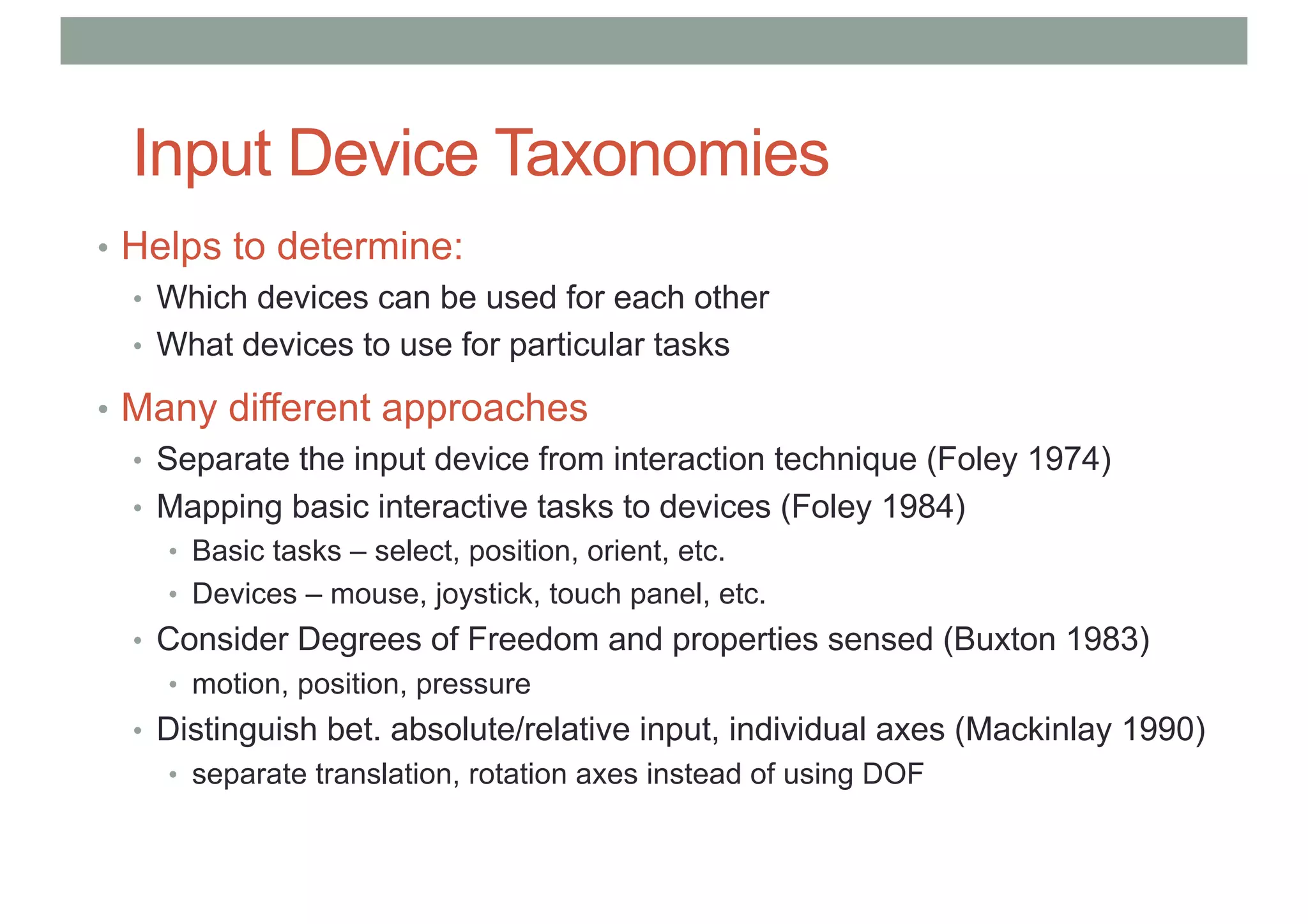

Input Device Taxonomies
• Helps to determine:
• Which devices can be used for each other
• What devices to use for particular tasks
• Many different approaches
• Separate the input device from interaction technique (Foley 1974)
• Mapping basic interactive tasks to devices (Foley 1984)
• Basic tasks – select, position, orient, etc.
• Devices – mouse, joystick, touch panel, etc.
• Consider Degrees of Freedom and properties sensed (Buxton 1983)
• motion, position, pressure
• Distinguish bet. absolute/relative input, individual axes (Mackinlay 1990)
• separate translation, rotation axes instead of using DOF

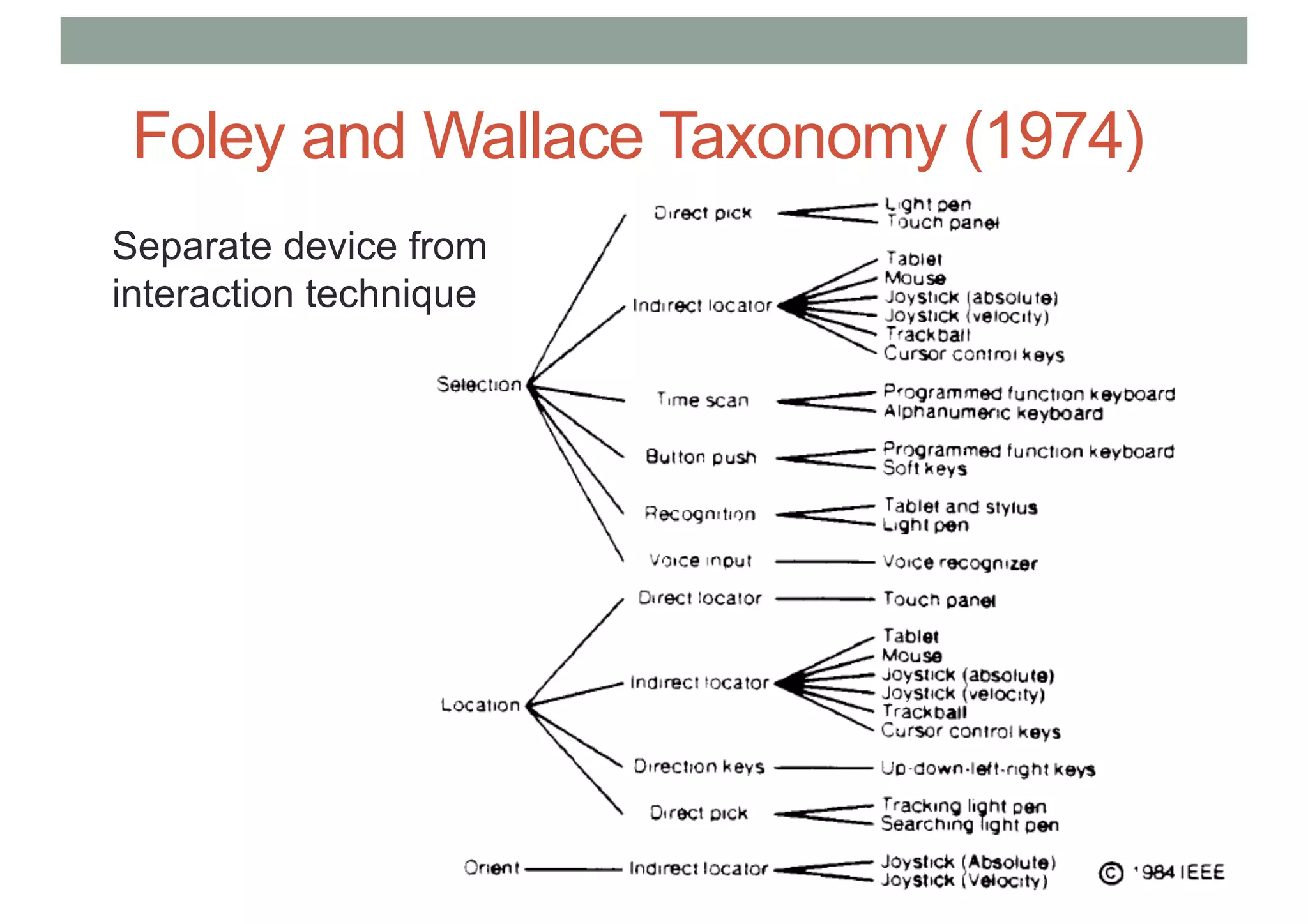

Foley and Wallace Taxonomy (1974)
Separate device from
interaction technique

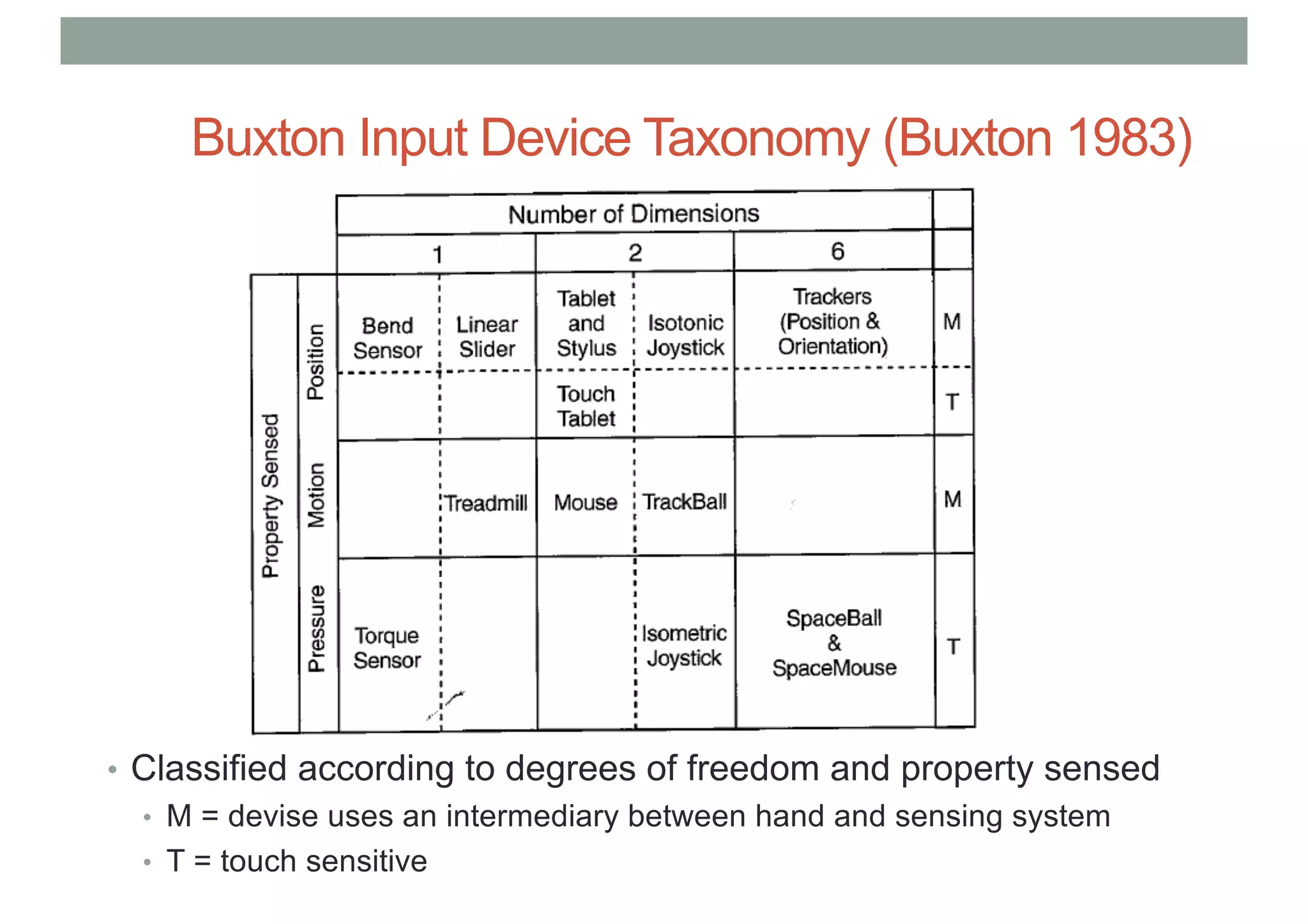

Buxton Input Device Taxonomy (Buxton 1983)
• Classified according to degrees of freedom and property sensed
• M = devise uses an intermediary between hand and sensing system
• T = touch sensitive
VR SYSTEMS

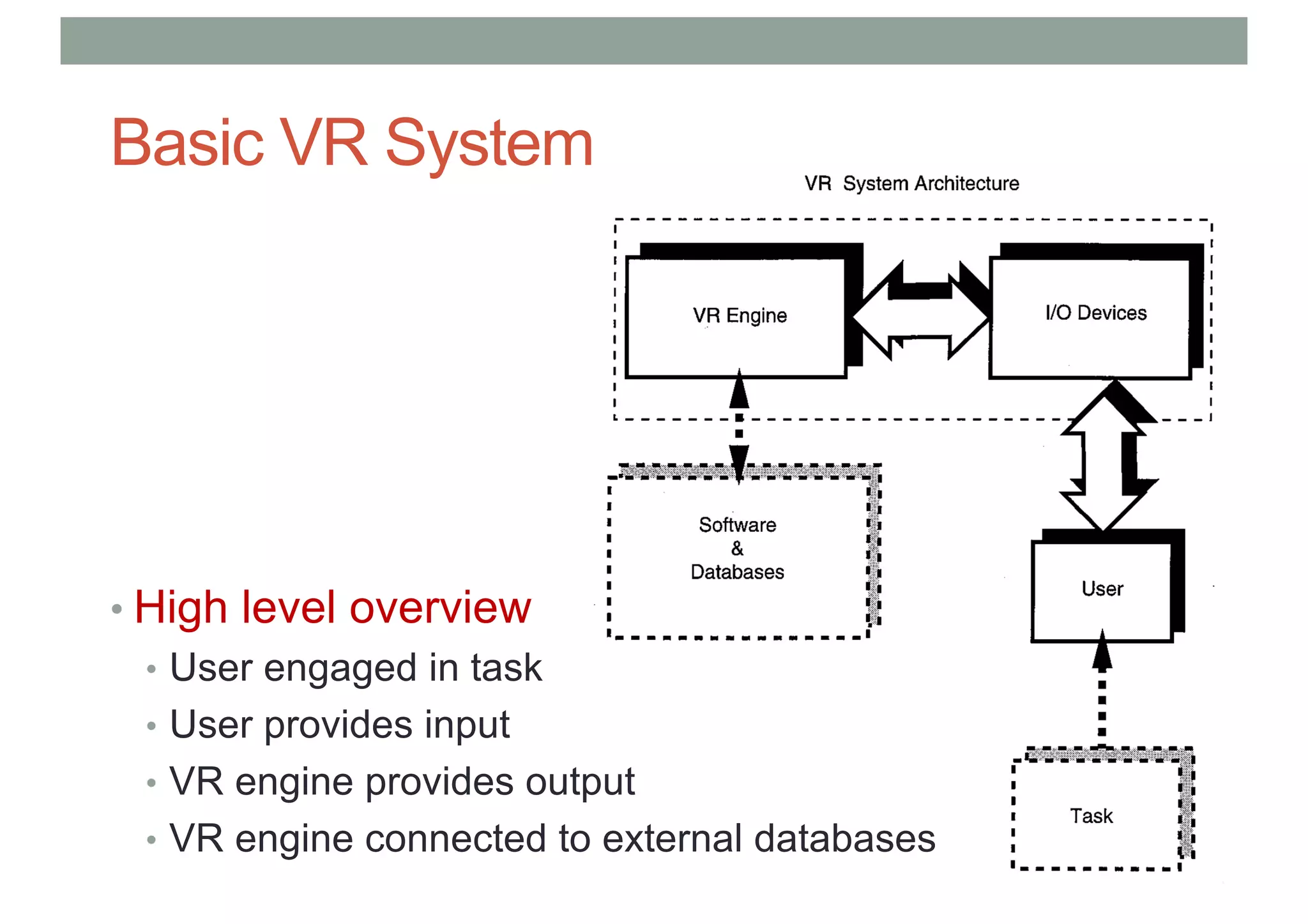

• High level overview
• User engaged in task
• User provides input
• VR engine provides output
• VR engine connected to external databases
Basic VR System

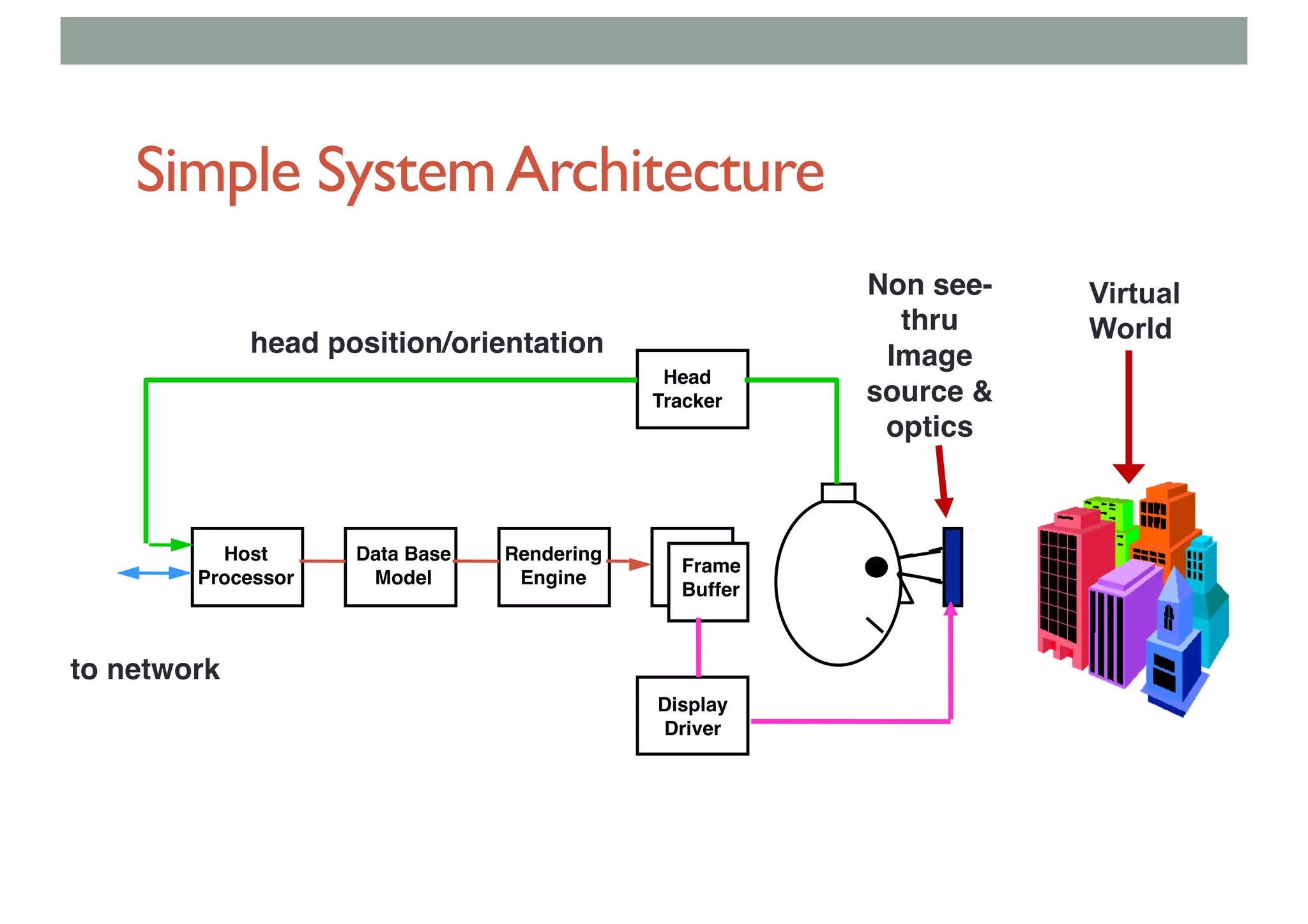

Simple SystemArchitecture
Head
Tracker
Host
Processor
Data Base
Model
Rendering
Engine
Frame
Buffer
head position/orientation
to network
Display
Driver
Non see-
thru
source &
optics
Virtual
World

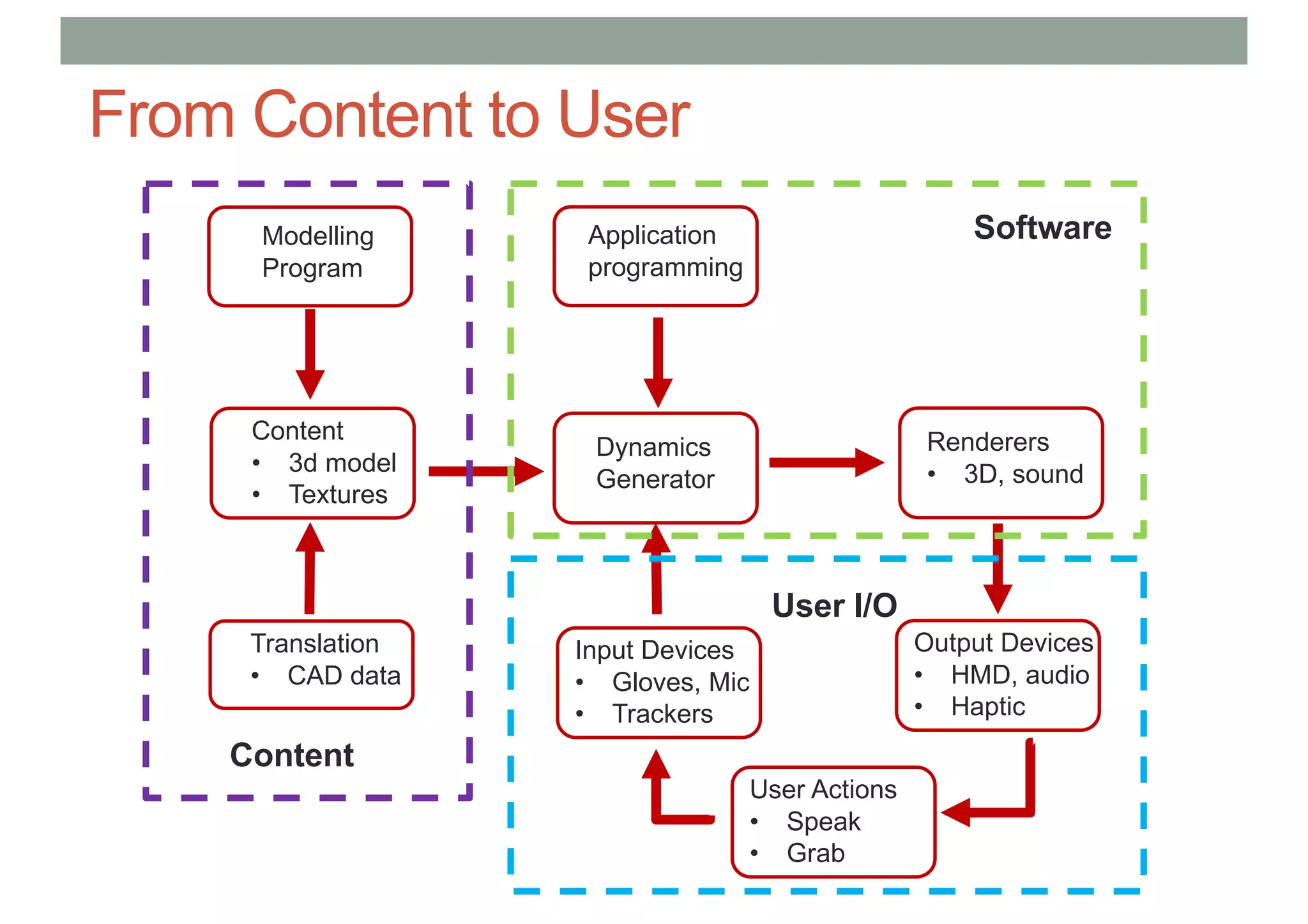

From Content to User
Modelling
Program
Content
• 3d model
• Textures
Translation
• CAD data
Application
programming
Dynamics
Generator
Input Devices
• Gloves, Mic
• Trackers
Renderers
• 3D, sound
Output Devices
• HMD, audio
• Haptic
User Actions
• Speak
• Grab
Software
Content
User I/O

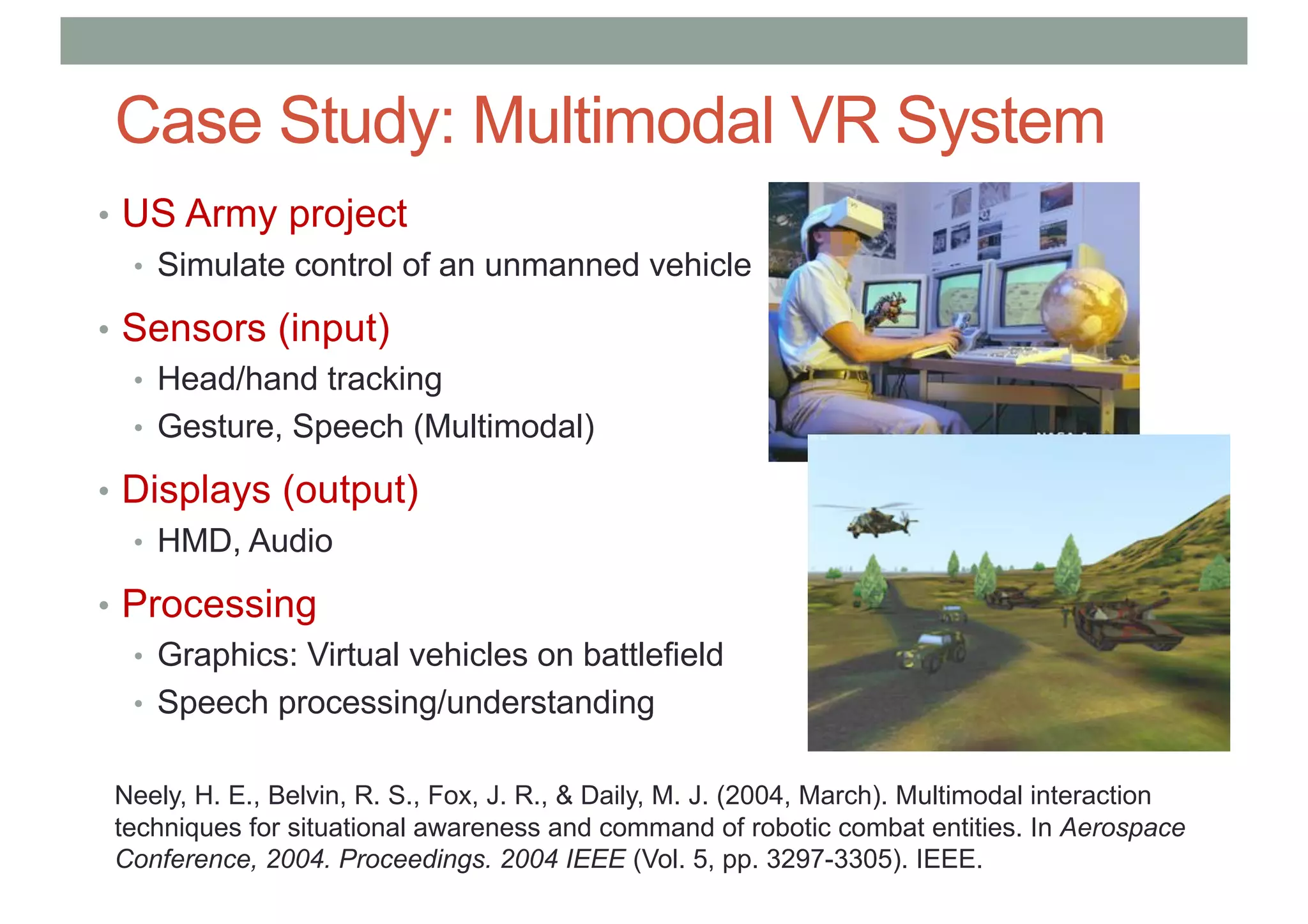

Case Study: Multimodal VR System
• US Army project
• Simulate control of an unmanned vehicle
• Sensors (input)
• Head/hand tracking
• Gesture, Speech (Multimodal)
• Displays (output)
• HMD, Audio
• Processing
• Graphics: Virtual vehicles on battlefield
• Speech processing/understanding
Neely, H. E., Belvin, R. S., Fox, J. R., & Daily, M. J. (2004, March). Multimodal interaction
techniques for situational awareness and command of robotic combat entities. In Aerospace
Conference, 2004. Proceedings. 2004 IEEE (Vol. 5, pp. 3297-3305). IEEE.

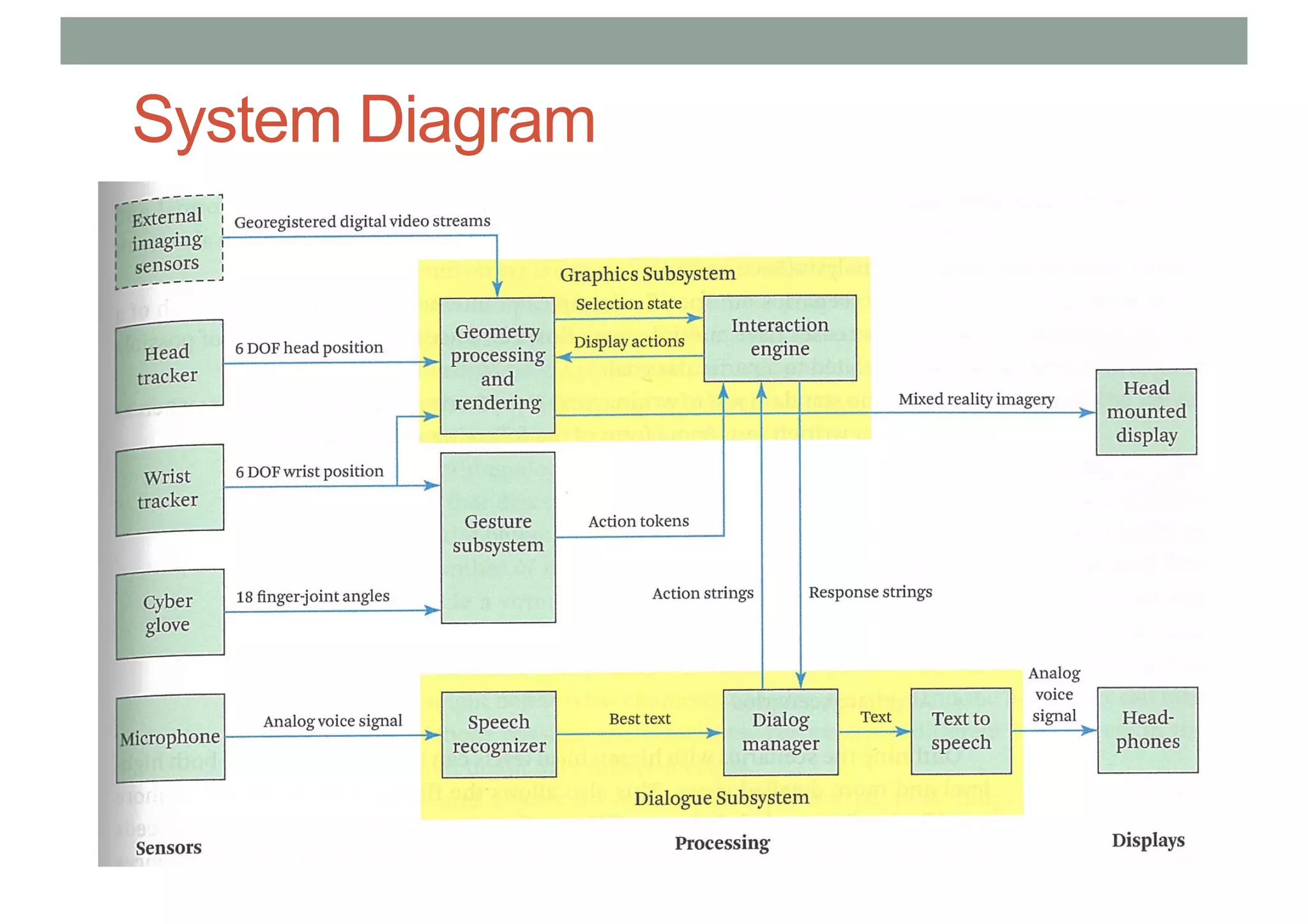

System Diagram

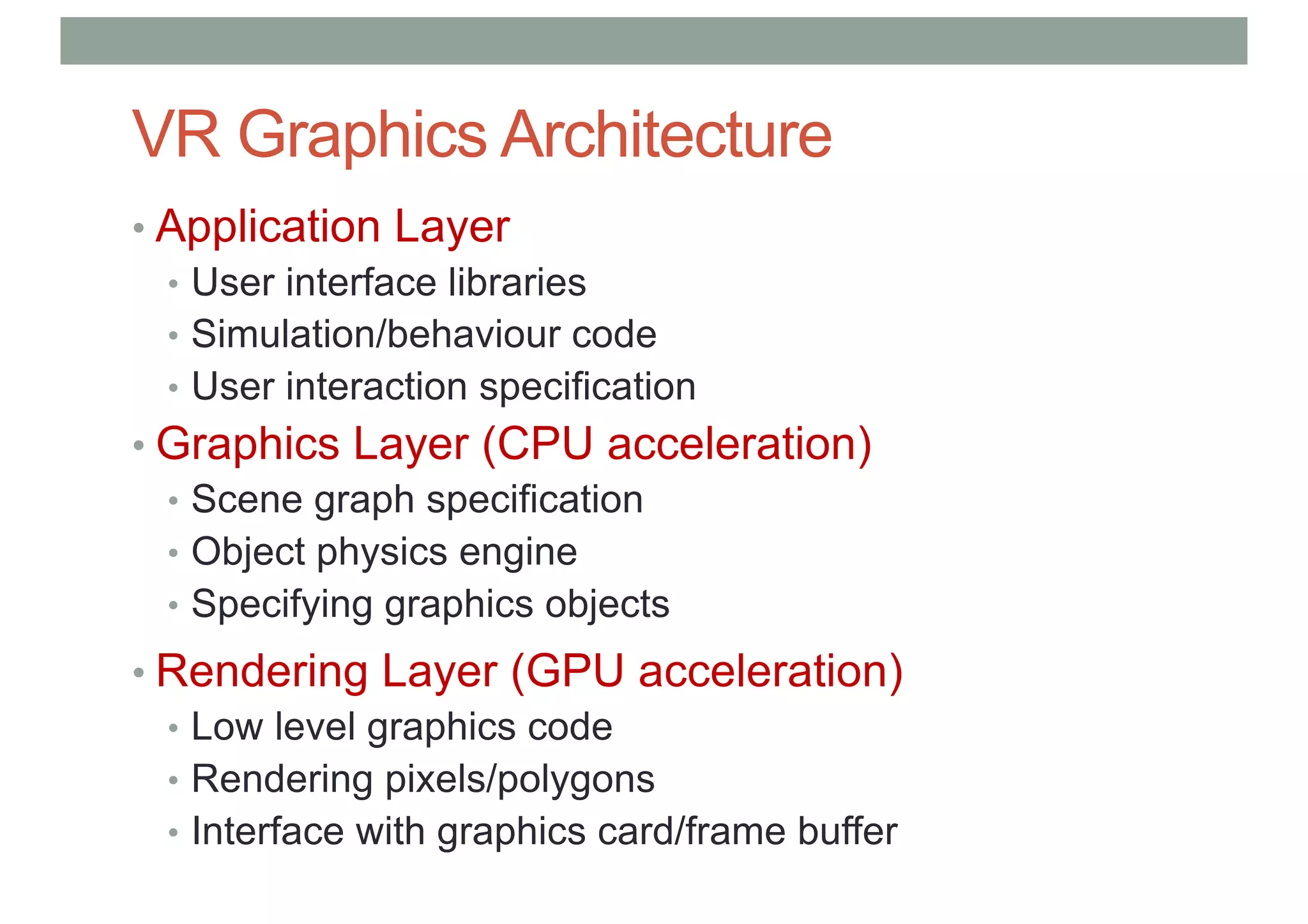

VR Graphics Architecture
• Application Layer
• User interface libraries
• Simulation/behaviour code
• User interaction specification
• Graphics Layer (CPU acceleration)
• Scene graph specification
• Object physics engine
• Specifying graphics objects
• Rendering Layer (GPU acceleration)
• Low level graphics code
• Rendering pixels/polygons
• Interface with graphics card/frame buffer

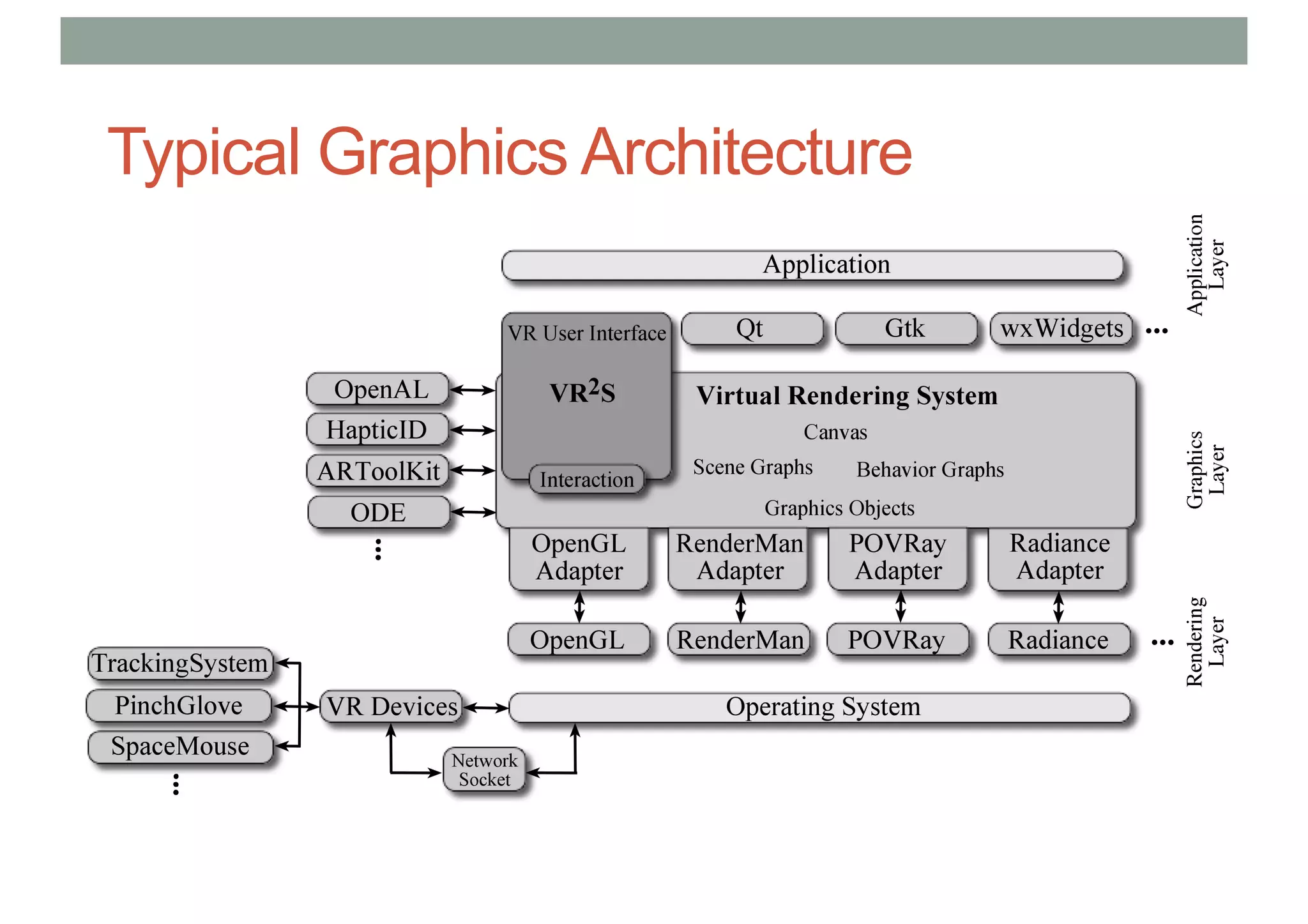

Typical Graphics Architecture

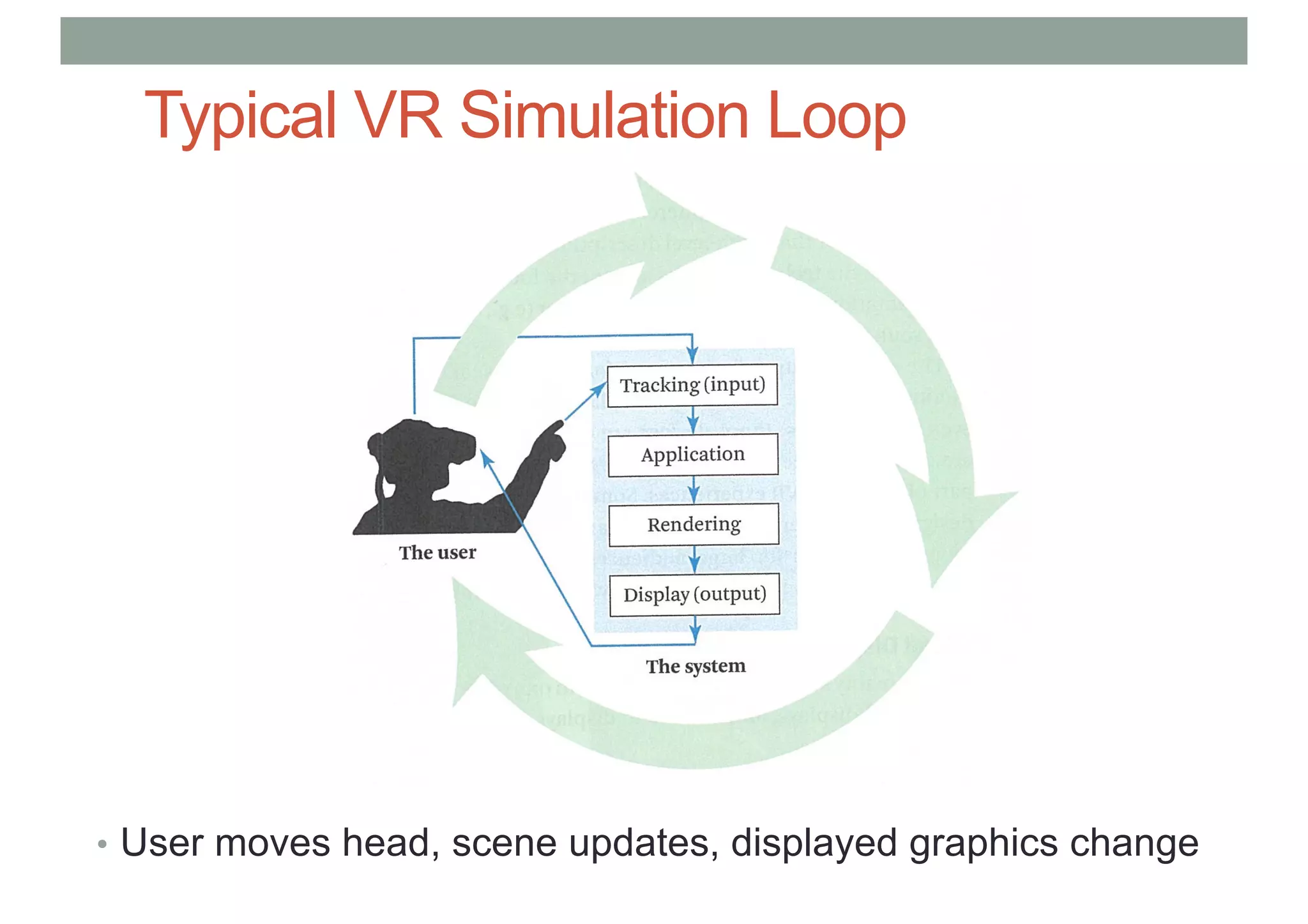

Typical VR Simulation Loop
• User moves head, scene updates, displayed graphics change
• Need to synchronize system to reduce delays

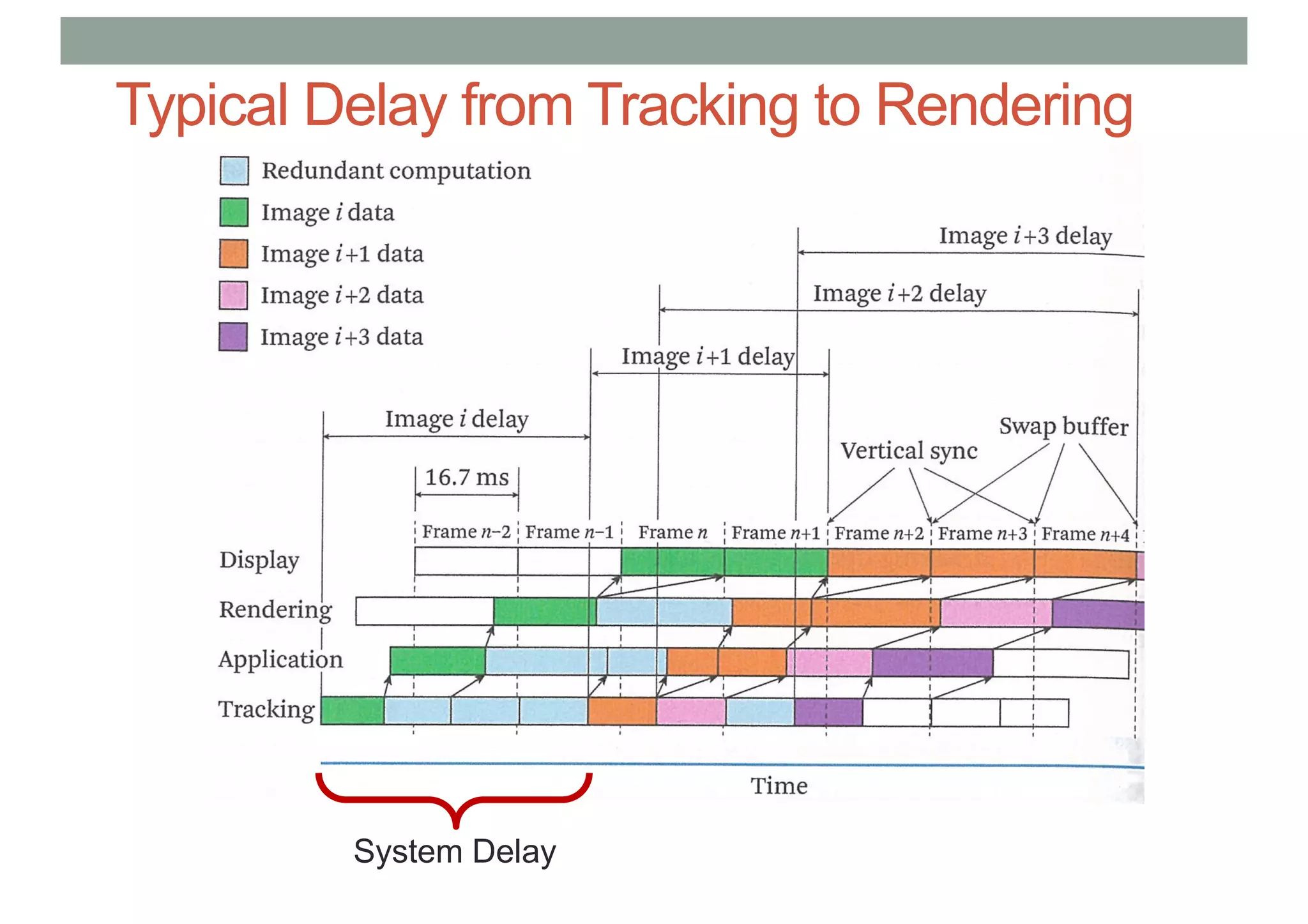

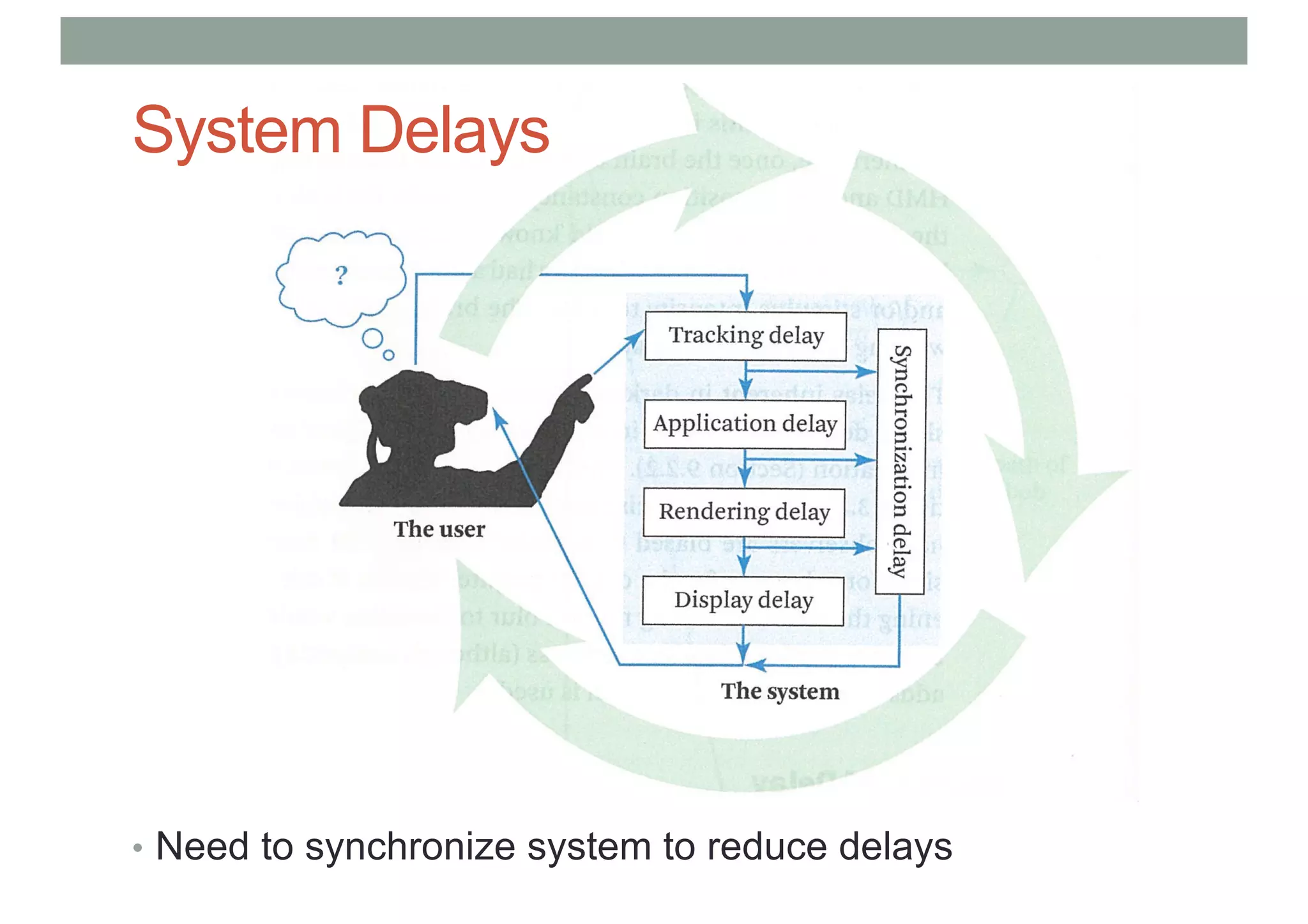

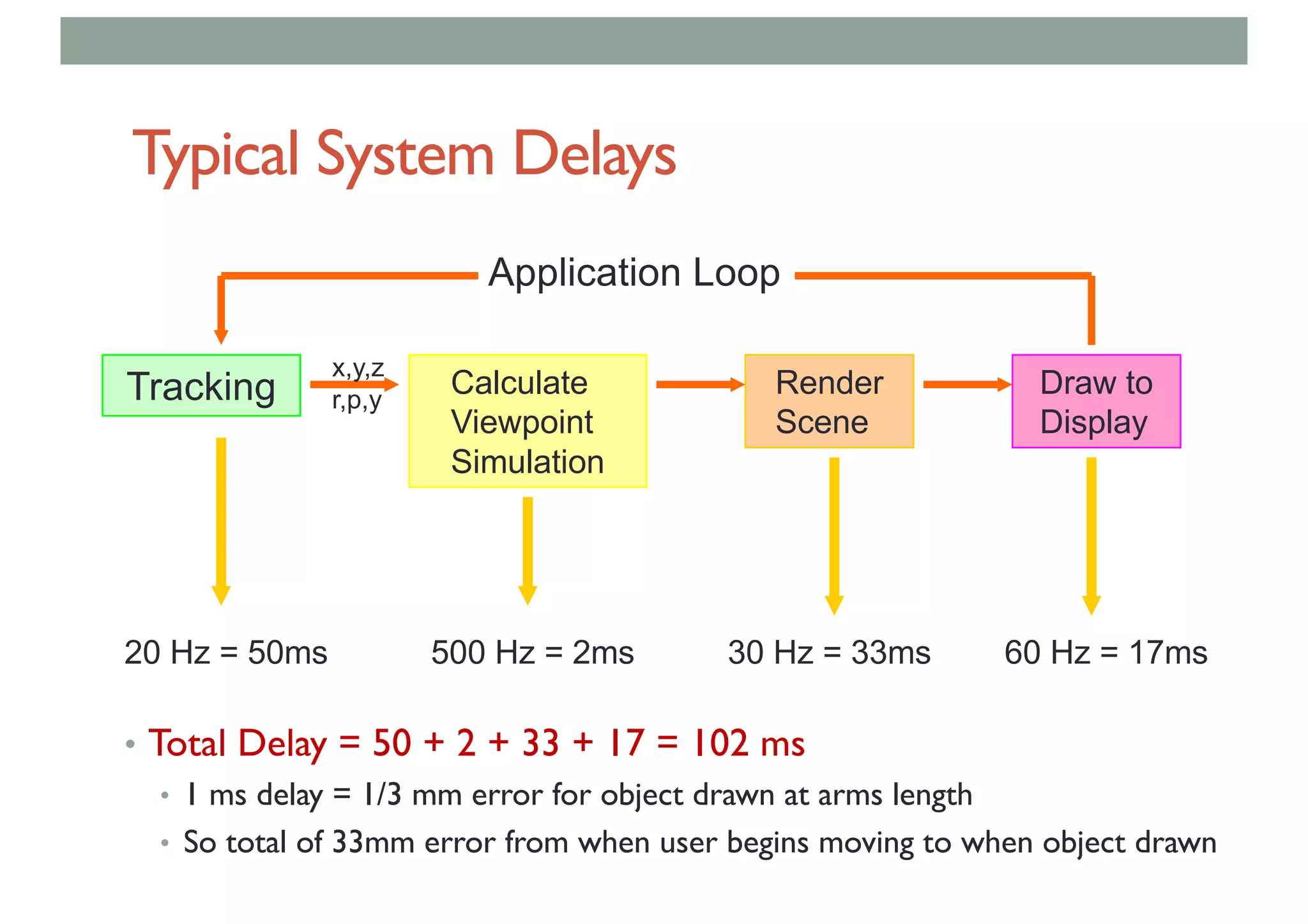

System Delays
Typical Delay from Tracking to Rendering
System Delay
Typical System Delays
• Total Delay = 50 + 2 + 33 + 17 = 102 ms
• 1 ms delay = 1/3 mm error for object drawn at arms length
• So total of 33mm error from when user begins moving to when object drawn
Tracking Calculate
Viewpoint
Simulation
Render
Scene
Draw to
Display
x,y,z
r,p,y
Application Loop
20 Hz = 50ms 500 Hz = 2ms 30 Hz = 33ms 60 Hz = 17ms
Living with High Latency (1/3 sec – 3 sec)
• https://www.youtube.com/watch?v=_fNp37zFn9Q

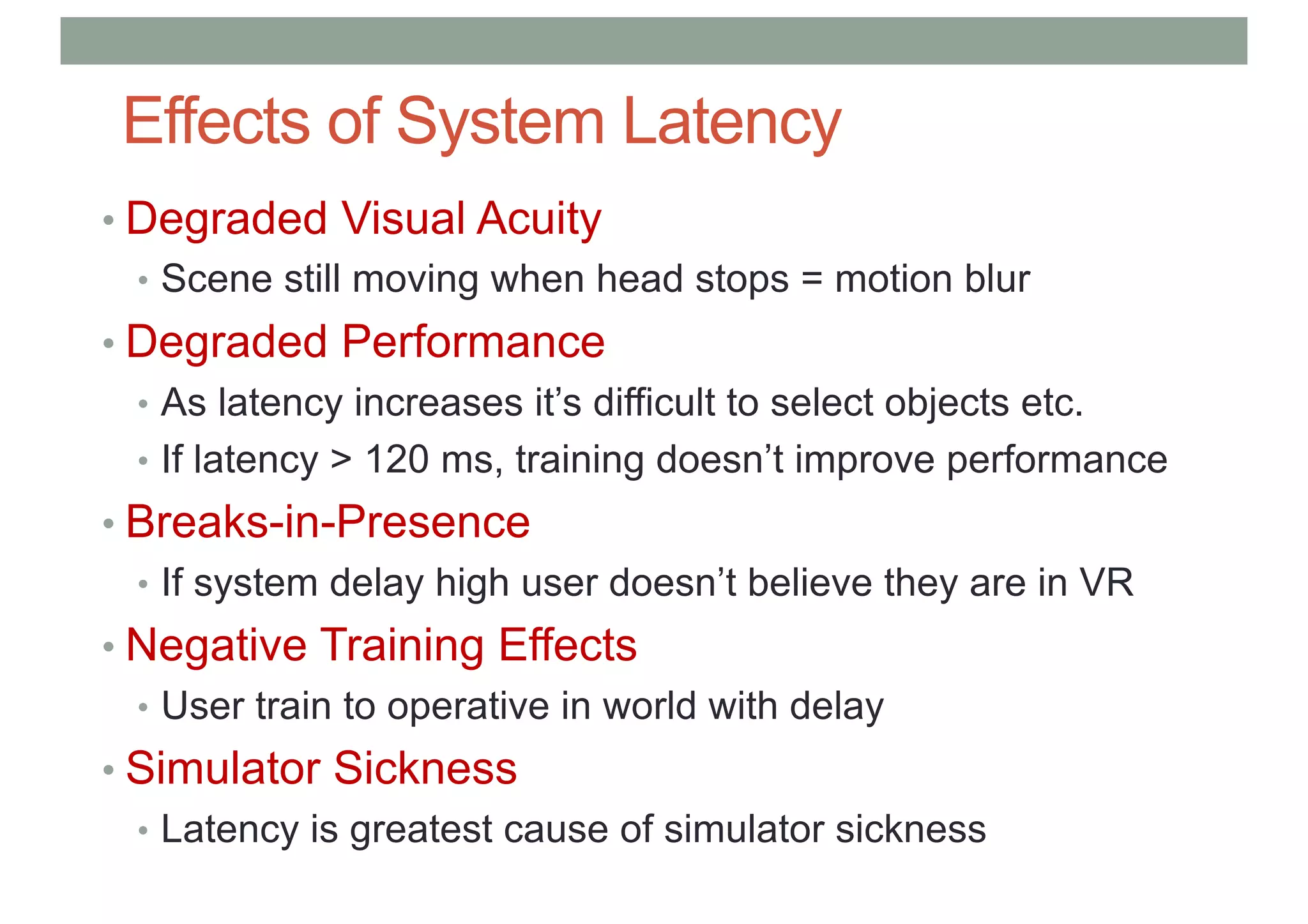

Effects of System Latency
• Degraded Visual Acuity
• Scene still moving when head stops = motion blur
• Degraded Performance
• As latency increases it’s difficult to select objects etc.
• If latency > 120 ms, training doesn’t improve performance
• Breaks-in-Presence
• If system delay high user doesn’t believe they are in VR
• Negative Training Effects
• User train to operative in world with delay
• Simulator Sickness
• Latency is greatest cause of simulator sickness

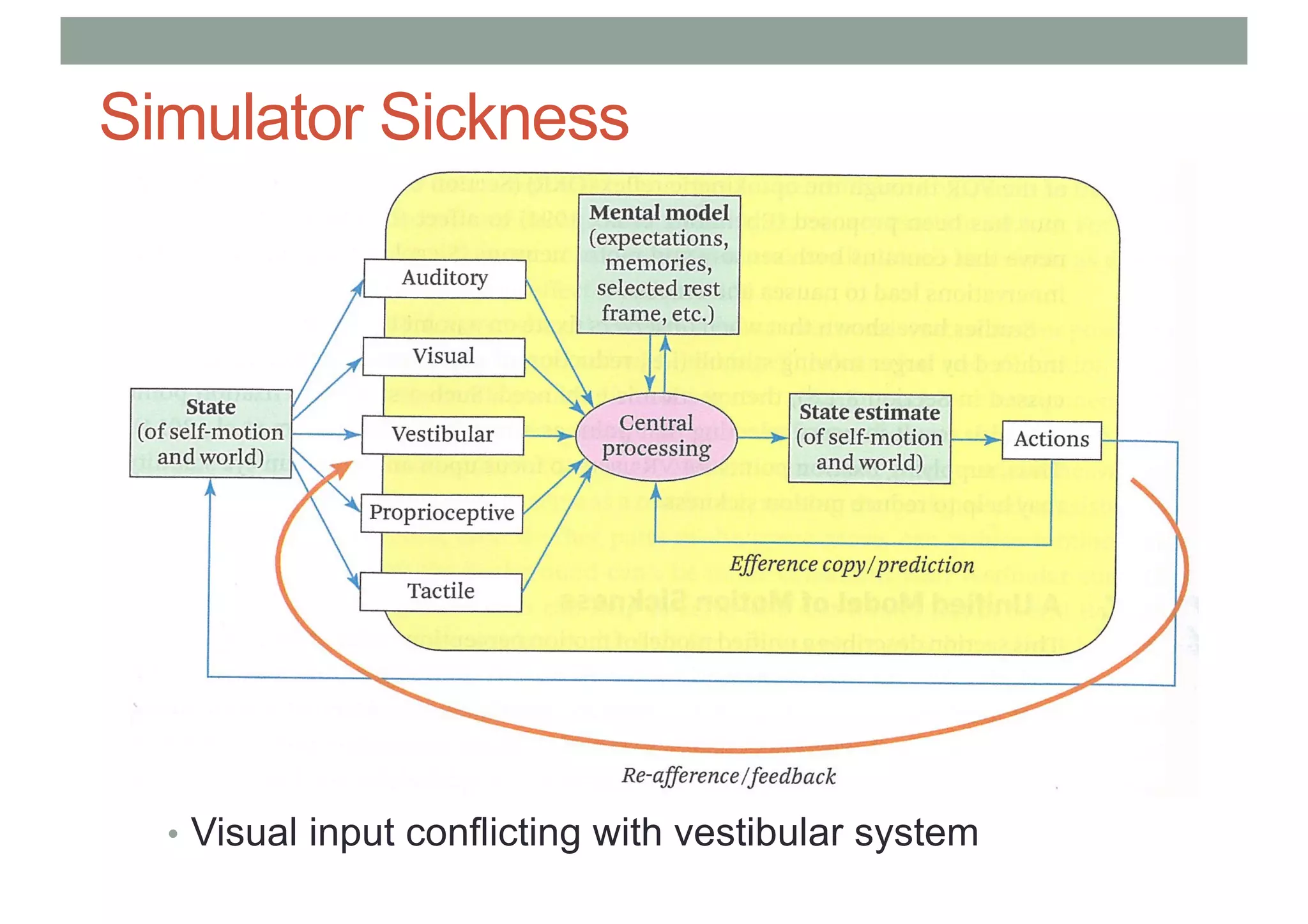

Simulator Sickness
• Visual input conflicting with vestibular system

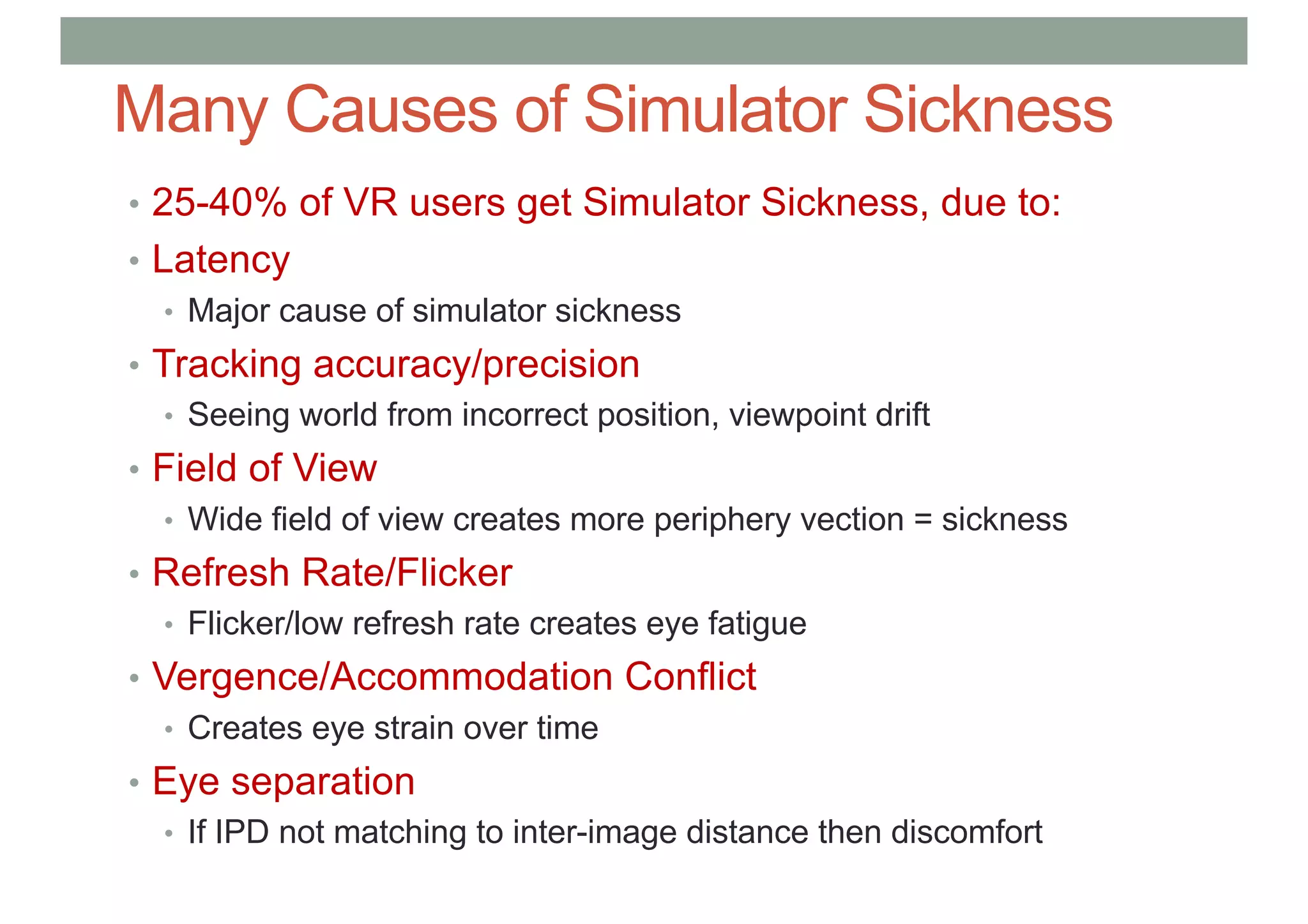

Many Causes of Simulator Sickness
• 25-40% of VR users get Simulator Sickness, due to:
• Latency
• Major cause of simulator sickness
• Tracking accuracy/precision
• Seeing world from incorrect position, viewpoint drift
• Field of View
• Wide field of view creates more periphery vection = sickness
• Refresh Rate/Flicker
• Flicker/low refresh rate creates eye fatigue
• Vergence/Accommodation Conflict
• Creates eye strain over time
• Eye separation
• If IPD not matching to inter-image distance then discomfort
Motion Sickness
• https://www.youtube.com/watch?v=BznbIlW8iqE

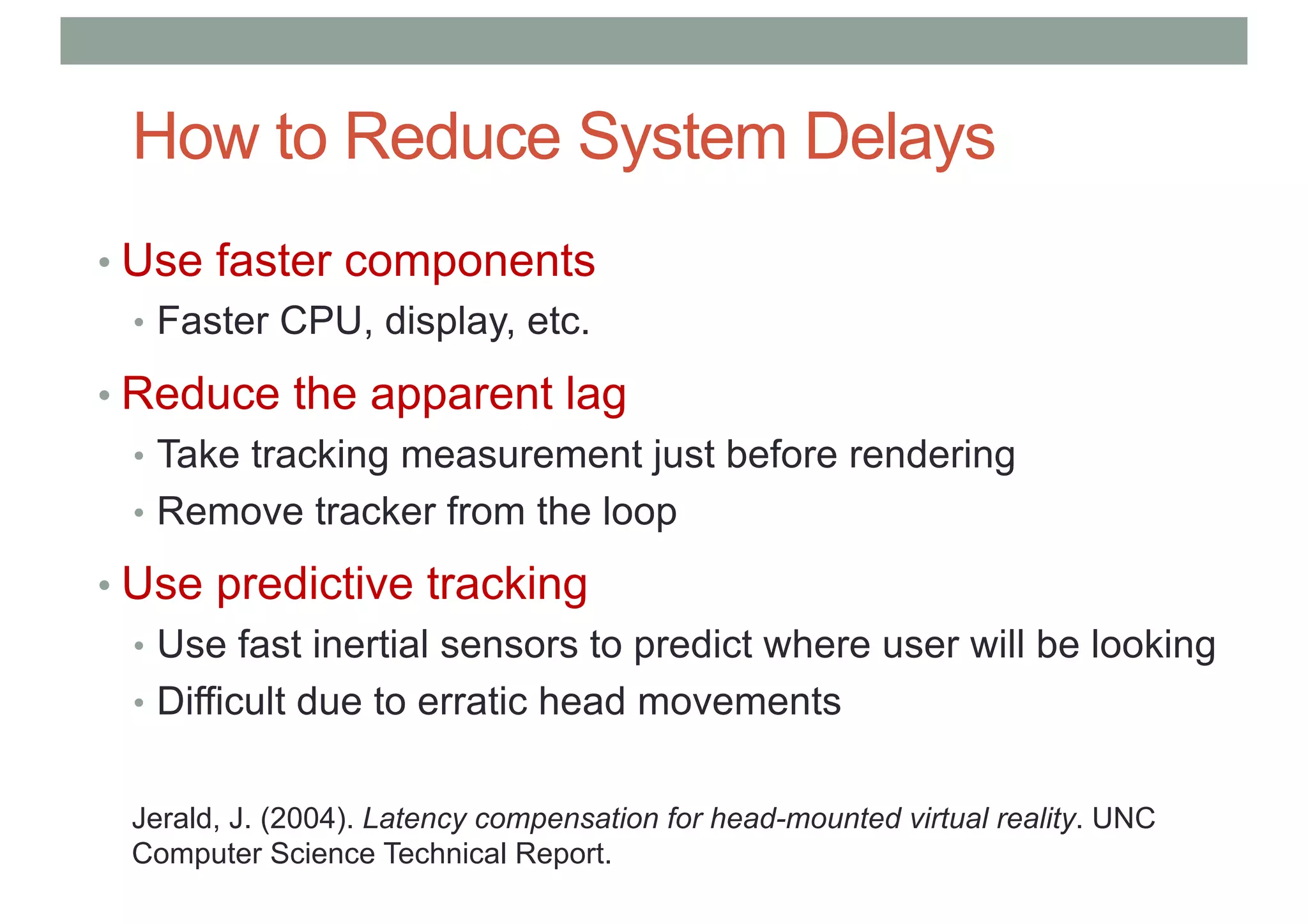

How to Reduce System Delays
• Use faster components
• Faster CPU, display, etc.
• Reduce the apparent lag
• Take tracking measurement just before rendering
• Remove tracker from the loop
• Use predictive tracking
• Use fast inertial sensors to predict where user will be looking
• Difficult due to erratic head movements
Jerald, J. (2004). Latency compensation for head-mounted virtual reality. UNC
Computer Science Technical Report.

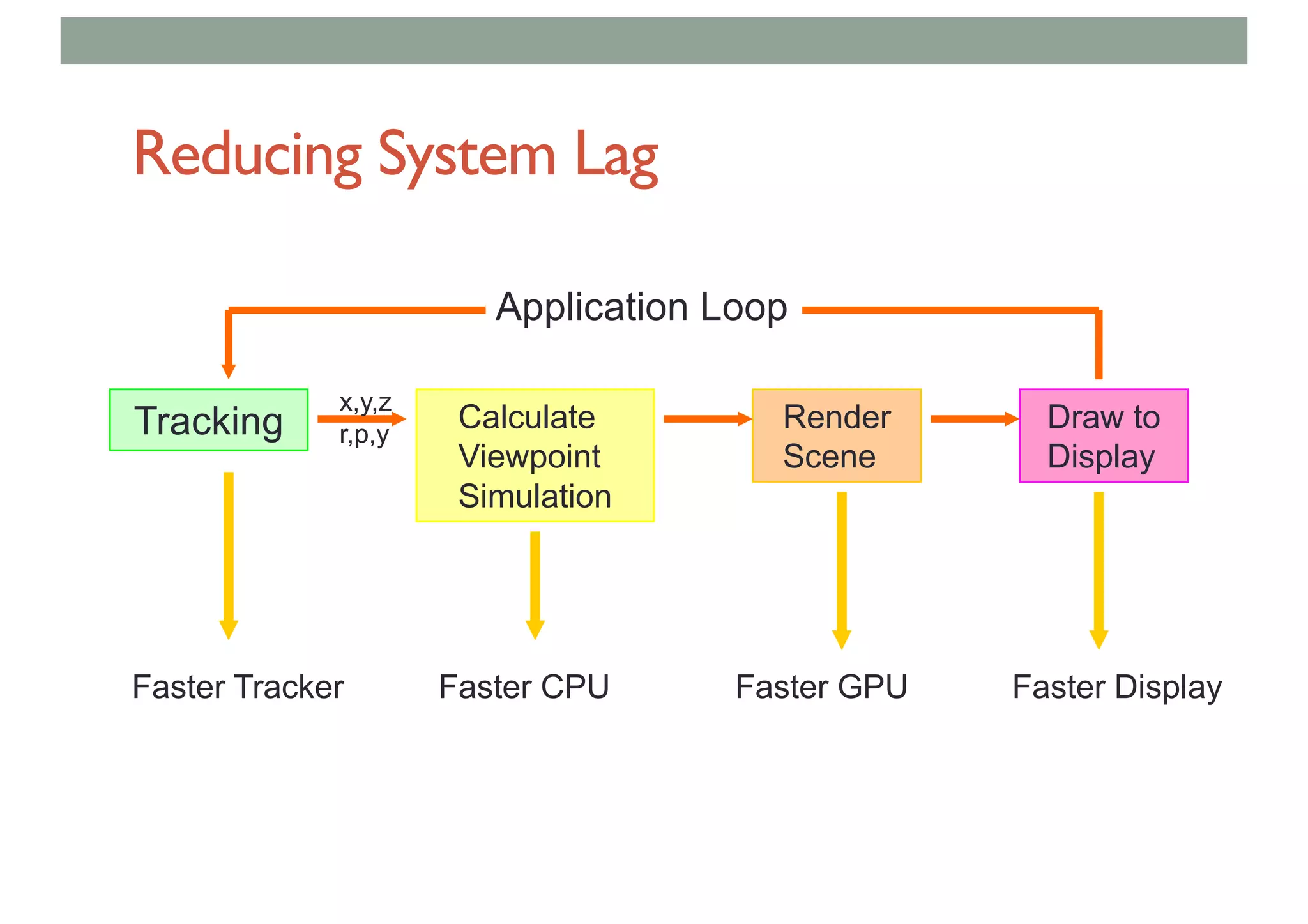

Reducing System Lag
Tracking Calculate
Viewpoint
Simulation
Render
Scene
Draw to
Display
x,y,z
r,p,y
Application Loop
Faster Tracker Faster CPU Faster GPU Faster Display

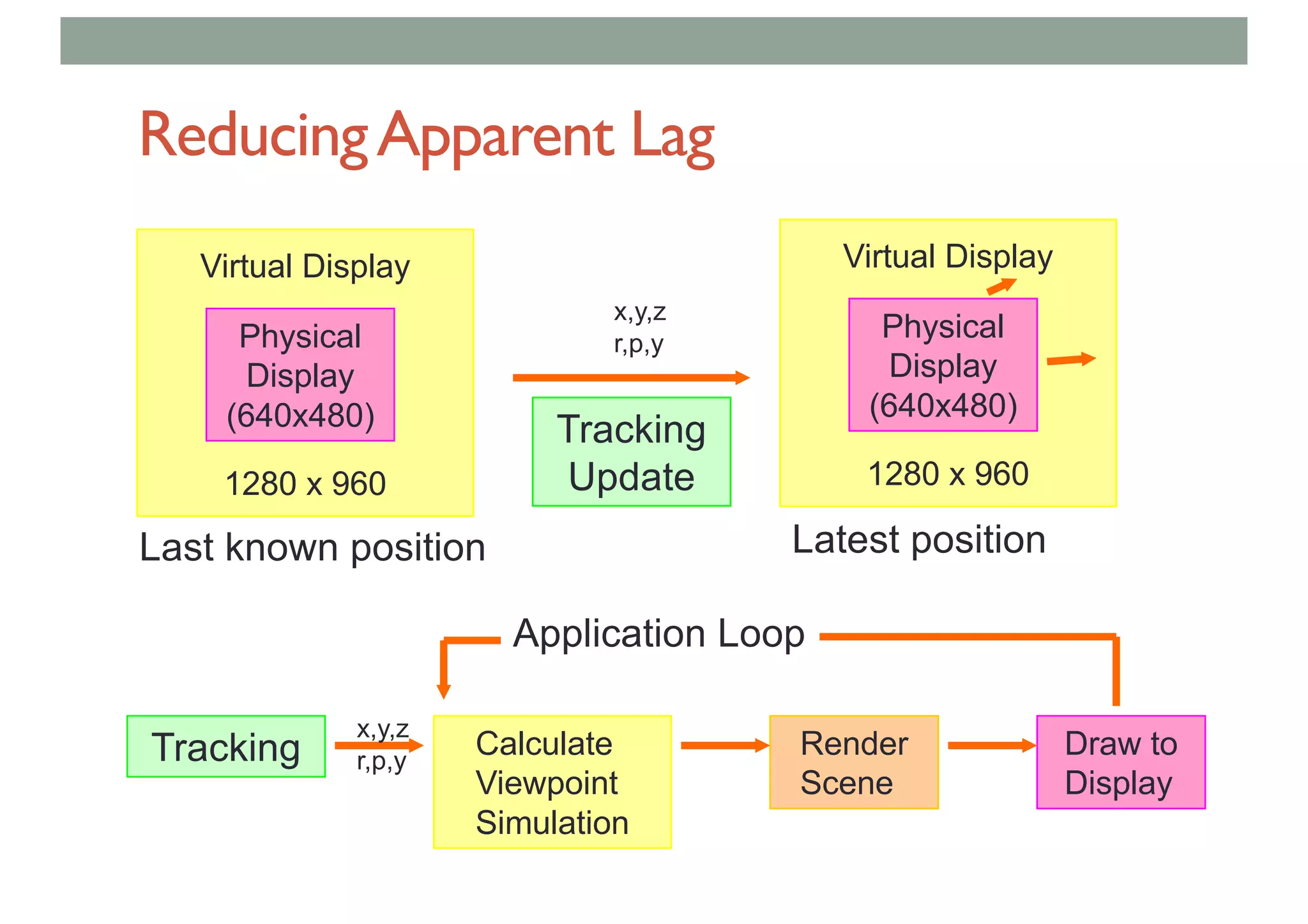

ReducingApparent Lag
Tracking
Update
x,y,z
r,p,y
Virtual Display
Physical
Display
(640x480)
1280 x 960
Last known position
Virtual Display
Physical
Display
(640x480)
1280 x 960
Latest position
Tracking Calculate
Viewpoint
Simulation
Render
Scene
Draw to
Display
x,y,z
r,p,y
Application Loop

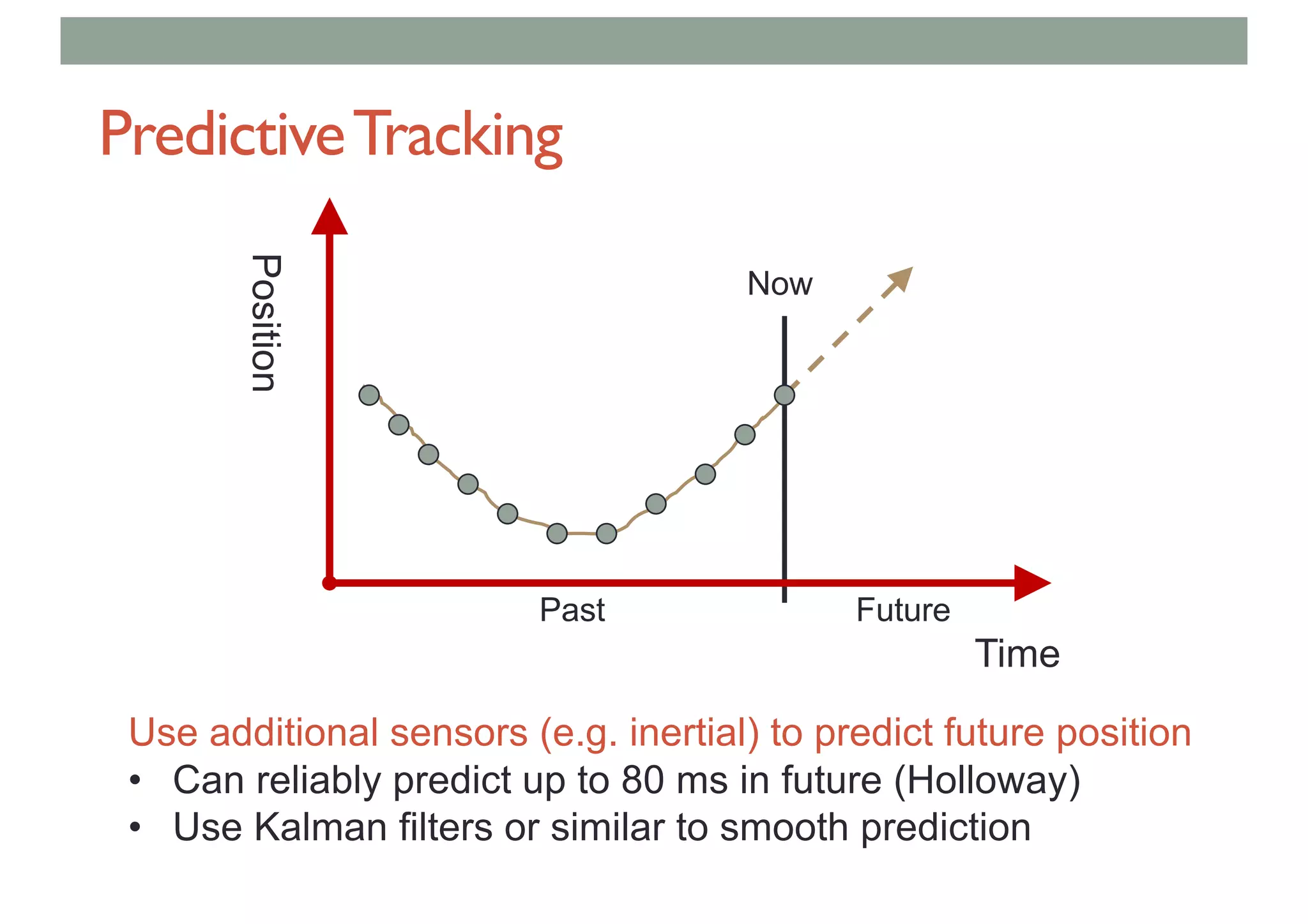

PredictiveTracking
Time
Position
Past Future
Use additional sensors (e.g. inertial) to predict future position
• Can reliably predict up to 80 ms in future (Holloway)
• Use Kalman filters or similar to smooth prediction
Now

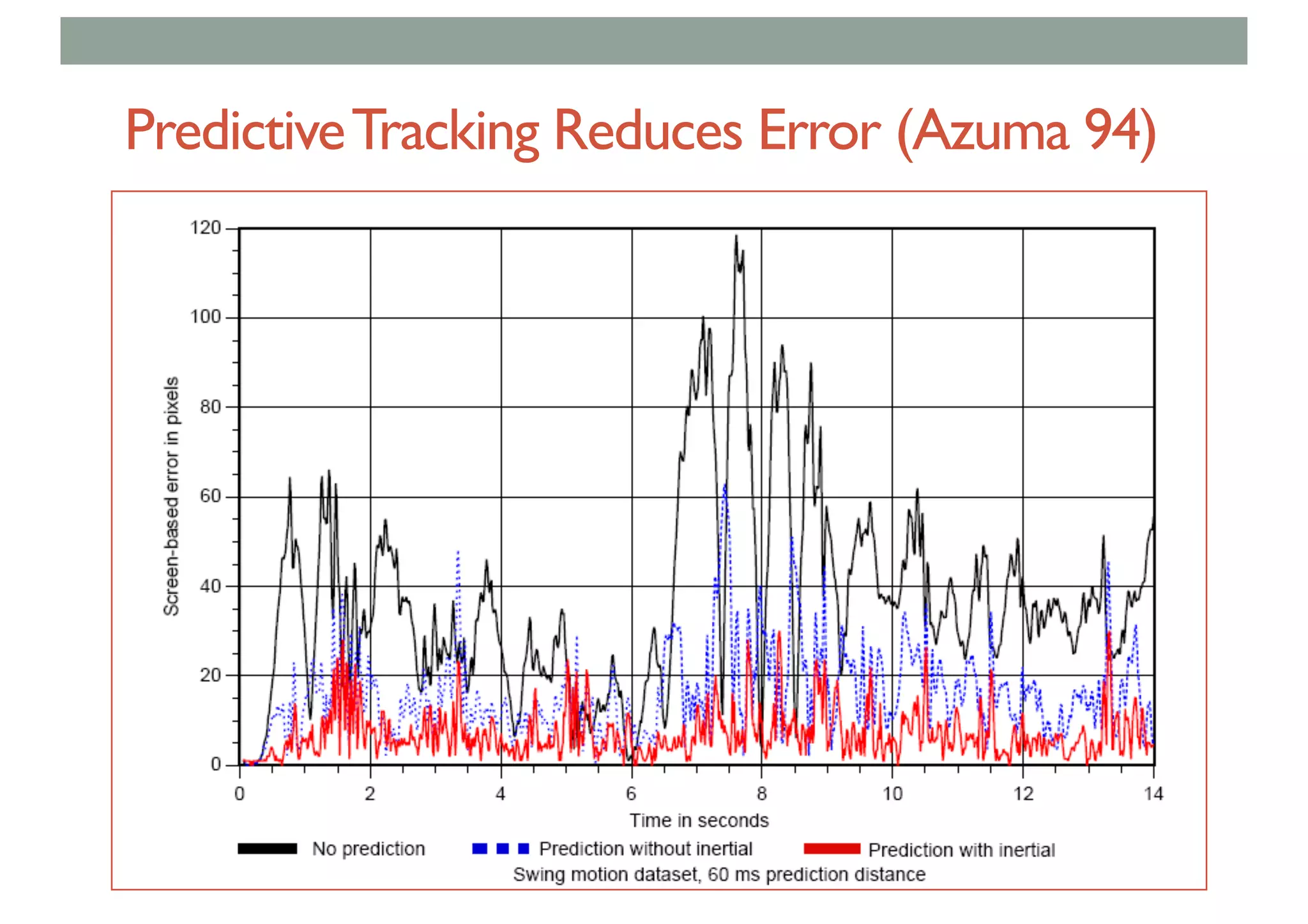

PredictiveTracking Reduces Error (Azuma 94)

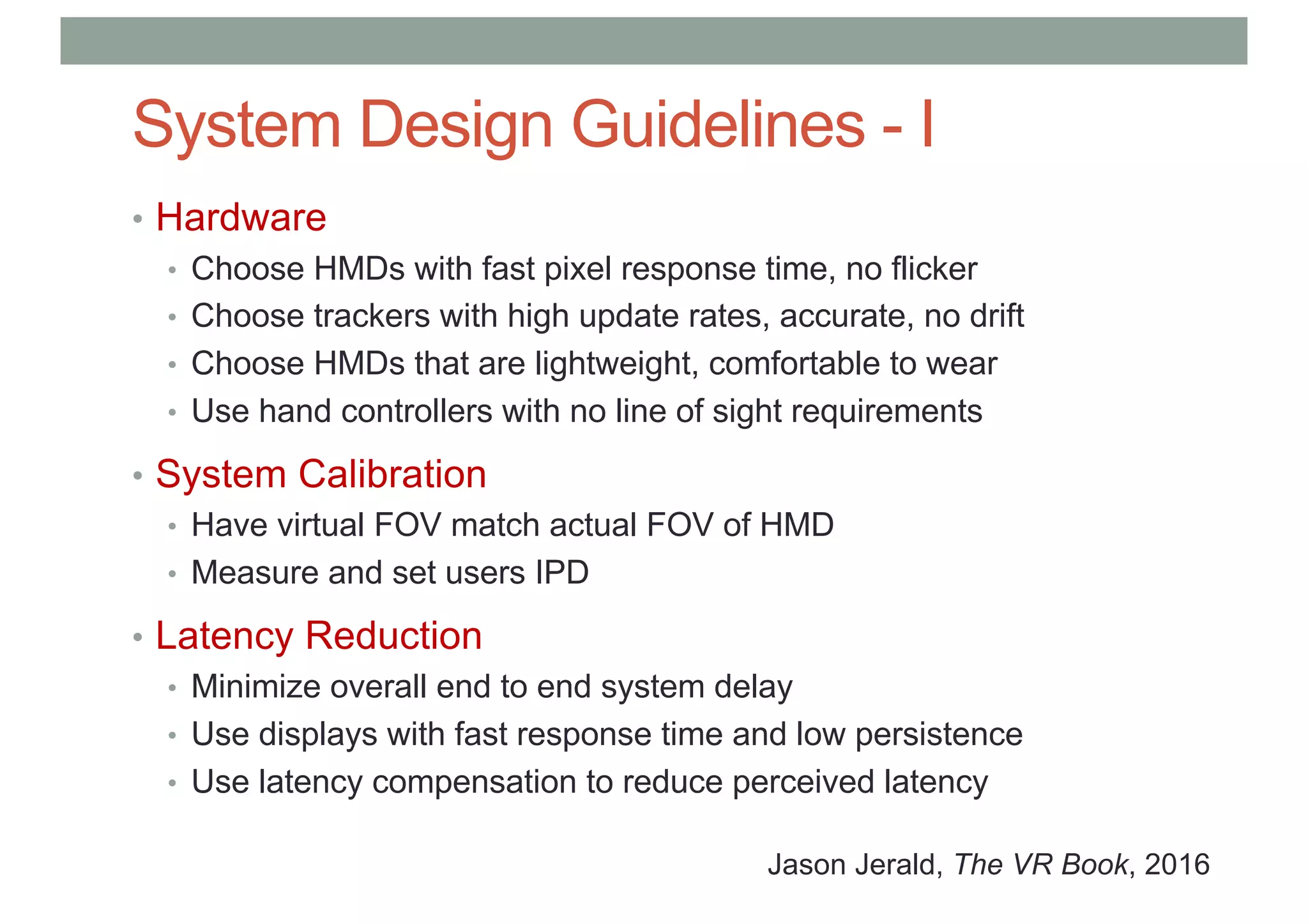

System Design Guidelines - I
• Hardware
• Choose HMDs with fast pixel response time, no flicker
• Choose trackers with high update rates, accurate, no drift
• Choose HMDs that are lightweight, comfortable to wear
• Use hand controllers with no line of sight requirements
• System Calibration
• Have virtual FOV match actual FOV of HMD
• Measure and set users IPD
• Latency Reduction
• Minimize overall end to end system delay
• Use displays with fast response time and low persistence
• Use latency compensation to reduce perceived latency
Jason Jerald, The VR Book, 2016

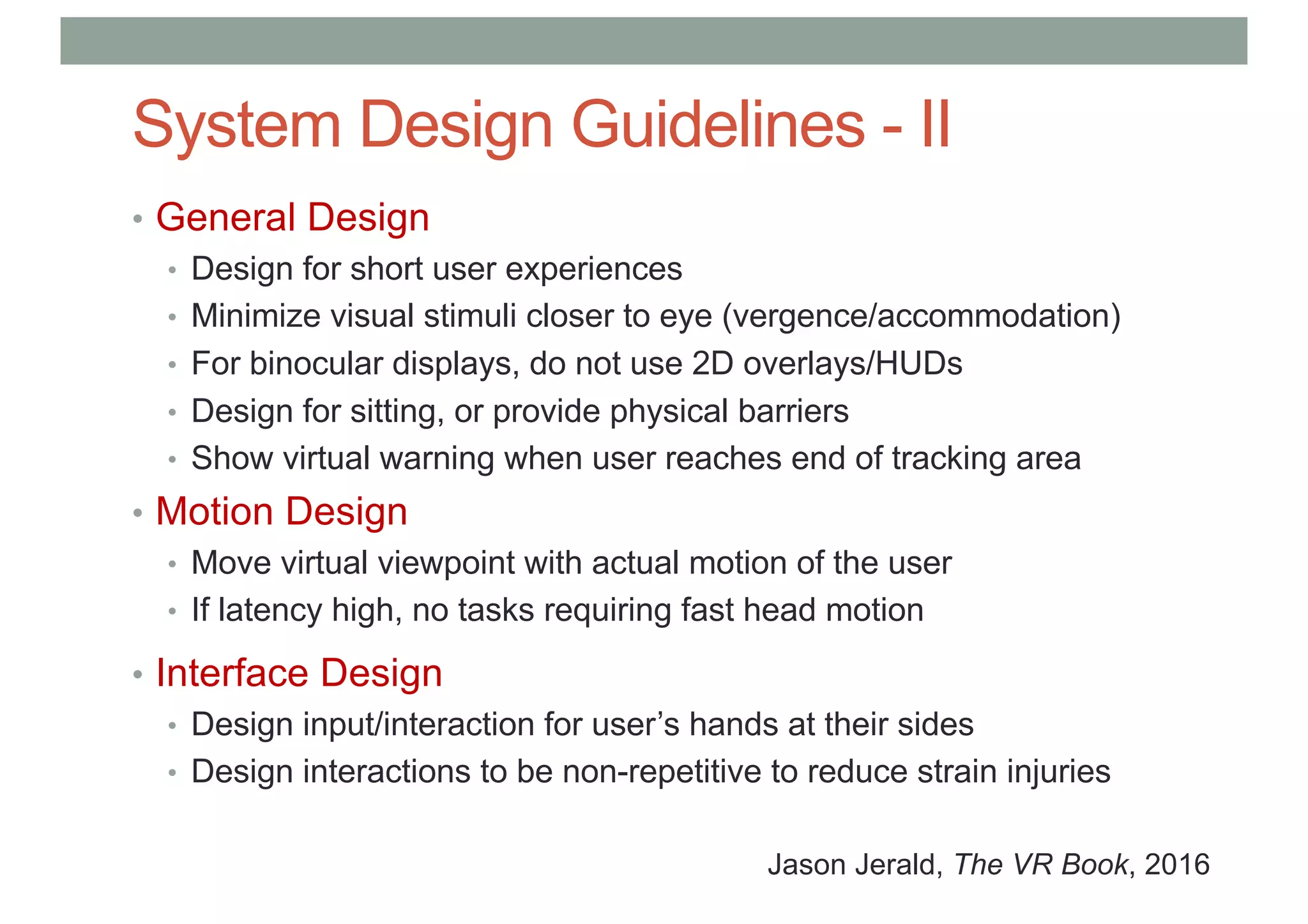

System Design Guidelines - II
• General Design
• Design for short user experiences
• Minimize visual stimuli closer to eye (vergence/accommodation)
• For binocular displays, do not use 2D overlays/HUDs
• Design for sitting, or provide physical barriers
• Show virtual warning when user reaches end of tracking area
• Motion Design
• Move virtual viewpoint with actual motion of the user
• If latency high, no tasks requiring fast head motion
• Interface Design
• Design input/interaction for user’s hands at their sides
• Design interactions to be non-repetitive to reduce strain injuries
Jason Jerald, The VR Book, 2016
VR LANDSCAPE

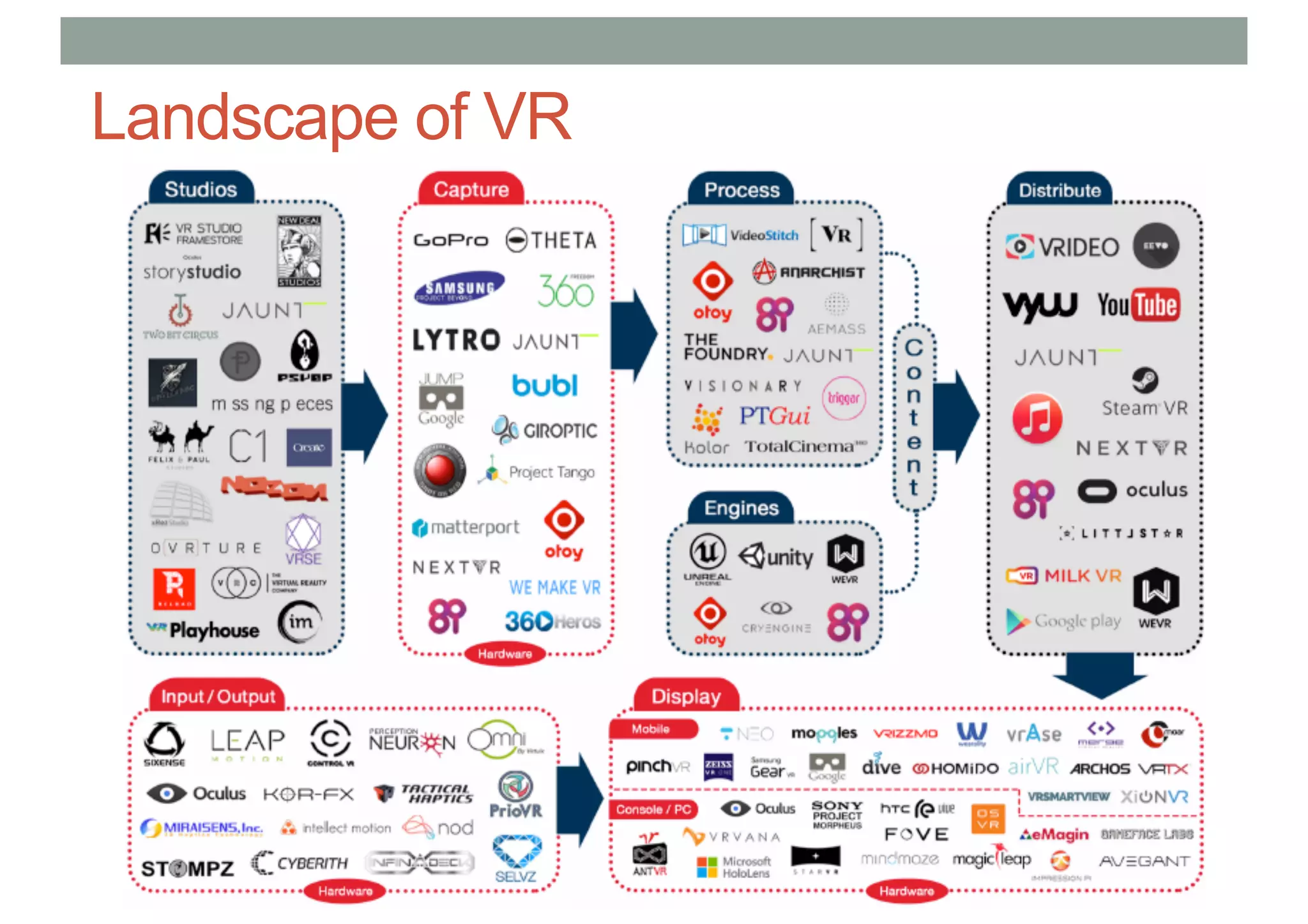

Landscape of VR
VR Studios

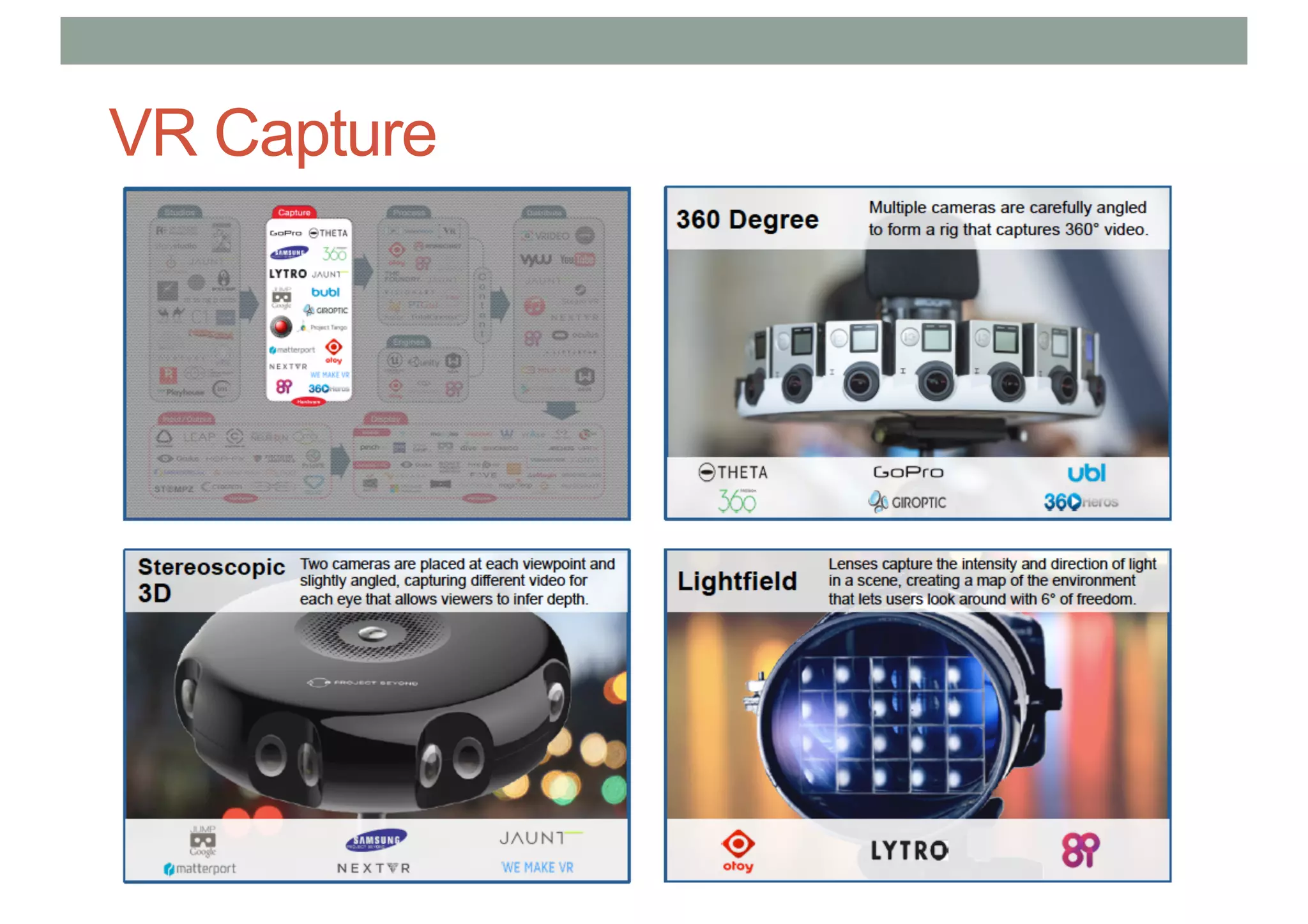

VR Capture

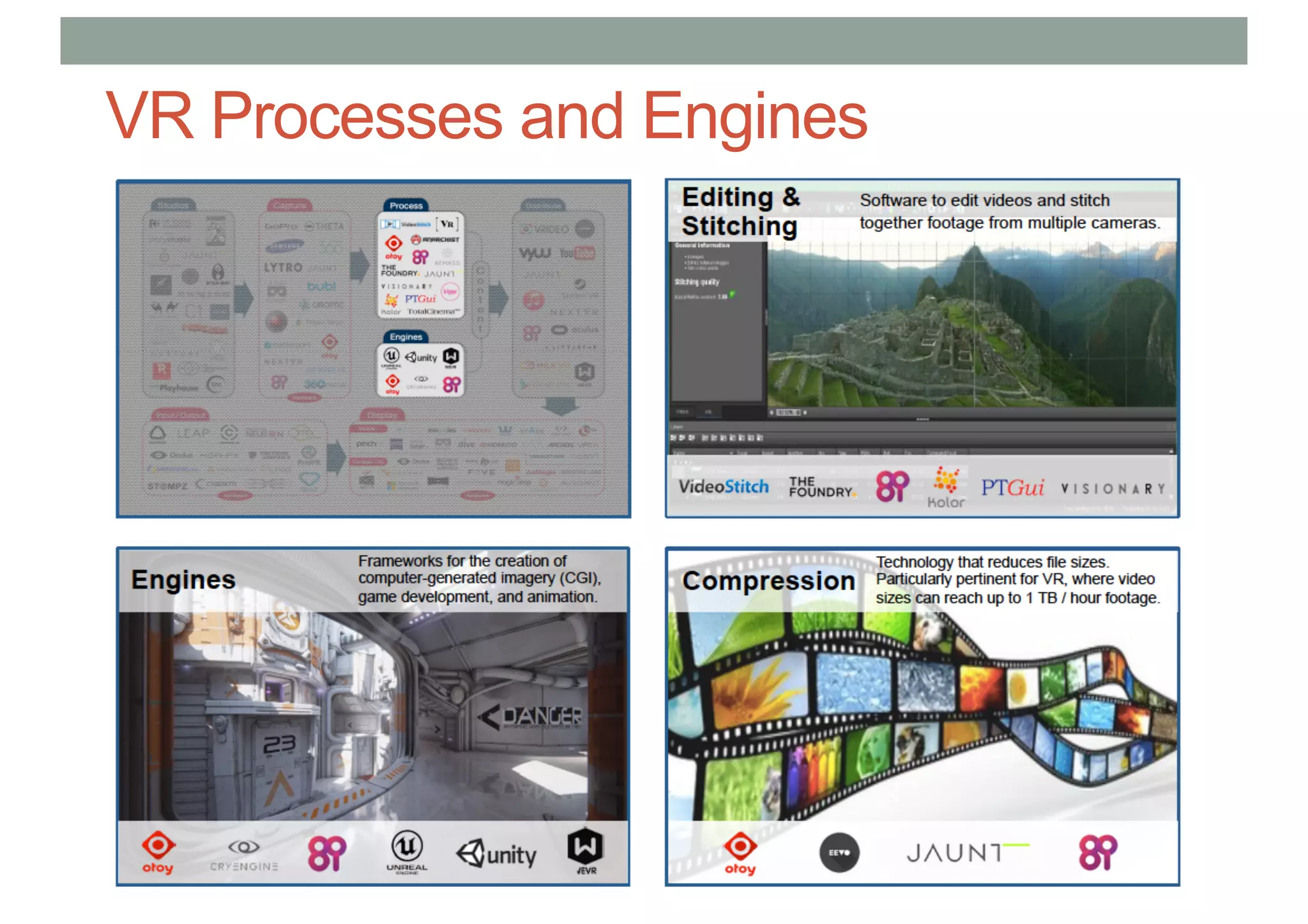

VR Processes and Engines

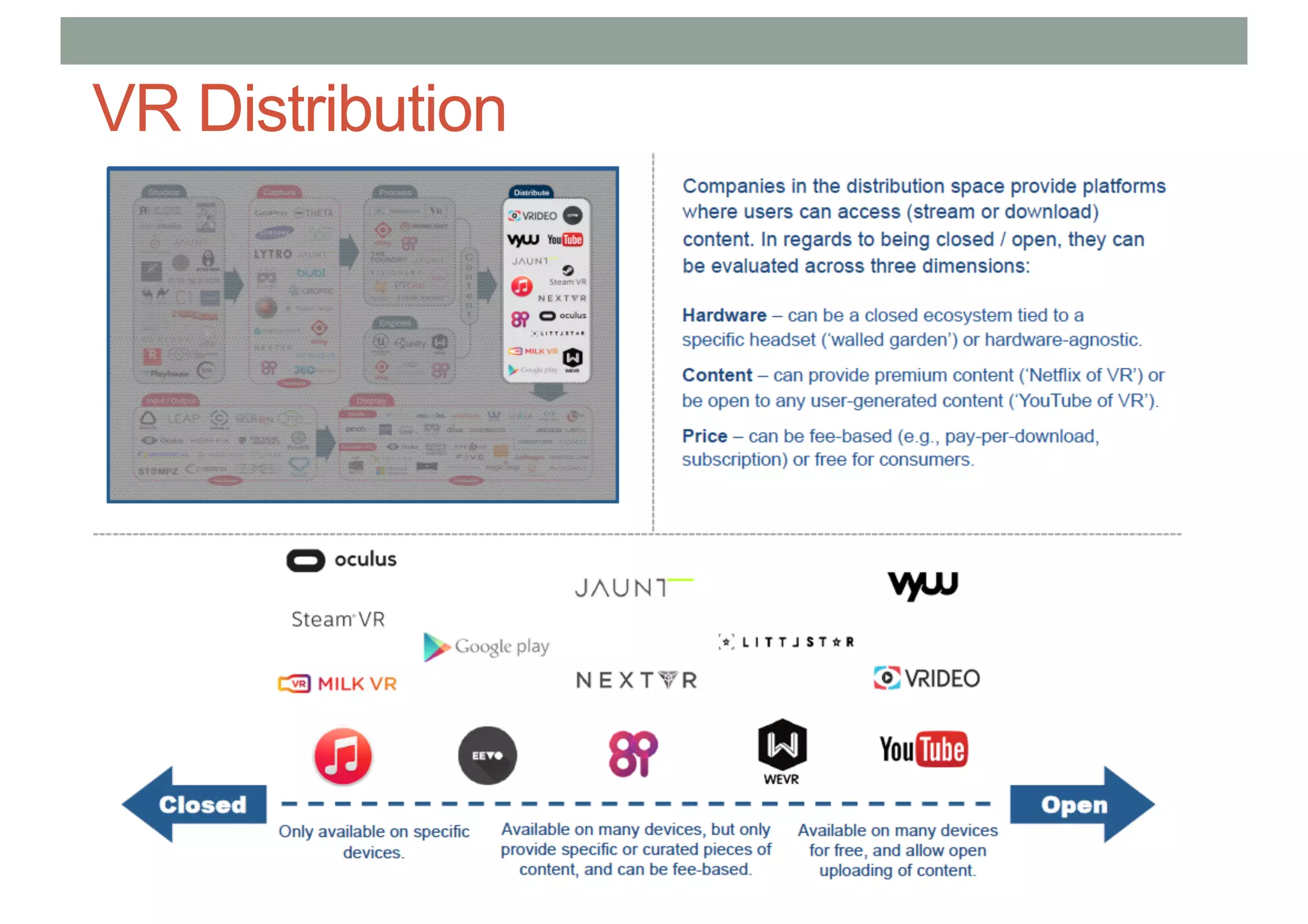

VR Distribution

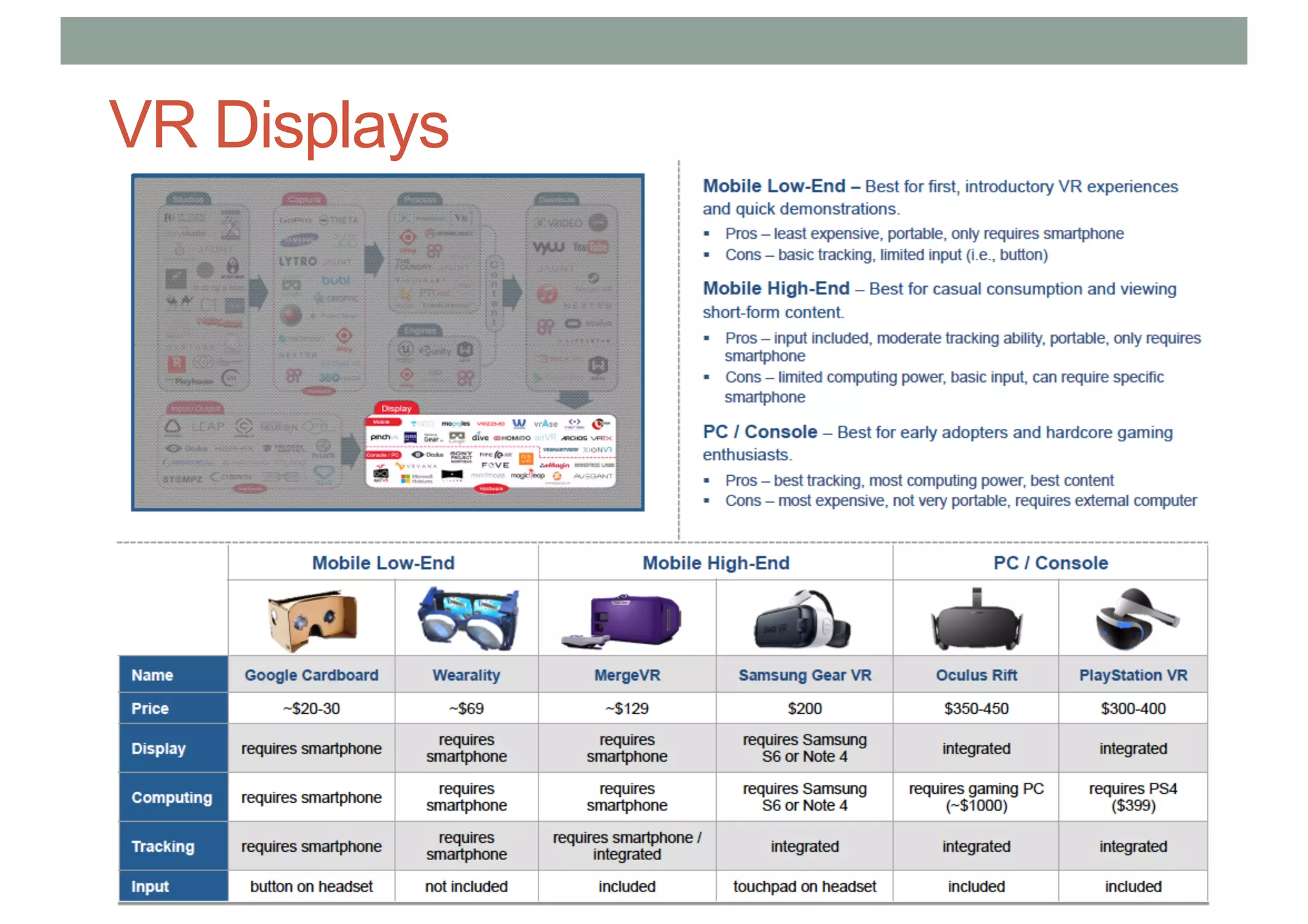

VR Displays

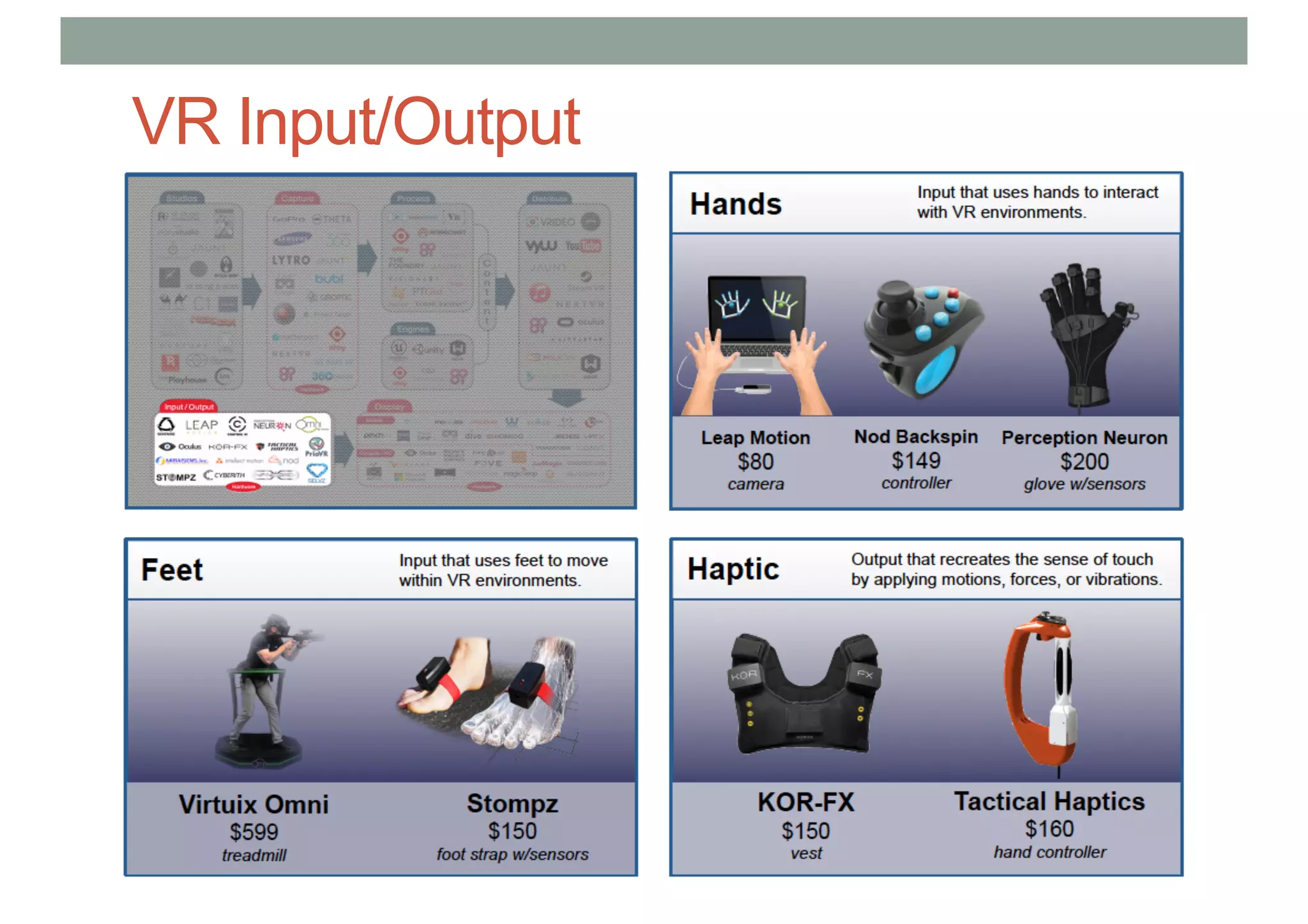

VR Input/Output
www.empathiccomputing.org
@marknb00
mark.billinghurst@unisa.edu.au

More Related Content

What's hot

Grand Challenges for Mixed Reality
Grand Challenges for Mixed Reality Grand Challenges for Mixed Reality
Grand Challenges for Mixed Reality Mark Billinghurst

Comp4010 Lecture5 Interaction and Prototyping
Comp4010 Lecture5 Interaction and PrototypingComp4010 Lecture5 Interaction and Prototyping
Comp4010 Lecture5 Interaction and PrototypingMark Billinghurst

Novel Interfaces for AR Systems
Novel Interfaces for AR SystemsNovel Interfaces for AR Systems
Novel Interfaces for AR SystemsMark Billinghurst

Comp4010 lecture11 VR Applications
Comp4010 lecture11 VR ApplicationsComp4010 lecture11 VR Applications
Comp4010 lecture11 VR ApplicationsMark Billinghurst

COMP 4010 - Lecture4 VR Technology - Visual and Haptic Displays
COMP 4010 - Lecture4 VR Technology - Visual and Haptic DisplaysCOMP 4010 - Lecture4 VR Technology - Visual and Haptic Displays
COMP 4010 - Lecture4 VR Technology - Visual and Haptic DisplaysMark Billinghurst

Comp4010 2021 Lecture2-Perception
Comp4010 2021 Lecture2-PerceptionComp4010 2021 Lecture2-Perception
Comp4010 2021 Lecture2-PerceptionMark Billinghurst

2022 COMP4010 Lecture2: Perception
2022 COMP4010 Lecture2: Perception2022 COMP4010 Lecture2: Perception
2022 COMP4010 Lecture2: PerceptionMark Billinghurst

Lecture 5: 3D User Interfaces for Virtual Reality
Lecture 5: 3D User Interfaces for Virtual RealityLecture 5: 3D User Interfaces for Virtual Reality
Lecture 5: 3D User Interfaces for Virtual RealityMark Billinghurst

Comp4010 lecture6 Prototyping
Comp4010 lecture6 PrototypingComp4010 lecture6 Prototyping
Comp4010 lecture6 PrototypingMark Billinghurst

Comp4010 Lecture8 Introduction to VR
Comp4010 Lecture8 Introduction to VRComp4010 Lecture8 Introduction to VR
Comp4010 Lecture8 Introduction to VRMark Billinghurst

Comp4010 Lecture13 More Research Directions
Comp4010 Lecture13 More Research DirectionsComp4010 Lecture13 More Research Directions
Comp4010 Lecture13 More Research DirectionsMark Billinghurst

Empathic Computing: Developing for the Whole Metaverse
Empathic Computing: Developing for the Whole MetaverseEmpathic Computing: Developing for the Whole Metaverse
Empathic Computing: Developing for the Whole MetaverseMark Billinghurst

2022 COMP4010 Lecture 6: Designing AR Systems
2022 COMP4010 Lecture 6: Designing AR Systems2022 COMP4010 Lecture 6: Designing AR Systems
2022 COMP4010 Lecture 6: Designing AR SystemsMark Billinghurst

Comp4010 lecture3-AR Technology
Comp4010 lecture3-AR TechnologyComp4010 lecture3-AR Technology
Comp4010 lecture3-AR TechnologyMark Billinghurst

Comp4010 Lecture12 Research Directions
Comp4010 Lecture12 Research DirectionsComp4010 Lecture12 Research Directions
Comp4010 Lecture12 Research DirectionsMark Billinghurst

COMP 4010 Lecture6 - Virtual Reality Input Devices
COMP 4010 Lecture6 - Virtual Reality Input DevicesCOMP 4010 Lecture6 - Virtual Reality Input Devices
COMP 4010 Lecture6 - Virtual Reality Input DevicesMark Billinghurst

2022 COMP4010 Lecture1: Introduction to XR
2022 COMP4010 Lecture1: Introduction to XR2022 COMP4010 Lecture1: Introduction to XR
2022 COMP4010 Lecture1: Introduction to XRMark Billinghurst

Comp4010 Lecture7 Designing AR Systems
Comp4010 Lecture7 Designing AR SystemsComp4010 Lecture7 Designing AR Systems
Comp4010 Lecture7 Designing AR SystemsMark Billinghurst

Comp4010 Lecture4 AR Tracking and Interaction
Comp4010 Lecture4 AR Tracking and InteractionComp4010 Lecture4 AR Tracking and Interaction
Comp4010 Lecture4 AR Tracking and InteractionMark Billinghurst


What's hot (20)

Grand Challenges for Mixed Reality
Grand Challenges for Mixed Reality Grand Challenges for Mixed Reality
Grand Challenges for Mixed Reality

Comp4010 Lecture5 Interaction and Prototyping
Comp4010 Lecture5 Interaction and PrototypingComp4010 Lecture5 Interaction and Prototyping
Comp4010 Lecture5 Interaction and Prototyping

Novel Interfaces for AR Systems
Novel Interfaces for AR SystemsNovel Interfaces for AR Systems
Novel Interfaces for AR Systems

Comp4010 lecture11 VR Applications
Comp4010 lecture11 VR ApplicationsComp4010 lecture11 VR Applications
Comp4010 lecture11 VR Applications

COMP 4010 - Lecture4 VR Technology - Visual and Haptic Displays
COMP 4010 - Lecture4 VR Technology - Visual and Haptic DisplaysCOMP 4010 - Lecture4 VR Technology - Visual and Haptic Displays
COMP 4010 - Lecture4 VR Technology - Visual and Haptic Displays

Comp4010 2021 Lecture2-Perception
Comp4010 2021 Lecture2-PerceptionComp4010 2021 Lecture2-Perception
Comp4010 2021 Lecture2-Perception

2022 COMP4010 Lecture2: Perception
2022 COMP4010 Lecture2: Perception2022 COMP4010 Lecture2: Perception
2022 COMP4010 Lecture2: Perception

Lecture1 introduction to VR
Lecture1 introduction to VRLecture1 introduction to VR
Lecture1 introduction to VR

Lecture 5: 3D User Interfaces for Virtual Reality
Lecture 5: 3D User Interfaces for Virtual RealityLecture 5: 3D User Interfaces for Virtual Reality
Lecture 5: 3D User Interfaces for Virtual Reality

Comp4010 lecture6 Prototyping
Comp4010 lecture6 PrototypingComp4010 lecture6 Prototyping
Comp4010 lecture6 Prototyping

Comp4010 Lecture8 Introduction to VR
Comp4010 Lecture8 Introduction to VRComp4010 Lecture8 Introduction to VR
Comp4010 Lecture8 Introduction to VR

Comp4010 Lecture13 More Research Directions
Comp4010 Lecture13 More Research DirectionsComp4010 Lecture13 More Research Directions
Comp4010 Lecture13 More Research Directions

Empathic Computing: Developing for the Whole Metaverse
Empathic Computing: Developing for the Whole MetaverseEmpathic Computing: Developing for the Whole Metaverse
Empathic Computing: Developing for the Whole Metaverse

2022 COMP4010 Lecture 6: Designing AR Systems
2022 COMP4010 Lecture 6: Designing AR Systems2022 COMP4010 Lecture 6: Designing AR Systems
2022 COMP4010 Lecture 6: Designing AR Systems

Comp4010 lecture3-AR Technology
Comp4010 lecture3-AR TechnologyComp4010 lecture3-AR Technology
Comp4010 lecture3-AR Technology

Comp4010 Lecture12 Research Directions
Comp4010 Lecture12 Research DirectionsComp4010 Lecture12 Research Directions
Comp4010 Lecture12 Research Directions

COMP 4010 Lecture6 - Virtual Reality Input Devices
COMP 4010 Lecture6 - Virtual Reality Input DevicesCOMP 4010 Lecture6 - Virtual Reality Input Devices
COMP 4010 Lecture6 - Virtual Reality Input Devices

2022 COMP4010 Lecture1: Introduction to XR
2022 COMP4010 Lecture1: Introduction to XR2022 COMP4010 Lecture1: Introduction to XR
2022 COMP4010 Lecture1: Introduction to XR

Comp4010 Lecture7 Designing AR Systems
Comp4010 Lecture7 Designing AR SystemsComp4010 Lecture7 Designing AR Systems
Comp4010 Lecture7 Designing AR Systems

Comp4010 Lecture4 AR Tracking and Interaction
Comp4010 Lecture4 AR Tracking and InteractionComp4010 Lecture4 AR Tracking and Interaction
Comp4010 Lecture4 AR Tracking and Interaction


Viewers also liked

COMP 4010 Lecture12 - Research Directions in AR and VR
COMP 4010 Lecture12 - Research Directions in AR and VRCOMP 4010 Lecture12 - Research Directions in AR and VR
COMP 4010 Lecture12 - Research Directions in AR and VRMark Billinghurst

COMP 4010 - Lecture 7: Introduction to Augmented Reality
COMP 4010 - Lecture 7: Introduction to Augmented RealityCOMP 4010 - Lecture 7: Introduction to Augmented Reality
COMP 4010 - Lecture 7: Introduction to Augmented RealityMark Billinghurst

COMP 4010 - Lecture10: Mobile AR
COMP 4010 - Lecture10: Mobile ARCOMP 4010 - Lecture10: Mobile AR
COMP 4010 - Lecture10: Mobile ARMark Billinghurst

COMP 4010: Lecture8 - AR Technology
COMP 4010: Lecture8 - AR TechnologyCOMP 4010: Lecture8 - AR Technology
COMP 4010: Lecture8 - AR TechnologyMark Billinghurst

COMP 4010: Lecture 6 Example VR Applications
COMP 4010: Lecture 6 Example VR ApplicationsCOMP 4010: Lecture 6 Example VR Applications
COMP 4010: Lecture 6 Example VR ApplicationsMark Billinghurst

Fifty Shades of Augmented Reality: Creating Connection Using AR
Fifty Shades of Augmented Reality: Creating Connection Using ARFifty Shades of Augmented Reality: Creating Connection Using AR
Fifty Shades of Augmented Reality: Creating Connection Using ARMark Billinghurst

Collaborative Immersive Analytics
Collaborative Immersive AnalyticsCollaborative Immersive Analytics
Collaborative Immersive AnalyticsMark Billinghurst

COMP 4010 Lecture 9 AR Interaction
COMP 4010 Lecture 9 AR InteractionCOMP 4010 Lecture 9 AR Interaction
COMP 4010 Lecture 9 AR InteractionMark Billinghurst

COMP 4010 - Lecture11 - AR Applications
COMP 4010 - Lecture11 - AR ApplicationsCOMP 4010 - Lecture11 - AR Applications
COMP 4010 - Lecture11 - AR ApplicationsMark Billinghurst

COMP 4010: Lecture 5 - Interaction Design for Virtual Reality
COMP 4010: Lecture 5 - Interaction Design for Virtual RealityCOMP 4010: Lecture 5 - Interaction Design for Virtual Reality
COMP 4010: Lecture 5 - Interaction Design for Virtual RealityMark Billinghurst

Create Your Own VR Experience
Create Your Own VR ExperienceCreate Your Own VR Experience
Create Your Own VR ExperienceMark Billinghurst

Developing AR and VR Experiences with Unity
Developing AR and VR Experiences with UnityDeveloping AR and VR Experiences with Unity
Developing AR and VR Experiences with UnityMark Billinghurst

Building VR Applications For Google Cardboard
Building VR Applications For Google CardboardBuilding VR Applications For Google Cardboard
Building VR Applications For Google CardboardMark Billinghurst

Beyond Reality (2027): The Future of Virtual and Augmented Reality
Beyond Reality (2027): The Future of Virtual and Augmented RealityBeyond Reality (2027): The Future of Virtual and Augmented Reality
Beyond Reality (2027): The Future of Virtual and Augmented RealityMark Billinghurst

COMP 4010 - Lecture1 Introduction to Virtual Reality
COMP 4010 - Lecture1 Introduction to Virtual RealityCOMP 4010 - Lecture1 Introduction to Virtual Reality
COMP 4010 - Lecture1 Introduction to Virtual RealityMark Billinghurst

COMP 4010: Lecture2 VR Technology
COMP 4010: Lecture2 VR TechnologyCOMP 4010: Lecture2 VR Technology
COMP 4010: Lecture2 VR TechnologyMark Billinghurst

COMP 4010: Lecture 4 - 3D User Interfaces for VR
COMP 4010: Lecture 4 - 3D User Interfaces for VRCOMP 4010: Lecture 4 - 3D User Interfaces for VR
COMP 4010: Lecture 4 - 3D User Interfaces for VRMark Billinghurst

Using Interaction Design Methods for Creating AR and VR Interfaces
Using Interaction Design Methods for Creating AR and VR InterfacesUsing Interaction Design Methods for Creating AR and VR Interfaces
Using Interaction Design Methods for Creating AR and VR InterfacesMark Billinghurst


Viewers also liked (19)

COMP 4010 Lecture12 - Research Directions in AR and VR
COMP 4010 Lecture12 - Research Directions in AR and VRCOMP 4010 Lecture12 - Research Directions in AR and VR
COMP 4010 Lecture12 - Research Directions in AR and VR

COMP 4010 - Lecture 7: Introduction to Augmented Reality
COMP 4010 - Lecture 7: Introduction to Augmented RealityCOMP 4010 - Lecture 7: Introduction to Augmented Reality
COMP 4010 - Lecture 7: Introduction to Augmented Reality

COMP 4010 - Lecture10: Mobile AR
COMP 4010 - Lecture10: Mobile ARCOMP 4010 - Lecture10: Mobile AR
COMP 4010 - Lecture10: Mobile AR

COMP 4010: Lecture8 - AR Technology
COMP 4010: Lecture8 - AR TechnologyCOMP 4010: Lecture8 - AR Technology
COMP 4010: Lecture8 - AR Technology

Easy Virtual Reality
Easy Virtual RealityEasy Virtual Reality
Easy Virtual Reality

COMP 4010: Lecture 6 Example VR Applications
COMP 4010: Lecture 6 Example VR ApplicationsCOMP 4010: Lecture 6 Example VR Applications
COMP 4010: Lecture 6 Example VR Applications

Fifty Shades of Augmented Reality: Creating Connection Using AR
Fifty Shades of Augmented Reality: Creating Connection Using ARFifty Shades of Augmented Reality: Creating Connection Using AR
Fifty Shades of Augmented Reality: Creating Connection Using AR

Collaborative Immersive Analytics
Collaborative Immersive AnalyticsCollaborative Immersive Analytics
Collaborative Immersive Analytics

COMP 4010 Lecture 9 AR Interaction
COMP 4010 Lecture 9 AR InteractionCOMP 4010 Lecture 9 AR Interaction
COMP 4010 Lecture 9 AR Interaction

COMP 4010 - Lecture11 - AR Applications
COMP 4010 - Lecture11 - AR ApplicationsCOMP 4010 - Lecture11 - AR Applications
COMP 4010 - Lecture11 - AR Applications

COMP 4010: Lecture 5 - Interaction Design for Virtual Reality
COMP 4010: Lecture 5 - Interaction Design for Virtual RealityCOMP 4010: Lecture 5 - Interaction Design for Virtual Reality
COMP 4010: Lecture 5 - Interaction Design for Virtual Reality

Create Your Own VR Experience
Create Your Own VR ExperienceCreate Your Own VR Experience
Create Your Own VR Experience

Developing AR and VR Experiences with Unity
Developing AR and VR Experiences with UnityDeveloping AR and VR Experiences with Unity
Developing AR and VR Experiences with Unity

Building VR Applications For Google Cardboard
Building VR Applications For Google CardboardBuilding VR Applications For Google Cardboard
Building VR Applications For Google Cardboard

Beyond Reality (2027): The Future of Virtual and Augmented Reality
Beyond Reality (2027): The Future of Virtual and Augmented RealityBeyond Reality (2027): The Future of Virtual and Augmented Reality
Beyond Reality (2027): The Future of Virtual and Augmented Reality

COMP 4010 - Lecture1 Introduction to Virtual Reality
COMP 4010 - Lecture1 Introduction to Virtual RealityCOMP 4010 - Lecture1 Introduction to Virtual Reality
COMP 4010 - Lecture1 Introduction to Virtual Reality

COMP 4010: Lecture2 VR Technology
COMP 4010: Lecture2 VR TechnologyCOMP 4010: Lecture2 VR Technology
COMP 4010: Lecture2 VR Technology

COMP 4010: Lecture 4 - 3D User Interfaces for VR
COMP 4010: Lecture 4 - 3D User Interfaces for VRCOMP 4010: Lecture 4 - 3D User Interfaces for VR
COMP 4010: Lecture 4 - 3D User Interfaces for VR

Using Interaction Design Methods for Creating AR and VR Interfaces
Using Interaction Design Methods for Creating AR and VR InterfacesUsing Interaction Design Methods for Creating AR and VR Interfaces
Using Interaction Design Methods for Creating AR and VR Interfaces


Similar to COMP 4010 Lecture 3 VR Input and Systems

Interaction modalities, technologies and tools for interactive art
Interaction modalities, technologies and tools for interactive artInteraction modalities, technologies and tools for interactive art
Interaction modalities, technologies and tools for interactive artJorge Cardoso

COMP 4010 Lecture10 AR/VR Research Directions
COMP 4010 Lecture10 AR/VR Research DirectionsCOMP 4010 Lecture10 AR/VR Research Directions
COMP 4010 Lecture10 AR/VR Research DirectionsMark Billinghurst

2022 COMP4010 Lecture3: AR Technology
2022 COMP4010 Lecture3: AR Technology2022 COMP4010 Lecture3: AR Technology
2022 COMP4010 Lecture3: AR TechnologyMark Billinghurst

virtual reality Information-160422181930.pdf
virtual reality Information-160422181930.pdfvirtual reality Information-160422181930.pdf
virtual reality Information-160422181930.pdf21107117

Introduction to DaydreamVR from DevFestDC 2017
Introduction to DaydreamVR from DevFestDC 2017Introduction to DaydreamVR from DevFestDC 2017
Introduction to DaydreamVR from DevFestDC 2017Jared Sheehan

Future Directions for Augmented Reality
Future Directions for Augmented RealityFuture Directions for Augmented Reality
Future Directions for Augmented RealityMark Billinghurst

Virtual Reality: Sensing the Possibilities
Virtual Reality: Sensing the PossibilitiesVirtual Reality: Sensing the Possibilities
Virtual Reality: Sensing the PossibilitiesMark Billinghurst

Virtual Reality
Virtual RealityVirtual Reality
Virtual RealityOmar Ghazi

NUX Presentation from TechMixer Birmingham 2011
NUX Presentation from TechMixer Birmingham 2011NUX Presentation from TechMixer Birmingham 2011
NUX Presentation from TechMixer Birmingham 2011Michael Heydt

Application in Augmented and Virtual Reality
Application in Augmented and Virtual RealityApplication in Augmented and Virtual Reality
Application in Augmented and Virtual RealityMark Billinghurst

Virtual reality (vr)
Virtual  reality (vr)Virtual  reality (vr)
Virtual reality (vr)MiteshGupta15

2016 AR Summer School - Lecture 5
2016 AR Summer School - Lecture 52016 AR Summer School - Lecture 5
2016 AR Summer School - Lecture 5Mark Billinghurst

COMP 4010 - Lecture 1: Introduction to Virtual Reality
COMP 4010 - Lecture 1: Introduction to Virtual RealityCOMP 4010 - Lecture 1: Introduction to Virtual Reality
COMP 4010 - Lecture 1: Introduction to Virtual RealityMark Billinghurst

Introduction to daydream for AnDevCon DC - 2017
Introduction to daydream for AnDevCon DC - 2017Introduction to daydream for AnDevCon DC - 2017
Introduction to daydream for AnDevCon DC - 2017Jared Sheehan

Mobile AR Lecture 10 - Research Directions
Mobile AR Lecture 10 - Research DirectionsMobile AR Lecture 10 - Research Directions
Mobile AR Lecture 10 - Research DirectionsMark Billinghurst


Similar to COMP 4010 Lecture 3 VR Input and Systems (20)

Lecture3 - VR Technology
Lecture3 - VR TechnologyLecture3 - VR Technology
Lecture3 - VR Technology

Lecture 4: VR Systems
Lecture 4: VR SystemsLecture 4: VR Systems
Lecture 4: VR Systems

Interaction modalities, technologies and tools for interactive art
Interaction modalities, technologies and tools for interactive artInteraction modalities, technologies and tools for interactive art
Interaction modalities, technologies and tools for interactive art

COMP 4010 Lecture10 AR/VR Research Directions
COMP 4010 Lecture10 AR/VR Research DirectionsCOMP 4010 Lecture10 AR/VR Research Directions
COMP 4010 Lecture10 AR/VR Research Directions

2022 COMP4010 Lecture3: AR Technology
2022 COMP4010 Lecture3: AR Technology2022 COMP4010 Lecture3: AR Technology
2022 COMP4010 Lecture3: AR Technology

Virtual Reality
Virtual RealityVirtual Reality
Virtual Reality

virtual reality Information-160422181930.pdf
virtual reality Information-160422181930.pdfvirtual reality Information-160422181930.pdf
virtual reality Information-160422181930.pdf

Introduction to DaydreamVR from DevFestDC 2017
Introduction to DaydreamVR from DevFestDC 2017Introduction to DaydreamVR from DevFestDC 2017
Introduction to DaydreamVR from DevFestDC 2017

ICS3211 lecture 04
ICS3211 lecture 04ICS3211 lecture 04
ICS3211 lecture 04

Future Directions for Augmented Reality
Future Directions for Augmented RealityFuture Directions for Augmented Reality
Future Directions for Augmented Reality

Virtual Reality: Sensing the Possibilities
Virtual Reality: Sensing the PossibilitiesVirtual Reality: Sensing the Possibilities
Virtual Reality: Sensing the Possibilities

Virtual Reality
Virtual RealityVirtual Reality
Virtual Reality

NUX Presentation from TechMixer Birmingham 2011
NUX Presentation from TechMixer Birmingham 2011NUX Presentation from TechMixer Birmingham 2011
NUX Presentation from TechMixer Birmingham 2011

AR-VR Workshop
AR-VR WorkshopAR-VR Workshop
AR-VR Workshop

Application in Augmented and Virtual Reality
Application in Augmented and Virtual RealityApplication in Augmented and Virtual Reality
Application in Augmented and Virtual Reality

Virtual reality (vr)
Virtual  reality (vr)Virtual  reality (vr)
Virtual reality (vr)

2016 AR Summer School - Lecture 5
2016 AR Summer School - Lecture 52016 AR Summer School - Lecture 5
2016 AR Summer School - Lecture 5

COMP 4010 - Lecture 1: Introduction to Virtual Reality
COMP 4010 - Lecture 1: Introduction to Virtual RealityCOMP 4010 - Lecture 1: Introduction to Virtual Reality
COMP 4010 - Lecture 1: Introduction to Virtual Reality

Introduction to daydream for AnDevCon DC - 2017
Introduction to daydream for AnDevCon DC - 2017Introduction to daydream for AnDevCon DC - 2017
Introduction to daydream for AnDevCon DC - 2017

Mobile AR Lecture 10 - Research Directions
Mobile AR Lecture 10 - Research DirectionsMobile AR Lecture 10 - Research Directions
Mobile AR Lecture 10 - Research Directions


More from Mark Billinghurst

Human Factors of XR: Using Human Factors to Design XR Systems
Human Factors of XR: Using Human Factors to Design XR SystemsHuman Factors of XR: Using Human Factors to Design XR Systems
Human Factors of XR: Using Human Factors to Design XR SystemsMark Billinghurst

IVE Industry Focused Event - Defence Sector 2024
IVE Industry Focused Event - Defence Sector 2024IVE Industry Focused Event - Defence Sector 2024
IVE Industry Focused Event - Defence Sector 2024Mark Billinghurst

Future Research Directions for Augmented Reality
Future Research Directions for Augmented RealityFuture Research Directions for Augmented Reality
Future Research Directions for Augmented RealityMark Billinghurst

Evaluation Methods for Social XR Experiences
Evaluation Methods for Social XR ExperiencesEvaluation Methods for Social XR Experiences
Evaluation Methods for Social XR ExperiencesMark Billinghurst

Empathic Computing: Delivering the Potential of the Metaverse
Empathic Computing: Delivering  the Potential of the MetaverseEmpathic Computing: Delivering  the Potential of the Metaverse
Empathic Computing: Delivering the Potential of the MetaverseMark Billinghurst

Empathic Computing: Capturing the Potential of the Metaverse
Empathic Computing: Capturing the Potential of the MetaverseEmpathic Computing: Capturing the Potential of the Metaverse
Empathic Computing: Capturing the Potential of the MetaverseMark Billinghurst

Talk to Me: Using Virtual Avatars to Improve Remote Collaboration
Talk to Me: Using Virtual Avatars to Improve Remote CollaborationTalk to Me: Using Virtual Avatars to Improve Remote Collaboration
Talk to Me: Using Virtual Avatars to Improve Remote CollaborationMark Billinghurst

Empathic Computing: Designing for the Broader Metaverse
Empathic Computing: Designing for the Broader MetaverseEmpathic Computing: Designing for the Broader Metaverse
Empathic Computing: Designing for the Broader MetaverseMark Billinghurst

2022 COMP4010 Lecture5: AR Prototyping
2022 COMP4010 Lecture5: AR Prototyping2022 COMP4010 Lecture5: AR Prototyping
2022 COMP4010 Lecture5: AR PrototypingMark Billinghurst

2022 COMP4010 Lecture4: AR Interaction
2022 COMP4010 Lecture4: AR Interaction2022 COMP4010 Lecture4: AR Interaction
2022 COMP4010 Lecture4: AR InteractionMark Billinghurst

Empathic Computing and Collaborative Immersive Analytics
Empathic Computing and Collaborative Immersive AnalyticsEmpathic Computing and Collaborative Immersive Analytics
Empathic Computing and Collaborative Immersive AnalyticsMark Billinghurst

Research Directions in Transitional Interfaces
Research Directions in Transitional InterfacesResearch Directions in Transitional Interfaces
Research Directions in Transitional InterfacesMark Billinghurst

Comp4010 lecture11 VR Applications
Comp4010 lecture11 VR ApplicationsComp4010 lecture11 VR Applications
Comp4010 lecture11 VR ApplicationsMark Billinghurst

Advanced Methods for User Evaluation in Enterprise AR
Advanced Methods for User Evaluation in Enterprise ARAdvanced Methods for User Evaluation in Enterprise AR
Advanced Methods for User Evaluation in Enterprise ARMark Billinghurst


More from Mark Billinghurst (15)

Human Factors of XR: Using Human Factors to Design XR Systems
Human Factors of XR: Using Human Factors to Design XR SystemsHuman Factors of XR: Using Human Factors to Design XR Systems
Human Factors of XR: Using Human Factors to Design XR Systems

IVE Industry Focused Event - Defence Sector 2024
IVE Industry Focused Event - Defence Sector 2024IVE Industry Focused Event - Defence Sector 2024
IVE Industry Focused Event - Defence Sector 2024

Future Research Directions for Augmented Reality
Future Research Directions for Augmented RealityFuture Research Directions for Augmented Reality
Future Research Directions for Augmented Reality

Evaluation Methods for Social XR Experiences
Evaluation Methods for Social XR ExperiencesEvaluation Methods for Social XR Experiences
Evaluation Methods for Social XR Experiences

Empathic Computing: Delivering the Potential of the Metaverse
Empathic Computing: Delivering  the Potential of the MetaverseEmpathic Computing: Delivering  the Potential of the Metaverse
Empathic Computing: Delivering the Potential of the Metaverse

Empathic Computing: Capturing the Potential of the Metaverse
Empathic Computing: Capturing the Potential of the MetaverseEmpathic Computing: Capturing the Potential of the Metaverse
Empathic Computing: Capturing the Potential of the Metaverse

Talk to Me: Using Virtual Avatars to Improve Remote Collaboration
Talk to Me: Using Virtual Avatars to Improve Remote CollaborationTalk to Me: Using Virtual Avatars to Improve Remote Collaboration
Talk to Me: Using Virtual Avatars to Improve Remote Collaboration

Empathic Computing: Designing for the Broader Metaverse
Empathic Computing: Designing for the Broader MetaverseEmpathic Computing: Designing for the Broader Metaverse
Empathic Computing: Designing for the Broader Metaverse

2022 COMP4010 Lecture5: AR Prototyping
2022 COMP4010 Lecture5: AR Prototyping2022 COMP4010 Lecture5: AR Prototyping
2022 COMP4010 Lecture5: AR Prototyping

2022 COMP4010 Lecture4: AR Interaction
2022 COMP4010 Lecture4: AR Interaction2022 COMP4010 Lecture4: AR Interaction
2022 COMP4010 Lecture4: AR Interaction

Empathic Computing and Collaborative Immersive Analytics
Empathic Computing and Collaborative Immersive AnalyticsEmpathic Computing and Collaborative Immersive Analytics
Empathic Computing and Collaborative Immersive Analytics

Metaverse Learning
Metaverse LearningMetaverse Learning
Metaverse Learning

Research Directions in Transitional Interfaces
Research Directions in Transitional InterfacesResearch Directions in Transitional Interfaces
Research Directions in Transitional Interfaces

Comp4010 lecture11 VR Applications
Comp4010 lecture11 VR ApplicationsComp4010 lecture11 VR Applications
Comp4010 lecture11 VR Applications

Advanced Methods for User Evaluation in Enterprise AR
Advanced Methods for User Evaluation in Enterprise ARAdvanced Methods for User Evaluation in Enterprise AR
Advanced Methods for User Evaluation in Enterprise AR


Recently uploaded

Moving Beyond Passwords: FIDO Paris Seminar.pdf
Moving Beyond Passwords: FIDO Paris Seminar.pdfMoving Beyond Passwords: FIDO Paris Seminar.pdf
Moving Beyond Passwords: FIDO Paris Seminar.pdfLoriGlavin3

The State of Passkeys with FIDO Alliance.pptx
The State of Passkeys with FIDO Alliance.pptxThe State of Passkeys with FIDO Alliance.pptx
The State of Passkeys with FIDO Alliance.pptxLoriGlavin3

TeamStation AI System Report LATAM IT Salaries 2024
TeamStation AI System Report LATAM IT Salaries 2024TeamStation AI System Report LATAM IT Salaries 2024
TeamStation AI System Report LATAM IT Salaries 2024Lonnie McRorey

Nell’iperspazio con Rocket: il Framework Web di Rust!
Nell’iperspazio con Rocket: il Framework Web di Rust!Nell’iperspazio con Rocket: il Framework Web di Rust!
Nell’iperspazio con Rocket: il Framework Web di Rust!Commit University

Connect Wave/ connectwave Pitch Deck Presentation
Connect Wave/ connectwave Pitch Deck PresentationConnect Wave/ connectwave Pitch Deck Presentation
Connect Wave/ connectwave Pitch Deck PresentationSlibray Presentation

Unleash Your Potential - Namagunga Girls Coding Club
Unleash Your Potential - Namagunga Girls Coding ClubUnleash Your Potential - Namagunga Girls Coding Club
Unleash Your Potential - Namagunga Girls Coding ClubKalema Edgar

Ensuring Technical Readiness For Copilot in Microsoft 365
Ensuring Technical Readiness For Copilot in Microsoft 365Ensuring Technical Readiness For Copilot in Microsoft 365
Ensuring Technical Readiness For Copilot in Microsoft 3652toLead Limited

Gen AI in Business - Global Trends Report 2024.pdf
Gen AI in Business - Global Trends Report 2024.pdfGen AI in Business - Global Trends Report 2024.pdf
Gen AI in Business - Global Trends Report 2024.pdfAddepto

What's New in Teams Calling, Meetings and Devices March 2024
What's New in Teams Calling, Meetings and Devices March 2024What's New in Teams Calling, Meetings and Devices March 2024
What's New in Teams Calling, Meetings and Devices March 2024Stephanie Beckett

The Ultimate Guide to Choosing WordPress Pros and Cons
The Ultimate Guide to Choosing WordPress Pros and ConsThe Ultimate Guide to Choosing WordPress Pros and Cons
The Ultimate Guide to Choosing WordPress Pros and ConsPixlogix Infotech

New from BookNet Canada for 2024: Loan Stars - Tech Forum 2024
New from BookNet Canada for 2024: Loan Stars - Tech Forum 2024New from BookNet Canada for 2024: Loan Stars - Tech Forum 2024
New from BookNet Canada for 2024: Loan Stars - Tech Forum 2024BookNet Canada

SAP Build Work Zone - Overview L2-L3.pptx
SAP Build Work Zone - Overview L2-L3.pptxSAP Build Work Zone - Overview L2-L3.pptx
SAP Build Work Zone - Overview L2-L3.pptxNavinnSomaal

Passkey Providers and Enabling Portability: FIDO Paris Seminar.pptx
Passkey Providers and Enabling Portability: FIDO Paris Seminar.pptxPasskey Providers and Enabling Portability: FIDO Paris Seminar.pptx
Passkey Providers and Enabling Portability: FIDO Paris Seminar.pptxLoriGlavin3

Commit 2024 - Secret Management made easy
Commit 2024 - Secret Management made easyCommit 2024 - Secret Management made easy
Commit 2024 - Secret Management made easyAlfredo García Lavilla

Merck Moving Beyond Passwords: FIDO Paris Seminar.pptx
Merck Moving Beyond Passwords: FIDO Paris Seminar.pptxMerck Moving Beyond Passwords: FIDO Paris Seminar.pptx
Merck Moving Beyond Passwords: FIDO Paris Seminar.pptxLoriGlavin3

"Debugging python applications inside k8s environment", Andrii Soldatenko
"Debugging python applications inside k8s environment", Andrii Soldatenko"Debugging python applications inside k8s environment", Andrii Soldatenko
"Debugging python applications inside k8s environment", Andrii SoldatenkoFwdays

SIP trunking in Janus @ Kamailio World 2024
SIP trunking in Janus @ Kamailio World 2024SIP trunking in Janus @ Kamailio World 2024
SIP trunking in Janus @ Kamailio World 2024Lorenzo Miniero

Advanced Computer Architecture – An Introduction
Advanced Computer Architecture – An IntroductionAdvanced Computer Architecture – An Introduction
Advanced Computer Architecture – An IntroductionDilum Bandara

Use of FIDO in the Payments and Identity Landscape: FIDO Paris Seminar.pptx
Use of FIDO in the Payments and Identity Landscape: FIDO Paris Seminar.pptxUse of FIDO in the Payments and Identity Landscape: FIDO Paris Seminar.pptx
Use of FIDO in the Payments and Identity Landscape: FIDO Paris Seminar.pptxLoriGlavin3

DevEX - reference for building teams, processes, and platforms
DevEX - reference for building teams, processes, and platformsDevEX - reference for building teams, processes, and platforms
DevEX - reference for building teams, processes, and platformsSergiu Bodiu


Recently uploaded (20)

Moving Beyond Passwords: FIDO Paris Seminar.pdf
Moving Beyond Passwords: FIDO Paris Seminar.pdfMoving Beyond Passwords: FIDO Paris Seminar.pdf
Moving Beyond Passwords: FIDO Paris Seminar.pdf

The State of Passkeys with FIDO Alliance.pptx
The State of Passkeys with FIDO Alliance.pptxThe State of Passkeys with FIDO Alliance.pptx
The State of Passkeys with FIDO Alliance.pptx

TeamStation AI System Report LATAM IT Salaries 2024
TeamStation AI System Report LATAM IT Salaries 2024TeamStation AI System Report LATAM IT Salaries 2024
TeamStation AI System Report LATAM IT Salaries 2024

Nell’iperspazio con Rocket: il Framework Web di Rust!
Nell’iperspazio con Rocket: il Framework Web di Rust!Nell’iperspazio con Rocket: il Framework Web di Rust!
Nell’iperspazio con Rocket: il Framework Web di Rust!

Connect Wave/ connectwave Pitch Deck Presentation
Connect Wave/ connectwave Pitch Deck PresentationConnect Wave/ connectwave Pitch Deck Presentation
Connect Wave/ connectwave Pitch Deck Presentation

Unleash Your Potential - Namagunga Girls Coding Club
Unleash Your Potential - Namagunga Girls Coding ClubUnleash Your Potential - Namagunga Girls Coding Club
Unleash Your Potential - Namagunga Girls Coding Club

Ensuring Technical Readiness For Copilot in Microsoft 365
Ensuring Technical Readiness For Copilot in Microsoft 365Ensuring Technical Readiness For Copilot in Microsoft 365
Ensuring Technical Readiness For Copilot in Microsoft 365

Gen AI in Business - Global Trends Report 2024.pdf
Gen AI in Business - Global Trends Report 2024.pdfGen AI in Business - Global Trends Report 2024.pdf
Gen AI in Business - Global Trends Report 2024.pdf

What's New in Teams Calling, Meetings and Devices March 2024
What's New in Teams Calling, Meetings and Devices March 2024What's New in Teams Calling, Meetings and Devices March 2024
What's New in Teams Calling, Meetings and Devices March 2024

The Ultimate Guide to Choosing WordPress Pros and Cons
The Ultimate Guide to Choosing WordPress Pros and ConsThe Ultimate Guide to Choosing WordPress Pros and Cons
The Ultimate Guide to Choosing WordPress Pros and Cons

New from BookNet Canada for 2024: Loan Stars - Tech Forum 2024
New from BookNet Canada for 2024: Loan Stars - Tech Forum 2024New from BookNet Canada for 2024: Loan Stars - Tech Forum 2024
New from BookNet Canada for 2024: Loan Stars - Tech Forum 2024

SAP Build Work Zone - Overview L2-L3.pptx
SAP Build Work Zone - Overview L2-L3.pptxSAP Build Work Zone - Overview L2-L3.pptx
SAP Build Work Zone - Overview L2-L3.pptx

Passkey Providers and Enabling Portability: FIDO Paris Seminar.pptx
Passkey Providers and Enabling Portability: FIDO Paris Seminar.pptxPasskey Providers and Enabling Portability: FIDO Paris Seminar.pptx
Passkey Providers and Enabling Portability: FIDO Paris Seminar.pptx

Commit 2024 - Secret Management made easy
Commit 2024 - Secret Management made easyCommit 2024 - Secret Management made easy
Commit 2024 - Secret Management made easy

Merck Moving Beyond Passwords: FIDO Paris Seminar.pptx
Merck Moving Beyond Passwords: FIDO Paris Seminar.pptxMerck Moving Beyond Passwords: FIDO Paris Seminar.pptx
Merck Moving Beyond Passwords: FIDO Paris Seminar.pptx

"Debugging python applications inside k8s environment", Andrii Soldatenko
"Debugging python applications inside k8s environment", Andrii Soldatenko"Debugging python applications inside k8s environment", Andrii Soldatenko
"Debugging python applications inside k8s environment", Andrii Soldatenko

SIP trunking in Janus @ Kamailio World 2024
SIP trunking in Janus @ Kamailio World 2024SIP trunking in Janus @ Kamailio World 2024
SIP trunking in Janus @ Kamailio World 2024

Advanced Computer Architecture – An Introduction
Advanced Computer Architecture – An IntroductionAdvanced Computer Architecture – An Introduction
Advanced Computer Architecture – An Introduction

Use of FIDO in the Payments and Identity Landscape: FIDO Paris Seminar.pptx
Use of FIDO in the Payments and Identity Landscape: FIDO Paris Seminar.pptxUse of FIDO in the Payments and Identity Landscape: FIDO Paris Seminar.pptx
Use of FIDO in the Payments and Identity Landscape: FIDO Paris Seminar.pptx

DevEX - reference for building teams, processes, and platforms
DevEX - reference for building teams, processes, and platformsDevEX - reference for building teams, processes, and platforms
DevEX - reference for building teams, processes, and platforms


COMP 4010 Lecture 3 VR Input and Systems

  • 1. LECTURE 3: VR INPUT AND SYSTEMS COMP 4026 – Advanced HCI Semester 5 - 2017 Bruce Thomas, Mark Billinghurst University of South Australia August 10th 2017
  • 2. • Audio Displays • Synthesizing audio • Sound mixing • Spatial Audio Display • HRTF, Google VR Spatial Audio SDK • VR Tracking • Performance criteria • Latency, accuracy, update, drift, etc. • Tracking technologies • Mechanical, electromagnetic, visual, etc • Example Vive Lighthouse Tracking Recap – Last Week
  • 4. VR Input Devices • Physical devices that convey information into the application and support interaction in the Virtual Environment
  • 5. Mapping Between Input and Output Input Output
  • 6. Motivation • Mouse and keyboard are good for desktop UI tasks • Text entry, selection, drag and drop, scrolling, rubber banding, … • 2D mouse for 2D windows • What devices are best for 3D input in VR? • Use multiple 2D input devices? • Use new types of devices? vs.
  • 7. Input Device Characteristics • Size and shape, encumbrance • Degrees of Freedom • Integrated (mouse) vs. separable (Etch-a-sketch) • Direct vs. indirect manipulation • Relative vs. Absolute input • Relative: measure difference between current and last input (mouse) • Absolute: measure input relative to a constant point of reference (tablet) • Rate control vs. position control • Isometric vs. Isotonic • Isometric: measure pressure or force with no actual movement • Isotonic: measure deflection from a center point (e.g. mouse)
  • 8. Hand Input Devices • Devices that integrate hand input into VR • World-Grounded input devices • Devices fixed in real world (e.g. joystick) • Non-Tracked handheld controllers • Devices held in hand, but not tracked in 3D (e.g. xbox controller) • Tracked handheld controllers • Physical device with 6 DOF tracking inside (e.g. Vive controllers) • Hand-Worn Devices • Gloves, EMG bands, rings, or devices worn on hand/arm • Bare Hand Input • Using technology to recognize natural hand input
  • 9. World Grounded Devices • Devices constrained or fixed in real world • Not ideal for VR • Constrains user motion • Good for VR vehicle metaphor • Used in location based entertainment (e.g. Disney Aladdin ride) Disney Aladdin Magic Carpet VR Ride
  • 10. Non-Tracked Handheld Controllers • Devices held in hand • Buttons, joysticks, game controllers, etc. • Traditional video game controllers • Xbox controller
  • 11. Tracked Handheld Controllers • Handheld controller with 6 DOF tracking • Combines button/joystick input plus tracking • One of the best options for VR applications • Physical prop enhancing VR presence • Providing proprioceptive, passive haptic touch cues • Direct mapping to real hand motion HTC Vive Controllers Oculus Touch Controllers
  • 12. Example: Sixense STEM • Wireless motion tracking + button input • Electromagnetic tracking, 8 foot range, 5 tracked receivers • http://sixense.com/wireless
  • 13. Sixense Demo Video • https://www.youtube.com/watch?v=2lY3XI0zDWw
  • 14. Cubic Mouse • Plastic box • Polhemus Fastrack inside (magnetic 6 DOF tracking) • 3 translating rods, 6 buttons • Two handed interface • Supports object rotation, zooming, cutting plane, etc. Fröhlich, B., & Plate, J. (2000). The cubic mouse: a new device for three-dimensional input. In Proceedings of the SIGCHI conference on Human Factors in Computing Systems (pp. 526- 531). ACM.
  • 15. Cubic Mouse Video • https://www.youtube.com/watch?v=1WuH7ezv_Gs
  • 16. Hand Worn Devices • Devices worn on hands/arms • Glove, EMG sensors, rings, etc. • Advantages • Natural input with potentially rich gesture interaction • Hands can be held in comfortable positions – no line of sight issues • Hands and fingers can fully interact with real objects
  • 17. Myo Arm Band • https://www.youtube.com/watch?v=1f_bAXHckUY
  • 18. Data Gloves • Bend sensing gloves • Passive input device • Detecting hand posture and gestures • Continuous raw data from bend sensors • Fiber optic, resistive ink, strain-gauge • Large DOF output, natural hand output • Pinch gloves • Conductive material at fingertips • Determine if fingertips touching • Used for discrete input • Object selection, mode switching, etc.
  • 19. How Pinch Gloves Work • Contact between conductive fabric completes circuit • Each finger receives voltage in turn (T3 – T7) • Look for output voltage at different times
  • 20. Example: Cyberglove • Invented to support sign language • Technology • Thin electrical strain gauges over fingers • Bending sensors changes resistence • 18-22 sensors per glove, 120 Hz samples • Sensor resolution 0.5o • Very expensive • >$10,000/glove • http://www.cyberglovesystems.com
  • 21. How CyberGlove Works • Strain gauge at joints • Connected to A/D converter
  • 23. StretchSense • Wearable motion capture sensors • Capacitive sensors • Measure stretch, pressure, bend, shear • Many applications • Garments, gloves, etc. • http://stretchsense.com/
  • 24. StretchSense Glove Demo • https://www.youtube.com/watch?v=wYsZS0p5uu8
  • 25. Comparison of Glove Performance From Burdea, Virtual Reality Technology, 2003
  • 26. Bare Hands • Using computer vision to track bare hand input • Creates compelling sense of Presence, natural interaction • Challenges need to be solved • Not having sense of touch • Line of sight required to sensor • Fatigue from holding hands in front of sensor
  • 27. Leap Motion • IR based sensor for hand tracking ($50 USD) • HMD + Leap Motion = Hand input in VR • Technology • 3 IR LEDS and 2 wide angle cameras • The LEDS generate patternless IR light • IR reflections picked up by cameras • Software performs hand tracking • Performance • 1m range, 0.7 mm accuracy, 200Hz • https://www.leapmotion.com/
  • 28. Example: Leap Motion • https://www.youtube.com/watch?v=QD4qQBL0X80
  • 29. Non-Hand Input Devices • Capturing input from other parts of the body • Head Tracking • Use head motion for input • Eye Tracking • Largely unexplored for VR • Microphones • Audio input, speech • Full-Body tracking • Motion capture, body movement
  • 30. Eye Tracking • Technology • Shine IR light into eye and look for reflections • Advantages • Provides natural hands-free input • Gaze provides cues as to user attention • Can be combined with other input technologies
  • 31. Example: FOVE VR Headset • Eye tracker integrated into VR HMD • Gaze driven user interface, foveated rendering • https://www.youtube.com/watch?v=8dwdzPaqsDY
  • 32. Pupil Labs VIVE/Oculus Add-ons • Adds eye-tracking to HTC Vive/Oculus Rift HMDs • Mono or stereo eye-tracking • 120 Hz eye tracking, gaze accuracy of 0.6° with precision of 0.08° • Open source software for eye-tracking • https://pupil-labs.com/pupil/
  • 33. Full Body Tracking • Adding full-body input into VR • Creates illusion of self-embodiment • Significantly enhances sense of Presence • Technologies • Motion capture suit, camera based systems • Can track large number of significant feature points
  • 34. Camera Based Motion Capture • Use multiple cameras • Reflective markers on body • Eg – Opitrack (www.optitrack.com) • 120 – 360 fps, < 10ms latency, < 1mm accuracy
  • 36. Wearable Motion Capture: PrioVR • Wearable motion capture system • 8 – 17 inertial sensors + wireless data transmission • 30 – 40m range, 7.5 ms latency, 0.09o precision • Supports full range of motion, no occlusion • www.priovr.com
  • 38. Pedestrian Devices • Pedestrian input in VR • Walking/running in VR • Virtuix Omni • Special shoes • http://www.virtuix.com • Cyberith Virtualizer • Socks + slippery surface • http://cyberith.com
  • 39. Cyberith Virtualizer Demo • https://www.youtube.com/watch?v=R8lmf3OFrms
  • 40. Virtusphere • Fully immersive sphere • Support walking, running in VR • Person inside trackball • http://www.virtusphere.com
  • 42. Omnidirectional Treadmills • Infinadeck • 2 axis treadmill, flexible material • Tracks user to keep them in centre • Limitless walking input in VR • www.infinadeck.com
  • 44. Comparison Between Devices From Jerald (2015) Comparing between hand and non-hand input
  • 45. Input Device Taxonomies • Helps to determine: • Which devices can be used for each other • What devices to use for particular tasks • Many different approaches • Separate the input device from interaction technique (Foley 1974) • Mapping basic interactive tasks to devices (Foley 1984) • Basic tasks – select, position, orient, etc. • Devices – mouse, joystick, touch panel, etc. • Consider Degrees of Freedom and properties sensed (Buxton 1983) • motion, position, pressure • Distinguish bet. absolute/relative input, individual axes (Mackinlay 1990) • separate translation, rotation axes instead of using DOF
  • 46. Foley and Wallace Taxonomy (1974) Separate device from interaction technique
  • 47. Buxton Input Device Taxonomy (Buxton 1983) • Classified according to degrees of freedom and property sensed • M = devise uses an intermediary between hand and sensing system • T = touch sensitive
  • 49. • High level overview • User engaged in task • User provides input • VR engine provides output • VR engine connected to external databases Basic VR System
  • 50. Simple SystemArchitecture Head Tracker Host Processor Data Base Model Rendering Engine Frame Buffer head position/orientation to network Display Driver Non see- thru Image source & optics Virtual World
  • 51. From Content to User Modelling Program Content • 3d model • Textures Translation • CAD data Application programming Dynamics Generator Input Devices • Gloves, Mic • Trackers Renderers • 3D, sound Output Devices • HMD, audio • Haptic User Actions • Speak • Grab Software Content User I/O
  • 52. Case Study: Multimodal VR System • US Army project • Simulate control of an unmanned vehicle • Sensors (input) • Head/hand tracking • Gesture, Speech (Multimodal) • Displays (output) • HMD, Audio • Processing • Graphics: Virtual vehicles on battlefield • Speech processing/understanding Neely, H. E., Belvin, R. S., Fox, J. R., & Daily, M. J. (2004, March). Multimodal interaction techniques for situational awareness and command of robotic combat entities. In Aerospace Conference, 2004. Proceedings. 2004 IEEE (Vol. 5, pp. 3297-3305). IEEE.
  • 54. VR Graphics Architecture • Application Layer • User interface libraries • Simulation/behaviour code • User interaction specification • Graphics Layer (CPU acceleration) • Scene graph specification • Object physics engine • Specifying graphics objects • Rendering Layer (GPU acceleration) • Low level graphics code • Rendering pixels/polygons • Interface with graphics card/frame buffer
  • 56. Typical VR Simulation Loop • User moves head, scene updates, displayed graphics change
  • 57. • Need to synchronize system to reduce delays System Delays
  • 58. Typical Delay from Tracking to Rendering System Delay
  • 59. Typical System Delays • Total Delay = 50 + 2 + 33 + 17 = 102 ms • 1 ms delay = 1/3 mm error for object drawn at arms length • So total of 33mm error from when user begins moving to when object drawn Tracking Calculate Viewpoint Simulation Render Scene Draw to Display x,y,z r,p,y Application Loop 20 Hz = 50ms 500 Hz = 2ms 30 Hz = 33ms 60 Hz = 17ms
  • 60. Living with High Latency (1/3 sec – 3 sec) • https://www.youtube.com/watch?v=_fNp37zFn9Q
  • 61. Effects of System Latency • Degraded Visual Acuity • Scene still moving when head stops = motion blur • Degraded Performance • As latency increases it’s difficult to select objects etc. • If latency > 120 ms, training doesn’t improve performance • Breaks-in-Presence • If system delay high user doesn’t believe they are in VR • Negative Training Effects • User train to operative in world with delay • Simulator Sickness • Latency is greatest cause of simulator sickness
  • 62. Simulator Sickness • Visual input conflicting with vestibular system
  • 63. Many Causes of Simulator Sickness • 25-40% of VR users get Simulator Sickness, due to: • Latency • Major cause of simulator sickness • Tracking accuracy/precision • Seeing world from incorrect position, viewpoint drift • Field of View • Wide field of view creates more periphery vection = sickness • Refresh Rate/Flicker • Flicker/low refresh rate creates eye fatigue • Vergence/Accommodation Conflict • Creates eye strain over time • Eye separation • If IPD not matching to inter-image distance then discomfort
  • 65. How to Reduce System Delays • Use faster components • Faster CPU, display, etc. • Reduce the apparent lag • Take tracking measurement just before rendering • Remove tracker from the loop • Use predictive tracking • Use fast inertial sensors to predict where user will be looking • Difficult due to erratic head movements Jerald, J. (2004). Latency compensation for head-mounted virtual reality. UNC Computer Science Technical Report.
  • 66. Reducing System Lag Tracking Calculate Viewpoint Simulation Render Scene Draw to Display x,y,z r,p,y Application Loop Faster Tracker Faster CPU Faster GPU Faster Display
  • 67. ReducingApparent Lag Tracking Update x,y,z r,p,y Virtual Display Physical Display (640x480) 1280 x 960 Last known position Virtual Display Physical Display (640x480) 1280 x 960 Latest position Tracking Calculate Viewpoint Simulation Render Scene Draw to Display x,y,z r,p,y Application Loop
  • 68. PredictiveTracking Time Position Past Future Use additional sensors (e.g. inertial) to predict future position • Can reliably predict up to 80 ms in future (Holloway) • Use Kalman filters or similar to smooth prediction Now
  • 70. System Design Guidelines - I • Hardware • Choose HMDs with fast pixel response time, no flicker • Choose trackers with high update rates, accurate, no drift • Choose HMDs that are lightweight, comfortable to wear • Use hand controllers with no line of sight requirements • System Calibration • Have virtual FOV match actual FOV of HMD • Measure and set users IPD • Latency Reduction • Minimize overall end to end system delay • Use displays with fast response time and low persistence • Use latency compensation to reduce perceived latency Jason Jerald, The VR Book, 2016
  • 71. System Design Guidelines - II • General Design • Design for short user experiences • Minimize visual stimuli closer to eye (vergence/accommodation) • For binocular displays, do not use 2D overlays/HUDs • Design for sitting, or provide physical barriers • Show virtual warning when user reaches end of tracking area • Motion Design • Move virtual viewpoint with actual motion of the user • If latency high, no tasks requiring fast head motion • Interface Design • Design input/interaction for user’s hands at their sides • Design interactions to be non-repetitive to reduce strain injuries Jason Jerald, The VR Book, 2016
  • 76. VR Processes and Engines
