1. Mokwon University
Yong Heui CHO(조용희)
yhcho@mwu.ac.kr
Smartphone Hardware
Architecture

2. Definition
 Smartphone
 Mobile phone + computer + sensors +
wireless I/O
 Mobile OS: speed vs. battery life
2
←inbritech.com

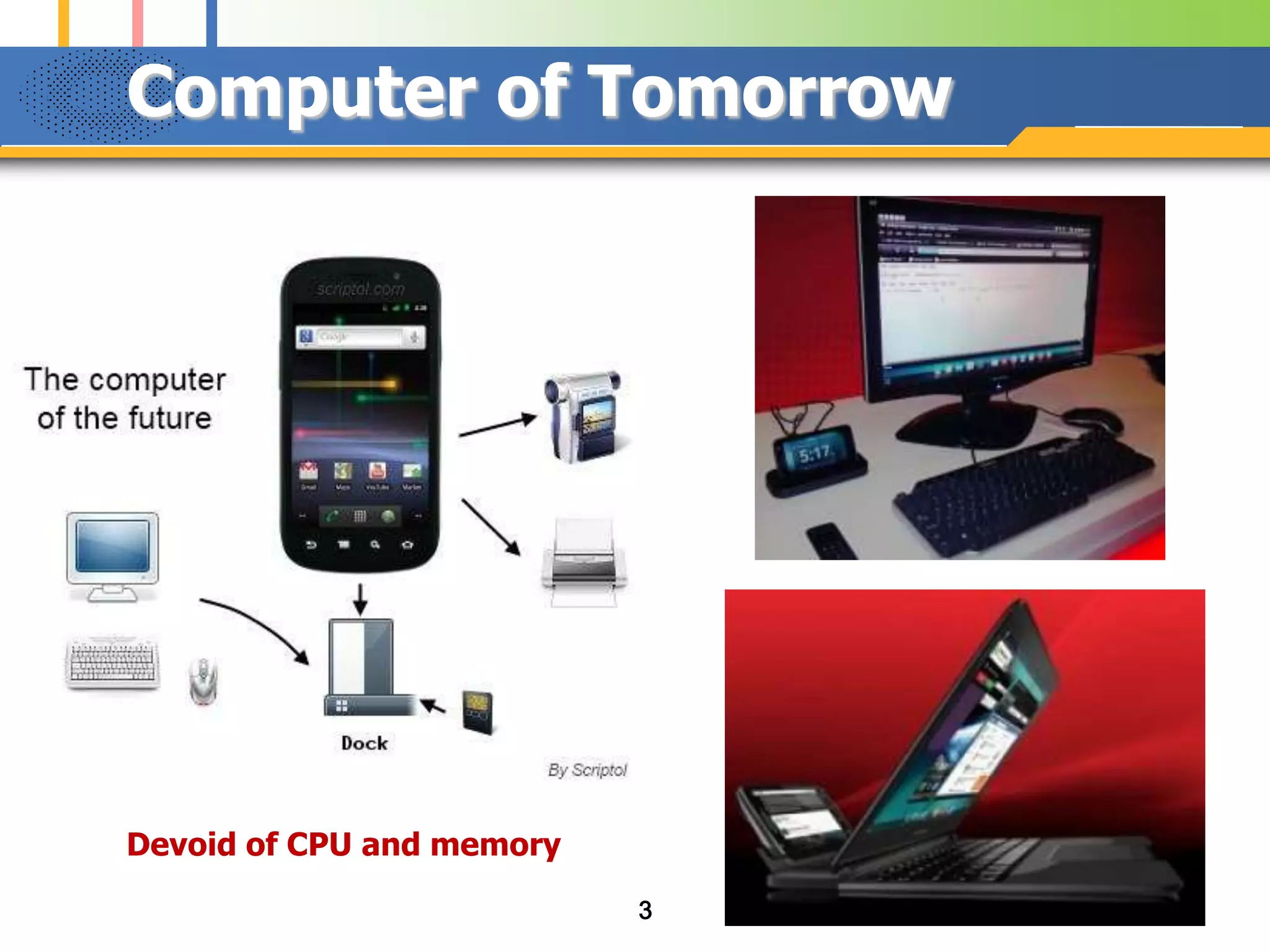

3. Computer of Tomorrow
Devoid of CPU and memory
3

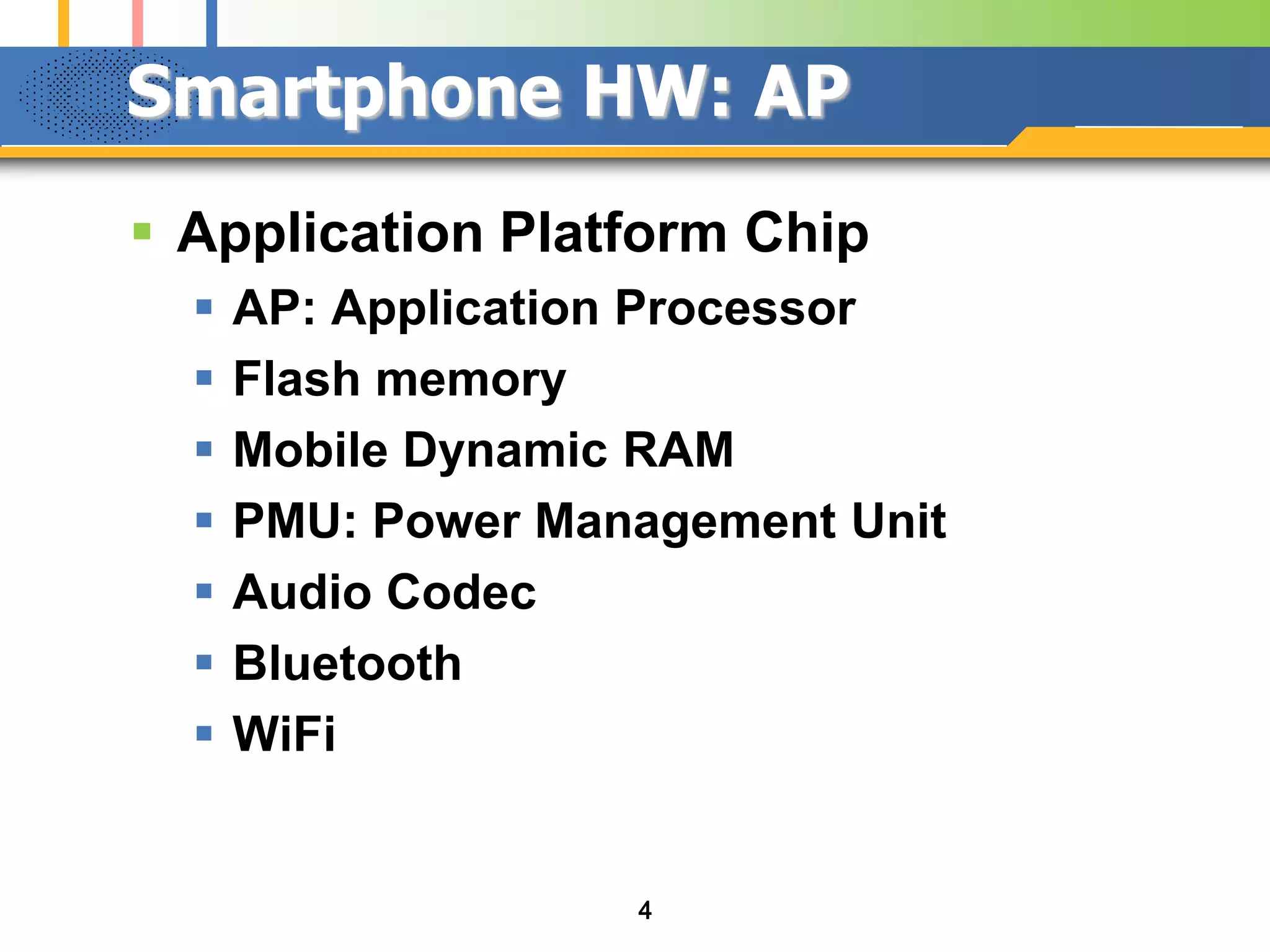

4. Smartphone HW: AP
 Application Platform Chip







AP: Application Processor
Flash memory
Mobile Dynamic RAM
PMU: Power Management Unit
Audio Codec
Bluetooth
WiFi
4

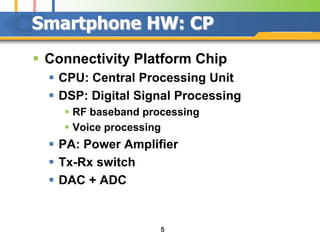

5. Smartphone HW: CP
 Connectivity Platform Chip
 CPU: Central Processing Unit
 DSP: Digital Signal Processing
 RF baseband processing
 Voice processing
 PA: Power Amplifier
 Tx-Rx switch
 DAC + ADC
5

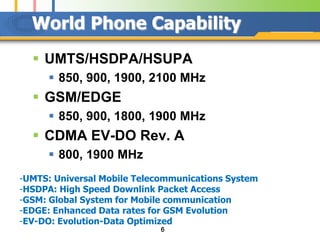

6. World Phone Capability
 UMTS/HSDPA/HSUPA
 850, 900, 1900, 2100 MHz
 GSM/EDGE
 850, 900, 1800, 1900 MHz
 CDMA EV-DO Rev. A
 800, 1900 MHz
-UMTS: Universal Mobile Telecommunications System
-HSDPA: High Speed Downlink Packet Access
-GSM: Global System for Mobile communication
-EDGE: Enhanced Data rates for GSM Evolution
-EV-DO: Evolution-Data Optimized
6

7. Openmoko Project
 Open source mobile phone project
UART: Universal Asynchronous Rx/Tx
SDIO: Secure Digital I/O
GPIO: General Purpose I/O
I2C: Inter-Integrated Circuit
7

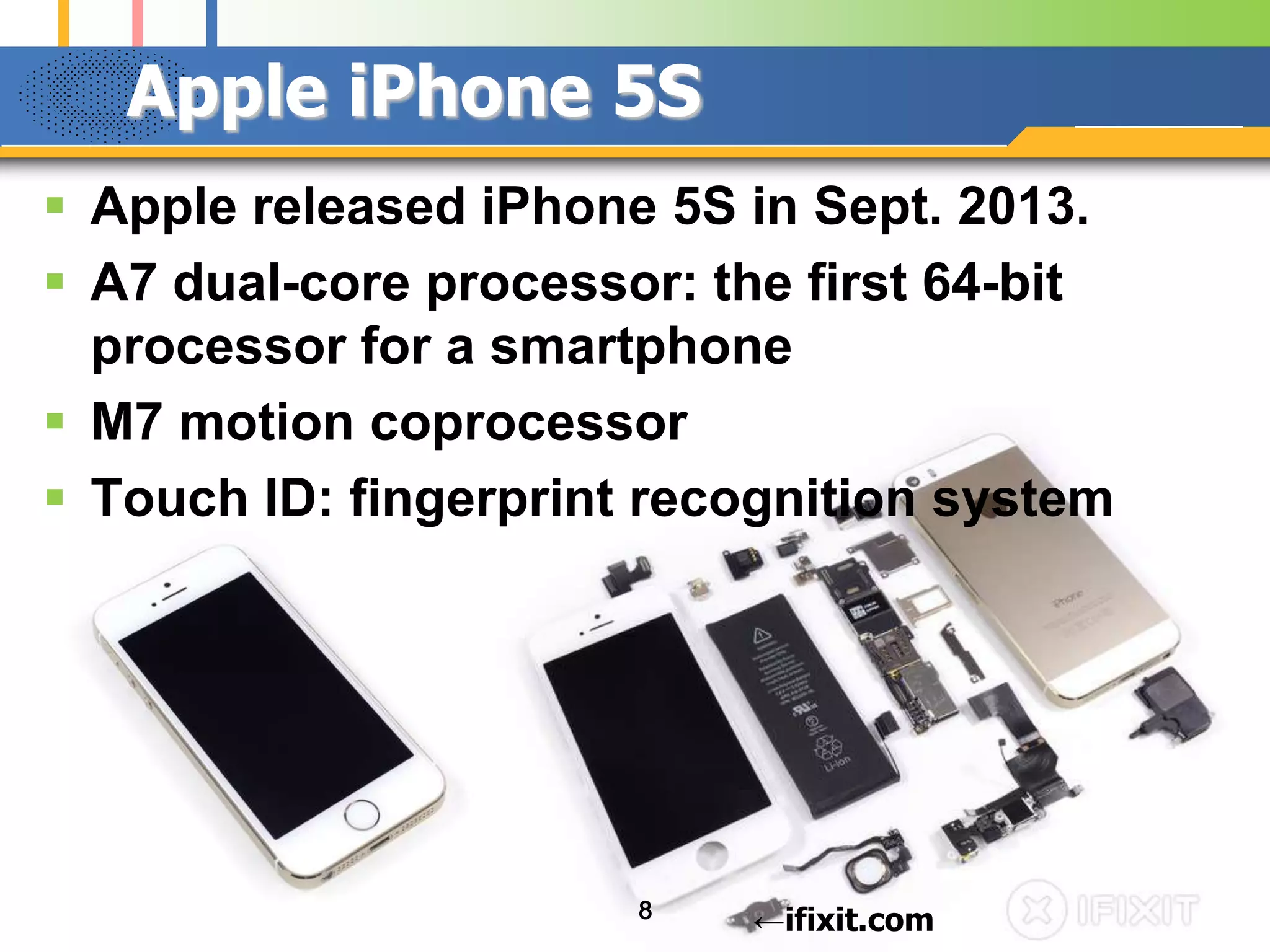

8. Apple iPhone 5S
 Apple released iPhone 5S in Sept. 2013.
 A7 dual-core processor: the first 64-bit
processor for a smartphone
 M7 motion coprocessor
 Touch ID: fingerprint recognition system
8
←ifixit.com

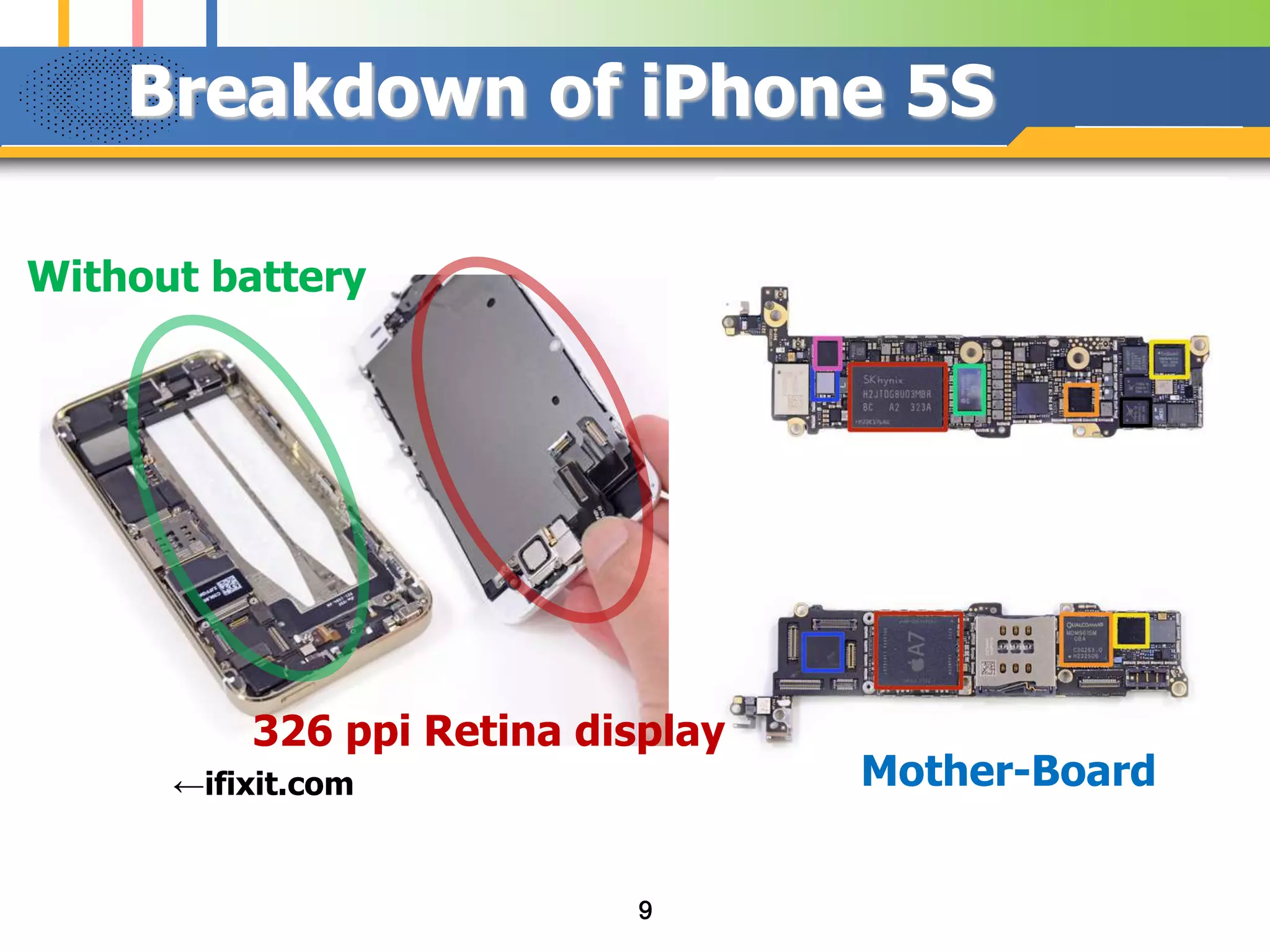

9. Breakdown of iPhone 5S
Without battery
326 ppi Retina display
←ifixit.com
9
Mother-Board

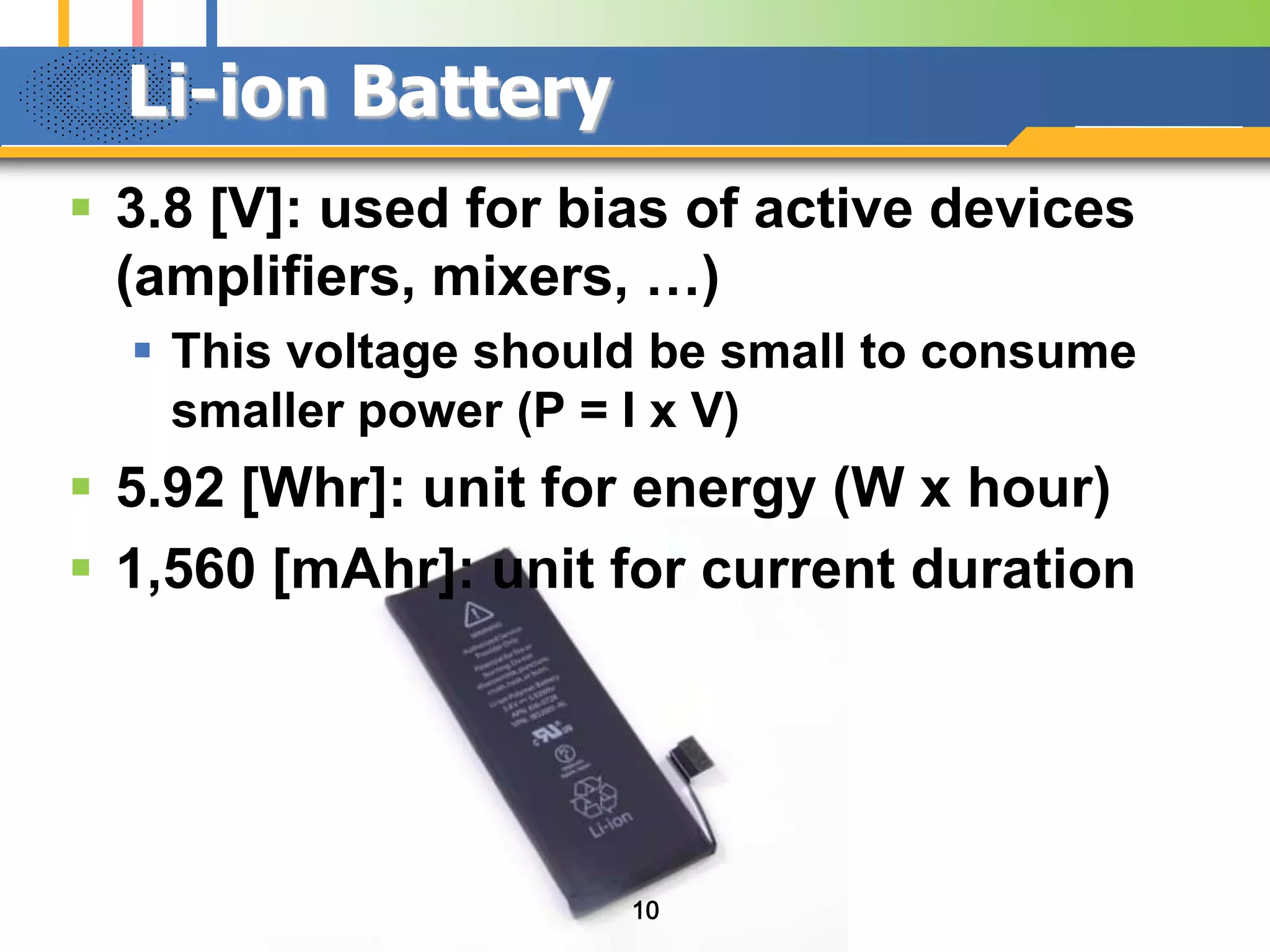

10. Li-ion Battery
 3.8 [V]: used for bias of active devices
(amplifiers, mixers, …)
 This voltage should be small to consume
smaller power (P = I x V)
 5.92 [Whr]: unit for energy (W x hour)
 1,560 [mAhr]: unit for current duration
10

11. Apple A7 Processor
 SoC (System on Chip): 64 bits, 1.3 GHz, 1GB(?)
 Instruction set (architecture): ARMv8-A (many
registers)
 Core: Cortex-A53/A57(?)
 Designed by Apple (licensed from ARM) and
manufactured by Samsung
NEON: Multimedia
Instruction
SIMD: Single Instruction Multiple Data
11
Data

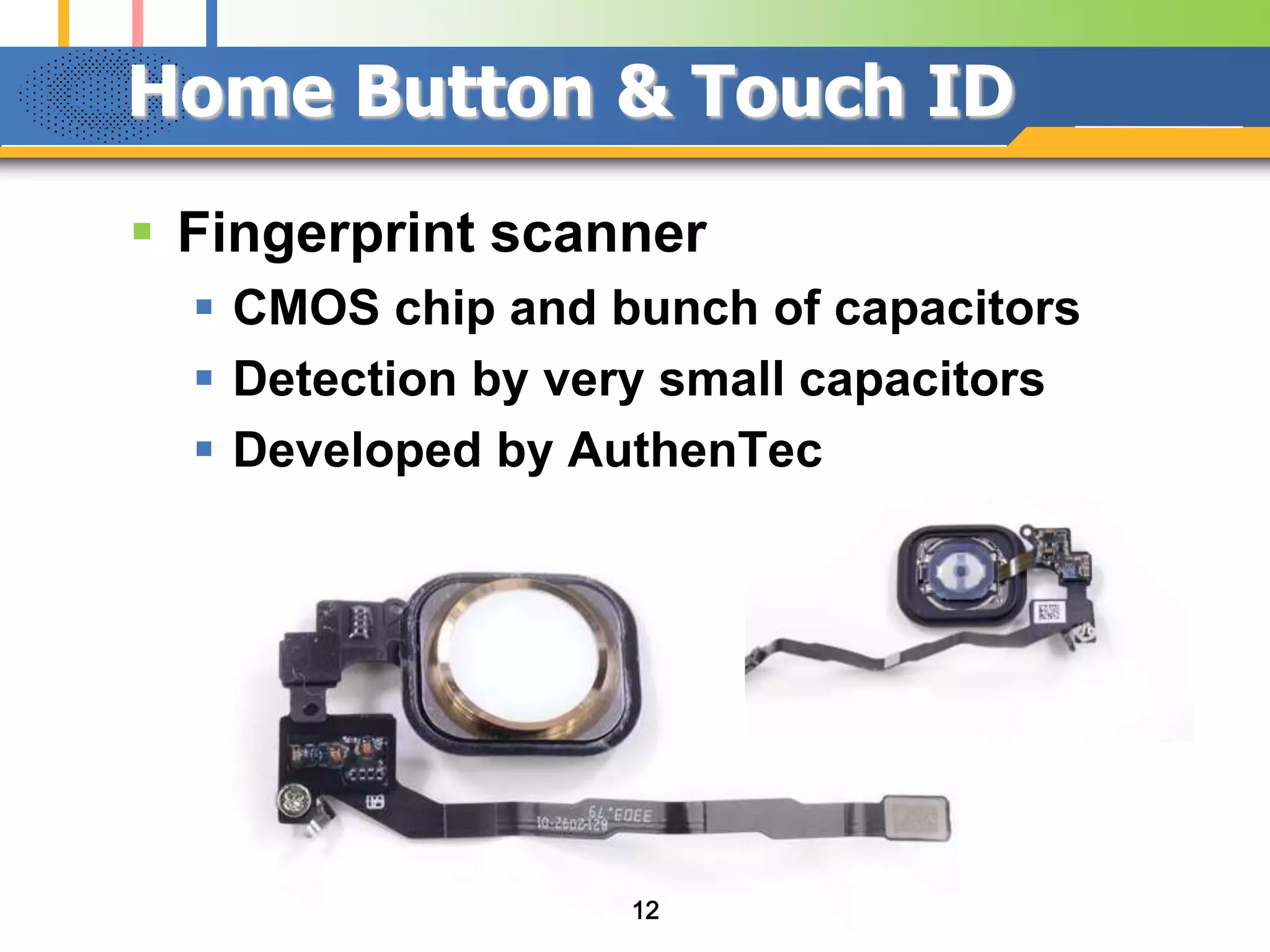

12. Home Button & Touch ID
 Fingerprint scanner
 CMOS chip and bunch of capacitors
 Detection by very small capacitors
 Developed by AuthenTec
12

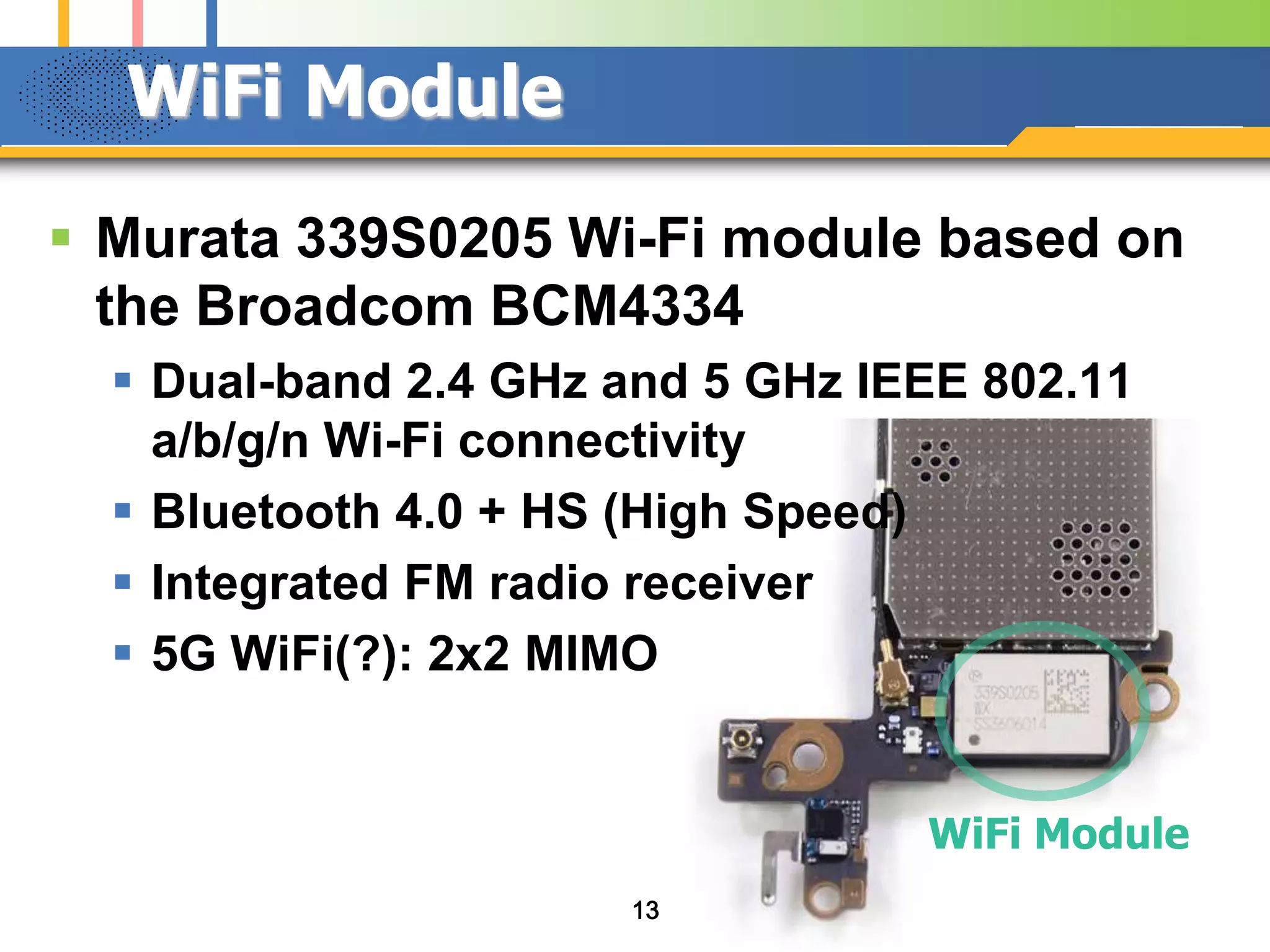

13. WiFi Module
 Murata 339S0205 Wi-Fi module based on
the Broadcom BCM4334
 Dual-band 2.4 GHz and 5 GHz IEEE 802.11
a/b/g/n Wi-Fi connectivity
 Bluetooth 4.0 + HS (High Speed)
 Integrated FM radio receiver
 5G WiFi(?): 2x2 MIMO
WiFi Module
13

14. Mother-Board
M7 Motion Coprocessor
A7 Processor
Qualcomm MDM9615M Baseband Modem
Qualcomm WTR1605L LTE/HSPA+/CDMA2K/TDSCDMA/EDGE/GPS Transceiver
14

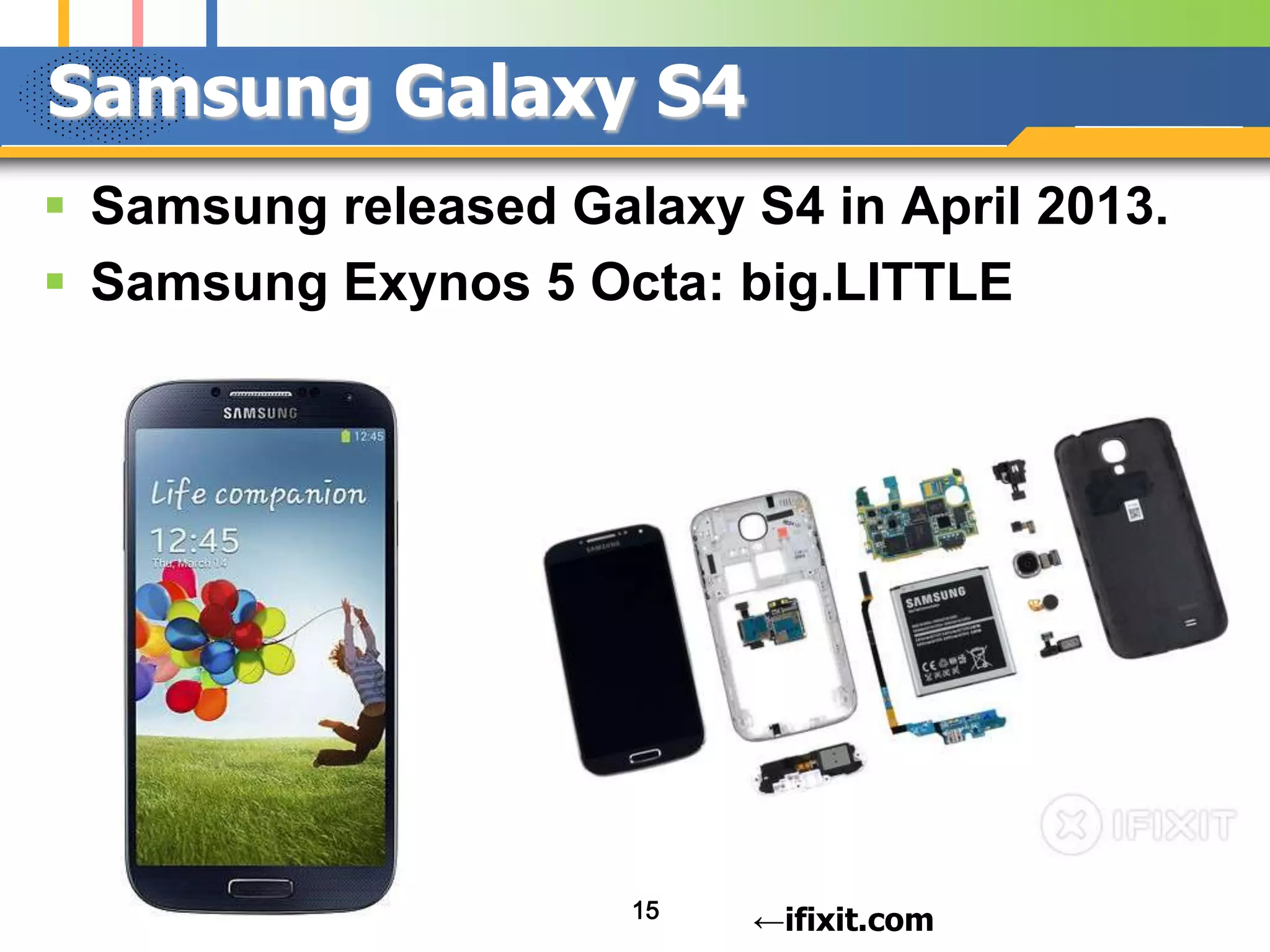

15. Samsung Galaxy S4
 Samsung released Galaxy S4 in April 2013.
 Samsung Exynos 5 Octa: big.LITTLE
15
←ifixit.com

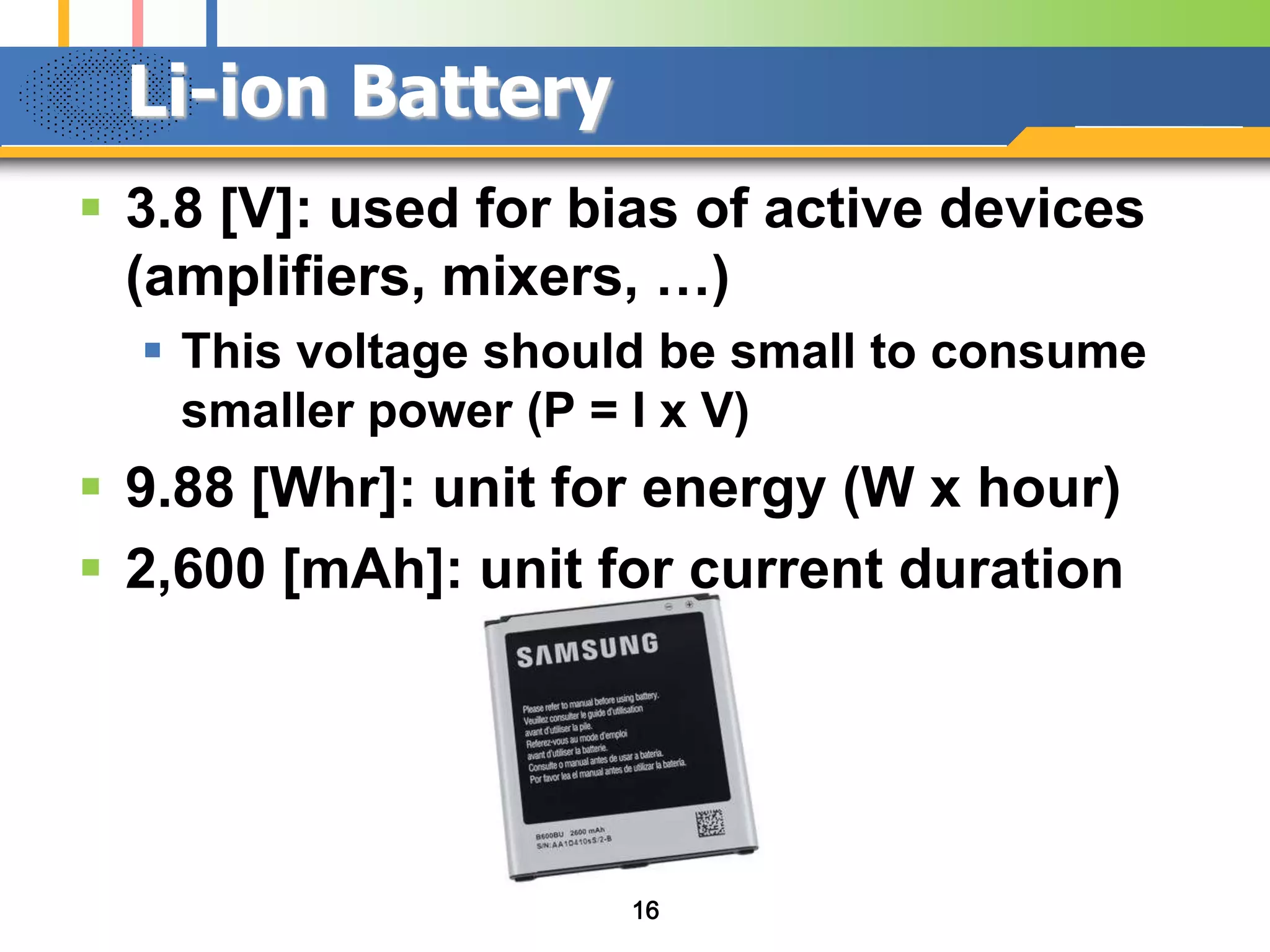

16. Li-ion Battery
 3.8 [V]: used for bias of active devices
(amplifiers, mixers, …)
 This voltage should be small to consume
smaller power (P = I x V)
 9.88 [Whr]: unit for energy (W x hour)
 2,600 [mAh]: unit for current duration
16

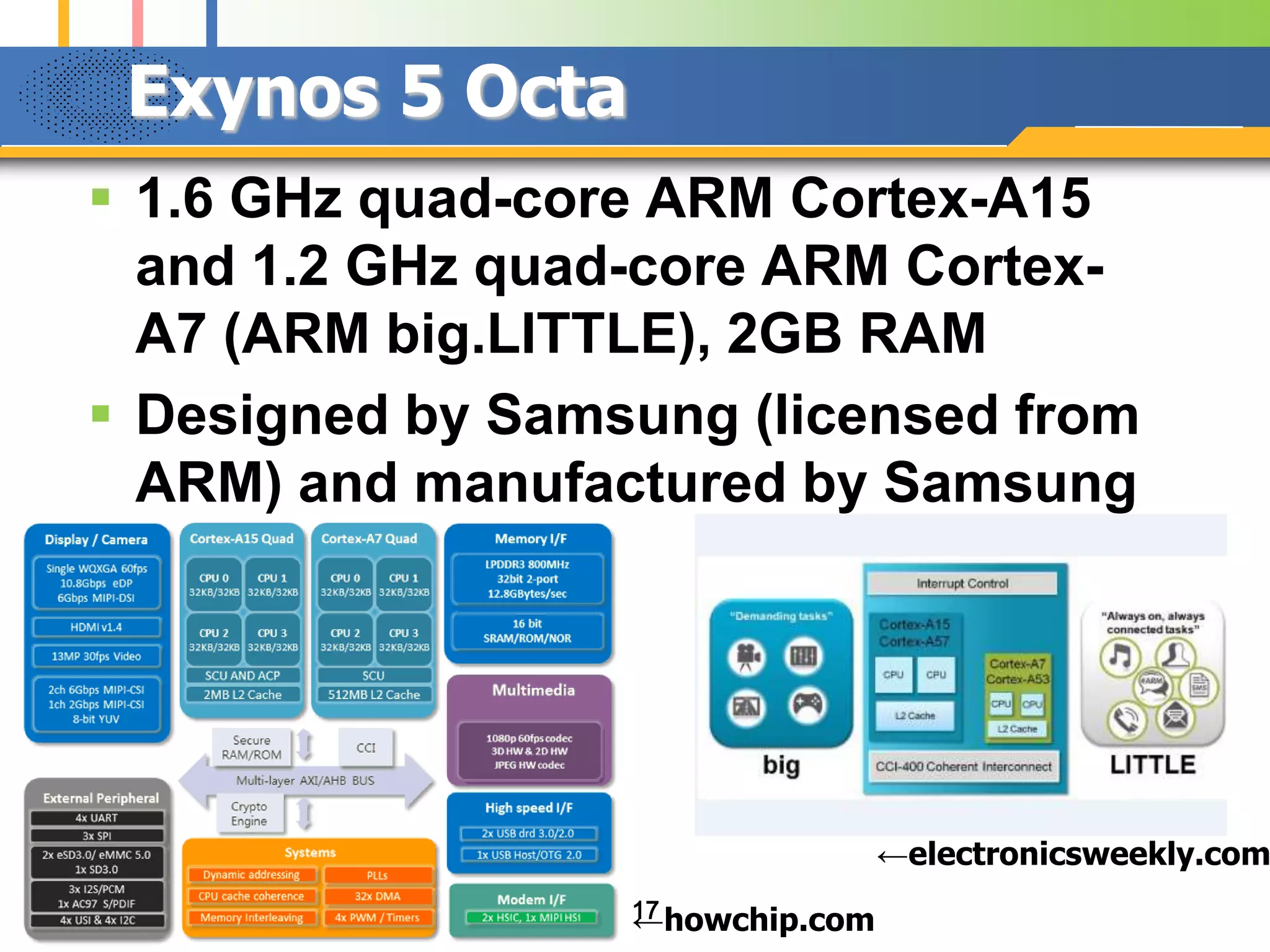

17. Exynos 5 Octa
 1.6 GHz quad-core ARM Cortex-A15
and 1.2 GHz quad-core ARM CortexA7 (ARM big.LITTLE), 2GB RAM
 Designed by Samsung (licensed from
ARM) and manufactured by Samsung
←electronicsweekly.com
17
←howchip.com

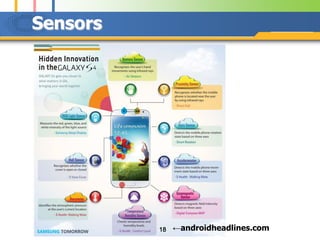

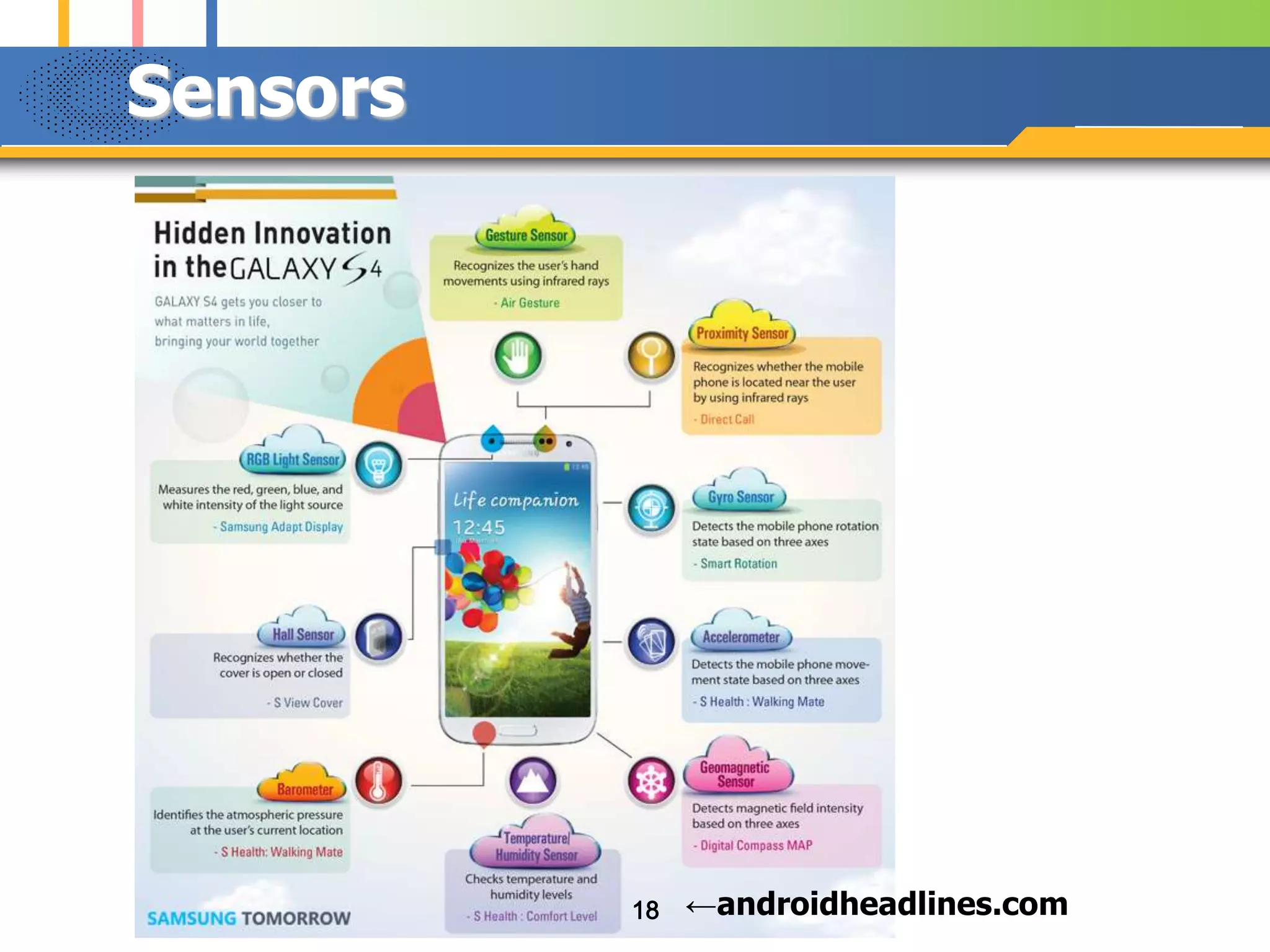

18. Sensors
18
←androidheadlines.com

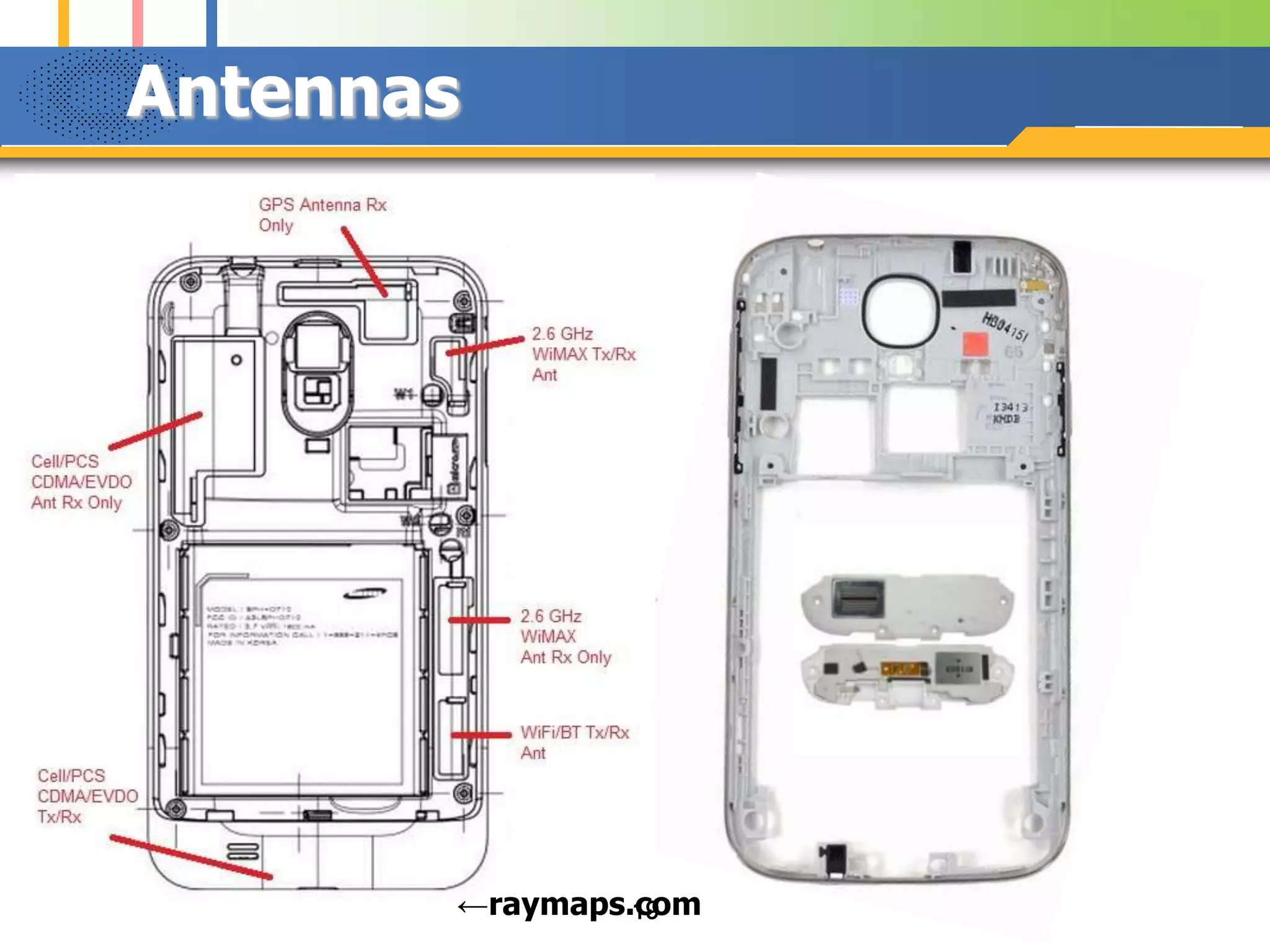

19. Antennas
←raymaps.com
19

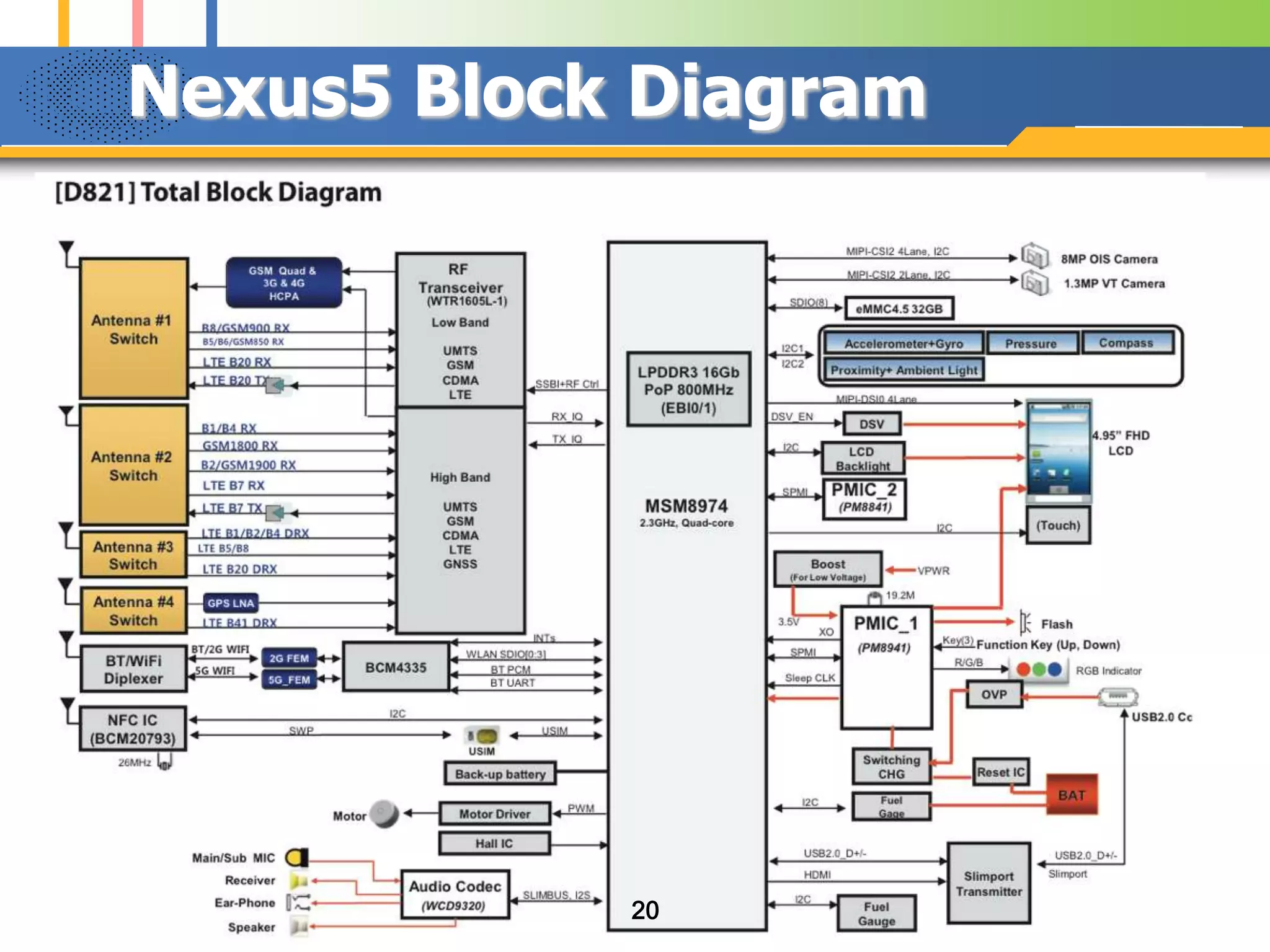

20. Nexus5 Block Diagram
20
