1. Computer Architecture:
Core Hardware
Chapter 4
Motherboards
Eric Vanderburg
Eric Vanderburg – Core Hardware © 2005

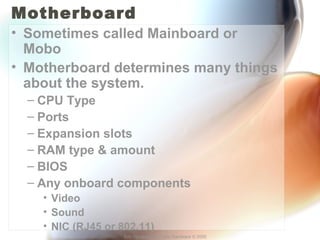

2. Motherboard
• Sometimes called Mainboard or
Mobo
• Motherboard determines many things
about the system.
– CPU Type
– Ports
– Expansion slots
– RAM type & amount
– BIOS
– Any onboard components
• Video
• Sound
• NIC (RJ45 or 802.11)
Eric Vanderburg – Core Hardware © 2005

3. Form Factors
• AT (Advanced Technology)
– Oldest
– P8/P9 PSU connectors
– Size: 12x13 inches
• Baby AT
– P8/P9 PSU connectors
– Size: 12x8.7 inches
• ATX (Advanced Technology
Extended)
– P1 PSU connector
– Can be soft booted
– Size: 12x9.6
Eric Vanderburg – Core Hardware © 2005

4. Form Factors
• MiniATX
– Size: 11.2x8.2
• SFF (Small Form Factor)
– MicroATX (Size: 7.5x8.2 inches)
– BTX (Balanced Technology Extended)
– http://www.formfactors.org
Eric Vanderburg – Core Hardware © 2005

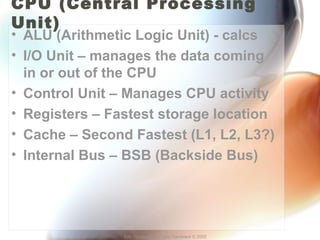

5. CPU (Central Processing
Unit)
• ALU (Arithmetic Logic Unit) - calcs
• I/O Unit – manages the data coming
in or out of the CPU
• Control Unit – Manages CPU activity
• Registers – Fastest storage location
• Cache – Second Fastest (L1, L2, L3?)
• Internal Bus – BSB (Backside Bus)
Eric Vanderburg – Core Hardware © 2005

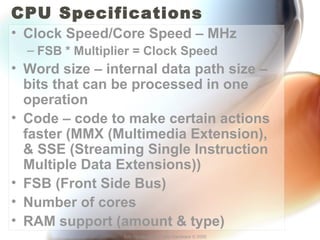

6. CPU Specifications
• Clock Speed/Core Speed – MHz
– FSB * Multiplier = Clock Speed
• Word size – internal data path size –
bits that can be processed in one
operation
• Code – code to make certain actions
faster (MMX (Multimedia Extension),
& SSE (Streaming Single Instruction
Multiple Data Extensions))
• FSB (Front Side Bus)
• Number of cores
• RAM support (amount & type)
Eric Vanderburg – Core Hardware © 2005

7. Important
• Charts
– Page 134
– Page 137
– Page 148
• CPU Packages – Page 144
• & Many more
Eric Vanderburg – Core Hardware © 2005

8. Voltage Regulator
• Controls how much power is given to
the CPU
• Another thing used for overclocking
• VRM (Voltage Regulator Module)
Eric Vanderburg – Core Hardware © 2005

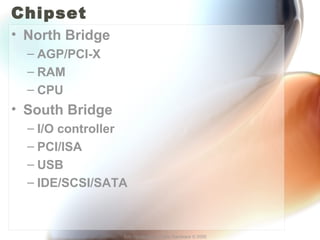

9. Chipset
• North Bridge
– AGP/PCI-X
– RAM
– CPU
• South Bridge
– I/O controller
– PCI/ISA
– USB
– IDE/SCSI/SATA
Eric Vanderburg – Core Hardware © 2005

10. Bus
• Local Bus – In Sync with CPU
• Expansion Bus – Out of Sync
– System Bus/FSB
– PCI-X
Eric Vanderburg – Core Hardware © 2005

11. Other Slots
• AMR (Audio Modem Riser)
• CNR (Communications & Networking
Riser)
• These cards share processing with
the motherboard.
Eric Vanderburg – Core Hardware © 2005
