1. NXP IMX6 Processor
Mars Board
Overview

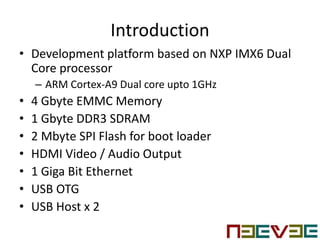

2. Introduction
• Development platform based on NXP IMX6 Dual
Core processor
– ARM Cortex-A9 Dual core upto 1GHz
• 4 Gbyte EMMC Memory
• 1 Gbyte DDR3 SDRAM
• 2 Mbyte SPI Flash for boot loader
• HDMI Video / Audio Output
• 1 Giga Bit Ethernet
• USB OTG
• USB Host x 2

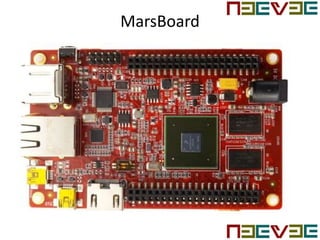

3. MarsBoard

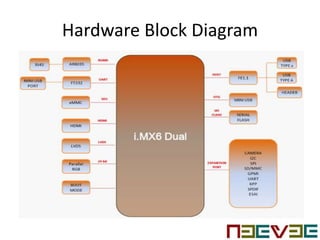

4. Hardware Block Diagram

5. NXP IMX6 Processor
• 2 x ARM Cortex-A9 upto 1GHz
• 32 Kbyte L1 instruction cache
• 32 Kbyte L1 Data Cache
• Cortex-A9 NEON Media Processing Engine
• 2D & 3D Graphics Processor
• Video Decoder / Encoder
– 1080p60 Decode
– 1080p60 Encode, Dual 720p60 Encode
• DDR & NAND Memory Interface

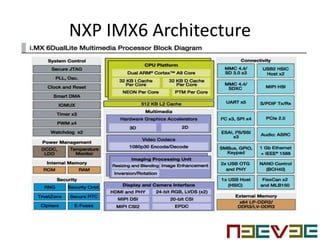

6. NXP IMX6 Architecture

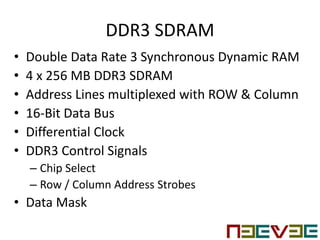

7. DDR3 SDRAM
• Double Data Rate 3 Synchronous Dynamic RAM
• 4 x 256 MB DDR3 SDRAM
• Address Lines multiplexed with ROW & Column
• 16-Bit Data Bus
• Differential Clock
• DDR3 Control Signals
– Chip Select
– Row / Column Address Strobes
• Data Mask

8. DDR3 Interface

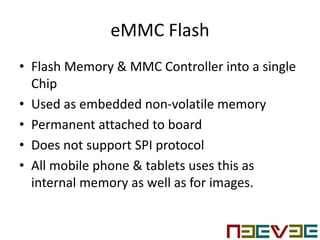

9. eMMC Flash
• Flash Memory & MMC Controller into a single
Chip
• Used as embedded non-volatile memory
• Permanent attached to board
• Does not support SPI protocol
• All mobile phone & tablets uses this as
internal memory as well as for images.

10. eMMC Interface
NXP
i.MX6
eMMC
Flash
SD3 Data [ 3 – 0 ]
SD3 Reset
SD3 Clock
SD3 CMD

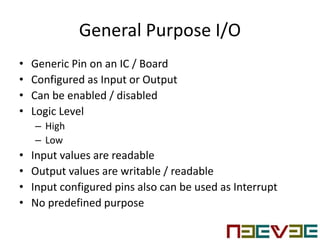

11. General Purpose I/O
• Generic Pin on an IC / Board
• Configured as Input or Output
• Can be enabled / disabled
• Logic Level
– High
– Low
• Input values are readable
• Output values are writable / readable
• Input configured pins also can be used as Interrupt
• No predefined purpose

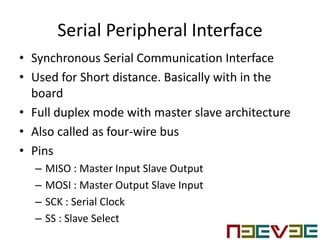

12. Serial Peripheral Interface
• Synchronous Serial Communication Interface
• Used for Short distance. Basically with in the
board
• Full duplex mode with master slave architecture
• Also called as four-wire bus
• Pins
– MISO : Master Input Slave Output
– MOSI : Master Output Slave Input
– SCK : Serial Clock
– SS : Slave Select

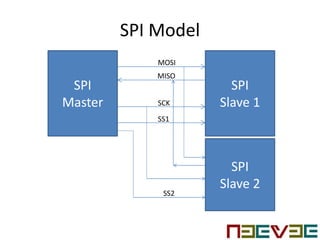

13. SPI Model
SPI
Master
SPI
Slave 1
MOSI
MISO
SCK
SS1
SPI
Slave 2
SS2

14. Inter Integrated Circuit Inteface
• Multi master, multi slave serial interface bus
• Uses only two bi-directional open drain lines
– SDA : Serial Data Line
– SCL : Serial Clock Line
• Since lines are open drain, these pins needs to
be pulled high.
– Normally pull up resistor will be 4.7 K / 10K

15. I2C Model
I2C
Master
uC
I2C
Slave
I2C
Slave
I2C
Slave
VCC
SCL
SDA
R R

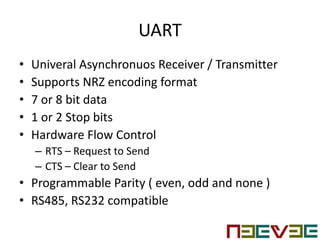

16. UART
• Univeral Asynchronuos Receiver / Transmitter
• Supports NRZ encoding format
• 7 or 8 bit data
• 1 or 2 Stop bits
• Hardware Flow Control
– RTS – Request to Send
– CTS – Clear to Send
• Programmable Parity ( even, odd and none )
• RS485, RS232 compatible

17. UART Interface
NXP
IMX6
UART
Serial
Device
TXD
RXD
RTS
CTS

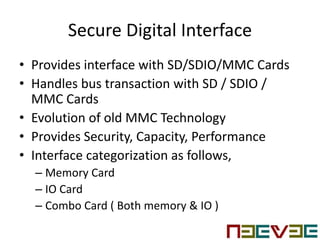

18. Secure Digital Interface
• Provides interface with SD/SDIO/MMC Cards
• Handles bus transaction with SD / SDIO /
MMC Cards
• Evolution of old MMC Technology
• Provides Security, Capacity, Performance
• Interface categorization as follows,
– Memory Card
– IO Card
– Combo Card ( Both memory & IO )

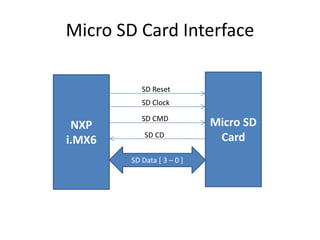

19. Micro SD Card Interface
NXP
i.MX6
Micro SD
Card
SD Data [ 3 – 0 ]
SD Reset
SD Clock
SD CMD
SD CD

20. HDMI
• High Definition Multi Media Interface
• Transfers uncompressed Video, Audio and
Data using a Single Cable
• High bandwidth Data Content Protection
• HDMI System has one to one connectivity with
– HDMI Source which is the transmitter
– HDMI Sinks which is the receiver
• Data Display Channel
– Configuration & Data Exchange in HDMI

21. HDMI Interface

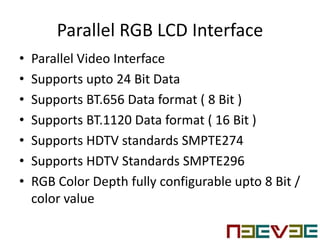

22. Parallel RGB LCD Interface
• Parallel Video Interface
• Supports upto 24 Bit Data
• Supports BT.656 Data format ( 8 Bit )
• Supports BT.1120 Data format ( 16 Bit )
• Supports HDTV standards SMPTE274
• Supports HDTV Standards SMPTE296
• RGB Color Depth fully configurable upto 8 Bit /
color value

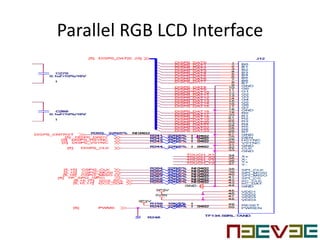

23. Parallel RGB LCD Interface

24. LVDS Display Bridge
• Linear Voltage Differential Signaling
• Used to connect with Display with LVDS receiver
• Featured with Synchronization & Control
• Data arrangement will be based on external
Display
• LVDS Display Port
– 1 Clock Channel
– 4 Data Channel
• Each pair contains LVDS Special differential pads

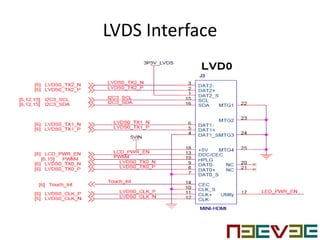

25. LVDS Interface

26. RGMII
• Reduced Giga bit Media Independent Interface
• Used to interface between Ethernet MAC & PHY
• Half the number of data pins used in GMII
• Data clocking will be done at both rising and
falling edges of the clock
• Carrier Sense / Collision Detection
• Management Interface
– Management Interface Clock ( MDC )
– Management Interface I/O ( MDIO )

27. RGMII Interface

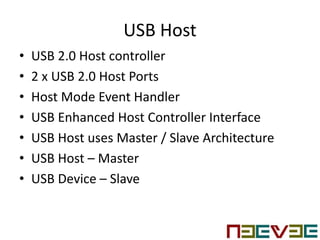

28. USB Host
• USB 2.0 Host controller
• 2 x USB 2.0 Host Ports
• Host Mode Event Handler
• USB Enhanced Host Controller Interface
• USB Host uses Master / Slave Architecture
• USB Host – Master
• USB Device – Slave

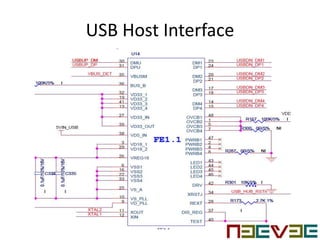

29. USB Host Interface

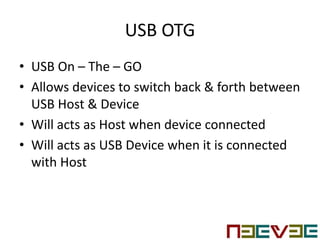

30. USB OTG
• USB On – The – GO
• Allows devices to switch back & forth between
USB Host & Device
• Will acts as Host when device connected
• Will acts as USB Device when it is connected
with Host

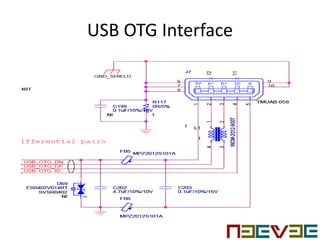

31. USB OTG Interface

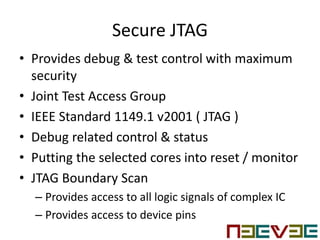

32. Secure JTAG
• Provides debug & test control with maximum
security
• Joint Test Access Group
• IEEE Standard 1149.1 v2001 ( JTAG )
• Debug related control & status
• Putting the selected cores into reset / monitor
• JTAG Boundary Scan
– Provides access to all logic signals of complex IC
– Provides access to device pins

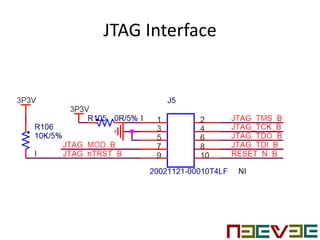

33. JTAG Interface
