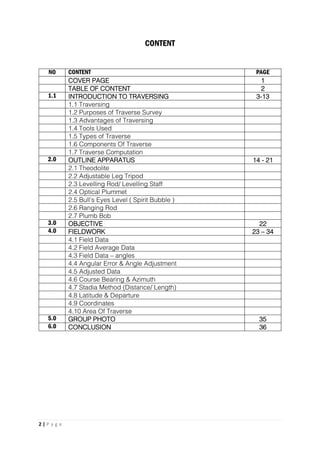

CONTENT
NO CONTENT PAGE
COVER PAGE 1
TABLE OF CONTENT 2
1.1 INTRODUCTION TO TRAVERSING 3-13
1.1 Traversing
1.2 Purposes of Traverse Survey
1.3 Advantages of Traversing
1.4 Tools Used
1.5 Types of Traverse
1.6 Components Of Traverse
1.7 Traverse Computation
2.0 OUTLINE APPARATUS 14 - 21
2.1 Theodolite
2.2 Adjustable Leg Tripod

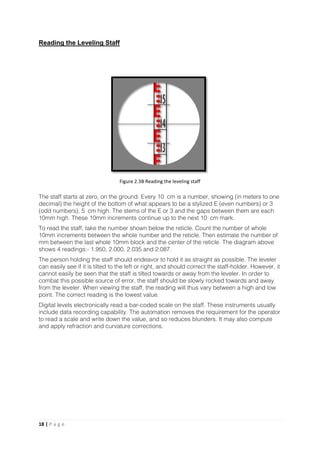

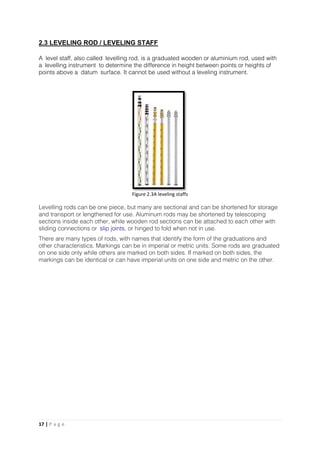

2.3 Levelling Rod/ Levelling Staff

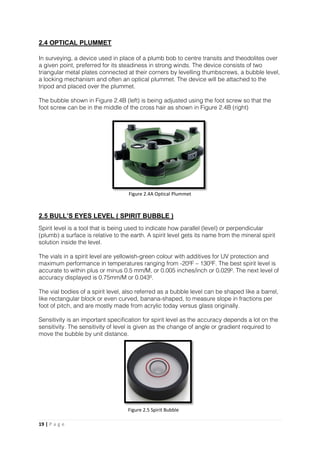

2.4 Optical Plummet
2.5 Bull’s Eyes Level ( Spirit Bubble )

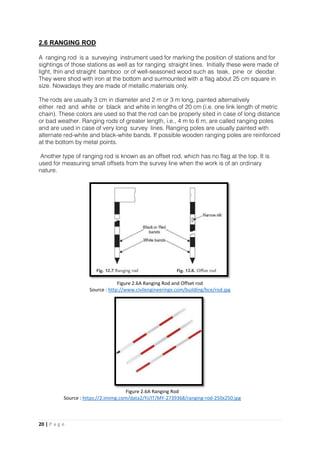

2.6 Ranging Rod

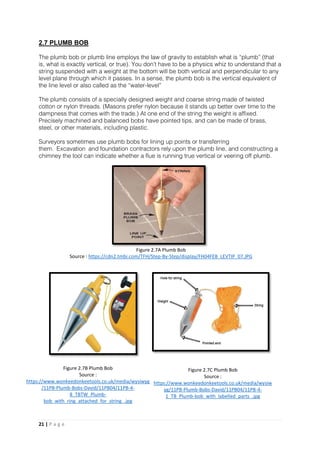

2.7 Plumb Bob

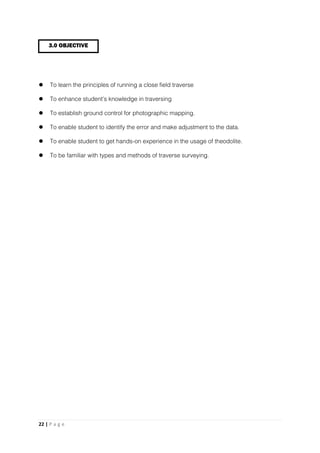

3.0 OBJECTIVE 22
4.0 FIELDWORK 23 – 34

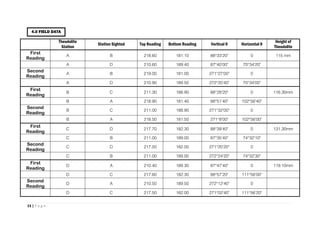

4.1 Field Data

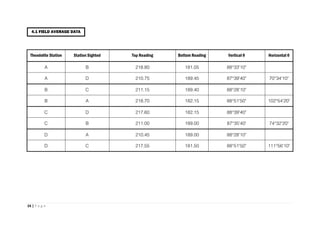

4.2 Field Average Data

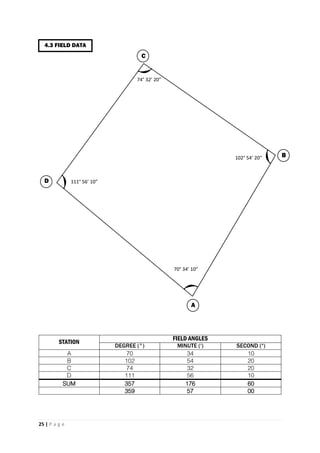

4.3 Field Data – angles
4.4 Angular Error & Angle Adjustment

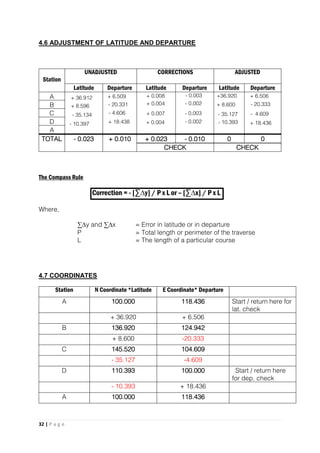

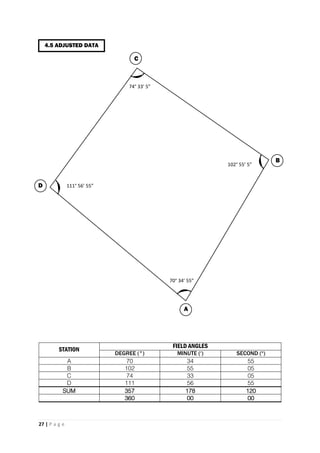

4.5 Adjusted Data

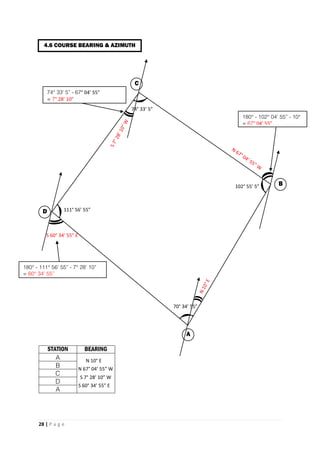

4.6 Course Bearing & Azimuth

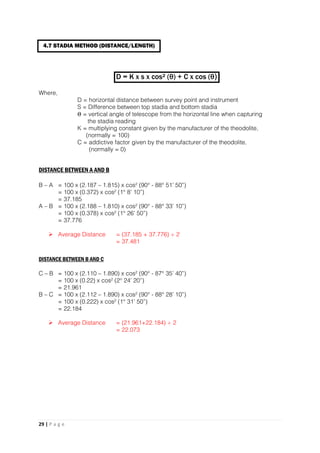

4.7 Stadia Method (Distance/ Length)

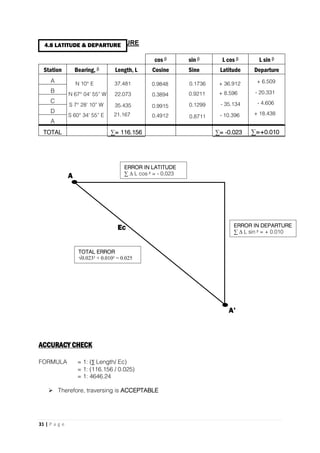

4.8 Latitude & Departure

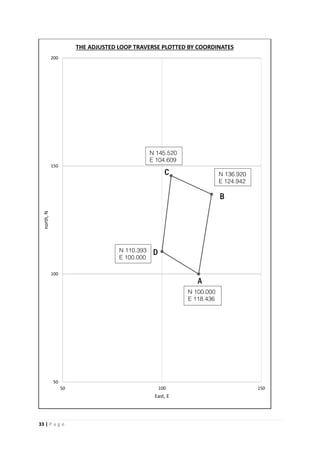

4.9 Coordinates

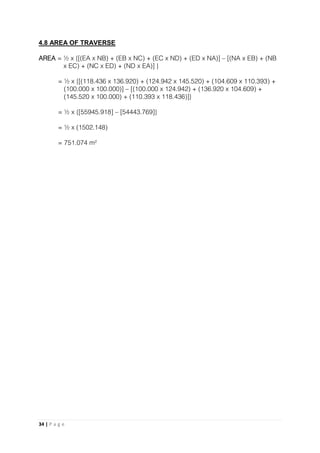

4.10 Area Of Traverse

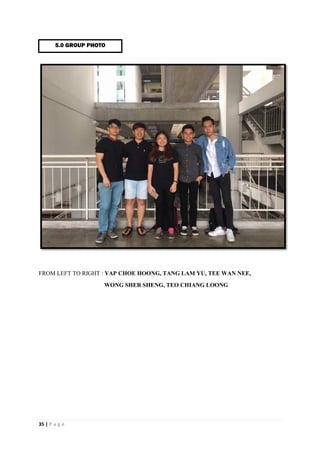

5.0 GROUP PHOTO 35

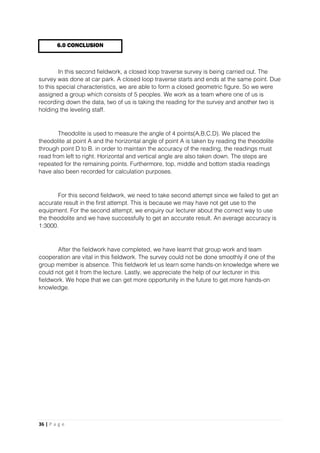

6.0 CONCLUSION 36

3 | P a g e

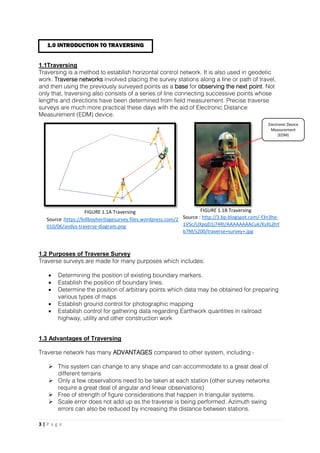

1.1Traversing
Traversing is a method to establish horizontal control network. It is also used in geodetic
work. Traverse networks involved placing the survey stations along a line or path of travel,
and then using the previously surveyed points as a base for observing the next point. Not
only that, traversing also consists of a series of line connecting successive points whose
lengths and directions have been determined from field measurement. Precise traverse
surveys are much more practical these days with the aid of Electronic Distance
Measurement (EDM) device.
1.2 Purposes of Traverse Survey
Traverse surveys are made for many purposes which includes:
 Determining the position of existing boundary markers.
 Establish the position of boundary lines.
 Determine the position of arbitrary points which data may be obtained for preparing
various types of maps
 Establish ground control for photographic mapping
 Establish control for gathering data regarding Earthwork quantities in railroad
highway, utility and other construction work
1.3 Advantages of Traversing
Traverse network has many ADVANTAGES compared to other system, including:-
 This system can change to any shape and can accommodate to a great deal of
different terrains
 Only a few observations need to be taken at each station (other survey networks
require a great deal of angular and linear observations)
 Free of strength of figure considerations that happen in triangular systems.
 Scale error does not add up as the traverse is being performed. Azimuth swing
errors can also be reduced by increasing the distance between stations.
1.0 INTRODUCTION TO TRAVERSING
FIGURE 1.1A Traversing FIGURE 1.1B Traversing
Source :https://billboyheritagesurvey.files.wordpress.com/2
010/06/andys-traverse-diagram.png
Source : http://3.bp.blogspot.com/-f3n3he-
1VSc/UXpqD1j74RI/AAAAAAAACuk/KsXLjlhY
b7M/s200/traverse+survey+.jpg
Electronic Device
Measurement
(EDM)

4 | P a g e

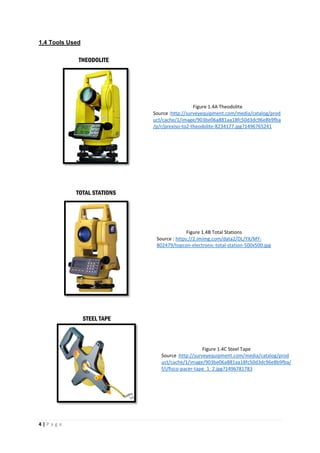

1.4 Tools Used
Figure 1.4A Theodolite
Source :http://surveyequipment.com/media/catalog/prod
uct/cache/1/image/903be06a881aa18fc50d3dc96e8b9fba
/p/r/prexiso-to2-theodolite-8234177.jpg?1496765241
Figure 1.4B Total Stations
Source : https://2.imimg.com/data2/DL/YX/MY-
802479/topcon-electronic-total-station-500x500.jpg
THEODOLITE
TOTAL STATIONS
STEEL TAPE
Figure 1.4C Steel Tape
Source :http://surveyequipment.com/media/catalog/prod
uct/cache/1/image/903be06a881aa18fc50d3dc96e8b9fba/
f/i/fisco-pacer-tape_1_2.jpg?1496781783

5 | P a g e

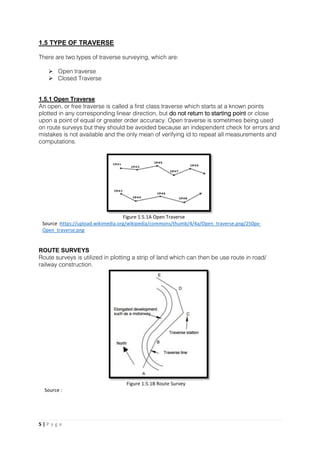

1.5 TYPE OF TRAVERSE
There are two types of traverse surveying, which are:
 Open traverse
 Closed Traverse
1.5.1 Open Traverse
An open, or free traverse is called a first class traverse which starts at a known points
plotted in any corresponding linear direction, but do not return to starting point or close
upon a point of equal or greater order accuracy. Open traverse is sometimes being used
on route surveys but they should be avoided because an independent check for errors and
mistakes is not available and the only mean of verifying id to repeat all measurements and
computations.
ROUTE SURVEYS
Route surveys is utilized in plotting a strip of land which can then be use route in road/
railway construction.
Figure 1.5.1A Open Traverse
Source :https://upload.wikimedia.org/wikipedia/commons/thumb/4/4a/Open_traverse.png/250px-
Figure 1.5.1B Route Survey
Source :

6 | P a g e

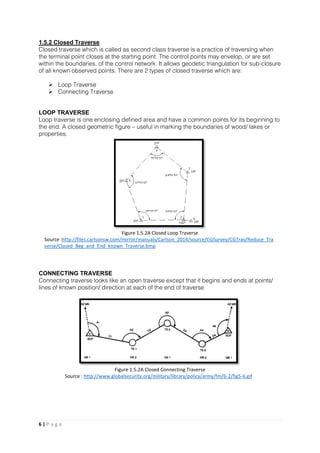

1.5.2 Closed Traverse
Closed traverse which is called as second class traverse is a practice of traversing when
the terminal point closes at the starting point. The control points may envelop, or are set
within the boundaries, of the control network. It allows geodetic triangulation for sub-closure
of all known observed points. There are 2 types of closed traverse which are:
 Loop Traverse
 Connecting Traverse
LOOP TRAVERSE
Loop traverse is one enclosing defined area and have a common points for its beginning to
the end. A closed geometric figure – useful in marking the boundaries of wood/ lakes or
properties.
CONNECTING TRAVERSE
Connecting traverse looks like an open traverse except that it begins and ends at points/
lines of known position/ direction at each of the end of traverse
Figure 1.5.2A Closed Loop Traverse
Source :http://files.carlsonsw.com/mirror/manuals/Carlson_2014/source/CGSurvey/CGTrav/Reduce_Tra
verse/Closed_Beg_and_End_known_Traverse.bmp
Figure 1.5.2A Closed Connecting Traverse
Source : http://www.globalsecurity.org/military/library/policy/army/fm/6-2/fig5-6.gif

7 | P a g e

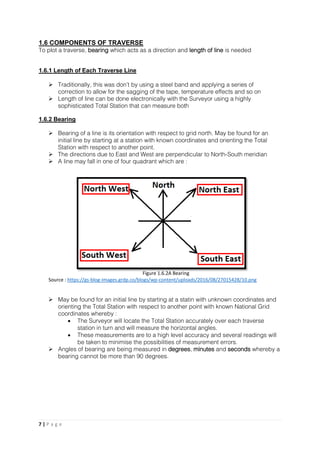

1.6 COMPONENTS OF TRAVERSE
To plot a traverse, bearing which acts as a direction and length of line is needed
1.6.1 Length of Each Traverse Line
 Traditionally, this was don’t by using a steel band and applying a series of
correction to allow for the sagging of the tape, temperature effects and so on
 Length of line can be done electronically with the Surveyor using a highly
sophisticated Total Station that can measure both
1.6.2 Bearing
 Bearing of a line is its orientation with respect to grid north. May be found for an
initial line by starting at a station with known coordinates and orienting the Total
Station with respect to another point.
 The directions due to East and West are perpendicular to North-South meridian
 A line may fall in one of four quadrant which are :
 May be found for an initial line by starting at a statin with unknown coordinates and
orienting the Total Station with respect to another point with known National Grid
coordinates whereby :
 The Surveyor will locate the Total Station accurately over each traverse
station in turn and will measure the horizontal angles.
 These measurements are to a high level accuracy and several readings will
be taken to minimise the possibilities of measurement errors.
 Angles of bearing are being measured in degrees, minutes and seconds whereby a
bearing cannot be more than 90 degrees.
Figure 1.6.2A Bearing
Source : https://gs-blog-images.grdp.co/blogs/wp-content/uploads/2016/08/27015428/10.png

8 | P a g e

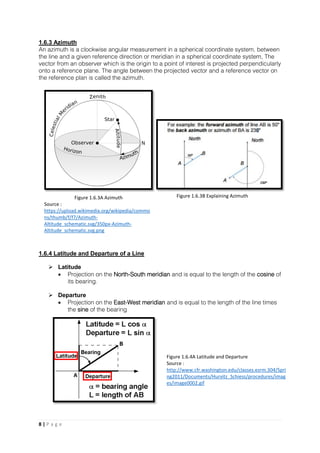

1.6.3 Azimuth
An azimuth is a clockwise angular measurement in a spherical coordinate system, between
the line and a given reference direction or meridian in a spherical coordinate system, The
vector from an observer which is the origin to a point of interest is projected perpendicularly
onto a reference plane. The angle between the projected vector and a reference vector on
the reference plan is called the azimuth.
1.6.4 Latitude and Departure of a Line
 Latitude
 Projection on the North-South meridian and is equal to the length of the cosine of
its bearing.
 Departure
 Projection on the East-West meridian and is equal to the length of the line times
the sine of the bearing
Figure 1.6.3A Azimuth
Source :
https://upload.wikimedia.org/wikipedia/commo
ns/thumb/f/f7/Azimuth-
Altitude_schematic.svg/350px-Azimuth-
Figure 1.6.3B Explaining Azimuth
Figure 1.6.4A Latitude and Departure
Source :
http://www.cfr.washington.edu/classes.esrm.304/Spri
ng2011/Documents/Hurvitz_Schiess/procedures/imag
es/image0002.gif

9 | P a g e

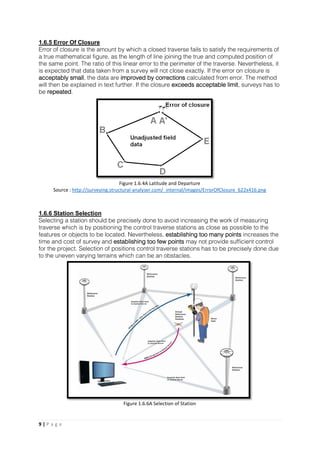

1.6.5 Error Of Closure
Error of closure is the amount by which a closed traverse fails to satisfy the requirements of
a true mathematical figure, as the length of line joining the true and computed position of
the same point. The ratio of this linear error to the perimeter of the traverse. Nevertheless, it
is expected that data taken from a survey will not close exactly. If the error on closure is
acceptably small, the data are improved by corrections calculated from error. The method
will then be explained in text further. If the closure exceeds acceptable limit, surveys has to
be repeated.
1.6.6 Station Selection
Selecting a station should be precisely done to avoid increasing the work of measuring
traverse which is by positioning the control traverse stations as close as possible to the
features or objects to be located. Nevertheless, establishing too many points increases the
time and cost of survey and establishing too few points may not provide sufficient control
for the project. Selection of positions control traverse stations has to be precisely done due
to the uneven varying terrains which can be an obstacles.
Figure 1.6.4A Latitude and Departure
Source : http://surveying.structural-analyser.com/_internal/images/ErrorOfClosure_622x416.png
Figure 1.6.6A Selection of Station

10 | P a g e
(n – 2)(180°)
1.7 TRAVERSE COMPUTATION
Traverse computation is the process of taking field measurement through aserioes
of mathematical calculation to determine final traverse size and configuration. These
calculations include error compensation as well as reformation to determine
quantities not directly measured.
Traverse computation steps are:
1.7.1 BALANCE AND ADJUSTING ANGLES
 Before the areas of a place of land can be computed, it is necessary to have
closed traverse.
 The interior angle of the closed traverse should be total of
Where n is the number of sides of the traverse
1.7.2 DETERMINING THE BEARINGS AND LINE OF DIRECTIONS
Source : http://www.globalsecurity.org/military/library/policy/army/fm/3-34-331/ch5-1.gif
Source : http://www.globalsecurity.org/military/library/policy/army/fm/3-34-331/ch5-1.gif

11 | P a g e

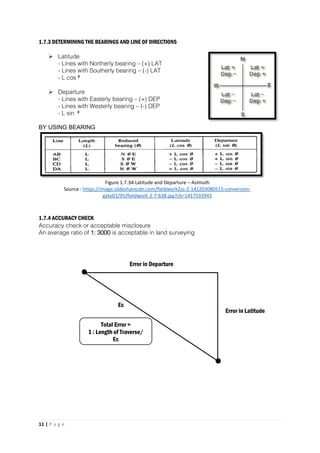

1.7.3 DETERMINING THE BEARINGS AND LINE OF DIRECTIONS
 Latitude
- Lines with Northerly bearing – (+) LAT
- Lines with Southerly bearing – (-) LAT
- L cos ᵝ
 Departure
- Lines with Easterly bearing – (+) DEP
- Lines with Westerly bearing – (-) DEP
- L sin ᵝ
BY USING BEARING
1.7.4 ACCURACY CHECK
Accuracy check or acceptable misclosure
An average ratio of 1: 3000 is acceptable in land surveying
Figure 1.7.3A Latitude and Departure – Azimuth
Source : https://image.slidesharecdn.com/fieldwork2ss-2-141203080515-conversion-
gate01/95/fieldwork-2-7-638.jpg?cb=1417593945
Error in Latitude
Error in Departure
Total Error =
1 : Length of Traverse/
Ec
Ec

12 | P a g e
1.7.4 ADJUSTING TRAVERSE MISCLOSURE
 Correction in Latitude
Total Latitude Misclosure
Traverse Perimeter
 Correction in Departure
Total Departure Misclosure
Traverse Perimeter
1.7.5 DETERMINE ADJUSTED LINE LENGTHS AND DIRECTIONS AND COMPUTING COORDINATES
 N₂ = N₁ + Lat₁₋₂
 E₂ = E₁ + Dep₁₋₂
 Where,
N₂ and E₂ = the Y and X coordinates of Station 2
N₁ and E₁ = the Y and X coordinates of Station 1
Lat₁₋₂ = the latitude of course 1-2
Dep₁₋₂ = the departure of course 1-2

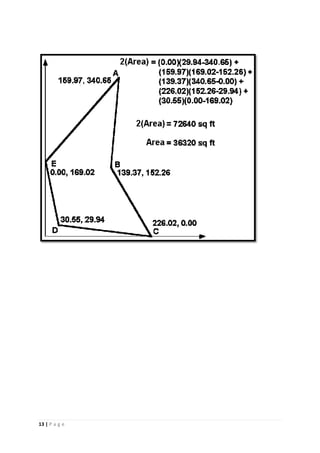

1.7.6 COMPUTING AREA
X Length of Station
X Length of Station
Figure 1.7.4A Adjusting traverse misclosure
Source : http://engineeringtraining.tpub.com/14070/img/14070_131_18.jpg

14 | P a g e

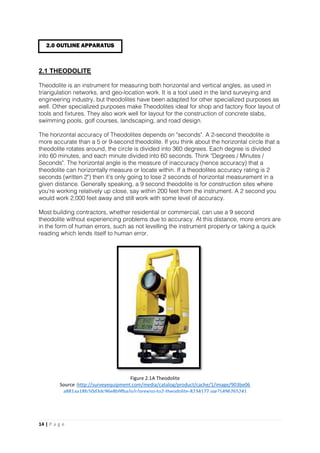

2.1 THEODOLITE
Theodolite is an instrument for measuring both horizontal and vertical angles, as used in
triangulation networks, and geo-location work. It is a tool used in the land surveying and
engineering industry, but theodolites have been adapted for other specialized purposes as
well. Other specialized purposes make Theodolites ideal for shop and factory floor layout of
tools and fixtures. They also work well for layout for the construction of concrete slabs,
swimming pools, golf courses, landscaping, and road design.
The horizontal accuracy of Theodolites depends on "seconds". A 2-second theodolite is
more accurate than a 5 or 9-second theodolite. If you think about the horizontal circle that a
theodolite rotates around, the circle is divided into 360 degrees. Each degree is divided
into 60 minutes, and each minute divided into 60 seconds. Think "Degrees / Minutes /
Seconds". The horizontal angle is the measure of inaccuracy (hence accuracy) that a
theodolite can horizontally measure or locate within. If a theodolites accuracy rating is 2
seconds (written 2") then it’s only going to lose 2 seconds of horizontal measurement in a
given distance. Generally speaking, a 9 second theodolite is for construction sites where
you're working relatively up close, say within 200 feet from the instrument. A 2 second you
would work 2,000 feet away and still work with some level of accuracy.
Most building contractors, whether residential or commercial, can use a 9 second
theodolite without experiencing problems due to accuracy. At this distance, more errors are
in the form of human errors, such as not levelling the instrument properly or taking a quick
reading which lends itself to human error.
2.0 OUTLINE APPARATUS
Figure 2.1A Theodolite
Source :http://surveyequipment.com/media/catalog/product/cache/1/image/903be06
a881aa18fc50d3dc96e8b9fba/p/r/prexiso-to2-theodolite-8234177.jpg?1496765241

15 | P a g e
Like other leveling instruments, a theodolite consists of a telescope mounted on a base.
The telescope has a sight on the top of it that is used to align the target. The instrument has
a focusing knob that is used to make the object clear. The telescope contains an eyepiece
that the user looks through to find the target being sighted. An objective lens is also located
on the telescope, but is on the opposite end as the eyepiece. The objective lens is used to
sight the object, and with the help of the mirrors inside the telescope, allows the object to
be magnified. The theodolite's base is threaded for easy mounting on a tripod.
A theodolite works by combining optical plummets (or plumb bobs), a spirit (bubble level),
and graduated circles to find vertical and horizontal angles in surveying. An optical
plummet ensures the theodolite is placed as close to exactly vertical above the survey
point. The internal spirit level makes sure the device is level to to the horizon. The
graduated circles, one vertical and one horizontal, allow the user to actually survey for
angles
Figure 2.1B Side View of Theodolite
Source : http://www.johnsonlevel.com/Content/files/TheodoliteParts.png
Figure 2.1C Sectional View of Theodolite
Source : http://www.johnsonlevel.com/Content/files/TheodoliteParts.png

16 | P a g e

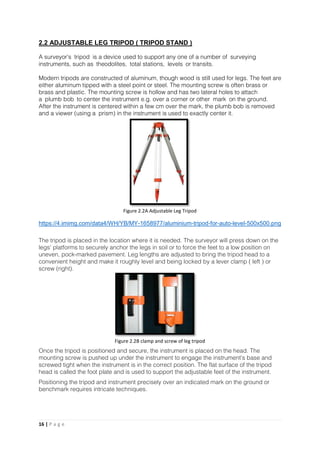

2.2 ADJUSTABLE LEG TRIPOD ( TRIPOD STAND )
A surveyor's tripod is a device used to support any one of a number of surveying
instruments, such as theodolites, total stations, levels or transits.
Modern tripods are constructed of aluminum, though wood is still used for legs. The feet are
either aluminum tipped with a steel point or steel. The mounting screw is often brass or
brass and plastic. The mounting screw is hollow and has two lateral holes to attach
a plumb bob to center the instrument e.g. over a corner or other mark on the ground.
After the instrument is centered within a few cm over the mark, the plumb bob is removed
and a viewer (using a prism) in the instrument is used to exactly center it.
https://4.imimg.com/data4/WH/YB/MY-1658977/aluminium-tripod-for-auto-level-500x500.png
The tripod is placed in the location where it is needed. The surveyor will press down on the
legs' platforms to securely anchor the legs in soil or to force the feet to a low position on
uneven, pock-marked pavement. Leg lengths are adjusted to bring the tripod head to a
convenient height and make it roughly level and being locked by a lever clamp ( left ) or
screw (right).
Once the tripod is positioned and secure, the instrument is placed on the head. The
mounting screw is pushed up under the instrument to engage the instrument's base and
screwed tight when the instrument is in the correct position. The flat surface of the tripod
head is called the foot plate and is used to support the adjustable feet of the instrument.
Positioning the tripod and instrument precisely over an indicated mark on the ground or
benchmark requires intricate techniques.
Figure 2.2A Adjustable Leg Tripod
Figure 2.2B clamp and screw of leg tripod

17 | P a g e
2.3 LEVELING ROD / LEVELING STAFF
A level staff, also called levelling rod, is a graduated wooden or aluminium rod, used with
a levelling instrument to determine the difference in height between points or heights of
points above a datum surface. It cannot be used without a leveling instrument.
Levelling rods can be one piece, but many are sectional and can be shortened for storage
and transport or lengthened for use. Aluminum rods may be shortened by telescoping
sections inside each other, while wooden rod sections can be attached to each other with
sliding connections or slip joints, or hinged to fold when not in use.
There are many types of rods, with names that identify the form of the graduations and
other characteristics. Markings can be in imperial or metric units. Some rods are graduated
on one side only while others are marked on both sides. If marked on both sides, the
markings can be identical or can have imperial units on one side and metric on the other.
Figure 2.3A leveling staffs

18 | P a g e
Reading the Leveling Staff
The staff starts at zero, on the ground. Every 10 cm is a number, showing (in meters to one
decimal) the height of the bottom of what appears to be a stylized E (even numbers) or 3
(odd numbers), 5 cm high. The stems of the E or 3 and the gaps between them are each
10mm high. These 10mm increments continue up to the next 10 cm mark.
To read the staff, take the number shown below the reticle. Count the number of whole
10mm increments between the whole number and the reticle. Then estimate the number of
mm between the last whole 10mm block and the center of the reticle. The diagram above
shows 4 readings:- 1.950, 2.000, 2.035 and 2.087.
The person holding the staff should endeavor to hold it as straight as possible. The leveler
can easily see if it is tilted to the left or right, and should correct the staff-holder. However, it
cannot easily be seen that the staff is tilted towards or away from the leveler. In order to
combat this possible source of error, the staff should be slowly rocked towards and away
from the leveler. When viewing the staff, the reading will thus vary between a high and low
point. The correct reading is the lowest value.
Digital levels electronically read a bar-coded scale on the staff. These instruments usually
include data recording capability. The automation removes the requirement for the operator
to read a scale and write down the value, and so reduces blunders. It may also compute
and apply refraction and curvature corrections.
Figure 2.3B Reading the leveling staff

19 | P a g e
2.4 OPTICAL PLUMMET
In surveying, a device used in place of a plumb bob to centre transits and theodolites over
a given point, preferred for its steadiness in strong winds. The device consists of two
triangular metal plates connected at their corners by levelling thumbscrews, a bubble level,
a locking mechanism and often an optical plummet. The device will be attached to the
tripod and placed over the plummet.
The bubble shown in Figure 2.4B (left) is being adjusted using the foot screw so that the
foot screw can be in the middle of the cross hair as shown in Figure 2.4B (right)
2.5 BULL’S EYES LEVEL ( SPIRIT BUBBLE )
Spirit level is a tool that is being used to indicate how parallel (level) or perpendicular
(plumb) a surface is relative to the earth. A spirit level gets its name from the mineral spirit
solution inside the level.
The vials in a spirit level are yellowish-green colour with additives for UV protection and
maximum performance in temperatures ranging from -20ºF – 130ºF. The best spirit level is
accurate to within plus or minus 0.5 mm/M, or 0.005 inches/inch or 0.029º. The next level of
accuracy displayed is 0.75mm/M or 0.043º.
The vial bodies of a spirit level, also referred as a bubble level can be shaped like a barrel,
like rectangular block or even curved, banana-shaped, to measure slope in fractions per
foot of pitch, and are mostly made from acrylic today versus glass originally.
Sensitivity is an important specification for spirit level as the accuracy depends a lot on the
sensitivity. The sensitivity of level is given as the change of angle or gradient required to
move the bubble by unit distance.
Figure 2.4A Optical Plummet
Figure 2.5 Spirit Bubble

20 | P a g e
2.6 RANGING ROD
A ranging rod is a surveying instrument used for marking the position of stations and for
sightings of those stations as well as for ranging straight lines. Initially these were made of
light, thin and straight bamboo or of well-seasoned wood such as teak, pine or deodar.
They were shod with iron at the bottom and surmounted with a flag about 25 cm square in
size. Nowadays they are made of metallic materials only.
The rods are usually 3 cm in diameter and 2 m or 3 m long, painted alternatively
either red and white or black and white in lengths of 20 cm (i.e. one link length of metric
chain). These colors are used so that the rod can be properly sited in case of long distance
or bad weather. Ranging rods of greater length, i.e., 4 m to 6 m, are called ranging poles
and are used in case of very long survey lines. Ranging poles are usually painted with
alternate red-white and black-white bands. If possible wooden ranging poles are reinforced
at the bottom by metal points.
Another type of ranging rod is known as an offset rod, which has no flag at the top. It is
used for measuring small offsets from the survey line when the work is of an ordinary
nature.
Figure 2.6A Ranging Rod and Offset rod
Source : http://www.civilengineeringx.com/building/bce/rod.jpg
Figure 2.6A Ranging Rod
Source : https://2.imimg.com/data2/YJ/IT/MY-2739368/ranging-rod-250x250.jpg

21 | P a g e
2.7 PLUMB BOB
The plumb bob or plumb line employs the law of gravity to establish what is “plumb” (that
is, what is exactly vertical, or true). You don’t have to be a physics whiz to understand that a
string suspended with a weight at the bottom will be both vertical and perpendicular to any
level plane through which it passes. In a sense, the plumb bob is the vertical equivalent of
the line level or also called as the “water-level”
The plumb consists of a specially designed weight and coarse string made of twisted
cotton or nylon threads. (Masons prefer nylon because it stands up better over time to the
dampness that comes with the trade.) At one end of the string the weight is affixed.
Precisely machined and balanced bobs have pointed tips, and can be made of brass,
steel, or other materials, including plastic.
Surveyors sometimes use plumb bobs for lining up points or transferring
them. Excavation and foundation contractors rely upon the plumb line, and constructing a
chimney the tool can indicate whether a flue is running true vertical or veering off plumb.
Figure 2.7A Plumb Bob
Source : https://cdn2.tmbi.com/TFH/Step-By-Step/display/FH04FEB_LEVTIP_07.JPG
Figure 2.7B Plumb Bob
Source :
https://www.wonkeedonkeetools.co.uk/media/wysiwyg
/11PB-Plumb-Bobs-David/11PB04/11PB-4-
8_TBTW_Plumb-
Figure 2.7C Plumb Bob
Source :
https://www.wonkeedonkeetools.co.uk/media/wysiw
yg/11PB-Plumb-Bobs-David/11PB04/11PB-4-

22 | P a g e
 To learn the principles of running a close field traverse
 To enhance student’s knowledge in traversing
 To establish ground control for photographic mapping.
 To enable student to identify the error and make adjustment to the data.
 To enable student to get hands-on experience in the usage of theodolite.
 To be familiar with types and methods of traverse surveying.
3.0 OBJECTIVE

23 | P a g e
Theodolite
Station
Station Sighted Top Reading Bottom Reading Vertical θ Horizontal θ
Height of
Theodolite
First
Reading
A B 218.60 181.10 88°33'20" 0 115 mm
A D 210.60 189.40 87°40'00" 70°34'20"
Second
Reading
A B 219.00 181.00 271°27'00" 0
A D 210.90 189.50 272°20'40" 70°34'00"
First
Reading
B C 211.30 188.90 88°28'20" 0 116.30mm
B A 218.90 181.40 88°51'40" 102°56'40"
Second
Reading
B C 211.00 188.90 271°32'00" 0
B A 218.50 181.50 271°8'00" 102°56'00"
First
Reading
C D 217.70 182.30 88°39'40" 0 131.30mm
C B 211.00 189.00 87°35'40" 74°32'10"
Second
Reading
C D 217.50 182.00 271°20'20" 0
C B 211.00 189.00 272°24'20" 74°32'30"
First
Reading
D A 210.40 189.30 87°47'40" 0 119.10mm
D C 217.60 182.30 88°57'20" 111°56'00"
Second
Reading
D A 210.50 189.50 272°12'40" 0
D C 217.50 182.00 271°02'40" 111°56'20"
4.0 FIELD DATA

24 | P a g e
Theodolite Station Station Sighted Top Reading Bottom Reading Vertical θ Horizontal θ
A B 218.80 181.05 88°33'10"
A D 210.75 189.45 87°39'40" 70°34'10"
B C 211.15 189.40 88°28'10"
B A 218.70 182.15 88°51'50" 102°54'20"
C D 217.60 182.15 88°39'40"
C B 211.00 189.00 87°35'40' 74°32'20"
D A 210.45 189.00 88°28'10"
D C 217.55 181.50 88°51'50" 111°56'10"
4.1 FIELD AVERAGE DATA

25 | P a g e
STATION
FIELD ANGLES
DEGREE (°) MINUTE (‘) SECOND (“)
A 70 34 10
B 102 54 20
C 74 32 20
D 111 56 10
SUM 357 176 60
359 57 00
4.3 FIELD DATA
A
D
C
B
70° 34’ 10”
111° 56’ 10”
102° 54’ 20”
74° 32’ 20”

26 | P a g e
4.1
Interior Angle = (n-2) X 180°
= (4-2) X 180°
= 360°
Total Angular Error = 360° - 359° 57’ 00”
= 00° 03’ 00”
Error Per Angle = 00° 03’ 00” ÷ 4
= 00° 00’ 45” / 45” per angle
STATION FIELD ANGLE CORRECTION ADJUSTED ANGLE
A 70° 34’ 10” + 00° 00’ 45” 70° 34’ 55”
B 102° 54’ 20” + 00° 00’ 45” 102° 55’ 5”
C 74° 32’ 20” + 00° 00’ 45” 74° 33’ 5”
D 111° 56’ 10” + 00° 00’ 45” 111° 56’ 55”
TOTAL 359° 57’ 00” + 00° 03’ 00” 360° 00’ 00”
4.4 ANGULAR ERROR & ANGLE ADJUSTMENT

27 | P a g e
STATION
FIELD ANGLES
DEGREE (°) MINUTE (‘) SECOND (“)
A 70 34 55
B 102 55 05
C 74 33 05
D 111 56 55
SUM 357 178 120
360 00 00
4.5 ADJUSTED DATA
A
D
B
70° 34’ 55”
111° 56’ 55”
102° 55’ 5”
74° 33’ 5”
C

28 | P a g e
STATION BEARING
A
B
C
D
A
A
D
B
C
70° 34’ 55”
102° 55’ 5”
111° 56’ 55”
74° 33’ 5”
180° - 102° 04’ 55” - 10°
= 67° 04’ 55”
74° 33’ 5” - 67° 04’ 55”
= 7° 28’ 10”
180° - 111° 56’ 55” - 7° 28’ 10”
= 60° 34’ 55”
S 60° 34’ 55” E
N 10° E
N 67° 04’ 55” W
S 7° 28’ 10” W
S 60° 34’ 55” E
4.6 COURSE BEARING & AZIMUTH

29 | P a g e
D = K x s x cos² (θ) + C x cos (θ)
Where,
D = horizontal distance between survey point and instrument
S = Difference between top stadia and bottom stadia
Θ = vertical angle of telescope from the horizontal line when capturing
the stadia reading
K = multiplying constant given by the manufacturer of the theodolite,
(normally = 100)
C = addictive factor given by the manufacturer of the theodolite,
(normally = 0)
DISTANCE BETWEEN A AND B
B – A = 100 x (2.187 – 1.815) x cos² (90° - 88° 51’ 50”)
= 100 x (0.372) x cos² (1° 8’ 10”)
= 37.185
A – B = 100 x (2.188 – 1.810) x cos² (90° - 88° 33’ 10”)
= 100 x (0.378) x cos² (1° 26’ 50”)
= 37.776
 Average Distance = (37.185 + 37.776) ÷ 2
= 37.481
DISTANCE BETWEEN B AND C
C – B = 100 x (2.110 – 1.890) x cos² (90° - 87° 35’ 40”)
= 100 x (0.22) x cos² (2° 24’ 20”)
= 21.961
B – C = 100 x (2.112 – 1.890) x cos² (90° - 88° 28’ 10”)
= 100 x (0.222) x cos² (1° 31’ 50”)
= 22.184
 Average Distance = (21.961+22.184) ÷ 2
= 22.073
4.7 STADIA METHOD (DISTANCE/LENGTH)

30 | P a g e

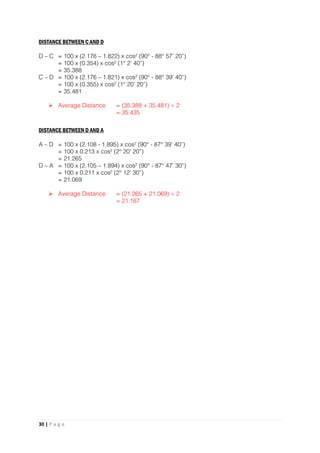

DISTANCE BETWEEN C AND D
D – C = 100 x (2.176 – 1.822) x cos² (90° - 88° 57’ 20”)
= 100 x (0.354) x cos² (1° 2’ 40”)
= 35.388
C – D = 100 x (2.176 – 1.821) x cos² (90° - 88° 39’ 40”)
= 100 x (0.355) x cos² (1° 20’ 20”)
= 35.481
= 35.435
DISTANCE BETWEEN D AND A
A – D = 100 x (2.108 - 1.895) x cos² (90° - 87° 39’ 40”)
= 100 x 0.213 x cos² (2° 20’ 20”)
= 21.265
D – A = 100 x (2.105 – 1.894) x cos² (90° - 87° 47’ 30”)
= 100 x 0.211 x cos² (2° 12’ 30”)
= 21.069
= 21.167

31 | P a g e
4.5 LATITUDE AND DEPARTURE
cos ᵝ sin ᵝ L cos ᵝ L sin ᵝ
Station Bearing, ᵝ Length, L Cosine Sine Latitude Departure
A
B
C
D
A
TOTAL ∑= 116.156 ∑= -0.023 ∑=+0.010
ACCURACY CHECK
FORMULA = 1: (∑ Length/ Ec)
= 1: (116.156 / 0.025)
= 1: 4646.24
 Therefore, traversing is ACCEPTABLE
N 10° E 37.481
N 67° 04’ 55” W
S 7° 28’ 10” W
S 60° 34’ 55” E 21.167
35.435
22.073
+ 18.438
0.9211 + 8.5960.3894
+ 6.5090.1736 + 36.9120.9848
- 10.3960.4912
- 4.6060.1299 - 35.1340.9915
- 20.331
0.8711
ERROR IN LATITUDE
∑ ∆ L cos ᵝ = - 0.023
ERROR IN DEPARTURE
∑ ∆ L sin ᵝ = + 0.010
A
A’
TOTAL ERROR
√0.023² + 0.010² = 0.025
EC
4.8 LATITUDE & DEPARTURE

32 | P a g e
4.6 ADJUSTMENT OF LATITUDE AND DEPARTURE
Station
UNADJUSTED CORRECTIONS ADJUSTED
Latitude Departure Latitude Departure Latitude Departure
A
B
C
D
A
TOTAL - 0.023 + 0.010 + 0.023 - 0.010 0 0
CHECK CHECK
The Compass Rule
Correction = - [∑∆y] / P x L or – [∑∆x] / P x L
Where,
∑∆y and ∑∆x = Error in latitude or in departure
P = Total length or perimeter of the traverse
L = The length of a particular course
4.7 COORDINATES
Station N Coordinate *Latitude E Coordinate* Departure
A 100.000 118.436 Start / return here for
lat. check
+ 36.920 + 6.506
B 136.920 124.942
+ 8.600 -20.333
C 145.520 104.609
- 35.127 -4.609
D 110.393 100.000 Start / return here
for dep. check
- 10.393 + 18.436
A 100.000 118.436
+ 36.912
+ 8.596
- 35.134
- 10.397
+ 6.509
- 20.331
- 4.606
+ 18.438
- 0.002
+36.920
+ 0.004
+ 0.008
+ 0.007
+ 0.004
- 0.003
- 0.003
- 0.002
+ 6.506
- 35.127
- 10.393
+ 8.600
- 4.609
+ 18.436
- 20.333

33 | P a g e
50
100
150
200
50 100 150
north,N
East, E
THE ADJUSTED LOOP TRAVERSE PLOTTED BY COORDINATES
A
N 100.000
E 118.436
N 136.920
E 124.942
N 110.393
E 100.000
N 145.520
E 104.609
B
C
D

34 | P a g e
4.8 AREA OF TRAVERSE
AREA = ½ x {[(EA x NB) + (EB x NC) + (EC x ND) + (ED x NA)] – [(NA x EB) + (NB
x EC) + (NC x ED) + (ND x EA)] }
= ½ x {[(118.436 x 136.920) + (124.942 x 145.520) + (104.609 x 110.393) +
(100.000 x 100.000)] – [(100.000 x 124.942) + (136.920 x 104.609) +
(145.520 x 100.000) + (110.393 x 118.436)]}
= ½ x {[55945.918] – [54443.769]}
= ½ x (1502.148)
= 751.074 m²

35 | P a g e
FROM LEFT TO RIGHT : YAP CHOE HOONG, TANG LAM YU, TEE WAN NEE,
WONG SHER SHENG, TEO CHIANG LOONG
5.0 GROUP PHOTO

36 | P a g e
In this second fieldwork, a closed loop traverse survey is being carried out. The
survey was done at car park. A closed loop traverse starts and ends at the same point. Due
to this special characteristics, we are able to form a closed geometric figure. So we were
assigned a group which consists of 5 peoples. We work as a team where one of us is
recording down the data, two of us is taking the reading for the survey and another two is
holding the leveling staff.
Theodolite is used to measure the angle of 4 points(A,B,C,D). We placed the
theodolite at point A and the horizontal angle of point A is taken by reading the theodolite
through point D to B. in order to maintain the accuracy of the reading, the readings must
read from left to right. Horizontal and vertical angle are also taken down. The steps are
repeated for the remaining points. Furthermore, top, middle and bottom stadia readings
have also been recorded for calculation purposes.
For this second fieldwork, we need to take second attempt since we failed to get an
accurate result in the first attempt. This is because we may have not get use to the
equipment. For the second attempt, we enquiry our lecturer about the correct way to use
the theodolite and we have successfully to get an accurate result. An average accuracy is
1:3000.
After the fieldwork have completed, we have learnt that group work and team
cooperation are vital in this fieldwork. The survey could not be done smoothly if one of the
group member is absence. This fieldwork let us learn some hands-on knowledge where we
could not get it from the lecture. Lastly, we appreciate the help of our lecturer in this
fieldwork. We hope that we can get more opportunity in the future to get more hands-on
knowledge.
6.0 CONCLUSION

Site surveying 2 done
